This technical data sheet provides information on FMF731, a double sided aluminum foil glass fiber mesh facing. The facing has a composition of 7 μm aluminum foil, 40 g/m2 LDPE adhesive, and 31 g/m2 glass fiber plain fabric with another 7 μm aluminum foil layer. Key properties include a basis weight of 100 g/m2, thickness of 0.16 mm, tensile strength of 177.8 N/25 mm MD and 165.9 N/25 mm XD, burst strength of 367.1 kPa, and 97% reflectivity with no delamination from -29°C to 66°C. The facing comes in roll widths of 1000mm or 1200mm and lengths

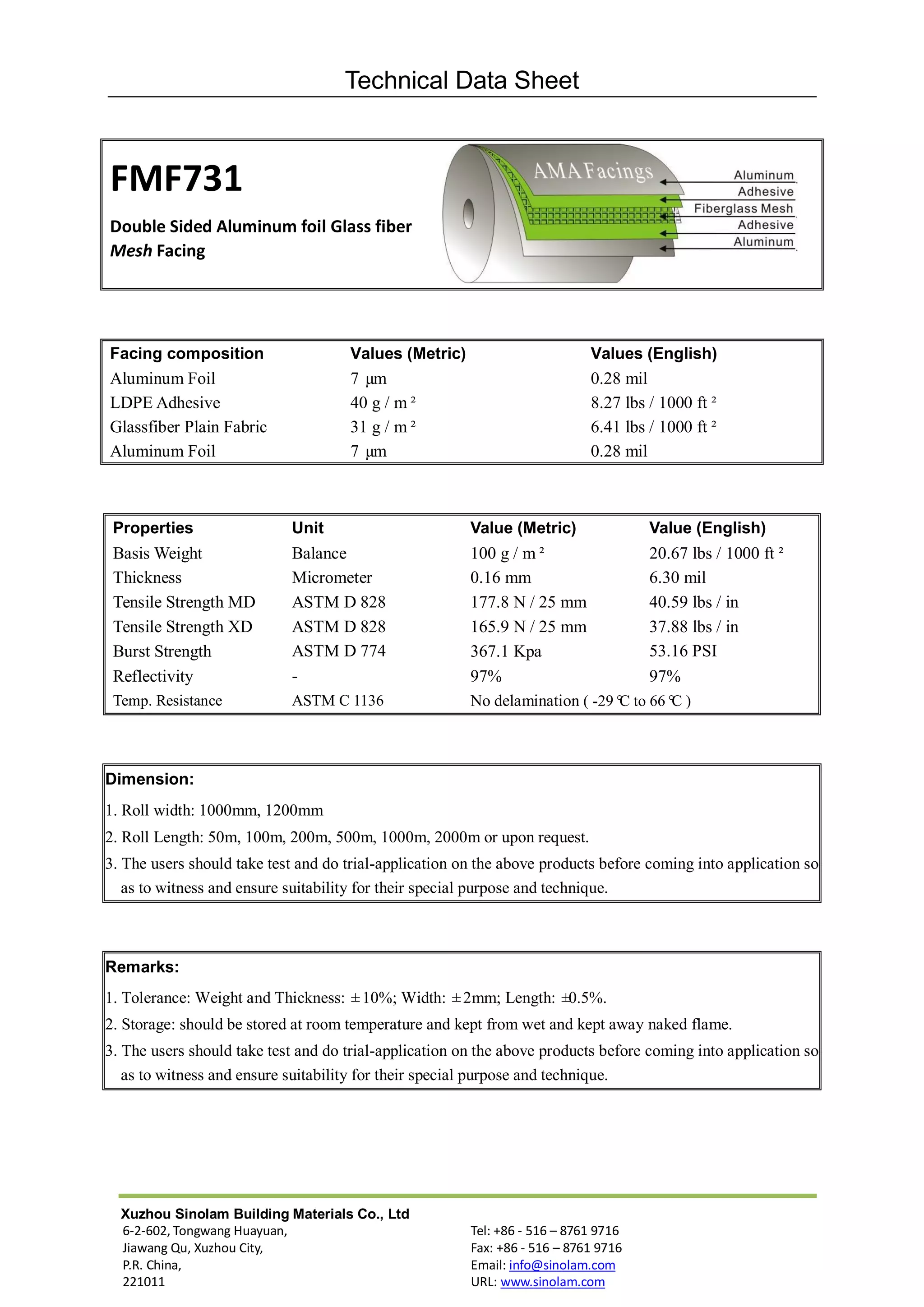

1. Technical Data Sheet
FMF731
Double Sided Aluminum foil Glass fiber
Mesh Facing
Facing composition Values (Metric) Values (English)
Aluminum Foil 7 µm 0.28 mil
LDPE Adhesive 40 g / m² 8.27 lbs / 1000 ft²
Glassfiber Plain Fabric 31 g / m² 6.41 lbs / 1000 ft²
Aluminum Foil 7 µm 0.28 mil
Properties Unit Value (Metric) Value (English)
Basis Weight Balance 100 g / m² 20.67 lbs / 1000 ft²
Thickness Micrometer 0.16 mm 6.30 mil
Tensile Strength MD ASTM D 828 177.8 N / 25 mm 40.59 lbs / in
Tensile Strength XD ASTM D 828 165.9 N / 25 mm 37.88 lbs / in
Burst Strength ASTM D 774 367.1 Kpa 53.16 PSI
Reflectivity - 97% 97%
Temp. Resistance ASTM C 1136 No delamination ( -29° to 66° )
C C
Dimension:
1. Roll width: 1000mm, 1200mm
2. Roll Length: 50m, 100m, 200m, 500m, 1000m, 2000m or upon request.
3. The users should take test and do trial-application on the above products before coming into application so
as to witness and ensure suitability for their special purpose and technique.
Remarks:
1. Tolerance: Weight and Thickness: ±10%; Width: ±2mm; Length: ±0.5%.
2. Storage: should be stored at room temperature and kept from wet and kept away naked flame.
3. The users should take test and do trial-application on the above products before coming into application so
as to witness and ensure suitability for their special purpose and technique.
Xuzhou Sinolam Building Materials Co., Ltd
6-2-602, Tongwang Huayuan, Tel: +86 - 516 – 8761 9716
Jiawang Qu, Xuzhou City, Fax: +86 - 516 – 8761 9716
P.R. China, Email: info@sinolam.com
221011 URL: www.sinolam.com
