This proposal outlines various internal signage options for Buddh International Circuit, including double sided wayfinding totems in two sizes, replaceable pole totems, access gate signages, channel letters, wall mounted signages, hanging signages, door signages, general wayfinding pole mounted signages, and grandstand signages. The proposal provides specifications and diagrams for each signage type, describing materials, sizes, mounting options, and graphics.
Buddh International Circuit
- 1. Proposal for InternalSignages for Buddh International Circuit 3M Commercial Graphics Division www.signagegroup.com

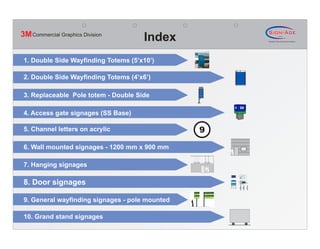

- 2. 3M Commercial GraphicsDivision Index 1. Double Side Wayfinding Totems (5’x10’) 2. Double Side Wayfinding Totems (4’x6’) 3. Replaceable Pole totem - Double Side 4. Access gate signages (SS Base) 5. Channel letters on acrylic 6. Wall mounted signages - 1200 mm x 900 mm 7. Hanging signages a 8. Door signages b 90 .0 0° c d e 9. General wayfinding signages - pole mounted 10. Grand stand signages

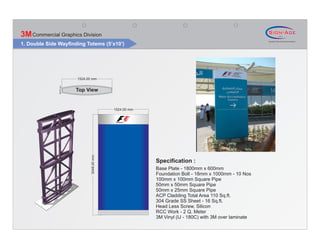

- 3. 3M Commercial GraphicsDivision 1. Double Side Wayfinding Totems (5’x10’) 1524.00 mm 150.00 mm Top View 1524.00 mm 3048.00 mm Specification : Base Plate - 1800mm x 600mm Foundation Bolt - 18mm x 1000mm - 10 Nos 100mm x 100mm Square Pipe 50mm x 50mm Square Pipe 50mm x 25mm Square Pipe ACP Cladding Total Area 110 Sq.ft. 304 Grade SS Sheet - 16 Sq.ft. Head Less Screw, Silicon RCC Work - 2 Q. Meter 3M Vinyl (IJ - 180C) with 3M over laminate

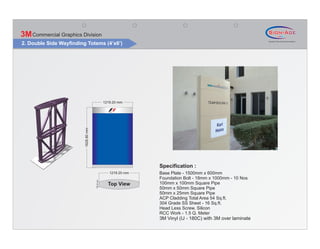

- 4. 3M Commercial GraphicsDivision 2. Double Side Wayfinding Totems (4’x6’) 1219.20 mm 1828.80 mm Specification : 1219.20 mm Base Plate - 1500mm x 600mm Foundation Bolt - 18mm x 1000mm - 10 Nos 150.00 mm Top View 100mm x 100mm Square Pipe 50mm x 50mm Square Pipe 50mm x 25mm Square Pipe ACP Cladding Total Area 54 Sq.ft. 304 Grade SS Sheet - 16 Sq.ft. Head Less Screw, Silicon RCC Work - 1.5 Q. Meter 3M Vinyl (IJ - 180C) with 3M over laminate

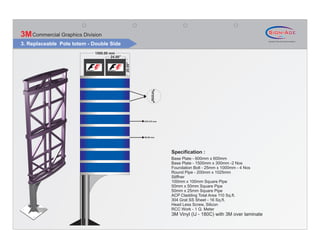

- 5. 3M Commercial GraphicsDivision 3. Replaceable Pole totem - Double Side 1500.00 mm 24.00" 20.00" 300.00 mm 279.375 mm 85.00 mm Specification : Base Plate - 600mm x 600mm Base Plate - 1500mm x 300mm -2 Nos Foundation Bolt - 25mm x 1000mm - 4 Nos Round Pipe - 200mm x 1025mm Stiffner 100mm x 100mm Square Pipe 50mm x 50mm Square Pipe 50mm x 25mm Square Pipe ACP Cladding Total Area 110 Sq.ft. 304 Grat SS Sheet - 16 Sq.ft. Head Less Screw, Silicon RCC Work - 1 Q. Meter 3M Vinyl (IJ - 180C) with 3M over laminate

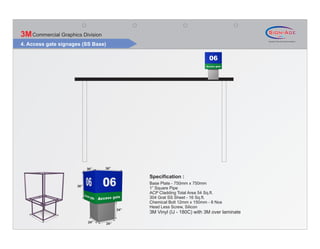

- 6. 3M Commercial GraphicsDivision 4. Access gate signages (SS Base) 36” 36” Specification : Base Plate - 750mm x 750mm 36” 1” Square Pipe ACP Cladding Total Area 54 Sq.ft. 304 Grat SS Sheet - 16 Sq.ft. Chemical Bolt 12mm x 150mm - 8 Nos Head Less Screw, Silicon 24” 3M Vinyl (IJ - 180C) with 3M over laminate 24” 24”

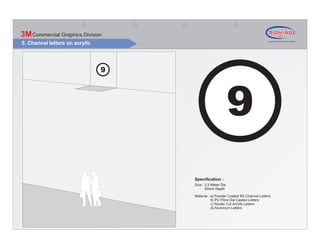

- 7. 3M Commercial GraphicsDivision 5. Channel letters on acrylic Specification : Size : 2.5 Meter Dia 50mm Depth Material : a) Powder Coated SS Channel Letters b) PU Fibre Die Casted Letters c) Router Cut Acrylic Letters d) Aluminum Letters

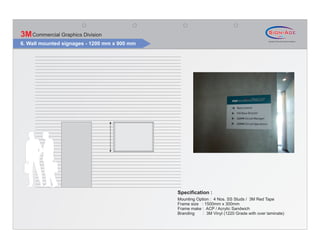

- 8. 3M Commercial GraphicsDivision 6. Wall mounted signages - 1200 mm x 900 mm Specification : Mounting Option : 4 Nos. SS Studs / 3M Red Tape Frame size : 1500mm x 300mm Frame make : ACP / Acrylic Sandwich Branding : 3M Vinyl (1220 Grade with over laminate)

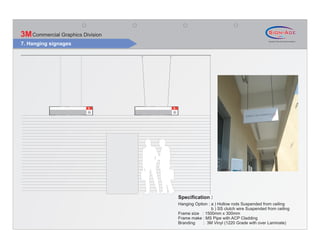

- 9. 3M Commercial GraphicsDivision 7. Hanging signages Specification : Hanging Option : a ) Hollow rods Suspended from ceiling b ) SS clutch wire Suspended from ceiling Frame size : 1500mm x 300mm Frame make : MS Pipe with ACP Cladding Branding : 3M Vinyl (1220 Grade with over Laminate)

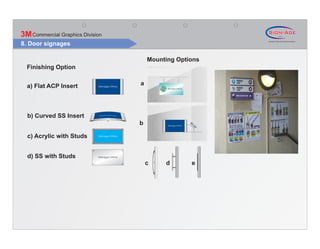

- 10. 3M Commercial GraphicsDivision 8. Door signages Mounting Options Finishing Option a) Flat ACP Insert a b) Curved SS Insert b 90 .0 0° c) Acrylic with Studs d) SS with Studs c d e

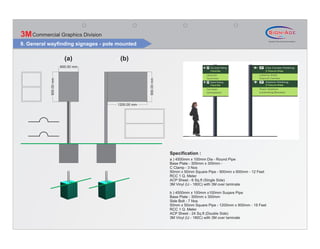

- 11. 3M Commercial GraphicsDivision 9. General wayfinding signages - pole mounted (a) (b) 600.00 mm 900.00 mm 900.00 mm 1200.00 mm Specification : a ) 4500mm x 100mm Dia - Round Pipe Base Plate - 300mm x 300mm - C Clamp - 3 Nos 50mm x 50mm Square Pipe - 900mm x 600mm - 12 Feet RCC 1 Q. Meter ACP Sheet - 6 Sq.ft (Single Side) 3M Vinyl (IJ - 180C) with 3M over laminate b ) 4500mm x 100mm x100mm Suqare Pipe Base Plate - 300mm x 300mm Side Bolt - 7 Nos 50mm x 50mm Square Pipe - 1200mm x 900mm - 18 Feet RCC 1 Q. Meter ACP Sheet - 24 Sq.ft (Double Side) 3M Vinyl (IJ - 180C) with 3M over laminate

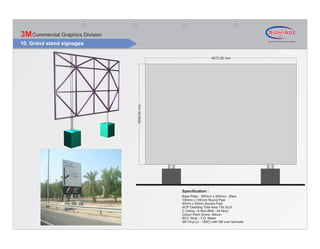

- 12. 3M Commercial GraphicsDivision 10. Grand stand signages 4572.00 mm 3048.00 mm Specification : Base Plate - 300mm x 300mm - 2Nos 100mm x 100mm Round Pipe 50mm x 50mm Square Pipe ACP Cladding Total Area 150 Sq.ft. C Clamp - 6 Nos (Bolt - 24 Nos) Colour Paint Screw, Silicon RCC Work - 3 Q. Meter 3M Vinyl (IJ - 180C) with 3M over laminate
- 13. 3M Commercial GraphicsDivision Thank You
- 14. Proposal for InternalSignages for Buddh International Circuit
