TBSS proposes to develop a mobile platform for radar remote control and monitoring, aiming to integrate with various radar brands including Terma and Raytheon. The project is expected to cost SGD 191,500 and will take 8 months to complete, targeting a significant market opportunity with customization of interface protocols. The projected revenue over five years is approximately USD 515,500, highlighting the product's potential in the maritime technology sector.

1. Dr LEE Kar Heng
Chief TBSS Group
Ph.D, M.Eng, M.Sc, B.Tech(Hons), MIEEE
Certified Teacher in Higher Education SEDA & TP
MPA-SSA
Project Proposal
Design and Development of Mobile
Platform for Radar Remote Control
and Monitoring with Radar Display

2. 2
• TBSS Center for Electrical and Electronics
Engineering
• 362 Upper Paya Lebar Road, #07-15 Da Jin
Factory Building, S534963
• LEE Kar Heng, Director and Technical Chief
Applicant

3. 3
Project Title
• Design and Development of Mobile Platform for
Radar Remote Control and Monitoring with
Radar Display
Control,
Status,
Video
Data

4. 4

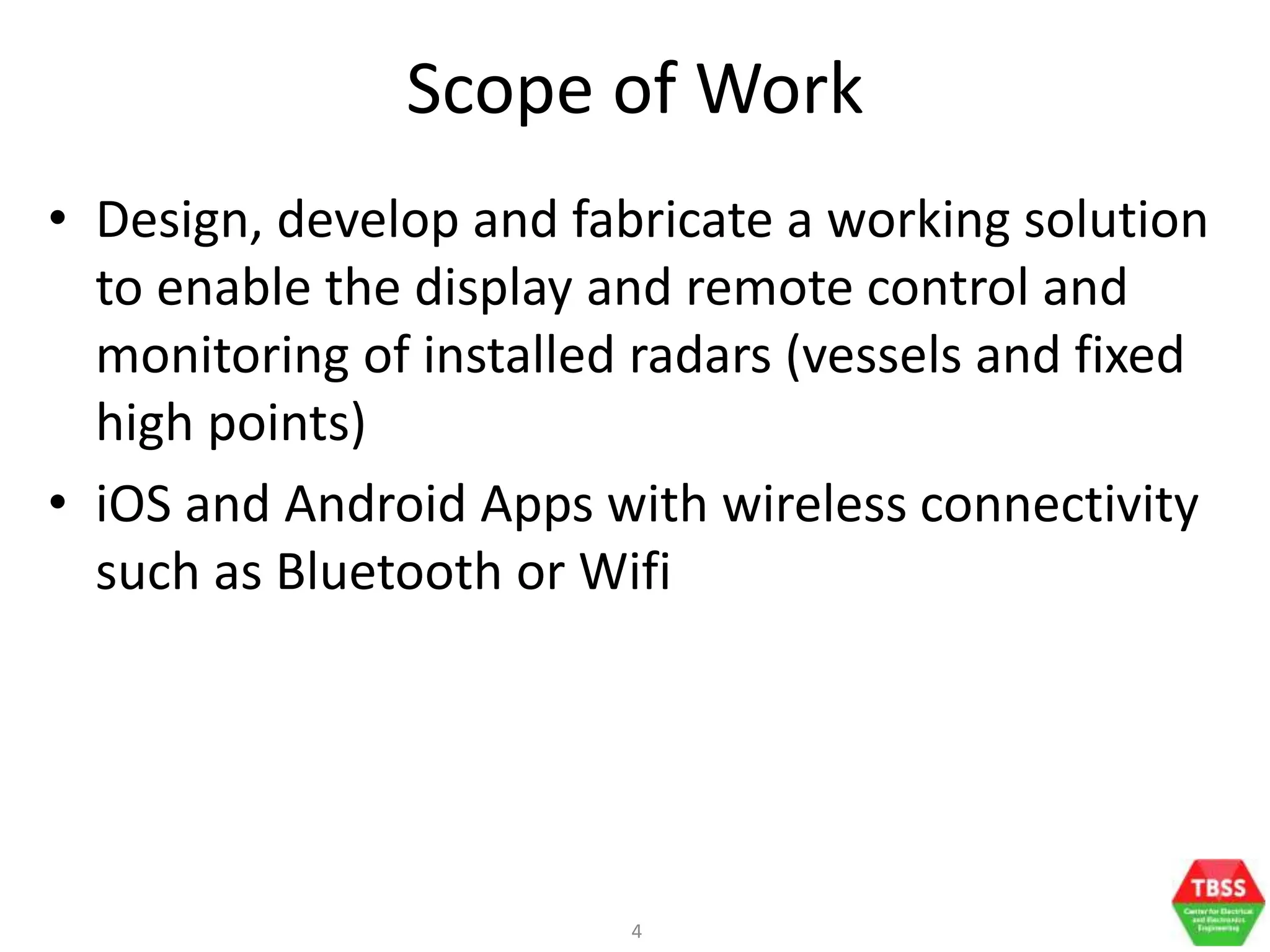

Scope of Work
• Design, develop and fabricate a working solution
to enable the display and remote control and
monitoring of installed radars (vessels and fixed
high points)
• iOS and Android Apps with wireless connectivity
such as Bluetooth or Wifi

5. 5

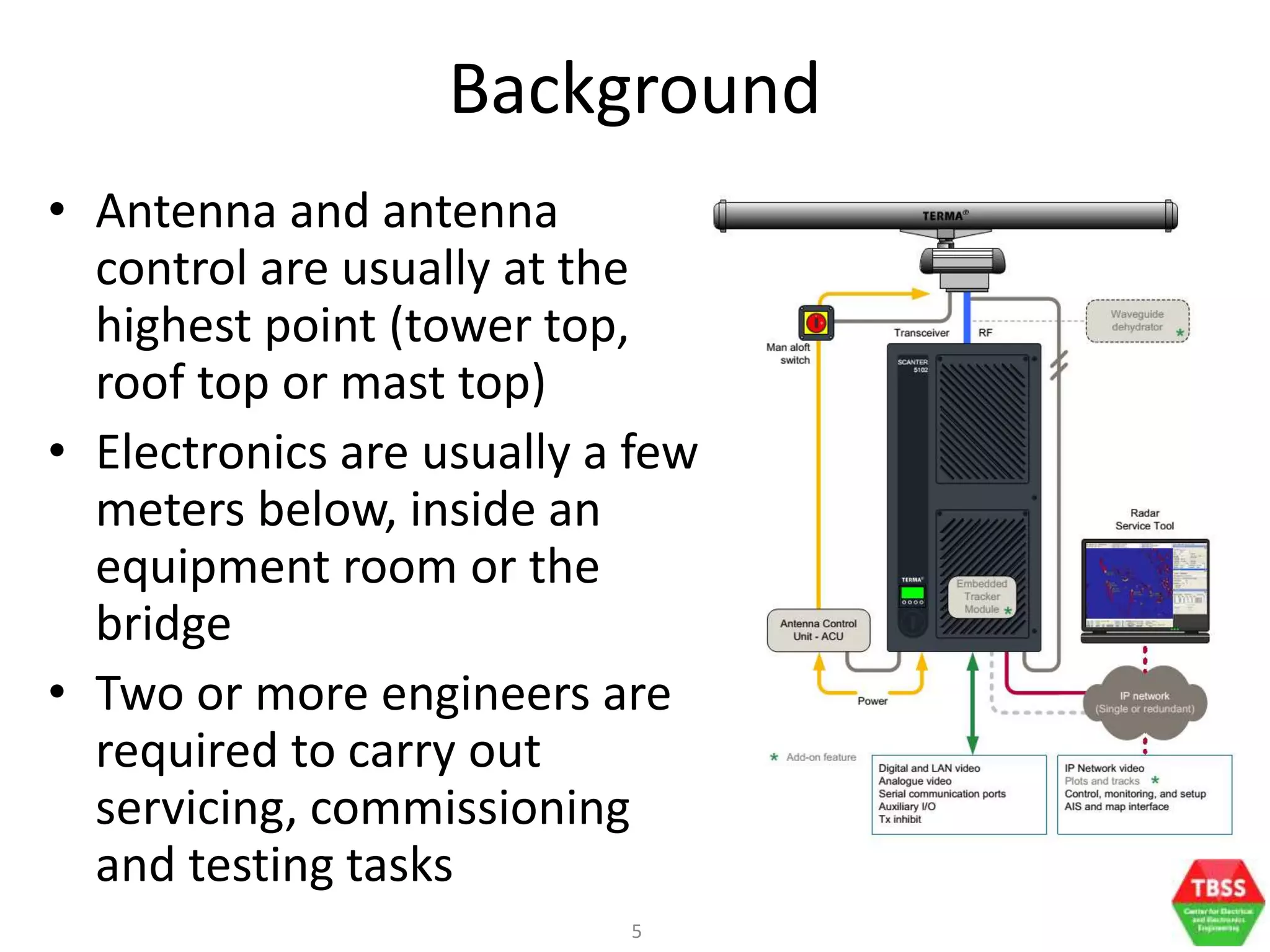

Background
• Antenna and antenna
control are usually at the
highest point (tower top,
roof top or mast top)
• Electronics are usually a few
meters below, inside an
equipment room or the
bridge
• Two or more engineers are
required to carry out
servicing, commissioning
and testing tasks

6. 6

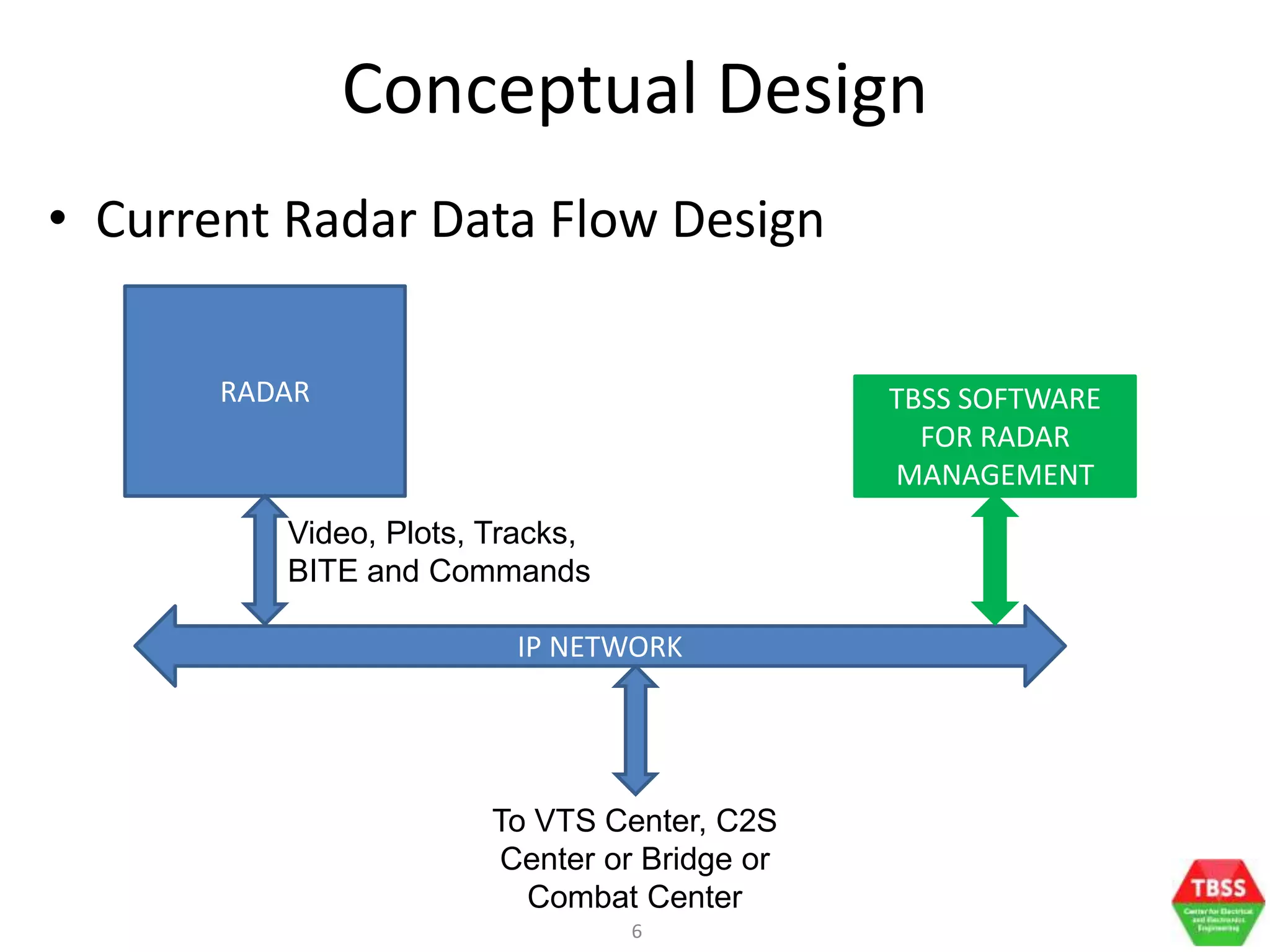

Conceptual Design
• Current Radar Data Flow Design
RADAR TBSS SOFTWARE
FOR RADAR
MANAGEMENT
IP NETWORK
Video, Plots, Tracks,
BITE and Commands
To VTS Center, C2S
Center or Bridge or
Combat Center

7. 7

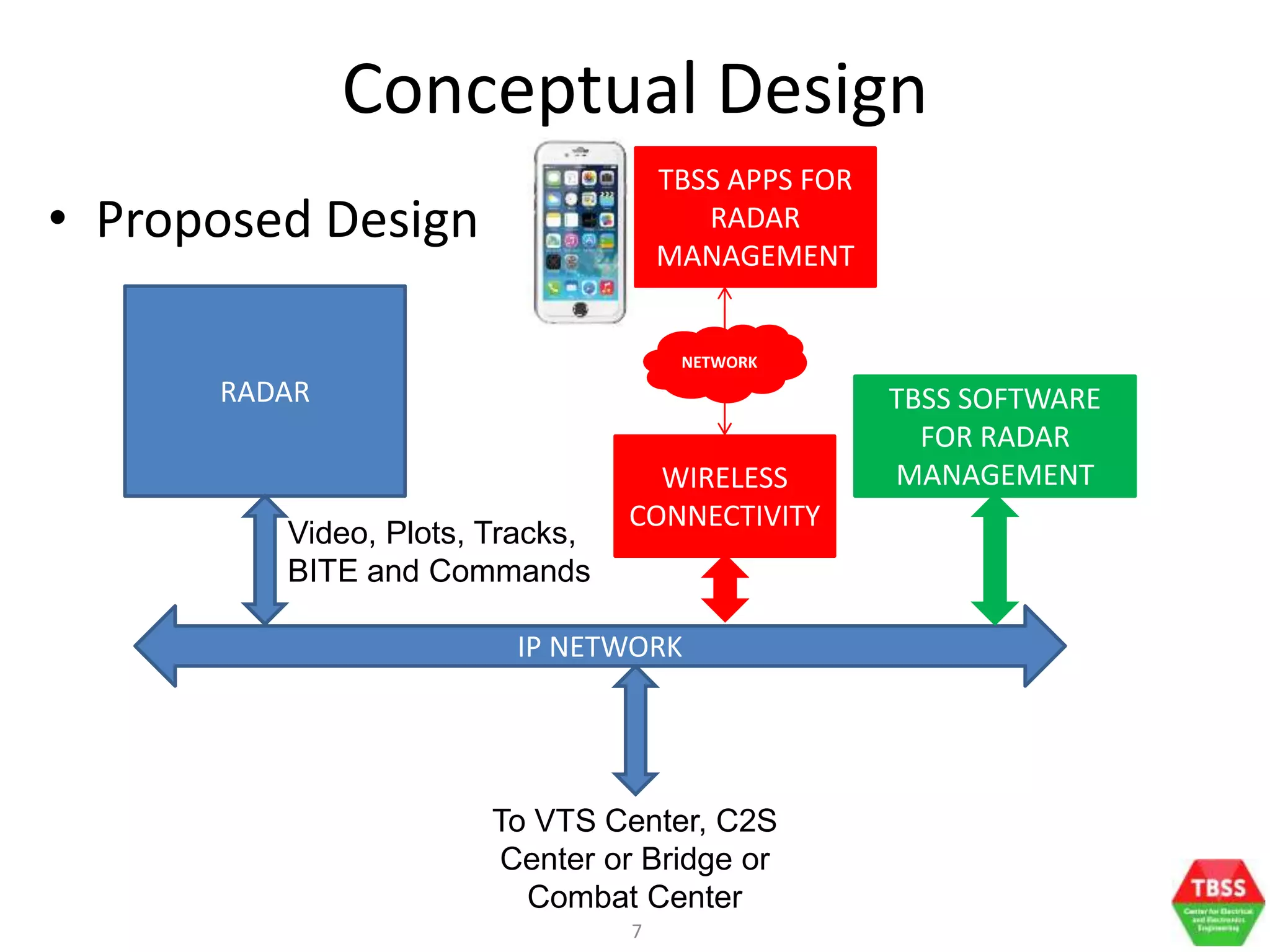

Conceptual Design
• Proposed Design
RADAR TBSS SOFTWARE
FOR RADAR
MANAGEMENT
IP NETWORK
Video, Plots, Tracks,
BITE and Commands
To VTS Center, C2S
Center or Bridge or
Combat Center
WIRELESS
CONNECTIVITY
TBSS APPS FOR
RADAR
MANAGEMENT
NETWORK

8. 8

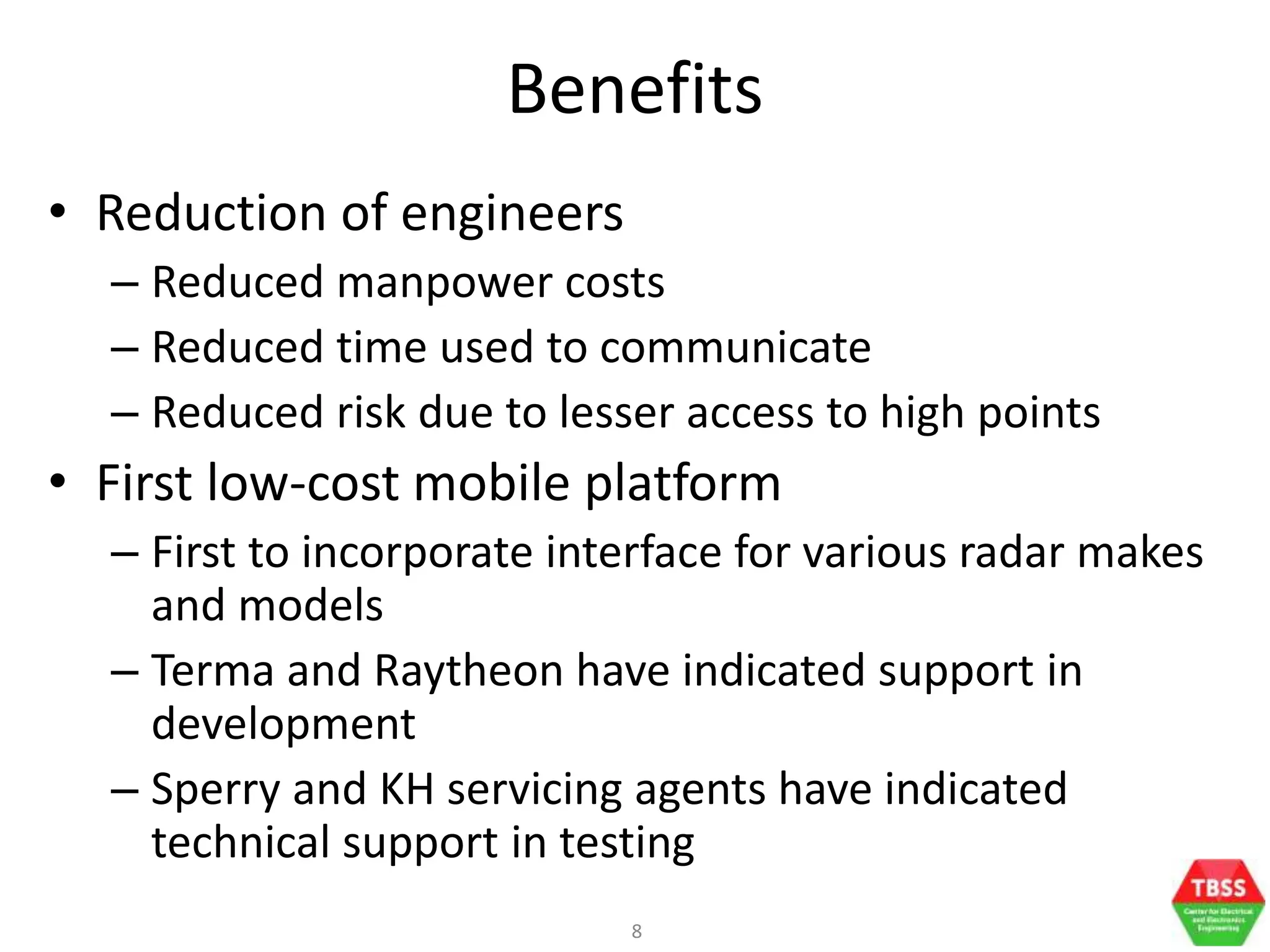

Benefits
• Reduction of engineers
– Reduced manpower costs
– Reduced time used to communicate
– Reduced risk due to lesser access to high points
• First low-cost mobile platform
– First to incorporate interface for various radar makes
and models
– Terma and Raytheon have indicated support in
development
– Sperry and KH servicing agents have indicated
technical support in testing

9. 9

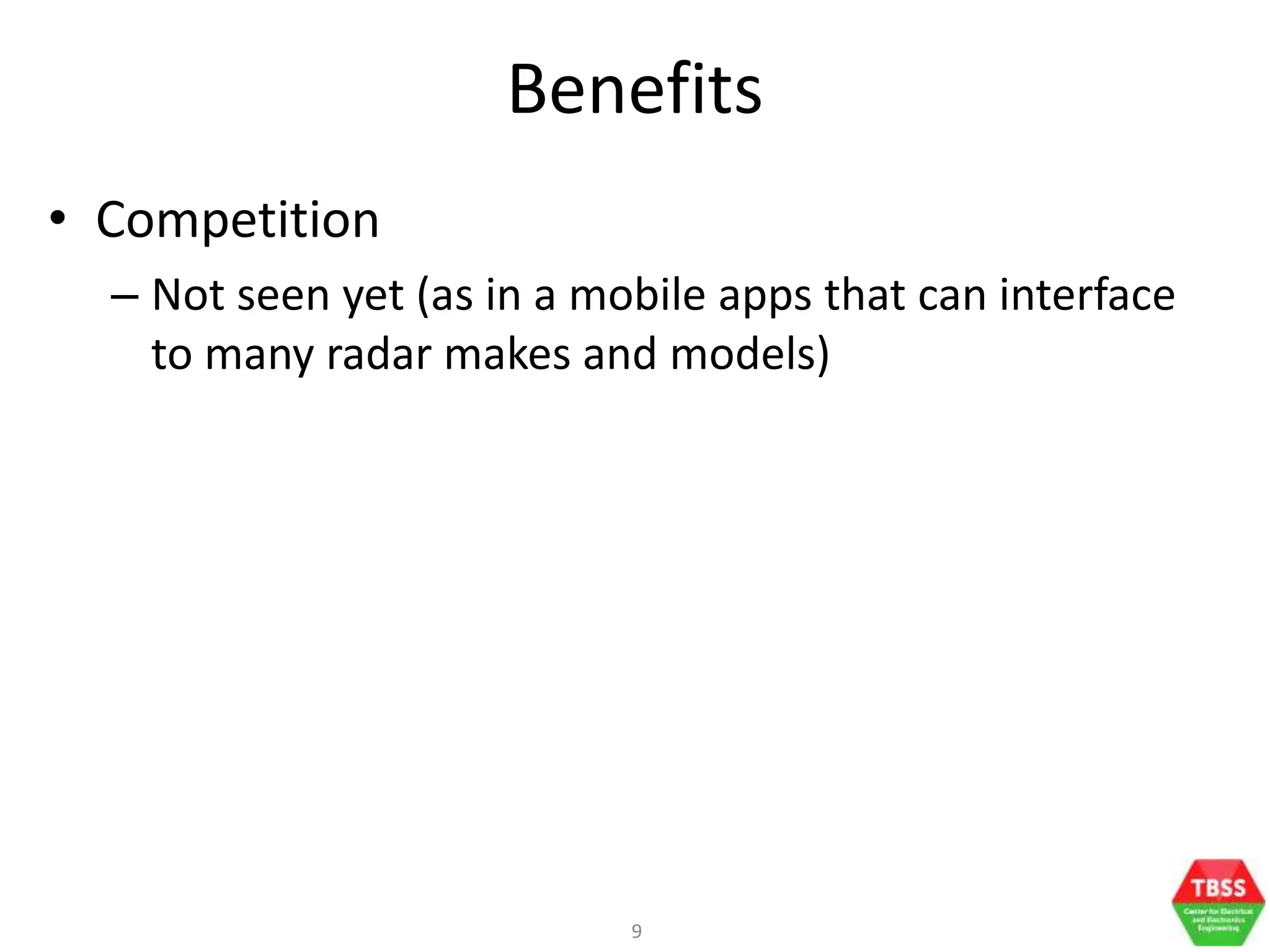

Benefits
• Competition
– Not seen yet (as in a mobile apps that can interface
to many radar makes and models)

10. 10
Some Related Experiences
• Designed and Fabricated Modular
Race Course for Electronics
Control Motor Cars, Republic
Polytechnic
• Designed, Developed and
Delivered Wireless Local Network
Course, Ngee Ann Polytechnic
• Designed, Developed and
Delivered Radar Course for NTU
• Designed, Developed and
Delivered Electronic Warfare for
RSAF

11. 11
Some Related Experiences

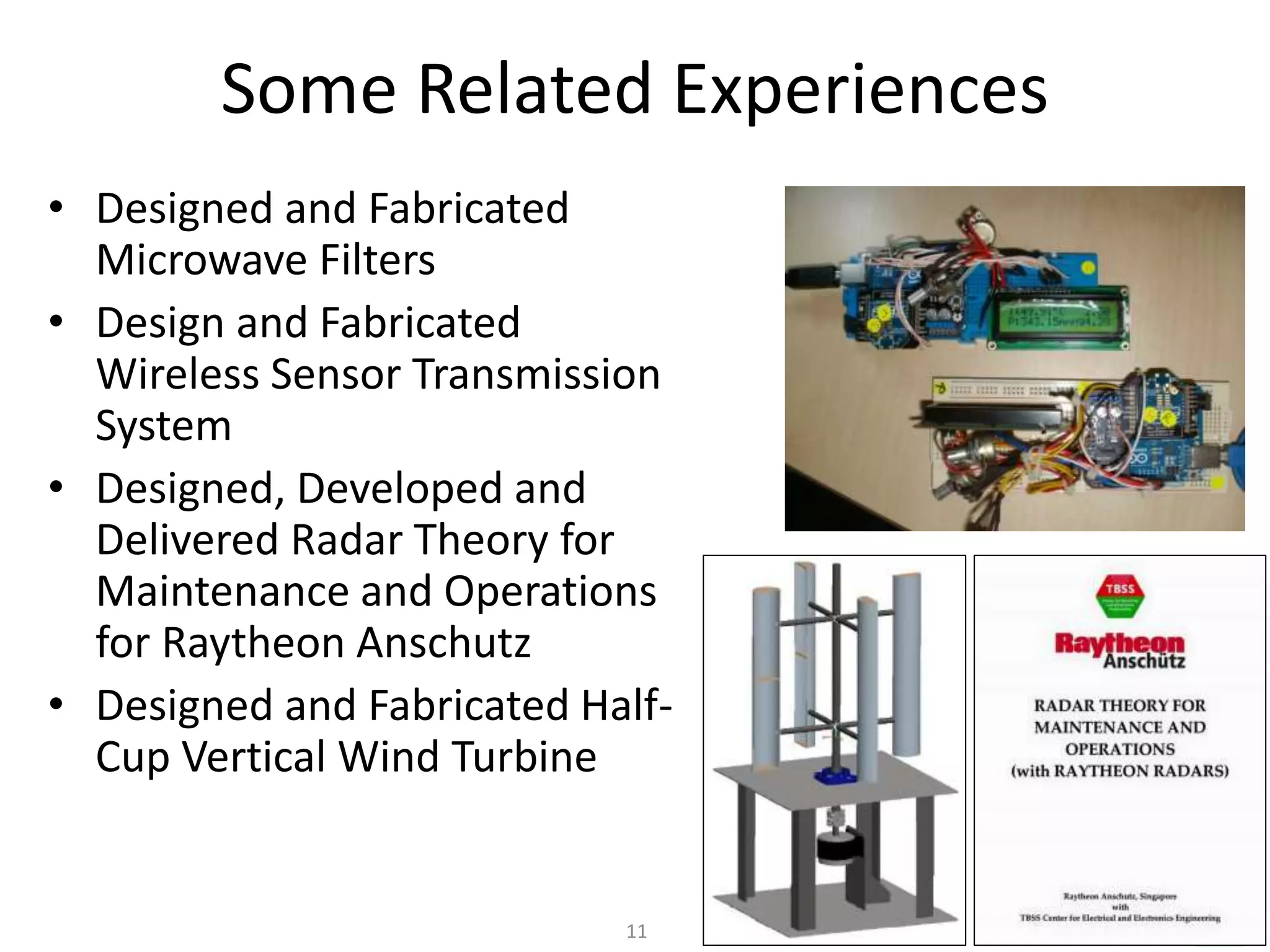

• Designed and Fabricated
Microwave Filters
• Design and Fabricated
Wireless Sensor Transmission
System
• Designed, Developed and
Delivered Radar Theory for
Maintenance and Operations
for Raytheon Anschutz
• Designed and Fabricated Half-
Cup Vertical Wind Turbine

12. 12
Some Related Experiences

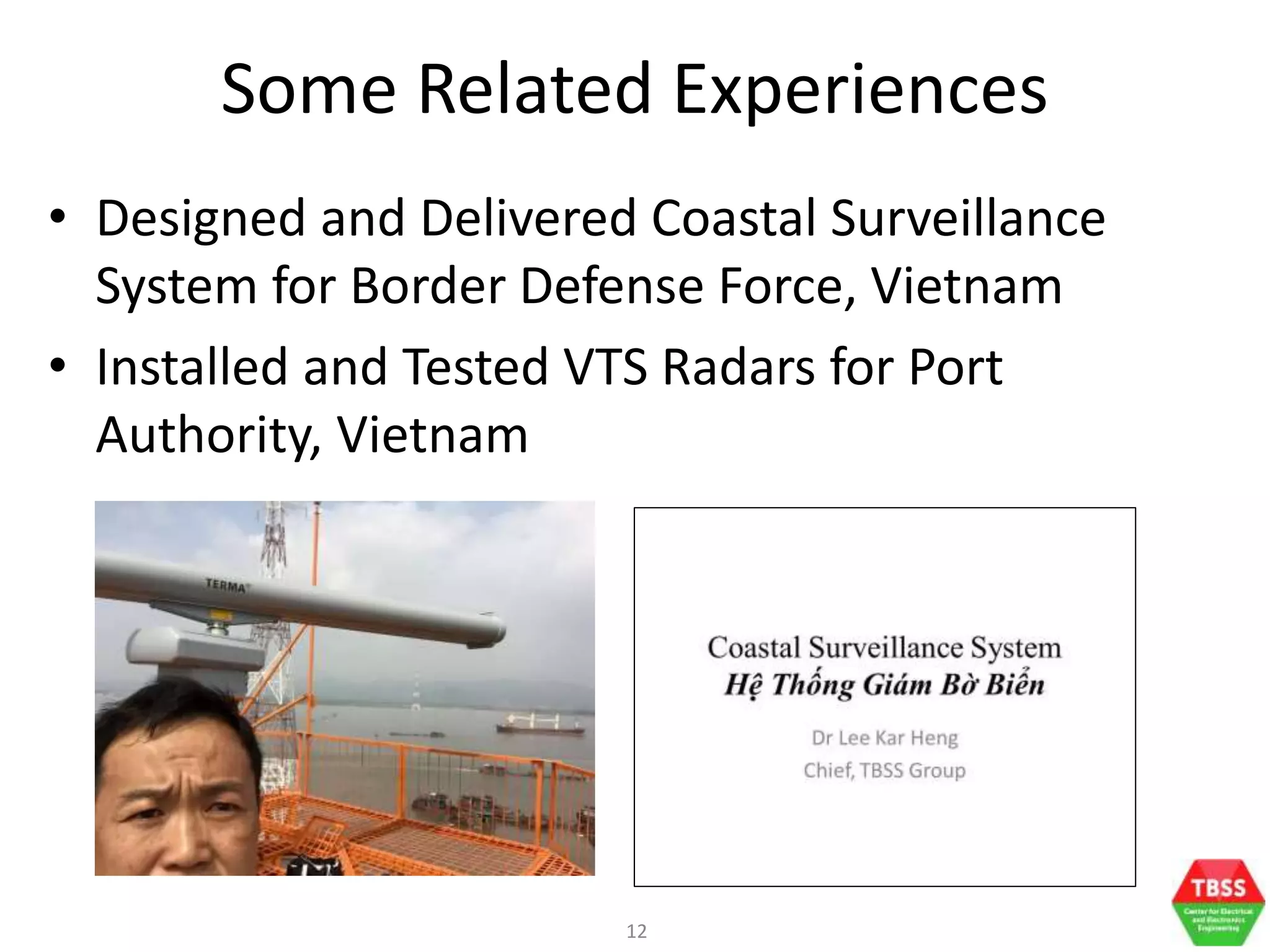

• Designed and Delivered Coastal Surveillance
System for Border Defense Force, Vietnam
• Installed and Tested VTS Radars for Port
Authority, Vietnam

13. 13

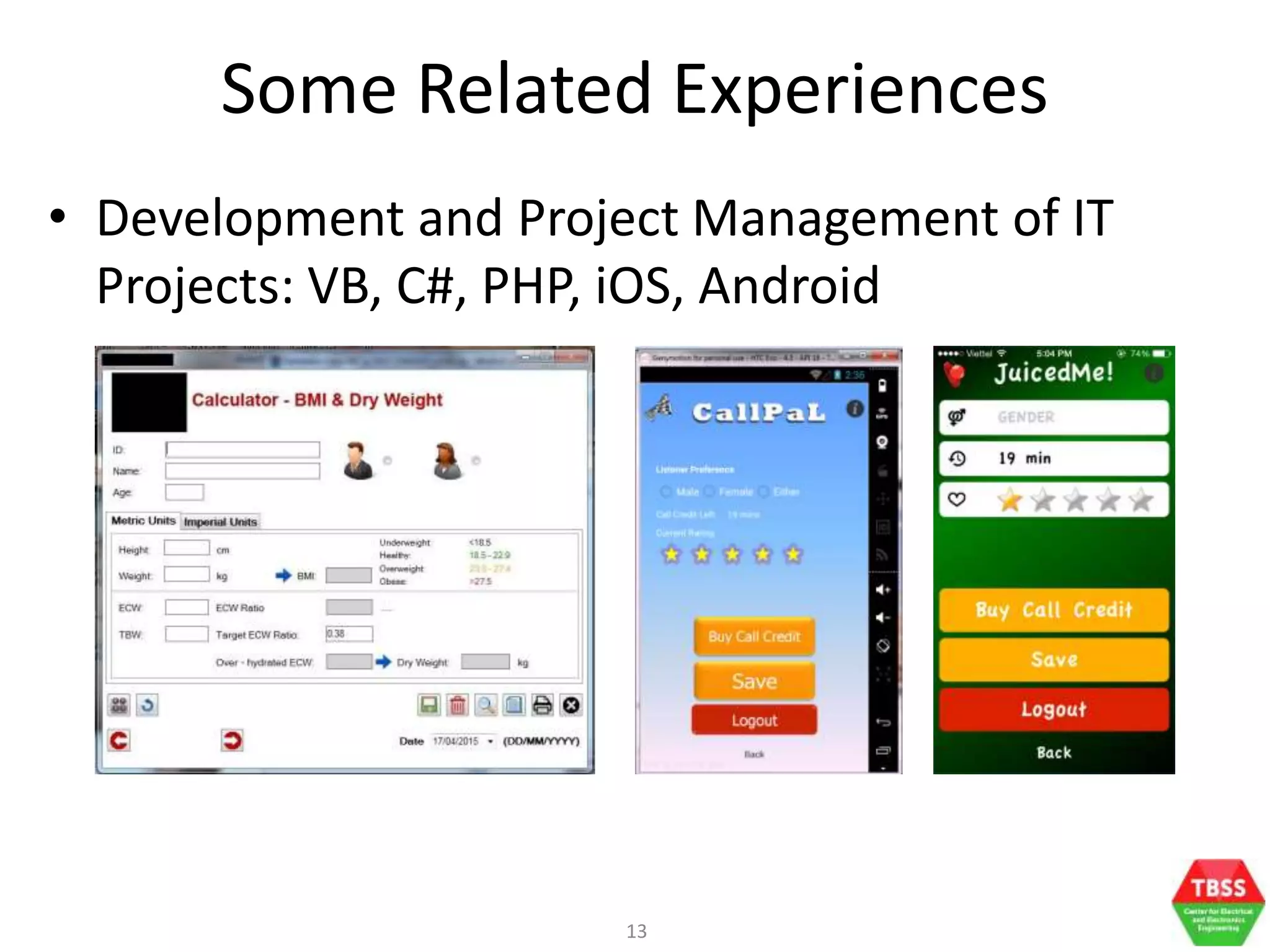

• Development and Project Management of IT
Projects: VB, C#, PHP, iOS, Android
Some Related Experiences

14. 14

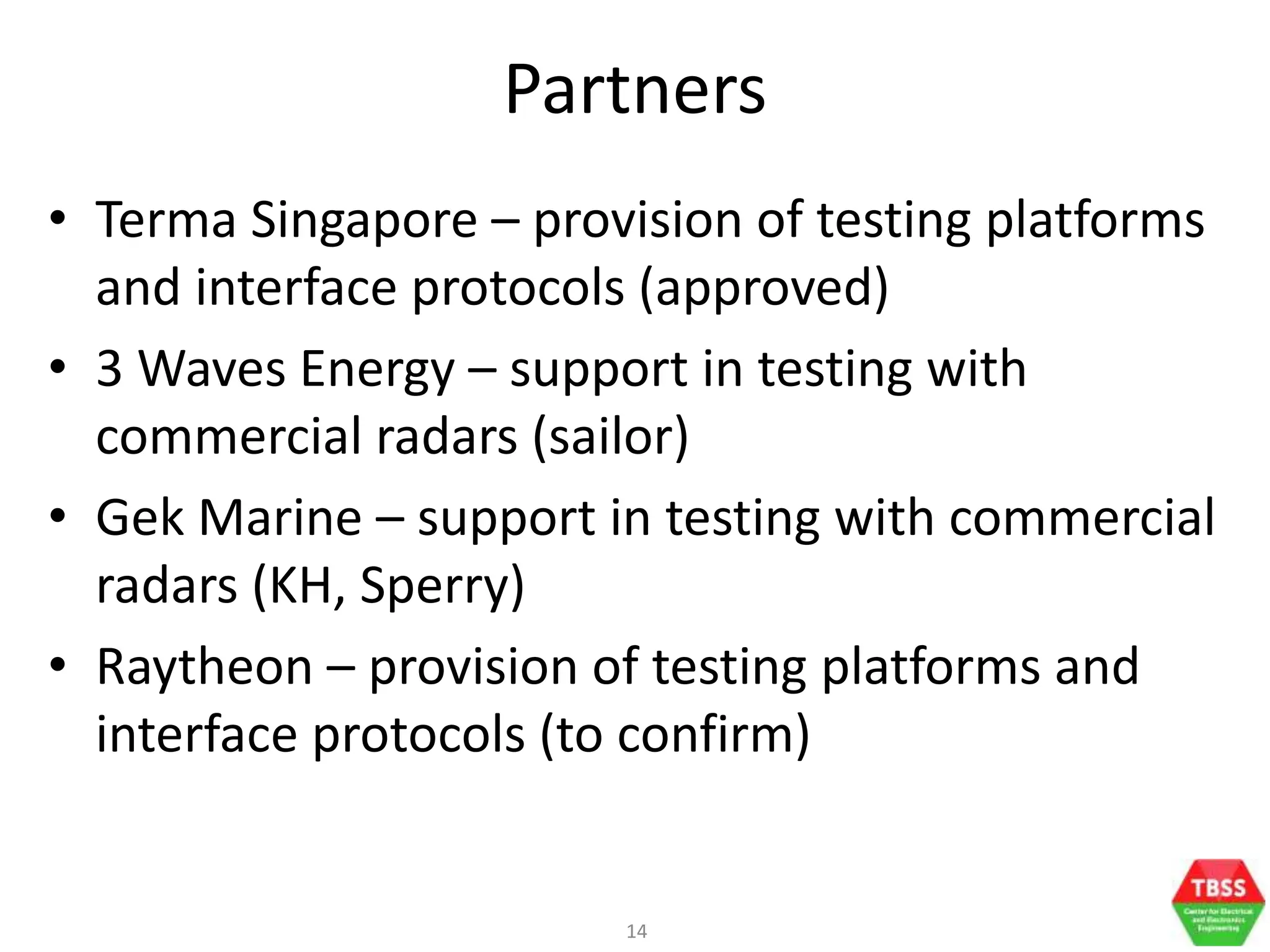

Partners
• Terma Singapore – provision of testing platforms
and interface protocols (approved)
• 3 Waves Energy – support in testing with
commercial radars (sailor)
• Gek Marine – support in testing with commercial
radars (KH, Sperry)
• Raytheon – provision of testing platforms and
interface protocols (to confirm)

15. 15
Project Cost
• Projected cost – SGD191,500 (manpower,
equipment, consumables)
• Manpower – SGD120,000 (Manager, Software
Engineer and Hardware Engineer)
• Equipment – SGD31,500 (High Performance
Machine, Mobile devices, Electronic Charts)
• Consumables – SGD65,000 (Testing work at
Terma factory, courses and conferences)

16. 16

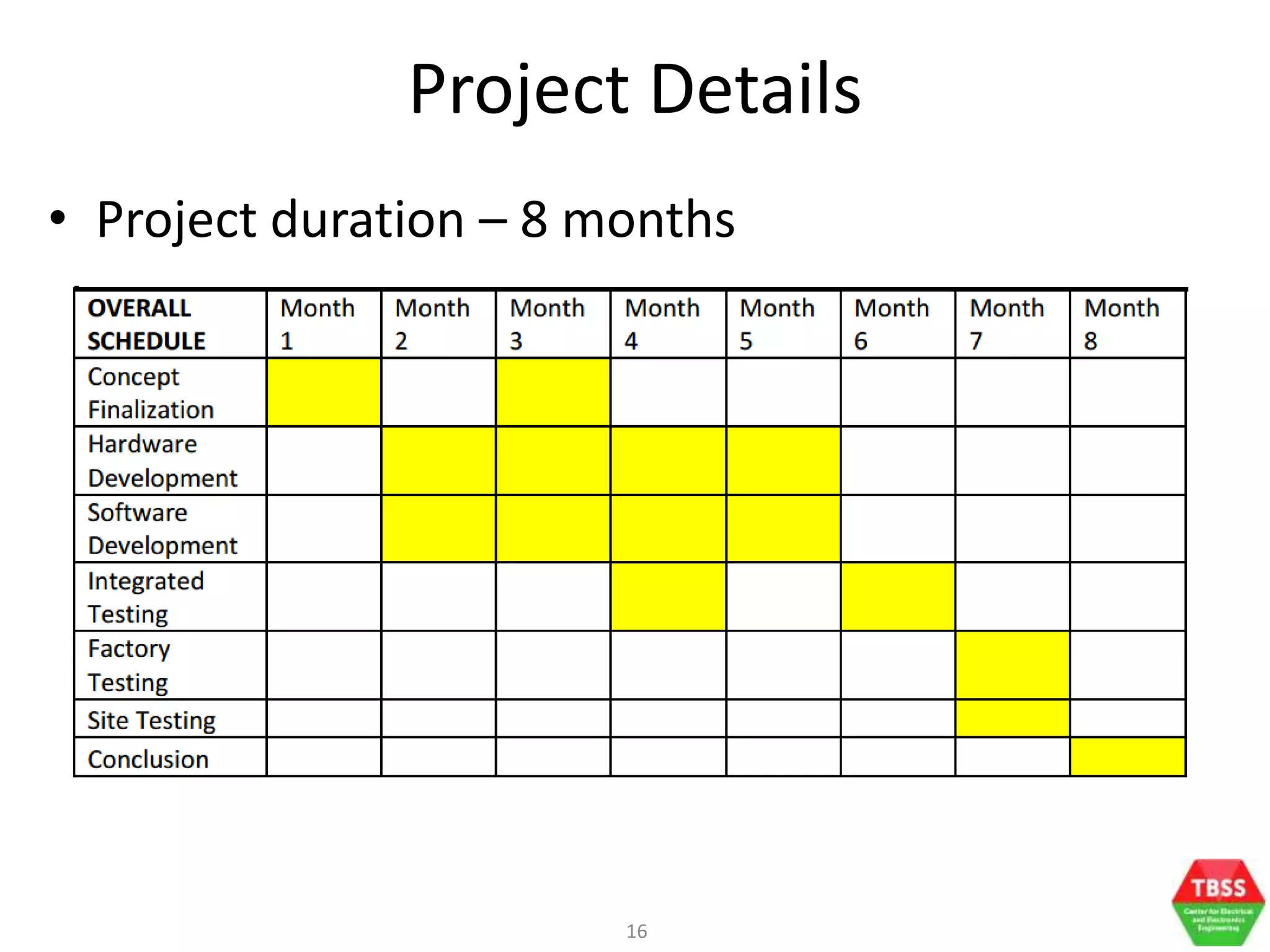

Project Details
• Project duration – 8 months

17. 17

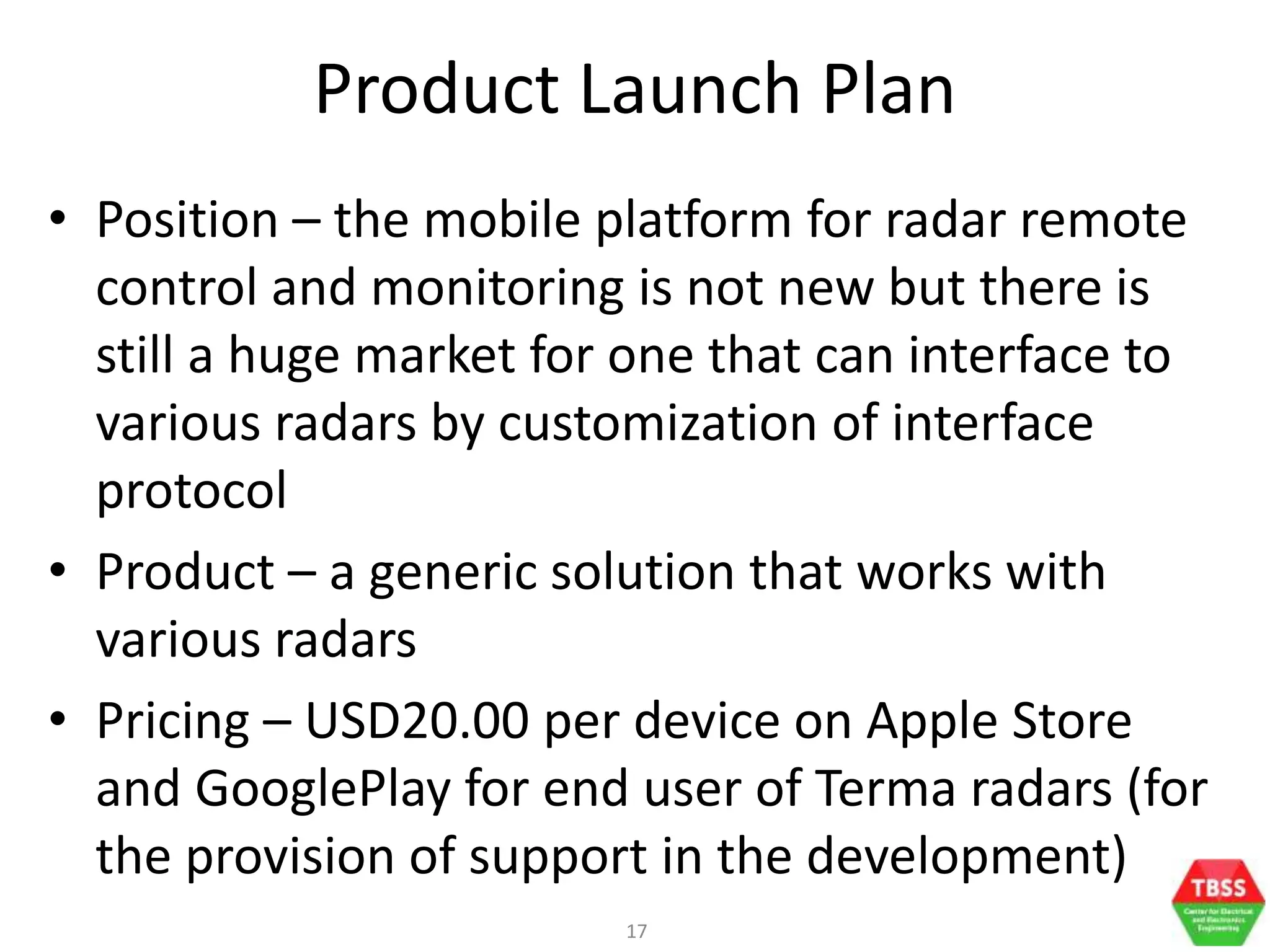

Product Launch Plan
• Position – the mobile platform for radar remote
control and monitoring is not new but there is
still a huge market for one that can interface to
various radars by customization of interface
protocol
• Product – a generic solution that works with
various radars
• Pricing – USD20.00 per device on Apple Store
and GooglePlay for end user of Terma radars (for
the provision of support in the development)

18. 18
Product Launch Plan
• Target Market – all radar makes and model, TBSS
will work with other makers such as Raytheon to
incorporate the interfaces with a fee, upon
completion, the end user license is USD20.00 per
device

19. 19

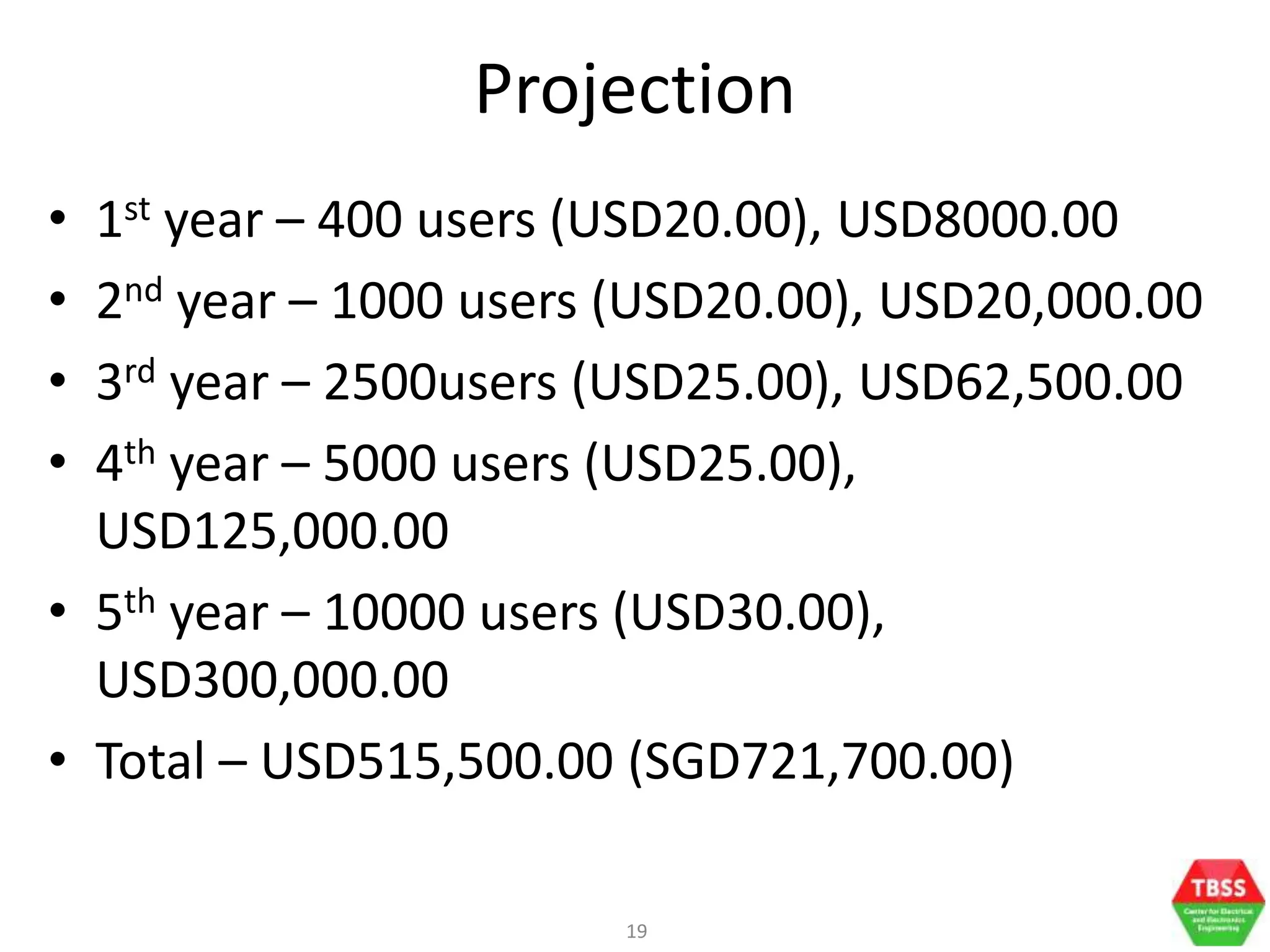

Projection
• 1st year – 400 users (USD20.00), USD8000.00
• 2nd year – 1000 users (USD20.00), USD20,000.00
• 3rd year – 2500users (USD25.00), USD62,500.00
• 4th year – 5000 users (USD25.00),
USD125,000.00
• 5th year – 10000 users (USD30.00),
USD300,000.00
• Total – USD515,500.00 (SGD721,700.00)

20. 20

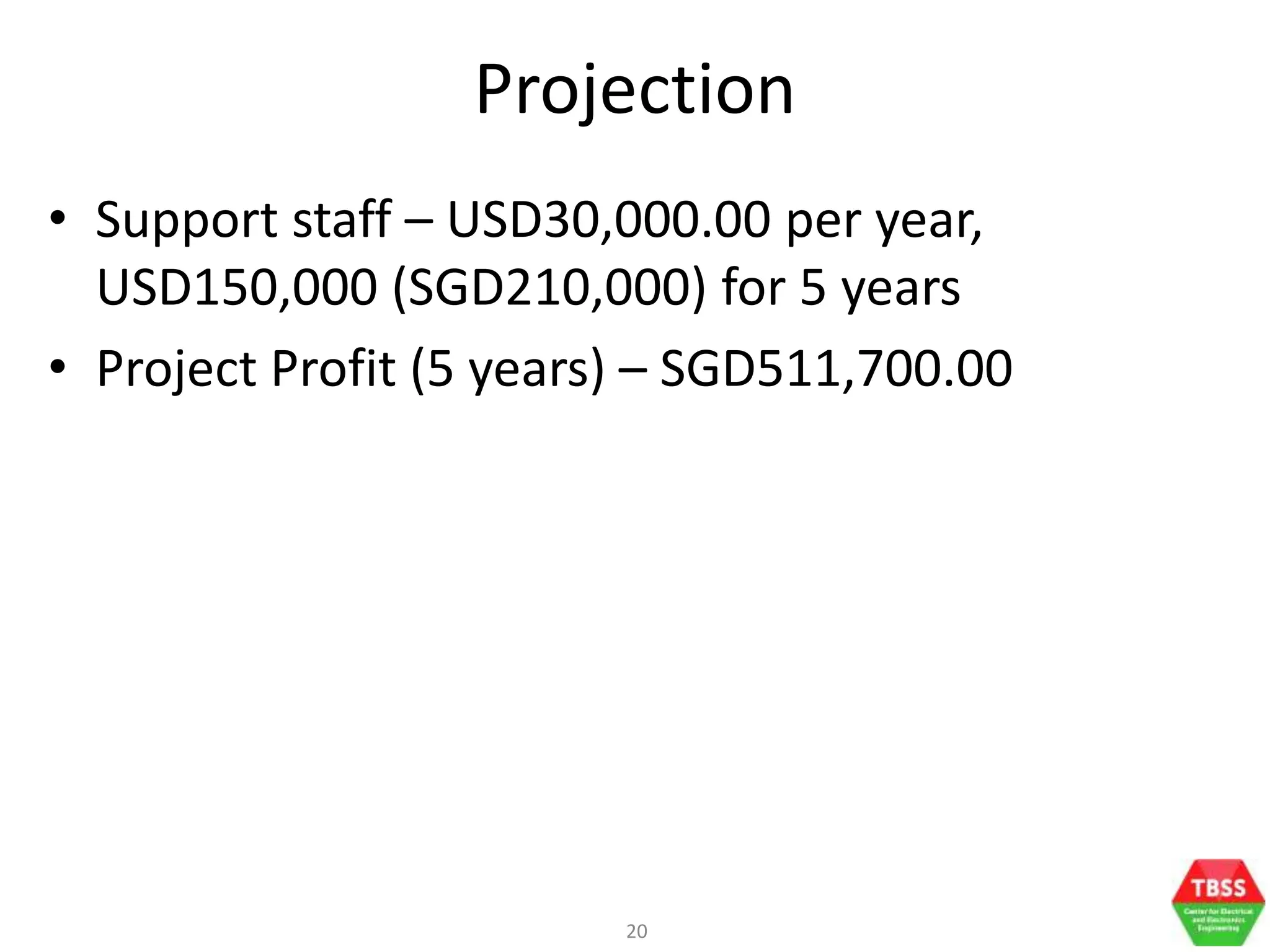

Projection
• Support staff – USD30,000.00 per year,
USD150,000 (SGD210,000) for 5 years
• Project Profit (5 years) – SGD511,700.00

21. 21

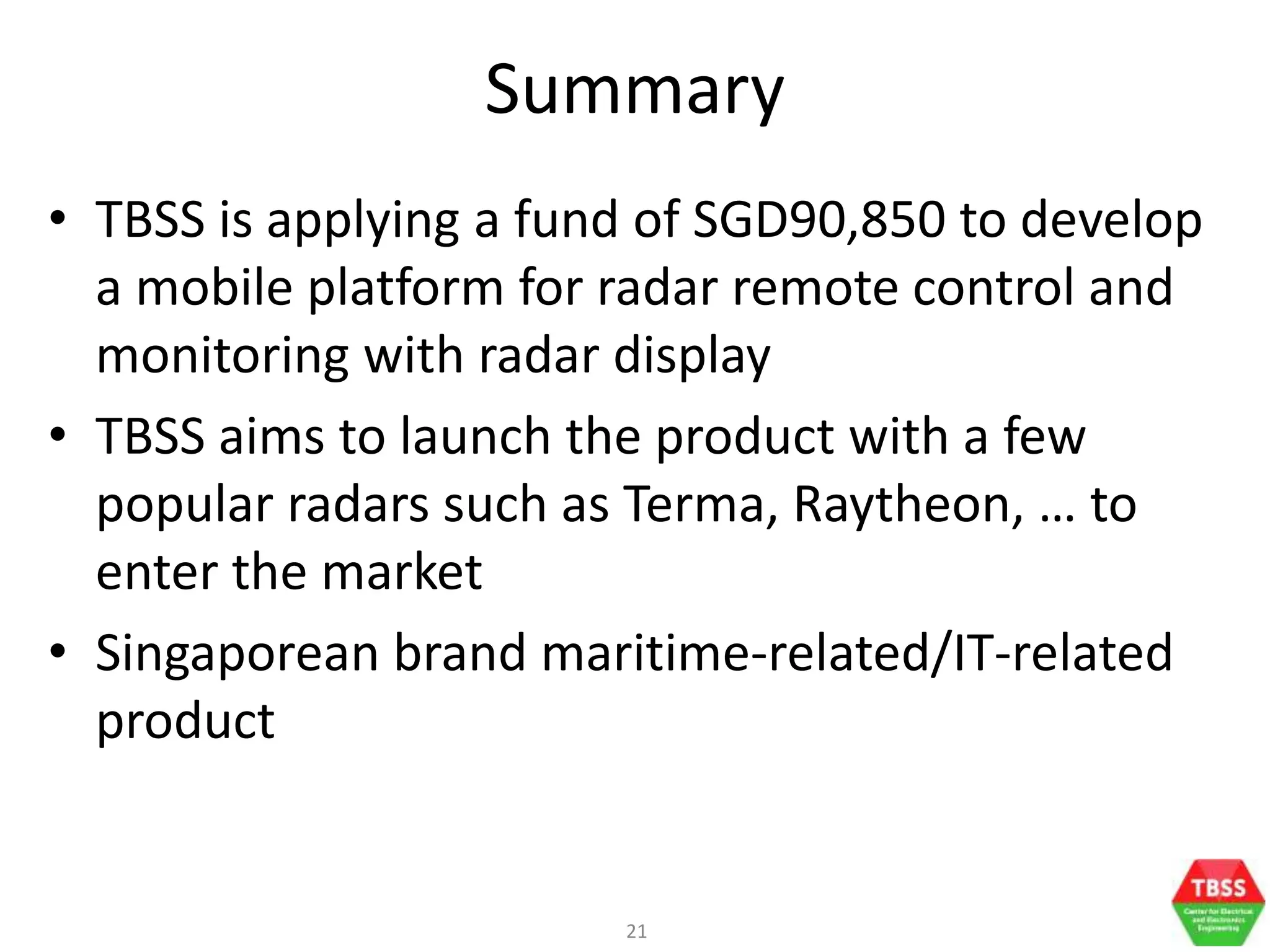

Summary
• TBSS is applying a fund of SGD90,850 to develop
a mobile platform for radar remote control and
monitoring with radar display
• TBSS aims to launch the product with a few
popular radars such as Terma, Raytheon, … to
enter the market
• Singaporean brand maritime-related/IT-related
product

22. 22
The End
