This document summarizes the technical evolution of Taobao over the past 10 years. It describes the architecture and technologies used in each major version from 2003 to the present. Key aspects included moving from a LAMP stack to Java EE, adopting distributed databases, caching, and service frameworks. Transaction volumes grew enormously from 50 million RMB in 2011 to over 350 billion RMB in 2013. The document advocates for incremental improvement over time and references Big Data as an ongoing challenge.

1. 淘寶技術這十年
心得分享

2. What is 淘寶 ?

4. 雙十一 (光棍節)

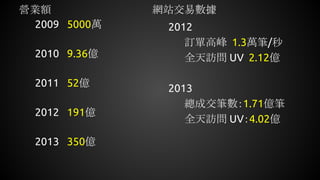

5. 營業額
2009 5000萬
2010 9.36億
2011 52億
2012 191億
2013 350億
網站交易數據
2012
訂單高峰 1.3萬筆/秒
全天訪問 UV 2.12億
2013
總成交筆數：1.71億筆
全天訪問 UV：4.02億

6. 架構演進

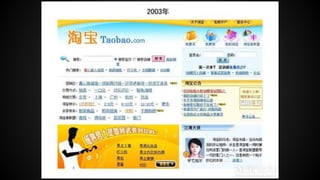

7. 2003/05 ~ 2004/01
淘寶 v1.0

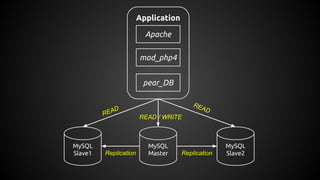

9. Application
Apache
mod_php4
pear_DB
MySQL
Master
MySQL
Slave2
MySQL
Slave1
READ
READ / WRITE
READ
ReplicationReplication

12. Issue

13. Table
T1 T3 T5
T4T2
Table-Level Locking

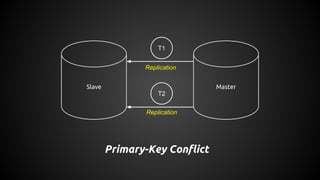

14. MasterSlave
Primary-Key Conflict
T1
T2
Replication
Replication

15. 2004 /01 ~ 2004/05
淘寶 v1.1

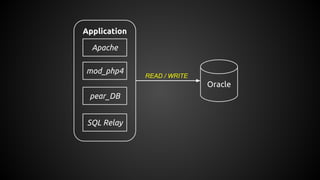

16. Application
Apache
mod_php4
pear_DB
Oracle
READ / WRITE
SQL Relay

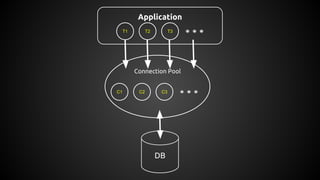

17. Connection Pool
DB
Application
C1 C2 C3
T1 T2 T3

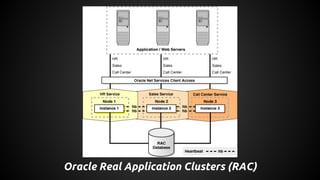

18. Oracle Real Application Clusters (RAC)

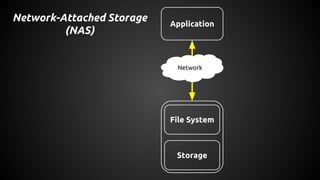

19. Application
File System
Storage
Network
Network-Attached Storage
(NAS)

20. Issue

21. T1 T3 T5
T4T2
Connection Deadlock
Connection Pool

22. 2004/02 ~ 2005/03
淘寶 v2.0

23. Application
JBOSS
淘寶MVC
EJB
OracleREAD / WRITE
OR-
Mapping
iSearch
Node 1 Node n
Dump
Search

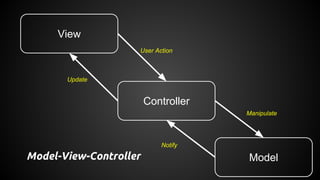

24. View
Controller
Model
Manipulate
User Action
Notify
Update
Model-View-Controller

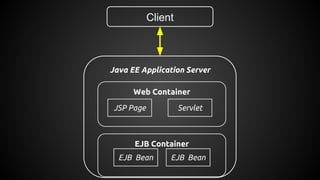

25. Java EE Application Server
Web Container
ServletJSP Page
EJB Container
EJB Bean EJB Bean
Client

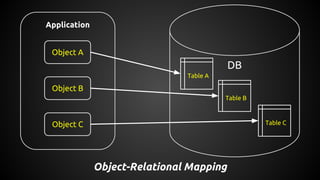

26. Application
DB
Table A
Table B
Table C
Object A
Object B
Object C
Object-Relational Mapping

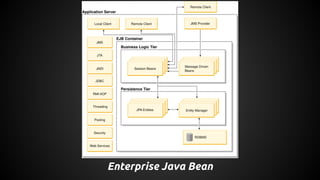

27. Enterprise Java Bean

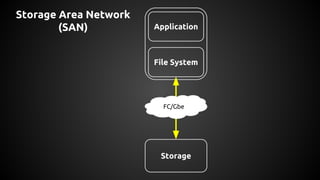

28. Storage
Application
File System
FC/Gbe
Storage Area Network
(SAN)

29. 2004/10 ~ 2007/01
淘寶 v2.1

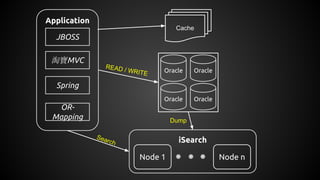

30. Application
JBOSS
淘寶MVC
Spring
Oracle
READ / WRITE
OR-
Mapping
iSearch
Node 1 Node n
Dump
Search
Oracle
Oracle Oracle
Cache

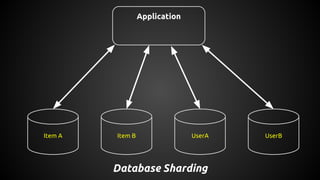

31. Item A Item B UserA
Application
Database Sharding
UserB

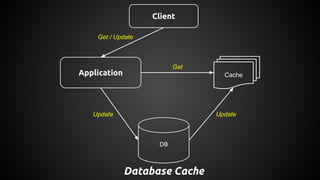

32. DB
Application Cache
Client
Update
Get
Update
Get / Update
Database Cache

33. 2006/10 ~ 2007/12
淘寶 v2.2

34. Application
JBOSS
淘寶MVC
Spring
Oracle
READ / WRITE
OR-
Mapping
iSearch
Node 1 Node n
Dump
Search
Oracle
Oracle Oracle
TFS(分散式儲存)
Node 1 Node n
Tair
(Cache)

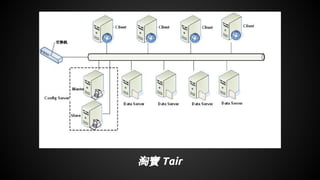

35. 淘寶 Tair

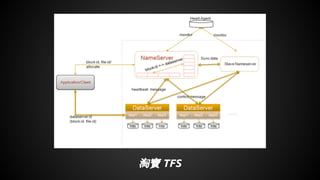

36. 淘寶 TFS

37. 2008/01 ~ present
淘寶 v3.0

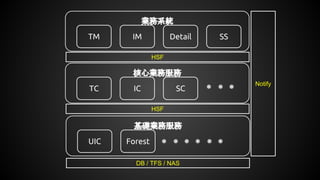

38. 業務系統
TM IM Detail SS
核心業務服務
TC IC SC
基礎業務服務
UIC Forest
HSF
HSF
Notify
DB / TFS / NAS

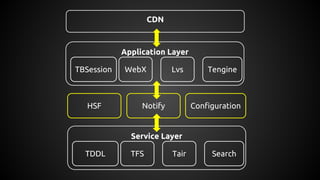

39. Application Layer
TBSession WebX Lvs Tengine
CDN
Service Layer
TDDL TFS Tair Search
HSF Notify Configuration

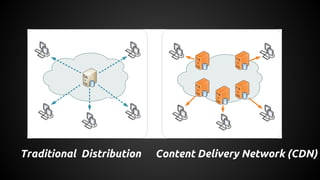

40. Content Delivery Network (CDN)Traditional Distribution

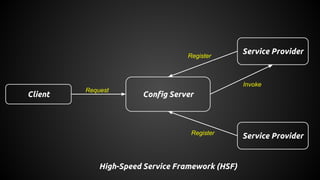

41. Service Provider
Config ServerClient
Service Provider
Register
Invoke
Register
Request
High-Speed Service Framework (HSF)

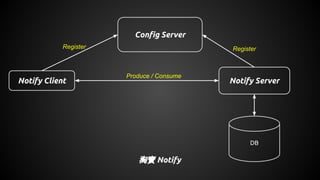

42. Notify Server
Config Server
Notify Client
RegisterRegister
淘寶 Notify
DB
Produce / Consume

43. 心得感想

44. Big Data !!

45. 羅馬不是一天造成的

46. Good Enough

47. 參考資料

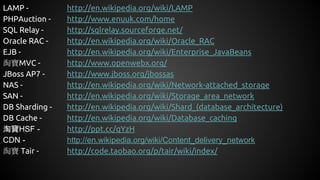

48. LAMP - http://en.wikipedia.org/wiki/LAMP

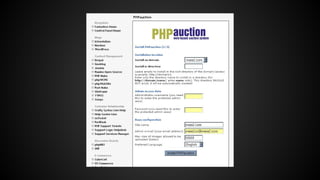

PHPAuction - http://www.enuuk.com/home
SQL Relay - http://sqlrelay.sourceforge.net/
Oracle RAC - http://en.wikipedia.org/wiki/Oracle_RAC
EJB - http://en.wikipedia.org/wiki/Enterprise_JavaBeans
淘寶MVC - http://www.openwebx.org/
JBoss AP7 - http://www.jboss.org/jbossas
NAS - http://en.wikipedia.org/wiki/Network-attached_storage
SAN - http://en.wikipedia.org/wiki/Storage_area_network
DB Sharding - http://en.wikipedia.org/wiki/Shard_(database_architecture)
DB Cache - http://en.wikipedia.org/wiki/Database_caching
淘寶HSF - http://ppt.cc/qYzH
CDN - http://en.wikipedia.org/wiki/Content_delivery_network
淘寶 Tair - http://code.taobao.org/p/tair/wiki/index/

49. Q & A
