1. TYPOSCRIPT
CRASH COURSE
Your driver today will be Zach Davis
from Cast Iron Coding Inc.

2. Overview
• What is Typoscript, really, and
how does it generally work?
• Overview of Typoscript Syntax
• Overview of how pages are
rendered through Typoscript
• Typoscript and PHP
• Navigating Typoscript
documentation
• Overriding core content
rendering
• Typoscript best practices

3. Where is Typoscript Used?
• Typoscript is used to tell TYPO3 how to render pages.
Every TYPO3 site requires a root-level Typoscript
template.
• Typoscript is (over) used in extension templates to
control the behavior of individual pages or branches of
a site.
• Typoscript is used in static templates, which are part
of TYPO3 extensions, to provide default configuration
that can be overridden on individual sites.

4. Typoscript is
Idiosyncratic,
which can be
confusing.
For better or for worse,
extension authors are free to
implement Typoscript
however they please.

5. Take tt_news, for example
• Like most extensions,
tt_news contains
Typoscript properties
that are only used in
tt_news.
• To undestand tt_news’
Typoscript, you would
need to look at the
tt_news documentation.
• Look for TS in EXT/pi1/
static or EXT/static.

6. What is
Typoscript?

7. Typoscript is a
configuration language
• In this sense, it’s similar to YAML or XML.
• Typoscript is not a programming language—it doesn’t
really do anything programmatic, although it sometimes
seems like it does.
• Typoscript is interpreted by PHP scripts, which use it to
determine what to render on the front-end.

8. Typoscript is a
multi-
dimensional
associative
array
Arrays are pairs of keys and
values, kind of like these
mailboxes.

9. Typoscript is a
multi-
dimensional
associative
array
If one or more of these
mailboxes contained another
wall of mailboxes inside of
them, you’d have a multi-
dimensional array.

10. Typoscript is a
multi-
dimensional
associative
array
If we debug Typoscript, it looks
like a series of nested tables.

11. In code,
extension
authors access
Typoscript as
an array.
<?php
$wrap = $conf[‘1.’][‘wrap’];
?>

12. It’s all just
strings and
arrays.
entryLevel = 0
wrap = <ul id=”primaryNav...
1 = TMENU
2 {
expAll = 1
noBlue = 1
NO {
WrapItemAndSub = <li>|...
}
ACT = 1
ACT {
wrapItemAndSub = <li>|...
ATagParams = class=...
}
}

13. Typoscript
Syntax is Easy.
really!

14. Key = Value
Value is a string (or an integer).

15. Key { Value }
The confinements tell us that
value is an array.

16. Key < Value
Value is another Typoscript
path, which is copied and pasted
to key.

17. For Example:
myObj.wrap = before|after
myOtherObj.wrap < myObj.wrap
In this case, myOtherObj.wrap
equals before|after.

18. Key < Value
When assigning values in this
way, you can assign an entire
chunk of Typoscript or a single
value of a given property.

19. Key >
The greater than sign unsets the
value of a Typoscript property.

20. Key = 1,2,3
Key := addToList(4,5)
Key := removeFromList(1)
The := operator is used to modify
an existing Typoscript value.

21. Key = 1,2,3
Key := addToList(4,5)
Key := removeFromList(1)
In this case, the final value for
Key would be “2,3,4,5”

22. Key = 1,2,3
Key := addToList(4,5)
Key := removeFromList(1)
Other := options include
prependString, appendString,
removeString, and
replaceString.

23. Comments
// A comment
/ Another comment
# Yet one more comment
/*
No end to the comments
*/

24. Key (
Value...
Even more value
)
Parentheses allow for multi-line
values.

25. [globalVar = TSFE:id = 1]
key.value = true
[else]
key.value = false
[end]
Typoscript conditions are
awesome. In most cases, use
them instead of extension
templates.

26. A TYPO3 page
is a set of TS
cObjs mapped
to an HTML
template.

27. In TYPO3, all things come
from Typoscript.
Pages Navigation Plugins
and content elements and page titles and dynamic content

28. PAGE.10 lib.auxNav
lib.logo
lib.search lib.header
lib.primaryNav
lib.breadcrumb
lib.share
lib.tagline
lib.secondaryNav
lib.heroImage
plugin.tx_ccnygrants_pi1
styles.content.getRight
styles.content.get

29. How a page is rendered
from Typoscript
• TYPO3 looks for a PAGE typoscript object, which is
similar to a COA (content object array).
• According to convention, we put the majority of the
output for a page into PAGE.10.
• PAGE.10 is typically a USER object (eg, templavoila) or
a TEMPLATE object.

30. Anatomy of a
TemplaVoila Page TS Obj
USER SCRIPT: Page. Page.
tx_templavoila_pi1->main_page 10 20
PAGE
HTML Template TypeNum=0
TS Obj
Content Area TS Obj Output
TS Obj to
Browser

31. Anatomy of a
TEMPLATE Page TS Obj
TS TEMPLATE OBJECT
TS Obj Page. Page.
10 20
Content Area TS Obj
TS Obj PAGE
TypeNum=0
HTML TMPL WITH MARKERS
Output
AUTOMAKETEMPLATE
to
HTML TEMPLATE Browser

32. Behind the
Scenes
Let’s look at how PHP code
interacts with Typoscript.

33. class.tslib_content.php
This is where individual TS content objects are rendered.
tslib_content contains the class definition for the tslib_cObj
object, which is used to render HTML from Typoscript.

34. It’s really not that
complicated.
Many of the tslib_cObj methods are pretty straight forward.
The code for rendering a TEXT object, for example, is one
line. Most of the functionality is located in stdWrap or in
other Typoscript “functions.”

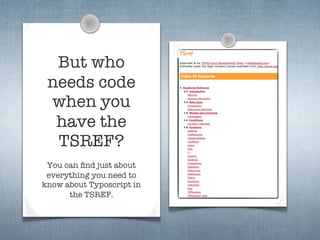

36. But who
needs code
when you
have the
TSREF?
You can find just about
everything you need to
know about Typoscript in
the TSREF.

37. Data Types
You just
have to Functions
know how
to read it...
The TSREF is divided
into a few key parts:
Setup
•Data Types
•Functions
•Setup
•Content Objects cObjects

38. Typoscript Content Objects
• Typoscript Content Objects are chunks of content that
are rendered from Typoscript. Eg. a menu, or a plugin, or
a logo in a header.
• The main ones are: HTML, TEXT, COA, IMAGE,
IMG_RESOURCE, HMENU, CASE, FORM, TEMPLATE,
IMGTEXT, RECORDS, CONTENT.

39. PAGE COA
TEXT
HTML COA
HMENU
HMENU
HTML
HTML
HMENU
PLUGIN
PLUGIN
CONTENT
CONTENT

40. Typoscript Content Objects
• CSS Styled Content is used to render content from
individual tt_content records.
• It is essentially a library of Typoscript objects (and some
associated PHP scripts) that transform tt_content
records into HTML.
tt_content:10 <!-- COMMENT... -->
<h1>My Record</h1>
Field Value
header My Record
tt_content.text <p class=”bodytext”>
Test
</p>
bodytext Test

41. CSS Styled Content: Text

42. TS Object Browser

43. Typoscript
Data Types
•Every Typoscript
property has a data
type. Most are strings
or integers.
•Some properties are of
a certain data type,
which often means that
there are additional
properties available.

44. The TSREF is
sometimes
self-
referential.

45. Remember the common
types. Look up the rest.
•<tag> •int •wrap
•align •string •linkWrap
•valign •boolean •case
•VHalign •rotation •space
•resource •x,y,w,h •date-conf
•imgResource •HTML-color •strftime-conf
•HTML-code •GraphicColor •UNIX-time
•target •page_id •path
•imageExtension •pixels •getText
•degree •list •dir
•posint •margins •function-name

46. Typoscript Functions
• We might think of Typoscript functions as small
content objects.
• For example, the typolink function turns a chunk of TS
into text wrapped with an A tag or, in some cases, a
URL.
• You will see references to these functions throughout
the TSREF. They are generally prefaced with -> (eg. -
>stdWrap). If the value in the data type column begins
with ->, it’s a function. Otherwise, it’s a data type.

47. As with datatypes,
remember the common
functions, look up the rest.
•stdWrap •typolink •parseFunc
•imgResource •textStyle •makeLinks
•imageLinkWrap •encapsLines •tags
•numRows •tableStyles •HTMLparser
•select •references •HTMLparser_tags
•split •addParams
•if •filelink

48. stdWrap
• Use stdWrap to manipulate strings: trim, parseFunc,
strftime, case, stripHtml, cropHtml, crop, wrap,
innerWrap, etc.
• Use stdWrap to insert data into output: data, field
• Use stdWrap to wrap other content objects around a
value: preCObject, postCObject.
• Use stdWrap to pass values through PHP functions:
preUserFunc, postUserFunc, postUserFuncInt.
• Use stdWrap to implement simple conditional logic: if,
fieldRequired, required, ifEmpty, ifBlank, override.

49. typolink
• It is essential that you use typolink to render links from
typoscript. Doing so will make your site more portable
and less prone to broken links.
• use the .parameter property to designate the href of the
link.
• use the .returnLast property to return a URL instead of
a full A tag.
• you have access to stdWrap on parameter, which means
you can do things like this:
parameter.field = uid
parameter.additionalParams = &L=1

50. ParseFunc is a session in
and of itself. For now, we’ll
just focus on what it does
(not how it does it).
You should at least know that any field that is rendered on
the front-end that could contain HTML should probably be
passed through parseFunc.
ParseFunc is also responsible for transforming RTE content
on the frontend, and for parsing TYPO3-specific tags.

51. Typoscript Setup: Config
• So far we’ve been looking at Typoscript in the context
of content objects. Eg, using Typoscript to render an
HMENU content object.
• To make matters more confusing, Typoscript is also
used for front-end configuration (much like how
TSConfig is used for backend configuration).
• Mostly, you don’t need to worry about the contents of
the setup section of the TSREF, except for...

52. Typoscript Setup: Config
• ...except for the “config” section.
• “config” contains properties that are generally
applicable to every page that is governed by a given
Typoscript template.
• TYPO3 site builders should familiarize themselves with
the config section, as there are lots of important
properties contained within.

53. Typical Config on a CIC site
config {
# Miscellaneous
noPageTitle = 1
typolinkCheckRootline = 1
typolinkEnableLinksAcrossDomains = 1
spamProtectEmailAddresses = -7
disablePrefixComment = 1
# Enable indexing
index_enable = 1
admPanel = 1
# Set doc type
doctype = xhtml_trans
# Setup realURL
simulateStaticDocuments = 0
baseURL = http://{$const.baseUrl}/
tx_realurl_enable = 1
}

54. Use page.config to manage JS
and CSS files for specific pages.
[globalVar = TSFE:id = {$pid.timeline}]
page.includeJS {
5 = fileadmin/templates/js/contrib/jQuery/fancybox/jquery.fancybox-1.2.6.pack.js
6 = fileadmin/templates/js/usr/timeline.js
6.allWrap =
}
page.includeCSS {
7 = fileadmin/templates/js/contrib/jQuery/fancybox/jquery.fancybox-1.2.6.css
}
[end]
[globalVar = TSFE:id = {$pid.photoGallery}]
page.includeJS {
8 = fileadmin/templates/js/contrib/jQuery/fancybox/jquery.fancybox-1.2.6.pack.js
9 = fileadmin/templates/js/usr/photoGallery.js
}
page.includeCSS {
10 = fileadmin/templates/js/contrib/jQuery/fancybox/jquery.fancybox-1.2.6.css
}
[end]

55. Typoscript
Best Practices
(Well, perhaps not best, but
these tips work for us.)

56. Typoscript Best Practices
• Store your Typoscript in the filesystem, not in the
database. If it’s in the database, it can’t be versioned
with SVN, Git, etc.
• Avoid using extension templates. Instead, make a new
page template (reusable) or use a Typoscript condition.
• Comment Typoscript carefully. Use object names (eg.
lib.X) as a sort of Typoscript namespace.
• Keep extension configuration and page template
configuration separate.

57. Typoscript Best Practices
• Organize your Typoscript in such a way that you’re
able to avoid redundancy. Don’t declare properties
twice if you an avoid it!
• Use constants constantly. Always abstract the baseUrl
to a constant, as well as any page ID values.
• Never directly modify the Typoscript in an extension
directory. If you do, you will regret it later.
• Avoid using too many extension templates. Try to keep
things in one place.

58. Typoscript Best Practices
• Typolinks! Typolinks! Typolinks! Use wraps and COAs
so that you don’t have to hard code URLs in your
Typoscript (or, even worse, in your templates).
• Keep Typoscript lightweight and modular. Instead of
making a giant COA with 4 complex entries, make 4 TS
objects and copy them into the COA.
• Remember that order matters in Typoscript. You can’t
reference another object unless that object has been
included above the spot where you reference it.

59. How we
organize our
Typoscript
•Extension TS goes in
conf_ext, global site TS
goes in conf_general and
tsconfig goes in, well,
tsconfig.
•We store environment-
specific constants in
global_constants_context.
txt.

60. How we
organize our
Typoscript
•Put an .htaccess file in
fileadmin/templates/conf
so that you prevent
spiders and users from
viewing the contents of
your Typoscript. That
said, if it’s secret, try not
to store it in Typoscript.

61. PID and URL abstraction
simplifies distributed
development
Development Staging Production
carnegie.lucas.cic.com staging.carnegie.org carnegie.org
carnegie.zach.cic.com
carnegie.gabe.local

62. PIDs and Domain Names
change in each
environment.
Development Staging Production
carnegie.lucas.cic.com staging.carnegie.org carnegie.org
carnegie.zach.cic.com
carnegie.gabe.local

63. global_constants_context
does not get checked into
Git—it’s context specific.
Development Staging Production
carnegie.lucas.cic.com staging.carnegie.org carnegie.org
carnegie.zach.cic.com
carnegie.gabe.local

64. All other Typoscript DOES
get checked into Git.
Development Staging Production
carnegie.lucas.cic.com staging.carnegie.org carnegie.org
carnegie.zach.cic.com
carnegie.gabe.local

65. Wake up; it’s over!
Thanks for listening and good luck with
your future adventures in Typoscript.
