1. Symfony Under The Hood

2. Symfony Under The Hood
Andreas Hucks
CTO @ SensioLabs Germany

3. Version 4.0
November 2017

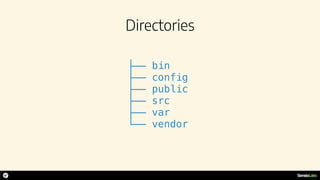

4. Directories 😍

5. Directories
├── bin
├── config
├── public
├── src
├── var
└── vendor

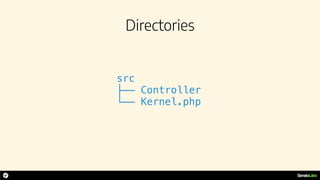

6. Directories
src
├── Controller
└── Kernel.php

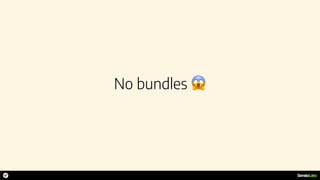

7. No bundles 😱

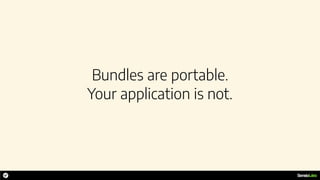

8. Bundles are portable.
Your application is not.

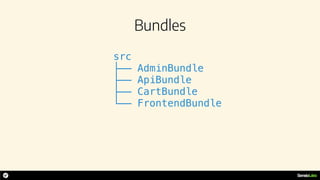

9. Bundles
src
├── AdminBundle
├── ApiBundle
├── CartBundle
└── FrontendBundle

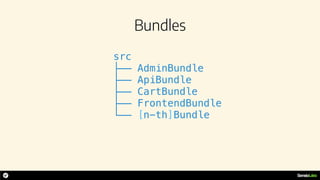

10. Bundles
src
├── AdminBundle
├── ApiBundle
├── CartBundle
├── FrontendBundle
└── [n-th]Bundle

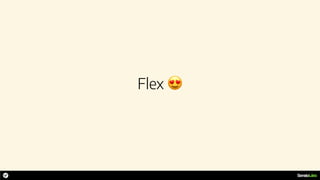

11. Flex 😍

12. No Editions, no installer

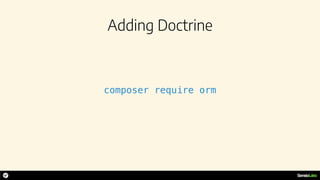

13. Adding Doctrine
composer require orm

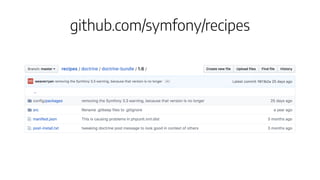

15. github.com/symfony/recipes

16. Autowiring 😍

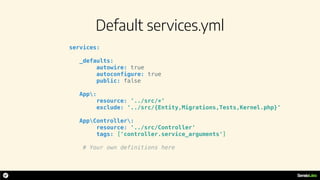

17. Default services.yml
services:
_defaults:
autowire: true
autoconfigure: true
public: false
App:
resource: '../src/*'
exclude: '../src/{Entity,Migrations,Tests,Kernel.php}'
AppController:
resource: '../src/Controller'
tags: ['controller.service_arguments']
# Your own definitions here

18. Controllers
class GameController extends AbstractController
{
/**
* @Route(path="/", name="app_game")
*/
public function index(Runner $runner)
{
$game = $runner->loadGame();

20. Symfony Under The Hood

21. What to expect

22. Motivation

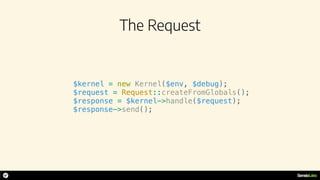

23. The Request
$kernel = new Kernel($env, $debug);
$request = Request::createFromGlobals();
$response = $kernel->handle($request);
$response->send();

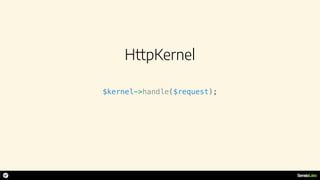

24. HttpKernel
$kernel->handle($request);

25. Request-Response Flow
Request Response
Front
Controller Kernel

26. Symfony is not an
MVC framework

28. Symfony is a
Request-Response Framework

29. Request-Response Flow
Request Response
Front
Controller Kernel

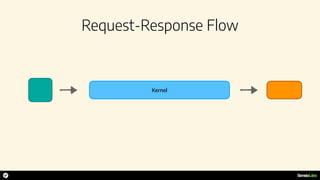

30. Request-Response Flow
Kernel

31. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

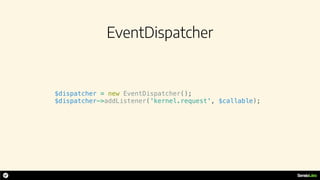

32. EventDispatcher
$dispatcher = new EventDispatcher();
$dispatcher->addListener('kernel.request', $callable);

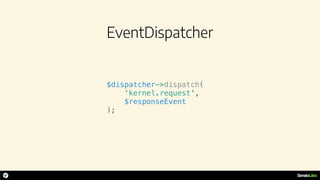

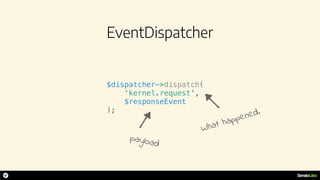

33. EventDispatcher
$dispatcher->dispatch(
'kernel.request',
$responseEvent
);

34. EventDispatcher
$dispatcher->dispatch(
'kernel.request',
$responseEvent
);
payload
What happened.

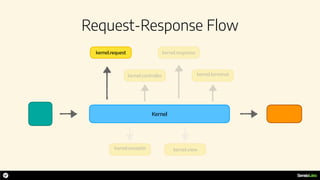

35. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

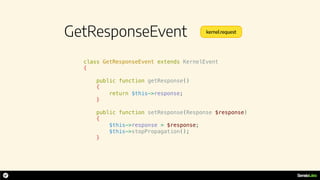

36. GetResponseEvent
class GetResponseEvent extends KernelEvent
{
public function getResponse()
{
return $this->response;
}
public function setResponse(Response $response)
{
$this->response = $response;
$this->stopPropagation();
}
kernel.request

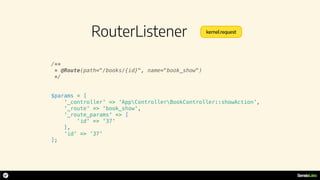

37. RouterListener
/**
* @Route(path="/books/{id}", name="book_show")
*/
$params = [
'_controller' => ‘AppControllerBookController::showAction’,
'_route' => 'book_show',
'_route_params' => [
'id' => '37'
],
'id' => ’37'
];
kernel.request

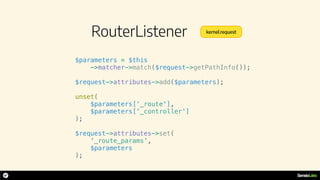

38. RouterListener
$parameters = $this
->matcher->match($request->getPathInfo());
$request->attributes->add($parameters);
unset(
$parameters[‘_route'],
$parameters[‘_controller']
);
$request->attributes->set(
'_route_params',
$parameters
);
kernel.request

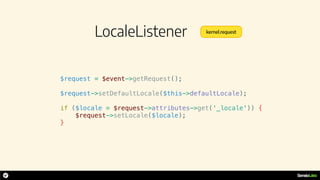

39. LocaleListener
$request = $event->getRequest();
$request->setDefaultLocale($this->defaultLocale);
if ($locale = $request->attributes->get('_locale')) {
$request->setLocale($locale);
}
kernel.request

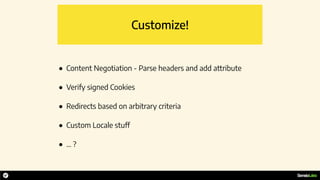

40. Customize!
• Content Negotiation - Parse headers and add attribute
• Verify signed Cookies
• Redirects based on arbitrary criteria
• Custom Locale stuff
• … ?

41. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

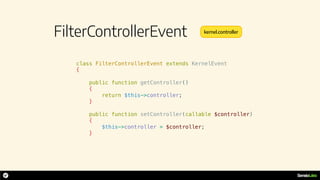

42. FilterControllerEvent
class FilterControllerEvent extends KernelEvent
{
public function getController()
{
return $this->controller;
}
public function setController(callable $controller)
{
$this->controller = $controller;
}
kernel.controller

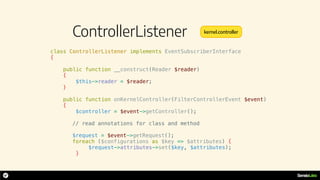

43. ControllerListener
class ControllerListener implements EventSubscriberInterface
{
public function __construct(Reader $reader)
{
$this->reader = $reader;
}
public function onKernelController(FilterControllerEvent $event)
{
$controller = $event->getController();
// read annotations for class and method
$request = $event->getRequest();
foreach ($configurations as $key => $attributes) {
$request->attributes->set($key, $attributes);
}
kernel.controller

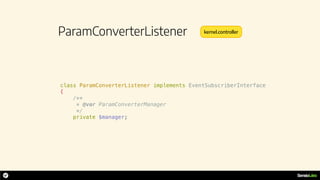

44. ParamConverterListener
class ParamConverterListener implements EventSubscriberInterface
{
/**
* @var ParamConverterManager
*/
private $manager;
kernel.controller

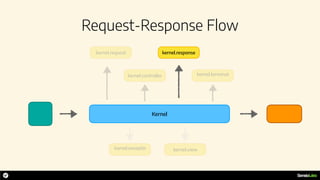

45. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

46. Wait… Controllers?

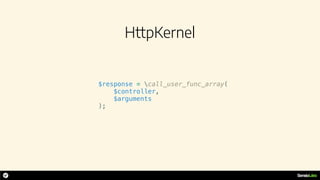

47. HttpKernel
$response = call_user_func_array(
$controller,
$arguments
);

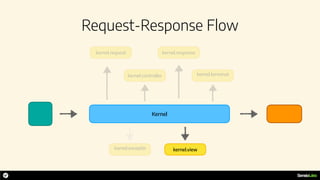

48. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

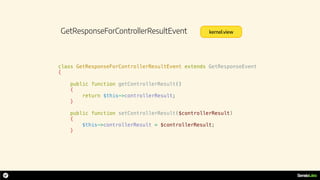

49. GetResponseForControllerResultEvent
class GetResponseForControllerResultEvent extends GetResponseEvent
{
public function getControllerResult()
{
return $this->controllerResult;
}
public function setControllerResult($controllerResult)
{
$this->controllerResult = $controllerResult;
}
kernel.view

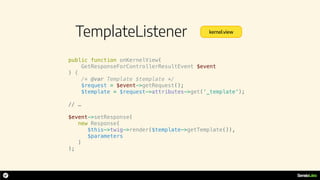

50. TemplateListener
public function onKernelView(
GetResponseForControllerResultEvent $event
) {
/* @var Template $template */
$request = $event->getRequest();
$template = $request->attributes->get(‘_template');
// …
$event->setResponse(
new Response(
$this->twig->render($template->getTemplate()),
$parameters
)
);
kernel.view

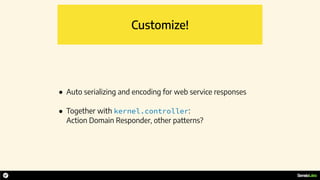

51. Customize!
• Auto serializing and encoding for web service responses
• Together with kernel.controller:
Action Domain Responder, other patterns?

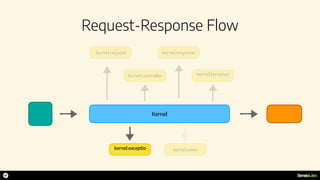

52. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

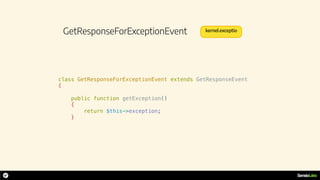

53. GetResponseForExceptionEvent
class GetResponseForExceptionEvent extends GetResponseEvent
{
public function getException()
{
return $this->exception;
}
kernel.exceptio

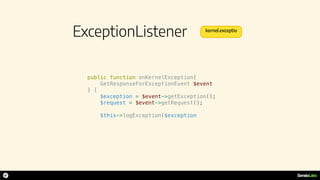

54. ExceptionListener
public function onKernelException(
GetResponseForExceptionEvent $event
) {
$exception = $event->getException();
$request = $event->getRequest();
$this->logException($exception
kernel.exceptio

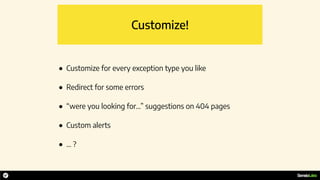

55. Customize!
• Customize for every exception type you like
• Redirect for some errors
• “were you looking for…” suggestions on 404 pages
• Custom alerts
• … ?

56. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

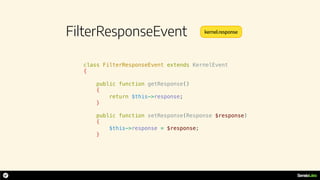

57. FilterResponseEvent
class FilterResponseEvent extends KernelEvent
{
public function getResponse()
{
return $this->response;
}
public function setResponse(Response $response)
{
$this->response = $response;
}
kernel.response

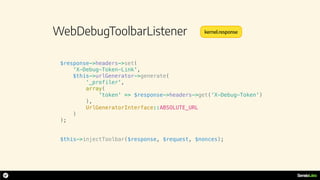

58. WebDebugToolbarListener
$response->headers->set(
'X-Debug-Token-Link',
$this->urlGenerator->generate(
‘_profiler',
array(
'token' => $response->headers->get(‘X-Debug-Token')
),
UrlGeneratorInterface::ABSOLUTE_URL
)
);
$this->injectToolbar($response, $request, $nonces);
kernel.response

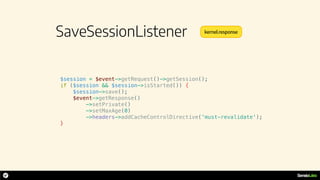

59. SaveSessionListener
$session = $event->getRequest()->getSession();
if ($session && $session->isStarted()) {
$session->save();
$event->getResponse()
->setPrivate()
->setMaxAge(0)
->headers->addCacheControlDirective('must-revalidate');
}
kernel.response

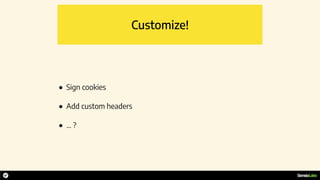

60. Customize!
• Sign cookies
• Add custom headers
• … ?

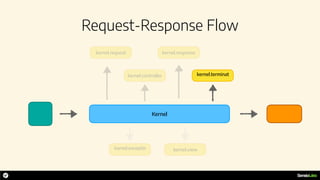

61. Request-Response Flow
Kernel
kernel.request
kernel.controller
kernel.response
kernel.exceptio kernel.view
kernel.terminat

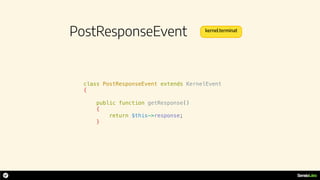

62. PostResponseEvent
class PostResponseEvent extends KernelEvent
{
public function getResponse()
{
return $this->response;
}
kernel.terminat

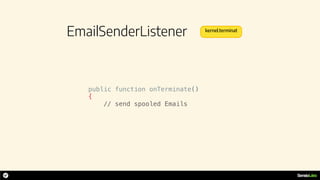

63. EmailSenderListener
public function onTerminate()
{
// send spooled Emails
kernel.terminat

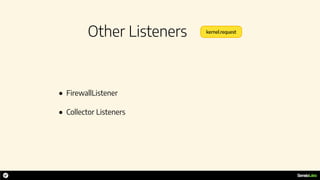

64. Other Listeners kernel.request
• FirewallListener
• Collector Listeners

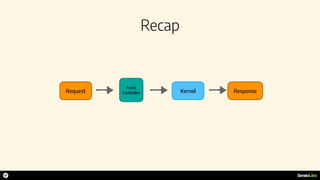

65. Recap
Request Response
Front
Controller Kernel

67. Thank you :)
