This document discusses extending eZ Platform 2.x with Symfony and React. It provides background on the technology stack changes from 1.x to 2.x, including moving from YUI3 to Symfony and React to improve performance and extensibility. It describes various extension points for both frontend and backend developers, such as React modules, field types, and application menus. It demonstrates performance improvements of 2.x over 1.x through examples of login and location pages loading over 10x faster.

1. Extending eZ Platform 2.x with Symfony and React
With the eZ Platform 2.x development case

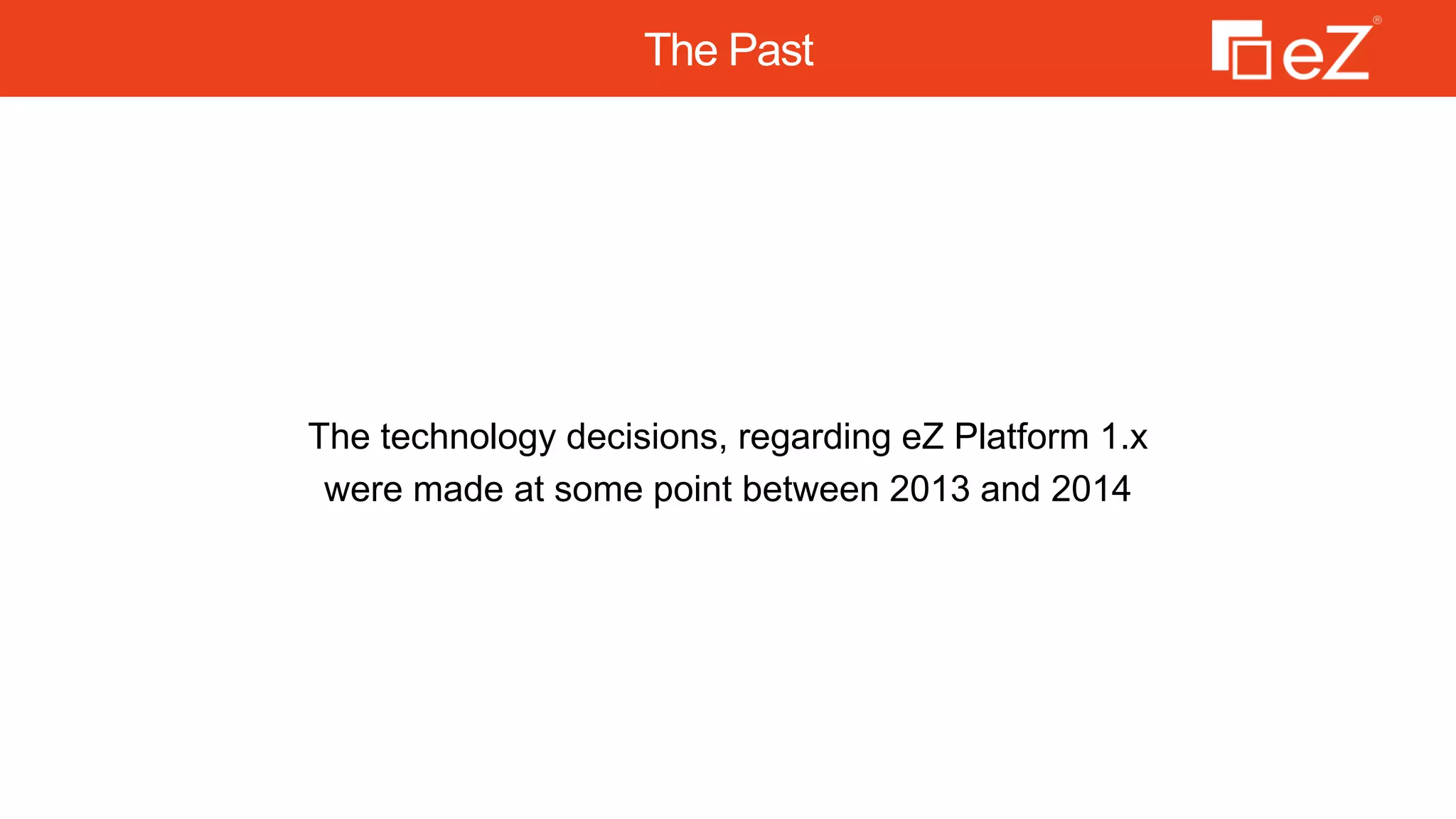

2. The Past
The technology decisions, regarding eZ Platform 1.x
were made at some point between 2013 and 2014

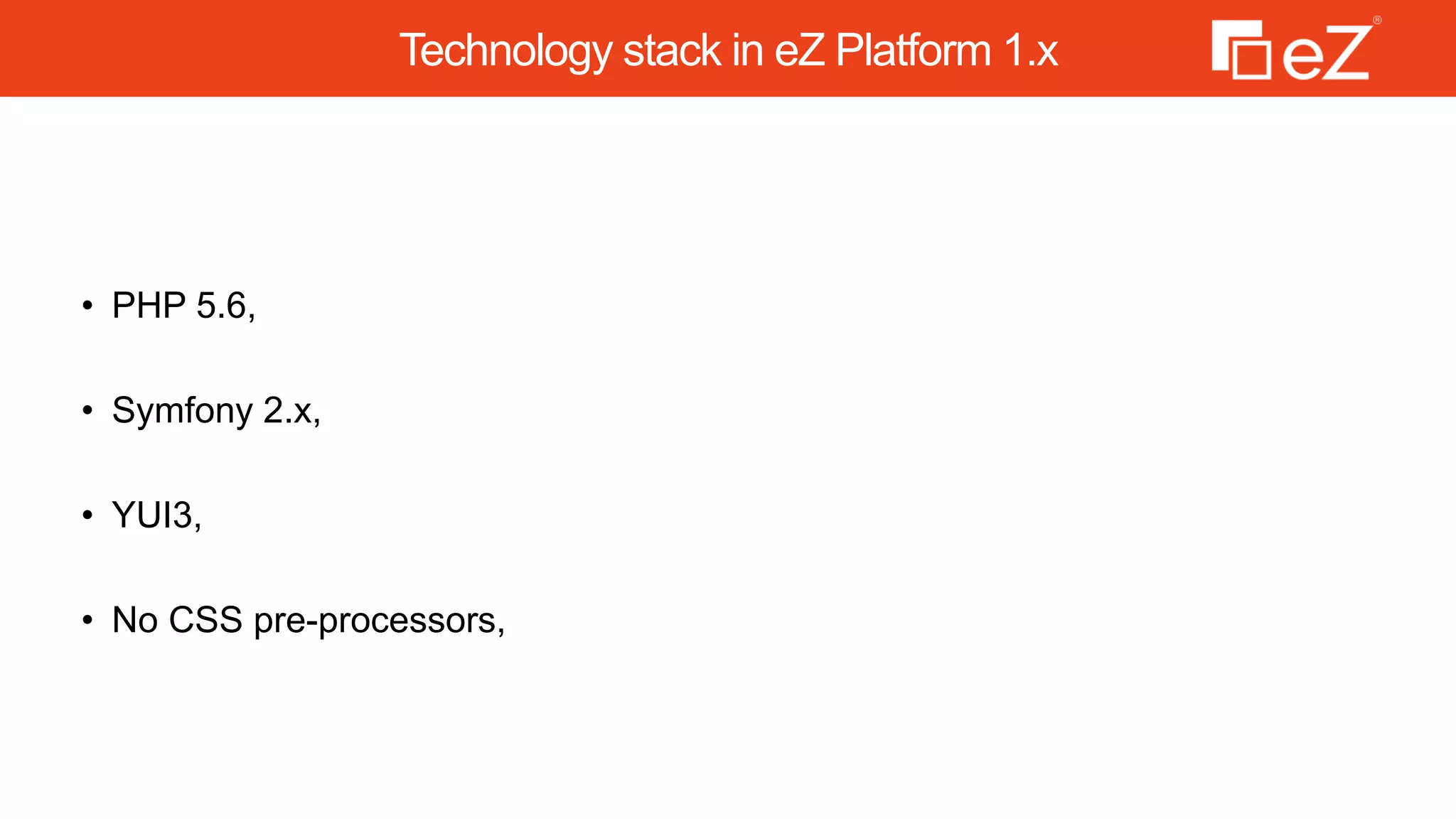

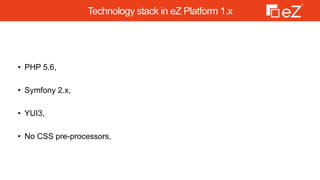

3. Technology stack in eZ Platform 1.x
• PHP 5.6,
• Symfony 2.x,
• YUI3,
• No CSS pre-processors,

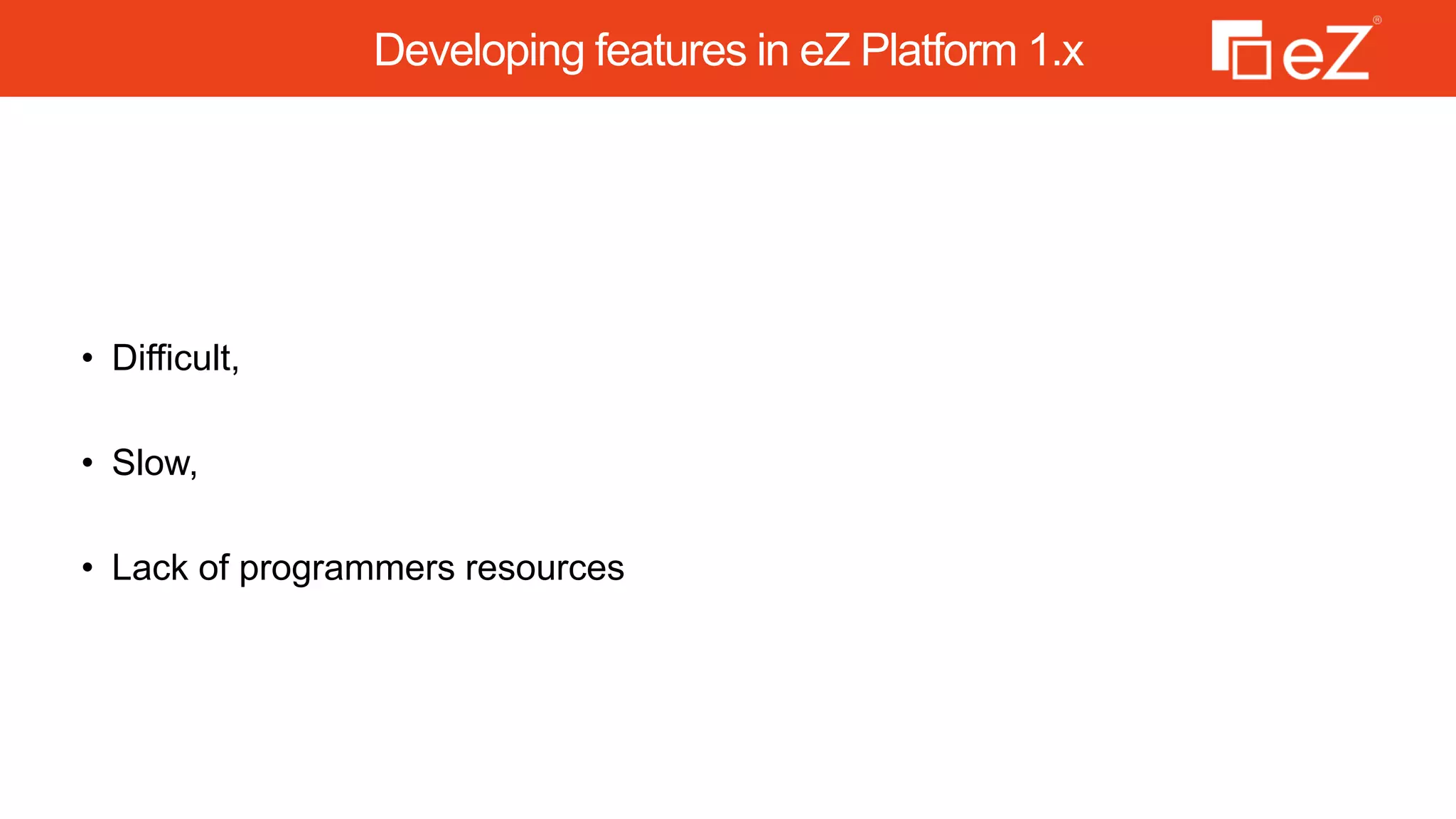

4. Developing features in eZ Platform 1.x
• Difficult,
• Slow,
• Lack of programmers resources

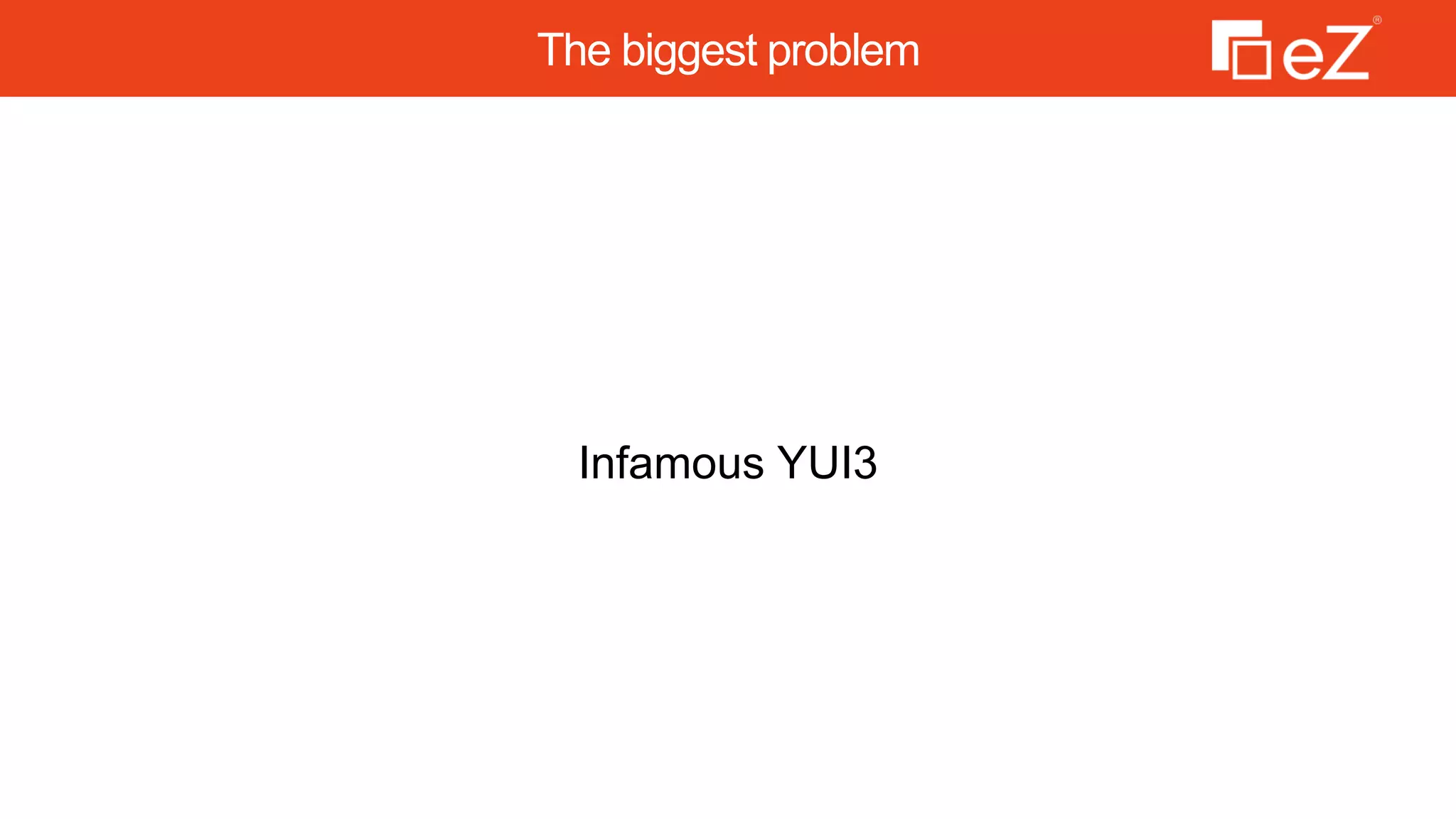

5. The biggest problem
Infamous YUI3

6. The goals for eZ Platform 2.x

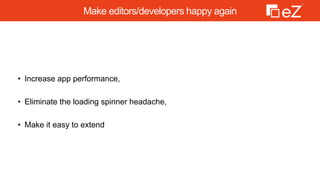

7. Make editors/developers happy again
• Increase app performance,
• Eliminate the loading spinner headache,
• Make it easy to extend

8. Seeking for right solution

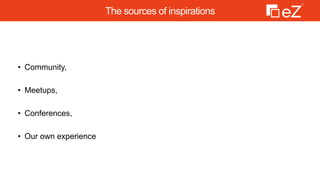

9. The sources of inspirations
• Community,
• Meetups,
• Conferences,
• Our own experience

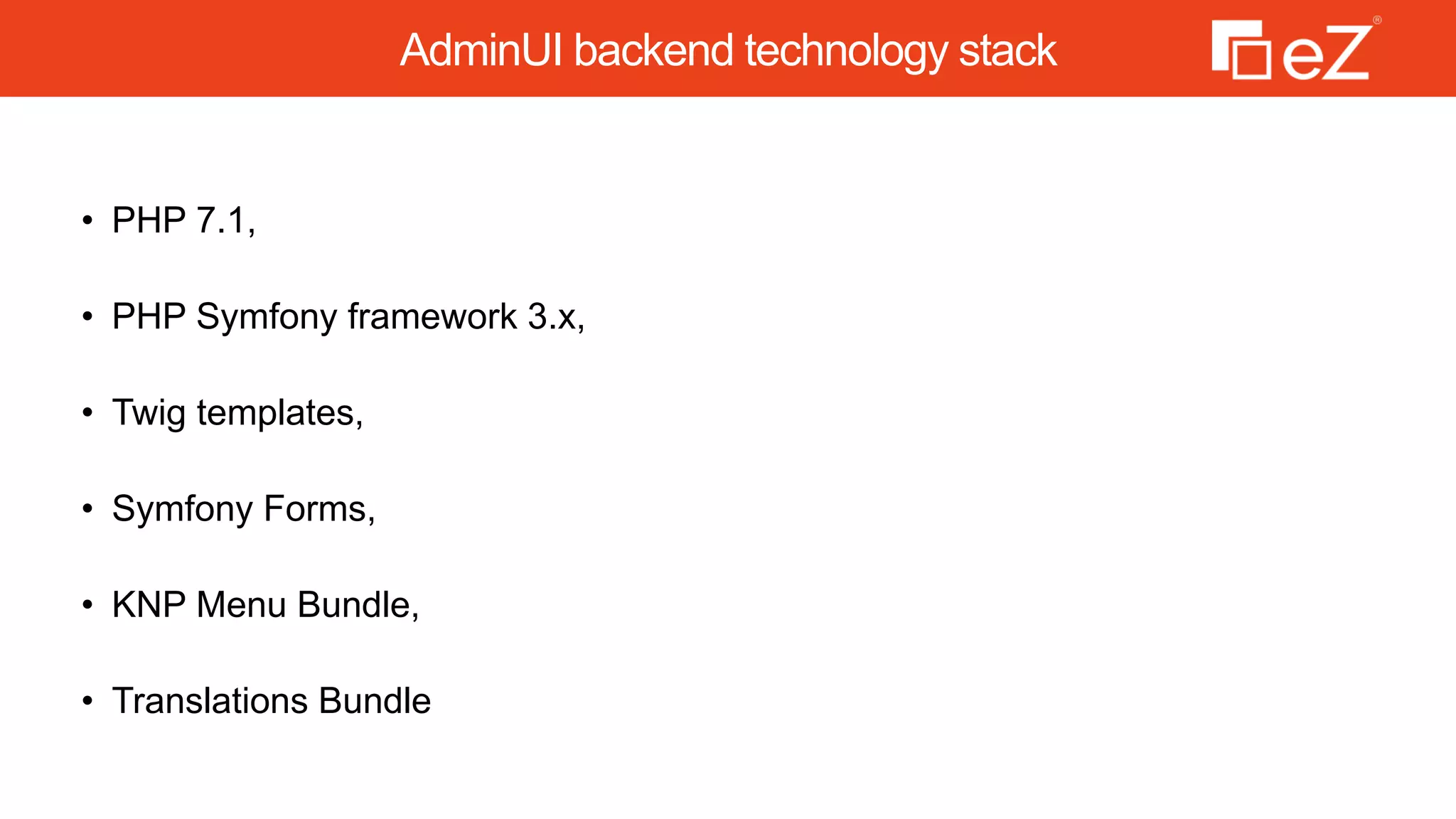

10. AdminUI backend technology stack
• PHP 7.1,
• PHP Symfony framework 3.x,
• Twig templates,
• Symfony Forms,
• KNP Menu Bundle,
• Translations Bundle

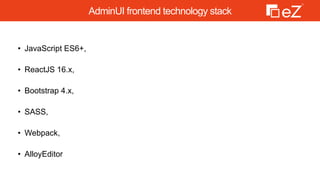

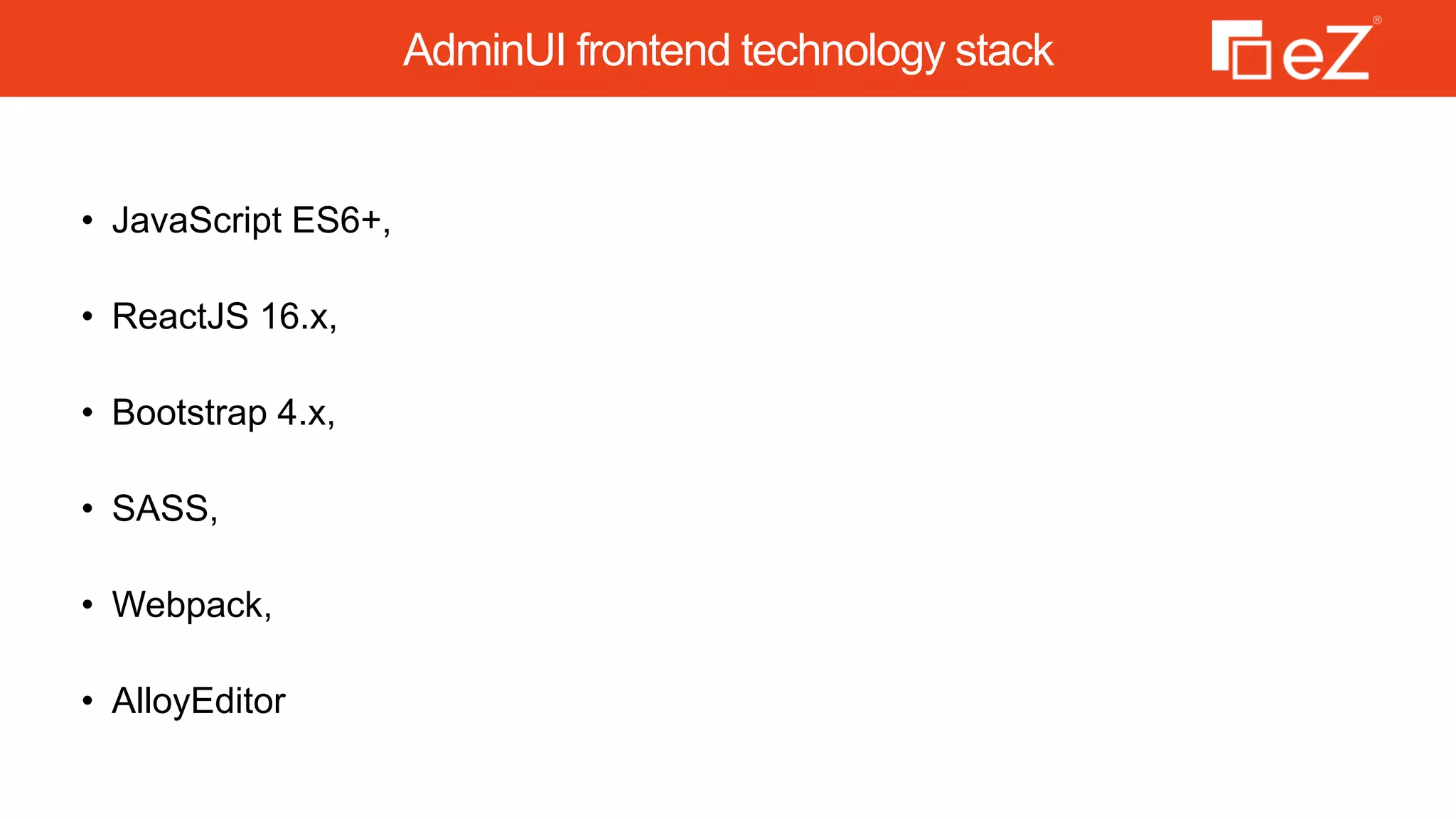

11. AdminUI frontend technology stack
• JavaScript ES6+,
• ReactJS 16.x,
• Bootstrap 4.x,
• SASS,
• Webpack,
• AlloyEditor

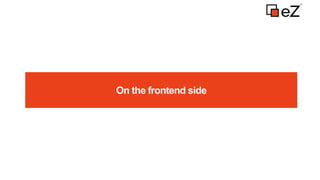

12. On the frontend side

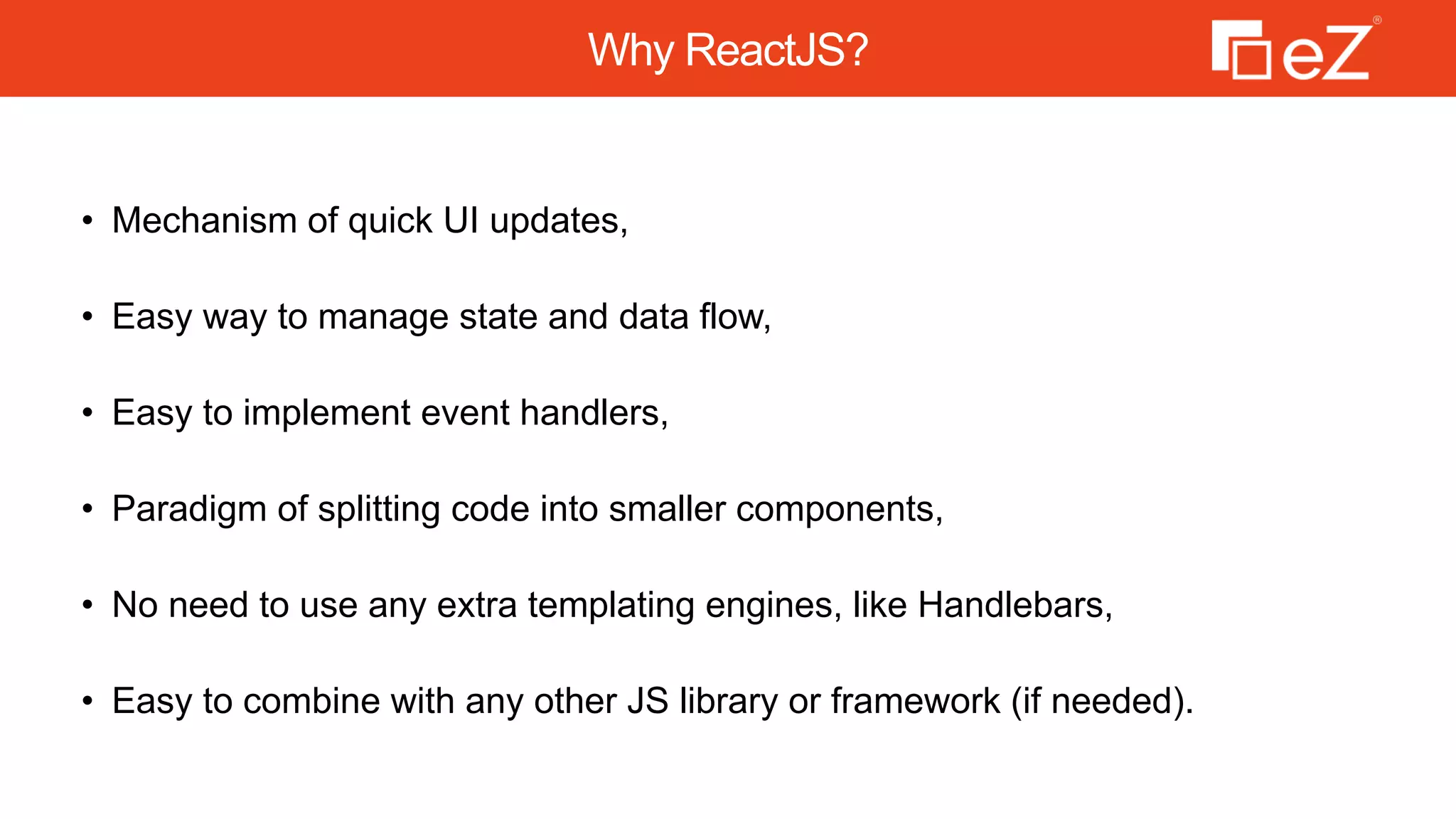

13. Why ReactJS?
• Mechanism of quick UI updates,
• Easy way to manage state and data flow,
• Easy to implement event handlers,
• Paradigm of splitting code into smaller components,
• No need to use any extra templating engines, like Handlebars,
• Easy to combine with any other JS library or framework (if needed).

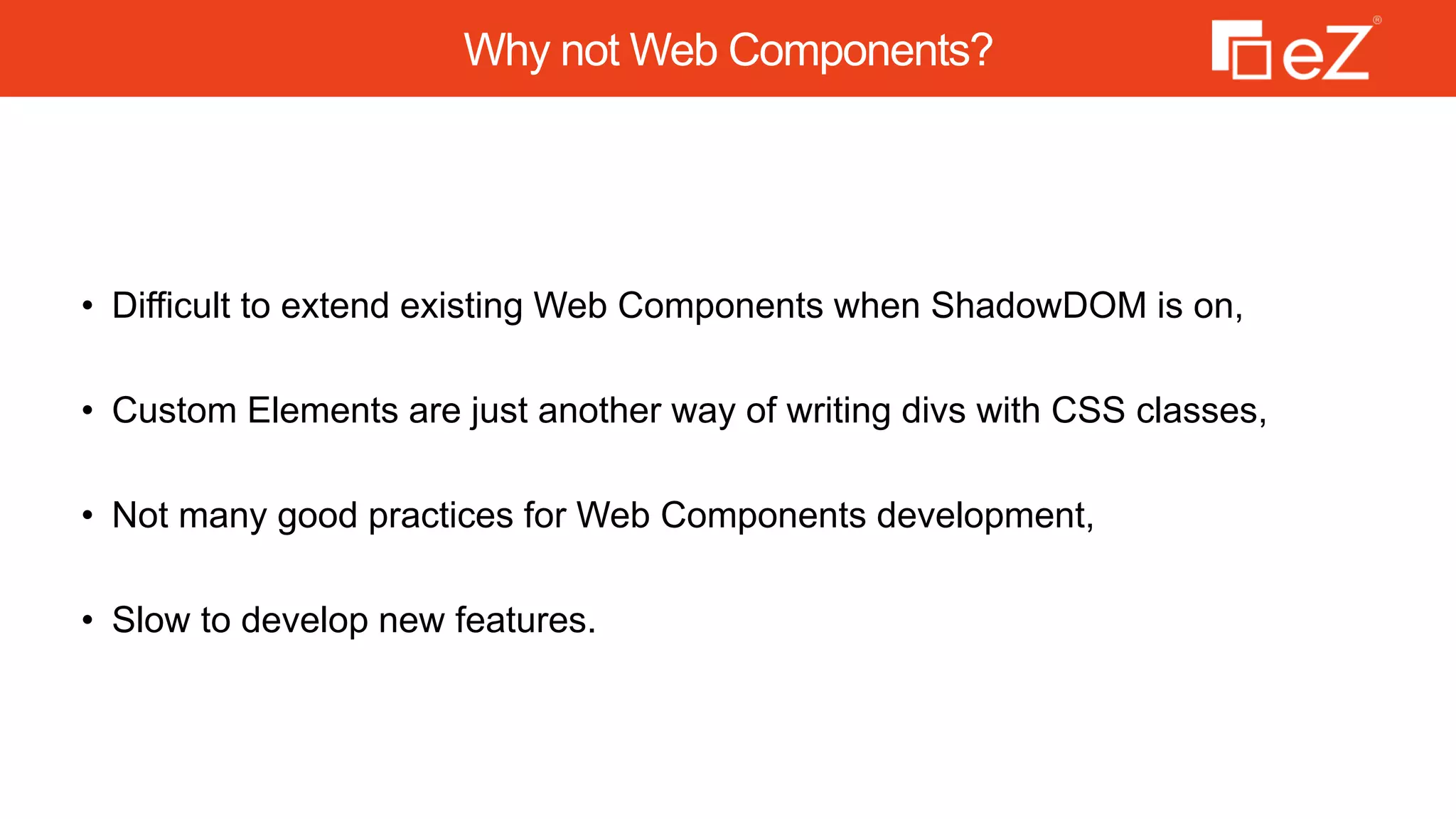

14. Why not Web Components?
• Difficult to extend existing Web Components when ShadowDOM is on,
• Custom Elements are just another way of writing divs with CSS classes,
• Not many good practices for Web Components development,
• Slow to develop new features.

15. Should you avoid using Web Components?
No!

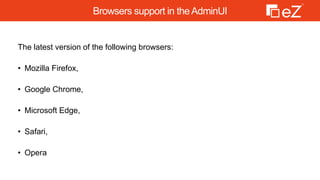

16. Browsers support in theAdminUI
The latest version of the following browsers:
• Mozilla Firefox,
• Google Chrome,
• Microsoft Edge,
• Safari,
• Opera

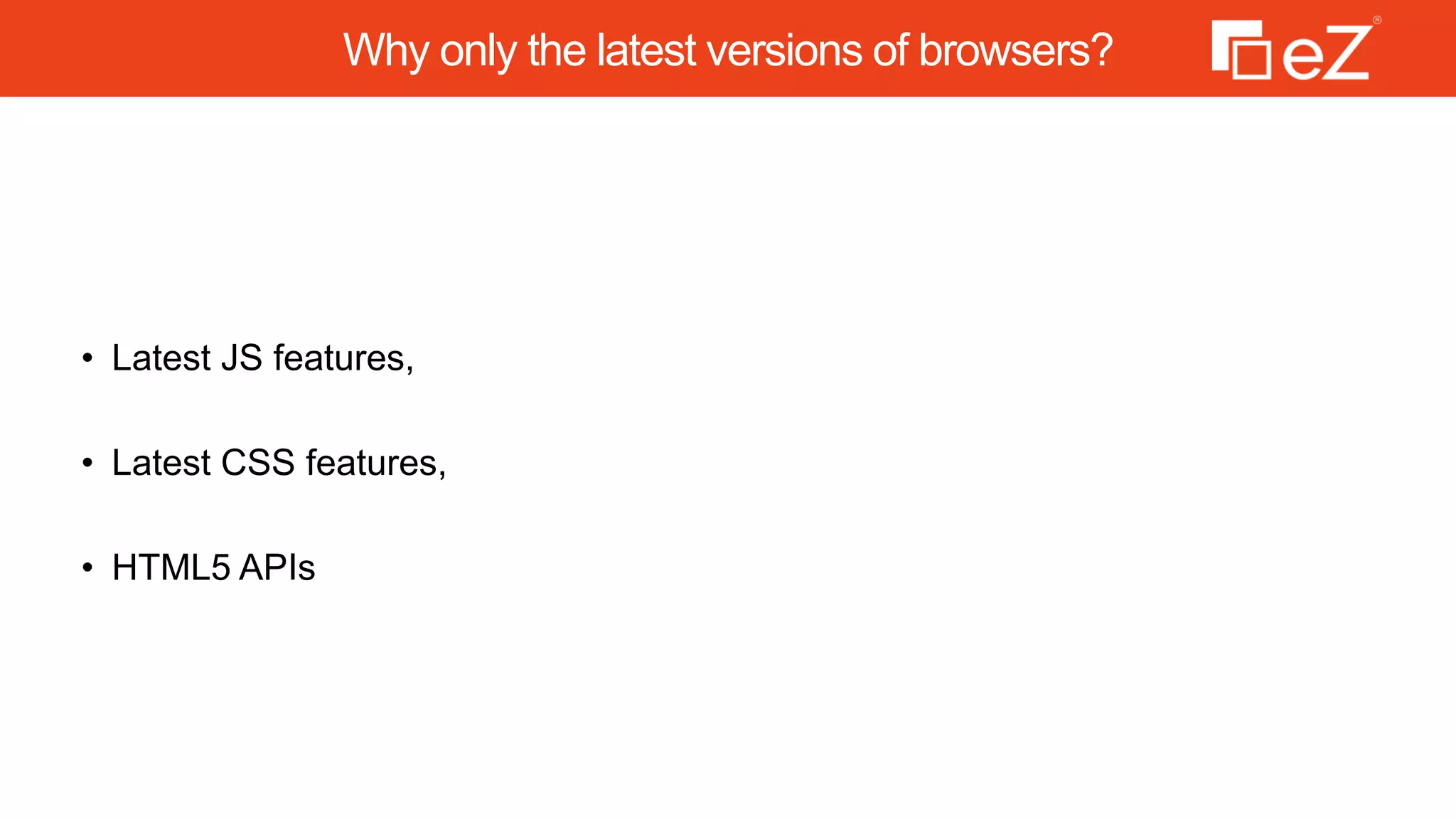

17. Why only the latest versions of browsers?
• Latest JS features,
• Latest CSS features,
• HTML5 APIs

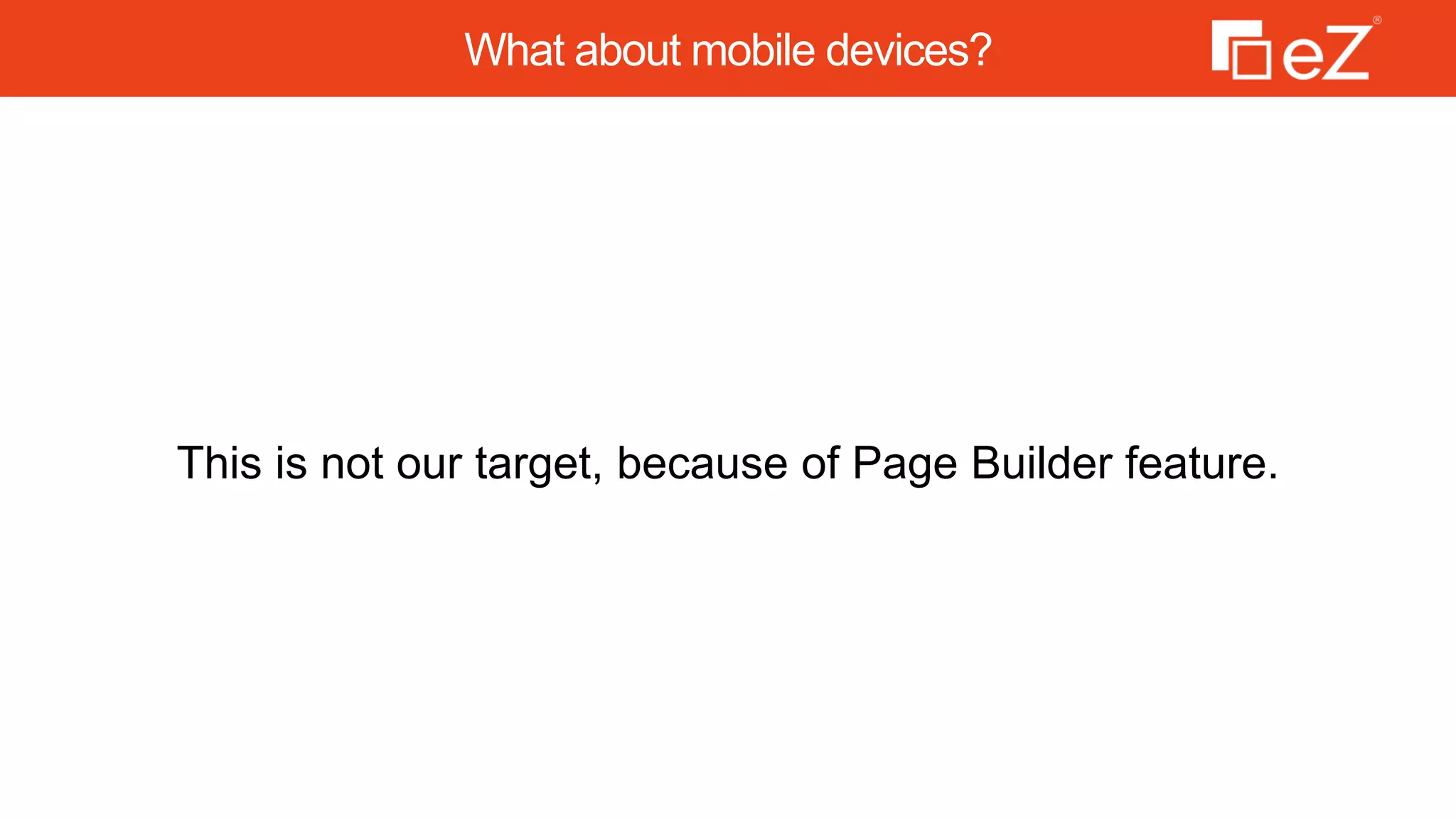

18. What about mobile devices?
This is not our target, because of Page Builder feature.

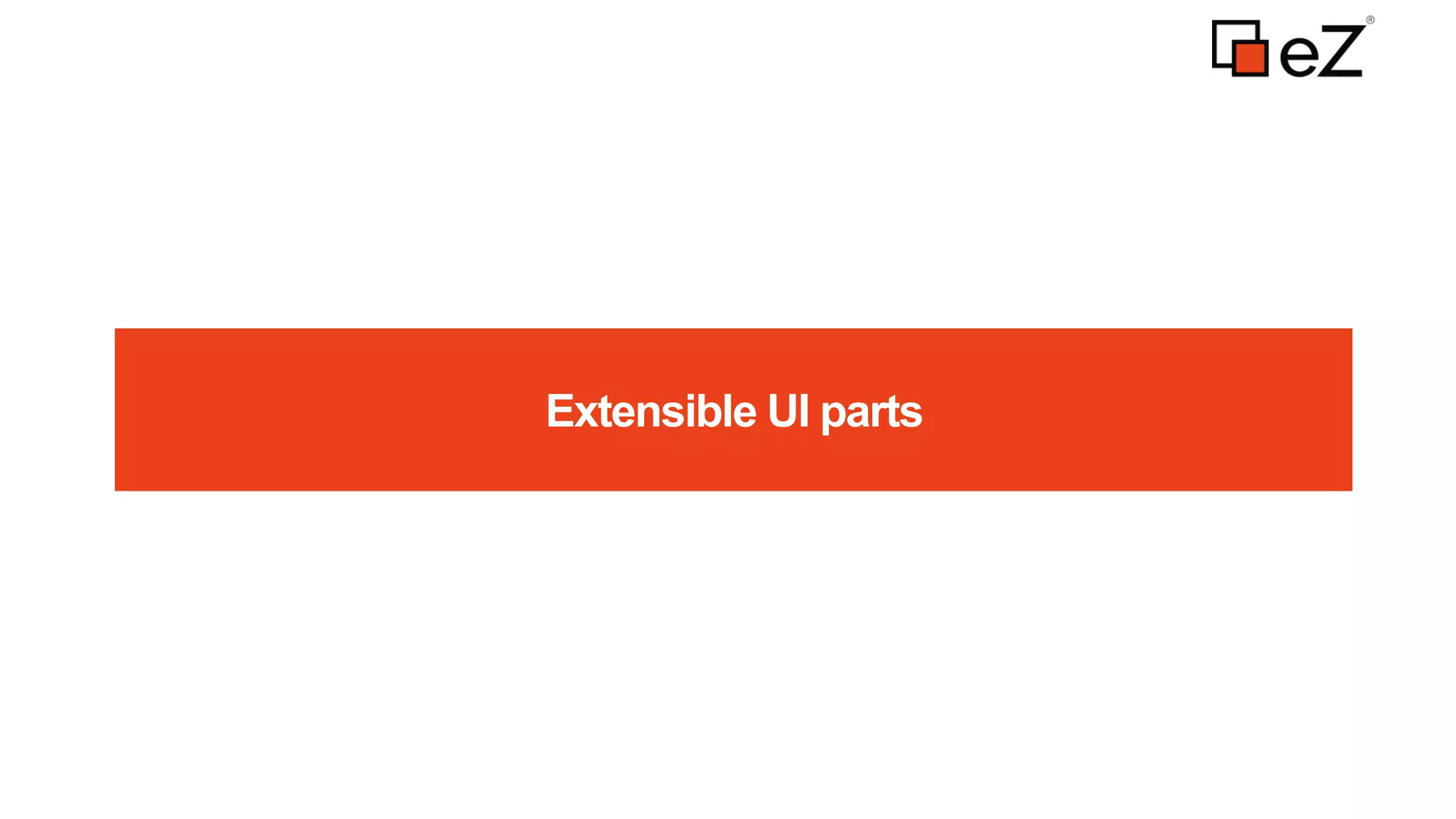

19. Extensible UI parts

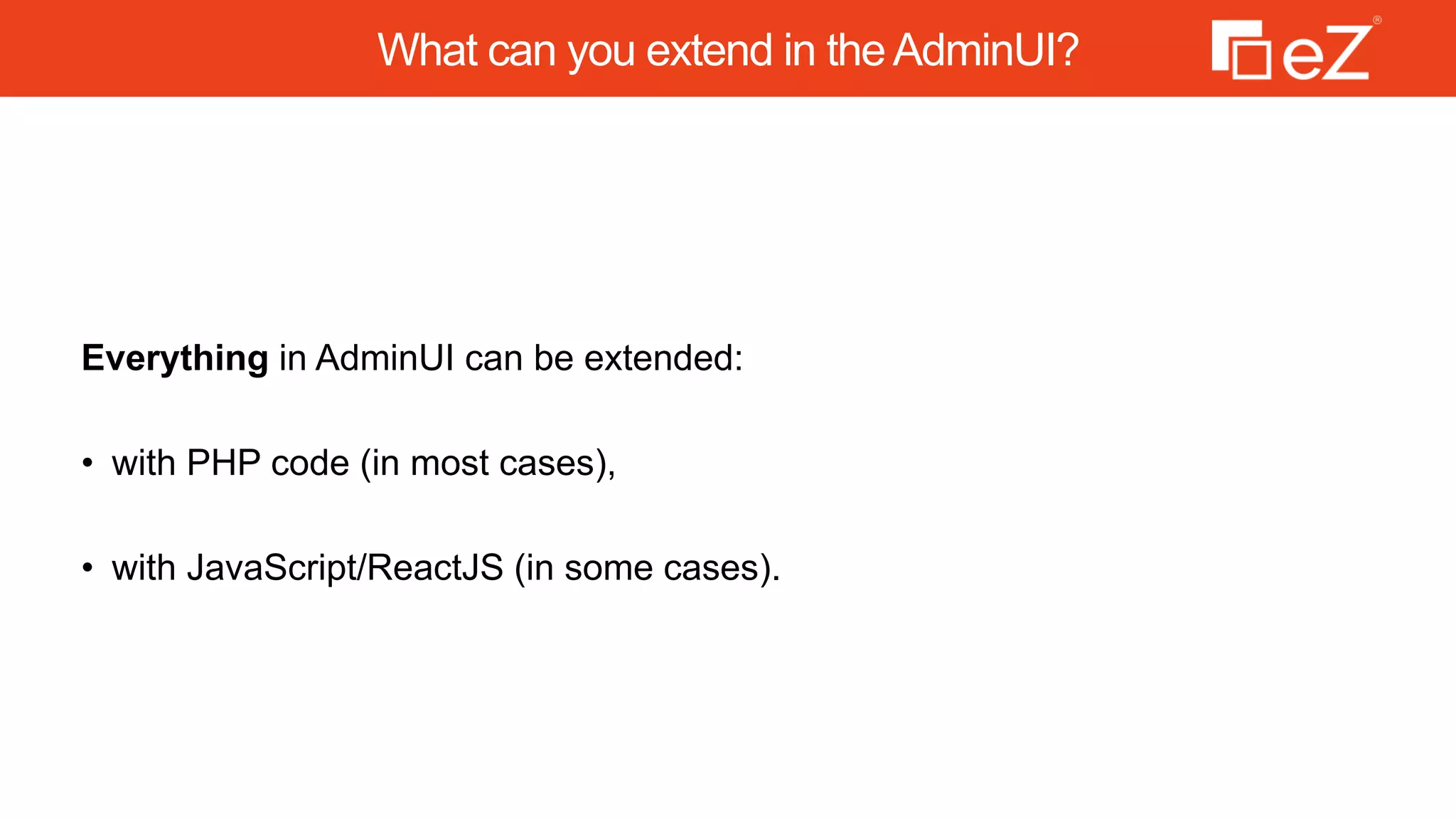

20. What can you extend in theAdminUI?
Everything in AdminUI can be extended:
• with PHP code (in most cases),
• with JavaScript/ReactJS (in some cases).

21. Extension points for frontend developers

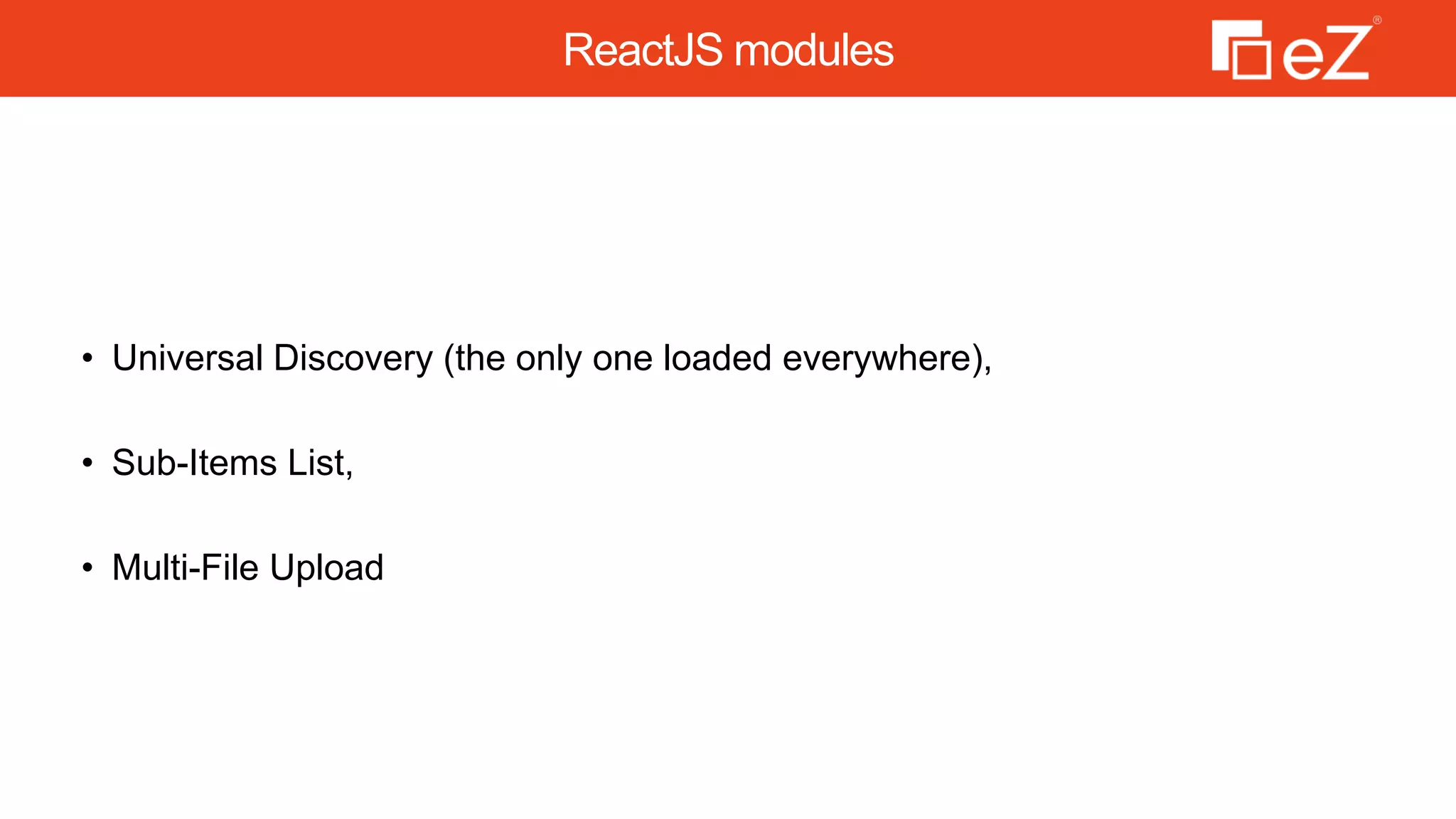

22. ReactJS modules
• Universal Discovery (the only one loaded everywhere),
• Sub-Items List,
• Multi-File Upload

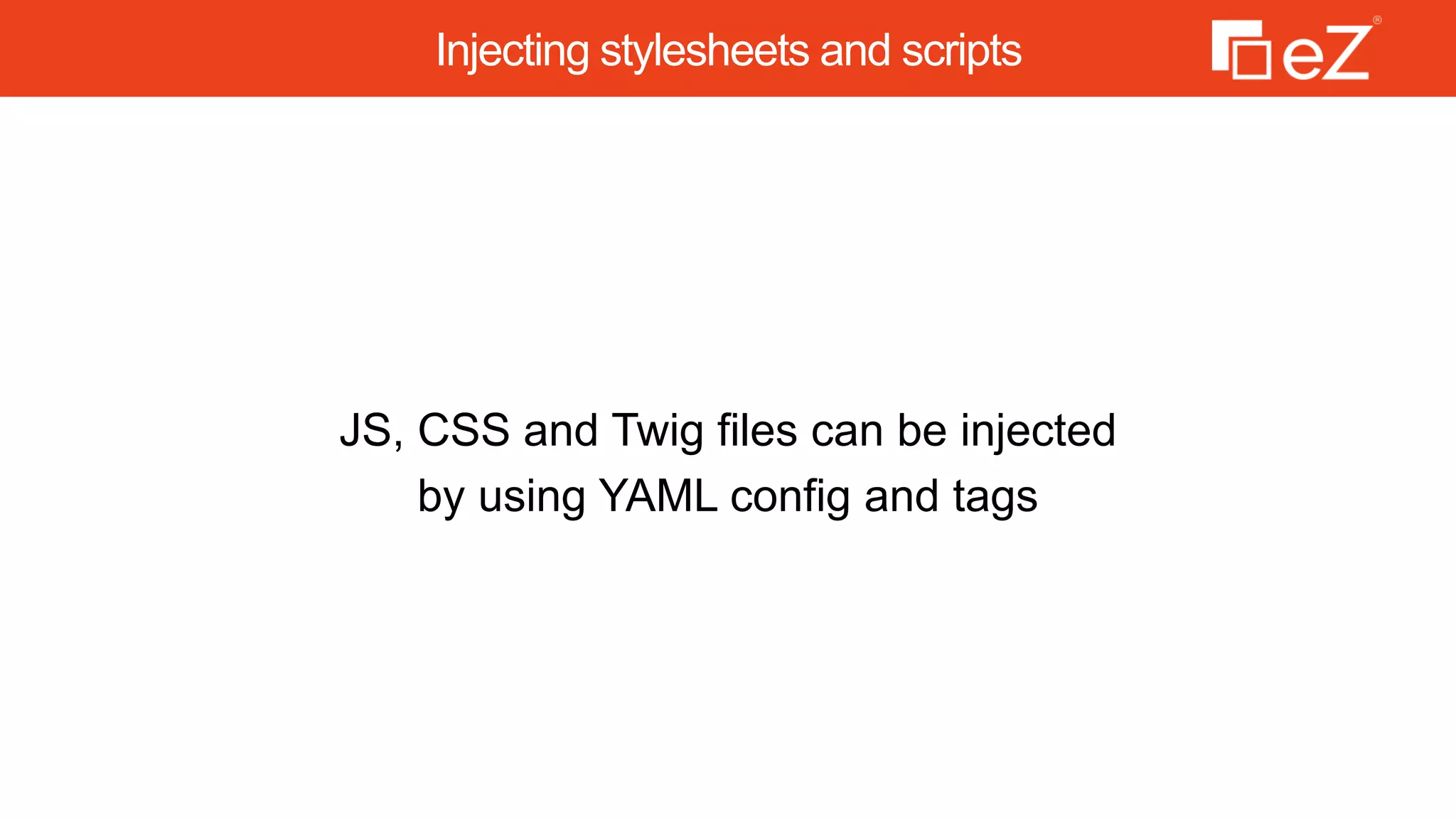

23. Injecting stylesheets and scripts
JS, CSS and Twig files can be injected
by using YAML config and tags

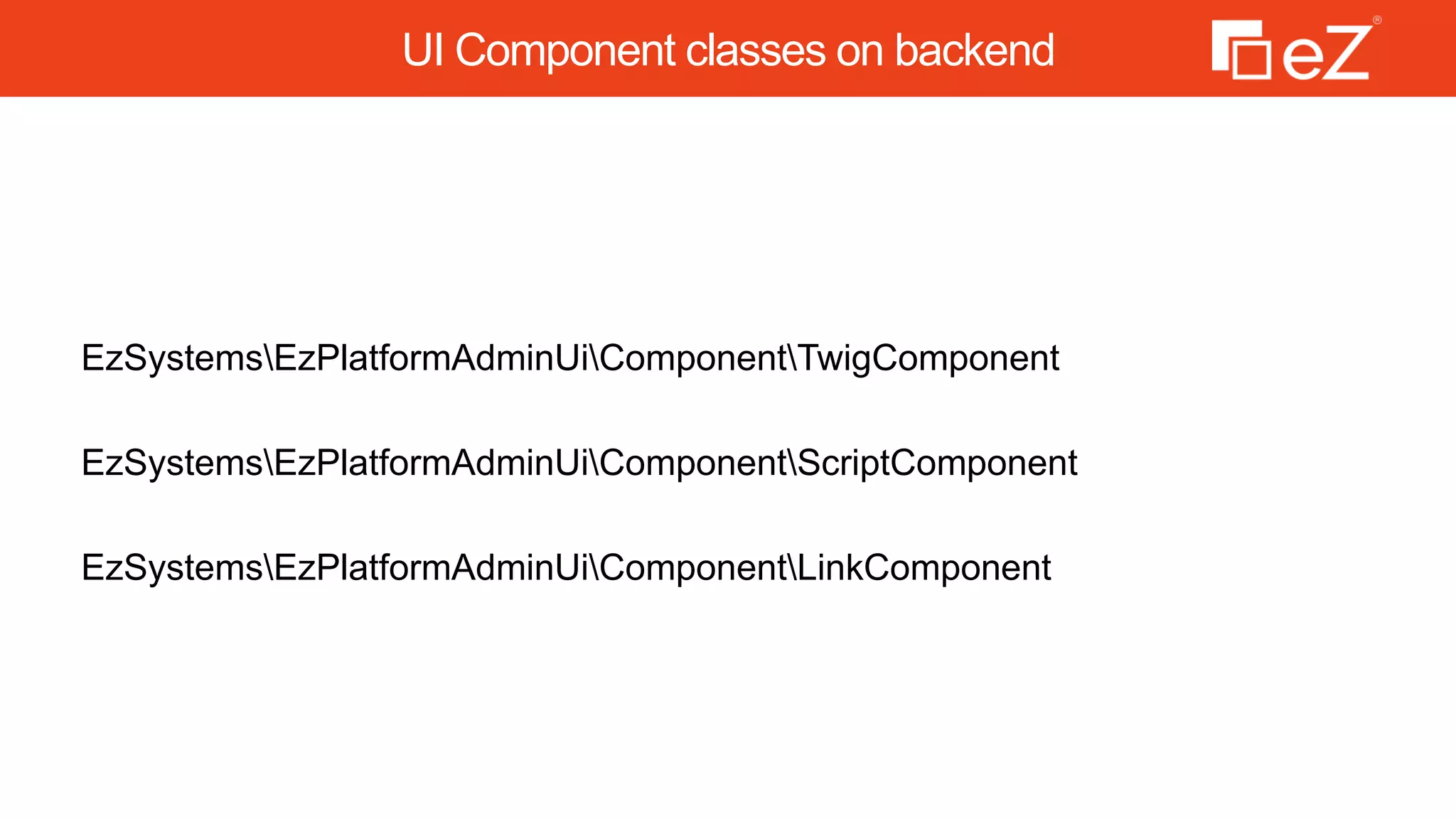

24. UI Component classes on backend
EzSystemsEzPlatformAdminUiComponentTwigComponent
EzSystemsEzPlatformAdminUiComponentScriptComponent
EzSystemsEzPlatformAdminUiComponentLinkComponent

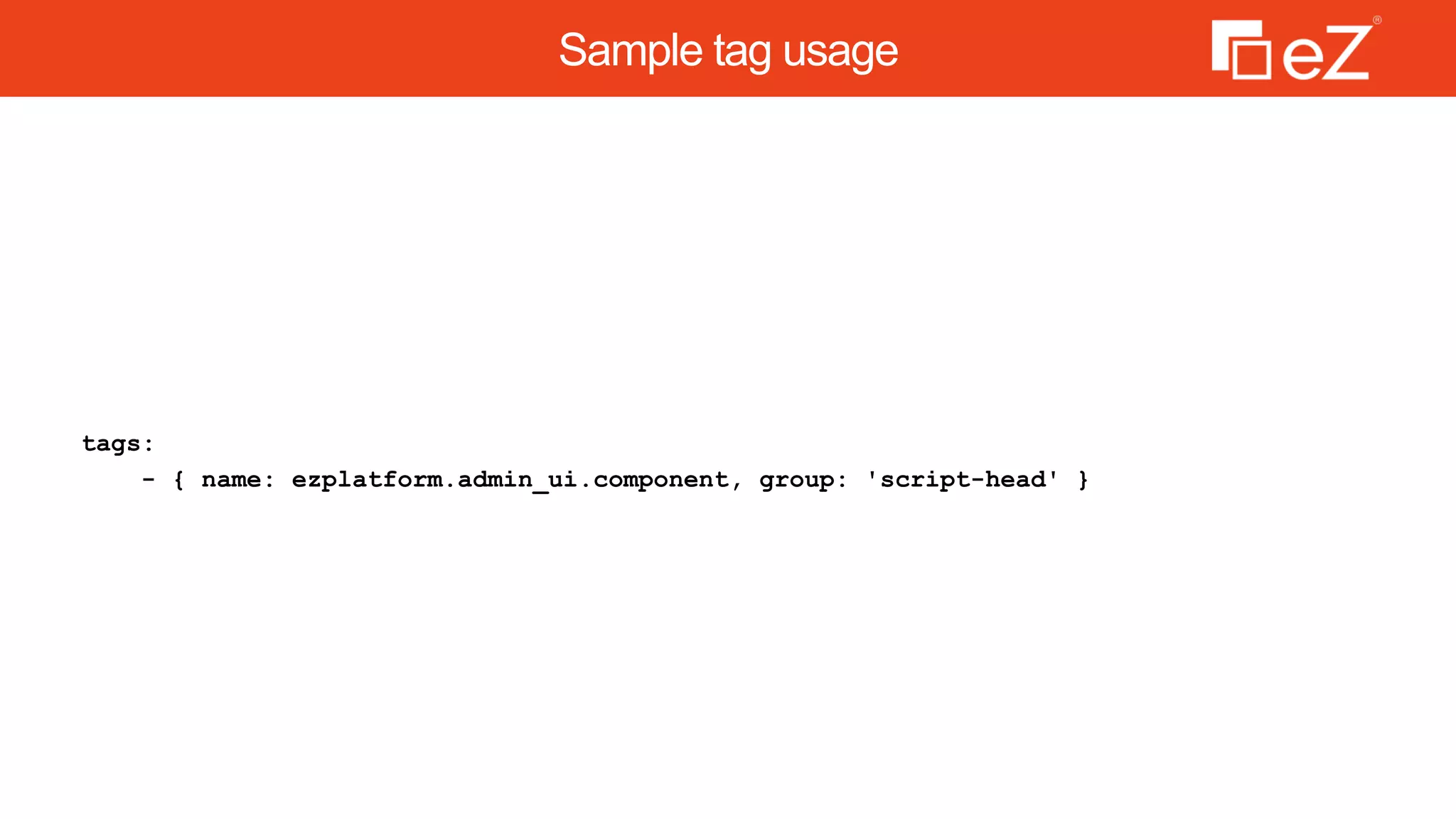

25. Sample tag usage
tags:
- { name: ezplatform.admin_ui.component, group: 'script-head' }

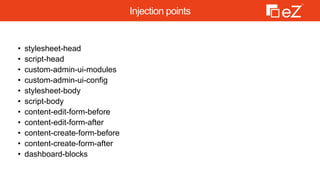

26. Injection points
• stylesheet-head
• script-head
• custom-admin-ui-modules
• custom-admin-ui-config
• stylesheet-body
• script-body
• content-edit-form-before
• content-edit-form-after
• content-create-form-before
• content-create-form-after
• dashboard-blocks

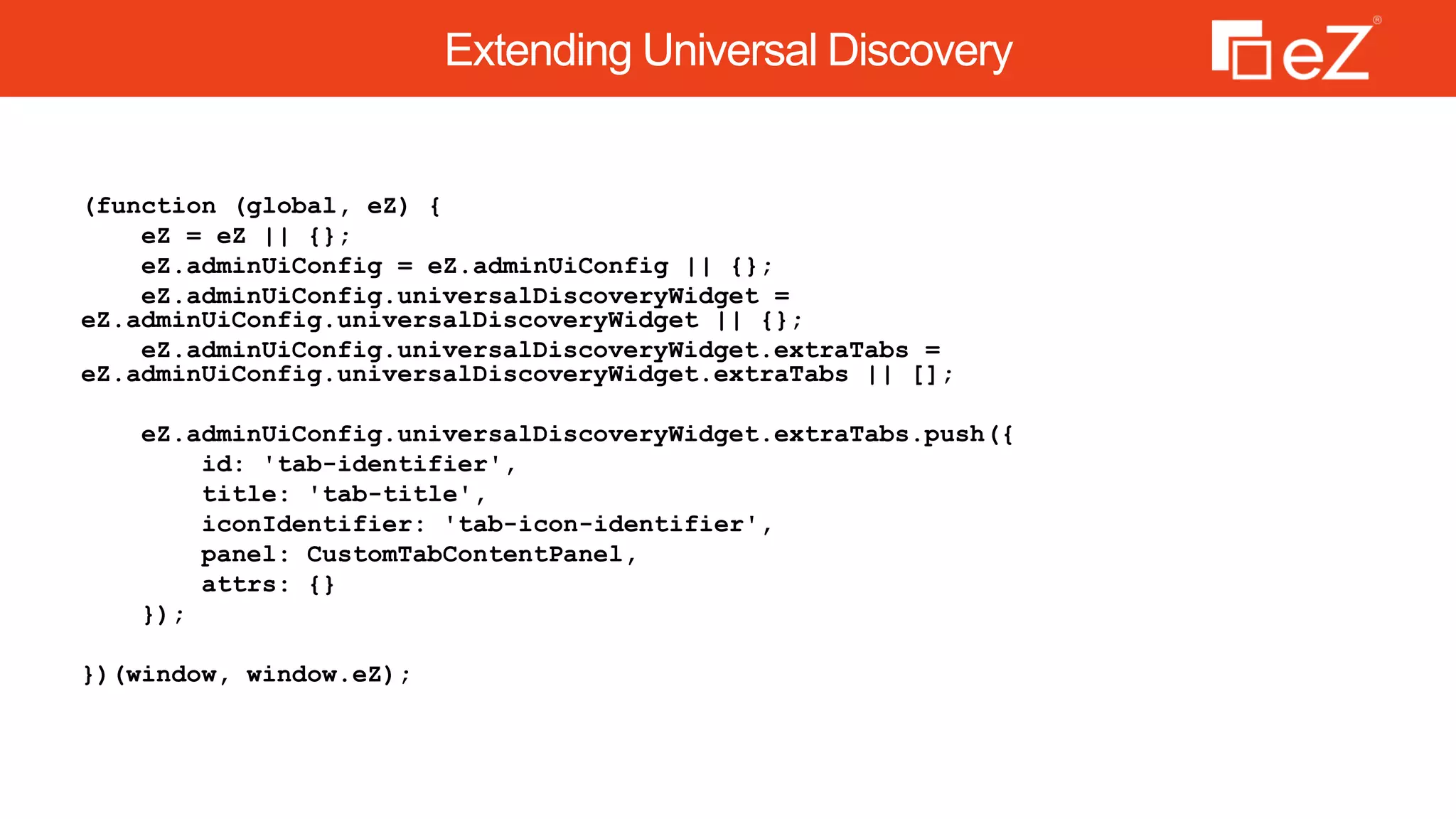

27. Extending Universal Discovery
(function (global, eZ) {
eZ = eZ || {};
eZ.adminUiConfig = eZ.adminUiConfig || {};
eZ.adminUiConfig.universalDiscoveryWidget =
eZ.adminUiConfig.universalDiscoveryWidget || {};
eZ.adminUiConfig.universalDiscoveryWidget.extraTabs =
eZ.adminUiConfig.universalDiscoveryWidget.extraTabs || [];
eZ.adminUiConfig.universalDiscoveryWidget.extraTabs.push({
id: 'tab-identifier',
title: 'tab-title',
iconIdentifier: 'tab-icon-identifier',
panel: CustomTabContentPanel,
attrs: {}
});
})(window, window.eZ);

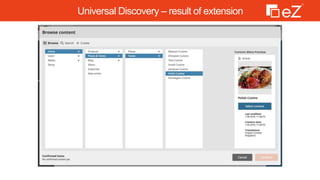

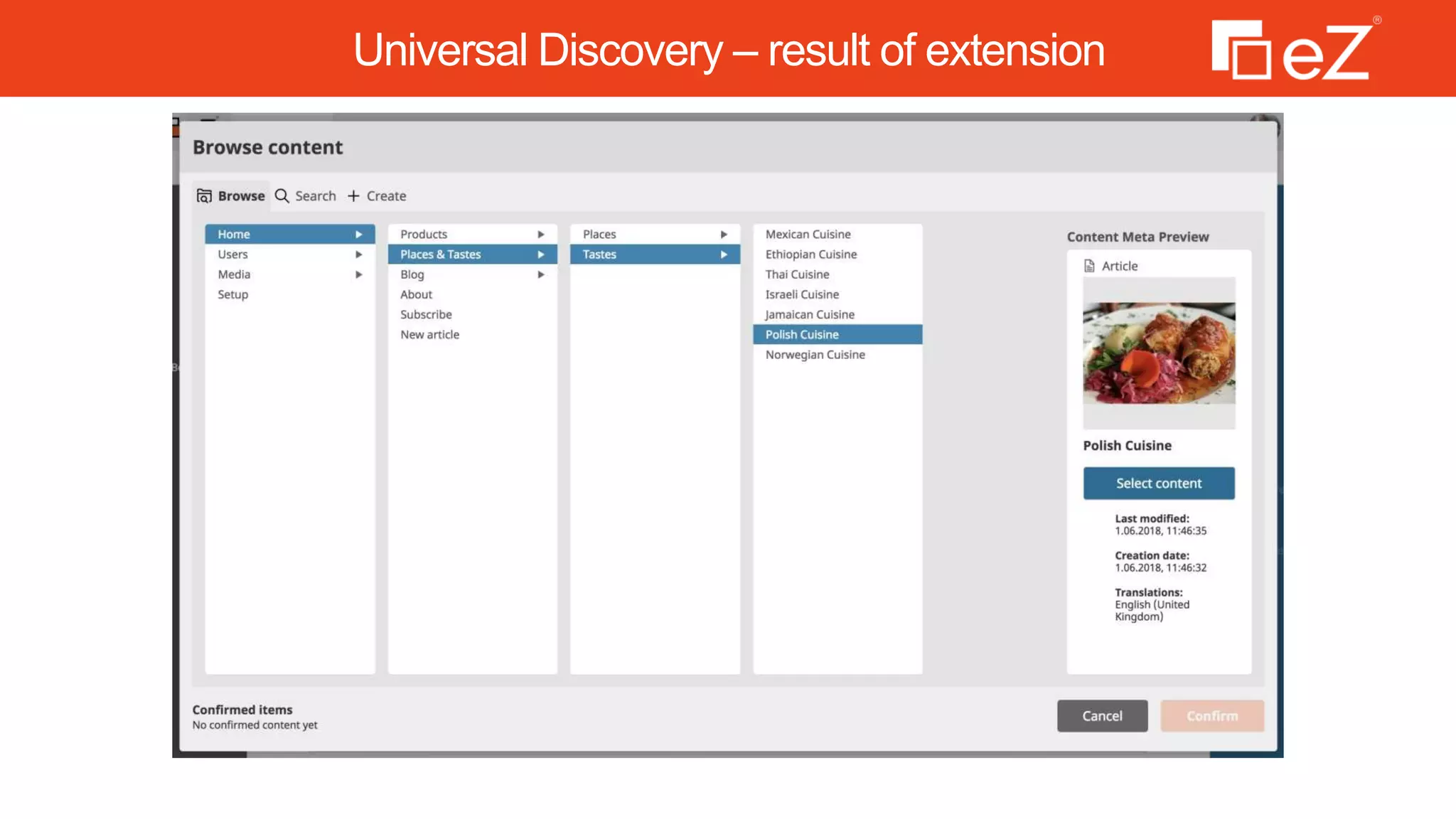

28. Universal Discovery – result of extension

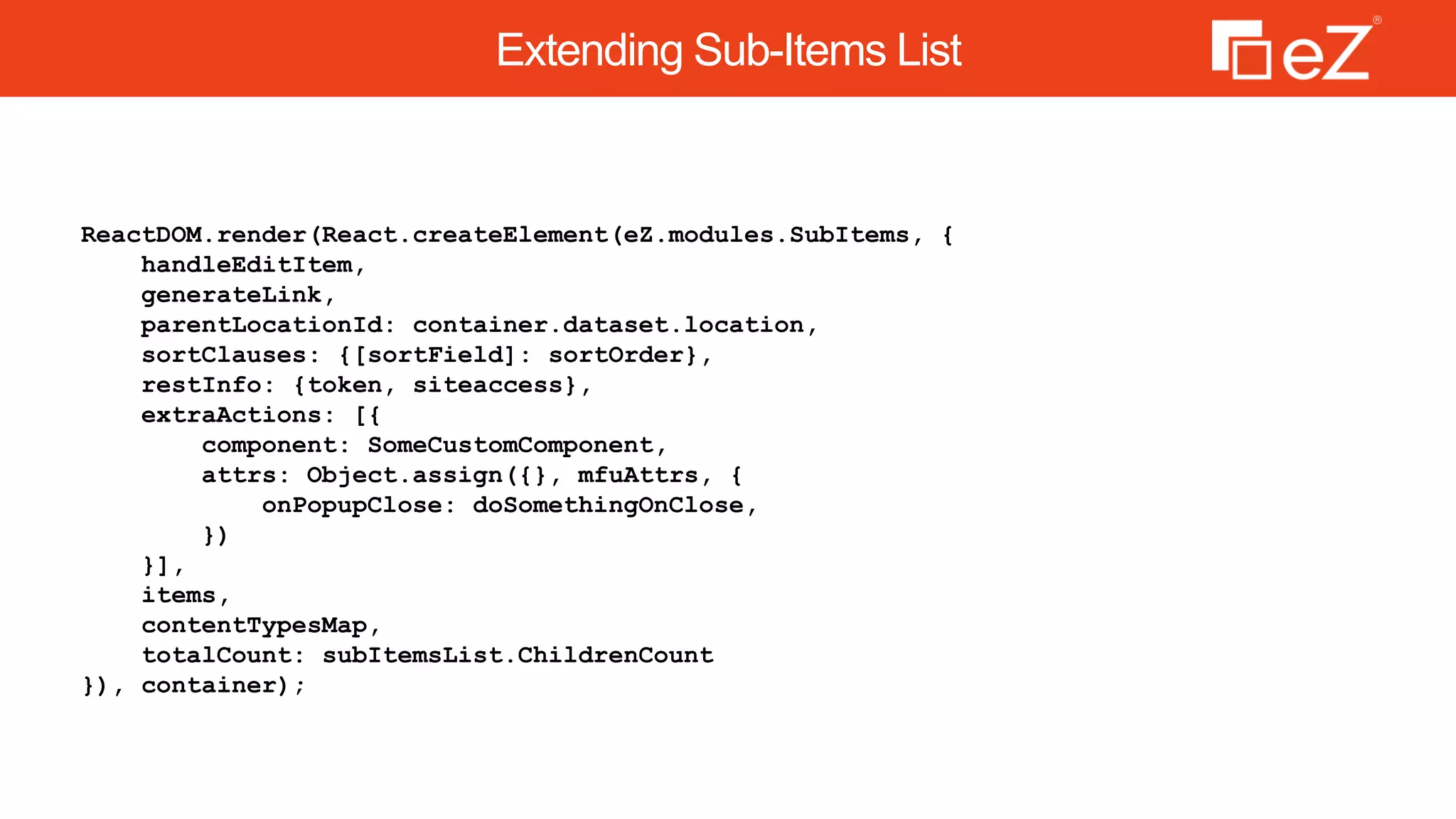

29. Extending Sub-Items List
ReactDOM.render(React.createElement(eZ.modules.SubItems, {
handleEditItem,
generateLink,
parentLocationId: container.dataset.location,
sortClauses: {[sortField]: sortOrder},
restInfo: {token, siteaccess},
extraActions: [{
component: SomeCustomComponent,
attrs: Object.assign({}, mfuAttrs, {
onPopupClose: doSomethingOnClose,
})
}],
items,
contentTypesMap,
totalCount: subItemsList.ChildrenCount
}), container);

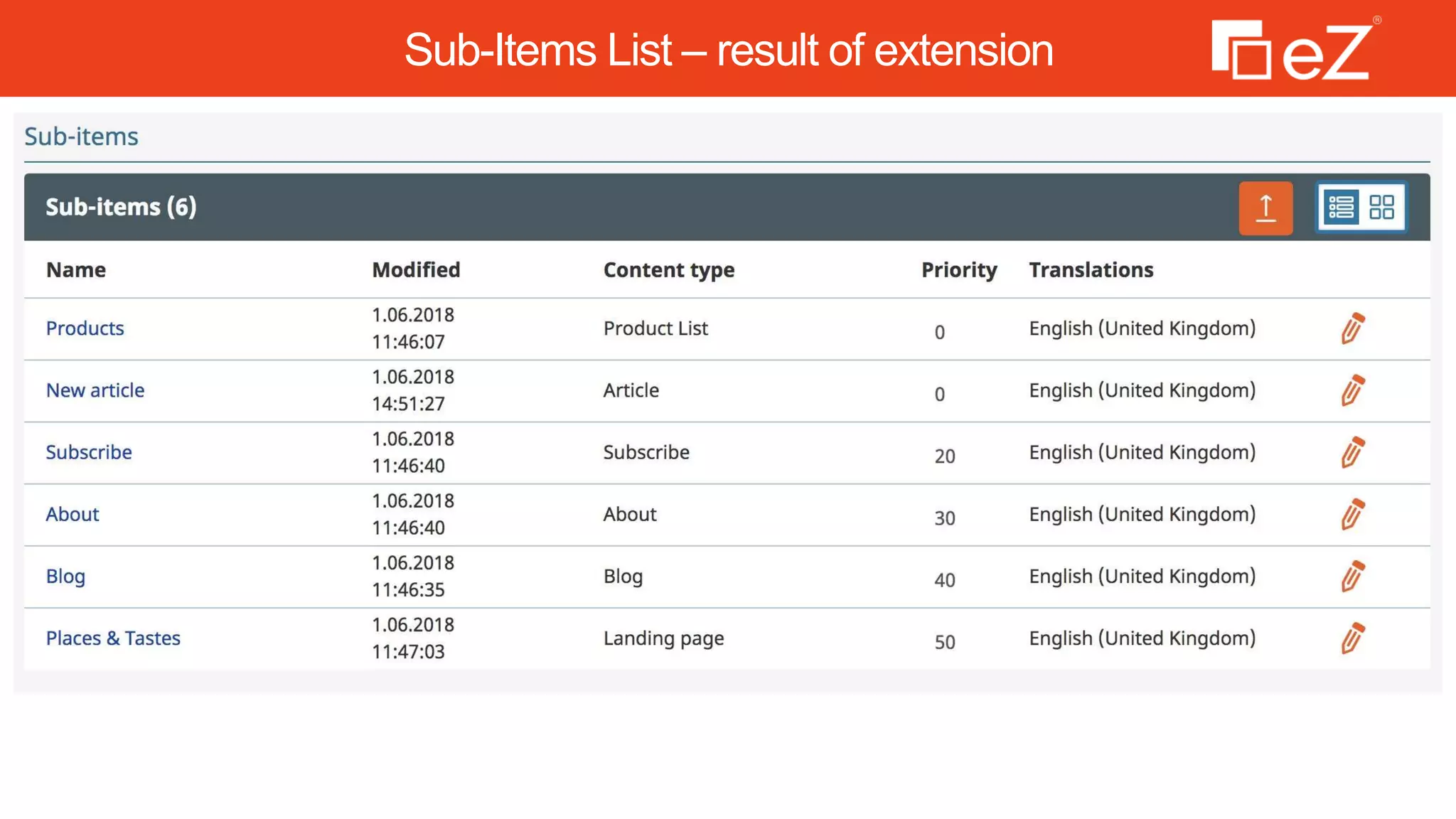

30. Sub-Items List – result of extension

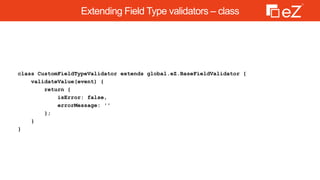

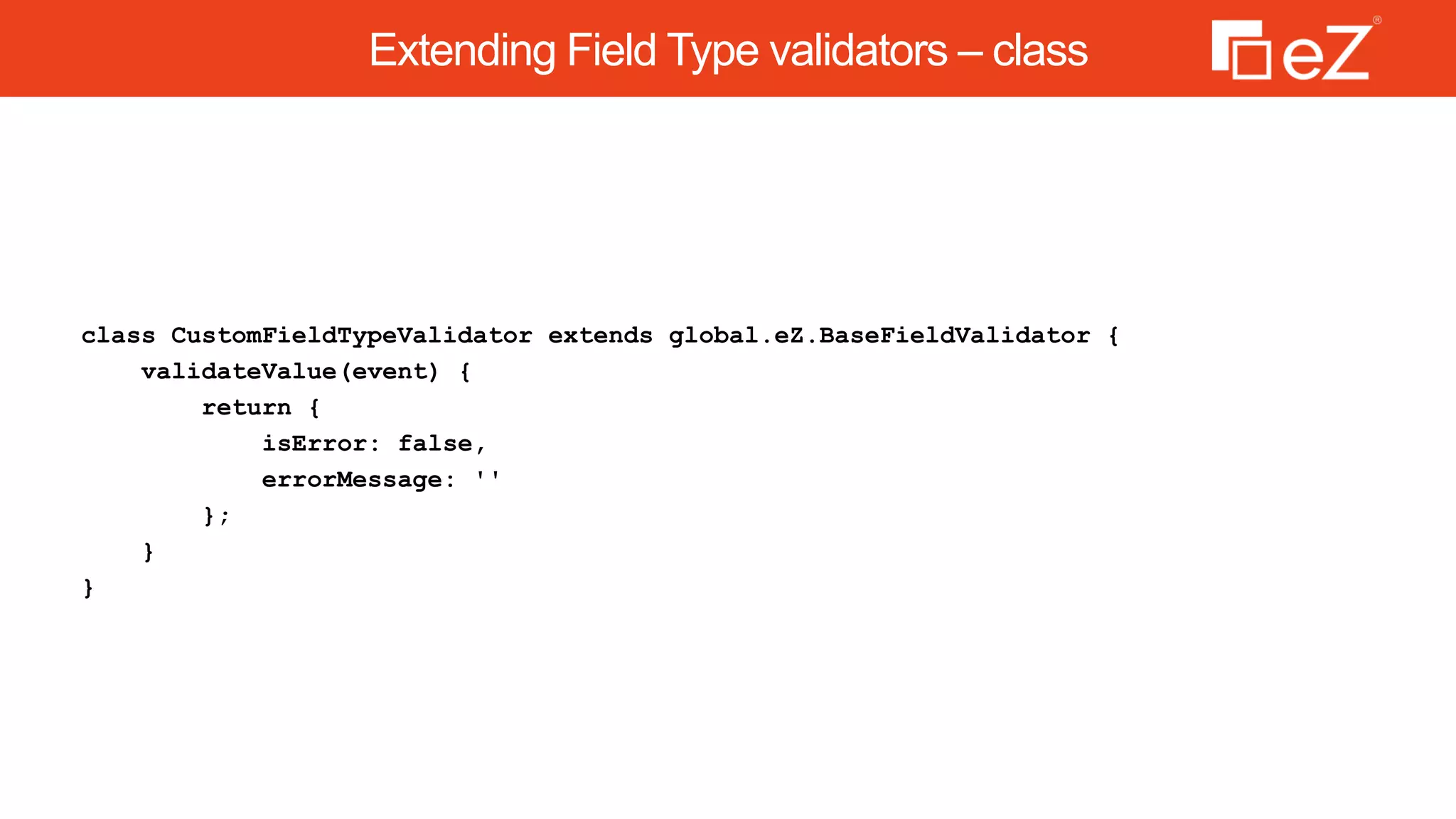

31. Extending Field Type validators – class
class CustomFieldTypeValidator extends global.eZ.BaseFieldValidator {
validateValue(event) {
return {
isError: false,
errorMessage: ''
};
}
}

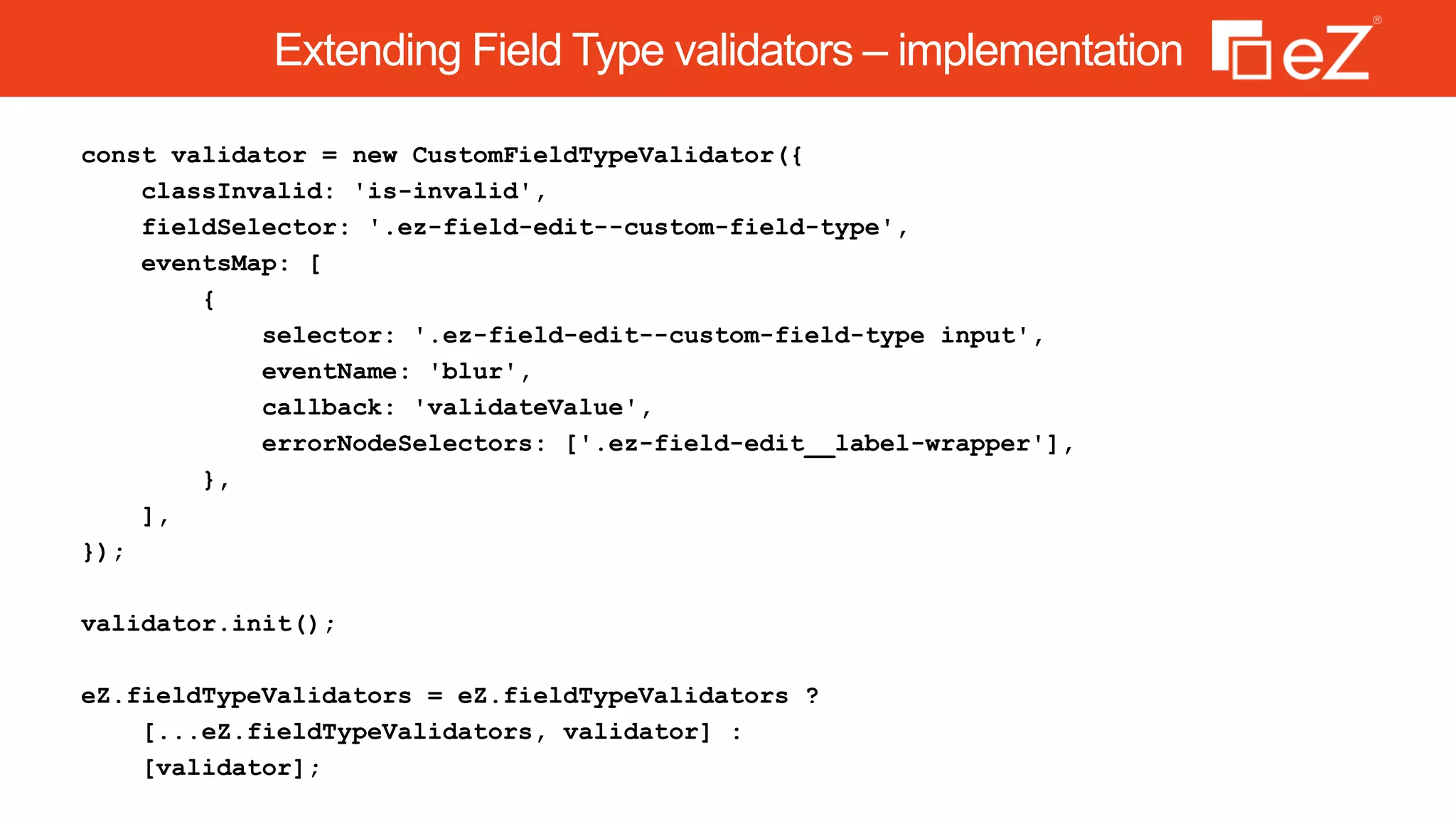

32. Extending Field Type validators – implementation
const validator = new CustomFieldTypeValidator({
classInvalid: 'is-invalid',
fieldSelector: '.ez-field-edit--custom-field-type',
eventsMap: [
{
selector: '.ez-field-edit--custom-field-type input',
eventName: 'blur',
callback: 'validateValue',
errorNodeSelectors: ['.ez-field-edit__label-wrapper'],
},
],
});
validator.init();
eZ.fieldTypeValidators = eZ.fieldTypeValidators ?
[...eZ.fieldTypeValidators, validator] :
[validator];

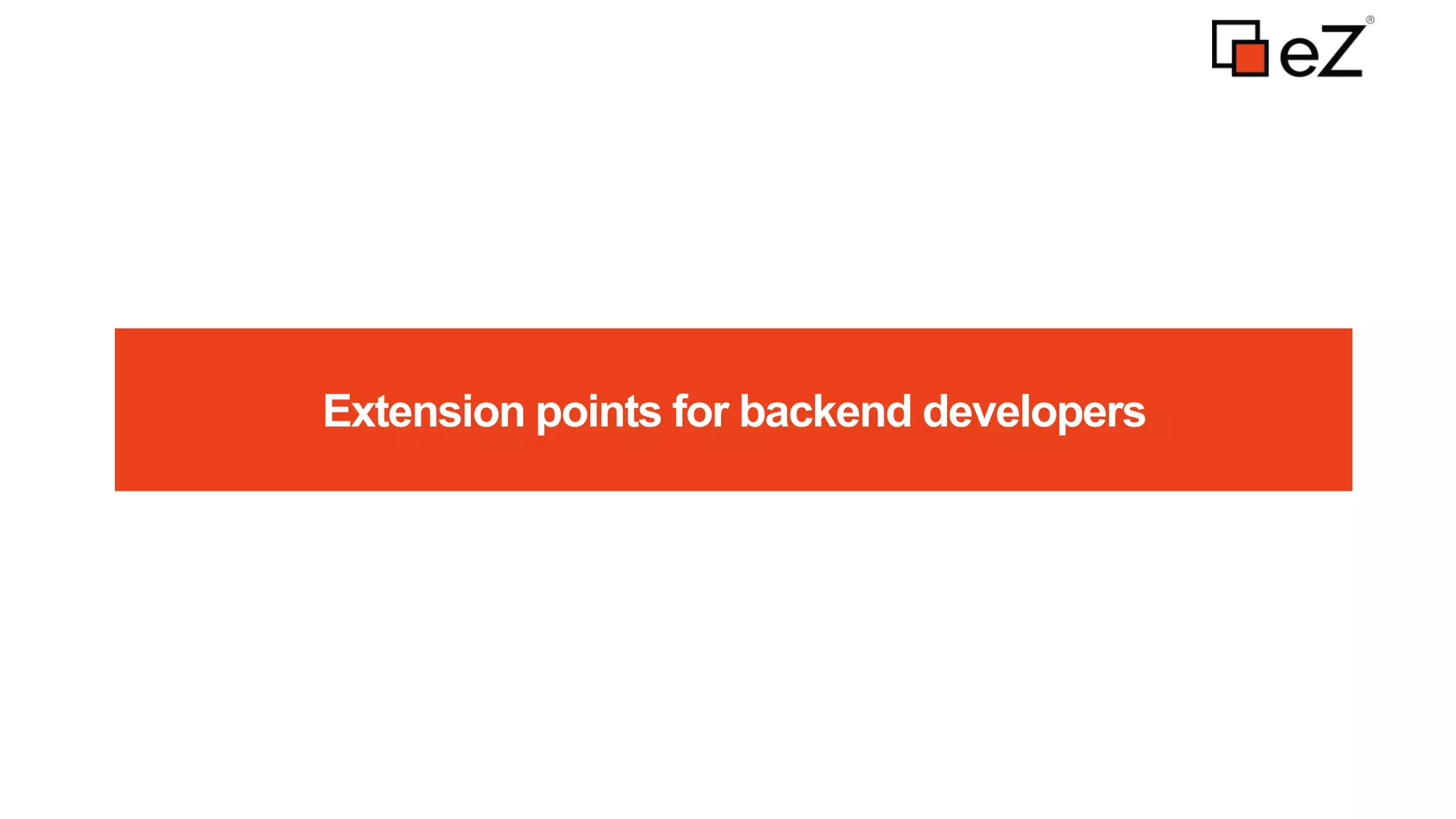

33. Extension points for backend developers

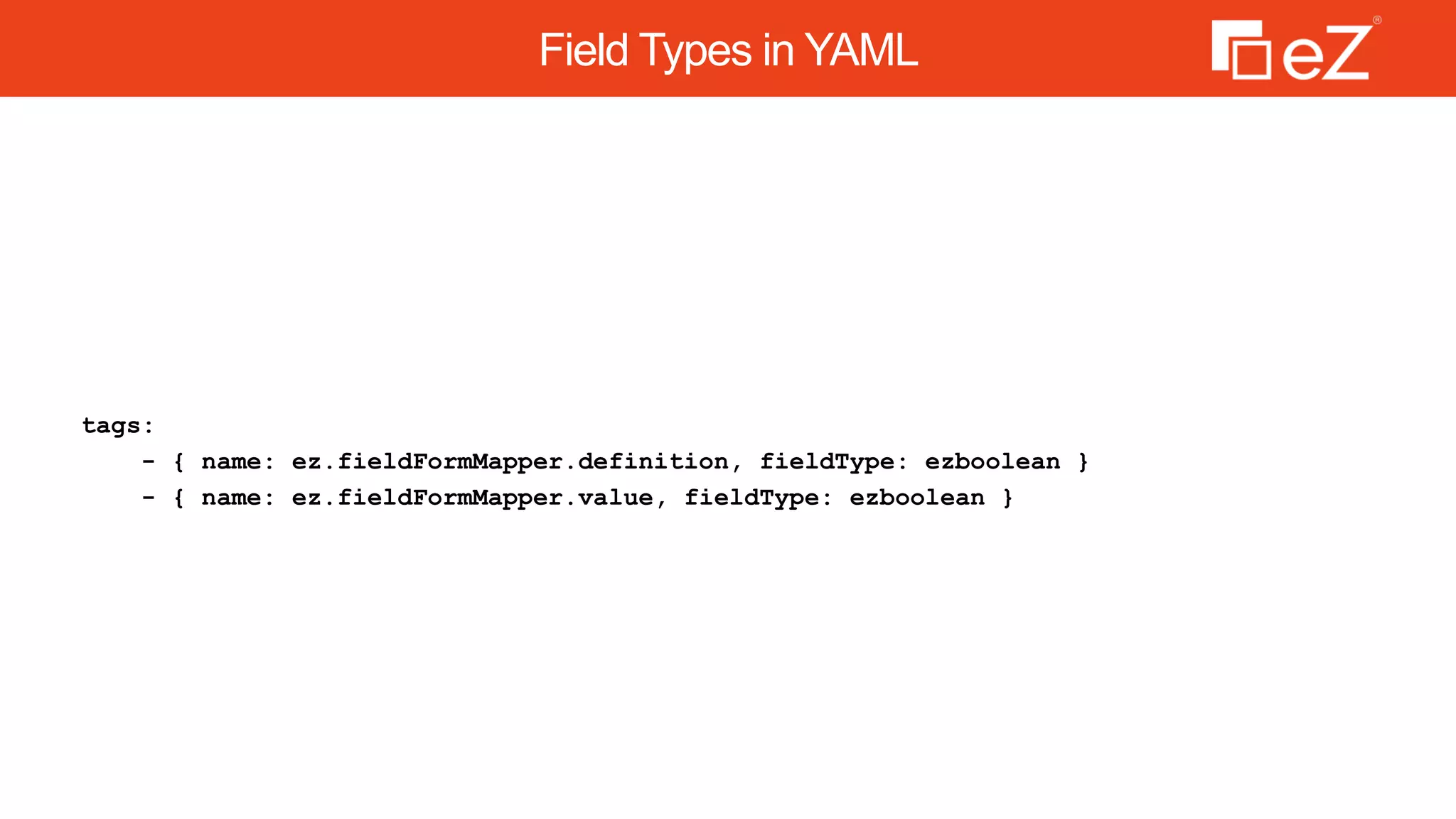

34. Field Types in YAML
tags:
- { name: ez.fieldFormMapper.definition, fieldType: ezboolean }
- { name: ez.fieldFormMapper.value, fieldType: ezboolean }

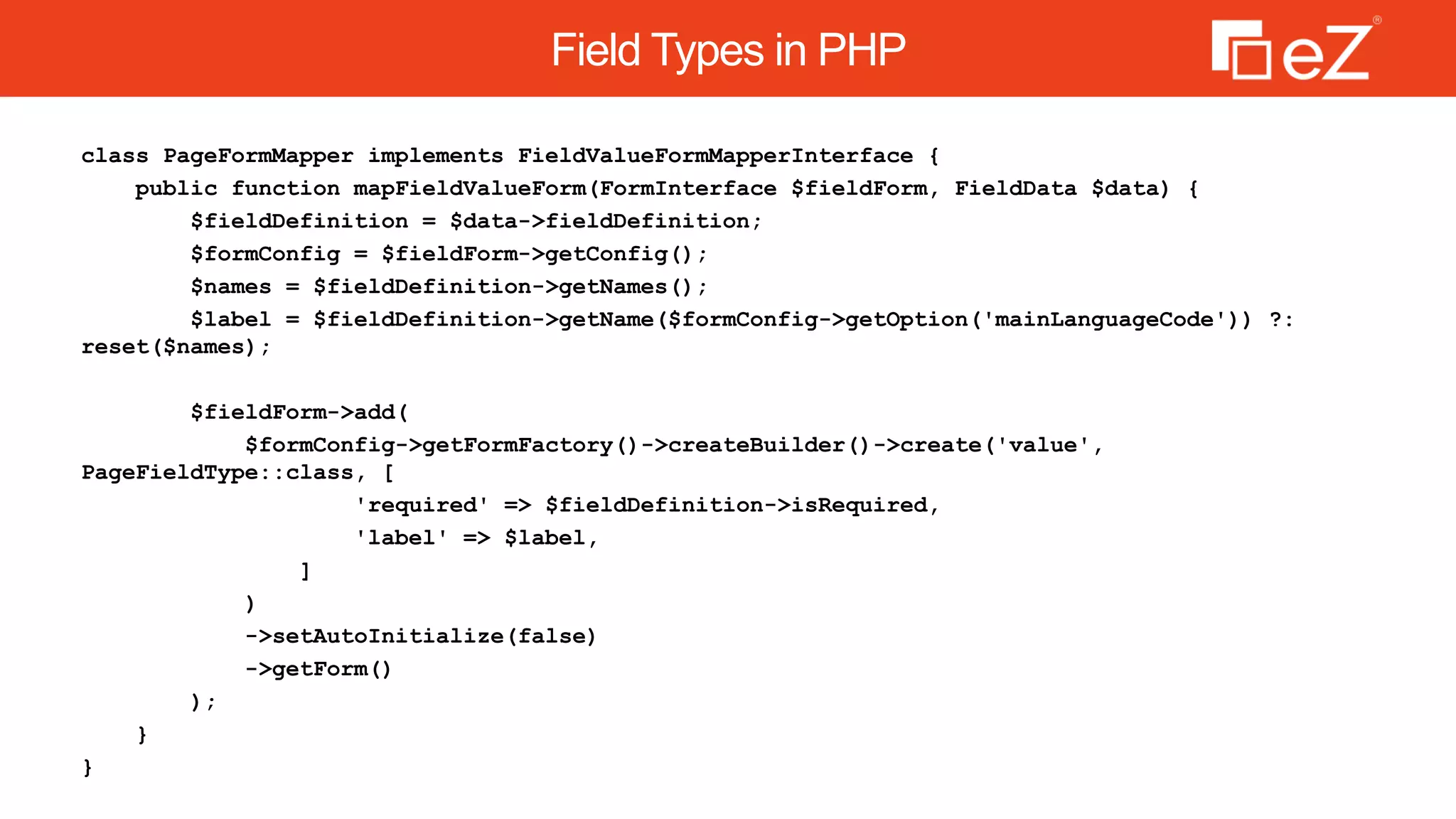

35. Field Types in PHP
class PageFormMapper implements FieldValueFormMapperInterface {
public function mapFieldValueForm(FormInterface $fieldForm, FieldData $data) {
$fieldDefinition = $data->fieldDefinition;
$formConfig = $fieldForm->getConfig();
$names = $fieldDefinition->getNames();
$label = $fieldDefinition->getName($formConfig->getOption('mainLanguageCode')) ?:
reset($names);
$fieldForm->add(
$formConfig->getFormFactory()->createBuilder()->create('value',
PageFieldType::class, [
'required' => $fieldDefinition->isRequired,
'label' => $label,
]
)
->setAutoInitialize(false)
->getForm()
);
}
}

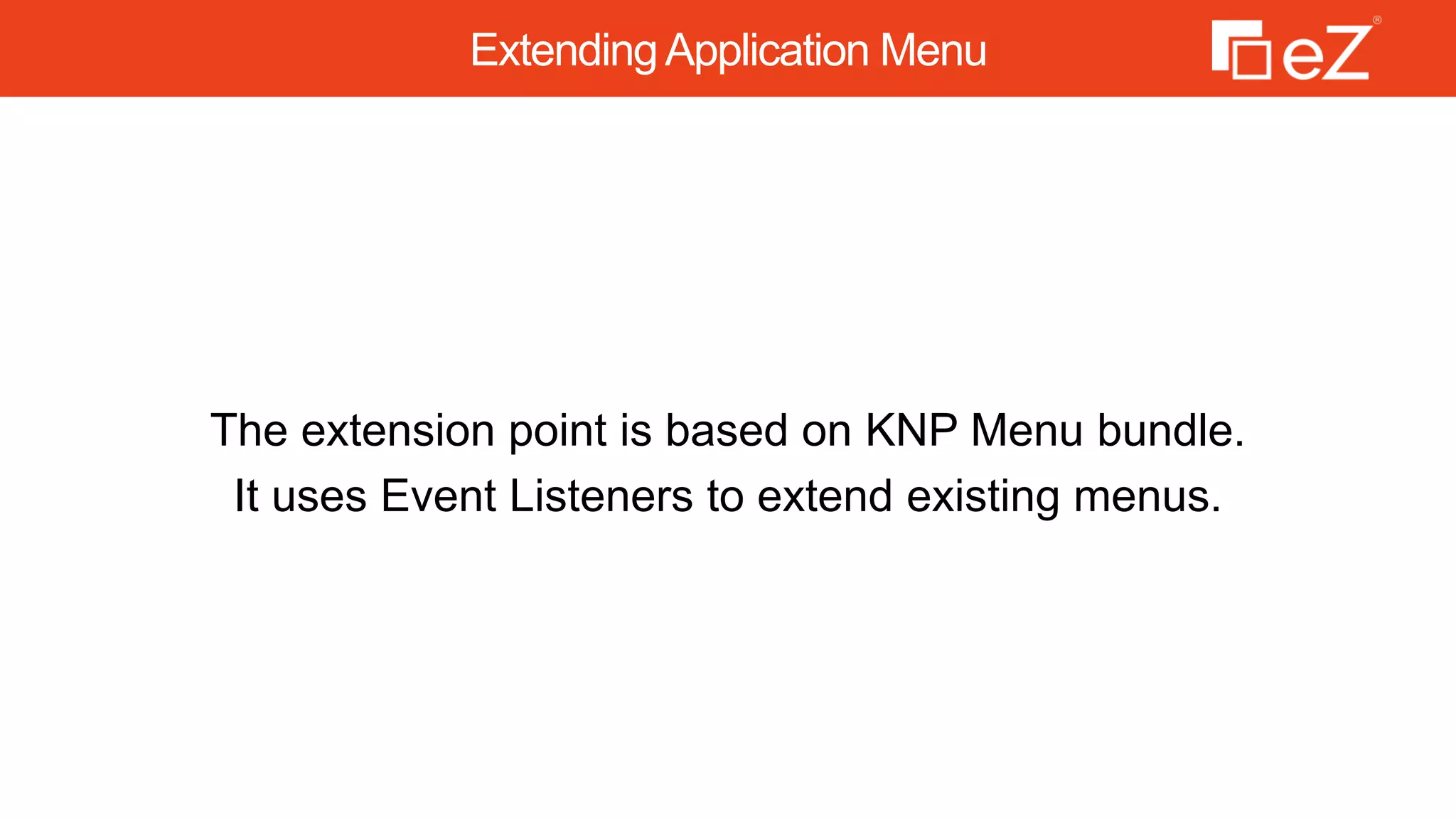

36. ExtendingApplication Menu
The extension point is based on KNP Menu bundle.
It uses Event Listeners to extend existing menus.

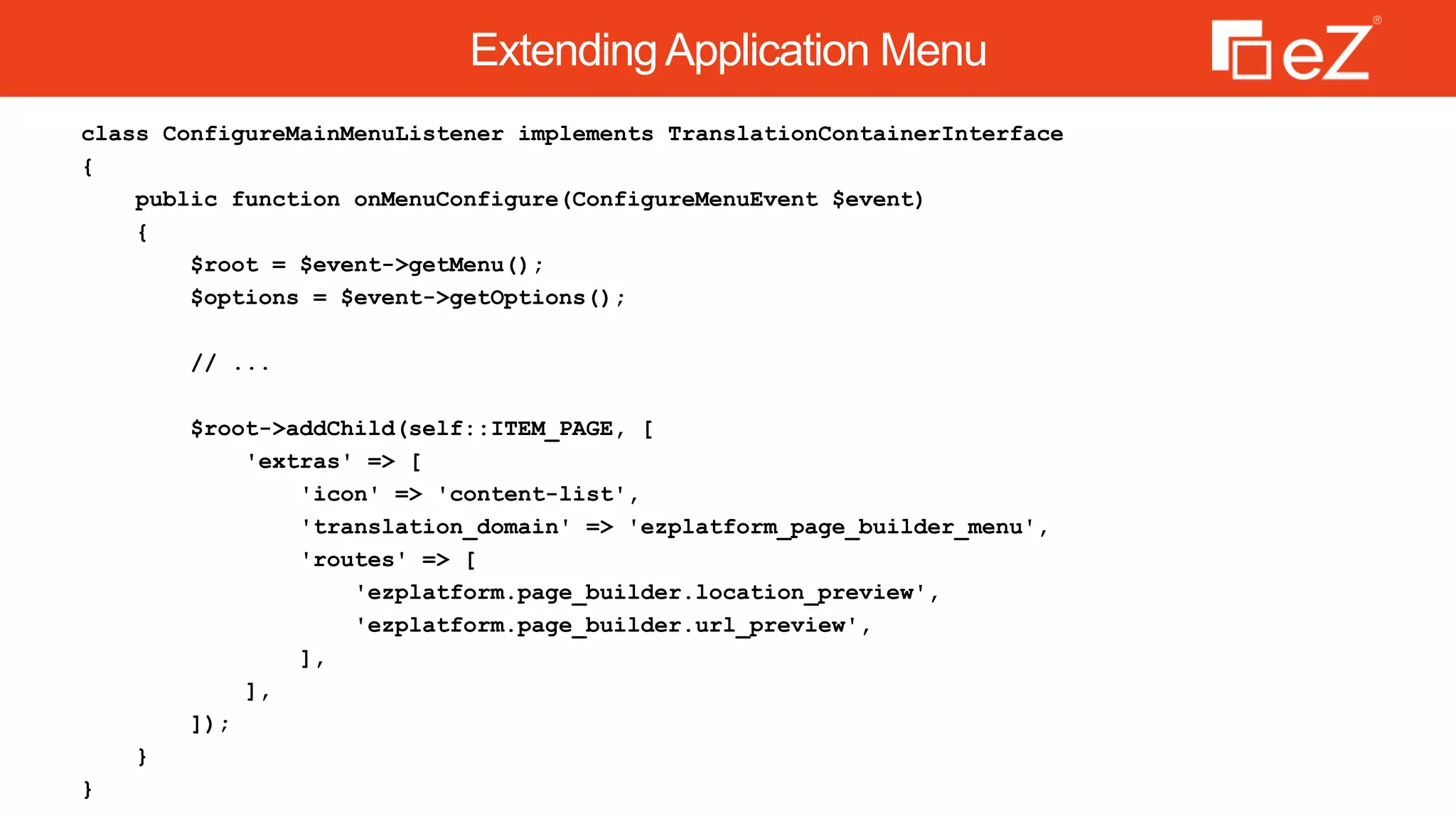

37. ExtendingApplication Menu
class ConfigureMainMenuListener implements TranslationContainerInterface
{
public function onMenuConfigure(ConfigureMenuEvent $event)
{
$root = $event->getMenu();
$options = $event->getOptions();
// ...
$root->addChild(self::ITEM_PAGE, [
'extras' => [
'icon' => 'content-list',
'translation_domain' => 'ezplatform_page_builder_menu',
'routes' => [
'ezplatform.page_builder.location_preview',
'ezplatform.page_builder.url_preview',
],
],
]);
}
}

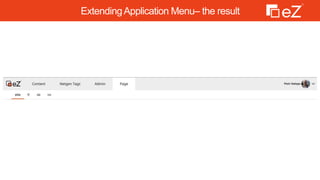

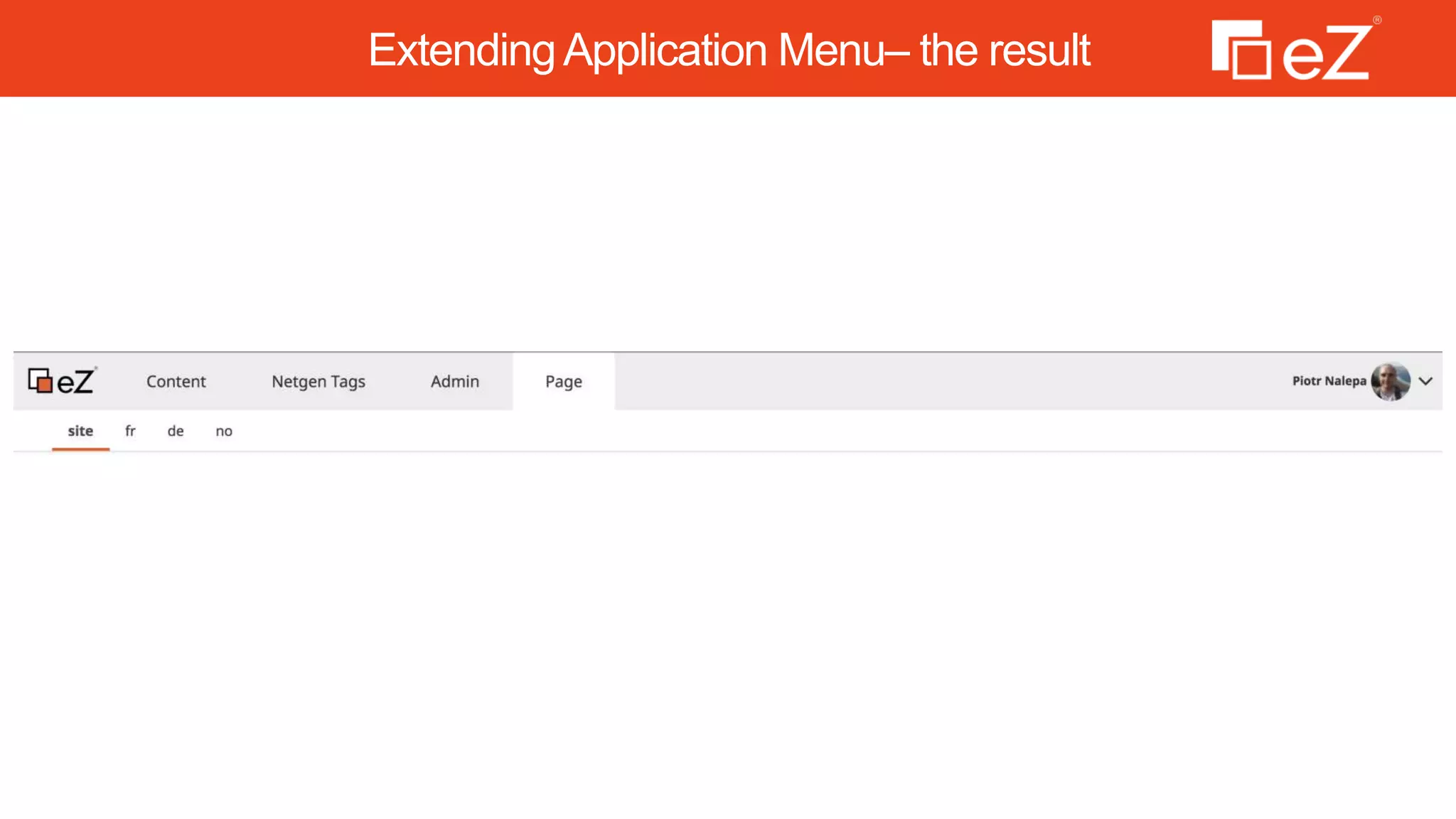

38. ExtendingApplication Menu– the result

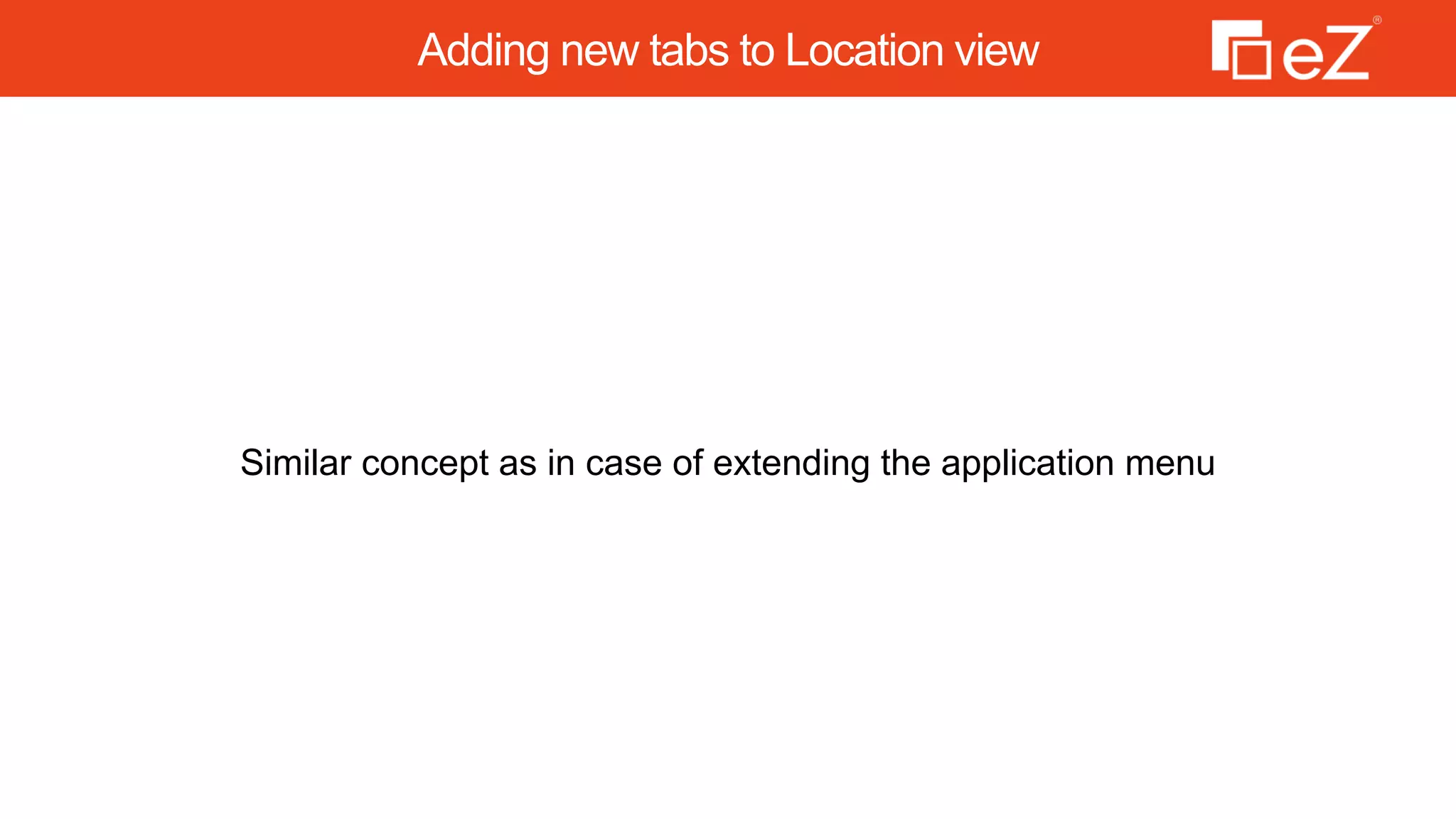

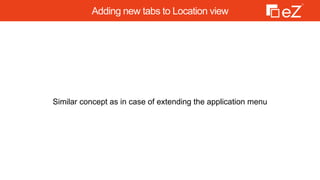

39. Adding new tabs to Location view
Similar concept as in case of extending the application menu

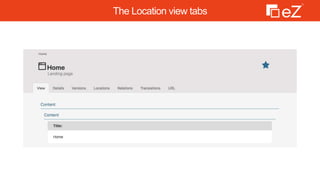

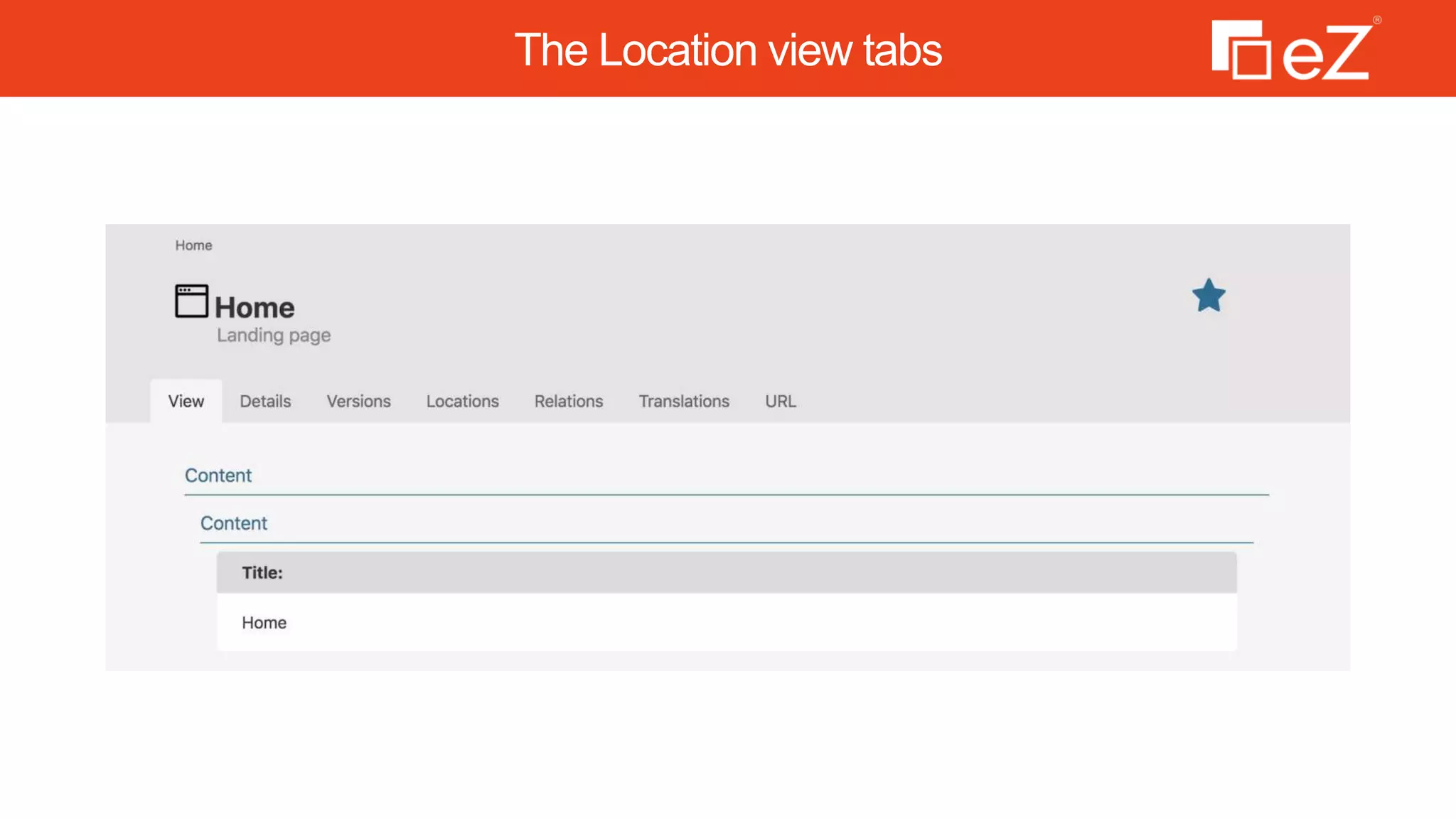

40. The Location view tabs

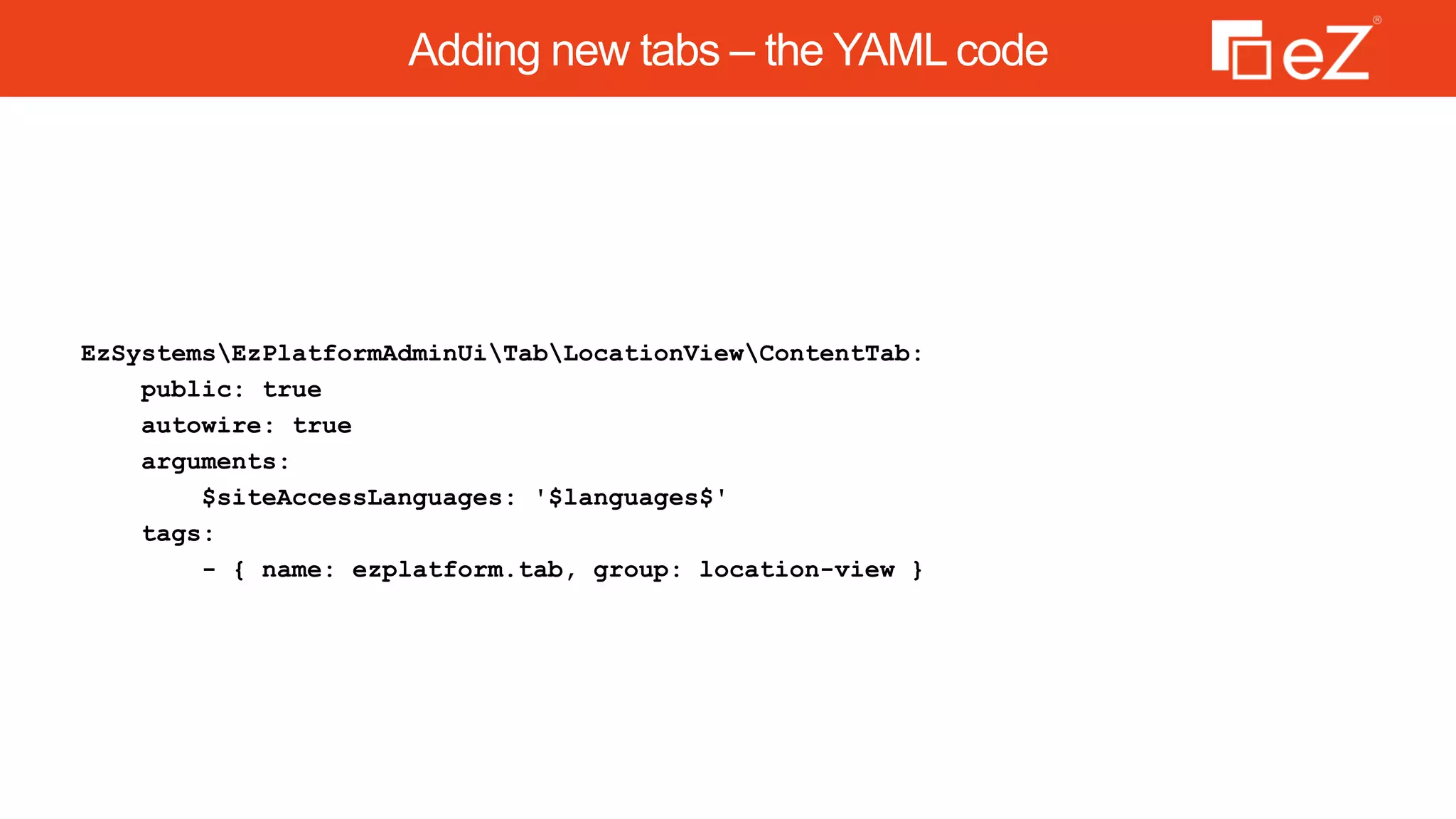

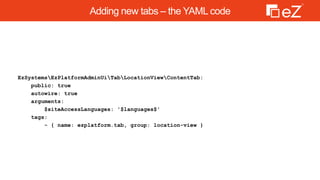

41. Adding new tabs – the YAML code
EzSystemsEzPlatformAdminUiTabLocationViewContentTab:
public: true
autowire: true
arguments:
$siteAccessLanguages: '$languages$'
tags:
- { name: ezplatform.tab, group: location-view }

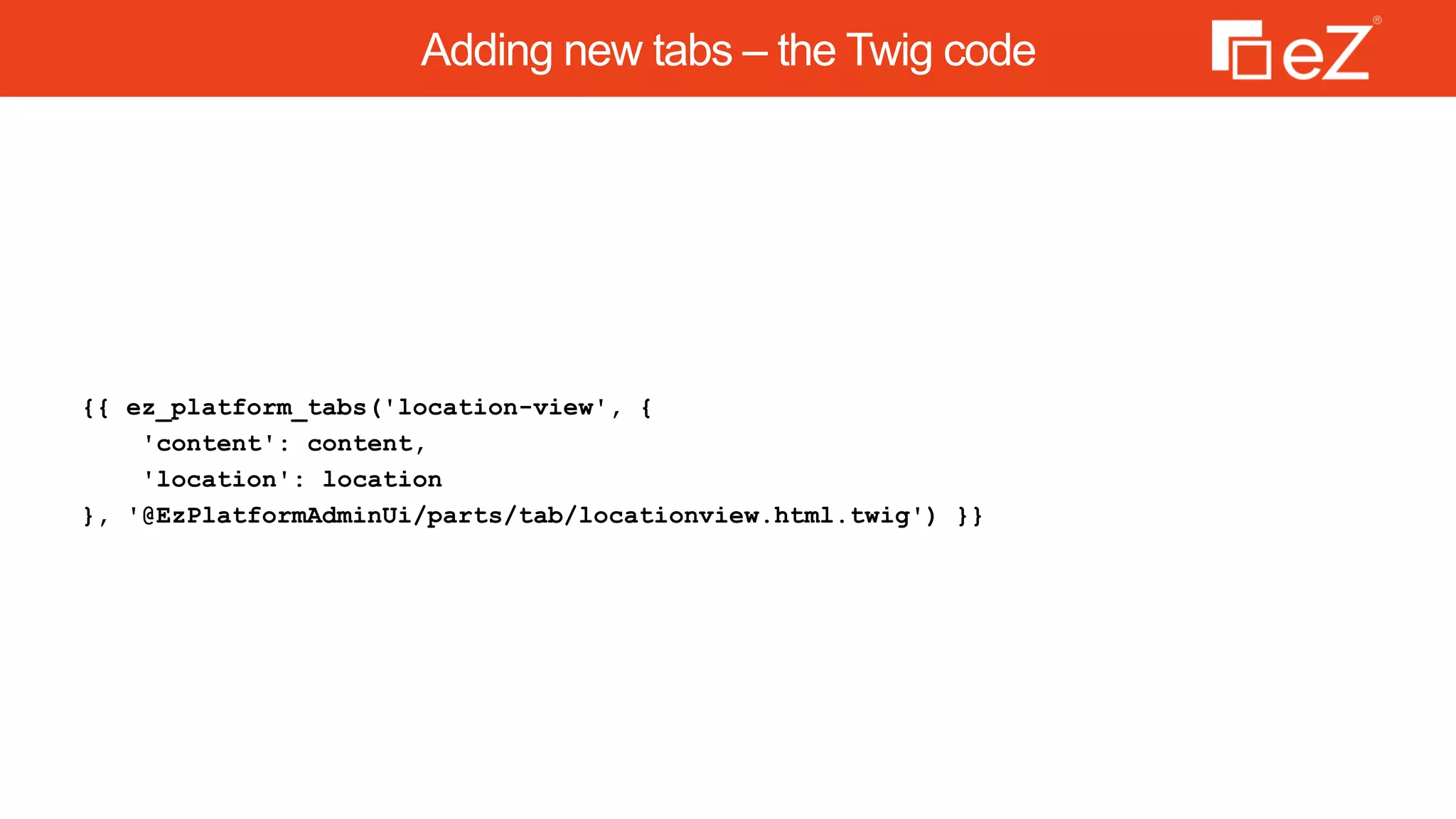

42. Adding new tabs – the Twig code
{{ ez_platform_tabs('location-view', {
'content': content,
'location': location
}, '@EzPlatformAdminUi/parts/tab/locationview.html.twig') }}

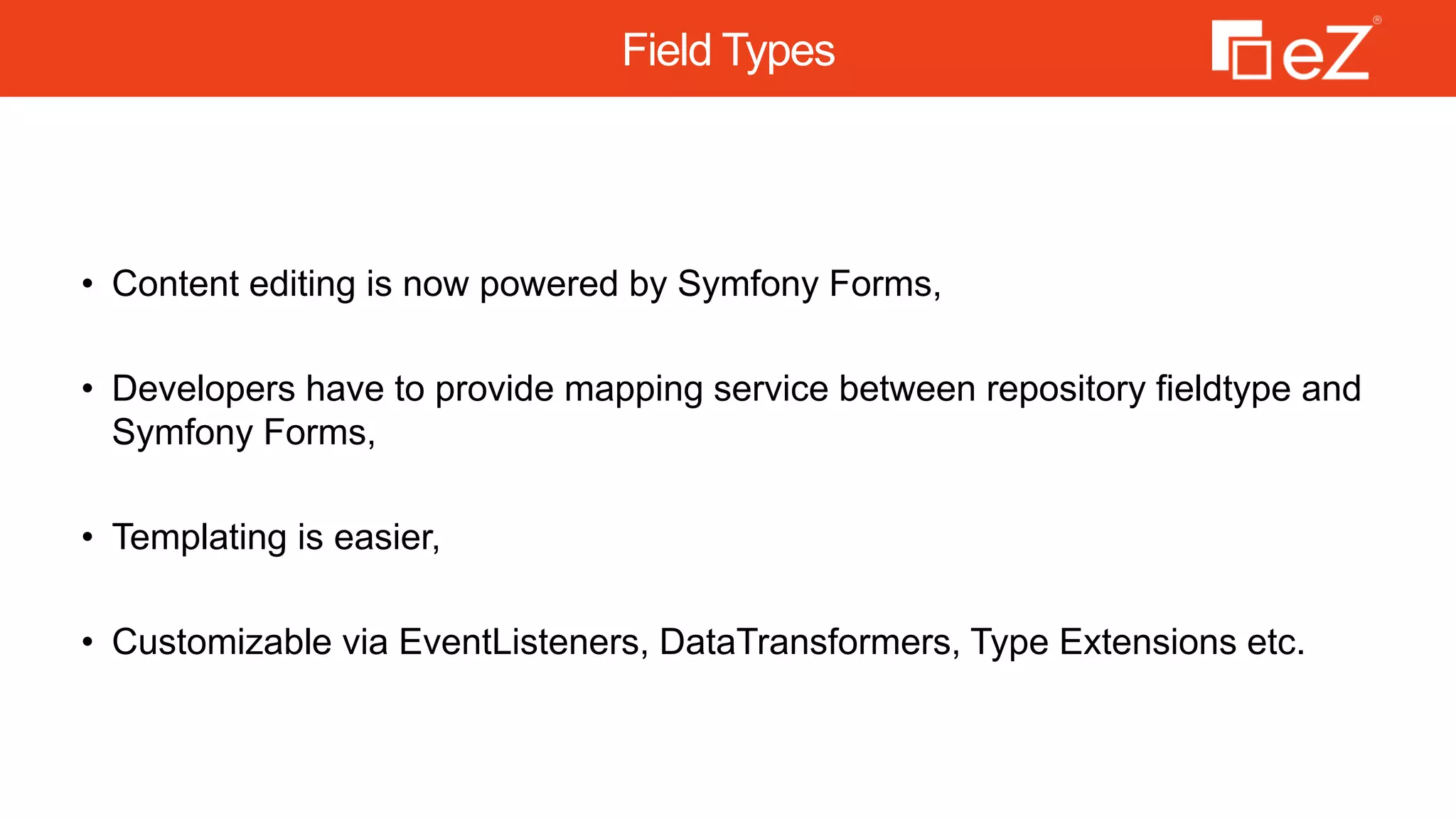

43. Field Types
• Content editing is now powered by Symfony Forms,
• Developers have to provide mapping service between repository fieldtype and
Symfony Forms,
• Templating is easier,
• Customizable via EventListeners, DataTransformers, Type Extensions etc.

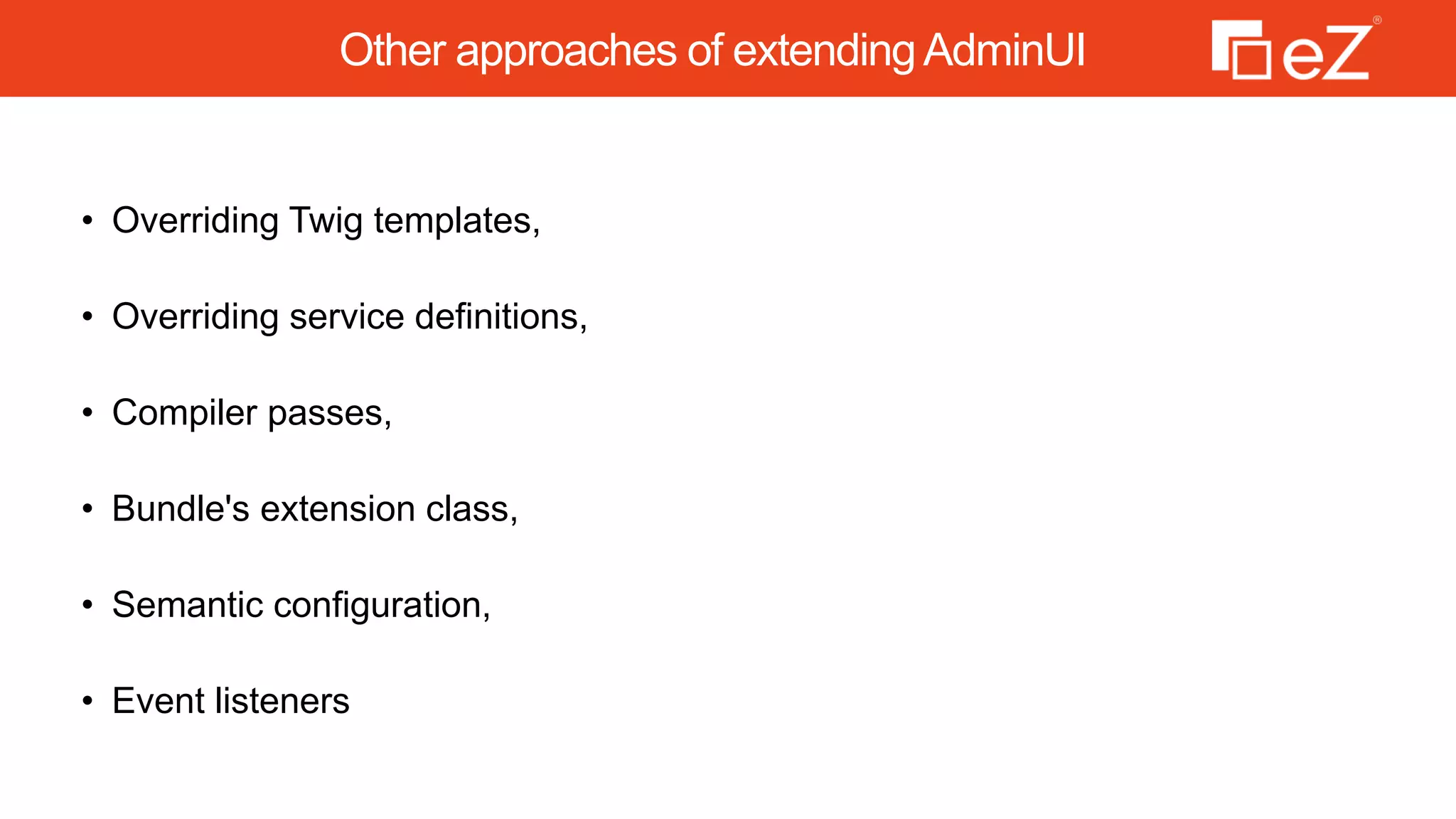

44. Other approaches of extendingAdminUI
• Overriding Twig templates,
• Overriding service definitions,
• Compiler passes,
• Bundle's extension class,
• Semantic configuration,
• Event listeners

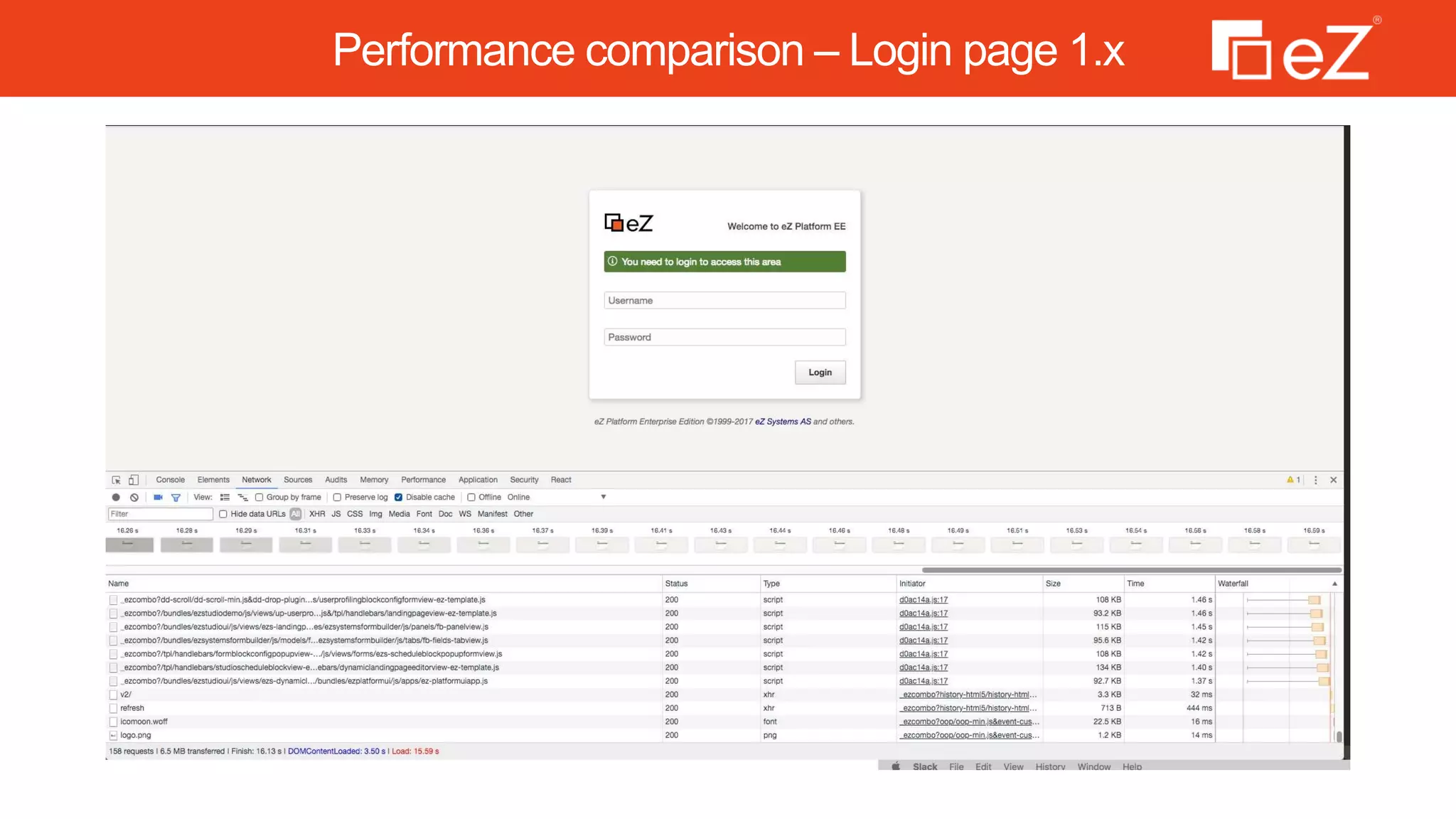

45. Performance comparison – Login page 1.x

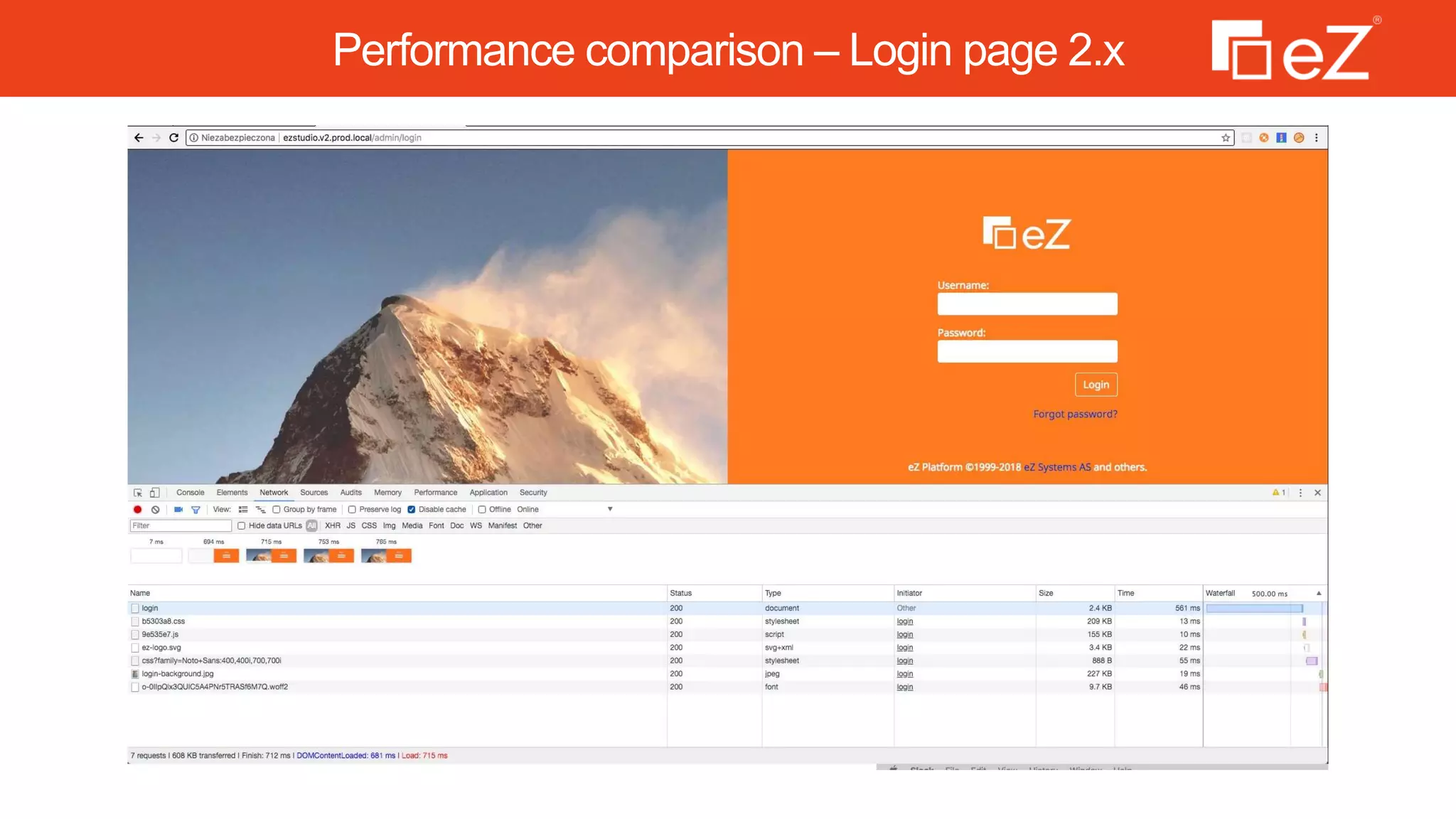

46. Performance comparison – Login page 2.x

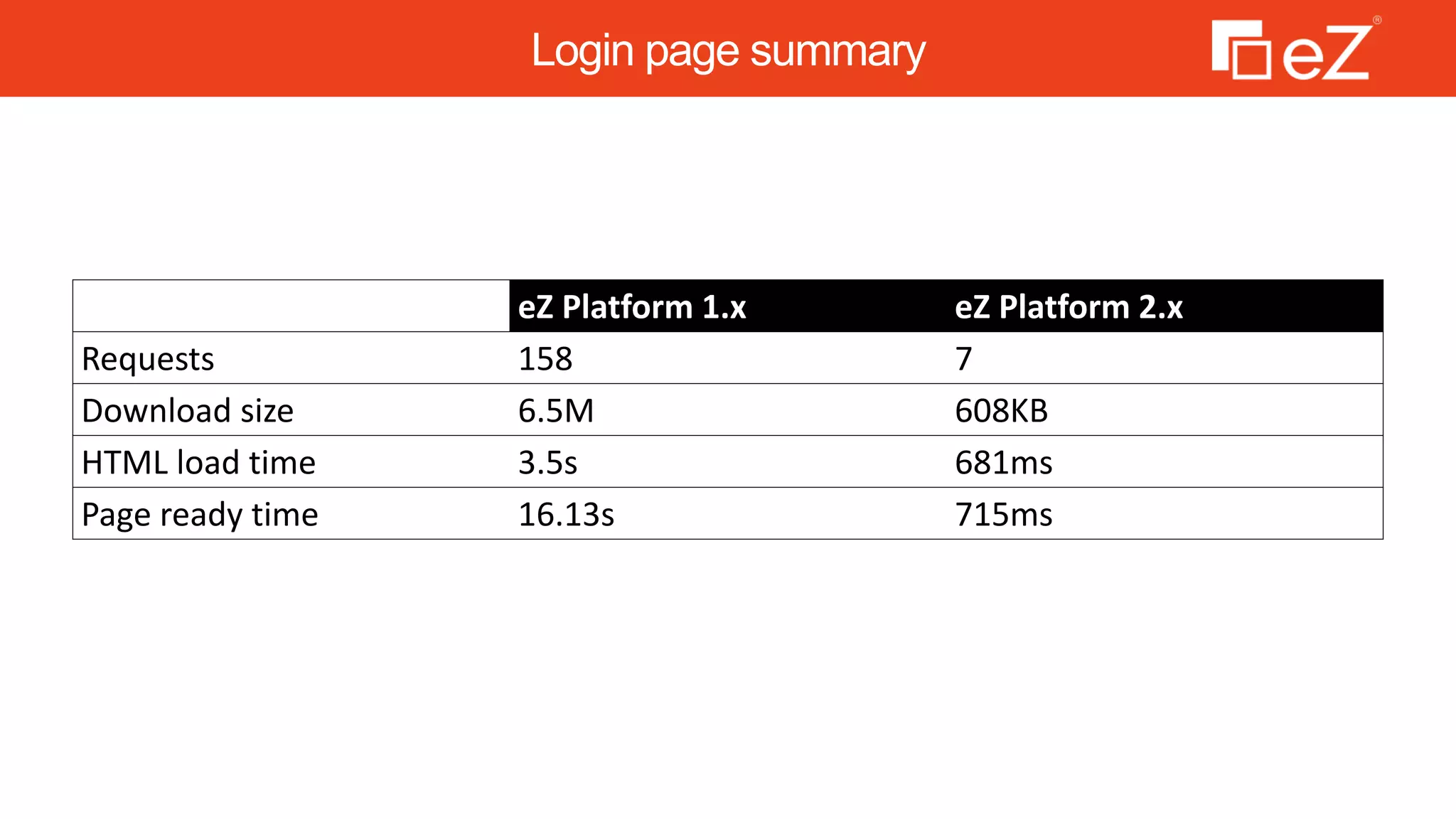

47. Login page summary
eZ Platform 1.x eZ Platform 2.x
Requests 158 7
Download size 6.5M 608KB
HTML load time 3.5s 681ms
Page ready time 16.13s 715ms

48. The Login page loads almost 23x faster in 2.x!

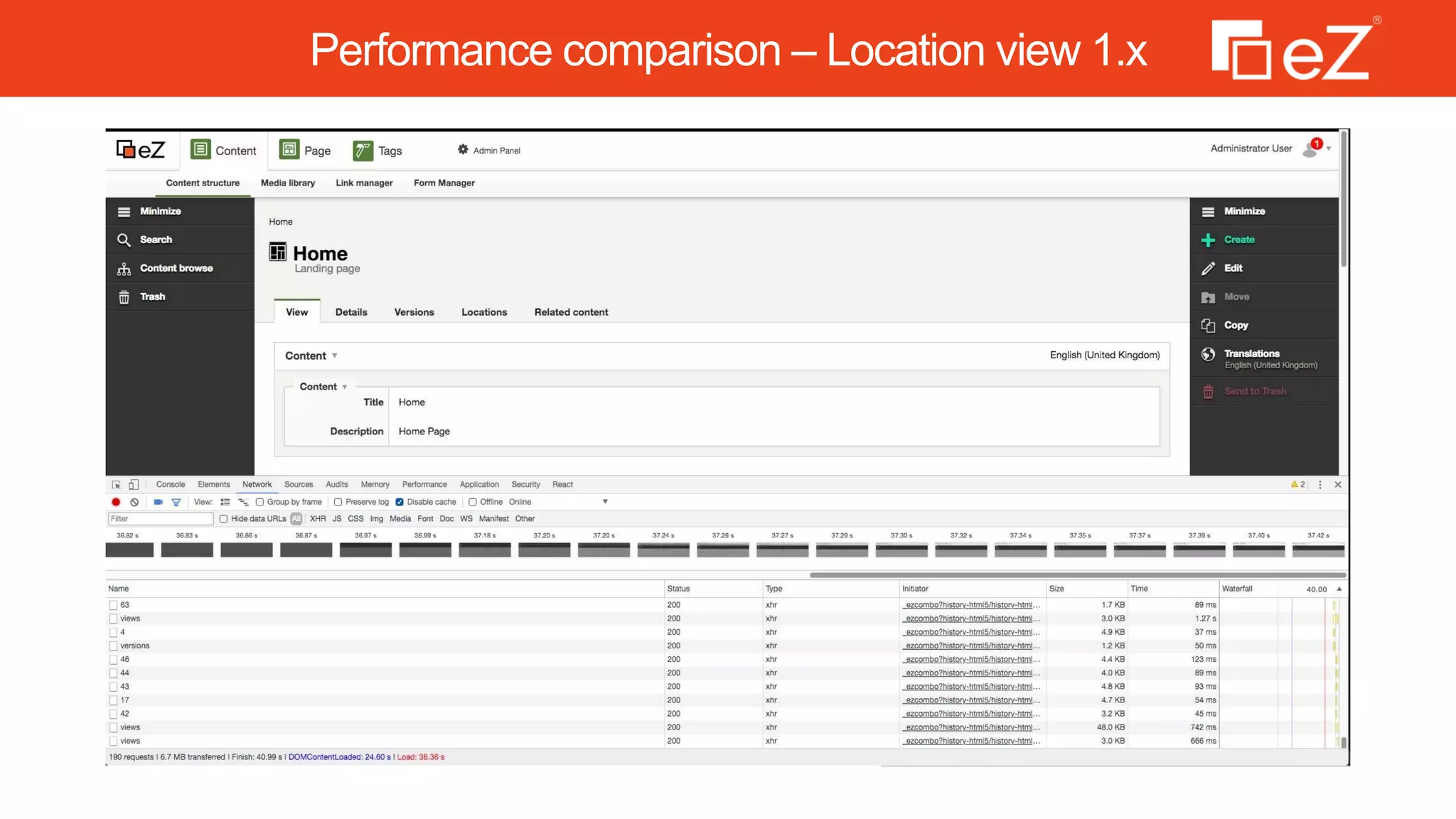

49. Performance comparison – Location view 1.x

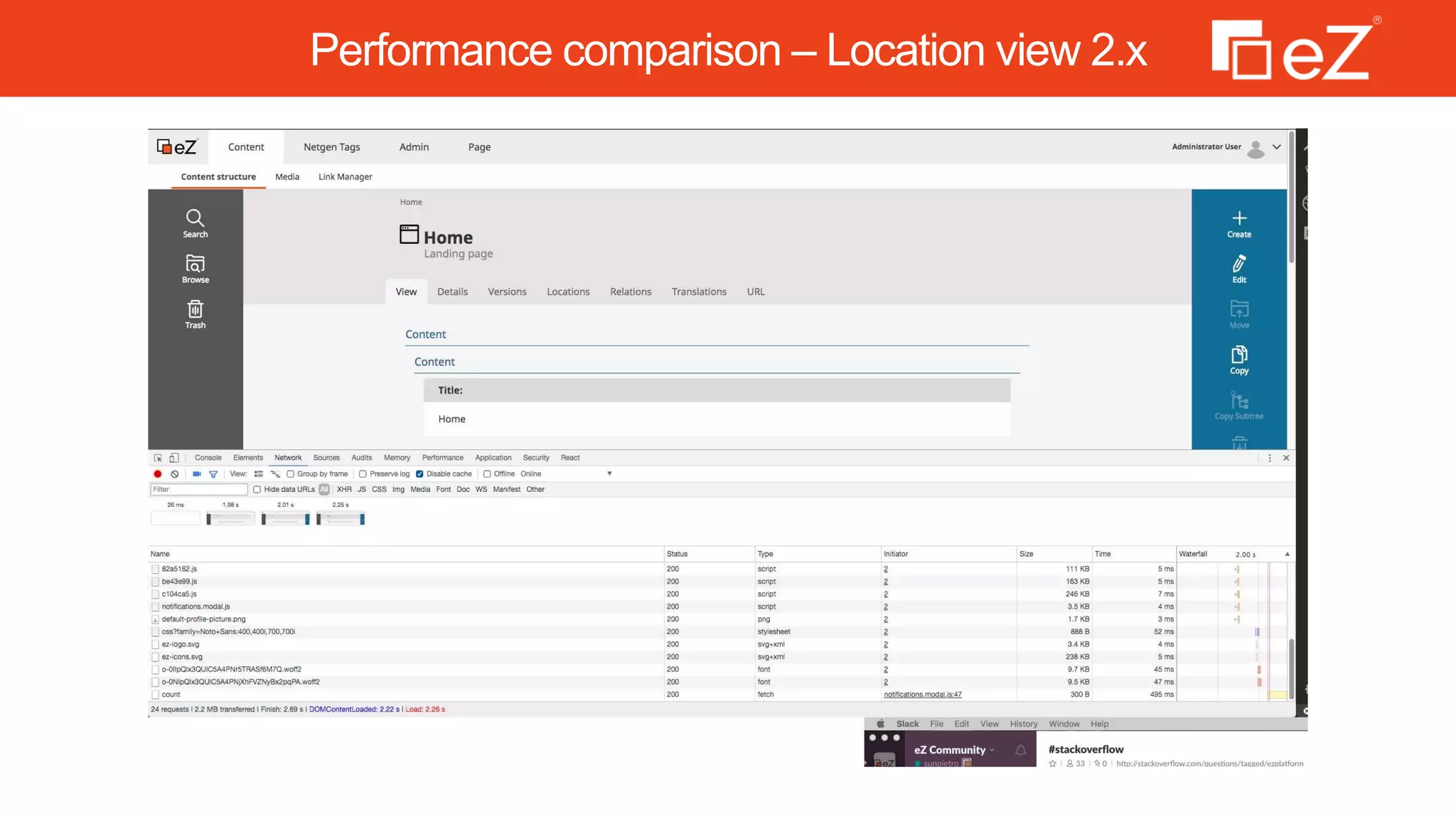

50. Performance comparison – Location view 2.x

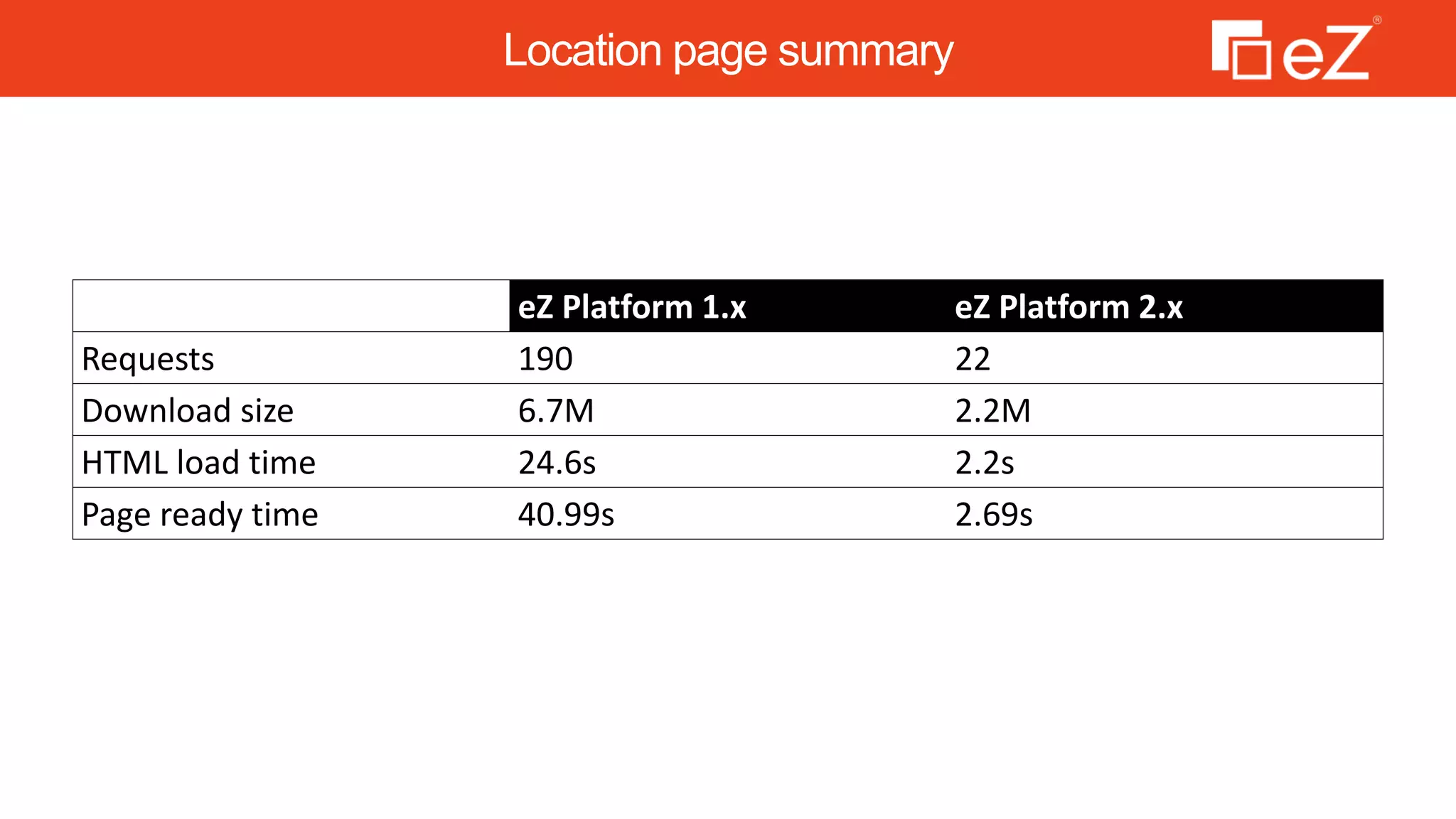

51. Location page summary
eZ Platform 1.x eZ Platform 2.x
Requests 190 22
Download size 6.7M 2.2M
HTML load time 24.6s 2.2s
Page ready time 40.99s 2.69s

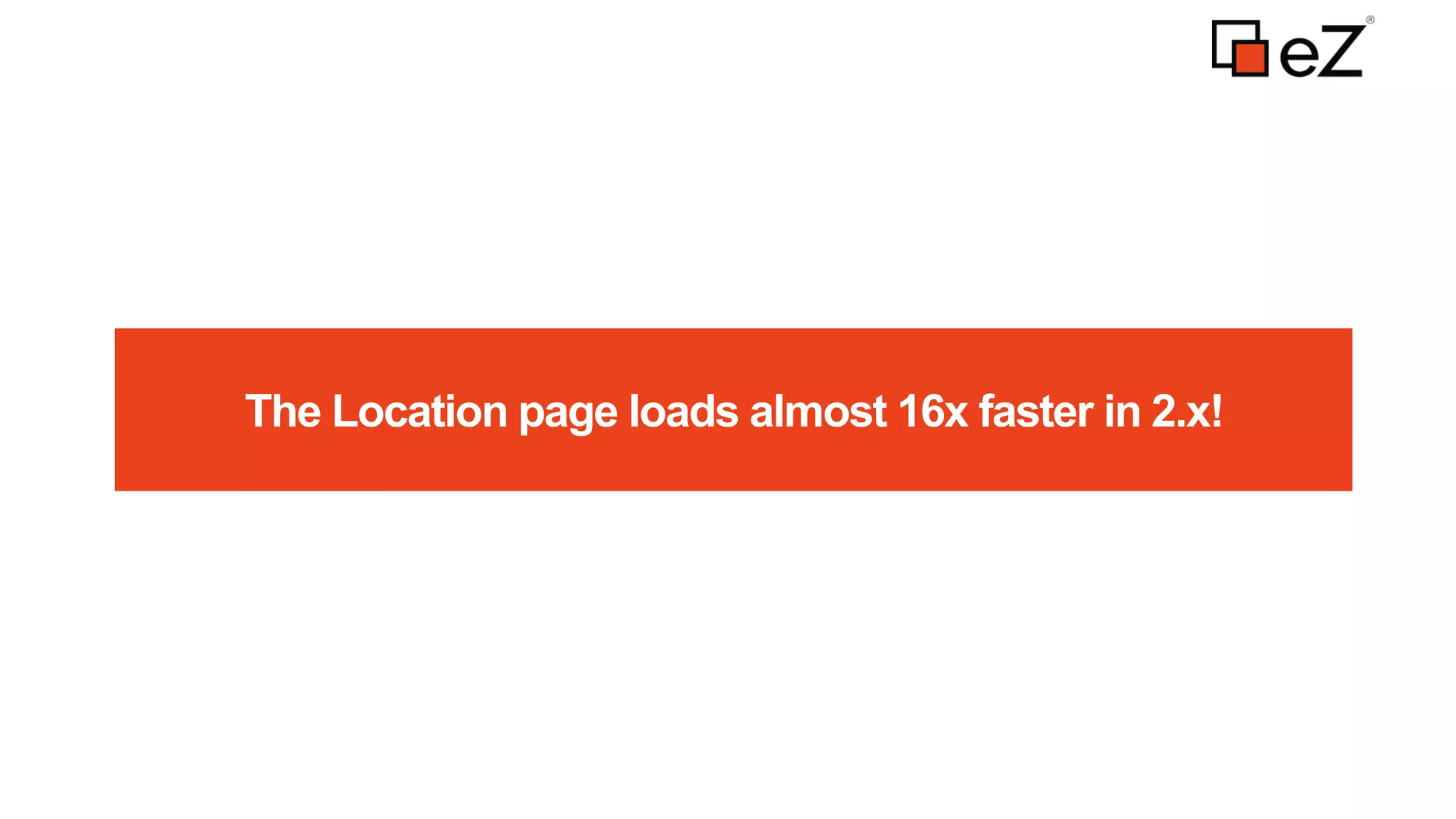

52. The Location page loads almost 16x faster in 2.x!

53. Who are we?
Piotr Nalepa
Senior UI Developer @ eZ Systems
@sunpietro
Maciej Kobus
PHP Developer @ eZ Systems
