The document discusses continuous delivery and building a continuous delivery pipeline. It begins with an overview of continuous delivery, describing the basic steps of commit, build, test, and deploy. It then covers the tools used to build the pipeline, including GitHub and Jenkins plugins. The document outlines the process for building the pipeline, including checking out code, installing dependencies, running tests, generating assets, and deploying artifacts. It also discusses splitting the process into separate jobs for testing deployment scripts and running automated tests. Finally, it covers benefits of continuous delivery such as increased release frequency, reduced risk, and releases becoming a non-event.

1. APPLICATIONS
CONTINUOUSLY!
DELIVERING

2. Javier López @loalf
Senior Platform Engineer @Rightster!
formerly Software Architect @TimeOut
Certified Symfony Developer
Zend Certified PHP
Co-organizer @desymfony

3. DISCLAIMER

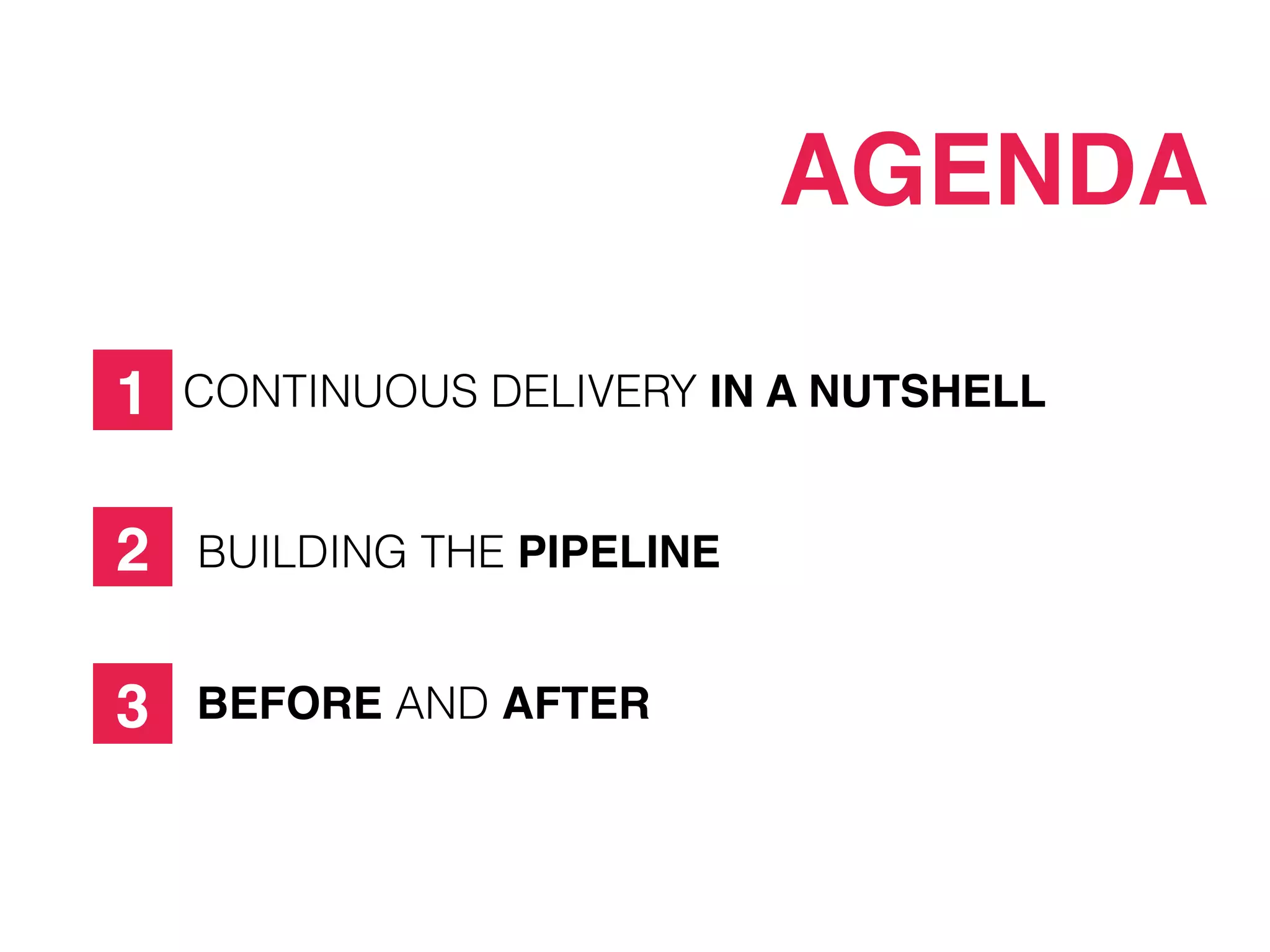

4. AGENDA
CONTINUOUS DELIVERY IN A NUTSHELL
BUILDING THE PIPELINE
BEFORE AND AFTER
1
2
3

5. CONTINUOUS DELIVERY …
… IN A NUTSHELL
1

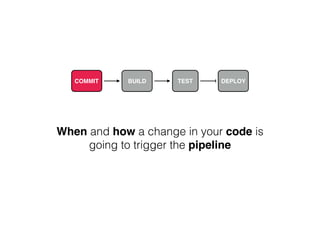

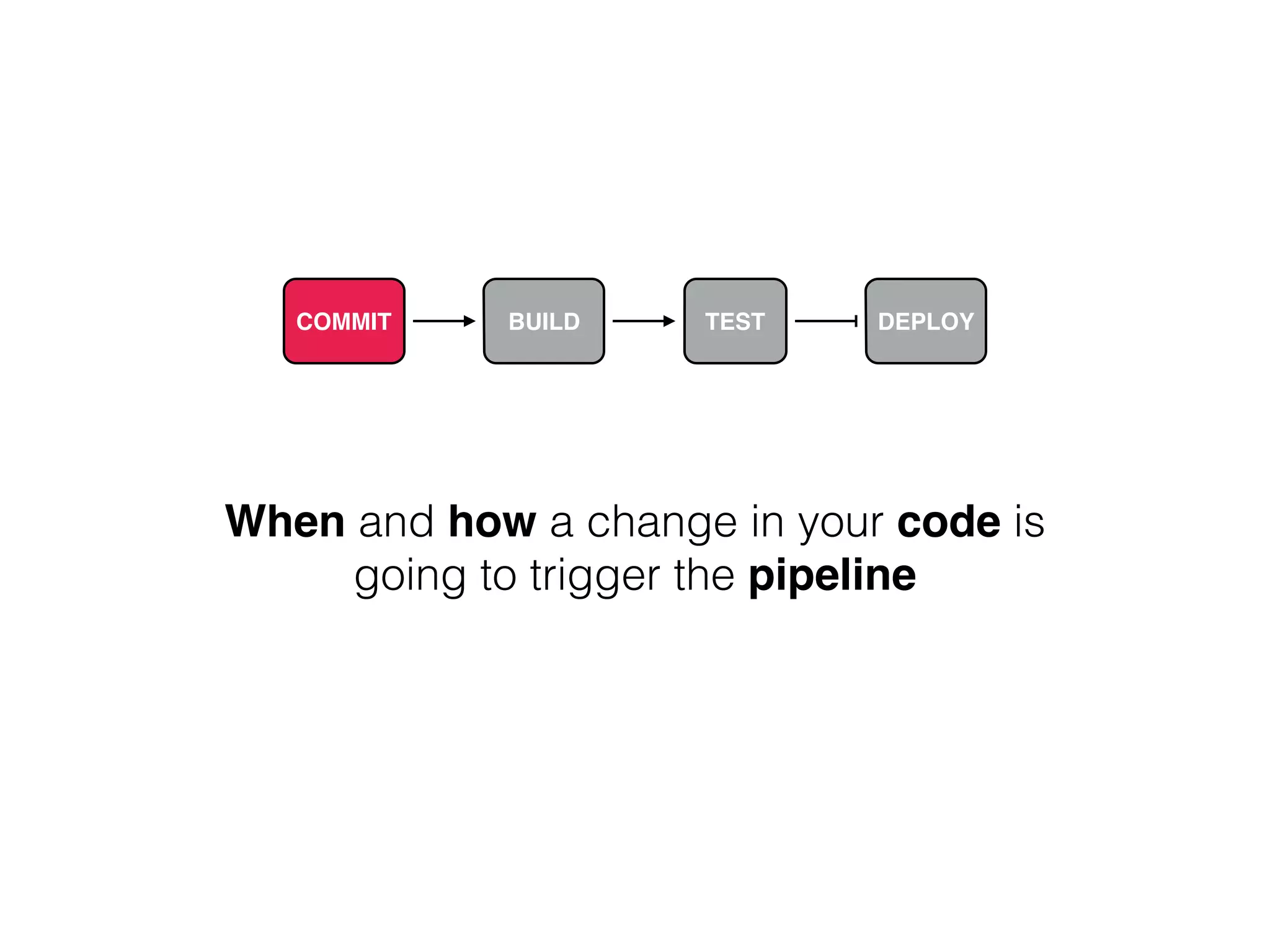

6. COMMIT BUILD TEST DEPLOY
When and how a change in your code is
going to trigger the pipeline

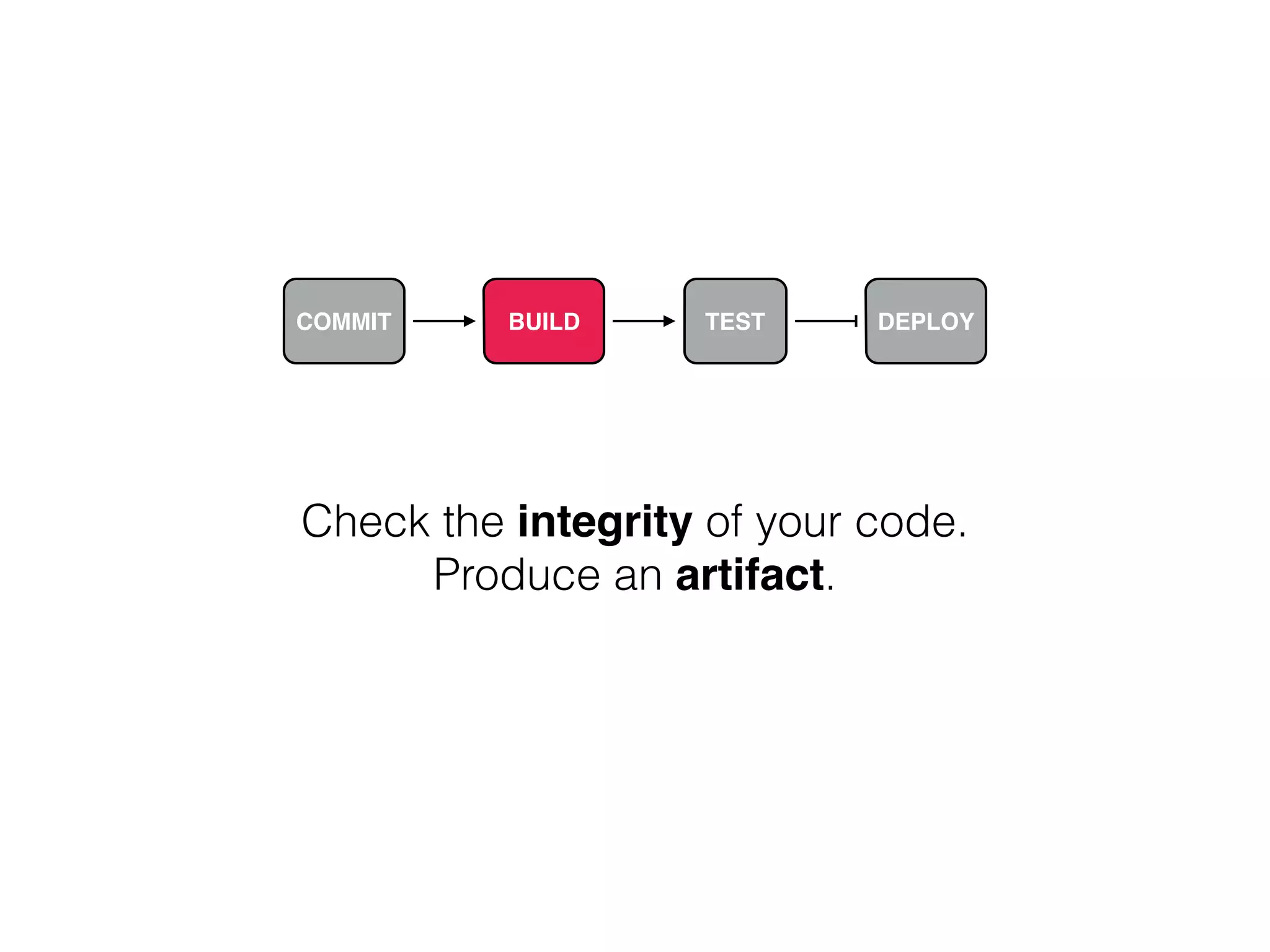

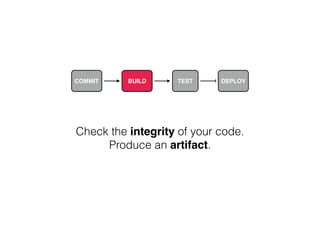

7. COMMIT BUILD TEST DEPLOY
Check the integrity of your code.
Produce an artifact.

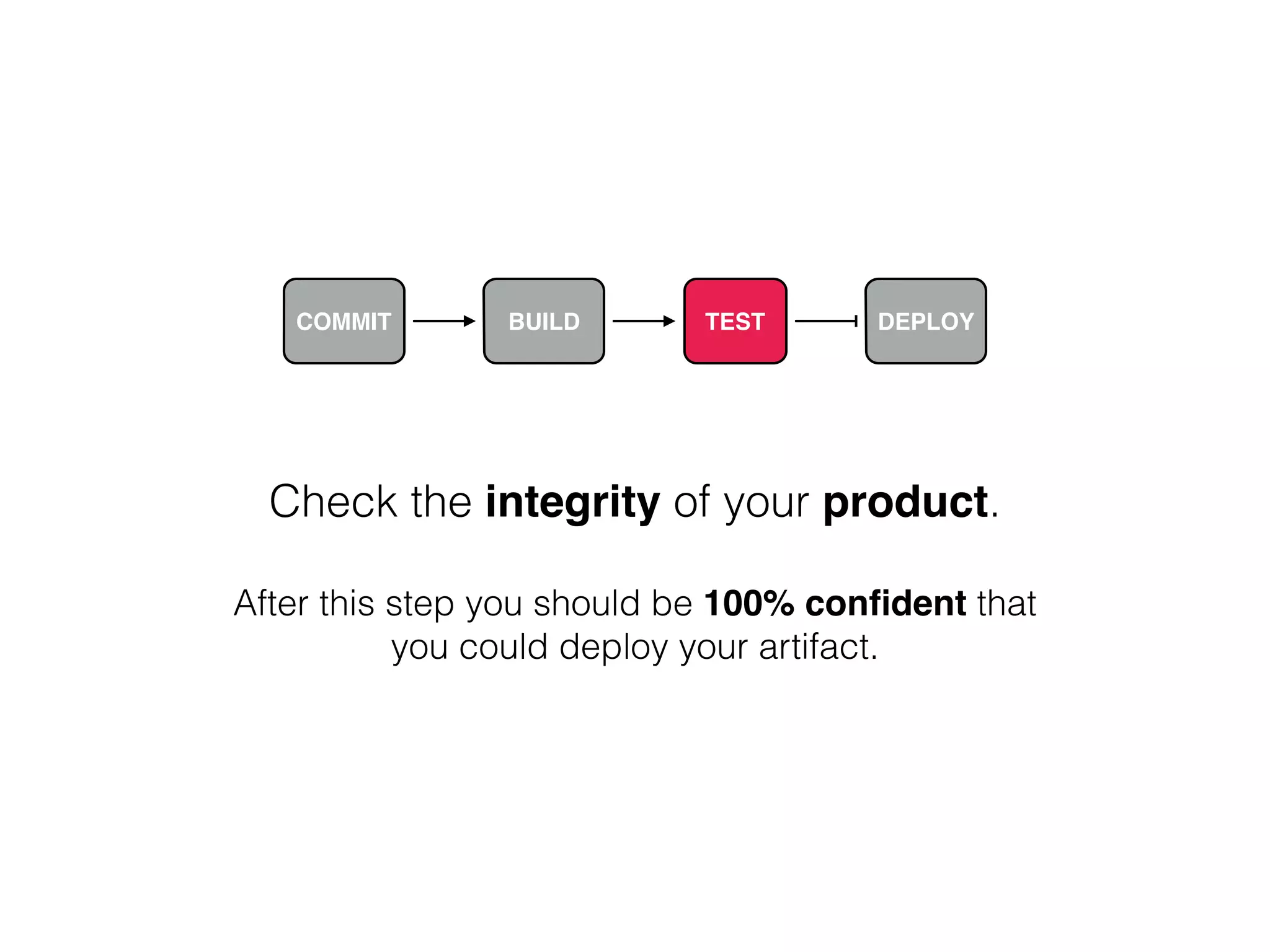

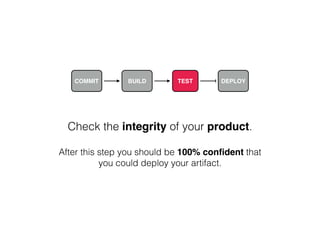

8. COMMIT BUILD TEST DEPLOY
Check the integrity of your product.
!
After this step you should be 100% confident that
you could deploy your artifact.

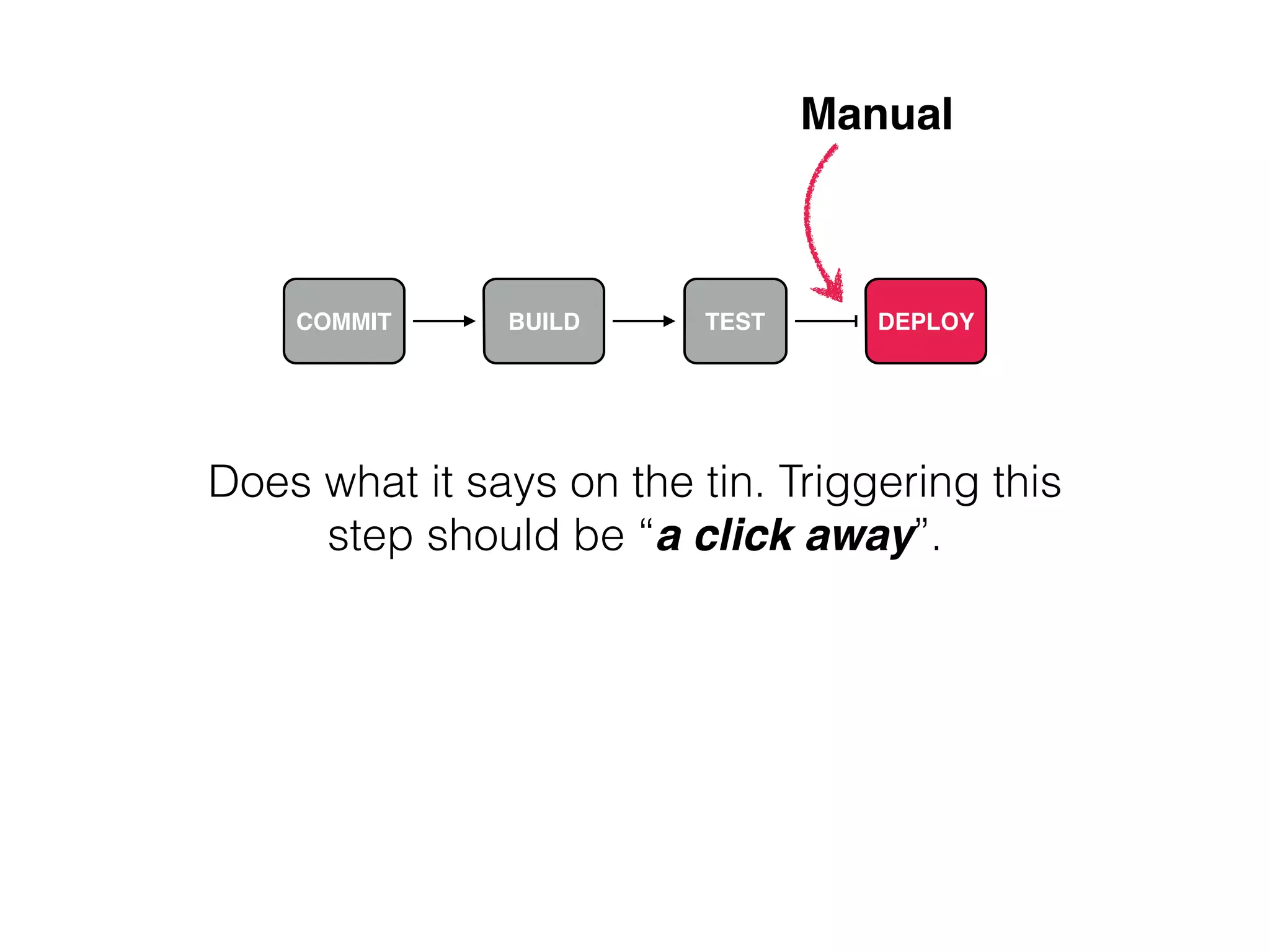

9. COMMIT BUILD TEST DEPLOY
Does what it says on the tin. Triggering this
step should be “a click away”.
Manual

10. THE BOOK

11. THE PIPELINE
BUILDING
2

12. TOOLS!
OF THE TRADE

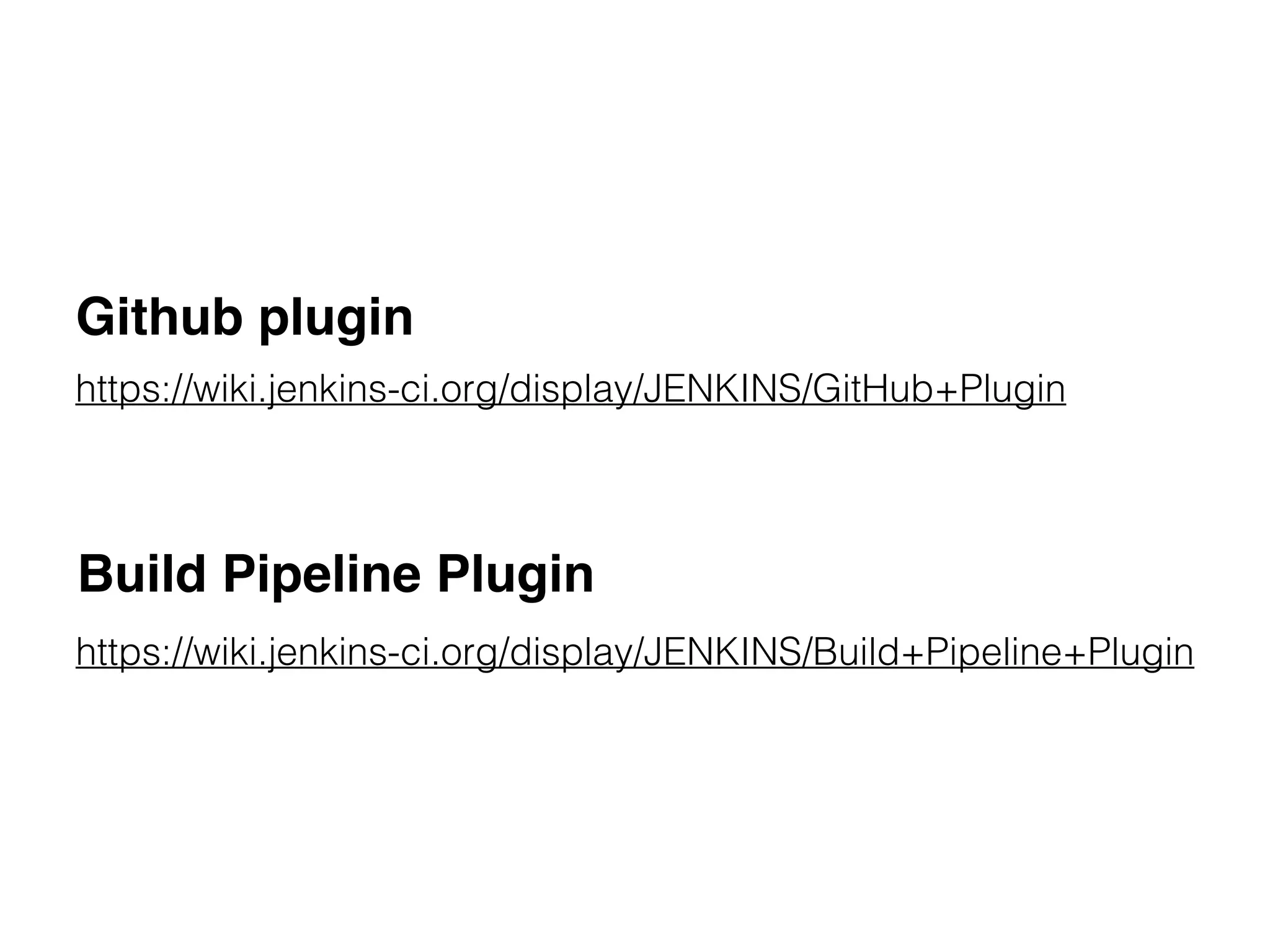

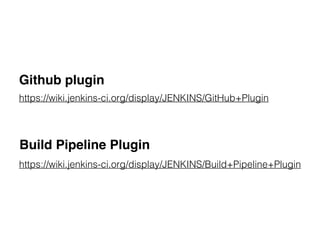

15. Github plugin
https://wiki.jenkins-ci.org/display/JENKINS/GitHub+Plugin
Build Pipeline Plugin
https://wiki.jenkins-ci.org/display/JENKINS/Build+Pipeline+Plugin

19. BUILDING!
THE PIPELINE

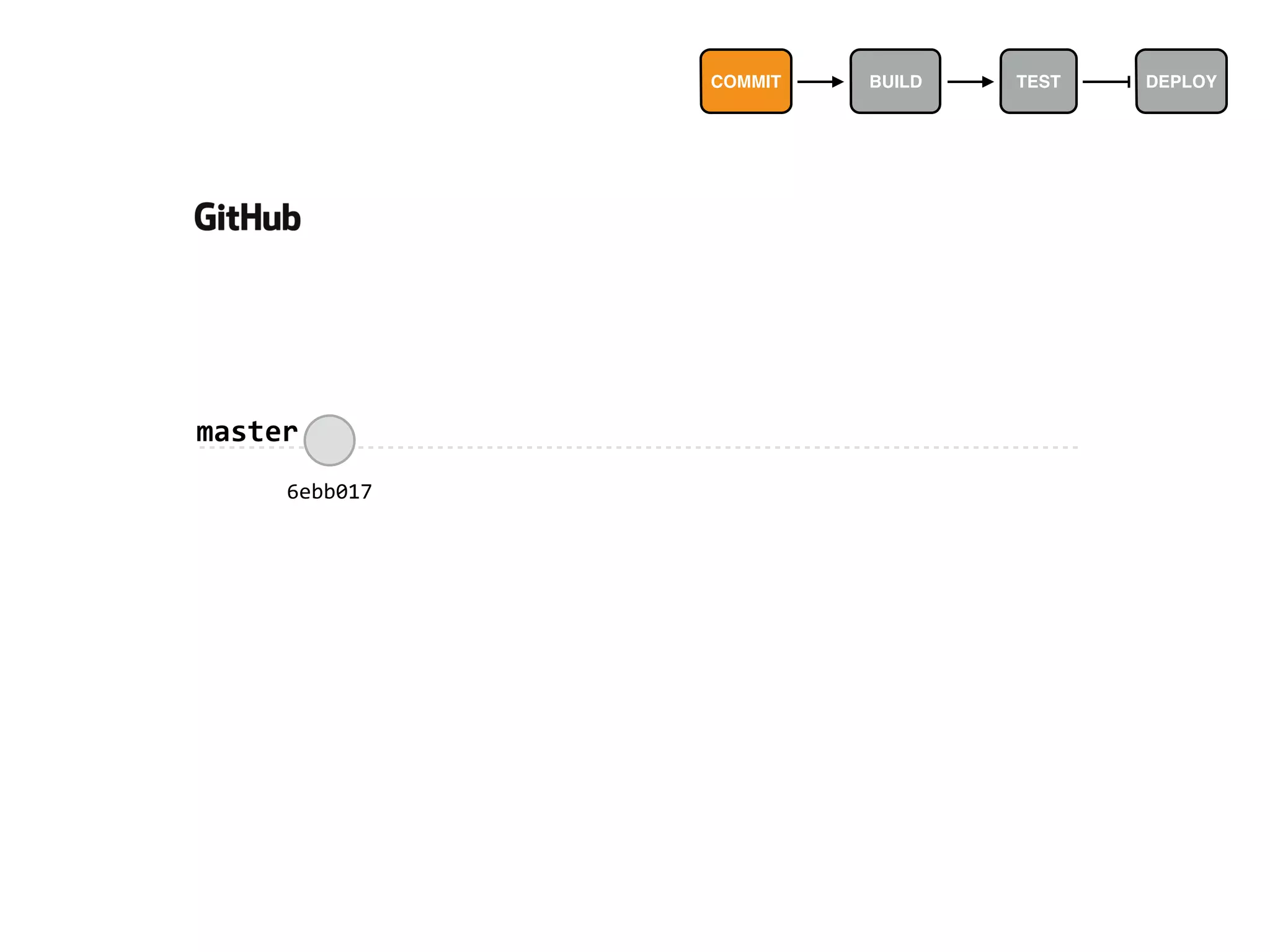

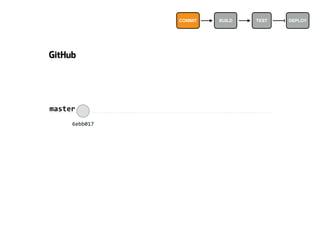

20. COMMIT BUILD TEST DEPLOY
master
6ebb017

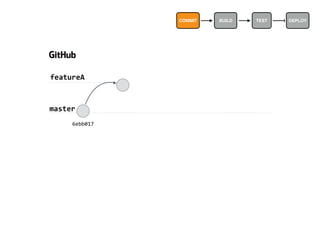

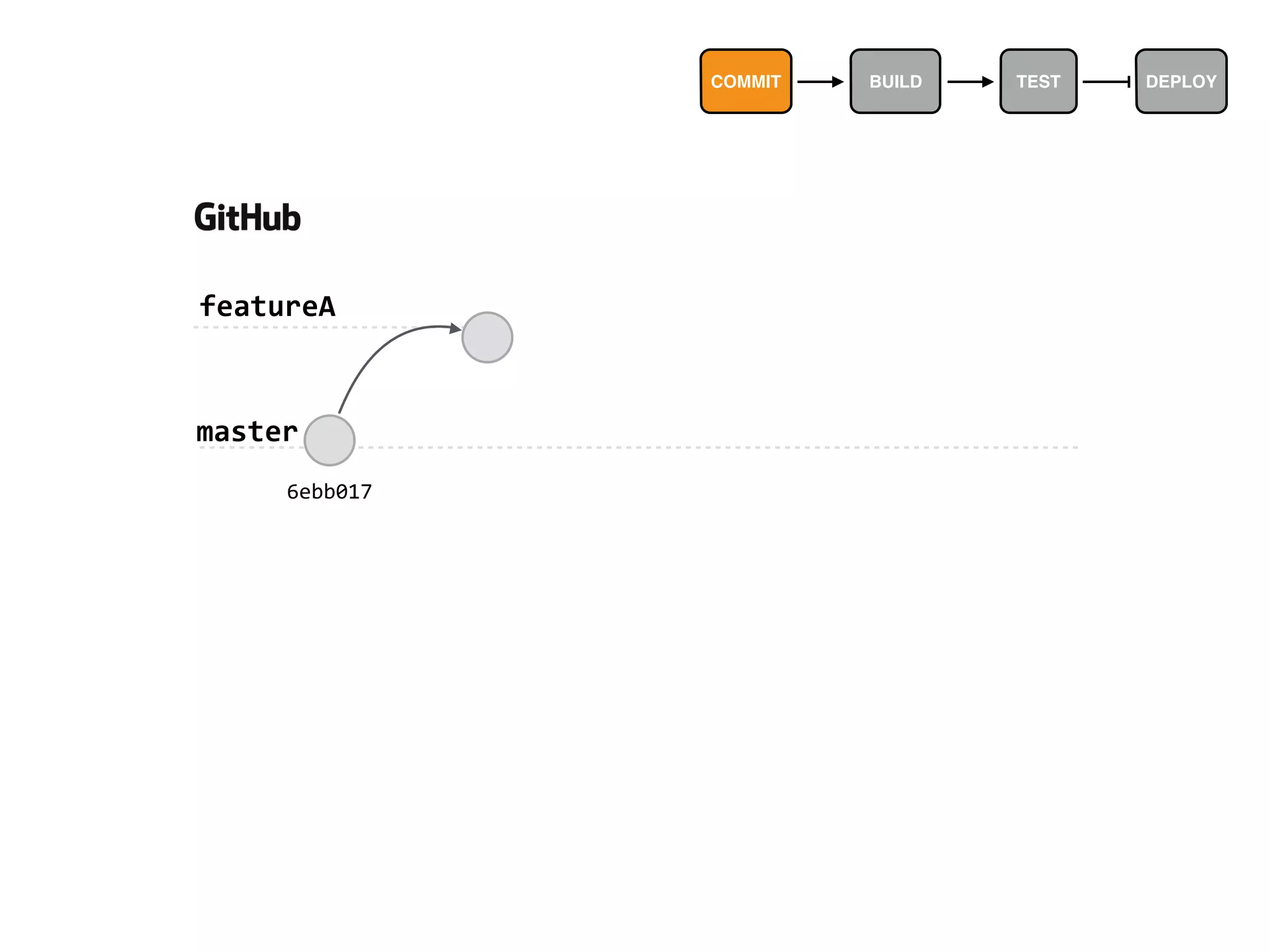

21. COMMIT BUILD TEST DEPLOY
master
featureA
6ebb017

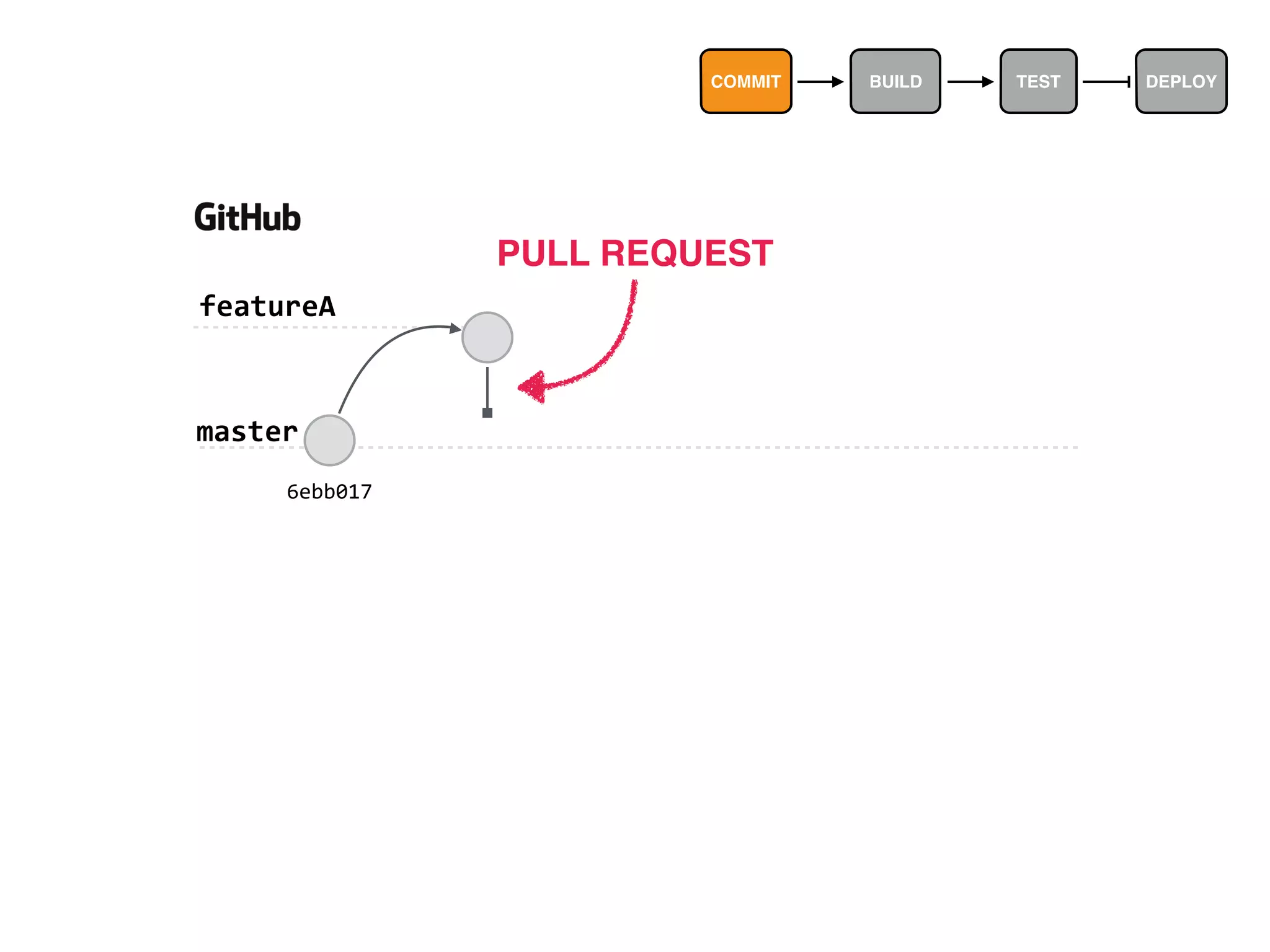

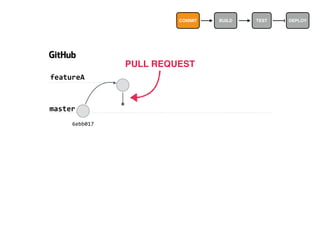

22. COMMIT BUILD TEST DEPLOY
master
featureA
6ebb017
PULL REQUEST

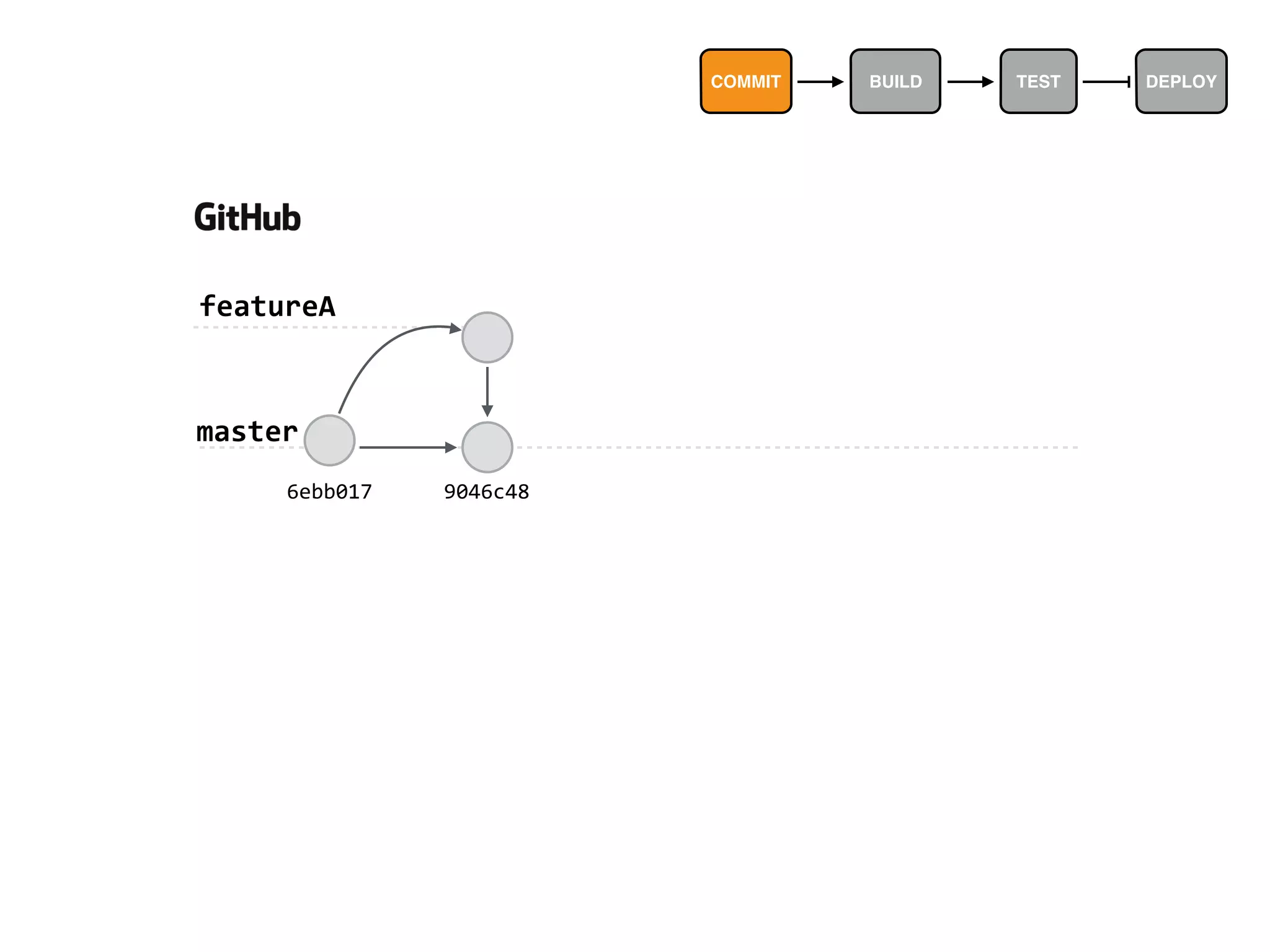

23. COMMIT BUILD TEST DEPLOY
master
featureA
6ebb017 9046c48

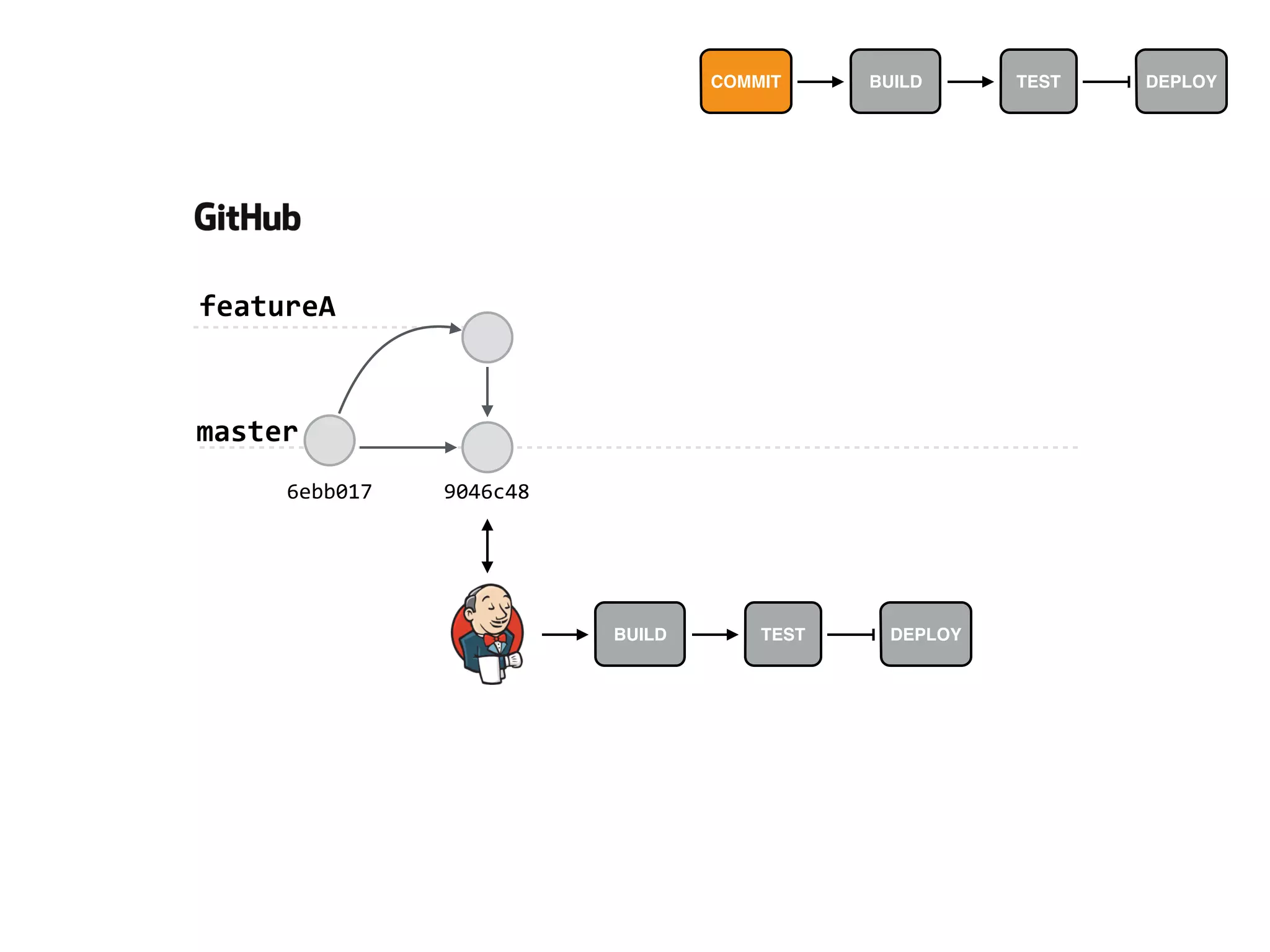

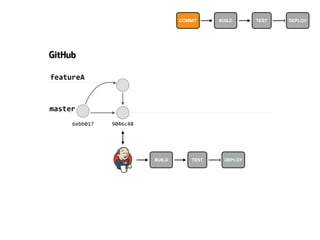

24. COMMIT BUILD TEST DEPLOY
master
featureA
6ebb017 9046c48
BUILD TEST DEPLOY

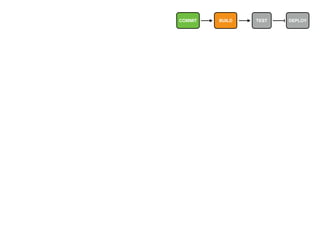

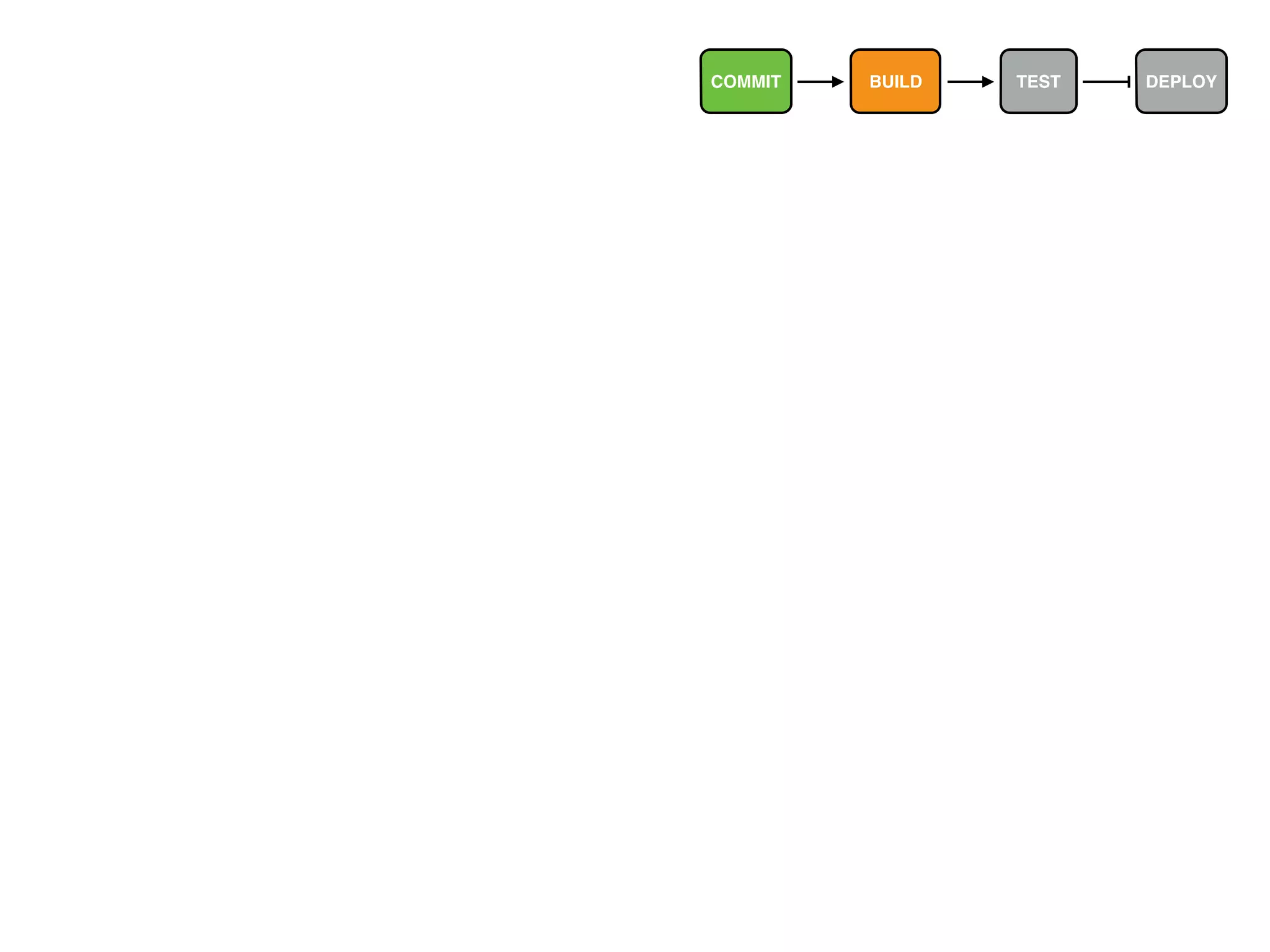

25. COMMIT BUILD TEST DEPLOY

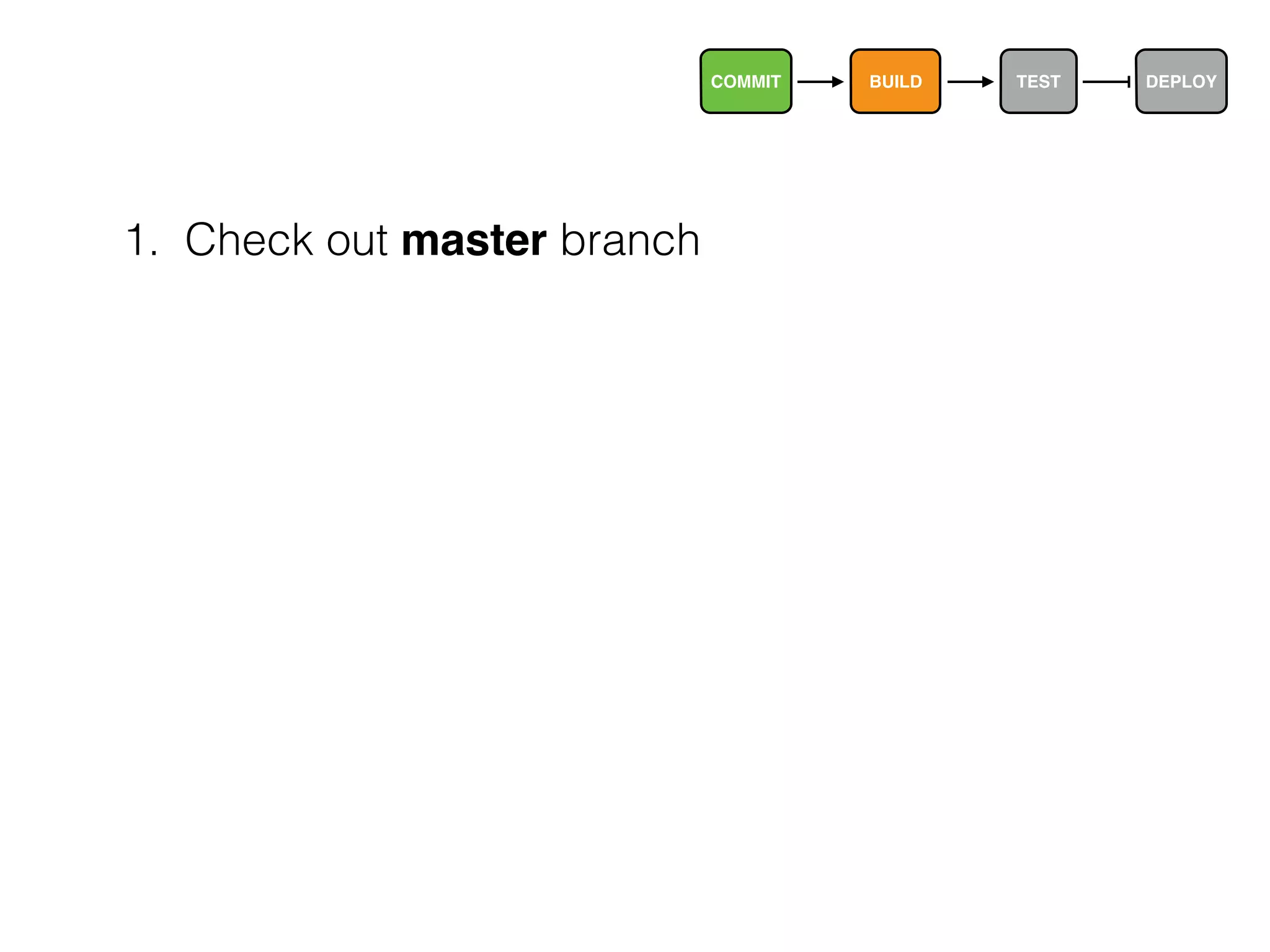

26. 1. Check out master branch
COMMIT BUILD TEST DEPLOY

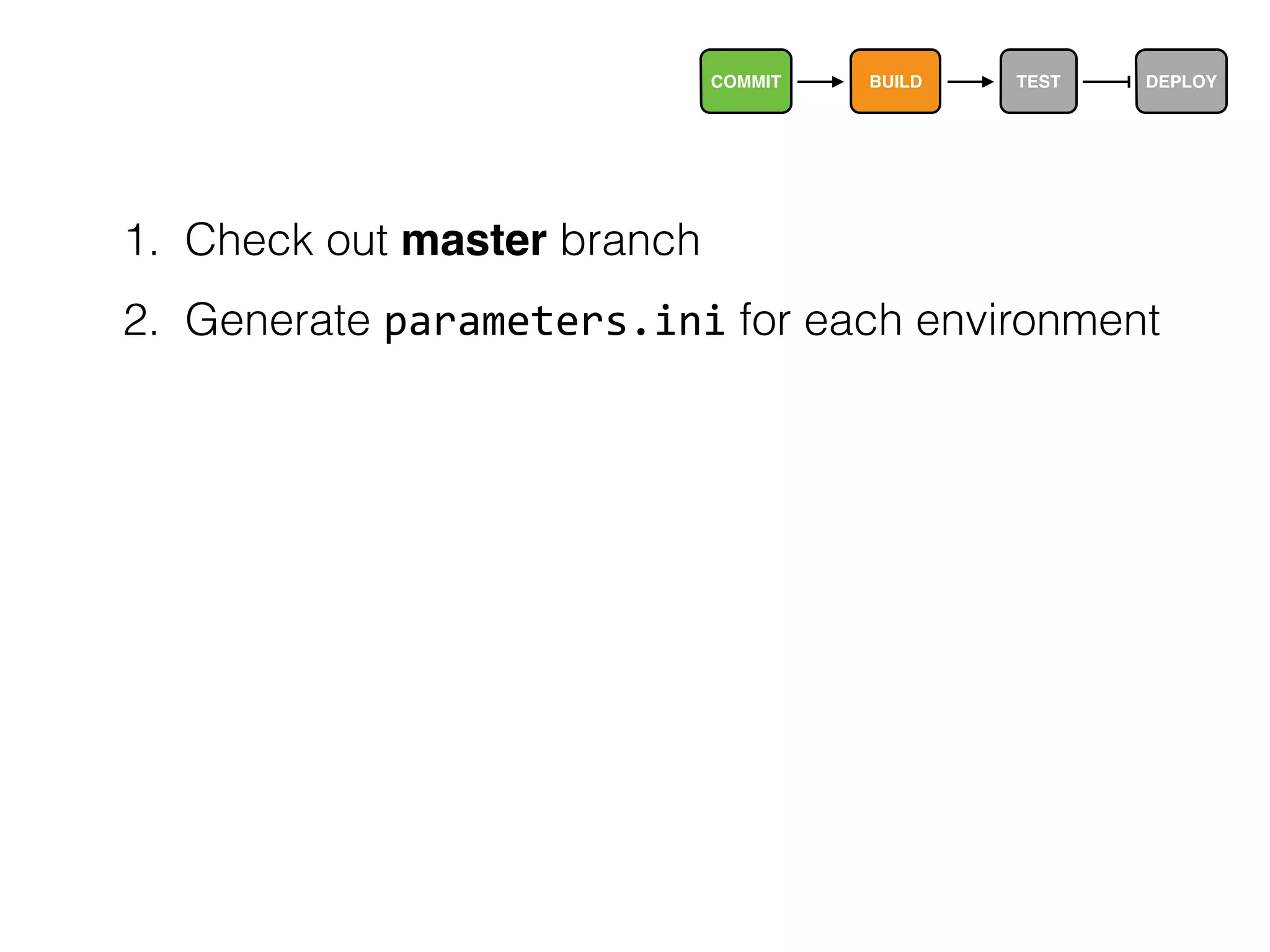

27. 1. Check out master branch
2. Generate parameters.ini for each environment
COMMIT BUILD TEST DEPLOY

28. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
COMMIT BUILD TEST DEPLOY

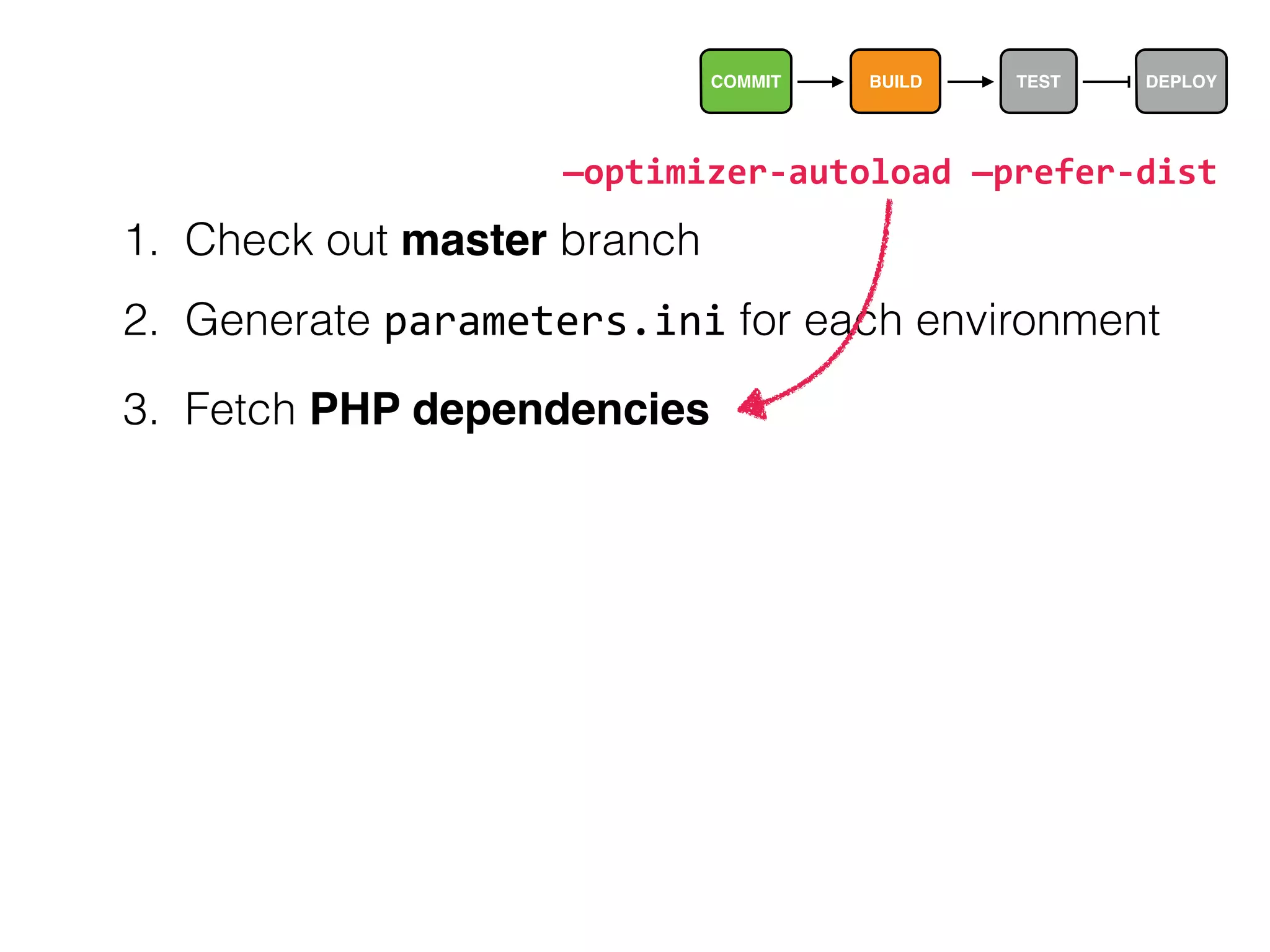

29. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
COMMIT BUILD TEST DEPLOY
—optimizer-­‐autoload —prefer-­‐dist

30. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
COMMIT BUILD TEST DEPLOY

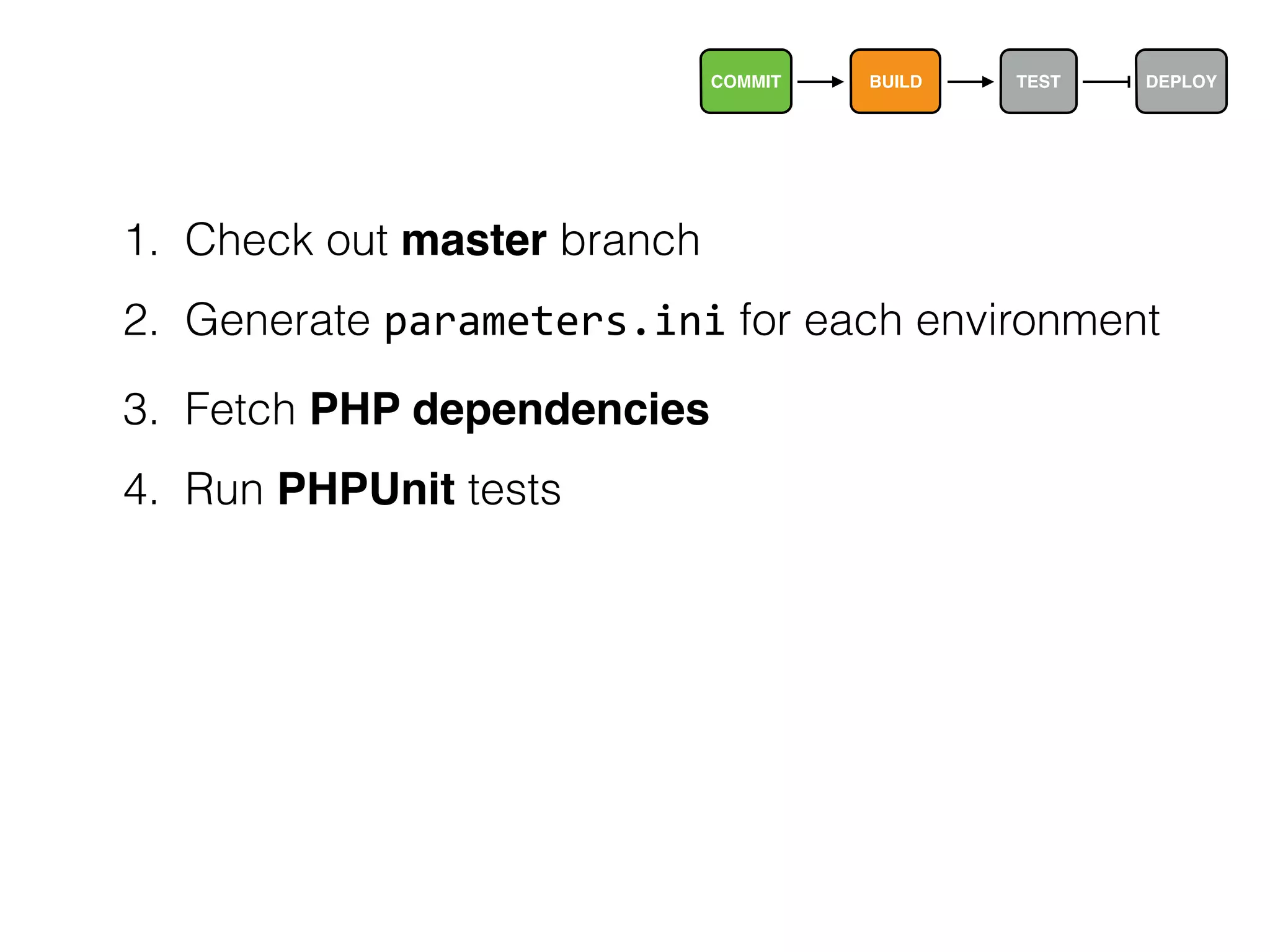

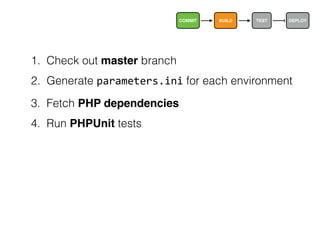

31. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
COMMIT BUILD TEST DEPLOY

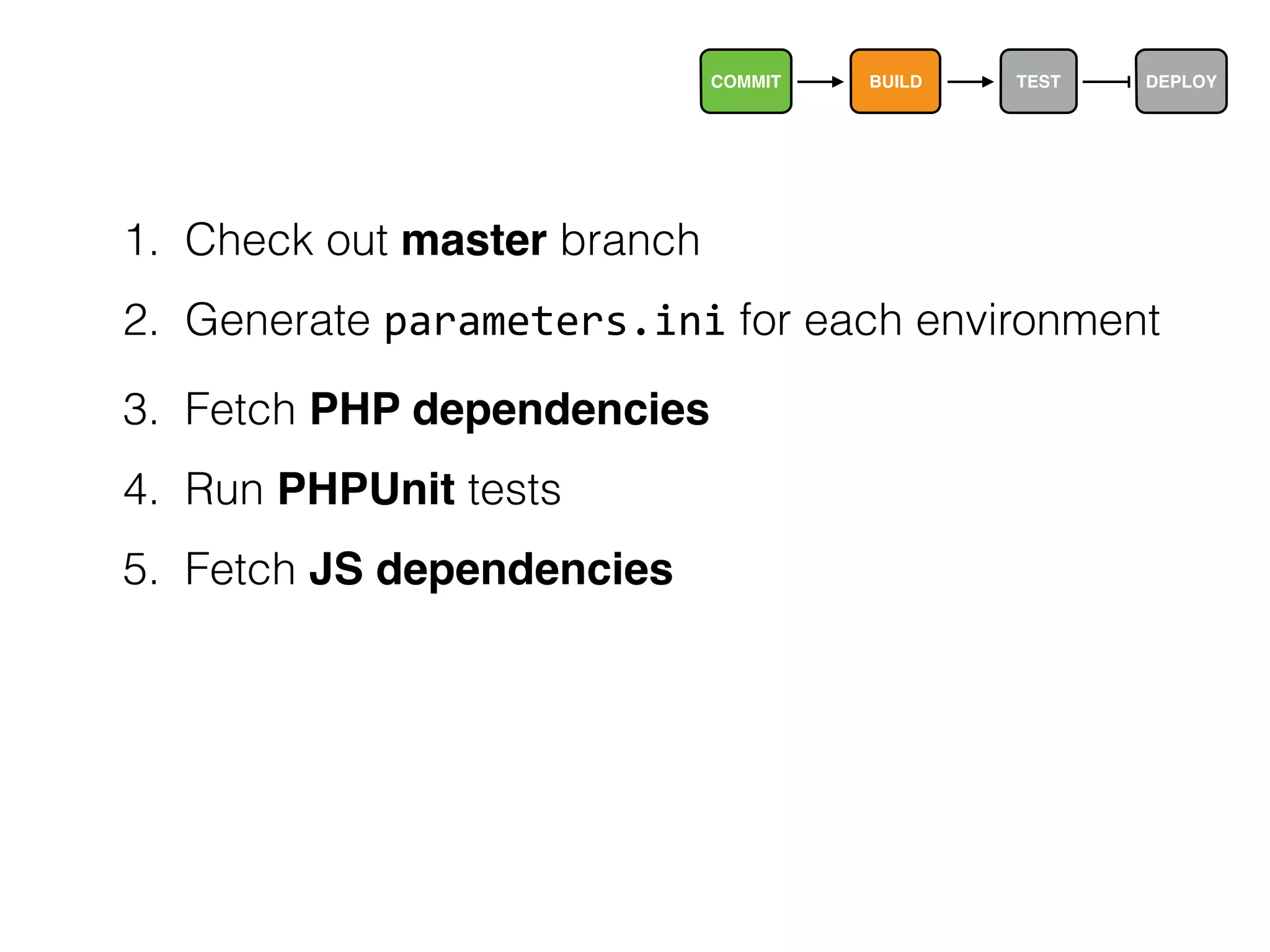

32. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
COMMIT BUILD TEST DEPLOY

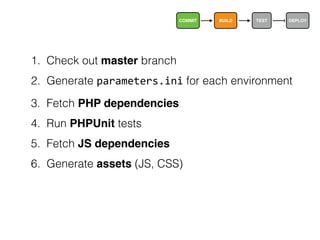

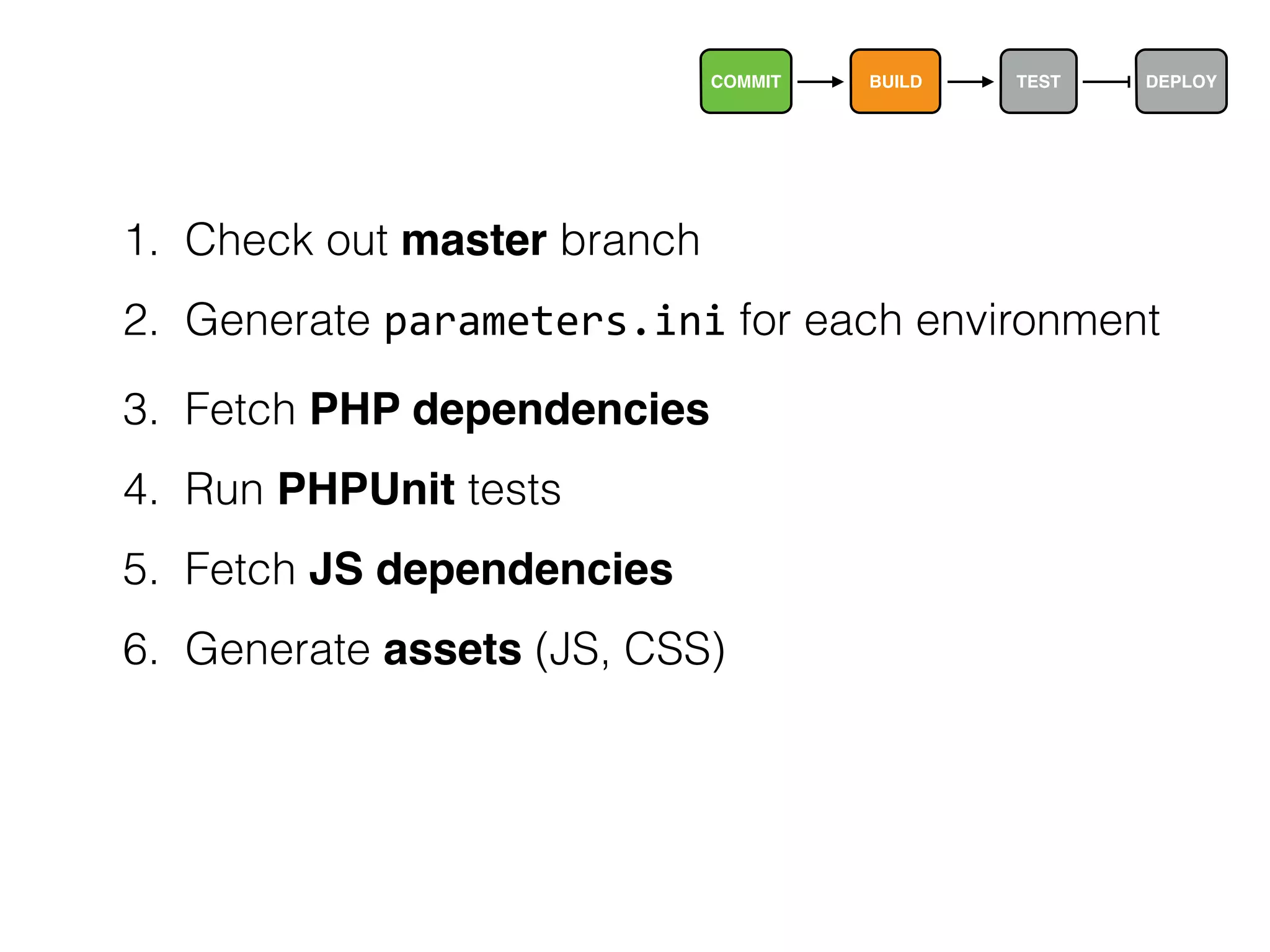

33. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
6. Generate assets (JS, CSS)
COMMIT BUILD TEST DEPLOY

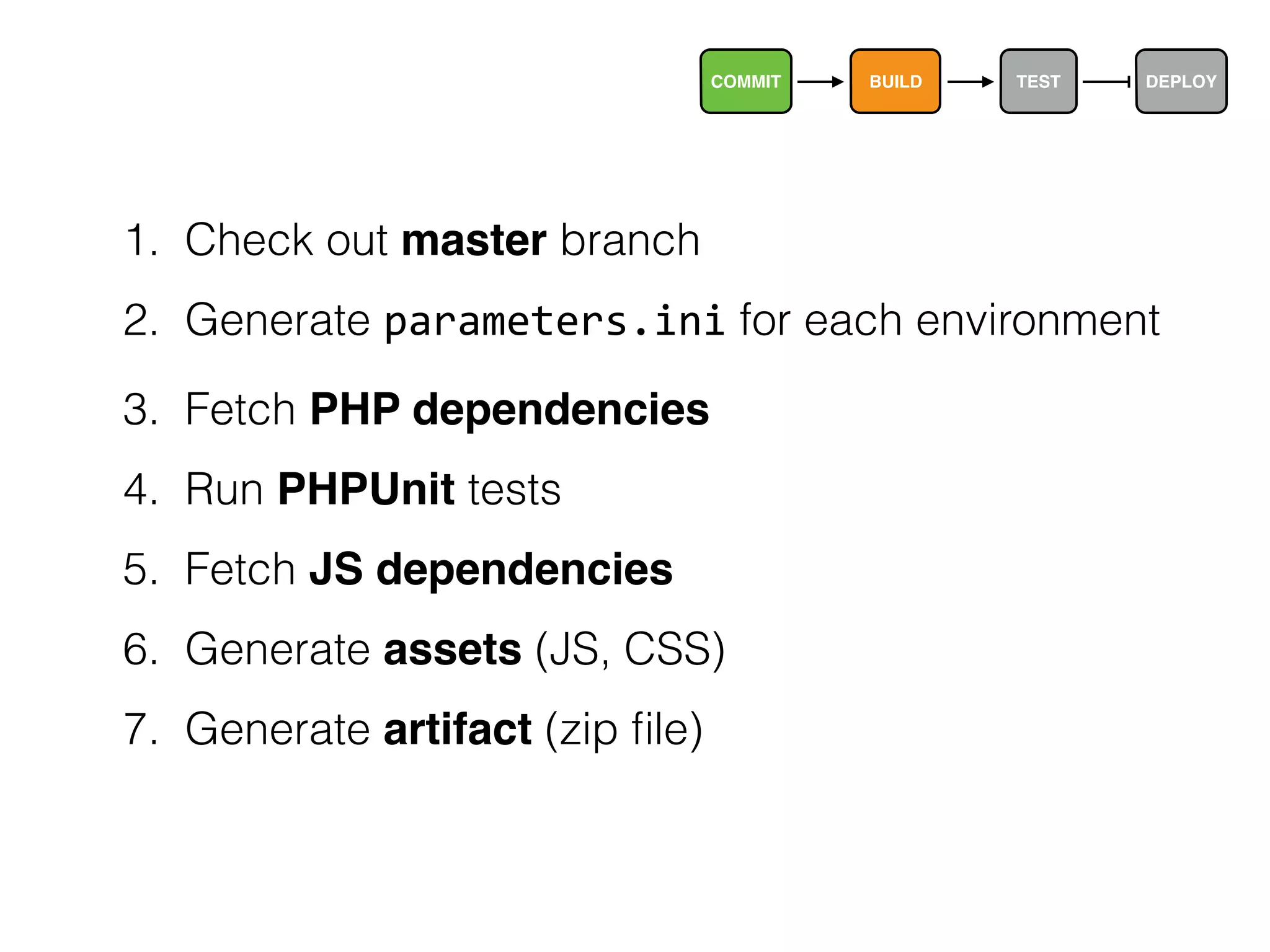

34. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
6. Generate assets (JS, CSS)
7. Generate artifact (zip file)
COMMIT BUILD TEST DEPLOY

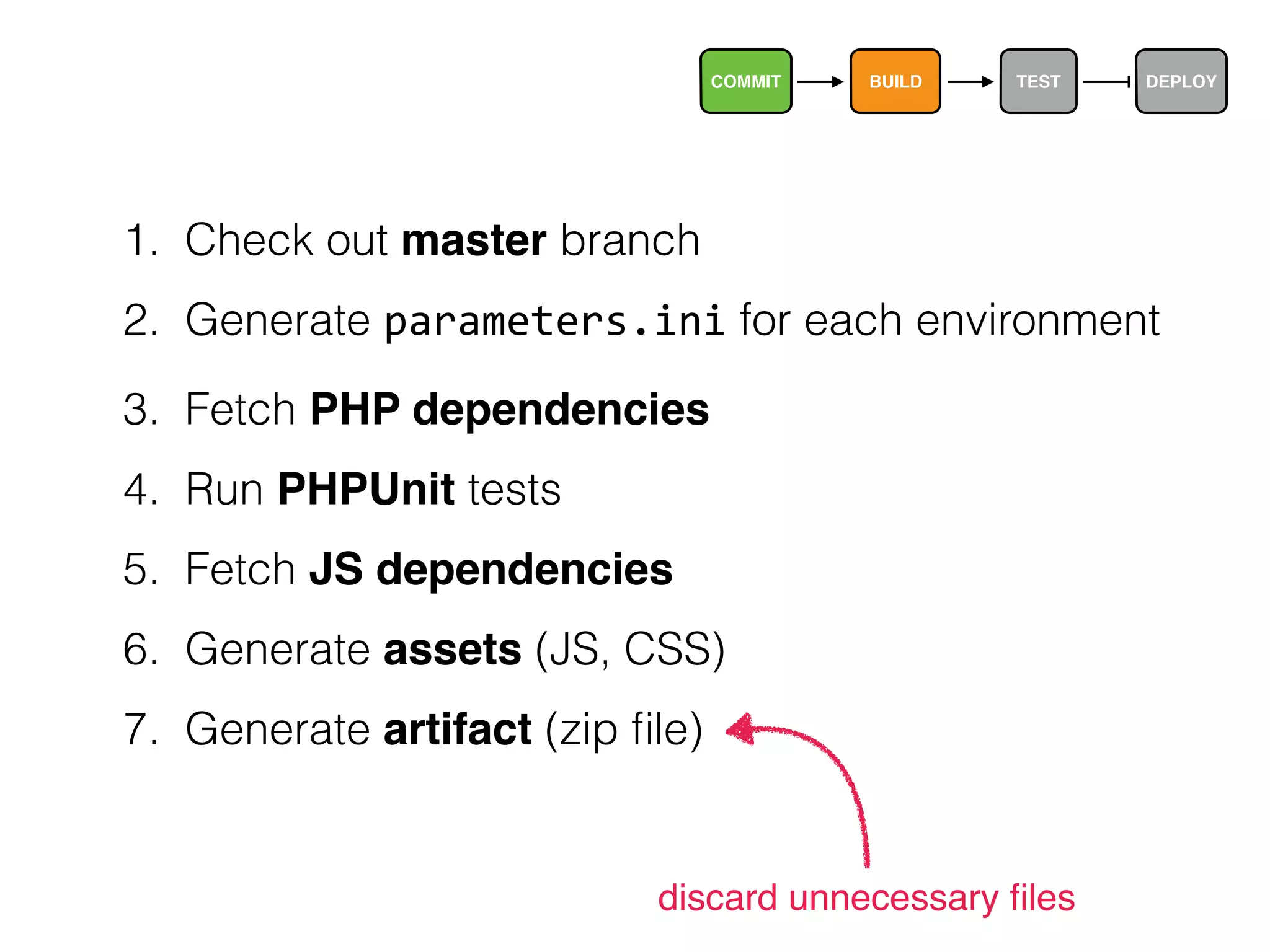

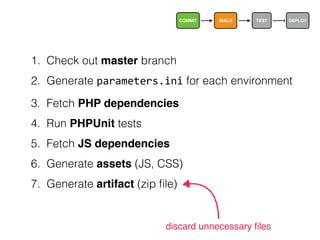

35. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
6. Generate assets (JS, CSS)
7. Generate artifact (zip file)
COMMIT BUILD TEST DEPLOY
discard unnecessary files

36. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
6. Generate assets (JS, CSS)
7. Generate artifact (zip file)
COMMIT BUILD TEST DEPLOY

37. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
6. Generate assets (JS, CSS)
7. Generate artifact (zip file)
8. Upload artifact to S3
COMMIT BUILD TEST DEPLOY

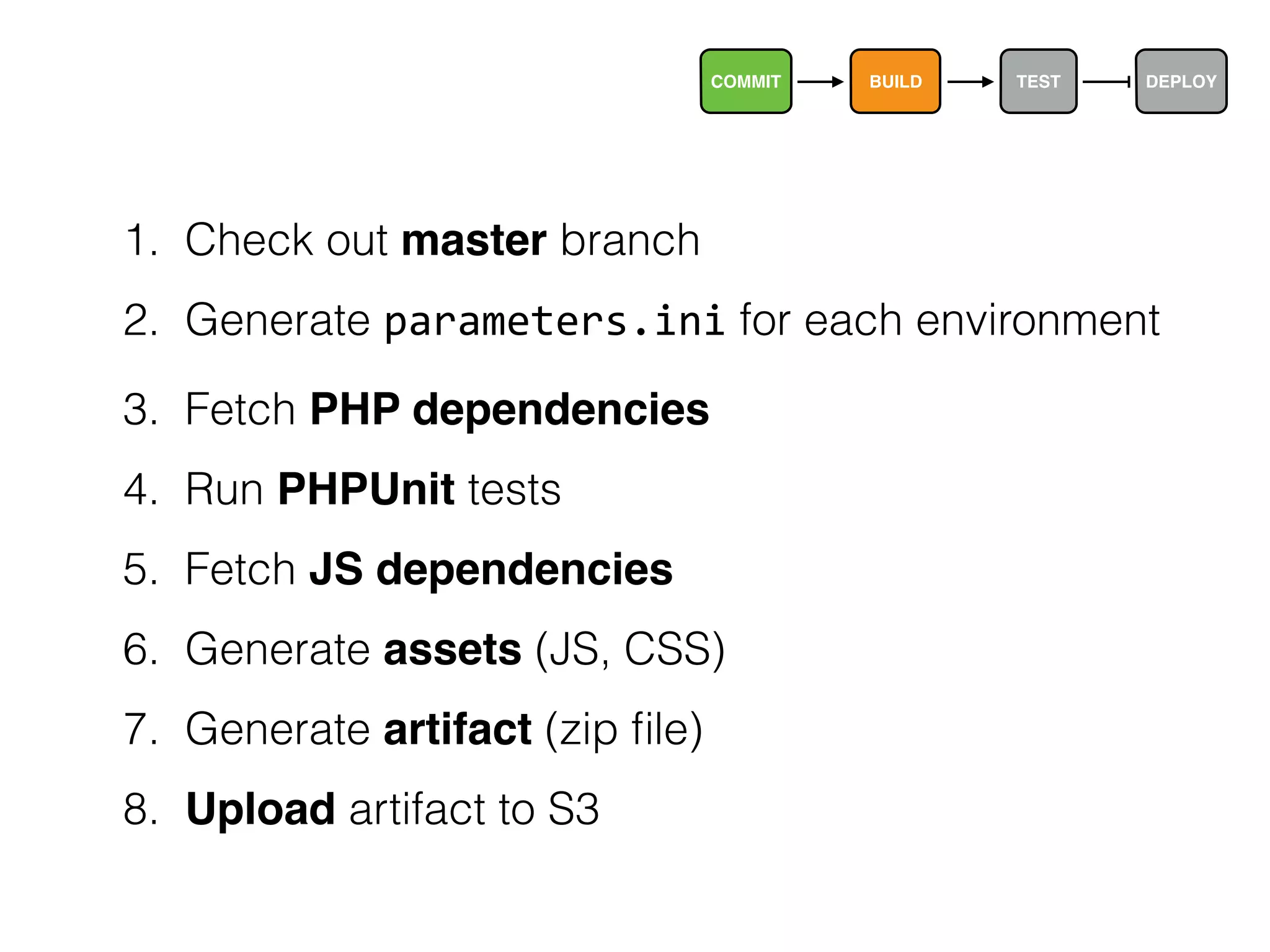

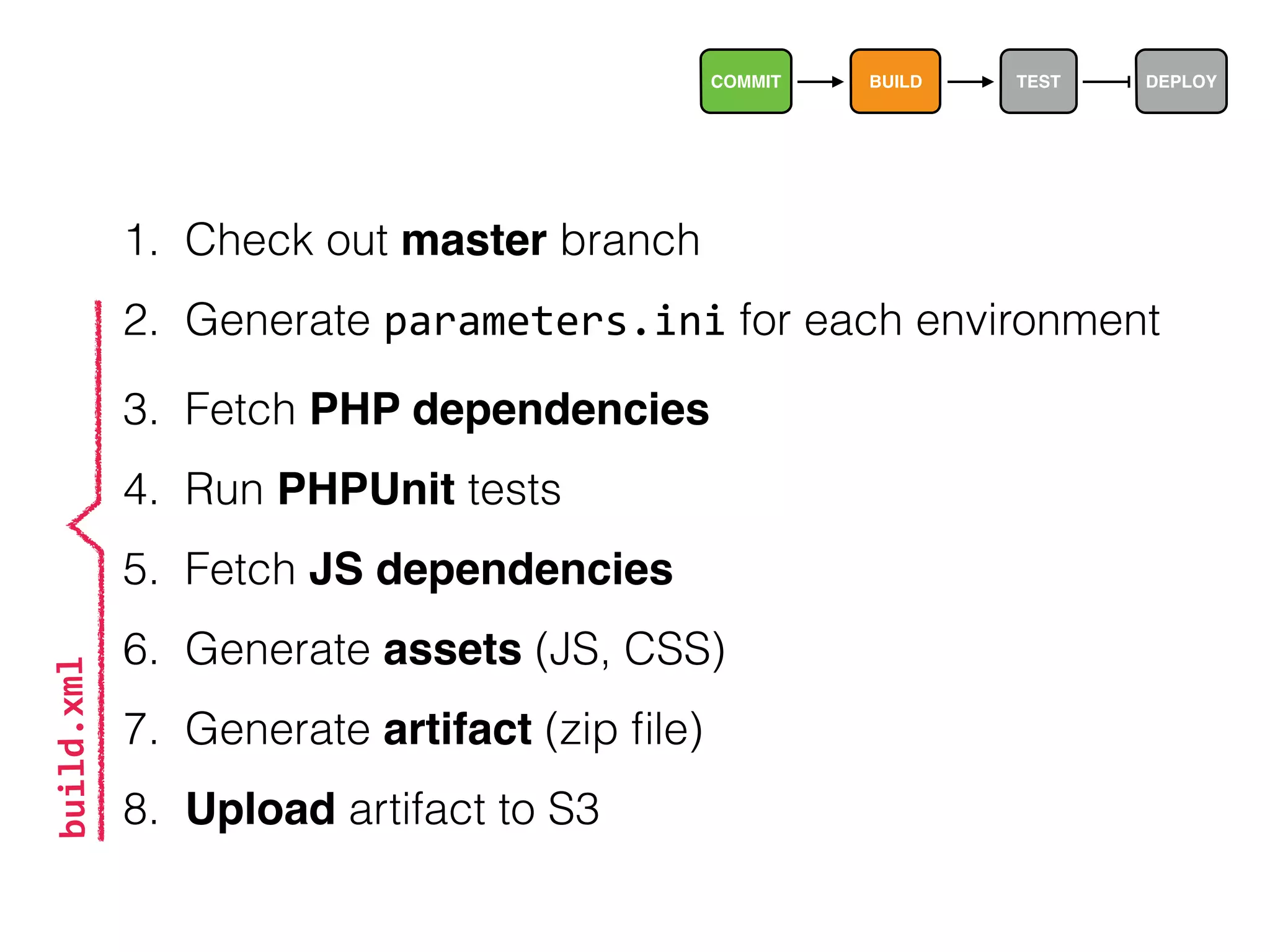

38. 1. Check out master branch
2. Generate parameters.ini for each environment
3. Fetch PHP dependencies
4. Run PHPUnit tests
5. Fetch JS dependencies
6. Generate assets (JS, CSS)
7. Generate artifact (zip file)
8. Upload artifact to S3
COMMIT BUILD TEST DEPLOYbuild.xml

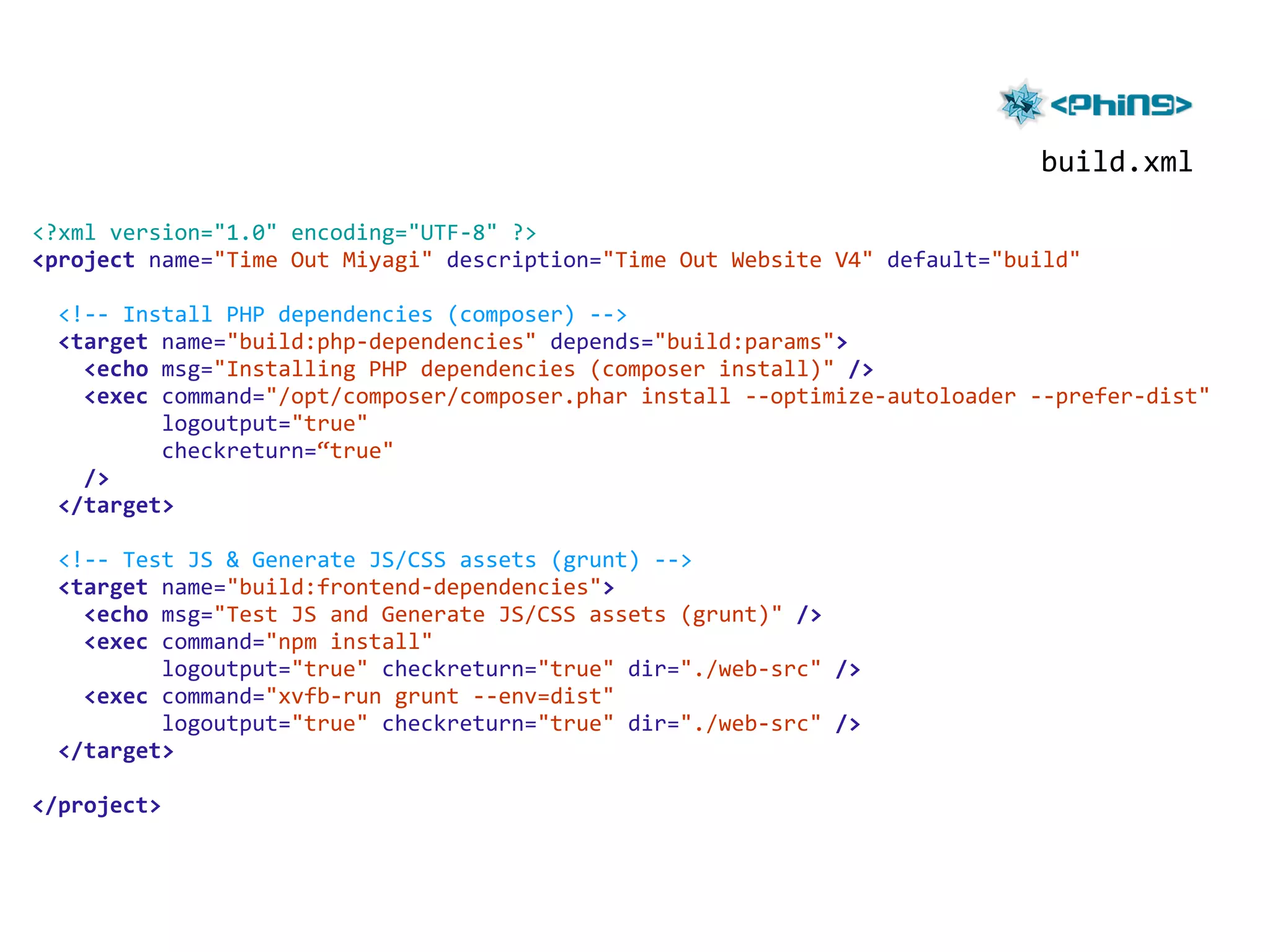

39. <?xml version="1.0" encoding="UTF-­‐8" ?>
<project name="Time Out Miyagi" description="Time Out Website V4" default="build"
!
<!-­‐-­‐ Install PHP dependencies (composer) -­‐-­‐>
<target name="build:php-­‐dependencies" depends="build:params">
<echo msg="Installing PHP dependencies (composer install)" />
<exec command="/opt/composer/composer.phar install -­‐-­‐optimize-­‐autoloader -­‐-­‐prefer-­‐dist"
logoutput="true"
checkreturn=“true"
/>
</target>
!
<!-­‐-­‐ Test JS & Generate JS/CSS assets (grunt) -­‐-­‐>
<target name="build:frontend-­‐dependencies">
<echo msg="Test JS and Generate JS/CSS assets (grunt)" />
<exec command="npm install"
logoutput="true" checkreturn="true" dir="./web-­‐src" />
<exec command="xvfb-­‐run grunt -­‐-­‐env=dist"
logoutput="true" checkreturn="true" dir="./web-­‐src" />
</target>
</project>
build.xml

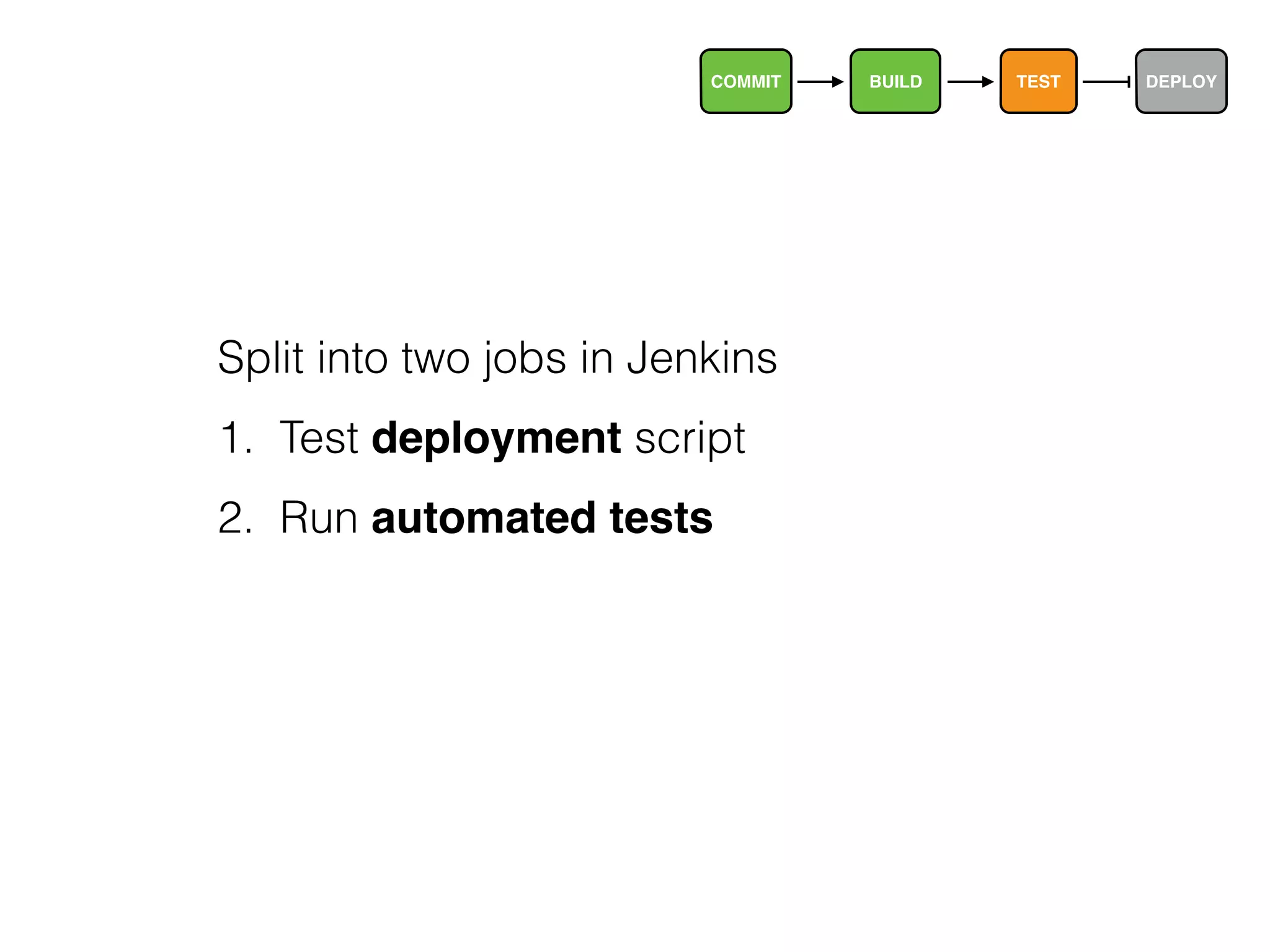

40. COMMIT BUILD TEST DEPLOY
Split into two jobs in Jenkins
1. Test deployment script
2. Run automated tests

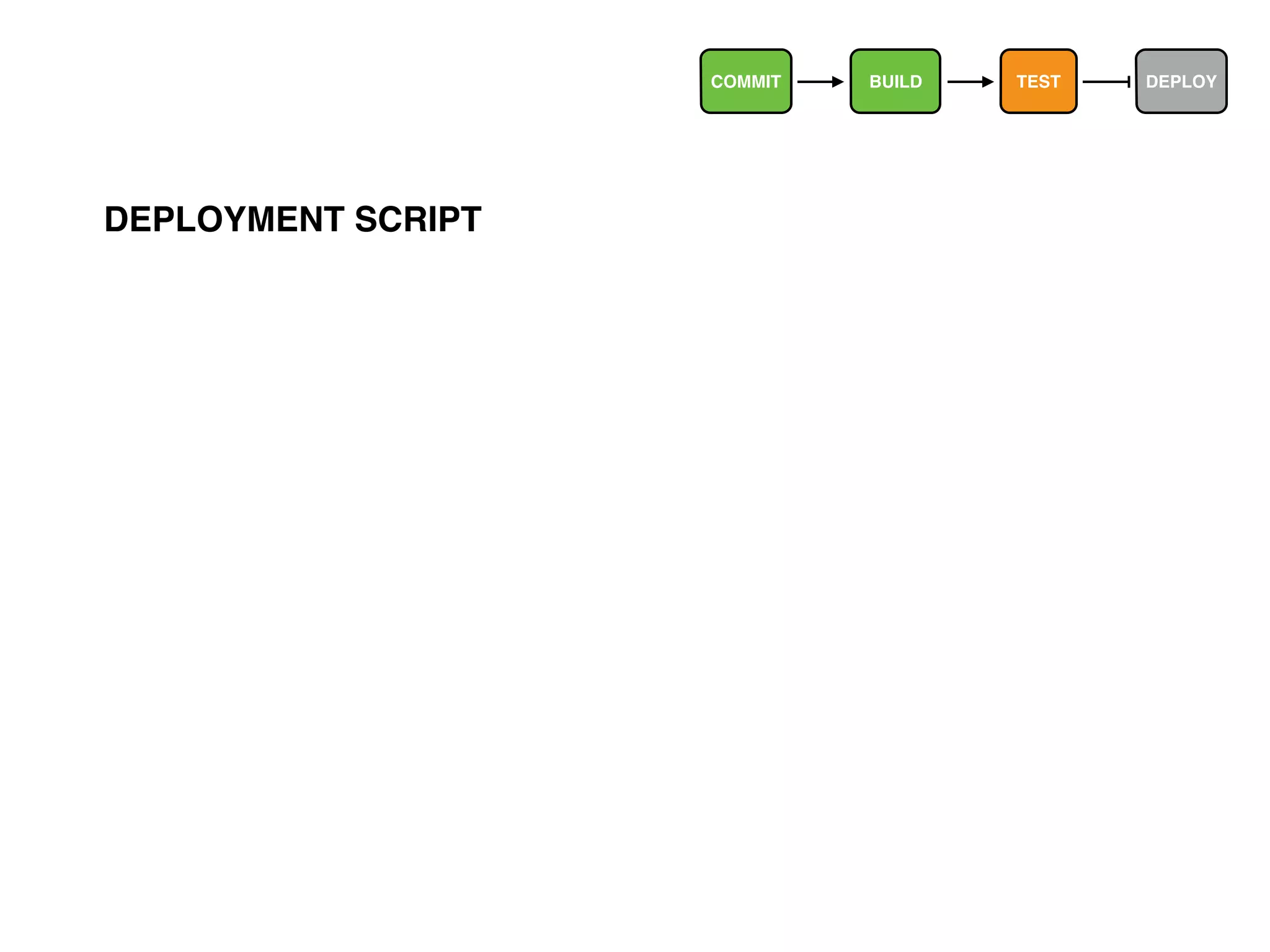

41. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT

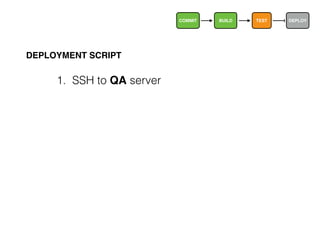

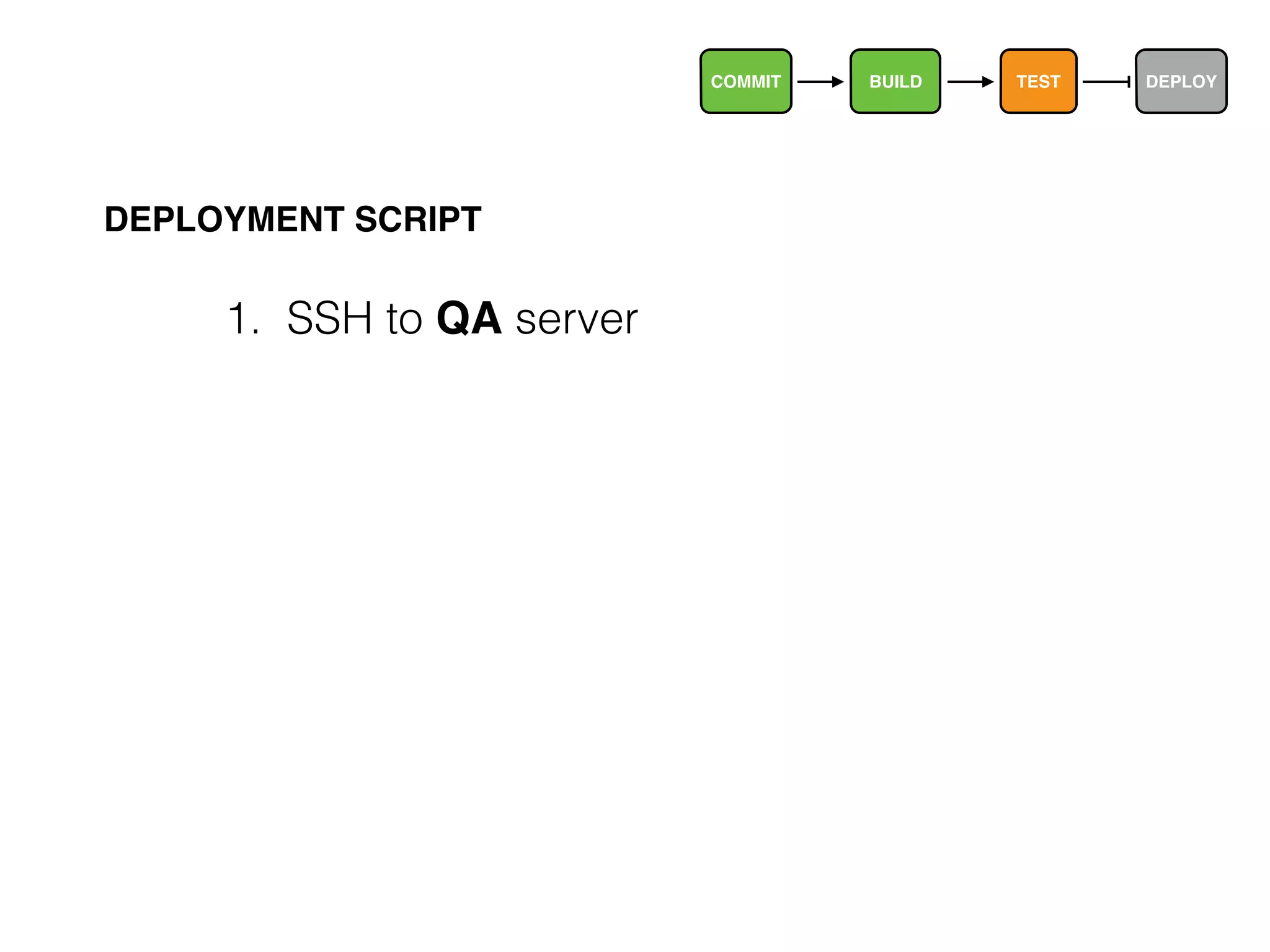

42. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server

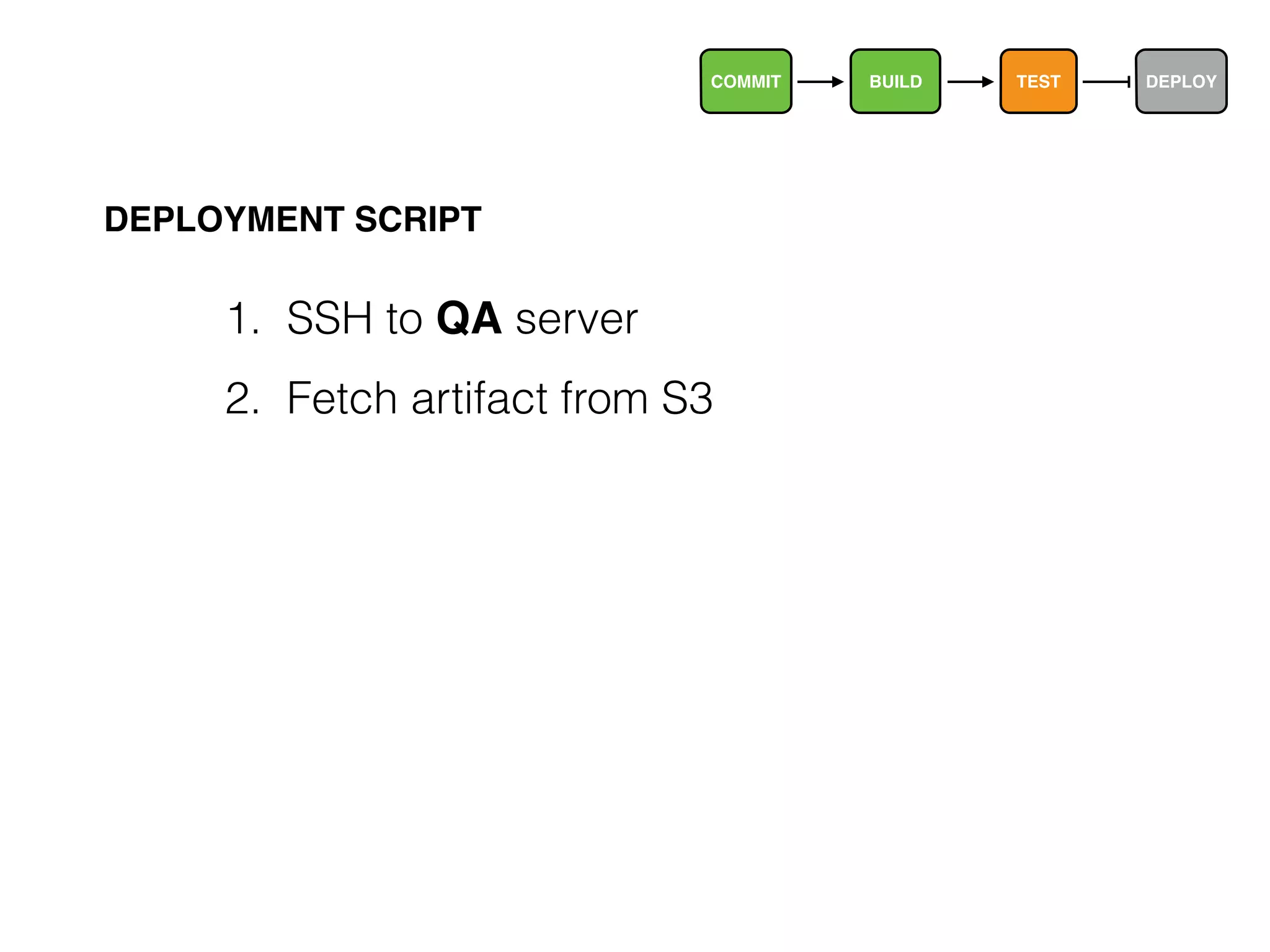

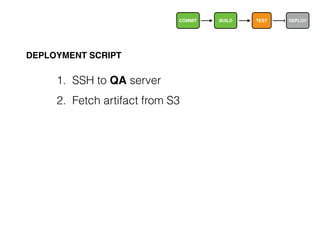

43. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server
2. Fetch artifact from S3

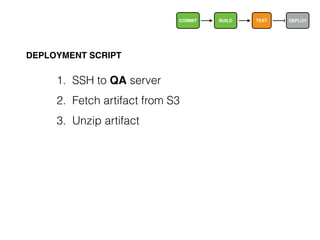

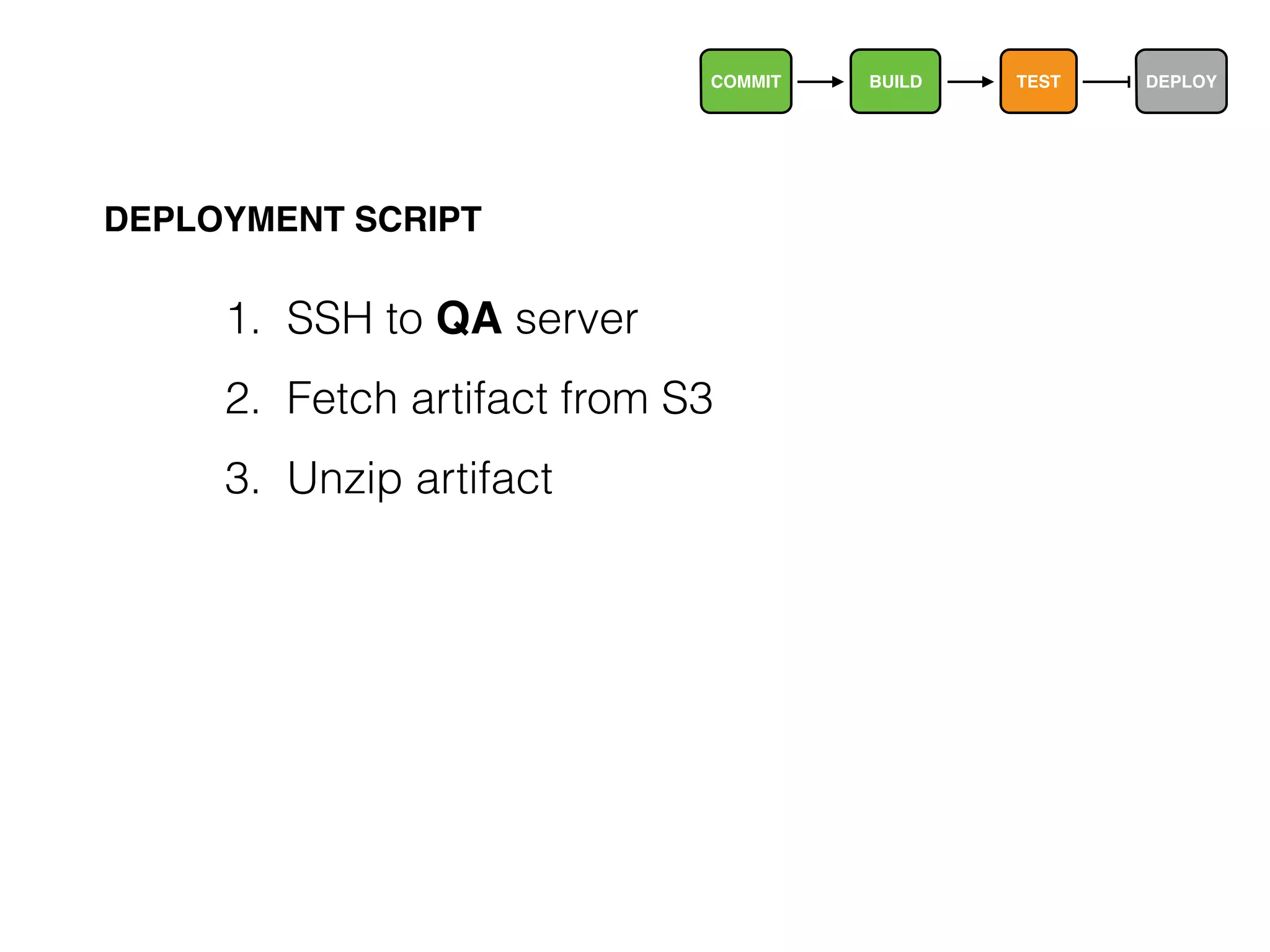

44. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server
2. Fetch artifact from S3
3. Unzip artifact

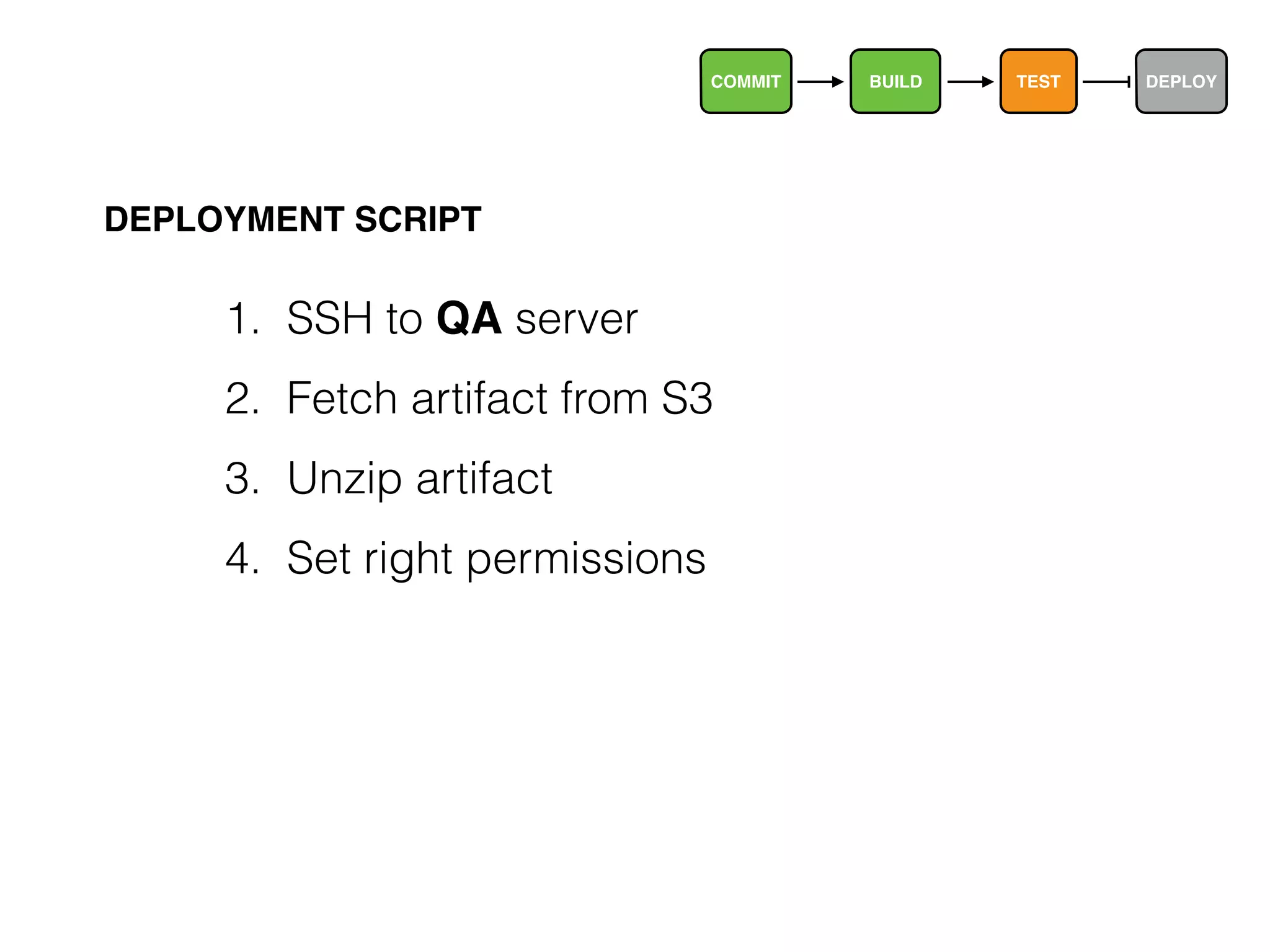

45. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server
2. Fetch artifact from S3
3. Unzip artifact
4. Set right permissions

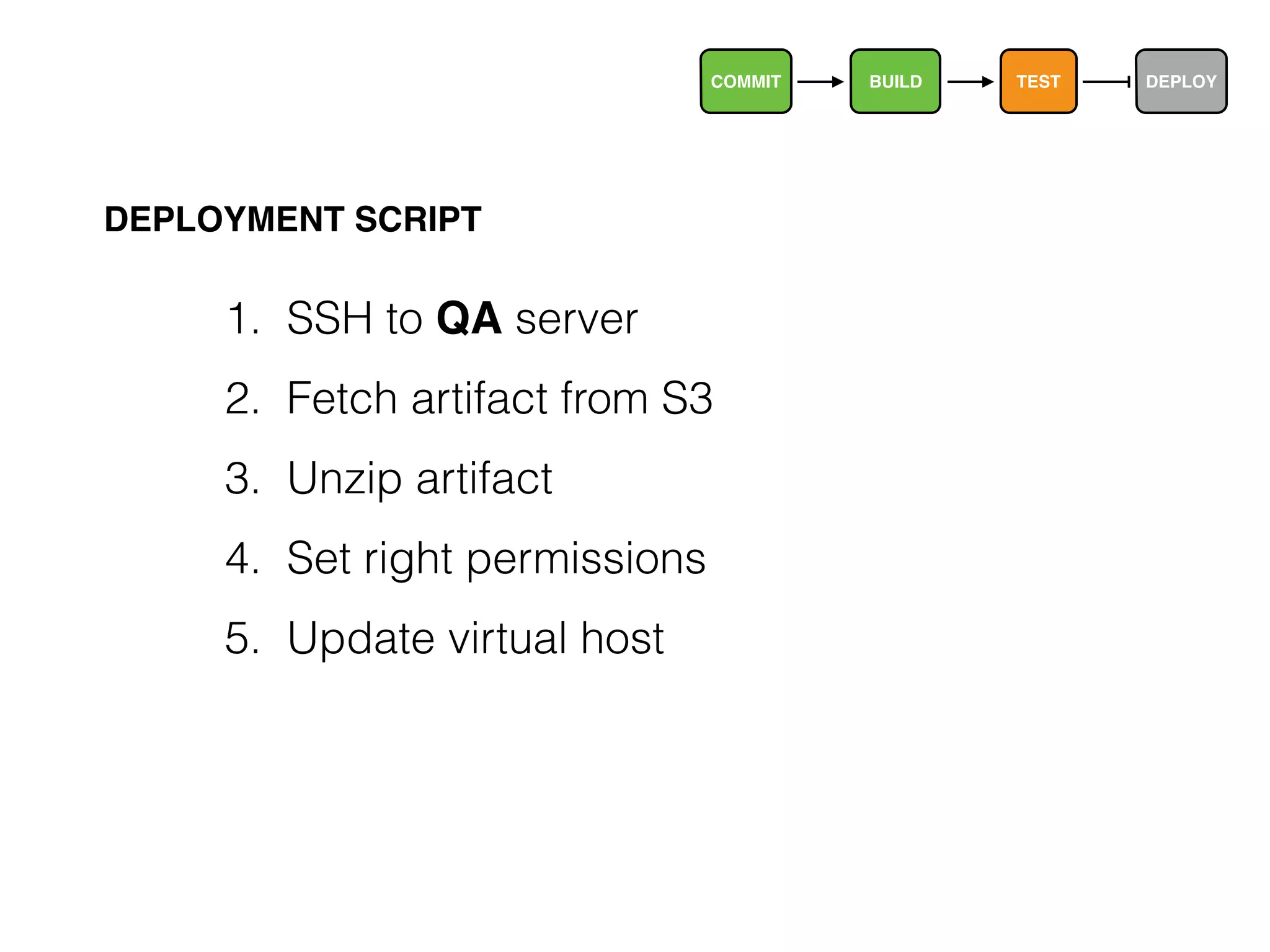

46. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server
2. Fetch artifact from S3
3. Unzip artifact
4. Set right permissions
5. Update virtual host

47. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server
2. Fetch artifact from S3
3. Unzip artifact
4. Set right permissions
5. Update virtual host
6. Reload PHP-FPM and nginx

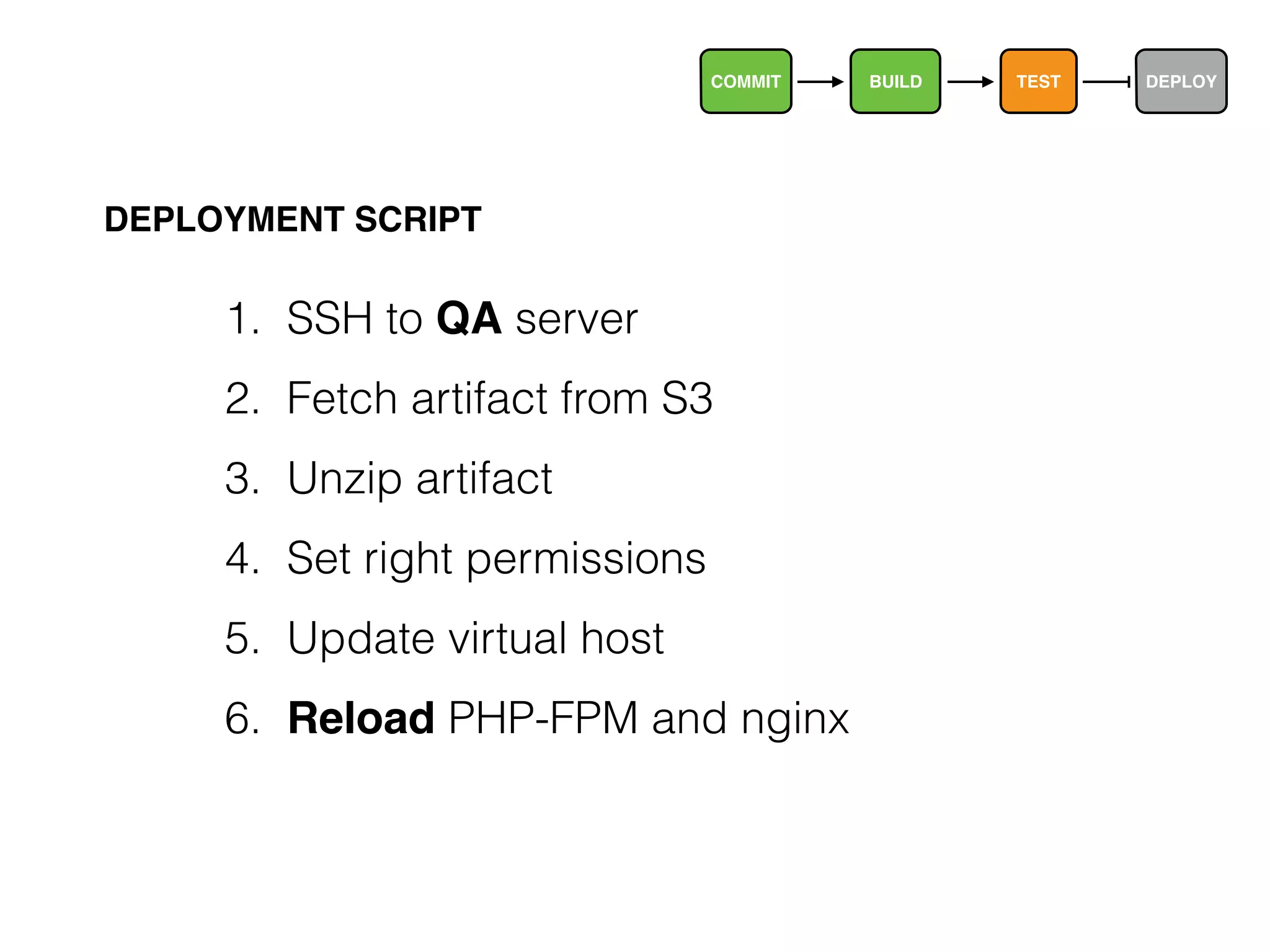

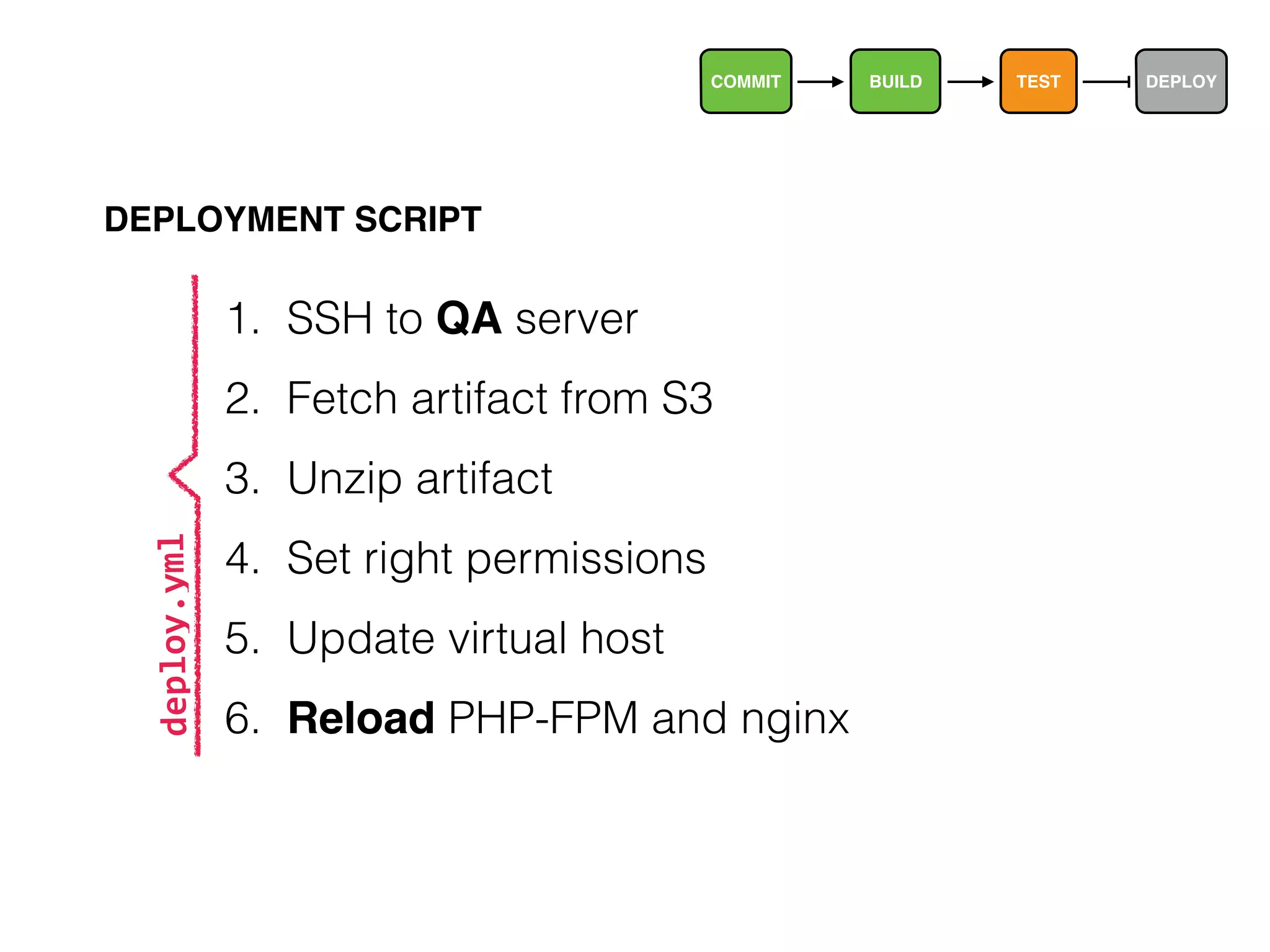

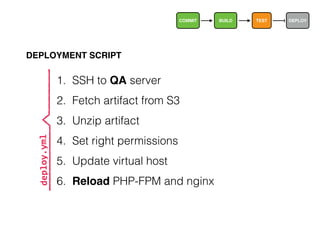

48. COMMIT BUILD TEST DEPLOY
DEPLOYMENT SCRIPT
1. SSH to QA server
2. Fetch artifact from S3
3. Unzip artifact
4. Set right permissions
5. Update virtual host
6. Reload PHP-FPM and nginx
deploy.yml

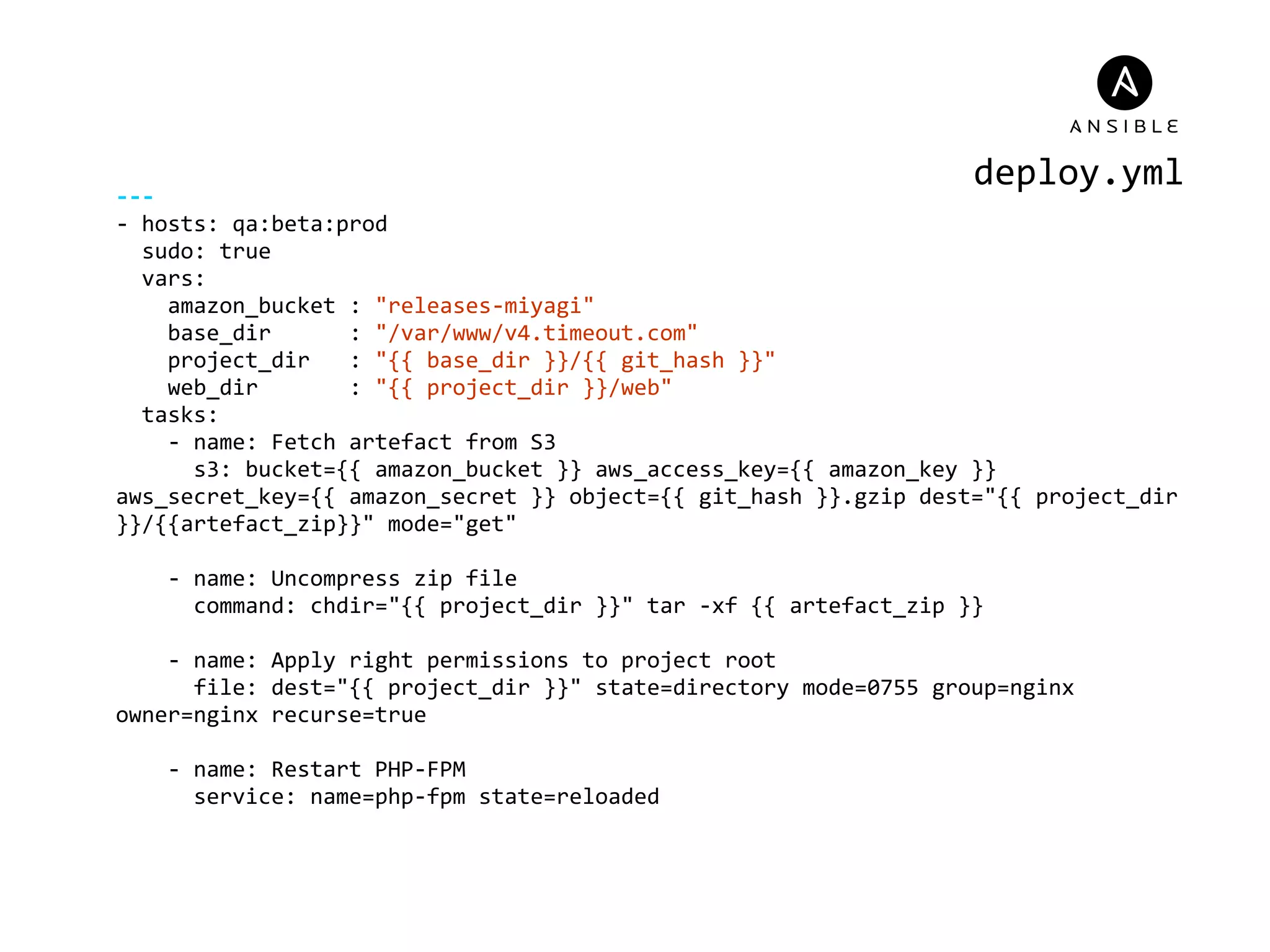

49. -­‐-­‐-­‐
-­‐ hosts: qa:beta:prod
sudo: true
vars:
amazon_bucket : "releases-­‐miyagi"
base_dir : "/var/www/v4.timeout.com"
project_dir : "{{ base_dir }}/{{ git_hash }}"
web_dir : "{{ project_dir }}/web"
tasks:
-­‐ name: Fetch artefact from S3
s3: bucket={{ amazon_bucket }} aws_access_key={{ amazon_key }}
aws_secret_key={{ amazon_secret }} object={{ git_hash }}.gzip dest="{{ project_dir
}}/{{artefact_zip}}" mode="get"
!
-­‐ name: Uncompress zip file
command: chdir="{{ project_dir }}" tar -­‐xf {{ artefact_zip }}
!
-­‐ name: Apply right permissions to project root
file: dest="{{ project_dir }}" state=directory mode=0755 group=nginx
owner=nginx recurse=true
-­‐ name: Restart PHP-­‐FPM
service: name=php-­‐fpm state=reloaded
deploy.yml

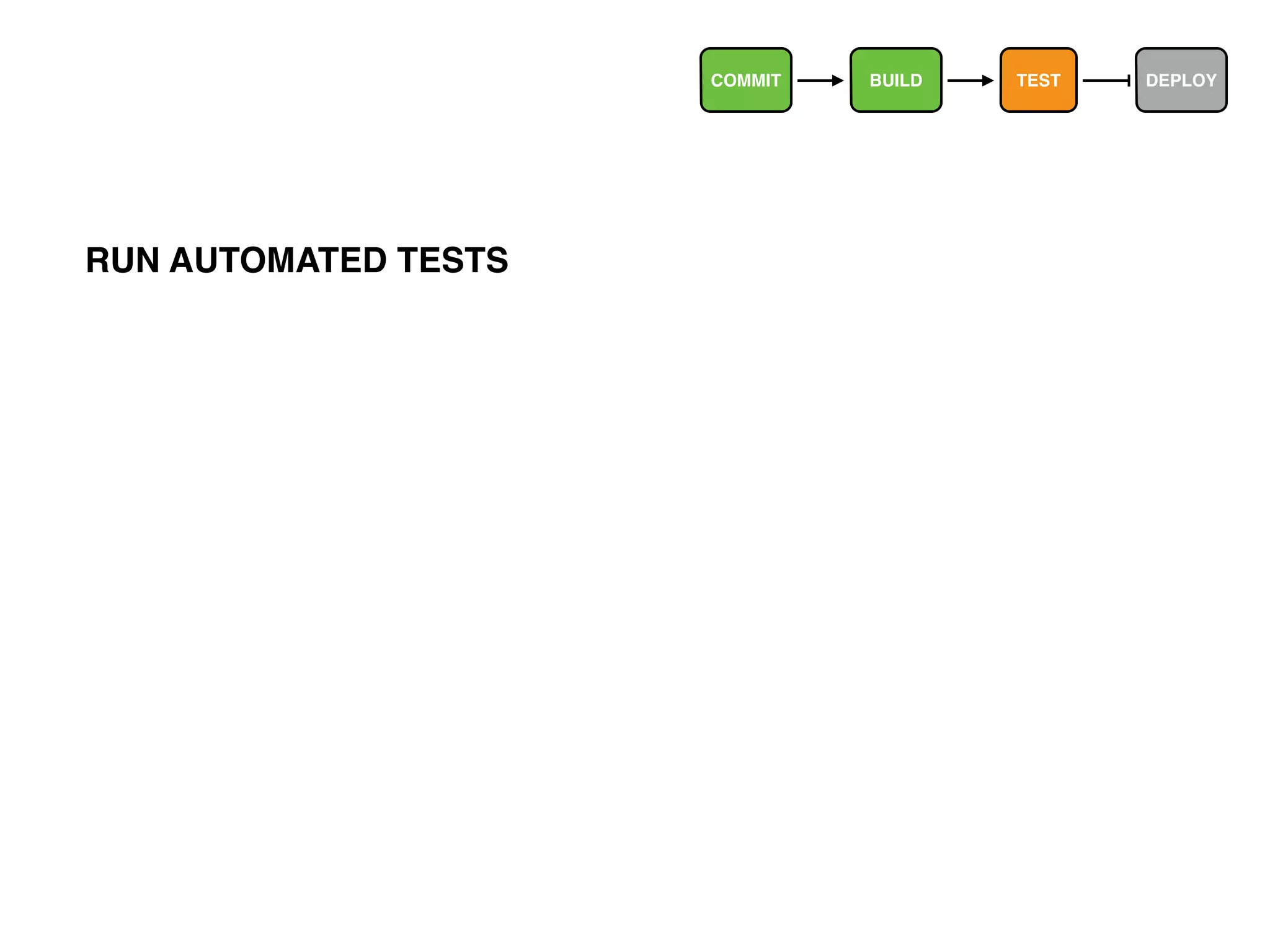

50. COMMIT BUILD TEST DEPLOY
RUN AUTOMATED TESTS

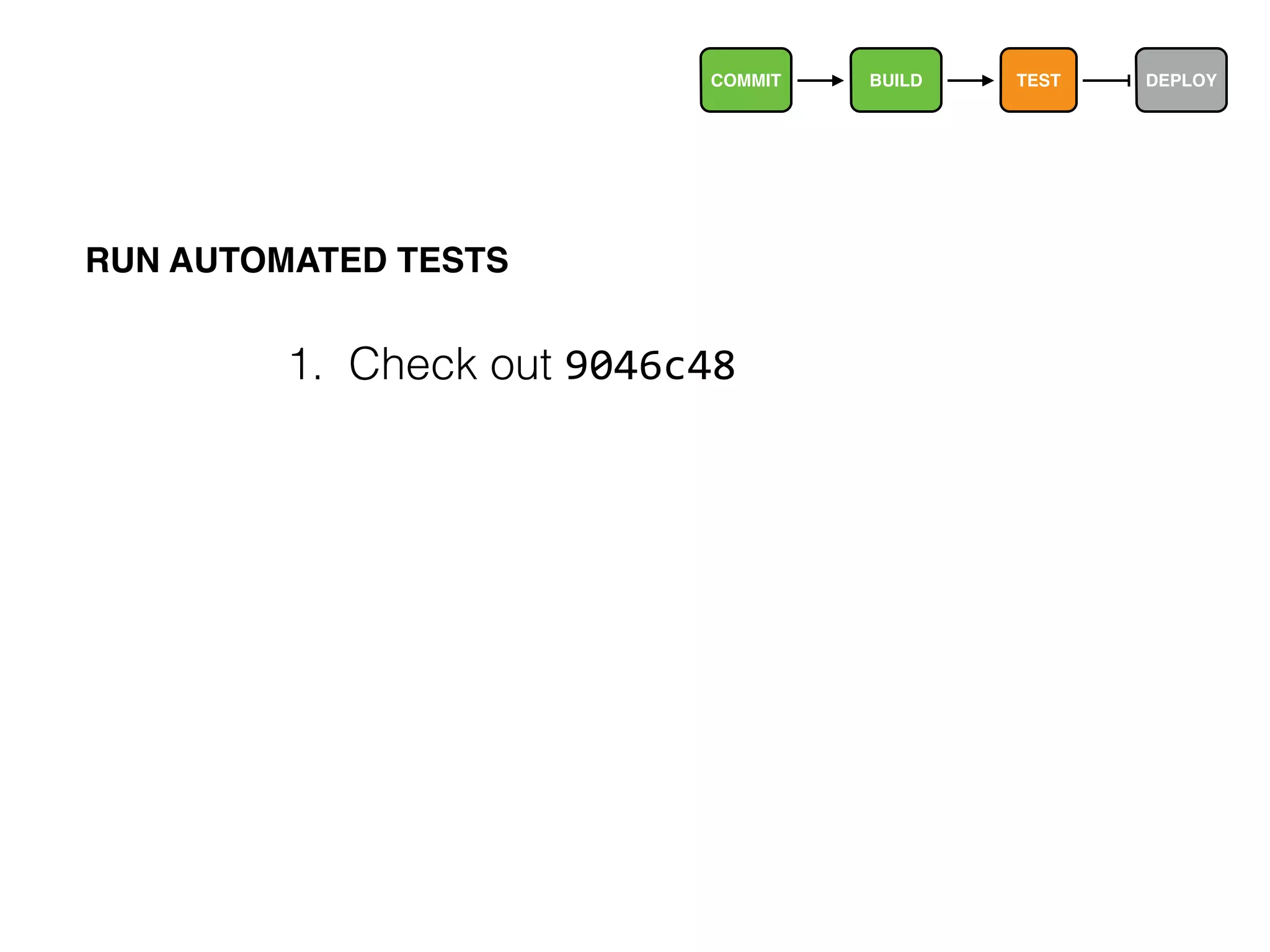

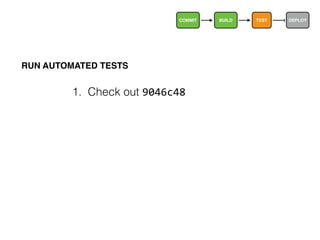

51. COMMIT BUILD TEST DEPLOY
RUN AUTOMATED TESTS
1. Check out 9046c48

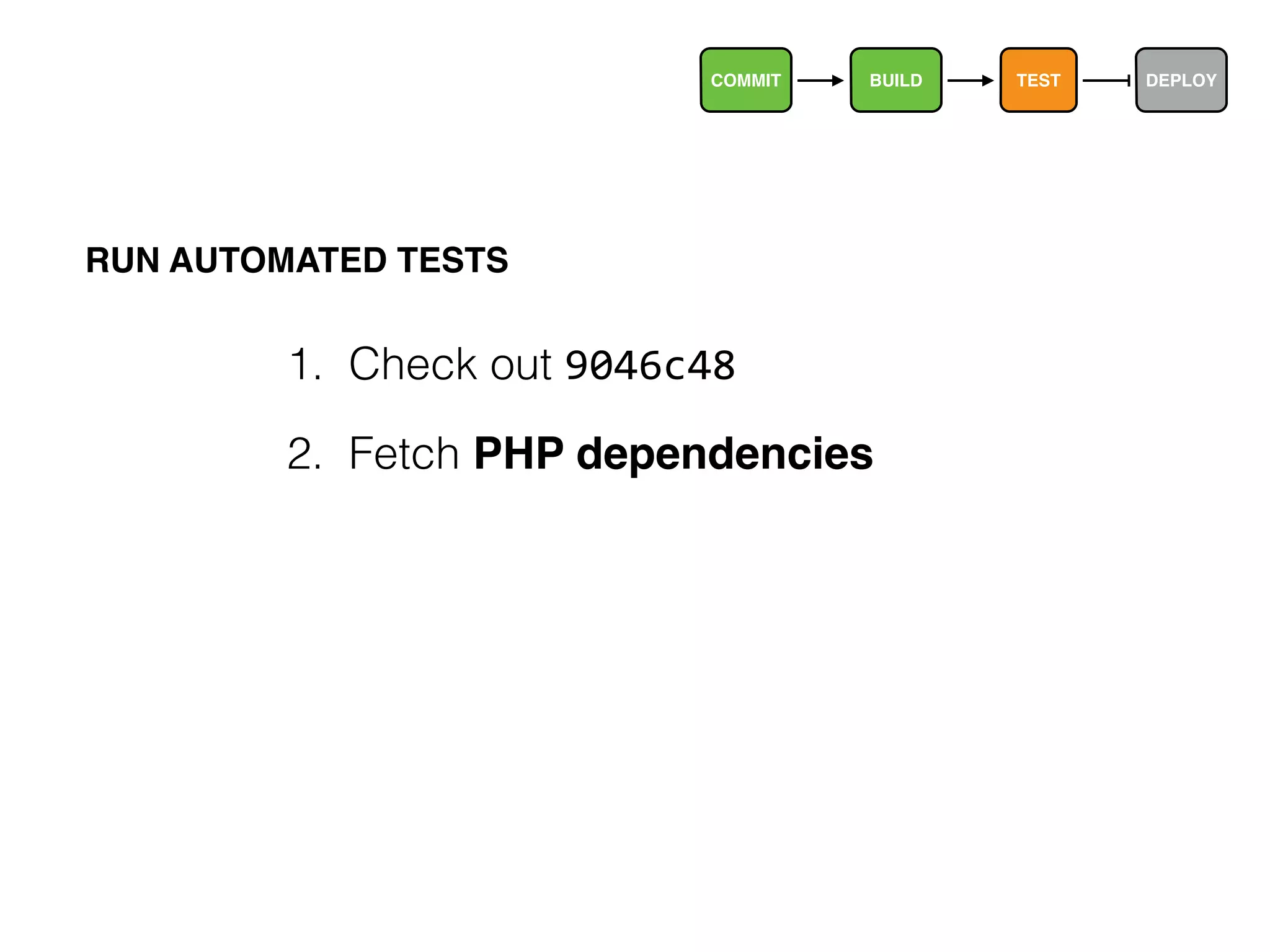

52. COMMIT BUILD TEST DEPLOY
RUN AUTOMATED TESTS
1. Check out 9046c48
2. Fetch PHP dependencies

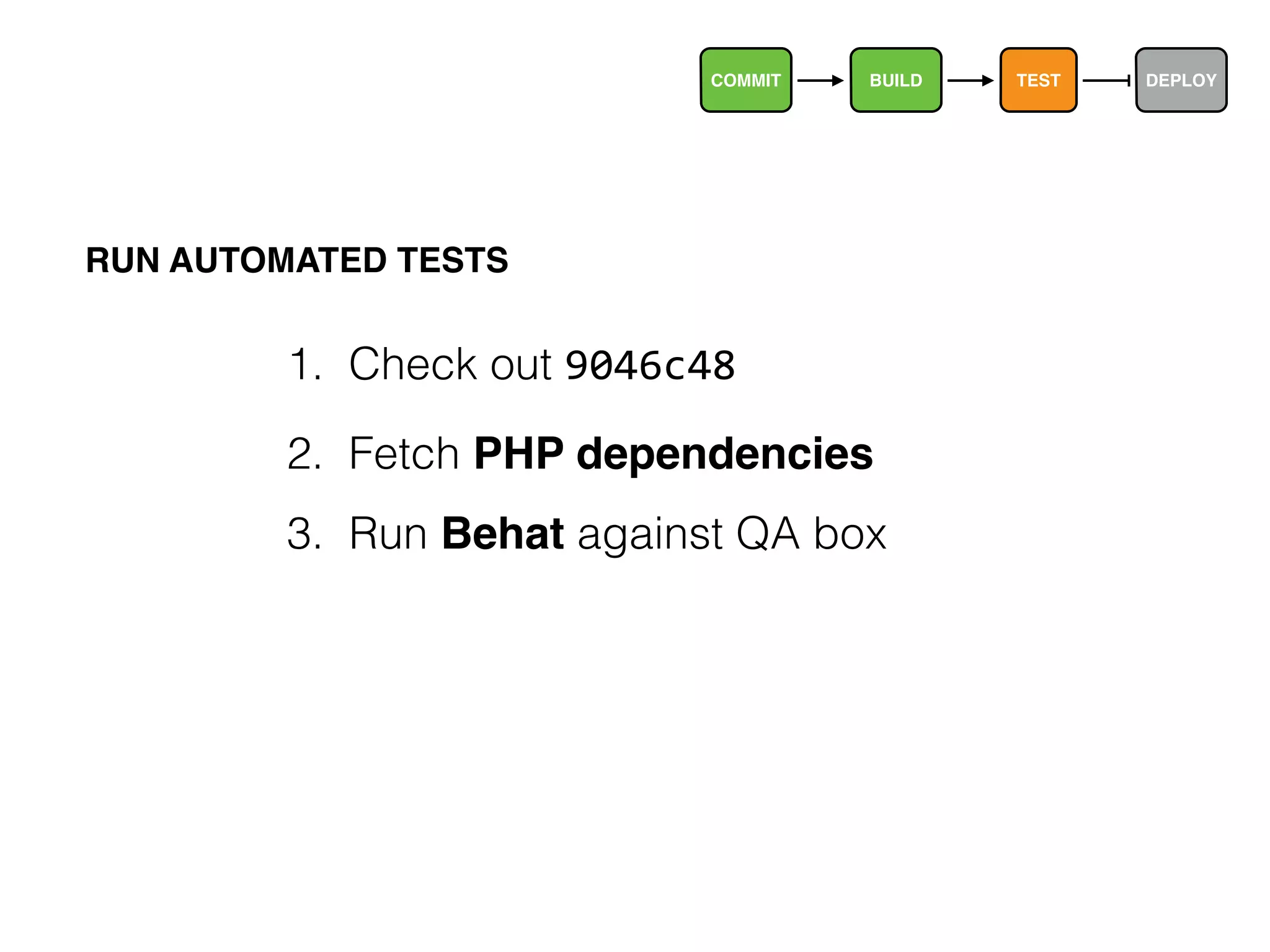

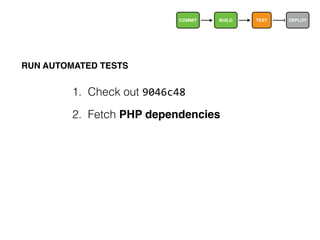

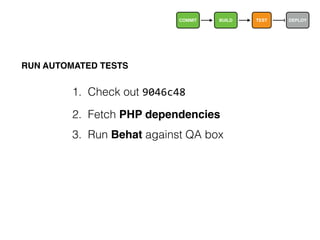

53. COMMIT BUILD TEST DEPLOY
RUN AUTOMATED TESTS
1. Check out 9046c48
2. Fetch PHP dependencies
3. Run Behat against QA box

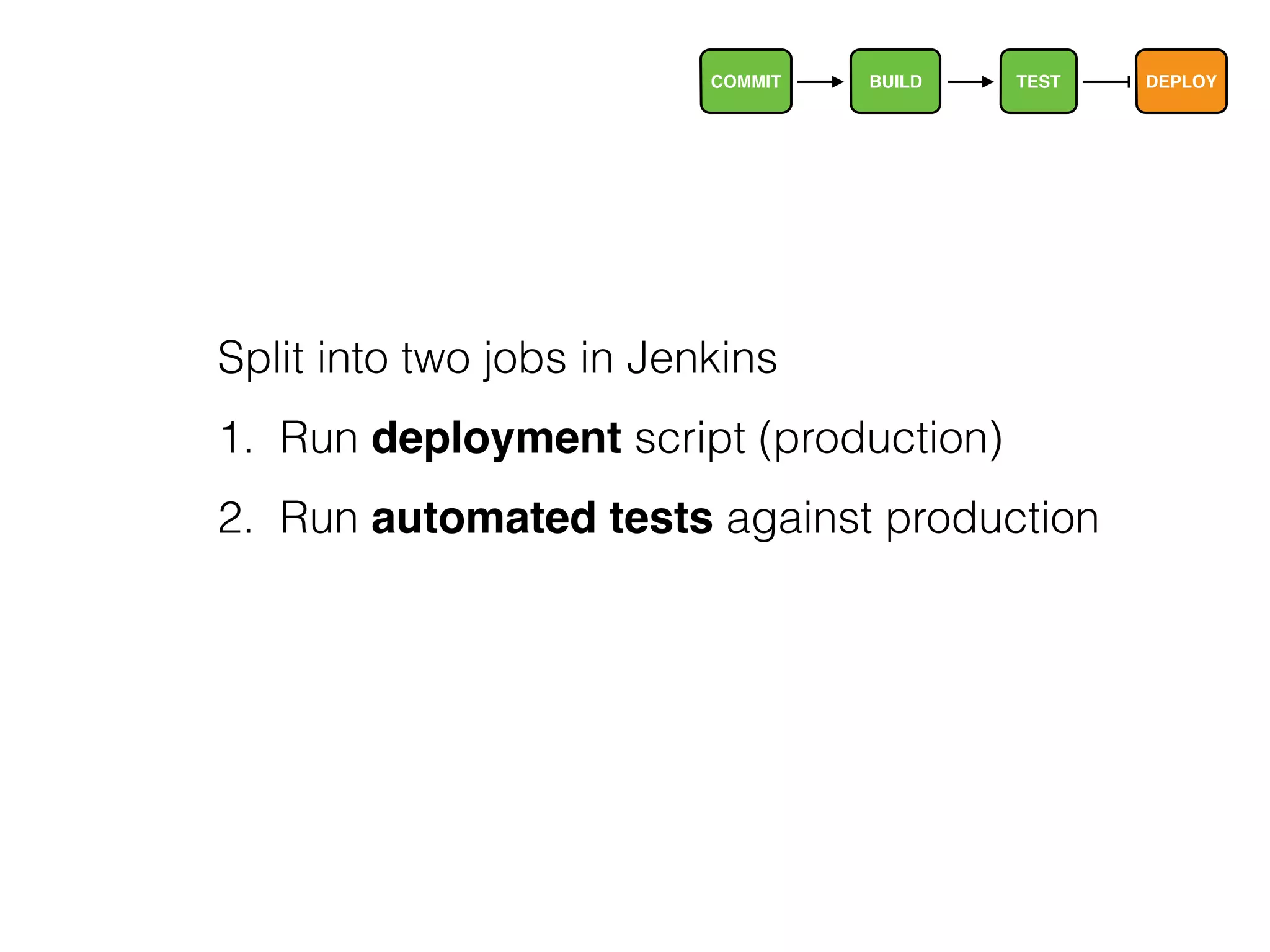

54. COMMIT BUILD TEST DEPLOY
Split into two jobs in Jenkins
1. Run deployment script (production)
2. Run automated tests against production

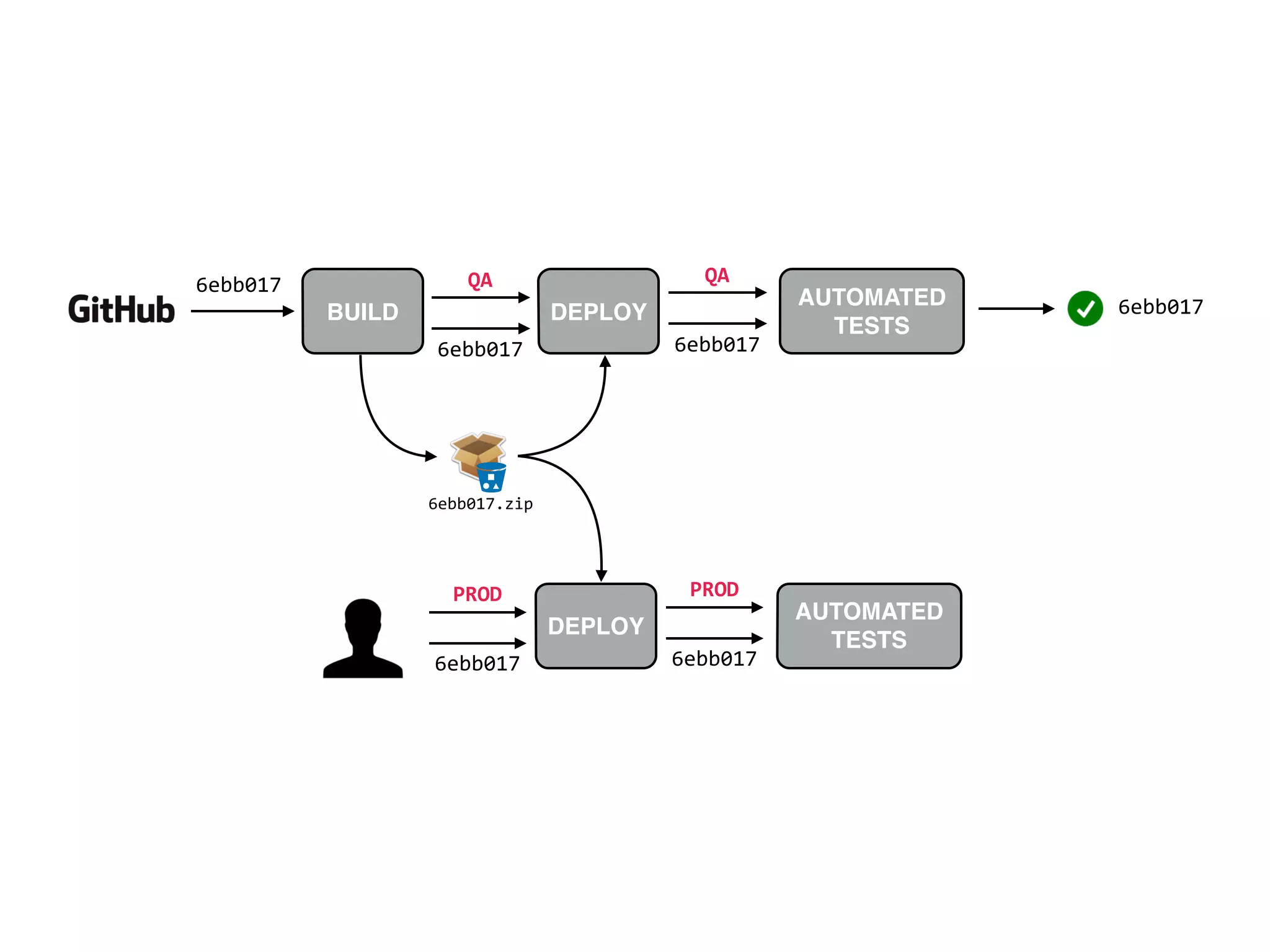

55. BUILD DEPLOY
AUTOMATED!
TESTS
6ebb017
6ebb017
QA
6ebb017
QA
DEPLOY
AUTOMATED!
TESTS
6ebb017
PROD
6ebb017
PROD
6ebb017
6ebb017.zip

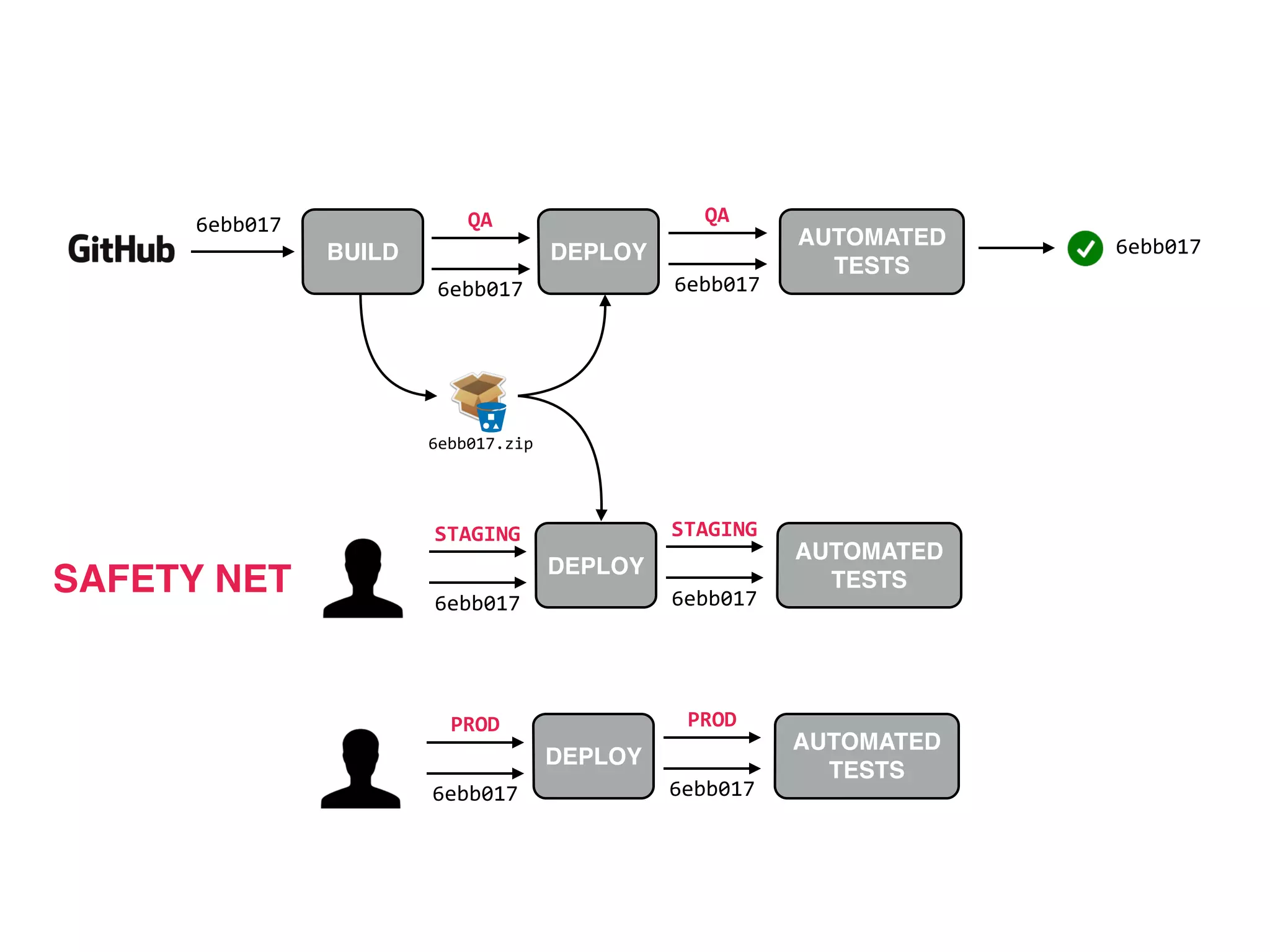

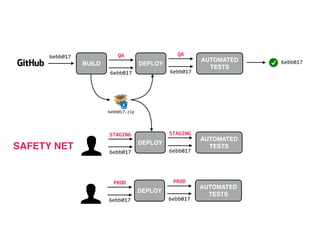

56. BUILD DEPLOY
AUTOMATED!
TESTS
6ebb017
6ebb017
QA
6ebb017
QA
DEPLOY
AUTOMATED!
TESTS
6ebb017
STAGING
6ebb017
STAGING
DEPLOY
AUTOMATED!
TESTS
6ebb017
PROD
6ebb017
PROD
6ebb017
6ebb017.zip
SAFETY NET

57. TIME

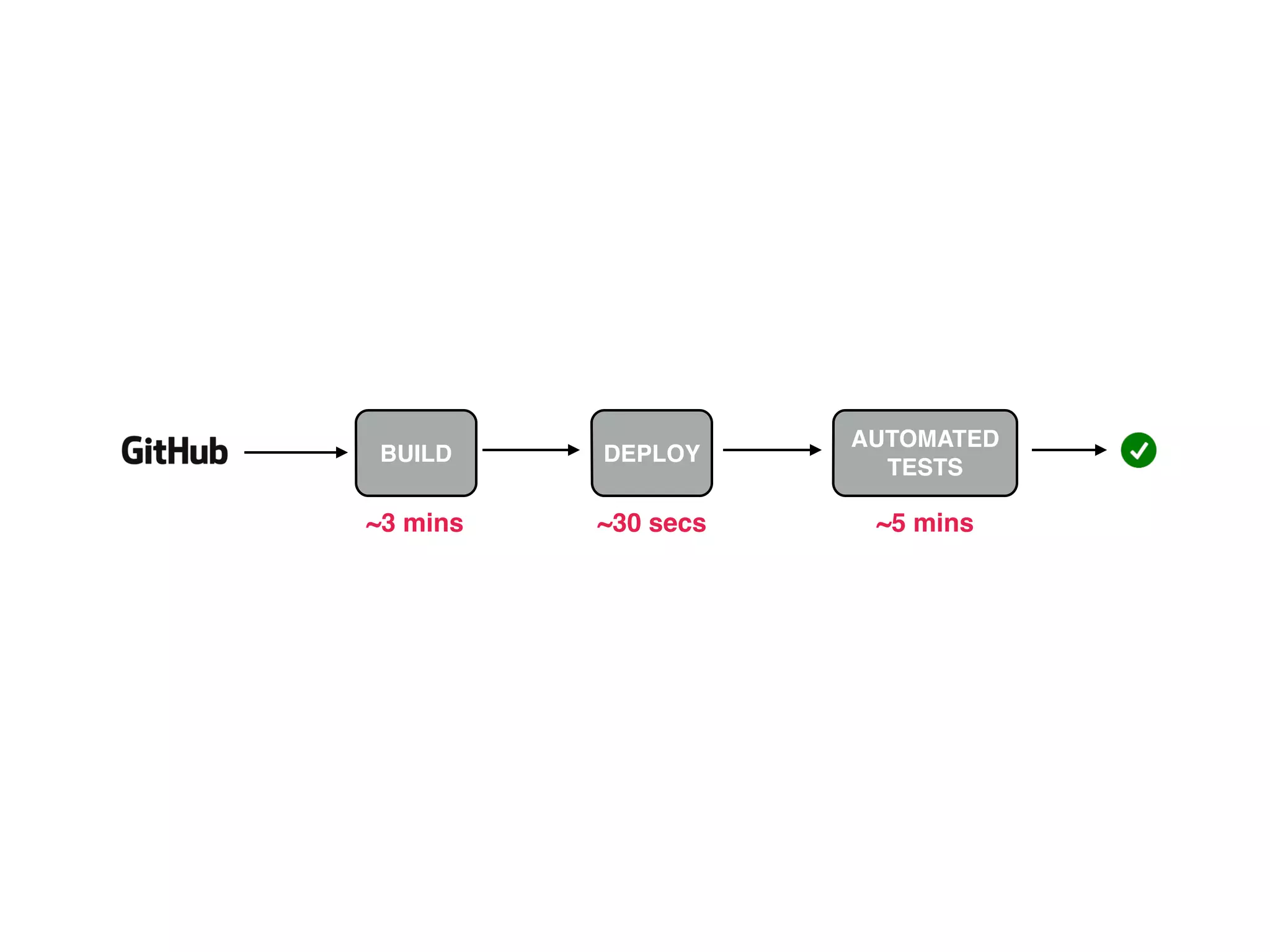

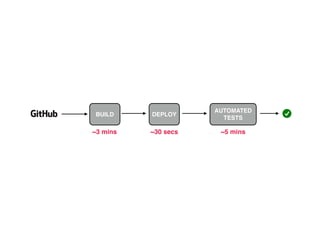

58. BUILD DEPLOY
AUTOMATED!
TESTS
~3 mins ~30 secs ~5 mins

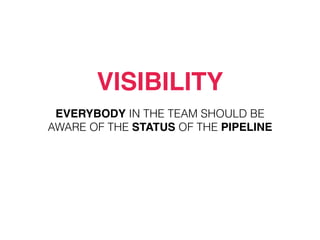

59. VISIBILITY
EVERYBODY IN THE TEAM SHOULD BE
AWARE OF THE STATUS OF THE PIPELINE

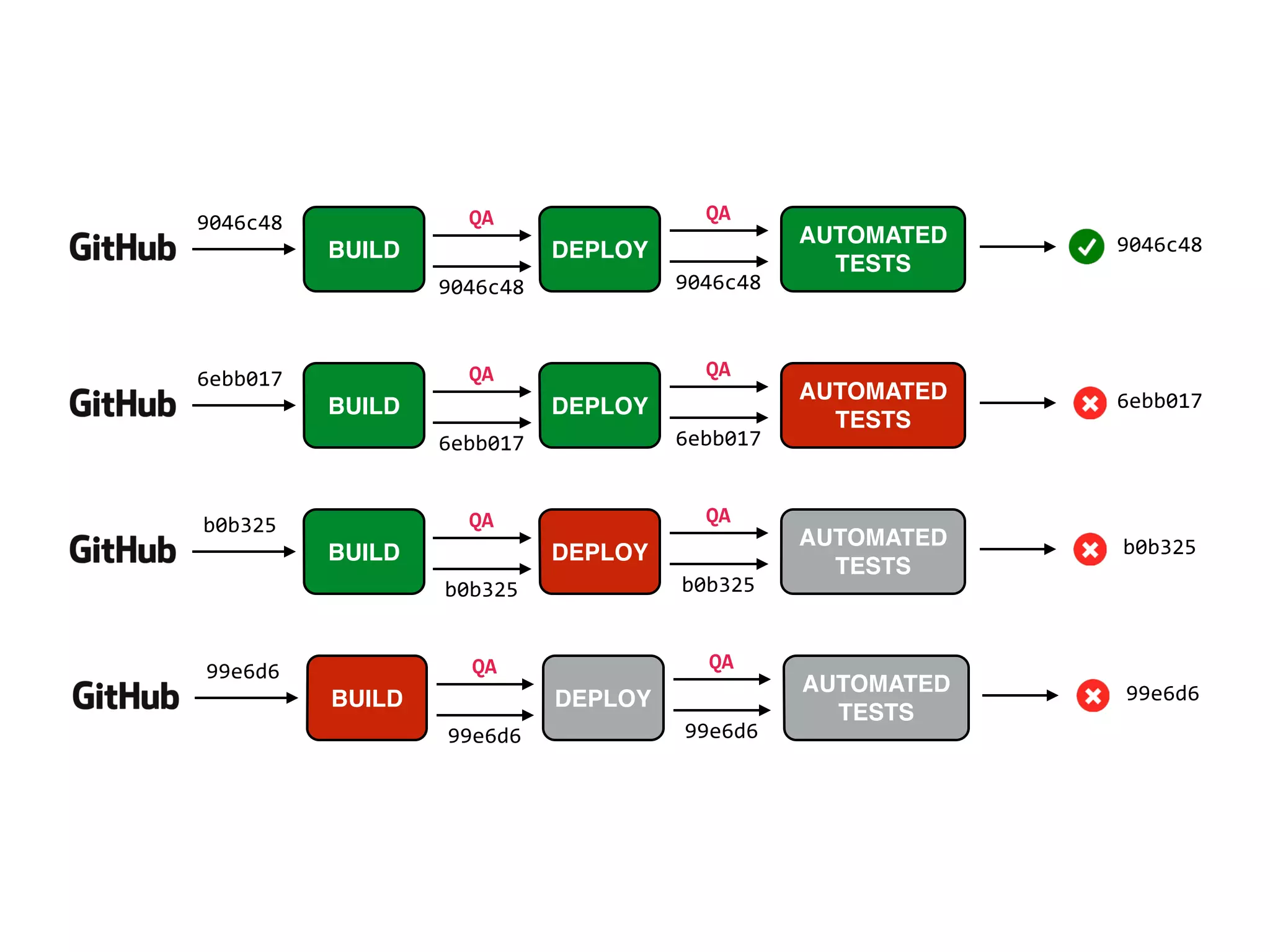

60. BUILD DEPLOY
AUTOMATED!
TESTS
9046c48
9046c48
QA
9046c48
QA
9046c48
BUILD DEPLOY
AUTOMATED!
TESTS
6ebb017
6ebb017
QA
6ebb017
QA
6ebb017
BUILD DEPLOY
AUTOMATED!
TESTS
b0b325
b0b325
QA
b0b325
QA
b0b325
BUILD DEPLOY
AUTOMATED!
TESTS
99e6d6
99e6d6
QA
99e6d6
QA
99e6d6

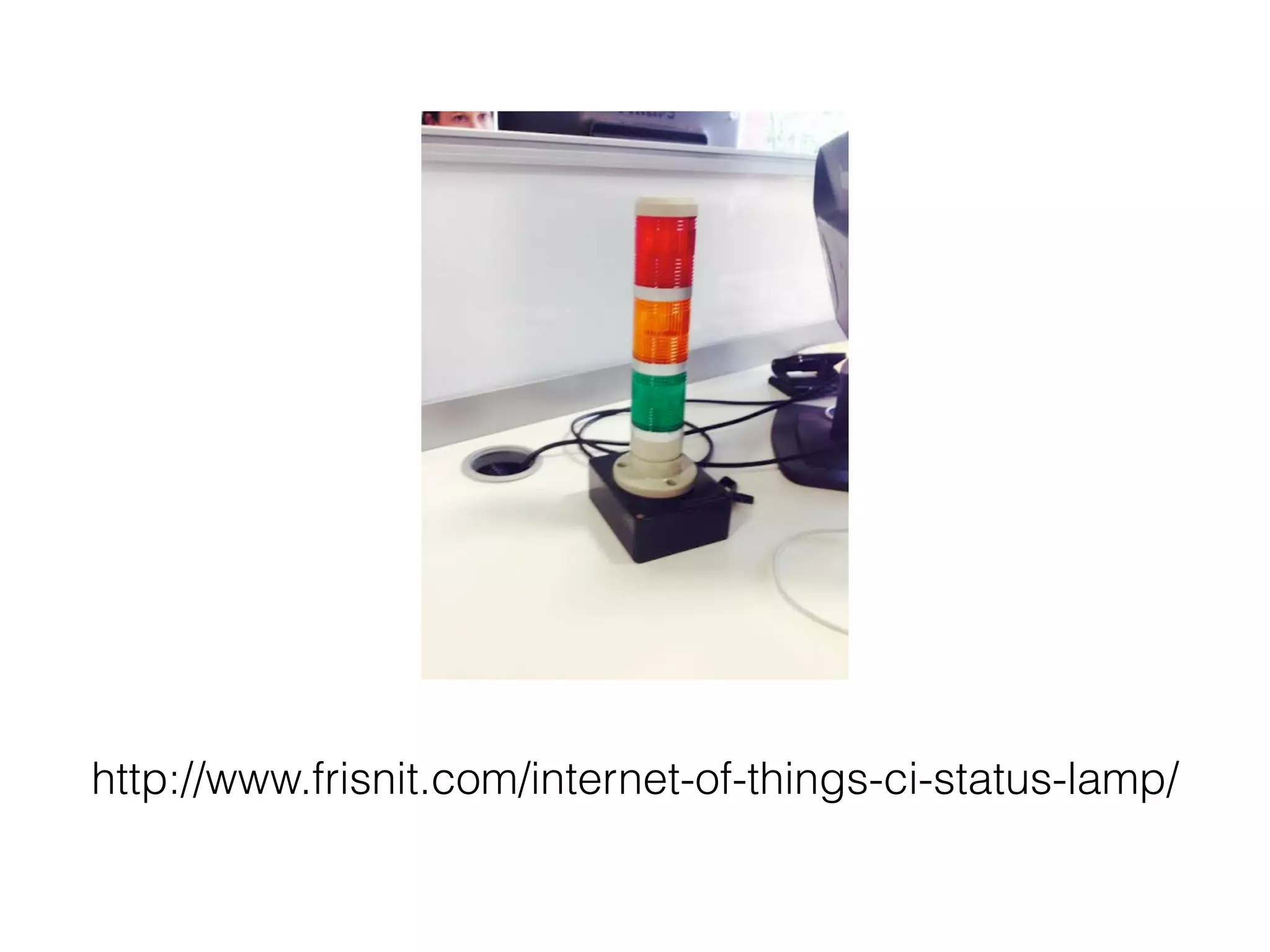

61. http://www.frisnit.com/internet-of-things-ci-status-lamp/

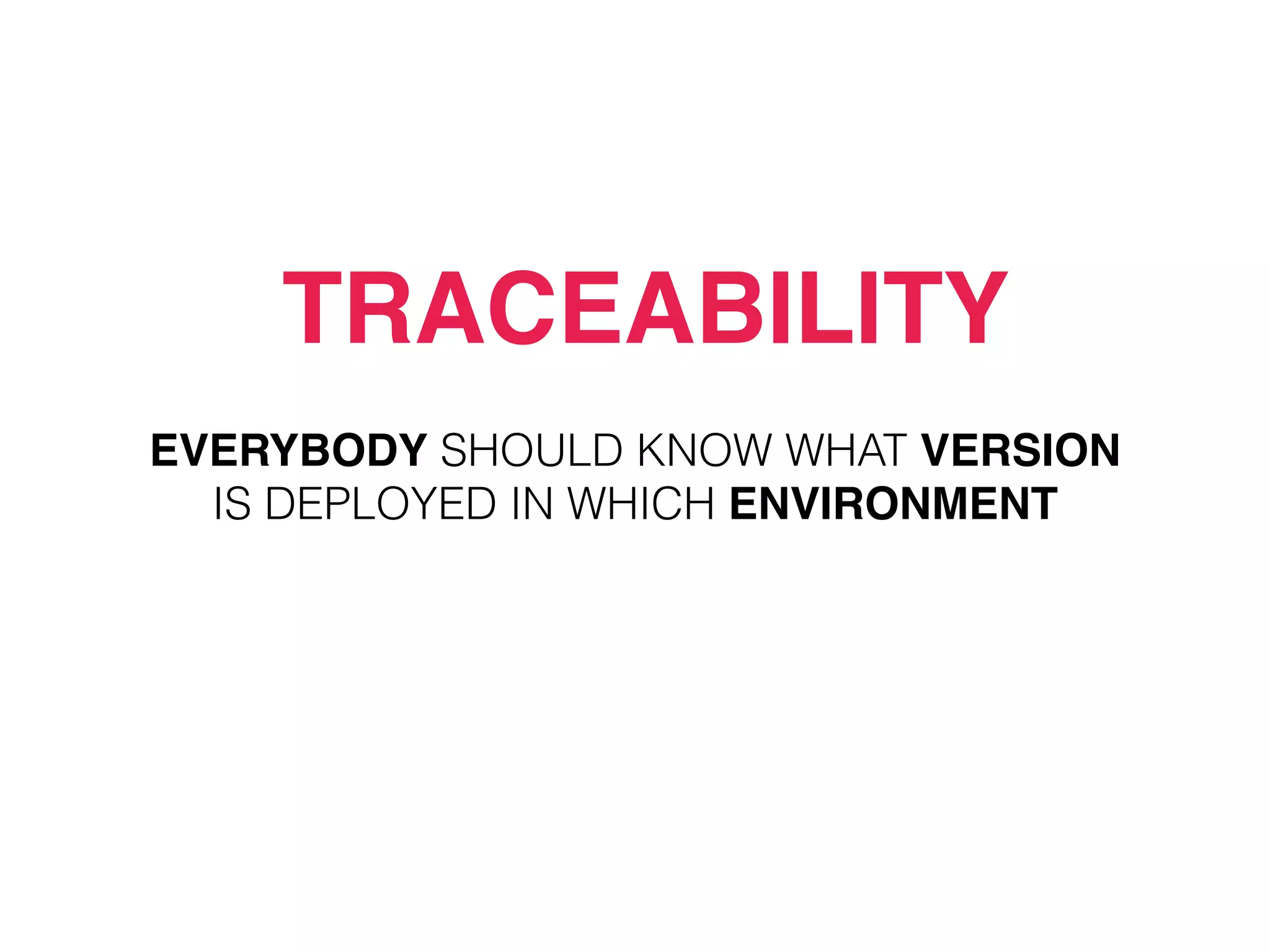

62. TRACEABILITY
EVERYBODY SHOULD KNOW WHAT VERSION
IS DEPLOYED IN WHICH ENVIRONMENT

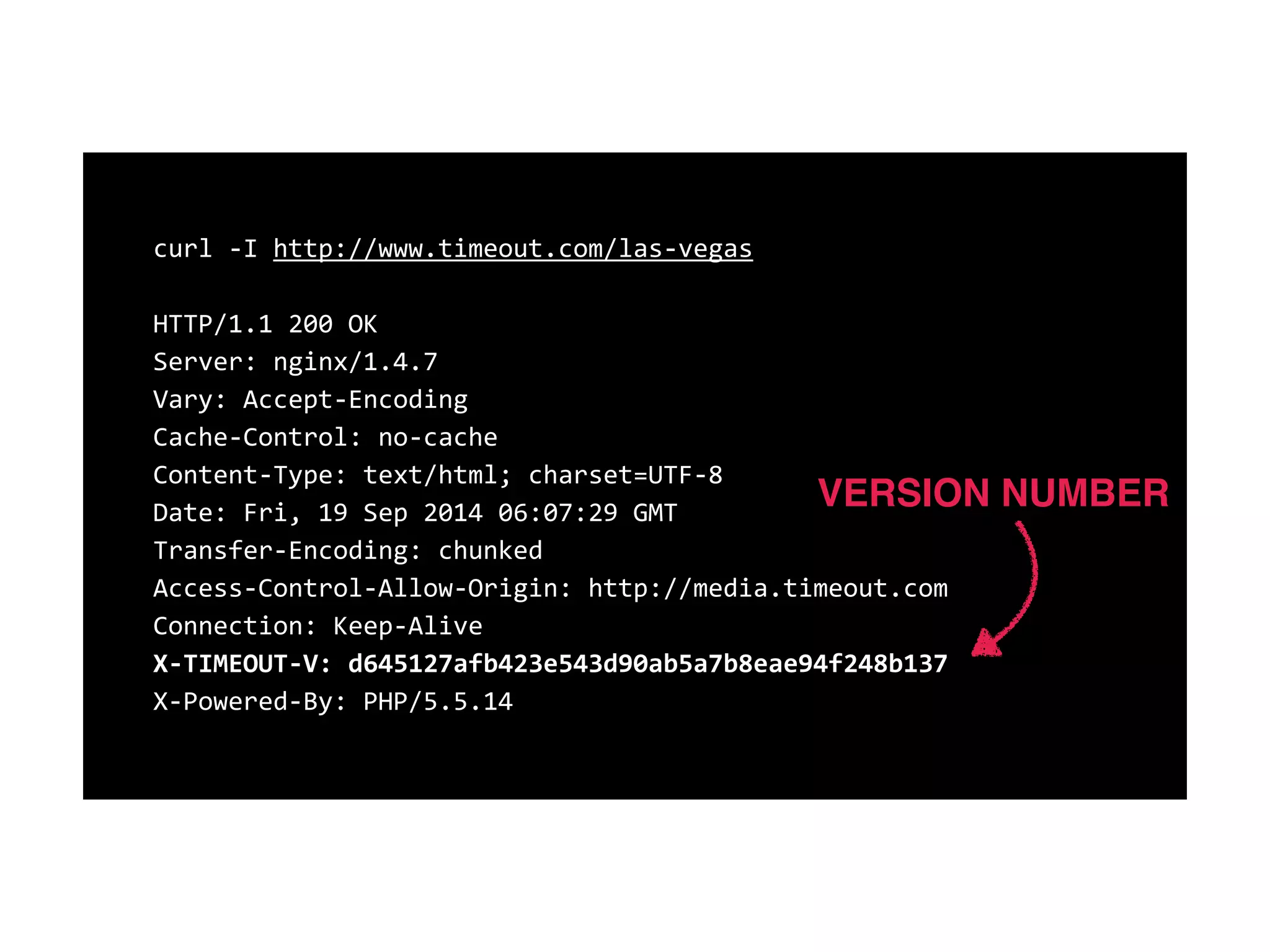

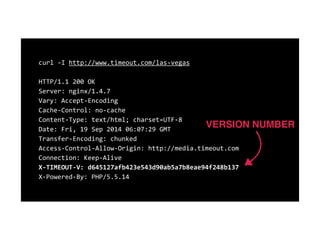

63. curl -­‐I http://www.timeout.com/las-­‐vegas
!
HTTP/1.1 200 OK
Server: nginx/1.4.7
Vary: Accept-­‐Encoding
Cache-­‐Control: no-­‐cache
Content-­‐Type: text/html; charset=UTF-­‐8
Date: Fri, 19 Sep 2014 06:07:29 GMT
Transfer-­‐Encoding: chunked
Access-­‐Control-­‐Allow-­‐Origin: http://media.timeout.com
Connection: Keep-­‐Alive
X-­‐TIMEOUT-­‐V: d645127afb423e543d90ab5a7b8eae94f248b137
X-­‐Powered-­‐By: PHP/5.5.14
VERSION NUMBER

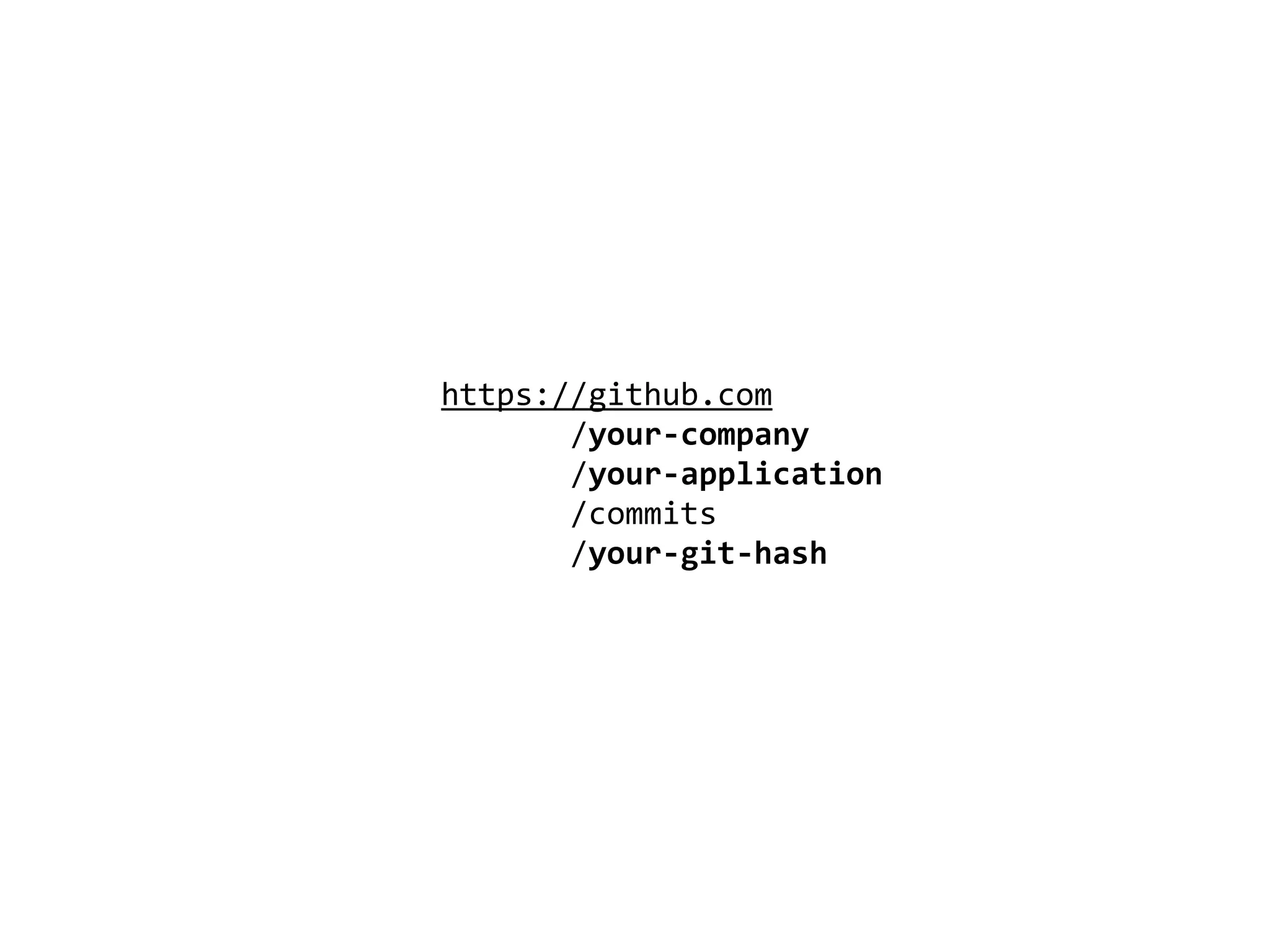

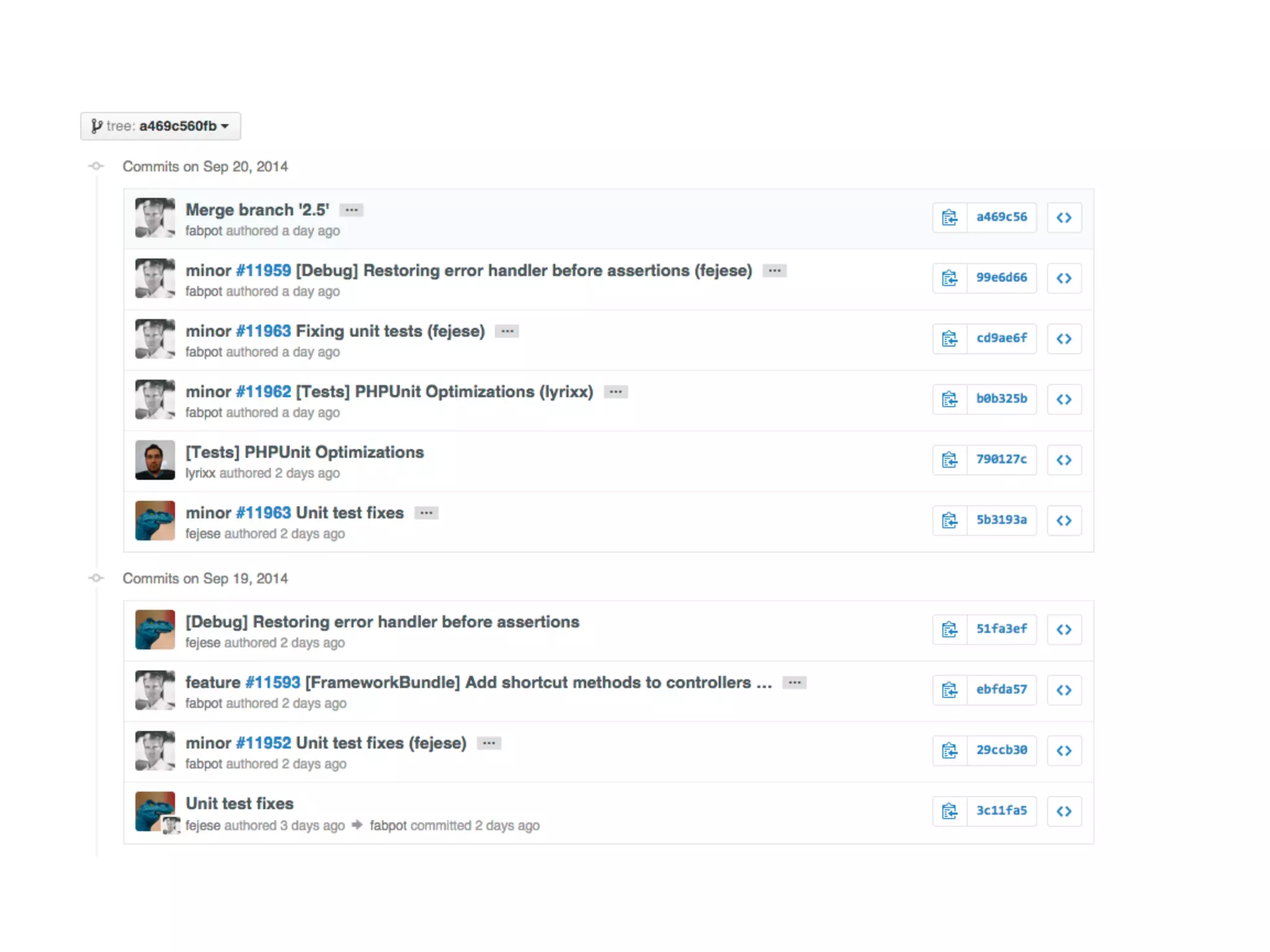

64. https://github.com
/your-­‐company
/your-­‐application
/commits
/your-­‐git-­‐hash

66. ROLLING!
BACK

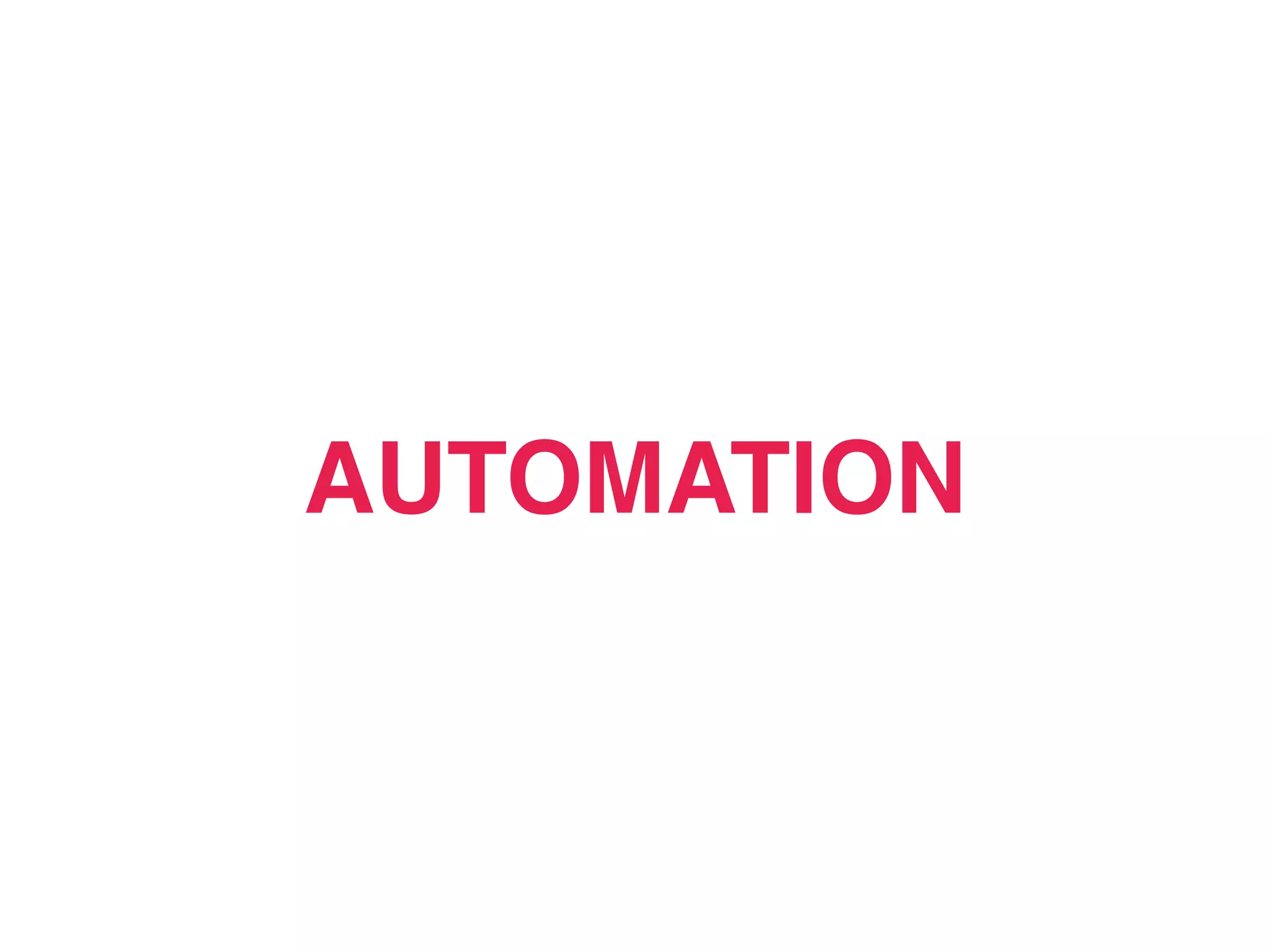

67. AUTOMATION

69. YOU’LL NEED!
ALLIES

70. YOUR ALLIES

71. DEV TEAM
YOUR ALLIES

72. DEV TEAM
QA TEAM
YOUR ALLIES

73. DEV TEAM
QA TEAM
DEVOPS
YOUR ALLIES

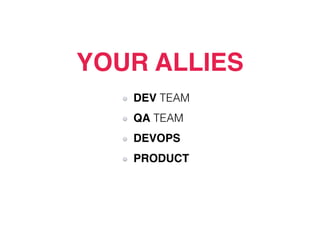

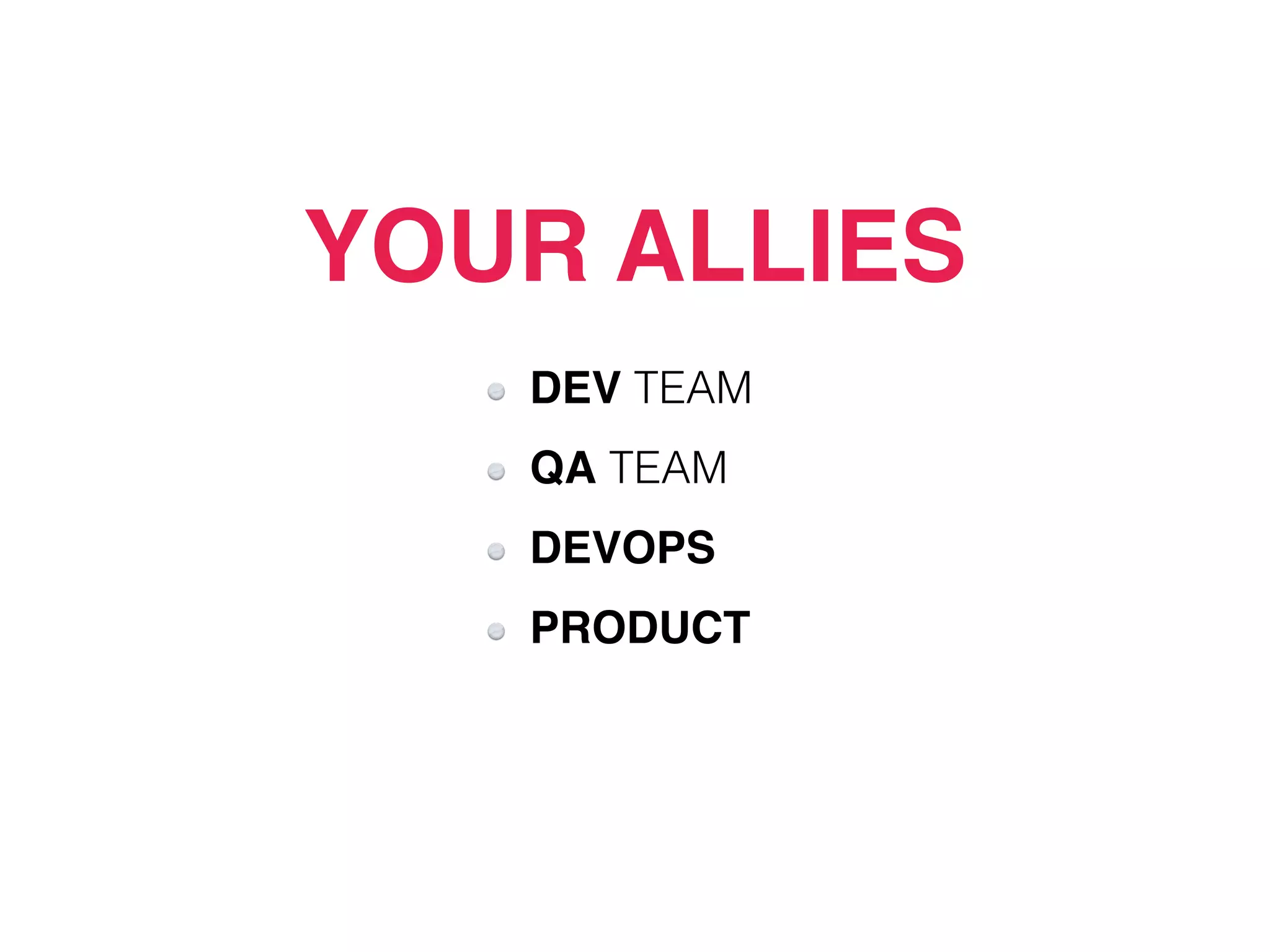

74. DEV TEAM
QA TEAM
DEVOPS
PRODUCT
YOUR ALLIES

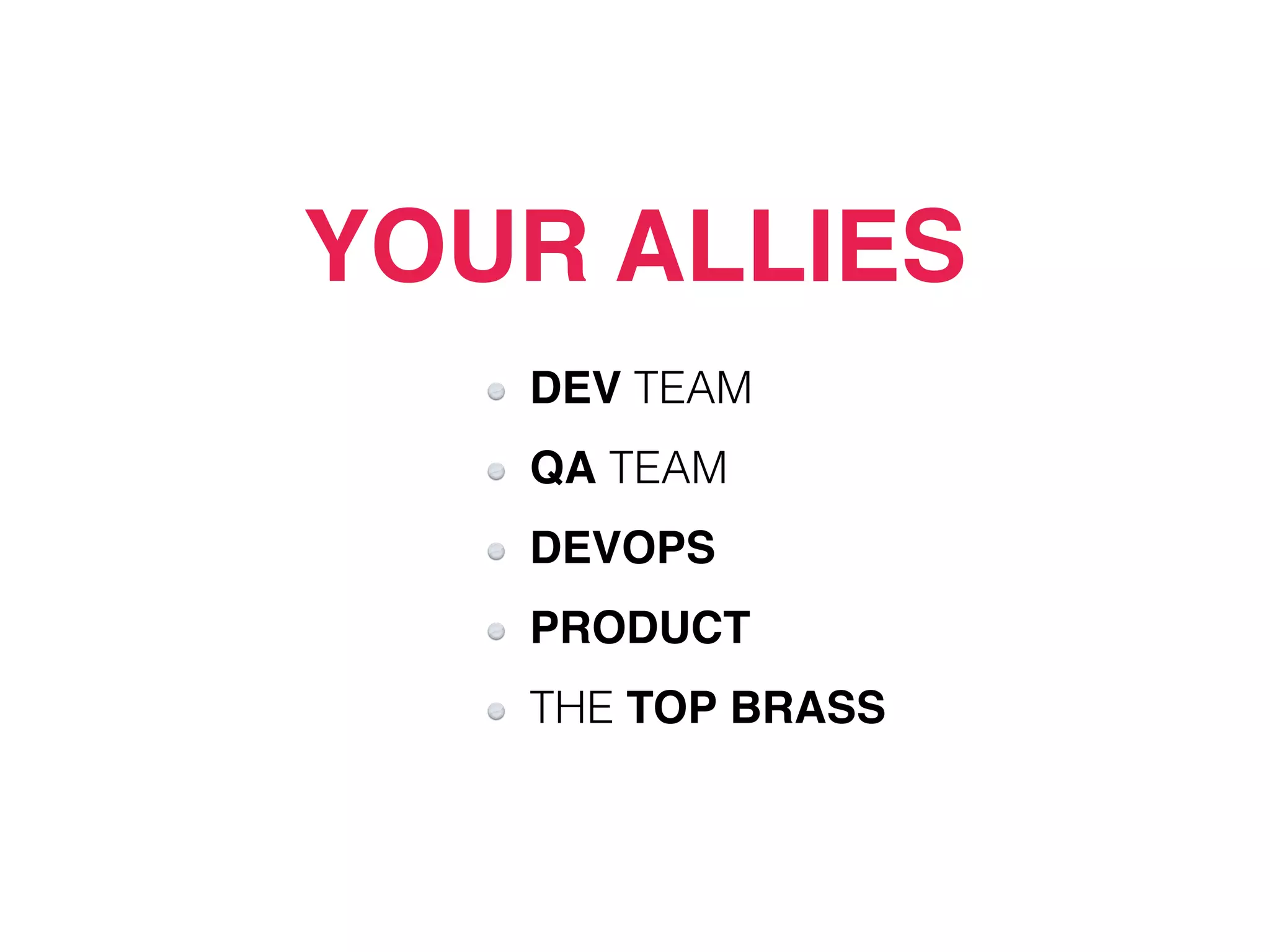

75. DEV TEAM
QA TEAM
DEVOPS
PRODUCT
THE TOP BRASS
YOUR ALLIES

76. BEFORE AFTER&
3

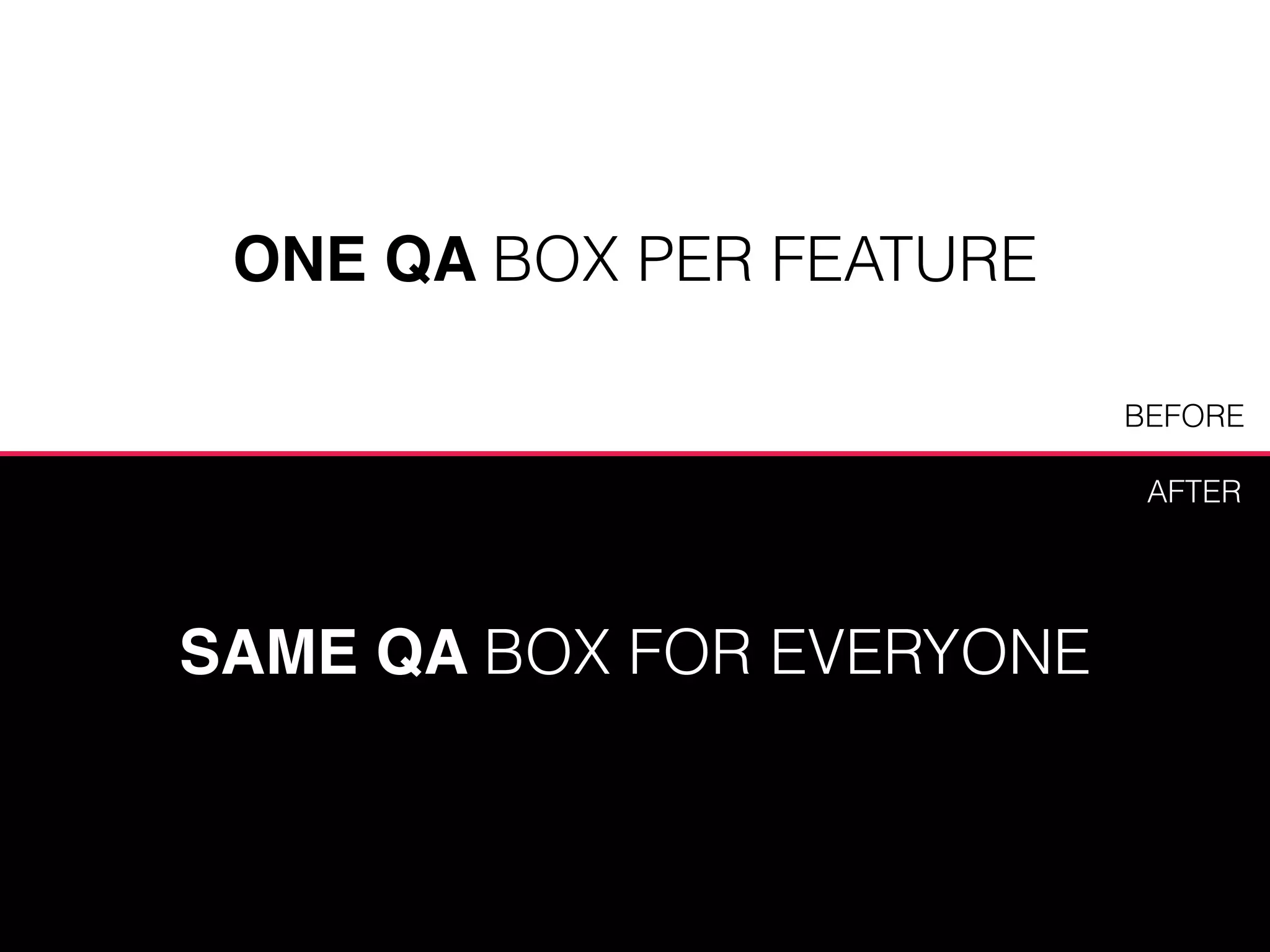

77. ONE QA BOX PER FEATURE
SAME QA BOX FOR EVERYONE
BEFORE
AFTER

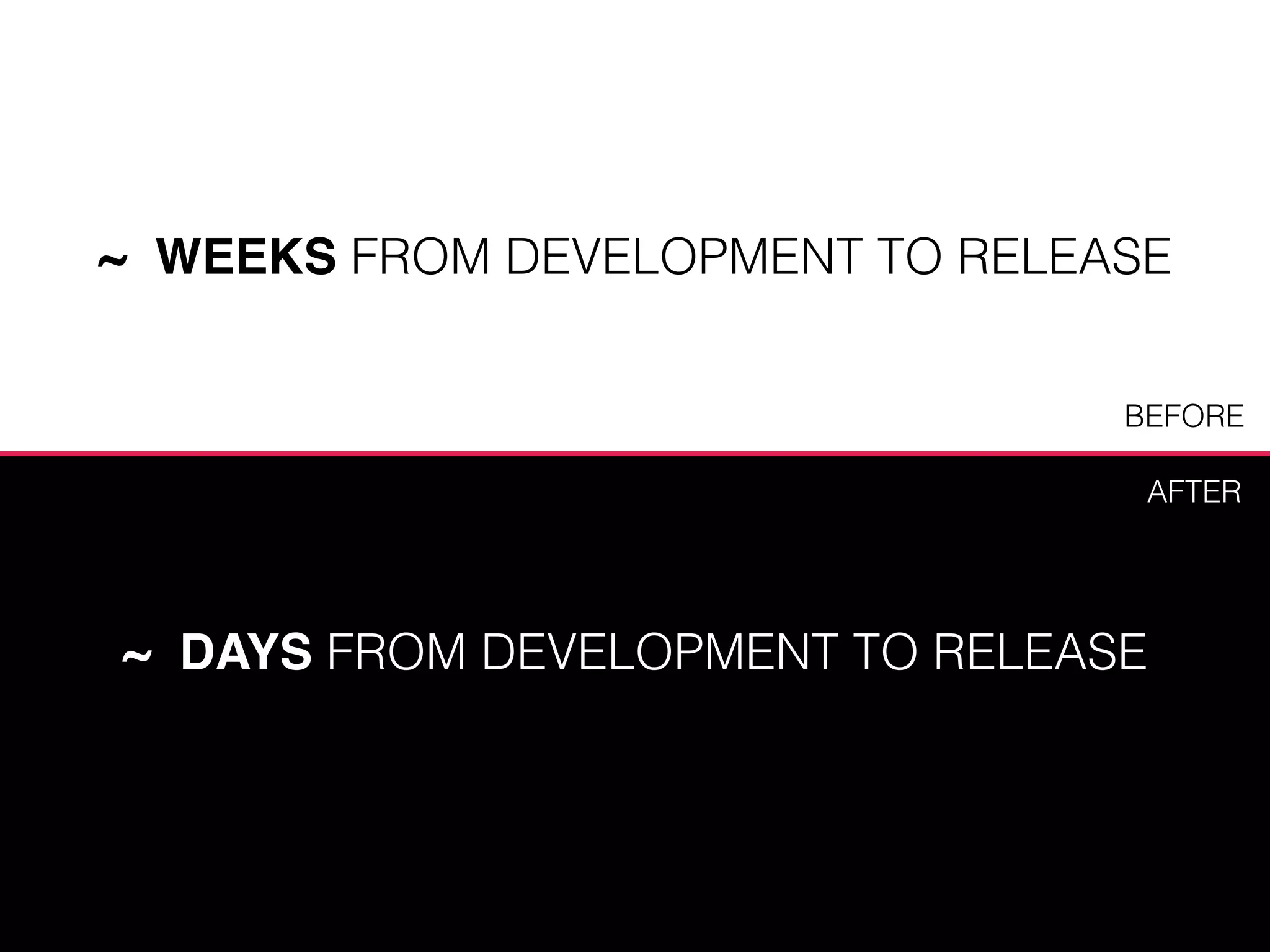

78. ~ !WEEKS FROM DEVELOPMENT TO RELEASE
~ !DAYS FROM DEVELOPMENT TO RELEASE
BEFORE
AFTER

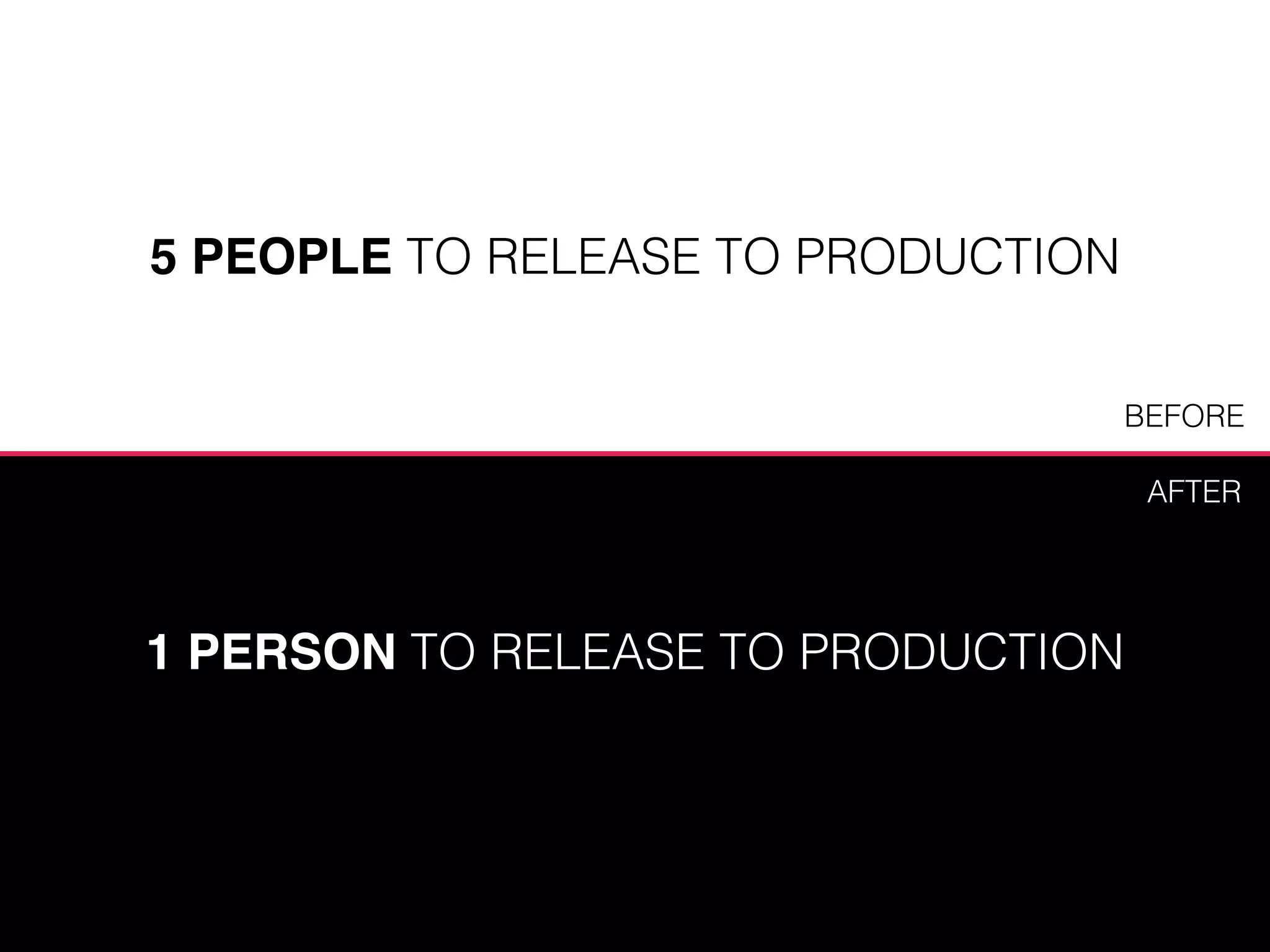

79. 5 PEOPLE TO RELEASE TO PRODUCTION
1 PERSON TO RELEASE TO PRODUCTION
BEFORE
AFTER

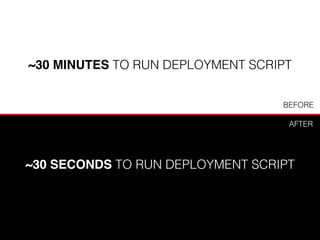

80. ~30 MINUTES TO RUN DEPLOYMENT SCRIPT
~30 SECONDS TO RUN DEPLOYMENT SCRIPT
BEFORE
AFTER

81. RELEASING WAS AN EVENT
RELEASING NOW A NON-EVENT
BEFORE
AFTER

82. @loalf
