1. SWTBot: Unit Testing Made EasyEclipse Day India 2011Ankit Goel6th May, 2011

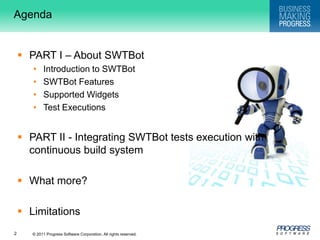

2. AgendaPART I – About SWTBotIntroduction to SWTBotSWTBot FeaturesSupported WidgetsTest ExecutionsPART II - Integrating SWTBot tests execution with continuous build systemWhat more?Limitations

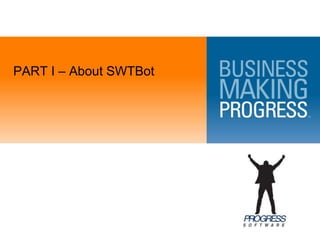

3. PART I – About SWTBot

4. Introduction – What is SWTBot?Java based UI/functional testing tool for testing SWT and Eclipse based applicationsSet of API’s to access and manipulate widgetsCross platformFree and open sourceStill in Incubation Phase in Eclipse

5. Introduction – Why SWTBot?Why not QTP? Why not PDE Junit? Why not…Provides an intuitive way to access and test UI components in EclipseUI Testing covers all layers of softwareEasy to learn if someone is already familiar with Java and JUnitCan integrate very well within the IDE and provides excellent support for integration with Ant

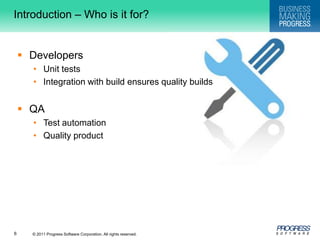

6. Introduction – Who is it for?DevelopersUnit testsIntegration with build ensures quality buildsQATest automationQuality product

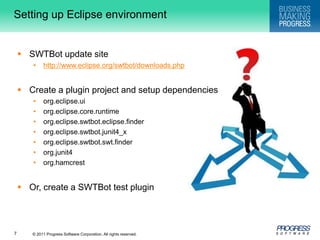

7. Setting up Eclipse environmentSWTBot update sitehttp://www.eclipse.org/swtbot/downloads.phpCreate a plugin project and setup dependenciesorg.eclipse.uiorg.eclipse.core.runtimeorg.eclipse.swtbot.eclipse.finderorg.eclipse.swtbot.junit4_xorg.eclipse.swtbot.swt.finderorg.junit4org.hamcrestOr, create a SWTBot test plugin

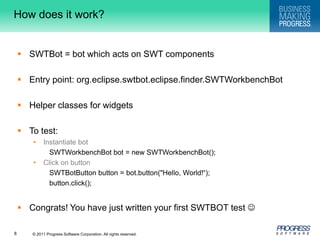

8. How does it work?SWTBot = bot which acts on SWT componentsEntry point: org.eclipse.swtbot.eclipse.finder.SWTWorkbenchBotHelper classes for widgetsTo test:Instantiate botSWTWorkbenchBotbot = new SWTWorkbenchBot();Click on buttonSWTBotButton button = bot.button("Hello, World!“);button.click();Congrats! You have just written your first SWTBOT test 

9. SWTBot FeaturesFinding controls based on visual cuesSupport for simulated mouse and keyboard inputQuerying widgets for stateUI specific assertions like: assertEnabled(Widget)Investigating test failures

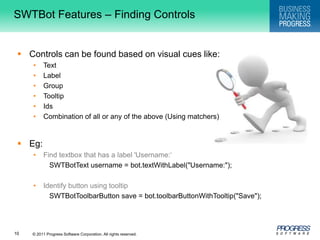

10. SWTBot Features – Finding ControlsControls can be found based on visual cues like:TextLabelGroupTooltipIdsCombination of all or any of the above (Using matchers)Eg:Find textbox that has a label 'Username:‘SWTBotText username = bot.textWithLabel("Username:"); Identify button using tooltip SWTBotToolbarButton save = bot.toolbarButtonWithTooltip("Save");

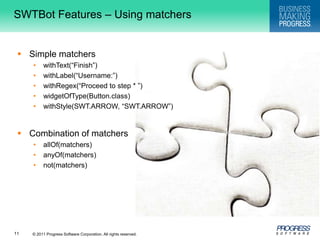

11. SWTBot Features – Using matchersSimple matcherswithText(“Finish”)withLabel(“Username:”)withRegex(“Proceed to step * ”)widgetOfType(Button.class)withStyle(SWT.ARROW, “SWT.ARROW”)Combination of matchersallOf(matchers)anyOf(matchers)not(matchers)

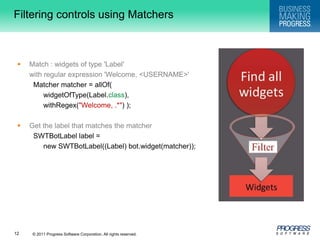

12. Filtering controls using MatchersMatch : widgets of type 'Label' with regular expression 'Welcome, <USERNAME>' Matcher matcher = allOf( widgetOfType(Label.class), withRegex("Welcome, .*") ); Get the label that matches the matcher SWTBotLabel label = new SWTBotLabel((Label) bot.widget(matcher));

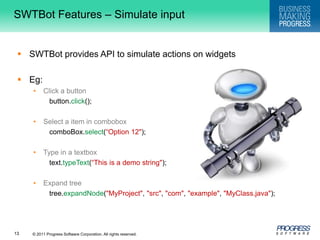

13. SWTBot Features – Simulate input SWTBot provides API to simulate actions on widgetsEg:Click a buttonbutton.click(); Select a item in comboboxcomboBox.select(“Option 12"); Type in a textboxtext.typeText(“This is a demo string"); Expand treetree.expandNode("MyProject", "src", "com", "example", "MyClass.java");

14. SWTBot Features – Querying widgetsProvides operations to query the state of widgetsSome generic queries like: getText(), isEnabled(), isVisible() are available on all widgetsEg:Check state of a checkboxbooleanchecked = checkbox.isChecked();Check if a radio button is selectedboolean selected = radio.isSelected();

15. SWTBot Features – Investigating test failuresStack trace in Junit viewCapturing screen shot when test case fails@RunWith(SWTBotJunit4ClassRunner.class)publicclassMessageCreateTest{... …}

16. Supported WidgetsSupport for most SWT controlsSupport for most UI operations on SWT controlsSupport for Eclipse based contributions:ViewsText Editors (autocompletion, typing, etc)View Toolbars and View Menus

17. SWT Test ExecutionBy launching them from launch configuration (same as Junit execution)From command line, using shell script or ant

18. DemoA small SWTBot example illustrating the simplicity of SWTBotYour first SWTBot

19. PART II – Integrating SWTBot tests execution with continuous build system

20. Integration of test execution with continuous buildBuild plugins to be testedBuild SWTBot test pluginsInstall plugins to be tested, test plugins and headless testing framework (http://www.eclipse.org/swtbot/downloads.php) into eclipseStart SWTBot test case executionFormat the generated report and mail if required

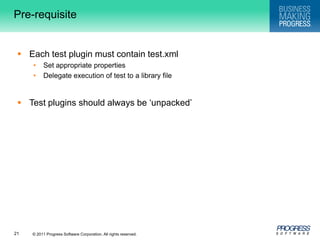

21. Pre-requisiteEach test plugin must contain test.xmlSet appropriate propertiesDelegate execution of test to a library fileTest plugins should always be ‘unpacked’

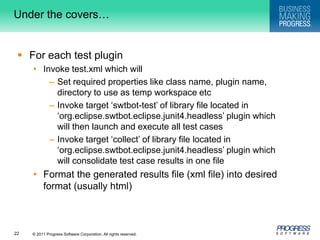

22. Under the covers…For each test pluginInvoke test.xml which willSet required properties like class name, plugin name, directory to use as temp workspace etcInvoke target ‘swtbot-test’ of library file located in ‘org.eclipse.swtbot.eclipse.junit4.headless’ plugin which will then launch and execute all test casesInvoke target ‘collect’ of library file located in ‘org.eclipse.swtbot.eclipse.junit4.headless’ plugin which will consolidate test case results in one fileFormat the generated results file (xml file) into desired format (usually html)

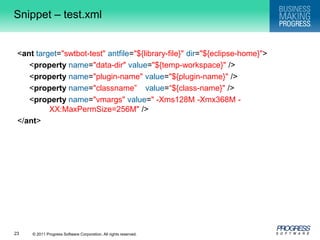

23. Snippet – test.xml<anttarget="swtbot-test"antfile="${library-file}"dir="${eclipse-home}"> <property name="data-dir"value="${temp-workspace}" /> <propertyname="plugin-name"value="${plugin-name}" /> <propertyname="classname”value=“${class-name}" /> <propertyname="vmargs"value=" -Xms128M -Xmx368M - XX:MaxPermSize=256M" /></ant>

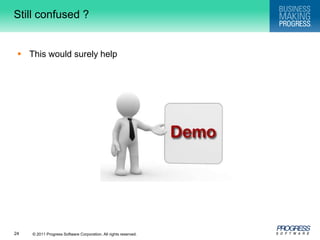

24. Still confused ?This would surely help

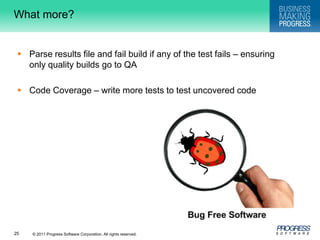

25. What more?Parse results file and fail build if any of the test fails – ensuring only quality builds go to QACode Coverage – write more tests to test uncovered code

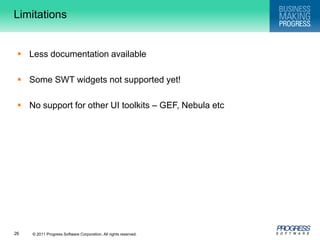

26. LimitationsLess documentation availableSome SWT widgets not supported yet!No support for other UI toolkits – GEF, Nebula etc
