The document discusses different methods for switching in telecommunications networks, including circuit switching, packet switching, and message switching. It provides figures illustrating circuit-switched networks, various switch designs like crossbar and multistage switches, and time-division multiplexing with and without time-slot interchange. Packet switching techniques like the datagram approach and switched virtual circuits are depicted. Message switching is also mentioned.

1. Chapter 14
Switching
• Circuit Switching
• Packet Switching
• Message Switching
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

2. Figure 14-1
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Switched Network

3. Figure 14-2
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

4. Figure 14-3
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Circuit-Switched Network

5. Figure 14-4
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Switch

6. Figure 14-5
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Folded Switch

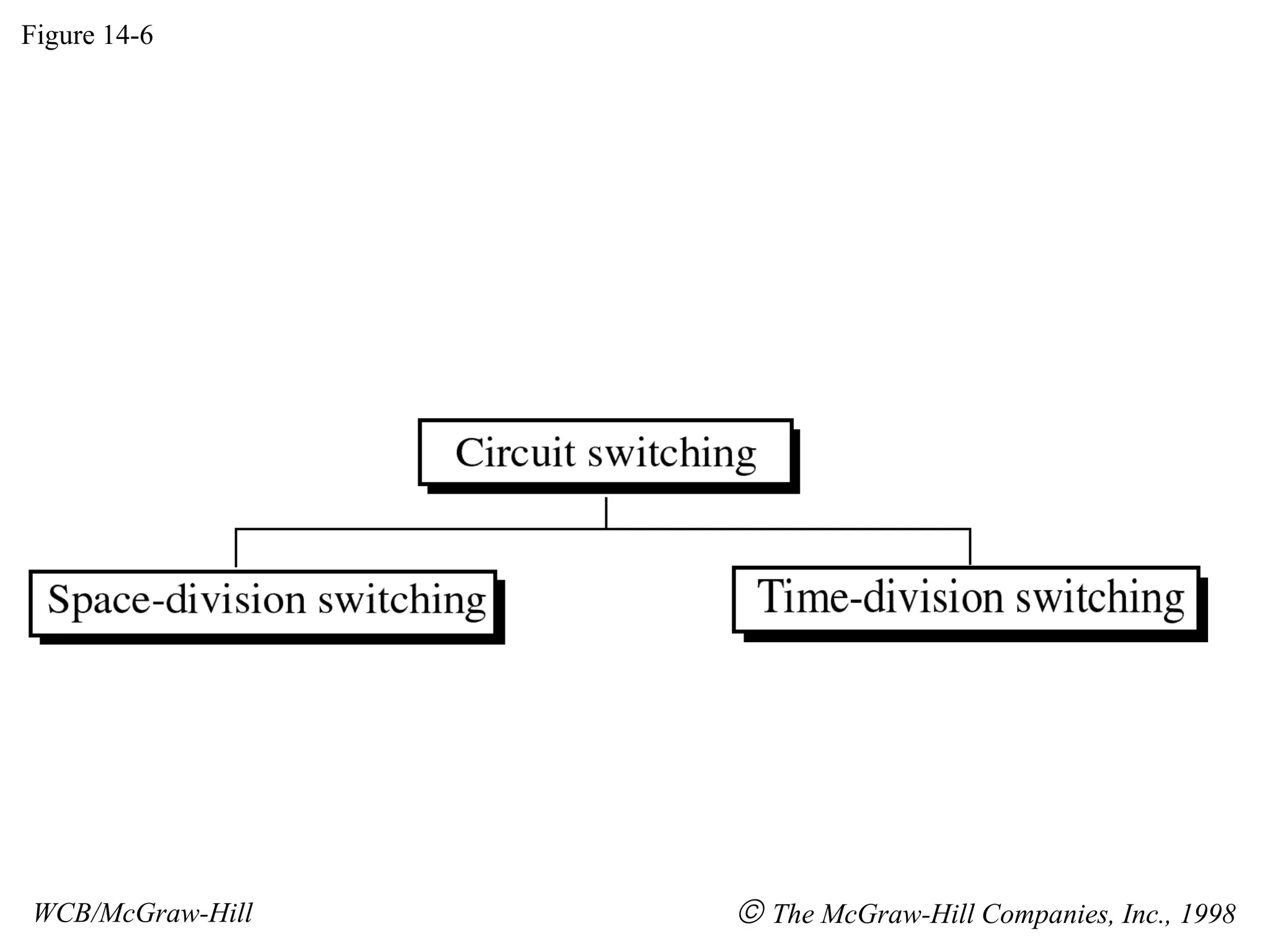

7. Figure 14-6
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

8. Figure 14-7
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Crossbar Switch

9. Figure 14-8
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Multistage Switch

10. Figure 14-9
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

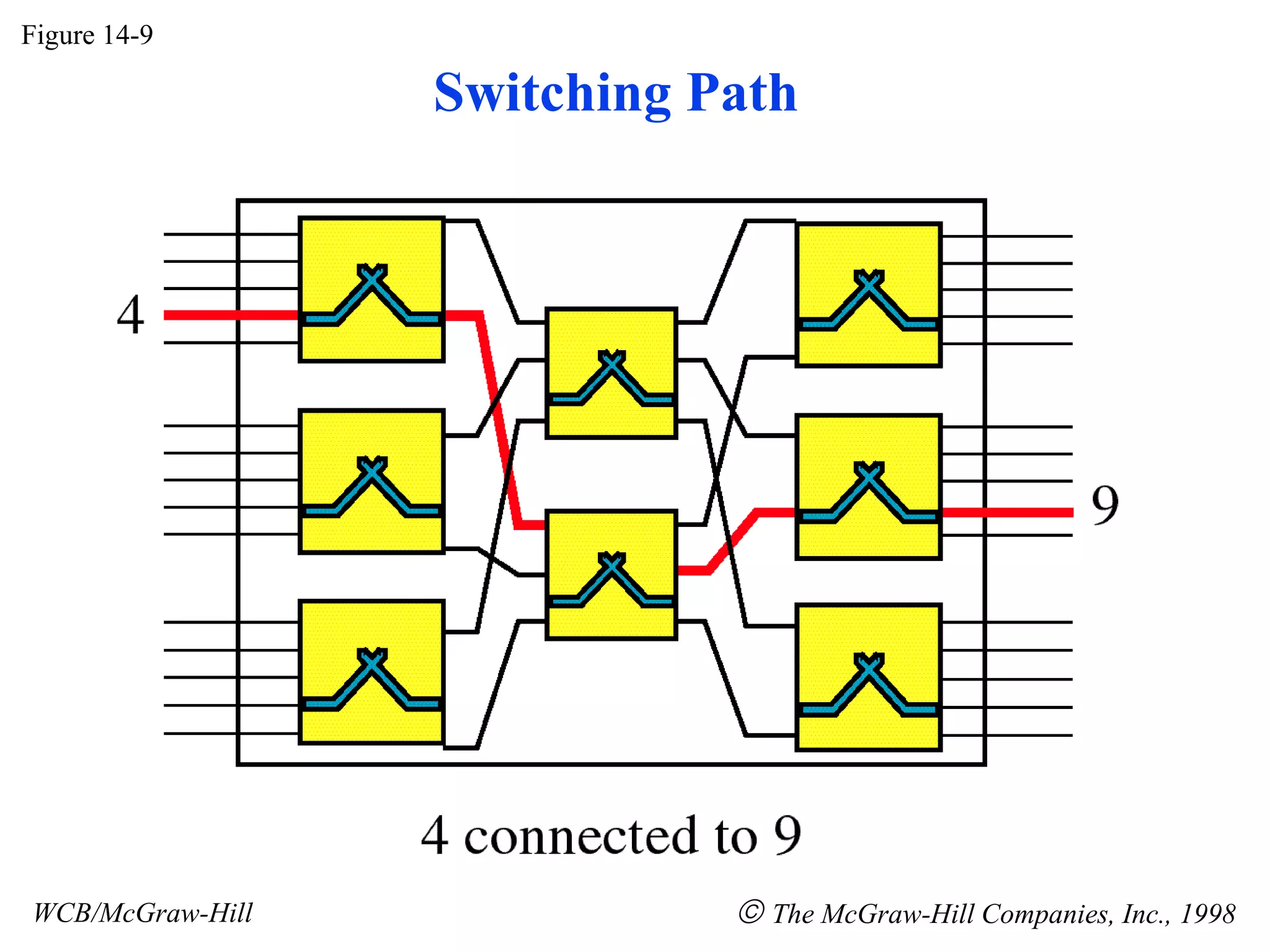

Switching Path

11. Figure 14-9-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

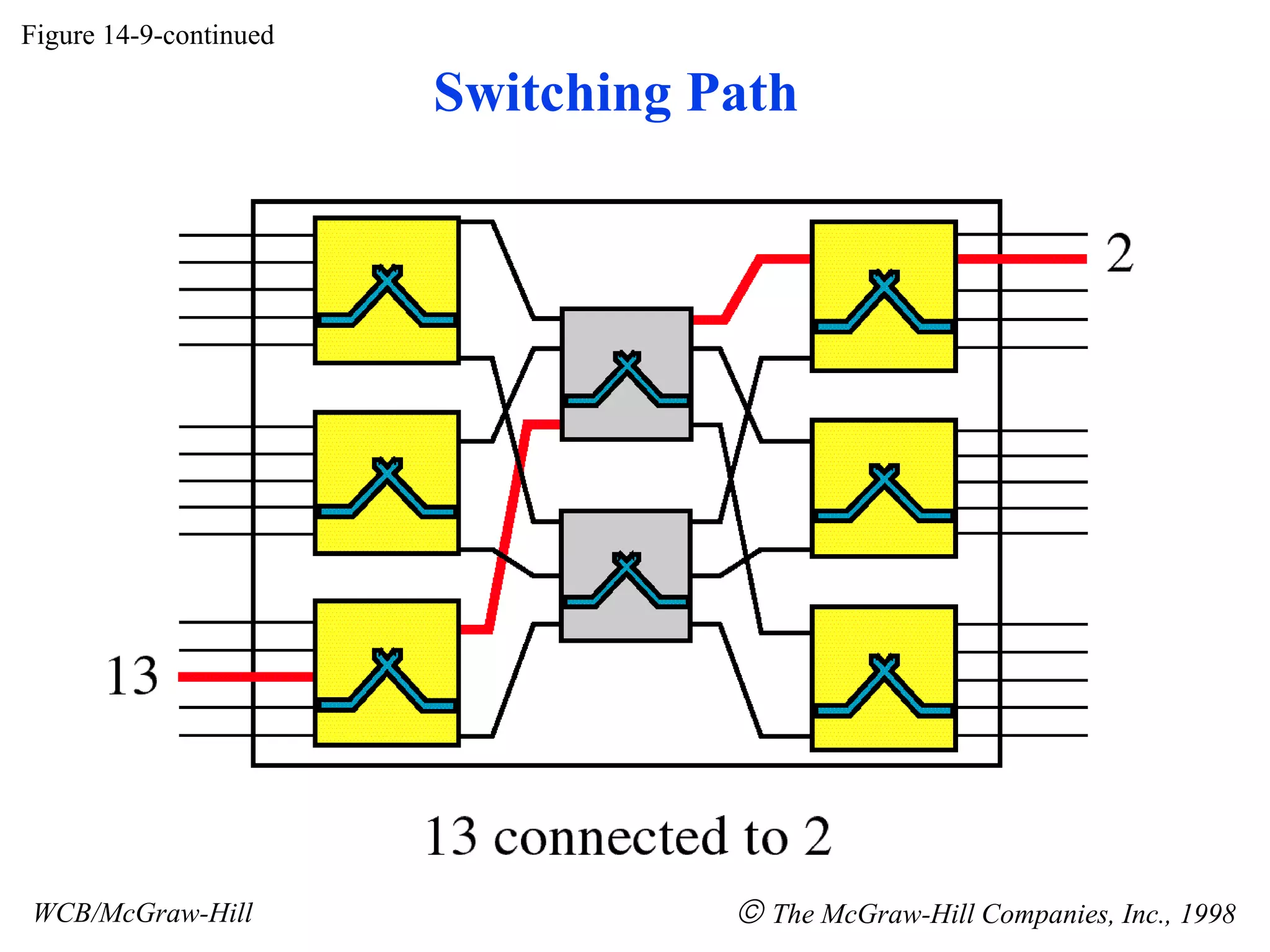

Switching Path

12. Figure 14-10
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
TDM without TSI

13. Figure 14-10-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

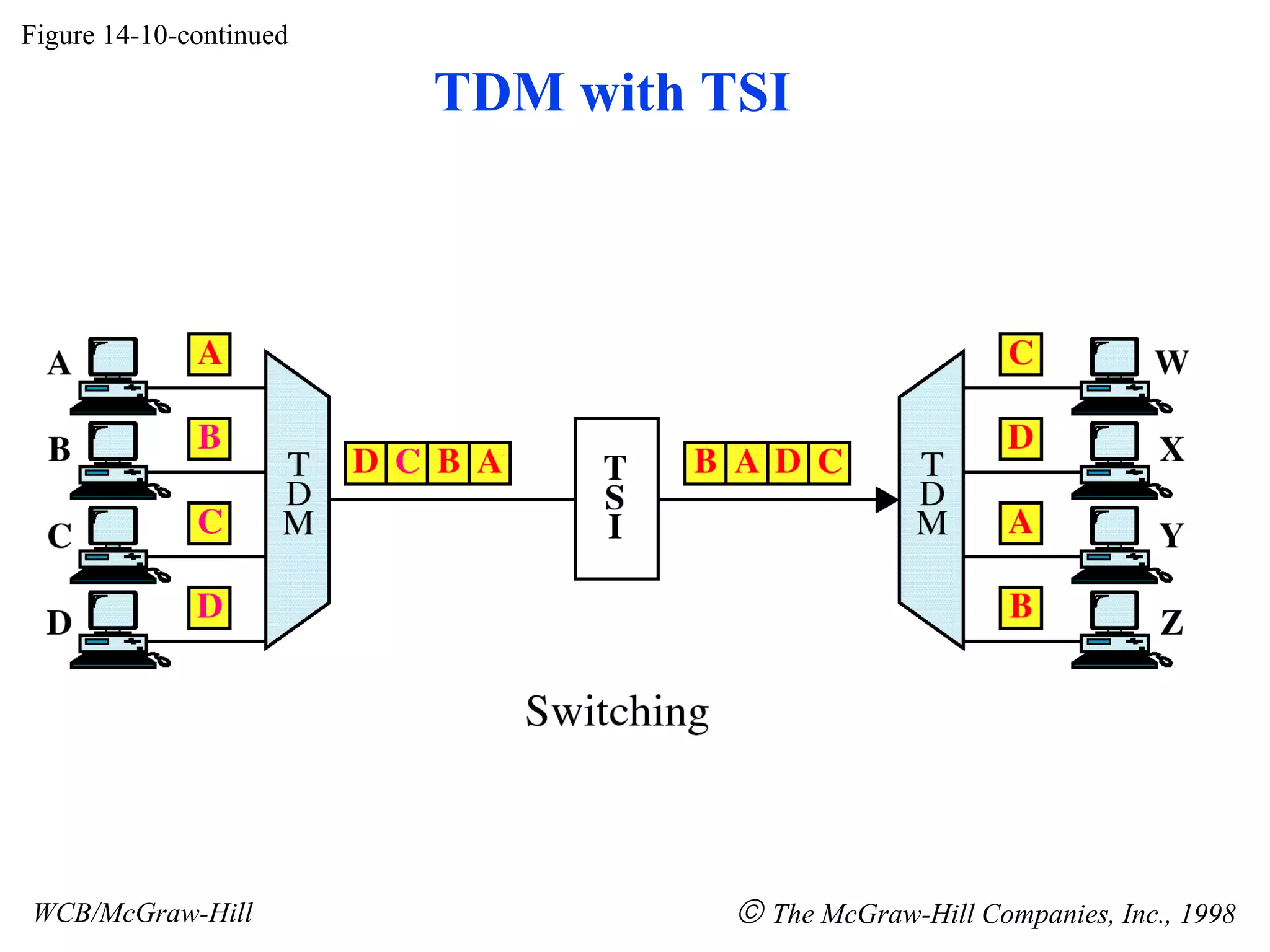

TDM with TSI

14. Figure 14-11
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Time-Slot Interchange

15. Figure 14-12
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
TST Switch

16. Figure 14-13
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

17. Figure 14-14
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

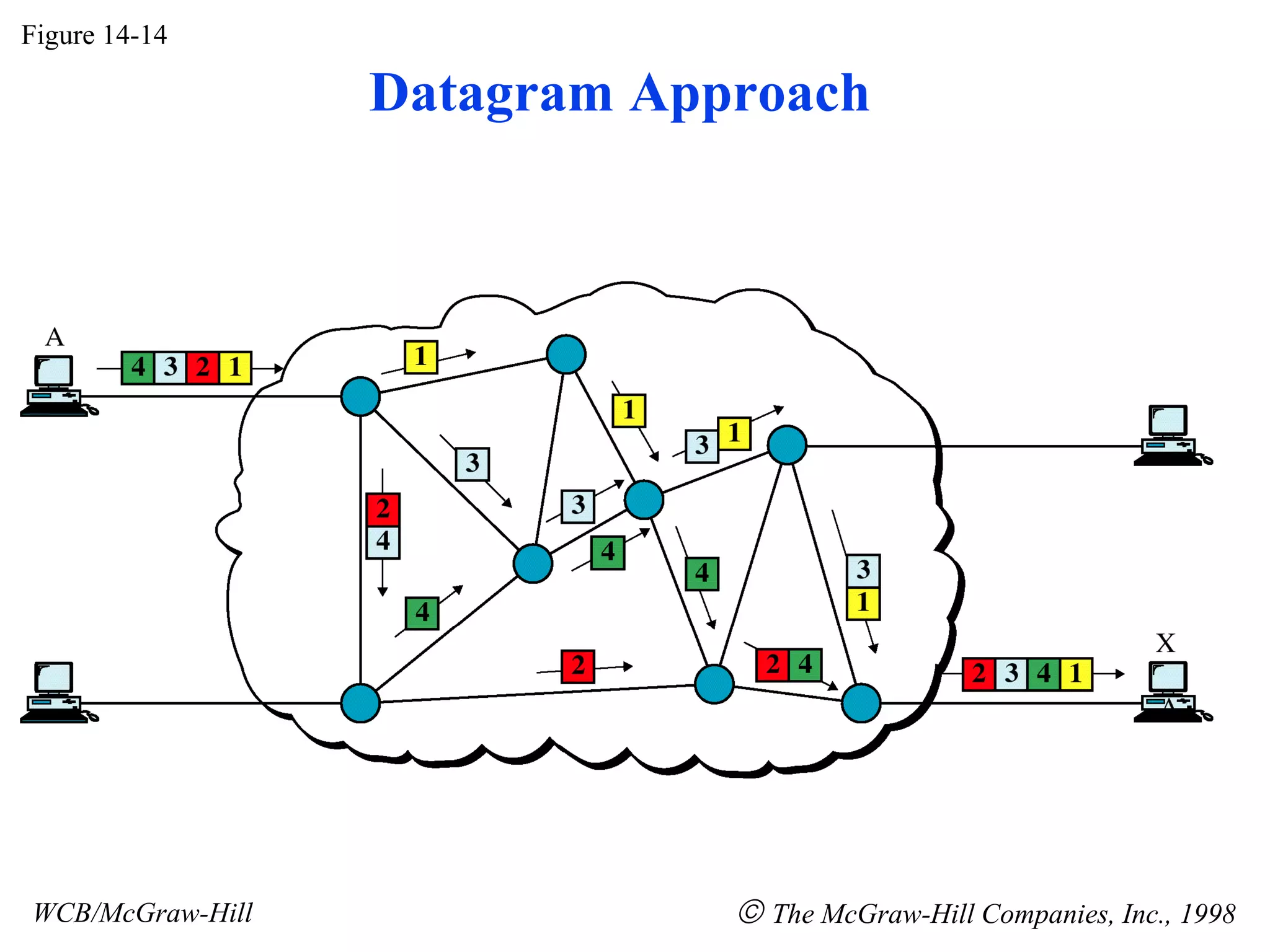

Datagram Approach

18. Figure 14-15
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Datagram Approach, Multiple Channels

19. Figure 14-16
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Switched Virtual Circuit

20. Figure 14-16-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Switched Virtual Circuit

21. Figure 14-16-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Switched Virtual Circuit

22. Figure 14-17
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

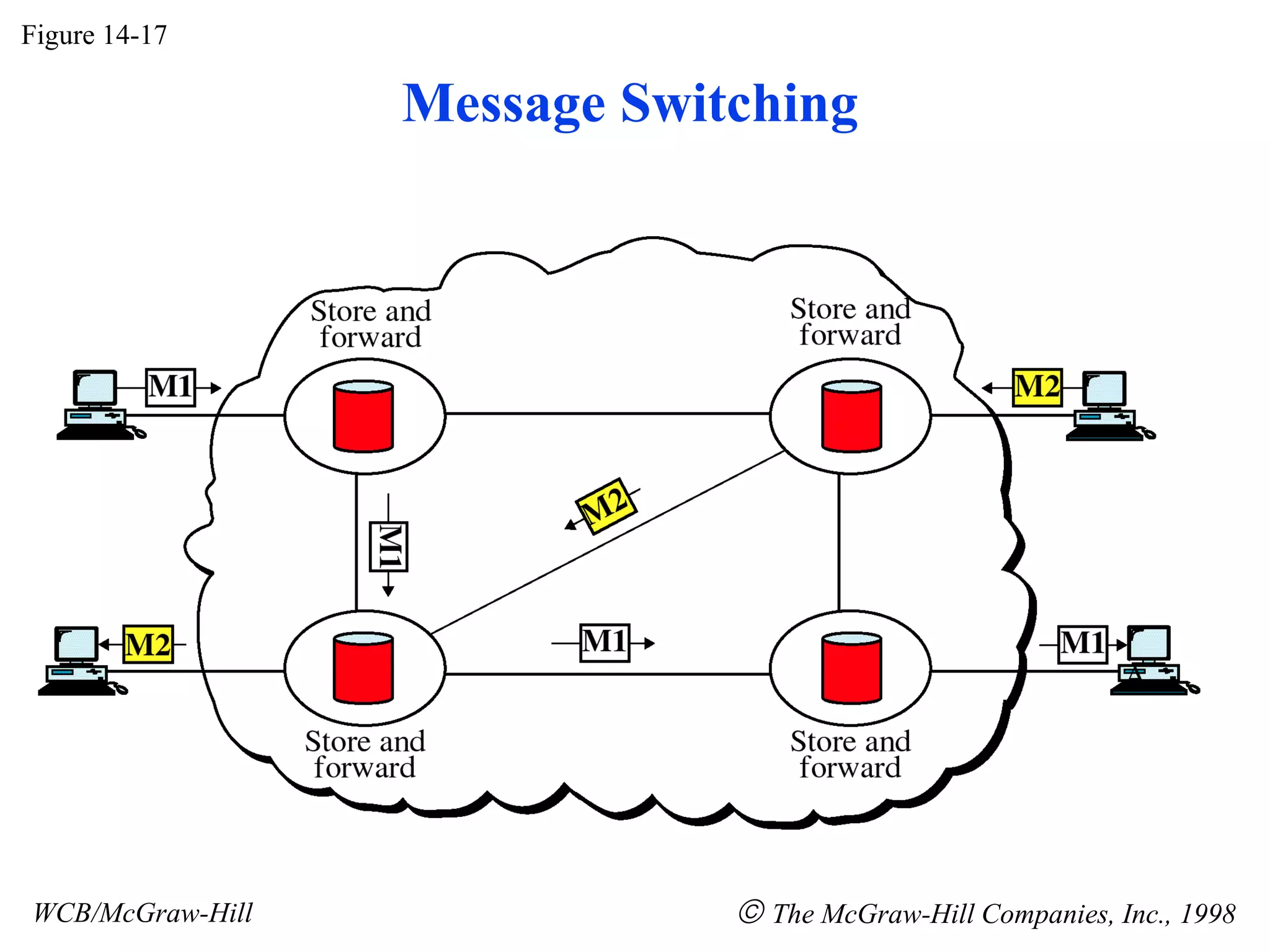

Message Switching
