Swift와 Objective-C를 함께 쓰는 방법

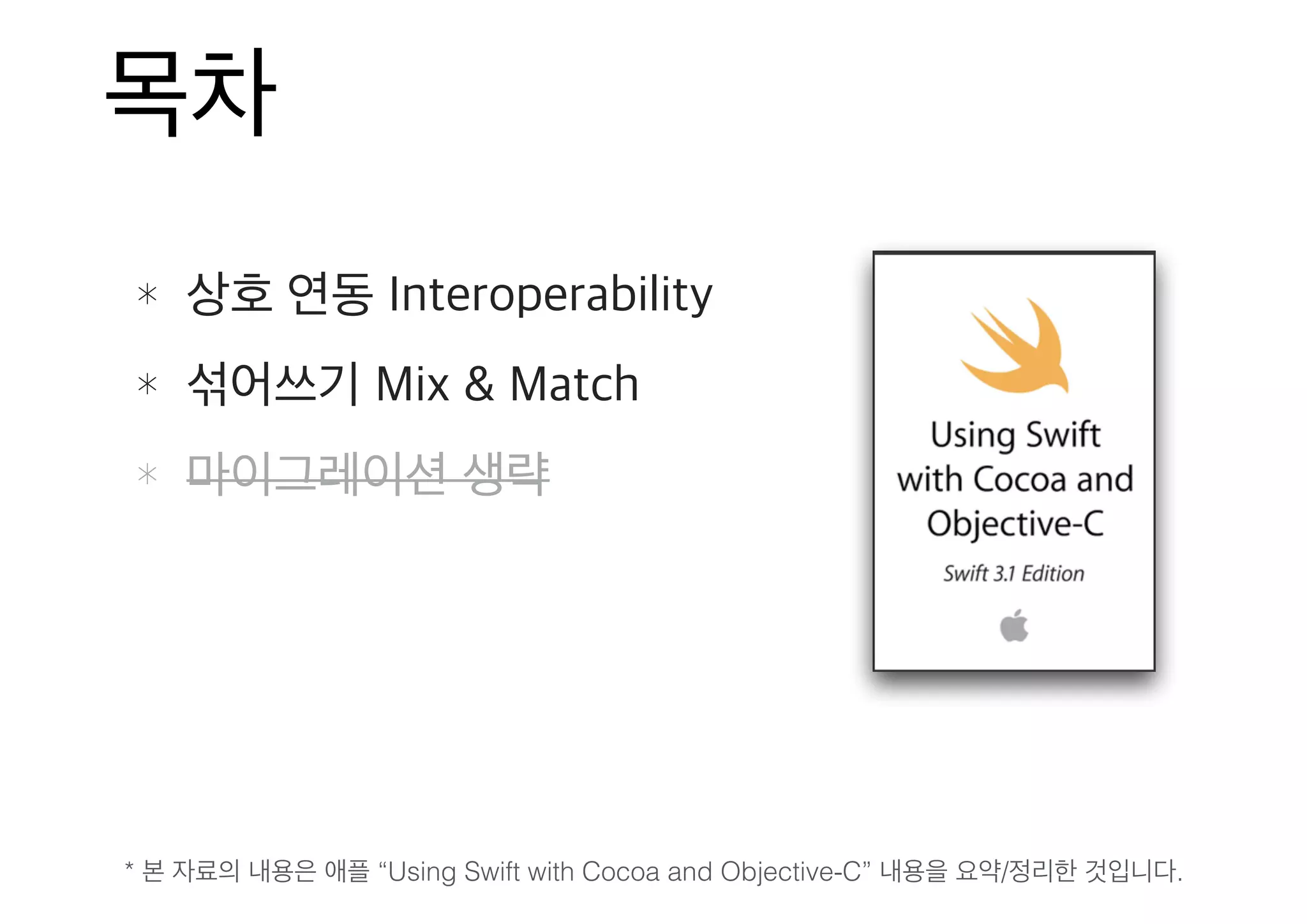

* “Using Swift with Cocoa and Objective-C” / .

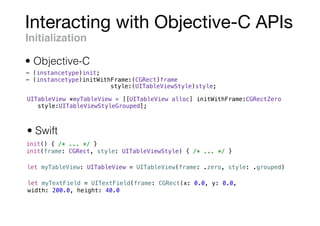

Interacting with Objective-C APIs
- (instancetype)init;
- (instancetype)initWithFrame:(CGRect)frame
style:(UITableViewStyle)style;
init() { /* ... */ }
init(frame: CGRect, style: UITableViewStyle) { /* ... */ }
UITableView *myTableView = [[UITableView alloc] initWithFrame:CGRectZero
style:UITableViewStyleGrouped];
let myTableView: UITableView = UITableView(frame: .zero, style: .grouped)
let myTextField = UITextField(frame: CGRect(x: 0.0, y: 0.0,
width: 200.0, height: 40.0))
Initialization
• Objective-C
• Swift

UIColor *color = [UIColor colorWithRed:0.5 green:0.0 blue:0.5 alpha:1.0];
let color = UIColor(red: 0.5, green: 0.0, blue: 0.5, alpha: 1.0)
Convenience Initializers
• Objective-C
• Swift
To be used with the same syntax as initializers.

if let image = UIImage(contentsOfFile: "MyImage.png") {
// loaded the image successfully
} else {
// could not load the image
}

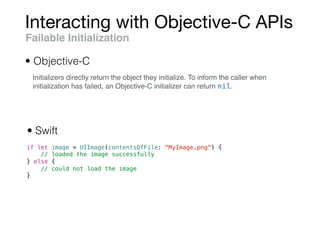

Failable Initialization
• Objective-C
• Swift
Initializers directly return the object they initialize. To inform the caller when
initialization has failed, an Objective-C initializer can return nil.

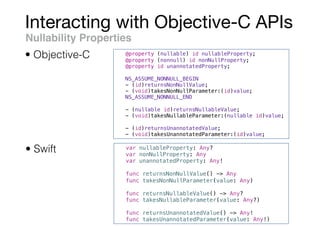

Nullability Properties
• Swift
• Objective-C @property (nullable) id nullableProperty;
@property (nonnull) id nonNullProperty;
@property id unannotatedProperty;
NS_ASSUME_NONNULL_BEGIN
- (id)returnsNonNullValue;
- (void)takesNonNullParameter:(id)value;
NS_ASSUME_NONNULL_END
- (nullable id)returnsNullableValue;
- (void)takesNullableParameter:(nullable id)value;
- (id)returnsUnannotatedValue;
- (void)takesUnannotatedParameter:(id)value;
var nullableProperty: Any?
var nonNullProperty: Any
var unannotatedProperty: Any!
func returnsNonNullValue() -> Any
func takesNonNullParameter(value: Any)
func returnsNullableValue() -> Any?
func takesNullableParameter(value: Any?)
func returnsUnannotatedValue() -> Any!
func takesUnannotatedParameter(value: Any!)

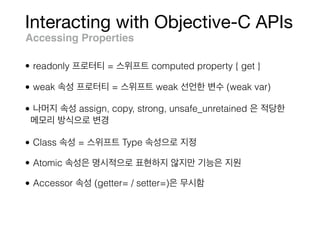

Accessing Properties
• readonly = computed property { get }
• weak = weak (weak var)
• assign, copy, strong, unsafe_unretained
• Class = Type
• Atomic
• Accessor (getter= / setter=)

myTableView.insertSubview(mySubview, at: 2)
Working with Methods
• Objective-C
• Swift
[myTableView insertSubview:mySubview atIndex:2];
myTableView.layoutIfNeeded()
Can call Objective-C methods from Swift using dot syntax.

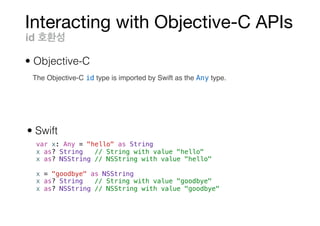

var x: Any = "hello" as String
x as? String // String with value "hello"
x as? NSString // NSString with value "hello"
x = "goodbye" as NSString
x as? String // String with value "goodbye"
x as? NSString // NSString with value "goodbye"
id
• Objective-C
• Swift
The Objective-C id type is imported by Swift as the Any type.

let userDefaults = UserDefaults.standard
let lastRefreshDate = userDefaults.object(forKey: "LastRefreshDate")
// lastRefreshDate is of type Any?
if let date = lastRefreshDate as? Date {
print("(date.timeIntervalSinceReferenceDate)")
}

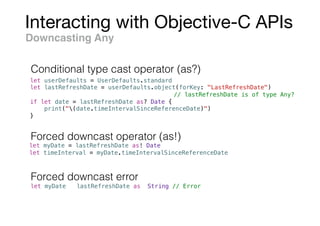

Downcasting Any
let myDate = lastRefreshDate as! Date
let timeInterval = myDate.timeIntervalSinceReferenceDate
let myDate = lastRefreshDate as! String // Error
Forced downcast operator (as!)
Forced downcast error
Conditional type cast operator (as?)

var myObject: AnyObject = UITableViewCell()
myObject = NSDate()
let futureDate = myObject.addingTimeInterval(10)
let timeSinceNow = myObject.timeIntervalSinceNow

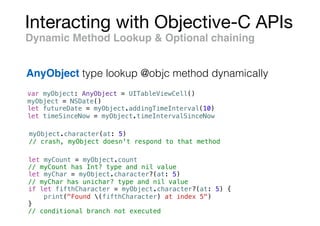

Dynamic Method Lookup & Optional chaining
AnyObject type lookup @objc method dynamically
myObject.character(at: 5)
// crash, myObject doesn't respond to that method
let myCount = myObject.count
// myCount has Int? type and nil value
let myChar = myObject.character?(at: 5)
// myChar has unichar? type and nil value
if let fifthCharacter = myObject.character?(at: 5) {
print("Found (fifthCharacter) at index 5")
}
// conditional branch not executed

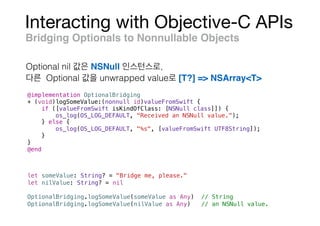

Bridging Optionals to Nonnullable Objects
@implementation OptionalBridging
+ (void)logSomeValue:(nonnull id)valueFromSwift {
if ([valueFromSwift isKindOfClass: [NSNull class]]) {
os_log(OS_LOG_DEFAULT, "Received an NSNull value.");
} else {
os_log(OS_LOG_DEFAULT, "%s", [valueFromSwift UTF8String]);
}
}
@end
let someValue: String? = "Bridge me, please."
let nilValue: String? = nil
OptionalBridging.logSomeValue(someValue as Any) // String
OptionalBridging.logSomeValue(nilValue as Any) // an NSNull value.
Optional nil NSNull ,
Optional unwrapped value [T?] => NSArray<T>

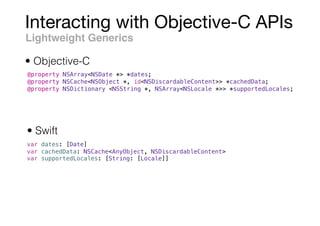

Lightweight Generics
@property NSArray<NSDate *> *dates;
@property NSCache<NSObject *, id<NSDiscardableContent>> *cachedData;
@property NSDictionary <NSString *, NSArray<NSLocale *>> *supportedLocales;
var dates: [Date]
var cachedData: NSCache<AnyObject, NSDiscardableContent>
var supportedLocales: [String: [Locale]]
• Objective-C
• Swift

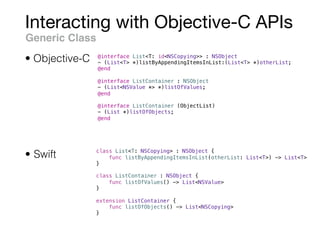

Generic Class
@interface List<T: id<NSCopying>> : NSObject
- (List<T> *)listByAppendingItemsInList:(List<T> *)otherList;
@end
@interface ListContainer : NSObject
- (List<NSValue *> *)listOfValues;
@end
@interface ListContainer (ObjectList)
- (List *)listOfObjects;
@end
• Objective-C
• Swift class List<T: NSCopying> : NSObject {
func listByAppendingItemsInList(otherList: List<T>) -> List<T>
}
class ListContainer : NSObject {
func listOfValues() -> List<NSValue>
}
extension ListContainer {
func listOfObjects() -> List<NSCopying>
}

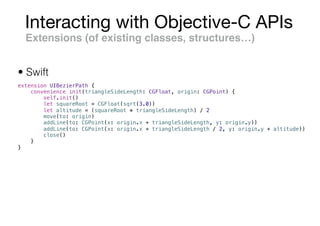

Extensions (of existing classes, structures…)
extension UIBezierPath {
convenience init(triangleSideLength: CGFloat, origin: CGPoint) {
self.init()
let squareRoot = CGFloat(sqrt(3.0))
let altitude = (squareRoot * triangleSideLength) / 2
move(to: origin)
addLine(to: CGPoint(x: origin.x + triangleSideLength, y: origin.y))
addLine(to: CGPoint(x: origin.x + triangleSideLength / 2, y: origin.y + altitude))
close()
}
}
• Swift

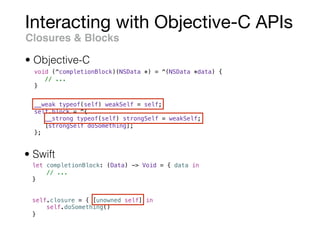

Closures & Blocks
void (^completionBlock)(NSData *) = ^(NSData *data) {
// ...
}
• Swift
• Objective-C
let completionBlock: (Data) -> Void = { data in
// ...
}
__weak typeof(self) weakSelf = self;
self.block = ^{
__strong typeof(self) strongSelf = weakSelf;
[strongSelf doSomething];
};
self.closure = { [unowned self] in
self.doSomething()
}

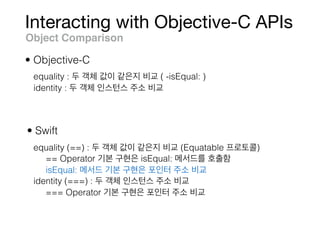

Object Comparison
• Swift
• Objective-C
equality : ( -isEqual: )
identity :
equality (==) : (Equatable )
== Operator isEqual:
isEqual:
identity (===) :
=== Operator

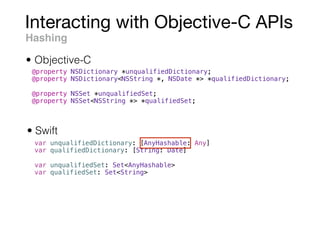

Hashing
• Swift
• Objective-C
@property NSDictionary *unqualifiedDictionary;
@property NSDictionary<NSString *, NSDate *> *qualifiedDictionary;
@property NSSet *unqualifiedSet;
@property NSSet<NSString *> *qualifiedSet;
var unqualifiedDictionary: [AnyHashable: Any]
var qualifiedDictionary: [String: Date]
var unqualifiedSet: Set<AnyHashable>
var qualifiedSet: Set<String>

Excludes Swift-only
• Generics
• Tuples
• Enumerations defined in Swift without Int raw value type
• Structures defined in Swift
• Top-level functions defined in Swift
• Global variables defined in Swift
• Typealiases defined in Swift
• Swift-style variadics
• Nested types
• Curried functions

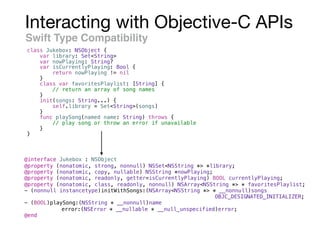

Swift Type Compatibility
class Jukebox: NSObject {
var library: Set<String>
var nowPlaying: String?
var isCurrentlyPlaying: Bool {
return nowPlaying != nil
}
class var favoritesPlaylist: [String] {
// return an array of song names
}
init(songs: String...) {
self.library = Set<String>(songs)
}
func playSong(named name: String) throws {
// play song or throw an error if unavailable
}
}
@interface Jukebox : NSObject
@property (nonatomic, strong, nonnull) NSSet<NSString *> *library;
@property (nonatomic, copy, nullable) NSString *nowPlaying;
@property (nonatomic, readonly, getter=isCurrentlyPlaying) BOOL currentlyPlaying;
@property (nonatomic, class, readonly, nonnull) NSArray<NSString *> * favoritesPlaylist;
- (nonnull instancetype)initWithSongs:(NSArray<NSString *> * __nonnull)songs
OBJC_DESIGNATED_INITIALIZER;
- (BOOL)playSong:(NSString * __nonnull)name
error:(NSError * __nullable * __null_unspecified)error;
@end

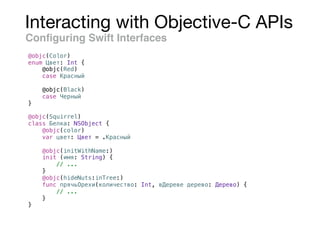

Conﬁguring Swift Interfaces
@objc(Color)
enum Цвет: Int {
@objc(Red)
case Красный
@objc(Black)
case Черный
}
@objc(Squirrel)
class Белка: NSObject {
@objc(color)
var цвет: Цвет = .Красный
@objc(initWithName:)
init (имя: String) {
// ...
}
@objc(hideNuts:inTree:)
func прячьОрехи(количество: Int, вДереве дерево: Дерево) {
// ...
}
}

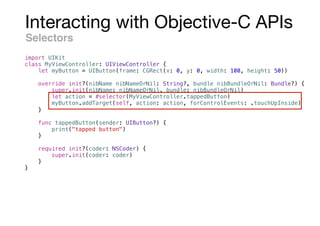

Selectors
import UIKit
class MyViewController: UIViewController {
let myButton = UIButton(frame: CGRect(x: 0, y: 0, width: 100, height: 50))
override init?(nibName nibNameOrNil: String?, bundle nibBundleOrNil: Bundle?) {
super.init(nibName: nibNameOrNil, bundle: nibBundleOrNil)
let action = #selector(MyViewController.tappedButton)
myButton.addTarget(self, action: action, forControlEvents: .touchUpInside)
}
func tappedButton(sender: UIButton?) {
print("tapped button")
}
required init?(coder: NSCoder) {
super.init(coder: coder)
}
}

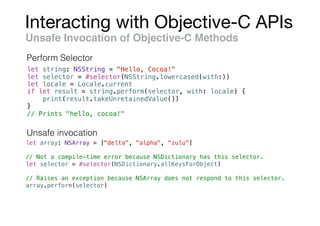

Unsafe Invocation of Objective-C Methods
let string: NSString = "Hello, Cocoa!"
let selector = #selector(NSString.lowercased(with:))
let locale = Locale.current
if let result = string.perform(selector, with: locale) {
print(result.takeUnretainedValue())
}
// Prints "hello, cocoa!"
let array: NSArray = ["delta", "alpha", "zulu"]
// Not a compile-time error because NSDictionary has this selector.
let selector = #selector(NSDictionary.allKeysForObject)
// Raises an exception because NSArray does not respond to this selector.
array.perform(selector)
Perform Selector
Unsafe invocation

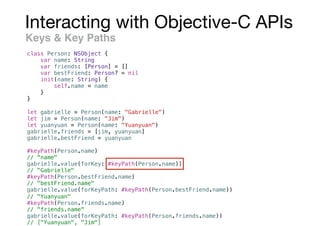

Keys & Key Paths
class Person: NSObject {
var name: String
var friends: [Person] = []
var bestFriend: Person? = nil
init(name: String) {
self.name = name
}
}
let gabrielle = Person(name: "Gabrielle")
let jim = Person(name: "Jim")
let yuanyuan = Person(name: "Yuanyuan")
gabrielle.friends = [jim, yuanyuan]
gabrielle.bestFriend = yuanyuan
#keyPath(Person.name)
// "name"
gabrielle.value(forKey: #keyPath(Person.name))
// "Gabrielle"
#keyPath(Person.bestFriend.name)
// "bestFriend.name"
gabrielle.value(forKeyPath: #keyPath(Person.bestFriend.name))
// "Yuanyuan"
#keyPath(Person.friends.name)
// "friends.name"
gabrielle.value(forKeyPath: #keyPath(Person.friends.name))
// ["Yuanyuan", "Jim"]

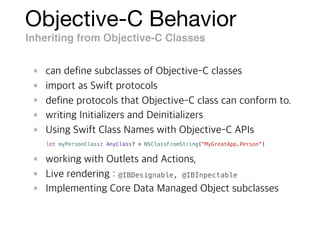

Objective-C Behavior
Inheriting from Objective-C Classes
@IBDesignable, @IBInpectable
let myPersonClass: AnyClass? = NSClassFromString("MyGreatApp.Person")

Working with Cocoa Frameworks
Foundation

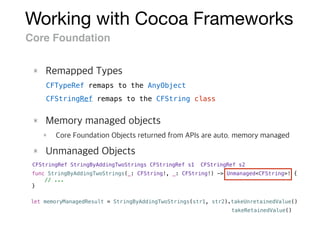

Core Foundation
CFStringRef StringByAddingTwoStrings(CFStringRef s1, CFStringRef s2)
func StringByAddingTwoStrings(_: CFString!, _: CFString!) -> Unmanaged<CFString>! {
// ...
}
let memoryManagedResult = StringByAddingTwoStrings(str1, str2).takeUnretainedValue()
CFTypeRef remaps to the AnyObject
CFStringRef remaps to the CFString class
takeRetainedValue()

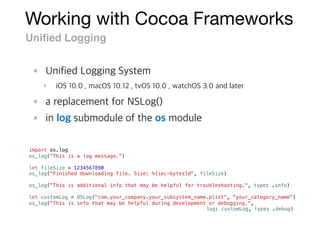

Uniﬁed Logging
import os.log
os_log("This is a log message.”)
let fileSize = 1234567890
os_log("Finished downloading file. Size: %{iec-bytes}d", fileSize)
os_log("This is additional info that may be helpful for troubleshooting.", type: .info)
let customLog = OSLog("com.your_company.your_subsystem_name.plist", "your_category_name")
os_log("This is info that may be helpful during development or debugging.",
log: customLog, type: .debug)

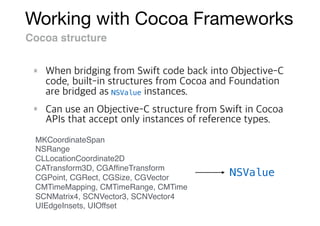

Cocoa structure
NSValue
MKCoordinateSpan
NSRange
CLLocationCoordinate2D
CATransform3D, CGAfﬁneTransform
CGPoint, CGRect, CGSize, CGVector
CMTimeMapping, CMTimeRange, CMTime
SCNMatrix4, SCNVector3, SCNVector4
UIEdgeInsets, UIOffset
NSValue

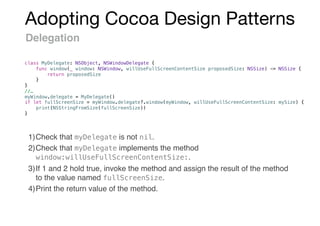

Adopting Cocoa Design Patterns
Delegation
1)Check that myDelegate is not nil.
2)Check that myDelegate implements the method
window:willUseFullScreenContentSize:.
3)If 1 and 2 hold true, invoke the method and assign the result of the method
to the value named fullScreenSize.
4)Print the return value of the method.
class MyDelegate: NSObject, NSWindowDelegate {
func window(_ window: NSWindow, willUseFullScreenContentSize proposedSize: NSSize) -> NSSize {
return proposedSize
}
}
//…
myWindow.delegate = MyDelegate()
if let fullScreenSize = myWindow.delegate?.window(myWindow, willUseFullScreenContentSize: mySize) {
print(NSStringFromSize(fullScreenSize))
}

Lazy Initialization
@property NSXMLDocument *XML;
- (NSXMLDocument *)XML {
if (_XML == nil) {
_XML = [[NSXMLDocument alloc] initWithContentsOfURL:[[Bundle mainBundle]
URLForResource:@"/path/to/resource" withExtension:@"xml"] options:0 error:nil];
}
return _XML;
}
lazy var XML: XMLDocument = try! XMLDocument(contentsOf:
Bundle.main.url(forResource: "document", withExtension: "xml")!, options: 0)
• Objective-C
• Swift

Lazy property
var pattern: String
lazy var regex: NSRegularExpression = try! NSRegularExpression(pattern: self.pattern,
options: [])
lazy var currencyFormatter: NumberFormatter = {
let formatter = NumberFormatter()
formatter.numberStyle = .currency
formatter.currencySymbol = "¤"
return formatter
}()
• Swift
use self-evaluating closure

Error Handling
NSFileManager *fileManager = [NSFileManager defaultManager];
NSURL *fromURL = [NSURL fileURLWithPath:@"/path/to/old"];
NSURL *toURL = [NSURL fileURLWithPath:@"/path/to/new"];
NSError *error = nil;
BOOL success = [fileManager moveItemAtURL:fromURL toURL:toURL error:&error];
if (!success) {
NSLog(@"Error: %@", error.domain);
}
• Swift
• Objective-C
let fileManager = FileManager.default
let fromURL = URL(fileURLWithPath: "/path/to/old")
let toURL = URL(fileURLWithPath: "/path/to/new")
do {
try fileManager.moveItem(at: fromURL, to: toURL)
} catch let error as NSError {
print("Error: (error.domain)")
}

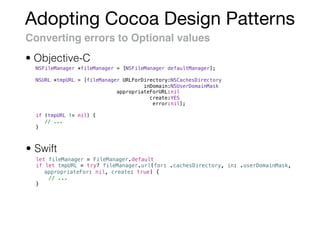

Converting errors to Optional values
• Swift
• Objective-C
NSFileManager *fileManager = [NSFileManager defaultManager];
NSURL *tmpURL = [fileManager URLForDirectory:NSCachesDirectory
inDomain:NSUserDomainMask
appropriateForURL:nil
create:YES
error:nil];
if (tmpURL != nil) {
// ...
}
let fileManager = FileManager.default
if let tmpURL = try? fileManager.url(for: .cachesDirectory, in: .userDomainMask,
appropriateFor: nil, create: true) {
// ...
}

Throwing error
• Swift
• Objective-C
// an error occurred
if (errorPtr) {
*errorPtr = [NSError errorWithDomain:NSURLErrorDomain
code:NSURLErrorCannotOpenFile
userInfo:nil];
}
// an error occurred
throw NSError(domain: NSURLErrorDomain, code: NSURLErrorCannotOpenFile, userInfo: nil)

Key-value Observing
KVO with a Swift class inherits from NSObject class
1) Add dynamic modiﬁer to any property
2) Create a global context variable
3) Add an observer for the key-path, override the observeValue() method
and remove the observer in deinit.
class MyObjectToObserve: NSObject {
dynamic var myDate = NSDate()
func updateDate() {
myDate = NSDate()
}
}
private var myContext = 0
class MyObserver: NSObject {
var objectToObserve = MyObjectToObserve()
override init() {
super.init()
objectToObserve.addObserver(self, forKeyPath: #keyPath(MyObjectToObserve.myDate),
options: .new, context: &myContext)
}
override func observeValue(forKeyPath keyPath: String?, of object: Any?, change:
[NSKeyValueChangeKey : Any]?, context: UnsafeMutableRawPointer?) {
if context == &myContext {
if let newValue = change?[.newKey] { print("Date changed: (newValue)”) }
} else {
super.observeValue(forKeyPath: keyPath, of: object, change: change, context: context)
}
}
deinit {
objectToObserve.removeObserver(self, forKeyPath: #keyPath(MyObjectToObserve.myDate),
context: &myContext)
}
}

Undo architecture
Create an undo operation using an NSInvocation
@IBOutlet var remainingLabel: NSTextView!
func mark(task: Task, asCompleted completed: Bool) {
if let target = undoManager?.prepare(withInvocationTarget: self) as? ToDoListController {
target.mark(task: task, asCompleted: !completed)
undoManager?.setActionName(NSLocalizedString("todo.task.mark",
comment: "Mark As Completed"))
}
task.completed = completed
tableView.reloadData()
let numberRemaining = tasks.filter{ $0.completed }.count
remainingLabel.string = String(format: NSLocalizedString("todo.task.remaining",
comment: "Tasks Remaining: %d"), numberRemaining)
}

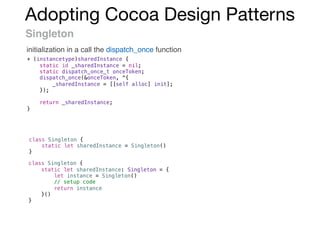

Singleton
initialization in a call the dispatch_once function
+ (instancetype)sharedInstance {
static id _sharedInstance = nil;
static dispatch_once_t onceToken;
dispatch_once(&onceToken, ^{
_sharedInstance = [[self alloc] init];
});
return _sharedInstance;
}
class Singleton {
static let sharedInstance = Singleton()
}
class Singleton {
static let sharedInstance: Singleton = {
let instance = Singleton()
// setup code
return instance
}()
}

Introspection
use the isKindOfClass: method or conformsToProtocol: method
if object is UIButton {
// object is of type UIButton
} else {
// object is not of type UIButton
}
if let button = object as? UIButton {
// object is successfully cast to type UIButton and bound to button
} else {
// object could not be cast to type UIButton
}
if let dataSource = object as? UITableViewDataSource {
// object conforms to UITableViewDataSource and is bound to dataSource
} else {
// object not conform to UITableViewDataSource
}
• Swift
• Objective-C

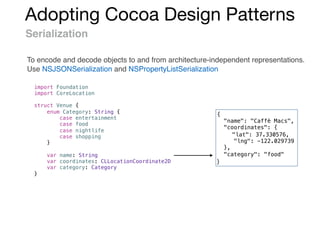

Serialization
To encode and decode objects to and from architecture-independent representations.
Use NSJSONSerialization and NSPropertyListSerialization
import Foundation
import CoreLocation
struct Venue {
enum Category: String {
case entertainment
case food
case nightlife
case shopping
}
var name: String
var coordinates: CLLocationCoordinate2D
var category: Category
}
{
"name": "Caffè Macs",
"coordinates": {
"lat": 37.330576,
"lng": -122.029739
},
"category": "food"
}

Serialization : Initializer
init?(attributes: [String: Any]) {
guard let name = attributes["name"] as? String,
let coordinates = attributes["coordinates"] as? [String: Double],
let latitude = coordinates["lat"],
let longitude = coordinates["lng"],
let category = Category(rawValue: attributes["category"] as? String ?? "Invalid")
else {
return nil
}
self.name = name
self.coordinates = CLLocationCoordinate2D(latitude: latitude, longitude: longitude)
self.category = category
}
let JSON = "{"name": "Caffè Macs","coordinates": {"lat": 37.330576,"lng": -122.029739},
"category": "food"}"
let data = JSON.data(using: String.Encoding.utf8)!
let attributes = try! JSONSerialization.jsonObject(with: data, options: []) as! [String: Any]
let venue = Venue(attributes: attributes)!
print(venue.name)
// Prints "Caffè Macs"
Initialize with Dictionary<String, Any>
Create a Venue from a JSON representation

Serialization : Validating
enum ValidationError: Error {
case missing(String)
case invalid(String)
}
init(attributes: [String: Any]) throws {
guard let name = attributes["name"] as? String else {
throw ValidationError.missing("name")
}
guard let coordinates = attributes["coordinates"] as? [String: Double] else {
throw ValidationError.missing("coordinates")
}
guard let latitude = coordinates["lat"],
let longitude = coordinates["lng"]
else {
throw ValidationError.invalid("coordinates")
}
guard let categoryName = attributes["category"] as? String else {
throw ValidationError.missing("category")
}
guard let category = Category(rawValue: categoryName) else {
throw ValidationError.invalid("category")
}
self.name = name
self.coordinates = CLLocationCoordinate2D(latitude: latitude, longitude: longitude)
self.category = category
}

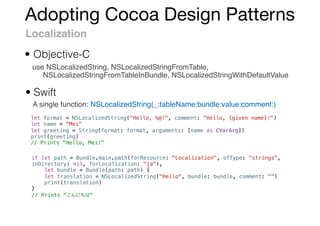

Localization
use NSLocalizedString, NSLocalizedStringFromTable,
NSLocalizedStringFromTableInBundle, NSLocalizedStringWithDefaultValue
• Objective-C
• Swift
A single function: NSLocalizedString(_:tableName:bundle:value:comment:)
let format = NSLocalizedString("Hello, %@!", comment: "Hello, {given name}!")
let name = "Mei"
let greeting = String(format: format, arguments: [name as CVarArg])
print(greeting)
// Prints "Hello, Mei!"
if let path = Bundle.main.path(forResource: "Localization", ofType: "strings",
inDirectory: nil, forLocalization: "ja"),
let bundle = Bundle(path: path) {
let translation = NSLocalizedString("Hello", bundle: bundle, comment: "")
print(translation)
}
// Prints " "

API Availability
use respondsToSelector: and instancesRespondToSelector: methods
• Objective-C
• Swift
let locationManager = CLLocationManager()
if #available(iOS 8.0, macOS 10.10, *) {
locationManager.requestWhenInUseAuthorization()
}
if ([CLLocationManager instancesRespondToSelector:@selector(requestWhenInUseAuthorization)]) {
// Method is available for use.
} else {
// Method is not available.
}
let locationManager = CLLocationManager()
guard #available(iOS 8.0, macOS 10.10, *) else { return }
locationManager.requestWhenInUseAuthorization()

Processing Command-Line Arguments
for argument in CommandLine.arguments {
print(argument)
}
// prints "/path/to/app"
// prints "--argumentName"
// prints "value"
$ /path/to/app --argumentName value

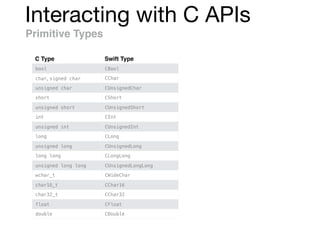

Interacting with C APIs
Primitive Types
C Type Swift Type
bool CBool
char, signed char CChar
unsigned char CUnsignedChar
short CShort
unsigned short CUnsignedShort
int CInt
unsigned int CUnsignedInt
long CLong
unsigned long CUnsignedLong
long long CLongLong
unsigned long long CUnsignedLongLong
wchar_t CWideChar
char16_t CChar16
char32_t CChar32
float CFloat
double CDouble

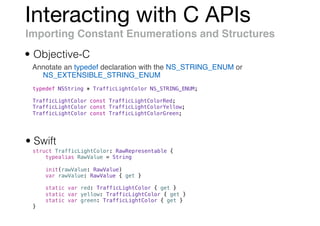

Importing Constant Enumerations and Structures
Annotate an typedef declaration with the NS_STRING_ENUM or
NS_EXTENSIBLE_STRING_ENUM
• Objective-C
• Swift
struct TrafficLightColor: RawRepresentable {
typealias RawValue = String
init(rawValue: RawValue)
var rawValue: RawValue { get }
static var red: TrafficLightColor { get }
static var yellow: TrafficLightColor { get }
static var green: TrafficLightColor { get }
}
typedef NSString * TrafficLightColor NS_STRING_ENUM;
TrafficLightColor const TrafficLightColorRed;
TrafficLightColor const TrafficLightColorYellow;
TrafficLightColor const TrafficLightColorGreen;

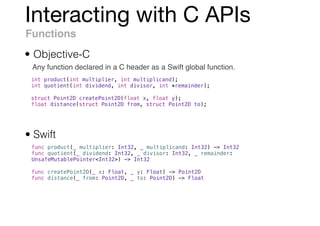

Functions
Any function declared in a C header as a Swift global function.
• Objective-C
• Swift
func product(_ multiplier: Int32, _ multiplicand: Int32) -> Int32
func quotient(_ dividend: Int32, _ divisor: Int32, _ remainder:
UnsafeMutablePointer<Int32>) -> Int32
func createPoint2D(_ x: Float, _ y: Float) -> Point2D
func distance(_ from: Point2D, _ to: Point2D) -> Float
int product(int multiplier, int multiplicand);
int quotient(int dividend, int divisor, int *remainder);
struct Point2D createPoint2D(float x, float y);
float distance(struct Point2D from, struct Point2D to);

Variadic Functions
Call C variadic functions, such as vasprintf, using the getVaList() or withVaList()
func swiftprintf(format: String, arguments: CVarArg...) -> String? {
return withVaList(arguments) { va_list in
var buffer: UnsafeMutablePointer<Int8>? = nil
return format.withCString { CString in
guard vasprintf(&buffer, CString, va_list) != 0 else {
return nil
}
return String(validatingUTF8: buffer!)
}
}
}
print(swiftprintf(format: "√2 ≅ %g", arguments: sqrt(2.0))!)
// Prints "√2 ≅ 1.41421"

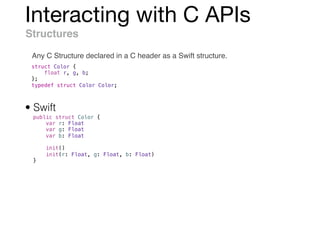

Structures
Any C Structure declared in a C header as a Swift structure.
struct Color {
float r, g, b;
};
typedef struct Color Color;
public struct Color {
var r: Float
var g: Float
var b: Float
init()
init(r: Float, g: Float, b: Float)
}
• Swift

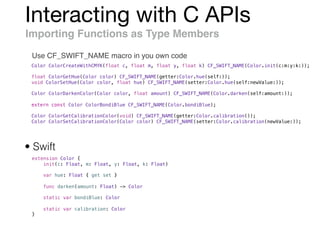

Importing Functions as Type Members
Use CF_SWIFT_NAME macro in you own code
Color ColorCreateWithCMYK(float c, float m, float y, float k) CF_SWIFT_NAME(Color.init(c:m:y:k:));
float ColorGetHue(Color color) CF_SWIFT_NAME(getter:Color.hue(self:));
void ColorSetHue(Color color, float hue) CF_SWIFT_NAME(setter:Color.hue(self:newValue:));
Color ColorDarkenColor(Color color, float amount) CF_SWIFT_NAME(Color.darken(self:amount:));
extern const Color ColorBondiBlue CF_SWIFT_NAME(Color.bondiBlue);
Color ColorGetCalibrationColor(void) CF_SWIFT_NAME(getter:Color.calibration());
Color ColorSetCalibrationColor(Color color) CF_SWIFT_NAME(setter:Color.calibration(newValue:));
extension Color {
init(c: Float, m: Float, y: Float, k: Float)
var hue: Float { get set }
func darken(amount: Float) -> Color
static var bondiBlue: Color
static var calibration: Color
}
• Swift

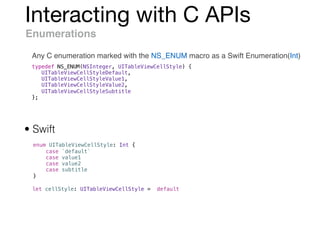

Enumerations
Any C enumeration marked with the NS_ENUM macro as a Swift Enumeration(Int)
typedef NS_ENUM(NSInteger, UITableViewCellStyle) {
UITableViewCellStyleDefault,
UITableViewCellStyleValue1,
UITableViewCellStyleValue2,
UITableViewCellStyleSubtitle
};
enum UITableViewCellStyle: Int {
case `default`
case value1
case value2
case subtitle
}
• Swift
let cellStyle: UITableViewCellStyle = .default

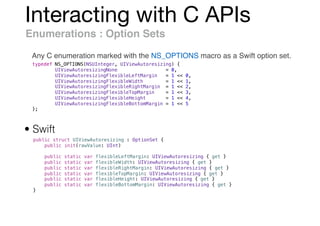

Enumerations : Option Sets
Any C enumeration marked with the NS_OPTIONS macro as a Swift option set.
typedef NS_OPTIONS(NSUInteger, UIViewAutoresizing) {
UIViewAutoresizingNone = 0,
UIViewAutoresizingFlexibleLeftMargin = 1 << 0,
UIViewAutoresizingFlexibleWidth = 1 << 1,
UIViewAutoresizingFlexibleRightMargin = 1 << 2,
UIViewAutoresizingFlexibleTopMargin = 1 << 3,
UIViewAutoresizingFlexibleHeight = 1 << 4,
UIViewAutoresizingFlexibleBottomMargin = 1 << 5
};
public struct UIViewAutoresizing : OptionSet {
public init(rawValue: UInt)
public static var flexibleLeftMargin: UIViewAutoresizing { get }
public static var flexibleWidth: UIViewAutoresizing { get }
public static var flexibleRightMargin: UIViewAutoresizing { get }
public static var flexibleTopMargin: UIViewAutoresizing { get }
public static var flexibleHeight: UIViewAutoresizing { get }
public static var flexibleBottomMargin: UIViewAutoresizing { get }
}
• Swift

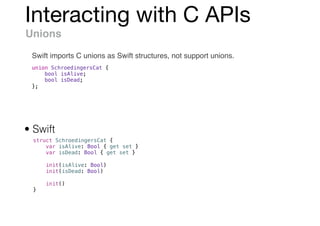

Unions
Swift imports C unions as Swift structures, not support unions.
union SchroedingersCat {
bool isAlive;
bool isDead;
};
struct SchroedingersCat {
var isAlive: Bool { get set }
var isDead: Bool { get set }
init(isAlive: Bool)
init(isDead: Bool)
init()
}
• Swift

Unnamed Structure and Union Fields
C struct and union types can deﬁne ﬁelds that have no name or that are of an
unnamed type.
struct Cake {
union {
int layers;
double height;
};
struct {
bool icing;
bool sprinkles;
} toppings;
};
var simpleCake = Cake()
simpleCake.layers = 5
print(simpleCake.toppings.icing)
// Prints "false"
let cake = Cake(
.init(layers: 2),
toppings: .init(icing: true, sprinkles: false)
)
print("The cake has (cake.layers) layers.")
// Prints "The cake has 2 layers."
print("Does it have sprinkles?", cake.toppings.sprinkles ? "Yes." : "No.")
// Prints "Does it have sprinkles? No."

Pointers
C Syntax Swift Syntax
const Type * UnsafePointer<Type>
Type * UnsafeMutablePointer<Type>
Type * const * UnsafePointer<Type>
Type * __strong * UnsafeMutablePointer<Type>
Type ** AutoreleasingUnsafeMutablePointer<Type>
const void * UnsafePointer
void * UnsafeMutablePointer
For return types, variables, and arguments
For class types
For pointers to untyped, raw memory

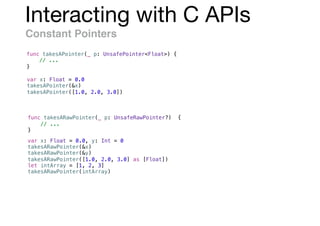

Constant Pointers
func takesAPointer(_ p: UnsafePointer<Float>) {
// ...
}
var x: Float = 0.0
takesAPointer(&x)
takesAPointer([1.0, 2.0, 3.0])
var x: Float = 0.0, y: Int = 0
takesARawPointer(&x)
takesARawPointer(&y)
takesARawPointer([1.0, 2.0, 3.0] as [Float])
let intArray = [1, 2, 3]
takesARawPointer(intArray)
func takesARawPointer(_ p: UnsafeRawPointer?) {
// ...
}

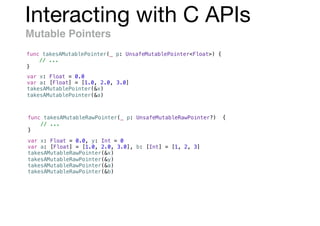

Mutable Pointers
func takesAMutablePointer(_ p: UnsafeMutablePointer<Float>) {
// ...
}
var x: Float = 0.0
var a: [Float] = [1.0, 2.0, 3.0]
takesAMutablePointer(&x)
takesAMutablePointer(&a)
var x: Float = 0.0, y: Int = 0
var a: [Float] = [1.0, 2.0, 3.0], b: [Int] = [1, 2, 3]
takesAMutableRawPointer(&x)
takesAMutableRawPointer(&y)
takesAMutableRawPointer(&a)
takesAMutableRawPointer(&b)
func takesAMutableRawPointer(_ p: UnsafeMutableRawPointer?) {
// ...
}

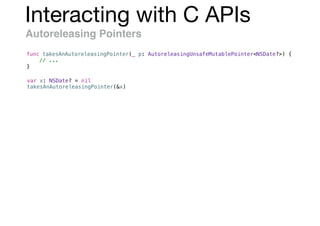

Autoreleasing Pointers
func takesAnAutoreleasingPointer(_ p: AutoreleasingUnsafeMutablePointer<NSDate?>) {
// ...
}
var x: NSDate? = nil
takesAnAutoreleasingPointer(&x)

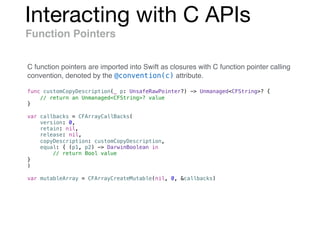

Function Pointers
func customCopyDescription(_ p: UnsafeRawPointer?) -> Unmanaged<CFString>? {
// return an Unmanaged<CFString>? value
}
var callbacks = CFArrayCallBacks(
version: 0,
retain: nil,
release: nil,
copyDescription: customCopyDescription,
equal: { (p1, p2) -> DarwinBoolean in
// return Bool value
}
)
var mutableArray = CFArrayCreateMutable(nil, 0, &callbacks)
C function pointers are imported into Swift as closures with C function pointer calling
convention, denoted by the @convention(c) attribute.

Buffer Pointers & Null Pointers
Buffer Pointers : Used for low-level access to a region of memory.
UnsafeBufferPointer
UnsafeMutableBufferPointer
UnsafeRawBufferPointer
UnsafeMutableRawBufferPointer
Objective-C Syntax Swift Syntax
const Type * _Nonnull UnsafePointer<Type>
const Type * _Nullable UnsafePointer<Type>?
const Type * _Null_unspecified UnsafePointer<Type>!
Null Pointers
Pointers Arithmatic
let pointer: UnsafePointer<Int8>
let offsetPointer = pointer + 24
// offsetPointer is 24 strides ahead of pointer

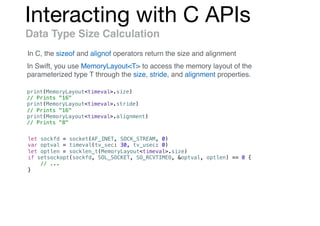

Data Type Size Calculation
In C, the sizeof and alignof operators return the size and alignment
In Swift, you use MemoryLayout<T> to access the memory layout of the
parameterized type T through the size, stride, and alignment properties.
print(MemoryLayout<timeval>.size)
// Prints "16"
print(MemoryLayout<timeval>.stride)
// Prints "16"
print(MemoryLayout<timeval>.alignment)
// Prints "8"
let sockfd = socket(AF_INET, SOCK_STREAM, 0)
var optval = timeval(tv_sec: 30, tv_usec: 0)
let optlen = socklen_t(MemoryLayout<timeval>.size)
if setsockopt(sockfd, SOL_SOCKET, SO_RCVTIMEO, &optval, optlen) == 0 {
// ...
}

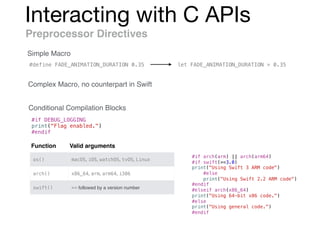

Preprocessor Directives
Simple Macro
Complex Macro, no counterpart in Swift
Conditional Compilation Blocks
#if DEBUG_LOGGING
print("Flag enabled.")
#endif
#define FADE_ANIMATION_DURATION 0.35 let FADE_ANIMATION_DURATION = 0.35
Function Valid arguments
os() macOS, iOS, watchOS, tvOS, Linux
arch() x86_64, arm, arm64, i386
swift() >= followed by a version number
#if arch(arm) || arch(arm64)
#if swift(>=3.0)
print("Using Swift 3 ARM code")
#else
print("Using Swift 2.2 ARM code")
#endif
#elseif arch(x86_64)
print("Using 64-bit x86 code.")
#else
print("Using general code.")
#endif

Swift & Objective-C in the Same Project

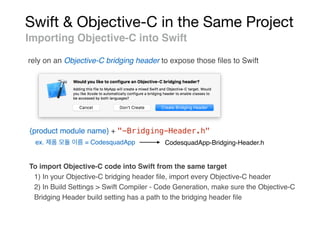

Importing Objective-C into Swift
rely on an Objective-C bridging header to expose those files to Swift
{product module name} + "-Bridging-Header.h"
ex. = CodesquadApp CodesquadApp-Bridging-Header.h
To import Objective-C code into Swift from the same target
1) In your Objective-C bridging header file, import every Objective-C header
2) In Build Settings > Swift Compiler - Code Generation, make sure the Objective-C
Bridging Header build setting has a path to the bridging header file

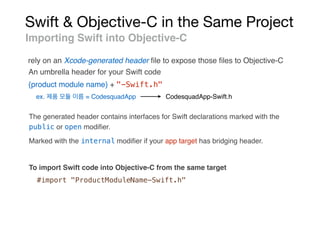

Importing Swift into Objective-C
rely on an Xcode-generated header file to expose those files to Objective-C
{product module name} + "-Swift.h"
ex. = CodesquadApp CodesquadApp-Swift.h
The generated header contains interfaces for Swift declarations marked with the
public or open modifier.
An umbrella header for your Swift code
Marked with the internal modifier if your app target has bridging header.
To import Swift code into Objective-C from the same target
#import "ProductModuleName-Swift.h"

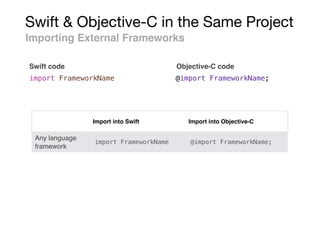

Importing External Frameworks
Swift code
import FrameworkName @import FrameworkName;
Objective-C code
Import into Swift Import into Objective-C
Any language
framework
import FrameworkName @import FrameworkName;

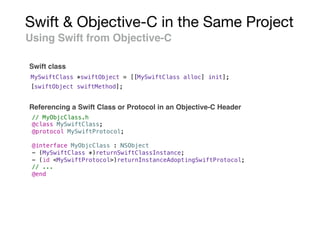

Using Swift from Objective-C
Swift class
MySwiftClass *swiftObject = [[MySwiftClass alloc] init];
[swiftObject swiftMethod];
// MyObjcClass.h
@class MySwiftClass;
@protocol MySwiftProtocol;
@interface MyObjcClass : NSObject
- (MySwiftClass *)returnSwiftClassInstance;
- (id <MySwiftProtocol>)returnInstanceAdoptingSwiftProtocol;
// ...
@end
Referencing a Swift Class or Protocol in an Objective-C Header

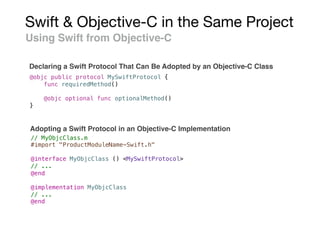

Declaring a Swift Protocol That Can Be Adopted by an Objective-C Class
@objc public protocol MySwiftProtocol {
func requiredMethod()
@objc optional func optionalMethod()
}
// MyObjcClass.m
#import "ProductModuleName-Swift.h"
@interface MyObjcClass () <MySwiftProtocol>
// ...
@end
@implementation MyObjcClass
// ...
@end
Adopting a Swift Protocol in an Objective-C Implementation

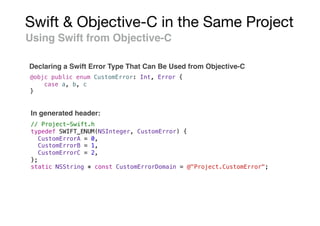

Declaring a Swift Error Type That Can Be Used from Objective-C
@objc public enum CustomError: Int, Error {
case a, b, c
}
// Project-Swift.h
typedef SWIFT_ENUM(NSInteger, CustomError) {
CustomErrorA = 0,
CustomErrorB = 1,
CustomErrorC = 2,
};
static NSString * const CustomErrorDomain = @"Project.CustomError";
In generated header:

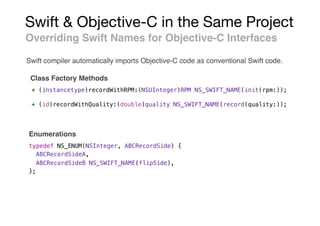

Overriding Swift Names for Objective-C Interfaces
Class Factory Methods
+ (instancetype)recordWithRPM:(NSUInteger)RPM NS_SWIFT_NAME(init(rpm:));
+ (id)recordWithQuality:(double)quality NS_SWIFT_NAME(record(quality:));
typedef NS_ENUM(NSInteger, ABCRecordSide) {
ABCRecordSideA,
ABCRecordSideB NS_SWIFT_NAME(flipSide),
};
Enumerations
Swift compiler automatically imports Objective-C code as conventional Swift code.

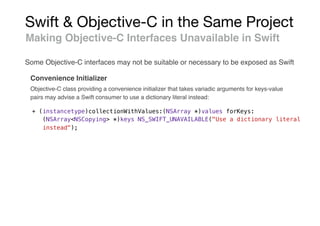

Making Objective-C Interfaces Unavailable in Swift
Convenience Initializer
+ (instancetype)collectionWithValues:(NSArray *)values forKeys:
(NSArray<NSCopying> *)keys NS_SWIFT_UNAVAILABLE("Use a dictionary literal
instead");
Some Objective-C interfaces may not be suitable or necessary to be exposed as Swift
Objective-C class providing a convenience initializer that takes variadic arguments for keys-value
pairs may advise a Swift consumer to use a dictionary literal instead:

Reﬁning Objective-C Declarations
use the NS_REFINED_FOR_SWIFT macro on an Objective-C method declaration to
provide a reﬁned Swift interface in an extension
@interface Color : NSObject
- (void)getRed:(nullable CGFloat *)red
green:(nullable CGFloat *)green
blue:(nullable CGFloat *)blue
alpha:(nullable CGFloat *)alpha NS_REFINED_FOR_SWIFT;
@end
extension Color {
var RGBA: (red: CGFloat, green: CGFloat, blue: CGFloat, alpha: CGFloat) {
var r: CGFloat = 0.0
var g: CGFloat = 0.0
var b: CGFloat = 0.0
var a: CGFloat = 0.0
__getRed(red: &r, green: &g, blue: &b, alpha: &a)
return (red: r, green: g, blue: b, alpha: a)
}
}

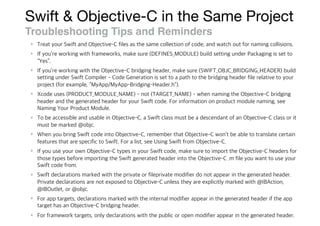

Troubleshooting Tips and Reminders

Swift와 Objective-C를 함께 쓰는 방법

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Swift와 Objective-C를 함께 쓰는 방법

Similar to Swift와 Objective-C를 함께 쓰는 방법 (20)

More from Jung Kim

More from Jung Kim (15)

Recently uploaded

Recently uploaded (20)

Swift와 Objective-C를 함께 쓰는 방법
