掀起 Swift 的面紗

掀起 SWIFT 的⾯面紗
下班⾃我進修裝屌指南
Pofat @ iPlayground

Clone 過 Android Source
Code 嗎
讀過 Android Source
Code 嗎？
對 Android Source Code
有什什麼感想?
起源

Swift Source Code 對⼯工作的幫助
0%

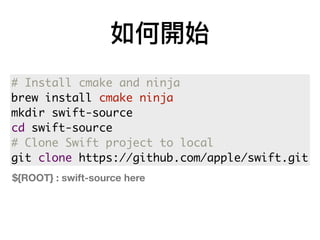

如何開始
# Install cmake and ninja
brew install cmake ninja
mkdir swift-source
cd swift-source
# Clone Swift project to local
git clone https://github.com/apple/swift.git
${ROOT} : swift-source here

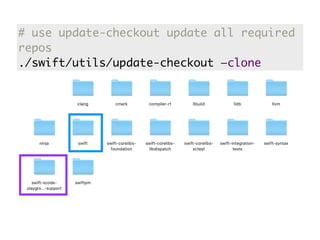

# use update-checkout update all required
repos
./swift/utils/update-checkout —clone

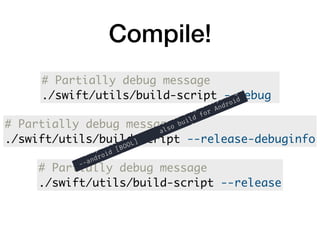

Compile!
# Partially debug message
./swift/utils/build-script --release-debuginfo
./swift/utils/build-script --debug
./swift/utils/build-script --release

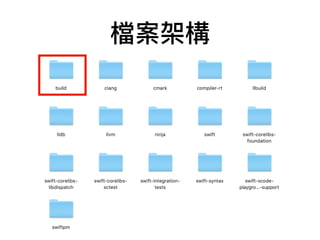

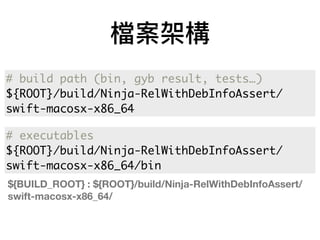

檔案架構
# build path (bin, gyb result, tests…)
${ROOT}/build/Ninja-RelWithDebInfoAssert/
swift-macosx-x86_64
# executables
swift-macosx-x86_64/bin
${BUILD_ROOT} : ${ROOT}/build/Ninja-RelWithDebInfoAssert/
swift-macosx-x86_64/

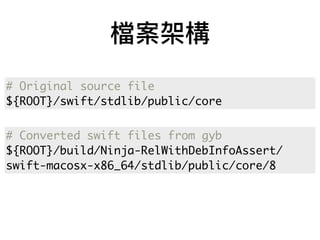

檔案架構
# Original source file
${ROOT}/swift/stdlib/public/core
# Converted swift files from gyb
swift-macosx-x86_64/stdlib/public/core/8

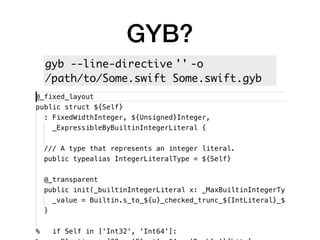

GYB?
gyb --line-directive '' -o  
/path/to/Some.swift Some.swift.gyb

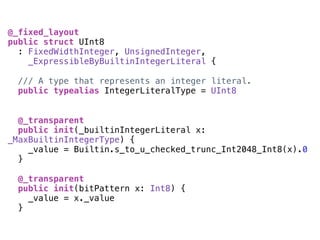

@_fixed_layout
public struct UInt8
: FixedWidthInteger, UnsignedInteger,
_ExpressibleByBuiltinIntegerLiteral {
/// A type that represents an integer literal.
public typealias IntegerLiteralType = UInt8
@_transparent
public init(_builtinIntegerLiteral x:
_MaxBuiltinIntegerType) {
_value = Builtin.s_to_u_checked_trunc_Int2048_Int8(x).0
}
@_transparent
public init(bitPattern x: Int8) {
_value = x._value
}

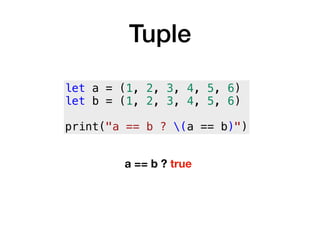

Tuple
let a = (1, 2, 3, 4, 5, 6)
let b = (1, 2, 3, 4, 5, 6)
print("a == b ? (a == b)")
a == b ? true

Tuple
let c = (1, 2, 3, 4, 5, 6, 7)
let d = (1, 2, 3, 4, 5, 6, 7)
print("c == d ? (c == d)")
error: binary operator '==' cannot be applied
to two '(Int, Int, Int, Int, Int, Int, Int)' operands

Tuple’s GYB
% for arity in range(2,7):

% typeParams = [chr(ord("A") + i) for i in range(arity)]

% tupleT = "({})".format(",".join(typeParams))

% equatableTypeParams = ", ".join(["{} : Equatable".format(c) for c in typeParams])

% originalTuple = "("a", {})".format(", ".join(map(str, range(1, arity))))

% greaterTuple = "("a", {})".format(", ".join(map(str, range(1, arity - 1) + [arity])))

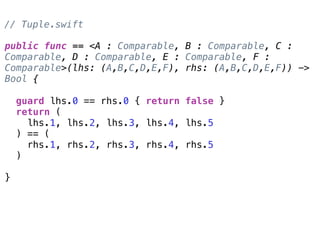

// Tuple.swift.gyb

public func == <A : Comparable, B : Comparable, C :
Comparable, D : Comparable, E : Comparable, F :
Comparable>(lhs: (A,B,C,D,E,F), rhs: (A,B,C,D,E,F)) ->
Bool { 
guard lhs.0 == rhs.0 { return false }
return (
lhs.1, lhs.2, lhs.3, lhs.4, lhs.5
) == (
rhs.1, rhs.2, rhs.3, rhs.4, rhs.5
) 
 
}
// Tuple.swift

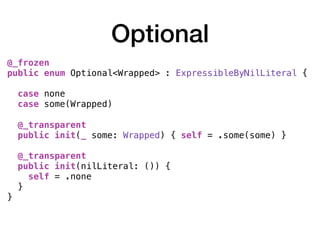

Optional
@_frozen
public enum Optional<Wrapped> : ExpressibleByNilLiteral {
case none
case some(Wrapped)
@_transparent
public init(_ some: Wrapped) { self = .some(some) }
@_transparent
public init(nilLiteral: ()) {
self = .none
}
}

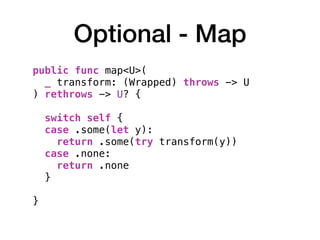

Optional - Map
public func map<U>(
_ transform: (Wrapped) throws -> U
) rethrows -> U? { 
switch self {
case .some(let y):
return .some(try transform(y))
case .none:
return .none
}
}

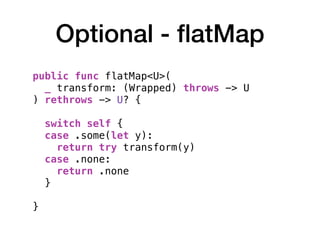

Optional - ﬂatMap
public func flatMap<U>(
_ transform: (Wrapped) throws -> U
) rethrows -> U? { 
switch self {
case .some(let y):
return try transform(y)
case .none:
return .none
}
}

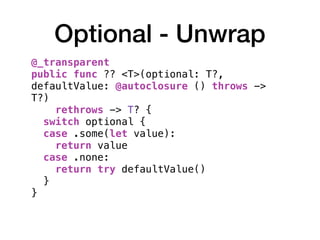

Optional - Unwrap
@_transparent
public func ?? <T>(optional: T?,
defaultValue: @autoclosure () throws ->
T?)
rethrows -> T? {
switch optional {
case .some(let value):
return value
case .none:
return try defaultValue()
}
}

Bool
@_fixed_layout
public struct Bool {
@usableFromInline
internal var _value: Builtin.Int1
public init() {
let zero: Int8 = 0
self._value =
Builtin.trunc_Int8_Int1(zero._value)
}
}

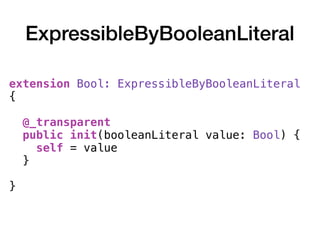

ExpressibleByBooleanLiteral
extension Bool: ExpressibleByBooleanLiteral
{
@_transparent
public init(booleanLiteral value: Bool) {
self = value
}
}

How to @autoclosure
if measurement.count > 0 && sum / Double(measurement.count) < 5 {
// do somehting..
}
measurement.count might be ZERO!!

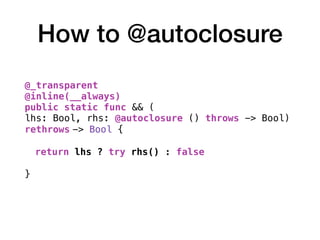

How to @autoclosure
@_transparent
@inline(__always)
public static func && (
lhs: Bool, rhs: @autoclosure () throws -> Bool)
rethrows -> Bool {
return lhs ? try rhs() : false
}

Attributes
• @inlinable ：expose not interface but source code, work
when -O

• @_transparent: must do inline even when -Onone

• @_ﬁxed_layout: Processed at SIL stage. It tells compiler
that access properties by oﬀset is possible without
looking up metadata.

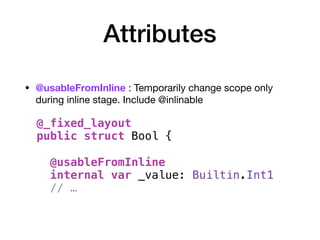

Attributes
• @usableFromInline : Temporarily change scope only
during inline stage. Include @inlinable 
 
 
 
 
 
 
 
@_fixed_layout
public struct Bool {
@usableFromInline
internal var _value: Builtin.Int1
// …

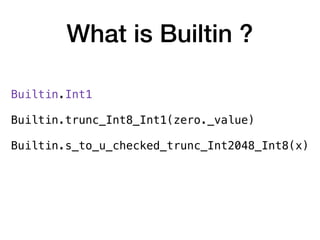

What is Builtin ?
Builtin.Int1 
Builtin.trunc_Int8_Int1(zero._value)  
 
Builtin.s_to_u_checked_trunc_Int2048_Int8(x)

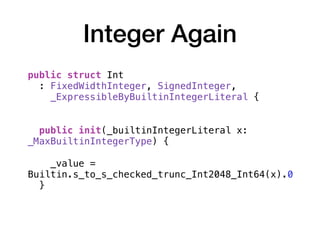

Integer Again
public struct Int
: FixedWidthInteger, SignedInteger,
_ExpressibleByBuiltinIntegerLiteral {
 
public init(_builtinIntegerLiteral x:
_MaxBuiltinIntegerType) {
_value =
Builtin.s_to_s_checked_trunc_Int2048_Int64(x).0
}

+

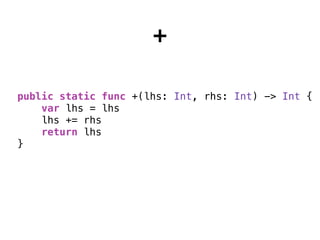

public static func +(lhs: Int, rhs: Int) -> Int {
var lhs = lhs
lhs += rhs
return lhs
}

+=

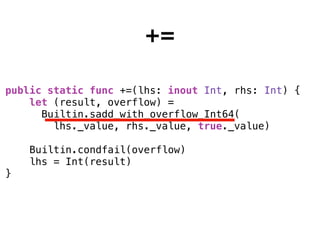

public static func +=(lhs: inout Int, rhs: Int) {
let (result, overflow) =
Builtin.sadd_with_overflow_Int64(
lhs._value, rhs._value, true._value)
Builtin.condfail(overflow)
lhs = Int(result)
}

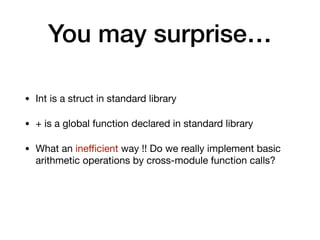

You may surprise…
• Int is a struct in standard library

• + is a global function declared in standard library

• What an ineﬃcient way !! Do we really implement basic
arithmetic operations by cross-module function calls?

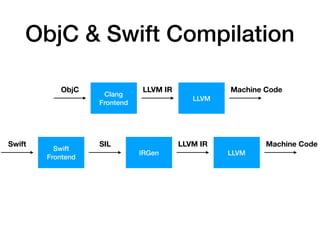

ObjC & Swift Compilation
Clang
Frontend
ObjC
LLVM
LLVM IR Machine Code
Swift
Frontend
Swift
IRGen
SIL Machine Code
LLVM
LLVM IR

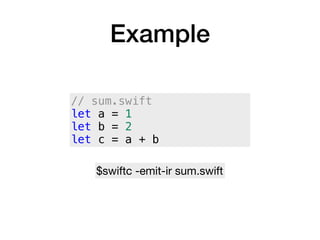

Example
// sum.swift
let a = 1
let b = 2
let c = a + b
$swiftc -emit-ir sum.swift

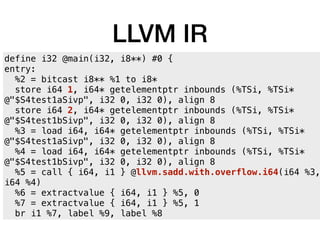

LLVM IR
define i32 @main(i32, i8**) #0 {
entry:
%2 = bitcast i8** %1 to i8*
store i64 1, i64* getelementptr inbounds (%TSi, %TSi*
@"$S4test1aSivp", i32 0, i32 0), align 8
store i64 2, i64* getelementptr inbounds (%TSi, %TSi*
@"$S4test1bSivp", i32 0, i32 0), align 8
%3 = load i64, i64* getelementptr inbounds (%TSi, %TSi*
@"$S4test1aSivp", i32 0, i32 0), align 8
%4 = load i64, i64* getelementptr inbounds (%TSi, %TSi*
@"$S4test1bSivp", i32 0, i32 0), align 8
%5 = call { i64, i1 } @llvm.sadd.with.overflow.i64(i64 %3,
i64 %4)
%6 = extractvalue { i64, i1 } %5, 0
%7 = extractvalue { i64, i1 } %5, 1
br i1 %7, label %9, label %8

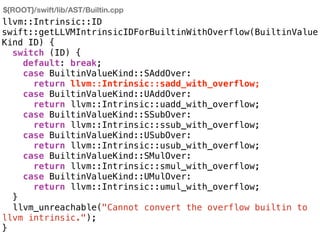

llvm::Intrinsic::ID
swift::getLLVMIntrinsicIDForBuiltinWithOverflow(BuiltinValue
Kind ID) {
switch (ID) {
default: break;
case BuiltinValueKind::SAddOver:
return llvm::Intrinsic::sadd_with_overflow;
case BuiltinValueKind::UAddOver:
return llvm::Intrinsic::uadd_with_overflow;
case BuiltinValueKind::SSubOver:
return llvm::Intrinsic::ssub_with_overflow;
case BuiltinValueKind::USubOver:
return llvm::Intrinsic::usub_with_overflow;
case BuiltinValueKind::SMulOver:
return llvm::Intrinsic::smul_with_overflow;
case BuiltinValueKind::UMulOver:
return llvm::Intrinsic::umul_with_overflow;
}
llvm_unreachable("Cannot convert the overflow builtin to
llvm intrinsic.");
}
${ROOT}/swift/lib/AST/Builtin.cpp

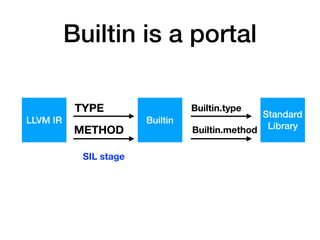

Builtin is a portal
LLVM IR Builtin
Builtin.type
Builtin.method
Standard
Library
TYPE
METHOD
SIL stage

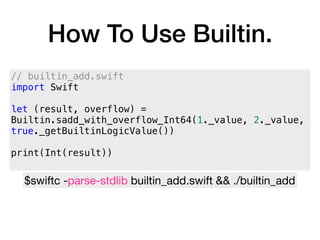

How To Use Builtin.
// builtin_add.swift
import Swift
Builtin.sadd_with_overflow_Int64(1._value, 2._value,
true._getBuiltinLogicValue())
print(Int(result))
$swiftc -parse-stdlib builtin_add.swift && ./builtin_add

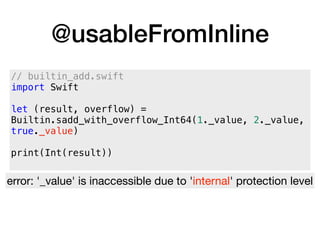

@usableFromInline
// builtin_add.swift
import Swift
Builtin.sadd_with_overflow_Int64(1._value, 2._value,
true._value)
print(Int(result))
error: '_value' is inaccessible due to 'internal' protection level

Sequence
https://swiftdoc.org/v4.2/protocol/sequence/hierarchy/

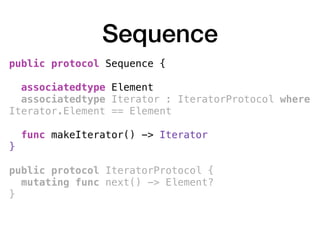

Sequence
public protocol Sequence {
associatedtype Element
associatedtype Iterator : IteratorProtocol where
Iterator.Element == Element
func makeIterator() -> Iterator
} 
public protocol IteratorProtocol {
mutating func next() -> Element?
}

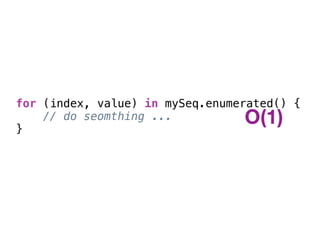

for (index, value) in mySeq.enumerated() {
// do seomthing ...
}
O(1)

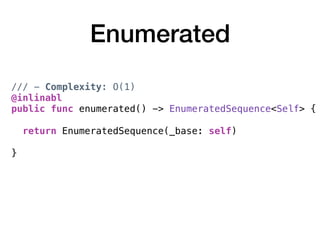

Enumerated
/// - Complexity: O(1)
@inlinabl
public func enumerated() -> EnumeratedSequence<Self> {
return EnumeratedSequence(_base: self)
}

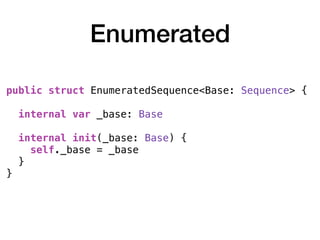

Enumerated
public struct EnumeratedSequence<Base: Sequence> {
internal var _base: Base
internal init(_base: Base) {
self._base = _base
}
}

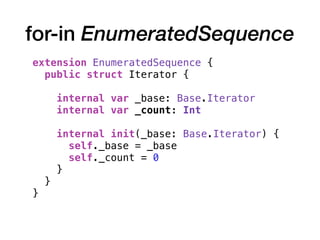

for-in EnumeratedSequence
extension EnumeratedSequence {
public struct Iterator {
internal var _base: Base.Iterator
internal var _count: Int
internal init(_base: Base.Iterator) {
self._base = _base
self._count = 0
}
}
}

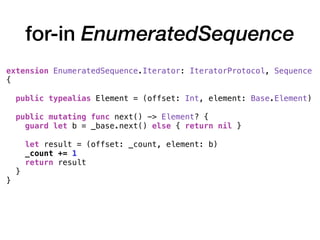

for-in EnumeratedSequence
extension EnumeratedSequence.Iterator: IteratorProtocol, Sequence
{
public typealias Element = (offset: Int, element: Base.Element)
public mutating func next() -> Element? {
guard let b = _base.next() else { return nil }
let result = (offset: _count, element: b)
_count += 1
return result
}
}

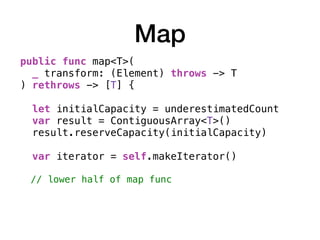

Map
public func map<T>(
_ transform: (Element) throws -> T
) rethrows -> [T] { 
let initialCapacity = underestimatedCount
var result = ContiguousArray<T>()
result.reserveCapacity(initialCapacity)
var iterator = self.makeIterator()
// lower half of map func

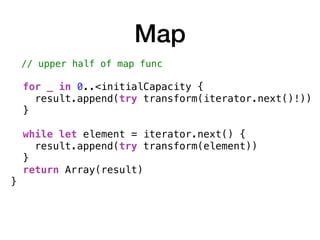

Map
// upper half of map func
for _ in 0..<initialCapacity {
result.append(try transform(iterator.next()!))
}
while let element = iterator.next() {
result.append(try transform(element))
}
return Array(result)
}

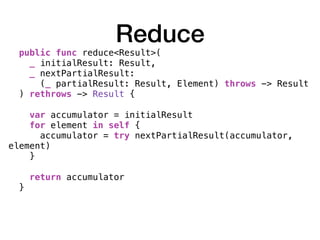

Reduce
public func reduce<Result>(
_ initialResult: Result,
_ nextPartialResult:
(_ partialResult: Result, Element) throws -> Result
) rethrows -> Result { 
var accumulator = initialResult
for element in self {
accumulator = try nextPartialResult(accumulator,
element)
} 
return accumulator
}

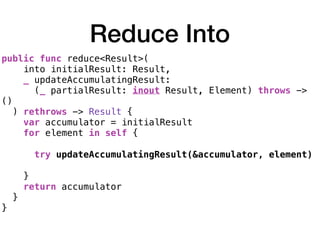

Reduce Into
public func reduce<Result>(
into initialResult: Result,
_ updateAccumulatingResult:
(_ partialResult: inout Result, Element) throws ->
()
) rethrows -> Result {
var accumulator = initialResult
try updateAccumulatingResult(&accumulator, element)
}
return accumulator
}
}

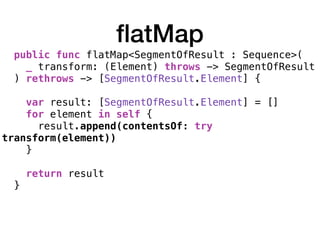

ﬂatMap
public func flatMap<SegmentOfResult : Sequence>(
_ transform: (Element) throws -> SegmentOfResult
) rethrows -> [SegmentOfResult.Element] { 
var result: [SegmentOfResult.Element] = []
result.append(contentsOf: try
transform(element))
} 
return result
}

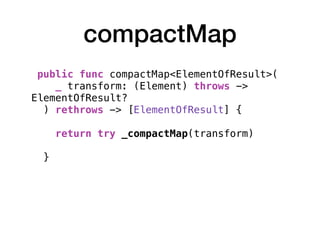

compactMap
public func compactMap<ElementOfResult>(
_ transform: (Element) throws ->
ElementOfResult?
) rethrows -> [ElementOfResult] { 
return try _compactMap(transform) 
}

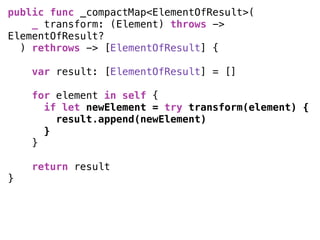

public func _compactMap<ElementOfResult>(
_ transform: (Element) throws ->
ElementOfResult?
) rethrows -> [ElementOfResult] { 
var result: [ElementOfResult] = [] 
if let newElement = try transform(element) {
result.append(newElement)
}
} 
return result
}

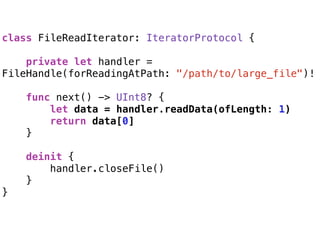

class FileReadIterator: IteratorProtocol {
 
private let handler =
FileHandle(forReadingAtPath: "/path/to/large_file")!
func next() -> UInt8? {
let data = handler.readData(ofLength: 1)
return data[0]
}
 
deinit {
handler.closeFile()
}
}

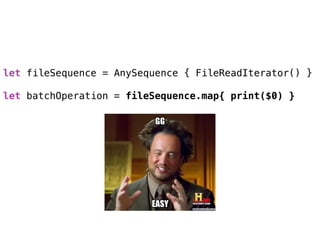

let fileSequence = AnySequence { FileReadIterator() } 
let batchOperation = fileSequence.map{ print($0) }

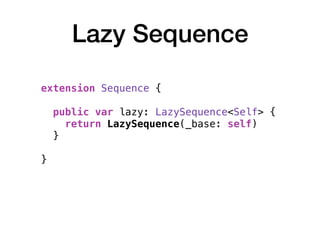

Lazy Sequence
extension Sequence { 
public var lazy: LazySequence<Self> {
return LazySequence(_base: self)
} 
}

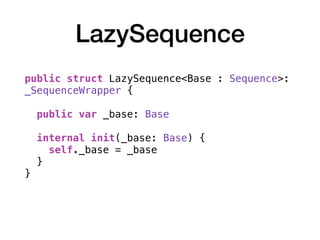

LazySequence
public struct LazySequence<Base : Sequence>:
_SequenceWrapper { 
public var _base: Base
internal init(_base: Base) {
self._base = _base
}
}

LazySequenceProtocol
extension LazySequenceProtocol {
public func map<U>(
_ transform: @escaping (Elements.Element) -> U
) -> LazyMapSequence<Self.Elements, U> {
return LazyMapSequence(_base: self.elements,
transform: transform)
}
}

public struct LazyMapSequence<Base : Sequence,
Element> {
internal var _base: Base
internal let _transform: (Base.Element) -> Element
internal init(_base: Base, transform: @escaping
(Base.Element) -> Element) { 
self._base = _base
self._transform = transform 
}
}

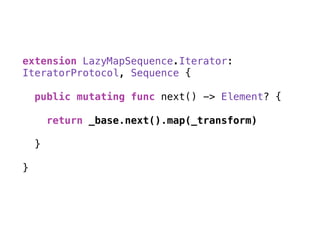

extension LazyMapSequence.Iterator:
IteratorProtocol, Sequence {
public mutating func next() -> Element? { 
return _base.next().map(_transform) 
}
}

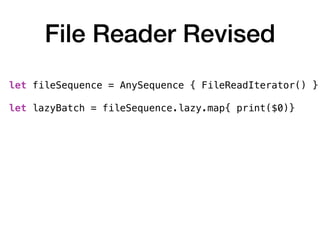

File Reader Revised
let lazyBatch = fileSequence.lazy.map{ print($0)}
var batchIterator = lazyBatch.makeIterator()
for _ in 1 ... 10 {
batchIterator.next()
}

File Reader Revised
let lazyBatch = fileSequence.lazy.map{ print($0)}
var batchIterator = lazyBatch.makeIterator()
for _ in 1 ... 1024 {
batchIterator.next()
}

Collection
https://swiftdoc.org/v4.2/protocol/collection/hierarchy/

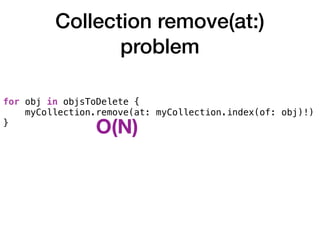

Collection remove(at:)
problem
for obj in objsToDelete {
myCollection.remove(at: myCollection.index(of: obj)!)
}
O(N)

Collection
removeAll(where:)
extension RangeReplaceableCollection { 
public mutating func removeAll(
where shouldBeRemoved: (Element) throws -> Bool
) rethrows { 
let suffixStart = try _halfStablePartition(isSuffixElement:
shouldBeRemoved) 
removeSubrange(suffixStart…)
}
}

mutating func _halfStablePartition(
isSuffixElement: (Element) throws -> Bool
) rethrows -> Index { 
guard var i = try firstIndex(where: isSuffixElement)
else { return endIndex }
var j = index(after: i)
while j != endIndex {
if try !isSuffixElement(self[j]) { swapAt(i, j);
formIndex(after: &i) }
formIndex(after: &j)
} 
return i
}

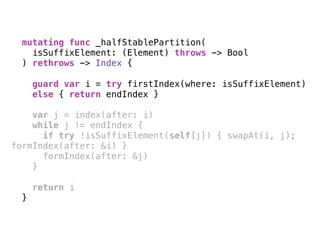

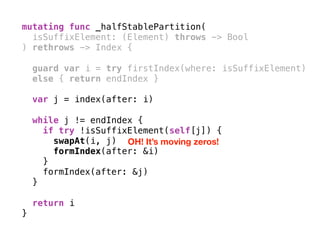

mutating func _halfStablePartition(
isSuffixElement: (Element) throws -> Bool
) rethrows -> Index { 
guard var i = try firstIndex(where: isSuffixElement)
else { return endIndex }
var j = index(after: i) 
while j != endIndex {
if try !isSuffixElement(self[j]) {
swapAt(i, j)
formIndex(after: &i)
}
formIndex(after: &j)
} 
return i
}
OH! It’s moving zeros!

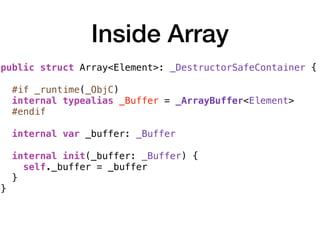

Inside Array
public struct Array<Element>: _DestructorSafeContainer {
#if _runtime(_ObjC)
internal typealias _Buffer = _ArrayBuffer<Element>
#endif
internal var _buffer: _Buffer
internal init(_buffer: _Buffer) {
self._buffer = _buffer
}
}

struct Array
_buﬀer
struct _ArrayBuﬀer
_storage
struct _BridgStorage
_rawValue

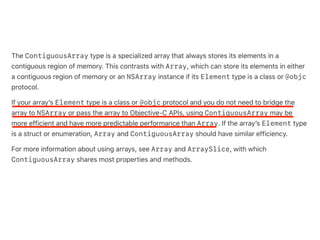

Contiguous Array 
or
NSArray
Builtin.BridgeObject

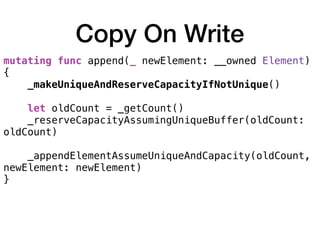

Copy On Write
mutating func append(_ newElement: __owned Element)
{
_makeUniqueAndReserveCapacityIfNotUnique() 
let oldCount = _getCount()
_reserveCapacityAssumingUniqueBuffer(oldCount:
oldCount) 
_appendElementAssumeUniqueAndCapacity(oldCount,
newElement: newElement)
}

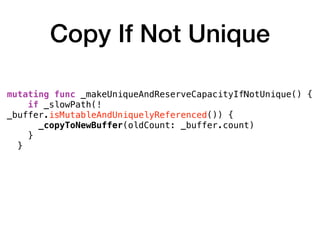

Copy If Not Unique
mutating func _makeUniqueAndReserveCapacityIfNotUnique() {
if _slowPath(!
_buffer.isMutableAndUniquelyReferenced()) {
_copyToNewBuffer(oldCount: _buffer.count)
}
}

isUnique
mutating func isMutableAndUniquelyReferenced() ->
Bool {
return isUniquelyReferenced()
}

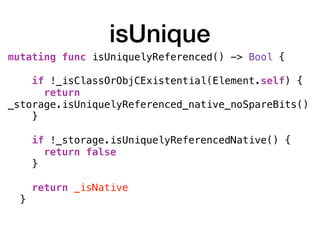

isUnique
mutating func isUniquelyReferenced() -> Bool { 
if !_isClassOrObjCExistential(Element.self) {
return
_storage.isUniquelyReferenced_native_noSpareBits()
}
if !_storage.isUniquelyReferencedNative() {
return false
} 
return _isNative
}

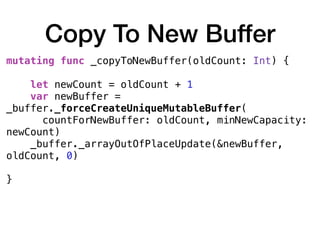

Copy To New Buffer
mutating func _copyToNewBuffer(oldCount: Int) {
let newCount = oldCount + 1
var newBuffer =
_buffer._forceCreateUniqueMutableBuffer(
countForNewBuffer: oldCount, minNewCapacity:
newCount)
_buffer._arrayOutOfPlaceUpdate(&newBuffer,
oldCount, 0)
}

What If Reach Full Capacity
func _forceCreateUniqueMutableBufferImpl(
countForBuffer: Int, minNewCapacity: Int,
requiredCapacity: Int
) -> _ContiguousArrayBuffer<Element> {
let minimumCapacity = Swift.max(requiredCapacity,
minNewCapacity > capacity
? _growArrayCapacity(capacity) : capacity)
return _ContiguousArrayBuffer(
_uninitializedCount: countForBuffer, minimumCapacity:
minimumCapacity)
}

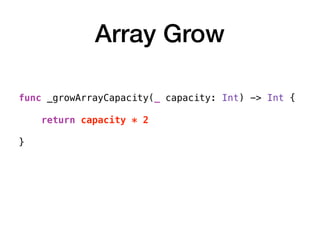

Array Grow
func _growArrayCapacity(_ capacity: Int) -> Int {
return capacity * 2
}

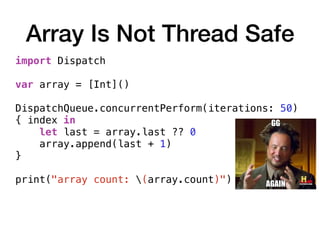

Array Is Not Thread Safe
import Dispatch
var array = [Int]()
DispatchQueue.concurrentPerform(iterations: 50)
{ index in
let last = array.last ?? 0
array.append(last + 1)
}
print("array count: (array.count)")

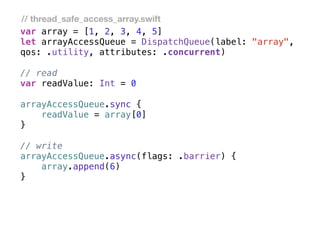

var array = [1, 2, 3, 4, 5]
let arrayAccessQueue = DispatchQueue(label: "array",
qos: .utility, attributes: .concurrent)
// read
var readValue: Int = 0
arrayAccessQueue.sync {
readValue = array[0]
}
// write
arrayAccessQueue.async(flags: .barrier) {
array.append(6)
}
// thread_safe_access_array.swift

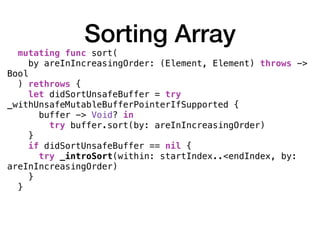

Sorting Array
mutating func sort(
by areInIncreasingOrder: (Element, Element) throws ->
Bool
) rethrows {
let didSortUnsafeBuffer = try
_withUnsafeMutableBufferPointerIfSupported {
buffer -> Void? in
try buffer.sort(by: areInIncreasingOrder)
}
if didSortUnsafeBuffer == nil {
try _introSort(within: startIndex..<endIndex, by:
areInIncreasingOrder)
}
}

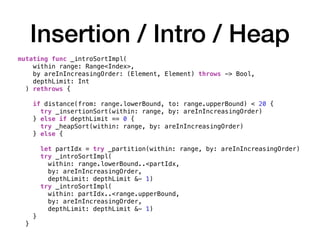

Insertion / Intro / Heap
mutating func _introSortImpl(
within range: Range<Index>,
by areInIncreasingOrder: (Element, Element) throws -> Bool,
depthLimit: Int
) rethrows {
if distance(from: range.lowerBound, to: range.upperBound) < 20 {
try _insertionSort(within: range, by: areInIncreasingOrder)
} else if depthLimit == 0 {
try _heapSort(within: range, by: areInIncreasingOrder)
} else {
let partIdx = try _partition(within: range, by: areInIncreasingOrder)
try _introSortImpl(
within: range.lowerBound..<partIdx,
by: areInIncreasingOrder,
depthLimit: depthLimit &- 1)
try _introSortImpl(
within: partIdx..<range.upperBound,
}
}

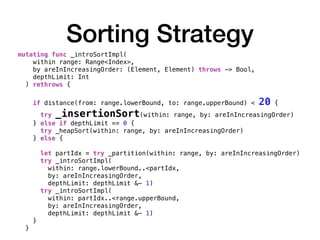

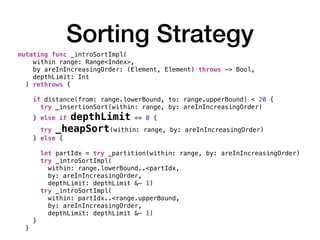

Sorting Strategy
mutating func _introSortImpl(
within range: Range<Index>,
by areInIncreasingOrder: (Element, Element) throws -> Bool,
depthLimit: Int
) rethrows {
if distance(from: range.lowerBound, to: range.upperBound) < 20 {
try _insertionSort(within: range, by: areInIncreasingOrder)
} else if depthLimit == 0 {
try _heapSort(within: range, by: areInIncreasingOrder)
} else {
let partIdx = try _partition(within: range, by: areInIncreasingOrder)
try _introSortImpl(
within: range.lowerBound..<partIdx,
try _introSortImpl(
within: partIdx..<range.upperBound,
}
}

Develop Swift !!
Better Reduce:
User ﬁrst element in sequence as initial value

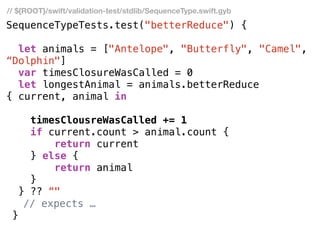

SequenceTypeTests.test("betterReduce") {
let animals = ["Antelope", "Butterfly", "Camel",
“Dolphin"]
var timesClosureWasCalled = 0
let longestAnimal = animals.betterReduce
{ current, animal in
timesClousreWasCalled += 1
if current.count > animal.count {
return current
} else {
return animal
}
} ?? “"
// expects …
}
// ${ROOT}/swift/validation-test/stdlib/SequenceType.swift.gyb

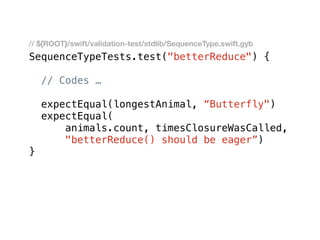

SequenceTypeTests.test("betterReduce") {
// Codes …
expectEqual(longestAnimal, “Butterfly")
expectEqual(
animals.count, timesClosureWasCalled,
"betterReduce() should be eager”)
}
// ${ROOT}/swift/validation-test/stdlib/SequenceType.swift.gyb

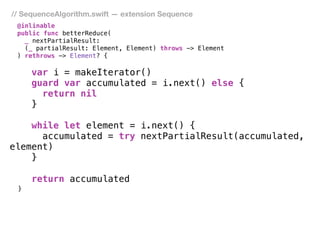

// SequenceAlgorithm.swift — extension Sequence
@inlinable
public func betterReduce(
_ nextPartialResult:
(_ partialResult: Element, Element) throws -> Element
) rethrows -> Element? { 
var i = makeIterator()
guard var accumulated = i.next() else {
return nil
}
while let element = i.next() {
accumulated = try nextPartialResult(accumulated,
element)
}
return accumulated
}

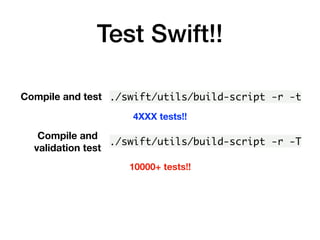

Test Swift!!

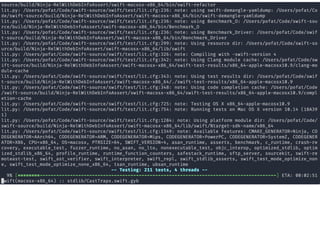

./swift/utils/build-script -r -tCompile and test
./swift/utils/build-script -r -T
Compile and
validation test
4XXX tests!!
10000+ tests!!

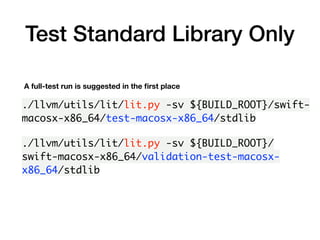

Test Standard Library Only
./llvm/utils/lit/lit.py -sv ${BUILD_ROOT}/swift-
macosx-x86_64/test-macosx-x86_64/stdlib
A full-test run is suggested in the ﬁrst place
./llvm/utils/lit/lit.py -sv ${BUILD_ROOT}/
swift-macosx-x86_64/validation-test-macosx-
x86_64/stdlib

sh ${BUILD_ROOT}/validation-test-macosx-x86_64/stdlib/Output/
Bool.swift.script
Now you can do single test with

${BUILD_ROOT} ninja swift-stdlib
Thanks to ninja, lets build standard library only
sh ${BUILD_RTTO}/validation-test-macosx-x86_64/ 
stdlib/Output/SequenceType.swift.gyb.script
And do test!!

所以，看 Source
Code到底有何幫助？？

參參考來來源
• https://github.com/apple/swift

• 喵神 Swift 标准库源码导读

我的裝屌指南系列列
• EP I: GitHub 裝屌指南

• EP II: Vim 裝屌指南

• EP III: Debug 裝屌指南

講完惹
關愛 Swift 發展者或想討論，歡迎和我聯聯繫 tjazzterATgmailDOTcom

掀起 Swift 的面紗

More Related Content

What's hot

Similar to 掀起 Swift 的面紗

Recently uploaded

掀起 Swift 的面紗
