SW Testing Fundamentals

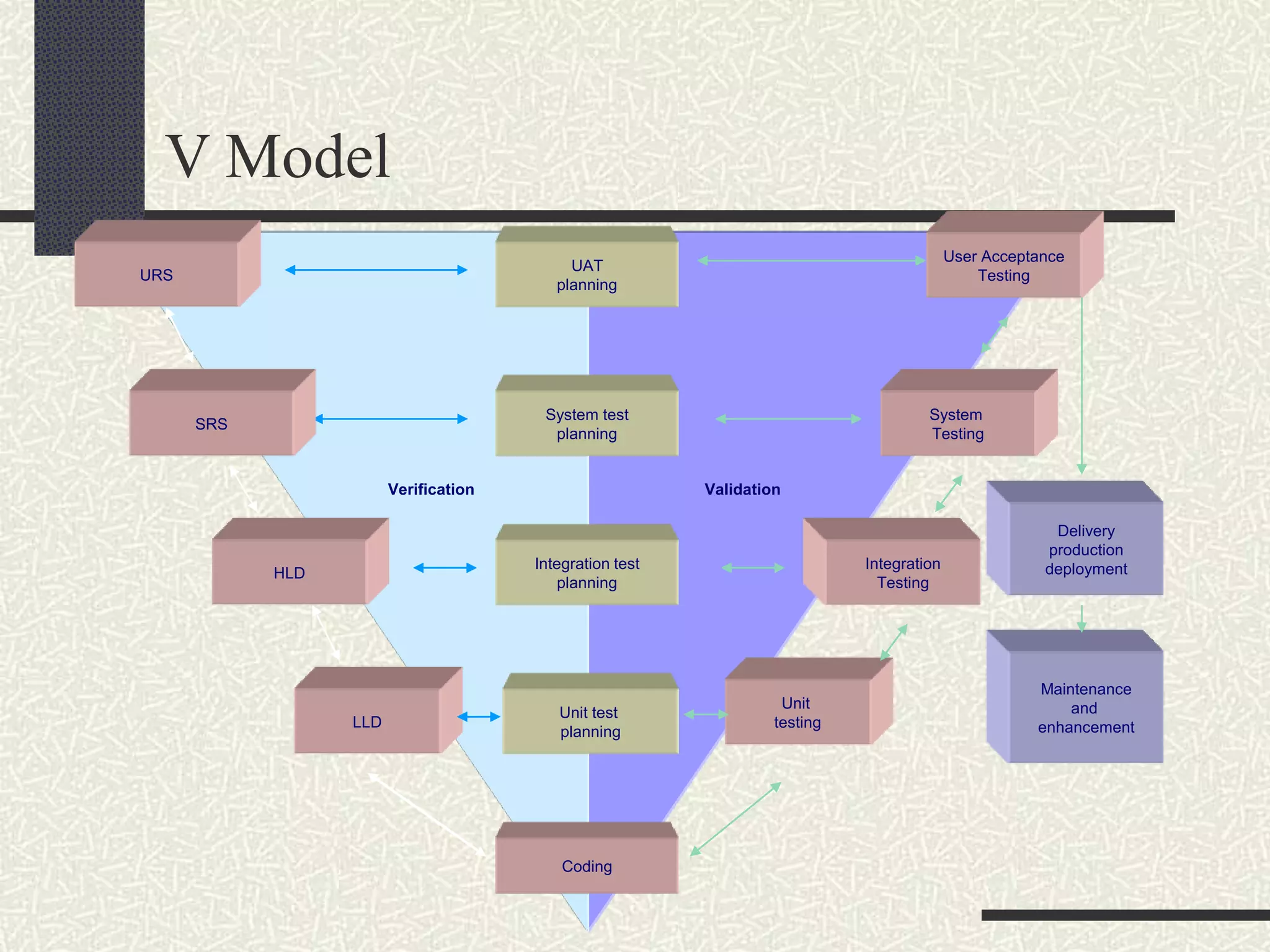

V Model
Validation
Verification
LLD
HLD
System test
planning
Integration test
planning
Unit test
planning
Unit
testing
Integration
Testing
System
Testing
Coding
Delivery
production
deployment
Maintenance
and
enhancement
URS
UAT
planning
SRS
User Acceptance
Testing

Software Testing Definitions
The process of executing a program or part of a program
with the intent of finding errors (Myers)
Testing is the process of trying to discover every
conceivable fault of weakness in a work product (Myers)
The process of searching for errors (Kaner)
Testing is the process of evaluating or exercising a system
or system component by manual or automated means to
verify that the software meets specified requirements
(IEEE)

Role of a Tester
Assuring that the software meets user’s needs
Software can be used with negligible risks
This is achieved through
 Verification
 Validation

Verification
Verification
 It is the process of determining whether or not the
product of given phase fulfill the spec. from the
previous phase
 Uses reviews, inspections, and demonstrations
throughout development to ensure the quality of the
product of that phase, including that it meets the
requirements from the previous phase
 “Are we building the product right?”

Validation
 The process of evaluating the software at the end of
development to ensure compliance with the specified
requirements
 Includes what is commonly thought of as testing and
comparing test results to expected results. Validation
occurs at the end of the development process.
 “Are we building the right product?”

Static & Dynamic Testing
Most of the Verification and Validation activities can be
classified as Static or Dynamic
Static testing (without executing any program)
 Requirement reviews
 Design reviews
 Code reviews
Dynamic testing
 Testing the software by executing the program

Characteristics of Static Testing
Static
 Do not observe system behavior
 Not looking for system failures
 Faults are directly detected
 Focus is on evaluating adherence to
 Standards,
 Guidelines and
 Processes

Characteristics of Dynamic Testing
contd.
Dynamic Testing
 The program is executed
 System behavior is observed
 Determine the existence of failures
 Reveals the presence of faults

White Box Testing (Code based testing)
A software testing technique whereby explicit knowledge
of the internal workings of the item being tested
white box testing uses specific knowledge of programming
code to examine outputs
Also known as glass box, structural, clear box and open
box testing

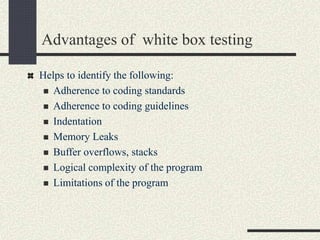

Advantages of white box testing
Helps to identify the following:
 Adherence to coding standards
 Adherence to coding guidelines
 Indentation
 Memory Leaks
 Logical complexity of the program
 Limitations of the program

Black Box Testing (Requirement based
testing)
A Software testing technique where by the expected
outcome of the software is verified by providing inputs
without considering how the software program arrives at
those outputs.
The internal workings of the item being tested are not
known by the tester in black box testing.
The tester does not ever examine the programming code
and does not need any further knowledge of the program
other than its specifications.

Advantages of Black Box testing
The test is unbiased because the designer and the tester are
independent of each other.
The tester does not need knowledge of any specific
programming language(s).
The test is done from the point of view of the end user, not
the designer or programmer.
Test cases can be designed as soon as the specifications are
complete.

Conclusions
White box testing does not guarantee 100% conformance
to requirements
Black box testing does not concentrate on logic of the
program, but ensures conformance to requirements
Hence, both white box and black box testing is required to
ensure product quality”
All types of testing, whether static or dynamic, white box
or black box are part of verification and validation
activities.
Let us see verification and validation activities.

Verification & Validation activities
Verification
 Requirement reviews
 Design reviews
 Code reviews
Validation
 Unit testing
 Module testing
 Integration testing
 System testing
 Regression testing
 User acceptance testing
 Field testing

Software Testing Life Cycle
[STLC]

STLC Activities
Test Requirements document
Test Planning
Test Design
Test Execution
Defect Tracking

Test Requirements Document
From the software requirement specification
(SRS)document, list of testable requirements are extracted
and referred to as Test Requirements document.
All non technical and un-testable requirements are
extracted from this document.
Test requirements document is the base for further
activities of Testing

Test Planning
Mainly, Test Plan addresses
 Scope and objectives of testing
 Schedule, Resources and Reporting
 Types of testing and methodology
 Phases of testing applicable and scope of testing in each
phase
 Software and hardware requirements
 Identified risks and strategy for mitigating those risks
 Information regarding tools used through entire testing
life cycle

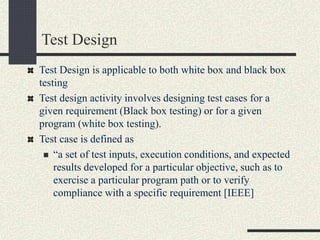

Test Design
Test Design is applicable to both white box and black box
testing
Test design activity involves designing test cases for a
given requirement (Black box testing) or for a given
program (white box testing).
Test case is defined as
 “a set of test inputs, execution conditions, and expected
results developed for a particular objective, such as to
exercise a particular program path or to verify
compliance with a specific requirement [IEEE]

Test Execution
Test execution involves
 Executing developed test cases on a piece of program
developed (Code based test cases) or on the entire
software application (Requirements based test cases)
 The status of test case is updated during execution
 Possible states include
 Pass, Fail, Unable to test, deferred
 Test execution statistics are collected and analyzed for
test progress monitoring

Defect Tracking
When actual result obtained from the software application
during testing, deviates from expected result written in the
test case, it is termed as a “defect”.
The test case is failed and a defect posted on the software.
The defect is fixed by the development team and the fix is
provided in subsequent releases.
The fix provided for the defect is validated and if found to
be working, the test case passes and the defect closed.
The defect posting, tracking, closing the defects are done
in a defect tracking tool.

SDLC Vs STLC
Requirements
Phase
Design Phase
Coding Phase
Deployment Phase
Test Requirements
document
Test Planning
Test Case Design
Unit Test Execution
Defect
Tracking
System Test Execution

Requirement reviews
Requirement quality affects work performed in subsequent
phases of the system life cycle. Requirements of poor
quality
 Increase cost and schedule: effort is spent during design
and implementation trying to figure out what the
requirements are
 Decrease product quality: poor requirements cause the
wrong product to be delivered or de-scoping to meet
schedule or cost constraints

Requirement reviews contd.
Increase maintenance effort: lack of traceability increases
the effort to identify where changes are required, especially
as knowledgeable personnel leave
Create disputes with the customer/client: ambiguity causes
differences in expectations and contractual issues
Are a major cause of project failure: all of the above

Requirement Quality factors
Cohesive
Complete
Consistent
Feasible
Independent
Necessary
Unambiguous
Mandatory
Usable
Terse
Testable
Traceable
Non redundant
External observability
Metadata
Verifiable and validatable

Requirement quality factors
Requirements
Cohesive
Complete
Consistent
Feasible
Independent
Necessary
Unambiguous
Mandatory
Usable
Testable Traceable
Non redundant
External observability
Metadata
Terse

Requirement characteristic: Cohesive
Does each requirement specify only one thing?
Do all parts of the requirement belong together:
Do all parts of a data requirement involve the same data
abstraction?
Do all parts of a functional requirement involve the same
functional abstraction?
Do all parts of an interface requirement involve the same
interface?
Do all parts of a quality requirement involve the same
quality factor or sub-factor?

Requirement characteristic: Complete
Is each requirement self contained with no missing
information?
Does each requirement contain all relevant information?
For example, does the requirement include all relevant
preconditions such as the relevant state of the application
or component?
Does each requirement need no further amplification or
clarification?
Does each requirement provide sufficient information to
avoid ambiguity?

Requirement characteristic: Complete
If the requirement is not a part of the current release, then
is it specified as completely and as thoroughly as is
currently known?
Is each identified “requirement” actually a single
requirement and not actually multiple requirements?
Is the use of conjunctions (“and” and “or”) restricted to
preconditions and invariants?

Requirement characteristic: Consistent
Is each requirement externally consistent with its
documented sources such as higher-level goals and
requirements?
Is each requirement externally consistent with all other
related requirements of the same type or at the same
requirements specification? For example, two requirements
should neither be contradictory nor describe the same
concepts using different words.
Are the constituent parts of each requirement internally
consistent? For example, are all parts of a compound
precondition or post-condition consistent?

Requirement characteristic: Feasible
Can each requirement be implemented given the existing
hardware or software technology?
Can each requirement be implemented given the
endeavor’s budget?
endeavor’s schedule?
endeavor’s constraints on staffing (e.g., staff size,
expertise, and experience)?
limitations of physics, chemistry, etc?

Requirement characteristic:Independent
The requirement does not rely on another requirement to
be fully understood.
Requirements that need proxies are not independent.
Parent requirements rely on their children to be fully
defined.
In testing, a parent is not satisfied until all its children are
met.
Why retain them? These may be source requirements that
must be retained.

Requirement characteristic:Independent
Also, using them to structure the proxies or children
improves understandability.
Example: "user friendly" can be used to assign, talk about,
or locate the group of proxies defining "user friendly" for
that particular project.

Requirement characteristic: Mandatory
Is each requirement essential to the success of the
application or component?
Is each requirement truly mandatory (i.e., a true
requirement that must be met and implemented)?
Is each requirement truly required by some stakeholder,
typically the customer or user organization?
Is each requirement free from unnecessary constraints
(e.g., architecture, design, implementation, testing, and
other technology decisions)?

Requirement characteristic: Mandatory
Does each requirement specify a “what” rather than a
“how”?
Is each requirement clearly differentiated from:
A “nice to have” item on someone’s wish list (i.e., gold-
plating)?
Constraints?

Requirement characteristic: Metadata
Individual requirements should have metadata (i.e.,
attributes or annotations) that characterizes them.
This metadata can include (but is not limited to)
 Acceptance criteria, Allocation, Assumptions,
Identification, Prioritization, Rationale, Schedule,
Status, and Tracing information

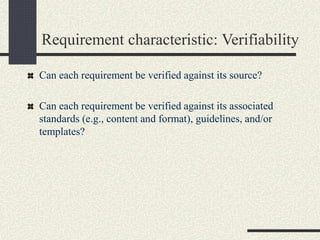

Requirement characteristic: Verifiability
Can each requirement be verified against its source?
Can each requirement be verified against its associated
standards (e.g., content and format), guidelines, and/or
templates?

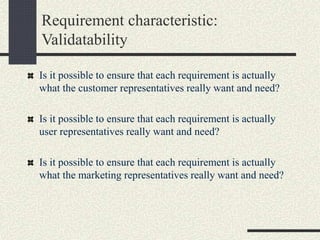

Requirement characteristic:
Validatability
Is it possible to ensure that each requirement is actually
what the customer representatives really want and need?
user representatives really want and need?
what the marketing representatives really want and need?

Does each requirement only specify behavior and/or
characteristics that are externally observable when treating
the application or component as a black-box?
Does each requirement avoid specifying any internal
architecture, design, implementation, or testing decisions?
If a requirement does specify one or more internal
architecture, design, implementation, or testing decisions,
is the requirement clearly identified as a constraint rather
than as a pure requirement?
Requirement characteristic:
External Observability

Requirement characteristic: Testable
Able to prove the object of the requirement satisfies the
requirement
Un-testable requirements can lead to disputes with the
client.
Example of an un-testable requirement
 “The system shall produce the ABC report in a
timely manner”
 “The system shall be written in the approved
language”

Requirement characteristic: Traceable
Examine the statement “The system shall calculate
retirement annuities and survivor benefits”
Observations:
 2 different requirement clubbed together
 Cannot maintain distinctness while reporting
 Can be decomposed as under
 The system shall calculate
 A. Retirement annuities
 B. Survivor benefits

Requirement attributes
Unique identifier
Organizational information--for example, what are the
parents/children of the requirement, its category or type
Method of validation
Item(s) that satisfy the requirement
Source of requirement (legal citation, business policy, etc.)
Association with the test plan/tests(s)
Requirement owners (subject matter expert, analyst)
Requirement status

Requirement attributes contd.
Requirement change history
WBS code
Risk
Priority
Cost (estimate and actual)
Degree of difficulty
Metrics
Justification for the requirement
Cross references to other requirements or documents
Comments

Case Study I:
Requirements review
Review the software requirement specification (SRS)
document for marketing division of ABC pharmaceuticals
and provide review comments in the enclosed template.
Categorize each review comment by appropriate severity
and category.
At the end, provide statistics of review comments in terms
of severity and category.

Design reviews
Reviews for software design focus on data design,
architectural design and procedural design.
In general, there are two types of design reviews
 Preliminary design review
 Design walkthrough

Preliminary design review and design
walkthrough…
Preliminary design review
 Assesses the translation of requirements to the design
of data and architecture
Design walkthrough
 Concentrates on the procedural correctness of
algorithms as they are implemented within program
modules

Design review verifications…
Do designs satisfy all specified requirements for the
product?
Have all relevant standards, guidelines applied or met?
Are product design and processing capabilities
compatible?
Are safety requirements met?

Do designs meet functional and operational requirements..
For example, performance and reliability requirements?
Is the design satisfactory for all the anticipated
environmental and load conditions?
Are components or service elements standardized and do
they provide reliability, availability and maintainability?

Are plans for implementing design technically feasible (in
terms of purchasing, production, installation, inspection
and testing)
Are the assumptions made during the design process valid?

Case Study II: Design review
Review the Design specification document requirements
provided in SRS for marketing division of ABC
pharmaceuticals and provide review comments in the
enclosed template.
and category.
of severity and category

Introduction :Code review
Code review is a phase in the computer program
development process.
It is an activity in which, authors of code, peer reviewers,
and perhaps quality assurance reviewers get together to
review code.
The code is read line by line for
 real or potential flaws,
 consistency with the overall program design,
 comment quality, and
 adherence to coding standards”

Advantages:Code review
Finding and correcting errors at this stage is relatively
inexpensive
Code reviews tend to reduce the more expensive process of
handling, locating, and fixing bugs during later stages of
development or after code delivery to users

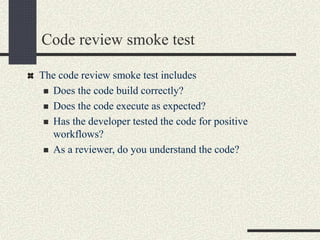

Code review smoke test
The code review smoke test includes
 Does the code build correctly?
 Does the code execute as expected?
 Has the developer tested the code for positive
workflows?
 As a reviewer, do you understand the code?

Comments and coding conventions
Does the code respect project specific coding conventions?
Does the source file start with an appropriate header and copyright
information?
Are variable declarations properly commented?
Are units of numeric data properly commented?
Are units of numeric data clearly stated?
Are all functions, methods and classes documented?
Are complex algorithms, code optimizations adequately commented?
Does the code that have been commented out have an explanation?
Are comments used to identify missing functionality or unresolved
issue in the code?

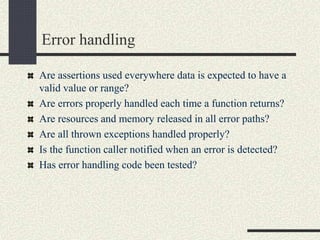

Error handling
Are assertions used everywhere data is expected to have a
valid value or range?
Are errors properly handled each time a function returns?
Are resources and memory released in all error paths?
Are all thrown exceptions handled properly?
Is the function caller notified when an error is detected?
Has error handling code been tested?

Resource Leaks
Is allocated memory (non-garbage collected) freed?
Are all objects (Database connections, Sockets, Files, etc.)
freed even when an error occurs?
Is the same object released more than once?
Does the code accurately keep track of reference counting?

Thread safeness
Are all global variables thread-safe?
Are objects accessed by multiple threads thread-safe?
Are locks released in the same order they are obtained?
Is there any possible deadlock or lock contention?

Control Structures
Are loop ending conditions accurate?
Is the code free of unintended infinite loops?

Performance
Do recursive functions run within a reasonable amount of
stack space?
Are whole objects duplicated when only references are
needed?
Does the code have an impact on size, speed, or memory
use?
Are you using blocking system calls when performance is
involved?
Is the code doing busy waits instead of using
synchronization mechanisms or timer events?

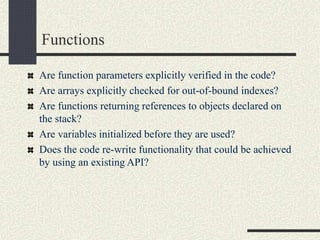

Functions
Are function parameters explicitly verified in the code?
Are arrays explicitly checked for out-of-bound indexes?
Are functions returning references to objects declared on
the stack?
Are variables initialized before they are used?
Does the code re-write functionality that could be achieved
by using an existing API?

Bug fixes
Does a fix made to a function change the behavior of caller
functions?
Does the bug fix correct all the occurrences of the bug?

Case Study III
Review the code written in C++ for marketing division of
ABC pharmaceuticals and provide review comments in the
enclosed template.
and category.
of severity and category. The categories can include
 Comments and coding conventions, Error handling,
Resource leaks, Control structures, Bug fixes,
Functions, Deviation from Req, Deviation from design.

White Box Testing (Code based testing)
A software testing technique whereby explicit knowledge
of the internal workings of the item being tested
White box testing uses specific knowledge of
programming code to examine outputs
Examines the internal design of the program
Requires detailed knowledge about structure of the
program
Allows exhaustive testing of all the logical paths (i.e. each
line of code for each condition)
Also known as glass box, structural, clear box and open
box testing

Advantages of white box testing
Helps to identify the following:
 Adherence to coding standards
 Adherence to coding guidelines
 Indentation
 Memory Leaks
 Buffer overflows, stacks
 Logical complexity of the program
 Limitations of the program

Statement coverage
Statement Coverage
 Each statement in the program is executed at least once
 100% of the statements in the program should be
executed at-least once
Weakness: It is necessary but not sufficient. When there is
a decision, you have to ensure that it takes a correct path. It
is not done by statement coverage.

Branch/Decision Coverage
Statement coverage does not address all outcomes of
decisions.
Branches like If..Else, Do..While are to be evaluated for
both true and false
Test each condition for a true and a false value
That is, each branch direction must be traversed at-least
once
Ex: For the condition (A>=5) or (B<2) THEN X=1, the test cases are:
A=6 and B=4 …True (Here, A is true and B is false)
A=2 and B=3 … False (Here, A is false and B is false)
That is, check how many decisions are there. For each decision, write
one test case for true and one test case for false

Conditions Coverage
All the conditions should be executed at least once for both
false and true conditions.
True and false outcome of each condition in a decision
must be tested.
Do not look for combinations.
Example: For the condition (A>=5) or (B<2) THEN X=1, the test
cases are:
A=6 and B=3 …True (Here, A is true and B is False)
A=2 and B=1 … True (Here, A is false and B is true)

Condition/Decision coverage
Condition/Decision Coverage
 It may not always result in decision coverage. In such
cases, go in for decision +condition coverage.
Multiple Condition Coverage:
 Go for combinations. For Example: For the condition
(A>=5) or (B<2) THEN X=1, the test cases are:
 A=6, B=6
 A=6, B=3
 A=2, B=1
 A=2, B=3

Path Coverage
Errors are sometimes revealed in a path including
combination of branches.
More general coverage requires executing all possible
paths, known as path coverage criteria.
Number of paths may be infinite if there are loops.
100% path coverage is impossible

White box testing steps
Examine the program logic
Design test cases to satisfy logic coverage criteria
Run the test cases
Compare the actual results obtained with expected results
in the test case
Report errors in case of deviation from expected results
Compare actual coverage to expected coverage

Cyclomatic Complexity
Cyclomatic complexity provides quantitative measure of
logical complexity of the program
Cyclomatic complexity provides minimum number of
independent paths in the given program
Based on the Cyclomatic complexity value obtained, the
decision to accept the program for testing or not, can be
made

Black Box Testing
(Requirement Based Testing)

Software Testing Phases
Unit Testing
Module Testing
Integration Testing
System Testing
User Acceptance Testing
Field Testing

Client Server Application Testing

Introduction to web applications
Web Technology
Web Architecture
HTML/DHTML
Web servers
Cookies
Types of testing applicable to web applications

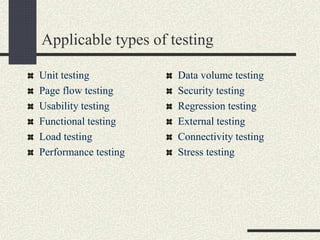

Applicable types of testing
Unit testing
Page flow testing
Usability testing
Functional testing
Load testing
Performance testing
Data volume testing
Security testing
Regression testing
External testing
Connectivity testing
Stress testing

Unit Testing
Unit testing involves testing of the individual modules and
pages that make up the application
In general, unit tests check the behavior of a given page i.e.
does the application behave correctly and consistently
given either good or bad input
Some of the types of checking would include:
 Invalid input (Missing output, out of bound input,
entering an integer when float expected, and vice versa,
control characters in strings etc.,)
 Alternate Input Format (e.g., 0 instead of 0.0,
0.00000001 instead of 0 etc.,)

Unit Testing
 Button click testing e.g., multiple clicking with and
without pauses between clicks.
 Immediate reload after button click prior to response
having been received.
 Multiple reloads in the same manner as above.
Random input and random click testing.
 This testing involves a user randomly pressing buttons
(including multiple clicks on "hrefs") and randomly
picking checkboxes and selecting them.

Unit Testing
There are two forms of output screen expected:
 An error page indicating the type of error encountered.
 A normal page showing either the results of the
operation or the normal next page where more options
may be selected.
“In no event should a catastrophic error occur”

Page Flow Testing
Page flow testing deals with ensuring that jumping to
random pages does not confuse the application.
Each page should typically check to ensure that it can only
be viewed via specific previous pages, and if the referring
page was not one of that set, then an error page should be
displayed.
A page flow diagram is a very useful aid for the tester to
use when checking for correct page flow within the
application.

Impact of page flow on security
Some aspects of page flow testing cross into security.
Some simple checks to consider are
 Forcing the application to move in an unnatural path.
 The application must resist, and display appropriate
error message

Page flow testing : Details
 Log into the system and then attempt to jump to any
page in any order once a session has been established.
 Use bookmarks and set up temporary web pages to
redirect into the middle of an application using faked
session information

Usability testing
Usability testing ensures that all pages present a cohesive
look to the user, including spelling, graphics, page size,
response time, etc
Examples of usability testing include:
 Spelling checks
 Graphical user interface checks (colors, dithering,
aliasing, size, etc.,)
 Adherence to web GUI Standards
 Meaningful error messages
 Accuracy of data displayed

Usability testing contd.
 Page Navigation
 Context sensitivity
 Editorial continuity
 Accessibility
 Accuracy of data in the database as a result of user
input
 Accuracy of data in the database as a result of external
factors (e.g. imported data)
 Meaningful help pages including context sensitive help

Functional Testing
Functional testing ensures
 Conformance to functional requirements of the
application
 Scenarios/Test cases are designed to find out
conformance to the requirements
 Whole business logic gets tested as part of the
functional testing

Load Testing
Load testing the application involves generation of varying
loads (in terms of concurrent users) against
 web server,
 the databases supporting the web server and
 the middle ware/application server logic connecting
those pages to the databases
Load testing includes verification of data integrity on the
web pages, within the back end database and also the load
ramping or surges in activity against the application

Load Testing
"Does the site scale", "Is the site's response time
deterministic, etc.
Examples of load testing would include:
 Sustained low load test (50 users for around 48 hours).
 Sustained high load test (300+ users for 12 hours).
 Surge test (e.g. run 50 users, then surge to 500 users
and then return to 50, no memory leaks, lost users,
orphaned processes, etc., should be seen).
 The system should continue running with multiple
surges at various times during the day.
 This test should run for 48 hours.

Load Testing contd.
Load testing is also to discover at what load the application
would fail and what are the saturation point.

Performance Testing
Performance Testing refers to the response time by the
software to process and present the requests made by the
end users
Performance depends on
 Speed of the network
 Hardware configuration of application server, web
server, database server and the client system (Processor,
RAM etc)
 Volume of data in the database

Data Volume Testing
Data volume testing involves testing the application under
data load, where large quantities of data are passed through
the system. (e.g. large number of items in
dropdown/combo boxes, large amount of data in text
boxes).
Performance of the application should be monitored during
this testing, since a slow database could significantly affect
response time and data must be collected over this.

Data Volume Testing
This data can be used as a control set for contrasting
monitoring data from a live system and providing
predictive information indicating when major application
stress points may be encountered.
No errors should be seen on application pages or in error
logs for pages that are data intensive.

Security Testing
Security testing involves verifying weather both the
servers and the application are managing security correctly
Security from server perspective
 Attempt to penetrate system security both internally and
externally to ensure the system that houses the
application is secure from bother internal and external
attacks.
 Attempt to cause things like buffer overflow to result in
root access being given accidentally, (such code does
exist, but explaining it is beyond the scope of this
document)

Security Testing contd.
 Attempt to cause the application to crash by giving it
false or random information
 Ensure that the server OS is up to correct patch levels
from security viewpoint
 Ensure that the server is physically secure

Application level security testing involves testing some or
all the following
 Unauthenticated access to the application
 Unauthorized access to the application
 Unencrypted data passing
 Protection of the data
 Log files should be checked to ensure they do not
contain sensitive information

 Faked sessions. Sessions information must be
valid and secure. (e.g. a URL containing a
session identifier cannot be copied from one
system to another and then the application be
continued from the different system without
being detected)
 Multiple login testing by a single user from
several clients

 Attempt to break into the application by running
username/password checks using password-cracking
program
 Security audit, e.g. examine log files, etc., no
sensitive information should be left in raw
text/human readable form in any log file
 Automatic logout after N minutes of inactivity with
positive feedback to the user

Regression Testing
Regression testing ensures that during the lifetime of the
application, any fixes do not break other parts of the
application
This type of testing typically involves running all the tests,
or a relevant subset of those tests when defect fixes are
made or new functionalities added
The regression tests must also be kept up to date with
planned changes in the application. As the application
evolves, so must the tests

External Testing
External testing deals with checking the effect of external
factors on the application. Example of external factors would be
the web server, the database server, the browser, network
connectivity issues, etc.
Examples of external testing are:
 Database unavailability test (e.g., is login or further access to
the application permitted should the database go into a
scheduled maintenance window)
 Database error detection and recovery test (e.g., simulate
loss of database connectivity, the application should detect
this, and report an error accordingly). The application should
be able to recover without human intervention when the
database returns

External Testing
 Database authentication test (check access privileges to
the database).
 Connection pooling test (ensure that database
connections are used sparingly, and will not run out
under load).
 Web page authentication test.
 Browser compatibility tests – for example, does the
application behave the same way on multiple browsers,
does the JavaScript work the same way, etc.,

Connectivity Testing
Connectivity testing involves determining if the servers
and clients behave appropriately under varying
circumstances
This testing is difficult to accomplish from a server
perspective since it is expected that the servers will be
operating with standby power supplies as well as being in a
highly available configuration
Thus the server tests need not be run using a power–off
scenario; simply removing the network connection to the
PC may be sufficient

Connectivity Testing contd.
Two aspects of connectivity testing
 Voluntary, where a user actively interacts with the
system in an unexpected way
 Involuntary, where the system acts in an unpredictable
manner

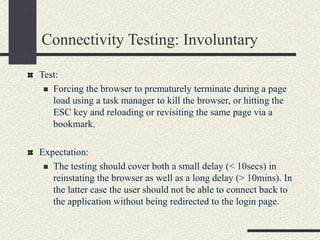

Connectivity Testing: Involuntary
Test:
 Forcing the browser to prematurely terminate during a page
load using a task manager to kill the browser, or hitting the
ESC key and reloading or revisiting the same page via a
bookmark.
Expectation:
 The testing should cover both a small delay (< 10secs) in
reinstating the browser as well as a long delay (> 10mins). In
the latter case the user should not be able to connect back to
the application without being redirected to the login page.

Test:
 Simulation of Hub Failure between PC and the Web Server.
 Removing the network cable from the PC, attempt to visit a
page; abort the visit, and then reconnect the cable can
simulate this.
 The test should use two time delays; the first should be
under 15 seconds, and the second delay around 15 minutes
before reconnecting.
 After reconnecting, attempt to reload the previous page
Expectation: The user should be able to continue with the
session unless a specified timeout has occurred in which case
the user should be redirected to a login page.

Test: Web server on/off test.
 Shutdown the web server, then restart the server
Expectation:
 The user should be able to connect back to the
application without being redirected to the login page.
This will prove the statelessness of individual pages
Note:
 The shutdown is only for the web server. Do not
attempt this with an application server, as that is a
separate test

Test: Database server on/off test.
 Shutdown the database server and restart it
Expectation: The user should be able to connect back to
the application without being redirected to the login page
It may be that a single transaction needs to be redone, and
the application should detect this and react accordingly

Application server on/off test
 Shutdown the application server and restart it
 There are two possible outcomes for this depending on
how session management is implemented
 The first outcome is that the application redirects to
an error page indicating loss of connectivity, and the
user is requested to login and retry
 The second outcome is the application continues
normally since no session information was lost
because it was held in a persistent state that
transcends application server restarts

Connectivity Testing: Voluntary
Examples of voluntary connectivity testing include;
 Quit from session without the user saving state.
 Quit from session with the user saving state.
 Server – forced quit from session due to inactivity.
 Server – forced quit from session due to server
problem.
 Client forced quit from session due to visiting another
site in the middle of a session for a brief period of time.
 Client – forced quit from session due to visiting another
site/application for an extended period of time.
 Client – forced quit due to browser crashing

Extended Session Testing
Remaining in a session for an extended period of time and
click items to navigate the screen. The session must not be
terminated by the server except in the case of a deliberate
logout initiated by the user
Remaining on a single page for an extended length of time.
The session should be automatically terminated and the
next click by the user should take the user to a page
indicating why the session was terminated and the option
to log back into the system should be present.
The page may have timed redirect associated with it, and if
so, a page indicating a timed out session should be
displayed.

Extended Session Testing
The following must be tested
 The user's session should have been saved and may
optionally be restored on re login
 The user's state must reflect the last complete action the
user performed
 Leaving the application pages to visit another site or
application and then returning to original application
via a bookmark or the back button should result in a
restoration of state, and the application should continue
as if the person had not left

Power Hit/Reboot/Other Cycle Testing
Power Hit/Cycle testing involves determining if the servers
and clients act appropriately during the recovery process
 Client power off/on test
 Client hub power off/on test
 Client network connection removal/reinsertion test
 Server power off/on test
 Server Hub power off/on test
 Server network connection removal/reinsertion test

Standards Conformance Testing
Conformance to
 Web application standards
 Web user interface standards and guidelines
 Web Usability standards
 Web Security standards
 Domain specific standards (e.g. HL7, CCOW for
Healthcare, SOX for Banking softwares etc)

Bug Life Cycle
Submitted
In work
Solved
Validated
Terminated
Invalid
Deferred
Unable to fix in
If the bug
is not
solved
current release
The bug is tested by the
tester and closed here.
The bug is solved
only by the developer
Developer is
solving the bug
bug
Reviewed The bug is reviewed
and closed by mgmt
Re-work

Bug life cycle [Notes]
The status “Submitted” or “Posted” is assigned to the
defect when the tester raises the defect.
In case the submitted bug is found to be invalid, the bug is
moved to “Terminated” state or “Rejected” state by the
development team.
The status of the bug is moved to “In – work” by the
developer once the developer starts working on fixing the
defect.
Once the developer fixes the bug, the developer moves the
status of the defect to “Solved” state and the fix shall be
made available to the tester in the next release.

Bug life cycle [Notes] contd.
The tester tests the fix for the bug and if found to be
working fine, moves the status of the defect to “Validated”
state, otherwise puts it back to the developer and the status
of the bug is moved back to “In work”.
In case the development team is not in a position to fix the
defect in the current release, the development team moves
the status of the defect to “Deferred” state meaning it shall
be taken up for fixing in the next release.

Reporting defects: Attributes
Product name/Application
Name
Version
Module
Summary
Steps to reproduce
Impact
Database information
Severity
Priority
Browser (IE, NN,
Mozilla)
Screen shots (if required
and available)
Reproducible (Yes, No,
Sporadic)
Type of bug (Performance,
Functionality, User
interface etc)
Phase of testing (Unit,,
System testing)

Details of the attributes
Product name/Application:
 Provide the name of the application being tested or
select it from a list
Version
 Provide version of the application being tested or select
it from a list.. Ex: version 1.0, 1.2 etc
Module
 Provide module of the application in which the bug
occurred or select it from a list

Details of the attributes contd.
Summary
 Provide summary of the defect such that this summary,
when viewed, provides sufficient picture, to which team
and category this defect belongs to.
 Project Leads/Managers assign defect to different
individuals based on the details of the summary.
Steps to reproduce (Description)
 Provide step by step explanation of how you arrived at
the defect. The development team must be able to
reproduce the defect with these details.

Impact
 Provide impact of the defect from the application and
end user’s perspective, being posted.
Database information
 Provide information on database as to whether
 it is a new database,
 or a ported database,
 If yes, ported from which previous release

Severity
 Critical (The defect has severe impact on the end user’s
workflow)
 Serious (The defect has blocked workflow(s), but
alternatives are available)
 Minor (Does not block any user’s workflows. Trivial
error)
Priority
 High (Needs immediate fixing)
 Medium (Can be fixed with agreed time period)
 Low (can be fixed at convenience)

Phase of testing
 Provide or select a phase of testing such as Unit testing,
Module testing, Integration testing, System testing

 This helps to analyze how many bugs were uncovered
during a particular phase of testing and facilitates
comparison of finding out defects across phases

Reproducible
 This attribute generally has 3 options i.e. Yes, No, &
Sporadic
 Selecting Yes indicates that the defect is reproducible
by following the steps specified as part of the defect.
 Selecting No indicates that the defect is not
reproducible in a particular given sequence.
 Selecting “Sporadic” indicates the defect is
reproducible by following the steps specified but the
defect does not consistently appear

Type of bug
 Provide or select the type of bug like whether defect
found falls into the category of Functionality,
Performance etc.
 General categories include Functionality, Performance,
Usability, Load, Volume, Stress, Security, User
interface
 This statistics helps to understand how many
functional, performance etc defects appeared in the
release and gives direction to identify the bottlenecks

Browser
 Provide or select browser on which the software was
being used when the defect occurred. Ex: Internet
explorer, Netscape Navigator, Mozilla etc.
Screenshots
 Attach screenshots of error messages, system crashes
while posting the defect. That facilitates the
development team to understand the defect better

Case Study
Study the following defects observed while testing a
software product and re-write them in proper format and
assign appropriate severity and priority to the defects.

SW Testing Fundamentals

More Related Content

What's hot

Similar to SW Testing Fundamentals

Recently uploaded

SW Testing Fundamentals
