The document outlines a methodology for pre-deployment validation of Network Functions Virtualization Infrastructure (NFVI) to ensure it meets the requirements for Virtual Network Functions (VNFs). It emphasizes the importance of early detection of faults and bottlenecks using simple test cases and provides a flexible testing framework called Yardstick for verifying infrastructure compliance. Additionally, it includes references to various test cases and metrics for assessing NFVI performance.

1. June 20–23, 2016 | Berlin, Germany

2. How to do a pre-deployment
NFVI validation quickly and
efficiently
Jing Lu, Huawei technologies Co., LTD

3. NFV infrastructure
Questions
• Does the NFV infrastructure fulfil the basic VNF type requirements?
• Is the NFV infrastructure under test suitable for the target VNF application?
3
The golden rule: find as many faults/bottlenecks as early as possible, using
simple test case or combinations of test cases.
NFVI validation

4. Pre-deployment validation of NFVI
4
• Use simple test cases or test suite to verify
the infrastructure compliance to VNF
requirements.
• Used for judging if the target VNF is capable
of running on a NFV infrastructure.
• Provide a chance to find any potential
hardware fault, system limit or bottleneck at
an earlier stage.
Deploy VNF

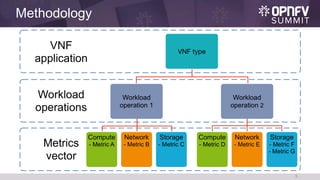

5. Methodology
5

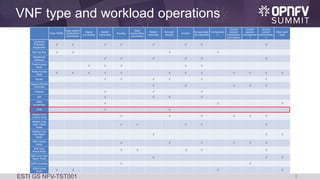

6. VNF type and workload operations
6ESTI GS NFV-TST001

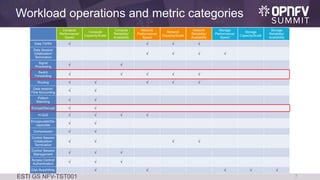

7. Workload operations and metric categories
7ESTI GS NFV-TST001

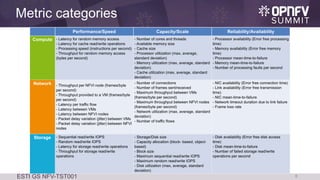

8. Metric categories
8ESTI GS NFV-TST001

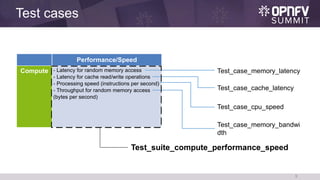

9. Test cases
9
Test_case_memory_latency
Test_case_cache_latency
Test_case_cpu_speed
Test_case_memory_bandwi
dth
Test_suite_compute_performance_speed

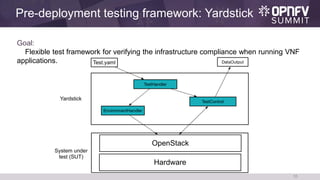

10. Pre-deployment testing framework: Yardstick
10
Goal:
Flexible test framework for verifying the infrastructure compliance when running VNF
applications.

11. Test demo for VPN
11
Test_case_memory_latency
Test_case_cache_latency
Test_case_cpu_speed
Test_case_memory_bandwidth
Test_case_node_throughput
Test_case_vm_throughput
Test_case_flow_latency
Test_case_vm_latency
Test_case_node_packet_delay
Test_case_node_packet_delay

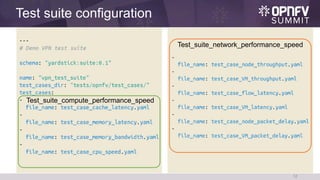

12. Test suite configuration
12
Test_suite_compute_performance_speed
Test_suite_network_performance_speed

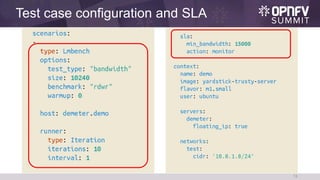

13. Test case configuration and SLA
13

14. Test demo
14
• Executing the test suite
• Collecting results

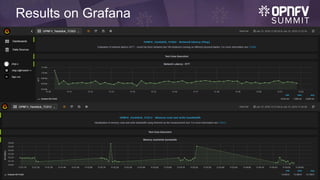

15. Results on Grafana
15

16. Work status
16
Done
Done
Done
Done
Doing
Doing
To do
To do
To do

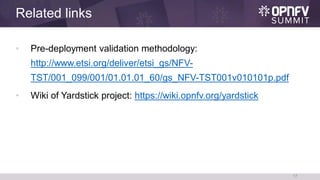

17. Related links
• Pre-deployment validation methodology:
http://www.etsi.org/deliver/etsi_gs/NFV-
TST/001_099/001/01.01.01_60/gs_NFV-TST001v010101p.pdf
• Wiki of Yardstick project: https://wiki.opnfv.org/yardstick
17
