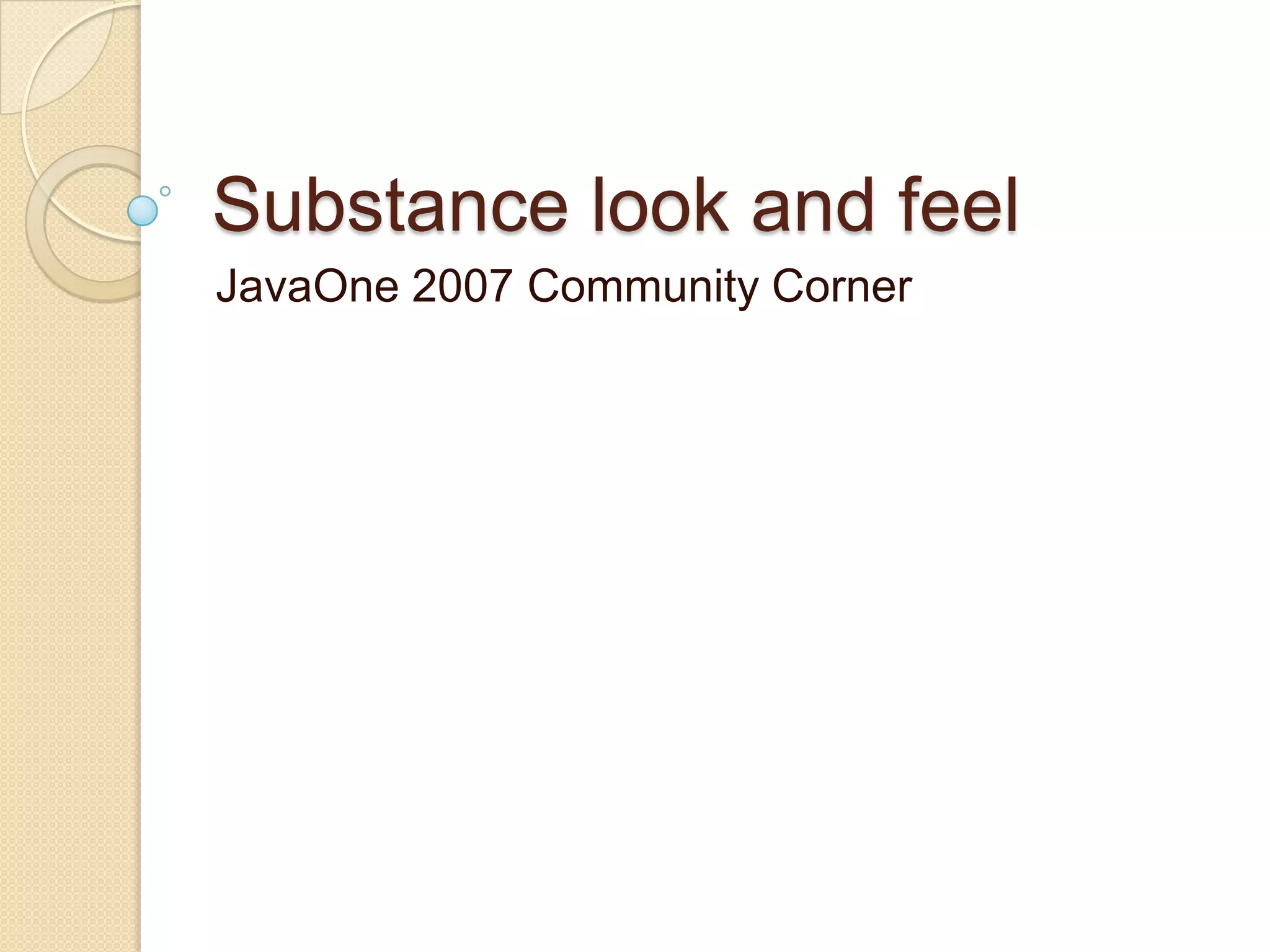

1. Substance look and feel
JavaOne 2007 Community Corner

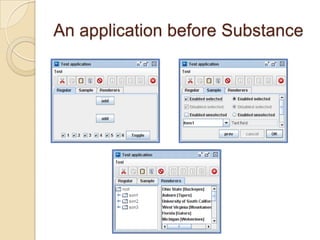

2. An application before Substance

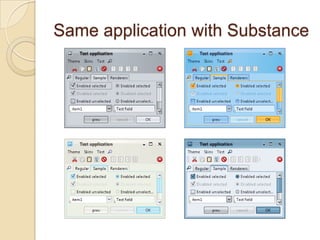

3. Same application with Substance

4. Same application with Substance

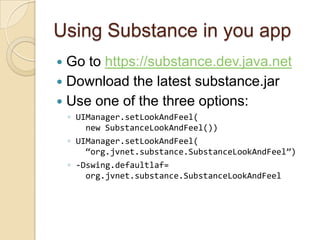

5. Using Substance in you app
 Go to https://substance.dev.java.net
 Download the latest substance.jar
 Use one of the three options:
◦ UIManager.setLookAndFeel(
new SubstanceLookAndFeel())
◦ UIManager.setLookAndFeel(
“org.jvnet.substance.SubstanceLookAndFeel”)
◦ -Dswing.defaultlaf=
org.jvnet.substance.SubstanceLookAndFeel

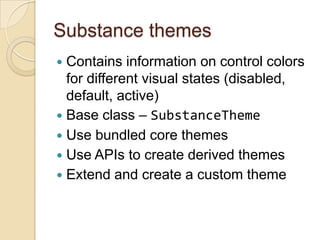

6. Substance themes
 Contains information on control colors
for different visual states (disabled,
default, active)
 Base class – SubstanceTheme
 Use bundled core themes
 Use APIs to create derived themes
 Extend and create a custom theme

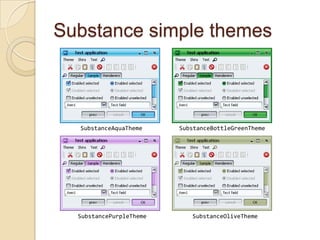

7. Substance simple themes
SubstanceAquaTheme SubstanceBottleGreenTheme
SubstancePurpleTheme SubstanceOliveTheme

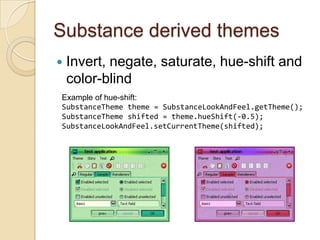

8. Substance derived themes
 Invert, negate, saturate, hue-shift and
color-blind
Example of hue-shift:
SubstanceTheme theme = SubstanceLookAndFeel.getTheme();
SubstanceTheme shifted = theme.hueShift(-0.5);
SubstanceLookAndFeel.setCurrentTheme(shifted);

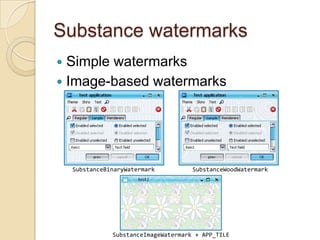

9. Substance watermarks
 Simple watermarks
 Image-based watermarks
SubstanceBinaryWatermark SubstanceWoodWatermark
SubstanceImageWatermark + APP_TILE

10. Substance skins
 A collection of various settings (theme,
watermark, painters, shapers etc).
 In org.jvnet.substance.skin
package
 Can set as
◦ SubstanceLookAndFeel.setSkin(…)
◦ Derived look and feel classes based on a
specific skin (set with UIManager or VM
flag)

11. Substance toned-down skins
SubstanceBusinessLookAndFeel SubstanceBusinessBlackSteelLookAndFeel
SubstanceCremeLookAndFeel SubstanceSaharaLookAndFeel

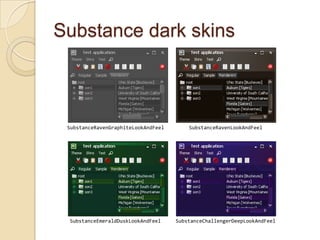

12. Substance dark skins
SubstanceRavenGraphiteLookAndFeel SubstanceRavenLookAndFeel
SubstanceEmeraldDuskLookAndFeel SubstanceChallengerDeepLookAndFeel

13. Substance saturated skins
SubstanceOfficeBlue2007LookAndFeel SubstanceFieldOfWheatLookAndFeel
SubstanceGreenMagicLookAndFeel SubstanceFindingNemoLookAndFeel

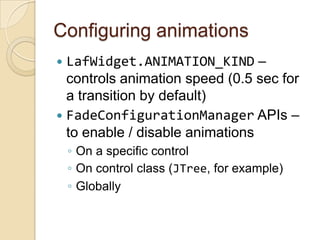

14. Configuring animations
 LafWidget.ANIMATION_KIND –
controls animation speed (0.5 sec for
a transition by default)
 FadeConfigurationManager APIs –
to enable / disable animations
◦ On a specific control
◦ On control class (JTree, for example)
◦ Globally

15. Custom appearance
 Theme – extend SubstanceTheme or
use derivation APIs
 Watermark – implement
SubstanceWatermark
 Skin – implement SubstanceSkin or
extend SubstanceAbstractSkin
(provides basic functionality)
 See existing core implementation and
test app for examples

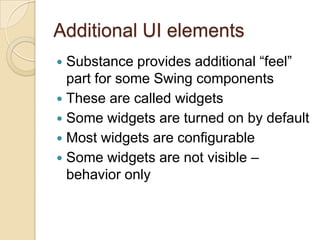

16. Additional UI elements
 Substance provides additional “feel”
part for some Swing components
 These are called widgets
 Some widgets are turned on by default
 Most widgets are configurable
 Some widgets are not visible –
behavior only

17. Widget examples
 Menu search panel on big menus
 Lock icon on non-editable text
components
 Auto-completion on editable
comboboxes
 Password strength checker
 Tab overview panel
 Tree smart scroll

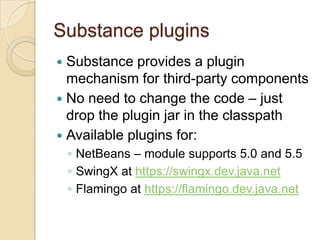

18. Substance plugins
 Substance provides a plugin
mechanism for third-party components
 No need to change the code – just
drop the plugin jar in the classpath
 Available plugins for:
◦ NetBeans – module supports 5.0 and 5.5
◦ SwingX at https://swingx.dev.java.net
◦ Flamingo at https://flamingo.dev.java.net

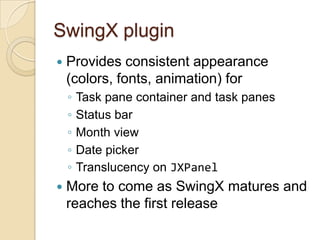

19. SwingX plugin
 Provides consistent appearance
(colors, fonts, animation) for
◦ Task pane container and task panes
◦ Status bar
◦ Month view
◦ Date picker
◦ Translucency on JXPanel
 More to come as SwingX matures and
reaches the first release

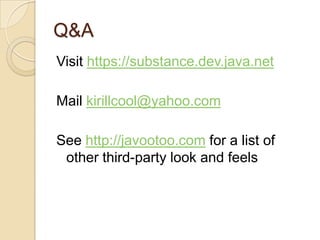

20. Q&A
Visit https://substance.dev.java.net
Mail kirillcool@yahoo.com
See http://javootoo.com for a list of
other third-party look and feels
