1. WinAppDriver Development
Jeremy Kao (about.me/imsardine) @ KKBOX SQA
17/12/2014

2. Agenda
• Environment Setup
• JSON Wire/WebDriver Protocol
and Routing
• WinAppDriver Components
• TODO

3. WinAppDriver Overview
Test
WinAppDriver
UIA Client API
WPFWinFormsWin32
http://*:4444/wd/hub
Test
Windows DevicesWin & Unix-like
JSON/WebDriver!
Wire Protocol
Lang.
Bindings

4. DEV Environment Setup
• Prerequisites
• .NET Framework 3.0 (Vista) and above.
• Windows SDK
• Configure PATH environment variable
SET PATH=%PATH%;C:WindowsMicrosoft.NETFramework<VERSION>;C:
Program Files (x86)Windows Kits<VERSION>bin<ARCH>
• Get the source code from GitHub
git clone git@github.com:imsardine/winappdriver.git
• Build the project
msbuild.exe src/ActivateStoreApp/ActivateStoreApp.csproj
msbuild.exe src/WinAppDriver/WinAppDriver.csproj

5. Deployment
• Prerequisites
• .NET Framework 3.0 (Vista) and above.
• Windows 8.0 and above for store apps.
• Configure firewall and URL namespace reservations.
• Import WinAppDriver Test Certificate to Trusted Root
Certification Authorities store.
• Copy the following files to a secure location
WinAppDriver.exe, ActivateStoreApp.exe, Newtonsoft.Json.dll

6. JSON/WebDriver Wire Protocol
• The WebDriver Wire Protocol - Selenium
• For example
• Find an element
POST session/:sessionId/element
• Click an element
POST session/:sessionId/element/:id/click

7. Routing
• Endpoints
POST session/:sessionId/element
• Handlers with Route attribute (WinAppDriver.RouteAttribute)
[Route("POST", "/session/:sessionId/element")]
class FindElementHandler : IHandler {
...
}
• RequestManager.AddHandler(handler)

8. Handler
WinAppDriver Components
HTTP
Server
Request
Manager
Session
Manager
Handler
UIA
Client API
WebDriver
Lang. Bindings

9. HTTP Server (WinAppDriver.Server)
• Based on System.Net.HttpListener
• Listen on http://+:4444/wd/hub/
• Configure firewall and Namespace Reservations
(elevated mode)
netsh http add urlacl url=http://+:4444/wd/hub/ user=Everyone

10. Request Manager (WinAppDriver.RequestManager)
• Manage endpoints (WinAppDriver.EndPoint) and handlers
(WinAppDriver.IHandler).
• Dispatch requests to corresponding handlers.
• Parse URL parameters and prepare the session object.
• Serialise returned object(s) to JSON.

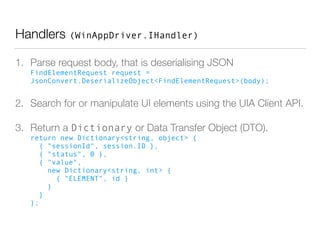

11. Handlers (WinAppDriver.IHandler)
1. Parse request body, that is deserialising JSON
FindElementRequest request =
JsonConvert.DeserializeObject<FindElementRequest>(body);
2. Search for or manipulate UI elements using the UIA Client API.
3. Return a Dictionary or Data Transfer Object (DTO).
return new Dictionary<string, object> {
{ "sessionId", session.ID },
{ "status", 0 },
{ "value",
new Dictionary<string, int> {
{ "ELEMENT", id }
}
}
};

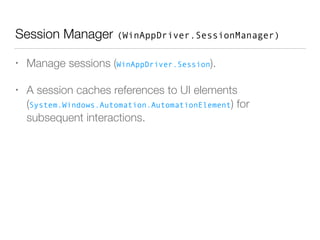

12. Session Manager (WinAppDriver.SessionManager)
• Manage sessions (WinAppDriver.Session).
• A session caches references to UI elements
(System.Windows.Automation.AutomationElement) for
subsequent interactions.

13. TODO
• Build system
• Solution file (.sln)
• Remove third-party assemblies from Git repo.
• Travis CI build (low priority)
• Exception handling, e.g., throw new ElementNotFoundException()
• Discover and register all handlers automatically.
• Download, install and uninstall app packages automatically.
• Implement remaining commands defined in the protocol. (logs, screenshots,
…)
• Fast reset - clear data without uninstalling the package

14. References
• Configuring HTTP and HTTPS - MSDN
• MSBuild
• P of EAA: Data Transfer Object
