1. Behind the curtain
How Django handles a request
Daniel Hepper

2. About this tutorial
• not a top-down Django tutorial
• for people who want to get to the bottom of things

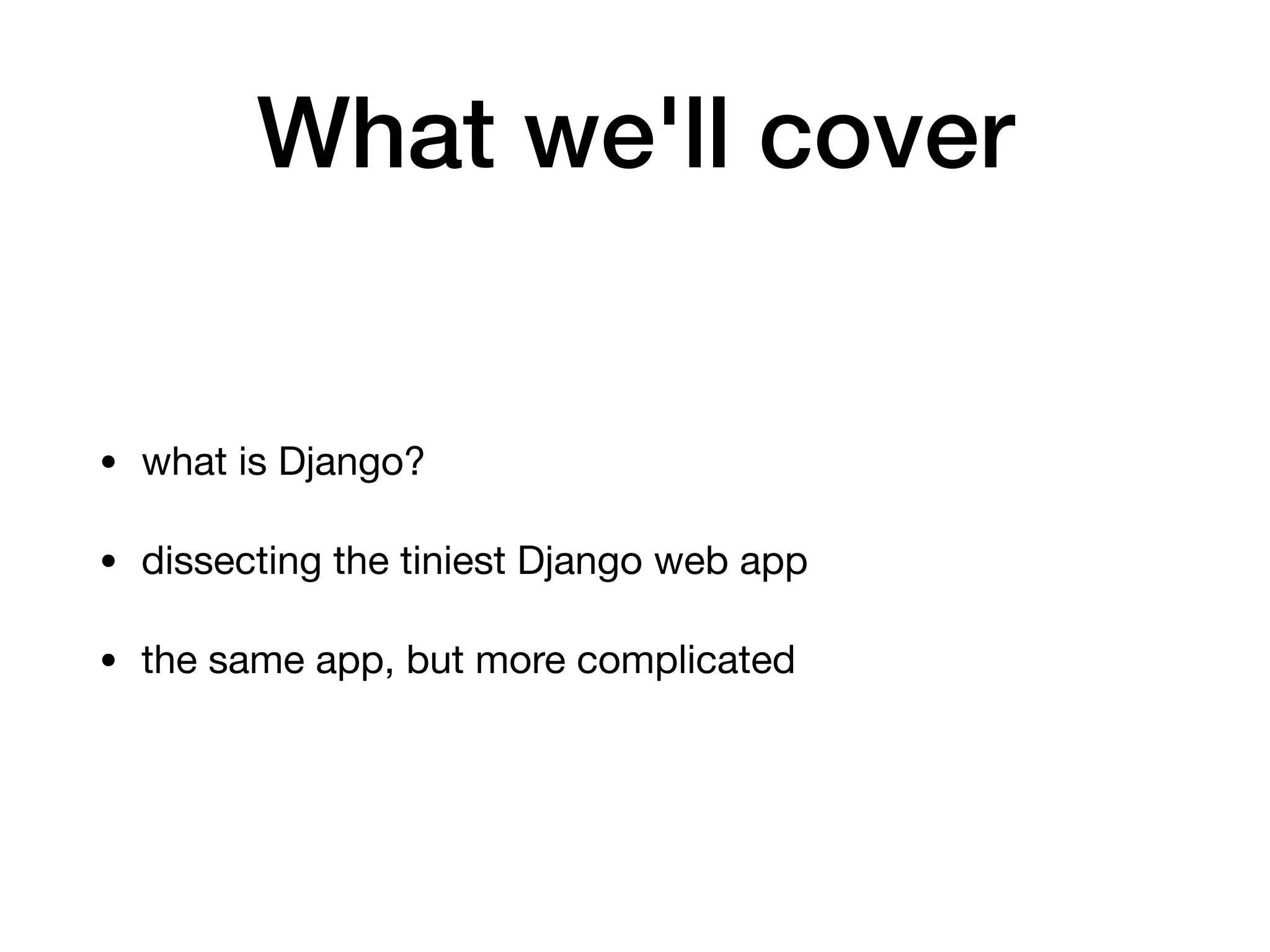

3. What we'll cover
• what is Django?
• dissecting the tiniest Django web app
• the same app, but more complicated

4. About me
Daniel Hepper
• degree in computer science
• freelancing for 7 years
• first contact with Django
around 0.95
• NOT a core developer
• varying amounts beard

5. What is Django

6. The web framework for
perfectionists with deadlines
Django makes it easier to build better Web apps
more quickly and with less code.

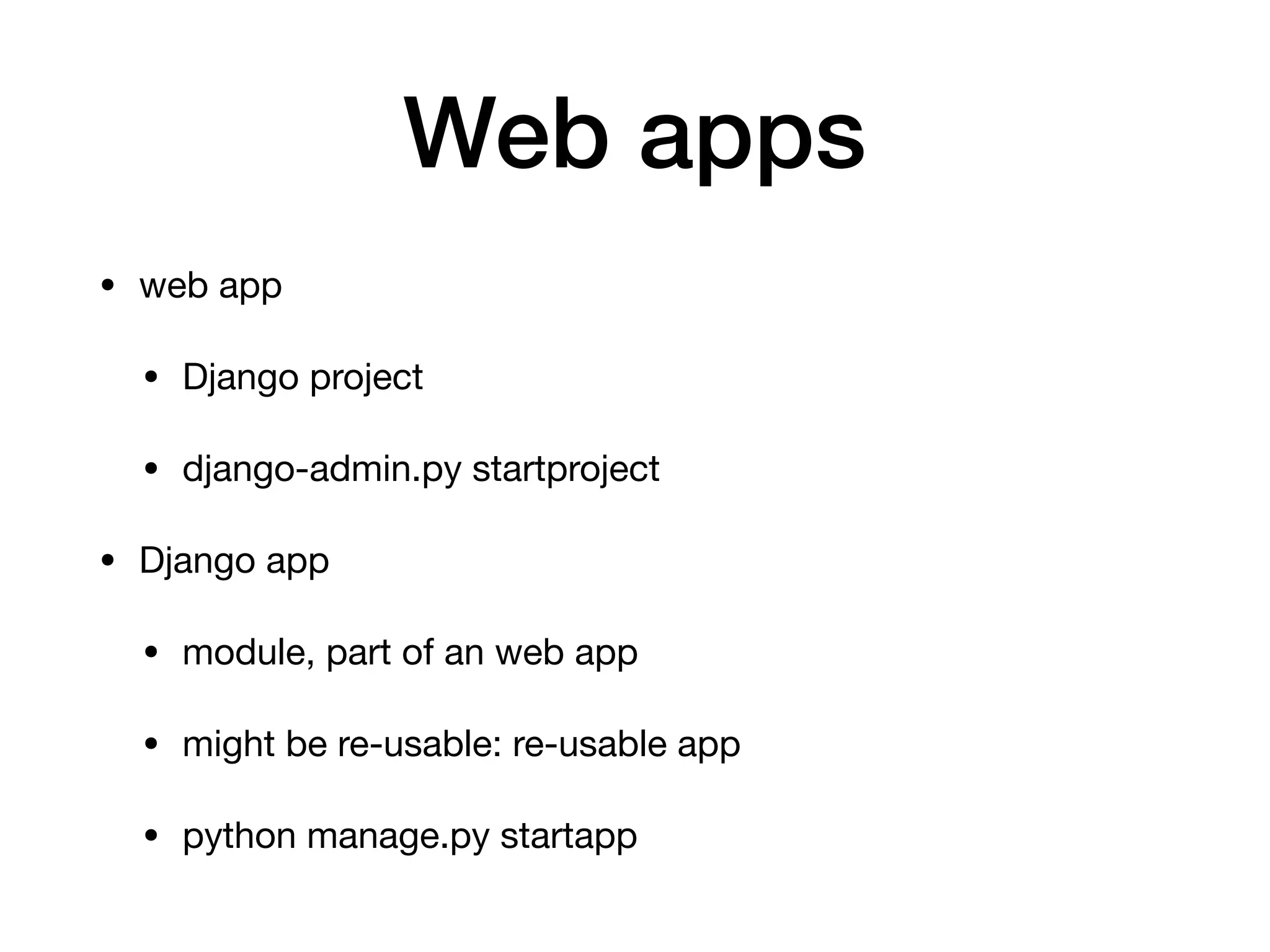

7. Web apps
• web app
• Django project
• django-admin.py startproject
• Django app
• module, part of an web app
• might be re-usable: re-usable app
• python manage.py startapp

8. Web Framework

9. Web Framework
• you take things from a library,
you put something in a framework
• "Don't call us, we call you"
• But you have to tell us your number
you have to provide an entrypoint

10. Settings
Django's entrypoint

11. Web Framework

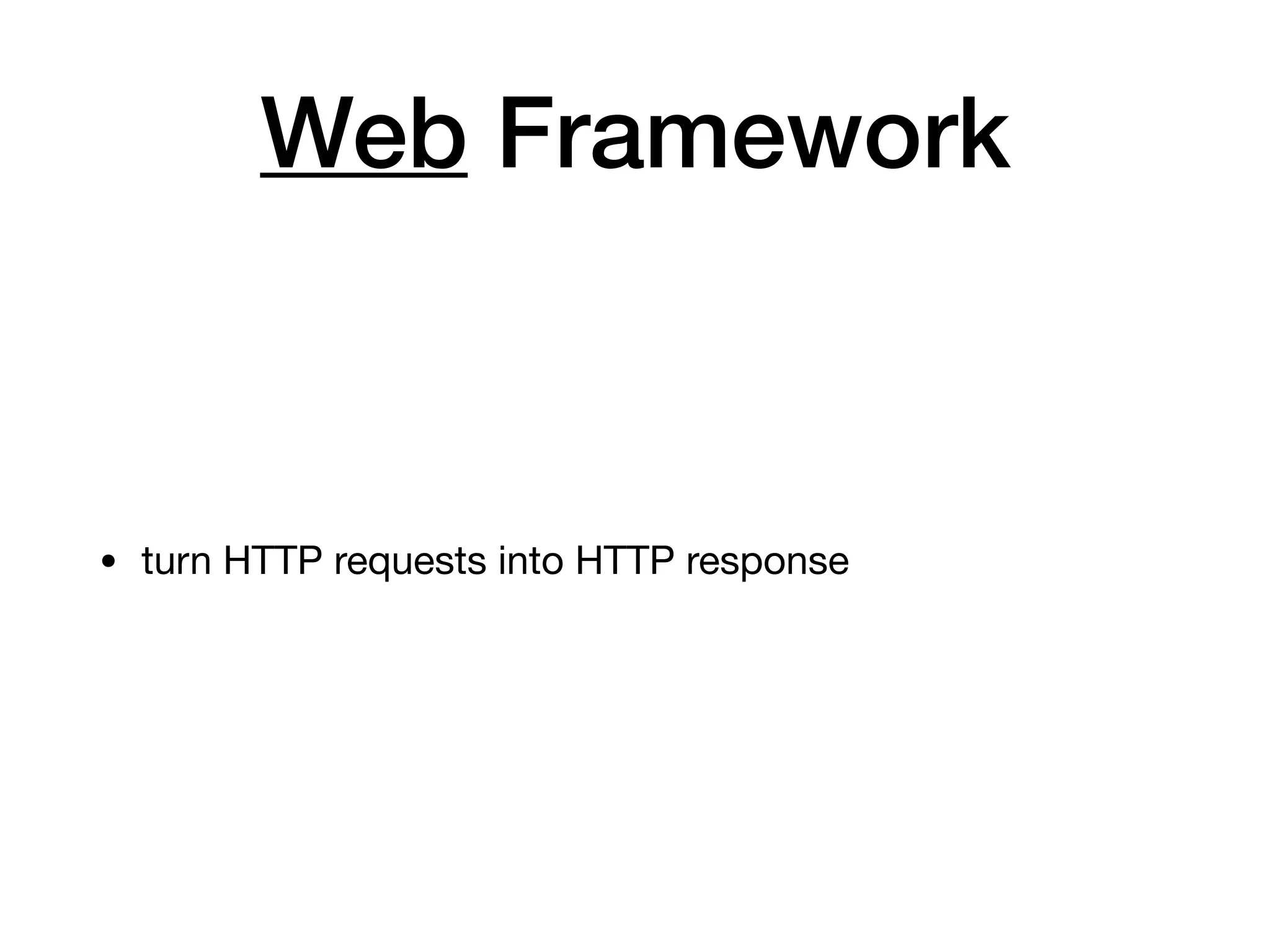

12. Web Framework
• turn HTTP requests into HTTP response

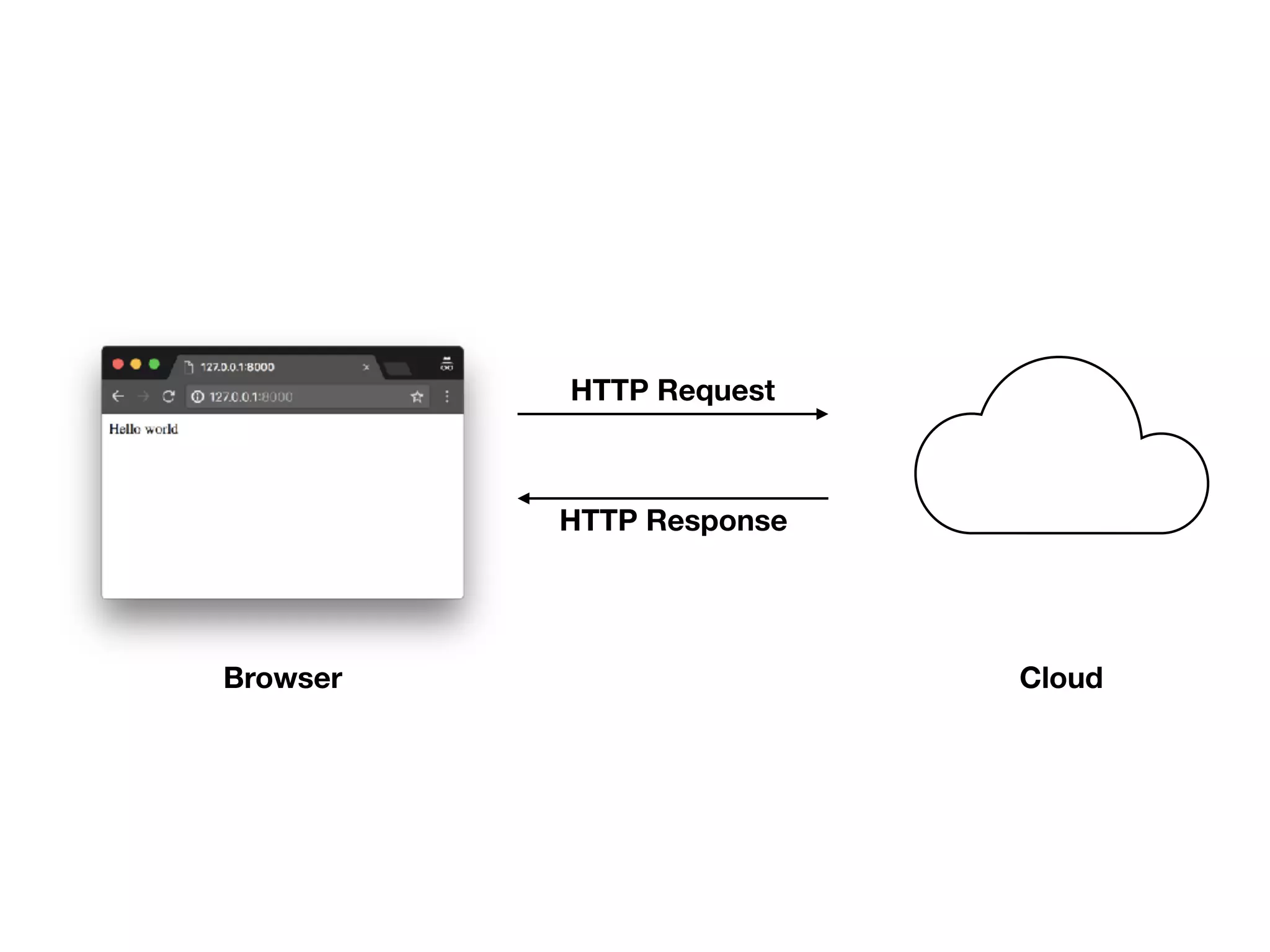

13. Browser Cloud
HTTP Request
HTTP Response

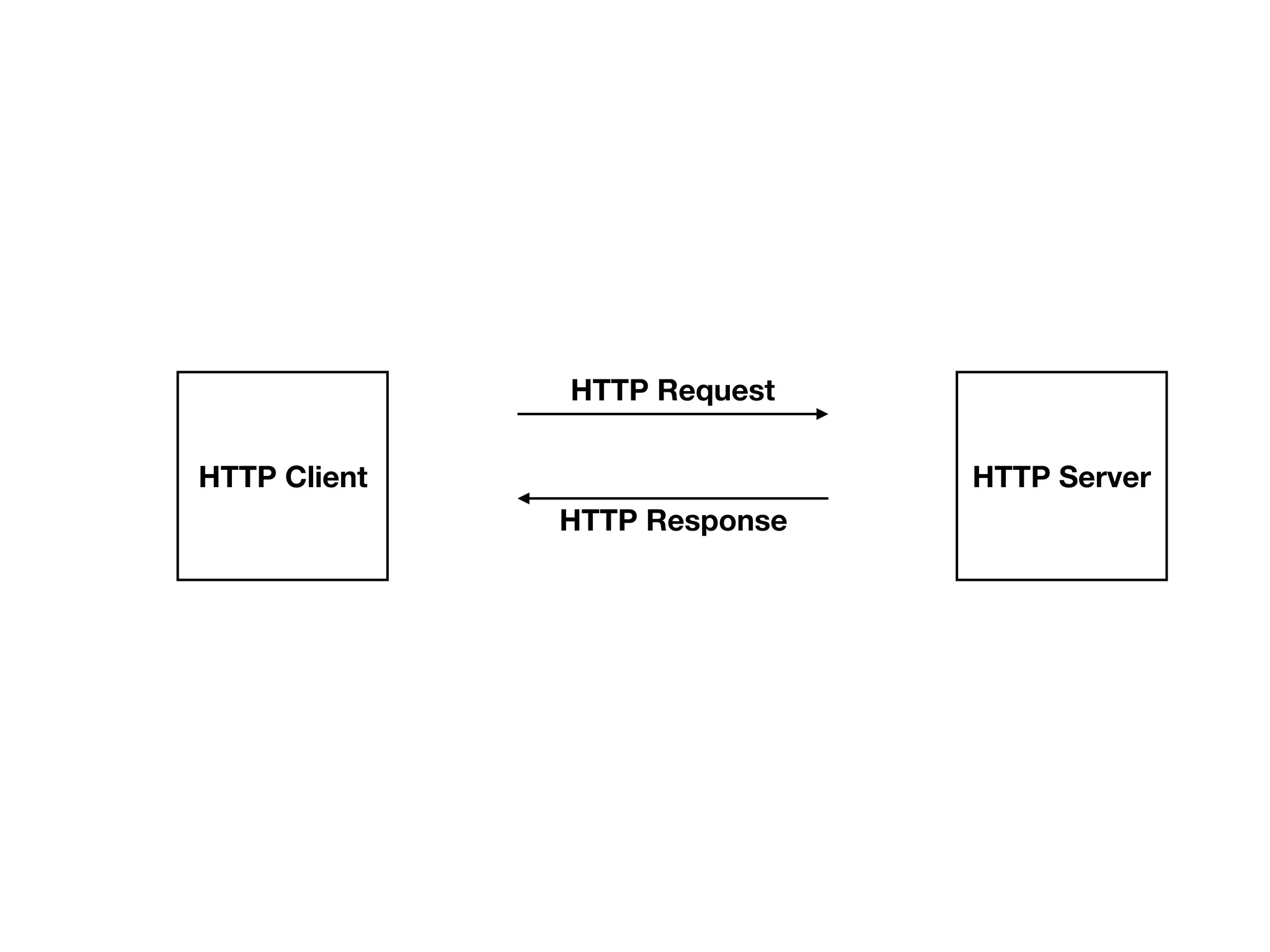

14. HTTP Client
HTTP Request
HTTP Response
HTTP Server

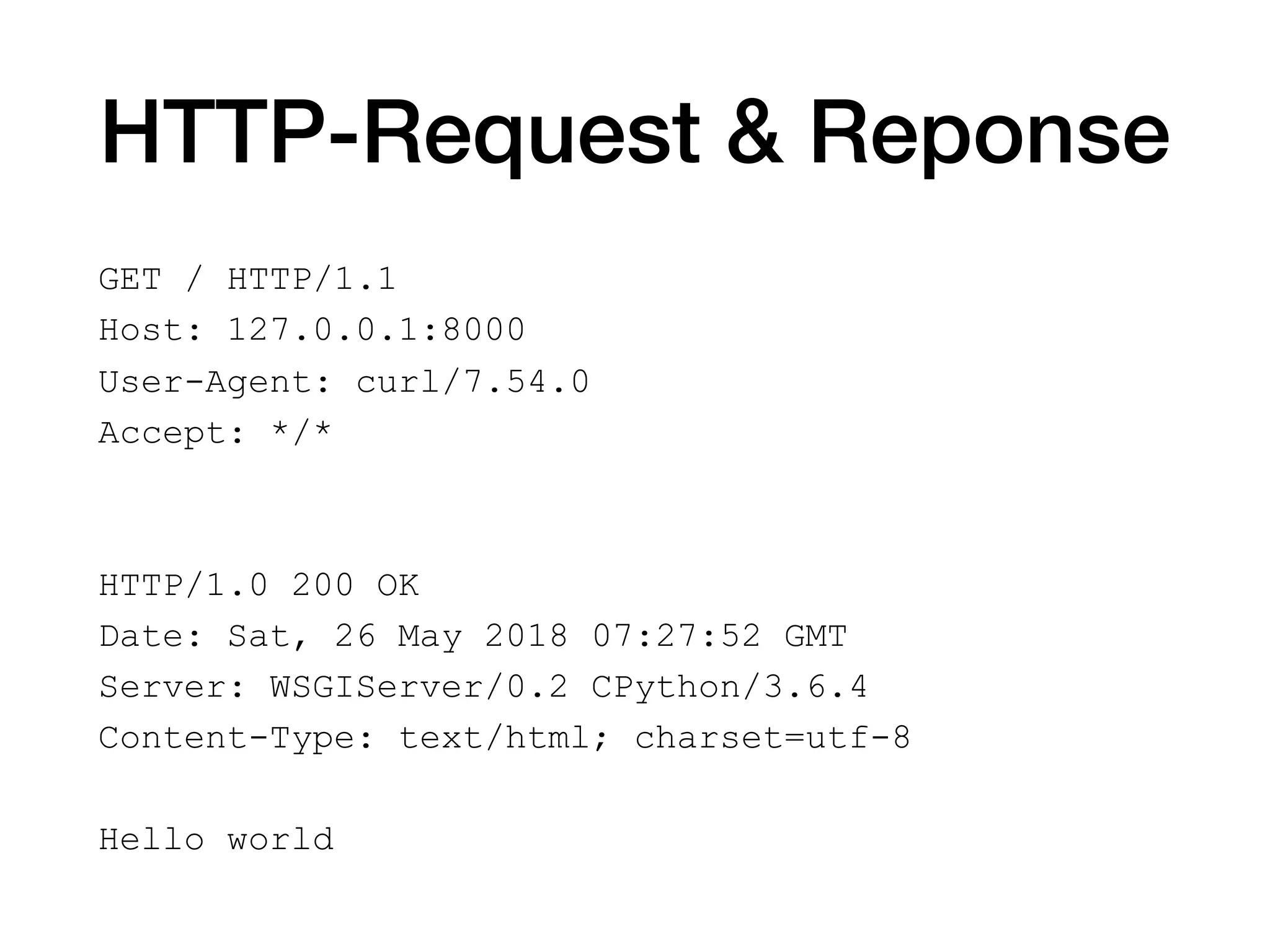

15. HTTP-Request & Reponse
GET / HTTP/1.1
Host: 127.0.0.1:8000
User-Agent: curl/7.54.0
Accept: */*
HTTP/1.0 200 OK
Date: Sat, 26 May 2018 07:27:52 GMT
Server: WSGIServer/0.2 CPython/3.6.4
Content-Type: text/html; charset=utf-8
Hello world

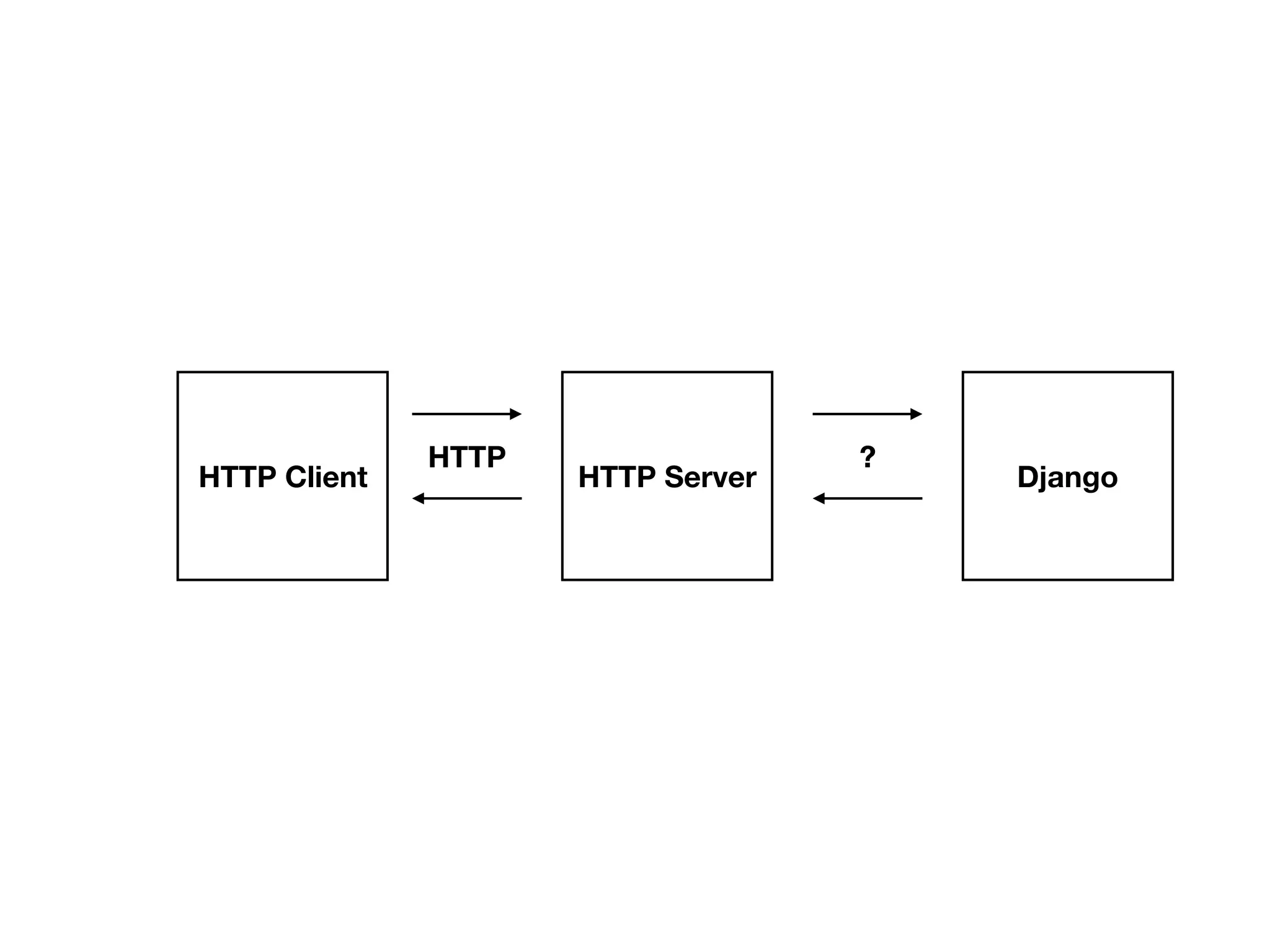

16. HTTP Client
HTTP
HTTP Server Django
?

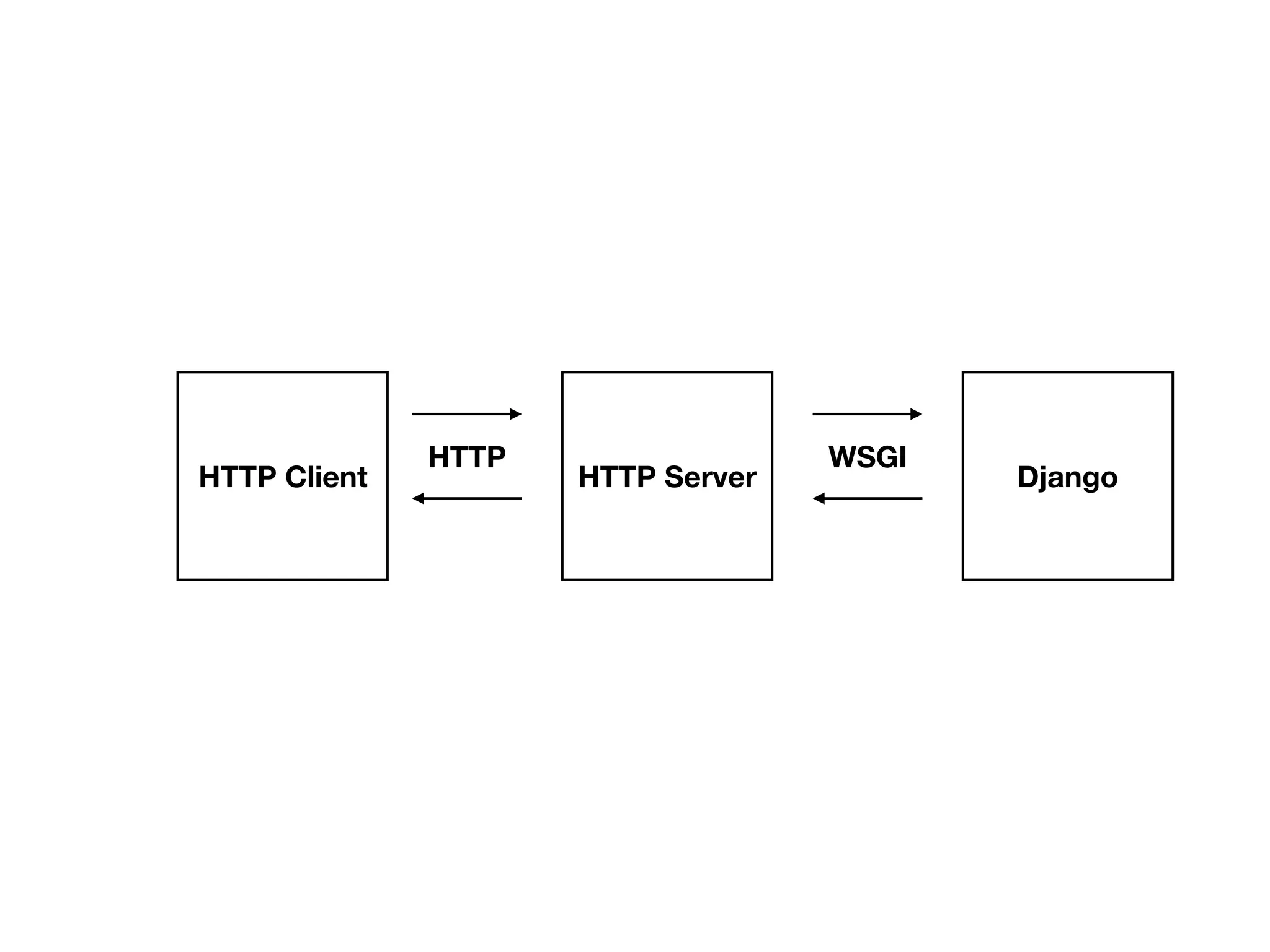

17. HTTP Client
HTTP
HTTP Server Django
WSGI

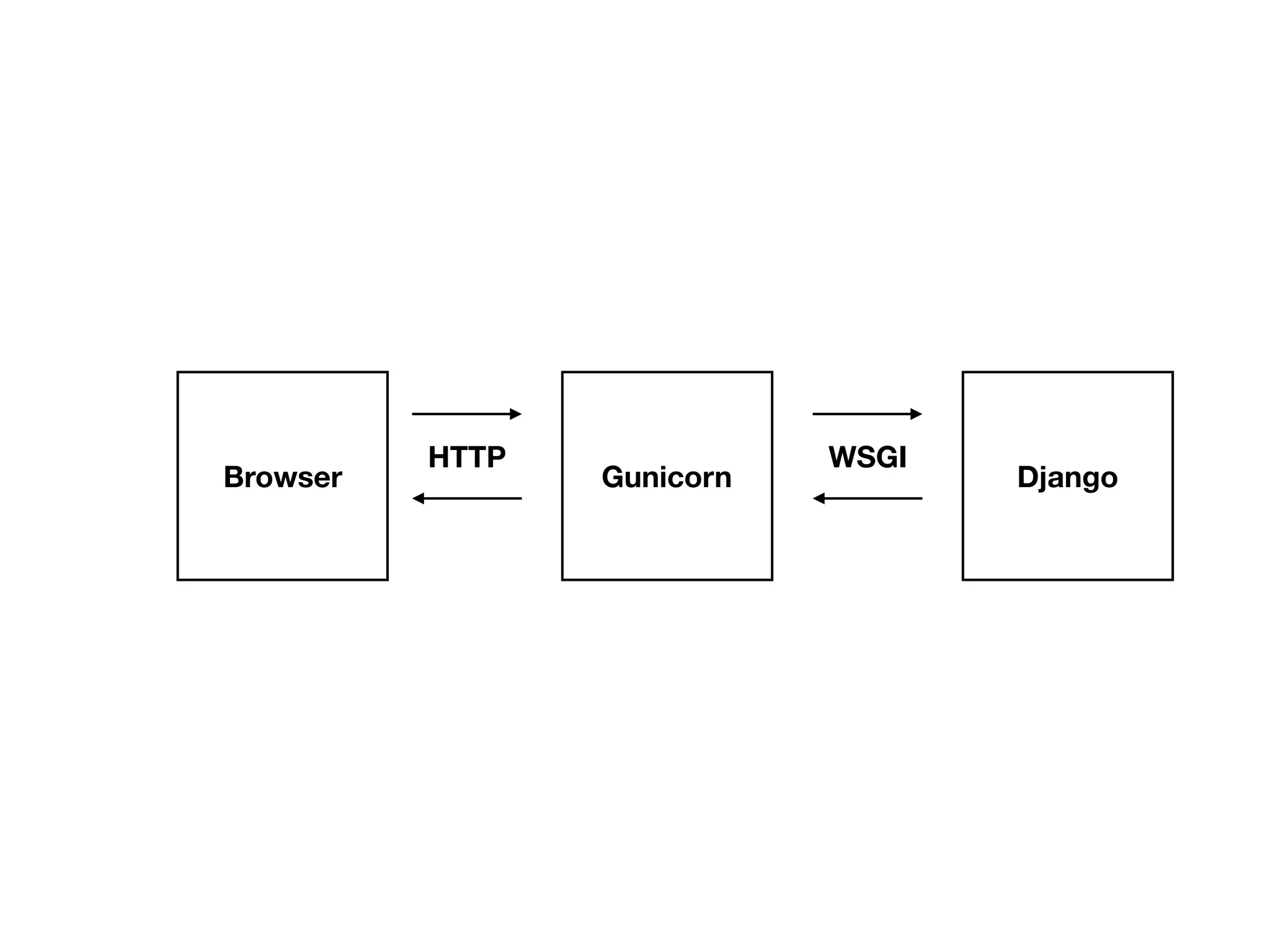

18. Browser
HTTP
Gunicorn Django
WSGI

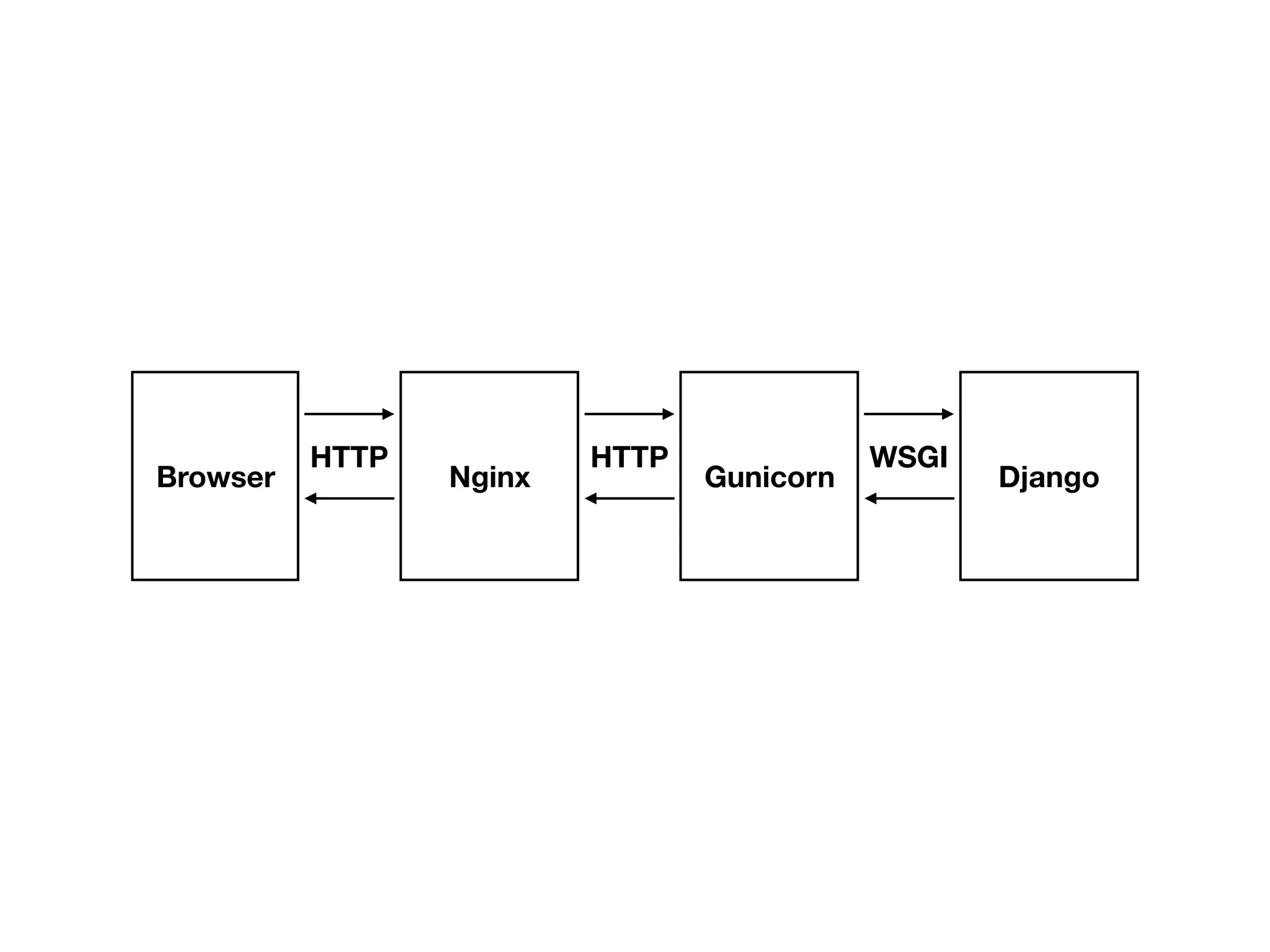

19. Browser
HTTP
Nginx Django
WSGI
Gunicorn
HTTP

20. Browser
HTTP
Nginx Django
WSGI
uwsgi
uwsgi

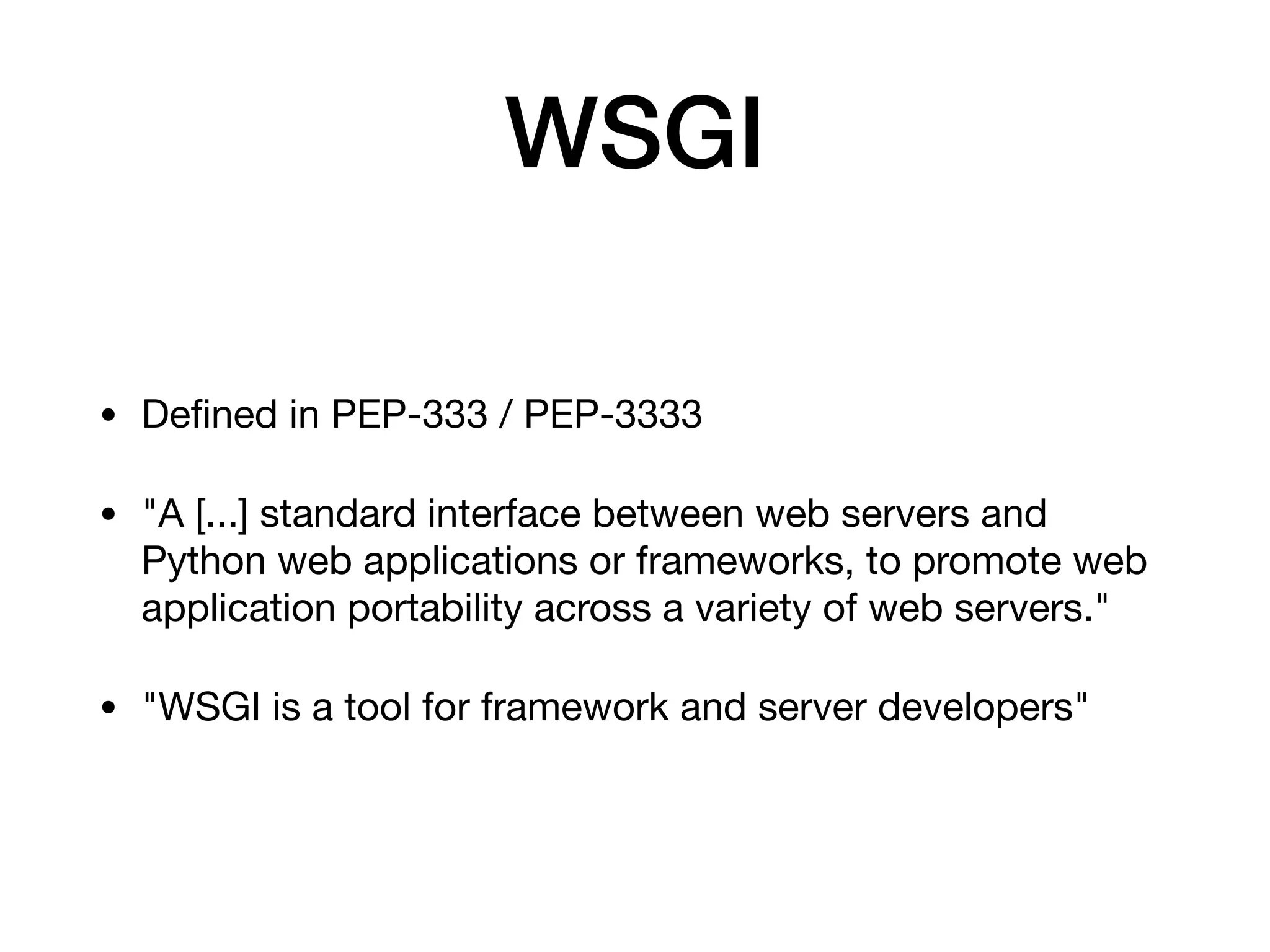

21. WSGI
• Defined in PEP-333 / PEP-3333
• "A [...] standard interface between web servers and
Python web applications or frameworks, to promote web
application portability across a variety of web servers."
• "WSGI is a tool for framework and server developers"

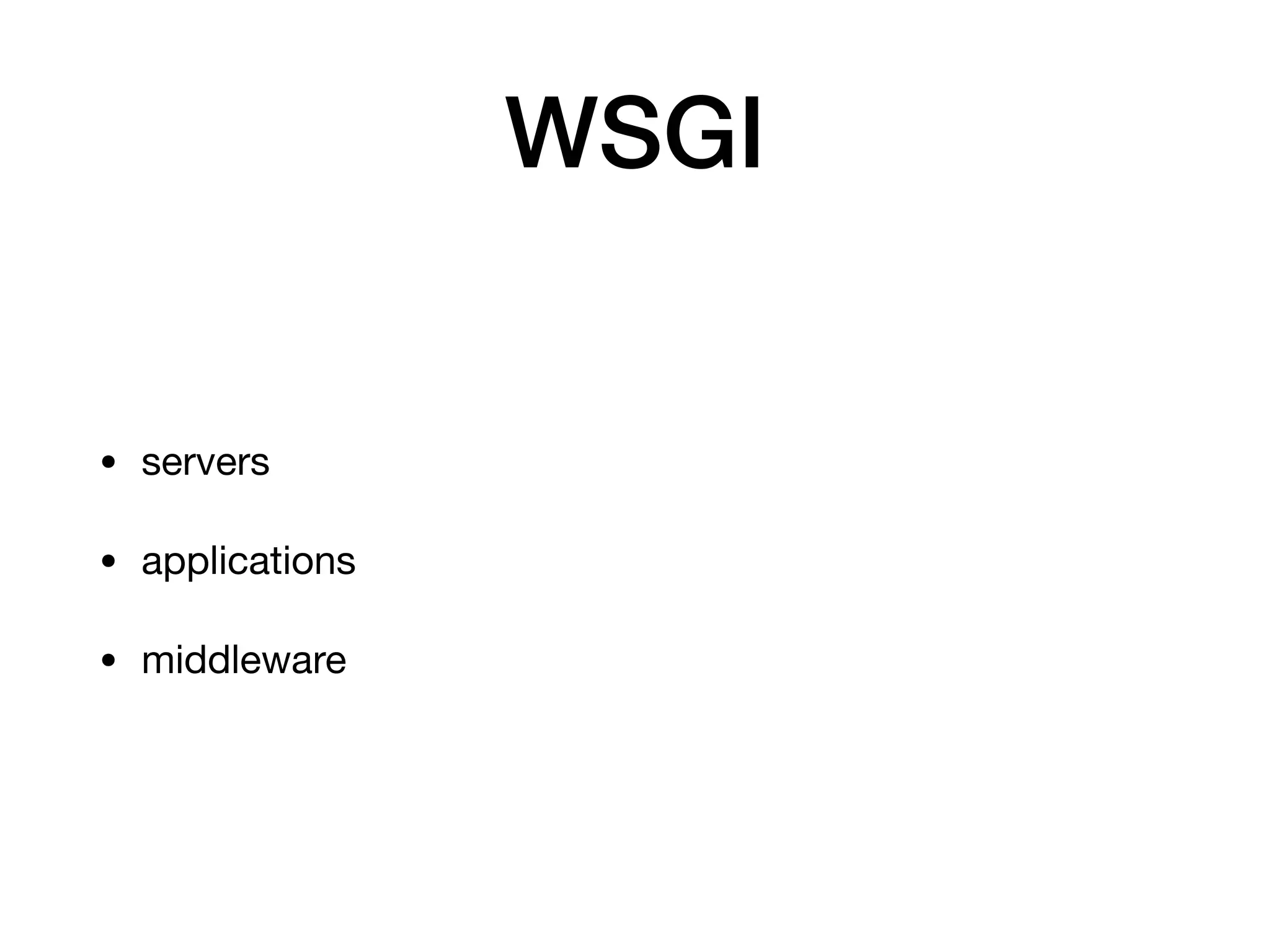

22. WSGI
• servers
• applications
• middleware

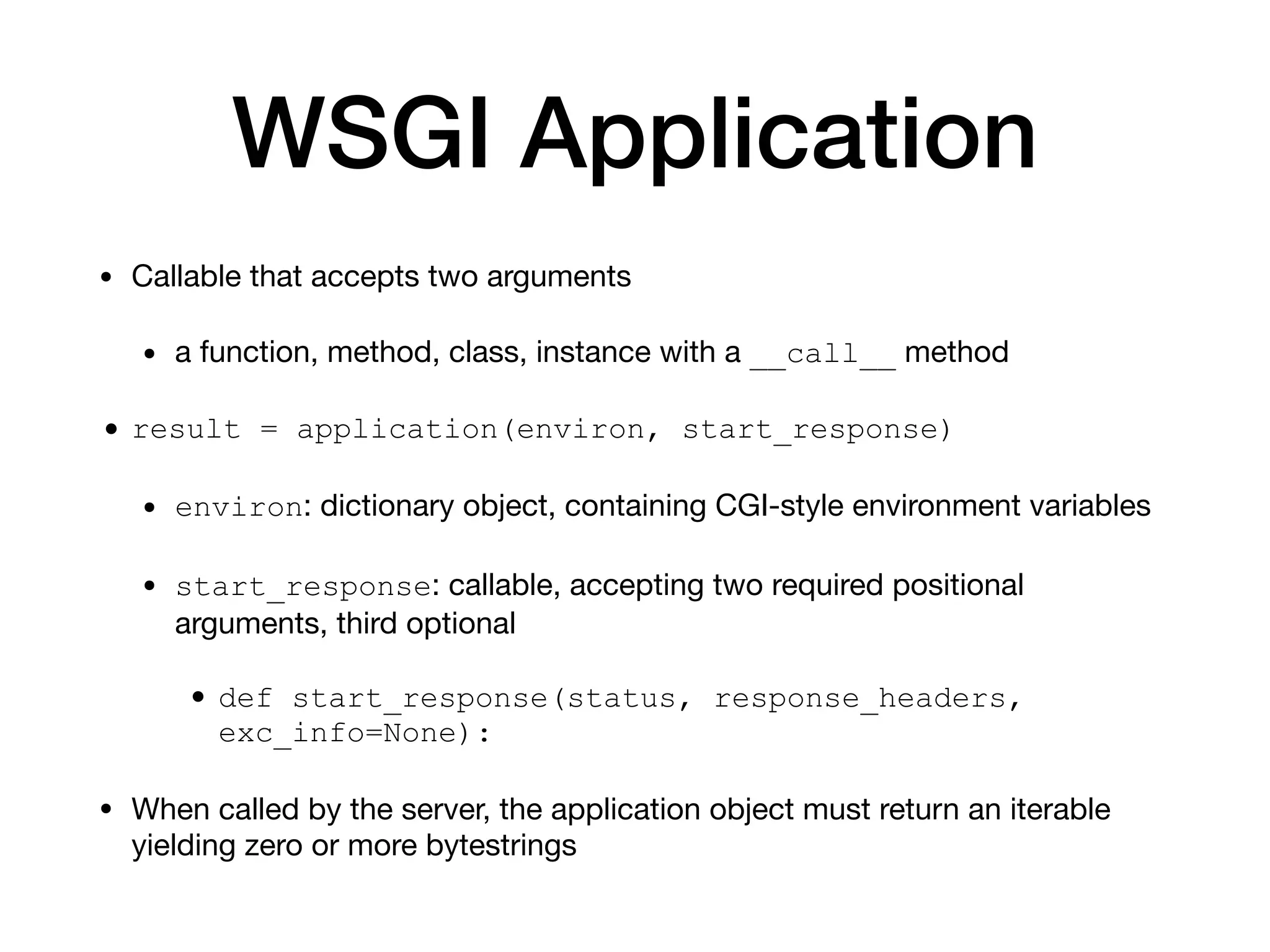

23. WSGI Application
• Callable that accepts two arguments
• a function, method, class, instance with a __call__ method
• result = application(environ, start_response)
• environ: dictionary object, containing CGI-style environment variables
• start_response: callable, accepting two required positional
arguments, third optional
• def start_response(status, response_headers,
exc_info=None):
• When called by the server, the application object must return an iterable
yielding zero or more bytestrings

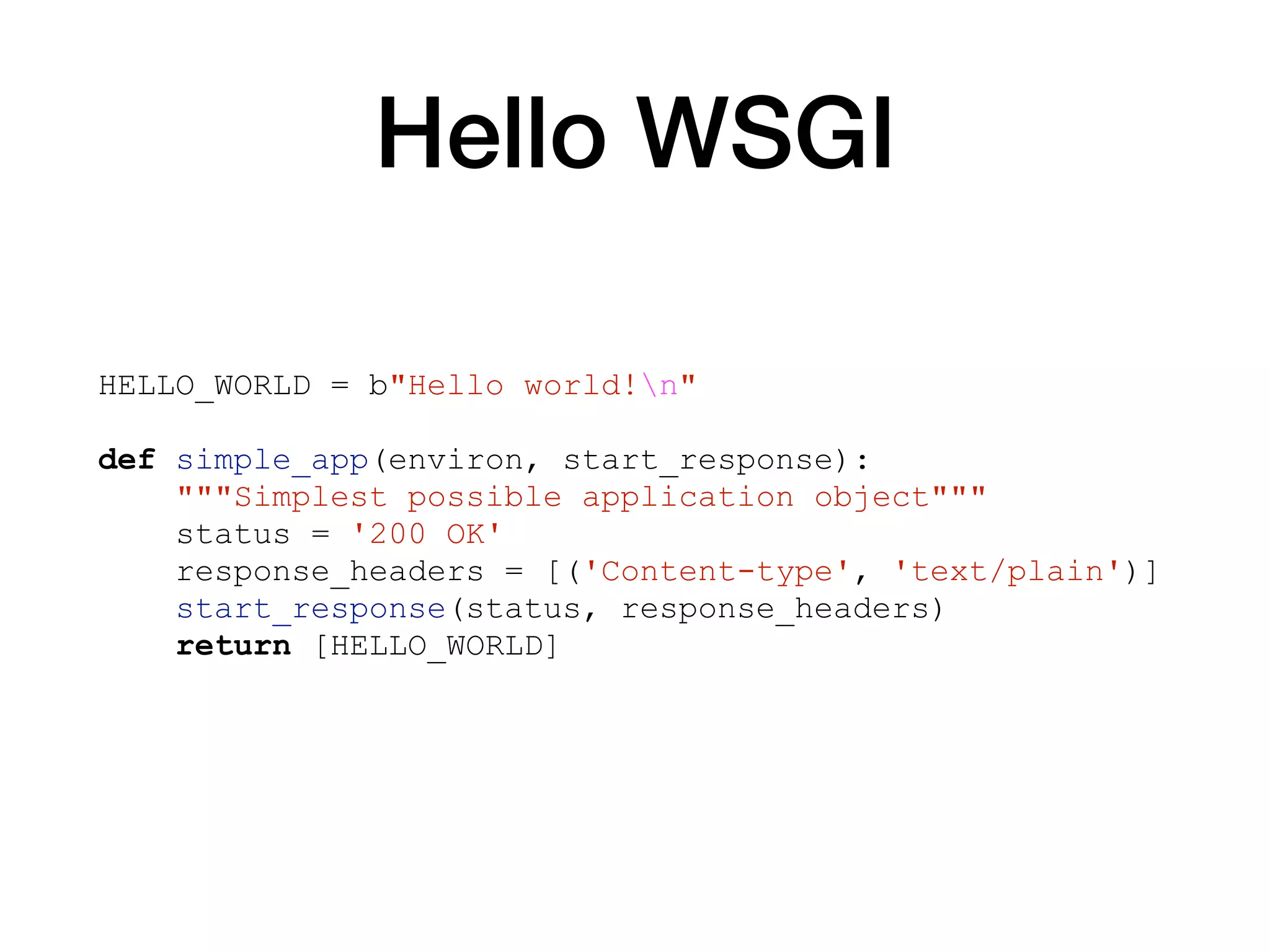

24. Hello WSGI
HELLO_WORLD = b"Hello world!n"
def simple_app(environ, start_response):
"""Simplest possible application object"""
status = '200 OK'
response_headers = [('Content-type', 'text/plain')]
start_response(status, response_headers)
return [HELLO_WORLD]

25. The web framework for
perfectionists with deadlines
Django makes it easier to build better Web apps
more quickly and with less code.
WSGI

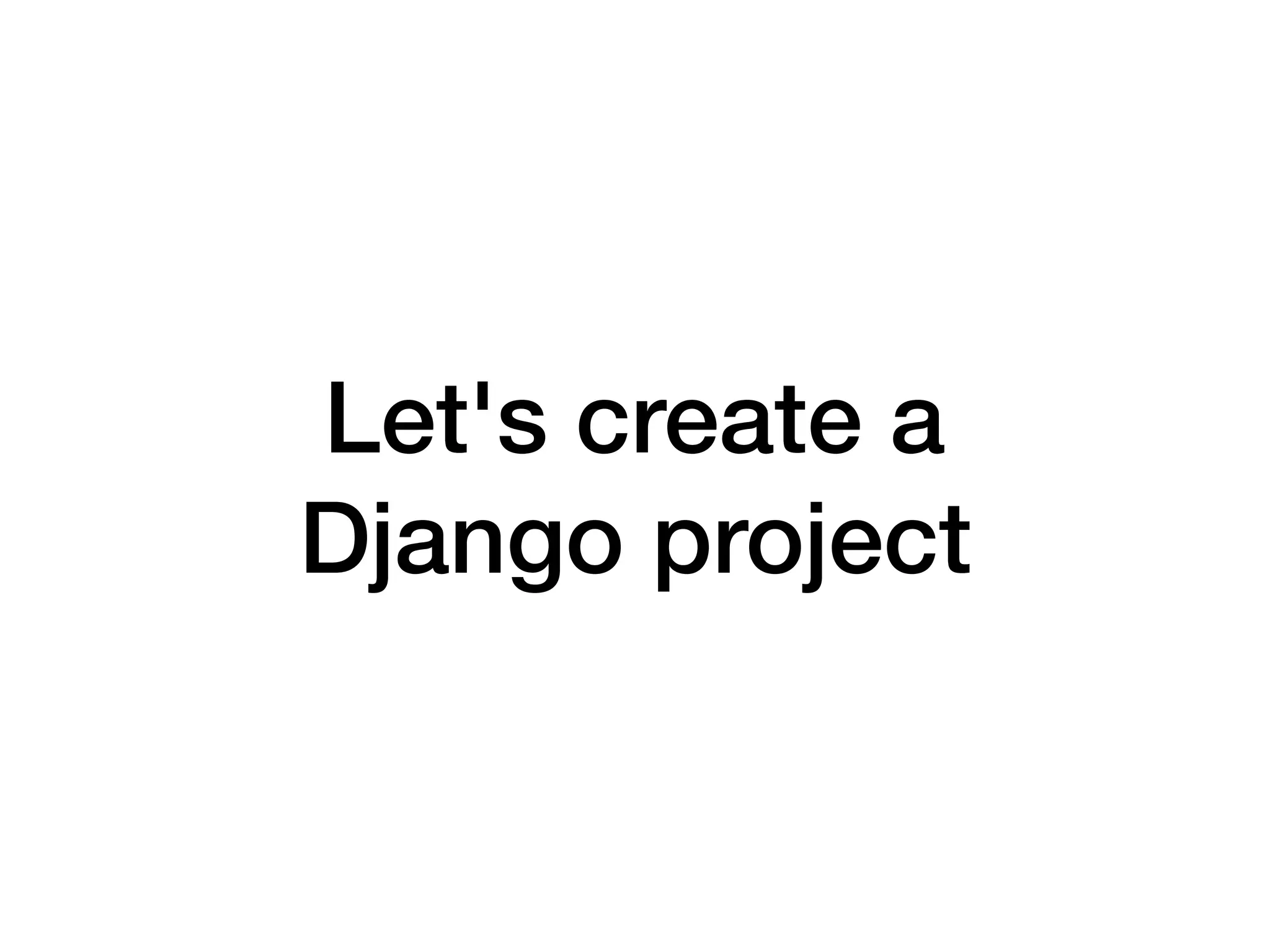

26. Let's create a
Django project

27. (venv)$ pip install django==2.0.5
(venv)$ django-admin.py startproject default
(venv)$ tree default
default
├── manage.py
└── default
├── __init__.py
├── settings.py
├── urls.py
└── wsgi.py
(venv)$ cat default/default/settings.py

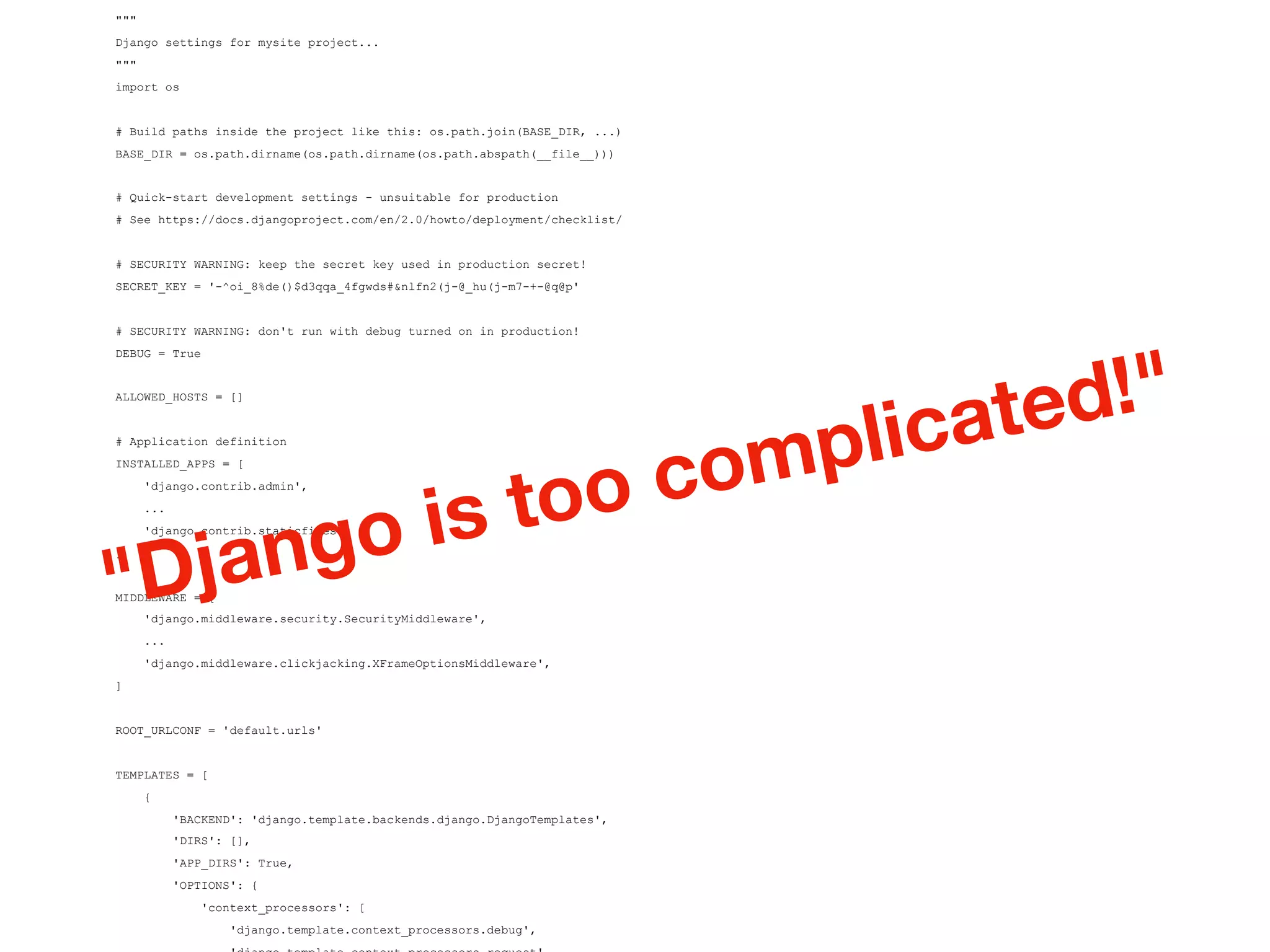

28. """
Django settings for mysite project...
"""
import os
# Build paths inside the project like this: os.path.join(BASE_DIR, ...)
BASE_DIR = os.path.dirname(os.path.dirname(os.path.abspath(__file__)))
# Quick-start development settings - unsuitable for production
# See https://docs.djangoproject.com/en/2.0/howto/deployment/checklist/
# SECURITY WARNING: keep the secret key used in production secret!
SECRET_KEY = '-^oi_8%de()$d3qqa_4fgwds#&nlfn2(j-@_hu(j-m7-+-@q@p'
# SECURITY WARNING: don't run with debug turned on in production!
DEBUG = True
ALLOWED_HOSTS = []
# Application definition
INSTALLED_APPS = [
'django.contrib.admin',
...
'django.contrib.staticfiles',
]

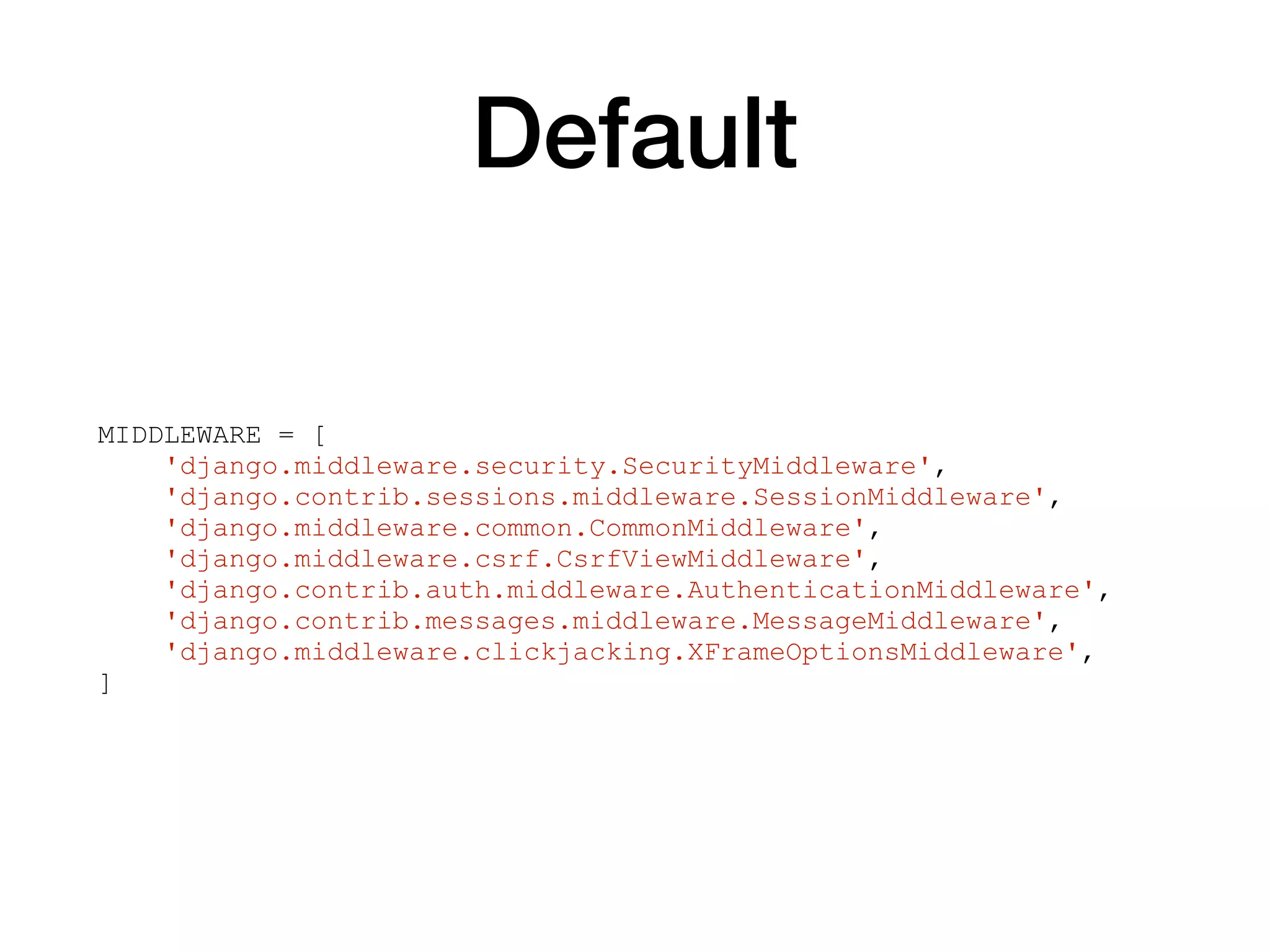

MIDDLEWARE = [
'django.middleware.security.SecurityMiddleware',
...
'django.middleware.clickjacking.XFrameOptionsMiddleware',
]
ROOT_URLCONF = 'default.urls'
TEMPLATES = [
{
'BACKEND': 'django.template.backends.django.DjangoTemplates',
'DIRS': [],
'APP_DIRS': True,
'OPTIONS': {
'context_processors': [
'django.template.context_processors.debug',
"Django is too complicated!"

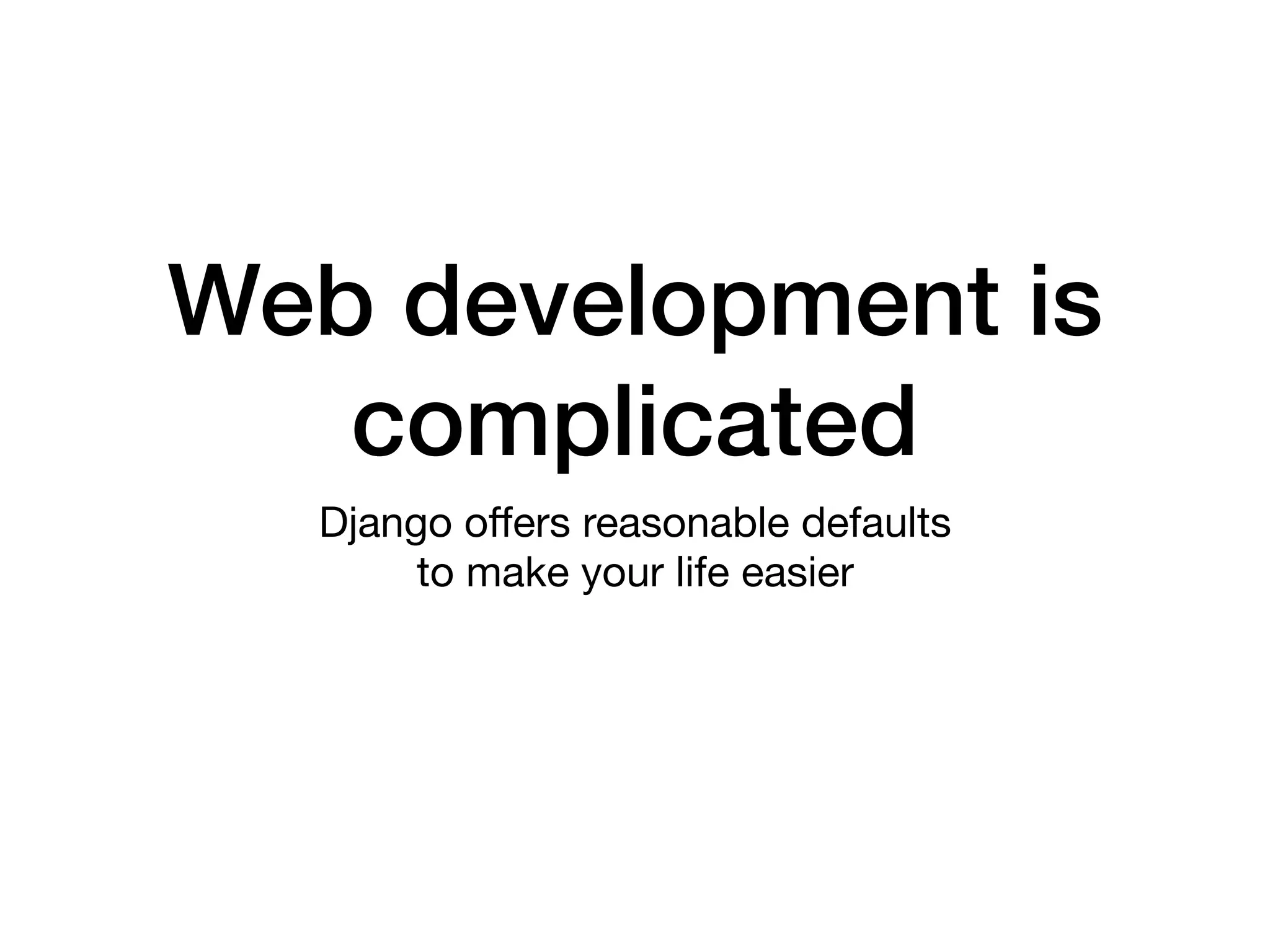

29. Web development is
complicated
Django offers reasonable defaults
to make your life easier

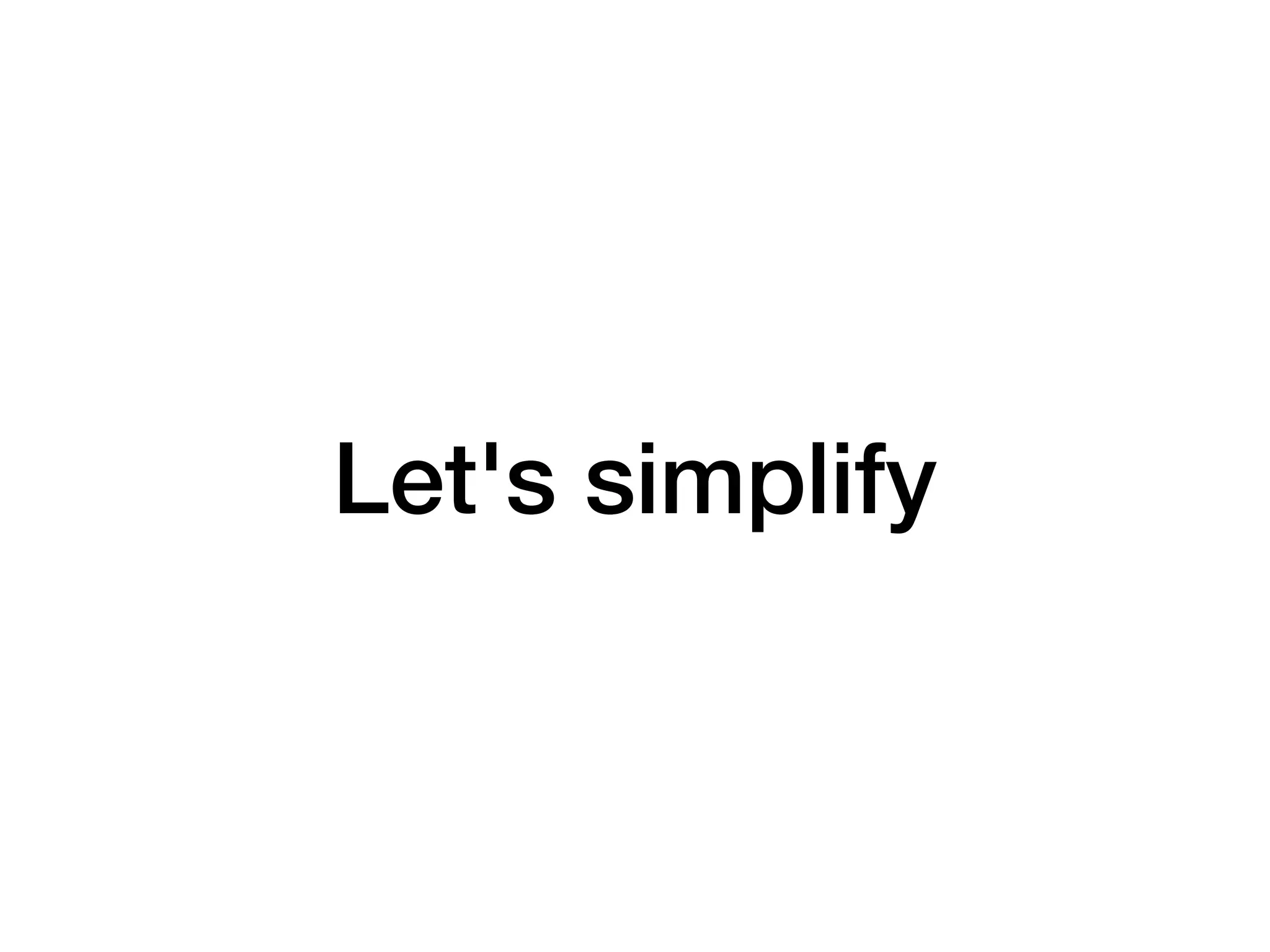

30. Let's simplify

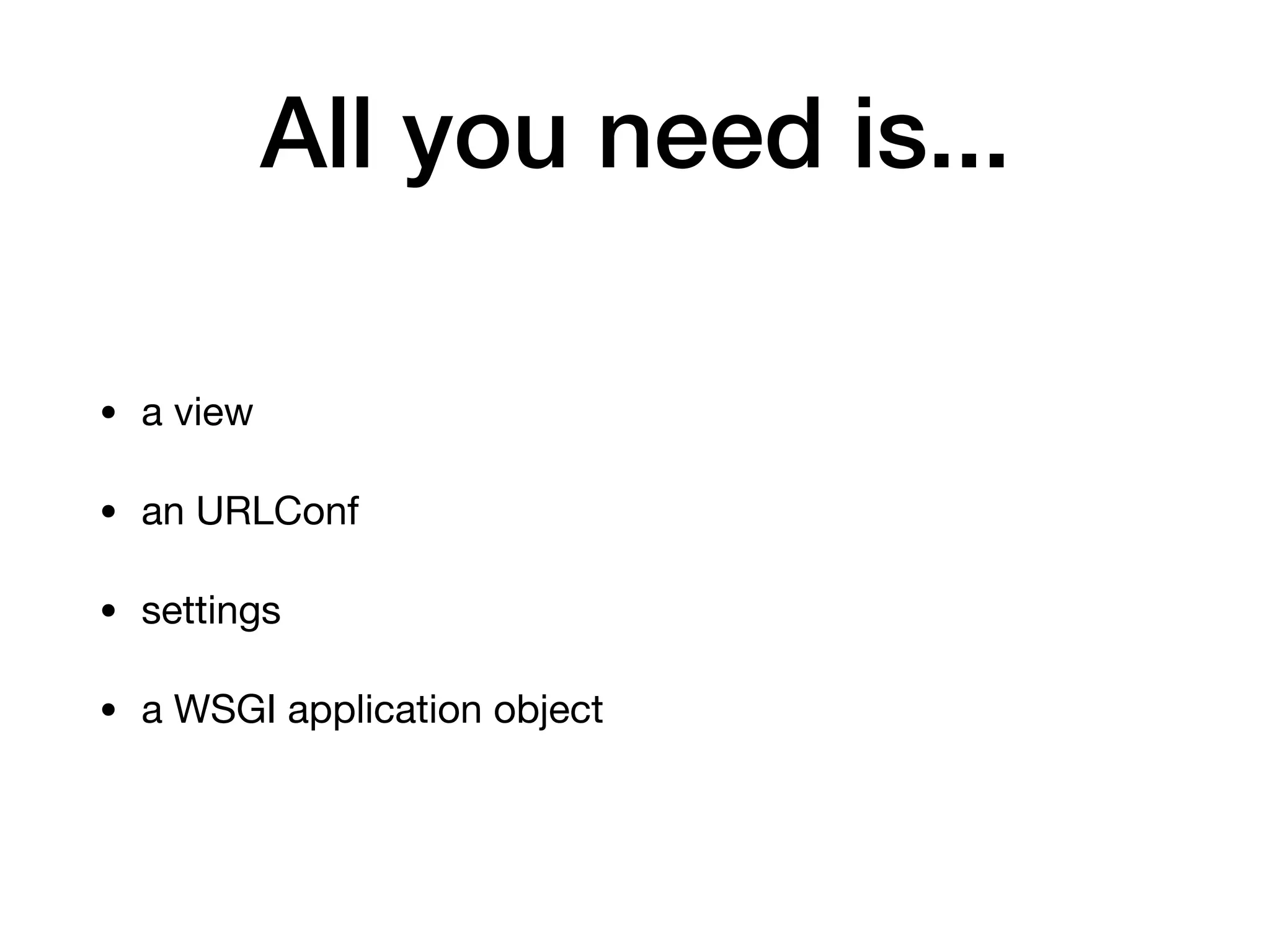

31. All you need is...
• a view
• an URLConf
• settings
• a WSGI application object

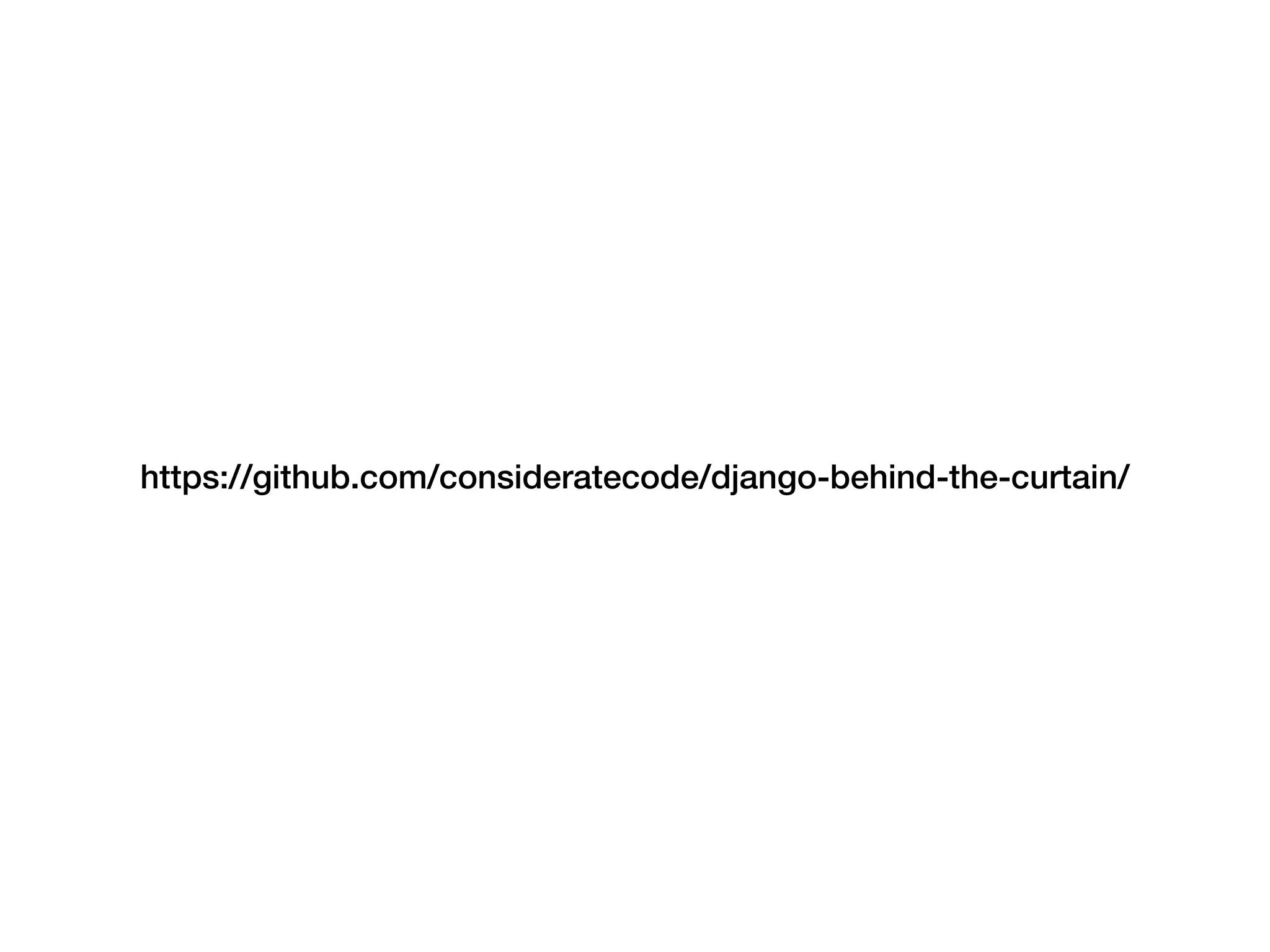

32. https://github.com/consideratecode/django-behind-the-curtain/

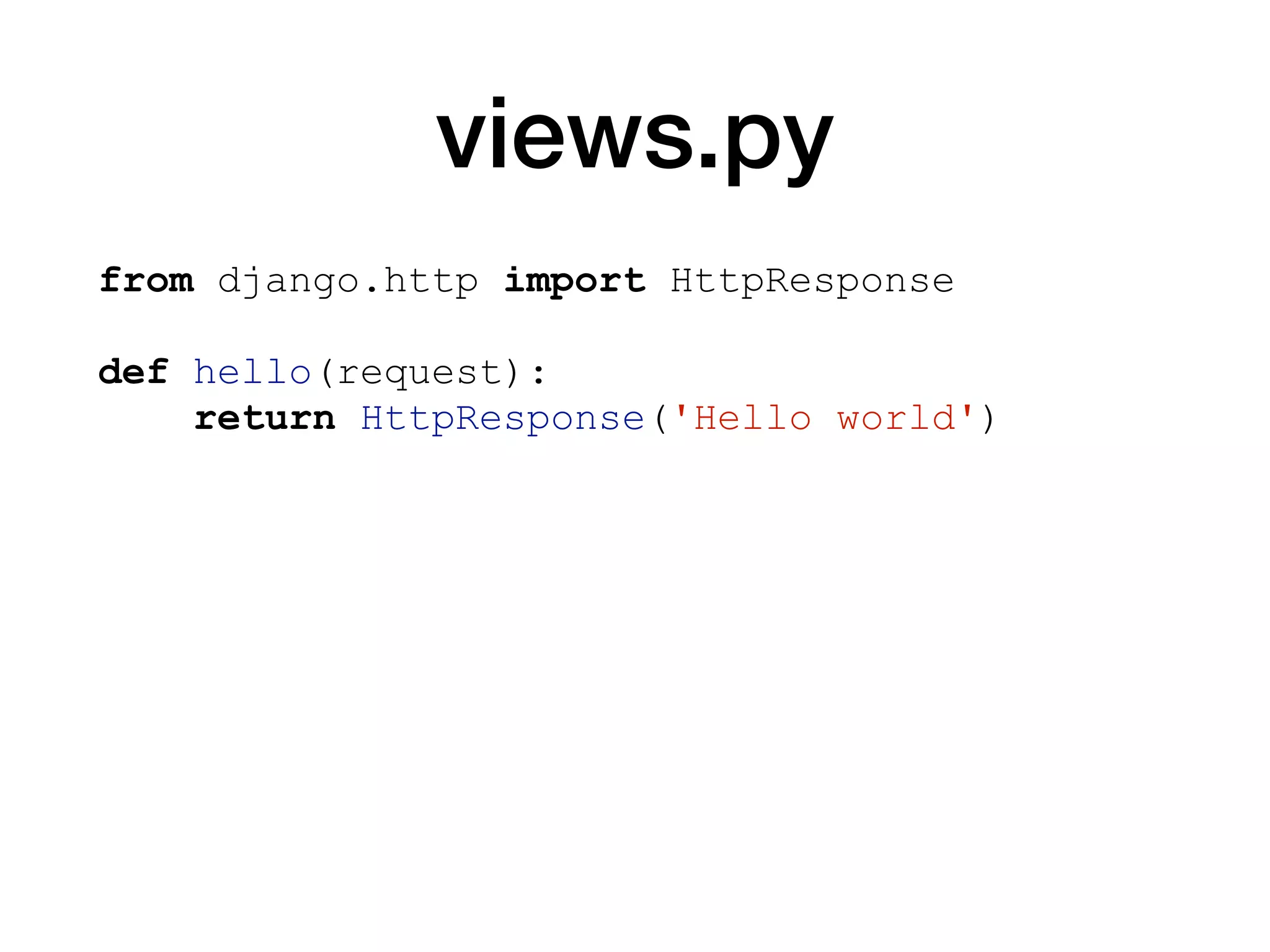

33. views.py
from django.http import HttpResponse
def hello(request):
return HttpResponse('Hello world')

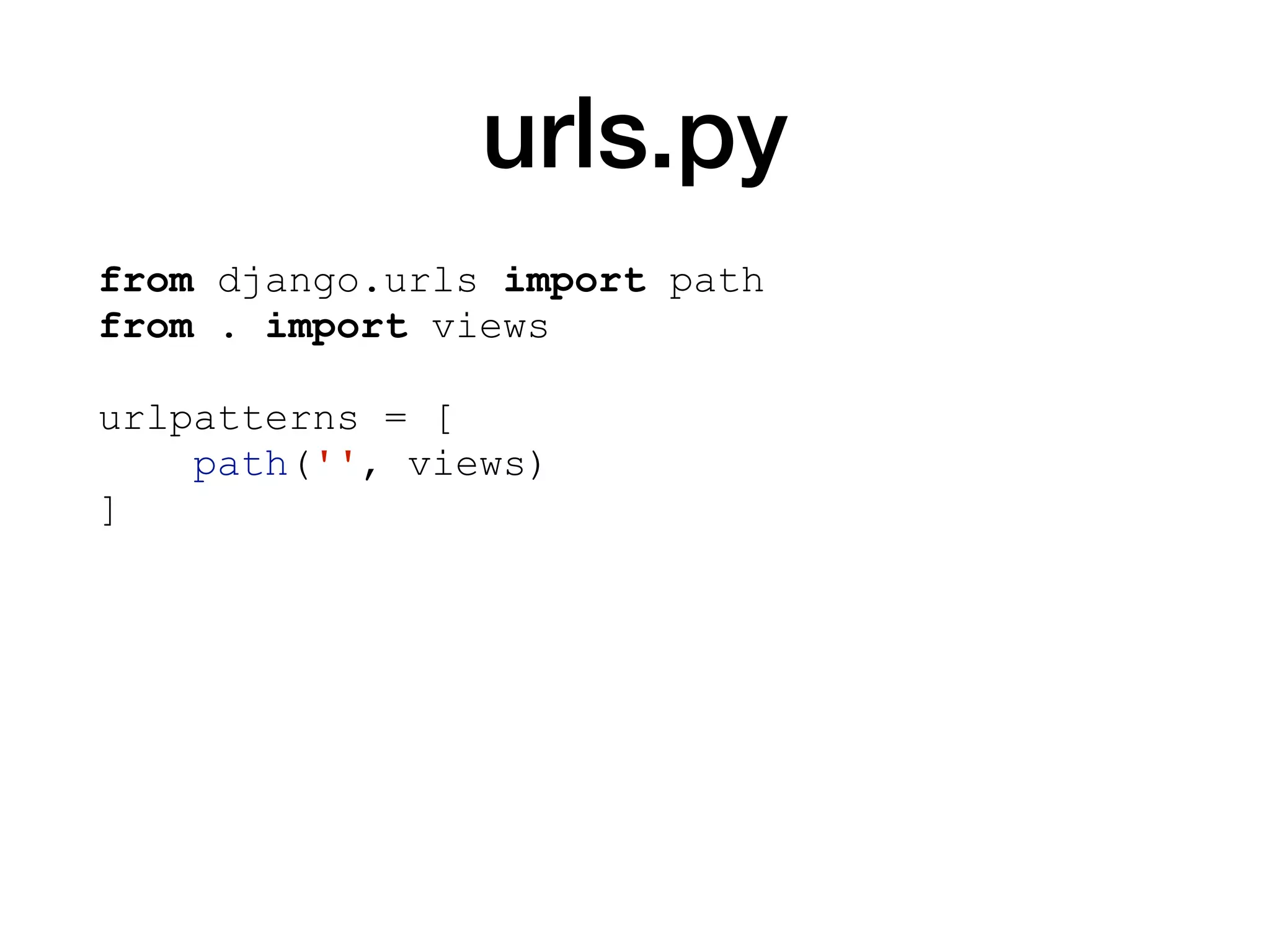

34. urls.py
from django.urls import path
from . import views
urlpatterns = [
path('', views)
]

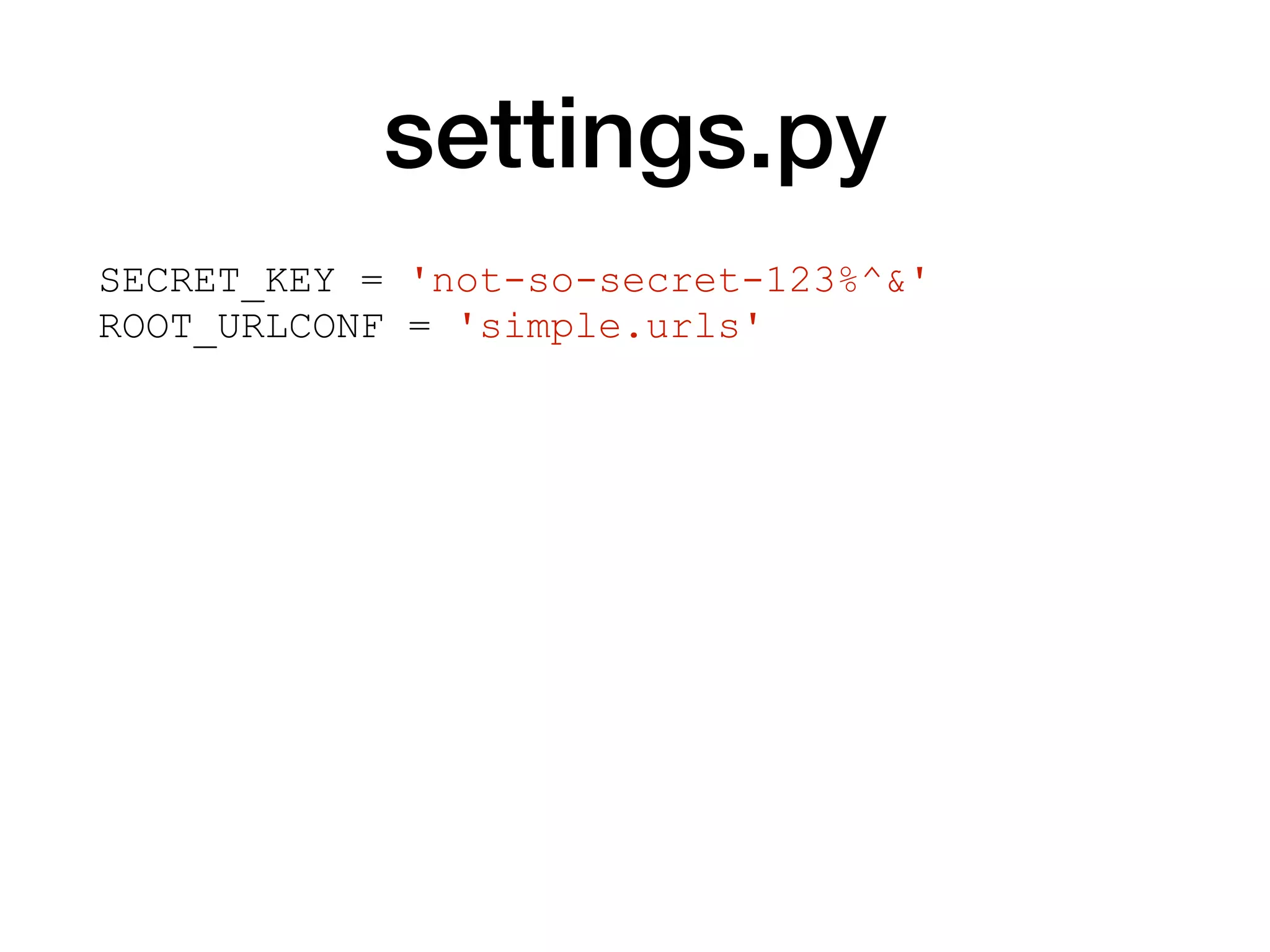

35. settings.py
SECRET_KEY = 'not-so-secret-123%^&'
ROOT_URLCONF = 'simple.urls'

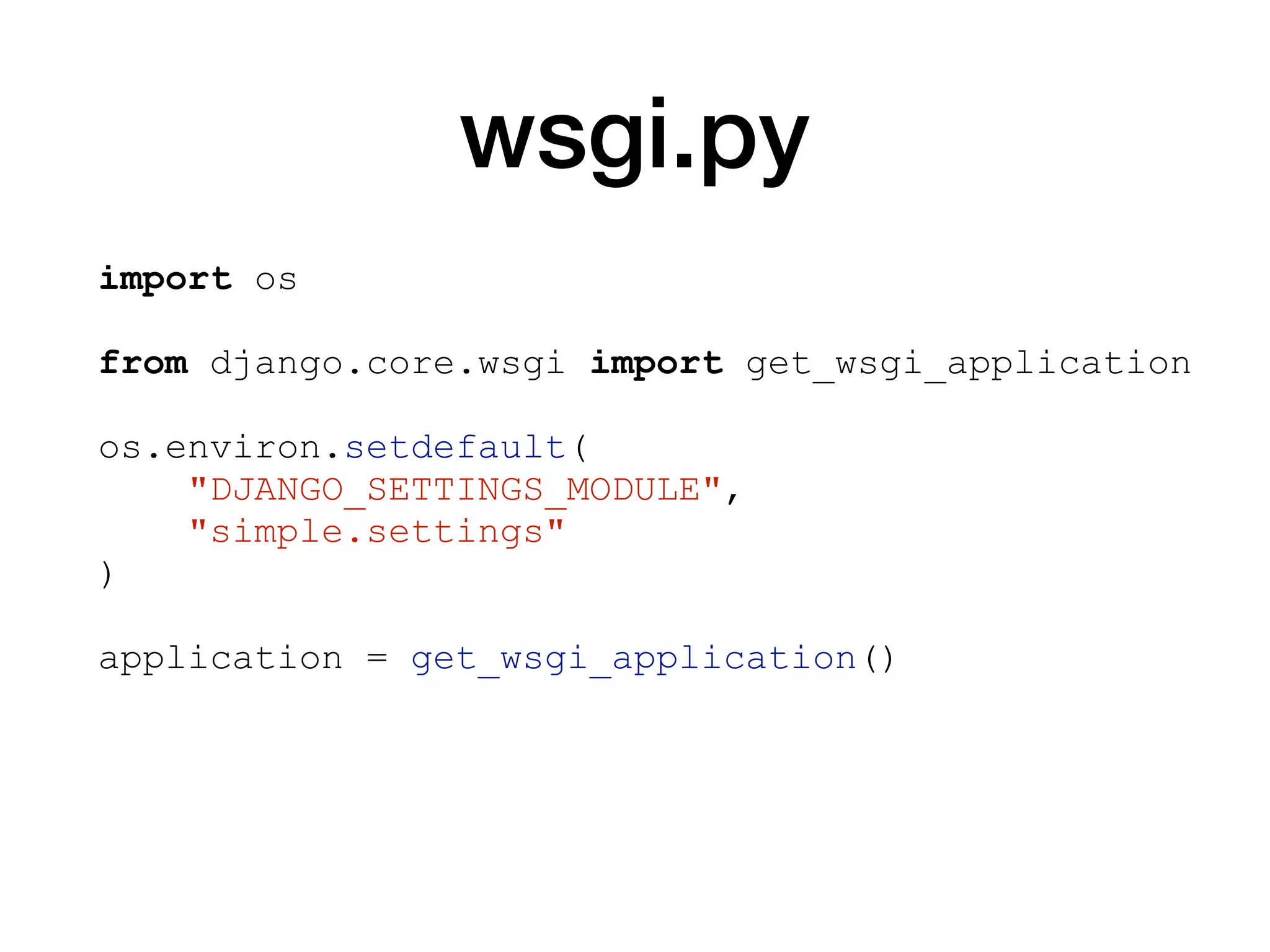

36. wsgi.py
import os
from django.core.wsgi import get_wsgi_application
os.environ.setdefault(
"DJANGO_SETTINGS_MODULE",
"simple.settings"
)
application = get_wsgi_application()

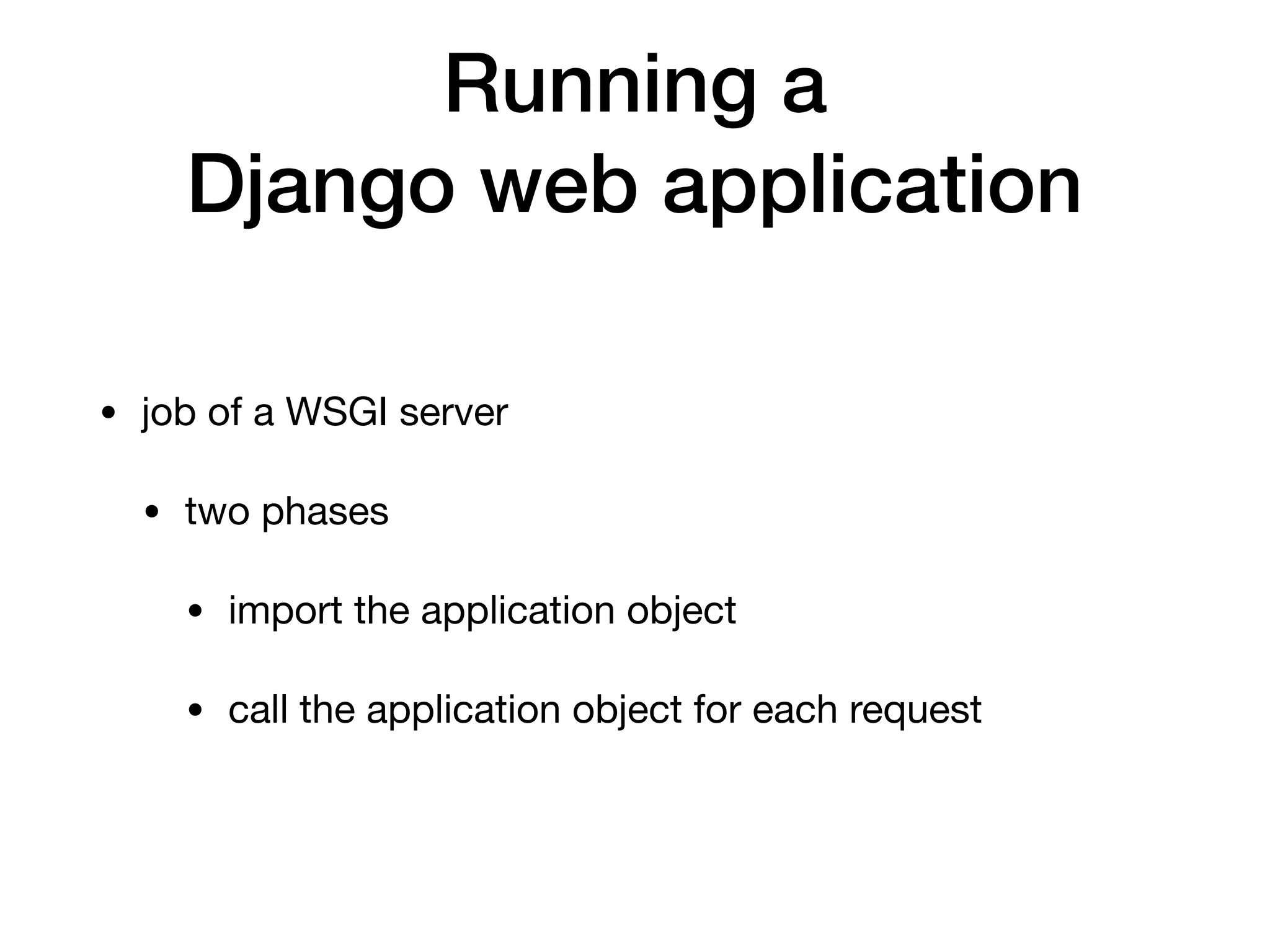

37. Running a
Django web application
• job of a WSGI server
• two phases
• import the application object
• call the application object for each request

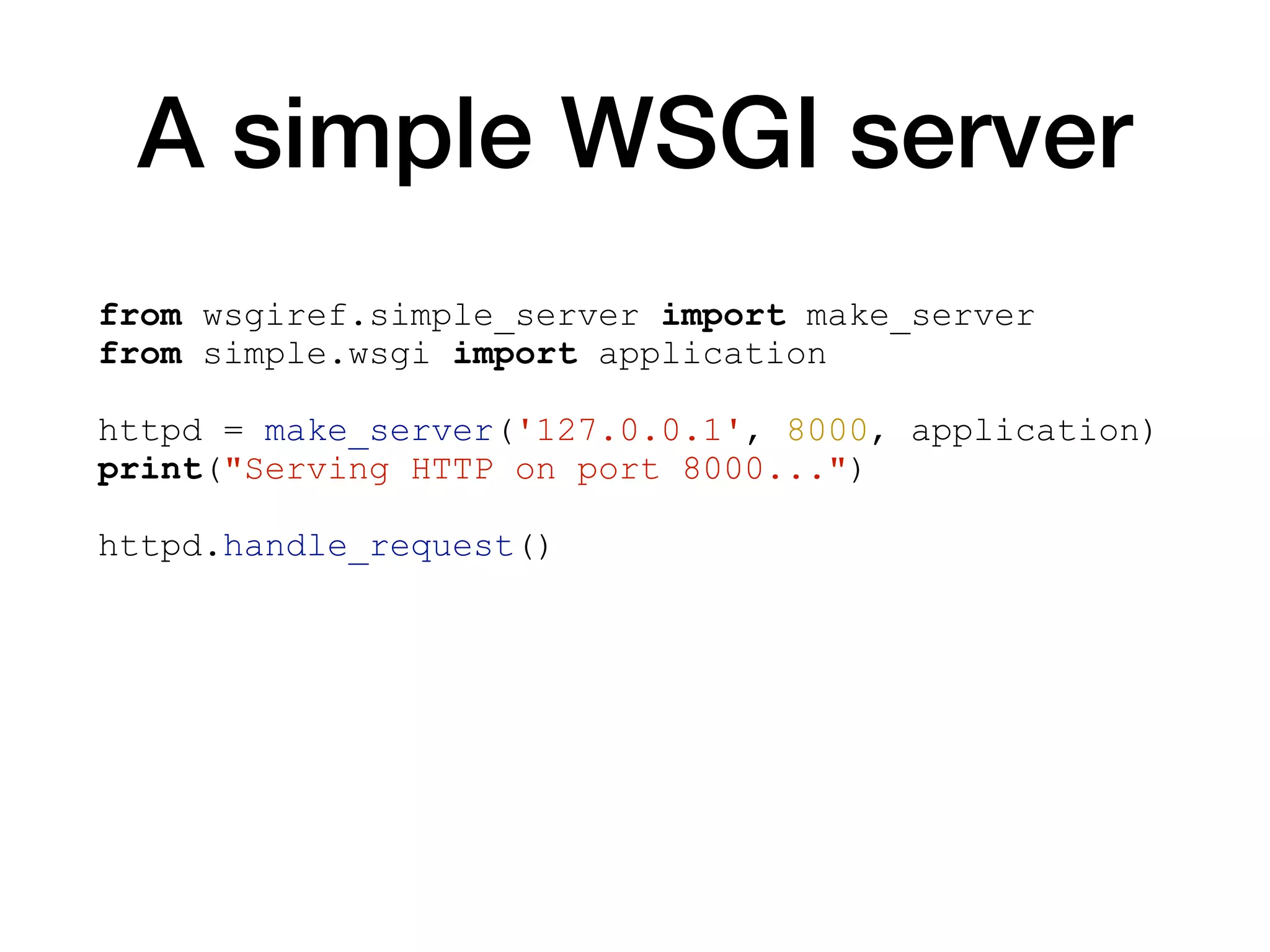

38. A simple WSGI server
from wsgiref.simple_server import make_server
from simple.wsgi import application
httpd = make_server('127.0.0.1', 8000, application)
print("Serving HTTP on port 8000...")
httpd.handle_request()

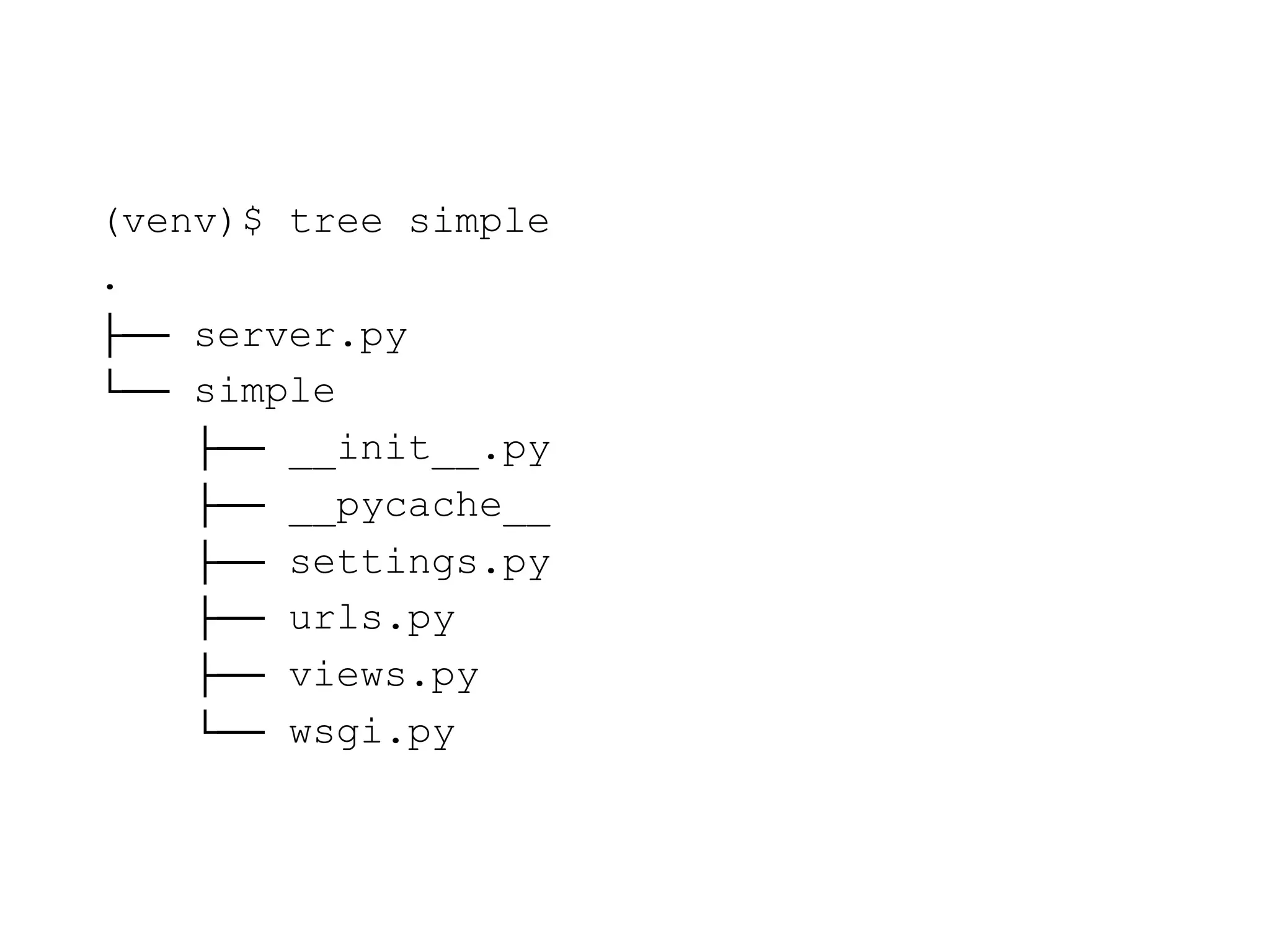

39. (venv)$ tree simple
.
├── server.py
└── simple
├── __init__.py
├── __pycache__
├── settings.py
├── urls.py
├── views.py
└── wsgi.py

40. DEMO

41. Behind the curtain

42. Starting the
application

43. Starting the
application

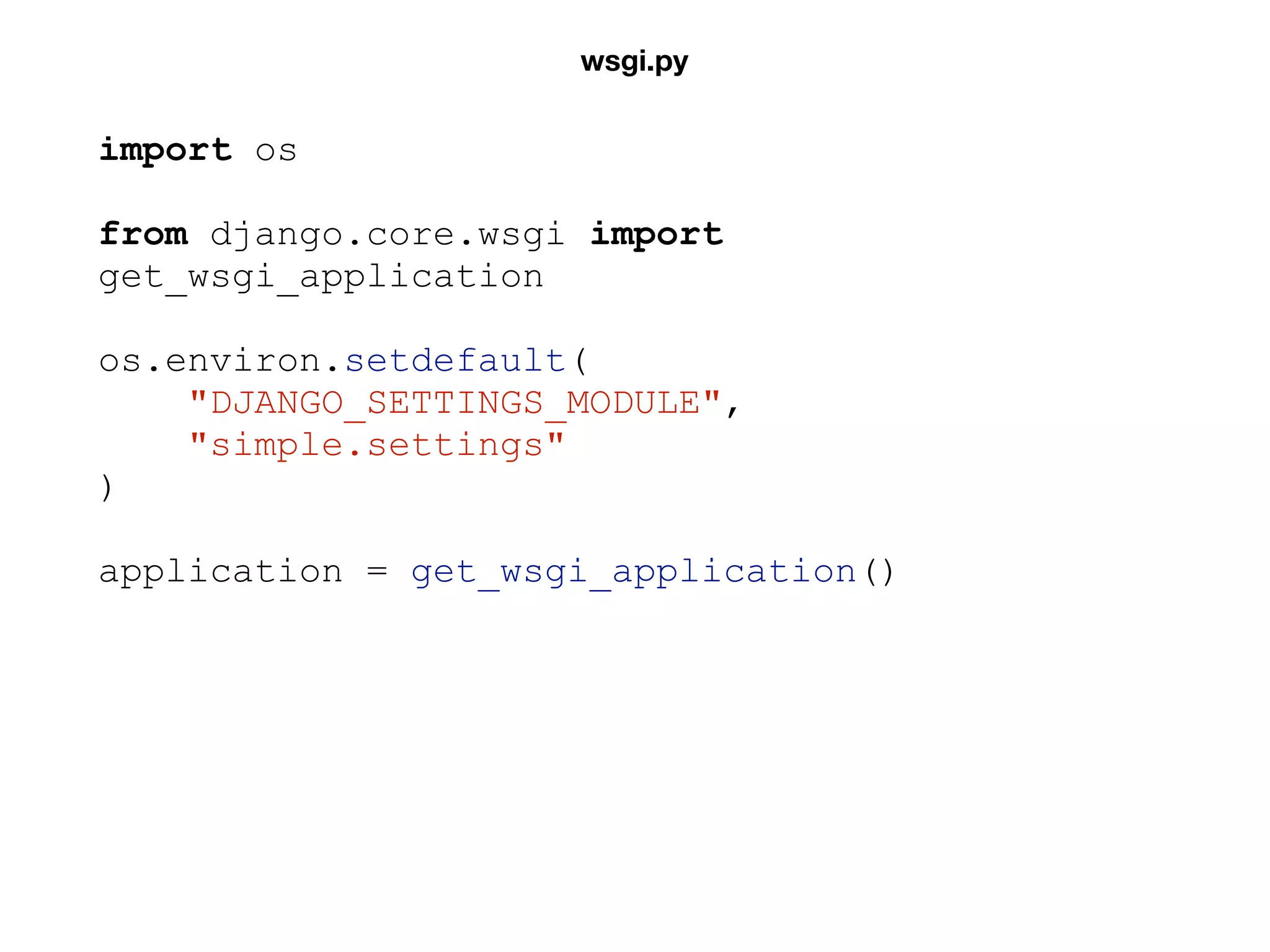

44. import os
from django.core.wsgi import
get_wsgi_application
os.environ.setdefault(
"DJANGO_SETTINGS_MODULE",
"simple.settings"
)
application = get_wsgi_application()
wsgi.py

45. import django
from django.core.handlers.wsgi import WSGIHandler
def get_wsgi_application():
"""
The public interface to Django's WSGI support.
Return a WSGI callable.
Avoids making django.core.handlers.WSGIHandler a public
API, in case the internal WSGI implementation changes or
moves in the future.
"""
django.setup(set_prefix=False)
return WSGIHandler()
django/core/wsgi.py

46. from django.utils.version import get_version
VERSION = (2, 0, 0, 'final', 0)
__version__ = get_version(VERSION)
def setup(set_prefix=True):
"""
Configure the settings (this happens as a side effect of accessing the
first setting), configure logging and populate the app registry.
Set the thread-local urlresolvers script prefix if `set_prefix` is True.
"""
from django.apps import apps
from django.conf import settings
from django.urls import set_script_prefix
from django.utils.log import configure_logging
configure_logging(settings.LOGGING_CONFIG, settings.LOGGING)
if set_prefix:
set_script_prefix(
'/'
if settings.FORCE_SCRIPT_NAME is None
else settings.FORCE_SCRIPT_NAME
)
apps.populate(settings.INSTALLED_APPS)
django/__init__.py

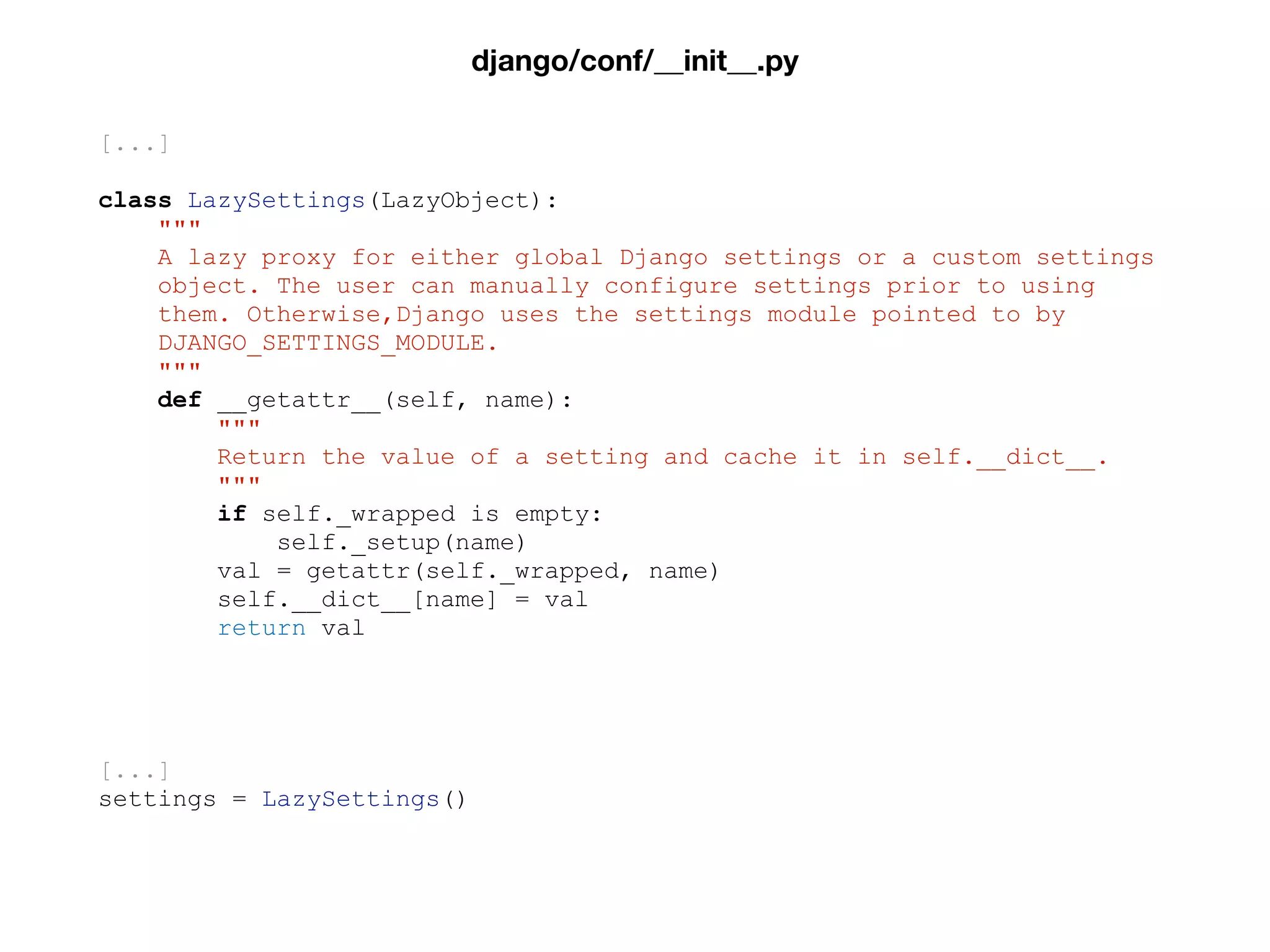

47. [...]
class LazySettings(LazyObject):
"""
A lazy proxy for either global Django settings or a custom settings
object. The user can manually configure settings prior to using
them. Otherwise,Django uses the settings module pointed to by
DJANGO_SETTINGS_MODULE.
"""
def __getattr__(self, name):
"""
Return the value of a setting and cache it in self.__dict__.
"""
if self._wrapped is empty:
self._setup(name)
val = getattr(self._wrapped, name)
self.__dict__[name] = val
return val
[...]
settings = LazySettings()
django/conf/__init__.py

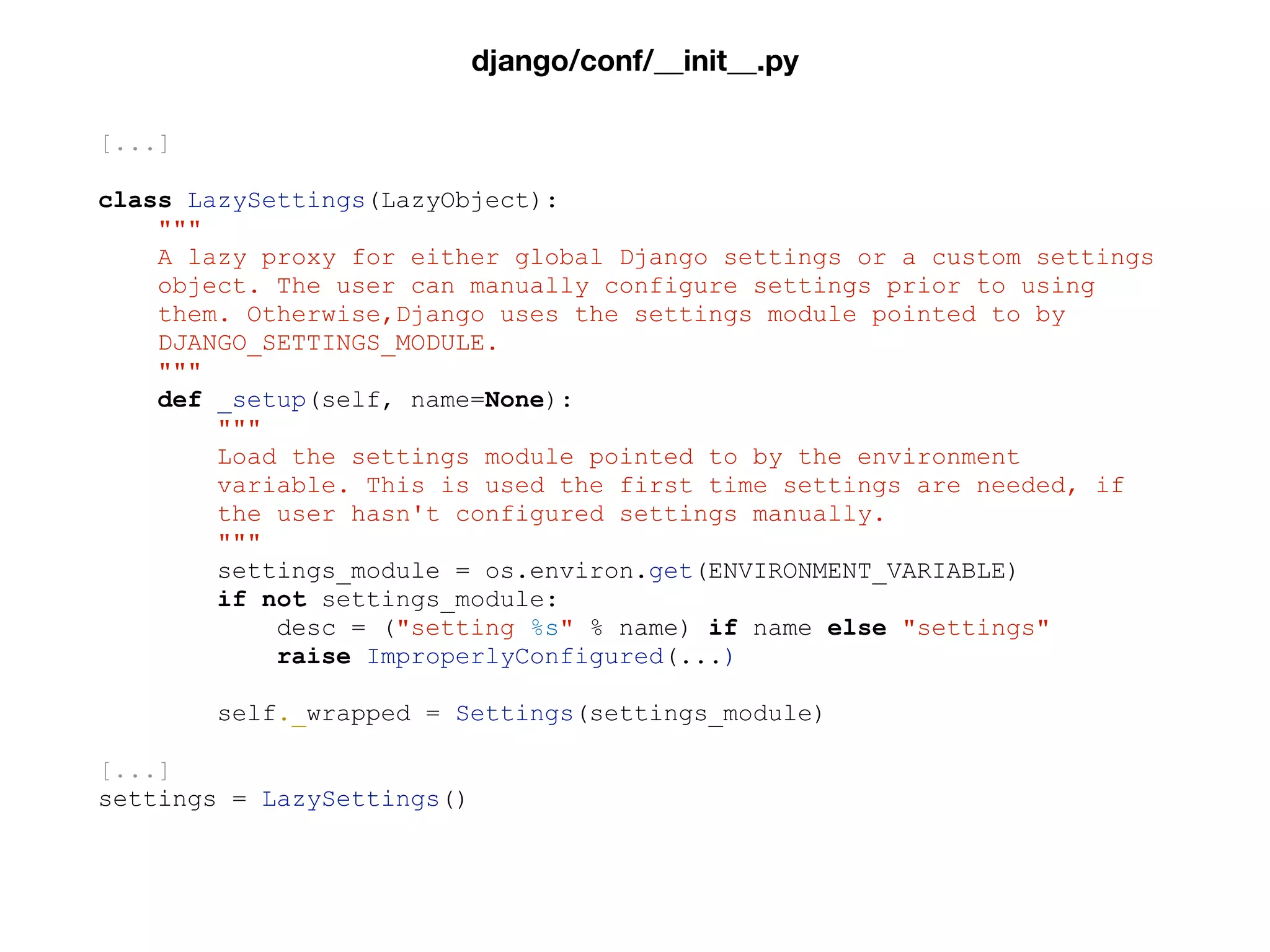

48. [...]
class LazySettings(LazyObject):
"""
A lazy proxy for either global Django settings or a custom settings
object. The user can manually configure settings prior to using
them. Otherwise,Django uses the settings module pointed to by
DJANGO_SETTINGS_MODULE.
"""
def _setup(self, name=None):
"""
Load the settings module pointed to by the environment
variable. This is used the first time settings are needed, if
the user hasn't configured settings manually.
"""
settings_module = os.environ.get(ENVIRONMENT_VARIABLE)
if not settings_module:
desc = ("setting %s" % name) if name else "settings"
raise ImproperlyConfigured(...)
self._wrapped = Settings(settings_module)
[...]
settings = LazySettings()
django/conf/__init__.py

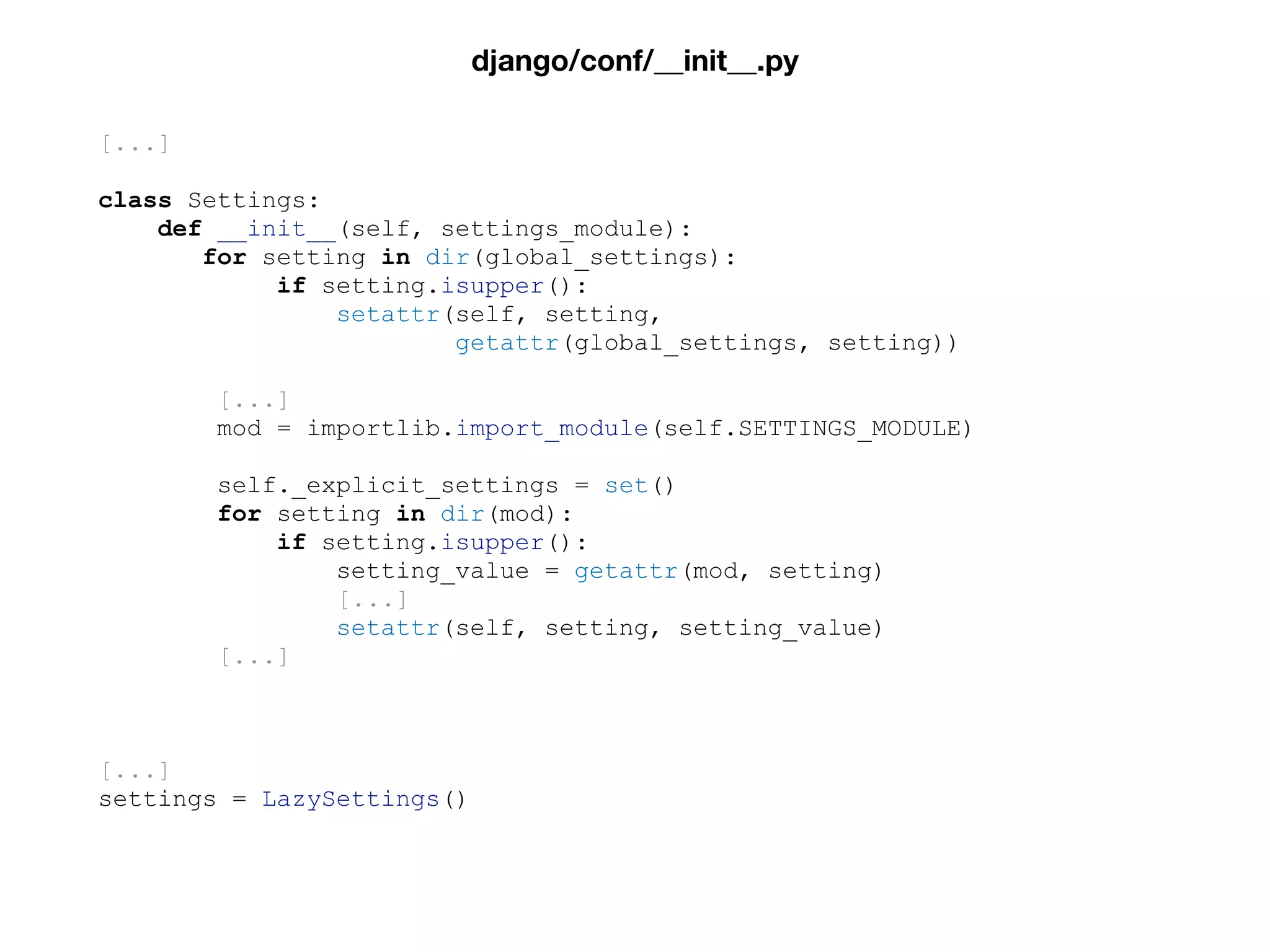

49. [...]
class Settings:
def __init__(self, settings_module):
for setting in dir(global_settings):
if setting.isupper():
setattr(self, setting,
getattr(global_settings, setting))
[...]
mod = importlib.import_module(self.SETTINGS_MODULE)
self._explicit_settings = set()
for setting in dir(mod):
if setting.isupper():
setting_value = getattr(mod, setting)
[...]
setattr(self, setting, setting_value)
[...]
[...]
settings = LazySettings()
django/conf/__init__.py

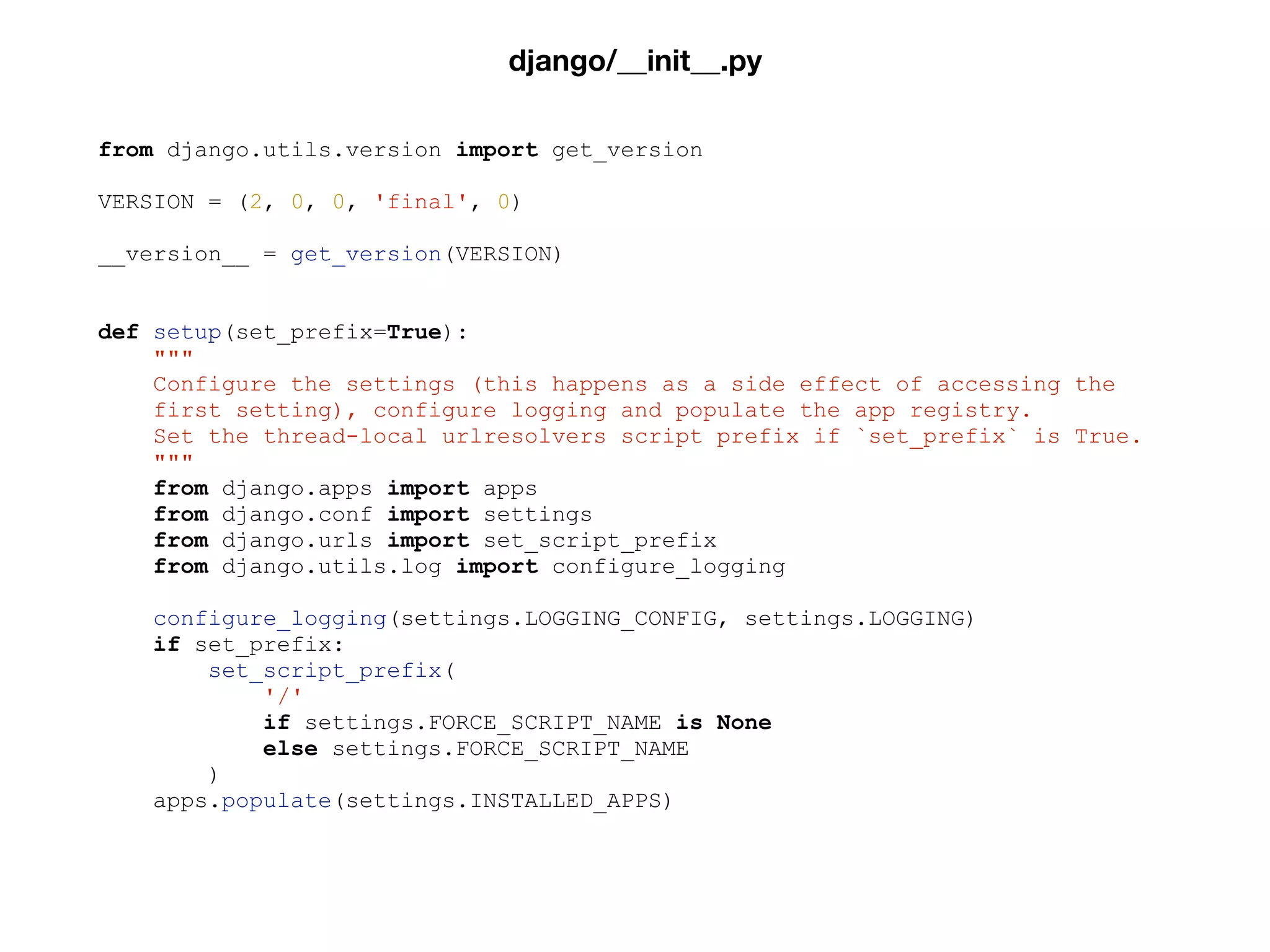

50. from django.utils.version import get_version
VERSION = (2, 0, 0, 'final', 0)
__version__ = get_version(VERSION)
def setup(set_prefix=True):
"""
Configure the settings (this happens as a side effect of accessing the
first setting), configure logging and populate the app registry.
Set the thread-local urlresolvers script prefix if `set_prefix` is True.
"""
from django.apps import apps
from django.conf import settings
from django.urls import set_script_prefix
from django.utils.log import configure_logging
configure_logging(settings.LOGGING_CONFIG, settings.LOGGING)
if set_prefix:
set_script_prefix(
'/'
if settings.FORCE_SCRIPT_NAME is None
else settings.FORCE_SCRIPT_NAME
)
apps.populate(settings.INSTALLED_APPS)
django/__init__.py

51. import django
from django.core.handlers.wsgi import WSGIHandler
def get_wsgi_application():
"""
The public interface to Django's WSGI support.
Return a WSGI callable.
Avoids making django.core.handlers.WSGIHandler a public
API, in case the internal WSGI implementation changes or
moves in the future.
"""
django.setup(set_prefix=False)
return WSGIHandler()
django/core/wsgi.py

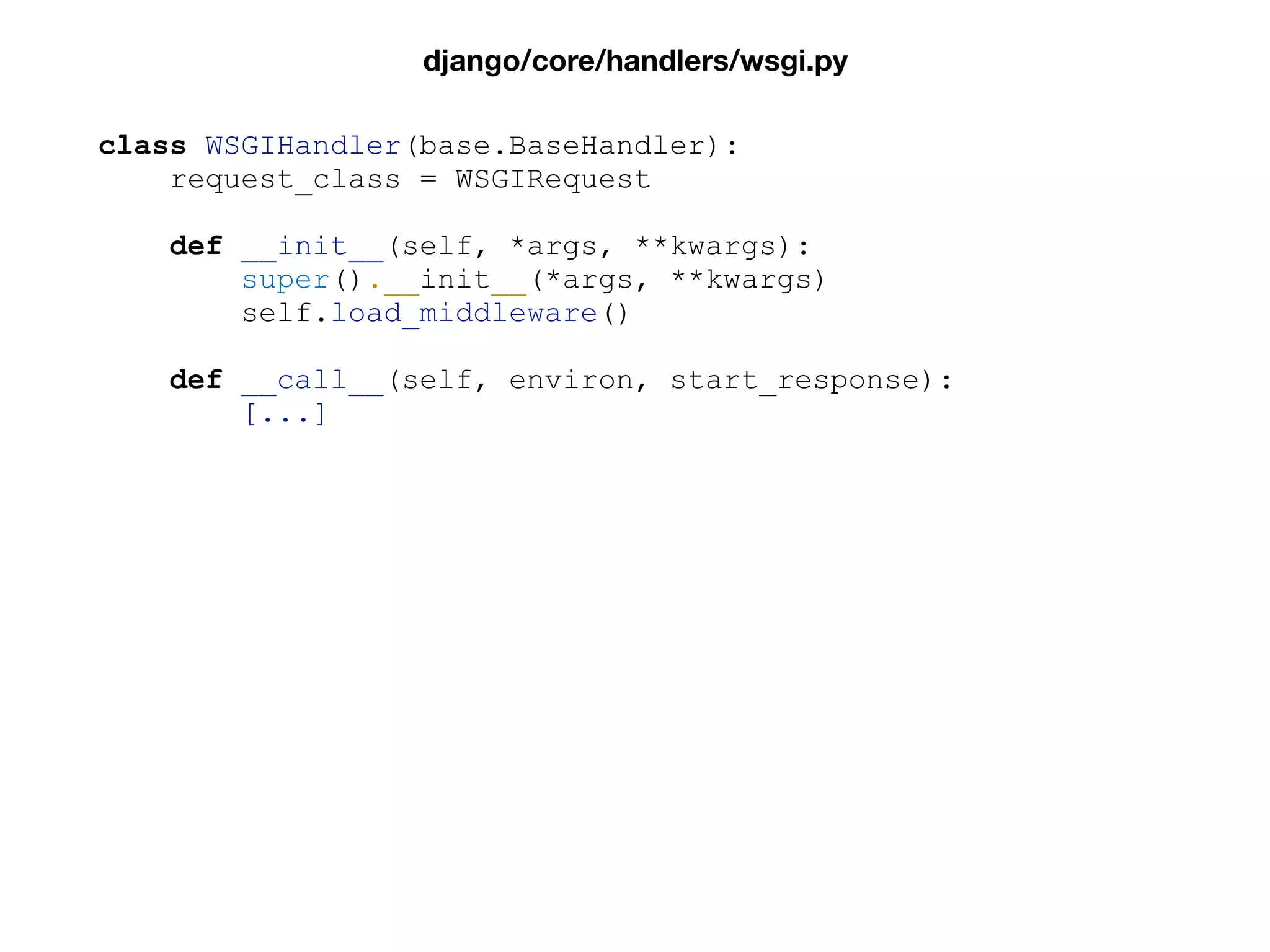

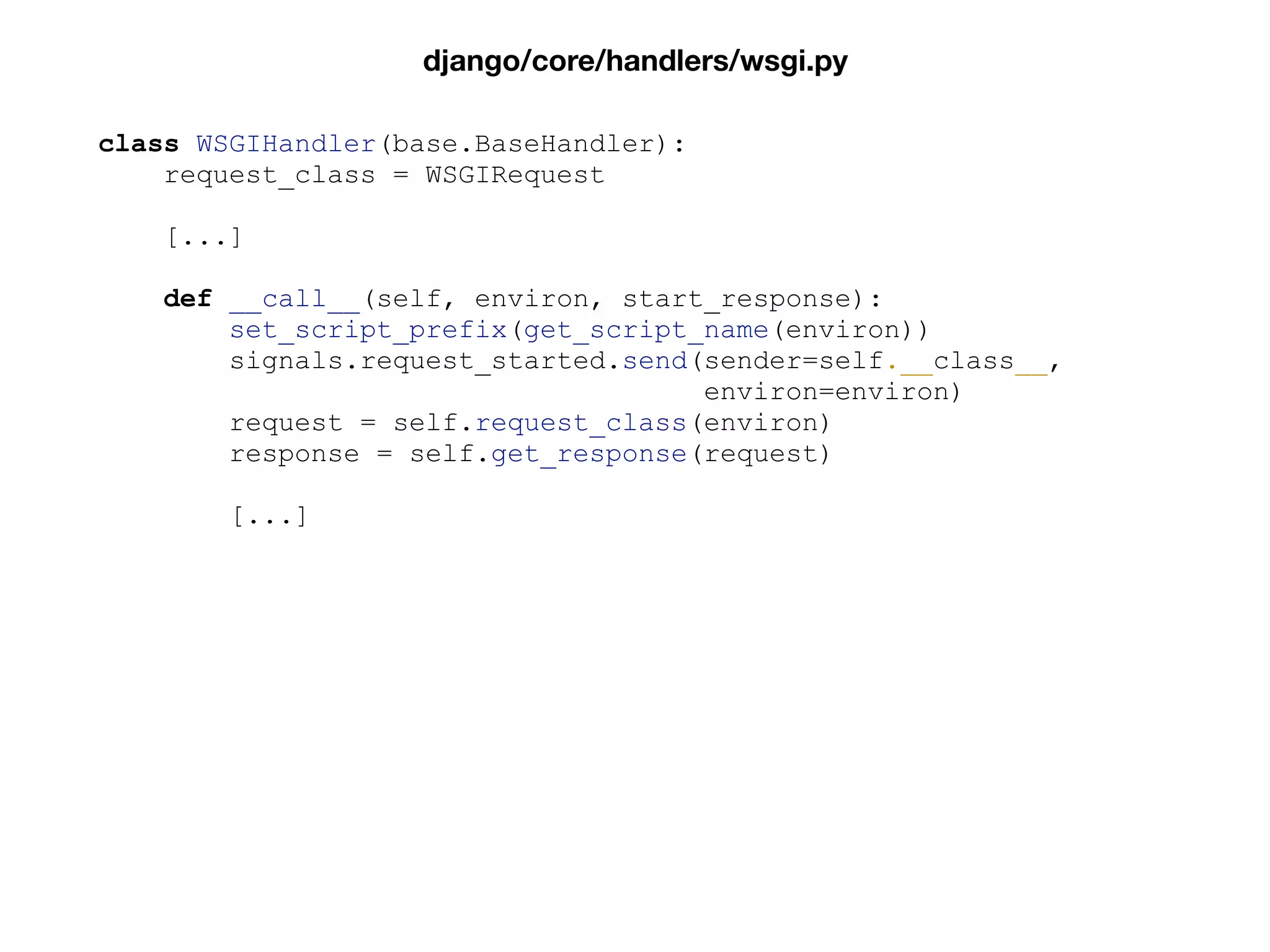

52. class WSGIHandler(base.BaseHandler):
request_class = WSGIRequest
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self.load_middleware()
def __call__(self, environ, start_response):
[...]
django/core/handlers/wsgi.py

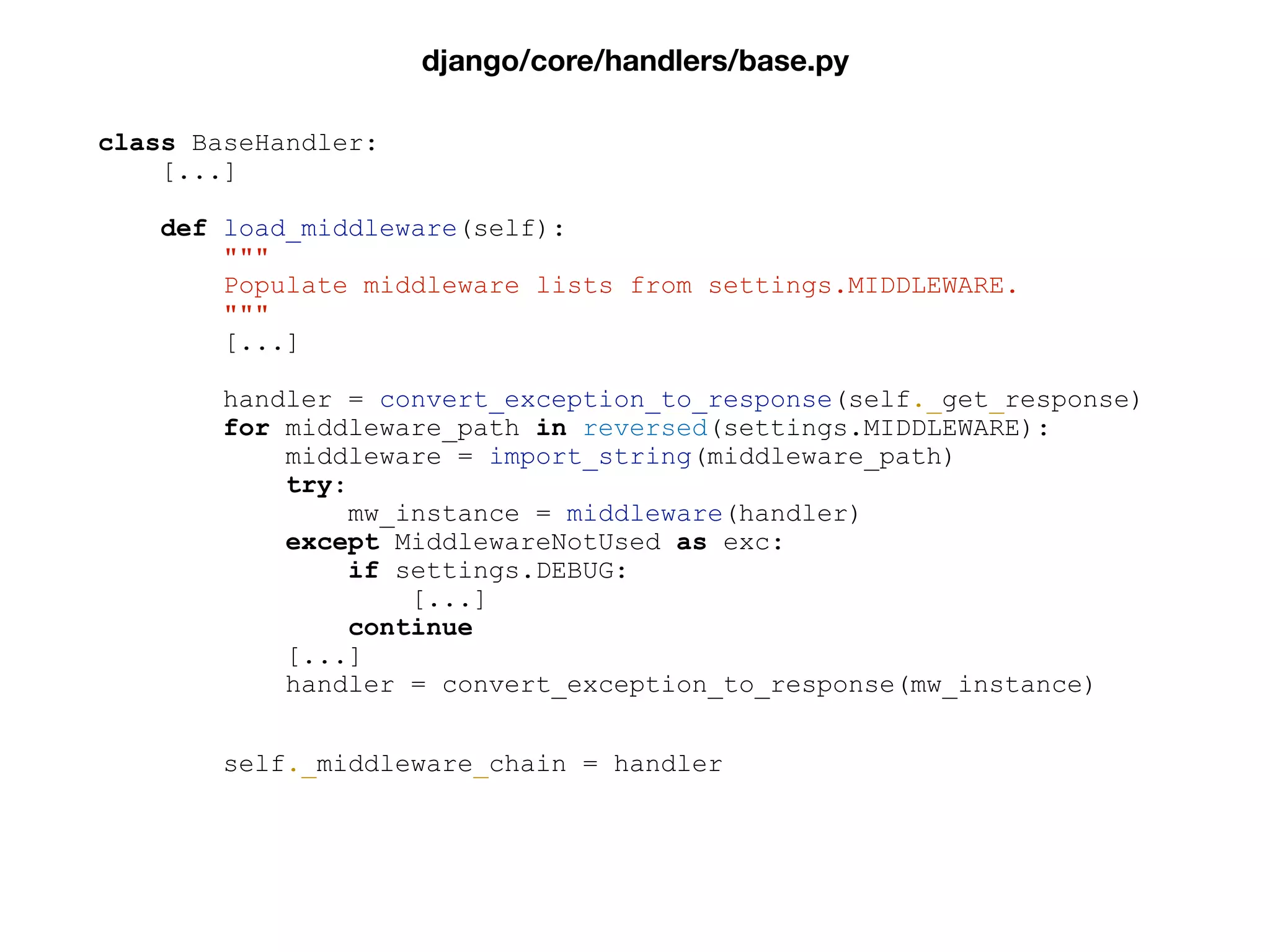

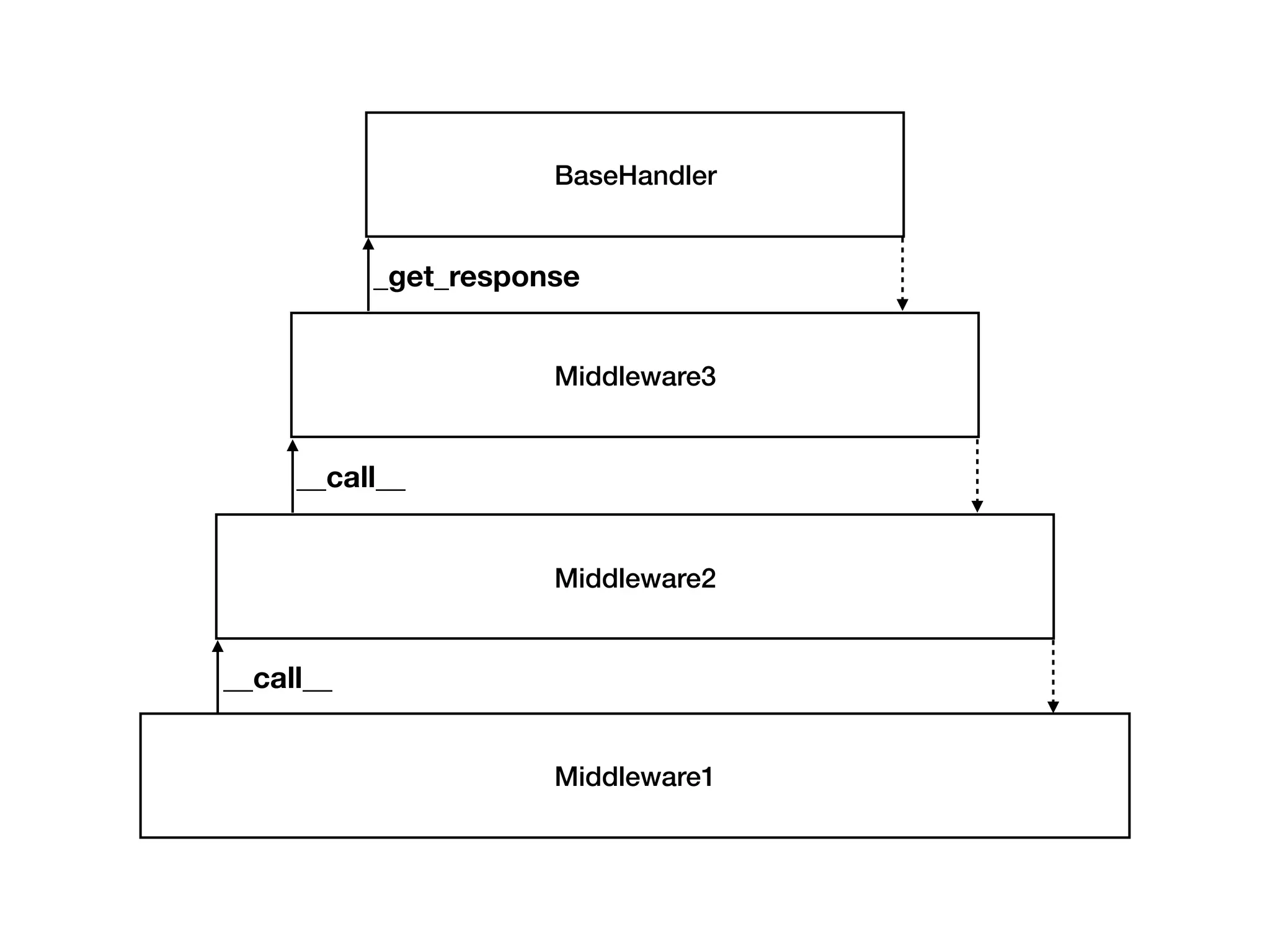

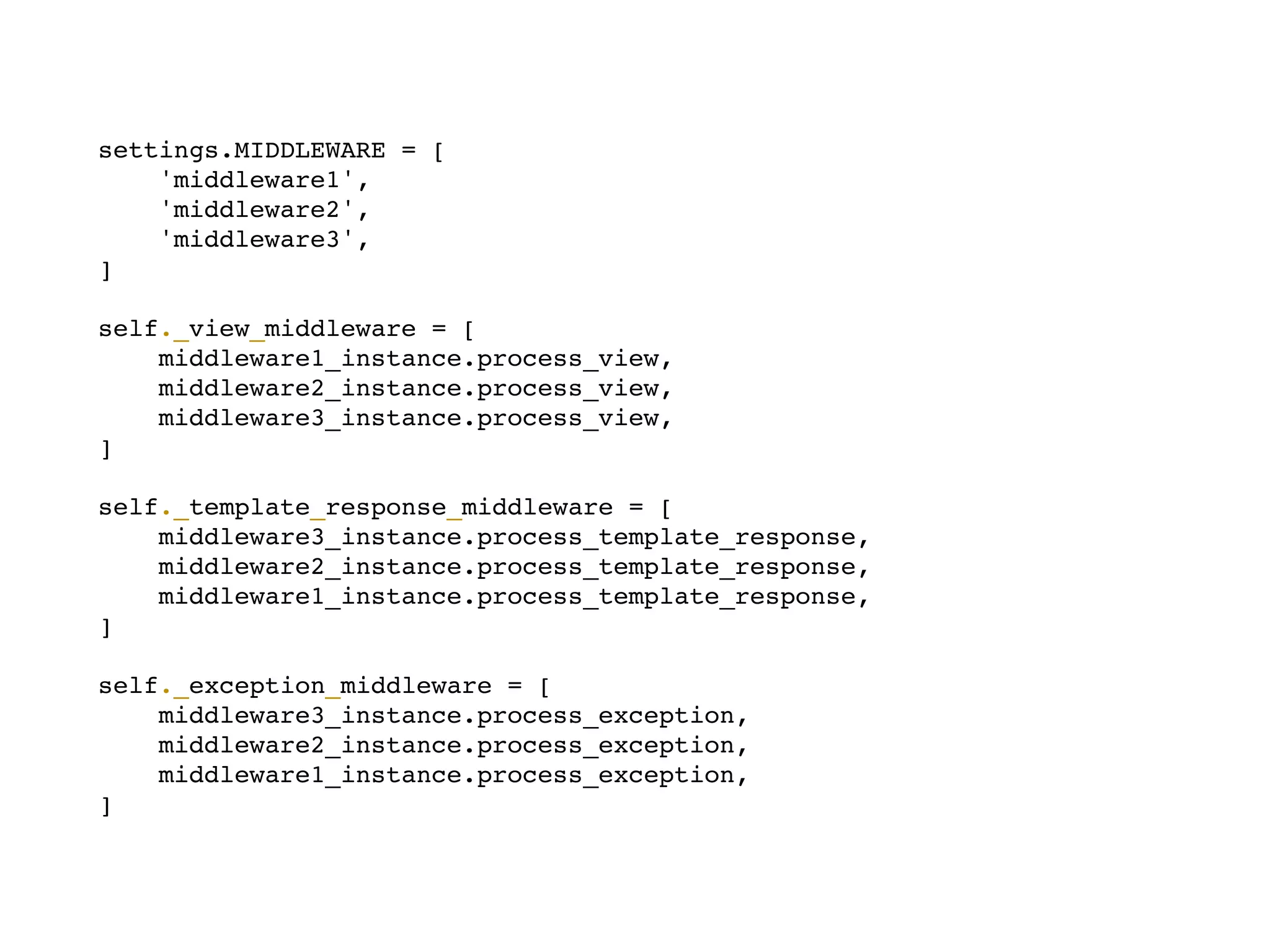

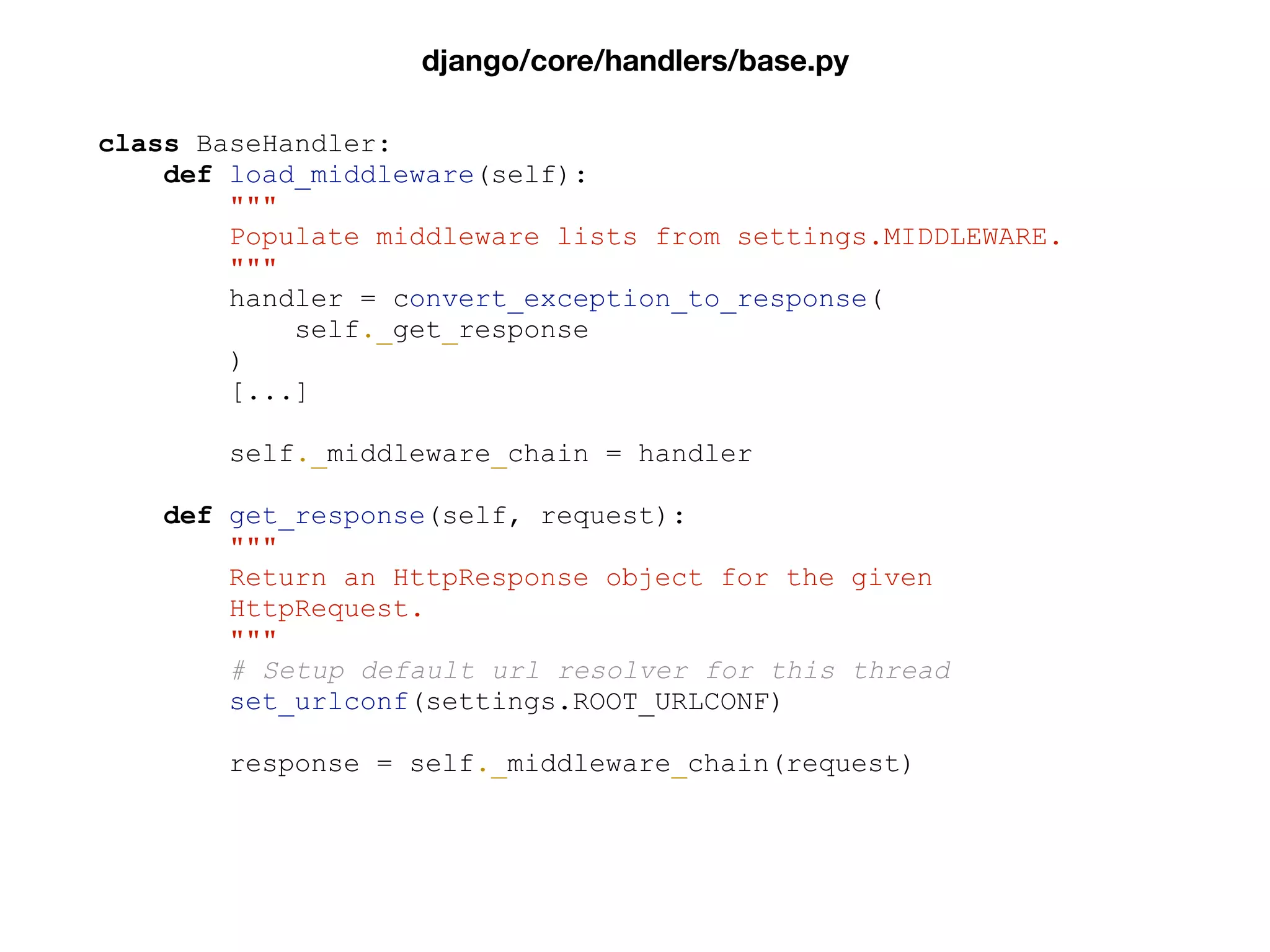

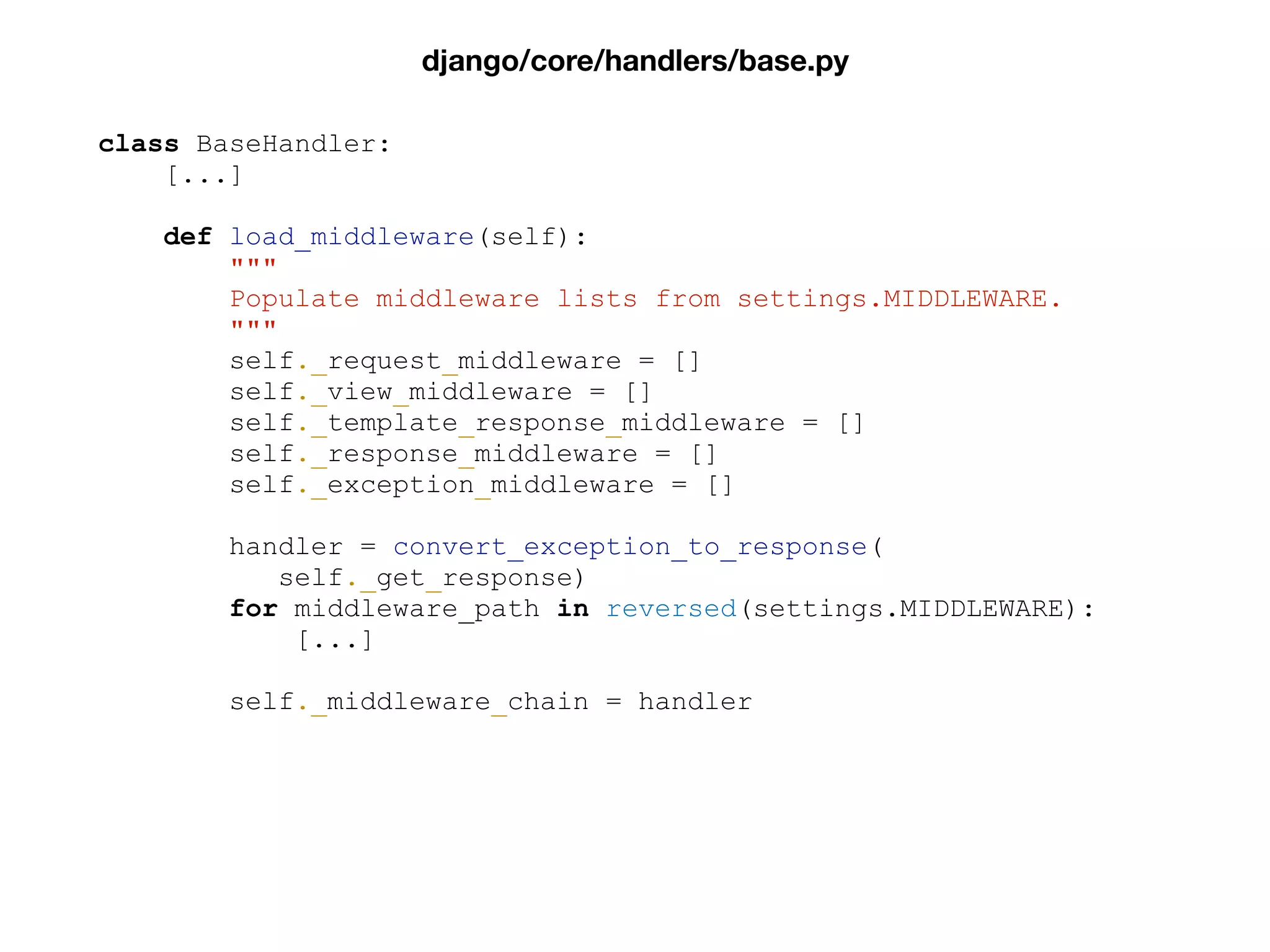

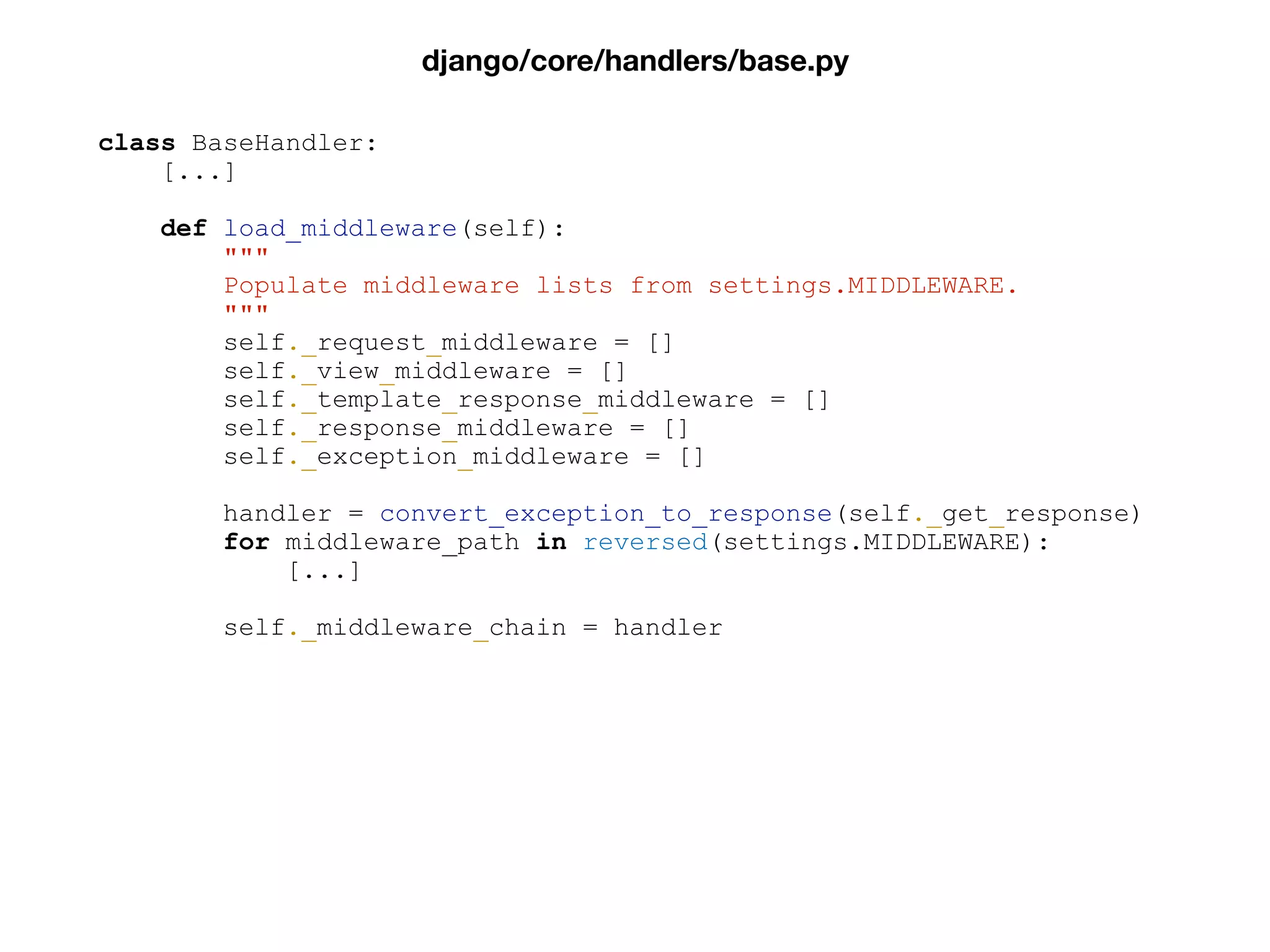

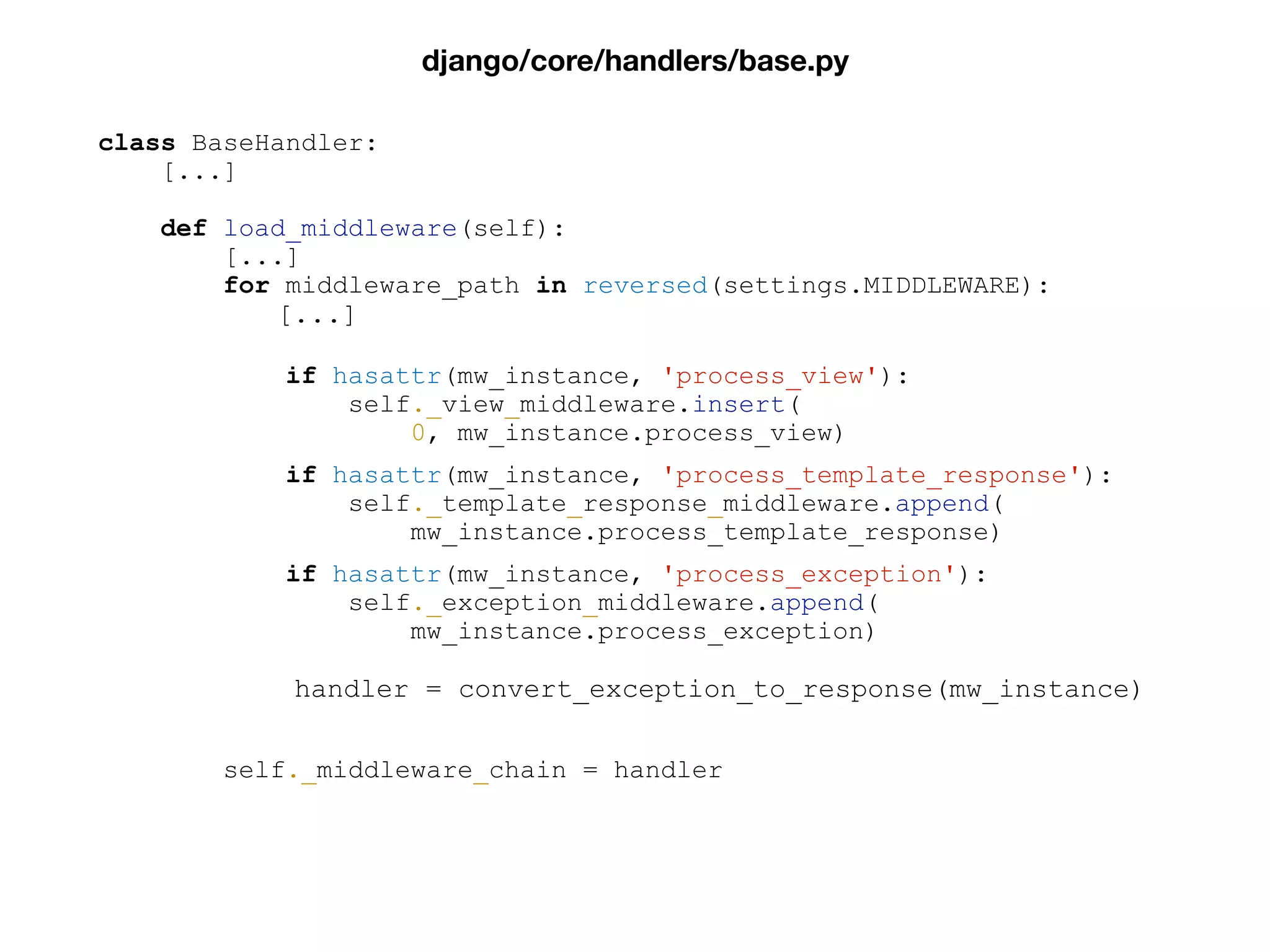

53. class BaseHandler:
[...]
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
self._request_middleware = []
self._view_middleware = []
self._template_response_middleware = []
self._response_middleware = []
self._exception_middleware = []
handler = convert_exception_to_response(
self._get_response)

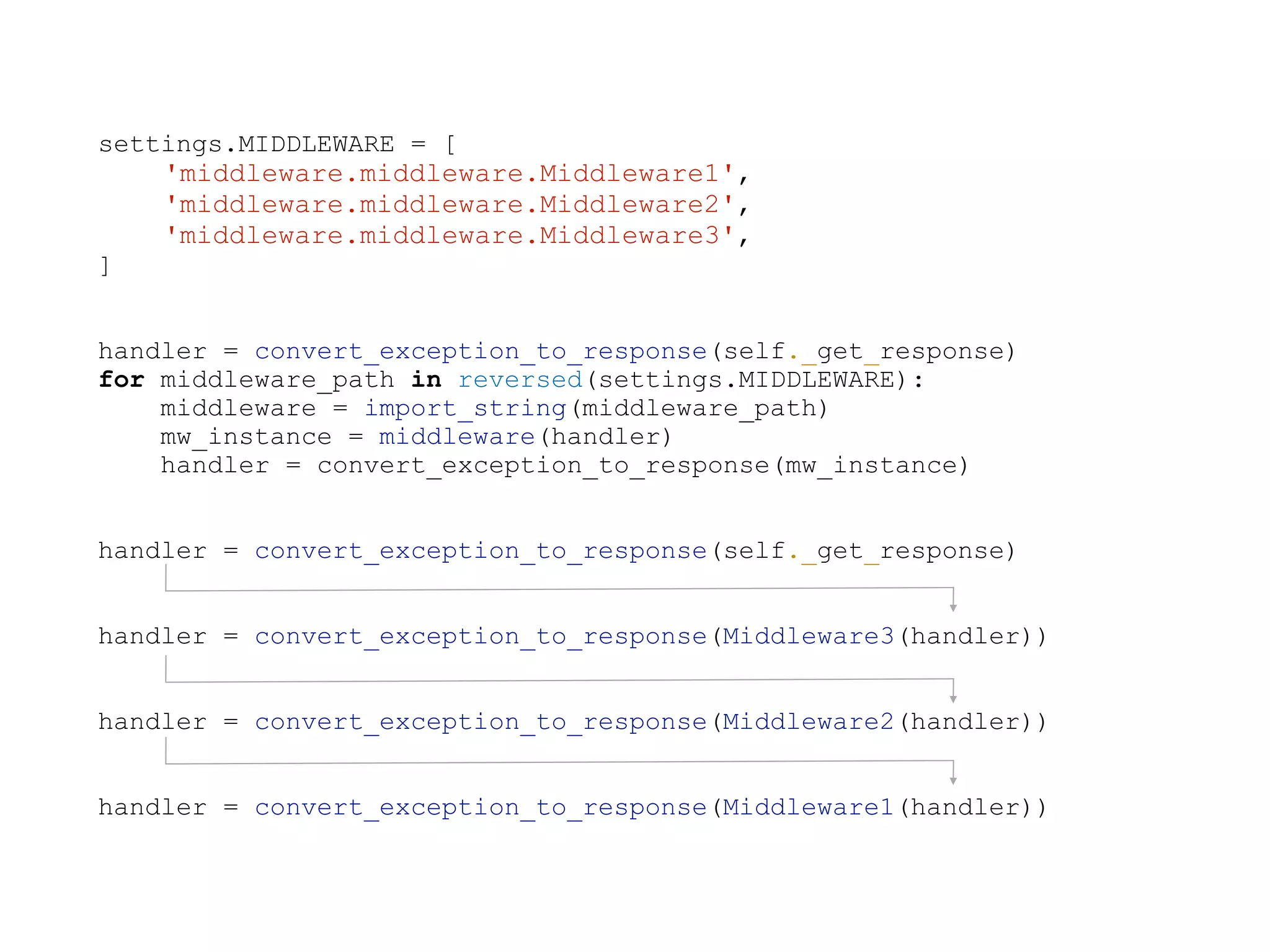

for middleware_path in reversed(settings.MIDDLEWARE):
[...]
self._middleware_chain = handler
django/core/handlers/base.py

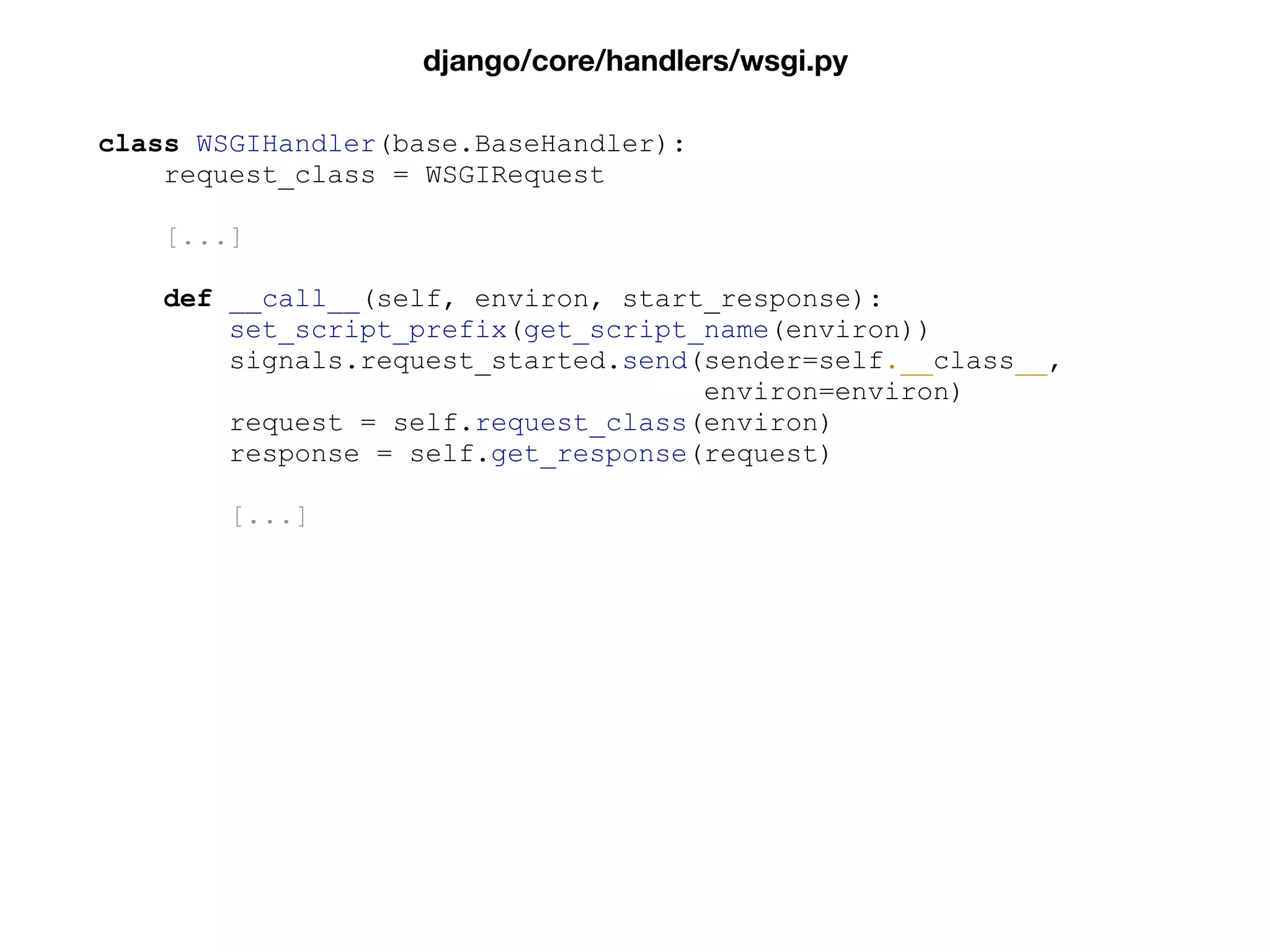

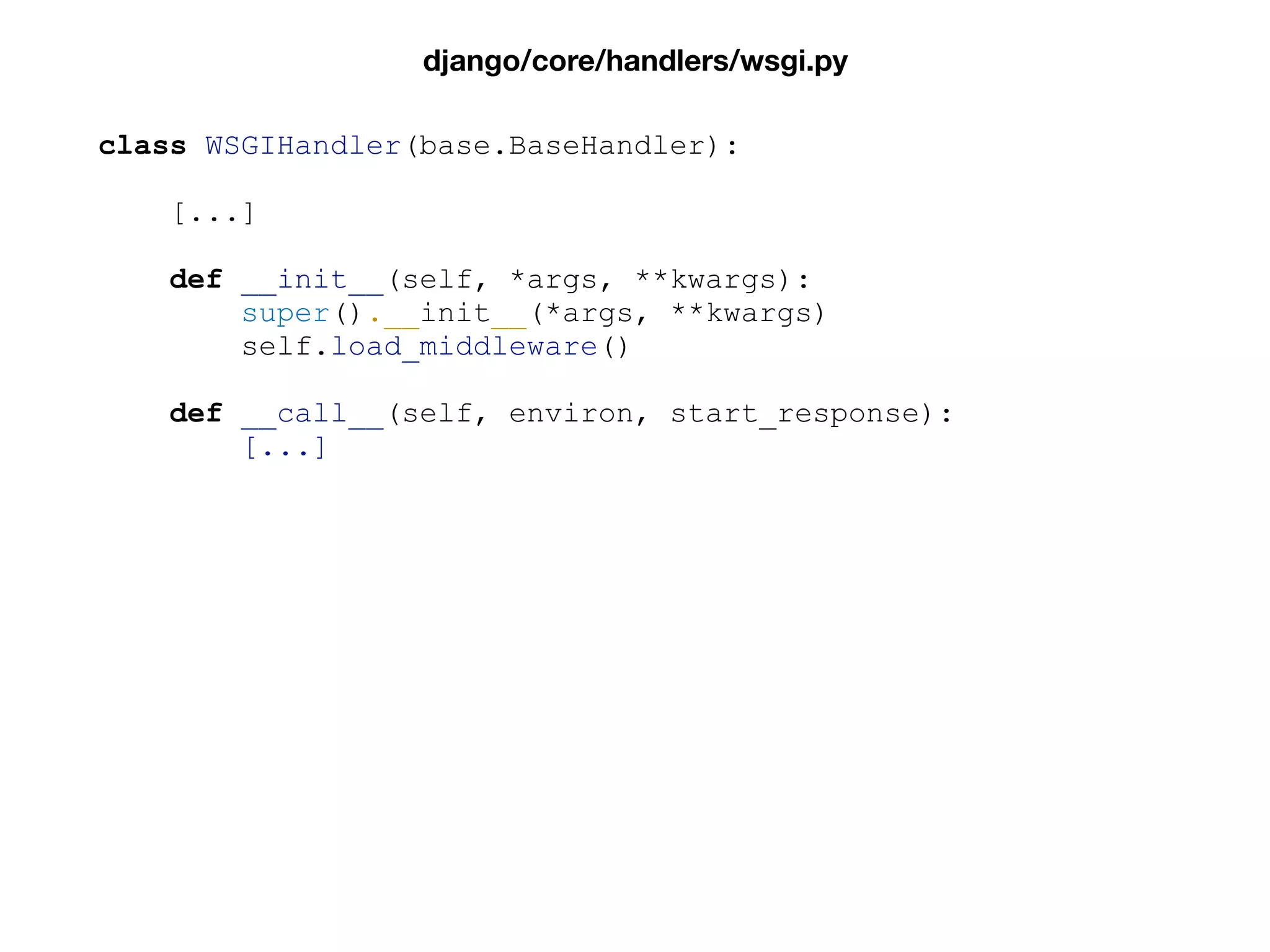

54. class WSGIHandler(base.BaseHandler):
[...]
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self.load_middleware()
def __call__(self, environ, start_response):
[...]
django/core/handlers/wsgi.py

55. import django
from django.core.handlers.wsgi import WSGIHandler
def get_wsgi_application():
"""
The public interface to Django's WSGI support.
Return a WSGI callable.
Avoids making django.core.handlers.WSGIHandler a public
API, in case the internal WSGI implementation changes or
moves in the future.
"""
django.setup(set_prefix=False)
return WSGIHandler()
django/core/wsgi.py

56. import os
from django.core.wsgi import
get_wsgi_application
os.environ.setdefault(
"DJANGO_SETTINGS_MODULE",
"simple.settings"
)
application = get_wsgi_application()
wsgi.py

57. Handling a request

58. WSGI Application
• Callable that accepts two arguments
• a function, method, class, instance with a __call__ method
• result = application(environ, start_response)
• environ: dictionary object, containing CGI-style environment variables
• start_response: callable, accepting two required positional
arguments, third optional
• def start_response(status, response_headers,
exc_info=None):
• When called by the server, the application object must return an iterable
yielding zero or more bytestrings

59. class WSGIHandler(base.BaseHandler):
request_class = WSGIRequest
[...]
def __call__(self, environ, start_response):
set_script_prefix(get_script_name(environ))
signals.request_started.send(sender=self.__class__,
environ=environ)
request = self.request_class(environ)
response = self.get_response(request)
[...]
django/core/handlers/wsgi.py

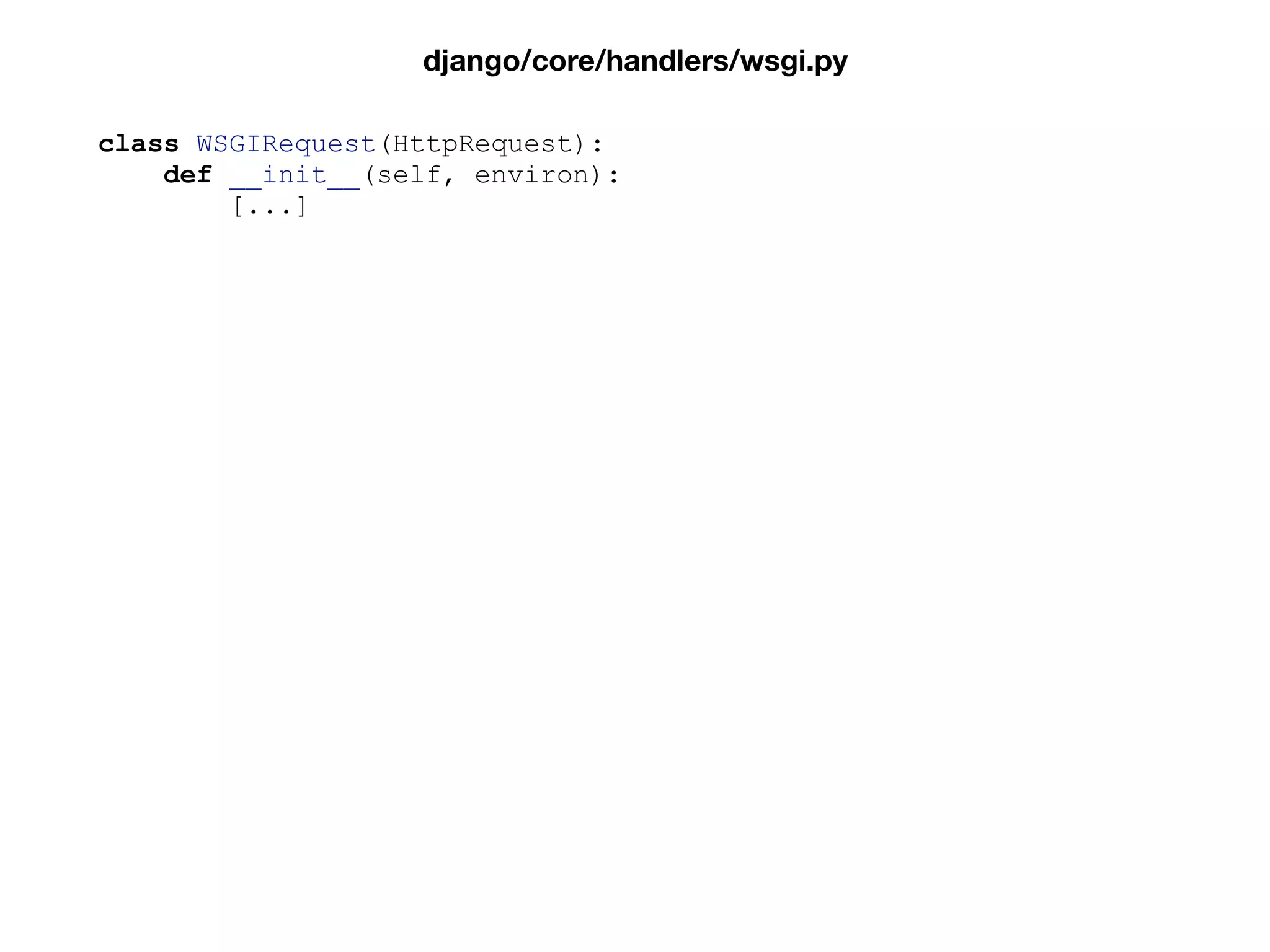

60. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
django/core/handlers/wsgi.py

61. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
django/core/handlers/wsgi.py

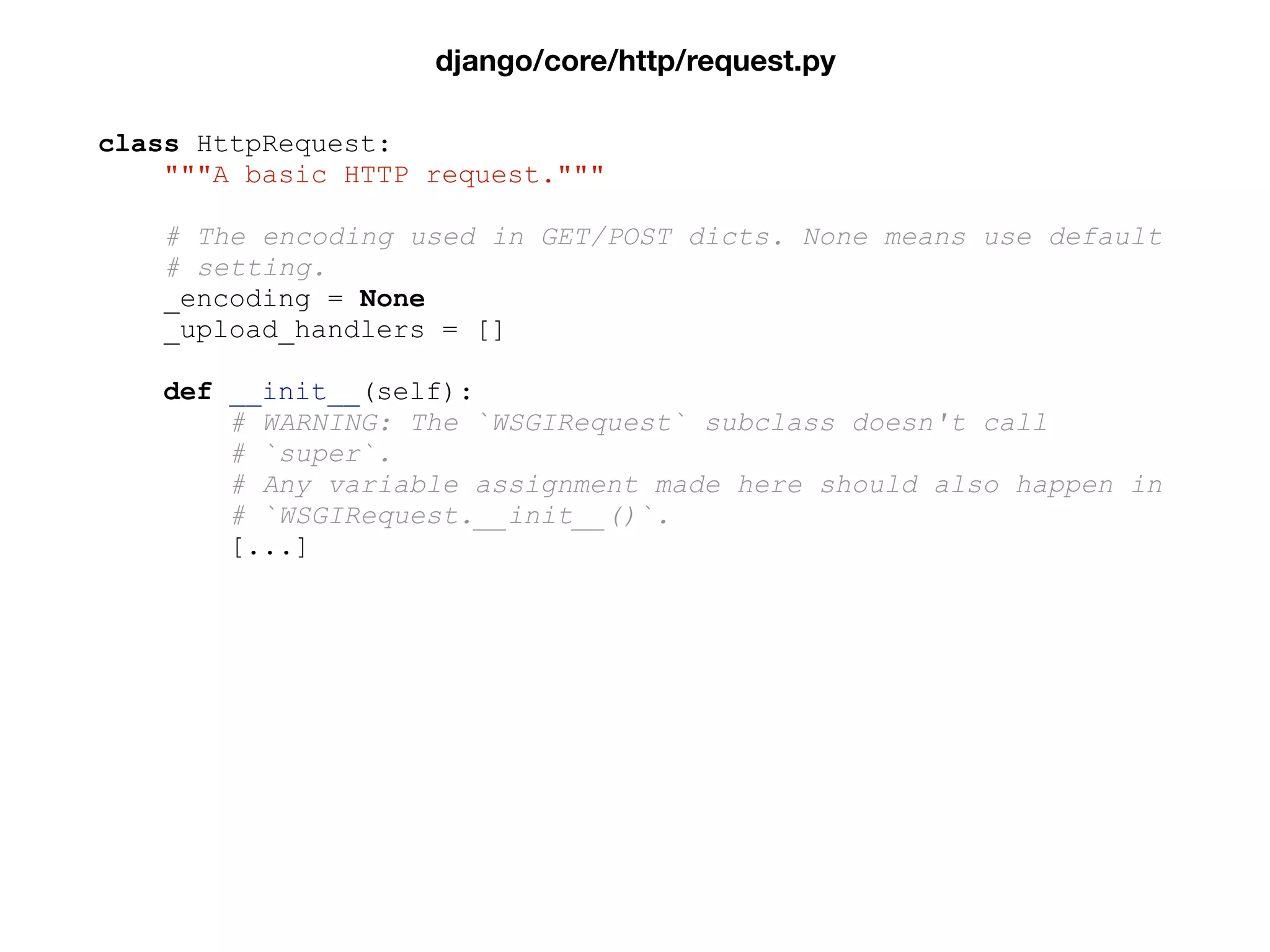

62. class HttpRequest:
"""A basic HTTP request."""
# The encoding used in GET/POST dicts. None means use default
# setting.
_encoding = None
_upload_handlers = []
def __init__(self):
# WARNING: The `WSGIRequest` subclass doesn't call
# `super`.
# Any variable assignment made here should also happen in
# `WSGIRequest.__init__()`.
[...]
django/core/http/request.py

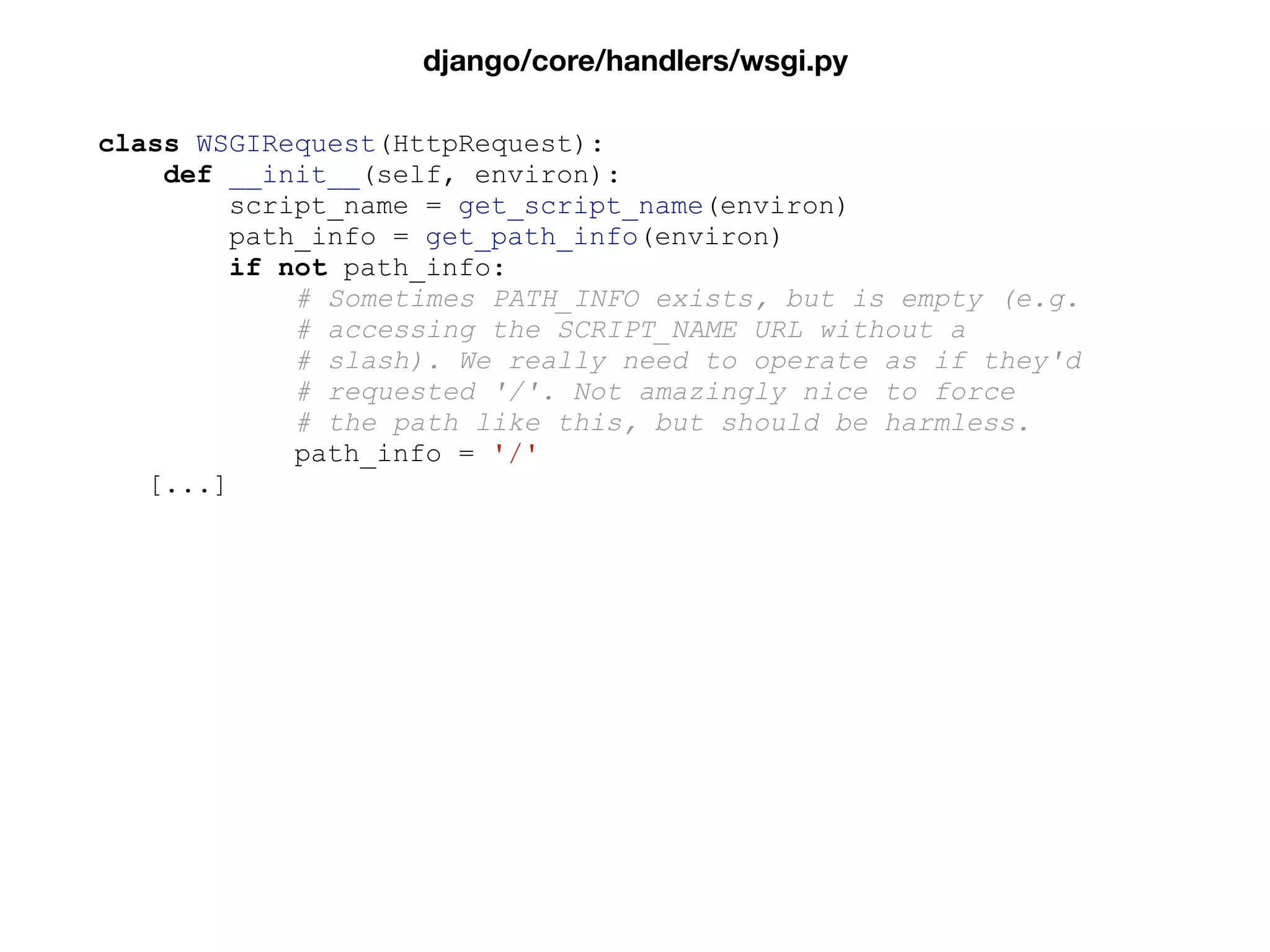

63. class WSGIRequest(HttpRequest):
def __init__(self, environ):
script_name = get_script_name(environ)
path_info = get_path_info(environ)
if not path_info:
# Sometimes PATH_INFO exists, but is empty (e.g.
# accessing the SCRIPT_NAME URL without a
# slash). We really need to operate as if they'd
# requested '/'. Not amazingly nice to force
# the path like this, but should be harmless.
path_info = '/'
[...]
django/core/handlers/wsgi.py

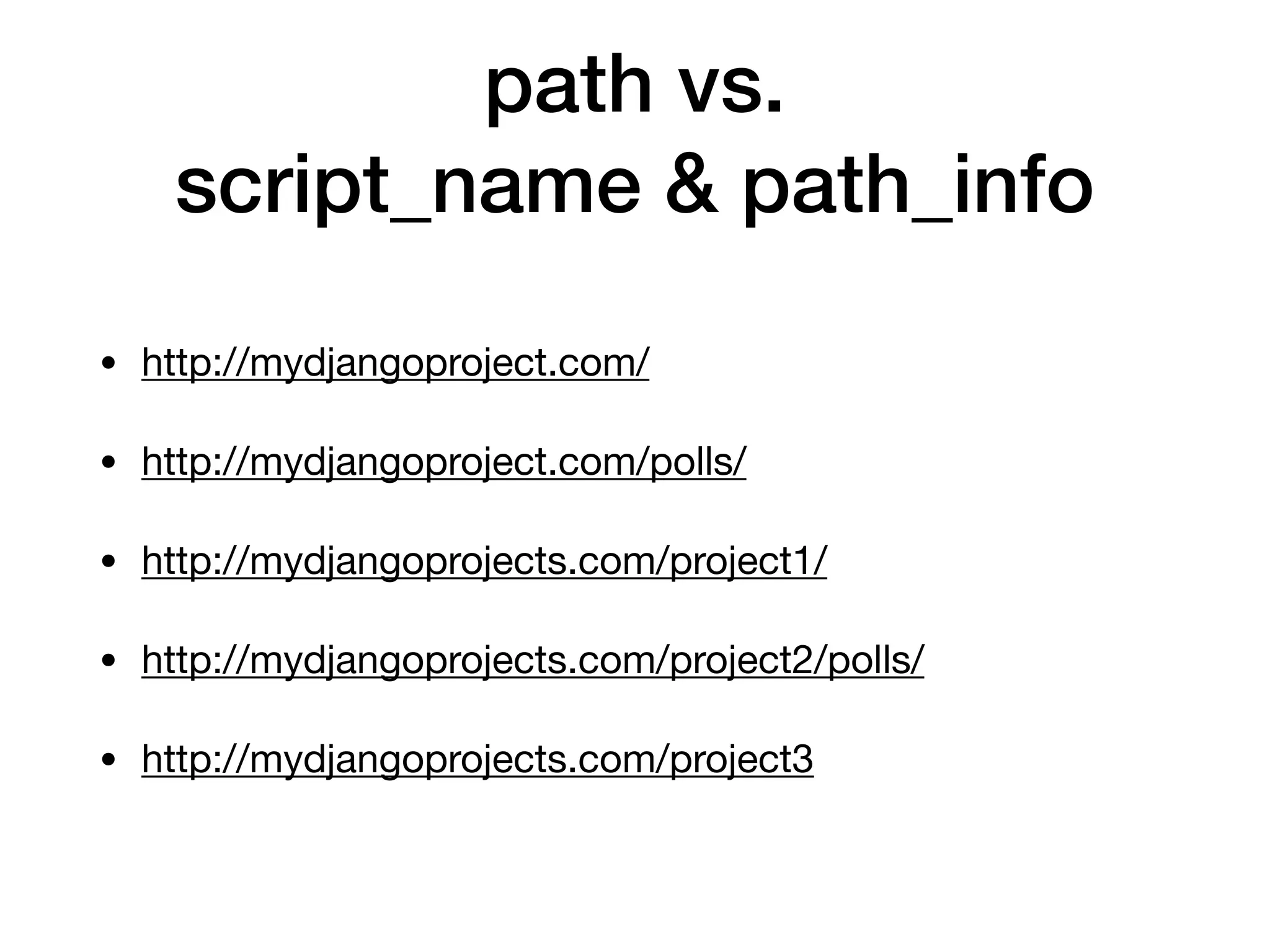

64. path vs.
script_name & path_info
• http://mydjangoproject.com/
• http://mydjangoproject.com/polls/
• http://mydjangoprojects.com/project1/
• http://mydjangoprojects.com/project2/polls/
• http://mydjangoprojects.com/project3

65. class WSGIRequest(HttpRequest):
def __init__(self, environ):
script_name = get_script_name(environ)
path_info = get_path_info(environ)
if not path_info:
# Sometimes PATH_INFO exists, but is empty (e.g.
# accessing the SCRIPT_NAME URL without a
# slash). We really need to operate as if they'd
# requested '/'. Not amazingly nice to force
# the path like this, but should be harmless.
path_info = '/'
[...]

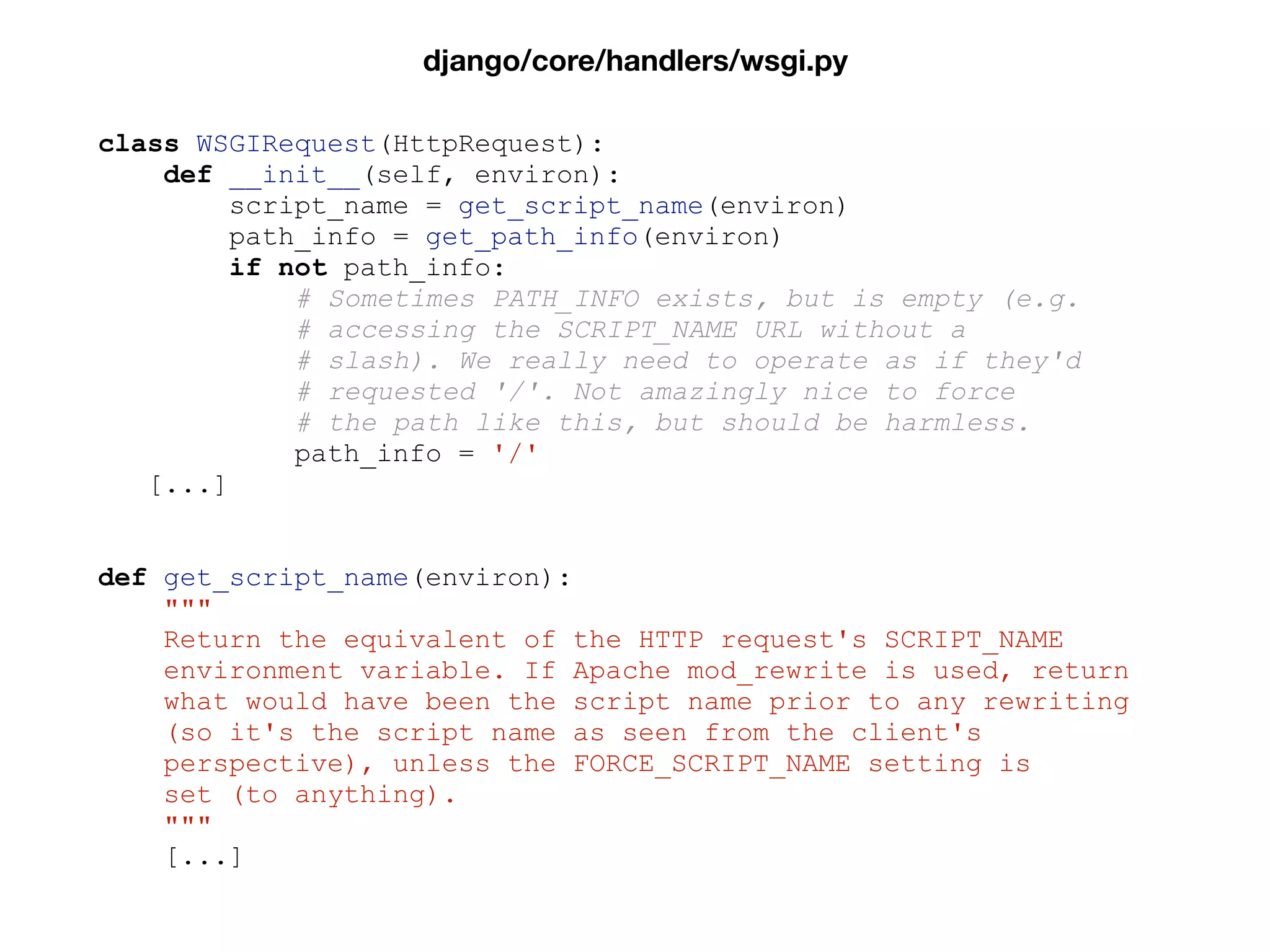

def get_script_name(environ):
"""
Return the equivalent of the HTTP request's SCRIPT_NAME
environment variable. If Apache mod_rewrite is used, return
what would have been the script name prior to any rewriting
(so it's the script name as seen from the client's
perspective), unless the FORCE_SCRIPT_NAME setting is
set (to anything).
"""
[...]
django/core/handlers/wsgi.py

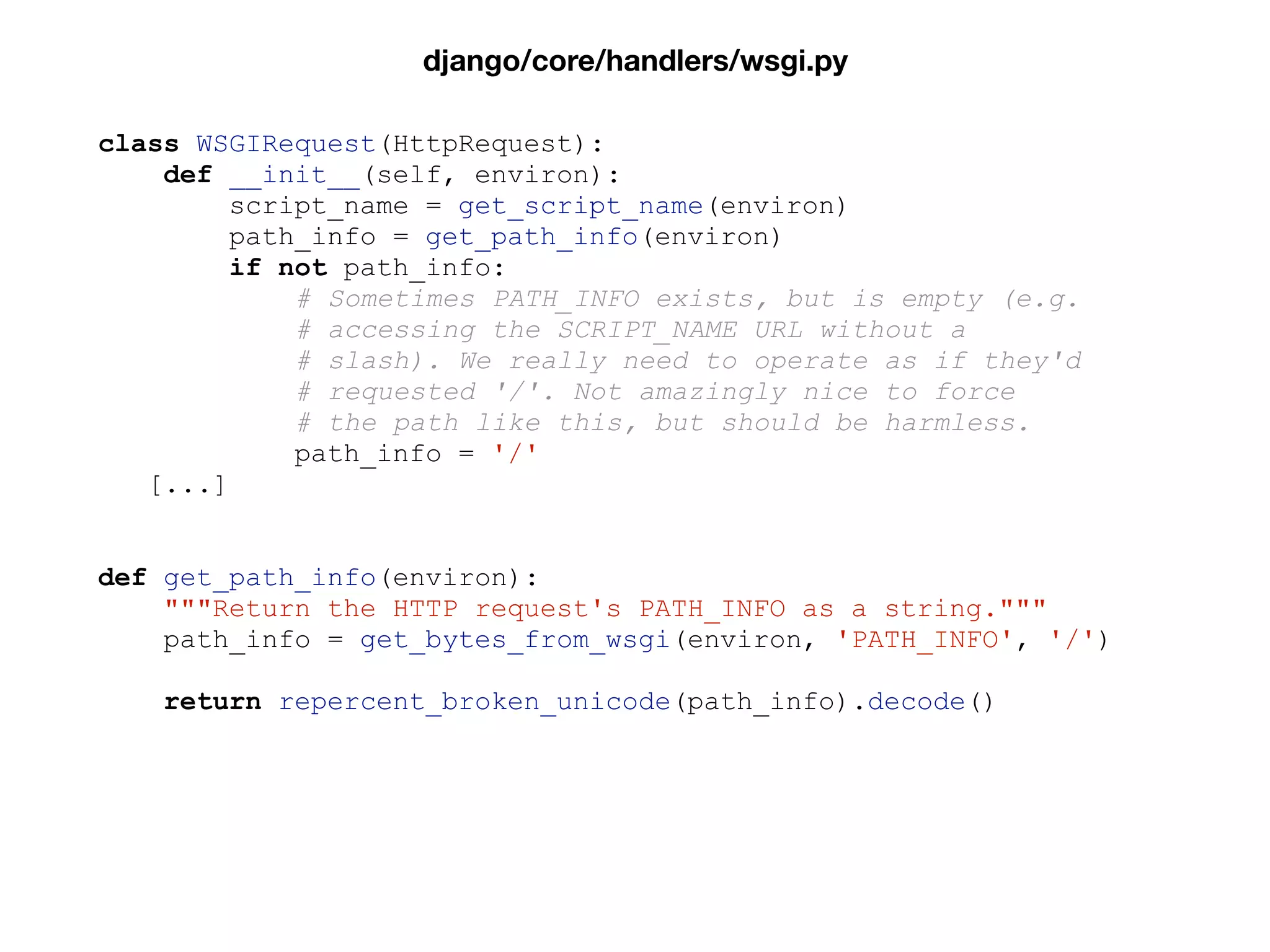

66. class WSGIRequest(HttpRequest):
def __init__(self, environ):
script_name = get_script_name(environ)
path_info = get_path_info(environ)
if not path_info:
# Sometimes PATH_INFO exists, but is empty (e.g.
# accessing the SCRIPT_NAME URL without a
# slash). We really need to operate as if they'd
# requested '/'. Not amazingly nice to force
# the path like this, but should be harmless.
path_info = '/'
[...]
def get_path_info(environ):
"""Return the HTTP request's PATH_INFO as a string."""
path_info = get_bytes_from_wsgi(environ, 'PATH_INFO', '/')
return repercent_broken_unicode(path_info).decode()
django/core/handlers/wsgi.py

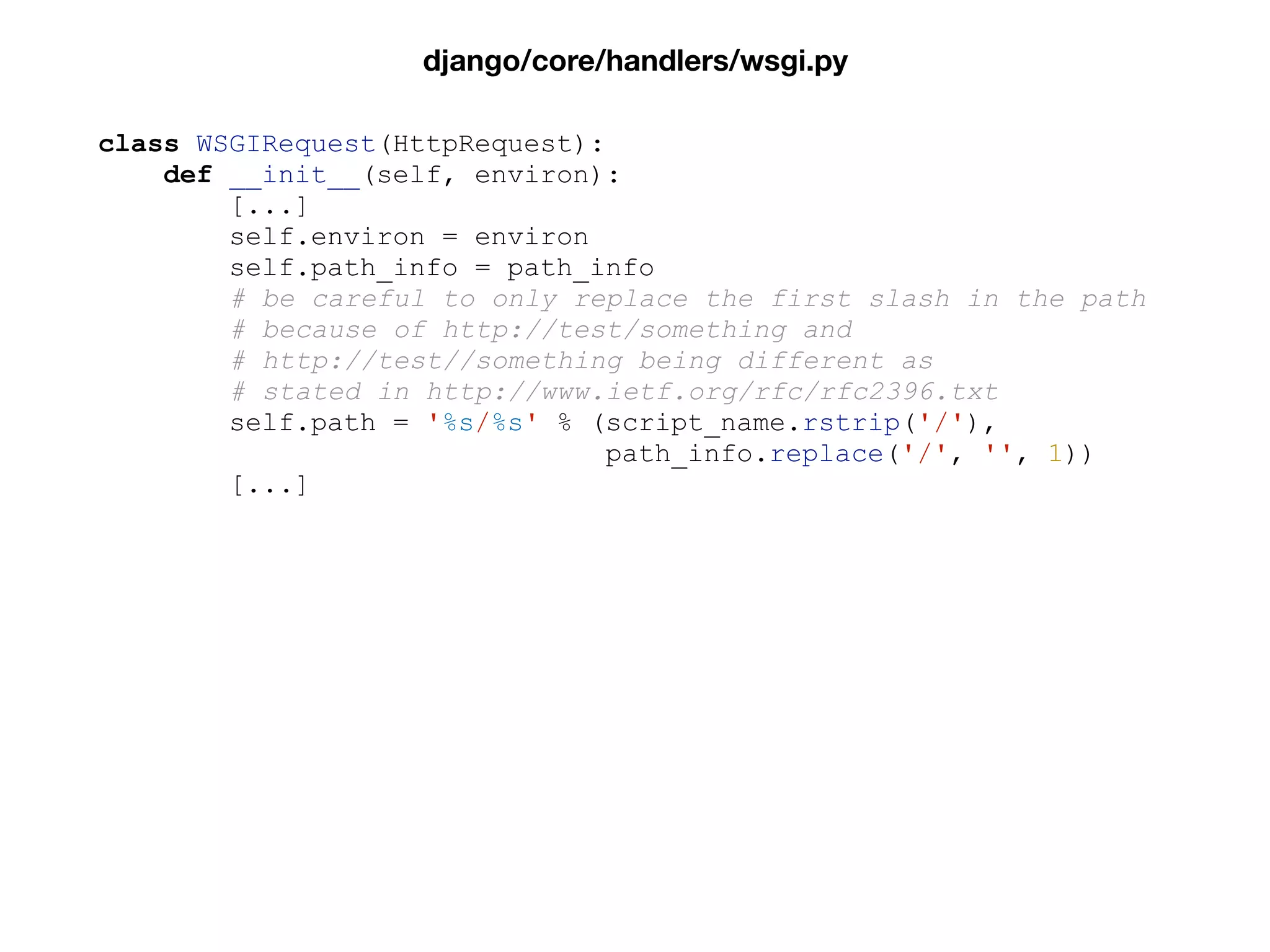

67. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
self.environ = environ
self.path_info = path_info
# be careful to only replace the first slash in the path
# because of http://test/something and
# http://test//something being different as
# stated in http://www.ietf.org/rfc/rfc2396.txt
self.path = '%s/%s' % (script_name.rstrip('/'),
path_info.replace('/', '', 1))
[...]
django/core/handlers/wsgi.py

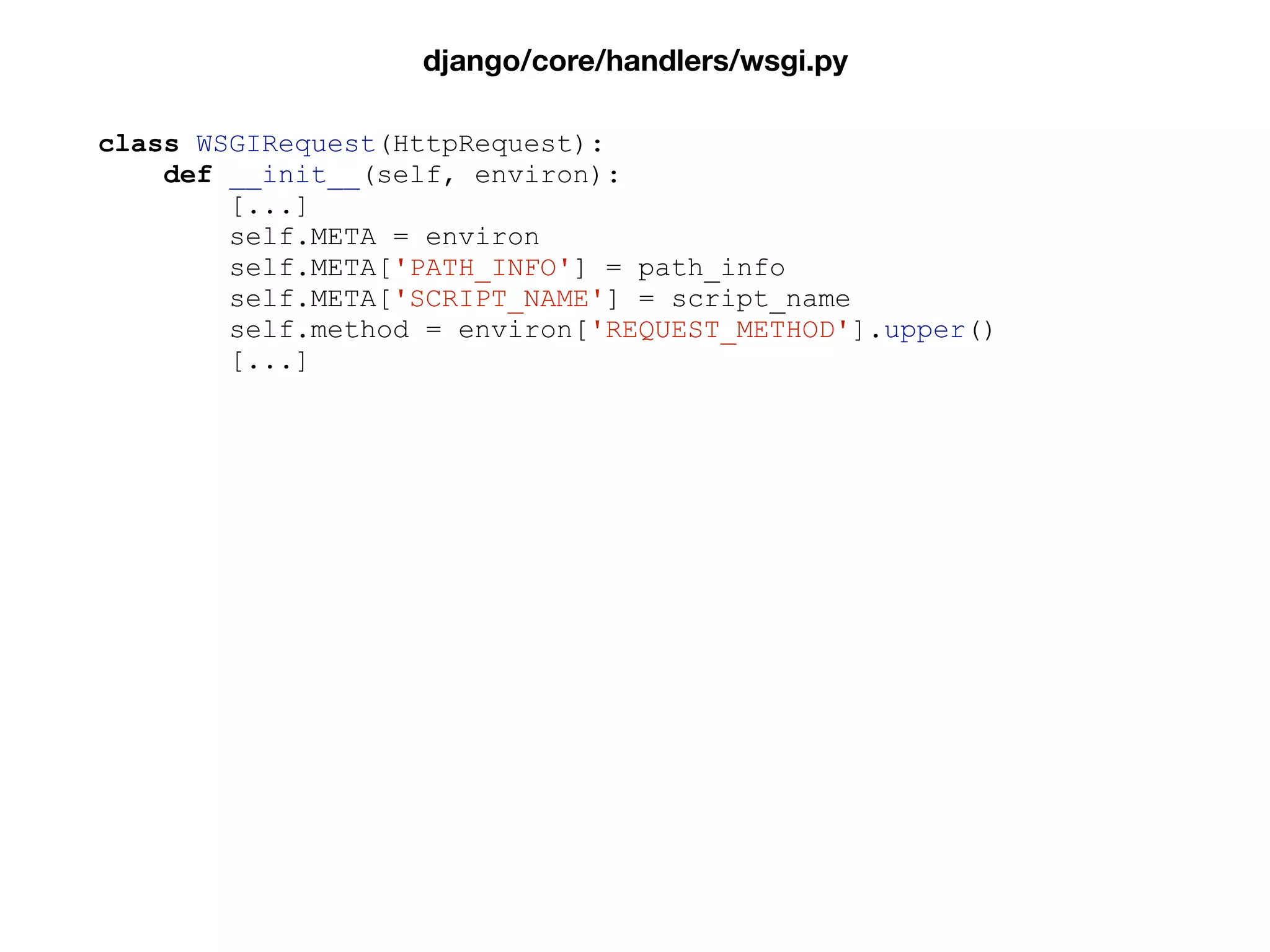

68. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
self.META = environ
self.META['PATH_INFO'] = path_info
self.META['SCRIPT_NAME'] = script_name
self.method = environ['REQUEST_METHOD'].upper()
[...]
django/core/handlers/wsgi.py

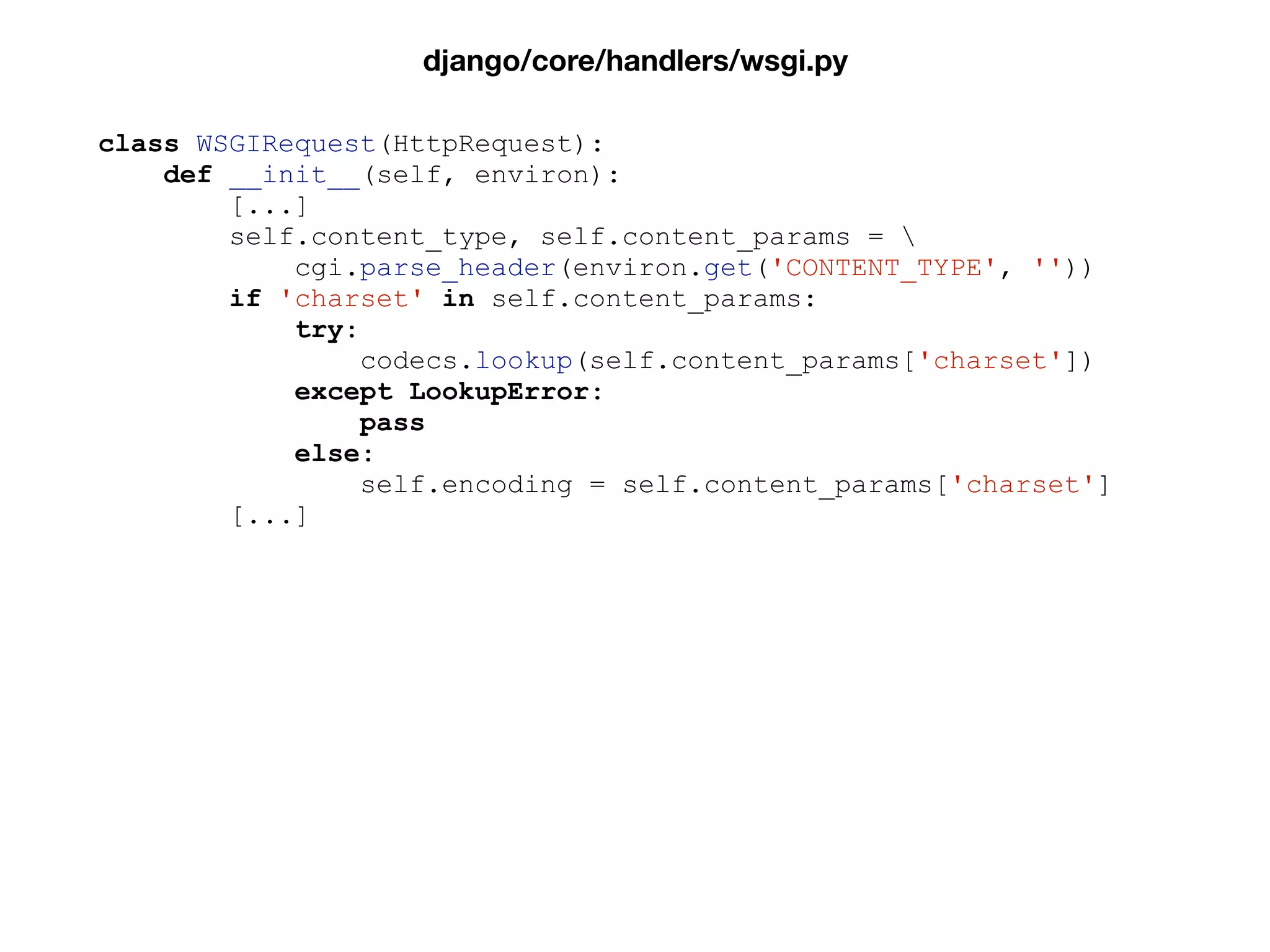

69. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
self.content_type, self.content_params =
cgi.parse_header(environ.get('CONTENT_TYPE', ''))
if 'charset' in self.content_params:
try:
codecs.lookup(self.content_params['charset'])
except LookupError:
pass
else:
self.encoding = self.content_params['charset']
[...]
django/core/handlers/wsgi.py

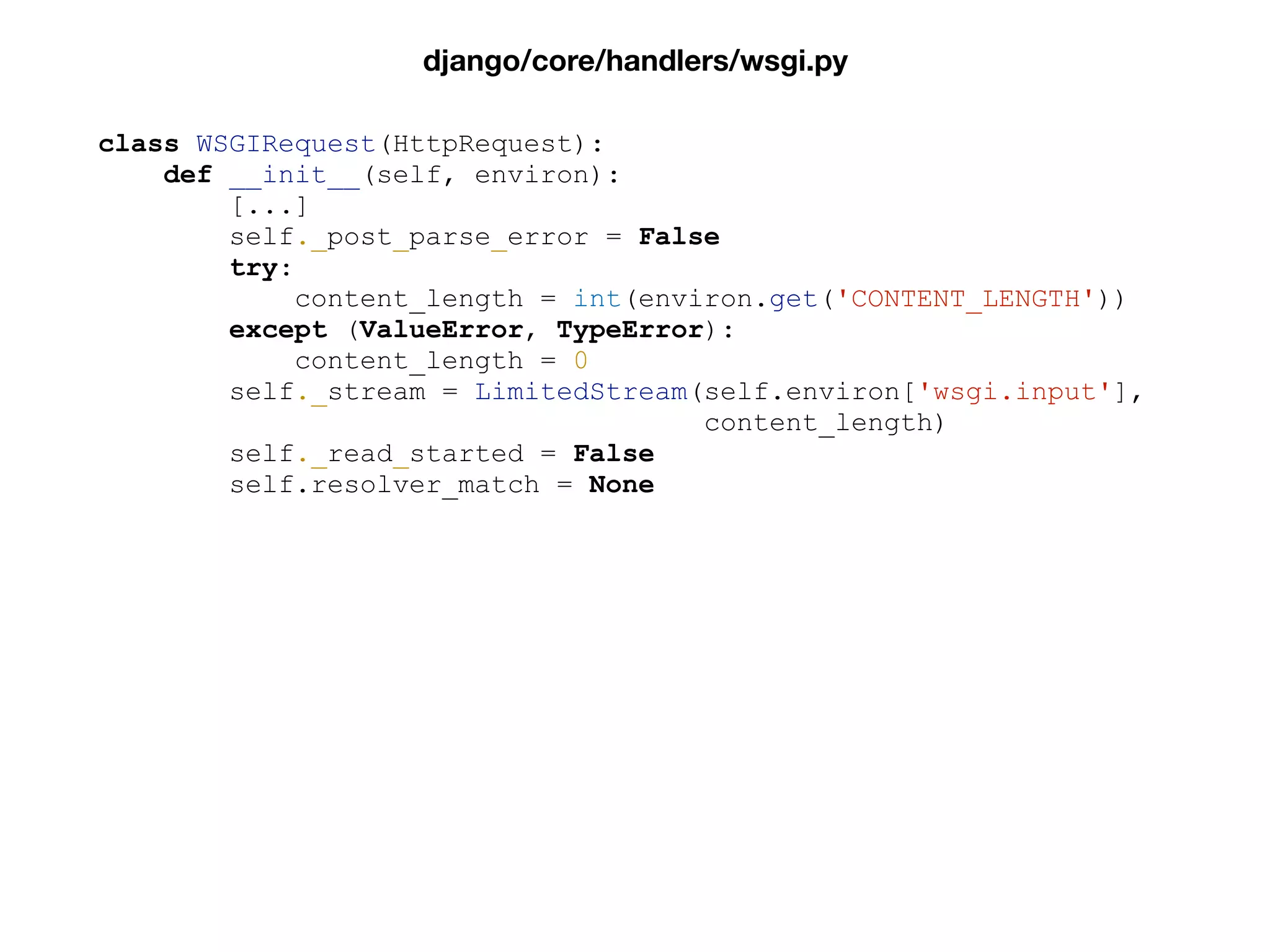

70. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
self._post_parse_error = False
try:
content_length = int(environ.get('CONTENT_LENGTH'))
except (ValueError, TypeError):
content_length = 0
self._stream = LimitedStream(self.environ['wsgi.input'],
content_length)
self._read_started = False
self.resolver_match = None
django/core/handlers/wsgi.py

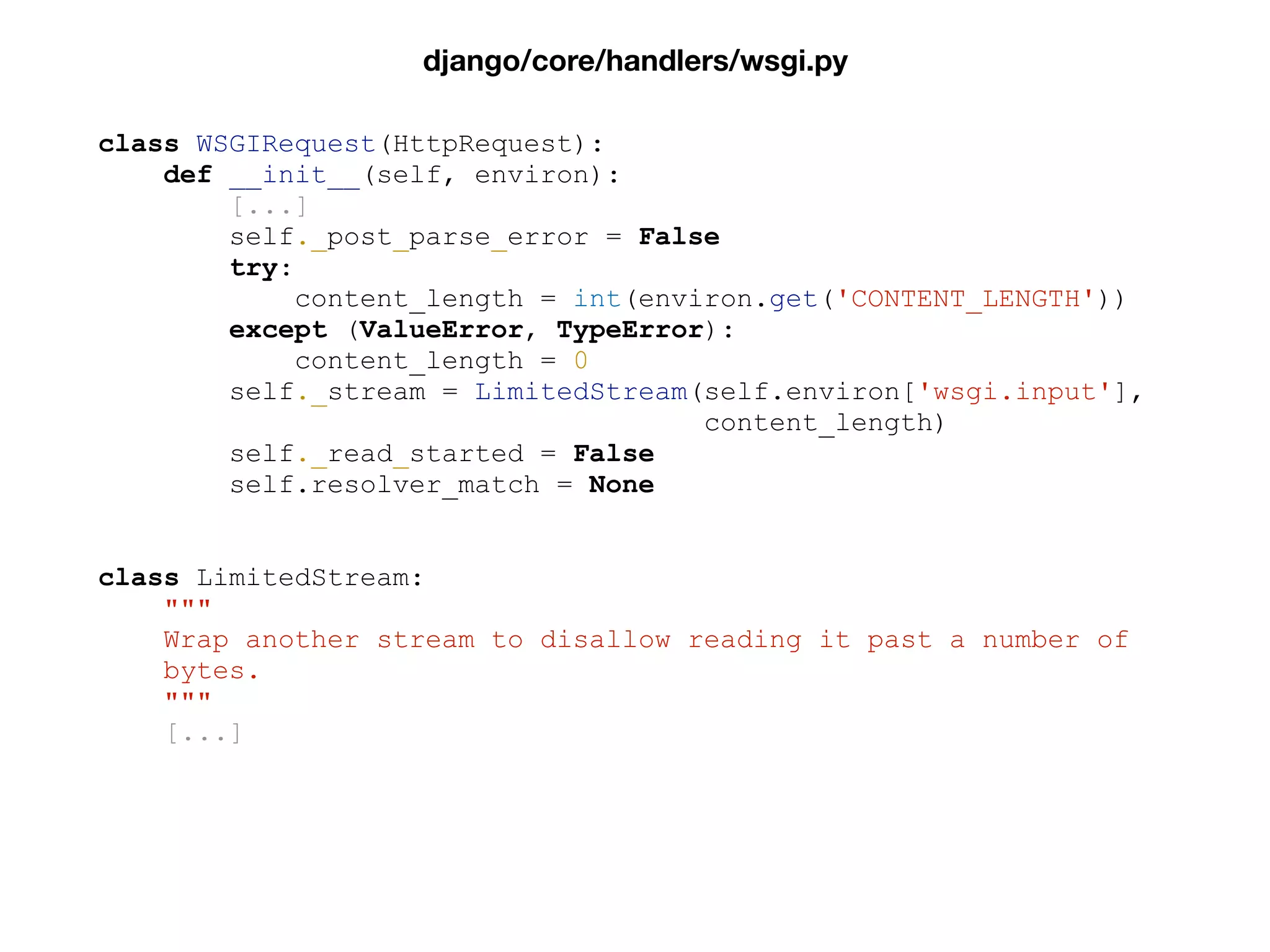

71. class WSGIRequest(HttpRequest):
def __init__(self, environ):
[...]
self._post_parse_error = False
try:
content_length = int(environ.get('CONTENT_LENGTH'))
except (ValueError, TypeError):
content_length = 0
self._stream = LimitedStream(self.environ['wsgi.input'],
content_length)
self._read_started = False
self.resolver_match = None
class LimitedStream:
"""
Wrap another stream to disallow reading it past a number of
bytes.
"""
[...]
django/core/handlers/wsgi.py

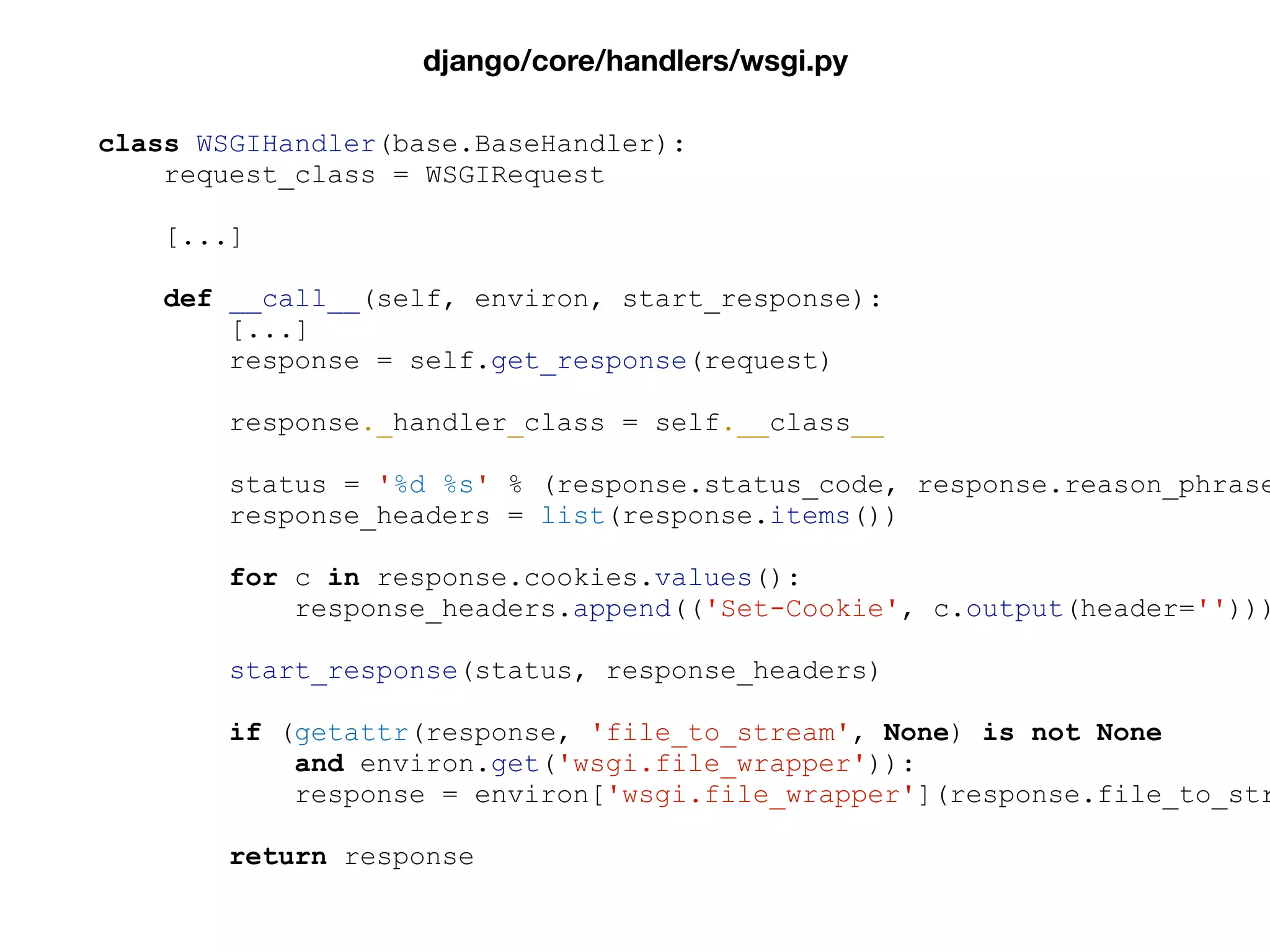

72. class WSGIHandler(base.BaseHandler):
request_class = WSGIRequest
[...]
def __call__(self, environ, start_response):
set_script_prefix(get_script_name(environ))
signals.request_started.send(sender=self.__class__,
environ=environ)
request = self.request_class(environ)
response = self.get_response(request)
[...]
django/core/handlers/wsgi.py

73. class BaseHandler:
[...]
def get_response(self, request):
"""
Return an HttpResponse object for the given
HttpRequest.
"""
# Setup default url resolver for this thread
set_urlconf(settings.ROOT_URLCONF)
response = self._middleware_chain(request)
django/core/handlers/base.py

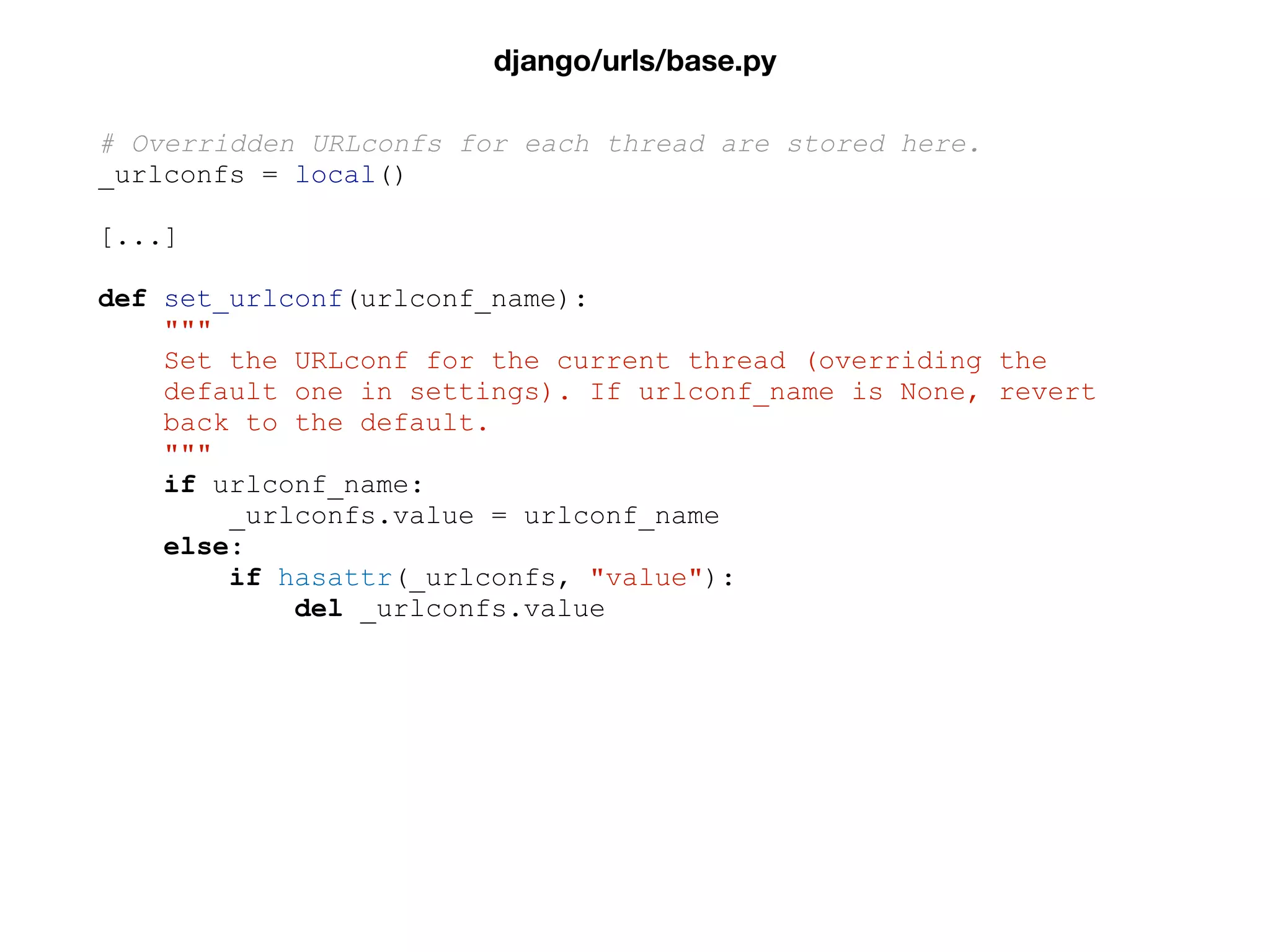

74. # Overridden URLconfs for each thread are stored here.
_urlconfs = local()
[...]
def set_urlconf(urlconf_name):
"""
Set the URLconf for the current thread (overriding the
default one in settings). If urlconf_name is None, revert
back to the default.
"""
if urlconf_name:
_urlconfs.value = urlconf_name
else:
if hasattr(_urlconfs, "value"):
del _urlconfs.value
django/urls/base.py

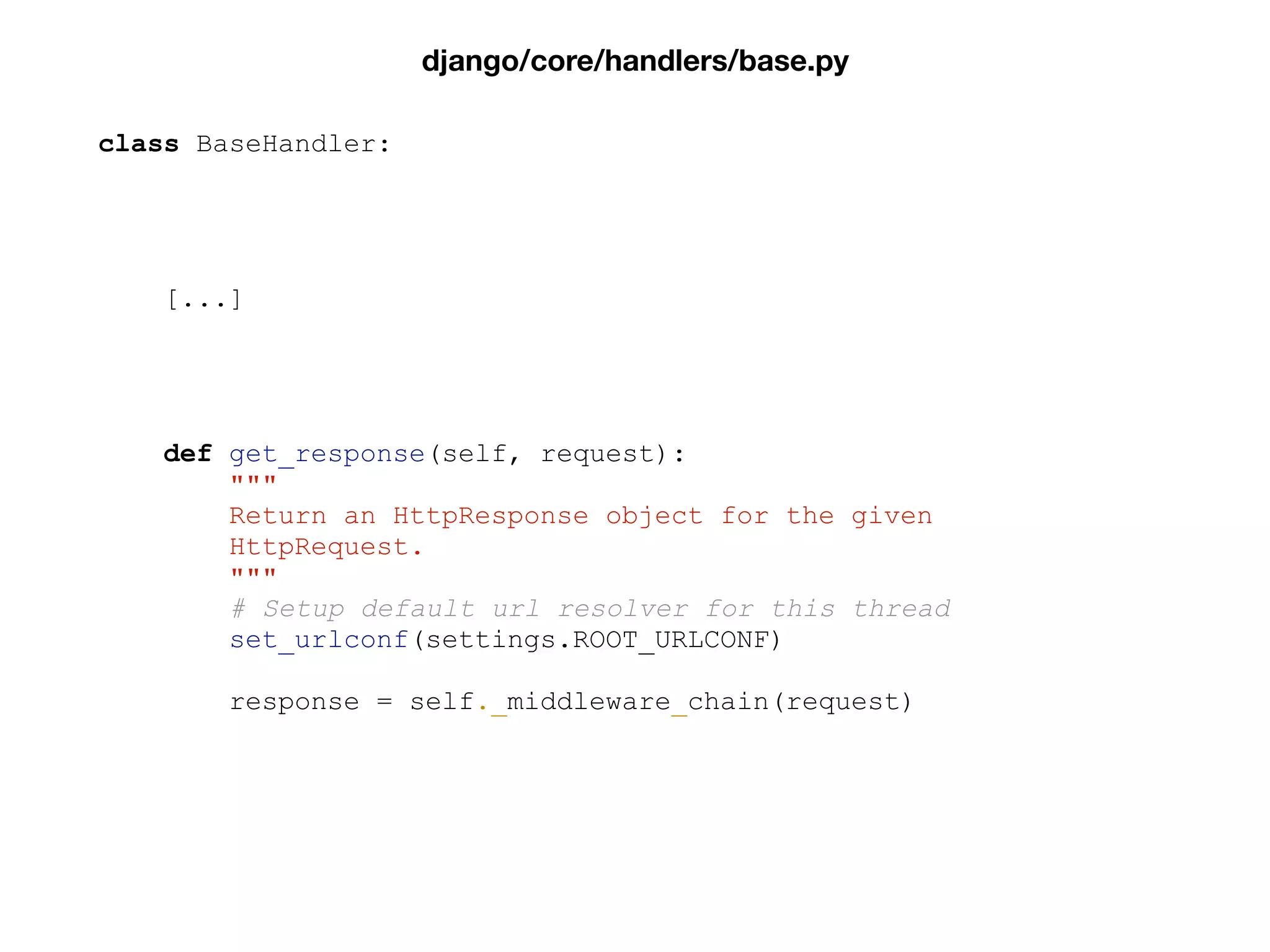

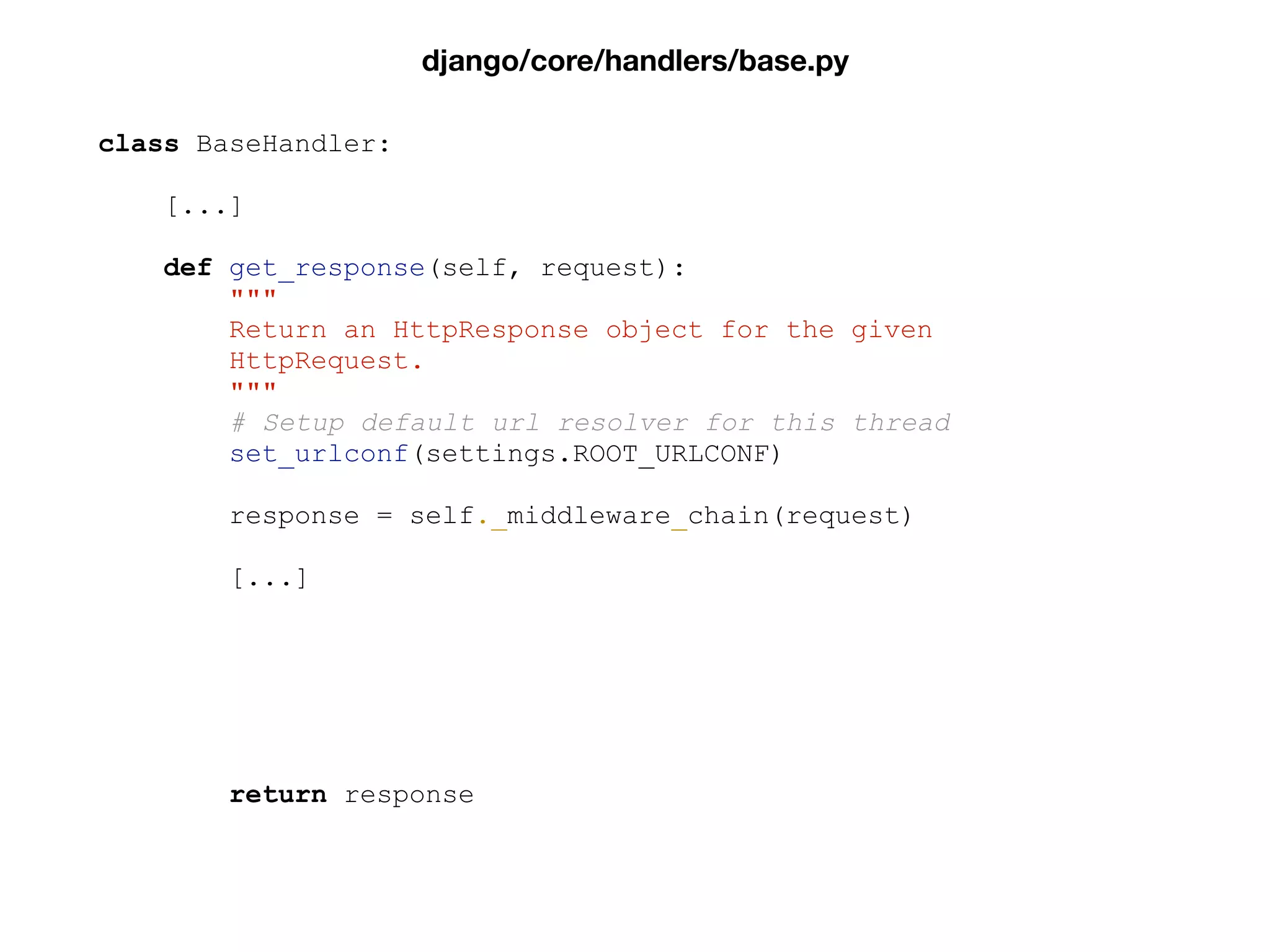

75. class BaseHandler:
[...]
def get_response(self, request):
"""
Return an HttpResponse object for the given
HttpRequest.
"""
# Setup default url resolver for this thread
set_urlconf(settings.ROOT_URLCONF)
response = self._middleware_chain(request)
django/core/handlers/base.py

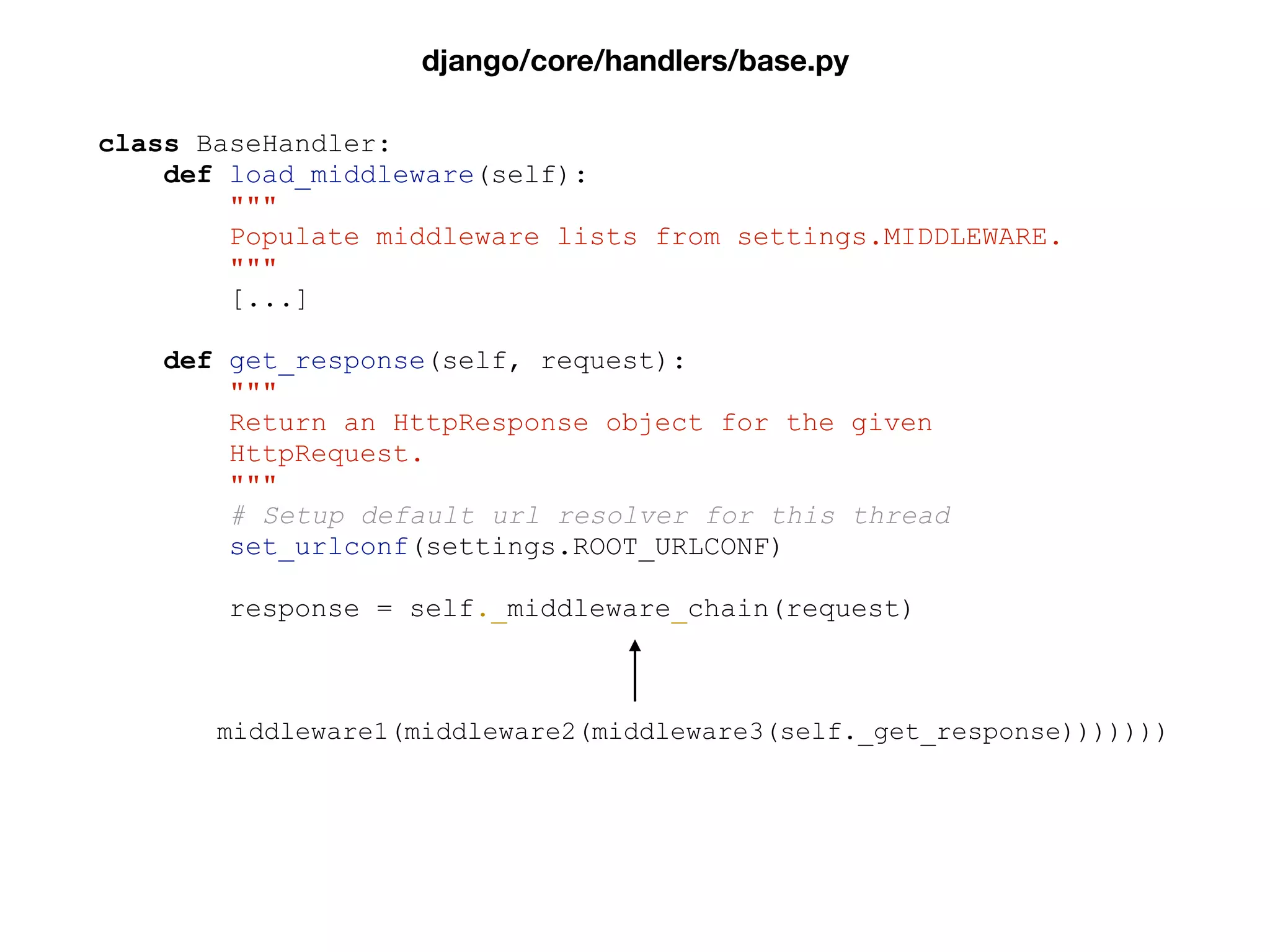

76. class BaseHandler:
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
handler = convert_exception_to_response(
self._get_response
)
[...]
self._middleware_chain = handler
def get_response(self, request):
"""
Return an HttpResponse object for the given
HttpRequest.
"""
# Setup default url resolver for this thread
set_urlconf(settings.ROOT_URLCONF)
response = self._middleware_chain(request)
django/core/handlers/base.py

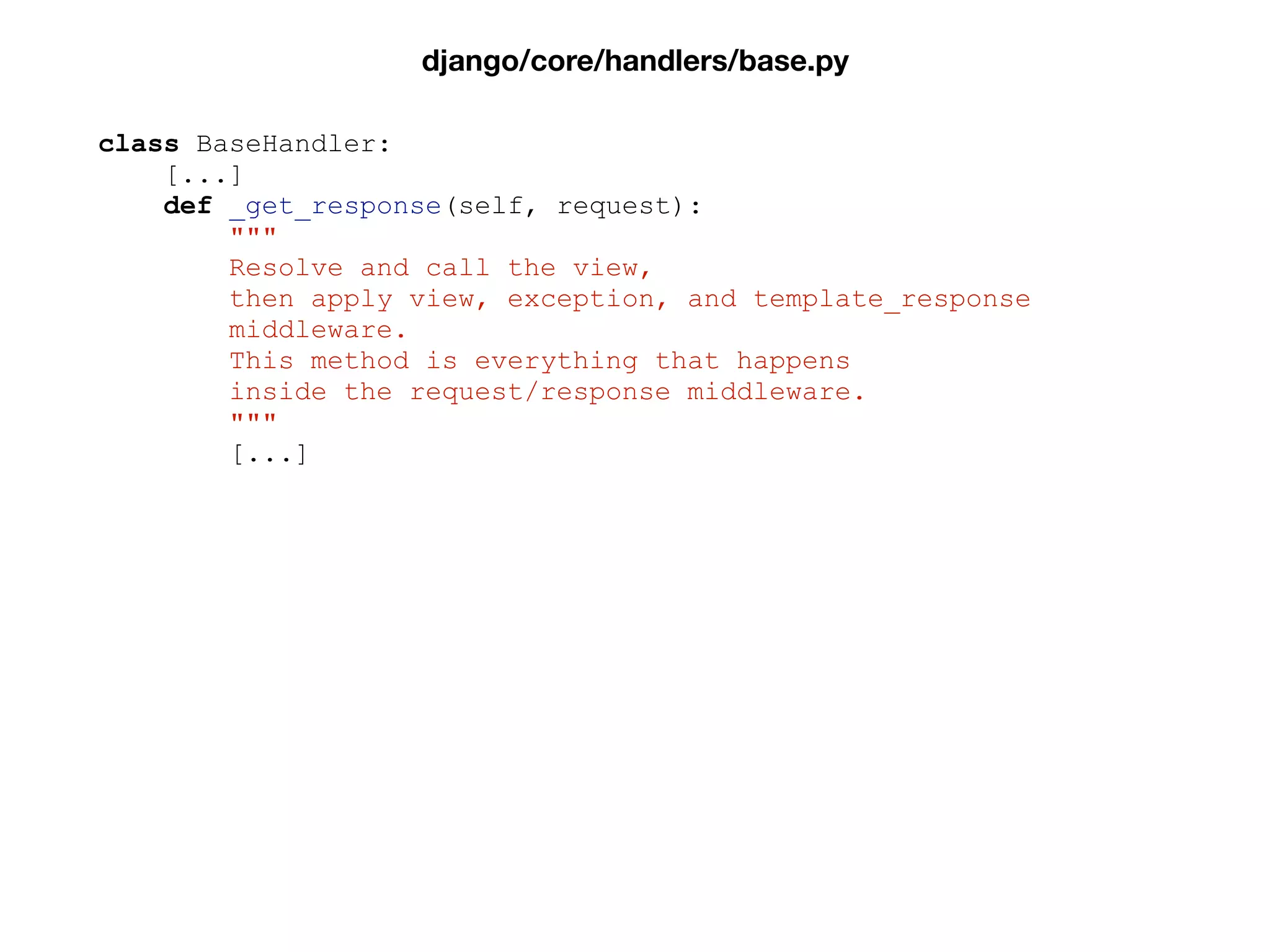

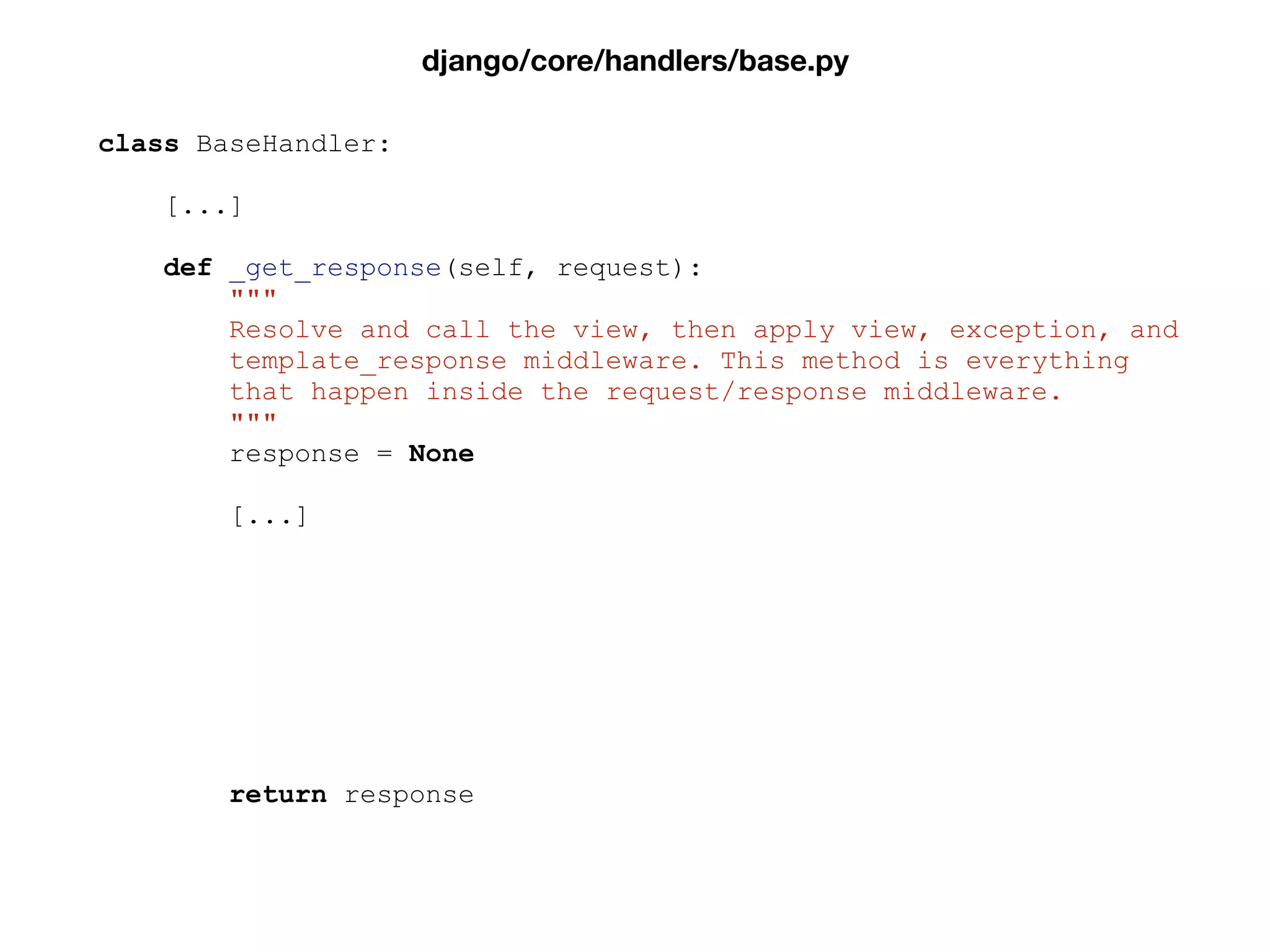

77. class BaseHandler:
[...]
def _get_response(self, request):
"""

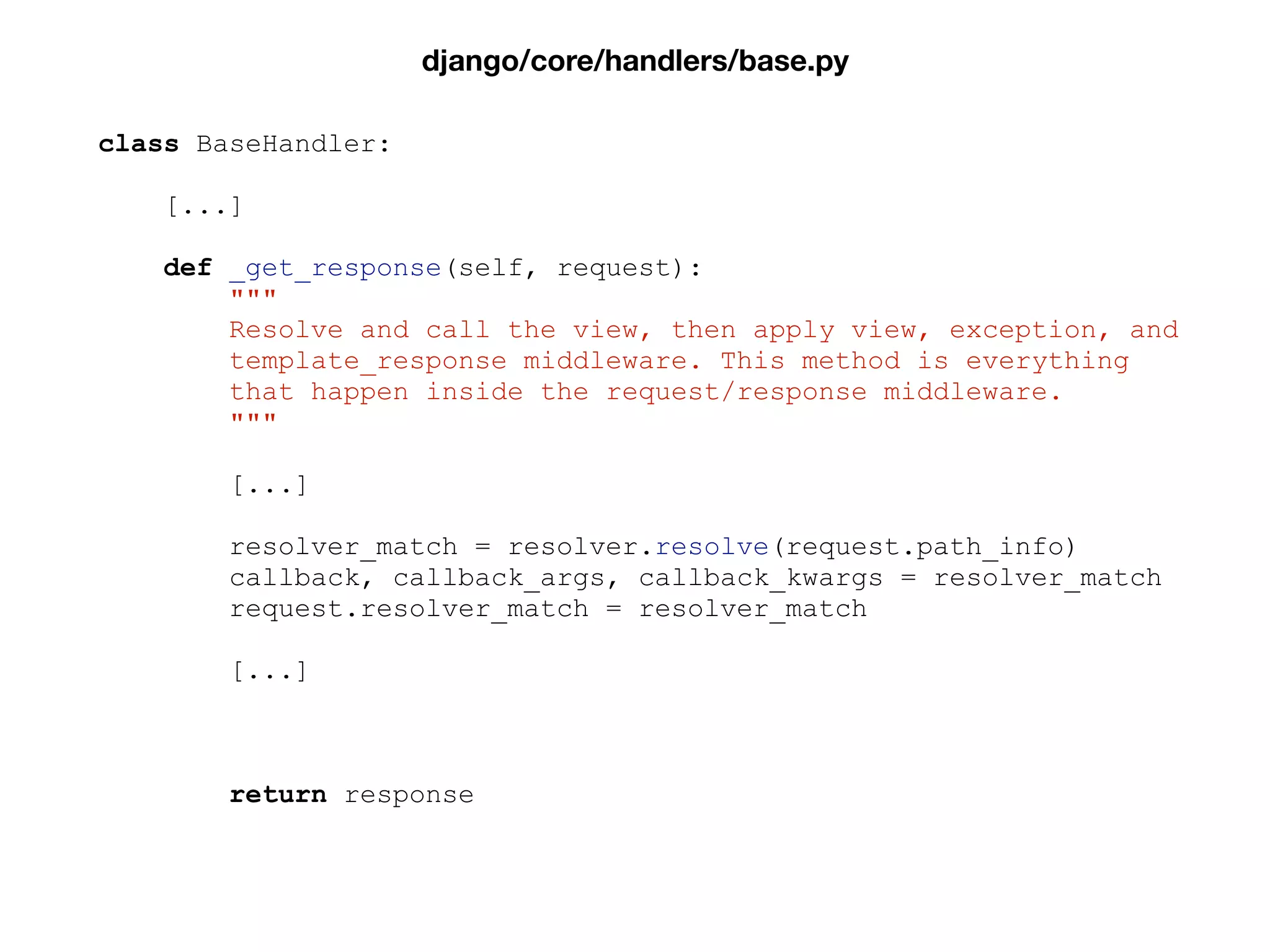

Resolve and call the view,
then apply view, exception, and template_response
middleware.
This method is everything that happens
inside the request/response middleware.
"""
[...]
django/core/handlers/base.py

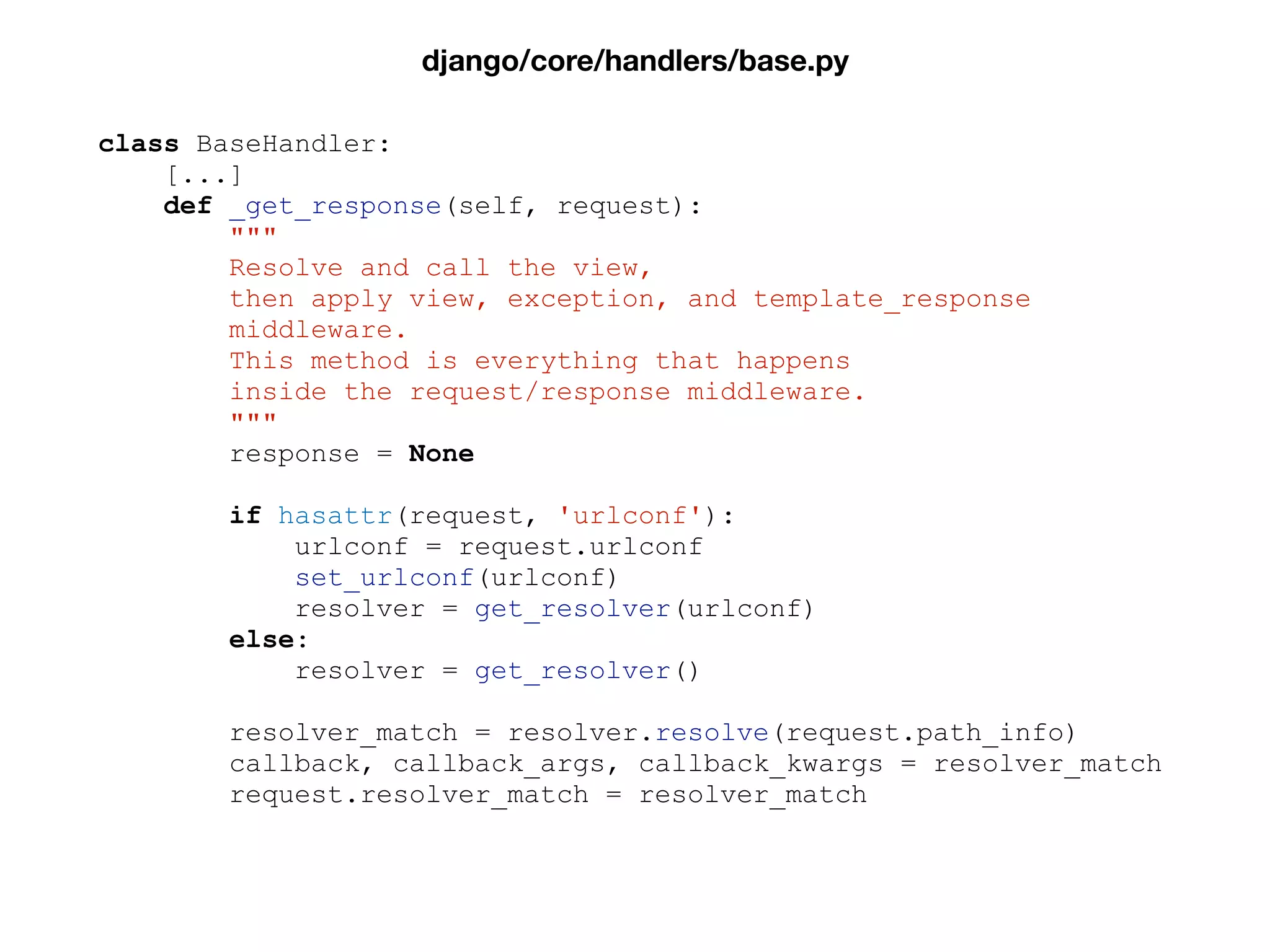

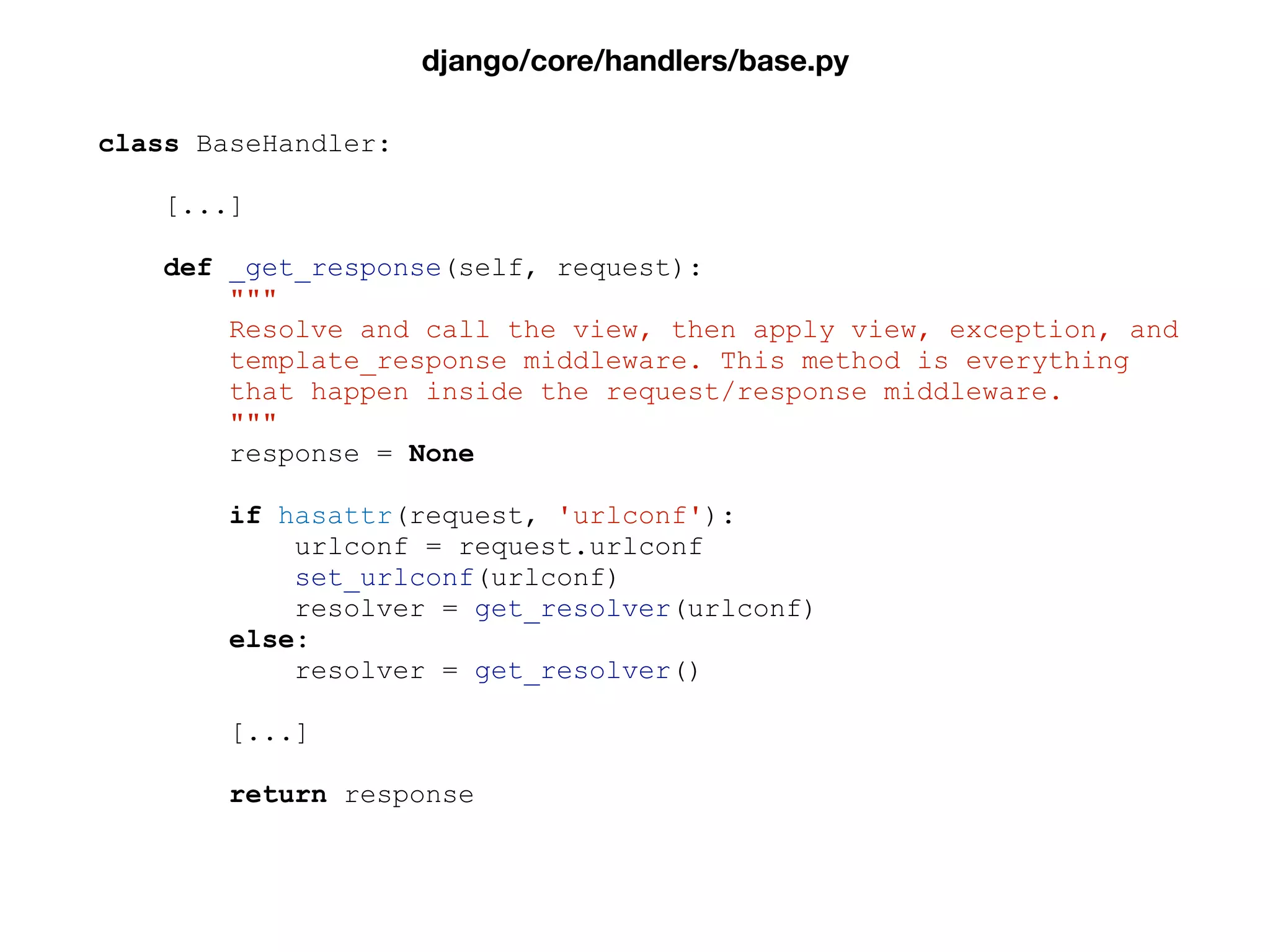

78. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view,
then apply view, exception, and template_response
middleware.
This method is everything that happens
inside the request/response middleware.
"""
response = None
if hasattr(request, 'urlconf'):
urlconf = request.urlconf
set_urlconf(urlconf)

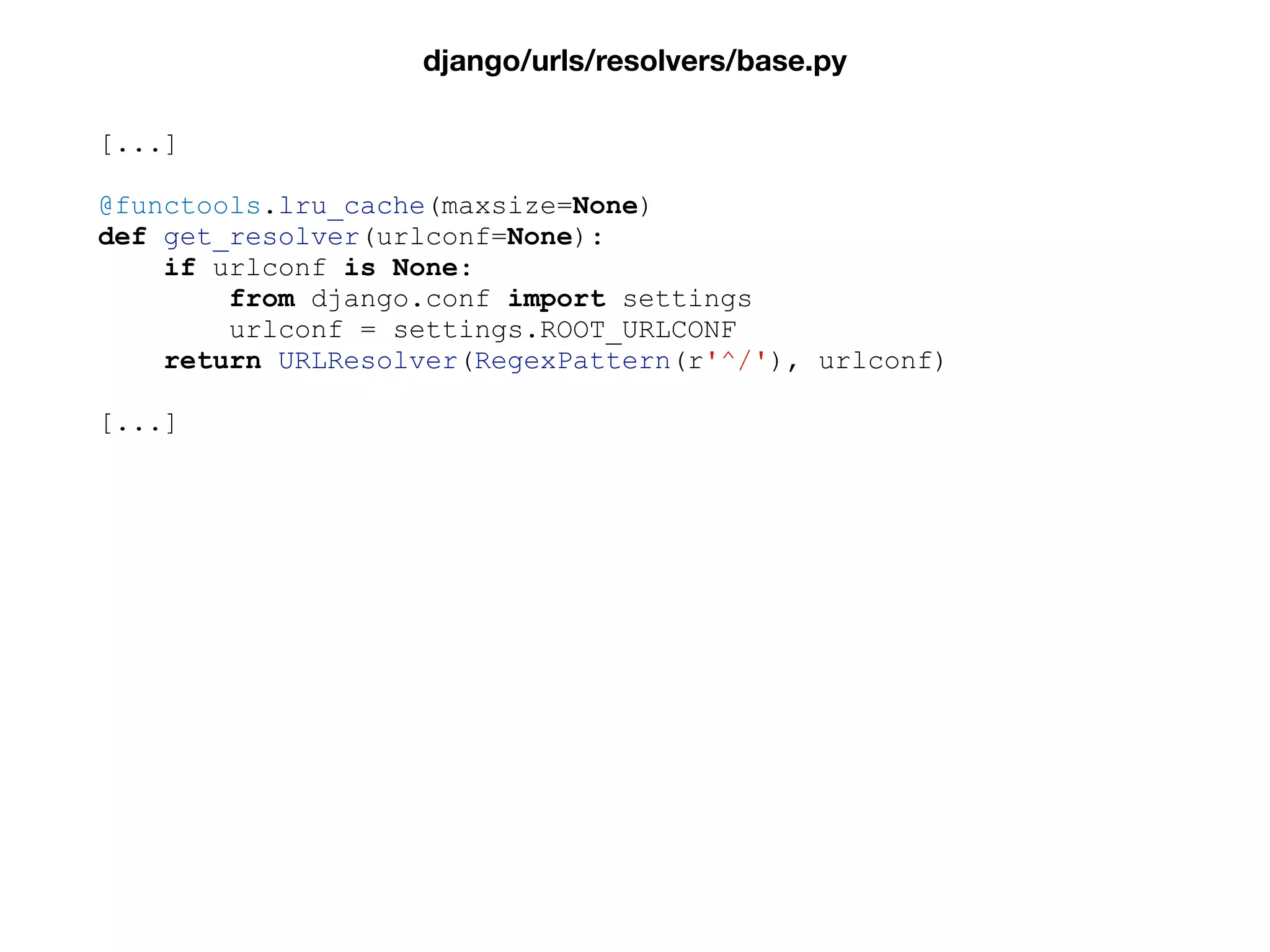

resolver = get_resolver(urlconf)
else:
resolver = get_resolver()
resolver_match = resolver.resolve(request.path_info)
callback, callback_args, callback_kwargs = resolver_match
request.resolver_match = resolver_match
django/core/handlers/base.py

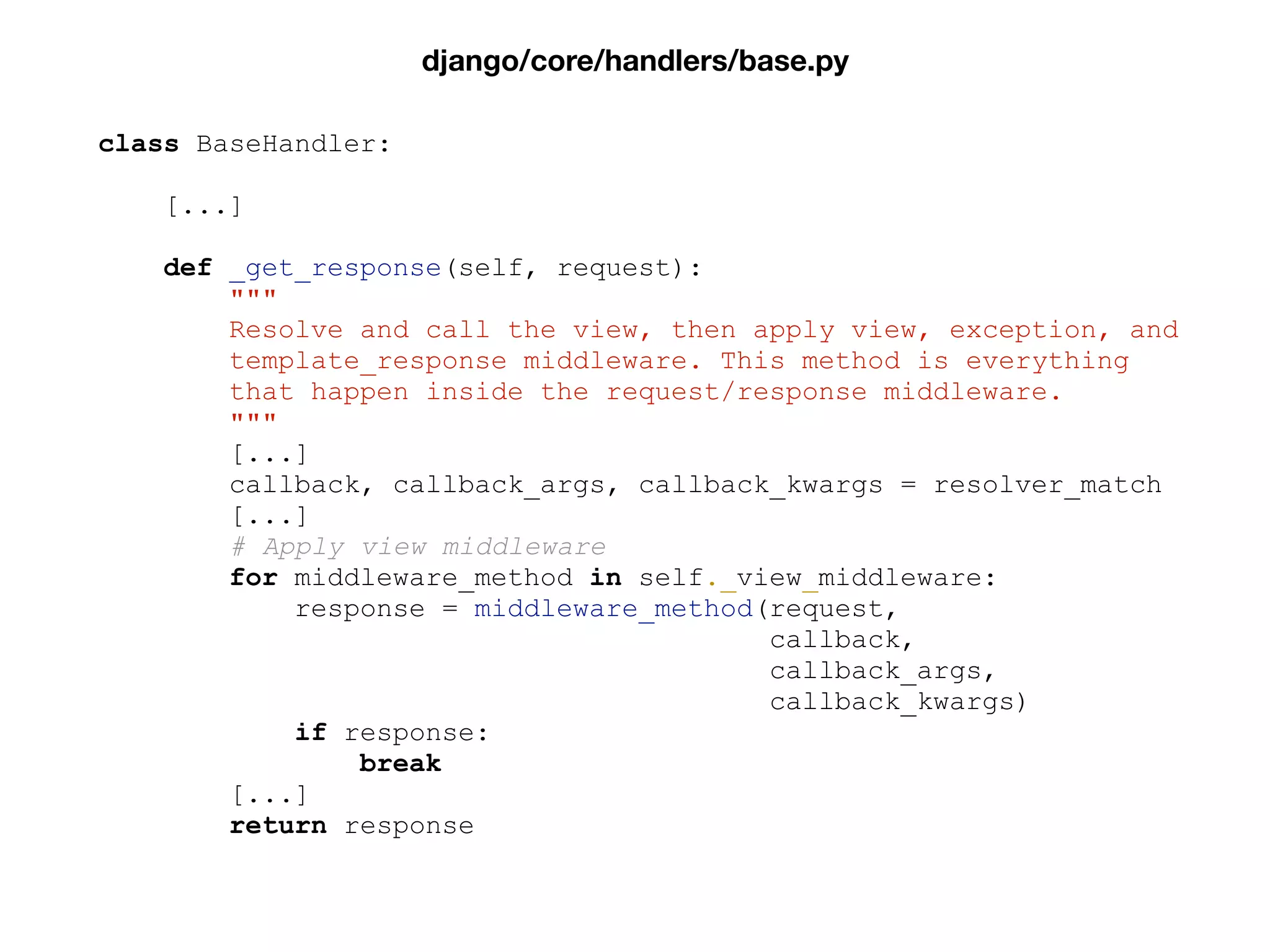

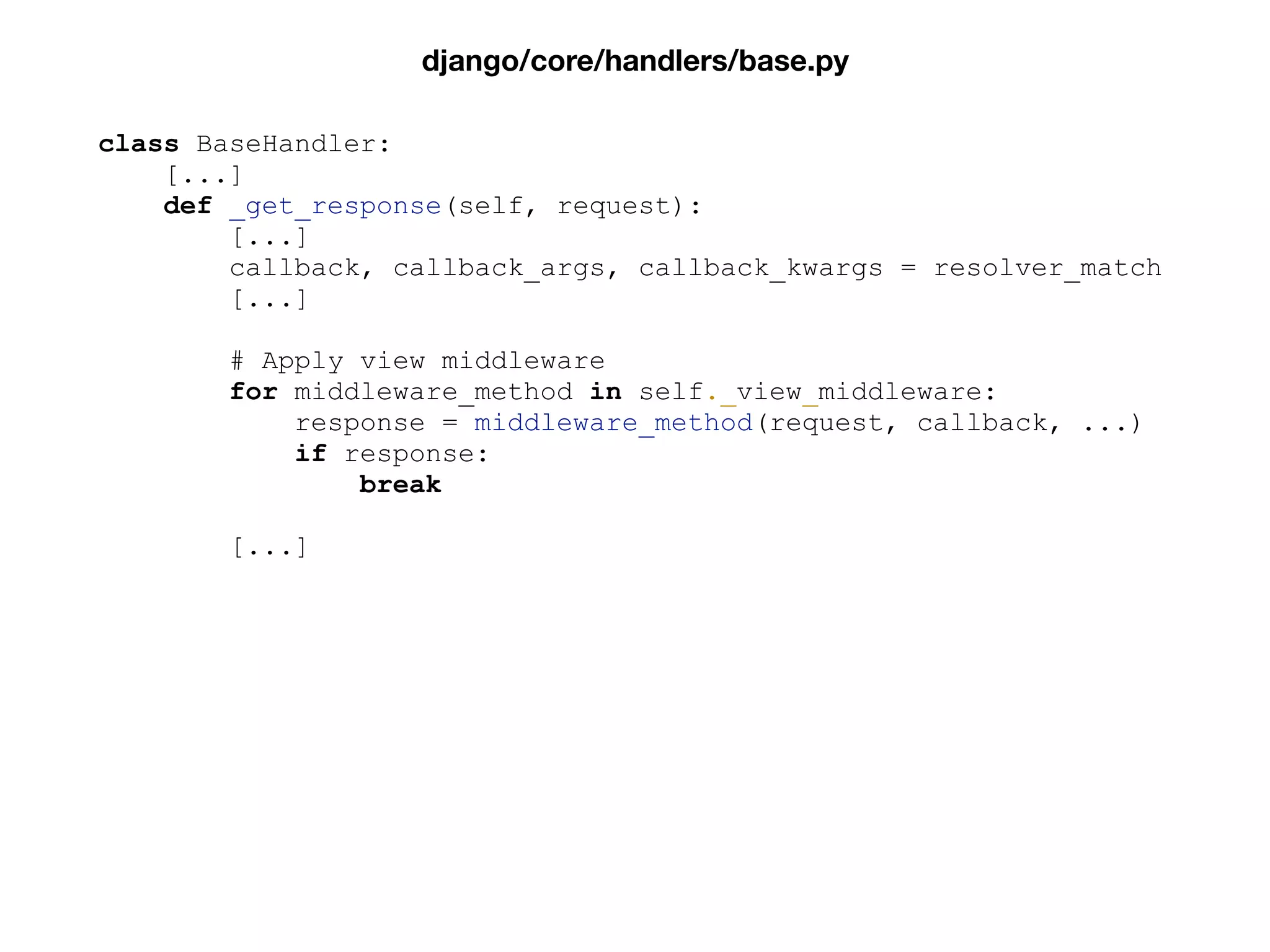

79. class BaseHandler:
[...]
def _get_response(self, request):
[...]
callback, callback_args, callback_kwargs = resolver_match
[...]
# Apply view middleware
for middleware_method in self._view_middleware:
response = middleware_method(request, callback, ...)
if response:
break
[...]
django/core/handlers/base.py

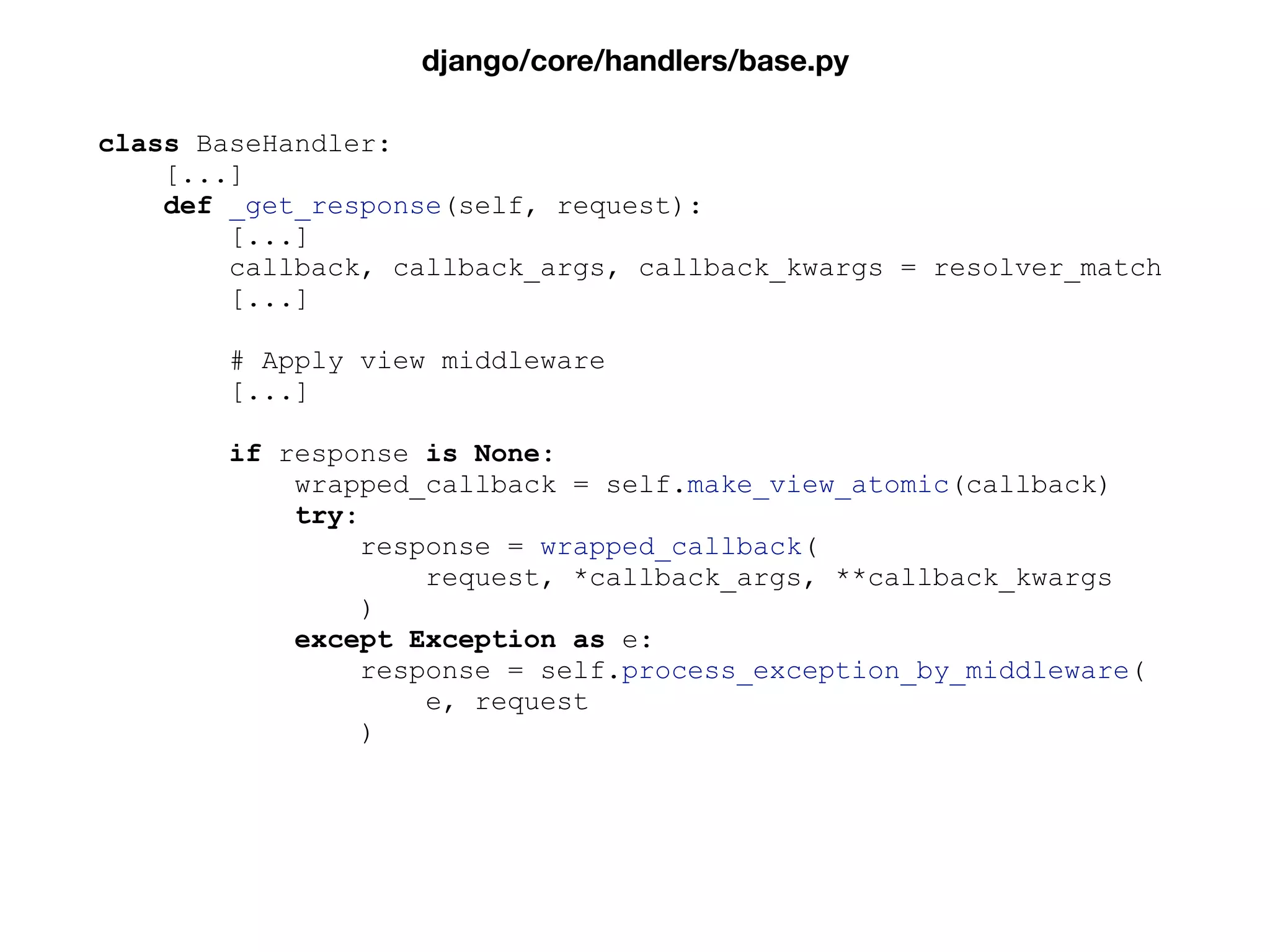

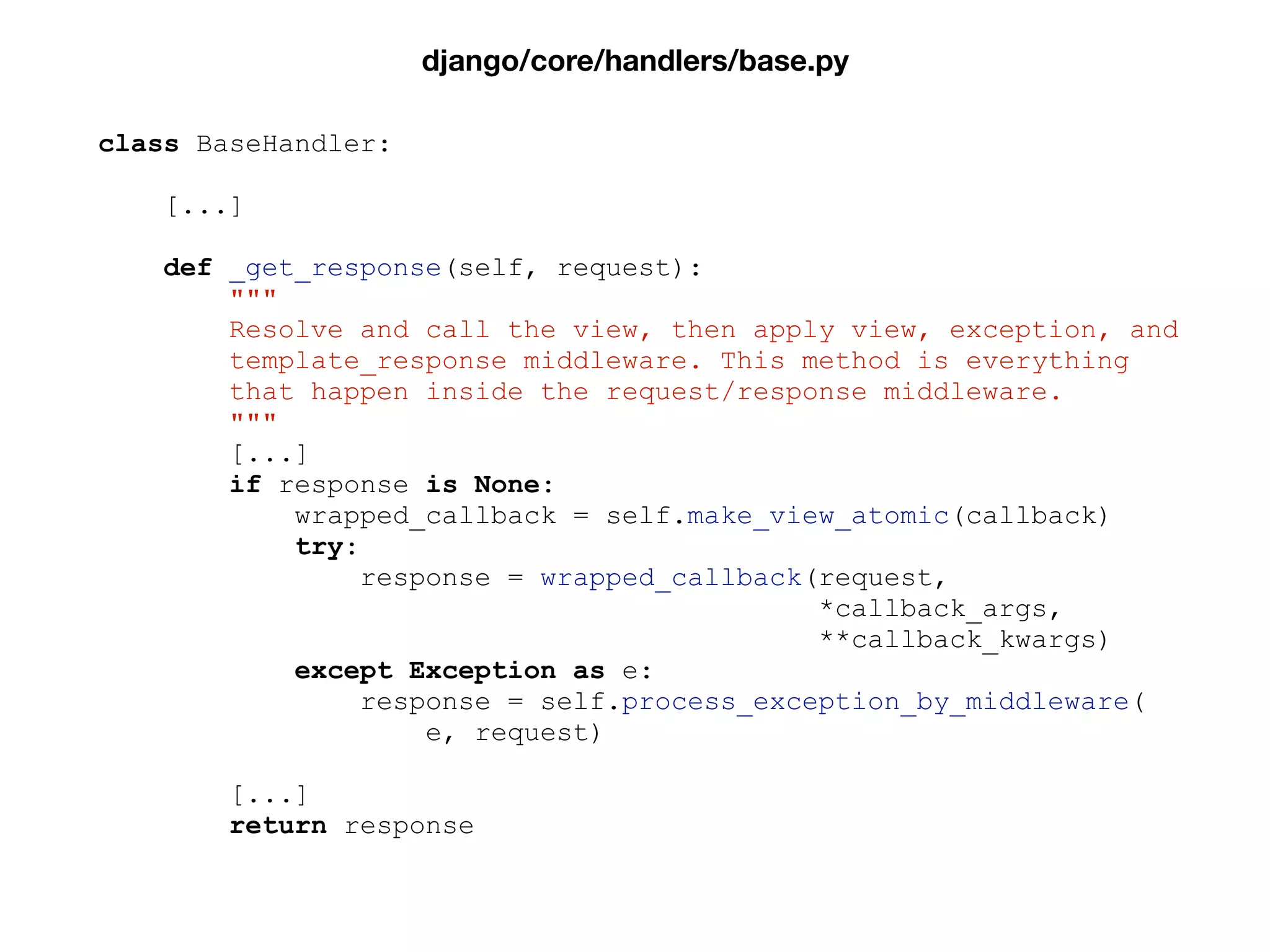

80. class BaseHandler:
[...]
def _get_response(self, request):
[...]
callback, callback_args, callback_kwargs = resolver_match
[...]
# Apply view middleware
[...]
if response is None:
wrapped_callback = self.make_view_atomic(callback)
try:
response = wrapped_callback(
request, *callback_args, **callback_kwargs
)
except Exception as e:

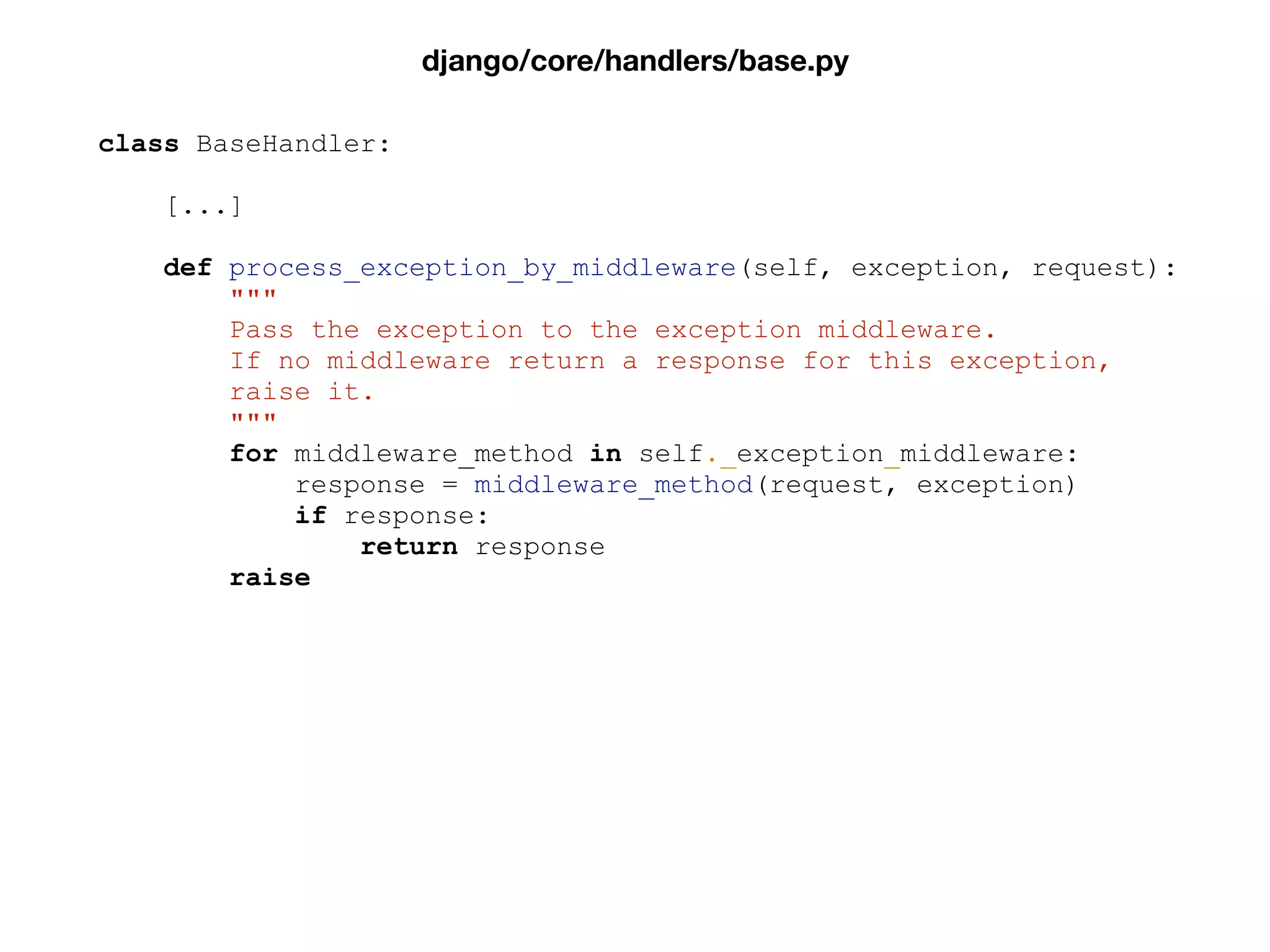

response = self.process_exception_by_middleware(
e, request
)
django/core/handlers/base.py

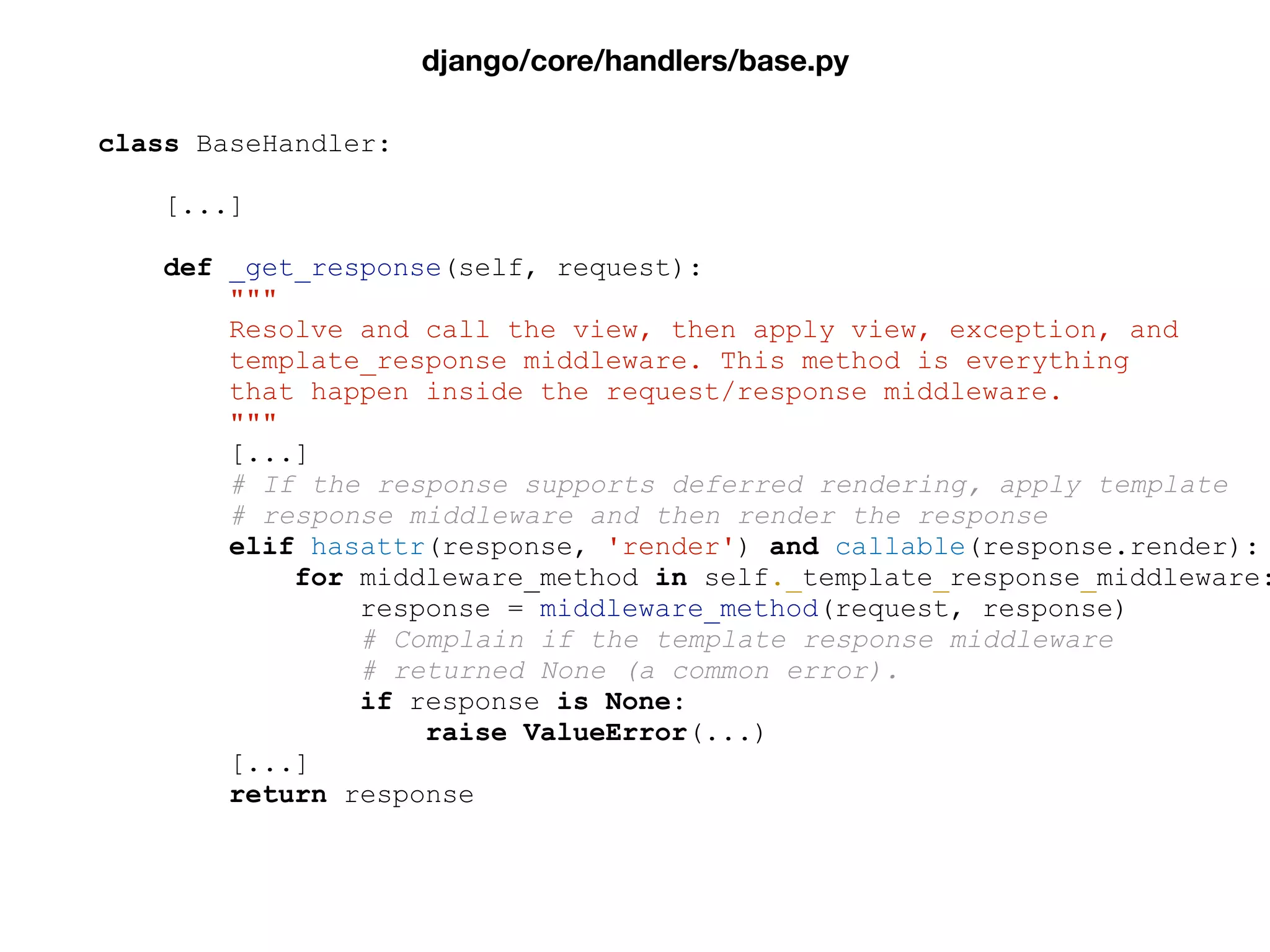

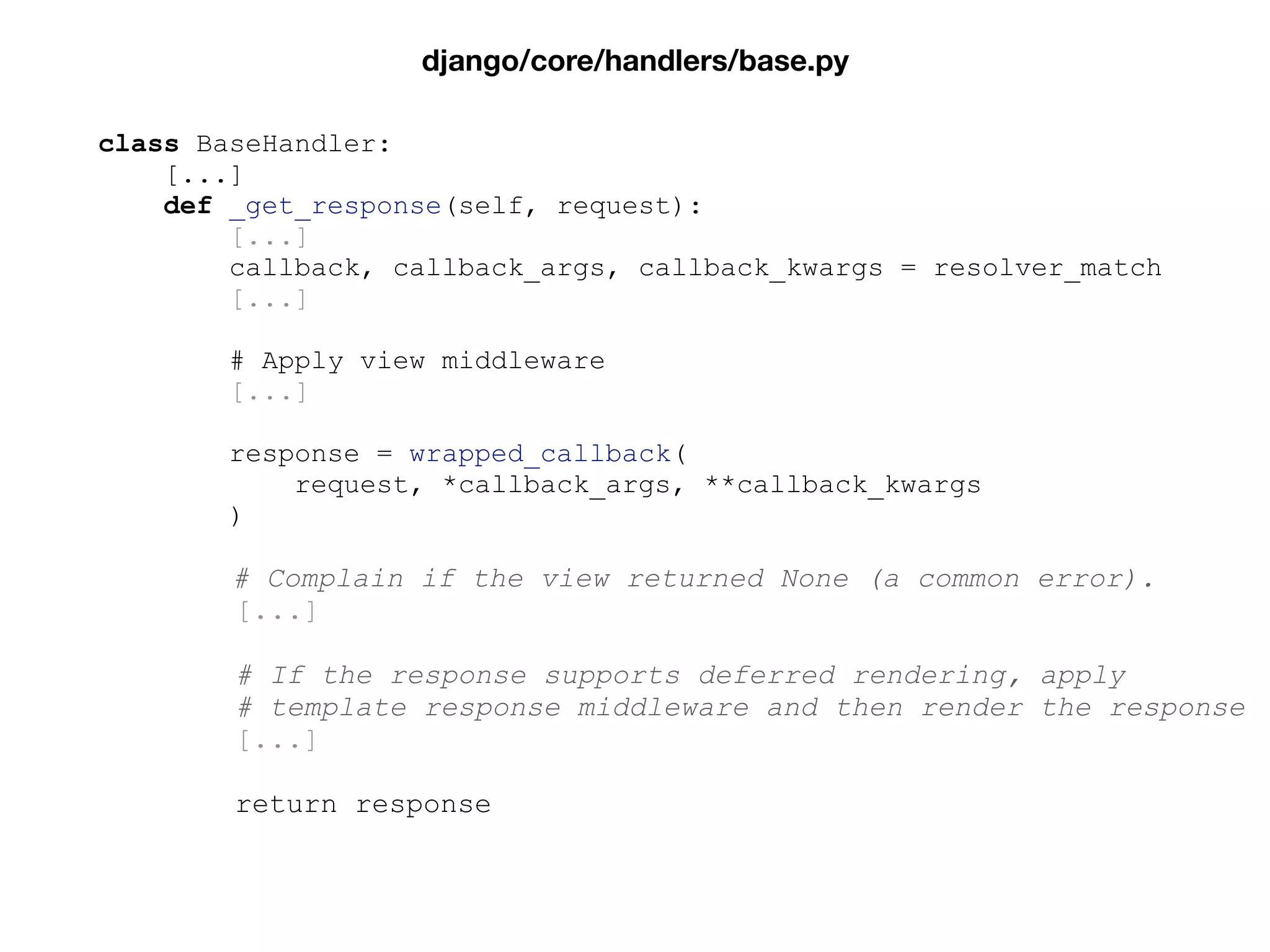

81. class BaseHandler:
[...]
def _get_response(self, request):
[...]
callback, callback_args, callback_kwargs = resolver_match
[...]
# Apply view middleware
[...]
response = wrapped_callback(
request, *callback_args, **callback_kwargs
)
# Complain if the view returned None (a common error).
[...]

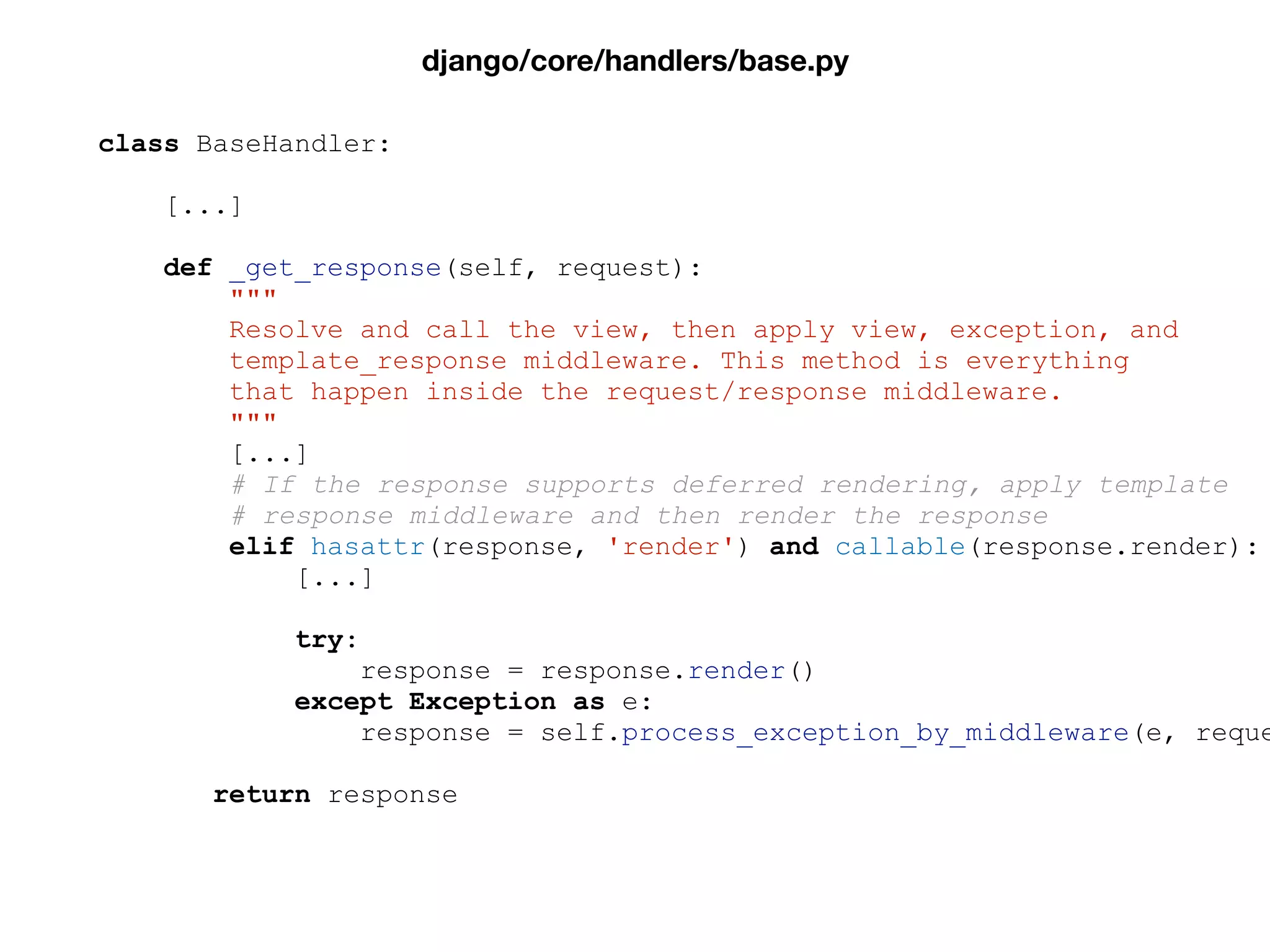

# If the response supports deferred rendering, apply
# template response middleware and then render the response
[...]
return response
django/core/handlers/base.py

82. class BaseHandler:
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
handler = convert_exception_to_response(
self._get_response
)
[...]
self._middleware_chain = handler
def get_response(self, request):
"""
Return an HttpResponse object for the given
HttpRequest.
"""
# Setup default url resolver for this thread
set_urlconf(settings.ROOT_URLCONF)
response = self._middleware_chain(request)
django/core/handlers/base.py

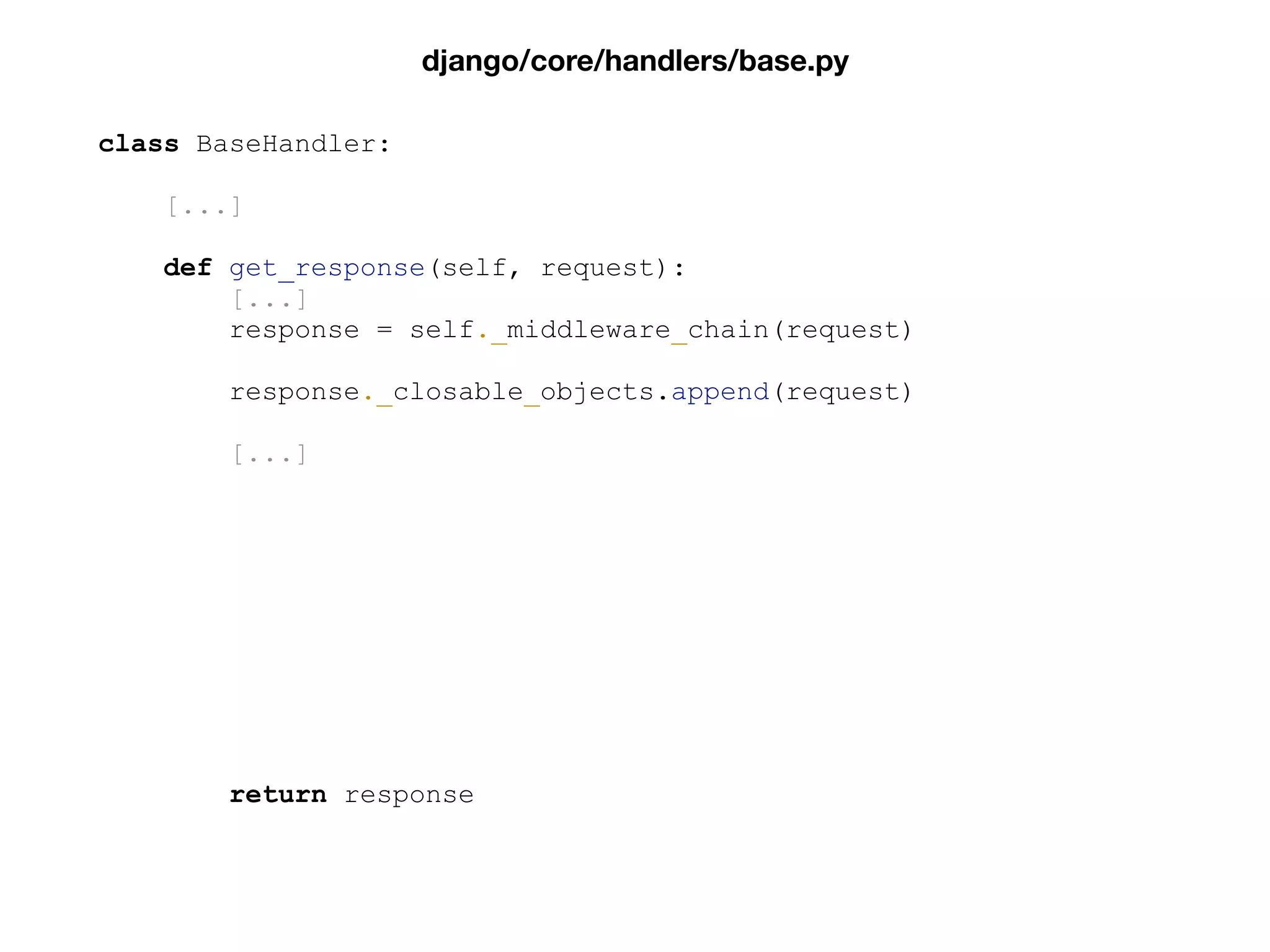

83. class BaseHandler:
[...]
def get_response(self, request):
[...]
response = self._middleware_chain(request)
response._closable_objects.append(request)
[...]
return response
django/core/handlers/base.py

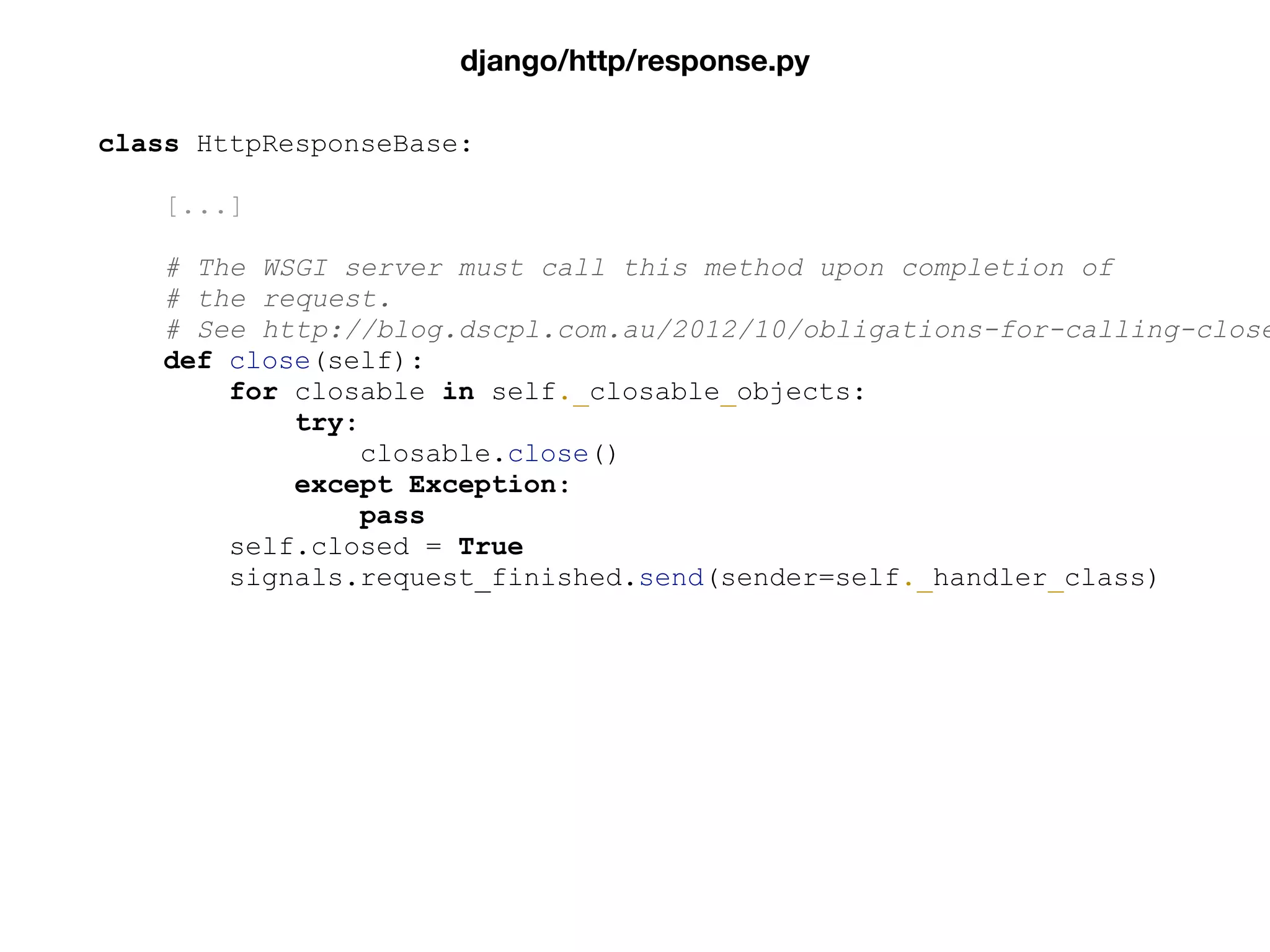

84. class HttpResponseBase:
[...]
# The WSGI server must call this method upon completion of
# the request.
# See http://blog.dscpl.com.au/2012/10/obligations-for-calling-close
def close(self):
for closable in self._closable_objects:
try:
closable.close()
except Exception:
pass
self.closed = True
signals.request_finished.send(sender=self._handler_class)
django/http/response.py

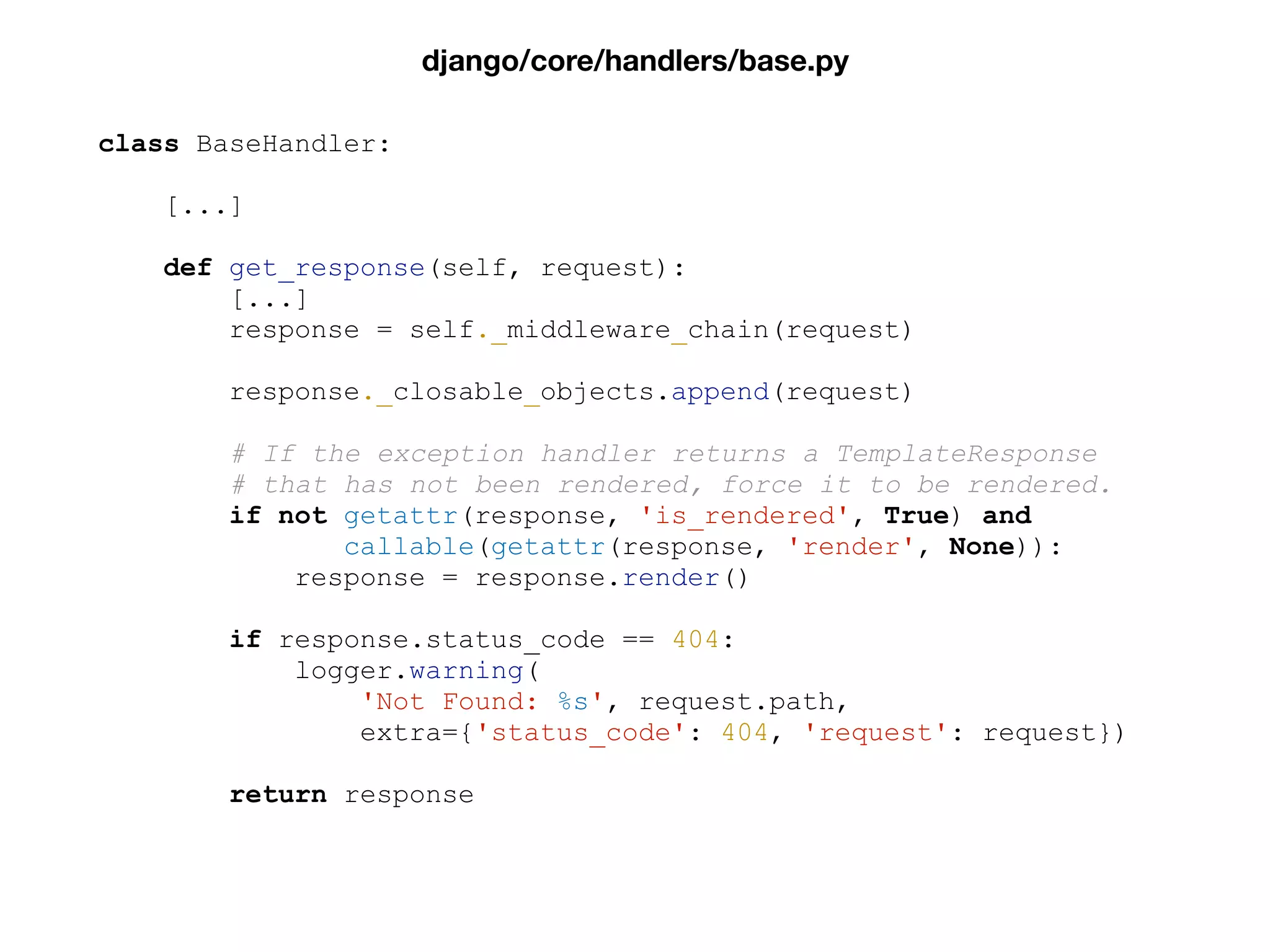

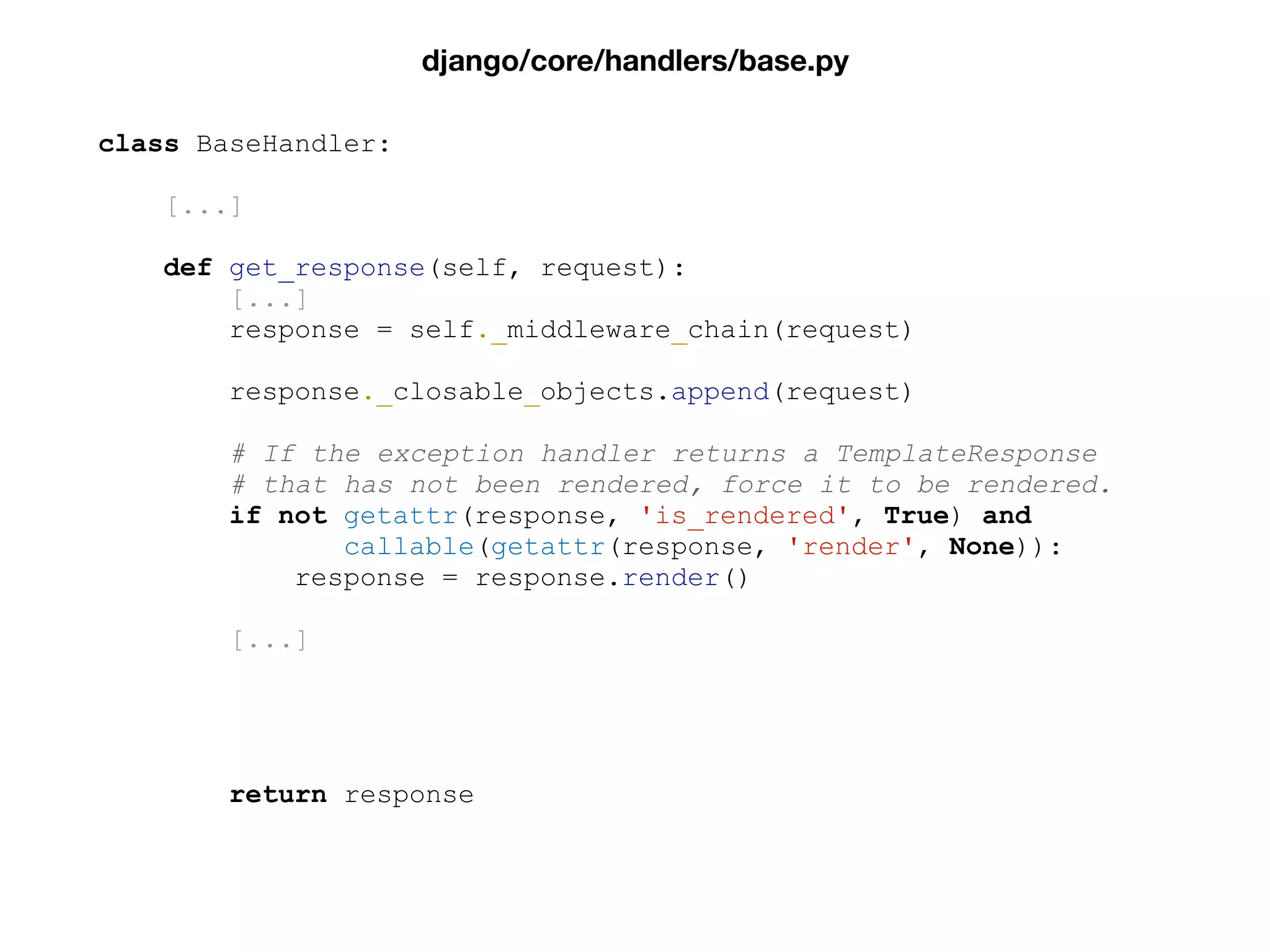

85. class BaseHandler:
[...]
def get_response(self, request):
[...]
response = self._middleware_chain(request)
response._closable_objects.append(request)
# If the exception handler returns a TemplateResponse
# that has not been rendered, force it to be rendered.
if not getattr(response, 'is_rendered', True) and
callable(getattr(response, 'render', None)):
response = response.render()
[...]
return response
django/core/handlers/base.py

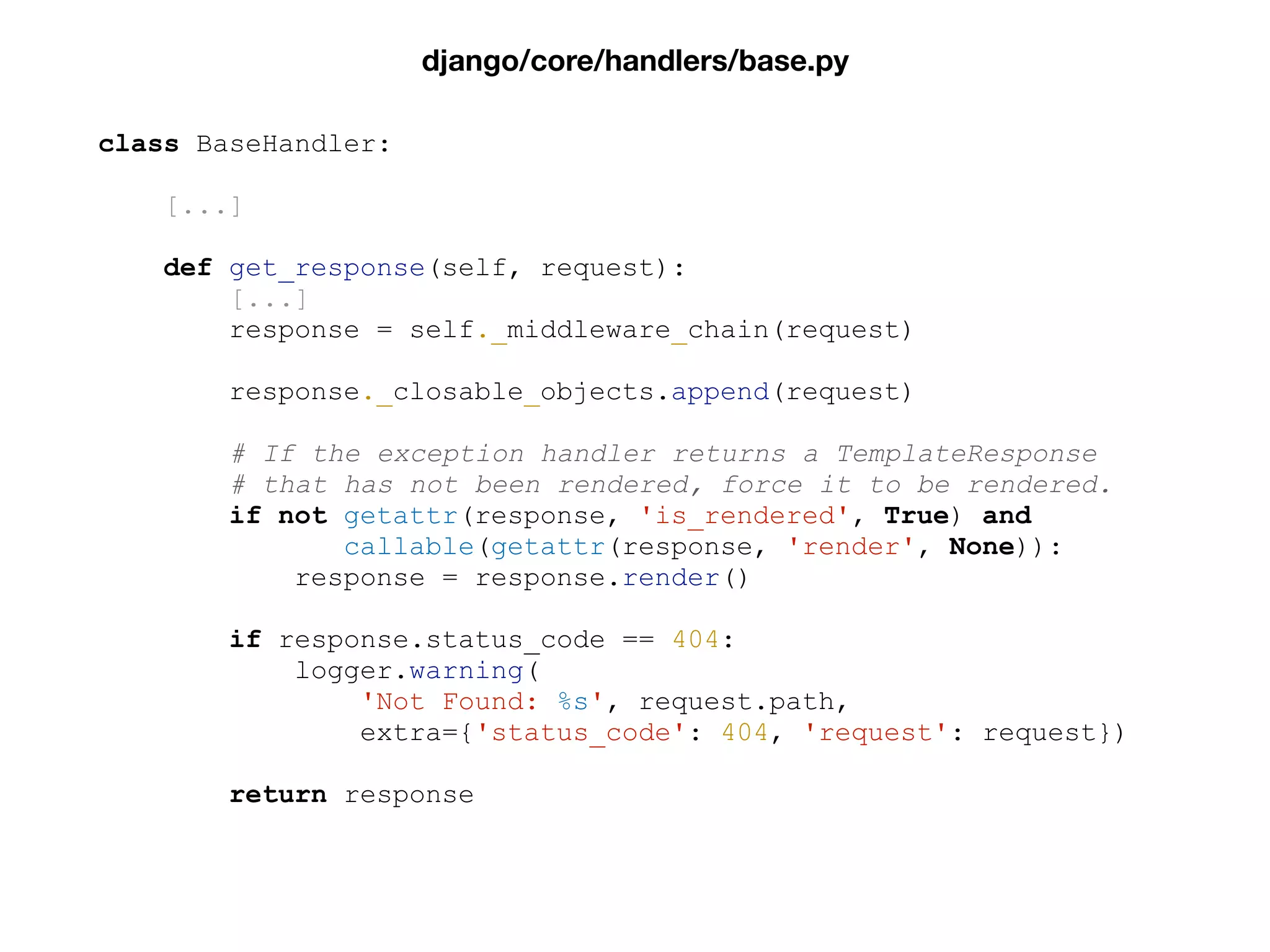

86. class BaseHandler:
[...]
def get_response(self, request):
[...]
response = self._middleware_chain(request)
response._closable_objects.append(request)
# If the exception handler returns a TemplateResponse
# that has not been rendered, force it to be rendered.
if not getattr(response, 'is_rendered', True) and
callable(getattr(response, 'render', None)):
response = response.render()
if response.status_code == 404:
logger.warning(
'Not Found: %s', request.path,
extra={'status_code': 404, 'request': request})
return response
django/core/handlers/base.py

87. class WSGIHandler(base.BaseHandler):
request_class = WSGIRequest
[...]
def __call__(self, environ, start_response):
set_script_prefix(get_script_name(environ))
signals.request_started.send(sender=self.__class__,
environ=environ)
request = self.request_class(environ)
response = self.get_response(request)
[...]
django/core/handlers/wsgi.py

88. class WSGIHandler(base.BaseHandler):
request_class = WSGIRequest
[...]
def __call__(self, environ, start_response):
[...]
response = self.get_response(request)
response._handler_class = self.__class__
status = '%d %s' % (response.status_code, response.reason_phrase
response_headers = list(response.items())
for c in response.cookies.values():
response_headers.append(('Set-Cookie', c.output(header='')))
start_response(status, response_headers)
if (getattr(response, 'file_to_stream', None) is not None
and environ.get('wsgi.file_wrapper')):
response = environ['wsgi.file_wrapper'](response.file_to_str
return response
django/core/handlers/wsgi.py

89. Middleware

90. Middleware
power
Django

91. Default
MIDDLEWARE = [
'django.middleware.security.SecurityMiddleware',
'django.contrib.sessions.middleware.SessionMiddleware',
'django.middleware.common.CommonMiddleware',
'django.middleware.csrf.CsrfViewMiddleware',
'django.contrib.auth.middleware.AuthenticationMiddleware',
'django.contrib.messages.middleware.MessageMiddleware',
'django.middleware.clickjacking.XFrameOptionsMiddleware',
]

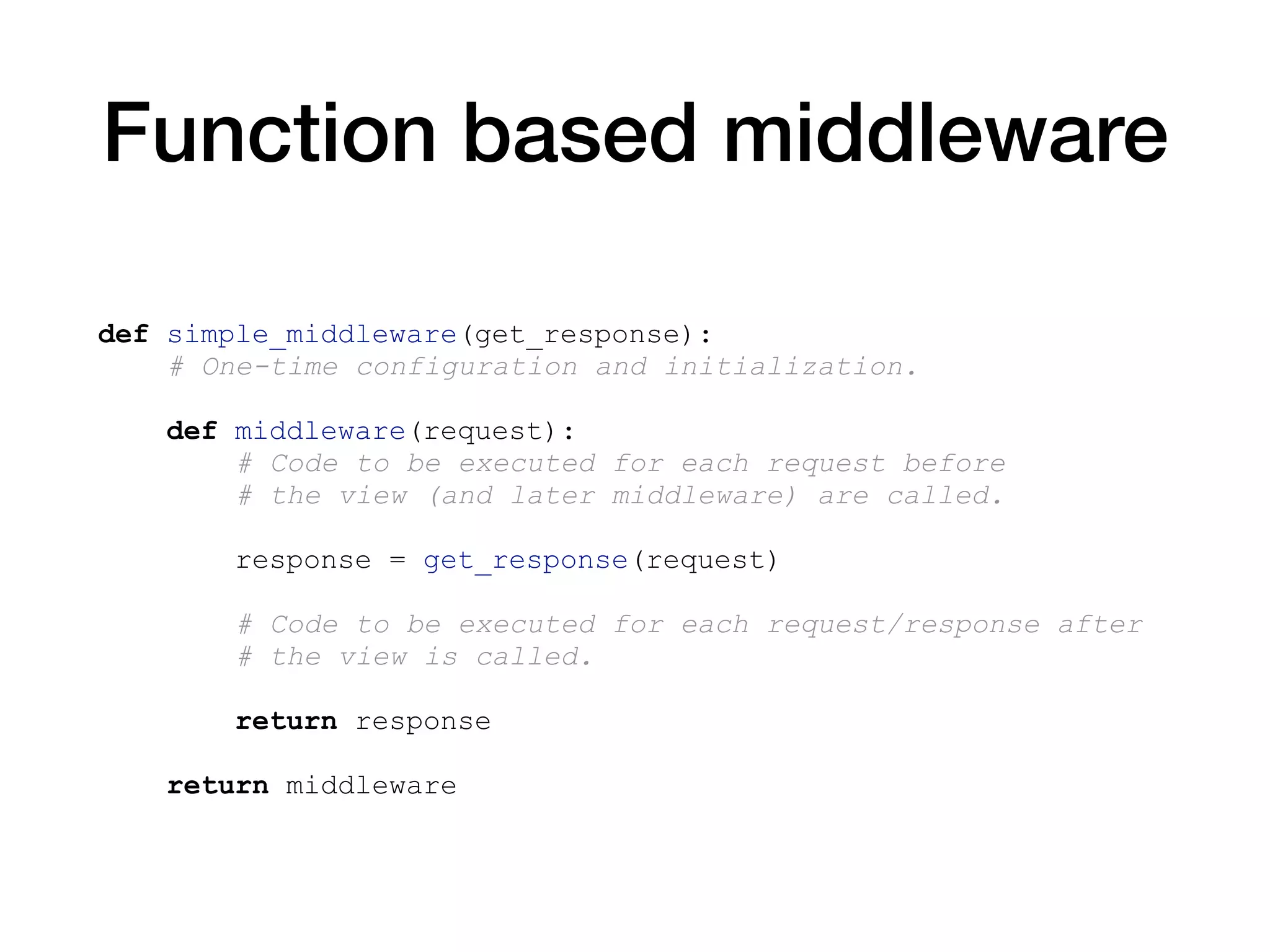

92. Function based middleware
def simple_middleware(get_response):
# One-time configuration and initialization.
def middleware(request):
# Code to be executed for each request before
# the view (and later middleware) are called.
response = get_response(request)
# Code to be executed for each request/response after
# the view is called.
return response
return middleware

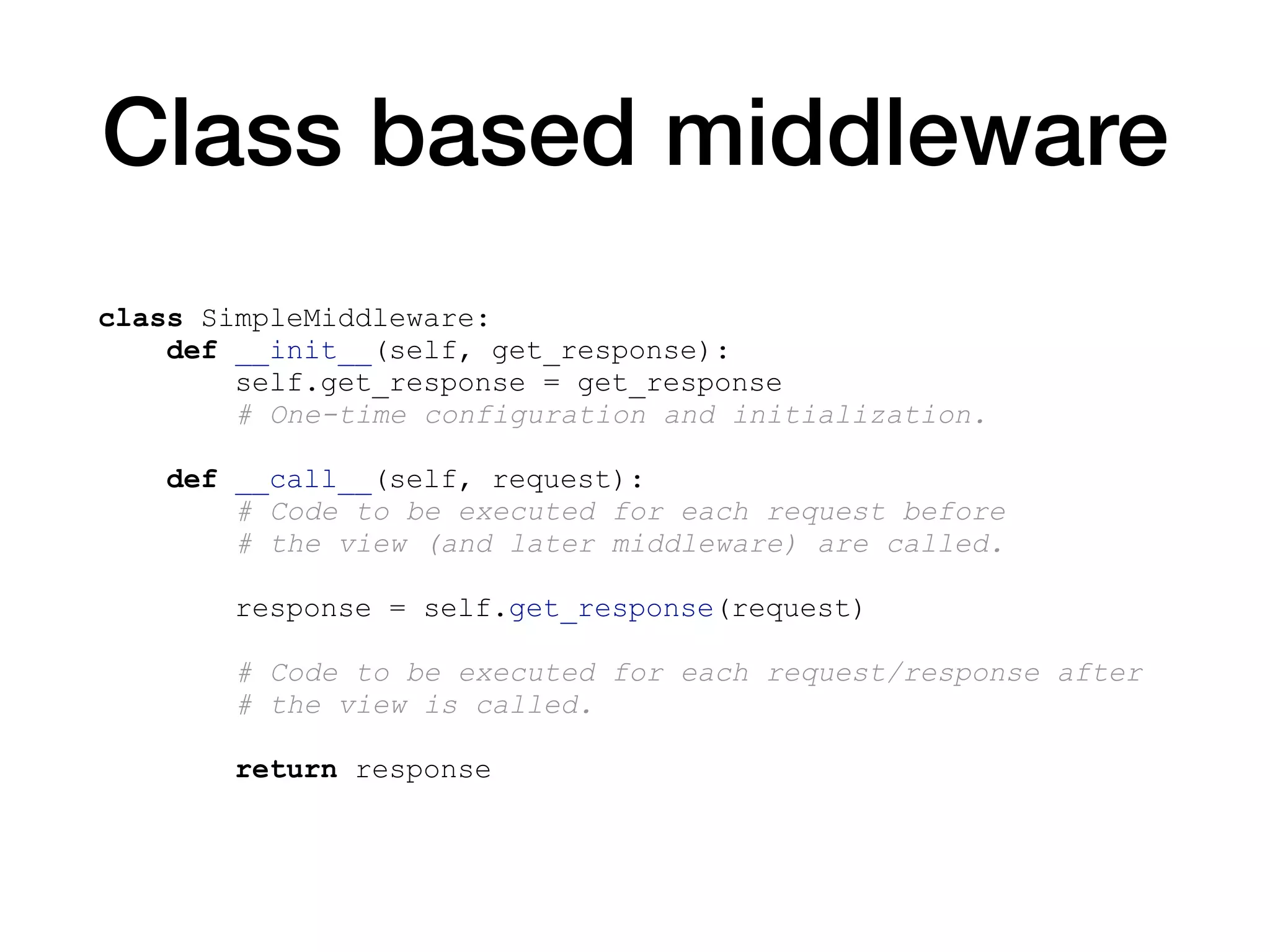

93. Class based middleware
class SimpleMiddleware:
def __init__(self, get_response):
self.get_response = get_response
# One-time configuration and initialization.
def __call__(self, request):
# Code to be executed for each request before
# the view (and later middleware) are called.
response = self.get_response(request)
# Code to be executed for each request/response after
# the view is called.
return response

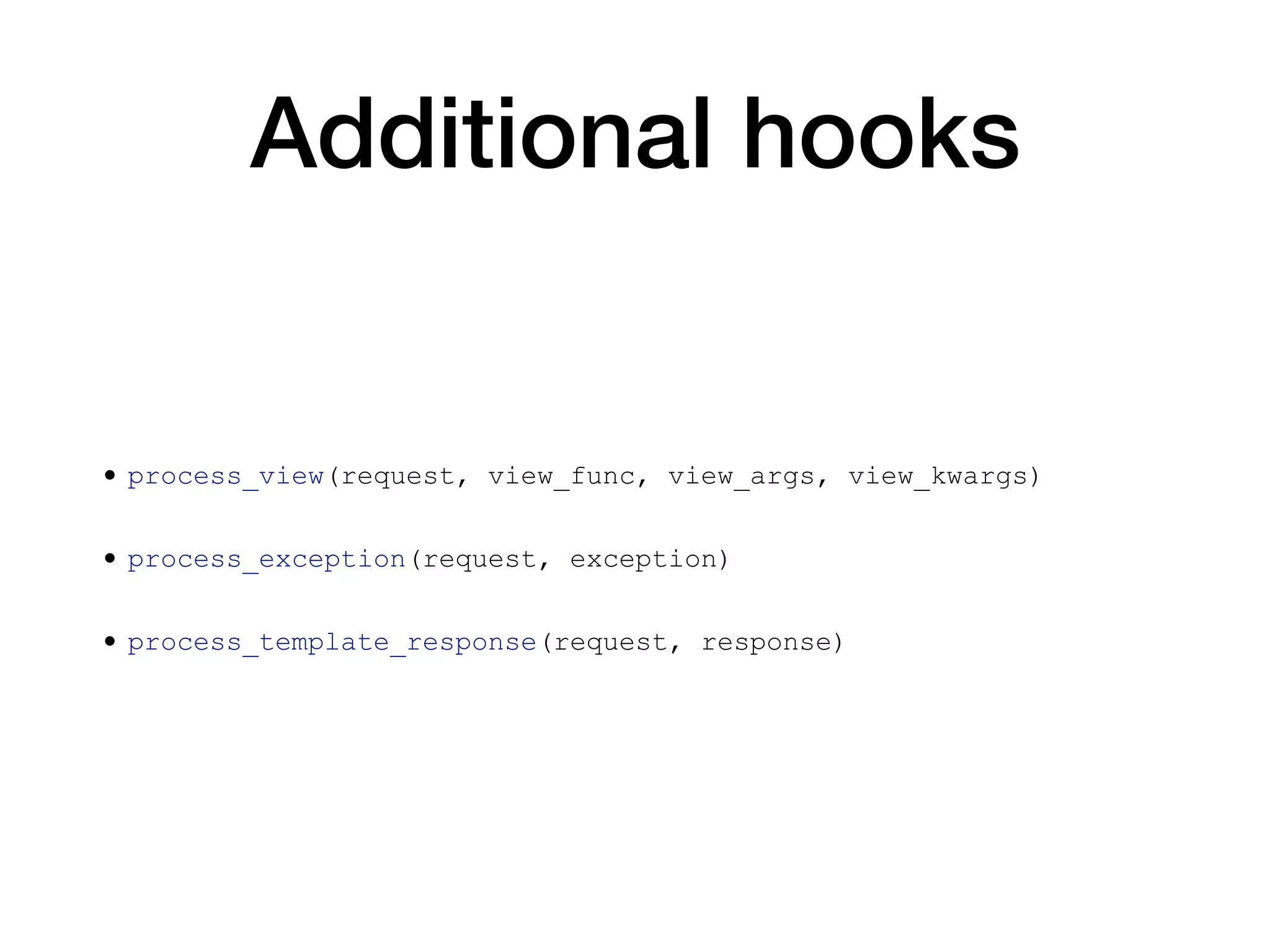

94. Additional hooks
• process_view(request, view_func, view_args, view_kwargs)
• process_exception(request, exception)
• process_template_response(request, response)

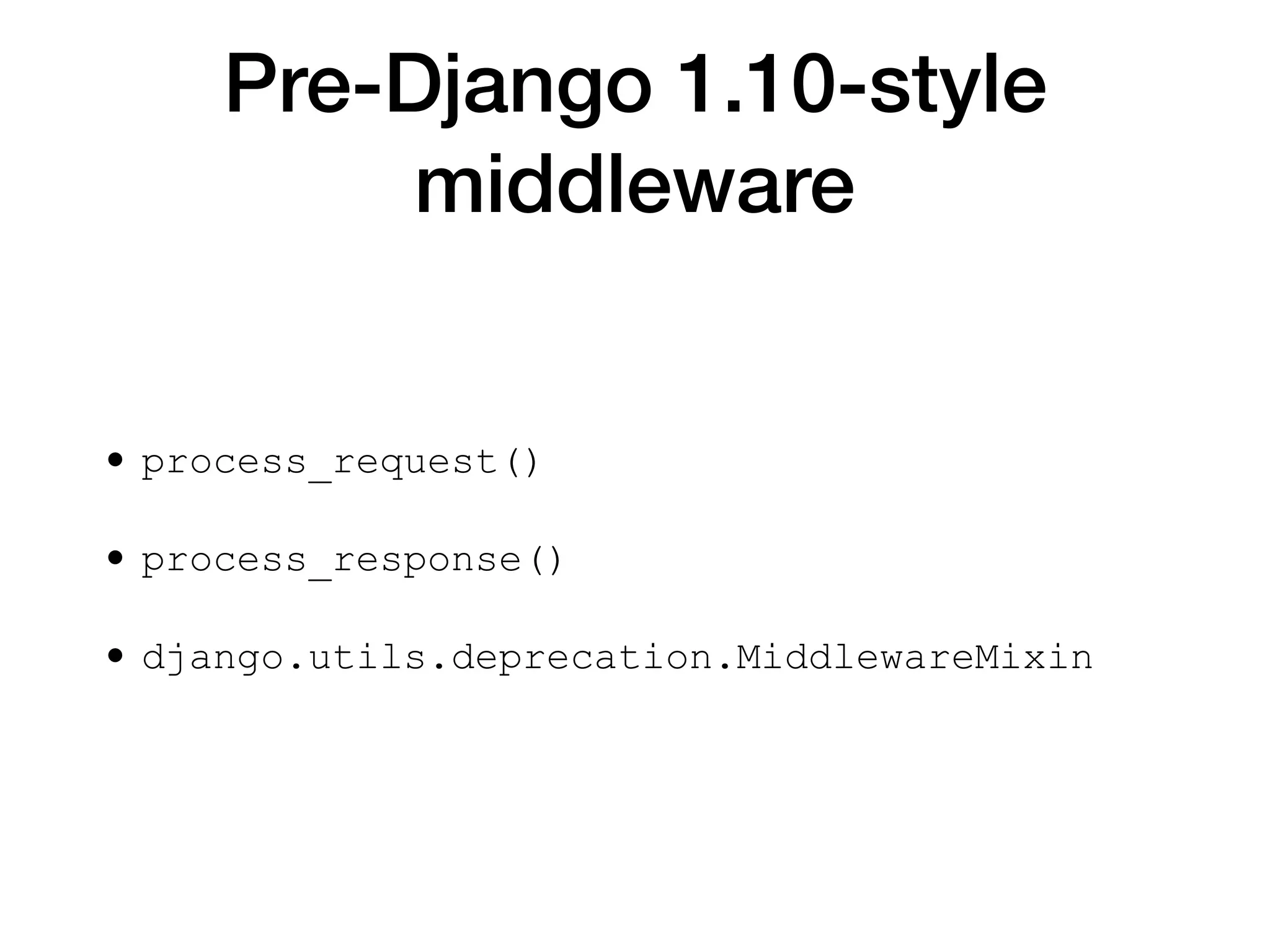

95. Pre-Django 1.10-style
middleware
• process_request()
• process_response()
• django.utils.deprecation.MiddlewareMixin

96. Using middleware

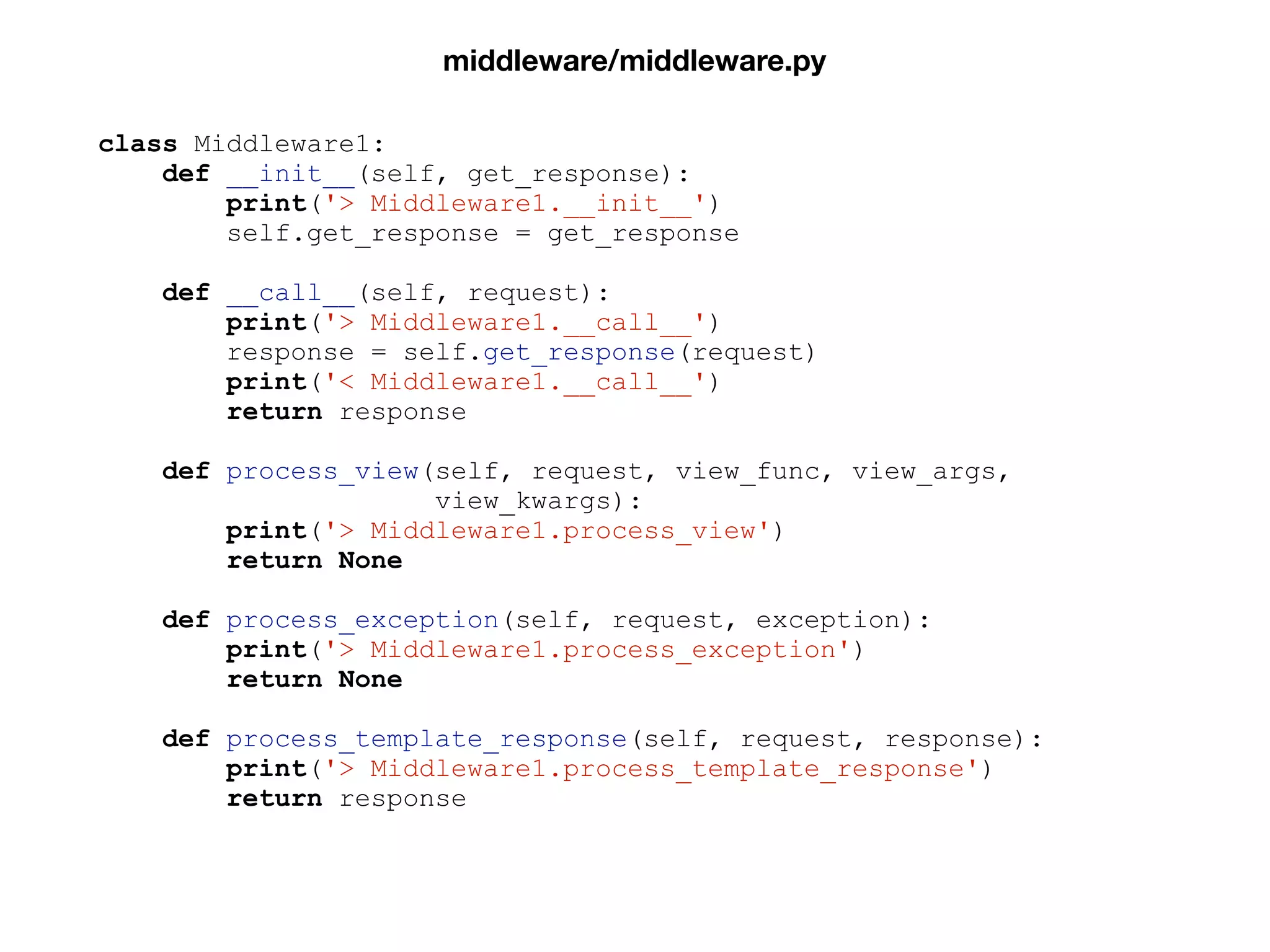

97. class Middleware1:
def __init__(self, get_response):
print('> Middleware1.__init__')
self.get_response = get_response
def __call__(self, request):
print('> Middleware1.__call__')
response = self.get_response(request)
print('< Middleware1.__call__')
return response
def process_view(self, request, view_func, view_args,
view_kwargs):
print('> Middleware1.process_view')
return None
def process_exception(self, request, exception):
print('> Middleware1.process_exception')
return None
def process_template_response(self, request, response):
print('> Middleware1.process_template_response')
return response
middleware/middleware.py

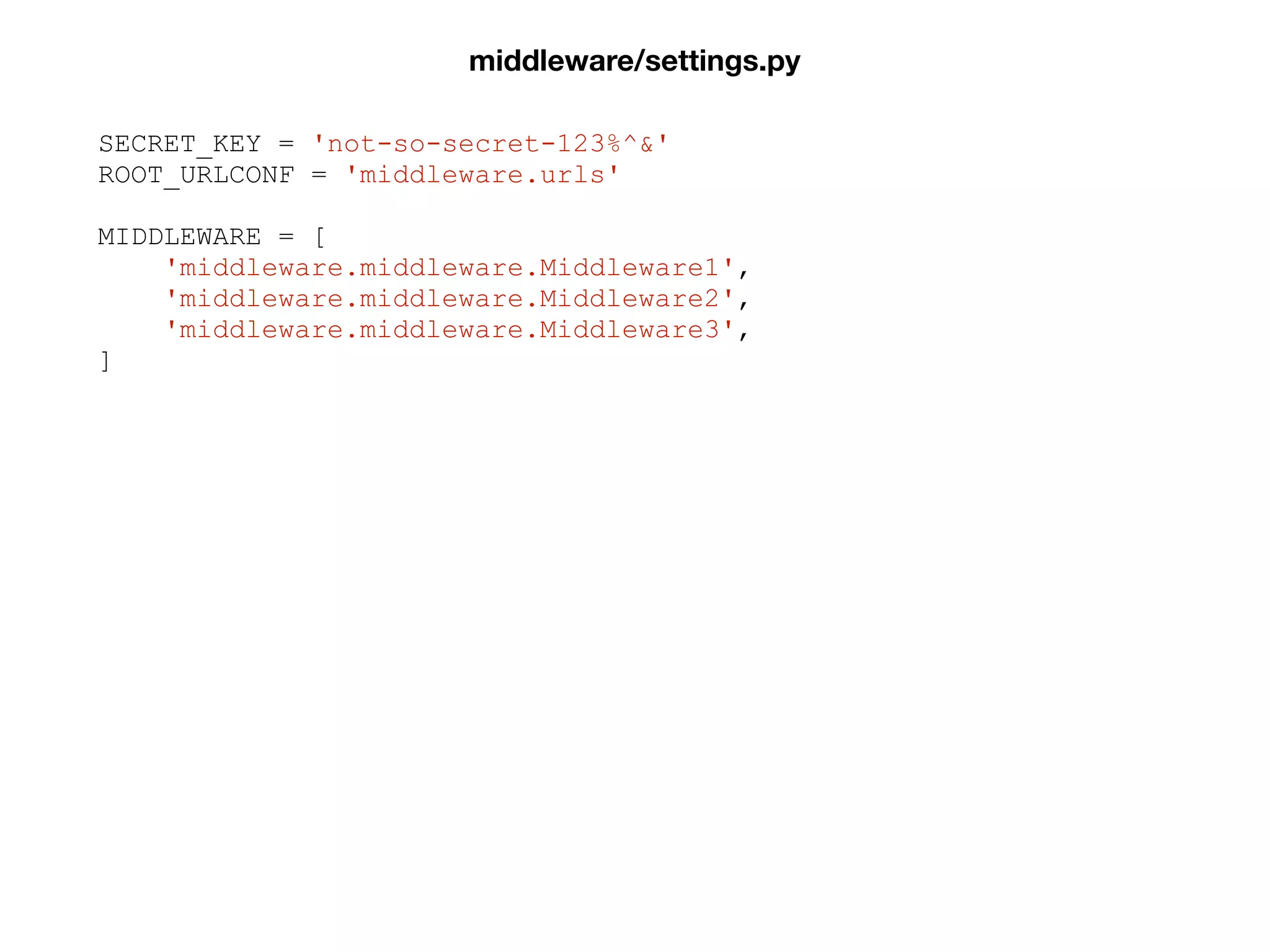

98. SECRET_KEY = 'not-so-secret-123%^&'
ROOT_URLCONF = 'middleware.urls'
MIDDLEWARE = [
'middleware.middleware.Middleware1',
'middleware.middleware.Middleware2',
'middleware.middleware.Middleware3',
]
middleware/settings.py

99. Starting the
application

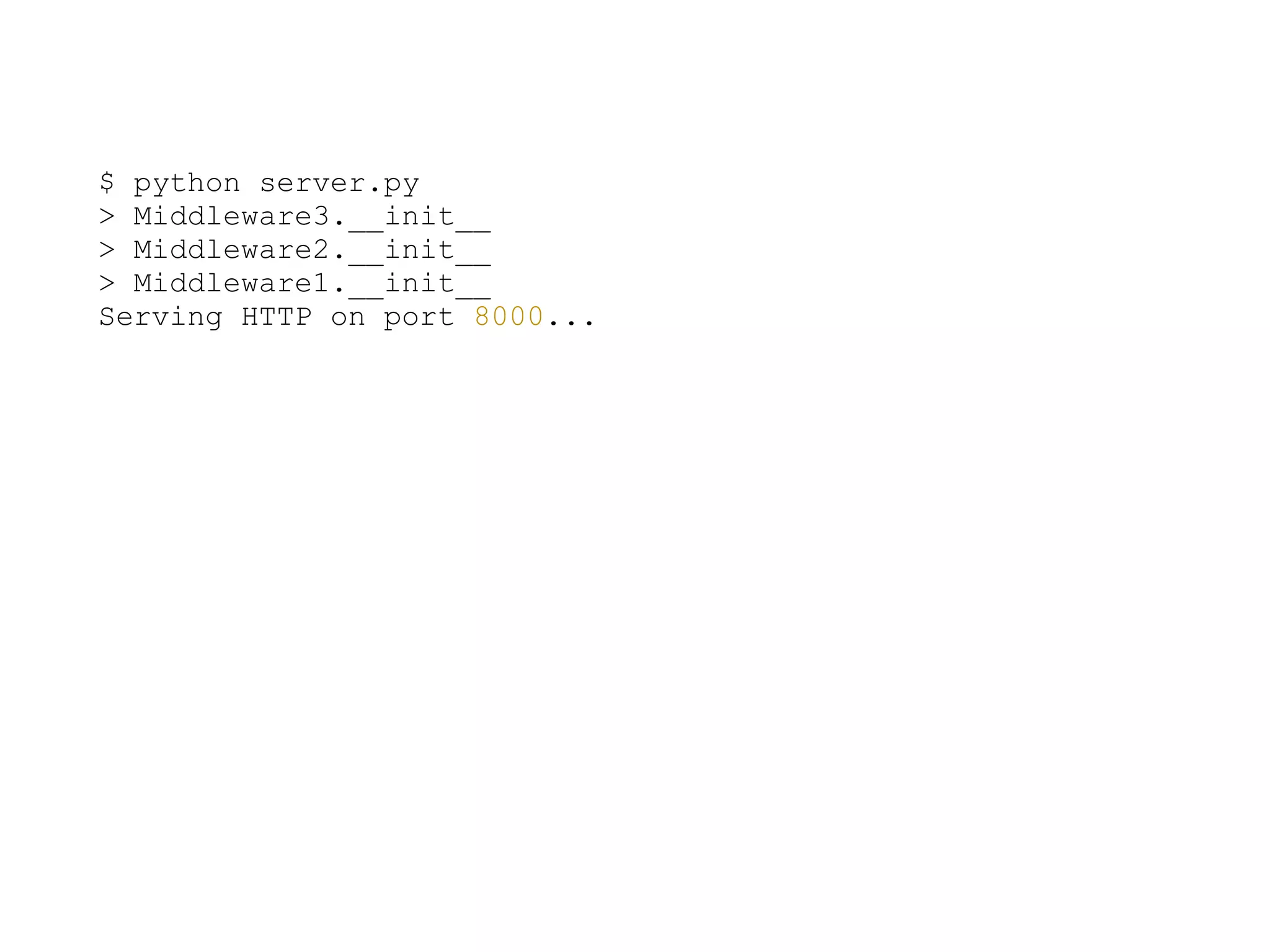

100. $ python server.py
> Middleware3.__init__
> Middleware2.__init__
> Middleware1.__init__
Serving HTTP on port 8000...

101. class BaseHandler:
[...]
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
self._request_middleware = []
self._view_middleware = []
self._template_response_middleware = []
self._response_middleware = []
self._exception_middleware = []
handler = convert_exception_to_response(self._get_response)
for middleware_path in reversed(settings.MIDDLEWARE):
[...]
self._middleware_chain = handler
django/core/handlers/base.py

102. class BaseHandler:
[...]
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
[...]
handler = convert_exception_to_response(self._get_response)
for middleware_path in reversed(settings.MIDDLEWARE):
middleware = import_string(middleware_path)
try:
mw_instance = middleware(handler)
except MiddlewareNotUsed as exc:
if settings.DEBUG:
[...]
continue
[...]
handler = convert_exception_to_response(mw_instance)
self._middleware_chain = handler
django/core/handlers/base.py

103. settings.MIDDLEWARE = [
'middleware.middleware.Middleware1',
'middleware.middleware.Middleware2',
'middleware.middleware.Middleware3',
]
handler = convert_exception_to_response(self._get_response)
for middleware_path in reversed(settings.MIDDLEWARE):
middleware = import_string(middleware_path)
mw_instance = middleware(handler)
handler = convert_exception_to_response(mw_instance)
handler = convert_exception_to_response(self._get_response)
handler = convert_exception_to_response(Middleware3(handler))
handler = convert_exception_to_response(Middleware2(handler))
handler = convert_exception_to_response(Middleware1(handler))

104. settings.MIDDLEWARE = [
'middleware1',
'middleware2',
'middleware3',
]
handler = convert_exception_to_response(self._get_response)
for middleware_path in reversed(settings.MIDDLEWARE):
middleware = import_string(middleware_path)
mw_instance = middleware(handler)
handler = convert_exception_to_response(mw_instance)
handler = middleware1(middleware2(middleware3(self._get_response)))))))

105. class BaseHandler:
[...]
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
[...]
handler = convert_exception_to_response(self._get_response)
for middleware_path in reversed(settings.MIDDLEWARE):
middleware = import_string(middleware_path)
try:
mw_instance = middleware(handler)
except MiddlewareNotUsed as exc:
if settings.DEBUG:
[...]
continue
[...]
handler = convert_exception_to_response(mw_instance)
self._middleware_chain = handler
django/core/handlers/base.py

106. class BaseHandler:
[...]
def load_middleware(self):
[...]
for middleware_path in reversed(settings.MIDDLEWARE):
[...]
if hasattr(mw_instance, 'process_view'):
self._view_middleware.insert(
0, mw_instance.process_view)
if hasattr(mw_instance, 'process_template_response'):
self._template_response_middleware.append(
mw_instance.process_template_response)
if hasattr(mw_instance, 'process_exception'):
self._exception_middleware.append(
mw_instance.process_exception)
handler = convert_exception_to_response(mw_instance)
self._middleware_chain = handler
django/core/handlers/base.py

107. settings.MIDDLEWARE = [
'middleware1',
'middleware2',
'middleware3',
]
self._view_middleware = [
middleware1_instance.process_view,
middleware2_instance.process_view,
middleware3_instance.process_view,
]
self._template_response_middleware = [
middleware3_instance.process_template_response,
middleware2_instance.process_template_response,
middleware1_instance.process_template_response,
]
self._exception_middleware = [
middleware3_instance.process_exception,
middleware2_instance.process_exception,
middleware1_instance.process_exception,
]

108. • DIAGRAM

109. Handling a request

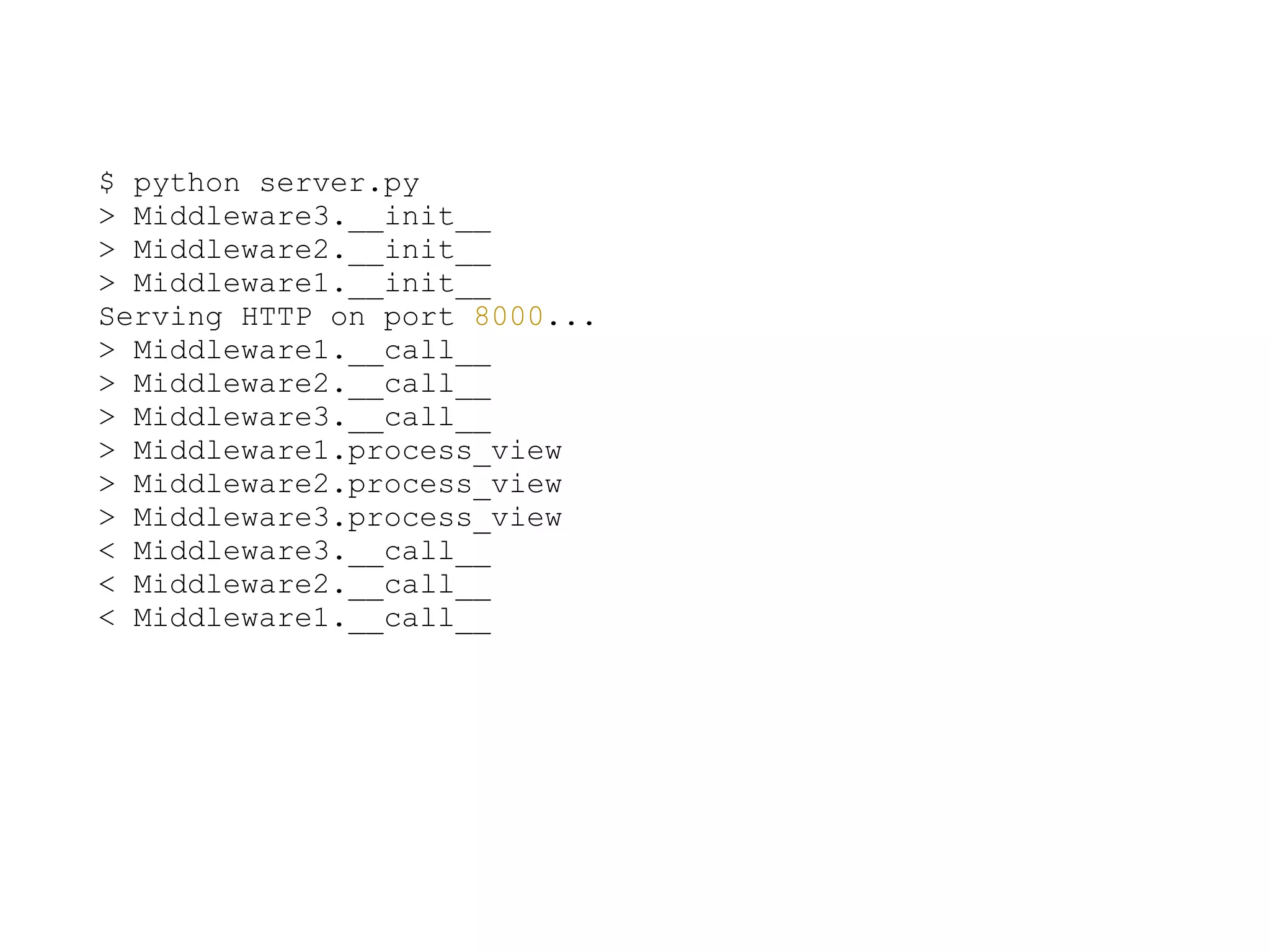

110. $ python server.py
> Middleware3.__init__
> Middleware2.__init__
> Middleware1.__init__
Serving HTTP on port 8000...
> Middleware1.__call__
> Middleware2.__call__
> Middleware3.__call__
> Middleware1.process_view
> Middleware2.process_view
> Middleware3.process_view
< Middleware3.__call__
< Middleware2.__call__
< Middleware1.__call__

111. class BaseHandler:
def load_middleware(self):
"""
Populate middleware lists from settings.MIDDLEWARE.
"""
[...]
def get_response(self, request):
"""
Return an HttpResponse object for the given
HttpRequest.
"""
# Setup default url resolver for this thread
set_urlconf(settings.ROOT_URLCONF)
response = self._middleware_chain(request)
middleware1(middleware2(middleware3(self._get_response)))))))
django/core/handlers/base.py

112. Middleware1
Middleware2
__call__
Middleware3
__call__
BaseHandler
_get_response

113. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
response = None
[...]
return response
django/core/handlers/base.py

114. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
response = None
if hasattr(request, 'urlconf'):
urlconf = request.urlconf
set_urlconf(urlconf)
resolver = get_resolver(urlconf)
else:
resolver = get_resolver()
[...]
return response
django/core/handlers/base.py

115. [...]
@functools.lru_cache(maxsize=None)
def get_resolver(urlconf=None):
if urlconf is None:
from django.conf import settings
urlconf = settings.ROOT_URLCONF
return URLResolver(RegexPattern(r'^/'), urlconf)
[...]
django/urls/resolvers/base.py

116. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
resolver_match = resolver.resolve(request.path_info)
callback, callback_args, callback_kwargs = resolver_match
request.resolver_match = resolver_match
[...]
return response
django/core/handlers/base.py

117. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
callback, callback_args, callback_kwargs = resolver_match
[...]
# Apply view middleware
for middleware_method in self._view_middleware:
response = middleware_method(request,
callback,
callback_args,
callback_kwargs)
if response:
break
[...]
return response
django/core/handlers/base.py

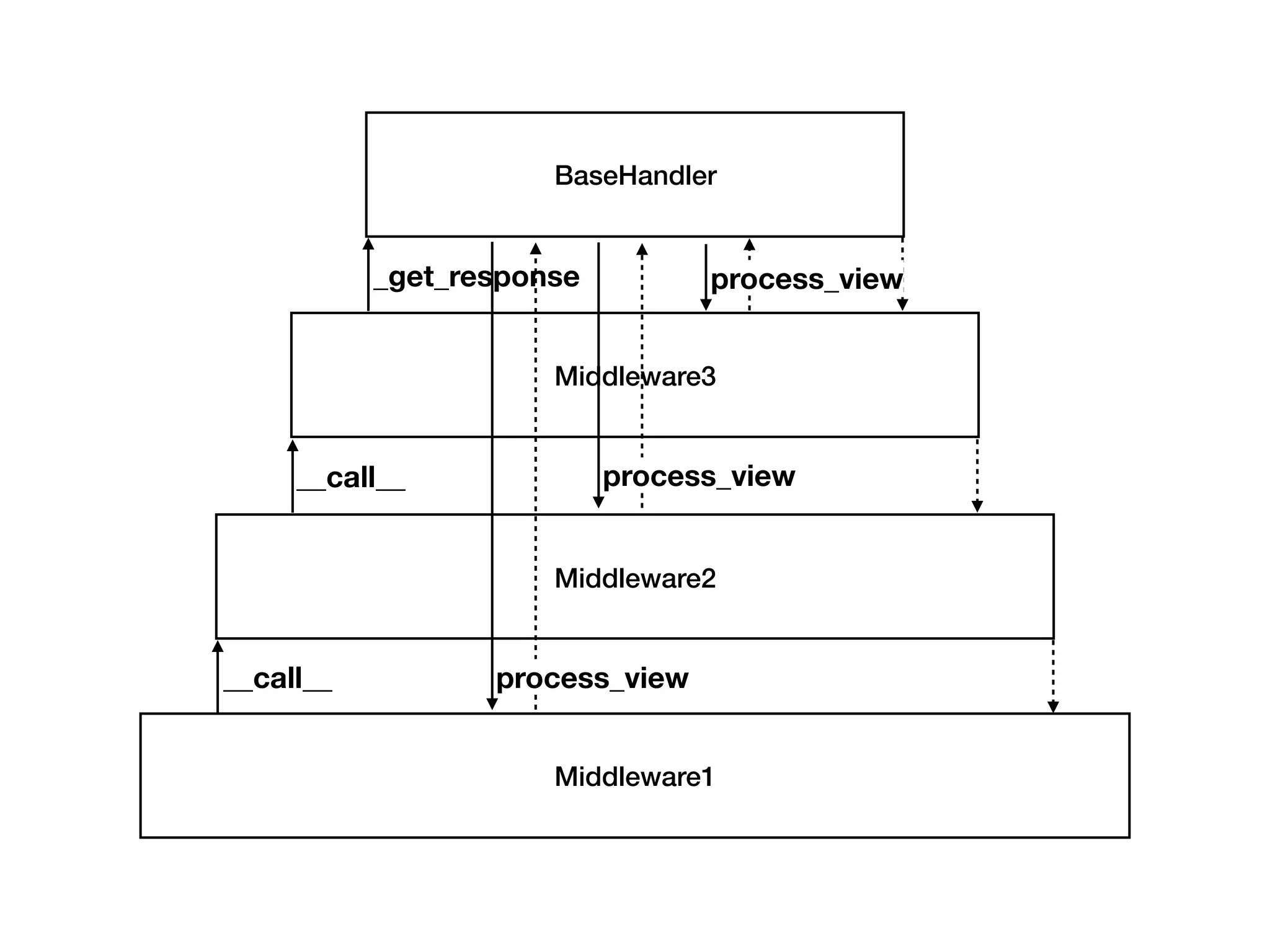

118. Middleware1
Middleware2
__call__
Middleware3
__call__
BaseHandler
_get_response
process_view
process_view
process_view

119. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
if response is None:
wrapped_callback = self.make_view_atomic(callback)
try:
response = wrapped_callback(request,
*callback_args,
**callback_kwargs)
except Exception as e:
response = self.process_exception_by_middleware(
e, request)
[...]
return response
django/core/handlers/base.py

120. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
# Complain if the view returned None (a common error).
if response is None:
if isinstance(callback, types.FunctionType): # FBV
view_name = callback.__name__
else: # CBV
view_name = callback.__class__.__name__ + '.__call__'
raise ValueError(
"The view %s.%s didn't return an HttpResponse object. It
"returned None instead." % (callback.__module__, view_na
)
[...]
return response
django/core/handlers/base.py

121. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
# If the response supports deferred rendering, apply template
# response middleware and then render the response
elif hasattr(response, 'render') and callable(response.render):
for middleware_method in self._template_response_middleware:
response = middleware_method(request, response)
# Complain if the template response middleware
# returned None (a common error).
if response is None:
raise ValueError(...)
[...]
return response
django/core/handlers/base.py

122. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
# If the response supports deferred rendering, apply template
# response middleware and then render the response
elif hasattr(response, 'render') and callable(response.render):
[...]
try:
response = response.render()
except Exception as e:
response = self.process_exception_by_middleware(e, reque
return response
django/core/handlers/base.py

123. class BaseHandler:
[...]
def process_exception_by_middleware(self, exception, request):
"""
Pass the exception to the exception middleware.
If no middleware return a response for this exception,
raise it.
"""
for middleware_method in self._exception_middleware:
response = middleware_method(request, exception)
if response:
return response
raise
django/core/handlers/base.py

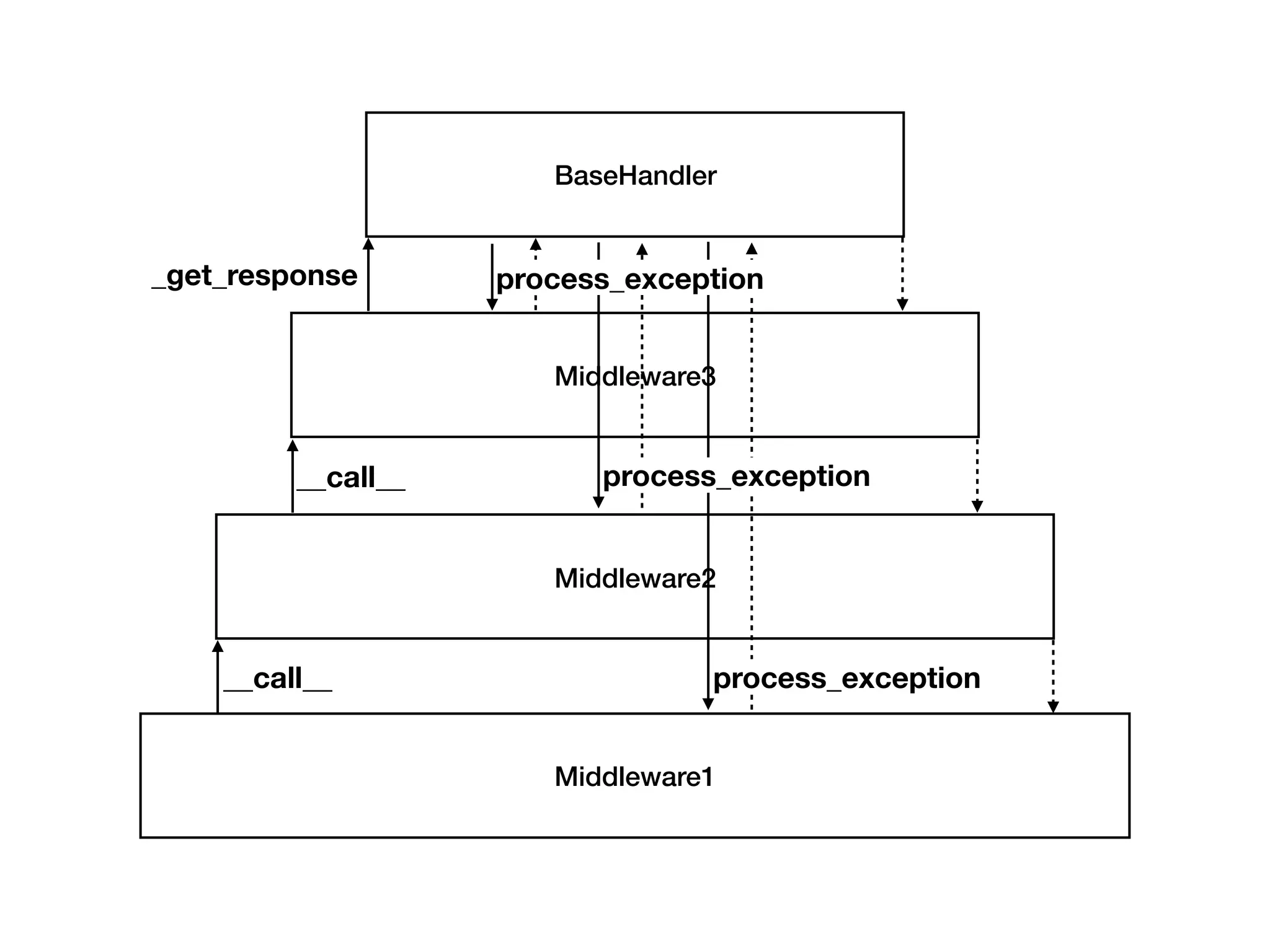

124. Middleware1
Middleware2
__call__
Middleware3
__call__
BaseHandler
_get_response
process_exception
process_exception
process_exception

125. class BaseHandler:
[...]
def _get_response(self, request):
"""
Resolve and call the view, then apply view, exception, and
template_response middleware. This method is everything
that happen inside the request/response middleware.
"""
[...]
# If the response supports deferred rendering, apply template
# response middleware and then render the response
elif hasattr(response, 'render') and callable(response.render):
[...]
try:
response = response.render()
except Exception as e:
response = self.process_exception_by_middleware(e, reque
return response
django/core/handlers/base.py

126. class BaseHandler:
[...]
def get_response(self, request):
"""
Return an HttpResponse object for the given
HttpRequest.
"""
# Setup default url resolver for this thread
set_urlconf(settings.ROOT_URLCONF)
response = self._middleware_chain(request)
[...]
return response
django/core/handlers/base.py

127. class BaseHandler:
[...]
def get_response(self, request):
[...]
response = self._middleware_chain(request)
[...]
return response
django/core/handlers/base.py

128. class BaseHandler:
[...]
def get_response(self, request):
[...]
response = self._middleware_chain(request)
response._closable_objects.append(request)
# If the exception handler returns a TemplateResponse
# that has not been rendered, force it to be rendered.
if not getattr(response, 'is_rendered', True) and
callable(getattr(response, 'render', None)):
response = response.render()
if response.status_code == 404:
logger.warning(
'Not Found: %s', request.path,
extra={'status_code': 404, 'request': request})
return response
django/core/handlers/base.py

129. class WSGIHandler(base.BaseHandler):
request_class = WSGIRequest
[...]
def __call__(self, environ, start_response):
[...]
response = self.get_response(request)
response._handler_class = self.__class__
status = '%d %s' % (response.status_code, response.reason_phrase
response_headers = list(response.items())
for c in response.cookies.values():
response_headers.append(('Set-Cookie', c.output(header='')))
start_response(status, response_headers)
if (getattr(response, 'file_to_stream', None) is not None
and environ.get('wsgi.file_wrapper')):
response = environ['wsgi.file_wrapper'](response.file_to_str
return response
django/core/handlers/wsgi.py

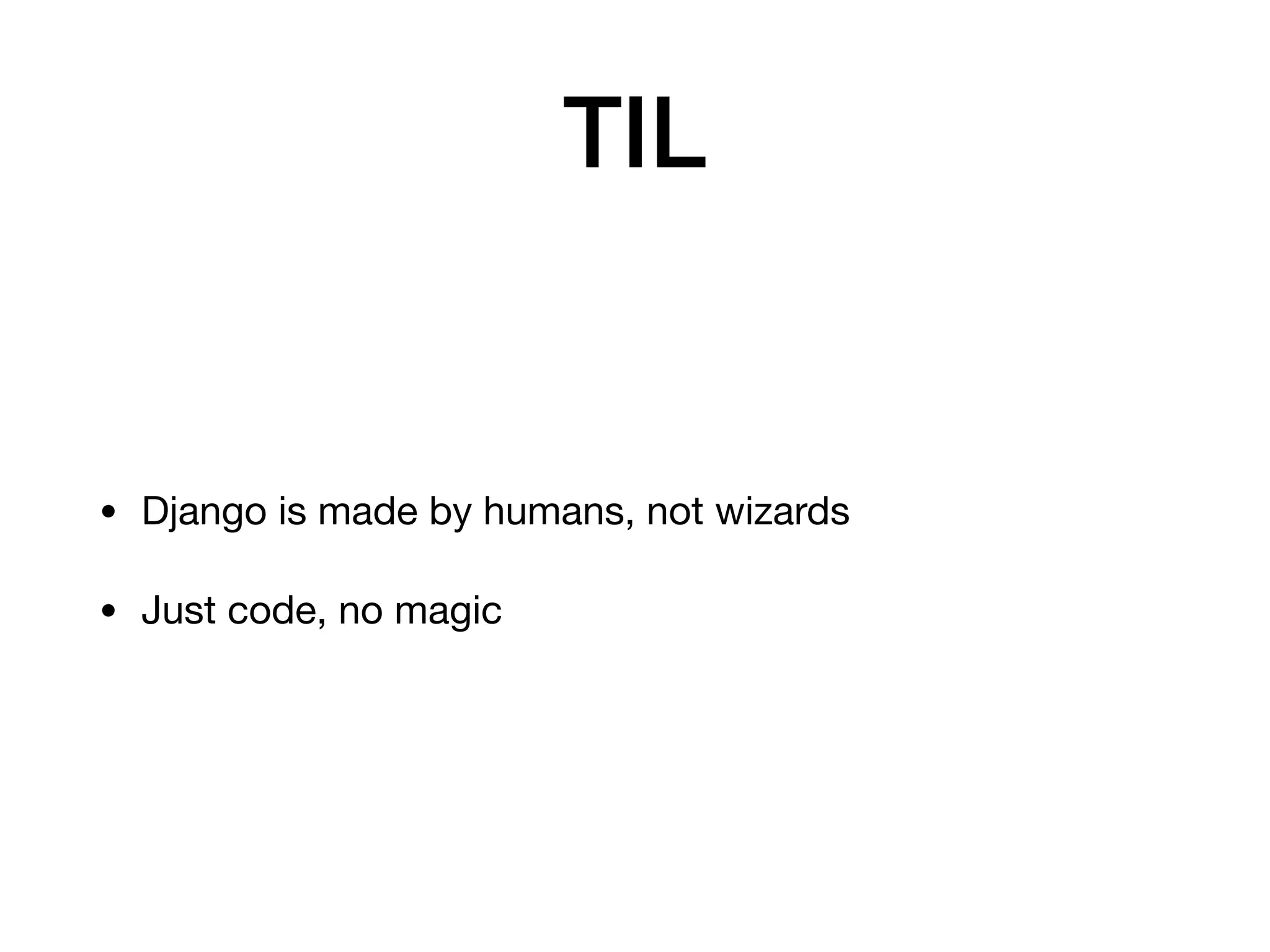

130. TIL
• Django is made by humans, not wizards
• Just code, no magic

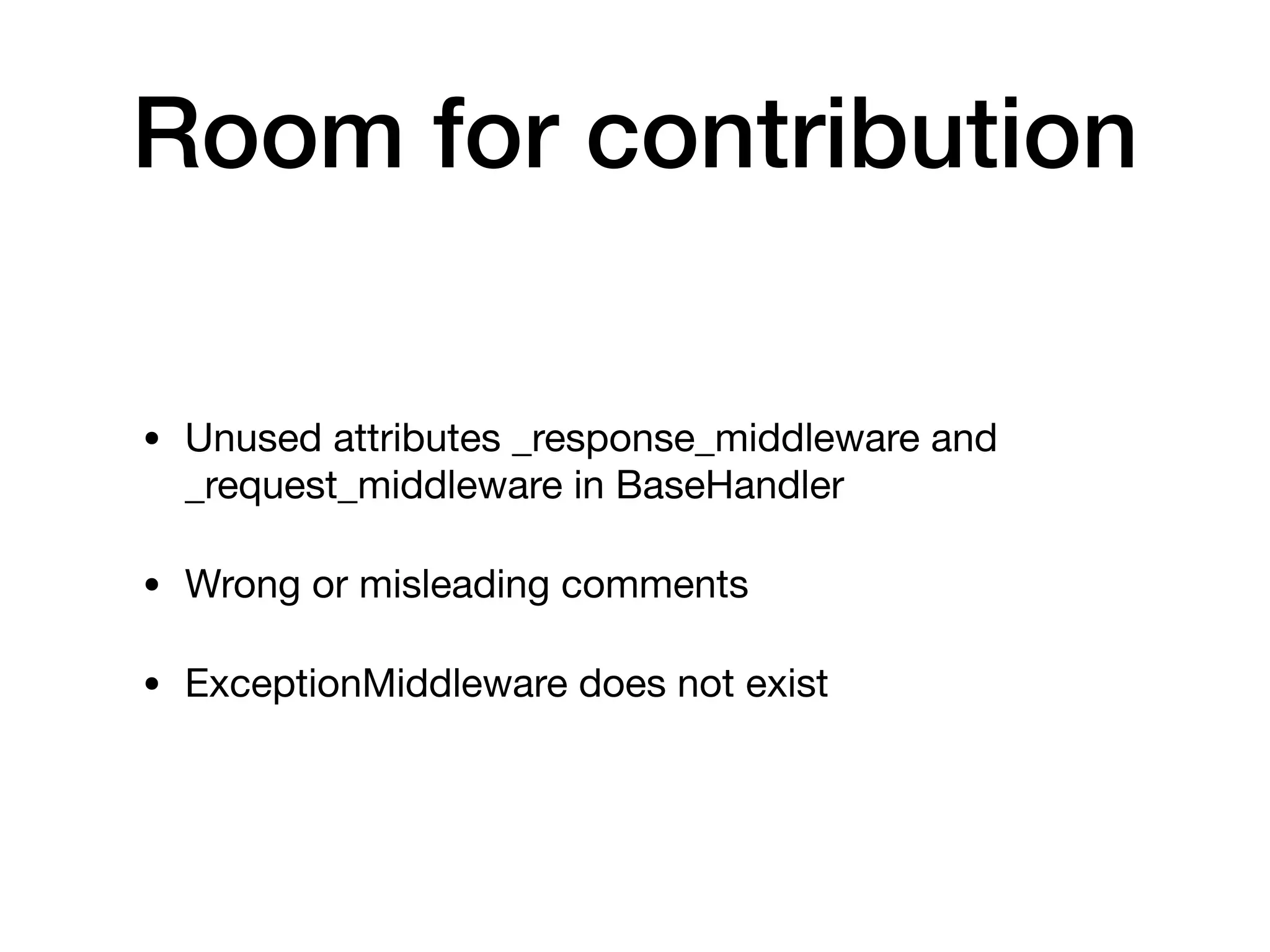

131. Room for contribution
• Unused attributes _response_middleware and
_request_middleware in BaseHandler
• Wrong or misleading comments
• ExceptionMiddleware does not exist

132. Thanks
Daniel Hepper
@danielhepper
daniel@consideratecode.com
consideratecode.com

133. Image credits
• https://pixabay.com/en/interior-house-home-
curtain-2570933/
• https://unsplash.com/photos/MEW1f-yu2KI
• https://pixabay.com/en/rocket-launch-smoke-rocket-take-
off-67723/
• https://pixabay.com/en/gears-cogs-machine-
machinery-1236578/
• https://pixabay.com/en/balance-background-harmony-
stacked-3356546/
