This document provides information on the existing conditions of a site for an urban design project, including: 1. The existing buildings are mostly newly built houses and some older structures built with traditional materials. 2. The area has a sparse settlement pattern with buildings spaced far apart and includes farmland, green spaces, and a river. 3. An analysis of the site found opportunities to improve connectivity between permeable surfaces and create habitat corridors, as well as a need for better infrastructure, street connections, and activity spaces.

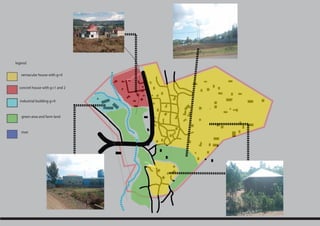

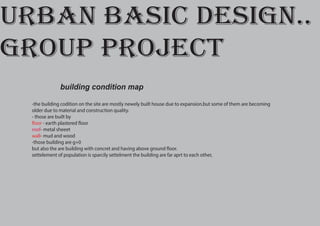

1. building condition map
-the building codition on the site are mostly newely built house due to expansion.but some of them are becoming
older due to material and construction quality.
- those are built by
floor - earth plastered floor
roof- metal sheeet
wall- mud and wood
-those building are g+0
but also the are building with concret and having above ground floor.
settelement of population is sparcily settelment the building are far aprt to each other,
urban basic design..
group project

2. legend
vernacular house with g+0
concret house with g+1 and 2
industrial building g+0
green area and farm land
river S
h
i
n
t
a

3. permiability analysis
-the land have many farm land, green area, and incude water body
and due to sparce settlement of the population there is alot of space
between building,
-so its important for to create the habitat corridor to connect imper-
miability surface and could creat shalter for different micro organisim
S
h
i
n
t
a
legend
permiable surface
impermiable surface
river
farm land
action area boundary

4. legend
shop and cafe
school
church
farm land
office and industry

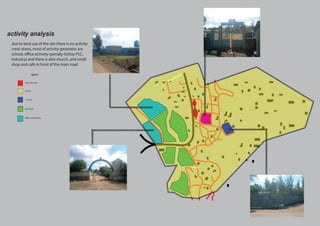

activity analysis
due to land use of the site there is no activity
creat strees, most of activity generator are
school, office activety specialy (tsihay PLC,
industry) and there is also church, and small
shop and cafe in front of the main road
S
h
i
n
t
a

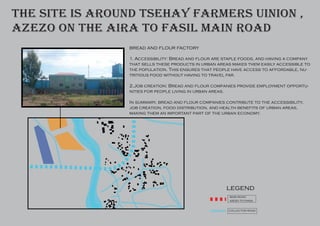

5. main road
azezo to piasa
collector road
legend
bread and flour factory
1. Accessibility: Bread and flour are staple foods, and having a company
that sells these products in urban areas makes them easily accessible to
the population. This ensures that people have access to affordable, nu-
tritious food without having to travel far.
2.Job creation: Bread and flour companies provide employment opportu-
nities for people living in urban areas.
In summary, bread and flour companies contribute to the accessibility,
job creation, food distribution, and health benefits of urban areas,
making them an important part of the urban economy.
the site is around tsehay farmers uinion ,
azezo on the aira to fasil main road

6. TSEHAY FARMERS UNION
1.Support for local farmers: By supporting agricultural unions, urban res-
idents can help ensure that local farmers are able to make a living from
their work. This can help strengthen local economies and preserve tradi-
tional farming practices.
2.Environmental benefits: Locally grown produce requires less transpor-
tation, which can help reduce carbon emissions and environmental damage.
3.Community building: Agricultural unions can bring together farmers and
urban residents, fostering a sense of community and shared goals.
1.Recreation: Rivers can provide opportunities for recreational activi-
ties such as fishing, boating, and swimming, which can improve quality of
life in urban areas.
2.Environmental benefits: Rivers can provide a habitat for wildlife and a
source of clean water for urban areas.
However, there are also some potential challenges to using rivers in
urban areas, including:
Public safety: Rivers can pose a safety hazard if proper precautions
are not taken, such as installing barriers to prevent people from falling
in.
Cost: Building and maintaining infrastructure to use rivers in urban
areas can be expensive.

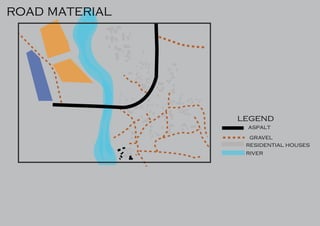

7. road material
legend
aspalt
gravel
residential houses
river

8. main road
azezo to piasa
collector road
legend
WIND
CLIMATE ANALYSIS

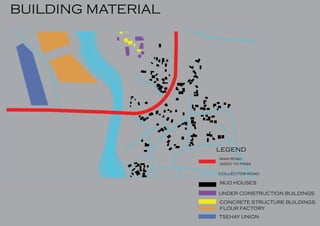

9. BUILDING MATERIAL
main road
azezo to piasa
COLLECTOR ROAD
legend
FLOUR FACTORY
TSEHAY UNION
CONCRETE STRUCTURE BUILDINGS
UNDER CONSTRUCTION BUILDINGS
MUD HOUSES

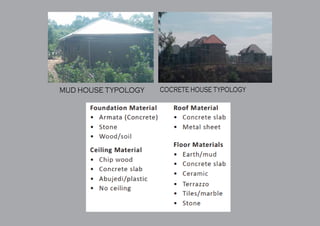

10. MUD HOUSE TYPOLOGY COCRETE HOUSE TYPOLOGY

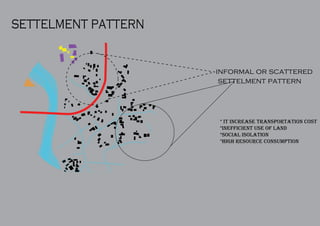

11. settelment pattern
informal or scattered
settelment pattern
* it increase transportation cost
*inefficient use of land
*social isolation
*high resource consumption

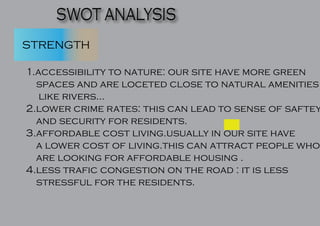

13. SWOT ANALYSIS
STRENGTH
1.accessibility to nature: our site have more green
spaces and are loceted close to natural amenities
like rivers...
2.lower crime rates: this can lead to sense of saftey
and security for residents.
3.affordable cost living.usually in our site have
a lower cost of living.this can attract people who
are looking for affordable housing .
4.less trafic congestion on the road : it is less
stressful for the residents.

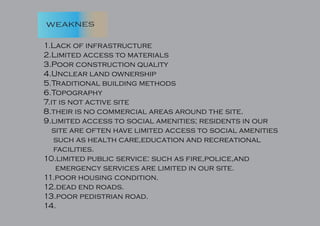

14. weaknes
1.Lack of infrastructure
2.Limited access to materials
3.Poor construction quality
4.Unclear land ownership
5.Traditional building methods
6.Topography
7.it is not active site
8.their is no commercial areas around the site.
9.limited access to social amenities; residents in our
site are often have limited access to social amenities
such as health care,education and recreational
facilities.
10.limited public service: such as fire,police,and
emergency services are limited in our site.
11.poor housing condition.
12.dead end roads.
13.poor pedistrian road.
14.

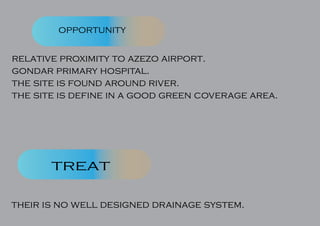

15. opportunity
treat
relative proximity to azezo airport.
gondar primary hospital.
the site is found around river.
the site is define in a good green coverage area.
their is no well designed drainage system.

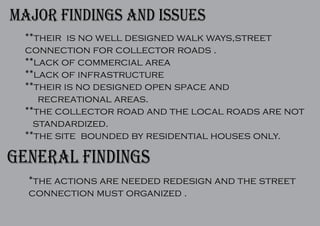

16. major findings and issues
**their is no well designed walk ways,street
connection for collector roads .
**lack of commercial area
**lack of infrastructure
**their is no designed open space and
recreational areas.
**the collector road and the local roads are not
standardized.
**the site bounded by residential houses only.
general findings
*the actions are needed redesign and the street
connection must organized .

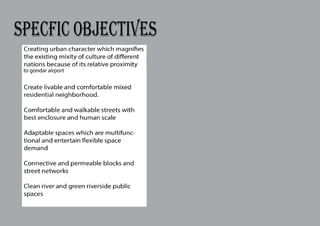

17. specfic objectives

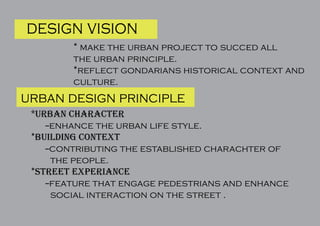

19. design vision
* make the urban project to succed all
the urban principle.
*reflect gondarians historical context and
culture.
urban design principle
urban character
--enhance the urban life style.
*building context
--contributing the established charachter of
the people.
*street experiance
--feature that engage pedestrians and enhance
social interaction on the street .

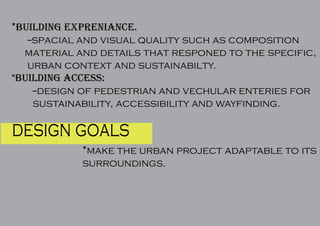

20. design goals
*make the urban project adaptable to its
surroundings.
*building expreniance.
--spacial and visual quality such as composition
material and details that responed to the specific,
urban context and sustainabilty.
*building access:
--design of pedestrian and vechular enteries for
sustainability, accessibility and wayfinding.

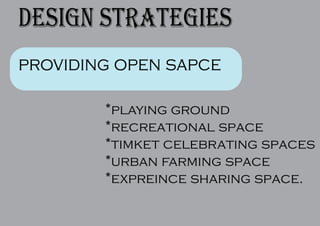

21. design strategies
providing open sapce
*playing ground
*recreational space
*timket celebrating spaces
*urban farming space
*expreince sharing space.

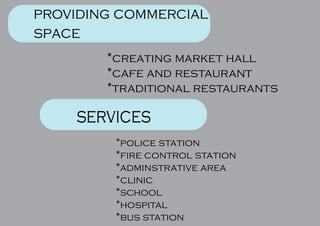

22. providing commercial
space
*creating market hall
*cafe and restaurant
*traditional restaurants
services
*police station
*fire control station
*adminstrative area
*clinic
*school
*hospital
*bus station

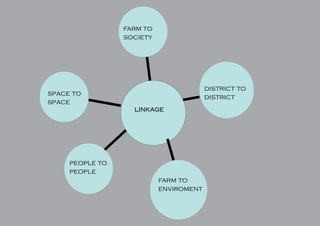

23. linkage
farm to
society
space to
space
people to
people
farm to
enviroment
district to
district

24. collector roads
main road

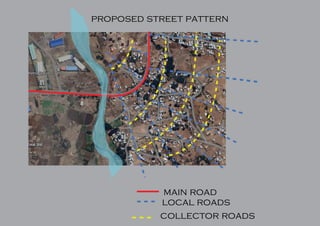

proposed street pattern
local roads

25. legend
houses
River
main road
S
h
i
n
t
a

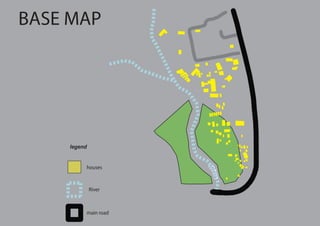

BASE MAP
