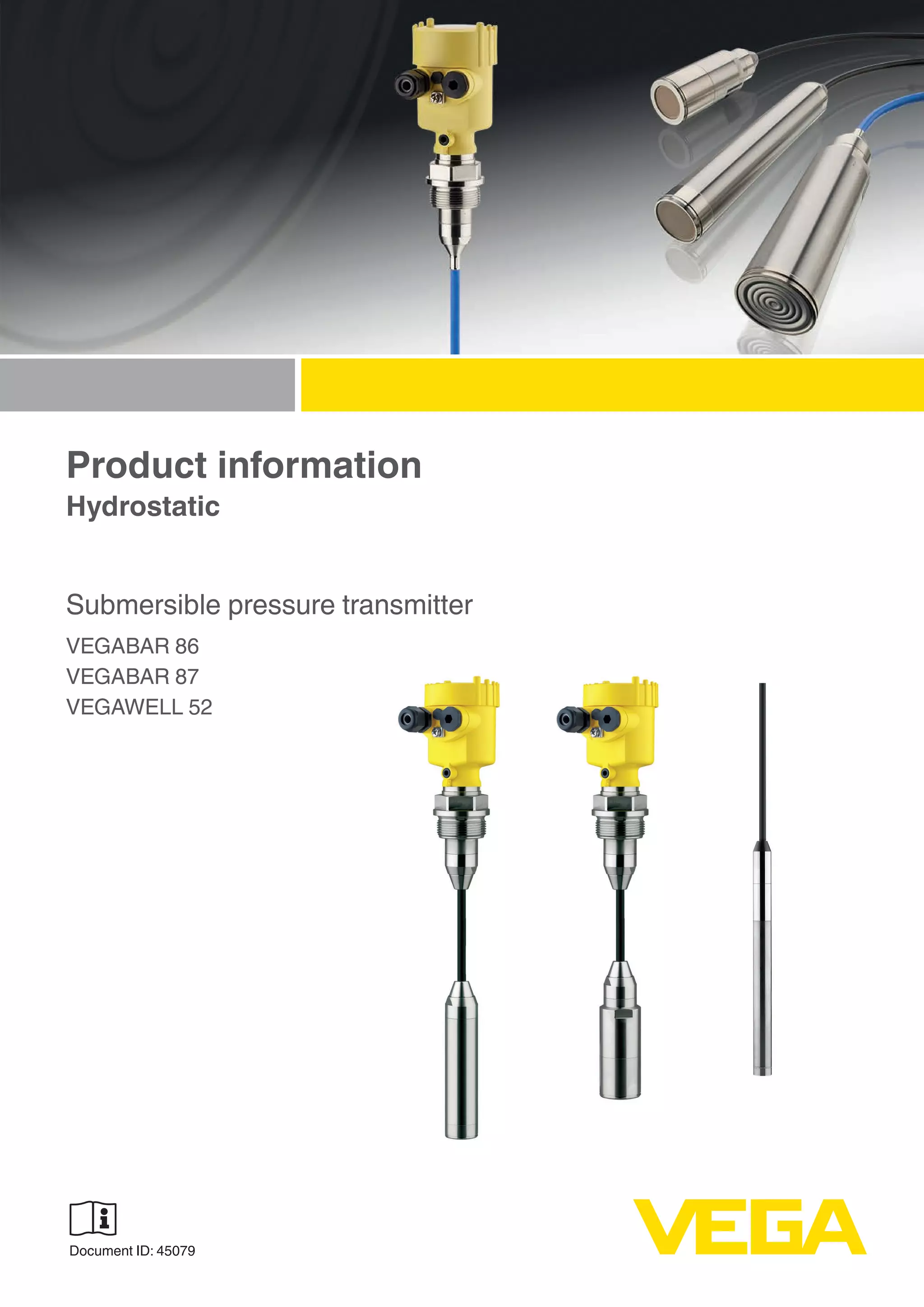

Submersible Pressure Transmitter for Level Measurement

Product information
Hydrostatic
Submersible pressure transmitter
VEGABAR 86
VEGABAR 87
VEGAWELL 52
Document ID: 45079

2

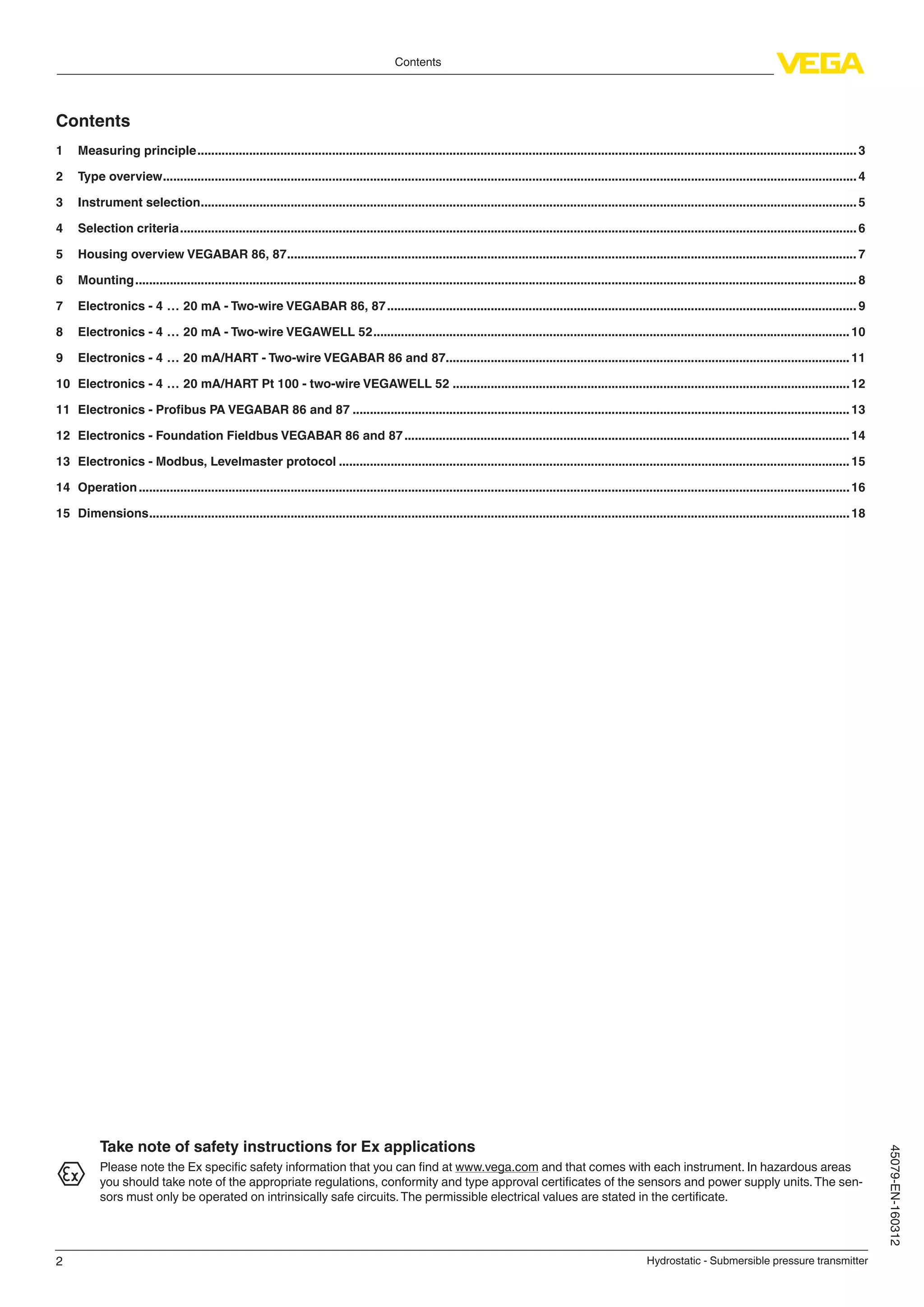

Contents
Hydrostatic - Submersible pressure transmitter
45079-EN-160312
Contents
1 Measuring principle................................................................................................................................................................................................3
2 Type overview..........................................................................................................................................................................................................4
3 Instrument selection...............................................................................................................................................................................................5
4 Selection criteria.....................................................................................................................................................................................................6
5 Housing overview VEGABAR 86, 87...................................................................................................................................................................... 7
6 Mounting..................................................................................................................................................................................................................8
7 Electronics - 4 … 20 mA - Two-wire VEGABAR 86, 87......................................................................................................................................... 9
8 Electronics - 4 … 20 mA - Two-wire VEGAWELL 52...........................................................................................................................................10
9 Electronics - 4 … 20 mA/HART - Two-wire VEGABAR 86 and 87......................................................................................................................11
10 Electronics - 4 … 20 mA/HART Pt 100 - two-wire VEGAWELL 52....................................................................................................................12
11 Electronics - Profibus PA VEGABAR 86 and 87.................................................................................................................................................13
12 Electronics - Foundation Fieldbus VEGABAR 86 and 87..................................................................................................................................14
13 Electronics - Modbus, Levelmaster protocol.....................................................................................................................................................15
14 Operation...............................................................................................................................................................................................................16
15 Dimensions............................................................................................................................................................................................................18
Take note of safety instructions for Ex applications
Please note the Ex specific safety information that you can find at www.vega.com and that comes with each instrument. In hazardous areas
you should take note of the appropriate regulations, conformity and type approval certificates of the sensors and power supply units.The sen-
sors must only be operated on intrinsically safe circuits.The permissible electrical values are stated in the certificate.

3
Measuring principle
45079-EN-160312

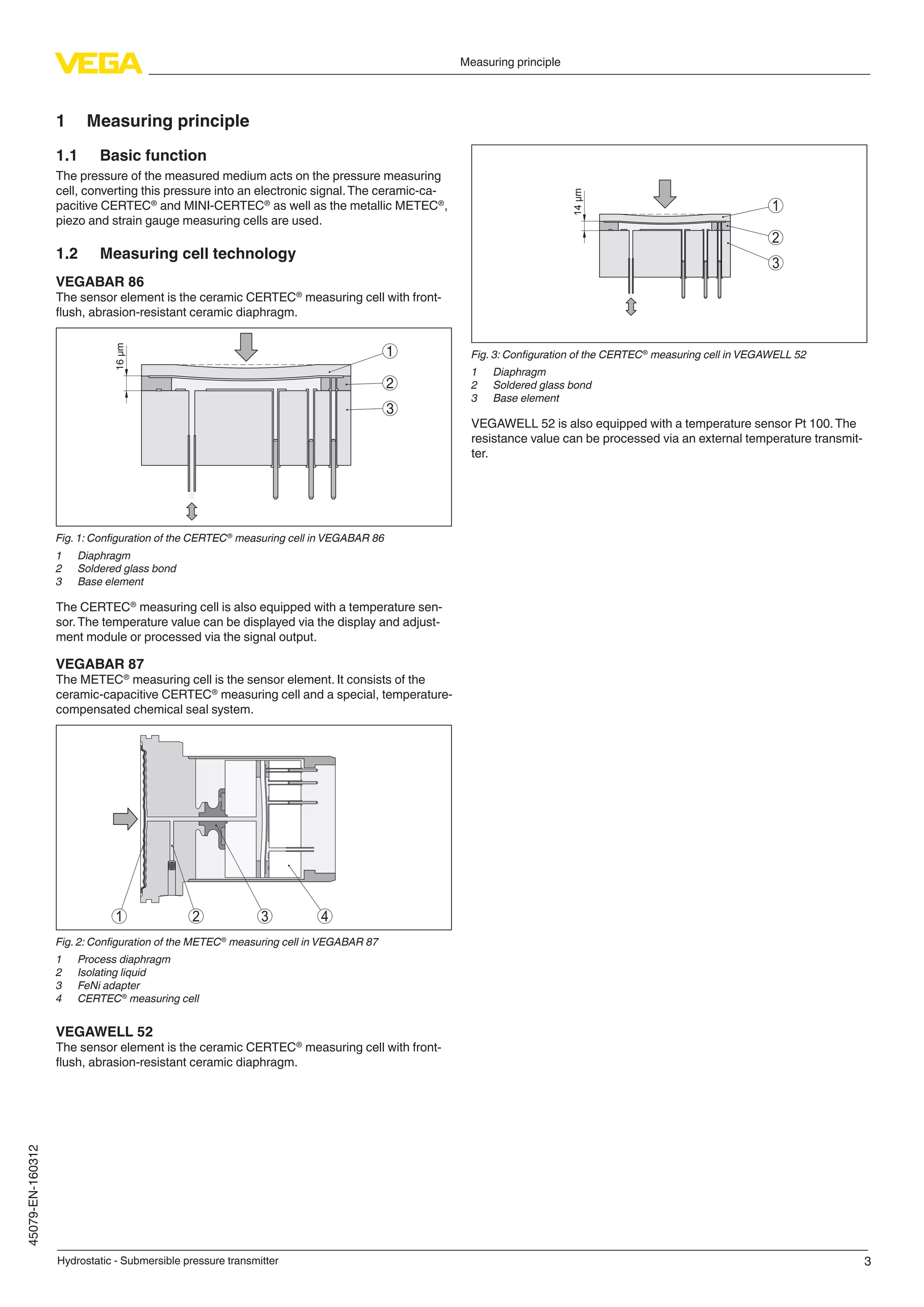

1 Measuring principle
1.1 Basic function
The pressure of the measured medium acts on the pressure measuring
cell, converting this pressure into an electronic signal.The ceramic-ca-
pacitive CERTEC®
and MINI-CERTEC®
as well as the metallic METEC®
,
piezo and strain gauge measuring cells are used.
1.2 Measuring cell technology
VEGABAR 86
The sensor element is the ceramic CERTEC®
measuring cell with front-
flush, abrasion-resistant ceramic diaphragm.
16µm
1
2
3
Fig. 1: Configuration of the CERTEC®
measuring cell in VEGABAR 86
1 Diaphragm
2 Soldered glass bond
3 Base element
The CERTEC®
measuring cell is also equipped with a temperature sen-
sor.The temperature value can be displayed via the display and adjust-
ment module or processed via the signal output.
VEGABAR 87
The METEC®
measuring cell is the sensor element. It consists of the
ceramic-capacitive CERTEC®
measuring cell and a special, temperature-
compensated chemical seal system.
4321
Fig. 2: Configuration of the METEC®
measuring cell in VEGABAR 87
1 Process diaphragm
2 Isolating liquid
3 FeNi adapter
4 CERTEC®
measuring cell
VEGAWELL 52
The sensor element is the ceramic CERTEC®
measuring cell with front-
flush, abrasion-resistant ceramic diaphragm.
14m
1
2
3
Fig. 3: Configuration of the CERTEC®
measuring cell in VEGAWELL 52
1 Diaphragm
2 Soldered glass bond
3 Base element
VEGAWELL 52 is also equipped with a temperature sensor Pt 100.The
resistance value can be processed via an external temperature transmit-
ter.

4
Type overview
45079-EN-160312

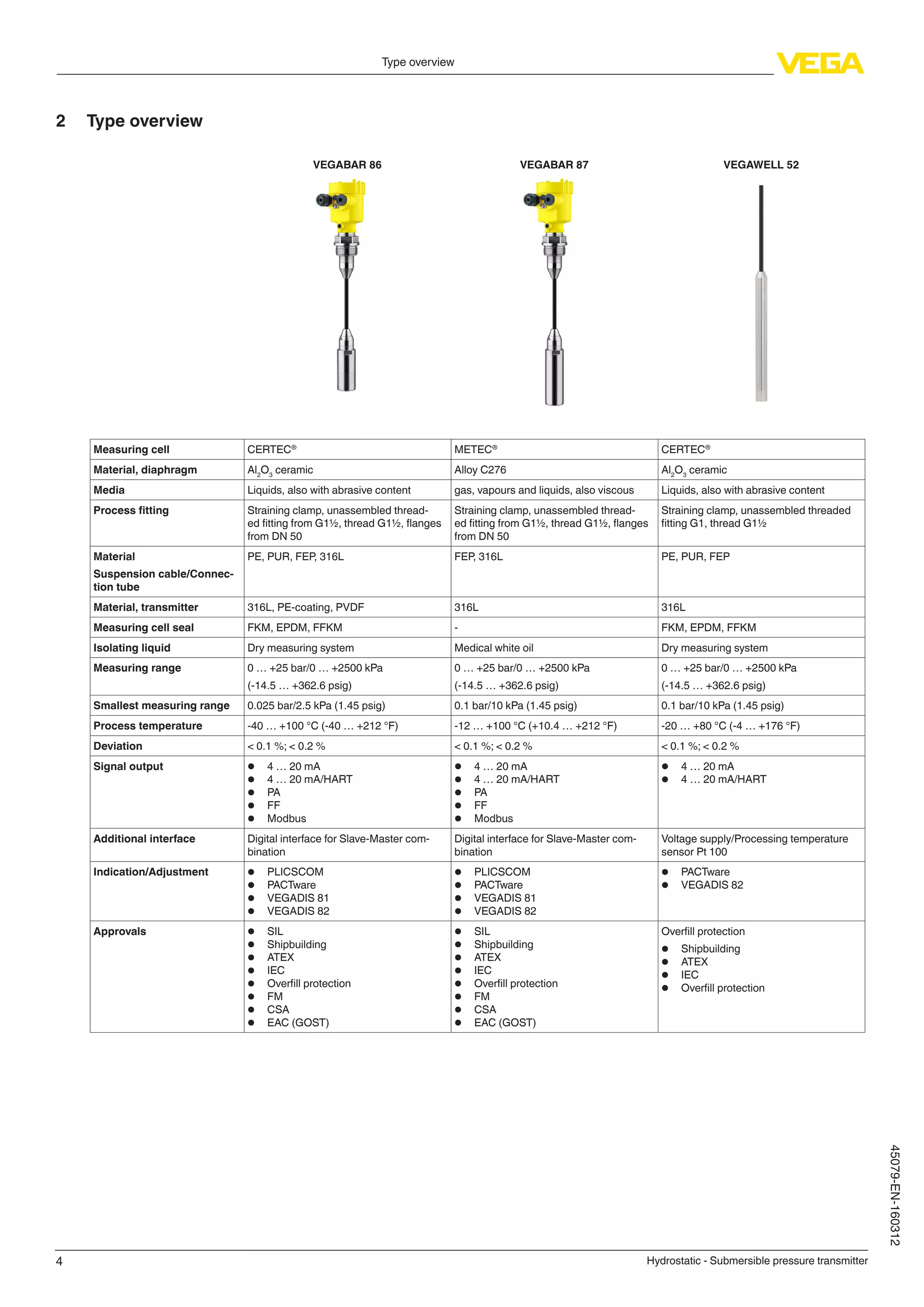

2 Type overview
VEGABAR 86 VEGABAR 87 VEGAWELL 52
Measuring cell CERTEC®
METEC®
CERTEC®
Material, diaphragm Al2
O3
ceramic Alloy C276 Al2
O3
ceramic
Media Liquids, also with abrasive content gas, vapours and liquids, also viscous Liquids, also with abrasive content
Process fitting Straining clamp, unassembled thread-
ed fitting from G1½, thread G1½, flanges
from DN 50
Straining clamp, unassembled thread-
ed fitting from G1½, thread G1½, flanges
from DN 50
Straining clamp, unassembled threaded
fitting G1, thread G1½
Material
Suspension cable/Connec-
tion tube
PE, PUR, FEP, 316L FEP, 316L PE, PUR, FEP
Material, transmitter 316L, PE-coating, PVDF 316L 316L
Measuring cell seal FKM, EPDM, FFKM - FKM, EPDM, FFKM
Isolating liquid Dry measuring system Medical white oil Dry measuring system
Measuring range 0 … +25 bar/0 … +2500 kPa
(-14.5 … +362.6 psig)
0 … +25 bar/0 … +2500 kPa
(-14.5 … +362.6 psig)
0 … +25 bar/0 … +2500 kPa
(-14.5 … +362.6 psig)
Smallest measuring range 0.025 bar/2.5 kPa (1.45 psig) 0.1 bar/10 kPa (1.45 psig) 0.1 bar/10 kPa (1.45 psig)
Process temperature -40 … +100 °C (-40 … +212 °F) -12 … +100 °C (+10.4 … +212 °F) -20 … +80 °C (-4 … +176 °F)
Deviation < 0.1 %; < 0.2 % < 0.1 %; < 0.2 % < 0.1 %; < 0.2 %
Signal output • 4 … 20 mA
• 4 … 20 mA/HART
• PA
• FF
• Modbus
• 4 … 20 mA
• 4 … 20 mA/HART
• PA
• FF
• Modbus
• 4 … 20 mA
• 4 … 20 mA/HART
Additional interface Digital interface for Slave-Master com-
bination
Digital interface for Slave-Master com-
bination
Voltage supply/Processing temperature
sensor Pt 100
Indication/Adjustment • PLICSCOM
• PACTware
• VEGADIS 81
• VEGADIS 82
• PLICSCOM
• PACTware
• VEGADIS 81
• VEGADIS 82
• PACTware
• VEGADIS 82
Approvals • SIL
• Shipbuilding
• ATEX
• IEC
• Overfill protection
• FM
• CSA
• EAC (GOST)
• SIL
• Shipbuilding
• ATEX
• IEC
• FM
• CSA
• EAC (GOST)
Overfill protection
• Shipbuilding
• ATEX
• IEC

5
Instrument selection
45079-EN-160312
3 Instrument selection
Application area
The hydrostatic pressure transmitters VEGAWELL and VEGABAR were
especially developed to measure levels in a wide range of liquids with
different properties. Measurement of the product temperature is also
possible.
VEGABAR 86
VEGABAR 86 is a submersible pressure transmitter for level measure-
ment in wells, basins and open vessels. Great flexibility through the use
of different cable and tube versions allows VEGABAR 86 to be employed
in many different applications.
VEGABAR 87
VEGABAR 87 is a pressure transmitter for pressure and level measure-
ment of liquids and viscous products in the chemical, food processing
and pharmaceutical industries.VEGABAR 87 can be used for extremely
small measuring ranges ≥ 0.1 bar.
VEGAWELL 52
VEGAWELL 52 lends itself well for continuous level measurement of
liquids.Typical applications are measurements in water/waste water
facilities, in deep wells and in the shipbuilding industry.
Configuration and housing protection classes
The pressure transmitters VEGABAR 86 and 87 are available in different
versions.The following illustration shows typical examples.
1
2
3
4
4
5
6
Fig. 7: Examples of a VEGABAR 86 with suspension cable (left) and connection
tube (right)
1 Housing with integrated electronics
2 Suspension cable
3 Connection tube
4 Threaded fitting
5 Transmitter
6 Protective cap
Measured variables
The submersible pressure transmitters VEGABAR 86, 87 as well as
VEGAWELL 52 are suitable for hydrostatic level measurement.
Fig. 8: Measurement setup for level measurement
In conjunction with a slave sensor, VEGABAR 86 and 87 are suitable for
electronic differential pressure measurement of:
• Level, pressurized
• Level difference
• Flow
• Density
• Interface
Fig. 9: Electronic level difference measurement through Master/Slave combination

6
Selection criteria
45079-EN-160312

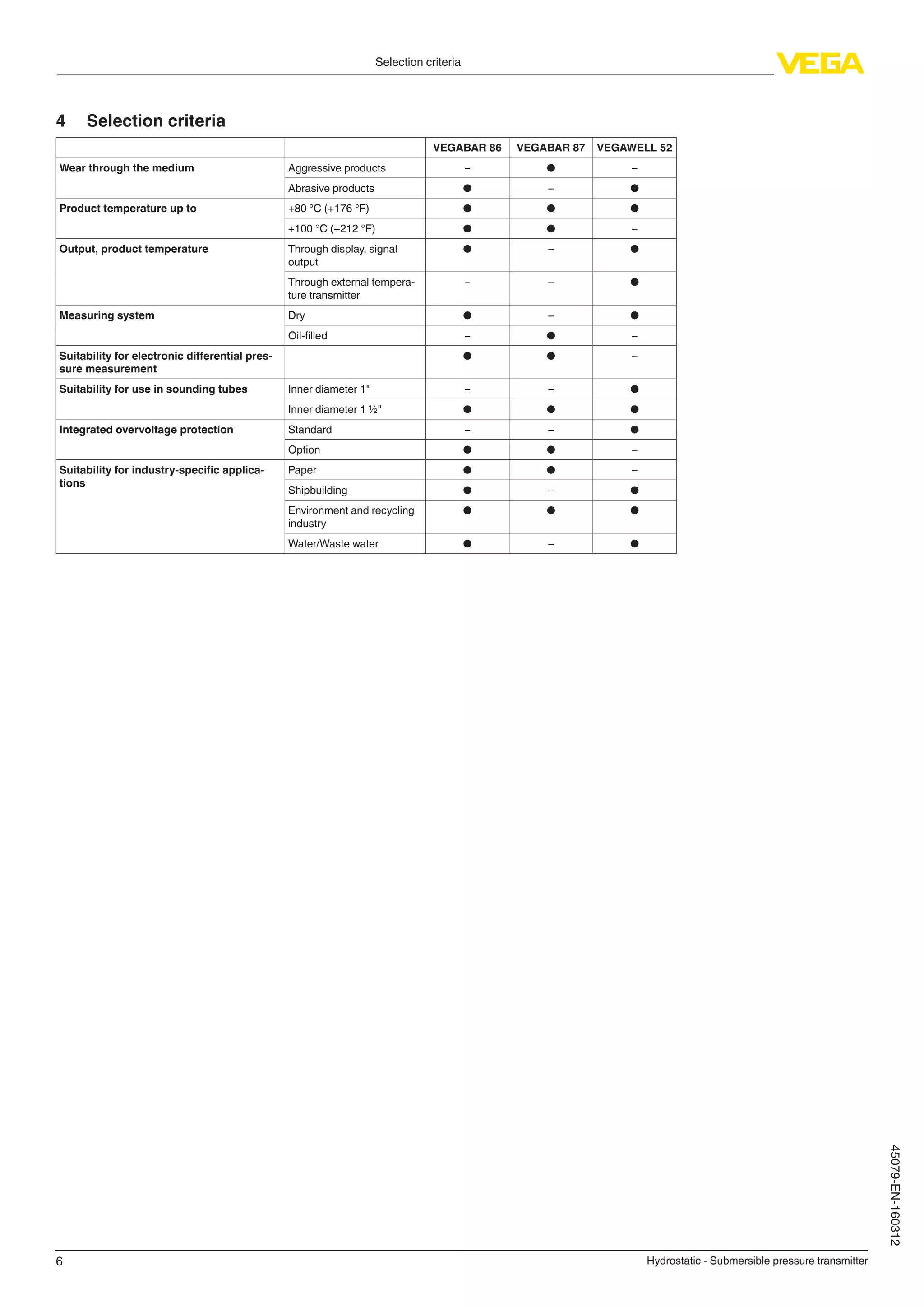

4 Selection criteria
VEGABAR 86 VEGABAR 87 VEGAWELL 52
Wear through the medium Aggressive products – ● –
Abrasive products ● – ●
Product temperature up to +80 °C (+176 °F) ● ● ●
+100 °C (+212 °F) ● ● –
Output, product temperature Through display, signal
output
● – ●
Through external tempera-
ture transmitter
– – ●
Measuring system Dry ● – ●
Oil-filled – ● –
Suitability for electronic differential pres-
sure measurement
● ● –
Suitability for use in sounding tubes Inner diameter 1" – – ●
Inner diameter 1 ½" ● ● ●
Integrated overvoltage protection Standard – – ●
Option ● ● –
Suitability for industry-specific applica-
tions
Paper ● ● –
Shipbuilding ● – ●
Environment and recycling
industry
● ● ●
Water/Waste water ● – ●

7
Housing overview VEGABAR 86, 87
45079-EN-160312

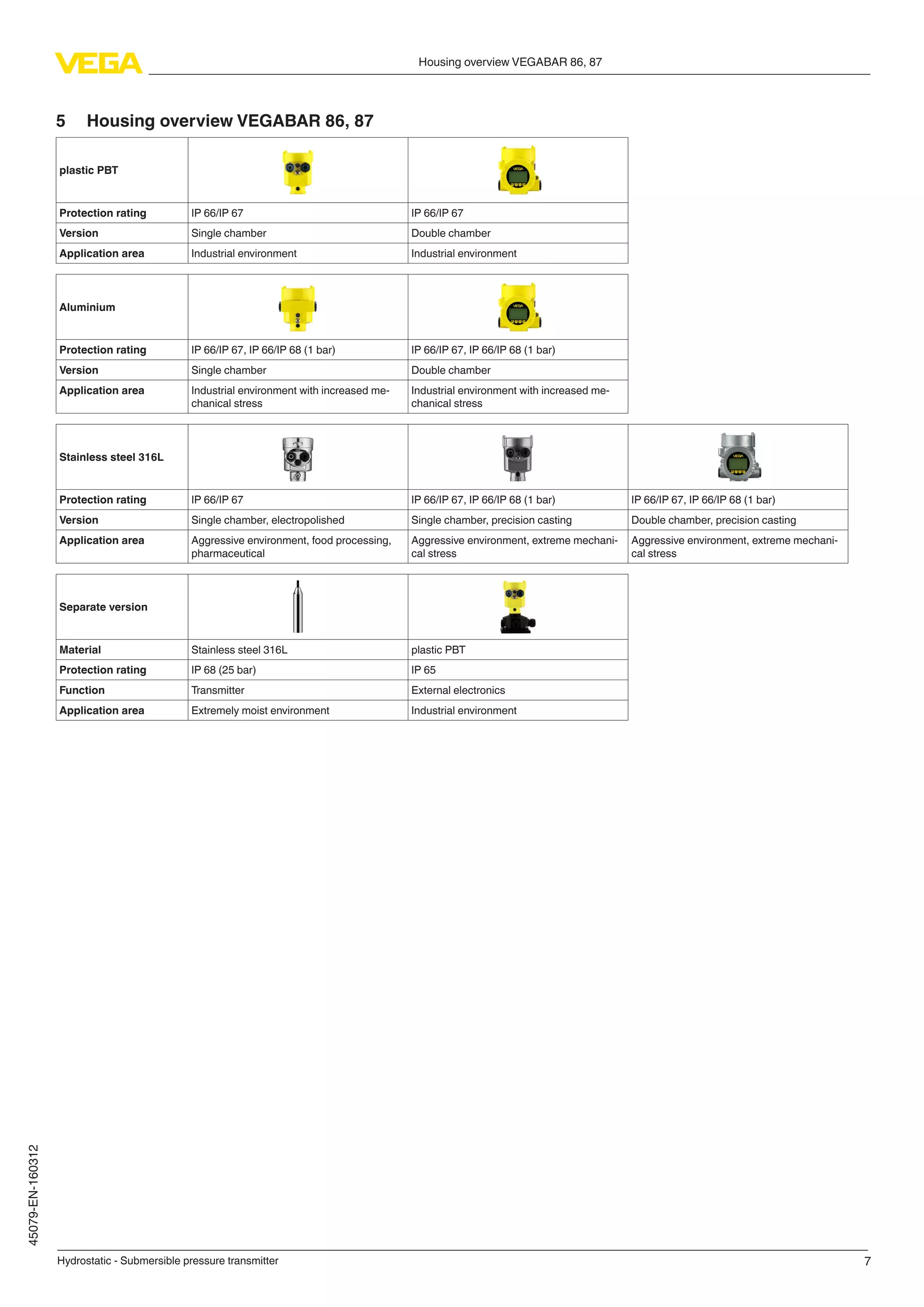

5 Housing overview VEGABAR 86, 87
plastic PBT
Protection rating IP 66/IP 67 IP 66/IP 67
Version Single chamber Double chamber
Application area Industrial environment Industrial environment
Aluminium
Protection rating IP 66/IP 67, IP 66/IP 68 (1 bar) IP 66/IP 67, IP 66/IP 68 (1 bar)
Version Single chamber Double chamber
Application area Industrial environment with increased me-
chanical stress
Industrial environment with increased me-
chanical stress
Stainless steel 316L
Protection rating IP 66/IP 67 IP 66/IP 67, IP 66/IP 68 (1 bar) IP 66/IP 67, IP 66/IP 68 (1 bar)
Version Single chamber, electropolished Single chamber, precision casting Double chamber, precision casting
Application area Aggressive environment, food processing,
pharmaceutical
Aggressive environment, extreme mechani-
cal stress
Aggressive environment, extreme mechani-
cal stress
Separate version
Material Stainless steel 316L plastic PBT
Protection rating IP 68 (25 bar) IP 65
Function Transmitter External electronics
Application area Extremely moist environment Industrial environment

8
Mounting
45079-EN-160312
6 Mounting
Installation position
The suspension cable versions must be mounted in a calm area or in a
suitable protective tube.This avoids lateral movements of the transmitter
and the resulting distortion of measurement data.
The suspension cable contains, apart from the connection cables and
the suspension wire, also the capillaries for atmospheric pressure com-
pensation.
Mounting examples and measurement setups
The following illustrations show mounting examples and measurement
setups.

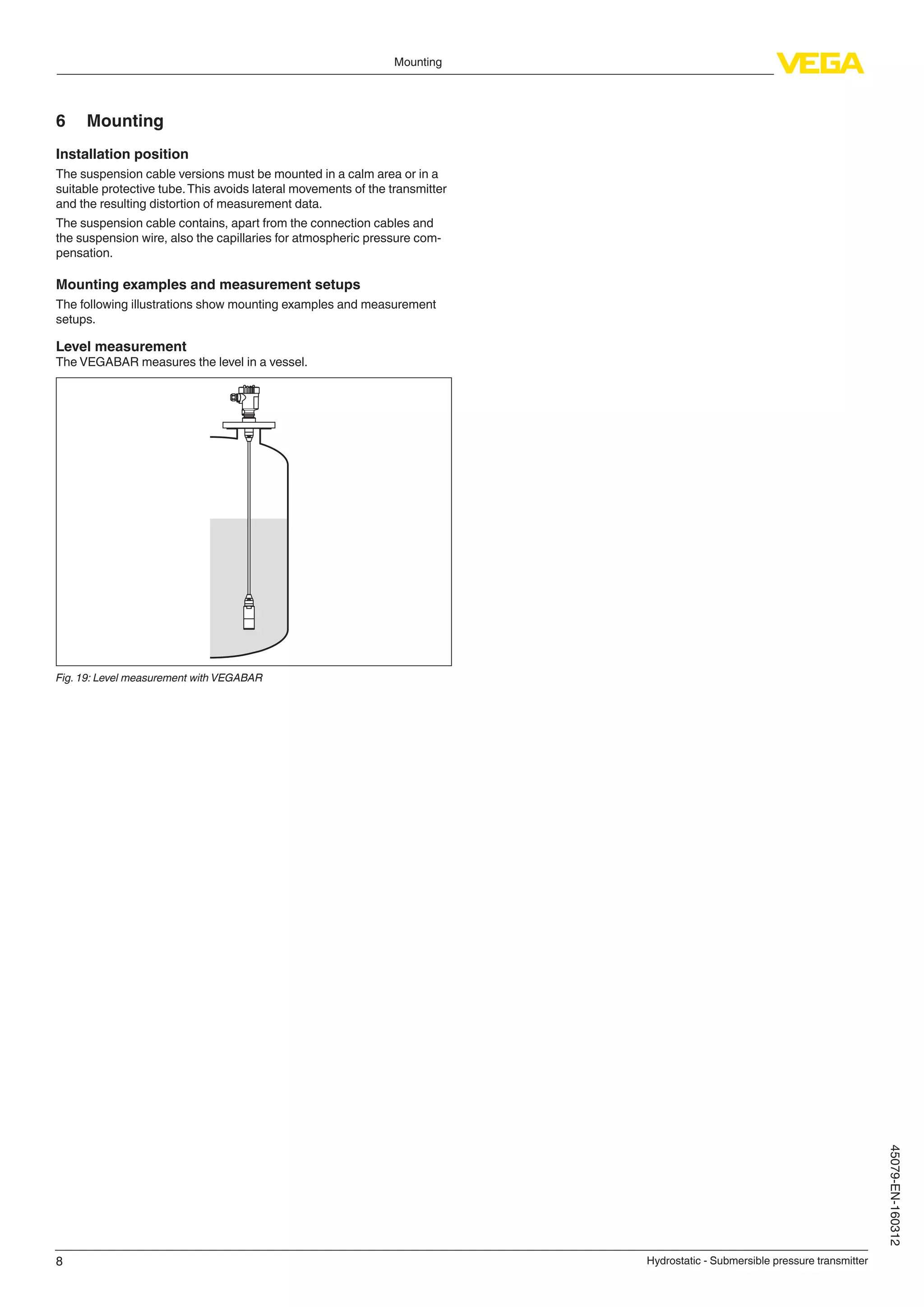

Level measurement
The VEGABAR measures the level in a vessel.
Fig. 19: Level measurement with VEGABAR

9

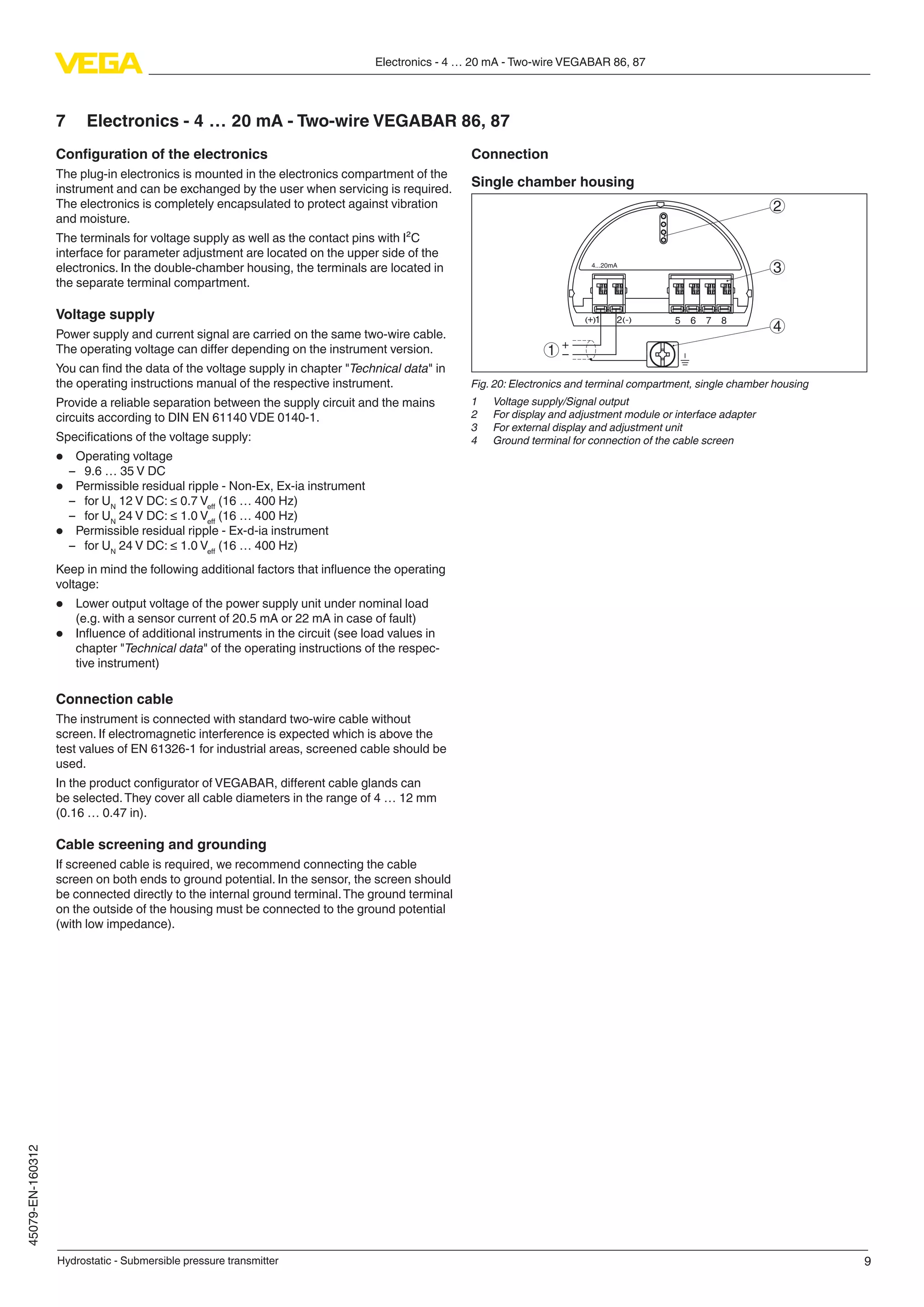

Electronics - 4 … 20 mA - Two-wire VEGABAR 86, 87
45079-EN-160312
7 Electronics - 4 … 20 mA - Two-wire VEGABAR 86, 87
Configuration of the electronics
The plug-in electronics is mounted in the electronics compartment of the
instrument and can be exchanged by the user when servicing is required.
The electronics is completely encapsulated to protect against vibration
and moisture.
The terminals for voltage supply as well as the contact pins with I²C
interface for parameter adjustment are located on the upper side of the
electronics. In the double-chamber housing, the terminals are located in
the separate terminal compartment.
Voltage supply
Power supply and current signal are carried on the same two-wire cable.
The operating voltage can differ depending on the instrument version.
You can find the data of the voltage supply in chapter "Technical data" in
the operating instructions manual of the respective instrument.
Provide a reliable separation between the supply circuit and the mains
circuits according to DIN EN 61140 VDE 0140-1.
Specifications of the voltage supply:
• Operating voltage
–– 9.6 … 35 V DC
• Permissible residual ripple - Non-Ex, Ex-ia instrument
–– for UN
12 V DC: ≤ 0.7 Veff
(16 … 400 Hz)
–– for UN
24 V DC: ≤ 1.0 Veff
(16 … 400 Hz)
• Permissible residual ripple - Ex-d-ia instrument
–– for UN
24 V DC: ≤ 1.0 Veff
(16 … 400 Hz)
Keep in mind the following additional factors that influence the operating
voltage:
• Lower output voltage of the power supply unit under nominal load
(e.g. with a sensor current of 20.5 mA or 22 mA in case of fault)
• Influence of additional instruments in the circuit (see load values in
chapter "Technical data" of the operating instructions of the respec-
tive instrument)
Connection cable
The instrument is connected with standard two-wire cable without
screen. If electromagnetic interference is expected which is above the
test values of EN 61326-1 for industrial areas, screened cable should be
used.
In the product configurator of VEGABAR, different cable glands can
be selected.They cover all cable diameters in the range of 4 … 12 mm
(0.16 … 0.47 in).
Cable screening and grounding
If screened cable is required, we recommend connecting the cable
screen on both ends to ground potential. In the sensor, the screen should
be connected directly to the internal ground terminal.The ground terminal
on the outside of the housing must be connected to the ground potential
(with low impedance).
Connection
Single chamber housing
51 2+( ) (-) 6 7 8
4...20mA
2
3
4
1
Fig. 20: Electronics and terminal compartment, single chamber housing
1 Voltage supply/Signal output
2 For display and adjustment module or interface adapter
3 For external display and adjustment unit
4 Ground terminal for connection of the cable screen

10
Electronics - 4 … 20 mA - Two-wire VEGAWELL 52
45079-EN-160312
8 Electronics - 4 … 20 mA - Two-wire VEGAWELL 52
Voltage supply
–– 8 … 35 V DC
• Permissible residual ripple
–– < 100 Hz: < 1 VSS
–– 100 Hz … 400 Hz: < 10 mVSS
voltage:
tive instrument)
Connection cable
used.
(0.16 … 0.47 in).
Connection
Direct connection
4
1
2
2
3

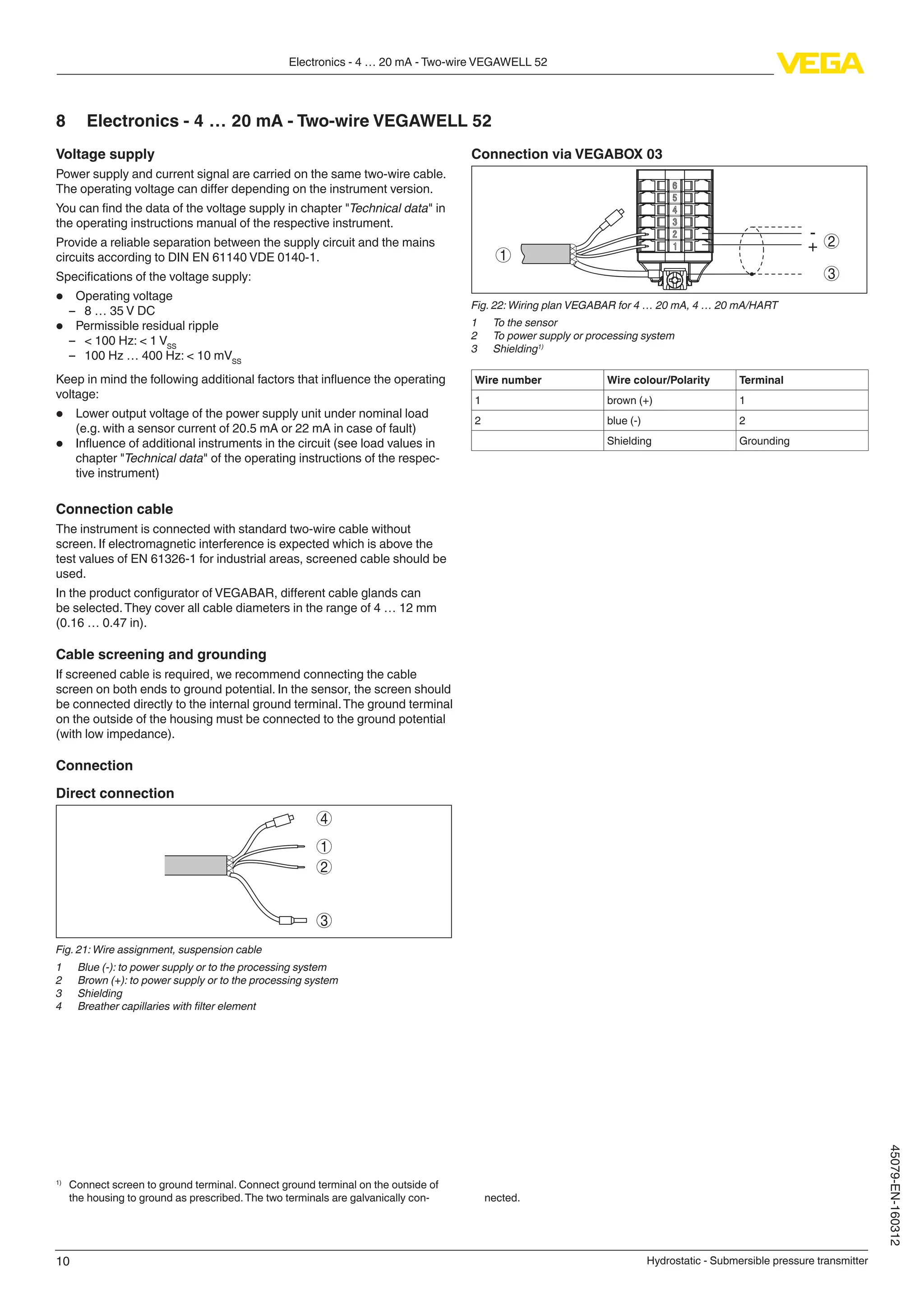

Fig. 21: Wire assignment, suspension cable
1 Blue (-): to power supply or to the processing system
2 Brown (+): to power supply or to the processing system
3 Shielding
4 Breather capillaries with filter element
Connection via VEGABOX 03
2
3
+
1
-
Fig. 22: Wiring plan VEGABAR for 4 … 20 mA, 4 … 20 mA/HART
1 To the sensor
2 To power supply or processing system
3 Shielding1)
Wire number Wire colour/Polarity Terminal
1 brown (+) 1
2 blue (-) 2
Shielding Grounding
1)
Connect screen to ground terminal. Connect ground terminal on the outside of
the housing to ground as prescribed.The two terminals are galvanically connected.

11
Electronics - 4 … 20 mA/HART - Two-wire VEGABAR 86 and 87
45079-EN-160312

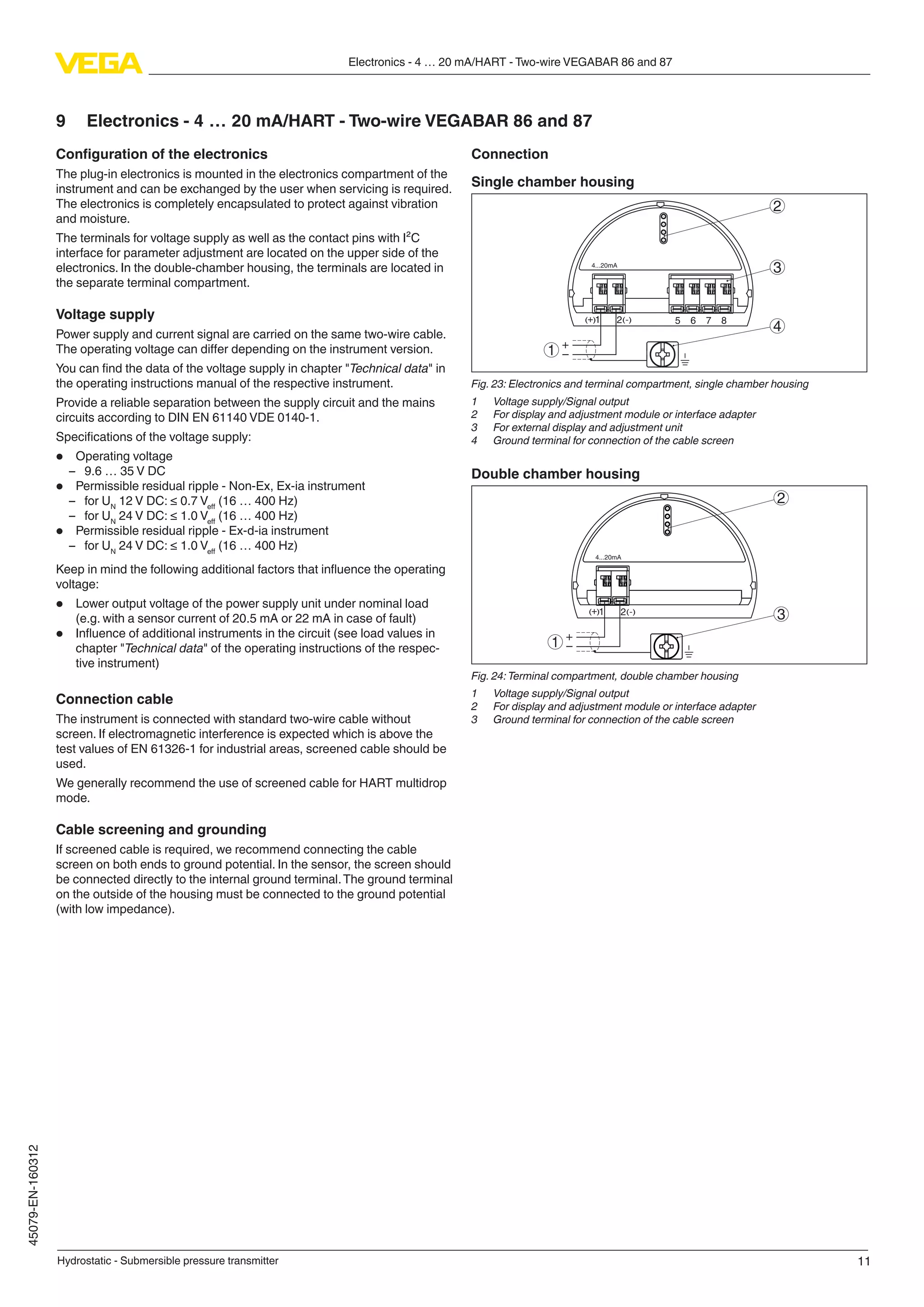

9 Electronics - 4 … 20 mA/HART - Two-wire VEGABAR 86 and 87
and moisture.
The terminals for voltage supply as well as the contact pins with I²C
interface for parameter adjustment are located on the upper side of the
electronics. In the double-chamber housing, the terminals are located in
Voltage supply
–– 9.6 … 35 V DC
• Permissible residual ripple - Non-Ex, Ex-ia instrument
–– for UN
12 V DC: ≤ 0.7 Veff
(16 … 400 Hz)
–– for UN
24 V DC: ≤ 1.0 Veff
(16 … 400 Hz)
• Permissible residual ripple - Ex-d-ia instrument
–– for UN
24 V DC: ≤ 1.0 Veff
(16 … 400 Hz)
voltage:
tive instrument)
Connection cable
used.
We generally recommend the use of screened cable for HART multidrop
mode.
Connection
51 2+( ) (-) 6 7 8
4...20mA
2
3
4
1
Double chamber housing
4...20mA
2
31 2+( ) (-)
1
Fig. 24:Terminal compartment, double chamber housing

12
Electronics - 4 … 20 mA/HART Pt 100 - two-wire VEGAWELL 52
45079-EN-160312
10 Electronics - 4 … 20 mA/HART Pt 100 - two-wire VEGAWELL 52
Voltage supply
–– 9.6 … 35 V DC
• Permissible residual ripple
–– < 100 Hz: < 1 VSS
–– 100 Hz … 400 Hz: < 10 mVSS
voltage:
tive instrument)
Connection cable
used.
We generally recommend the use of screened cable for HART multidrop
mode.
Connection
Direct connection
1
8
2
3
4
5
6
7

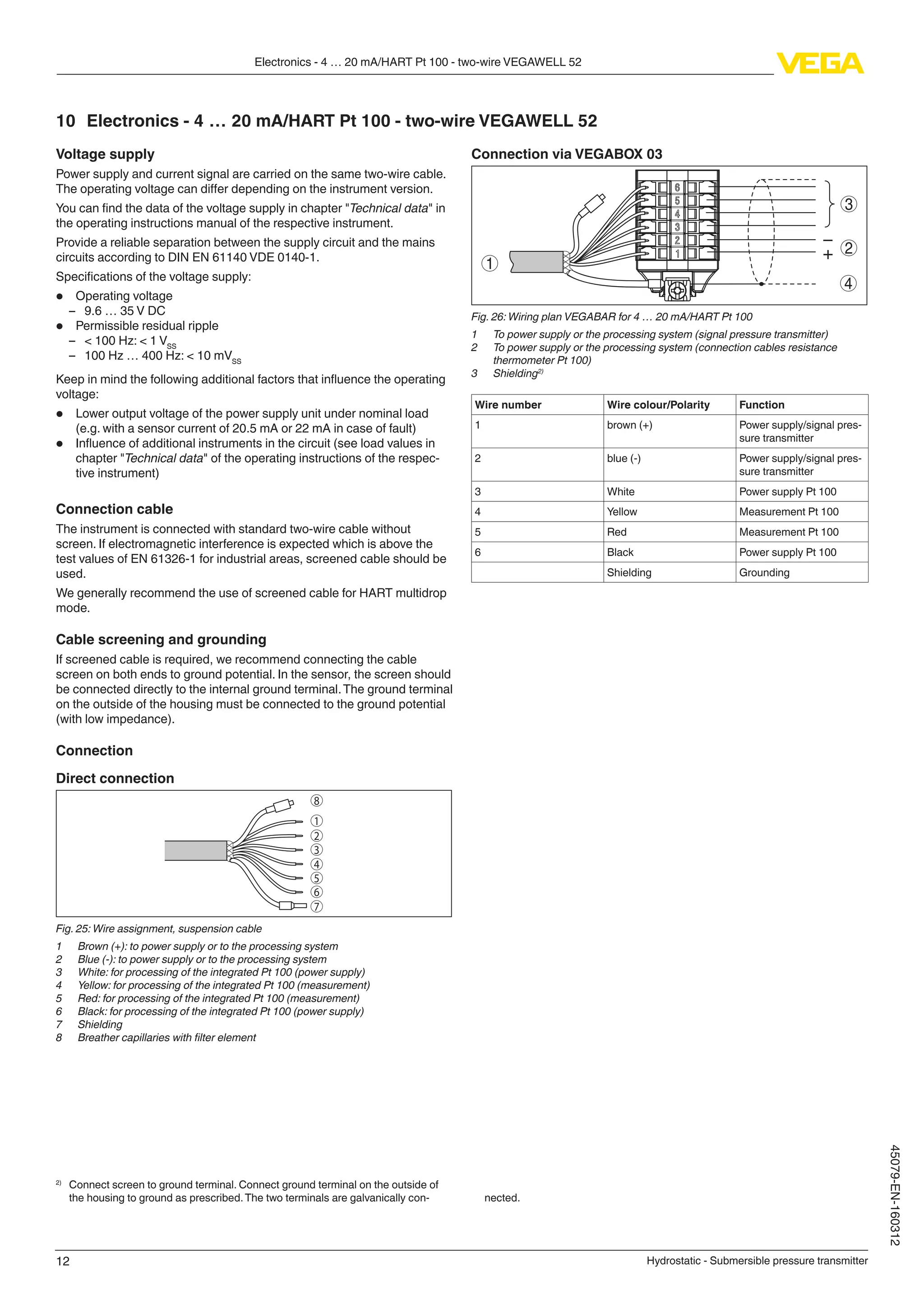

Fig. 25: Wire assignment, suspension cable
1 Brown (+): to power supply or to the processing system
2 Blue (-): to power supply or to the processing system
3 White: for processing of the integrated Pt 100 (power supply)
4 Yellow: for processing of the integrated Pt 100 (measurement)
5 Red: for processing of the integrated Pt 100 (measurement)
6 Black: for processing of the integrated Pt 100 (power supply)
7 Shielding
8 Breather capillaries with filter element
Connection via VEGABOX 03
2
3
4
–
+
1
Fig. 26: Wiring plan VEGABAR for 4 … 20 mA/HART Pt 100
1 To power supply or the processing system (signal pressure transmitter)
2 To power supply or the processing system (connection cables resistance
thermometer Pt 100)
3 Shielding2)
Wire number Wire colour/Polarity Function
1 brown (+) Power supply/signal pres-
sure transmitter
2 blue (-) Power supply/signal pres-
sure transmitter
3 White Power supply Pt 100
4 Yellow Measurement Pt 100
5 Red Measurement Pt 100
6 Black Power supply Pt 100
Shielding Grounding
2)
Connect screen to ground terminal. Connect ground terminal on the outside of
the housing to ground as prescribed.The two terminals are galvanically connected.

13

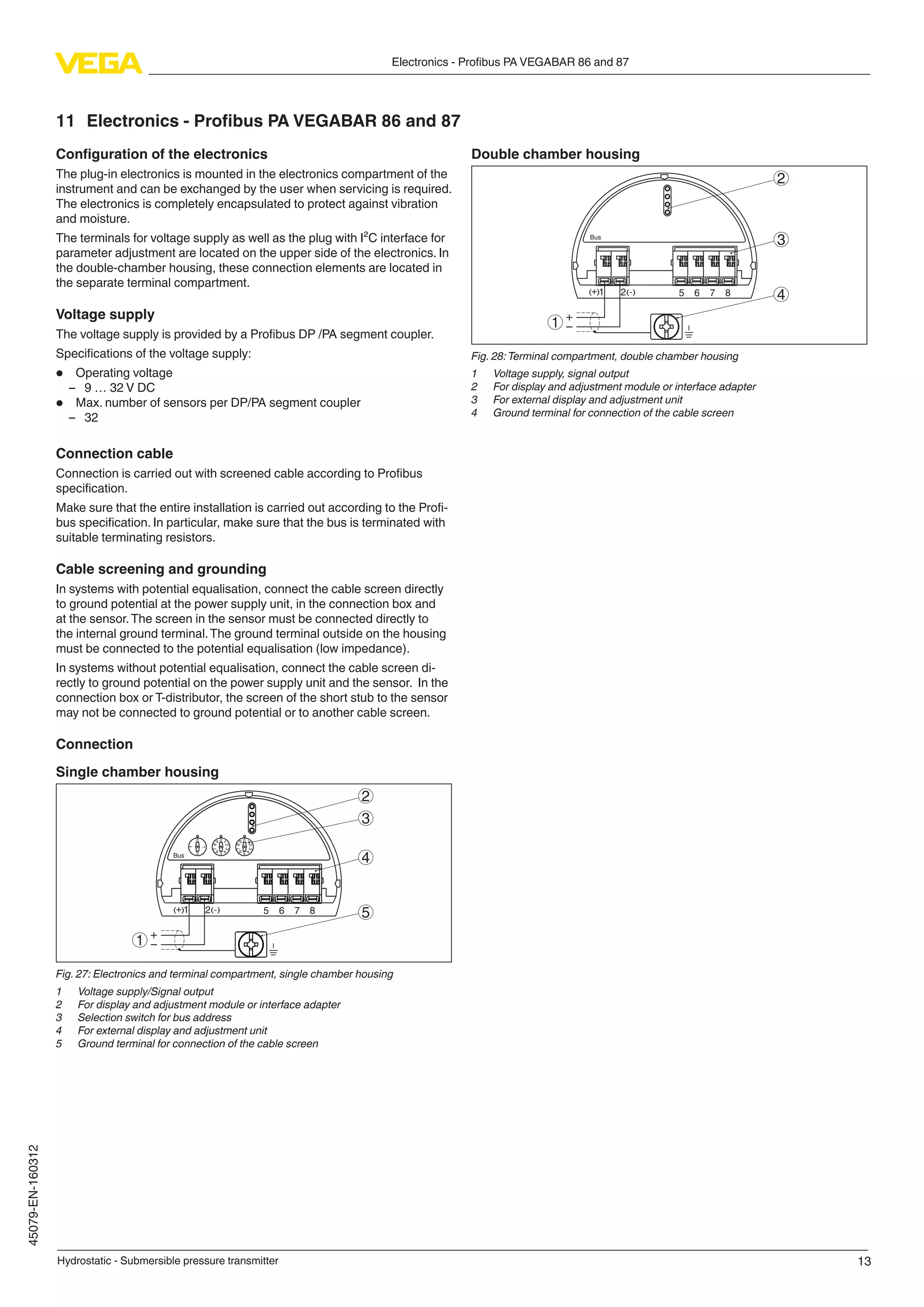

Electronics - Profibus PA VEGABAR 86 and 87
45079-EN-160312
11 Electronics - Profibus PA VEGABAR 86 and 87
and moisture.
The terminals for voltage supply as well as the plug with I²C interface for
parameter adjustment are located on the upper side of the electronics. In
the double-chamber housing, these connection elements are located in
Voltage supply
The voltage supply is provided by a Profibus DP /PA segment coupler.
–– 9 … 32 V DC
• Max. number of sensors per DP/PA segment coupler
–– 32
Connection cable
Connection is carried out with screened cable according to Profibus
specification.
Make sure that the entire installation is carried out according to the Profi-
bus specification. In particular, make sure that the bus is terminated with
suitable terminating resistors.
In systems with potential equalisation, connect the cable screen directly
to ground potential at the power supply unit, in the connection box and
at the sensor.The screen in the sensor must be connected directly to
the internal ground terminal.The ground terminal outside on the housing
must be connected to the potential equalisation (low impedance).
In systems without potential equalisation, connect the cable screen di-
rectly to ground potential on the power supply unit and the sensor. In the
connection box or T-distributor, the screen of the short stub to the sensor
may not be connected to ground potential or to another cable screen.
Connection
5
0 0
5
1
6
2
7
3
8
4
9 0
5
1
6
2
7
3
8
4
9
1
0
1
6 7 8
Bus
2
3
4
51 2+( ) (-)
1
3 Selection switch for bus address
Bus
51 2+( ) (-) 6 7 8
2
3
4
1
1 Voltage supply, signal output

14
Electronics - Foundation Fieldbus VEGABAR 86 and 87
45079-EN-160312

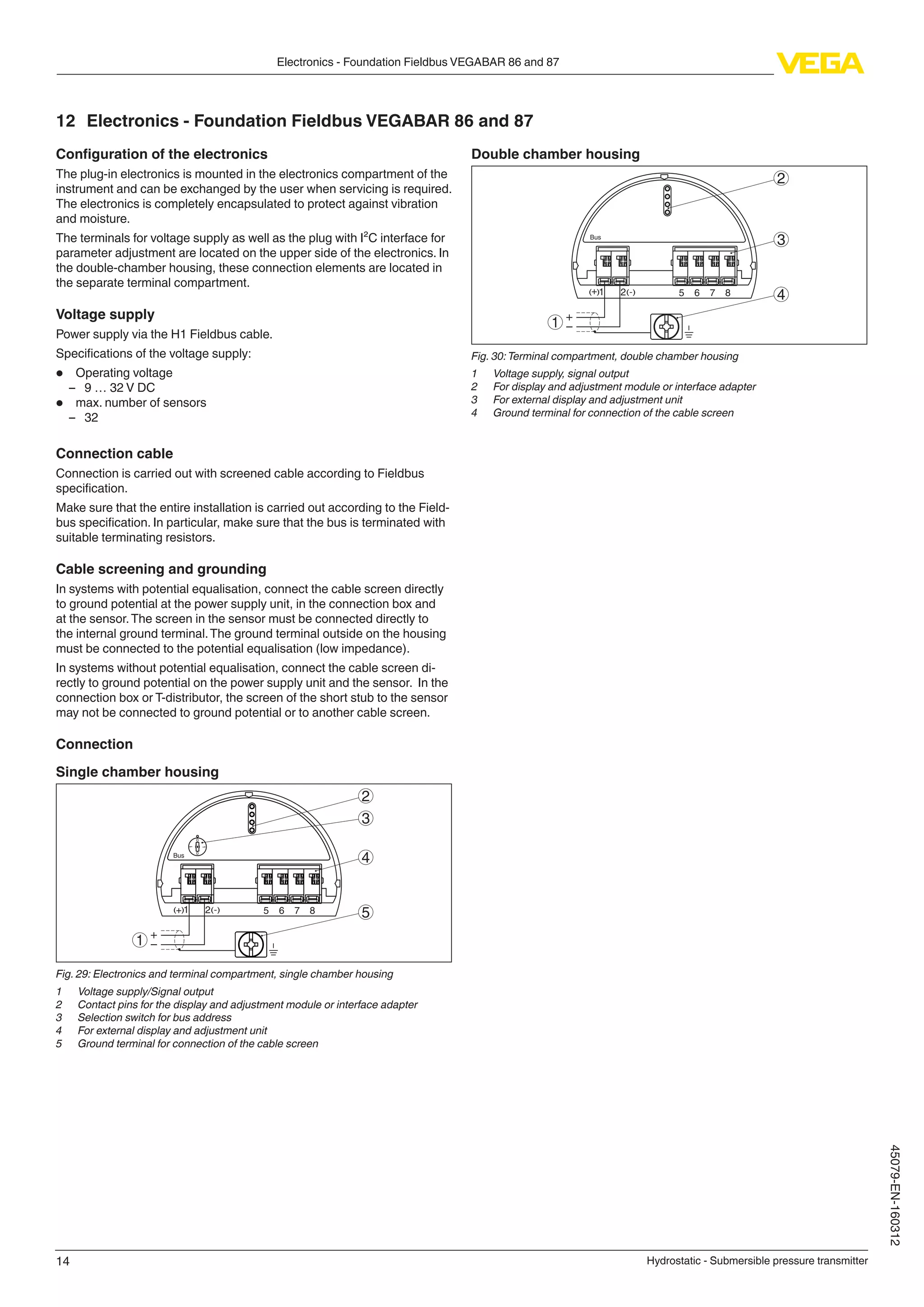

12 Electronics - Foundation Fieldbus VEGABAR 86 and 87
and moisture.
The terminals for voltage supply as well as the plug with I²C interface for
parameter adjustment are located on the upper side of the electronics. In
the double-chamber housing, these connection elements are located in
Voltage supply
Power supply via the H1 Fieldbus cable.
–– 9 … 32 V DC
• max. number of sensors
–– 32
Connection cable
Connection is carried out with screened cable according to Fieldbus
specification.
Make sure that the entire installation is carried out according to the Field-
Connection
1 2( ) (-)
1
5
0
1
0
1
+ 6 7 8
Bus
2
3
4
5
2 Contact pins for the display and adjustment module or interface adapter
3 Selection switch for bus address
Bus
51 2+( ) (-) 6 7 8
2
3
4
1
1 Voltage supply, signal output

15
Electronics - Modbus, Levelmaster protocol
45079-EN-160312
13 Electronics - Modbus, Levelmaster protocol
and moisture.
The contact pins with I²C interface for parameter adjustment are located
on the upper side of the electronics.The terminals for the power supply
are located in the separate connection compartment.
Voltage supply
Power supply via the Modbus host (RTU)
–– 8 … 30 V DC
• max. number of sensors
–– 32
Connection cable
Connection is carried out with screened cable according to Fieldbus
specification.
For power supply, a separate two-wire cable is required.
(0.16 … 0.47 in).
Make sure that the entire installation is carried out according to the Field-
Connection
+
+
power supply
MODBUS
D0
D1
ISGND
USB
1
2
4 3
1 3 4 52 off on( )
()
(-)
(-)

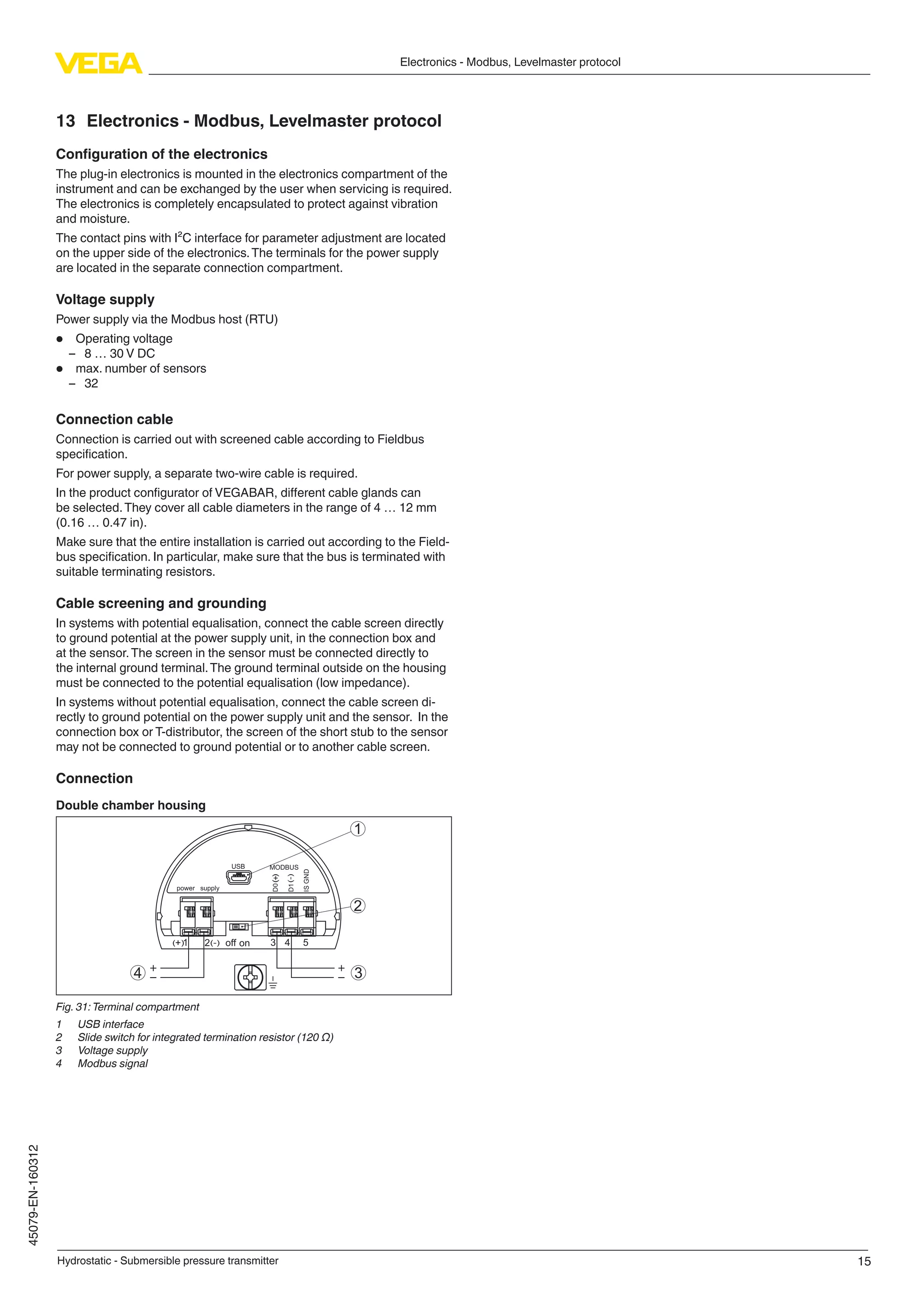

Fig. 31:Terminal compartment
1 USB interface
2 Slide switch for integrated termination resistor (120 Ω)
3 Voltage supply
4 Modbus signal

16
Operation
45079-EN-160312
14 Operation
14.1 Adjustment on the measurement loop
Via the display and adjustment module through keys
The plug-in display and adjustment module is used for measured value
indication, adjustment and diagnosis. It is equipped with an illuminated
full dot matrix as well as four keys for adjustment.

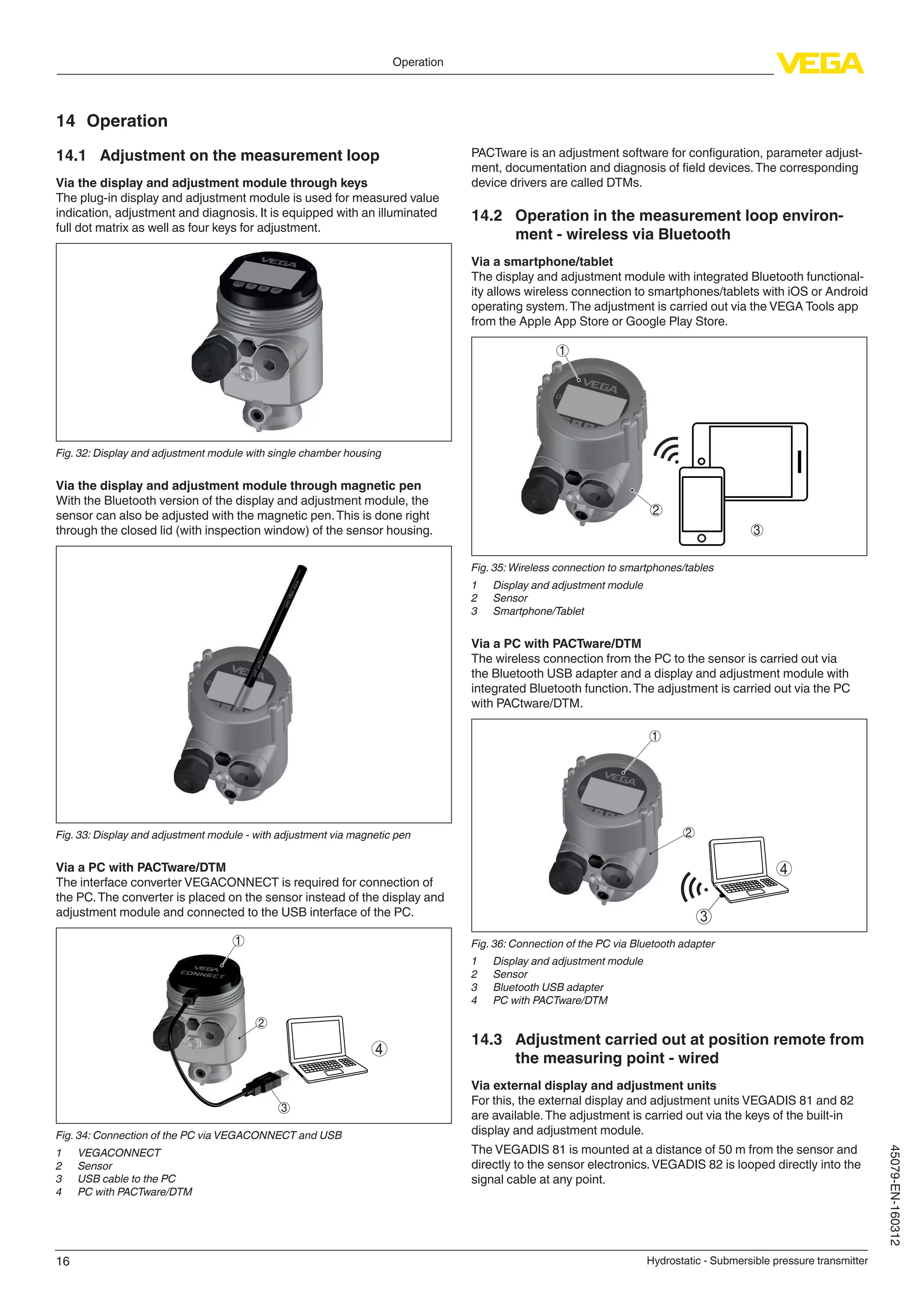

Fig. 32: Display and adjustment module with single chamber housing
Via the display and adjustment module through magnetic pen
With the Bluetooth version of the display and adjustment module, the
sensor can also be adjusted with the magnetic pen.This is done right
through the closed lid (with inspection window) of the sensor housing.
Fig. 33: Display and adjustment module - with adjustment via magnetic pen
Via a PC with PACTware/DTM
The interface converter VEGACONNECT is required for connection of
the PC.The converter is placed on the sensor instead of the display and
adjustment module and connected to the USB interface of the PC.
2
3
1
4
Fig. 34: Connection of the PC via VEGACONNECT and USB
1 VEGACONNECT
2 Sensor
3 USB cable to the PC
4 PC with PACTware/DTM
PACTware is an adjustment software for configuration, parameter adjust-
ment, documentation and diagnosis of field devices.The corresponding
device drivers are called DTMs.
14.2 Operation in the measurement loop environ-
ment - wireless via Bluetooth
Via a smartphone/tablet
The display and adjustment module with integrated Bluetooth functional-
ity allows wireless connection to smartphones/tablets with iOS or Android
operating system.The adjustment is carried out via the VEGA Tools app
from the Apple App Store or Google Play Store.
1
2
3
Fig. 35: Wireless connection to smartphones/tables
1 Display and adjustment module
2 Sensor
3 Smartphone/Tablet
The wireless connection from the PC to the sensor is carried out via
the Bluetooth USB adapter and a display and adjustment module with
integrated Bluetooth function.The adjustment is carried out via the PC
with PACtware/DTM.
2
1
4
3
Fig. 36: Connection of the PC via Bluetooth adapter
2 Sensor
3 Bluetooth USB adapter
14.3 Adjustment carried out at position remote from
the measuring point - wired
Via external display and adjustment units
For this, the external display and adjustment units VEGADIS 81 and 82
are available.The adjustment is carried out via the keys of the built-in
display and adjustment module.
The VEGADIS 81 is mounted at a distance of 50 m from the sensor and
directly to the sensor electronics.VEGADIS 82 is looped directly into the
signal cable at any point.

17
Operation
45079-EN-160312
4
1
3
2
5
4

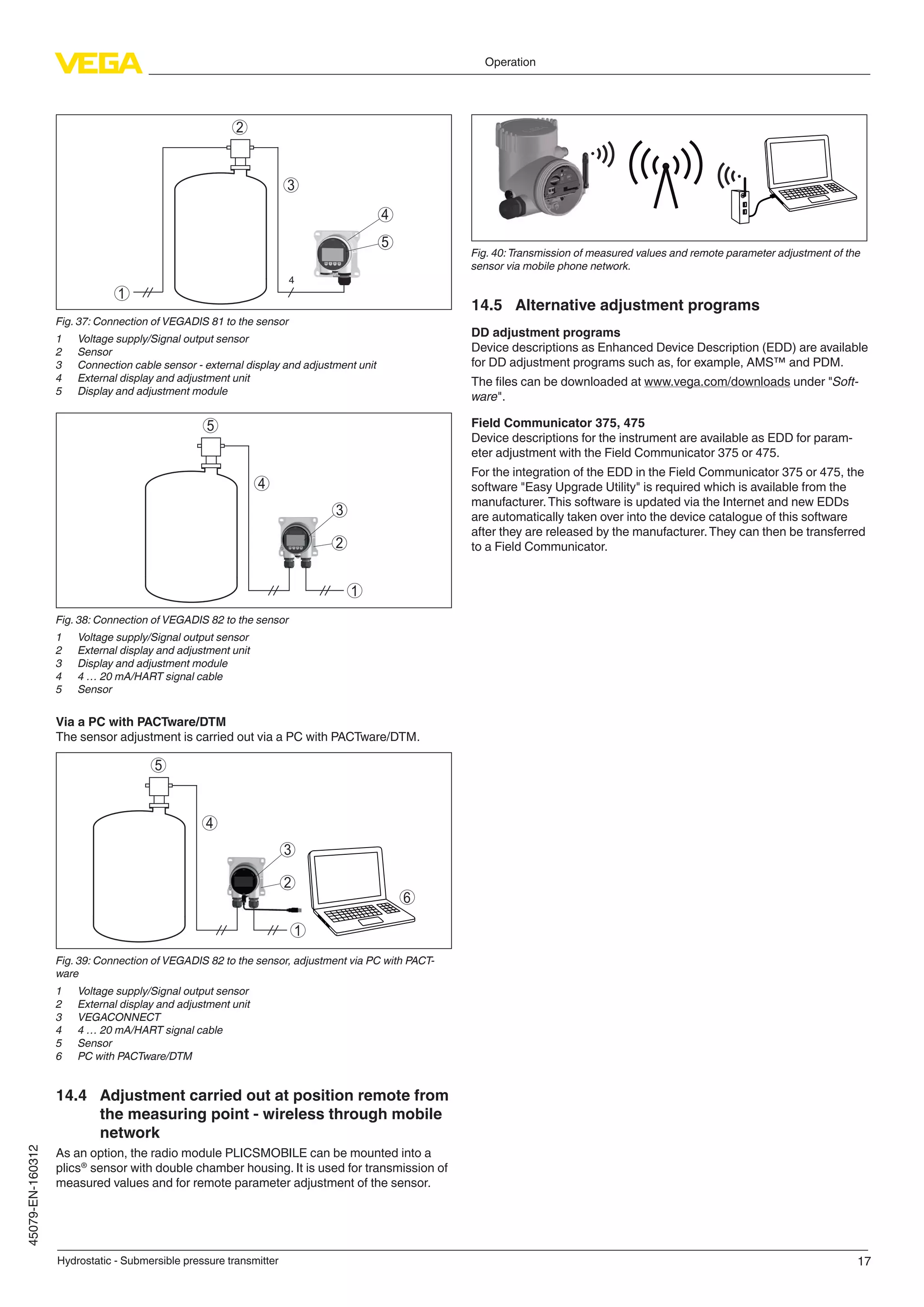

Fig. 37: Connection of VEGADIS 81 to the sensor
1 Voltage supply/Signal output sensor
2 Sensor
3 Connection cable sensor - external display and adjustment unit
4 External display and adjustment unit
4
5
3
1
2
Fig. 38: Connection of VEGADIS 82 to the sensor
4 4 … 20 mA/HART signal cable
5 Sensor
The sensor adjustment is carried out via a PC with PACTware/DTM.
4
5
6
3
2
1
Fig. 39: Connection of VEGADIS 82 to the sensor, adjustment via PC with PACT-
ware
3 VEGACONNECT
4 4 … 20 mA/HART signal cable
5 Sensor
14.4 Adjustment carried out at position remote from
the measuring point - wireless through mobile
network
As an option, the radio module PLICSMOBILE can be mounted into a
plics®
sensor with double chamber housing. It is used for transmission of
measured values and for remote parameter adjustment of the sensor.
Fig. 40:Transmission of measured values and remote parameter adjustment of the
sensor via mobile phone network.
14.5 Alternative adjustment programs
DD adjustment programs
Device descriptions as Enhanced Device Description (EDD) are available
for DD adjustment programs such as, for example, AMS™ and PDM.
The files can be downloaded at www.vega.com/downloads under "Soft-
ware".
Field Communicator 375, 475
Device descriptions for the instrument are available as EDD for param-
eter adjustment with the Field Communicator 375 or 475.
For the integration of the EDD in the Field Communicator 375 or 475, the
software "Easy Upgrade Utility" is required which is available from the
manufacturer.This software is updated via the Internet and new EDDs
are automatically taken over into the device catalogue of this software
after they are released by the manufacturer.They can then be transferred
to a Field Communicator.

18
Dimensions
45079-EN-160312

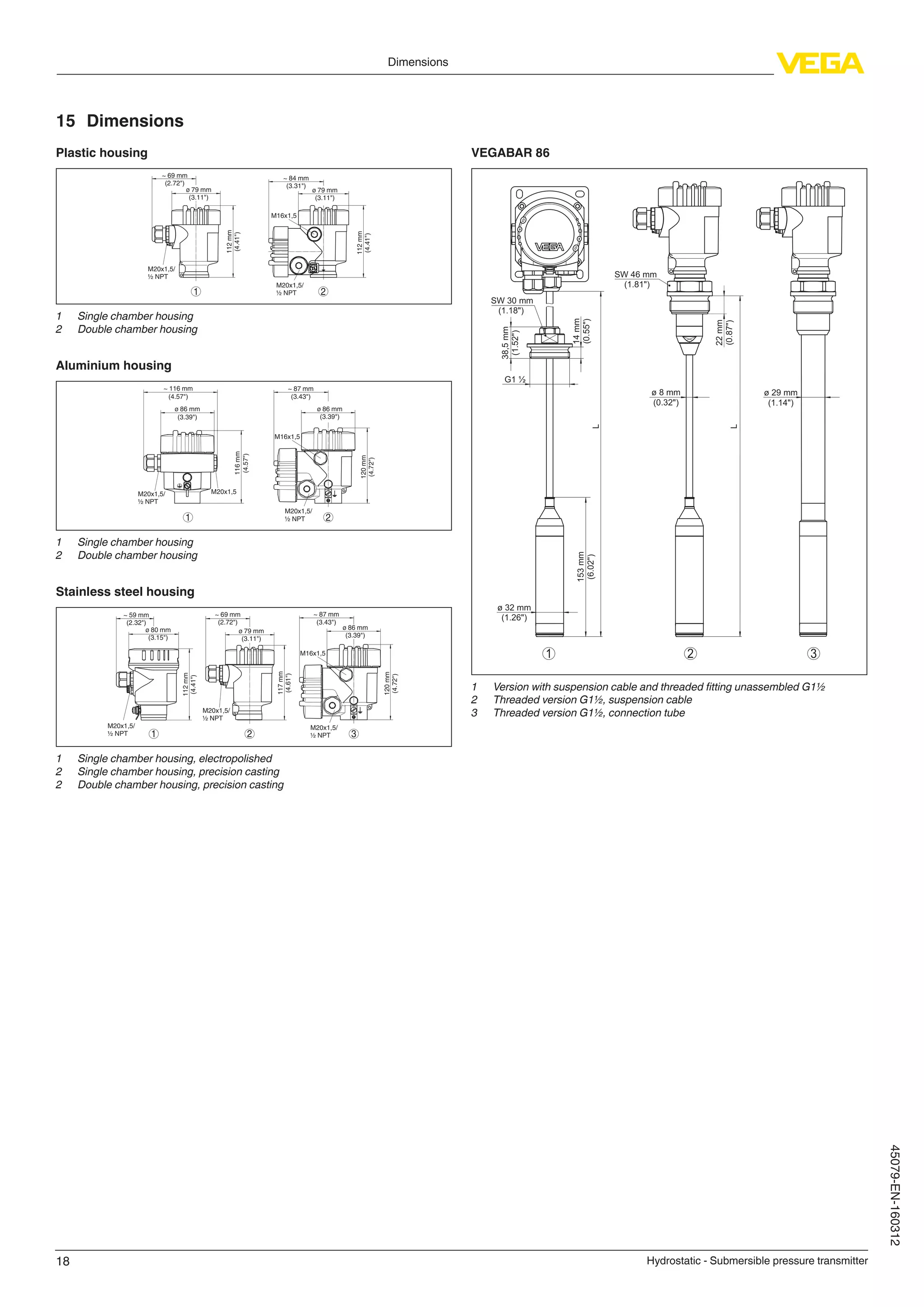

15 Dimensions
Plastic housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
112mm
(4.41")
M20x1,5/
½ NPT
~ 84 mm
(3.31")
M16x1,5
112mm
(4.41")
M20x1,5/
½ NPT1 2
ø 79 mm
(3.11")
1 Single chamber housing
2 Double chamber housing
Aluminium housing
21
ø 86 mm
(3.39")
~ 116 mm
(4.57")
116mm
(4.57")
M20x1,5M20x1,5/
½ NPT
~ 87 mm
(3.43")
M16x1,5
ø 86 mm
(3.39")
120mm
(4.72")
M20x1,5/
½ NPT
1 Single chamber housing
2 Double chamber housing
Stainless steel housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117mm
(4.61")
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112mm
(4.41")
M20x1,5/
½ NPT
~ 87 mm
(3.43")
ø 86 mm
(3.39")
120mm
(4.72")
M20x1,5/
½ NPT
M16x1,5
321
1 Single chamber housing, electropolished
2 Single chamber housing, precision casting
2 Double chamber housing, precision casting
VEGABAR 86
321
L
L
14mm
(0.55")
22mm
(0.87")
38,5mm
(1.52")
SW 30 mm
(1.18")
ø 29 mm
(1.14")
ø 32 mm
(1.26")
ø 8 mm
(0.32")
SW 46 mm
(1.81")
G1 ½
153mm
(6.02")
1 Version with suspension cable and threaded fitting unassembled G1½
2 Threaded version G1½, suspension cable
3 Threaded version G1½, connection tube

19
Dimensions
45079-EN-160312
VEGABAR 87
321
L
L
L
ø 29 mm
(1.14")
SW 30 mm
(1.18")
177mm
(6.97")
ø 8 mm
(0.32")
ø 40 mm
(1.58")
14mm
(0.55")
38,5mm
(1.52")
20mm
(0.79")
G1 ½
G1 ½ G1 ½
SW 46 mm
(1.81")
22mm
(0.87")
1 Version with suspension cable and threaded fitting unassembled G1½
2 Threaded version G1½, suspension cable
3 Threaded version G1½, connection tube
VEGAWELL 52
321
SW 30 mm
(1.18")
G1 ½
ø 32 mm
(1.26")
ø 32 mm
(1.26")
217mm
(8.54")
11mm
(0.43")
206mm
(8.11")
38,5mm
(1.52")
14mm
(0.55")
ø 8 mm
(0.32")
228mm
(8.98")
ø 22 mm
(0.87")
175mm
(6.89")
48mm
(1.89")
Fig. 46: Dimensions VEGABAR
1 Version with straining clamp
2 Version with unassembled screw connection G1½ and impact protection
3 Standard version with detachable plastic basket guard
The listed drawings represent only an excerpt of the available process
fittings.You can find more drawings at www.vega.com/downloads under
"Drawings".

VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
45079-EN-160312
All statements concerning scope of delivery, application, practical use and operating conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2016
Phone +49 7836 50-0
Fax +49 7836 50-201
E-mail: info.de@vega.com
www.vega.com

Submersible Pressure Transmitter for Level Measurement

More Related Content

What's hot

Similar to Submersible Pressure Transmitter for Level Measurement

More from Classic Controls, Inc.

Recently uploaded

In this document

Submersible Pressure Transmitter for Level Measurement
