This document provides an overview of the payment process and integration of Stripe payments for an Atmoph app. It involves: 1. Validating card information using Stripe's client-side validation. 2. Creating a token for the card using Stripe's API and storing it securely on their servers. 3. When making a purchase, the token is passed to Stripe to charge the card without exposing card details to Atmoph's servers. 4. Stripe handles the payment and notifies Atmoph of the status for record keeping. This keeps card information secure and the integration simple.

1. @atmophjp
@bonar

3. CEO Software Engineer
Kyohi Kang Kyohei Nakano Yoko Tarui
Designer

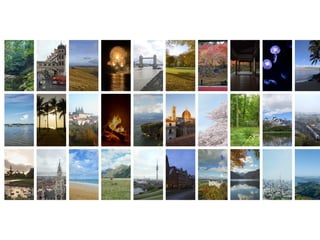

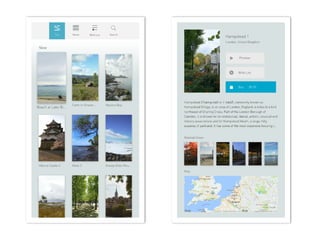

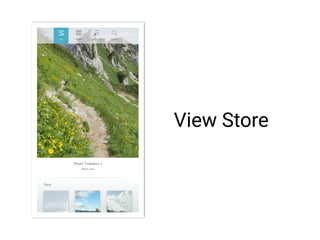

8. View Store

14. Architecture

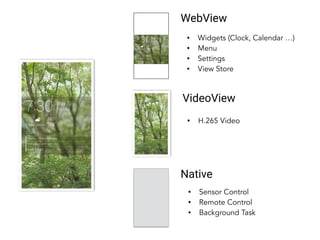

15. WebView
VideoView

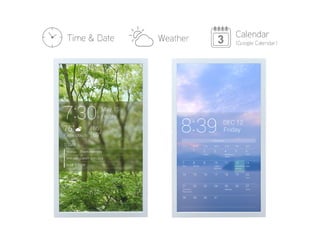

• Widgets (Clock, Calendar …)
• Menu
• Settings
• View Store
• H.265 Video
Native
• Sensor Control
• Remote Control
• Background Task

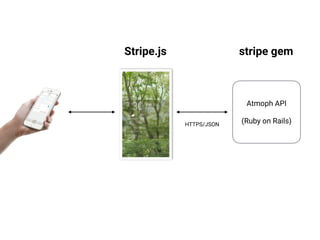

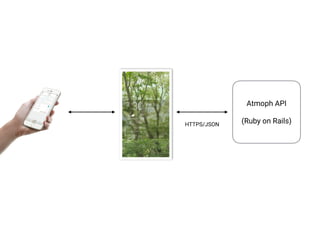

16. Atmoph API
(Ruby on Rails)HTTPS/JSON

17. Atmoph API
(Ruby on Rails)HTTPS/JSON
Stripe.js stripe gem

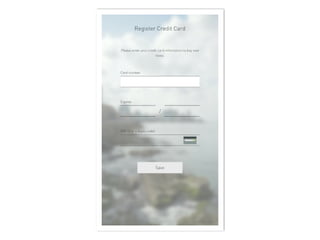

18. Register Card

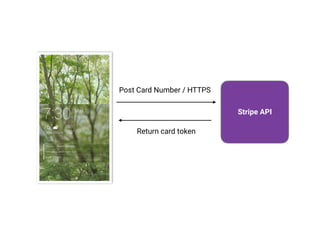

20. Stripe API
Post Card Number / HTTPS
Return card token

21. function verifyCardInfo() {
if (!window.Stripe.card.validateCardNumber($scope.card_number)) {
return ErrorLocal.P70;
}
if (!window.Stripe.card.validateExpiry(
$scope.exp_month, $scope.exp_year)) {
return ErrorLocal.P71;
}
if (!window.Stripe.card.validateCVC($scope.security_code)) {
return ErrorLocal.P72;
}
.....
}
Offline validation

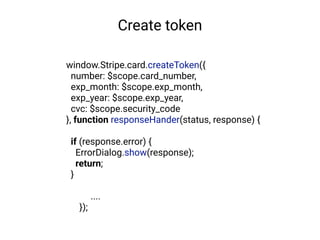

22. window.Stripe.card.createToken({
number: $scope.card_number,
exp_month: $scope.exp_month,
exp_year: $scope.exp_year,
cvc: $scope.security_code
}, function responseHander(status, response) {
if (response.error) {
ErrorDialog.show(response);
return;
}
....
});
Create token

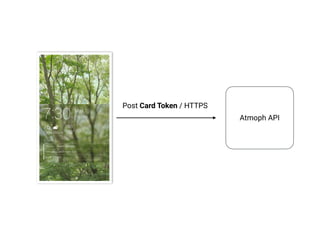

23. Post Card Token / HTTPS
Atmoph API

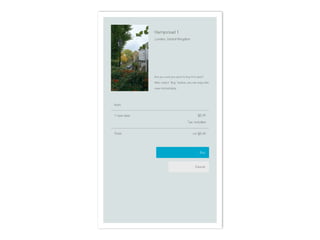

24. Payment

26. Post Purchase / HTTPS
Atmoph API

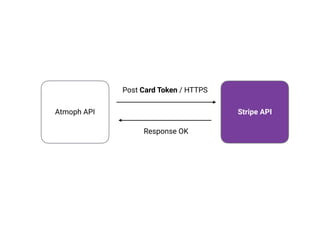

27. Stripe API
Post Card Token / HTTPS
Response OK
Atmoph API

28. customer = Stripe::Customer.create({
:description => user.stripe_name,
:email => user.email
}, SECRET_AUTH_INFO)
token_id = params[:token_id]
card = customer.sources.create(:source => token_id)
customer.default_source = card["id"]
customer.save
charge = Stripe::Charge.create({
:amount => price.value,
:currency => currency.name,
:customer => customer,
:description => "....."
}, SECRET_AUTH_INFO)
Create charge

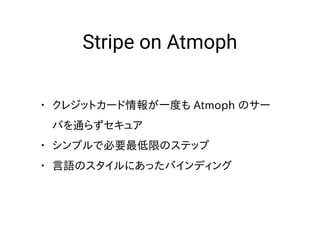

30. Stripe on Atmoph
• クレジットカード情報が一度も Atmoph のサー
バを通らずセキュア
• シンプルで必要最低限のステップ
• 言語のスタイルにあったバインディング

31. @atmophjp
@bonar
