Streamline client deployments with customised installation packages

AusLUG2012
Streamline client deployments with
customised installation packages

Christian Petters
Systems and Data Services Manager
Meet.Share.Learn Statistics NZ
www.cubetoon.com

29th & 30th March, Melbourne, Victoria, Australia

AusLUG2011
AusLUG2012

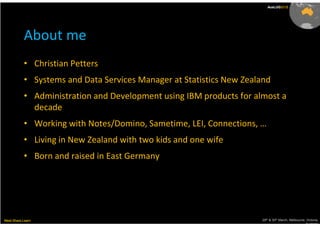

About me
• Christian Petters
• Systems and Data Services Manager at Statistics New Zealand
• Administration and Development using IBM products for almost a
decade
• Working with Notes/Domino, Sametime, LEI, Connections, …
• Living in New Zealand with two kids and one wife
• Born and raised in East Germany

Meet.Share.Learn 29th & 30th March, Melbourne, Victoria,
Australia

AusLUG2012

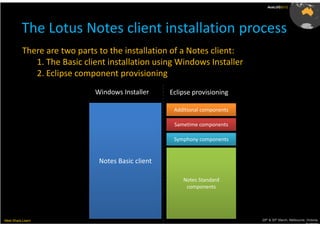

The Lotus Notes client installation process
There are two parts to the installation of a Notes client:
1. The Basic client installation using Windows Installer
2. Eclipse component provisioning
Windows Installer Eclipse provisioning

Additional components

Sametime components

Symphony components

Notes Basic client

Notes Standard
components

Australia

AusLUG2012

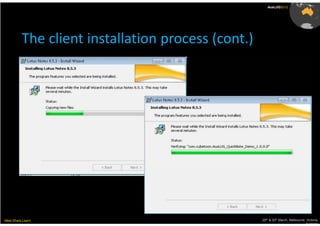

The client installation process (cont.)

Australia

AusLUG2012

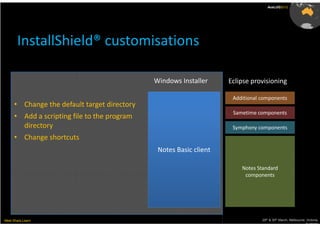

InstallShield® customisations


Additional components
• Change the default target directory
Sametime components
• Add a scripting file to the program
directory Symphony components
• Change shortcuts
Notes Basic client

Notes Standard
components

Australia

AusLUG2012

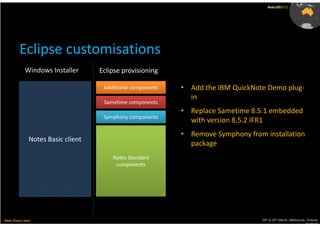

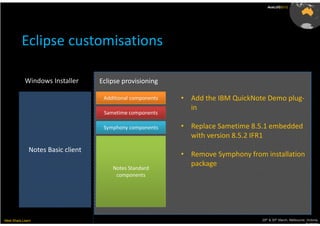

Eclipse customisations


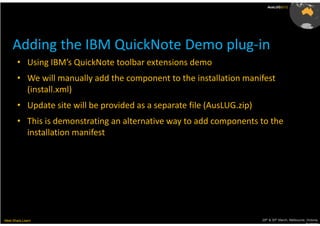

Additional components • Add the IBM QuickNote Demo plug-
in
Sametime components

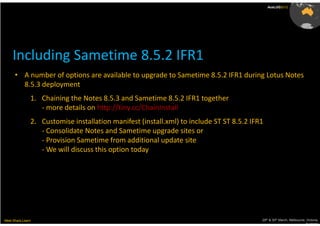

Symphony components • Replace Sametime 8.5.1 embedded
with version 8.5.2 IFR1
Notes Basic client
• Remove Symphony from installation
package
Notes Standard
components

Australia

AusLUG2012

The Windows Installer process
• Windows Installer package (MSI) is a relational database
• Interlinked tables containing installation instructions, configuration settings,
program logic, registry keys, etc.
• Binaries are compressed into cabinet files (CAB)
• Transforms allow for the customisation of installation instructions

Australia

AusLUG2012

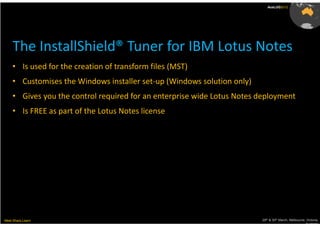

The InstallShield® Tuner for IBM Lotus Notes
• Is used for the creation of transform files (MST)
• Customises the Windows installer set-up (Windows solution only)
• Gives you the control required for an enterprise wide Lotus Notes deployment
• Is FREE as part of the Lotus Notes license

Australia

AusLUG2012

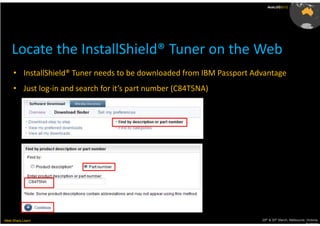

Locate the InstallShield® Tuner on the Web
• InstallShield® Tuner needs to be downloaded from IBM Passport Advantage
• Just log-in and search for it’s part number (C84T5NA)

Australia

AusLUG2012

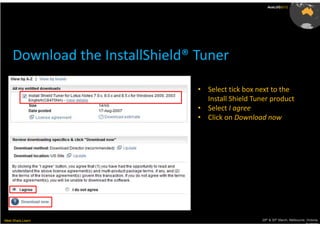

Download the InstallShield® Tuner

• Select tick box next to the
Install Shield Tuner product
• Select I agree
• Click on Download now

Australia

AusLUG2012

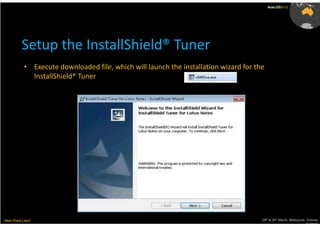

Setup the InstallShield® Tuner
• Execute downloaded file, which will launch the installation wizard for the
InstallShield® Tuner

Australia

AusLUG2012

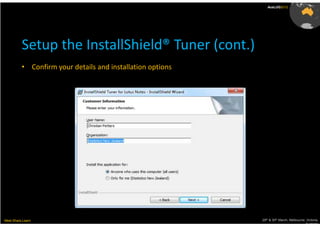

Setup the InstallShield® Tuner (cont.)
• Confirm your details and installation options

Australia

AusLUG2012

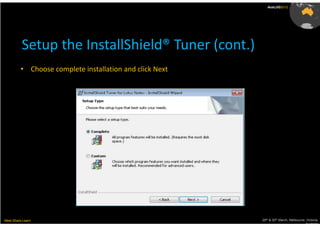

• Choose complete installation and click Next

Australia

AusLUG2012

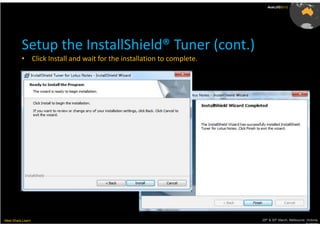

• Click Install and wait for the installation to complete.

Australia

AusLUG2012

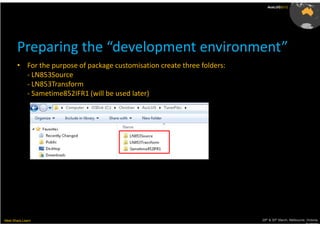

Preparing the “development environment”
• For the purpose of package customisation create three folders:
- LN853Source
- LN853Transform

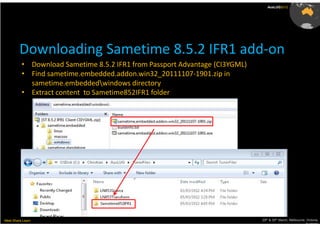

- Sametime852IFR1 (will be used later)

Australia

AusLUG2012

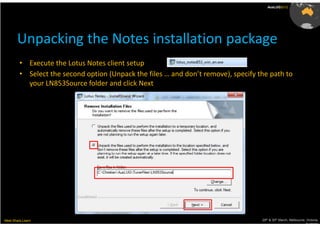

Unpacking the Notes installation package
• Execute the Lotus Notes client setup
• Select the second option (Unpack the files … and don’t remove), specify the path to
your LN853Source folder and click Next

Australia

AusLUG2012

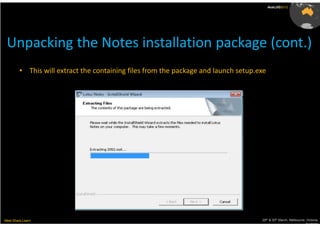

Unpacking the Notes installation package (cont.)
• This will extract the containing files from the package and launch setup.exe

Australia

AusLUG2012

Cancel Notes set-up
• Cancel the setup at this point and confirm with Yes
• We do not want to run an installation but apply or customisations instead

Australia

AusLUG2012

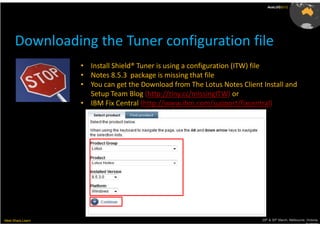

Downloading the Tuner configuration file
• Install Shield® Tuner is using a configuration (ITW) file
• Notes 8.5.3 package is missing that file
• You can get the Download from The Lotus Notes Client Install and
Setup Team Blog (http://tiny.cc/missingITW) or
• IBM Fix Central (http://www.ibm.com/support/fixcentral)

Australia

AusLUG2012

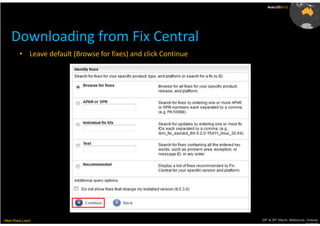

Downloading from Fix Central
• Leave default (Browse for fixes) and click Continue

Australia

AusLUG2012

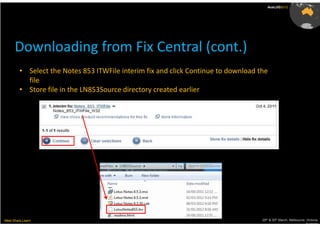

Downloading from Fix Central (cont.)
• Select the Notes 853 ITWFile interim fix and click Continue to download the
file
• Store file in the LN853Source directory created earlier

Australia

AusLUG2012

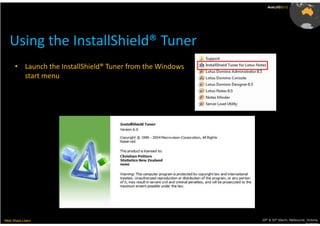

Using the InstallShield® Tuner
• Launch the InstallShield® Tuner from the Windows
start menu

Australia

AusLUG2012

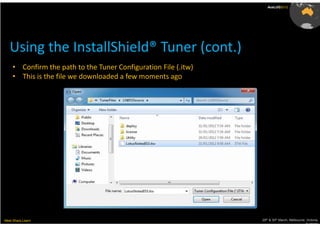

Using the InstallShield® Tuner (cont.)
• Confirm the path to the Tuner Configuration File (.itw)
• This is the file we downloaded a few moments ago

Australia

AusLUG2012

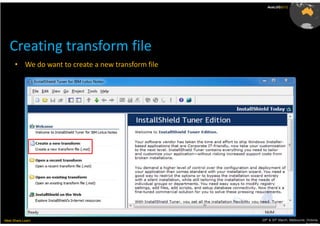

Creating transform file
• We do want to create a new transform file

Australia

AusLUG2012

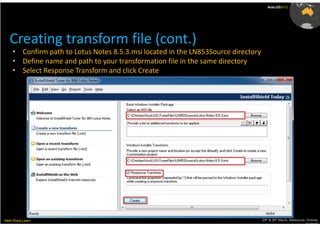

Creating transform file (cont.)
• Confirm path to Lotus Notes 8.5.3.msi located in the LN853Source directory
• Define name and path to your transformation file in the same directory
• Select Response Transform and click Create

Australia

AusLUG2012

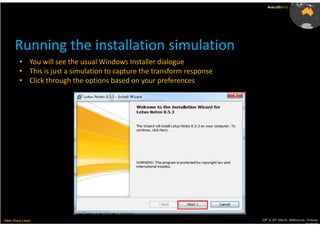

Running the installation simulation
• You will see the usual Windows Installer dialogue
• This is just a simulation to capture the transform response
• Click through the options based on your preferences

Australia

AusLUG2012

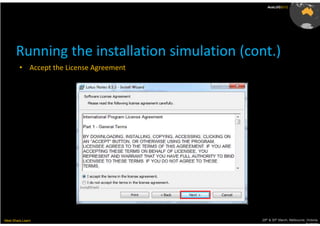

Running the installation simulation (cont.)
• Accept the License Agreement

Australia

AusLUG2012

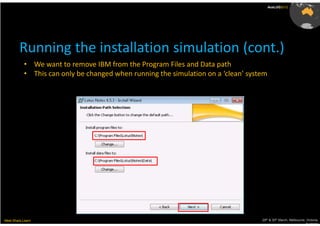

• We want to remove IBM from the Program Files and Data path
• This can only be changed when running the simulation on a ‘clean’ system

Australia

AusLUG2012

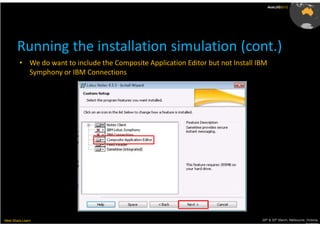

• We do want to include the Composite Application Editor but not Install IBM
Symphony or IBM Connections

Australia

AusLUG2012

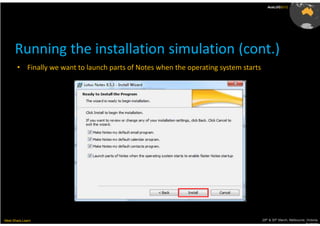

• Finally we want to launch parts of Notes when the operating system starts

Australia

AusLUG2012

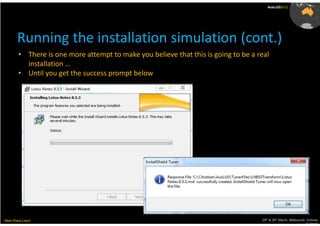

• There is one more attempt to make you believe that this is going to be a real
installation …
• Until you get the success prompt below

Australia

AusLUG2012

Response transforms option
Response transform simulation Ensure that the initial transform is
also triggers a number of custom created on a ‘clean’ image
IBM actions Ensure that the source and
destination systems do have
They add additional information
similar specifications
to the properties table of the MST
Properties may be platform
and/or user related (red)

Australia

AusLUG2012

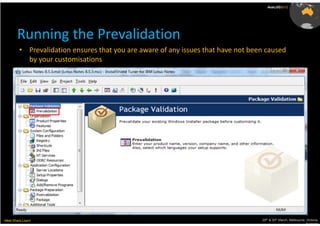

Running the Prevalidation
• Prevalidation ensures that you are aware of any issues that have not been caused
by your customisations

Australia

AusLUG2012

Running the Prevalidation (cont.)
• Choose Full MSI Validation suite and All Internal Consistency Evaluators (ICEs) and
start validation

Australia

AusLUG2012

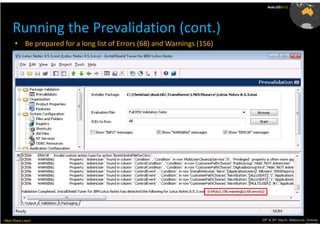

Running the Prevalidation (cont.)
• Be prepared for a long list of Errors (68) and Warnings (156)

Australia

AusLUG2012

Customisation options
• Take some time to look at the options available
• There are some straight forward customisations like the Company name etc.

Australia

AusLUG2012

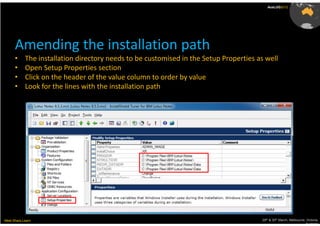

Amending the installation path
• The installation directory needs to be customised in the Setup Properties as well
• Open Setup Properties section
• Click on the header of the value column to order by value
• Look for the lines with the installation path

Australia

AusLUG2012

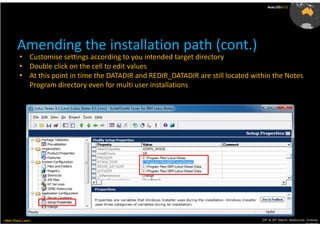

Amending the installation path (cont.)
• Customise settings according to you intended target directory
• Double click on the cell to edit values
• At this point in time the DATADIR and REDIR_DATADIR are still located within the Notes
Program directory even for multi user installations

Australia

AusLUG2012

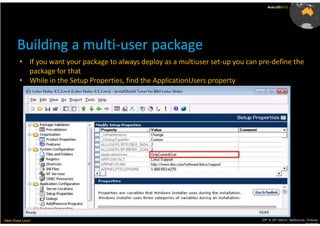

Building a multi-user package
• If you want your package to always deploy as a multiuser set-up you can pre-define the
package for that
• While in the Setup Properties, find the ApplicationUsers property

Australia

AusLUG2012

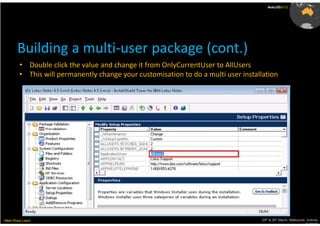

Building a multi-user package (cont.)
• Double click the value and change it from OnlyCurrentUser to AllUsers
• This will permanently change your customisation to do a multi user installation

Australia

AusLUG2012

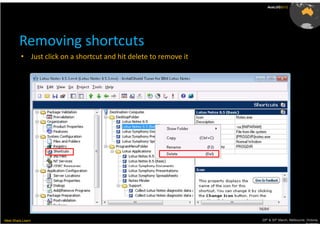

Removing shortcuts
• Just click on a shortcut and hit delete to remove it

Australia

AusLUG2012

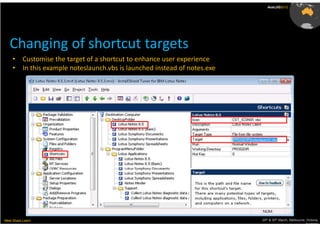

Changing of shortcut targets
• Customise the target of a shortcut to enhance user experience
• In this example noteslaunch.vbs is launched instead of notes.exe

Australia

AusLUG2012

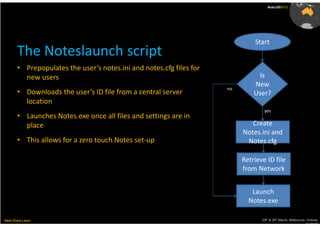

Start
The Noteslaunch script
• Prepopulates the user’s notes.ini and notes.cfg files for
new users Is
New
no
• Downloads the user’s ID file from a central server User?
location
yes
• Launches Notes.exe once all files and settings are in
place Create
Notes.ini and
• This allows for a zero touch Notes set-up Notes.cfg

Retrieve ID file
from Network

Launch
Notes.exe

Australia

AusLUG2012

Configuration set by Noteslaunch.vbs
Notes.ini
[Notes]
Directory=C:UserscpettersAppDataLocalLotusNotesData
KeyFileName=C:UserscpettersAppDataLocalLotusNotesDataCPetters.id
MailFile=mailCPetters.nsf
MailServer=CN=ServerName/O=Organisation
ConfigFile=C:UserscpettersAppDataLocalLotusNotesDatanotes.cfg
SharedDataDirectory=C:ProgramDataLotusNotesDataShared
DisabledPorts=SPX,COM1,COM2,COM3,COM4,COM5,LAN0
TCPIP=TCP,0,15,0 Notes.cfg
LAN0=NETBIOS,0,15,0 UserName=Christian Petters/OU/Organisation
SPX=NWSPX,0,15,0 AdditionalServices=-1
COM1=XPC,1,15,0 IM.Server=STServer/Organisation *
COM2=XPC,2,15,0 IM.Port=1533 *
COM3=XPC,3,15,0 IM.ConnectWhen=0 *
COM4=XPC,4,15,0 IM.Protocol=0 *
COM5=XPC,5,15,0
PORTS=TCPIP * Sametime settings are only required for
Location=Online Sametime basic set-up
th th
29 & 30 March, Melbourne, Victoria,
Meet.Share.Learn
IM_NO_SETUP=1 Australia

AusLUG2012

Adding additional files to the package
• Files and Folders section allows you to add files like noteslaunch.vbs or a customised
bookmark.ntf or pernames.ntf

Australia

AusLUG2012

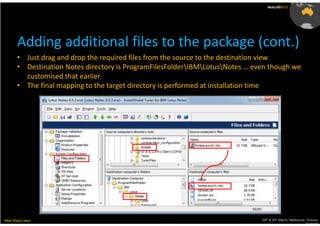

Adding additional files to the package (cont.)
• Just drag and drop the required files from the source to the destination view
• Destination Notes directory is ProgramFilesFolderIBMLotusNotes … even though we
customised that earlier
• The final mapping to the target directory is performed at installation time

Australia

AusLUG2012

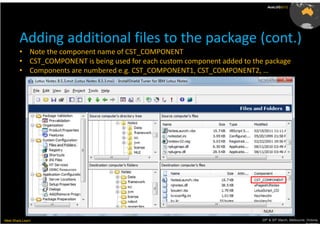

Adding additional files to the package (cont.)
• Note the component name of CST_COMPONENT
• CST_COMPONENT is being used for each custom component added to the package
• Components are numbered e.g. CST_COMPONENT1, CST_COMPONENT2, …

Australia

AusLUG2012

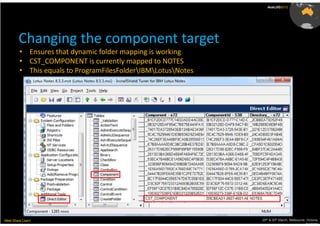

Changing the component target
• Ensures that dynamic folder mapping is working
• CST_COMPONENT is currently mapped to NOTES
• This equals to ProgramFilesFolderIBMLotusNotes

Australia

AusLUG2012

Changing the component target directory
• Change property to the Notes program directory (PROGDIR)
• PROGDIR will be mapped at installation time depending on target path

Australia

AusLUG2012

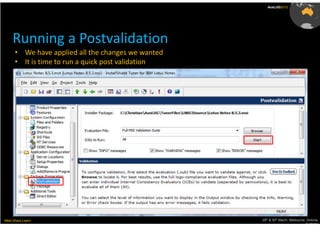

Running a Postvalidation
• We have applied all the changes we wanted
• It is time to run a quick post validation

Australia

AusLUG2012

Running a Postvalidation (cont.)
• After the post validation is finished. Ensure that no additional errors have been introduced
by our customisation
• Note that some new notifications can be ignored as they are caused by IBMs installation
logic

Australia

AusLUG2012

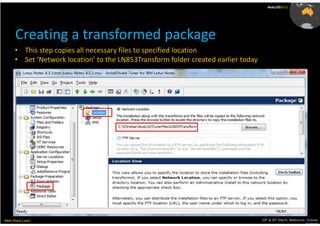

Creating a transformed package
• This step copies all necessary files to specified location
• Set ‘Network location’ to the LN853Transform folder created earlier today

Australia

AusLUG2012

Creating a transformed package (cont.)
• Click the Package button to create the package

Australia

AusLUG2012

• This will copy all required files and folders from the Source to the Target directory
• Additional files (like the Noteslaunch.vbs) are added as an additional CAB archive

Australia

AusLUG2012

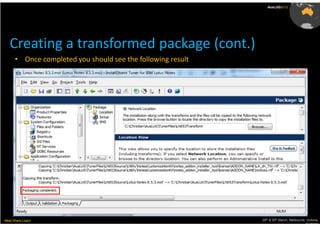

• Once completed you should see the following result

Australia

AusLUG2012

Eclipse customisations

Additional components • Add the IBM QuickNote Demo plug-
in
Sametime components
• Replace Sametime 8.5.1 embedded
Symphony components
with version 8.5.2 IFR1
• Remove Symphony from installation
Notes Basic client
package
Notes Standard
components

Australia

AusLUG2012

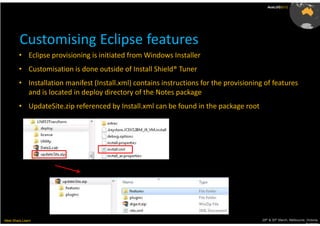

Customising Eclipse features
• Eclipse provisioning is initiated from Windows Installer
• Customisation is done outside of Install Shield® Tuner
• Installation manifest (Install.xml) contains instructions for the provisioning of features
and is located in deploy directory of the Notes package
• UpdateSite.zip referenced by Install.xml can be found in the package root

Australia

AusLUG2012

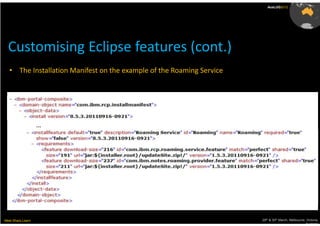

Customising Eclipse features (cont.)
• The Installation Manifest on the example of the Roaming Service

…

Australia

AusLUG2012

Including Sametime 8.5.2 IFR1
• A number of options are available to upgrade to Sametime 8.5.2 IFR1 during Lotus Notes
8.5.3 deployment
1. Chaining the Notes 8.5.3 and Sametime 8.5.2 IFR1 together
- more details on http://tiny.cc/ChainInstall
2. Customise installation manifest (install.xml) to include ST ST 8.5.2 IFR1
- Consolidate Notes and Sametime upgrade sites or
- Provision Sametime from additional update site
- We will discuss this option today

Australia

AusLUG2012

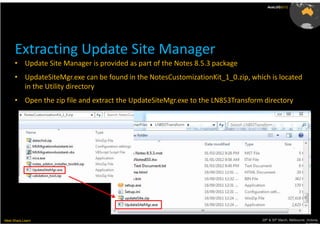

Extracting Update Site Manager
• Update Site Manager is provided as part of the Notes 8.5.3 package
• UpdateSiteMgr.exe can be found in the NotesCustomizationKit_1_0.zip, which is located
in the Utility directory
• Open the zip file and extract the UpdateSiteMgr.exe to the LN853Transform directory

Australia

AusLUG2012

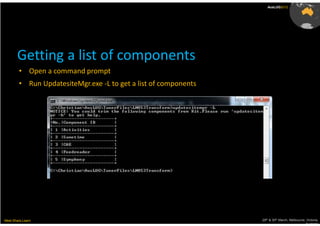

Getting a list of components
• Open a command prompt
• Run UpdatesiteMgr.exe -L to get a list of components

Australia

AusLUG2012

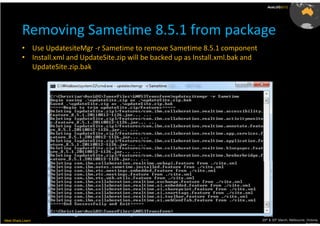

Removing Sametime 8.5.1 from package
• Use UpdatesiteMgr -r Sametime to remove Sametime 8.5.1 component
• Install.xml and UpdateSite.zip will be backed up as Install.xml.bak and
UpdateSite.zip.bak

Australia

AusLUG2012

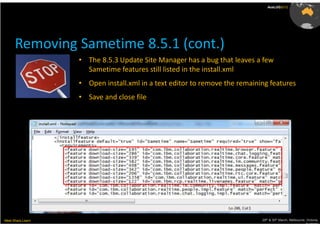

Removing Sametime 8.5.1 (cont.)
• The 8.5.3 Update Site Manager has a bug that leaves a few
Sametime features still listed in the install.xml
• Open install.xml in a text editor to remove the remaining features
• Save and close file

Australia

AusLUG2012

Downloading Sametime 8.5.2 IFR1 add-on
• Download Sametime 8.5.2 IFR1 from Passport Advantage (CI3YGML)
• Find sametime.embedded.addon.win32_20111107-1901.zip in
sametime.embeddedwindows directory
• Extract content to Sametime852IFR1 folder

Australia

AusLUG2012

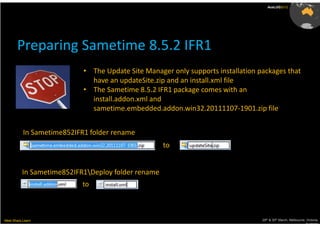

Preparing Sametime 8.5.2 IFR1
• The Update Site Manager only supports installation packages that
have an updateSite.zip and an install.xml file
• The Sametime 8.5.2 IFR1 package comes with an
install.addon.xml and
sametime.embedded.addon.win32.20111107-1901.zip file

In Sametime852IFR1 folder rename
to

In Sametime852IFR1Deploy folder rename
to

Australia

AusLUG2012

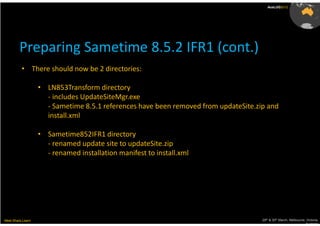

Preparing Sametime 8.5.2 IFR1 (cont.)
• There should now be 2 directories:

• LN853Transform directory
- includes UpdateSiteMgr.exe
- Sametime 8.5.1 references have been removed from updateSite.zip and
install.xml

• Sametime852IFR1 directory
- renamed update site to updateSite.zip
- renamed installation manifest to install.xml

Australia

AusLUG2012

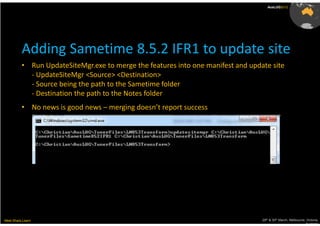

Adding Sametime 8.5.2 IFR1 to update site
• Run UpdateSiteMgr.exe to merge the features into one manifest and update site
- UpdateSiteMgr <Source> <Destination>
- Source being the path to the Sametime folder
- Destination the path to the Notes folder
• No news is good news – merging doesn’t report success

Australia

AusLUG2012

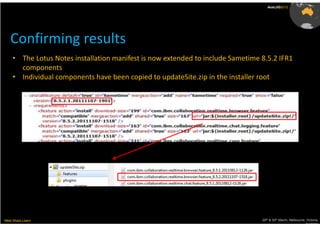

Confirming results
• The Lotus Notes installation manifest is now extended to include Sametime 8.5.2 IFR1
components
• Individual components have been copied to updateSite.zip in the installer root

Australia

AusLUG2012

Adding the IBM QuickNote Demo plug-in
• Using IBM’s QuickNote toolbar extensions demo
• We will manually add the component to the installation manifest
(install.xml)
• Update site will be provided as a separate file (AusLUG.zip)
• This is demonstrating an alternative way to add components to the
installation manifest

Australia

AusLUG2012

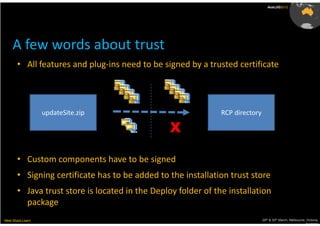

A few words about trust
• All features and plug-ins need to be signed by a trusted certificate

updateSite.zip RCP directory

X

• Custom components have to be signed
• Signing certificate has to be added to the installation trust store
• Java trust store is located in the Deploy folder of the installation
package
Australia

AusLUG2012

Creating a signer certificate
• Signer certificate and key store can be created using
keytool.exe, which is part of the Notes JVM
• I prefer to work in UIs, hence use Portecle
(http://portecle.sourceforge.net)
• Launch Portecle application form above website or
download the Java app

Australia

AusLUG2012

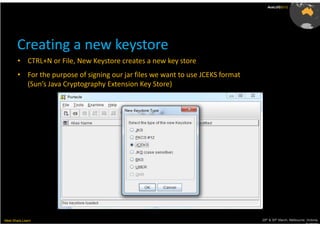

Creating a new keystore
• CTRL+N or File, New Keystore creates a new key store
• For the purpose of signing our jar files we want to use JCEKS format
(Sun’s Java Cryptography Extension Key Store)

Australia

AusLUG2012

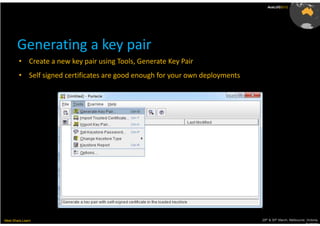

Generating a key pair
• Create a new key pair using Tools, Generate Key Pair
• Self signed certificates are good enough for your own deployments

Australia

AusLUG2012

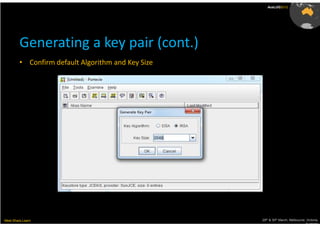

Generating a key pair (cont.)
• Confirm default Algorithm and Key Size

Australia

AusLUG2012

Defining certificate details
• Populate at least the common name
• Ensure validity matches your requirements or use time stamped certificates

Australia

AusLUG2012

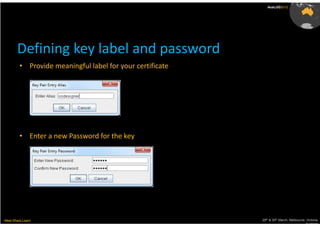

Defining key label and password
• Provide meaningful label for your certificate

• Enter a new Password for the key

Australia

AusLUG2012

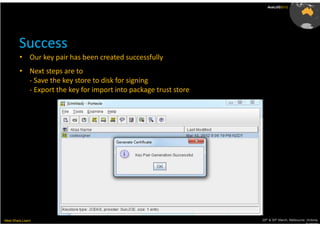

Success
• Our key pair has been created successfully
• Next steps are to
- Save the key store to disk for signing
- Export the key for import into package trust store

Australia

AusLUG2012

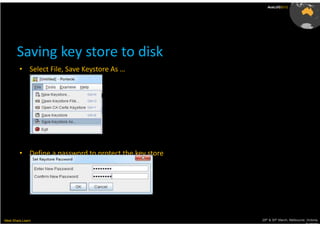

Saving key store to disk
• Select File, Save Keystore As …

• Define a password to protect the key store

Australia

AusLUG2012

Saving key store to disk (cont.)
• Define path and file name for the key store file and save
• This key store with the containing codesigner certificate will later be used to sign the
JAR files in our AusLUG update site

Australia

AusLUG2012

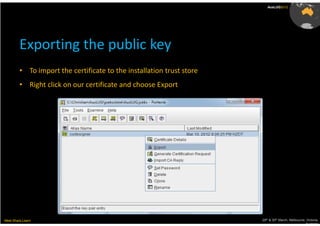

Exporting the public key
• To import the certificate to the installation trust store
• Right click on our certificate and choose Export

Australia

AusLUG2012

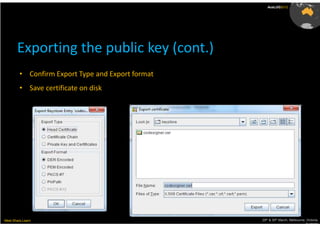

Exporting the public key (cont.)
• Confirm Export Type and Export format
• Save certificate on disk

Australia

AusLUG2012

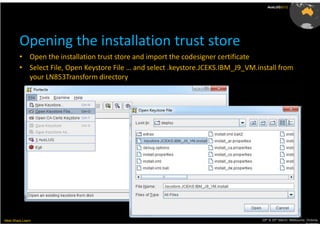

Opening the installation trust store
• Open the installation trust store and import the codesigner certificate
• Select File, Open Keystore File … and select .keystore.JCEKS.IBM_J9_VM.install from
your LN853Transform directory

Australia

AusLUG2012

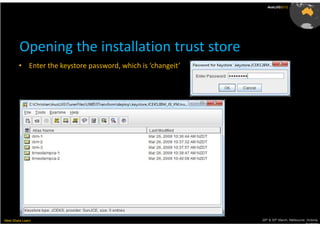

Opening the installation trust store
• Enter the keystore password, which is ‘changeit’

Australia

AusLUG2012

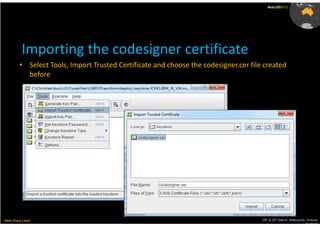

Importing the codesigner certificate
• Select Tools, Import Trusted Certificate and choose the codesigner.cer file created
before

Australia

AusLUG2012

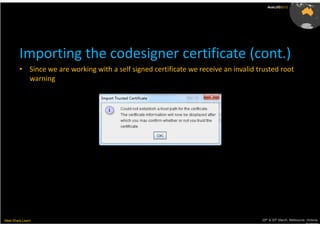

Importing the codesigner certificate (cont.)
• Since we are working with a self signed certificate we receive an invalid trusted root
warning

Australia

AusLUG2012

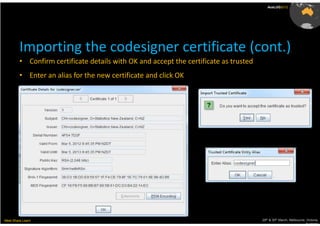

Importing the codesigner certificate (cont.)
• Confirm certificate details with OK and accept the certificate as trusted
• Enter an alias for the new certificate and click OK

Australia

AusLUG2012

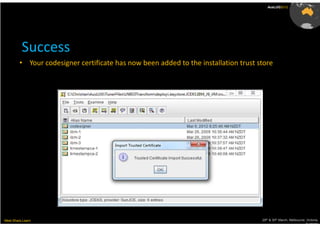

Success
• Your codesigner certificate has now been added to the installation trust store

Australia

AusLUG2012

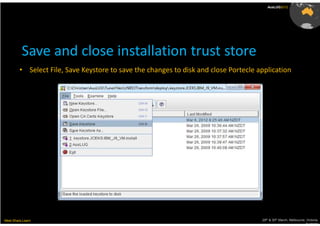

Save and close installation trust store
• Select File, Save Keystore to save the changes to disk and close Portecle application

Australia

AusLUG2012

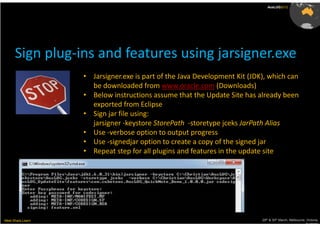

Sign plug-ins and features using jarsigner.exe
• Jarsigner.exe is part of the Java Development Kit (JDK), which can
be downloaded from www.oracle.com (Downloads)
• Below instructions assume that the Update Site has already been
exported from Eclipse
• Sign jar file using:
jarsigner -keystore StorePath -storetype jceks JarPath Alias
• Use -verbose option to output progress
• Use -signedjar option to create a copy of the signed jar
• Repeat step for all plugins and features in the update site

Australia

AusLUG2012

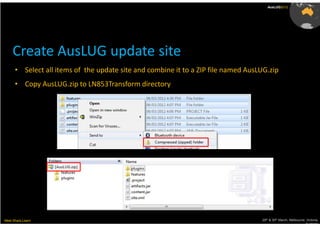

Create AusLUG update site
• Select all items of the update site and combine it to a ZIP file named AusLUG.zip
• Copy AusLUG.zip to LN853Transform directory

Australia

AusLUG2012

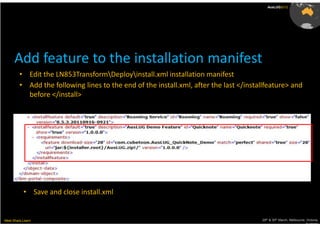

Add feature to the installation manifest
• Edit the LN853TransformDeployinstall.xml installation manifest
• Add the following lines to the end of the install.xml, after the last </installfeature> and
before </install>

• Save and close install.xml

Australia

AusLUG2012

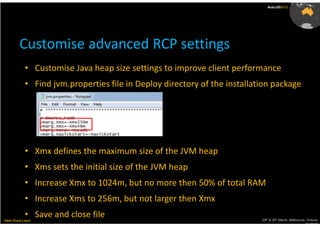

Customise advanced RCP settings
• Customise Java heap size settings to improve client performance
• Find jvm.properties file in Deploy directory of the installation package

• Xmx defines the maximum size of the JVM heap
• Xms sets the initial size of the JVM heap
• Increase Xmx to 1024m, but no more then 50% of total RAM
• Increase Xms to 256m, but not larger then Xmx
Australia

AusLUG2012

Define plug-in preferences
• Edit plugin_customization.ini in Deploy folder to set Eclipse preferences to
ensure they are effective immediately at first startup

Australia

AusLUG2012

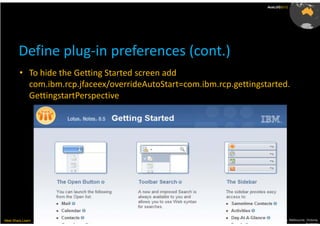

Define plug-in preferences (cont.)
• To hide the Getting Started screen add
com.ibm.rcp.jfaceex/overrideAutoStart=com.ibm.rcp.gettingstarted.
GettingstartPerspective

Australia

AusLUG2012

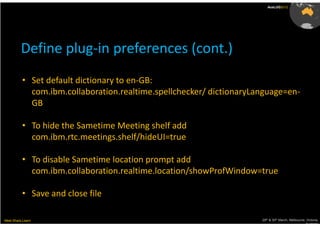

Define plug-in preferences (cont.)
• Set default dictionary to en-GB:
com.ibm.collaboration.realtime.spellchecker/ dictionaryLanguage=en-
GB

• To hide the Sametime Meeting shelf add
com.ibm.rtc.meetings.shelf/hideUI=true

• To disable Sametime location prompt add
com.ibm.collaboration.realtime.location/showProfWindow=true


Australia

AusLUG2012

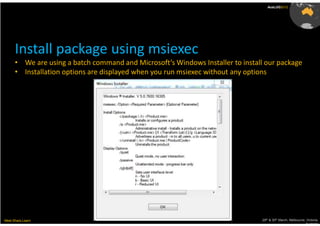

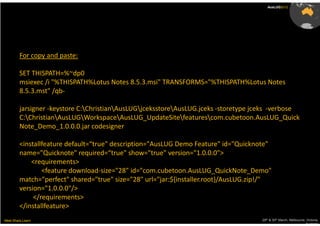

Install package using msiexec
• We are using a batch command and Microsoft’s Windows Installer to install our package
• Installation options are displayed when you run msiexec without any options

Australia

AusLUG2012

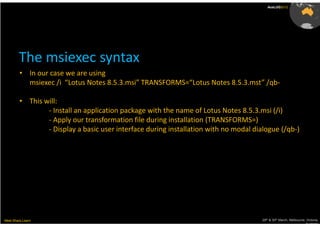

The msiexec syntax
• In our case we are using
msiexec /i “Lotus Notes 8.5.3.msi” TRANSFORMS=“Lotus Notes 8.5.3.mst” /qb-

• This will:
- Install an application package with the name of Lotus Notes 8.5.3.msi (/i)
- Apply our transformation file during installation (TRANSFORMS=)
- Display a basic user interface during installation with no modal dialogue (/qb-)

Australia

AusLUG2012

Create install.bat
• Open you Windows Explorer and browse to your transform directory (LN853Transform)
• Right click at the folder and create a new Text Document

• Rename it to install.bat

• Edit the document

Australia

AusLUG2012

Working with relative paths
• The %~dp0 macro allows use to determine the path of install.bat
• Important for deployment using SmartUpgrade

Australia

AusLUG2012

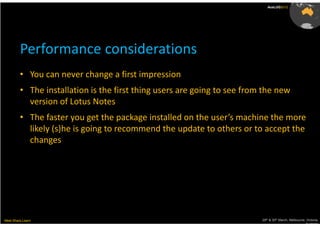

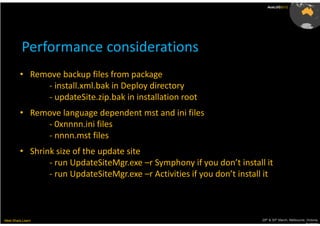

Performance considerations
• You can never change a first impression
• The installation is the first thing users are going to see from the new
version of Lotus Notes
• The faster you get the package installed on the user’s machine the more
likely (s)he is going to recommend the update to others or to accept the
changes

Australia

AusLUG2012

Performance considerations
• Remove backup files from package
- install.xml.bak in Deploy directory
- updateSite.zip.bak in installation root
• Remove language dependent mst and ini files
- 0xnnnn.ini files
- nnnn.mst files
• Shrink size of the update site
- run UpdateSiteMgr.exe –r Symphony if you don’t install it
- run UpdateSiteMgr.exe –r Activities if you don’t install it

Australia

AusLUG2012

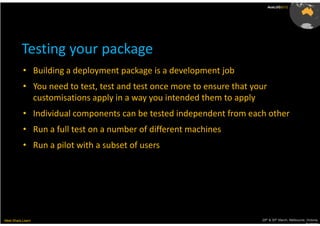

Testing your package
• Building a deployment package is a development job
• You need to test, test and test once more to ensure that your
customisations apply in a way you intended them to apply
• Individual components can be tested independent from each other
• Run a full test on a number of different machines
• Run a pilot with a subset of users

Australia

AusLUG2012

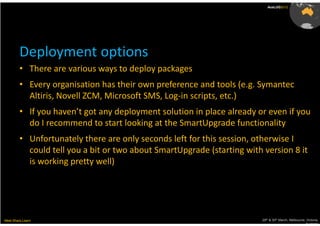

Deployment options
• There are various ways to deploy packages
• Every organisation has their own preference and tools (e.g. Symantec
Altiris, Novell ZCM, Microsoft SMS, Log-in scripts, etc.)
• If you haven’t got any deployment solution in place already or even if you
do I recommend to start looking at the SmartUpgrade functionality
• Unfortunately there are only seconds left for this session, otherwise I
could tell you a bit or two about SmartUpgrade (starting with version 8 it
is working pretty well)

Australia

AusLUG2012

Reference links:
• Windows Installer reference
http://msdn.microsoft.com/en-
us/library/windows/desktop/aa372860%28v=vs.85%29.aspx
• Puttin’ on the Bits Blog, The Lotus Notes Client Install and Setup team blog
http://www-10.lotus.com/ldd/installblog.nsf
• The New Domino Admin (Marc Champoux), My first source of information when I started
to customise Notes installation packages
http://www.thenewdominoadmin.com/blog/?tag=install-shield-tuner
• Andy Donaldson’s installation instruction, which apparently inspired Marc (TNDA) in first
instance
http://blog.macian.net
• Customizing the Notes install kit documentation
http://publib.boulder.ibm.com/infocenter/domhelp/v8r0/index.jsp?topic=%2Fcom.ibm.h
elp.domino.admin85.doc%2FH_CUSTOMIZING_NOTES_8_INSTALL_FOR_ISV_OR_THIRD_
PARTY_ECLIPSE_FEATURES_9460_OVER.html
Meet.Share.Learn th th
29 & 30 March, Melbourne, Victoria,
Australia

AusLUG2012

Questions ?

Australia

AusLUG2012

Thank you for listening!

Contact me at
Email: info@cubetoon.com
Web: www.cubetoon.com
Twitter: cubetoon
Linkedin: nz.linkedin.com/in/cubetoon

Australia

AusLUG2012

For copy and paste:

SET THISPATH=%~dp0
msiexec /i "%THISPATH%Lotus Notes 8.5.3.msi" TRANSFORMS="%THISPATH%Lotus Notes
8.5.3.mst" /qb-

jarsigner -keystore C:ChristianAusLUGjceksstoreAusLUG.jceks -storetype jceks -verbose
C:ChristianAusLUGWorkspaceAusLUG_UpdateSitefeaturescom.cubetoon.AusLUG_Quick
Note_Demo_1.0.0.0.jar codesigner

<installfeature default=“true" description="AusLUG Demo Feature" id="Quicknote"
name="Quicknote" required=“true" show="true" version="1.0.0.0">
<requirements>
<feature download-size="28" id="com.cubetoon.AusLUG_QuickNote_Demo"
match="perfect" shared="true" size="28" url="jar:${installer.root}/AusLUG.zip!/"
version="1.0.0.0"/>
</requirements>
</installfeature>
Australia

Streamline client deployments with customised installation packages

More Related Content

What's hot

Viewers also liked

Similar to Streamline client deployments with customised installation packages

Recently uploaded

Streamline client deployments with customised installation packages
