1. Hai Lu
Software Engineer @ Stream Infra
Stream Processing in Python with
Apache Samza & Beam

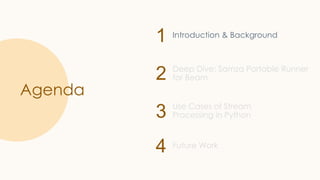

2. 1
2
3
4
Agenda
Introduction & Background
Deep Dive: Samza Portable Runner
for Beam
Use Cases of Stream
Processing in Python
Future Work

3. Motivation
Make Stream Processing accessible
beyond Java!
• Support machine learning use cases where
Python is dominant.
• Many projects at LinkedIn are built in Python
without full-fledged stream processing support
• Potentially support languages beyond Java
and Python in the future. For example, Go.

4. Background
Apache Samza
•Apache Samza is a distributed stream
processing framework for building
stateful applications that process
data at scale in real-time.
Apache Beam
• Apache Beam is an advanced
unified programming model designed
to provide efficient and portable
data processing pipelines.

5. Background: Samza & Beam Integration
Streaming Engine
• State-of-the-art data processing API &
model. e.g. event time support
• Portability framework to support
multiple languages
• Libraries for ML use cases
Streaming API & Model
• Large-scale distributed stream
processing; Battle tested at LinkedIn
scale
• Scalable and durable local state
• Fault-tolerance and fast recovery

6. 1
2
3
4
Agenda
Introduction & Background
Deep Dive: Samza Portable Runner
for Beam
Use Cases of Stream
Processing in Python
Future Work

7. Beam Portability Framework: High-level
Python SDK
Beam
Pipeline
Samza
Runner
Java SDK Go SDK
Beam Portability Framework
• Users develop streaming application
with Beam SDKs
• Applications get translated into
language independent Beam
pipeline (protobuf)
• Pipelines get executed in the Samza
runner

8. Beam Pipeline to Samza: Runtime
Beam
Pipeline
Job
Server
A Tale of Two Languages
Python Process
Samza
Tasks
SDK
worker
gRPC
(Fn API)
gRPC
(Job API)
Translate to Samza
High Level APIs
(Runner API)
Java Process
• Pipeline submitted to job server and
translated into Samza High Level APIs
• Each Samza container starts two
processes - one Java, one Python
• Python worker executes UDFs (user
defined functions)
• Samza in Java handles everything
else (IO, state, shuffle, join, etc.)

9. Beam Pipeline to Samza: Runtime
Beam
Pipeline
Job
Server
A Tale of Two Languages
Python Process
Samza
Tasks
SDK
worker
gRPC
(Fn API)
gRPC
(Job API)
Translate to Samza
High Level APIs
(Runner API)
Java Process
• Job API: Job submission and pipeline
management
• Runner API: Representation of a
beam pipeline and how the pipeline
should be executed in a runner
• Fn API: Execution control and data
transfer between runner and SDK
harness. Including data channels,
state channels, control channels, etc.

10. Samza DAG
Beam Pipeline to Samza: Translation
IO.Read
ParDo
Window.Into
GroupByKey
/Combine
SystemConsumer/SystemProducer
- Consume events and generate watermarks
DoFnOp:
- ExecutableStageDoFnRunner
- Inject Samza watermark, state and timers
WindowAssignOp
- Invoke window assignment function
GroupByKeyOp:
- GroupAlsoByWindowViaWindowSetNewDoFn
- Samza merge, partitionBy, watermark, state and
timers

11. Kafka IO in Samza Python
• From the Python side, users see Python only
pipeline = Pipeline(options=get_pipeline_option())
(pipeline
| ‘read’ >> ReadFromKafka(cluster=“SrcCluster”, topic=“InputTopic”)
| ‘transform’ >> beam.Map(lambda event: process_event(event))
| ‘window’ >> beam.WindowInto(FixedWindows(15))
| ‘count’ >> beam.CombinePerKey(CountCombineFn())
| ‘write’ >> WriteToKafka(cluster=“DstCluster”, topic=“OutputTopic”))
pipeline.run().wait_until_finish()
Java
Java
Python

12. Kafka IO in Samza Python
• Under the hood, the “ReadFromKafka” is
translated into a protobuf transform and
passed to Samza runner on the Java
side.
• Here, topic name, cluster name, and
configs are enough information for Java
side to construct the Kafka consumers
syntax = “proto3”
package com.linkedin.beam.proto;
message KafkaTransformPayload
{
string topicName = 1;
string systemName = 2;
repeated ConfigPair configs = 3;
}
message ConfigPair
{
string key = 1;
string value = 2;
}

13. Beam Pipeline to
Samza: Translation
For portable pipelines, translate
IOs to Java Read/Write.
Pros:
• Convergence on using the same IO clients
(e.g. Kafka clients)
• Leverage existing Java components
• More efficient to do IOs on Java side
Cons:
• not leveraging the Beam IO from open
source

14. Beam Pipeline to
Samza: Translation
Samza Table API: extension of IO
• Local table (RocksDb)
• Remote table (e.g. Couchbase, other KV store)
• Easy stream-table join support
• Out-of-box support for rate limiting, caching,
etc.

15. Stream-Table Join in Samza Python
(K1, V1)
Kafka Input
StreamTableJoinOp
(K1, Entry 1)
(K2, Entry 2)
...
Remote/Local
Table
(K1, [V1, Entry1])
PTransform Output
• Table read is provided as stream-table join.
• Useful for enriching the events to be processed

16. Table API in Samza Python
• Similar to Kafka IO, tables are also translated to be executed on the Java side
• Consistent APIs across Python and Java
pipeline = Pipeline(options=get_pipeline_option())
(pipeline
| ‘read’ >> ReadFromKafka(cluster=“SrcCluster”, topic=“InputTopic”)
| ‘join’ >> JoinWithCouchbase(bucket=“SampleTable”)
| ‘transform’ >> beam.Map(lambda event: process_event(event))
| ‘write’ >> WriteToKafka(cluster=“DstCluster”, topic=“OutputTopic”))
pipeline.run().wait_until_finish()

17. Samza Deployment: Standalone Cluster
(p0, p2)
(p1, p3)
(p4, p5)
(p6, p7)
ZooKeeper
• Start Samza Java from a Python
process. Python process manages
lifecycles
• Using Samza as a library
• Coordination (leader election,
partition assignment) done by
ZooKeeper
Samza Processors
(Java)
SDK workers
(Python)
Create
Submit Job

18. Samza Deployment: YARN Cluster
Samza
Container
Samza
Container
Samza
Container
Application
Master
YARN Cluster
• Using YARN for resource
management
• Isolation, multi-tenancy,
fault-tolerance
• Work in progress to support YARN
mode in Samza Python

19. Samza Python
Performance
Deploying Samza Python to test
performance...
• Initial result: ~85QPS per container
• With saturated single core CPU usage

20. Performance: without bundling
• Single message round trip drags down
the performance due to overhead of
handling each gRPC message on the
Python side
Python Java
Input event
Processed event

21. • Single message round trip drags down
the performance
• Bundling (batching) is the key to
improve throughputPython Java
Input event
Processed event
...
...
...
...
...
...
Performance: with bundling

22. Samza Runloop (Java)
Performance: Samza Runloop
• Events are buffered/bundled for up to
N messages or up to T seconds before
sending to Python
• Buffer is backed by local state
(RocksDb) for persistence and will be
evicted at the end of bundle
Python...
Input events
Buffered events

23. Performance Benchmark
bundle size QPS (k)
1 0.085
5 0.34
20 1.1
50 1.7
100 2.3
200 2.9
500 3.7
3000 4.1
5000 5.6
10000 7.8
50000 8.3

24. 1
2
3
4
Agenda
Introduction & Background
Deep Dive: Samza Portable Runner
for Beam
Use Cases of Stream
Processing in Python
Future Work

25. Near real time Image OCR with Kafka IO
Image data
in Kafka
Python OCR*
Tensorflow
model
(portable)
Internal
service
(image url)
Download images
from url
Load into
memory
(image url, text)
OCR*: Optical Character
Recognition.
Kafka

26. Near real time Model Training with Samza Python
Feature data
in Kafka
Window GroupByKey
Training
algorithm
Coefficients
Store
Offline Training
Read coefficients
Update
coefficients
Push (less frequent)
HDFS
ETL

27. Near real time activity analysis/monitoring
Activity logs
in Kafka
Fixed
window
Count.perKey
(combine)
Process
Extract key
&
timestamp
Monitoring/Alerting
System
Capture (abnormal) activities and send to monitoring/alerting system

28. 1
2
3
4
Agenda
Introduction & Background
Deep Dive: Samza Portable Runner
for Beam
Use Cases of Stream
Processing in Python
Future Work

29. Future
Samza Portable Runner
● YARN support
● Jupyter Notebook support
● Open source
● Stateful ParDo
● Timer in ParDo

30. Thank you
We’re hiring!
