This document discusses how Stencil can help solve problems with creating custom web components. Stencil is a compiler that generates standard-compliant web components from components written with features like JSX and TypeScript. It addresses issues like verbose syntax and lack of framework features by generating code that includes capabilities like virtual DOM and reactivity. Stencil works at build time so generated components can be used by any framework and are suitable for building reusable infrastructure components.

1. Stencil: The Time for Vanilla
Web Components has Arrived
Gil Fink
sparXys CEO, Working with Taboola
@gilfink / www.gilfink.net

2. Typical Application Web Page Design

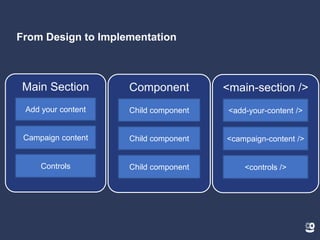

3. From Design to Implementation
Main Section
Add your content
Campaign content
Controls
Component
Child component
Child component
Child component
<main-section />
<add-your-content />
<campaign-content />
<controls />

4. How would you build that
page?

5. Do we really need all these
frameworks/libraries?

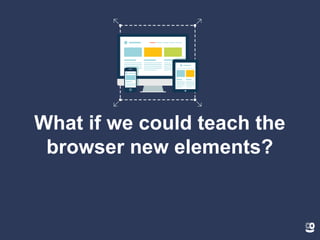

6. What if we could teach the
browser new elements?

7. This is where our journey
begins

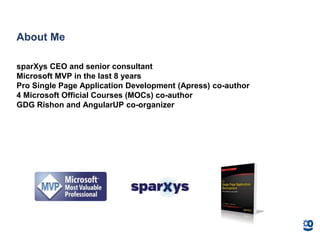

8. About Me
sparXys CEO and senior consultant
Microsoft MVP in the last 8 years
Pro Single Page Application Development (Apress) co-author
4 Microsoft Official Courses (MOCs) co-author
GDG Rishon and AngularUP co-organizer

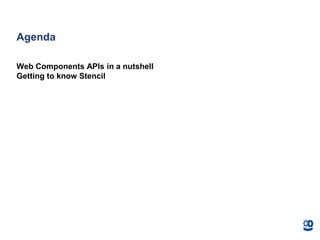

9. Agenda
Web Components APIs in a nutshell
Getting to know Stencil

10. Web Components to the Rescue
Natively-supported, standardized JavaScript components
Some general goals:
Code Reuse Encapsulation
Separation of
Concerns
Composition Theming Expressive Semantic

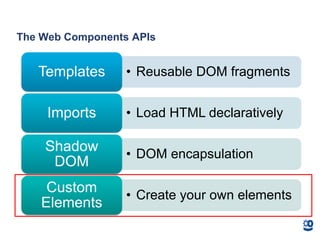

11. The Web Components APIs
• Reusable DOM fragmentsTemplates
• Load HTML declarativelyImports
• DOM encapsulation
Shadow
DOM
• Create your own elements
Custom
Elements

12. Custom Element Example – Template
<template id="collapsibleTmpl">
<style>
#header {
background: blue;
color: white;
cursor: pointer;
padding: 2px;
}
</style>
<div style="border: black dashed 1px">
<div id="header"></div>
<slot name="slot-content"></slot>
</div>
</template>

13. Custom Element Example – Component
class CollapsiblePanel extends HTMLElement {
constructor() {
super();
this.init();
}
init() {
let shadowRoot = this.attachShadow({mode: 'open'});
const t = thisDoc.querySelector('#collapsibleTmpl');
const instance = t.content.cloneNode(true);
this.header = instance.querySelector('#header');
shadowRoot.appendChild(instance);
this.show = true;
this.boundCollapse = this.collapse.bind(this);
}
….

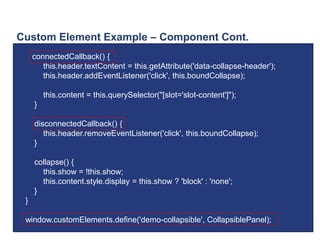

14. Custom Element Example – Component Cont.
connectedCallback() {
this.header.textContent = this.getAttribute('data-collapse-header');
this.header.addEventListener('click', this.boundCollapse);
this.content = this.querySelector("[slot='slot-content']");
}
disconnectedCallback() {
this.header.removeEventListener('click', this.boundCollapse);
}
collapse() {
this.show = !this.show;
this.content.style.display = this.show ? 'block' : 'none';
}
}
window.customElements.define('demo-collapsible', CollapsiblePanel);

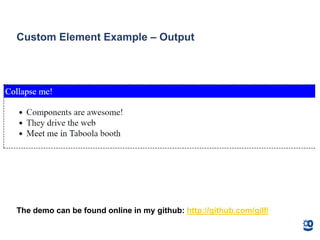

15. Custom Element Example – Output
The demo can be found online in my github: http://github.com/gilf/

16. A Problem with Web Development Today
Catholic wedding with frameworks/libraries
• Infrastructure is based on a
framework/library
• Infrastructure isn’t reusable if other
company projects use another
framework/library

17. Problem with Web Development Today – Cont.
Custom Elements can remove the barrier of framework/library coupling
• Can be used by any framework/library
• Encapsulate their functionality and style
• Suitable to component infrastructure development

18. But there are problems with
custom components

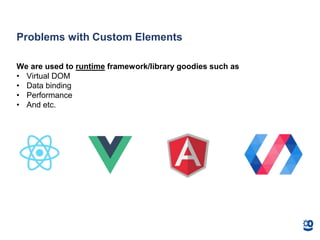

19. Problems with Custom Elements
We are used to runtime framework/library goodies such as
• Virtual DOM
• Data binding
• Performance
• And etc.

20. Problems with Custom Elements – Cont.
Verbose syntax
• Too much boilerplate
• We need to craft everything

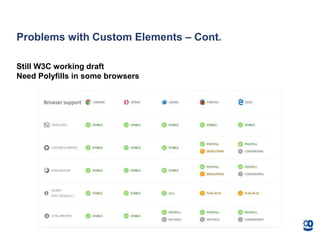

21. Problems with Custom Elements – Cont.
Still W3C working draft
Need Polyfills in some browsers

22. Is there a better way?

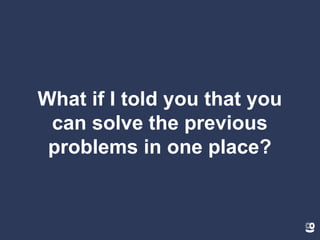

23. What if I told you that you
can solve the previous
problems in one place?

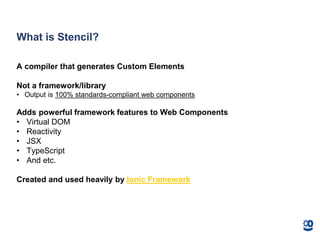

25. What is Stencil?
A compiler that generates Custom Elements
Not a framework/library
• Output is 100% standards-compliant web components
Adds powerful framework features to Web Components
• Virtual DOM
• Reactivity
• JSX
• TypeScript
• And etc.
Created and used heavily by Ionic Framework

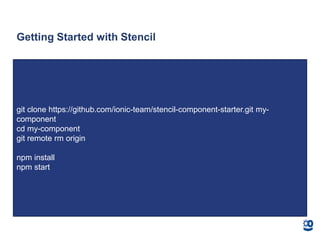

26. Getting Started with Stencil
git clone https://github.com/ionic-team/stencil-component-starter.git my-
component
cd my-component
git remote rm origin
npm install
npm start

27. Stencil Component Example
import { Component, Prop } from '@stencil/core';
@Component({
tag: 'my-name',
styleUrl: 'my-name.scss'
})
export class MyName {
@Prop() name: string;
render() {
return (
<p>
Hello, my name is {this.name}
</p>
);
}
}

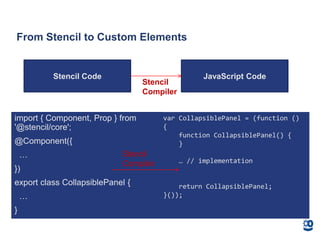

28. From Stencil to Custom Elements
import { Component, Prop } from
'@stencil/core';
@Component({
…
})
export class CollapsiblePanel {
…
}
Stencil Code JavaScript Code
Stencil
Compiler
var CollapsiblePanel = (function ()
{
function CollapsiblePanel() {
}
… // implementation
return CollapsiblePanel;
}());
Stencil
Compiler

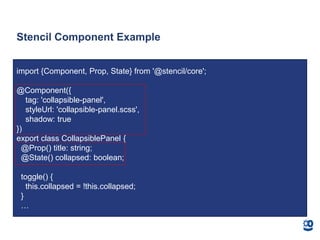

30. Stencil Component Example
import {Component, Prop, State} from '@stencil/core';
@Component({
tag: 'collapsible-panel',
styleUrl: 'collapsible-panel.scss',
shadow: true
})
export class CollapsiblePanel {
@Prop() title: string;
@State() collapsed: boolean;
toggle() {
this.collapsed = !this.collapsed;
}
…

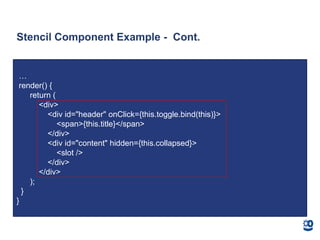

31. Stencil Component Example - Cont.
…
render() {
return (
<div>
<div id="header" onClick={this.toggle.bind(this)}>
<span>{this.title}</span>
</div>
<div id="content" hidden={this.collapsed}>
<slot />
</div>
</div>
);
}
}

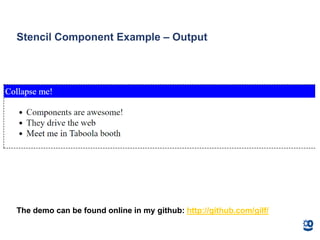

32. Stencil Component Example – Output
The demo can be found online in my github: http://github.com/gilf/

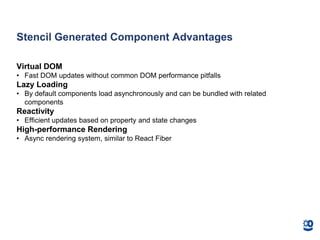

33. Stencil Generated Component Advantages
Virtual DOM
• Fast DOM updates without common DOM performance pitfalls
Lazy Loading
• By default components load asynchronously and can be bundled with related
components
Reactivity
• Efficient updates based on property and state changes
High-performance Rendering
• Async rendering system, similar to React Fiber

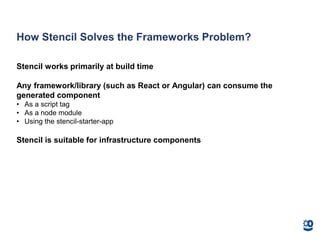

34. How Stencil Solves the Frameworks Problem?
Stencil works primarily at build time
Any framework/library (such as React or Angular) can consume the
generated component
• As a script tag
• As a node module
• Using the stencil-starter-app
Stencil is suitable for infrastructure components

35. Summary
Web Components standard is very powerful
• But still in development
Stencil compiler can ease the pain of creating custom components
• Includes many advantages such as JSX, TypeScript and more
• Generates standard-compliant web components

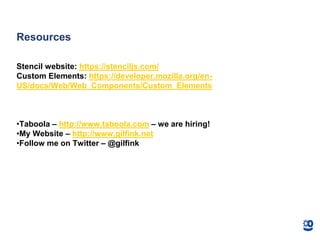

36. Resources
Stencil website: https://stenciljs.com/
Custom Elements: https://developer.mozilla.org/en-
US/docs/Web/Web_Components/Custom_Elements
•Taboola – http://www.taboola.com – we are hiring!
•My Website – http://www.gilfink.net
•Follow me on Twitter – @gilfink

37. #UseThePlatform

38. Thank You!
Ask me questions at Taboola booth ☺
