In the session I explained what is IndexedDB and how to use it to store data that will be available in service workers scenarios

1. Working with Data in
Service Workers

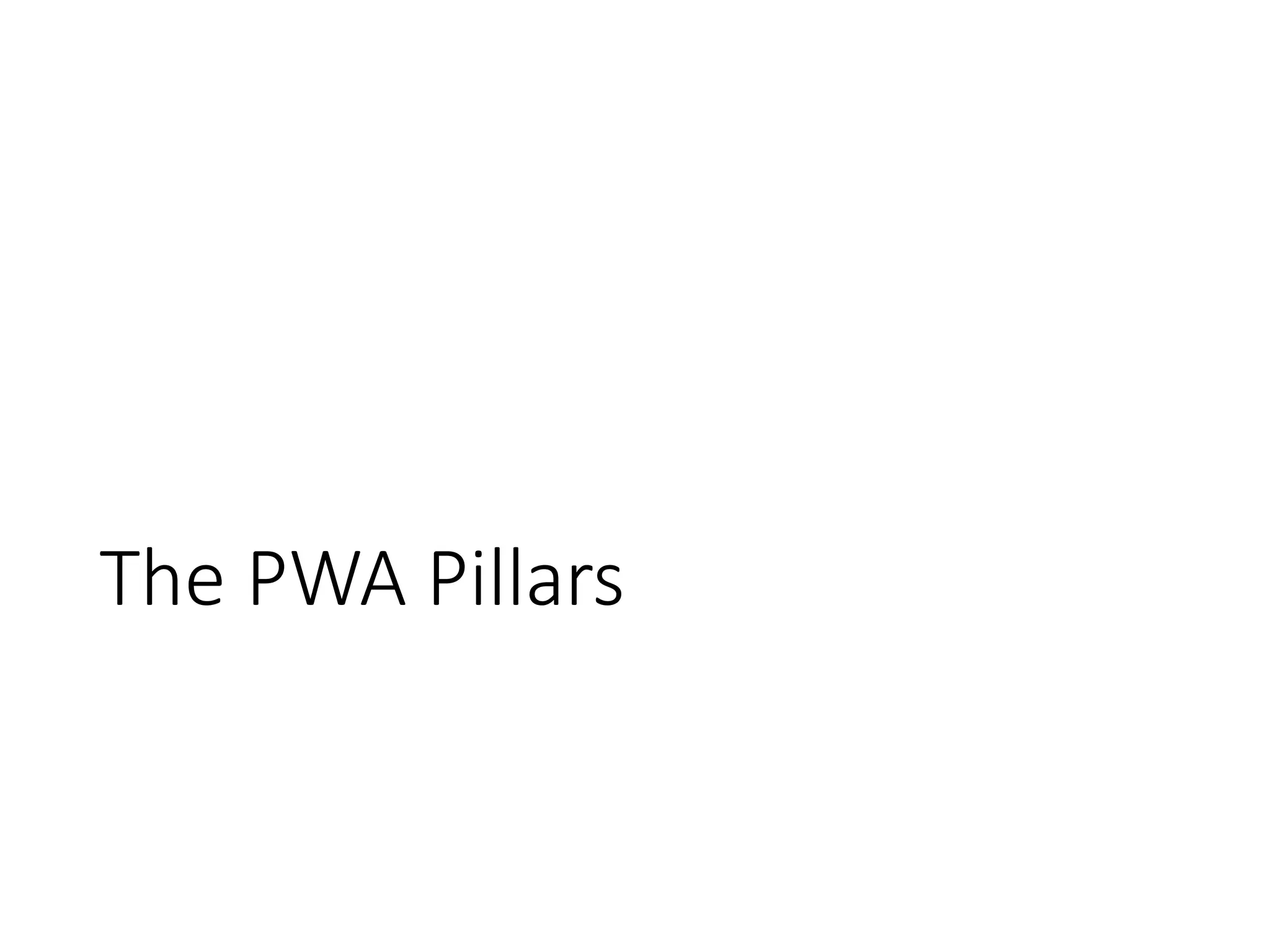

2. The PWA Pillars

3. Performance

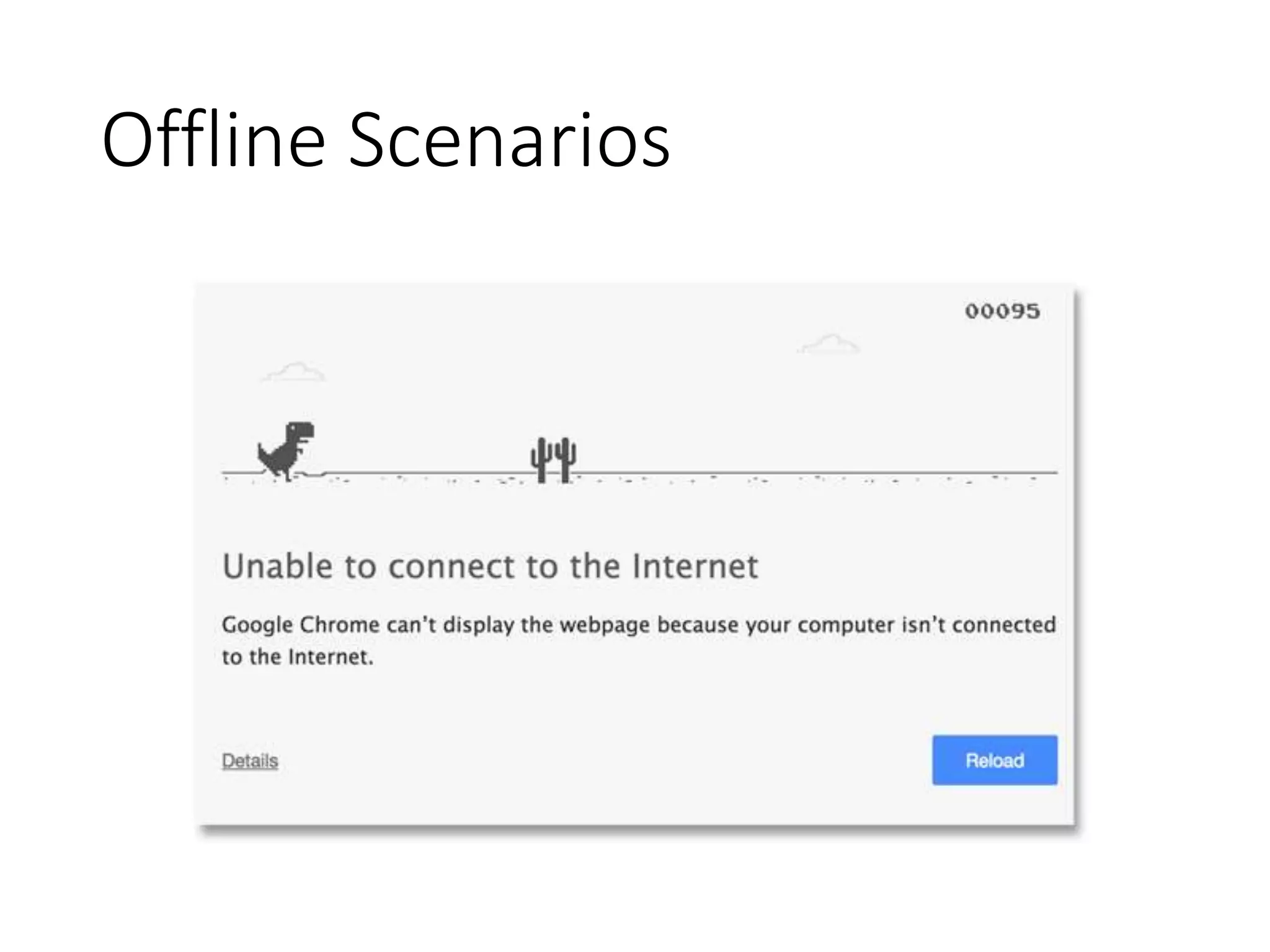

4. Offline Scenarios

5. User Experience

6. Working with Data in
Service Workers

7. About Me
• sparXys CEO and senior consultant
• Microsoft MVP in the last 9 years
• Pro Single Page Application Development (Apress)
co-author
• 4 Microsoft Official Courses (MOCs) co-author
• GDG Rishon and AngularUP co-organizer

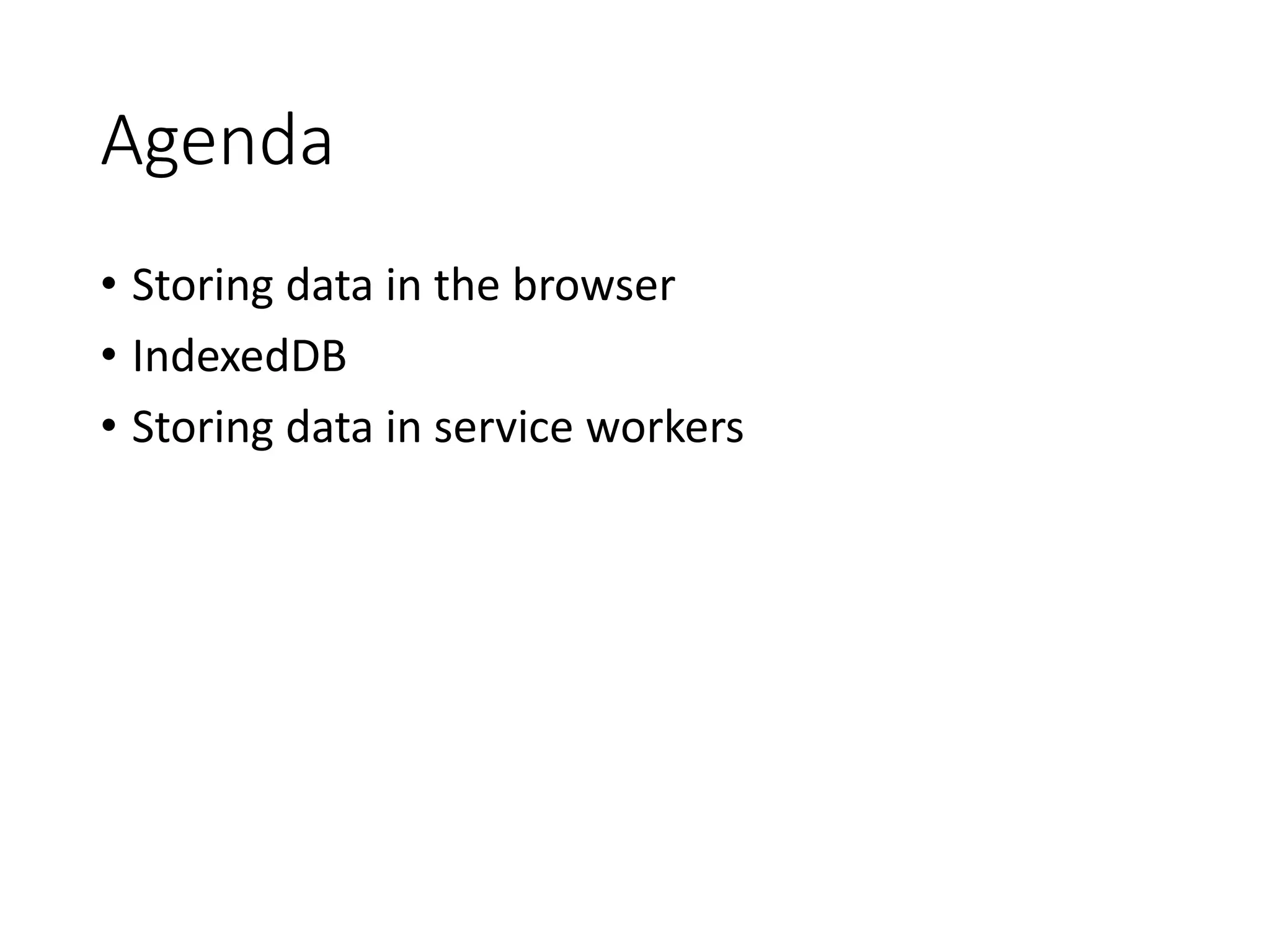

8. Agenda
• Storing data in the browser
• IndexedDB
• Storing data in service workers

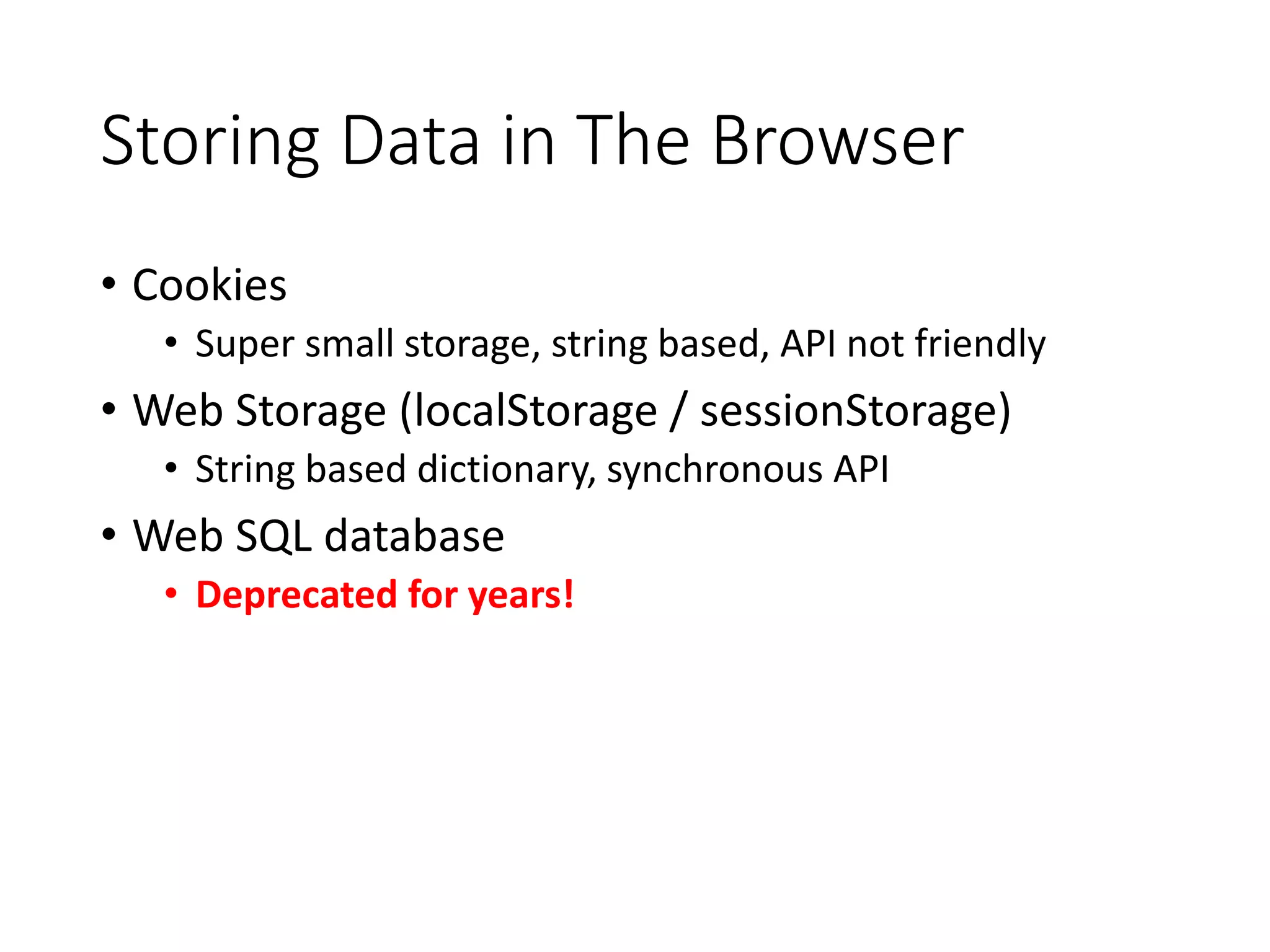

9. Storing Data in The Browser
• Cookies
• Super small storage, string based, API not friendly
• Web Storage (localStorage / sessionStorage)
• String based dictionary, synchronous API
• Web SQL database
• Deprecated for years!

10. Enter IndexedDB

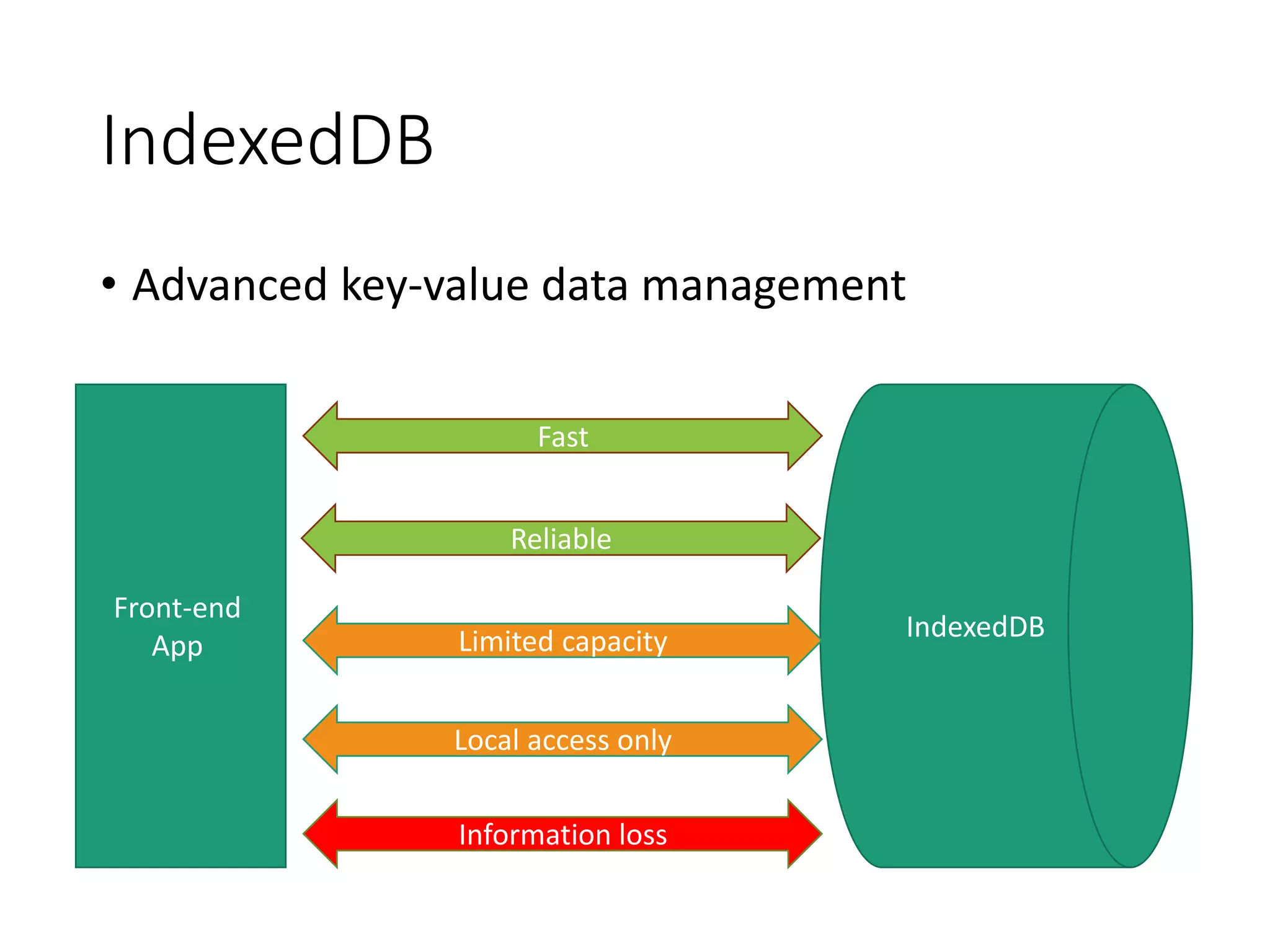

11. IndexedDB
• Advanced key-value data management
IndexedDB
Front-end
App
Fast
Reliable
Limited capacity
Local access only
Information loss

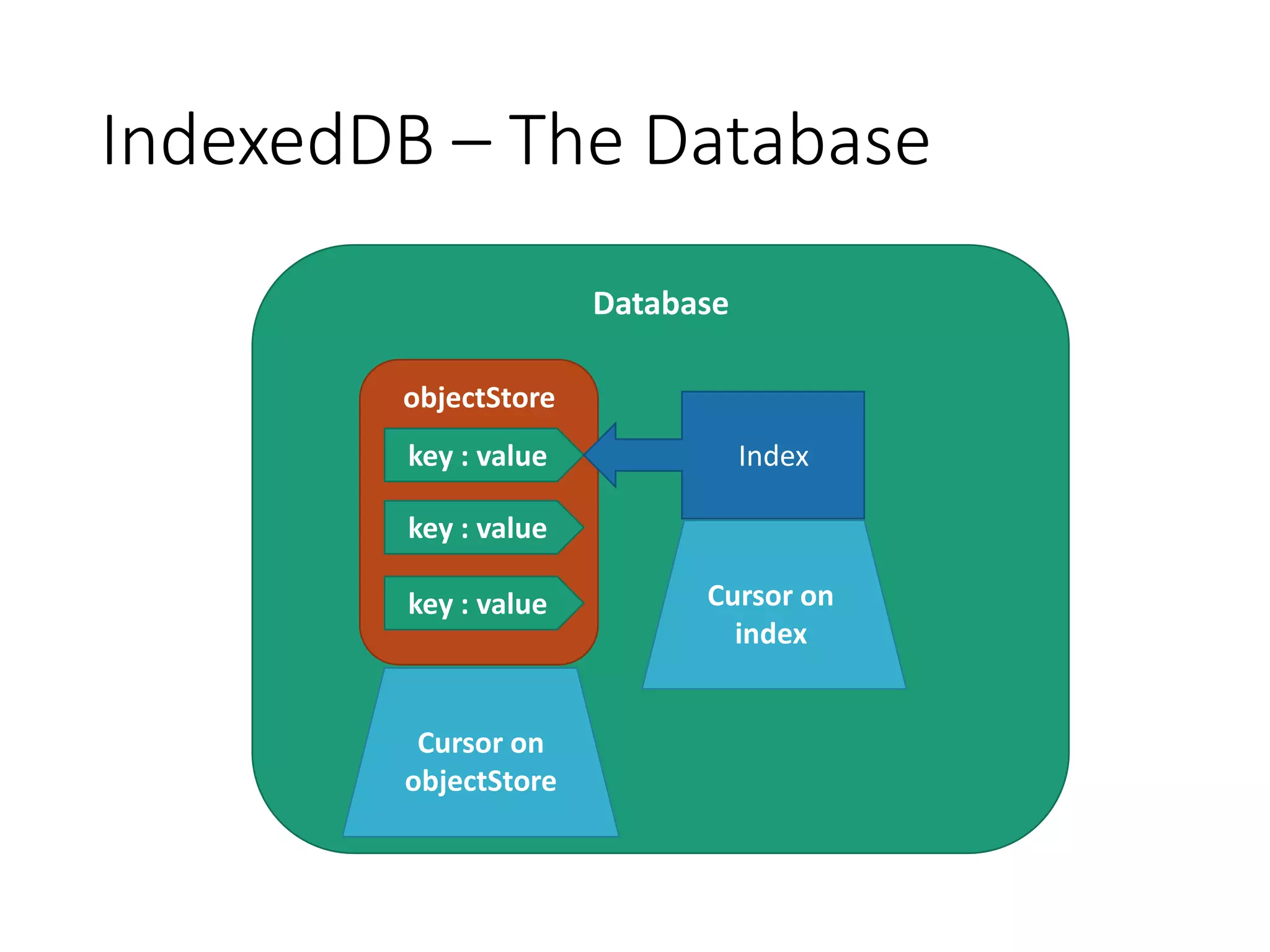

12. IndexedDB – The Database
Database
objectStore
Cursor on
objectStore
key : value
key : value
key : value
Index
Cursor on
index

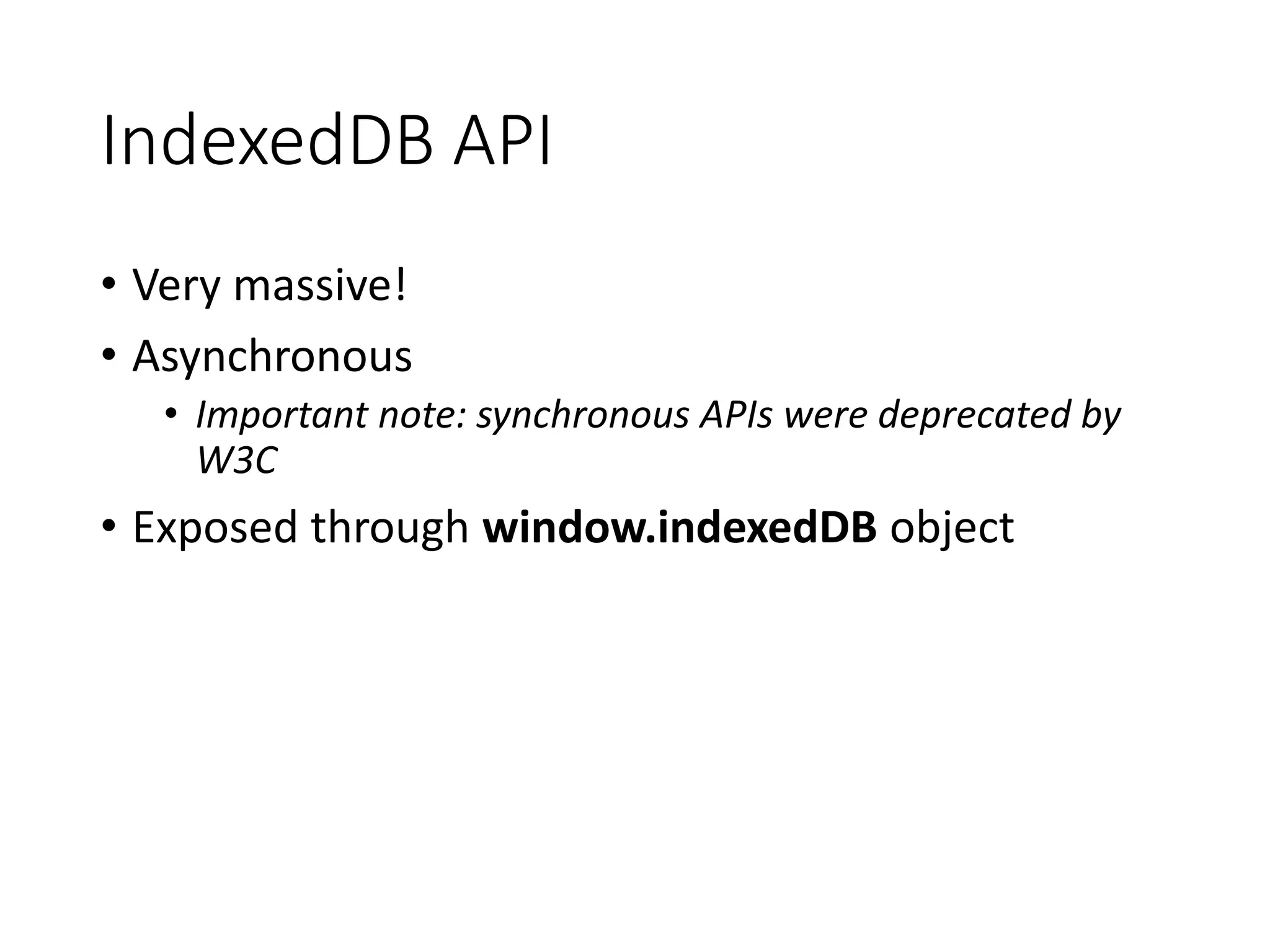

13. IndexedDB API
• Very massive!
• Asynchronous
• Important note: synchronous APIs were deprecated by
W3C
• Exposed through window.indexedDB object

14. DEMO: IndexedDB in
Action

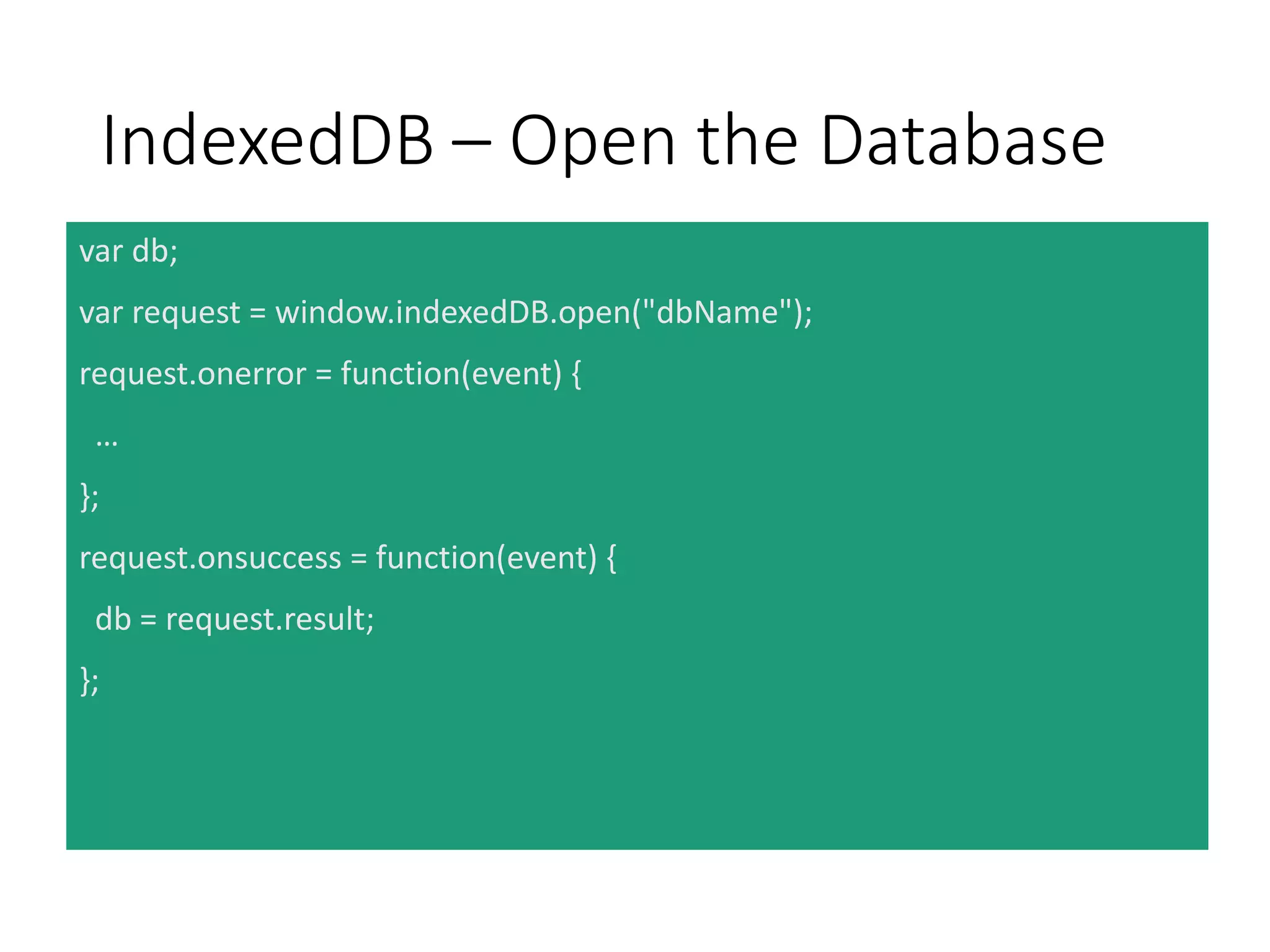

16. IndexedDB – Open the Database
var db;
var request = window.indexedDB.open("dbName");
request.onerror = function(event) {
…
};
request.onsuccess = function(event) {
db = request.result;
};

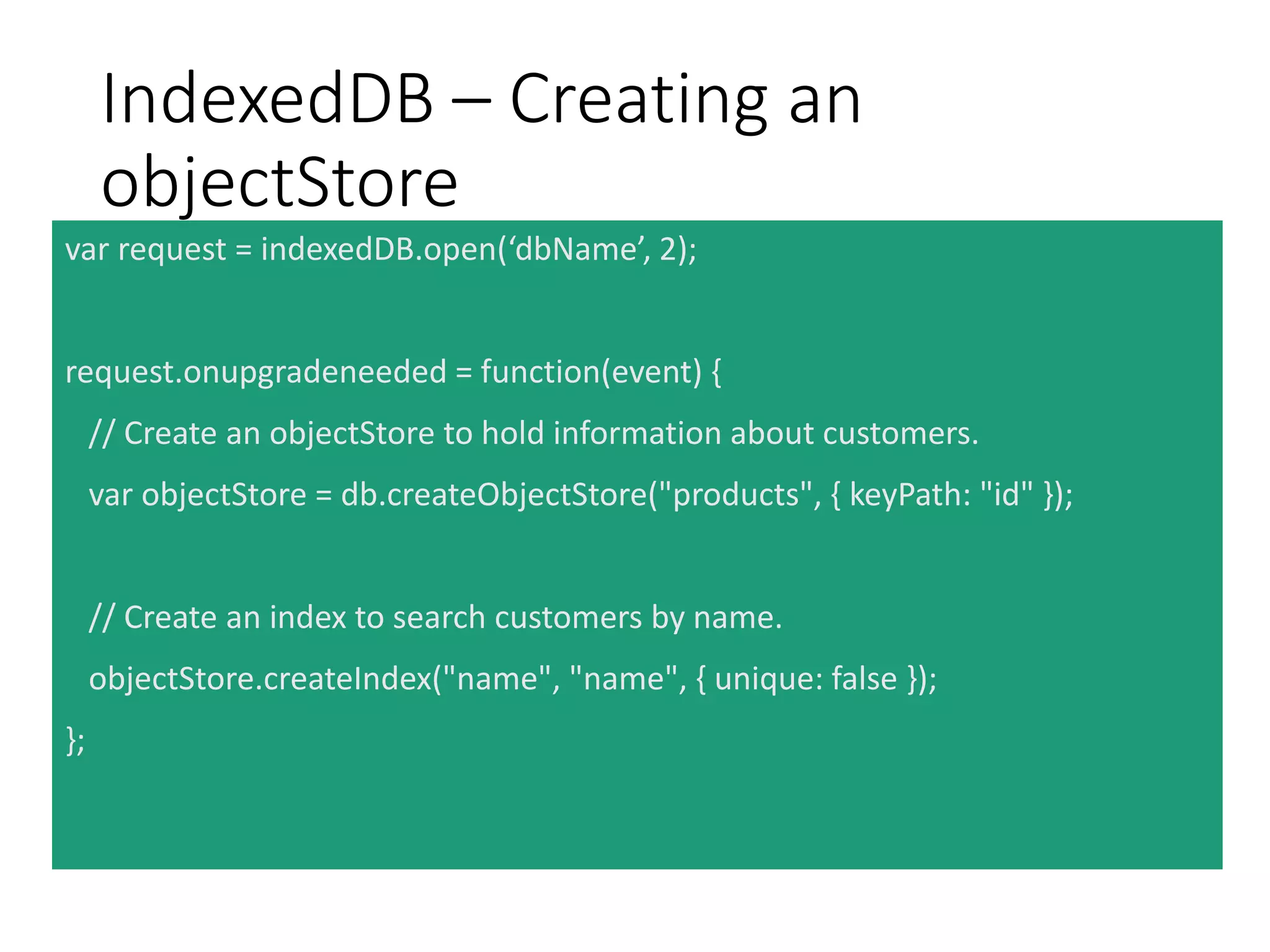

17. IndexedDB – Creating an
objectStore
var request = indexedDB.open(‘dbName’, 2);
request.onupgradeneeded = function(event) {
// Create an objectStore to hold information about customers.
var objectStore = db.createObjectStore("products", { keyPath: "id" });
// Create an index to search customers by name.
objectStore.createIndex("name", "name", { unique: false });
};

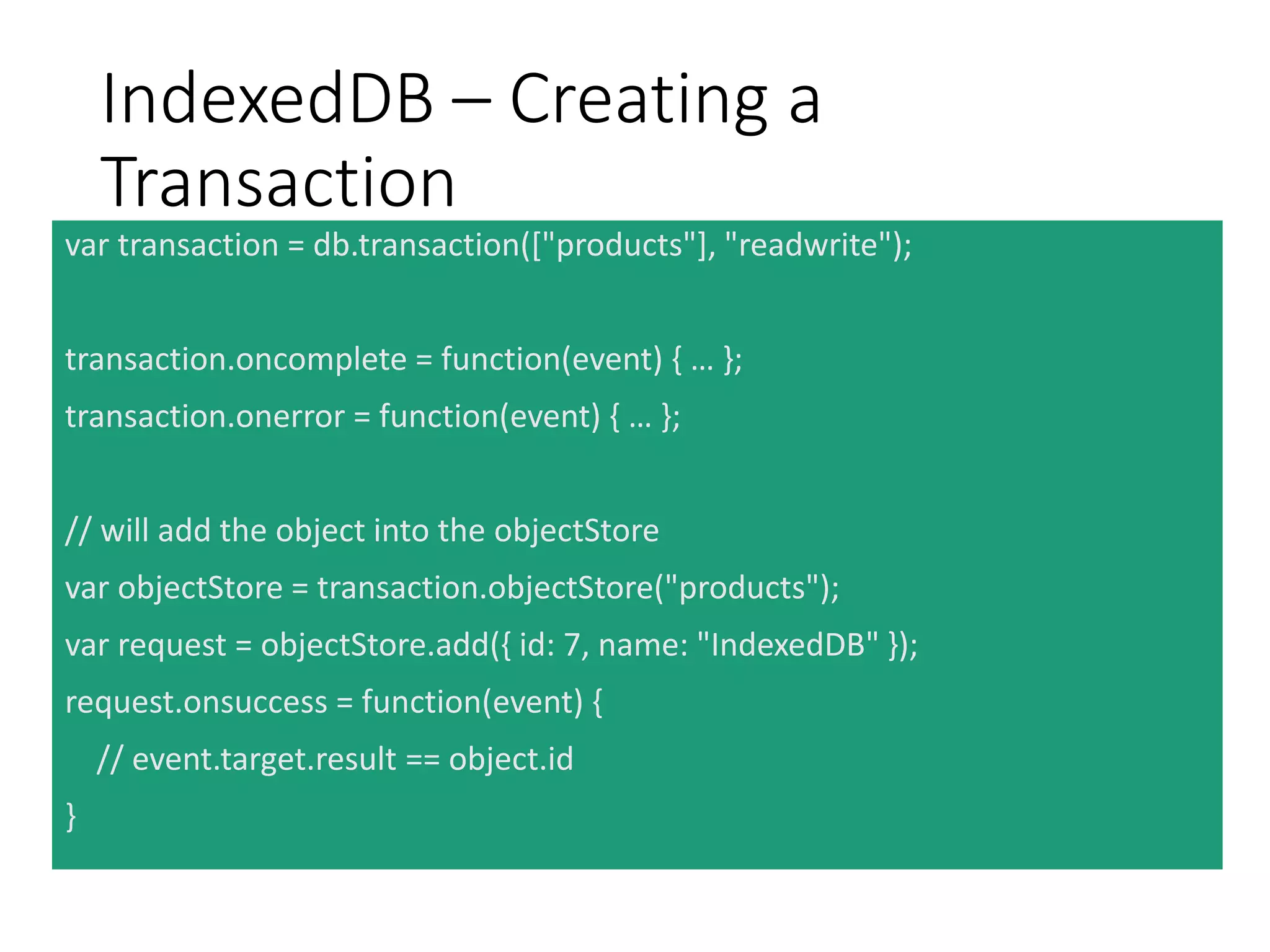

18. IndexedDB – Creating a
Transaction
var transaction = db.transaction(["products"], "readwrite");
transaction.oncomplete = function(event) { … };
transaction.onerror = function(event) { … };
// will add the object into the objectStore
var objectStore = transaction.objectStore("products");
var request = objectStore.add({ id: 7, name: "IndexedDB" });
request.onsuccess = function(event) {
// event.target.result == object.id
}

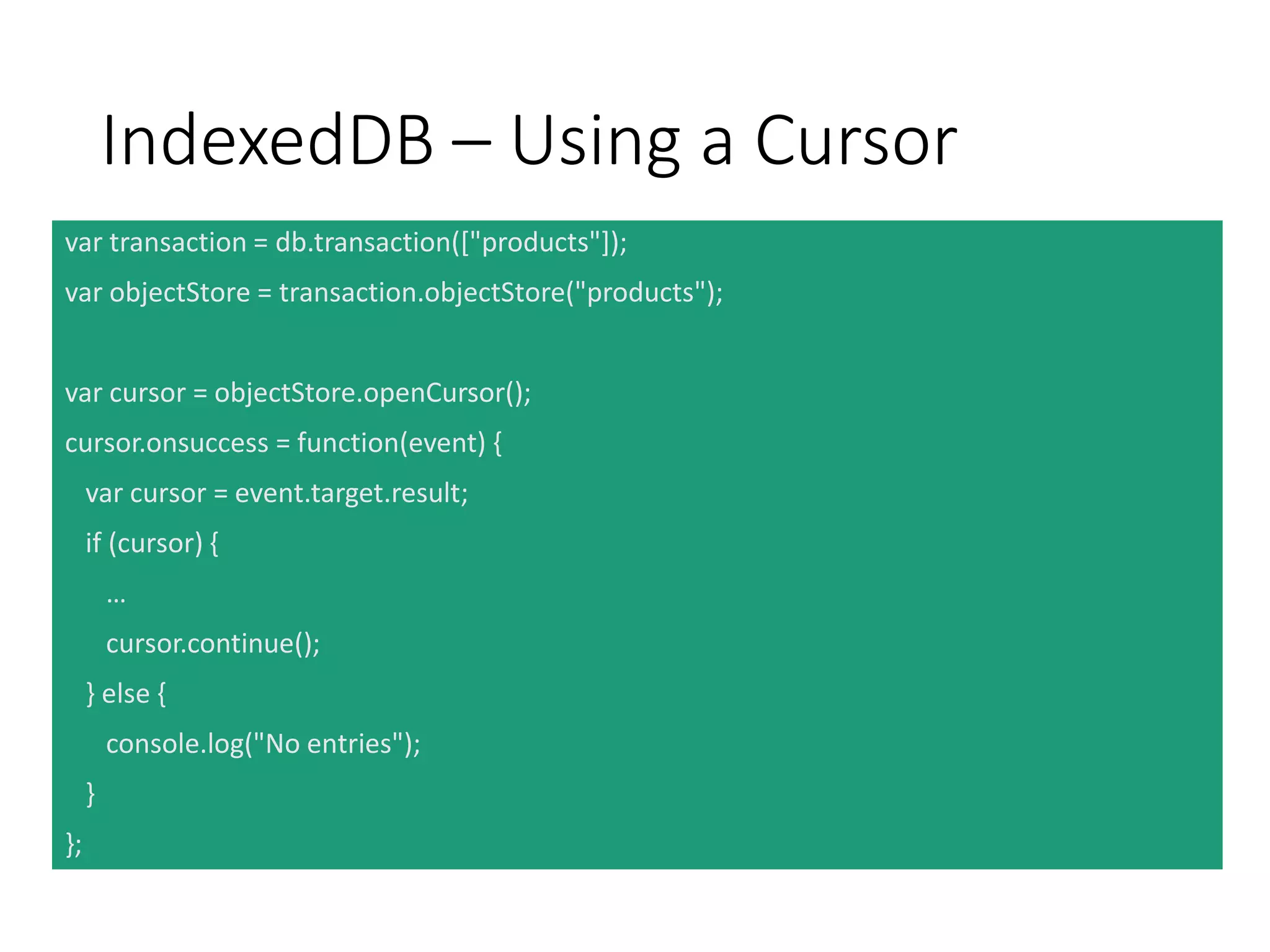

19. IndexedDB – Using a Cursor
var transaction = db.transaction(["products"]);
var objectStore = transaction.objectStore("products");
var cursor = objectStore.openCursor();
cursor.onsuccess = function(event) {
var cursor = event.target.result;
if (cursor) {
…
cursor.continue();
} else {
console.log("No entries");
}
};

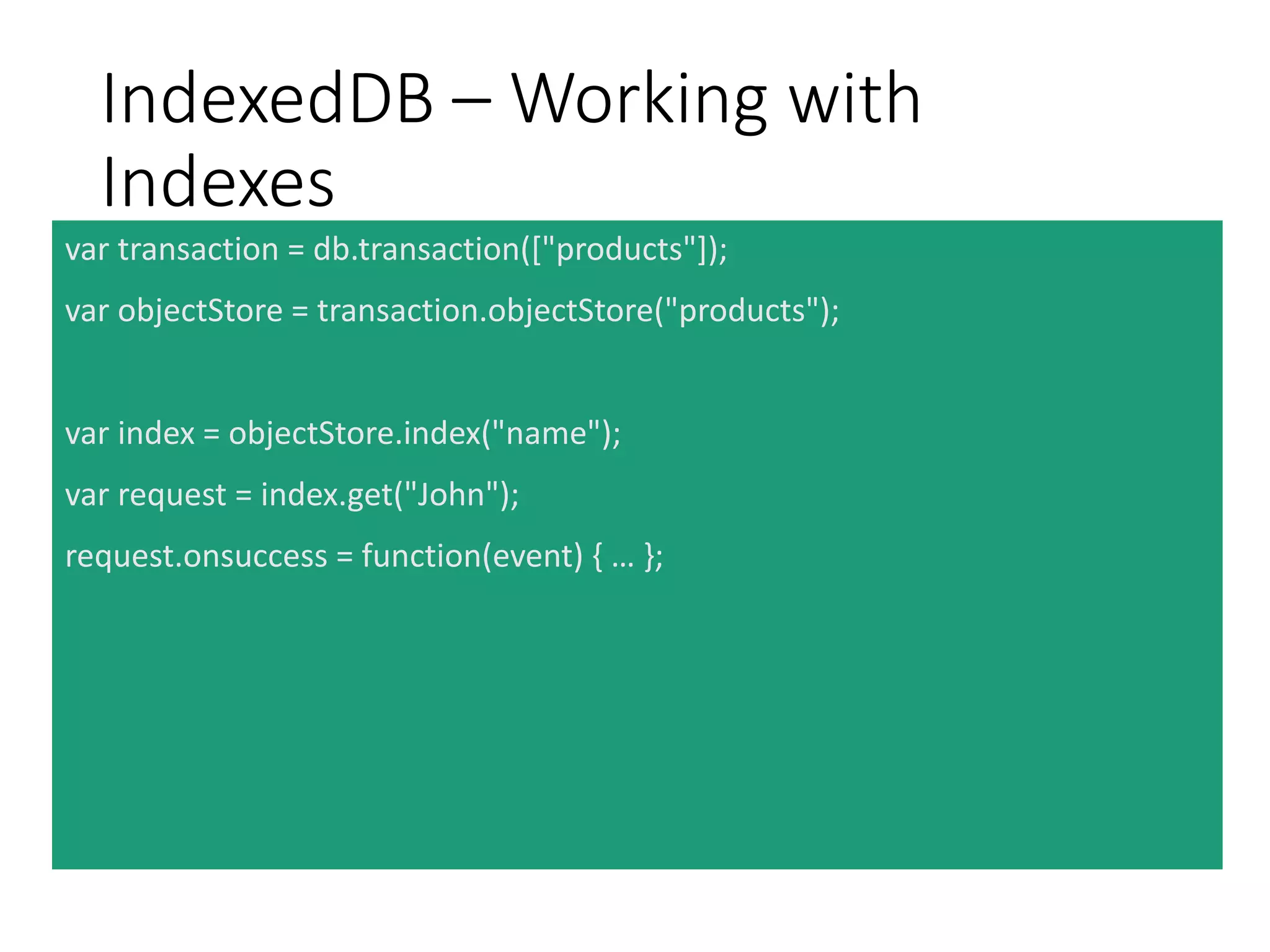

20. IndexedDB – Working with
Indexes
var transaction = db.transaction(["products"]);
var objectStore = transaction.objectStore("products");
var index = objectStore.index("name");
var request = index.get("John");
request.onsuccess = function(event) { … };

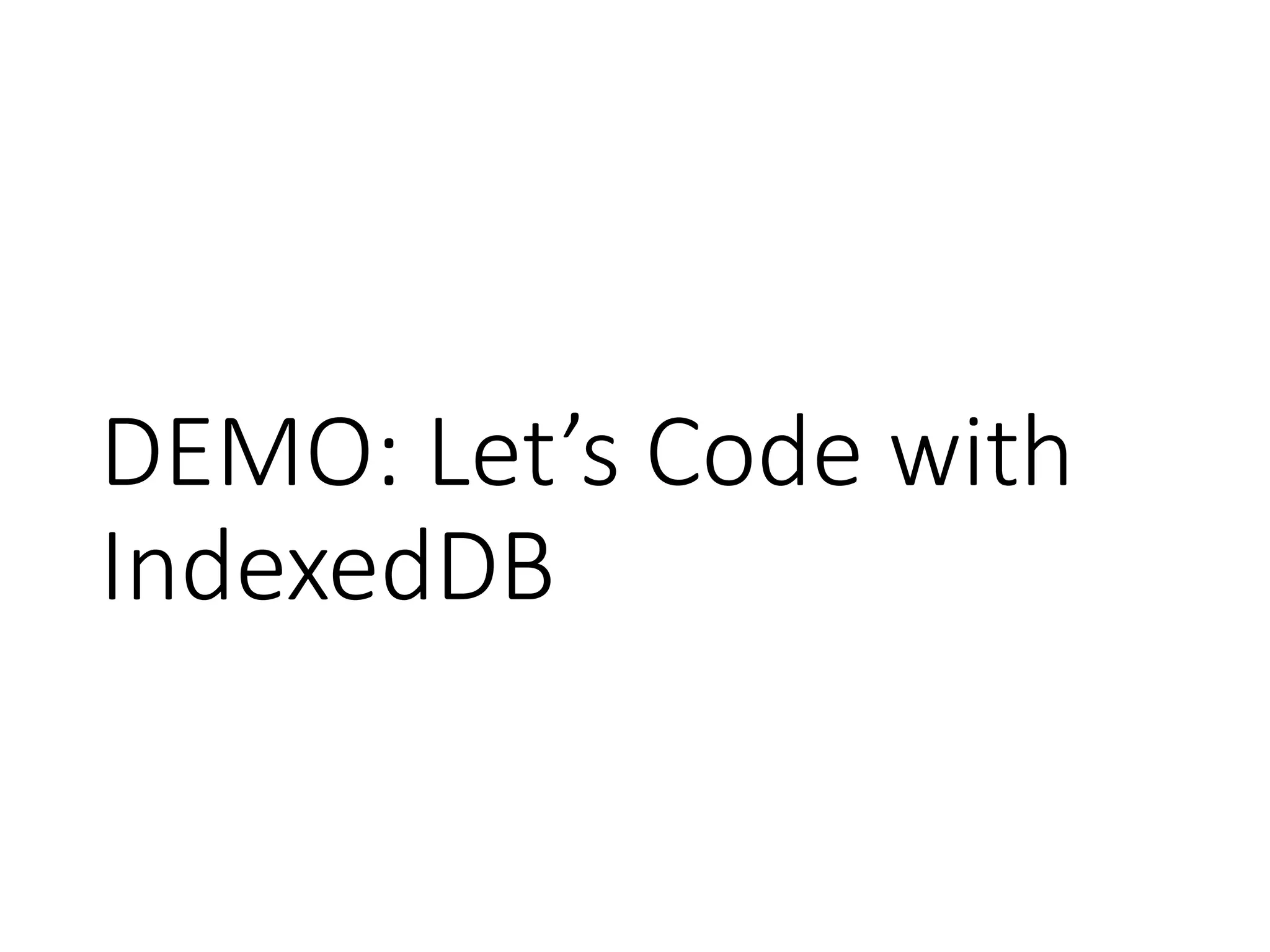

21. DEMO: Let’s Code with
IndexedDB

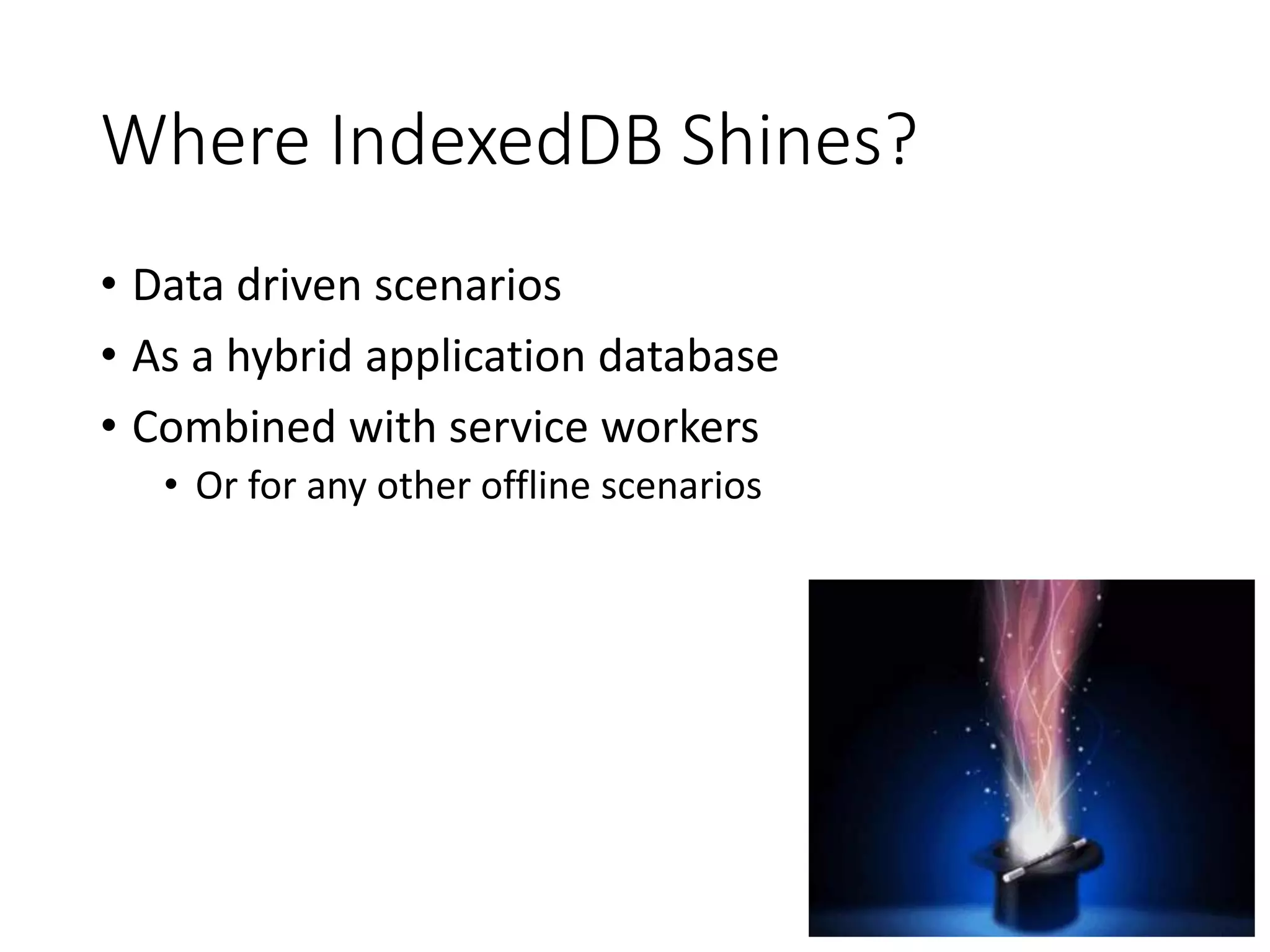

22. Where IndexedDB Shines?
• Data driven scenarios
• As a hybrid application database
• Combined with service workers
• Or for any other offline scenarios

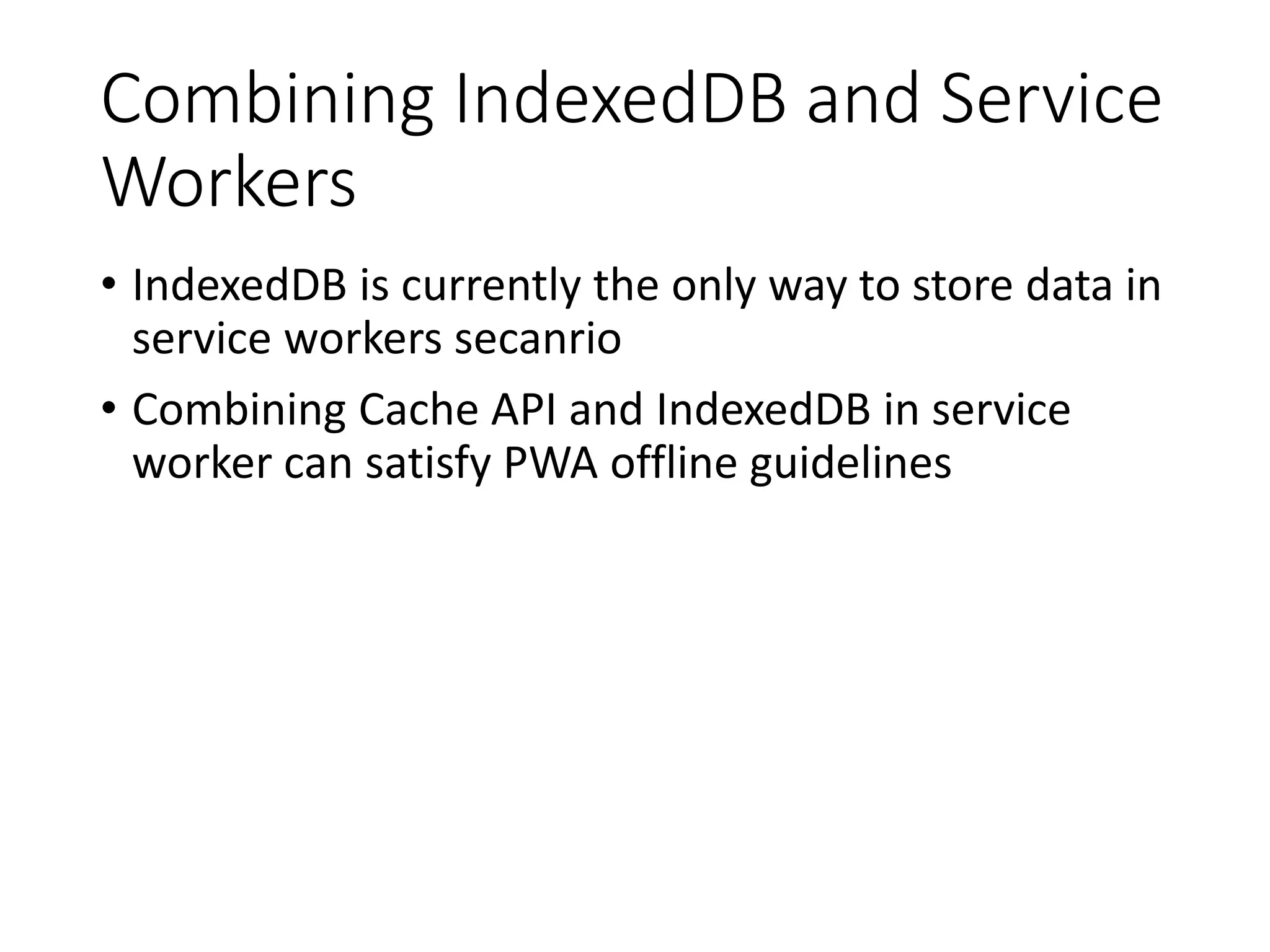

23. Combining IndexedDB and Service
Workers
• IndexedDB is currently the only way to store data in
service workers secanrio
• Combining Cache API and IndexedDB in service
worker can satisfy PWA offline guidelines

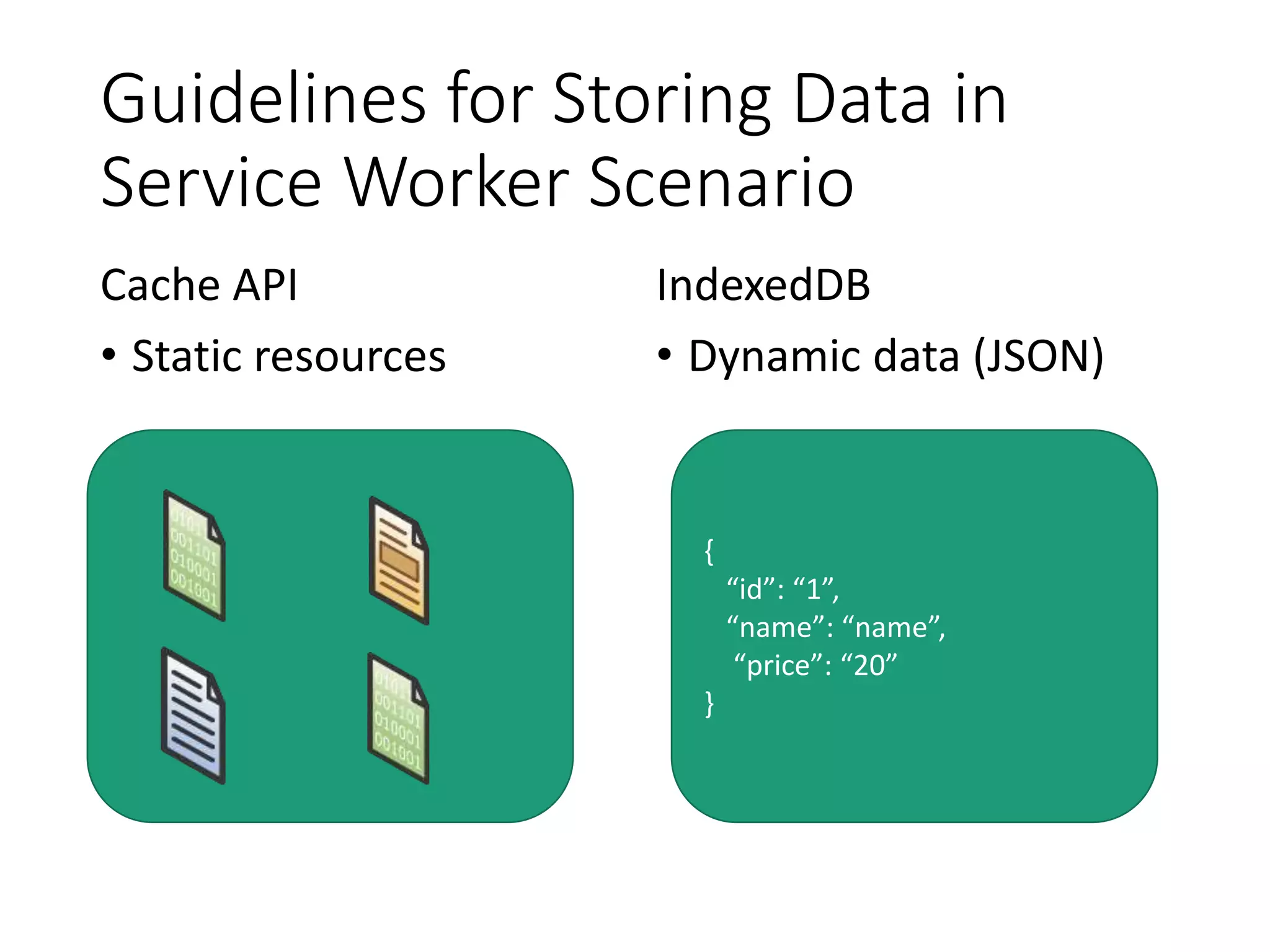

24. Guidelines for Storing Data in
Service Worker Scenario
Cache API
• Static resources
IndexedDB
• Dynamic data (JSON)
{
“id”: “1”,
“name”: “name”,
“price”: “20”
}

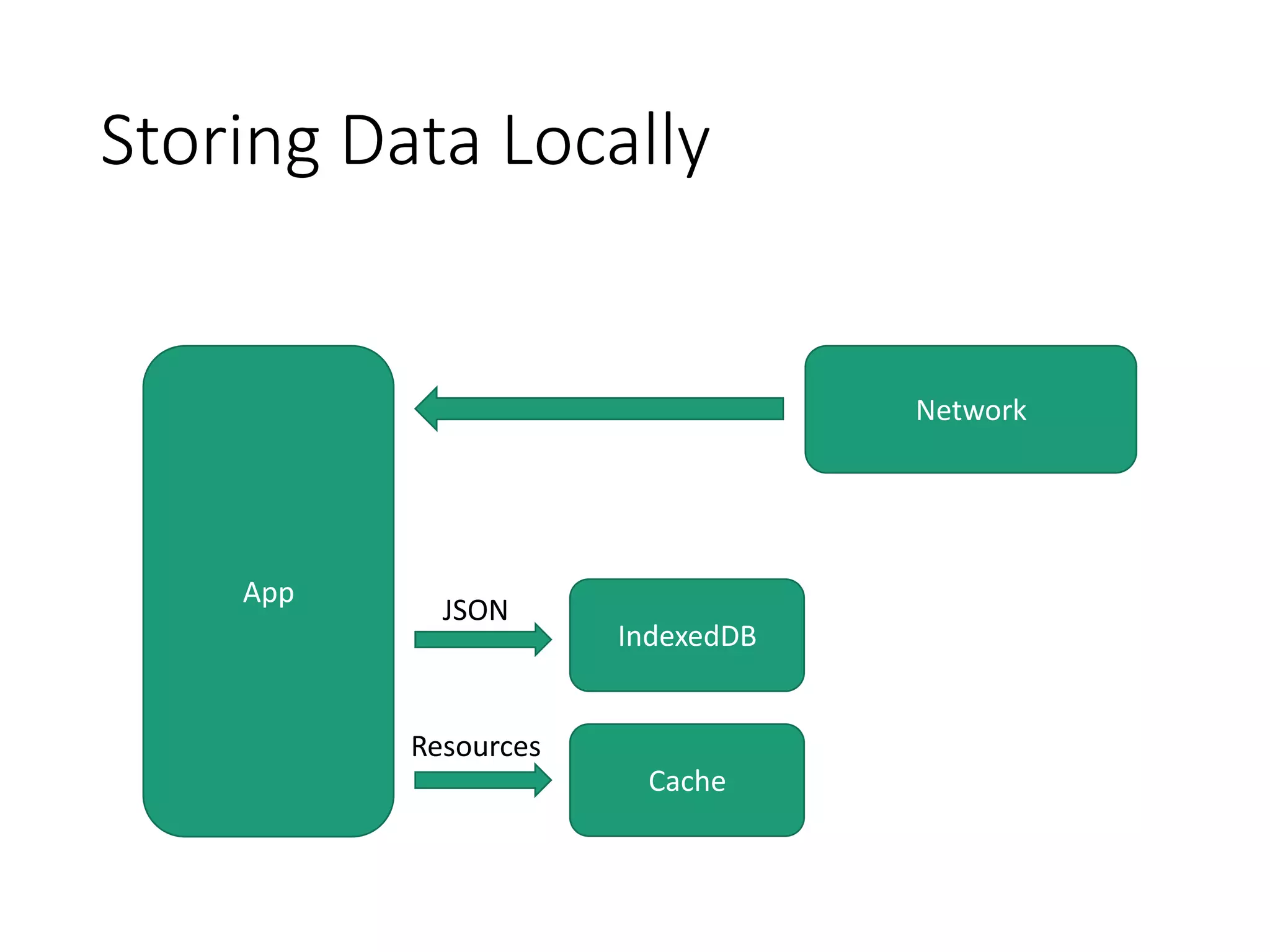

25. Storing Data Locally
App
Network
IndexedDB
Cache
JSON
Resources

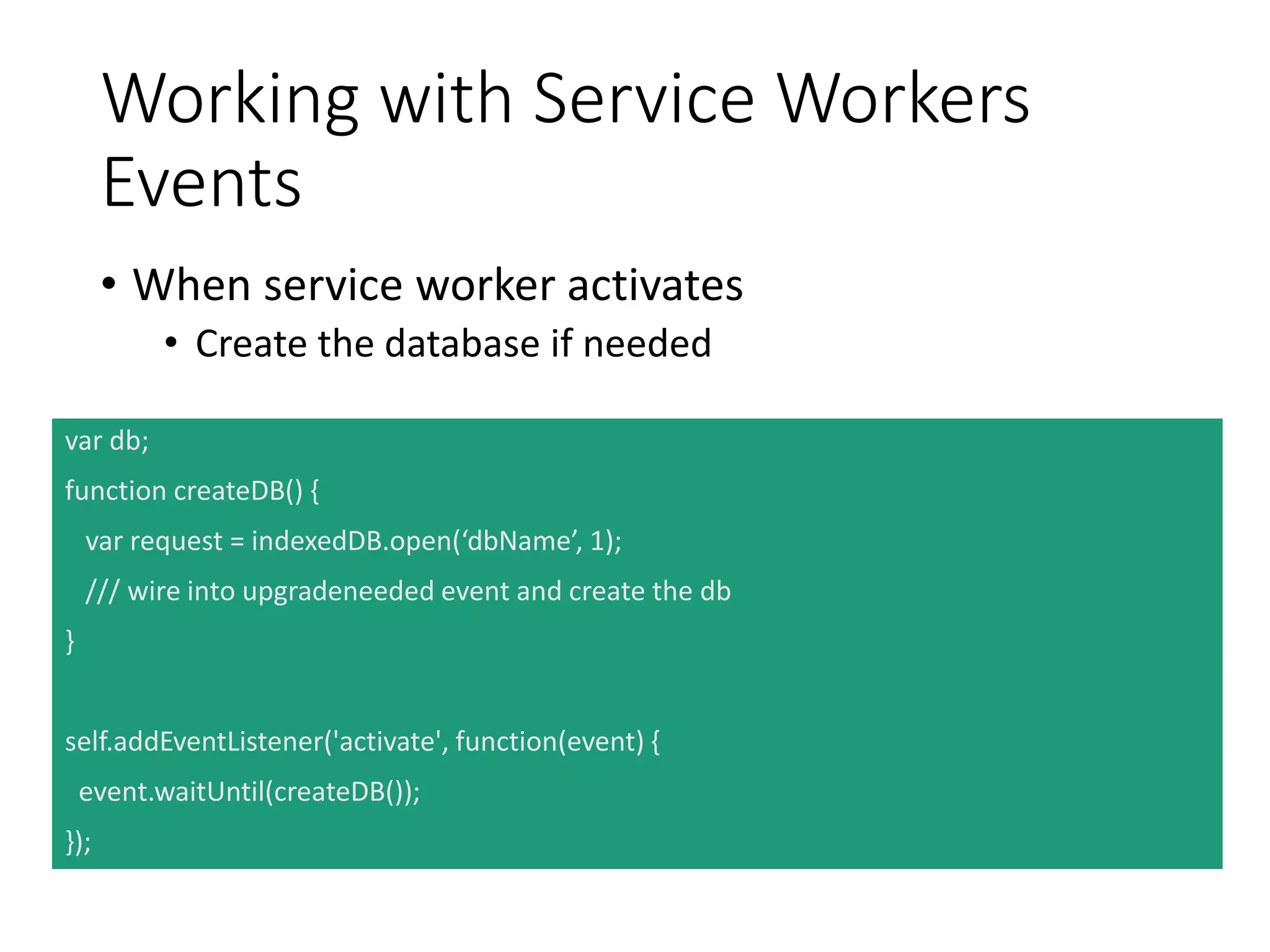

26. Working with Service Workers
Events
• When service worker activates
• Create the database if needed
var db;
function createDB() {
var request = indexedDB.open(‘dbName’, 1);
/// wire into upgradeneeded event and create the db
}
self.addEventListener('activate', function(event) {
event.waitUntil(createDB());
});

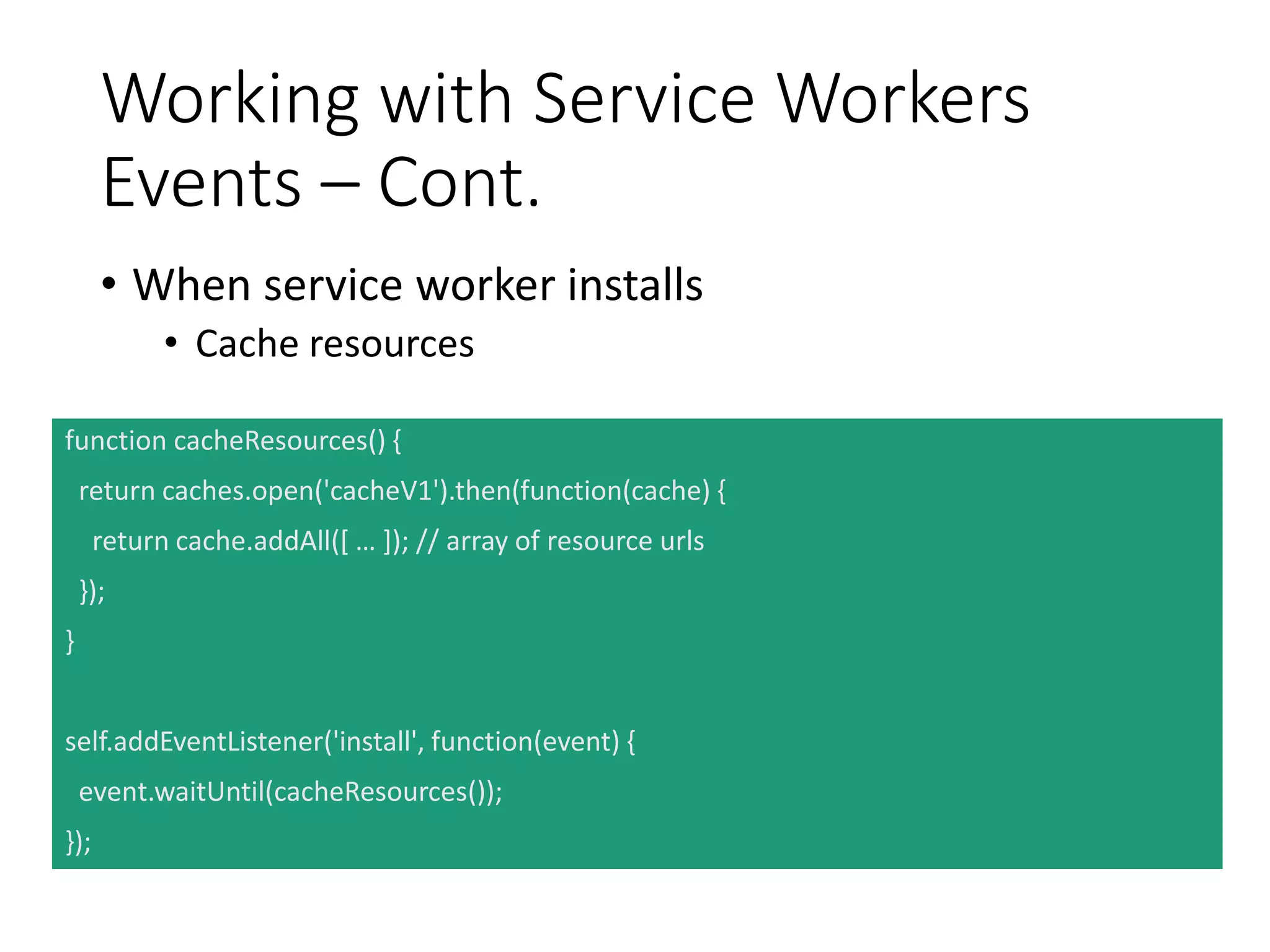

27. Working with Service Workers
Events – Cont.
• When service worker installs
• Cache resources
function cacheResources() {
return caches.open('cacheV1').then(function(cache) {
return cache.addAll([ … ]); // array of resource urls
});
}
self.addEventListener('install', function(event) {
event.waitUntil(cacheResources());
});

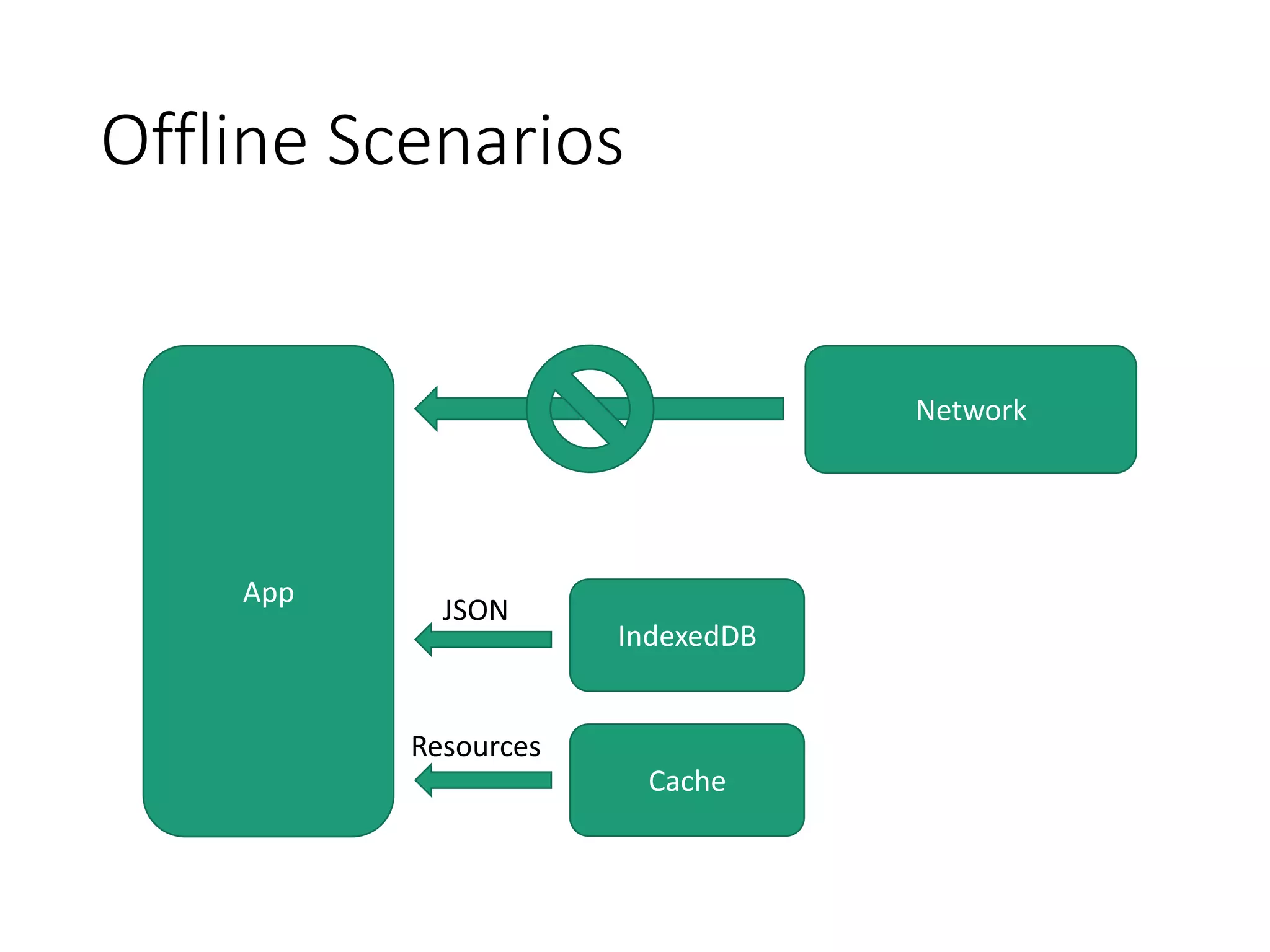

28. Offline Scenarios
App
Network
IndexedDB
Cache
JSON
Resources

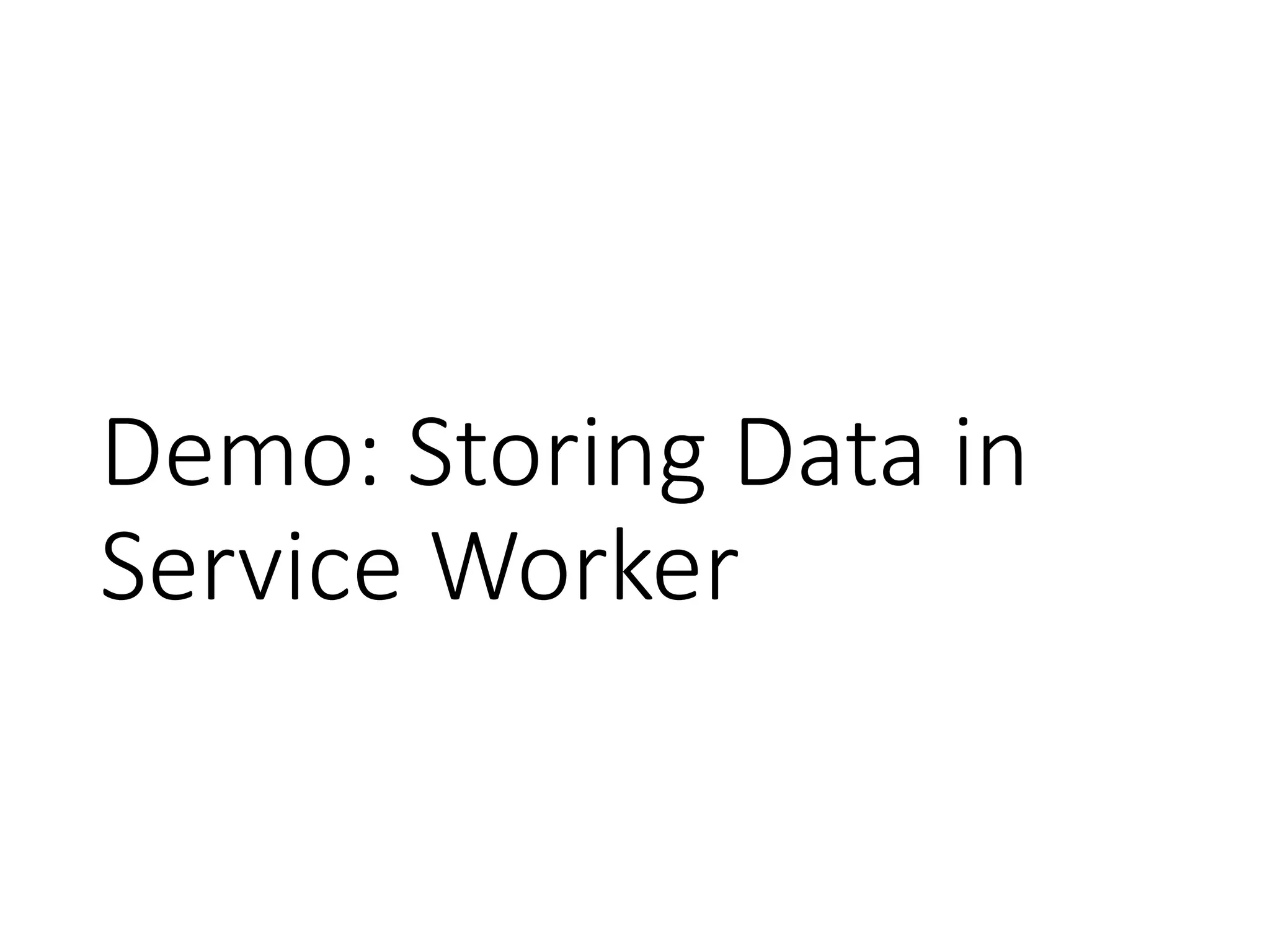

29. Demo: Storing Data in
Service Worker

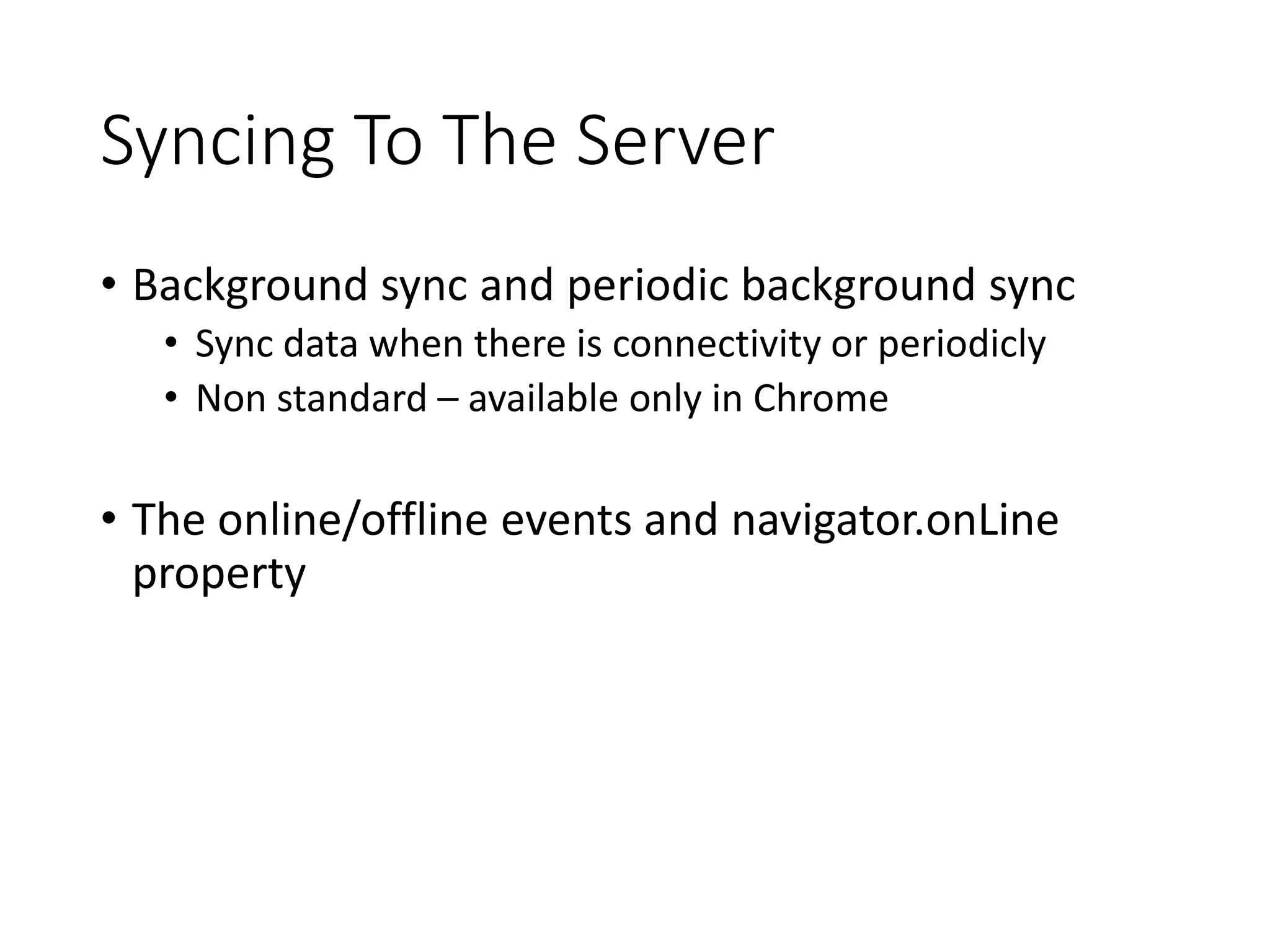

30. Syncing To The Server
• Background sync and periodic background sync
• Sync data when there is connectivity or periodicly
• Non standard – available only in Chrome
• The online/offline events and navigator.onLine
property

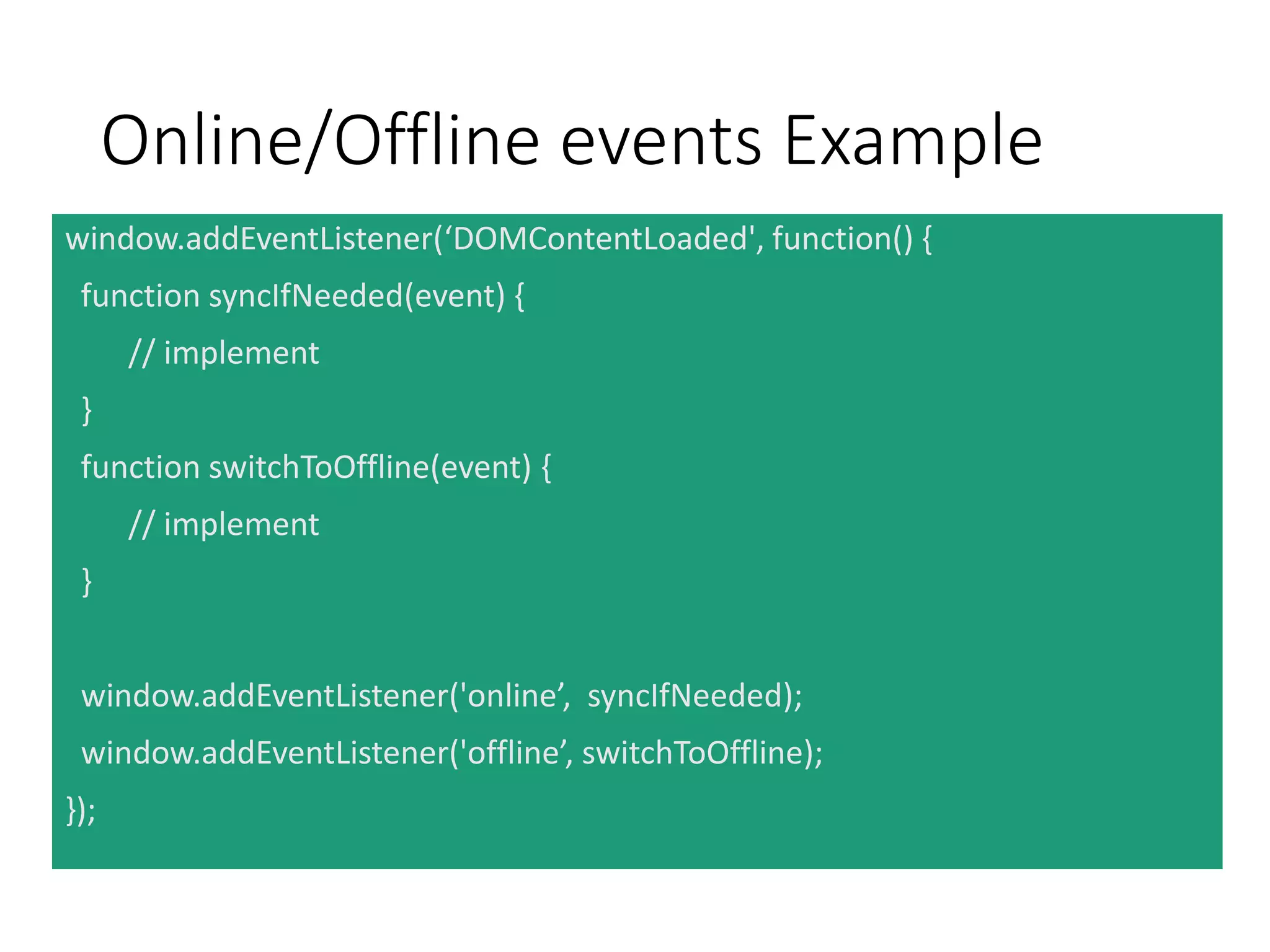

31. Online/Offline events Example
window.addEventListener(‘DOMContentLoaded', function() {
function syncIfNeeded(event) {
// implement
}
function switchToOffline(event) {
// implement
}
window.addEventListener('online’, syncIfNeeded);
window.addEventListener('offline’, switchToOffline);
});

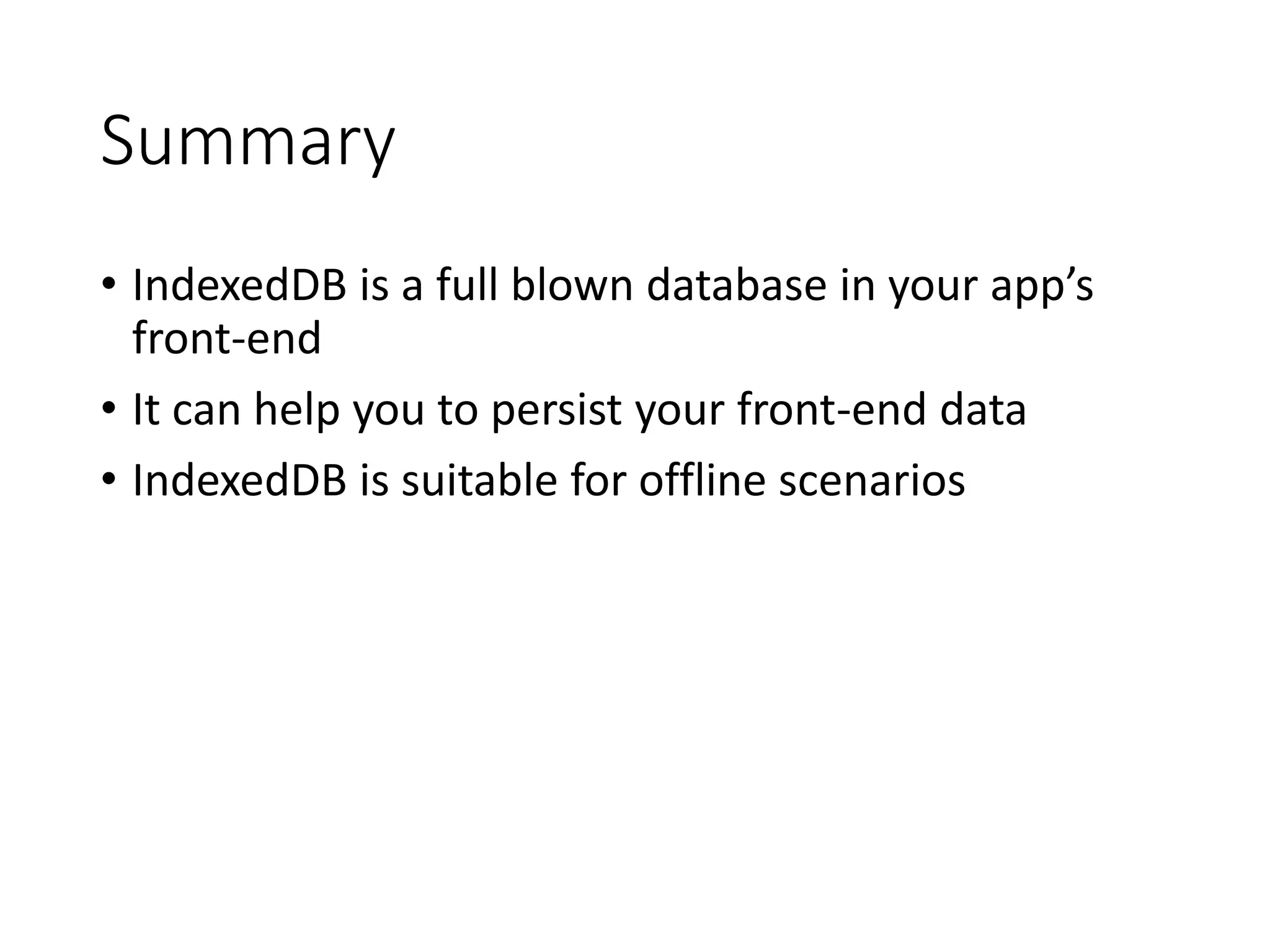

32. Summary
• IndexedDB is a full blown database in your app’s
front-end
• It can help you to persist your front-end data
• IndexedDB is suitable for offline scenarios

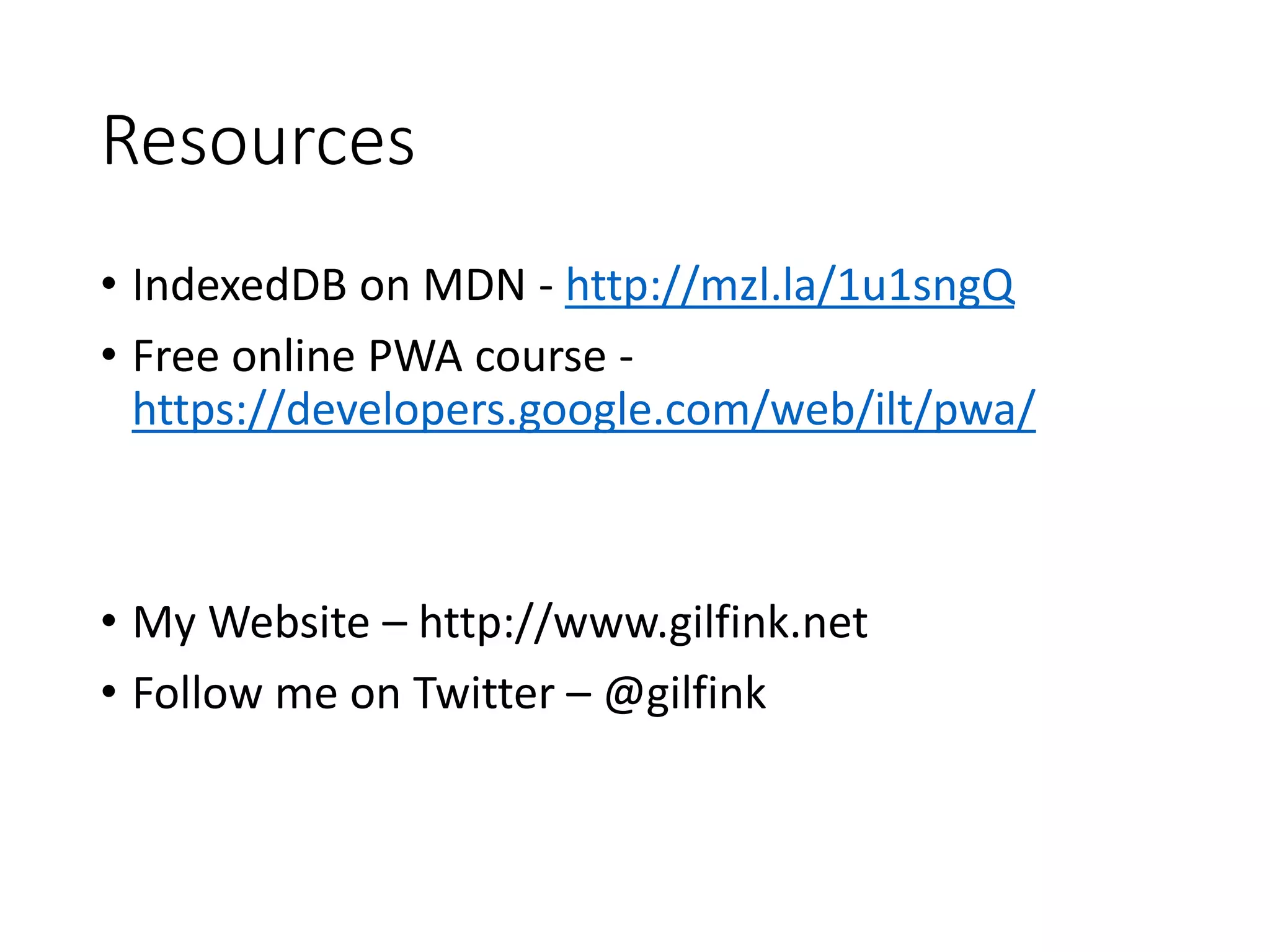

33. Resources
• IndexedDB on MDN - http://mzl.la/1u1sngQ
• Free online PWA course -
https://developers.google.com/web/ilt/pwa/
• My Website – http://www.gilfink.net
• Follow me on Twitter – @gilfink
