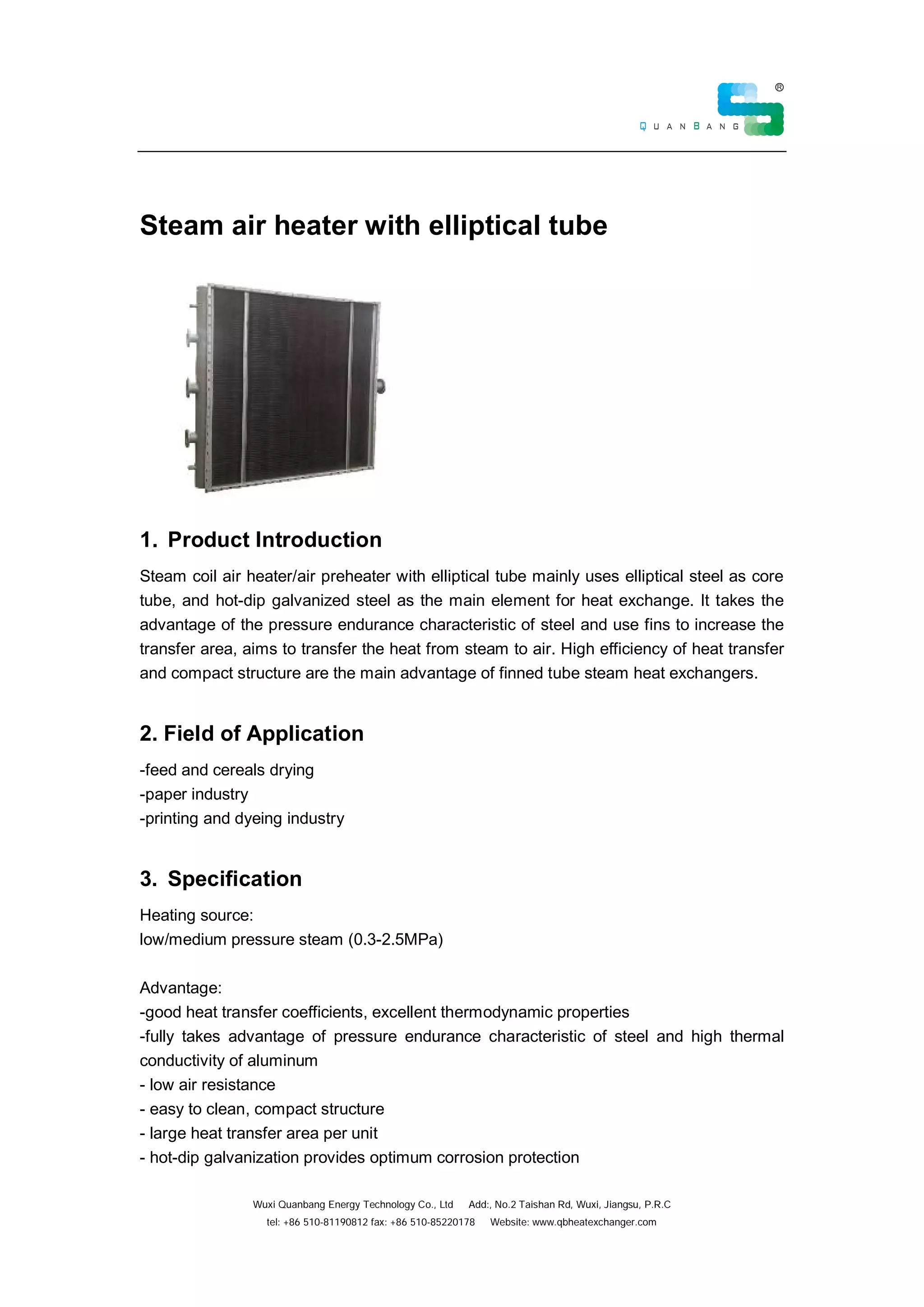

Steam air heater with elliptical tube
1. Product Introduction
Steam coil air heater/air preheater with elliptical tube mainly uses elliptical steel as core
tube, and hot-dip galvanized steel as the main element for heat exchange. It takes the
advantage of the pressure endurance characteristic of steel and use fins to increase the
transfer area, aims to transfer the heat from steam to air. High efficiency of heat transfer
and compact structure are the main advantage of finned tube steam heat exchangers.
2. Field of Application
-feed and cereals drying
-paper industry
-printing and dyeing industry
3. Specification
Heating source:
low/medium pressure steam (0.3-2.5MPa)
Advantage:
-good heat transfer coefficients, excellent thermodynamic properties
-fully takes advantage of pressure endurance characteristic of steel and high thermal
conductivity of aluminum
- low air resistance
- easy to clean, compact structure
- large heat transfer area per unit
- hot-dip galvanization provides optimum corrosion protection

2. Wuxi Quanbang Energy Technology Co., Ltd Add:, No.2 Taishan Rd, Wuxi, Jiangsu, P.R.C
tel: +86 510-81190812 fax: +86 510-85220178 Website: www.qbheatexchanger.com

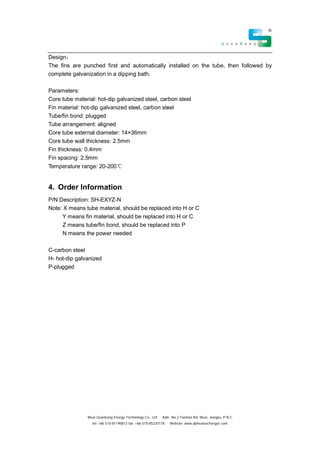

Design
The fins are punched first and automatically installed on the tube, then followed by
complete galvanization in a dipping bath.
Parameters:
Core tube material: hot-dip galvanized steel, carbon steel
Fin material: hot-dip galvanized steel, carbon steel
Tube/fin bond: plugged
Tube arrangement: aligned
Core tube external diameter: 14×36mm
Core tube wall thickness: 2.5mm
Fin thickness: 0.4mm
Fin spacing: 2.5mm
Temperature range: 20-200
4. Order Information
P/N Description: SH-EXYZ-N
Note: X means tube material, should be replaced into H or C
Y means fin material, should be replaced into H or C
Z means tube/fin bond, should be replaced into P
N means the power needed
C-carbon steel
H- hot-dip galvanized
P-plugged
