Our Group METTLER TOLEDO is a global manufacturer and marketer of Precision Instruments for use in the Laboratories, Manufacturing, and Food Retailing. Worldwide Presence 9’500 Employees Sales approx. USD 1.8 billion 1

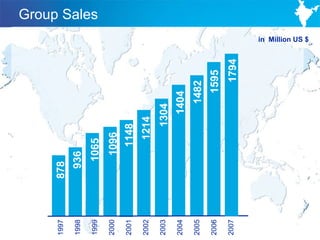

1997 878 1998 936 Group Sales 1999 1065 2000 1096 2001 1148 2002 1214 2003 1304 2004 1404 2005 1482 2006 1595 2007 1794 in Million US $ 2

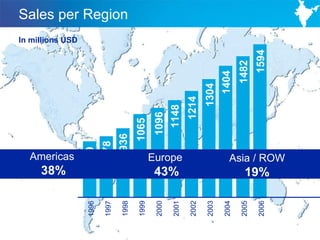

38% Americas In millions USD 1996 849 1997 878 Sales per Region 1998 936 1999 1065 2000 1096 2001 43% 1148 Europe 2002 1214 2003 1304 2004 1404 2005 1482 2006 1594 19% Asia / ROW 3
Global Manufacturing, Sales & Service Innovation MT Sales & Service Organizations Centers MT Partners Global manufacturing strategy with focused innovation centers Approx. 4’800 employees in sales & service in 35 countries 4

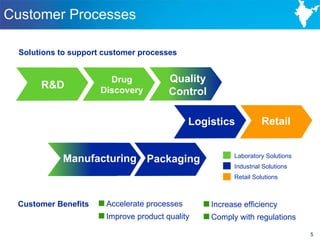

Customer Processes Solutions to support customer processes Drug Quality R&D Discovery Control Logistics Retail Manufacturing Packaging Laboratory Solutions Industrial Solutions Retail Solutions Customer Benefits Accelerate processes Increase efficiency Improve product quality Comply with regulations 5
Advancing Research and Quality Control Laboratory  Improving processes in R&D, drug discovery and quality Solutions control  Application-specific software  Interface with your information systems  Enhanced accuracy, productivity and compliance Laboratory Laboratory Pipettes Analytical Thermal Automated Weighing Balances Chemistry Analysis Chemistry Solutions Solutions 6

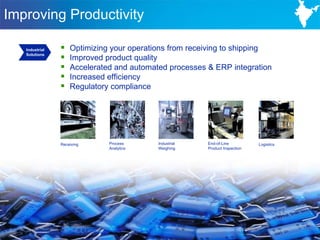

Improving Productivity Industrial  Optimizing your operations from receiving to shipping Solutions  Improved product quality  Accelerated and automated processes & ERP integration  Increased efficiency  Regulatory compliance Receiving Process Industrial End-of-Line Logistics Analytics Weighing Product Inspection 7
Optimizing Fresh Foods Management Retail  Effectively manage your fresh foods inventory and Solutions merchandising  Maximize your efficiency and profitability  Enhance the satisfaction of your customers  Integrated in existing IT infrastructures Central Pack Receiving Prepack Counter Self-Service Checkout 8
Broad Skill Base R&D Service Sales & Logistics Marketing Manufacturing Dedicated professionals worldwide contribute to customers success 9
Innovation Competencies Man / Machine In Process Interface Technology Technology Customer Integration Applications Automation & Robotics 830 R&D professionals work daily on maintaining our technology lead 10

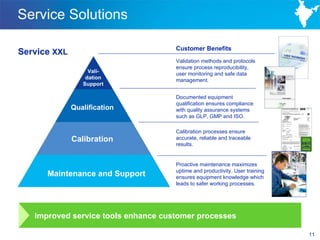

Service Solutions Customer Benefits Service XXL Validation methods and protocols ensure process reproducibility, Vali- Vali- user monitoring and safe data dation management. dation Support Documented equipment Regulatory qualification ensures compliance Qualification with quality assurance systems Compliance such as GLP, GMP and ISO. Calibration processes ensure Calibration accurate, reliable and traceable results. Proactive maintenance maximizes uptime and productivity. User training Maintenance and Support ensures equipment knowledge which leads to safer working processes. Improved service tools enhance customer processes 11

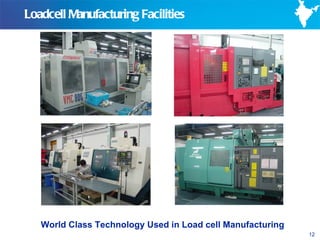

Loadcell Manufacturing Facilities World Class Technology Used in Load cell Manufacturing 12
Facilities-Machining  CNC for C/F machining World Class Technology Used in Load cell Manufacturing 13

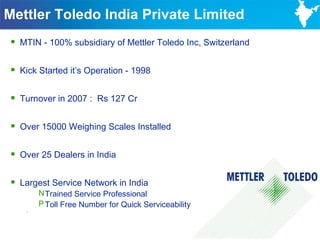

Mettler Toledo India Private Limited  MTIN - 100% subsidiary of Mettler Toledo Inc, Switzerland  Kick Started it’s Operation - 1998  Turnover in 2007 : Rs 127 Cr  Over 15000 Weighing Scales Installed  Over 25 Dealers in India  Largest Service Network in India N Trained Service Professional P Toll Free Number for Quick Serviceability - 14
Service Support System No. of No. of City City Engineers Engineers Mumbai 7 Mohali 2 • 36 Locations Pune 2 Ludhiana 1 • 60 Engineers Aurangabad 1 Kolkata 3 Nagpur 1 Guwahati 1 Nasik 1 Bardhaman 1 Goa 2 Jamshedpur 1 Vapi 2 Raipur 1 Vadodara 3 Bhubaneshwar 2 Surat 1 Vishakhapatnam 1 Ahmedabad 2 Hyderabad 2 Ankleshwar 2 Vijayawada 1 Gandhidham 1 Bangalore 2 Rajkot 1 Chennai 2 Indore/Bhopal 1 Coimbatore 1 Jaipur 1 Madurai 1 Regional Office Delhi 5 Cochin 1 Lucknow 1 Ernakulum 1 Branch Office Haridwar 1 Kozhikode 1 Service Centers 15

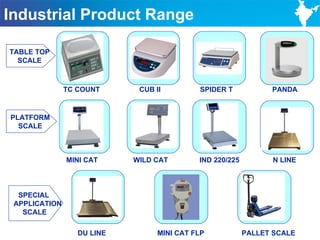

Industrial Product Range TABLE TOP SCALE TC COUNT CUB II SPIDER T PANDA PLATFORM SCALE MINI CAT WILD CAT IND 220/225 N LINE SPECIAL APPLICATION SCALE DU LINE MINI CAT FLP PALLET SCALE 16
Weighing Scale Weighing Scale Indicator Platform Indicators Platforms • Mini Cat ( ABS / SS) • Sandwich Type (MS) • Wild Cat • SS 304 Wash down • IND 220 / 225 • N Line • DU Line 17

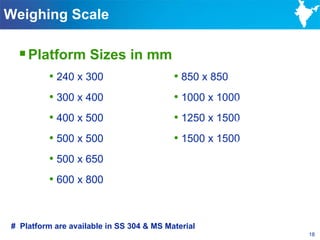

Weighing Scale  Platform Sizes in mm • 240 x 300 • 850 x 850 • 300 x 400 • 1000 x 1000 • 400 x 500 • 1250 x 1500 • 500 x 500 • 1500 x 1500 • 500 x 650 • 600 x 800 # Platform are available in SS 304 & MS Material 18
Mini Cat 19
Mini Cat Mini Cat Mini Cat With ABS Plastic Indicator Mini Cat With SS 304 Indicator Load Plate MOC Load Plate MOC Load Plate MOC– MS Powder Coated SS 304 MS Powder Coated Platform Size – 240 x 300, 300 x 400, 400 x 500, 500 x 500, 500 x 600, 600 x 800 20

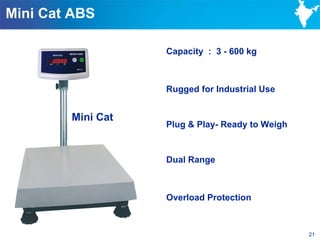

Mini Cat ABS Capacity : 3 - 600 kg Rugged for Industrial Use Mini Cat Plug & Play- Ready to Weigh Dual Range Overload Protection 21

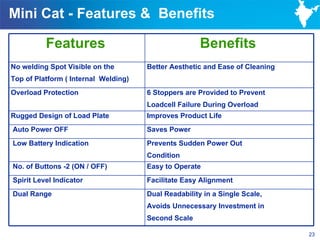

Mini Cat - Features & Benefits Features Benefits Load Cell Protection IP 67 ( METTLER TOLEDO make) PCB Surface Mounted Components, Less breakdown of Components IN Built SMPS Better Performance Under Voltage Fluctuations Specially Designed Rubber Feet Prevents Skidding of Platform During Loading and Unloading, Precise Level Adjustment Specially Moulded Rubber Better Impact Load Absorption O rings Ensures Quick Stability and Repeatability Ensures Exact alignment with Load Cell Top Special Embossing Operation for Top Plate ( Loadcell Alignment) Plate and Loadcell – Better Repeatability Bright RED LED Display Good Visibility, Error Free Reading ( 5 Digit, 13mm ht, 7 Segment) Even in Dark Environment 22
Mini Cat - Features & Benefits Features Benefits No welding Spot Visible on the Better Aesthetic and Ease of Cleaning Top of Platform ( Internal Welding) Overload Protection 6 Stoppers are Provided to Prevent Loadcell Failure During Overload Rugged Design of Load Plate Improves Product Life Auto Power OFF Saves Power Low Battery Indication Prevents Sudden Power Out Condition No. of Buttons -2 (ON / OFF) Easy to Operate Spirit Level Indicator Facilitate Easy Alignment Dual Range Dual Readability in a Single Scale, Avoids Unnecessary Investment in Second Scale 23

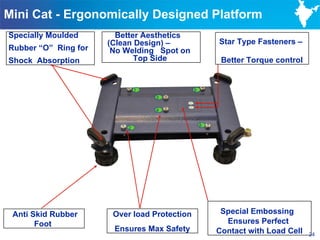

Mini Cat - Ergonomically Designed Platform Specially Moulded Better Aesthetics (Clean Design) – Star Type Fasteners – Rubber “O” Ring for No Welding Spot on Shock Absorption Top Side Better Torque control 1 5 3 4 6 2 Anti Skid Rubber Over load Protection Special Embossing Foot Ensures Perfect Ensures Max Safety Contact with Load Cell 24

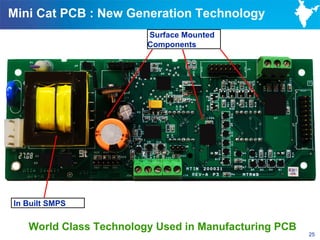

Mini Cat PCB : New Generation Technology Surface Mounted Components In Built SMPS World Class Technology Used in Manufacturing PCB 25

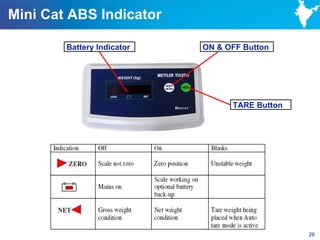

Mini Cat ABS Indicator Battery Indicator ON & OFF Button TARE Button 26

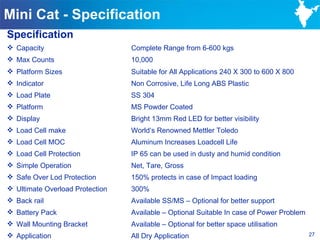

Mini Cat - Specification Specification  Capacity Complete Range from 6-600 kgs  Max Counts 10,000  Platform Sizes Suitable for All Applications 240 X 300 to 600 X 800  Indicator Non Corrosive, Life Long ABS Plastic  Load Plate SS 304  Platform MS Powder Coated  Display Bright 13mm Red LED for better visibility  Load Cell make World‘s Renowned Mettler Toledo  Load Cell MOC Aluminum Increases Loadcell Life  Load Cell Protection IP 65 can be used in dusty and humid condition  Simple Operation Net, Tare, Gross  Safe Over Lod Protection 150% protects in case of Impact loading  Ultimate Overload Protection 300%  Back rail Available SS/MS – Optional for better support  Battery Pack Available – Optional Suitable In case of Power Problem  Wall Mounting Bracket Available – Optional for better space utilisation  Application All Dry Application 27

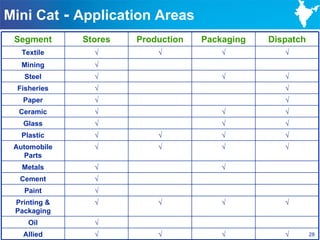

Mini Cat - Application Areas Segment Stores Production Packaging Dispatch Textile √ √ √ √ Mining √ Steel √ √ √ Fisheries √ √ Paper √ √ Ceramic √ √ √ Glass √ √ √ Plastic √ √ √ √ Automobile √ √ √ √ Parts Metals √ √ Cement √ Paint √ Printing & √ √ √ √ Packaging Oil √ Allied √ √ √ √ 28
Mini Cat - Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) MIC(T)-A6 6 1 240 x 300 MIC(T)-A15 15 2 240 x 300 MIC(T)-BB30 30 5 300 x 400 MIC-BB60 60 10 300 x 400 MIC-B60 60 10 400 x 500 MIC-B100 100 10 400 x 500 MIC-B150 150 20 400 x 500 MIC-C60 60 10 500 X 500 MIC-C100 100 10 500 X 500 MIC-C150 150 20 500 X 500 MIC-C200 200 20 500 X 500 MIC-BC60 60 10 500 x 650 MIC-BC100 100 10 500 x 650 MIC-BC150 150 20 500 x 650 MIC-BC200 200 20 500 x 650 MIC-BC300 300 50 500 x 650 MIC-CC60 60 10 600 x 800 MIC-CC100 100 10 600 x 800 MIC-CC150 150 20 600 x 800 MIC-CC200 200 20 600 x 800 MIC-CC300 300 50 600 x 800 MIC-CC600 600 100 600 x 800 29
Mini Cat- SS 30

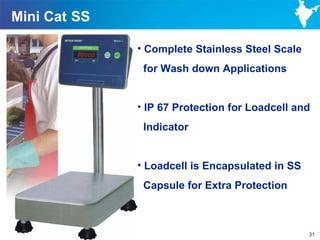

Mini Cat SS • Complete Stainless Steel Scale for Wash down Applications • IP 67 Protection for Loadcell and Indicator • Loadcell is Encapsulated in SS Capsule for Extra Protection 31
Mini Cat SS - Features & Benefits Features Benefits Load cell Encapsulated Mettler Toledo Load Cell for More Protection IP Protection for Load Cell IP 67-Wash Resistant PCB Surface Mounted Components, Less breakdown of Components Complete Stainless Steel Easy to Clean, Complete Wash down Battery Back up ( NI-MH Compact & Inbuilt, with IP 67 Protection Battery) Specially Moulded Rubber Better Impact Load Absorption Ensures Quick Over rings Stability and Repeatability Ensures Exact alignment with Load Special Embossing Operation Cell Top Plate and Loadcell –Better for Top Plate (Loadcell Repeatability Alignment) Specially Designed Rubber Prevents Skidding of Platform Feet During Loading and Unloading, Precise Level Adjustment 32

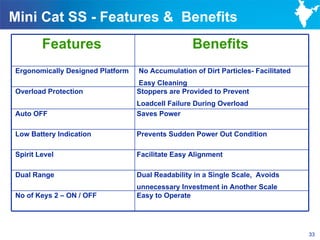

Mini Cat SS - Features & Benefits Features Benefits Ergonomically Designed Platform No Accumulation of Dirt Particles- Facilitated Easy Cleaning Overload Protection Stoppers are Provided to Prevent Loadcell Failure During Overload Auto OFF Saves Power Low Battery Indication Prevents Sudden Power Out Condition Spirit Level Facilitate Easy Alignment Dual Range Dual Readability in a Single Scale, Avoids unnecessary Investment in Another Scale No of Keys 2 – ON / OFF Easy to Operate 33

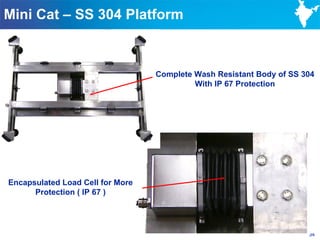

Mini Cat – SS 304 Platform Complete Wash Resistant Body of SS 304 With IP 67 Protection Encapsulated Load Cell for More Protection ( IP 67 ) 34

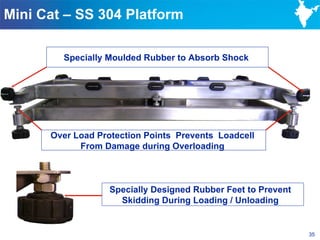

Mini Cat – SS 304 Platform Specially Moulded Rubber to Absorb Shock Over Load Protection Points Prevents Loadcell From Damage during Overloading Specially Designed Rubber Feet to Prevent Skidding During Loading / Unloading 35

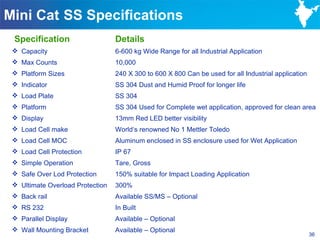

Mini Cat SS Specifications Specification Details  Capacity 6-600 kg Wide Range for all Industrial Application  Max Counts 10,000  Platform Sizes 240 X 300 to 600 X 800 Can be used for all Industrial application  Indicator SS 304 Dust and Humid Proof for longer life  Load Plate SS 304  Platform SS 304 Used for Complete wet application, approved for clean area  Display 13mm Red LED better visibility  Load Cell make World‘s renowned No 1 Mettler Toledo  Load Cell MOC Aluminum enclosed in SS enclosure used for Wet Application  Load Cell Protection IP 67  Simple Operation Tare, Gross  Safe Over Lod Protection 150% suitable for Impact Loading Application  Ultimate Overload Protection 300%  Back rail Available SS/MS – Optional  RS 232 In Built  Parallel Display Available – Optional  Wall Mounting Bracket Available – Optional 36

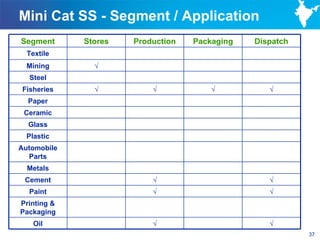

Mini Cat SS - Segment / Application Segment Stores Production Packaging Dispatch Textile Mining √ Steel Fisheries √ √ √ √ Paper Ceramic Glass Plastic Automobile Parts Metals Cement √ √ Paint √ √ Printing & Packaging Oil √ √ 37
Mini Cat SS (MS Platform & SS304 Load Plate) Model No. Capacity (kg) Readability ( g ) Platform size (mm) MICs(T)-A6 6 1 240 x 300 MICs(T)-A15 15 2 240 x 300 MICs(T)-BB30 30 5 300 x 400 MICs-BB60 60 10 300 x 400 MICs-B60 60 10 400 x 500 MICs-B100 100 10 400 x 500 MICs-B150 150 20 400 x 500 MICs-C60 60 10 500 X 500 MICs-C100 100 10 500 X 500 MICs-C150 150 20 500 X 500 MICs-C200 200 20 500 X 500 MICs-BC60 60 10 500 x 650 MICs-BC100 100 10 500 x 650 MICs-BC150 150 20 500 x 650 MICs-BC200 200 20 500 x 650 MICs-BC300 300 50 500 x 650 MICs-CC60 60 10 600 x 800 MICs-CC100 100 10 600 x 800 MICs-CC150 150 20 600 x 800 MICs-CC200 200 20 600 x 800 MICs-CC300 300 50 600 x 800 MICs-CC600 600 100 600 x 800 38
Mini Cat (SS 304 INDICATOR & SS304 Load Plate) Model No. Capacity (kg) Readability ( g ) Platform Size (mm) MICs(T)-A6s 6 1 240 x 300 MICs(T)-A15s 15 2 240 x 300 MICs(T)-BB30s 30 5 300 x 400 MICs-BB60s 60 10 300 x 400 MICs-B60s 60 10 400 x 500 MICs-B100s 100 10 400 x 500 MICs-B150s 150 20 400 x 500 MICs-C60s 60 10 500 X 500 MICs-C100s 100 10 500 X 500 MICs-C150s 150 20 500 X 500 MICs-C200s 200 20 500 X 500 MICs-BC60s 60 10 500 x 650 MICs-BC100s 100 10 500 x 650 MICs-BC150s 150 20 500 x 650 MICs-BC200s 200 20 500 x 650 MICs-BC300s 300 50 500 x 650 MICs-CC60s 60 10 600 x 800 MICs-CC100s 100 10 600 x 800 MICs-CC150s 150 20 600 x 800 MICs-CC200s 200 20 600 x 800 MICs-CC300s 300 50 600 x 800 MICs-CC600s 600 100 600 x 800 39
Mini Cat- FLP 40

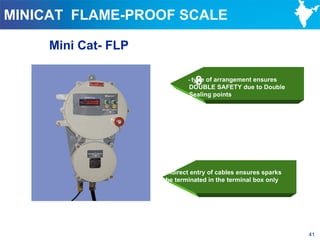

MINICAT FLAME-PROOF SCALE Mini Cat- FLP 8 - type of arrangement ensures DOUBLE SAFETY due to Double Sealing points Indirect entry of cables ensures sparks be terminated in the terminal box only 41
JUNCTION BOX PROVIDED! Limited length of the loadcell wire from the loadcell vendor The distance between the platform and the enclosure is more than the length of the standard loadcell wire Use of Junction box to enclose the load cell cable joint ensures safety from sparks and ignition of explosions – IS 2148 42
MINI CAT FLP Specifications Specification Details  Capacity 6-600 kg Wide range for all FLP Applications  Max Counts 6000 and 10000 for selected capacities  Platform Sizes 240 X 300 to 600 X 800  FLP Indicator Metal Die Cast FLP enclosure  FLP Zone Suitable for Zone II A and II B Gas Group only  Load Plate SS 304  Platform MS / SS 304  Display 13mm Red LED  Load Cell Make / MOC Mettler Toledo / Aluminium  Load Cell Protection IP 67  Simple Operation Tare, Gross  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  Back rail Available SS/MS – Optional  Parallel Display Available – Optional  Flame Proof Certification Certified by CMRI Dhanbad  Wall Mounting Bracket Available - Optional 43
Mini Cat FLP Application Areas Segment Stores Production Packaging Dispatch Mining √ Steel √ √ √ Metals √ √ Cement √ Paint √ Oil √ Allied √ √ √ √ 44

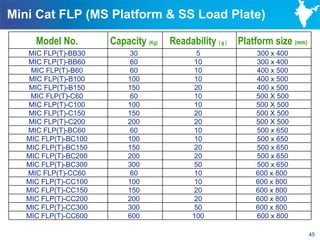

Mini Cat FLP (MS Platform & SS Load Plate) Model No. Capacity (Kg) Readability ( g ) Platform size (mm) MIC FLP(T)-BB30 30 5 300 x 400 MIC FLP(T)-BB60 60 10 300 x 400 MIC FLP(T)-B60 60 10 400 x 500 MIC FLP(T)-B100 100 10 400 x 500 MIC FLP(T)-B150 150 20 400 x 500 MIC FLP(T)-C60 60 10 500 X 500 MIC FLP(T)-C100 100 10 500 X 500 MIC FLP(T)-C150 150 20 500 X 500 MIC FLP(T)-C200 200 20 500 X 500 MIC FLP(T)-BC60 60 10 500 x 650 MIC FLP(T)-BC100 100 10 500 x 650 MIC FLP(T)-BC150 150 20 500 x 650 MIC FLP(T)-BC200 200 20 500 x 650 MIC FLP(T)-BC300 300 50 500 x 650 MIC FLP(T)-CC60 60 10 600 x 800 MIC FLP(T)-CC100 100 10 600 x 800 MIC FLP(T)-CC150 150 20 600 x 800 MIC FLP(T)-CC200 200 20 600 x 800 MIC FLP(T)-CC300 300 50 600 x 800 MIC FLP(T)-CC600 600 100 600 x 800 45

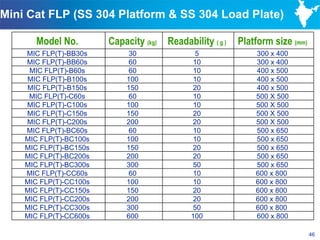

Mini Cat FLP (SS 304 Platform & SS 304 Load Plate) Model No. Capacity (kg) Readability ( g ) Platform size (mm) MIC FLP(T)-BB30s 30 5 300 x 400 MIC FLP(T)-BB60s 60 10 300 x 400 MIC FLP(T)-B60s 60 10 400 x 500 MIC FLP(T)-B100s 100 10 400 x 500 MIC FLP(T)-B150s 150 20 400 x 500 MIC FLP(T)-C60s 60 10 500 X 500 MIC FLP(T)-C100s 100 10 500 X 500 MIC FLP(T)-C150s 150 20 500 X 500 MIC FLP(T)-C200s 200 20 500 X 500 MIC FLP(T)-BC60s 60 10 500 x 650 MIC FLP(T)-BC100s 100 10 500 x 650 MIC FLP(T)-BC150s 150 20 500 x 650 MIC FLP(T)-BC200s 200 20 500 x 650 MIC FLP(T)-BC300s 300 50 500 x 650 MIC FLP(T)-CC60s 60 10 600 x 800 MIC FLP(T)-CC100s 100 10 600 x 800 MIC FLP(T)-CC150s 150 20 600 x 800 MIC FLP(T)-CC200s 200 20 600 x 800 MIC FLP(T)-CC300s 300 50 600 x 800 MIC FLP(T)-CC600s 600 100 600 x 800 46
Wild Cat 47

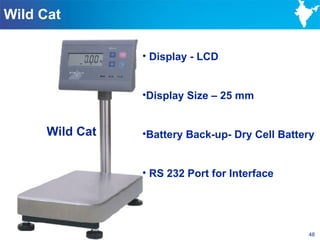

Wild Cat • Display - LCD •Display Size – 25 mm Wild Cat •Battery Back-up- Dry Cell Battery • RS 232 Port for Interface 48
Wild Cat - Features & benefits Features Benefits IP Protection IP 66, METTLER TOLEDO make Display -25 mm, LCD Better Clarity and Good Visibility, High Resolution Battery Back up Compact & Inbuilt. Prevents sudden Data ( Dry Cell Battery) Loss when Power cuts off suddenly Specially Moulded Rubber Better Impact Load Absorption Ensures Over rings Quick Stability and Repeatability Specially Punched Loadcell Ensures Exact alignment with Load Cell Top Plate (Loadcell Alignment) Top Plate and Loadcell –Better Repeatability Specially Designed Rubber Feet Prevents Skidding of Platform during Loading and Unloading, Precise Level Adjustment Auto Power Off Saves Power RS 232 Port Easy Interface with Computer / Printer Spirit Level Facilitates Easy Alignment 49

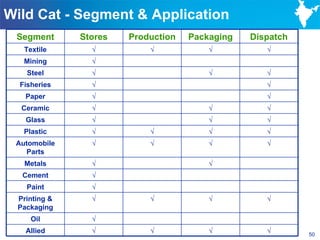

Wild Cat - Segment & Application Segment Stores Production Packaging Dispatch Textile √ √ √ √ Mining √ Steel √ √ √ Fisheries √ √ Paper √ √ Ceramic √ √ √ Glass √ √ √ Plastic √ √ √ √ Automobile √ √ √ √ Parts Metals √ √ Cement √ Paint √ Printing & √ √ √ √ Packaging Oil √ Allied √ √ √ √ 50

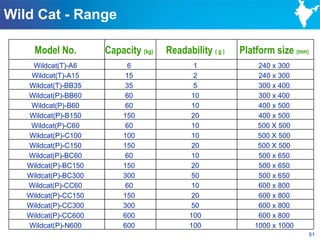

Wild Cat - Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) Wildcat(T)-A6 6 1 240 x 300 Wildcat(T)-A15 15 2 240 x 300 Wildcat(T)-BB35 35 5 300 x 400 Wildcat(P)-BB60 60 10 300 x 400 Wildcat(P)-B60 60 10 400 x 500 Wildcat(P)-B150 150 20 400 x 500 Wildcat(P)-C60 60 10 500 X 500 Wildcat(P)-C100 100 10 500 X 500 Wildcat(P)-C150 150 20 500 X 500 Wildcat(P)-BC60 60 10 500 x 650 Wildcat(P)-BC150 150 20 500 x 650 Wildcat(P)-BC300 300 50 500 x 650 Wildcat(P)-CC60 60 10 600 x 800 Wildcat(P)-CC150 150 20 600 x 800 Wildcat(P)-CC300 300 50 600 x 800 Wildcat(P)-CC600 600 100 600 x 800 Wildcat(P)-N600 600 100 1000 x 1000 51
DU Line 52

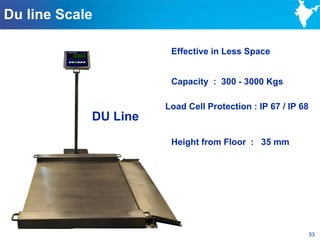

Du line Scale Effective in Less Space Capacity : 300 - 3000 Kgs Load Cell Protection : IP 67 / IP 68 DU Line Height from Floor : 35 mm 53

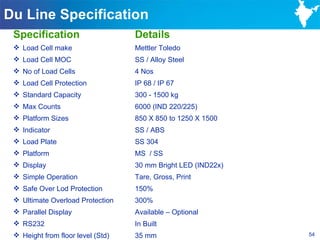

Du Line Specification Specification Details  Load Cell make Mettler Toledo  Load Cell MOC SS / Alloy Steel  No of Load Cells 4 Nos  Load Cell Protection IP 68 / IP 67  Standard Capacity 300 - 1500 kg  Max Counts 6000 (IND 220/225)  Platform Sizes 850 X 850 to 1250 X 1500  Indicator SS / ABS  Load Plate SS 304  Platform MS / SS  Display 30 mm Bright LED (IND22x)  Simple Operation Tare, Gross, Print  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  Parallel Display Available – Optional  RS232 In Built  Height from floor level (Std) 35 mm 54
Du line - Features & Benefits Features Benefits Wash Down Scale. Can be Used In Complete SS 304 Load Plate & Dusty Environment Platform Punched Platform Height – 35 mm No Need of Permanent Ramp, Saves Money. IP 67 / 68 Protection Versatile Scale -Can be used in Dusty & Wet Environment Rugged Design Improves Scale Life, Value for Money Bright Read 30 mm, 7 Segment Improves Visibility, Error Free Reading, Can LED Display be Used in Dark Environment Overload Protection – 150 % Prevents Loadcell Failure, During I Loading, hence Increased Life of Scale Dome Type Keypad ( IND 220/ IND 225) Enables Error Free & Faster Operations Auto Power Off Saves Power RS 232 Port Easy Interface with Computer / Printer 55

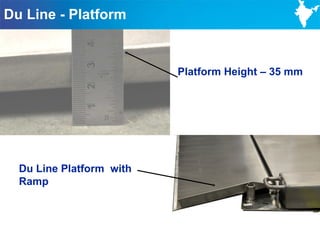

Du Line - Platform Platform Height – 35 mm Du Line Platform with Ramp 56
Du Line Platform Locking Arrangement – Prevents Ramp Movement EAS Y MOV EME Easy Movement of N T Material Due to Ramp Restricts Material Movement 57

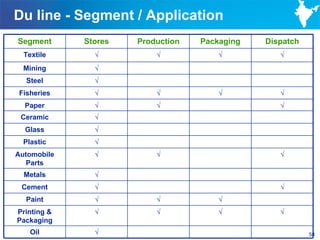

Du line - Segment / Application Segment Stores Production Packaging Dispatch Textile √ √ √ √ Mining √ Steel √ Fisheries √ √ √ √ Paper √ √ √ Ceramic √ Glass √ Plastic √ Automobile √ √ √ Parts Metals √ Cement √ √ Paint √ √ √ Printing & √ √ √ √ Packaging Oil √ 58
Du Line - Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) IND 225-DUCS300s 300 50 850 x 850 IND 225-DUCS600s 600 100 850 x 850 IND 225-DUCS1500s 1500 200 850 x 850 IND 225-DUFS300s 300 50 1000 x 1000 IND 225-DUFS600s 600 100 1000 x 1000 IND 225-DUFS1500s 1500 200 1000 x 1000 IND 225-DUE300s 300 50 1250 x 1500 IND 225-DUE600s 600 100 1250 x 1500 IND 225-DUE1500s 1500 200 1250 x 1500 IND 225 With DU Line Platforms are available in :  DUC Platform of SS with SBC Alloy Steel Load Cell (Degree of Protection : IP 67)  DUC Platform of SS with SBH SS 304 Load Cell (Degree of Protection : IP 67)  DUC Platform with SS Top Frame & MS Bottom Frame . SBC Alloy Steel Load Cell (Degree of Protection :IP 67) 59
N Line 60
N Line Scale Low Profile Platform N Line Approach Ramps Goods Recording Software 61

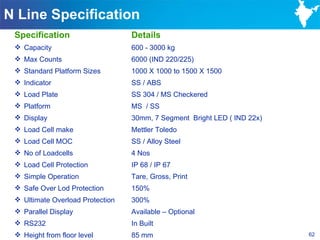

N Line Specification Specification Details  Capacity 600 - 3000 kg  Max Counts 6000 (IND 220/225)  Standard Platform Sizes 1000 X 1000 to 1500 X 1500  Indicator SS / ABS  Load Plate SS 304 / MS Checkered  Platform MS / SS  Display 30mm, 7 Segment Bright LED ( IND 22x)  Load Cell make Mettler Toledo  Load Cell MOC SS / Alloy Steel  No of Loadcells 4 Nos  Load Cell Protection IP 68 / IP 67  Simple Operation Tare, Gross, Print  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  Parallel Display Available – Optional  RS232 In Built  Height from floor level 85 mm 62

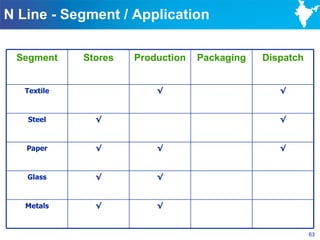

N Line - Segment / Application Segment Stores Production Packaging Dispatch Textile √ √ Steel √ √ Paper √ √ √ Glass √ √ Metals √ √ 63

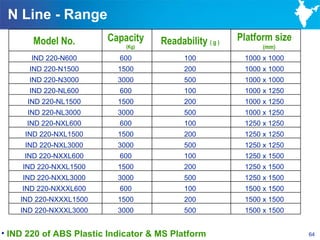

N Line - Range Model No. Capacity Readability ( g ) Platform size (Kg) (mm) IND 220-N600 600 100 1000 x 1000 IND 220-N1500 1500 200 1000 x 1000 IND 220-N3000 3000 500 1000 x 1000 IND 220-NL600 600 100 1000 x 1250 IND 220-NL1500 1500 200 1000 x 1250 IND 220-NL3000 3000 500 1000 x 1250 IND 220-NXL600 600 100 1250 x 1250 IND 220-NXL1500 1500 200 1250 x 1250 IND 220-NXL3000 3000 500 1250 x 1250 IND 220-NXXL600 600 100 1250 x 1500 IND 220-NXXL1500 1500 200 1250 x 1500 IND 220-NXXL3000 3000 500 1250 x 1500 IND 220-NXXXL600 600 100 1500 x 1500 IND 220-NXXXL1500 1500 200 1500 x 1500 IND 220-NXXXL3000 3000 500 1500 x 1500 • IND 220 of ABS Plastic Indicator & MS Platform 64
N Line - Range Model No. Capacity (Kg) Readability ( g ) Platform size (mm) IND 225-N600h 600 100 1000 x 1000 IND 225-N1500h 1500 200 1000 x 1000 IND 225-N3000h 3000 500 1000 x 1000 IND 225-NL600h 600 100 1000 x 1250 IND 225-NL1500h 1500 200 1000 x 1250 IND 225-NL3000h 3000 500 1000 x 1250 IND 225-NXL600h 600 100 1250 x 1250 IND 225-NXL1500h 1500 200 1250 x 1250 IND 225-NXL3000h 3000 500 1250 x 1250 IND 225-NXXL600h 600 100 1250 x 1500 IND 225-NXXL1500h 1500 200 1250 x 1500 IND 225-NXXL3000h 3000 500 1250 x 1500 IND 225-NXXXL600h 600 100 1500 x 1500 IND 225-NXXXL1500h 1500 200 1500 x 1500 IND 225-NXXXL3000h 3000 500 1500 x 1500 • IND 225of SS Indicator, SS 304 Load Plate & MS Painted Platform • IND 225of SS Indicator, SS Platform 65
IND 22x 66

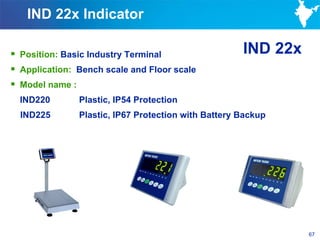

IND 22x Indicator  Position: Basic Industry Terminal IND 22x  Application: Bench scale and Floor scale  Model name : IND220 Plastic, IP54 Protection IND225 Plastic, IP67 Protection with Battery Backup 67
IND 22x - Features & Benefits  LED Display – 6 characters , 7 segment with 30 mm height Display (30mm) Better Visibility  Internal Resolution – 20,000,000 ( Improved Readability)  RS 232 Interface : Port for Computer/Printer  Applications – Counting, Check weighing, Classifying, x10 68
IND 22x Indicator 6 Digit Weight Display Display Indicators Keypad 69
IND 22x Range Model No. Capacity Readability ( g ) Platform size (kg) (mm) IND 220-N600 600 100 1000 x 1000 IND 220-N1500 1500 200 1000 x 1000 IND 220-N3000 3000 500 1000 x 1000 IND 220-NL600 600 100 1000 x 1250 IND 220-NL1500 1500 200 1000 x 1250 IND 220-NL3000 3000 500 1000 x 1250 IND 220-NXL600 600 100 1250 x 1250 IND 220-NXL1500 1500 200 1250 x 1250 IND 220-NXL3000 3000 500 1250 x 1250 IND 220-NXXL600 600 100 1250 x 1500 IND 220-NXXL1500 1500 200 1250 x 1500 IND 220-NXXL3000 3000 500 1250 x 1500 IND 220-NXXXL600 600 100 1500 x 1500 IND 220-NXXXL1500 1500 200 1500 x 1500 IND 220-NXXXL3000 3000 500 1500 x 1500 70
IND 22x – Check Weighing Application Sample Weight Overweight Indication Under Weight Indication 71

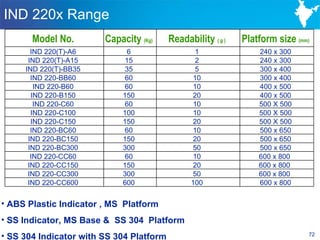

IND 220x Range Model No. Capacity (Kg) Readability ( g ) Platform size (mm) IND 220(T)-A6 6 1 240 x 300 IND 220(T)-A15 15 2 240 x 300 IND 220(T)-BB35 35 5 300 x 400 IND 220-BB60 60 10 300 x 400 IND 220-B60 60 10 400 x 500 IND 220-B150 150 20 400 x 500 IND 220-C60 60 10 500 X 500 IND 220-C100 100 10 500 X 500 IND 220-C150 150 20 500 X 500 IND 220-BC60 60 10 500 x 650 IND 220-BC150 150 20 500 x 650 IND 220-BC300 300 50 500 x 650 IND 220-CC60 60 10 600 x 800 IND 220-CC150 150 20 600 x 800 IND 220-CC300 300 50 600 x 800 IND 220-CC600 600 100 600 x 800 • ABS Plastic Indicator , MS Platform • SS Indicator, MS Base & SS 304 Platform • SS 304 Indicator with SS 304 Platform 72

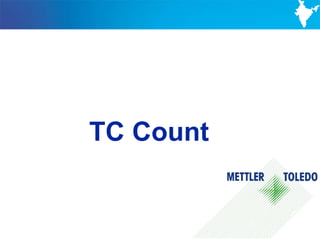

TC Count 73

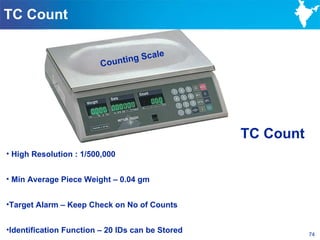

TC Count le ng Sca Counti TC Count • High Resolution : 1/500,000 • Min Average Piece Weight – 0.04 gm •Target Alarm – Keep Check on No of Counts •Identification Function – 20 IDs can be Stored 74
Industry Problem Areas High Labour Low Counting Cost Speed Inventory control in a mess Business loss due to Oversupply CUSTOMER and Under Inaccurate supply of counting for goods large batches of small components 75
TC Count - Applications Other Goods in and Goods out Packing Inventory Checking Re-packing for dispensing 76
TC Count - Features & Benefits Features Benefits Auto Average Piece Weight (APW) Reduce Errors in Counting - Saves Cost Display- Bright Green VFD & 3 Improves Visibility-Reduces Display Windows Operator Error High Resolution (10,000 counts) Single Scale Covers All Type of Weighing Requirement Target Alarm Function Ease Counting Operation Switching of Weighing Units Facilitate Easy Operation •Operational Benefits •Increased Productivity •Improved Inventory Records •Reduced counting errors and Associated cost 77

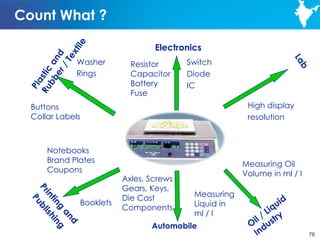

Count What ? tile Electronics ex er nd La /T Washer Resistor Switch bb a b Ru s t i c Rings Capacitor Diode Battery P la IC Fuse Buttons High display Collar Labels resolution Notebooks Brand Plates Measuring Oil Coupons Volume in ml / l Axles, Screws Gears, Keys, Pr bl Measuring in ish Die Cast d ui Pu Booklets tin Liquid in Components Liq y g ng ml / l il / str an O du i d Automobile In 78

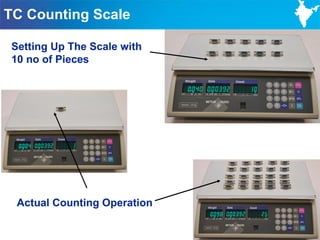

TC Counting Scale Setting Up The Scale with 10 no of Pieces Actual Counting Operation 79
TC Counting Scale Weight Indicator Product ID / APW Counting Indicator Spirit Level TC Count Display 80
TC Count - Segment / Application Segment Stores Production Packaging Dispatch Paper √ √ √ Rubber √ √ √ √ Glass √ √ √ Plastic √ √ √ √ Automobile √ √ √ √ Parts Paint √ √ √ Printing & √ √ √ √ Packaging Oil √ √ Allied √ √ √ √ 81

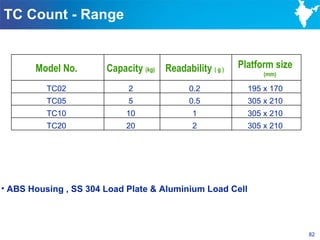

TC Count - Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) TC02 2 0.2 195 x 170 TC05 5 0.5 305 x 210 TC10 10 1 305 x 210 TC20 20 2 305 x 210 • ABS Housing , SS 304 Load Plate & Aluminium Load Cell 82
Panda 83
Panda THE MOST BEAUTIFUL AND AESTHETIC MODEL EVER INTRODUCED IN THE HISTORY OF WEIGHING Adjustable display angle Dual line LCD display with backlit Pole mounted Tactile membrane display indicator keypad Panda Stainless steel Chrome-nickel weighing pan steel platform 84

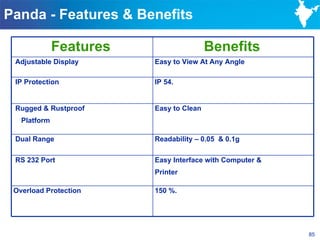

Panda - Features & Benefits Features Benefits Adjustable Display Easy to View At Any Angle IP Protection IP 54. Rugged & Rustproof Easy to Clean Platform Dual Range Readability – 0.05 & 0.1g RS 232 Port Easy Interface with Computer & Printer Overload Protection 150 %. 85

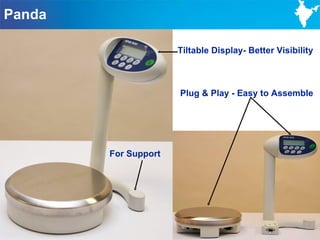

Panda Tiltable Display- Better Visibility Plug & Play - Easy to Assemble For Support 86

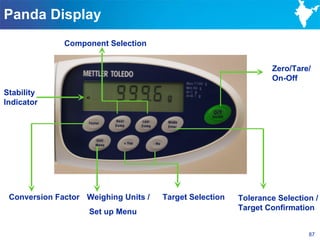

Panda Display Component Selection Zero/Tare/ On-Off Stability Indicator Conversion Factor Weighing Units / Target Selection Tolerance Selection / Target Confirmation Set up Menu 87

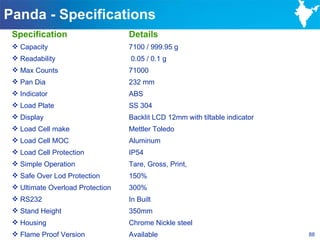

Panda - Specifications Specification Details  Capacity 7100 / 999.95 g  Readability 0.05 / 0.1 g  Max Counts 71000  Pan Dia 232 mm  Indicator ABS  Load Plate SS 304  Display Backlit LCD 12mm with tiltable indicator  Load Cell make Mettler Toledo  Load Cell MOC Aluminum  Load Cell Protection IP54  Simple Operation Tare, Gross, Print,  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  RS232 In Built  Stand Height 350mm  Housing Chrome Nickle steel  Flame Proof Version Available 88

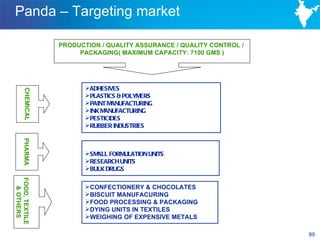

Panda – Targeting market PRODUCTION / QUALITY ASSURANCE / QUALITY CONTROL / PACKAGING( MAXIMUM CAPACITY: 7100 GMS ) ADHESIVES CHEMICAL PLASTICS & POLYMERS PAINT MANUFACTURING INK MANUFACTURING PESTICIDES RUBBER INDUSTRIES PHARMA SMALL FORMULATION UNITS RESEARCH UNITS BULK DRUGS FOOD, TEXTILE CONFECTIONERY & CHOCOLATES & OTHERS BISCUIT MANUFACURING FOOD PROCESSING & PACKAGING DYING UNITS IN TEXTILES WEIGHING OF EXPENSIVE METALS 89

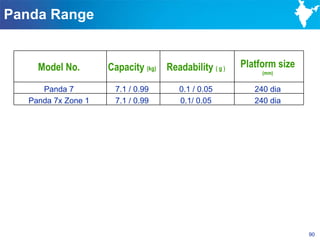

Panda Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) Panda 7 7.1 / 0.99 0.1 / 0.05 240 dia Panda 7x Zone 1 7.1 / 0.99 0.1/ 0.05 240 dia 90
CUB II 91

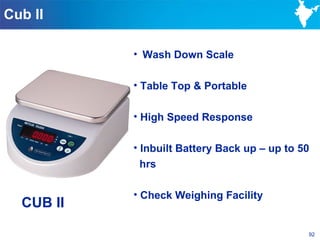

Cub II • Wash Down Scale • Table Top & Portable • High Speed Response • Inbuilt Battery Back up – up to 50 hrs • Check Weighing Facility CUB II 92

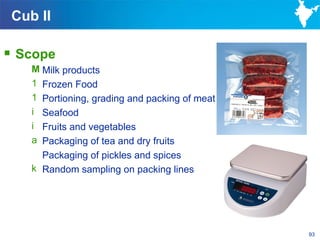

Cub II  Scope M Milk products 1 Frozen Food 1 Portioning, grading and packing of meat i Seafood i Fruits and vegetables a Packaging of tea and dry fruits Packaging of pickles and spices k Random sampling on packing lines 93

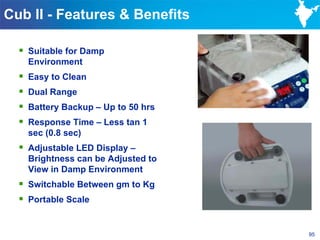

Cub II - Features & Benefits  Rugged and Reliable  IP Protection : MIP 65 – Complete Scale IP 67 – PCB & Battery  Special Gasket Sealing Dual Enclosures with Damp-Proof PCBs with Patented For all Joints Water-Proof Sealing Glue Technology 94
Cub II - Features & Benefits  Suitable for Damp Environment  Easy to Clean  Dual Range  Battery Backup – Up to 50 hrs  Response Time – Less tan 1 sec (0.8 sec)  Adjustable LED Display – Brightness can be Adjusted to View in Damp Environment  Switchable Between gm to Kg  Portable Scale 95
CUB II - Display 6 Digit, 7 Segment LED Zeroing Function Display Tare Power Spirit Level Function – Check Battery Indicator Weighing/ Unit Change Model No. Capacity Readability ( g ) Platform size (kg) (mm) Cub II - 1.5 1.5 0.2 180 x 230 Cub II - 3 3 0.5 180 x 230 Cub II - 6 6 1 180 x 230 Cub II - 15 15 2 180 x 230 96
CUB II - Specifications Specification Details  Capacity 1.5,3,6,15 kg  Max Counts 7500  Platform Size 180 X 230 mm  Indicator Inbuilt in ABS Housing  Load Plate SS 304  Display Bright LED Single and Dual Display  Load Cell make Mettler Toledo  Load Cell MOC Aluminum  Load Cell Protection IP65  Simple Operation Tare, Gross  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  RS232 In Built  Display response time 0.8 Sec  Housing ABS Plastic  Protection level for PCB and Battery IP 67 97

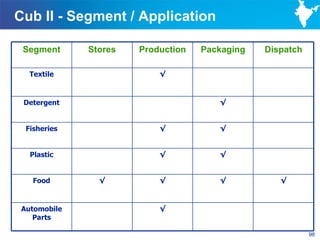

Cub II - Segment / Application Segment Stores Production Packaging Dispatch Textile √ Detergent √ Fisheries √ √ Plastic √ √ Food √ √ √ √ Automobile √ Parts 98
Pallet Scale 99

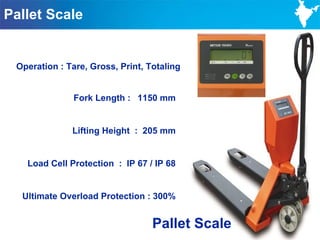

Pallet Scale Operation : Tare, Gross, Print, Totaling Fork Length : 1150 mm mm Fork Length : 1150 Lifting Height : 205 mm Load Cell Protection : IP 67 / IP 68 Ultimate Overload Protection : 300% Pallet Scale 100
Pallet Scale - Application Segment Stores Dispatch Textile √ √ Steel √ √ Paper √ √ Ceramic √ √ Glass √ √ Plastic √ Automobile Parts √ Metals √ Cement √ Model No. Capacity Readability ( g ) (kg) PTS2-555 X 1150 2000 200 PTS2 -690 x 1200 2000 200 101
Spider T 102

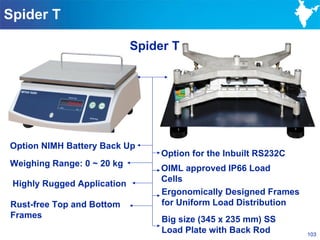

Spider T Spider T Option NIMH Battery Back Up Option for the Inbuilt RS232C Weighing Range: 0 ~ 20 kg OIML approved IP66 Load Cells Highly Rugged Application Ergonomically Designed Frames Rust-free Top and Bottom for Uniform Load Distribution Frames Big size (345 x 235 mm) SS Load Plate with Back Rod 103
Spider T- Platform Sandwich Type Platform Load Cell Overload Protection Points- Prevents Loadcell Failure in case of Over Loading 104
Spider T - Application & Segment Segment Stores Production Packaging Dispatch Textile √ √ √ √ Paper √ √ Ceramic √ √ √ Glass √ √ √ Plastic √ √ √ √ Metals √ √ Printing & √ √ √ √ Packaging Allied √ √ √ √ Model No. Capacity Readability ( g ) Platform size (kg) (mm) Spider T - 10 5 / 10 0.5 / 1 345 x 235 Spider T - 20 10 / 20 1/2 345 x 235 Spider T - 30 15 / 30 2/5 345 x 235 105
Thank You

More Related Content

PDF
3 materialhandlingtrends 2012
byTim Floyd

PDF
End to End IT Services and Solutions for Manufacturing Industry
byXavient Information Systems

PDF
Glass manufacturing plant operational excellence catalog
byMattcons

PDF
Brochure Invensys Operations Management 04 11
bySven Audenaert

PDF
Aras Partner Solution by Minerva
byAras

PDF
Fcs - Encyclopedia
byArnaldo Colombo

PDF
Infosys - Chemicals Industry Enterprise Mobility Applications
byInfosys

PDF
Pharmaceutical erp-ebroucher
byEresource Erp

3 materialhandlingtrends 2012
byTim Floyd

End to End IT Services and Solutions for Manufacturing Industry
byXavient Information Systems

Glass manufacturing plant operational excellence catalog
byMattcons

Brochure Invensys Operations Management 04 11
bySven Audenaert

Aras Partner Solution by Minerva
byAras

Fcs - Encyclopedia
byArnaldo Colombo

Infosys - Chemicals Industry Enterprise Mobility Applications
byInfosys

Pharmaceutical erp-ebroucher
byEresource Erp


What's hot

PDF
Honeywell Automation Excellence
bytjeerdzwijnenberg

PDF
Tcl corporate v0 01 vs 03052012
byTransition Consulting Limited, India

PPT
Manufacturing excellence
by營松 林

PDF
Verticent Mfg Plus
byM-Focus

PDF
Quantum Integrators Profile
bybahetitushar

PPT
Heizer 06
byRizwan Khurram

PPTX
1 eduardoespinheira-2confcmmiportugal-v1-1
byisabelmargarido

PDF
CH2M HILL Manufacturing Integration Consulting - 2010
byasgtharr

PDF
07 Ace 2010 Aras Innovator For Quality Systems
byProdeos

PDF
An Introduction to AIMCO
byAIMCO

PPTX
Solution Manager Roadmaps
byTony de Thomasis

PDF
Int order fulfillment_whitepaper_final approved
byintelligrated

PDF
Infosys - Telecom OEM Solutions | Quote to Cash White Paper
byInfosys

PPTX
mBar Product Presentation
byRobert Gillespie

PDF
Best Practices in Data Collection for Successful Manufacturing Intelligence
byJeffery Cawley

PPTX
Ch07
byKhaled Musheeb

PDF
Package validation white paper, 2009
byMikko Nikkanen

PPTX
ParaVent
byGary Craven

PDF
Linkroad Corporate Snapshot
bymelvinyou

PPT
Quality presentation
byHead of Global Quality , Huhtamaki

Honeywell Automation Excellence
bytjeerdzwijnenberg

Tcl corporate v0 01 vs 03052012
byTransition Consulting Limited, India

Manufacturing excellence
by營松 林

Verticent Mfg Plus
byM-Focus

Quantum Integrators Profile
bybahetitushar

Heizer 06
byRizwan Khurram

1 eduardoespinheira-2confcmmiportugal-v1-1
byisabelmargarido

CH2M HILL Manufacturing Integration Consulting - 2010
byasgtharr

07 Ace 2010 Aras Innovator For Quality Systems
byProdeos

An Introduction to AIMCO
byAIMCO

Solution Manager Roadmaps
byTony de Thomasis

Int order fulfillment_whitepaper_final approved
byintelligrated

Infosys - Telecom OEM Solutions | Quote to Cash White Paper
byInfosys

mBar Product Presentation
byRobert Gillespie

Best Practices in Data Collection for Successful Manufacturing Intelligence
byJeffery Cawley

Ch07
byKhaled Musheeb

Package validation white paper, 2009
byMikko Nikkanen

ParaVent
byGary Craven

Linkroad Corporate Snapshot
bymelvinyou

Quality presentation
byHead of Global Quality , Huhtamaki


Similar to STAR ELECTRONIC SYSTEM

PPTX
Tieto Manufacturing Operations Management – agility and support for manufactu...
byTieto Corporation

PDF
NeoKinetics Overview
byMatthew Doty

PDF
Executive Presentation Homine
byHomine Consulting

PDF
PDC global capability 03 13-13
byJohn Klein

PDF
Pdc global capability 04 02-13
byKen Young

PDF
Enabling superior partner collaboration and consumer engagement
byMindtree Ltd.

PDF
Enabling superior partner collaboration and consumer engagement.
byMindtree Ltd.

PDF
Trends and solutions in mes and operations management g gorbach arc orlando 2008
byARC Advisory Group

PDF
Lodestone Gaining More From Your Erp
bymichaelschmidtlodestone

PDF
Design Group Software Services
bybalaryb

PPSX
Automate Performance Measurement to Drive Profitability_Plexus
byZycus

PDF
Ammg Business Model Aug 1 08
byMike Bowes

PDF
Strategic Marketing/Business Services
byMatthew Doty

PDF
Ems11 Programme
byMandy_Long

PDF
Visure Solutions Requirements Engineering_The word in a nutshell - Ulf Sandberg
byVisure Solutions

PPTX
Power of metrics in achieving supply chain excellence ibf
byPresident Stephen Crane Consulting, LLC

PDF
Tv Operations And Ob Creation Srg
byRalph B. Saunders, Ph.D.

PPTX
Accelerate Time to Business Outcomes through BPM
byNewgen Software Technologies Limited

PDF
Ajesh Kapoor from Wipro; ‘Build on Your Company's Strengths: Find renewed foc...
byeyefortransport

PDF
Seamless Process & Business Process Management - Srikrishnan Sundararajan
byJyothi Satyanathan

Tieto Manufacturing Operations Management – agility and support for manufactu...
byTieto Corporation

NeoKinetics Overview
byMatthew Doty

Executive Presentation Homine
byHomine Consulting

PDC global capability 03 13-13
byJohn Klein

Pdc global capability 04 02-13
byKen Young

Enabling superior partner collaboration and consumer engagement
byMindtree Ltd.

Enabling superior partner collaboration and consumer engagement.
byMindtree Ltd.

Trends and solutions in mes and operations management g gorbach arc orlando 2008
byARC Advisory Group

Lodestone Gaining More From Your Erp
bymichaelschmidtlodestone

Design Group Software Services
bybalaryb

Automate Performance Measurement to Drive Profitability_Plexus
byZycus

Ammg Business Model Aug 1 08
byMike Bowes

Strategic Marketing/Business Services
byMatthew Doty

Ems11 Programme
byMandy_Long

Visure Solutions Requirements Engineering_The word in a nutshell - Ulf Sandberg
byVisure Solutions

Power of metrics in achieving supply chain excellence ibf
byPresident Stephen Crane Consulting, LLC

Tv Operations And Ob Creation Srg
byRalph B. Saunders, Ph.D.

Accelerate Time to Business Outcomes through BPM
byNewgen Software Technologies Limited

Ajesh Kapoor from Wipro; ‘Build on Your Company's Strengths: Find renewed foc...
byeyefortransport

Seamless Process & Business Process Management - Srikrishnan Sundararajan
byJyothi Satyanathan


Recently uploaded

DOCX
Felix's Research project final copy.docx
bymaingijimmy002

PDF
Early Nozzle (Now Amp) Explainer, Presented at company offsite in Ireland
byJames Hall

PDF
Architectural Professional portfolio designs.pdf
bybuildasnest

PPTX
ENGLISH DICTIONARY PORTFOLIO FOR EVENTS.
byRie ESPERTA

PDF
urahkhata chikitsa Yojana complete......
byVdoorviKulkarni

PDF
Should you buy verified PayPal or Stripe accounts_.pdf
bywiulk201973rt6mlnjq7

PPTX
Mogul Interior Armoires: Maximalist Poetry in Wood
byMogul Interior

PPTX
Urban Planning Practice in the Philippines.pptx
byCORONADOJULIABEATRIZ

PPTX
ZAIRON AND CARLYN PPT 111111111111111111
byandaliasajohnzairon

PDF
🥳 BUKTI KEMENANGAN HARI INI SELASA 03 FEBRUARI 2026 🥰
byGRAB

PDF
TOC Unit 1 Finite State Machine and divisible by 3
bySanjivani college of Engineering

PPTX
Blueprint Symbols & Learning to Draw a Floor Plan
bybrhaley

PDF
Art Therapy for Autism Creative Growth..
byAutism Learn & Play

PPTX
etics.pptxghhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...
byibganraffy22

PPTX
Chikitsa Yojana of Urahkshata Roga......
byVdoorviKulkarni

PPTX
HARDITS THEORY: “to design the design as a design. PRESENTATION.pptx
bycasigbe

PPTX
How High-Quality Images Increase Online Sales
bySam Smith

PPTX
702112964-DELHI-HAAT-A-case-study data ppt
byrakshiperween3

PPTX
TLE - FCS 7 - Introduction to Technical Drawing.pptx
byLANISOCRATES1

PDF
CASE STUDY about Shreyas wellness Center, Quiet healing center; Auroville
byaishwaryag2304

Felix's Research project final copy.docx
bymaingijimmy002

Early Nozzle (Now Amp) Explainer, Presented at company offsite in Ireland
byJames Hall

Architectural Professional portfolio designs.pdf
bybuildasnest

ENGLISH DICTIONARY PORTFOLIO FOR EVENTS.
byRie ESPERTA

urahkhata chikitsa Yojana complete......
byVdoorviKulkarni

Should you buy verified PayPal or Stripe accounts_.pdf
bywiulk201973rt6mlnjq7

Mogul Interior Armoires: Maximalist Poetry in Wood
byMogul Interior

Urban Planning Practice in the Philippines.pptx
byCORONADOJULIABEATRIZ

ZAIRON AND CARLYN PPT 111111111111111111
byandaliasajohnzairon

🥳 BUKTI KEMENANGAN HARI INI SELASA 03 FEBRUARI 2026 🥰
byGRAB

TOC Unit 1 Finite State Machine and divisible by 3
bySanjivani college of Engineering

Blueprint Symbols & Learning to Draw a Floor Plan
bybrhaley

Art Therapy for Autism Creative Growth..
byAutism Learn & Play

etics.pptxghhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhhh...
byibganraffy22

Chikitsa Yojana of Urahkshata Roga......
byVdoorviKulkarni

HARDITS THEORY: “to design the design as a design. PRESENTATION.pptx
bycasigbe

How High-Quality Images Increase Online Sales
bySam Smith

702112964-DELHI-HAAT-A-case-study data ppt
byrakshiperween3

TLE - FCS 7 - Introduction to Technical Drawing.pptx
byLANISOCRATES1

CASE STUDY about Shreyas wellness Center, Quiet healing center; Auroville
byaishwaryag2304


STAR ELECTRONIC SYSTEM

  • 1.
    Our Group METTLERTOLEDO is a global manufacturer and marketer of Precision Instruments for use in the Laboratories, Manufacturing, and Food Retailing. Worldwide Presence 9’500 Employees Sales approx. USD 1.8 billion 1
  • 2.
    1997 878 1998 936 Group Sales 1999 1065 2000 1096 2001 1148 2002 1214 2003 1304 2004 1404 2005 1482 2006 1595 2007 1794 in Million US $ 2
  • 3.
    38% Americas In millions USD 1996 849 1997 878 Sales per Region 1998 936 1999 1065 2000 1096 2001 43% 1148 Europe 2002 1214 2003 1304 2004 1404 2005 1482 2006 1594 19% Asia / ROW 3
  • 4.

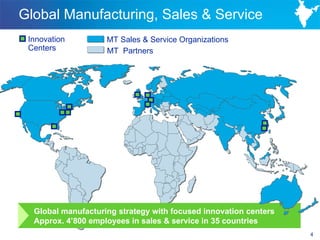

    Global Manufacturing, Sales& Service Innovation MT Sales & Service Organizations Centers MT Partners Global manufacturing strategy with focused innovation centers Approx. 4’800 employees in sales & service in 35 countries 4
  • 5.
    Customer Processes Solutions to support customer processes Drug Quality R&D Discovery Control Logistics Retail Manufacturing Packaging Laboratory Solutions Industrial Solutions Retail Solutions Customer Benefits Accelerate processes Increase efficiency Improve product quality Comply with regulations 5
  • 6.
    Advancing Research andQuality Control Laboratory  Improving processes in R&D, drug discovery and quality Solutions control  Application-specific software  Interface with your information systems  Enhanced accuracy, productivity and compliance Laboratory Laboratory Pipettes Analytical Thermal Automated Weighing Balances Chemistry Analysis Chemistry Solutions Solutions 6
  • 7.
    Improving Productivity Industrial  Optimizing your operations from receiving to shipping Solutions  Improved product quality  Accelerated and automated processes & ERP integration  Increased efficiency  Regulatory compliance Receiving Process Industrial End-of-Line Logistics Analytics Weighing Product Inspection 7
  • 8.
    Optimizing Fresh FoodsManagement Retail  Effectively manage your fresh foods inventory and Solutions merchandising  Maximize your efficiency and profitability  Enhance the satisfaction of your customers  Integrated in existing IT infrastructures Central Pack Receiving Prepack Counter Self-Service Checkout 8
  • 9.
    Broad Skill Base R&D Service Sales & Logistics Marketing Manufacturing Dedicated professionals worldwide contribute to customers success 9
  • 10.
    Innovation Competencies Man/ Machine In Process Interface Technology Technology Customer Integration Applications Automation & Robotics 830 R&D professionals work daily on maintaining our technology lead 10
  • 11.
    Service Solutions Customer Benefits Service XXL Validation methods and protocols ensure process reproducibility, Vali- Vali- user monitoring and safe data dation management. dation Support Documented equipment Regulatory qualification ensures compliance Qualification with quality assurance systems Compliance such as GLP, GMP and ISO. Calibration processes ensure Calibration accurate, reliable and traceable results. Proactive maintenance maximizes uptime and productivity. User training Maintenance and Support ensures equipment knowledge which leads to safer working processes. Improved service tools enhance customer processes 11
  • 12.
    Loadcell Manufacturing Facilities World Class Technology Used in Load cell Manufacturing 12
  • 13.
    Facilities-Machining  CNC for C/F machining World Class Technology Used in Load cell Manufacturing 13
  • 14.
    Mettler Toledo IndiaPrivate Limited  MTIN - 100% subsidiary of Mettler Toledo Inc, Switzerland  Kick Started it’s Operation - 1998  Turnover in 2007 : Rs 127 Cr  Over 15000 Weighing Scales Installed  Over 25 Dealers in India  Largest Service Network in India N Trained Service Professional P Toll Free Number for Quick Serviceability - 14
  • 15.
    Service Support System No. of No. of City City Engineers Engineers Mumbai 7 Mohali 2 • 36 Locations Pune 2 Ludhiana 1 • 60 Engineers Aurangabad 1 Kolkata 3 Nagpur 1 Guwahati 1 Nasik 1 Bardhaman 1 Goa 2 Jamshedpur 1 Vapi 2 Raipur 1 Vadodara 3 Bhubaneshwar 2 Surat 1 Vishakhapatnam 1 Ahmedabad 2 Hyderabad 2 Ankleshwar 2 Vijayawada 1 Gandhidham 1 Bangalore 2 Rajkot 1 Chennai 2 Indore/Bhopal 1 Coimbatore 1 Jaipur 1 Madurai 1 Regional Office Delhi 5 Cochin 1 Lucknow 1 Ernakulum 1 Branch Office Haridwar 1 Kozhikode 1 Service Centers 15
  • 16.
    Industrial Product Range TABLETOP SCALE TC COUNT CUB II SPIDER T PANDA PLATFORM SCALE MINI CAT WILD CAT IND 220/225 N LINE SPECIAL APPLICATION SCALE DU LINE MINI CAT FLP PALLET SCALE 16
  • 17.
    Weighing Scale Weighing Scale Indicator Platform Indicators Platforms • Mini Cat ( ABS / SS) • Sandwich Type (MS) • Wild Cat • SS 304 Wash down • IND 220 / 225 • N Line • DU Line 17
  • 18.
    Weighing Scale Platform Sizes in mm • 240 x 300 • 850 x 850 • 300 x 400 • 1000 x 1000 • 400 x 500 • 1250 x 1500 • 500 x 500 • 1500 x 1500 • 500 x 650 • 600 x 800 # Platform are available in SS 304 & MS Material 18
  • 19.
  • 20.

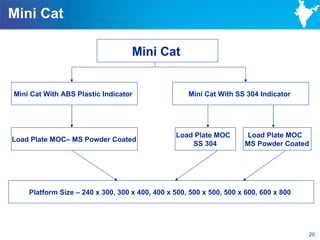

    Mini Cat Mini Cat Mini Cat With ABS Plastic Indicator Mini Cat With SS 304 Indicator Load Plate MOC Load Plate MOC Load Plate MOC– MS Powder Coated SS 304 MS Powder Coated Platform Size – 240 x 300, 300 x 400, 400 x 500, 500 x 500, 500 x 600, 600 x 800 20
  • 21.
    Mini Cat ABS Capacity : 3 - 600 kg Rugged for Industrial Use Mini Cat Plug & Play- Ready to Weigh Dual Range Overload Protection 21
  • 22.
    Mini Cat -Features & Benefits Features Benefits Load Cell Protection IP 67 ( METTLER TOLEDO make) PCB Surface Mounted Components, Less breakdown of Components IN Built SMPS Better Performance Under Voltage Fluctuations Specially Designed Rubber Feet Prevents Skidding of Platform During Loading and Unloading, Precise Level Adjustment Specially Moulded Rubber Better Impact Load Absorption O rings Ensures Quick Stability and Repeatability Ensures Exact alignment with Load Cell Top Special Embossing Operation for Top Plate ( Loadcell Alignment) Plate and Loadcell – Better Repeatability Bright RED LED Display Good Visibility, Error Free Reading ( 5 Digit, 13mm ht, 7 Segment) Even in Dark Environment 22
  • 23.
    Mini Cat -Features & Benefits Features Benefits No welding Spot Visible on the Better Aesthetic and Ease of Cleaning Top of Platform ( Internal Welding) Overload Protection 6 Stoppers are Provided to Prevent Loadcell Failure During Overload Rugged Design of Load Plate Improves Product Life Auto Power OFF Saves Power Low Battery Indication Prevents Sudden Power Out Condition No. of Buttons -2 (ON / OFF) Easy to Operate Spirit Level Indicator Facilitate Easy Alignment Dual Range Dual Readability in a Single Scale, Avoids Unnecessary Investment in Second Scale 23
  • 24.
    Mini Cat -Ergonomically Designed Platform Specially Moulded Better Aesthetics (Clean Design) – Star Type Fasteners – Rubber “O” Ring for No Welding Spot on Shock Absorption Top Side Better Torque control 1 5 3 4 6 2 Anti Skid Rubber Over load Protection Special Embossing Foot Ensures Perfect Ensures Max Safety Contact with Load Cell 24
  • 25.
    Mini Cat PCB: New Generation Technology Surface Mounted Components In Built SMPS World Class Technology Used in Manufacturing PCB 25
  • 26.
    Mini Cat ABSIndicator Battery Indicator ON & OFF Button TARE Button 26
  • 27.
    Mini Cat -Specification Specification  Capacity Complete Range from 6-600 kgs  Max Counts 10,000  Platform Sizes Suitable for All Applications 240 X 300 to 600 X 800  Indicator Non Corrosive, Life Long ABS Plastic  Load Plate SS 304  Platform MS Powder Coated  Display Bright 13mm Red LED for better visibility  Load Cell make World‘s Renowned Mettler Toledo  Load Cell MOC Aluminum Increases Loadcell Life  Load Cell Protection IP 65 can be used in dusty and humid condition  Simple Operation Net, Tare, Gross  Safe Over Lod Protection 150% protects in case of Impact loading  Ultimate Overload Protection 300%  Back rail Available SS/MS – Optional for better support  Battery Pack Available – Optional Suitable In case of Power Problem  Wall Mounting Bracket Available – Optional for better space utilisation  Application All Dry Application 27
  • 28.
    Mini Cat -Application Areas Segment Stores Production Packaging Dispatch Textile √ √ √ √ Mining √ Steel √ √ √ Fisheries √ √ Paper √ √ Ceramic √ √ √ Glass √ √ √ Plastic √ √ √ √ Automobile √ √ √ √ Parts Metals √ √ Cement √ Paint √ Printing & √ √ √ √ Packaging Oil √ Allied √ √ √ √ 28
  • 29.
    Mini Cat -Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) MIC(T)-A6 6 1 240 x 300 MIC(T)-A15 15 2 240 x 300 MIC(T)-BB30 30 5 300 x 400 MIC-BB60 60 10 300 x 400 MIC-B60 60 10 400 x 500 MIC-B100 100 10 400 x 500 MIC-B150 150 20 400 x 500 MIC-C60 60 10 500 X 500 MIC-C100 100 10 500 X 500 MIC-C150 150 20 500 X 500 MIC-C200 200 20 500 X 500 MIC-BC60 60 10 500 x 650 MIC-BC100 100 10 500 x 650 MIC-BC150 150 20 500 x 650 MIC-BC200 200 20 500 x 650 MIC-BC300 300 50 500 x 650 MIC-CC60 60 10 600 x 800 MIC-CC100 100 10 600 x 800 MIC-CC150 150 20 600 x 800 MIC-CC200 200 20 600 x 800 MIC-CC300 300 50 600 x 800 MIC-CC600 600 100 600 x 800 29
  • 30.
  • 31.
    Mini Cat SS • Complete Stainless Steel Scale for Wash down Applications • IP 67 Protection for Loadcell and Indicator • Loadcell is Encapsulated in SS Capsule for Extra Protection 31
  • 32.
    Mini Cat SS- Features & Benefits Features Benefits Load cell Encapsulated Mettler Toledo Load Cell for More Protection IP Protection for Load Cell IP 67-Wash Resistant PCB Surface Mounted Components, Less breakdown of Components Complete Stainless Steel Easy to Clean, Complete Wash down Battery Back up ( NI-MH Compact & Inbuilt, with IP 67 Protection Battery) Specially Moulded Rubber Better Impact Load Absorption Ensures Quick Over rings Stability and Repeatability Ensures Exact alignment with Load Special Embossing Operation Cell Top Plate and Loadcell –Better for Top Plate (Loadcell Repeatability Alignment) Specially Designed Rubber Prevents Skidding of Platform Feet During Loading and Unloading, Precise Level Adjustment 32
  • 33.
    Mini Cat SS- Features & Benefits Features Benefits Ergonomically Designed Platform No Accumulation of Dirt Particles- Facilitated Easy Cleaning Overload Protection Stoppers are Provided to Prevent Loadcell Failure During Overload Auto OFF Saves Power Low Battery Indication Prevents Sudden Power Out Condition Spirit Level Facilitate Easy Alignment Dual Range Dual Readability in a Single Scale, Avoids unnecessary Investment in Another Scale No of Keys 2 – ON / OFF Easy to Operate 33
  • 34.
    Mini Cat –SS 304 Platform Complete Wash Resistant Body of SS 304 With IP 67 Protection Encapsulated Load Cell for More Protection ( IP 67 ) 34
  • 35.
    Mini Cat –SS 304 Platform Specially Moulded Rubber to Absorb Shock Over Load Protection Points Prevents Loadcell From Damage during Overloading Specially Designed Rubber Feet to Prevent Skidding During Loading / Unloading 35
  • 36.
    Mini Cat SSSpecifications Specification Details  Capacity 6-600 kg Wide Range for all Industrial Application  Max Counts 10,000  Platform Sizes 240 X 300 to 600 X 800 Can be used for all Industrial application  Indicator SS 304 Dust and Humid Proof for longer life  Load Plate SS 304  Platform SS 304 Used for Complete wet application, approved for clean area  Display 13mm Red LED better visibility  Load Cell make World‘s renowned No 1 Mettler Toledo  Load Cell MOC Aluminum enclosed in SS enclosure used for Wet Application  Load Cell Protection IP 67  Simple Operation Tare, Gross  Safe Over Lod Protection 150% suitable for Impact Loading Application  Ultimate Overload Protection 300%  Back rail Available SS/MS – Optional  RS 232 In Built  Parallel Display Available – Optional  Wall Mounting Bracket Available – Optional 36
  • 37.
    Mini Cat SS- Segment / Application Segment Stores Production Packaging Dispatch Textile Mining √ Steel Fisheries √ √ √ √ Paper Ceramic Glass Plastic Automobile Parts Metals Cement √ √ Paint √ √ Printing & Packaging Oil √ √ 37
  • 38.
    Mini Cat SS(MS Platform & SS304 Load Plate) Model No. Capacity (kg) Readability ( g ) Platform size (mm) MICs(T)-A6 6 1 240 x 300 MICs(T)-A15 15 2 240 x 300 MICs(T)-BB30 30 5 300 x 400 MICs-BB60 60 10 300 x 400 MICs-B60 60 10 400 x 500 MICs-B100 100 10 400 x 500 MICs-B150 150 20 400 x 500 MICs-C60 60 10 500 X 500 MICs-C100 100 10 500 X 500 MICs-C150 150 20 500 X 500 MICs-C200 200 20 500 X 500 MICs-BC60 60 10 500 x 650 MICs-BC100 100 10 500 x 650 MICs-BC150 150 20 500 x 650 MICs-BC200 200 20 500 x 650 MICs-BC300 300 50 500 x 650 MICs-CC60 60 10 600 x 800 MICs-CC100 100 10 600 x 800 MICs-CC150 150 20 600 x 800 MICs-CC200 200 20 600 x 800 MICs-CC300 300 50 600 x 800 MICs-CC600 600 100 600 x 800 38
  • 39.
    Mini Cat (SS304 INDICATOR & SS304 Load Plate) Model No. Capacity (kg) Readability ( g ) Platform Size (mm) MICs(T)-A6s 6 1 240 x 300 MICs(T)-A15s 15 2 240 x 300 MICs(T)-BB30s 30 5 300 x 400 MICs-BB60s 60 10 300 x 400 MICs-B60s 60 10 400 x 500 MICs-B100s 100 10 400 x 500 MICs-B150s 150 20 400 x 500 MICs-C60s 60 10 500 X 500 MICs-C100s 100 10 500 X 500 MICs-C150s 150 20 500 X 500 MICs-C200s 200 20 500 X 500 MICs-BC60s 60 10 500 x 650 MICs-BC100s 100 10 500 x 650 MICs-BC150s 150 20 500 x 650 MICs-BC200s 200 20 500 x 650 MICs-BC300s 300 50 500 x 650 MICs-CC60s 60 10 600 x 800 MICs-CC100s 100 10 600 x 800 MICs-CC150s 150 20 600 x 800 MICs-CC200s 200 20 600 x 800 MICs-CC300s 300 50 600 x 800 MICs-CC600s 600 100 600 x 800 39
  • 40.
  • 41.
    MINICAT FLAME-PROOF SCALE Mini Cat- FLP 8 - type of arrangement ensures DOUBLE SAFETY due to Double Sealing points Indirect entry of cables ensures sparks be terminated in the terminal box only 41
  • 42.
    JUNCTION BOX PROVIDED! Limited length of the loadcell wire from the loadcell vendor The distance between the platform and the enclosure is more than the length of the standard loadcell wire Use of Junction box to enclose the load cell cable joint ensures safety from sparks and ignition of explosions – IS 2148 42
  • 43.

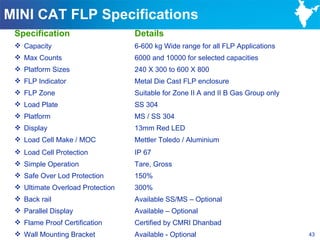

    MINI CAT FLPSpecifications Specification Details  Capacity 6-600 kg Wide range for all FLP Applications  Max Counts 6000 and 10000 for selected capacities  Platform Sizes 240 X 300 to 600 X 800  FLP Indicator Metal Die Cast FLP enclosure  FLP Zone Suitable for Zone II A and II B Gas Group only  Load Plate SS 304  Platform MS / SS 304  Display 13mm Red LED  Load Cell Make / MOC Mettler Toledo / Aluminium  Load Cell Protection IP 67  Simple Operation Tare, Gross  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  Back rail Available SS/MS – Optional  Parallel Display Available – Optional  Flame Proof Certification Certified by CMRI Dhanbad  Wall Mounting Bracket Available - Optional 43
  • 44.
    Mini Cat FLPApplication Areas Segment Stores Production Packaging Dispatch Mining √ Steel √ √ √ Metals √ √ Cement √ Paint √ Oil √ Allied √ √ √ √ 44
  • 45.
    Mini Cat FLP(MS Platform & SS Load Plate) Model No. Capacity (Kg) Readability ( g ) Platform size (mm) MIC FLP(T)-BB30 30 5 300 x 400 MIC FLP(T)-BB60 60 10 300 x 400 MIC FLP(T)-B60 60 10 400 x 500 MIC FLP(T)-B100 100 10 400 x 500 MIC FLP(T)-B150 150 20 400 x 500 MIC FLP(T)-C60 60 10 500 X 500 MIC FLP(T)-C100 100 10 500 X 500 MIC FLP(T)-C150 150 20 500 X 500 MIC FLP(T)-C200 200 20 500 X 500 MIC FLP(T)-BC60 60 10 500 x 650 MIC FLP(T)-BC100 100 10 500 x 650 MIC FLP(T)-BC150 150 20 500 x 650 MIC FLP(T)-BC200 200 20 500 x 650 MIC FLP(T)-BC300 300 50 500 x 650 MIC FLP(T)-CC60 60 10 600 x 800 MIC FLP(T)-CC100 100 10 600 x 800 MIC FLP(T)-CC150 150 20 600 x 800 MIC FLP(T)-CC200 200 20 600 x 800 MIC FLP(T)-CC300 300 50 600 x 800 MIC FLP(T)-CC600 600 100 600 x 800 45
  • 46.
    Mini Cat FLP(SS 304 Platform & SS 304 Load Plate) Model No. Capacity (kg) Readability ( g ) Platform size (mm) MIC FLP(T)-BB30s 30 5 300 x 400 MIC FLP(T)-BB60s 60 10 300 x 400 MIC FLP(T)-B60s 60 10 400 x 500 MIC FLP(T)-B100s 100 10 400 x 500 MIC FLP(T)-B150s 150 20 400 x 500 MIC FLP(T)-C60s 60 10 500 X 500 MIC FLP(T)-C100s 100 10 500 X 500 MIC FLP(T)-C150s 150 20 500 X 500 MIC FLP(T)-C200s 200 20 500 X 500 MIC FLP(T)-BC60s 60 10 500 x 650 MIC FLP(T)-BC100s 100 10 500 x 650 MIC FLP(T)-BC150s 150 20 500 x 650 MIC FLP(T)-BC200s 200 20 500 x 650 MIC FLP(T)-BC300s 300 50 500 x 650 MIC FLP(T)-CC60s 60 10 600 x 800 MIC FLP(T)-CC100s 100 10 600 x 800 MIC FLP(T)-CC150s 150 20 600 x 800 MIC FLP(T)-CC200s 200 20 600 x 800 MIC FLP(T)-CC300s 300 50 600 x 800 MIC FLP(T)-CC600s 600 100 600 x 800 46
  • 47.
  • 48.
    Wild Cat • Display - LCD •Display Size – 25 mm Wild Cat •Battery Back-up- Dry Cell Battery • RS 232 Port for Interface 48
  • 49.

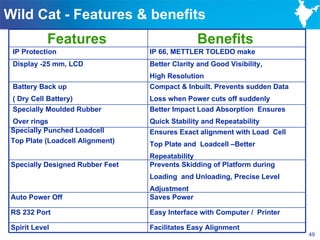

    Wild Cat -Features & benefits Features Benefits IP Protection IP 66, METTLER TOLEDO make Display -25 mm, LCD Better Clarity and Good Visibility, High Resolution Battery Back up Compact & Inbuilt. Prevents sudden Data ( Dry Cell Battery) Loss when Power cuts off suddenly Specially Moulded Rubber Better Impact Load Absorption Ensures Over rings Quick Stability and Repeatability Specially Punched Loadcell Ensures Exact alignment with Load Cell Top Plate (Loadcell Alignment) Top Plate and Loadcell –Better Repeatability Specially Designed Rubber Feet Prevents Skidding of Platform during Loading and Unloading, Precise Level Adjustment Auto Power Off Saves Power RS 232 Port Easy Interface with Computer / Printer Spirit Level Facilitates Easy Alignment 49
  • 50.
    Wild Cat -Segment & Application Segment Stores Production Packaging Dispatch Textile √ √ √ √ Mining √ Steel √ √ √ Fisheries √ √ Paper √ √ Ceramic √ √ √ Glass √ √ √ Plastic √ √ √ √ Automobile √ √ √ √ Parts Metals √ √ Cement √ Paint √ Printing & √ √ √ √ Packaging Oil √ Allied √ √ √ √ 50
  • 51.
    Wild Cat -Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) Wildcat(T)-A6 6 1 240 x 300 Wildcat(T)-A15 15 2 240 x 300 Wildcat(T)-BB35 35 5 300 x 400 Wildcat(P)-BB60 60 10 300 x 400 Wildcat(P)-B60 60 10 400 x 500 Wildcat(P)-B150 150 20 400 x 500 Wildcat(P)-C60 60 10 500 X 500 Wildcat(P)-C100 100 10 500 X 500 Wildcat(P)-C150 150 20 500 X 500 Wildcat(P)-BC60 60 10 500 x 650 Wildcat(P)-BC150 150 20 500 x 650 Wildcat(P)-BC300 300 50 500 x 650 Wildcat(P)-CC60 60 10 600 x 800 Wildcat(P)-CC150 150 20 600 x 800 Wildcat(P)-CC300 300 50 600 x 800 Wildcat(P)-CC600 600 100 600 x 800 Wildcat(P)-N600 600 100 1000 x 1000 51
  • 52.
  • 53.
    Du line Scale Effective in Less Space Capacity : 300 - 3000 Kgs Load Cell Protection : IP 67 / IP 68 DU Line Height from Floor : 35 mm 53
  • 54.
    Du Line Specification Specification Details  Load Cell make Mettler Toledo  Load Cell MOC SS / Alloy Steel  No of Load Cells 4 Nos  Load Cell Protection IP 68 / IP 67  Standard Capacity 300 - 1500 kg  Max Counts 6000 (IND 220/225)  Platform Sizes 850 X 850 to 1250 X 1500  Indicator SS / ABS  Load Plate SS 304  Platform MS / SS  Display 30 mm Bright LED (IND22x)  Simple Operation Tare, Gross, Print  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  Parallel Display Available – Optional  RS232 In Built  Height from floor level (Std) 35 mm 54
  • 55.
    Du line -Features & Benefits Features Benefits Wash Down Scale. Can be Used In Complete SS 304 Load Plate & Dusty Environment Platform Punched Platform Height – 35 mm No Need of Permanent Ramp, Saves Money. IP 67 / 68 Protection Versatile Scale -Can be used in Dusty & Wet Environment Rugged Design Improves Scale Life, Value for Money Bright Read 30 mm, 7 Segment Improves Visibility, Error Free Reading, Can LED Display be Used in Dark Environment Overload Protection – 150 % Prevents Loadcell Failure, During I Loading, hence Increased Life of Scale Dome Type Keypad ( IND 220/ IND 225) Enables Error Free & Faster Operations Auto Power Off Saves Power RS 232 Port Easy Interface with Computer / Printer 55
  • 56.
    Du Line -Platform Platform Height – 35 mm Du Line Platform with Ramp 56
  • 57.

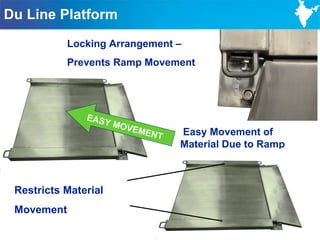

    Du Line Platform Locking Arrangement – Prevents Ramp Movement EAS Y MOV EME Easy Movement of N T Material Due to Ramp Restricts Material Movement 57
  • 58.
    Du line -Segment / Application Segment Stores Production Packaging Dispatch Textile √ √ √ √ Mining √ Steel √ Fisheries √ √ √ √ Paper √ √ √ Ceramic √ Glass √ Plastic √ Automobile √ √ √ Parts Metals √ Cement √ √ Paint √ √ √ Printing & √ √ √ √ Packaging Oil √ 58
  • 59.

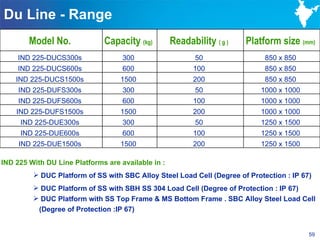

    Du Line -Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) IND 225-DUCS300s 300 50 850 x 850 IND 225-DUCS600s 600 100 850 x 850 IND 225-DUCS1500s 1500 200 850 x 850 IND 225-DUFS300s 300 50 1000 x 1000 IND 225-DUFS600s 600 100 1000 x 1000 IND 225-DUFS1500s 1500 200 1000 x 1000 IND 225-DUE300s 300 50 1250 x 1500 IND 225-DUE600s 600 100 1250 x 1500 IND 225-DUE1500s 1500 200 1250 x 1500 IND 225 With DU Line Platforms are available in :  DUC Platform of SS with SBC Alloy Steel Load Cell (Degree of Protection : IP 67)  DUC Platform of SS with SBH SS 304 Load Cell (Degree of Protection : IP 67)  DUC Platform with SS Top Frame & MS Bottom Frame . SBC Alloy Steel Load Cell (Degree of Protection :IP 67) 59
  • 60.
  • 61.

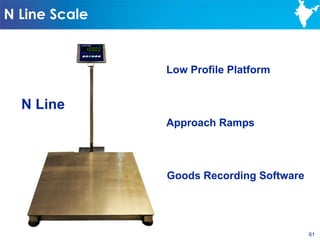

    N Line Scale Low Profile Platform N Line Approach Ramps Goods Recording Software 61
  • 62.
    N Line Specification Specification Details  Capacity 600 - 3000 kg  Max Counts 6000 (IND 220/225)  Standard Platform Sizes 1000 X 1000 to 1500 X 1500  Indicator SS / ABS  Load Plate SS 304 / MS Checkered  Platform MS / SS  Display 30mm, 7 Segment Bright LED ( IND 22x)  Load Cell make Mettler Toledo  Load Cell MOC SS / Alloy Steel  No of Loadcells 4 Nos  Load Cell Protection IP 68 / IP 67  Simple Operation Tare, Gross, Print  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  Parallel Display Available – Optional  RS232 In Built  Height from floor level 85 mm 62
  • 63.
    N Line -Segment / Application Segment Stores Production Packaging Dispatch Textile √ √ Steel √ √ Paper √ √ √ Glass √ √ Metals √ √ 63
  • 64.

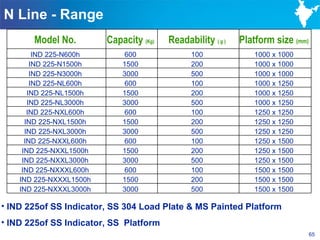

    N Line -Range Model No. Capacity Readability ( g ) Platform size (Kg) (mm) IND 220-N600 600 100 1000 x 1000 IND 220-N1500 1500 200 1000 x 1000 IND 220-N3000 3000 500 1000 x 1000 IND 220-NL600 600 100 1000 x 1250 IND 220-NL1500 1500 200 1000 x 1250 IND 220-NL3000 3000 500 1000 x 1250 IND 220-NXL600 600 100 1250 x 1250 IND 220-NXL1500 1500 200 1250 x 1250 IND 220-NXL3000 3000 500 1250 x 1250 IND 220-NXXL600 600 100 1250 x 1500 IND 220-NXXL1500 1500 200 1250 x 1500 IND 220-NXXL3000 3000 500 1250 x 1500 IND 220-NXXXL600 600 100 1500 x 1500 IND 220-NXXXL1500 1500 200 1500 x 1500 IND 220-NXXXL3000 3000 500 1500 x 1500 • IND 220 of ABS Plastic Indicator & MS Platform 64
  • 65.
    N Line -Range Model No. Capacity (Kg) Readability ( g ) Platform size (mm) IND 225-N600h 600 100 1000 x 1000 IND 225-N1500h 1500 200 1000 x 1000 IND 225-N3000h 3000 500 1000 x 1000 IND 225-NL600h 600 100 1000 x 1250 IND 225-NL1500h 1500 200 1000 x 1250 IND 225-NL3000h 3000 500 1000 x 1250 IND 225-NXL600h 600 100 1250 x 1250 IND 225-NXL1500h 1500 200 1250 x 1250 IND 225-NXL3000h 3000 500 1250 x 1250 IND 225-NXXL600h 600 100 1250 x 1500 IND 225-NXXL1500h 1500 200 1250 x 1500 IND 225-NXXL3000h 3000 500 1250 x 1500 IND 225-NXXXL600h 600 100 1500 x 1500 IND 225-NXXXL1500h 1500 200 1500 x 1500 IND 225-NXXXL3000h 3000 500 1500 x 1500 • IND 225of SS Indicator, SS 304 Load Plate & MS Painted Platform • IND 225of SS Indicator, SS Platform 65
  • 66.
  • 67.
    IND 22x Indicator Position: Basic Industry Terminal IND 22x  Application: Bench scale and Floor scale  Model name : IND220 Plastic, IP54 Protection IND225 Plastic, IP67 Protection with Battery Backup 67
  • 68.

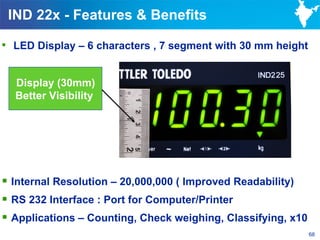

    IND 22x -Features & Benefits  LED Display – 6 characters , 7 segment with 30 mm height Display (30mm) Better Visibility  Internal Resolution – 20,000,000 ( Improved Readability)  RS 232 Interface : Port for Computer/Printer  Applications – Counting, Check weighing, Classifying, x10 68
  • 69.
    IND 22x Indicator 6 Digit Weight Display Display Indicators Keypad 69
  • 70.
    IND 22x Range Model No. Capacity Readability ( g ) Platform size (kg) (mm) IND 220-N600 600 100 1000 x 1000 IND 220-N1500 1500 200 1000 x 1000 IND 220-N3000 3000 500 1000 x 1000 IND 220-NL600 600 100 1000 x 1250 IND 220-NL1500 1500 200 1000 x 1250 IND 220-NL3000 3000 500 1000 x 1250 IND 220-NXL600 600 100 1250 x 1250 IND 220-NXL1500 1500 200 1250 x 1250 IND 220-NXL3000 3000 500 1250 x 1250 IND 220-NXXL600 600 100 1250 x 1500 IND 220-NXXL1500 1500 200 1250 x 1500 IND 220-NXXL3000 3000 500 1250 x 1500 IND 220-NXXXL600 600 100 1500 x 1500 IND 220-NXXXL1500 1500 200 1500 x 1500 IND 220-NXXXL3000 3000 500 1500 x 1500 70
  • 71.
    IND 22x –Check Weighing Application Sample Weight Overweight Indication Under Weight Indication 71
  • 72.
    IND 220x Range Model No. Capacity (Kg) Readability ( g ) Platform size (mm) IND 220(T)-A6 6 1 240 x 300 IND 220(T)-A15 15 2 240 x 300 IND 220(T)-BB35 35 5 300 x 400 IND 220-BB60 60 10 300 x 400 IND 220-B60 60 10 400 x 500 IND 220-B150 150 20 400 x 500 IND 220-C60 60 10 500 X 500 IND 220-C100 100 10 500 X 500 IND 220-C150 150 20 500 X 500 IND 220-BC60 60 10 500 x 650 IND 220-BC150 150 20 500 x 650 IND 220-BC300 300 50 500 x 650 IND 220-CC60 60 10 600 x 800 IND 220-CC150 150 20 600 x 800 IND 220-CC300 300 50 600 x 800 IND 220-CC600 600 100 600 x 800 • ABS Plastic Indicator , MS Platform • SS Indicator, MS Base & SS 304 Platform • SS 304 Indicator with SS 304 Platform 72
  • 73.
  • 74.
    TC Count le ng Sca Counti TC Count • High Resolution : 1/500,000 • Min Average Piece Weight – 0.04 gm •Target Alarm – Keep Check on No of Counts •Identification Function – 20 IDs can be Stored 74
  • 75.
    Industry Problem Areas High Labour Low Counting Cost Speed Inventory control in a mess Business loss due to Oversupply CUSTOMER and Under Inaccurate supply of counting for goods large batches of small components 75
  • 76.
    TC Count -Applications Other Goods in and Goods out Packing Inventory Checking Re-packing for dispensing 76
  • 77.

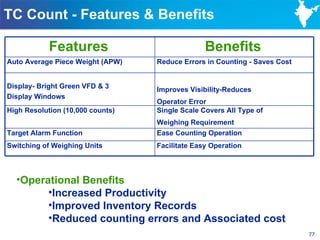

    TC Count -Features & Benefits Features Benefits Auto Average Piece Weight (APW) Reduce Errors in Counting - Saves Cost Display- Bright Green VFD & 3 Improves Visibility-Reduces Display Windows Operator Error High Resolution (10,000 counts) Single Scale Covers All Type of Weighing Requirement Target Alarm Function Ease Counting Operation Switching of Weighing Units Facilitate Easy Operation •Operational Benefits •Increased Productivity •Improved Inventory Records •Reduced counting errors and Associated cost 77
  • 78.
    Count What ? tile Electronics ex er nd La /T Washer Resistor Switch bb a b Ru s t i c Rings Capacitor Diode Battery P la IC Fuse Buttons High display Collar Labels resolution Notebooks Brand Plates Measuring Oil Coupons Volume in ml / l Axles, Screws Gears, Keys, Pr bl Measuring in ish Die Cast d ui Pu Booklets tin Liquid in Components Liq y g ng ml / l il / str an O du i d Automobile In 78
  • 79.
    TC Counting Scale Setting Up The Scale with 10 no of Pieces Actual Counting Operation 79
  • 80.
    TC Counting Scale Weight Indicator Product ID / APW Counting Indicator Spirit Level TC Count Display 80
  • 81.
    TC Count -Segment / Application Segment Stores Production Packaging Dispatch Paper √ √ √ Rubber √ √ √ √ Glass √ √ √ Plastic √ √ √ √ Automobile √ √ √ √ Parts Paint √ √ √ Printing & √ √ √ √ Packaging Oil √ √ Allied √ √ √ √ 81
  • 82.
    TC Count -Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) TC02 2 0.2 195 x 170 TC05 5 0.5 305 x 210 TC10 10 1 305 x 210 TC20 20 2 305 x 210 • ABS Housing , SS 304 Load Plate & Aluminium Load Cell 82
  • 83.
  • 84.
    Panda THE MOST BEAUTIFUL AND AESTHETIC MODEL EVER INTRODUCED IN THE HISTORY OF WEIGHING Adjustable display angle Dual line LCD display with backlit Pole mounted Tactile membrane display indicator keypad Panda Stainless steel Chrome-nickel weighing pan steel platform 84
  • 85.
    Panda - Features& Benefits Features Benefits Adjustable Display Easy to View At Any Angle IP Protection IP 54. Rugged & Rustproof Easy to Clean Platform Dual Range Readability – 0.05 & 0.1g RS 232 Port Easy Interface with Computer & Printer Overload Protection 150 %. 85
  • 86.
    Panda Tiltable Display- Better Visibility Plug & Play - Easy to Assemble For Support 86
  • 87.
    Panda Display Component Selection Zero/Tare/ On-Off Stability Indicator Conversion Factor Weighing Units / Target Selection Tolerance Selection / Target Confirmation Set up Menu 87
  • 88.
    Panda - Specifications Specification Details  Capacity 7100 / 999.95 g  Readability 0.05 / 0.1 g  Max Counts 71000  Pan Dia 232 mm  Indicator ABS  Load Plate SS 304  Display Backlit LCD 12mm with tiltable indicator  Load Cell make Mettler Toledo  Load Cell MOC Aluminum  Load Cell Protection IP54  Simple Operation Tare, Gross, Print,  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  RS232 In Built  Stand Height 350mm  Housing Chrome Nickle steel  Flame Proof Version Available 88
  • 89.
    Panda – Targetingmarket PRODUCTION / QUALITY ASSURANCE / QUALITY CONTROL / PACKAGING( MAXIMUM CAPACITY: 7100 GMS ) ADHESIVES CHEMICAL PLASTICS & POLYMERS PAINT MANUFACTURING INK MANUFACTURING PESTICIDES RUBBER INDUSTRIES PHARMA SMALL FORMULATION UNITS RESEARCH UNITS BULK DRUGS FOOD, TEXTILE CONFECTIONERY & CHOCOLATES & OTHERS BISCUIT MANUFACURING FOOD PROCESSING & PACKAGING DYING UNITS IN TEXTILES WEIGHING OF EXPENSIVE METALS 89
  • 90.
    Panda Range Model No. Capacity (kg) Readability ( g ) Platform size (mm) Panda 7 7.1 / 0.99 0.1 / 0.05 240 dia Panda 7x Zone 1 7.1 / 0.99 0.1/ 0.05 240 dia 90
  • 91.
  • 92.
    Cub II • Wash Down Scale • Table Top & Portable • High Speed Response • Inbuilt Battery Back up – up to 50 hrs • Check Weighing Facility CUB II 92
  • 93.
    Cub II  Scope M Milk products 1 Frozen Food 1 Portioning, grading and packing of meat i Seafood i Fruits and vegetables a Packaging of tea and dry fruits Packaging of pickles and spices k Random sampling on packing lines 93
  • 94.
    Cub II -Features & Benefits  Rugged and Reliable  IP Protection : MIP 65 – Complete Scale IP 67 – PCB & Battery  Special Gasket Sealing Dual Enclosures with Damp-Proof PCBs with Patented For all Joints Water-Proof Sealing Glue Technology 94
  • 95.
    Cub II -Features & Benefits  Suitable for Damp Environment  Easy to Clean  Dual Range  Battery Backup – Up to 50 hrs  Response Time – Less tan 1 sec (0.8 sec)  Adjustable LED Display – Brightness can be Adjusted to View in Damp Environment  Switchable Between gm to Kg  Portable Scale 95
  • 96.
    CUB II -Display 6 Digit, 7 Segment LED Zeroing Function Display Tare Power Spirit Level Function – Check Battery Indicator Weighing/ Unit Change Model No. Capacity Readability ( g ) Platform size (kg) (mm) Cub II - 1.5 1.5 0.2 180 x 230 Cub II - 3 3 0.5 180 x 230 Cub II - 6 6 1 180 x 230 Cub II - 15 15 2 180 x 230 96
  • 97.
    CUB II -Specifications Specification Details  Capacity 1.5,3,6,15 kg  Max Counts 7500  Platform Size 180 X 230 mm  Indicator Inbuilt in ABS Housing  Load Plate SS 304  Display Bright LED Single and Dual Display  Load Cell make Mettler Toledo  Load Cell MOC Aluminum  Load Cell Protection IP65  Simple Operation Tare, Gross  Safe Over Lod Protection 150%  Ultimate Overload Protection 300%  RS232 In Built  Display response time 0.8 Sec  Housing ABS Plastic  Protection level for PCB and Battery IP 67 97
  • 98.
    Cub II -Segment / Application Segment Stores Production Packaging Dispatch Textile √ Detergent √ Fisheries √ √ Plastic √ √ Food √ √ √ √ Automobile √ Parts 98
  • 99.
  • 100.
    Pallet Scale Operation: Tare, Gross, Print, Totaling Fork Length : 1150 mm mm Fork Length : 1150 Lifting Height : 205 mm Load Cell Protection : IP 67 / IP 68 Ultimate Overload Protection : 300% Pallet Scale 100
  • 101.

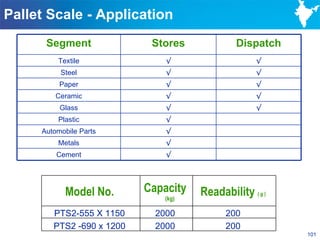

    Pallet Scale -Application Segment Stores Dispatch Textile √ √ Steel √ √ Paper √ √ Ceramic √ √ Glass √ √ Plastic √ Automobile Parts √ Metals √ Cement √ Model No. Capacity Readability ( g ) (kg) PTS2-555 X 1150 2000 200 PTS2 -690 x 1200 2000 200 101
  • 102.
  • 103.
    Spider T Spider T Option NIMH Battery Back Up Option for the Inbuilt RS232C Weighing Range: 0 ~ 20 kg OIML approved IP66 Load Cells Highly Rugged Application Ergonomically Designed Frames Rust-free Top and Bottom for Uniform Load Distribution Frames Big size (345 x 235 mm) SS Load Plate with Back Rod 103
  • 104.

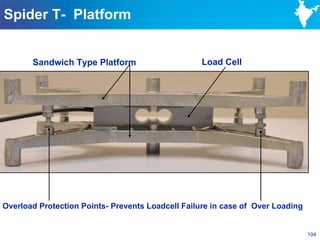

    Spider T- Platform Sandwich Type Platform Load Cell Overload Protection Points- Prevents Loadcell Failure in case of Over Loading 104
  • 105.

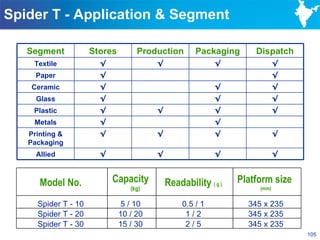

    Spider T -Application & Segment Segment Stores Production Packaging Dispatch Textile √ √ √ √ Paper √ √ Ceramic √ √ √ Glass √ √ √ Plastic √ √ √ √ Metals √ √ Printing & √ √ √ √ Packaging Allied √ √ √ √ Model No. Capacity Readability ( g ) Platform size (kg) (mm) Spider T - 10 5 / 10 0.5 / 1 345 x 235 Spider T - 20 10 / 20 1/2 345 x 235 Spider T - 30 15 / 30 2/5 345 x 235 105
  • 106.

Editor's Notes

  • #3 Core philosophy Leadership R&D global Direct approach: dedicated people experienced factory trained
  • #4 Core philosophy Leadership R&D global Direct approach: dedicated people experienced factory trained
  • #6 Solutions: Sensor Software / system integration Services LAB (blue): laboratories in many different industries products used for research, DD, QC has become much more sizeable in recent years IND (green) same customer base – however on the manufacturing und e.g. pharma production side. cover solutions across the plant: production, packaging, logistics RET (red): in food retail – provide solutions for the management of fresh goods Important value propositions to your customers: Accelerate processes (DD) Increase efficiency (LAB) Improve product quality (IND) Comply with regulations
  • #7 METTLER TOLEDO advances your research and quality control. Our laboratory instruments are the foundation of labs all over the world, as they improve processes in research and development, drug discovery and quality control. The data generated by our instruments can be analyzed and managed in our application-specific software and interfaced with your information systems. Benefits include enhanced accuracy, productivity and compliance.
  • #8 METTLER TOLDEO helps you improve your productivity. Our industrial instruments and software optimize your operations from receiving to shipping, with solutions for production, end-of-line product inspection and logistics. Results include improved product quality, accelerated and automated processes, increased efficiency and regulatory compliance. Many of our solutions can be integrated directly into ERP systems.
  • #9 Managing fresh foods is a major challenge for food retailers. METTLER TOLEDO can help you optimize your fresh foods management. With our state-of-the-art solutions, you can effectively manage your fresh foods inventory and merchandising to maximize efficiency and profitability. Ensuring that fresh foods are available at the right prices also enhances customer satisfaction. Our solutions readily integrate with existing IT infrastructures.
  • #12 Aside from offering instruments and related software, we offer also an increasing array of services . We are in the midst of a successful transition from a traditional service definition to one of value added services. The foundation is our traditional service business with a significant contract / maintenance business / repair / calibration Now, we are moving decisively into regulatory compliance services, e.g. pharma FDA: IQ, EQ, OQ, PQ Also, we have validation specialists that can assist in all aspects of process validation. Validation methods ensure 21 CFR part 11 conformity . Validation protocols guarantee monitored user management and safe data management. Service is 20% of sales. Many years good growth , slowed down as a result of economy  bring it back to good growth.
  • #25 Specially Moulded Rubbers are used for Shock Dampening, instead of PVC. It also helps to quick stabilisation of load on system, enables to give quick and more accurate reading. Non Slip Rubber foot are used to prevent movement of the scale. It also helps in leveling the scale. 6 overload protection points are provided results in maximum safety . High Degree accurate punching operation ensures exact alignment with Load cell. It results in accurate weighment. Star type fasteners are used to ensure perfect tightening of the bolts. Clean Design ensures, no welding spot visible on the top of platform. Better Asthetics
