This document describes San Hsin Plastech Co., Ltd. and their products including brushless DC motors, RF remote control units, and multi-channel controllers. The motors are suitable for applications such as window coverings, have high torque but low power consumption, and features such as electronic speed control, built-in receivers, and dual preset positions. Examples of installations include in hotels and at an airport.

1. DEVELOPED BY
SAN HSIN PLASTECH CO., LTD.
Web Site: www.sanhsin.com.tw

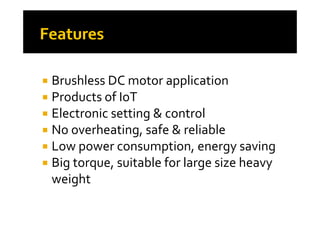

2.  Brushless DC motor applicationpp
 Products of IoT
 Electronic setting & control Electronic setting & control
 No overheating, safe & reliable
 Low power consumption, energy saving
 Big torque suitable for large size heavy  Big torque, suitable for large size heavy
weight

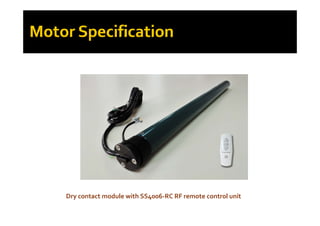

3. Dry contact module with SS4006‐RC RF remote control unit

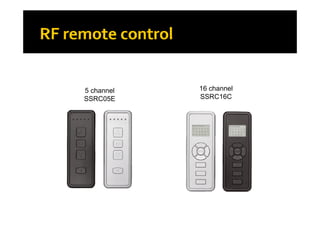

4. 16 channel5 channel
SSRC05E
16 channel
SSRC16C

5. Model Number SS4006 R22 SS4005 R27 SS4004 R34Model Number SS4006-R22 SS4005-R27 SS4004-R34
Input Voltage 100~230VAC 50~60Hz
Output Voltage DC 27V
Torque 6 Nm 5 Nm 4 Nm
Rated Power 29W
Rated Speed 22 rpm 27 rpm 34 rpm
Max. Span 3 meters (OD 49.8mm tube)
Rated operation
1 h
Rated operation
time
1 hour
Product
Dimension
∮ 38 x 660 mm
Product Weight 1.4 kg
Standard / Option dry contact / RS485
Noise ＜40 db (A)Noise ＜40 db (A)
Protection degree IP 44

6. SS C SS C Cmodel SSRC05E SSRC16C
channel 5 ch multi-control 16 ch multi-control
frequency 433.92 MHz & 315 MHz
max. codes 16 millions
effective range 10 ~ 120 meter
battery CR2430 DC3V
rating current ＜10μA
size 125.5 x 45.5 x 14 mm
color black, white
others wall mount copy functionothers wall mount , copy function

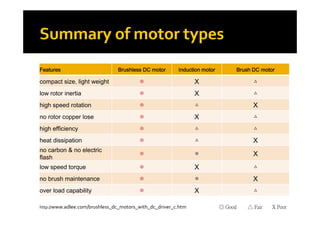

7. Features Brushless DC motor Induction motor Brush DC motor
compact size, light weight ◎ X △
low rotor inertia ◎ X △
high speed rotation ◎ △ X
no rotor copper lose ◎ X △
high efficiency ◎ △ △
h t di i ti ◎ △ Xheat dissipation ◎ △ X
no carbon & no electric
flash ◎ ◎ X
low speed torque ◎ X △
no brush maintenance ◎ ◎ X
over load capability ◎ X △over load capability ◎ X △
http://www.adlee.com/brushless_dc_motors_with_dc_driver_c.htm ◎ Good △ Fair X Poor

9. Patent number Simple Description
1 I357400 ROC Invention patent1 I357400 ROC Invention patent
2 M3296633 ROC Utility Model patent
3 M329100 ROC Utility Model patenty p
4 CN101304205B China invention patent
5 CN201087053Y China Utility Model patent
6 US7839035 B2 US Invention Patent
7 20 2014 105 933.4 Germany Invention Patent
8 Ladder Tape system parts U S P t t di8 Ladder Tape system parts U.S. Patent pending
9 Ladder Tape system parts ROC petent pending
10 Quick-fix bracket ROC patent pendingQ p p g

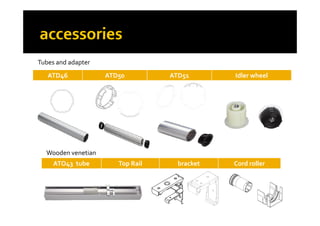

10. Tubes and adapter
ATD46 ATD50 ATD51 Idler wheel
Tubes and adapter
ATO43 tube Top Rail bracket Cord roller
Wooden venetian
ATO43 tube Top Rail bracket Cord roller

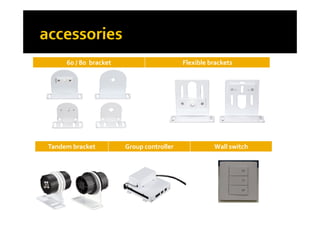

11. 60 / 80 bracket Flexible brackets60 / 80 bracket Flexible brackets
Tandem bracket Group controller Wall switch

12.  Brushless DC motor
 Hall IC applied electronic
 Built‐in RF receiver
 High torque compact size Hall IC applied, electronic
limit setting
 Low power consumption
 High torque, compact size
 Heavy duty, ideal for extra
high / large windows Low power consumption
 Low working temperature
＜ no overheating
high / large windows
 Quiet & smooth rotation
 Easy installation and ＜ , no overheating,
no shutdown
 Full range voltage
Easy installation and
setting
 Dual preferable positionsFull range voltage
 PID control of stable
rotation speed
Dual preferable positions
 Light gap of 1.9+1.1cm
 HA system compatible rotation speed
 Precision alignment
HA system compatible
(dry contact / RS485)

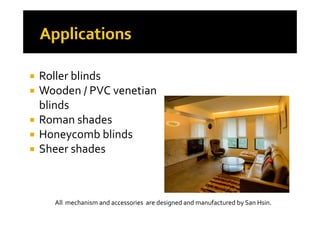

13.  Roller blinds
W d / PVC ti  Wooden / PVC venetian
blinds
 Roman shades
 Honeycomb blindsy
 Sheer shades
All mechanism and accessories are designed and manufactured by San Hsin.

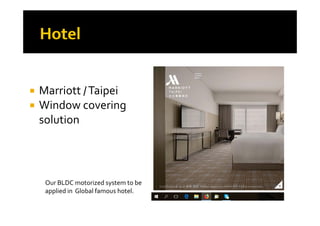

14. M i tt / T i i Marriott / Taipei
 Window covering
solution
Our BLDC motorized system to be
applied in Global famous hotelapplied in Global famous hotel.

15.  domestic
 commercial commercial

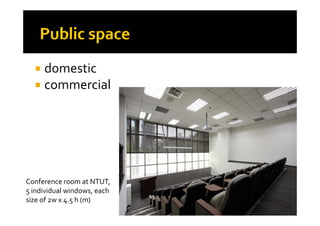

Conference room at NTUT,
5 individual windows each 5 individual windows, each
size of 2w x 4.5 h (m)

16. Air bridge at TPE airport, 14 individual windows on both sides,
size of 2.3 w x 2 h (m) each, group control module and wall
it h li d switch applied.

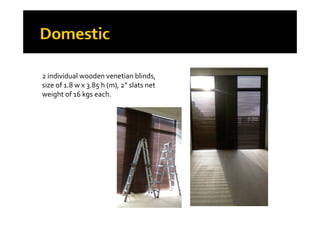

17. 2 individual wooden venetian blinds,
size of 1.8 w x 3.85 h (m), 2” slats net size of 1.8 w x 3.85 h (m), 2 slats net
weight of 16 kgs each.

18.  ∮25 brushless DC tubular motor with battery
 ∮35 brushless DC tubular motor with battery
 ∮45 brushless DC tubular motor
