1. Kubernetes Operators
Druperator - Drupal Operator
Adheip Singh | Senior DevOps | Srijan
#SrijanWW | @srijan

2. ⏩ Hybrid Cloud
⏩ API Economy
⏩ Cloud Native
⏩ Big Data
⏩ DevOps
SRIJAN is a full stack, full lifecycle digital engineering
firm.
We specialize in platform & product innovation, utilizing
the best in class polyglot tech stack, open source
frameworks & (almost any) cloud infrastructure.
Our customers say we run software delivery like a
hospitality business.
● Product Engineering
● Enterprise Content
Management
● Learning Ecosystems
● Omnichannel Media
● Analytics
● Machine Learning
● Data Engineering
● Intelligent Automation
➔ 16+ years of profitable growth
➔ 10+ multi-year enterprise customers
➔ 15+ global offices across 10 countries in 4 continents
➔ 350+ employees and growing, across 3 service lines
Digital Experience Platform Modernization Data Intelligence

3. #SrijanWW | @srijan

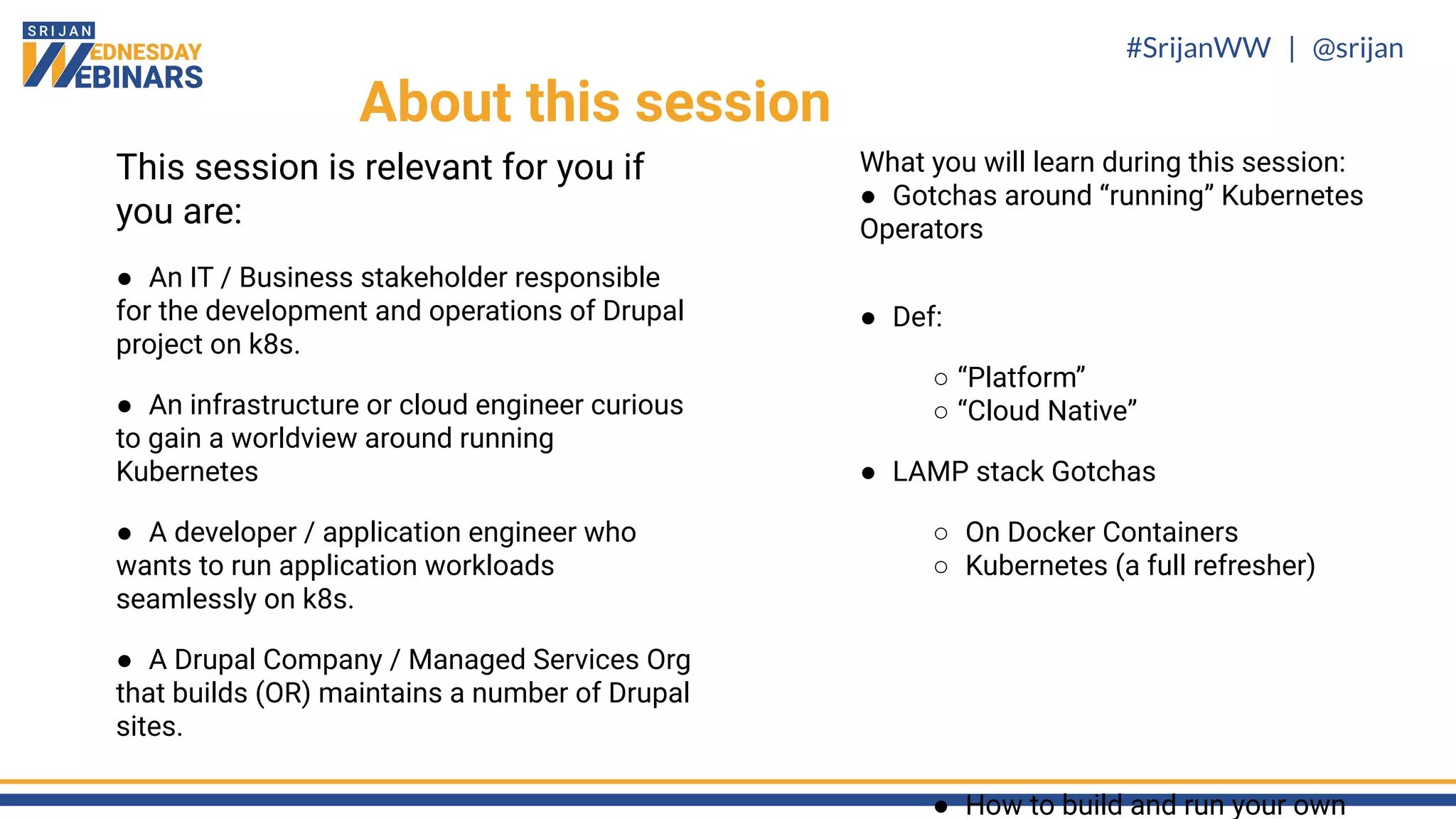

This session is relevant for you if
you are:
● An IT / Business stakeholder responsible
for the development and operations of Drupal
project on k8s.
● An infrastructure or cloud engineer curious
to gain a worldview around running
Kubernetes
● A developer / application engineer who
wants to run application workloads
seamlessly on k8s.
● A Drupal Company / Managed Services Org
that builds (OR) maintains a number of Drupal
sites.
About this session
What you will learn during this session:
● Gotchas around “running” Kubernetes
Operators
● Def:
○ “Platform”
○ “Cloud Native”
● LAMP stack Gotchas
○ On Docker Containers
○ Kubernetes (a full refresher)
● How to build and run your own

4. #SrijanWW | @srijan

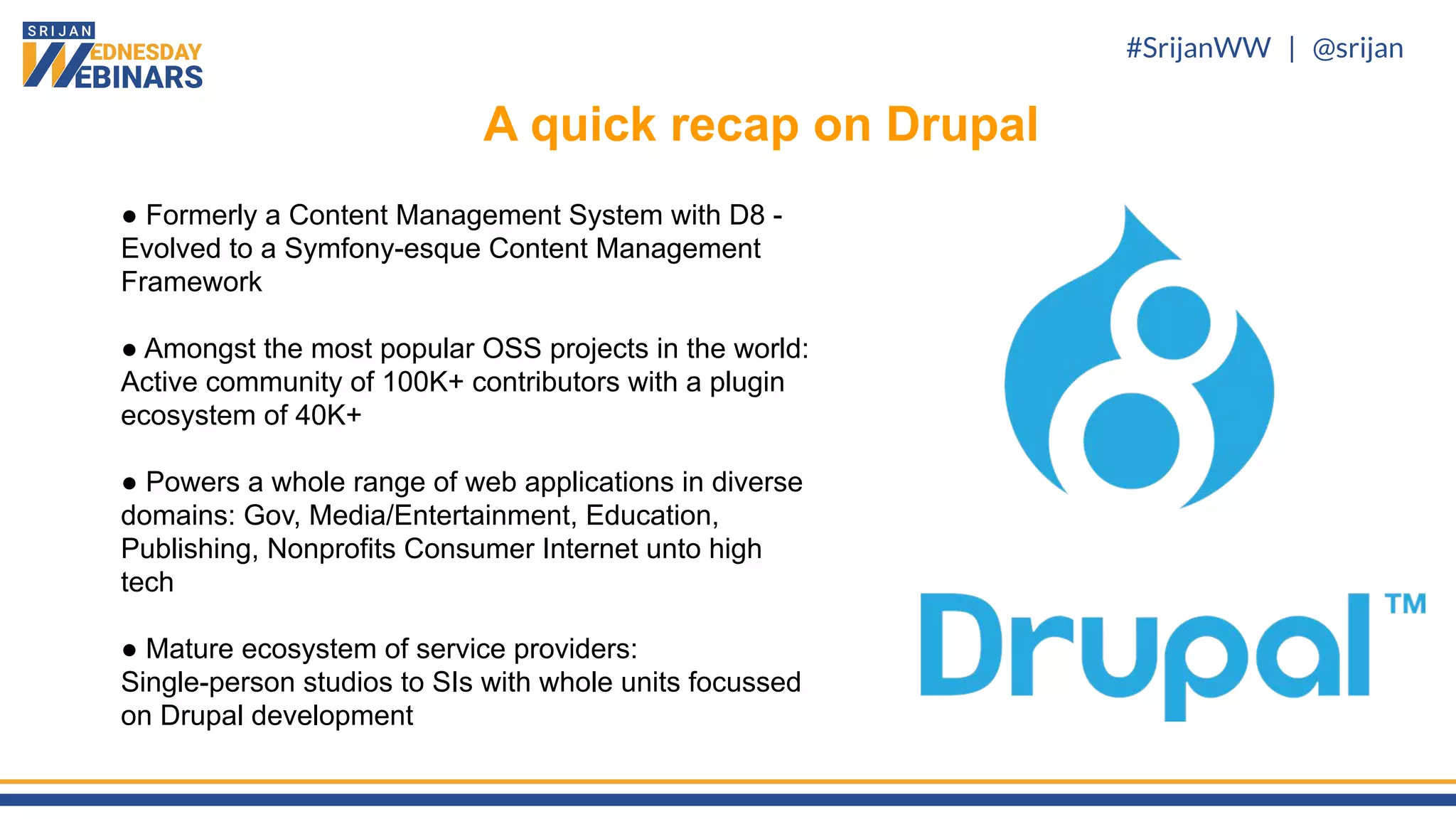

● Formerly a Content Management System with D8 -
Evolved to a Symfony-esque Content Management
Framework
● Amongst the most popular OSS projects in the world:
Active community of 100K+ contributors with a plugin
ecosystem of 40K+
● Powers a whole range of web applications in diverse
domains: Gov, Media/Entertainment, Education,
Publishing, Nonprofits Consumer Internet unto high
tech
● Mature ecosystem of service providers:
Single-person studios to SIs with whole units focussed
on Drupal development
A quick recap on Drupal

5. #SrijanWW | @srijan

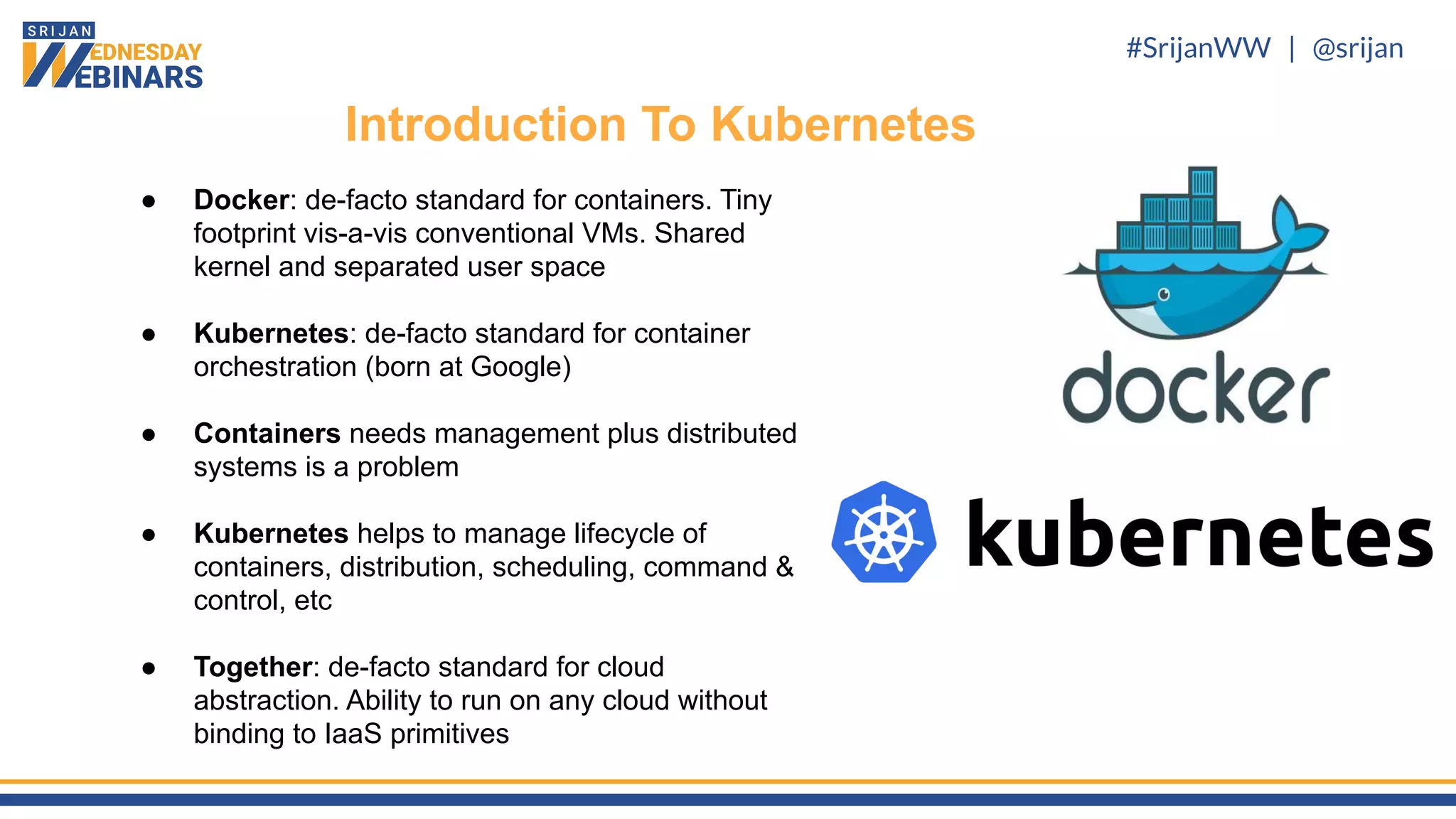

● Docker: de-facto standard for containers. Tiny
footprint vis-a-vis conventional VMs. Shared
kernel and separated user space
● Kubernetes: de-facto standard for container
orchestration (born at Google)
● Containers needs management plus distributed
systems is a problem
● Kubernetes helps to manage lifecycle of
containers, distribution, scheduling, command &
control, etc
● Together: de-facto standard for cloud
abstraction. Ability to run on any cloud without
binding to IaaS primitives
Introduction To Kubernetes

6. #SrijanWW | @srijan

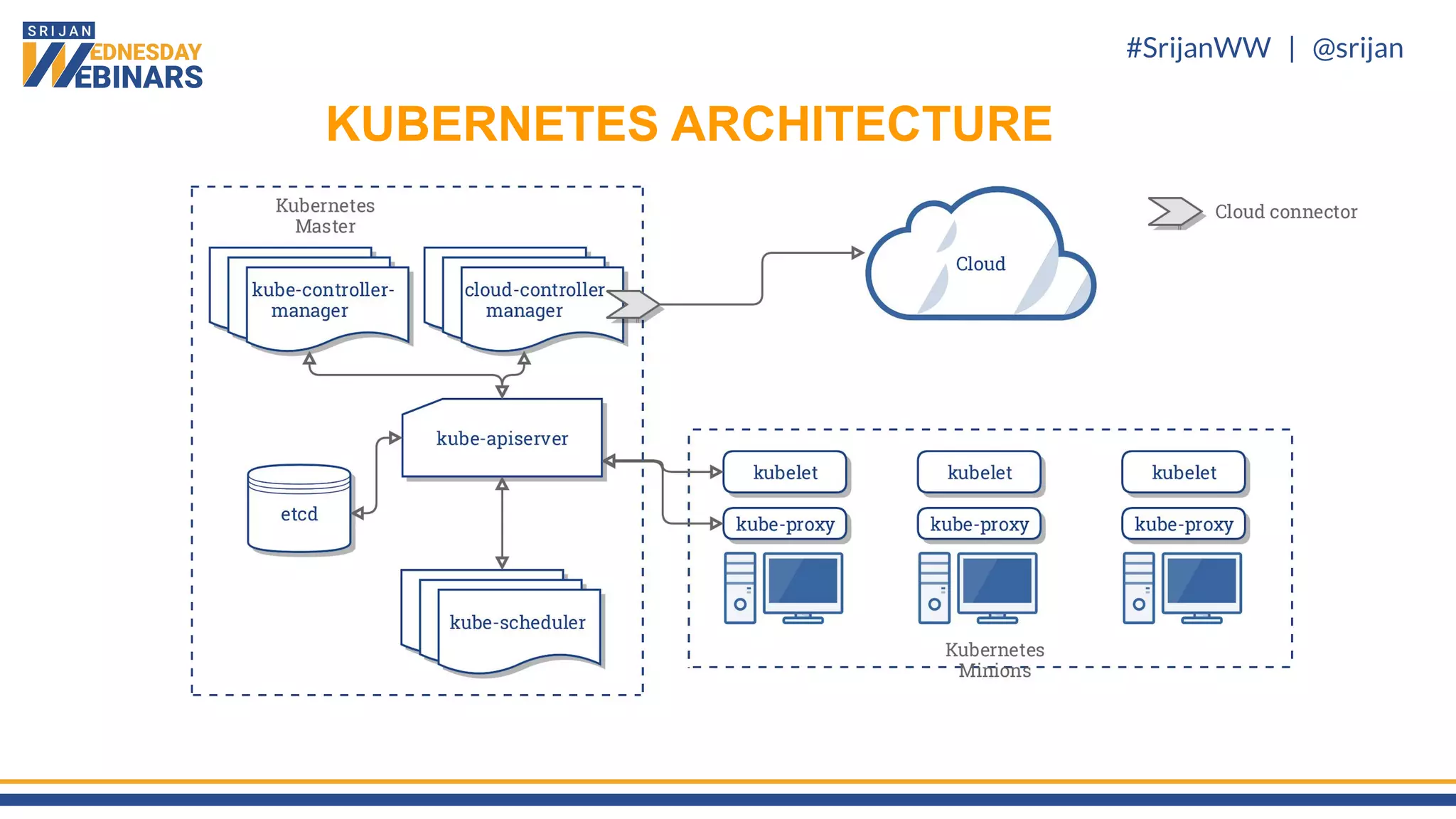

KUBERNETES ARCHITECTURE

7. #SrijanWW | @srijan
● Operators are softwares written to encapsulate all of those operational considerations for a
specific Kubernetes application.
● Operators ensure that all aspects of an application lifecycle starting from configuration and
deployment to upgrades, monitoring, and failure-handling, are integrated right into the
Kubernetes framework and invoked when needed.
● Capability levels of an Operator :--
○ An operator ensures Basic Install of an Application in an automated way which is
usually a single spec file.
○ Operator offers seamless upgrades.
○ Full Application Lifecycle.
○ Auto Pilot Mode. Deploy and sit back.
Kubernetes Operators

8. #SrijanWW | @srijan
Let’s Extend the Kubernetes Control Plane

9. #SrijanWW | @srijan

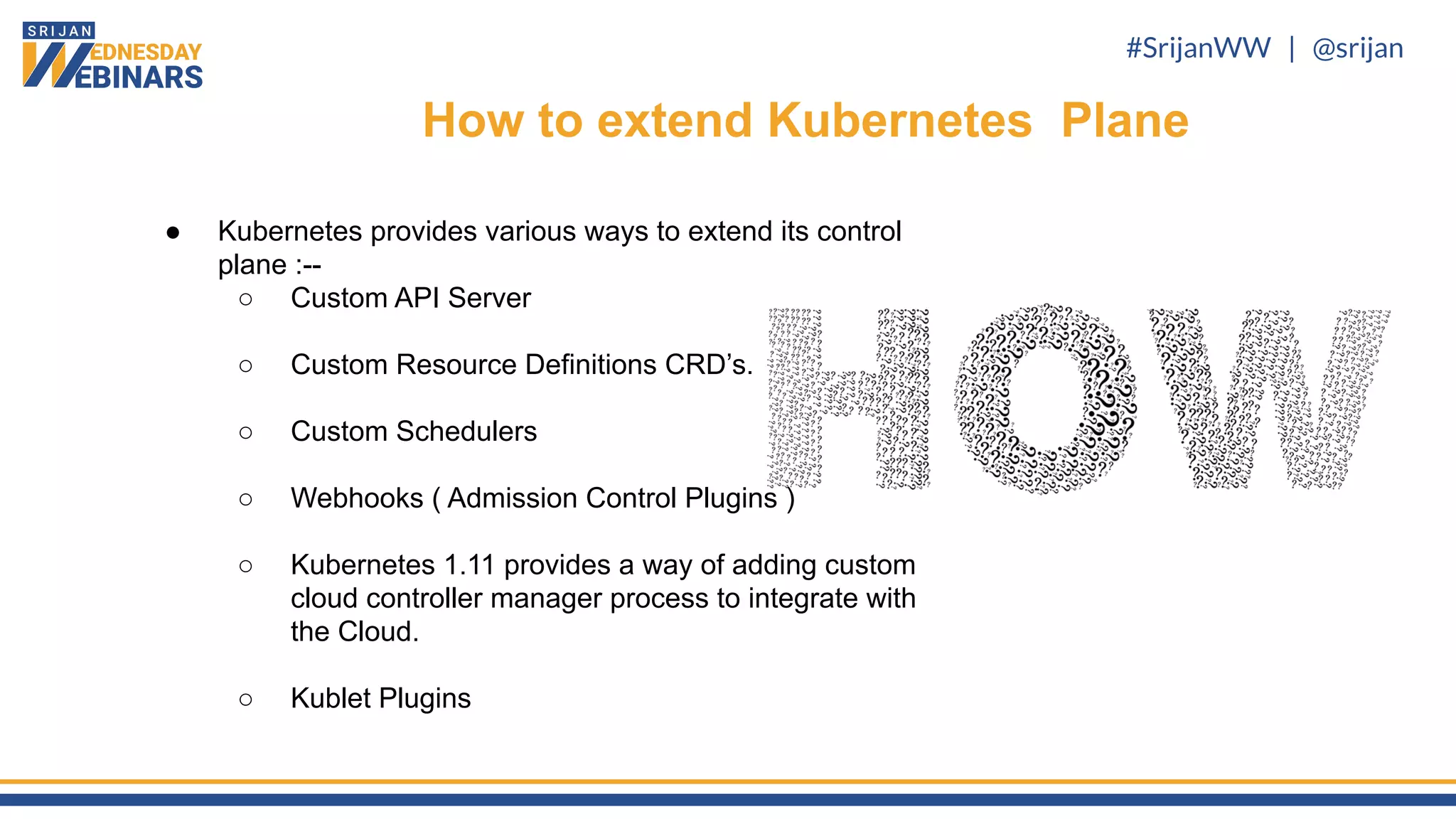

● Kubernetes provides various ways to extend its control
plane :--
○ Custom API Server
○ Custom Resource Definitions CRD’s.
○ Custom Schedulers
○ Webhooks ( Admission Control Plugins )
○ Kubernetes 1.11 provides a way of adding custom
cloud controller manager process to integrate with
the Cloud.
○ Kublet Plugins
How to extend Kubernetes Plane

10. #SrijanWW | @srijan

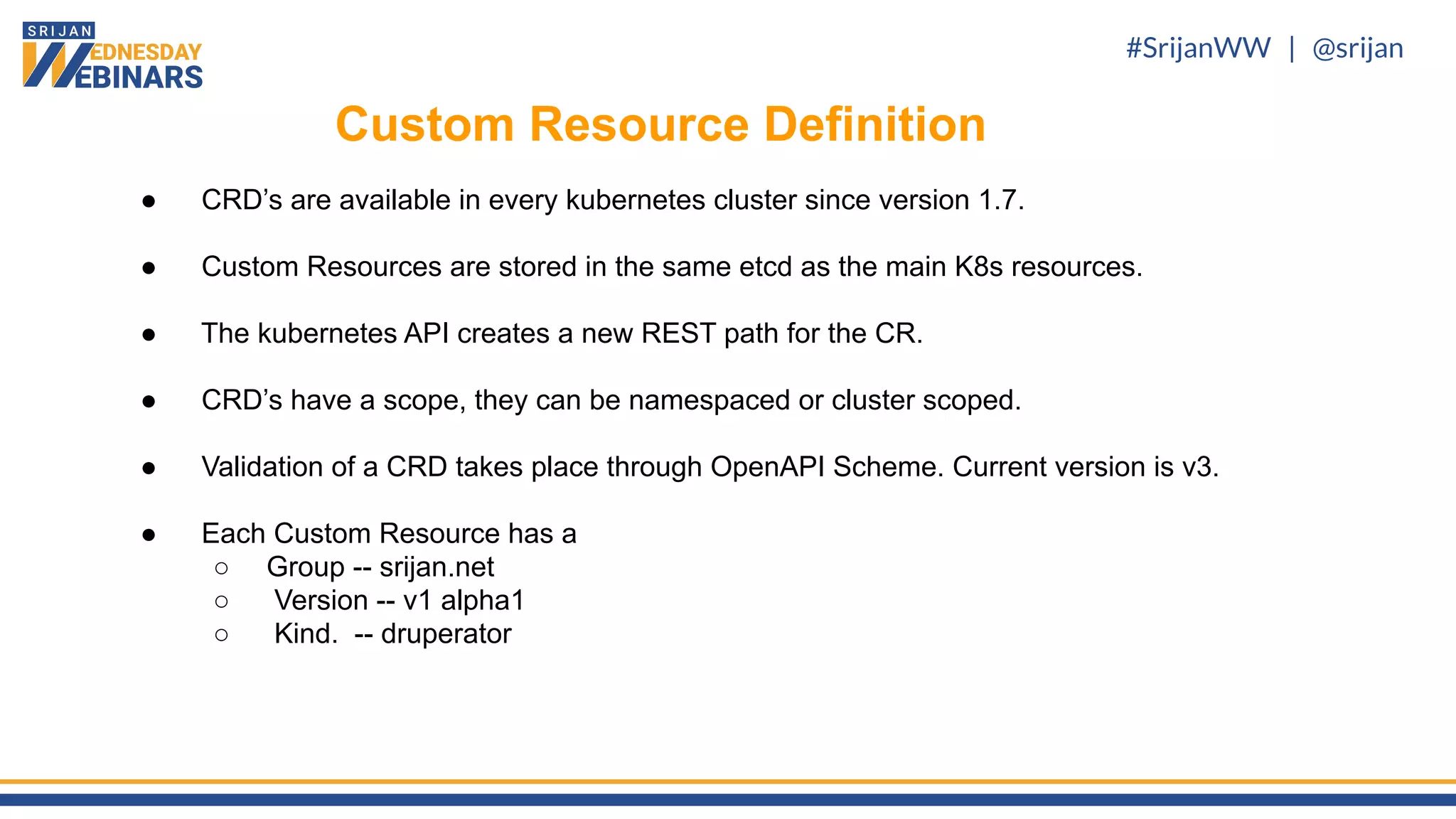

● CRD’s are available in every kubernetes cluster since version 1.7.
● Custom Resources are stored in the same etcd as the main K8s resources.
● The kubernetes API creates a new REST path for the CR.
● CRD’s have a scope, they can be namespaced or cluster scoped.
● Validation of a CRD takes place through OpenAPI Scheme. Current version is v3.
● Each Custom Resource has a
○ Group -- srijan.net
○ Version -- v1 alpha1
○ Kind. -- druperator
Custom Resource Definition

11. #SrijanWW | @srijan

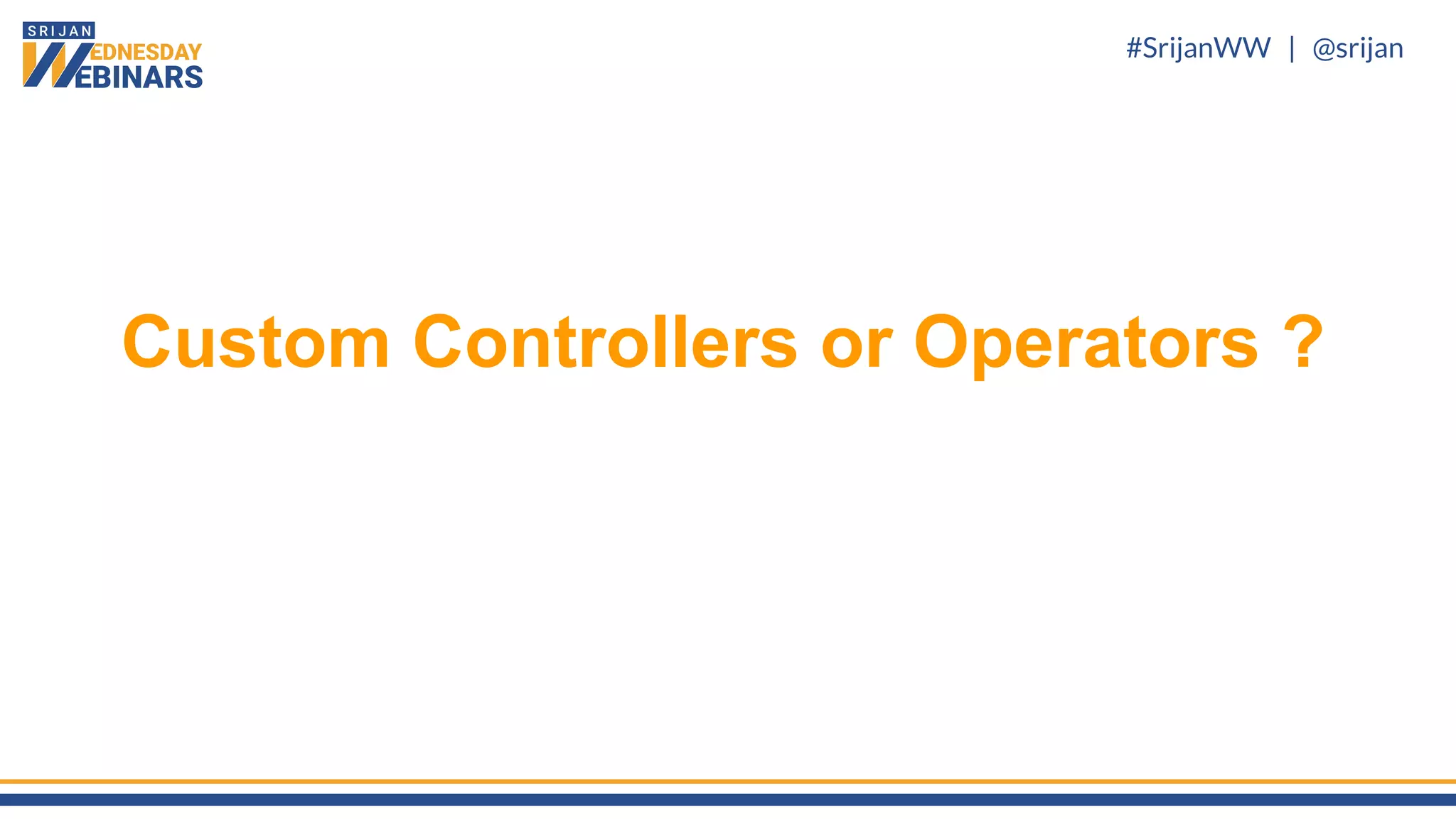

Custom Controllers or Operators ?

12. #SrijanWW | @srijan

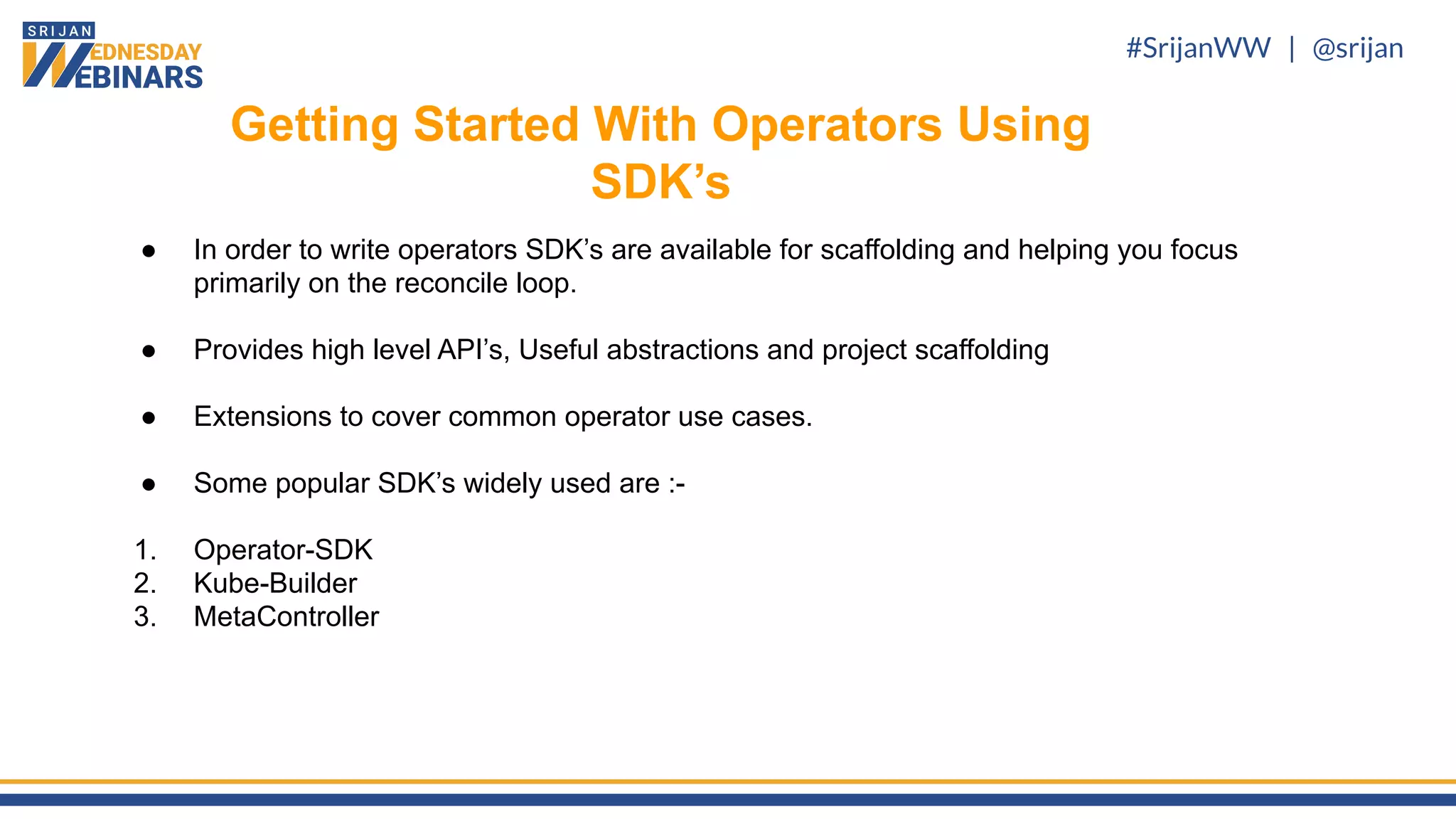

● In order to write operators SDK’s are available for scaffolding and helping you focus
primarily on the reconcile loop.
● Provides high level API’s, Useful abstractions and project scaffolding
● Extensions to cover common operator use cases.
● Some popular SDK’s widely used are :-
1. Operator-SDK
2. Kube-Builder
3. MetaController
Getting Started With Operators Using
SDK’s

13. #SrijanWW | @srijan
SDK or No SDK

14. #SrijanWW | @srijan

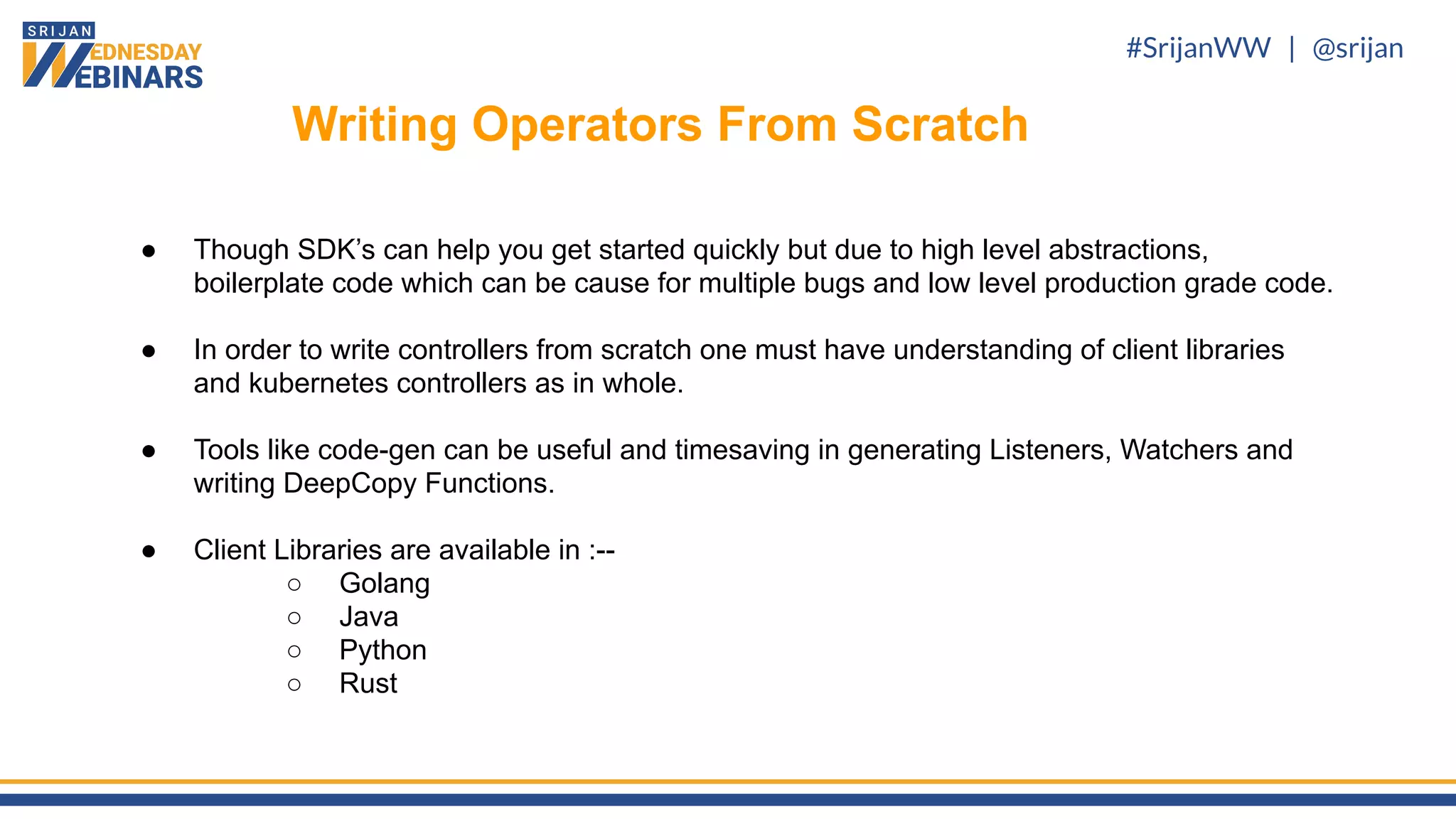

● Though SDK’s can help you get started quickly but due to high level abstractions,
boilerplate code which can be cause for multiple bugs and low level production grade code.
● In order to write controllers from scratch one must have understanding of client libraries
and kubernetes controllers as in whole.
● Tools like code-gen can be useful and timesaving in generating Listeners, Watchers and
writing DeepCopy Functions.
● Client Libraries are available in :--
○ Golang
○ Java
○ Python
○ Rust
Writing Operators From Scratch

15. #SrijanWW | @srijan

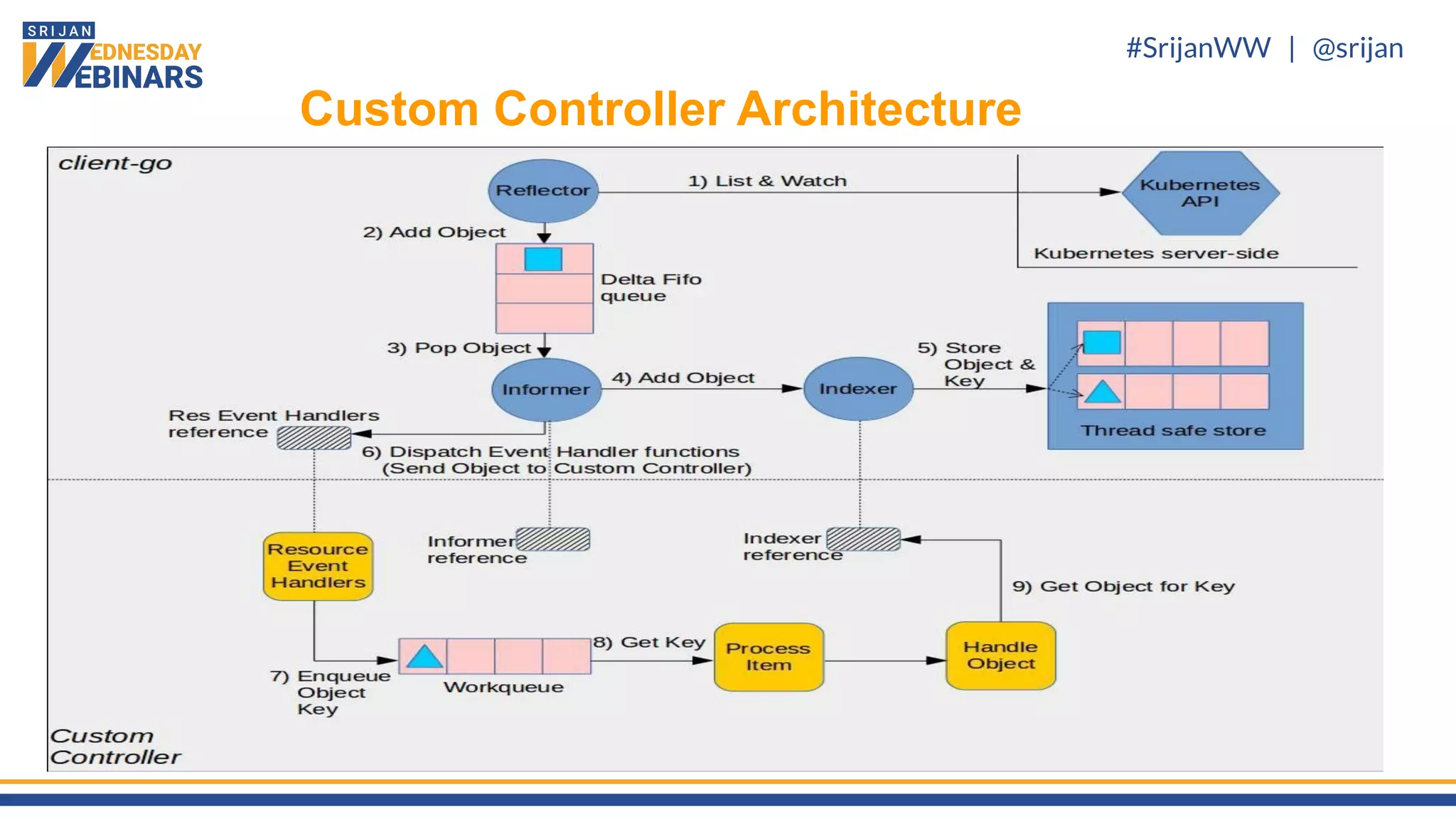

Custom Controller Architecture

16. #SrijanWW | @srijan

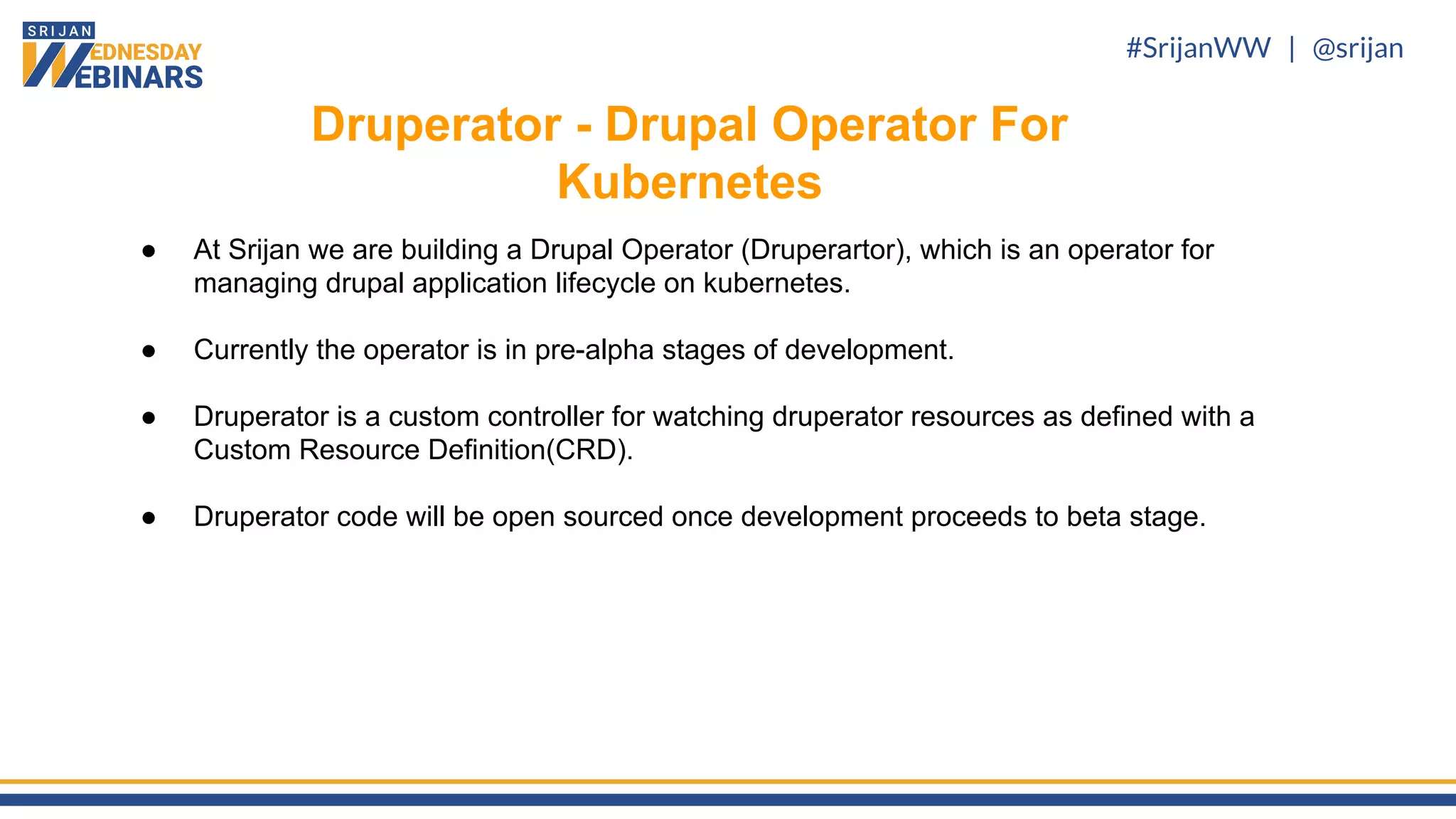

● At Srijan we are building a Drupal Operator (Druperartor), which is an operator for
managing drupal application lifecycle on kubernetes.
● Currently the operator is in pre-alpha stages of development.
● Druperator is a custom controller for watching druperator resources as defined with a
Custom Resource Definition(CRD).
● Druperator code will be open sourced once development proceeds to beta stage.
Druperator - Drupal Operator For
Kubernetes

17. #SrijanWW | @srijan

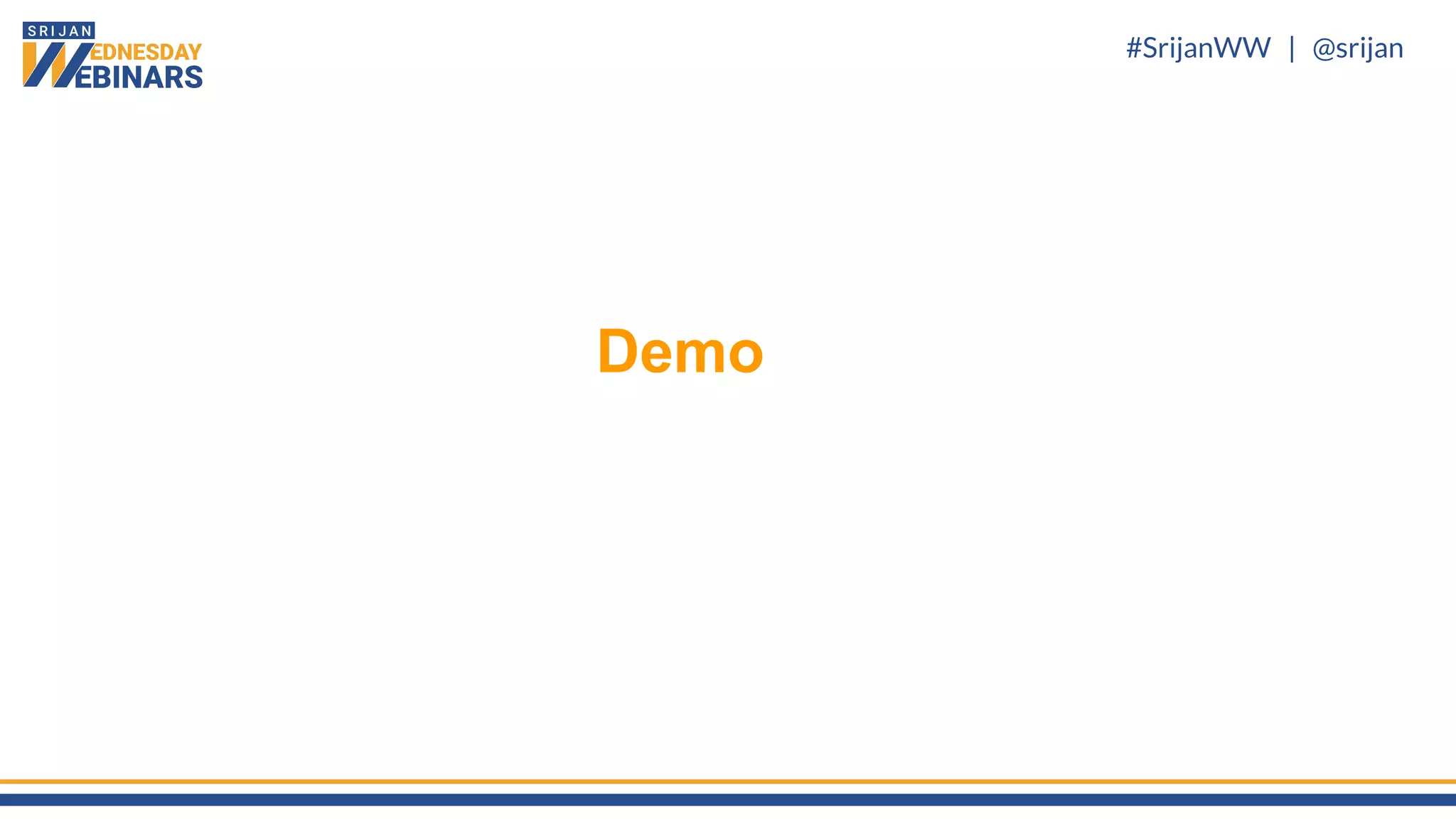

Demo
