1. Building within Kubernetes
CRDs and Operators
9 / 3 / 2018 - Incontro Devops Italia

2. whoami
Giacomo Tirabassi
Devops Engineer @ Sighup Srl
twitter.com/gitirabassi
github.com/gitirabassi
I like to automate, cook and git together

3. Sighup Srl
All things Kubernetes
sighup.io
twitter.com/sighup_

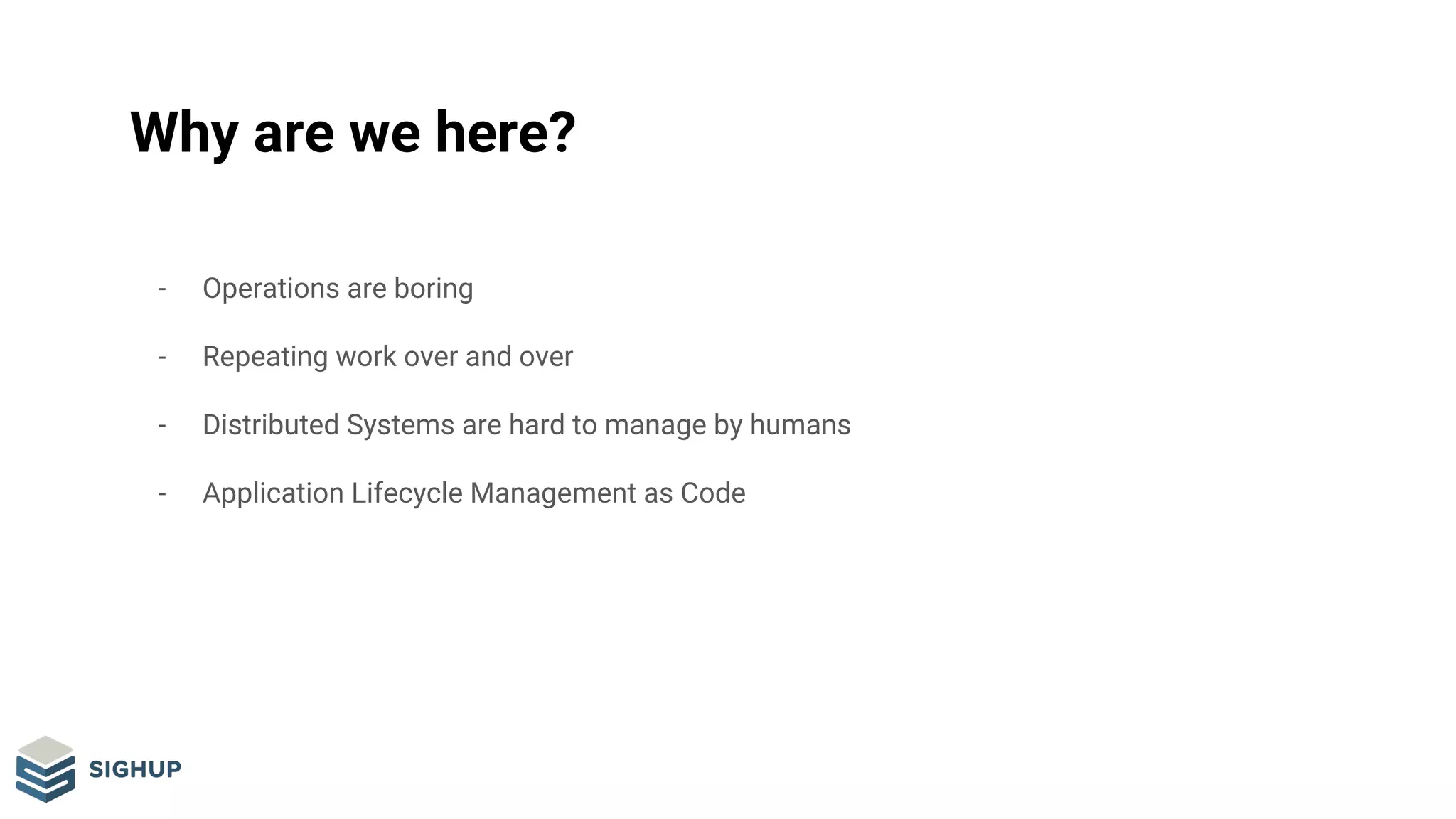

4. Why are we here?
- Operations are boring
- Repeating work over and over
- Distributed Systems are hard to manage by humans
- Application Lifecycle Management as Code

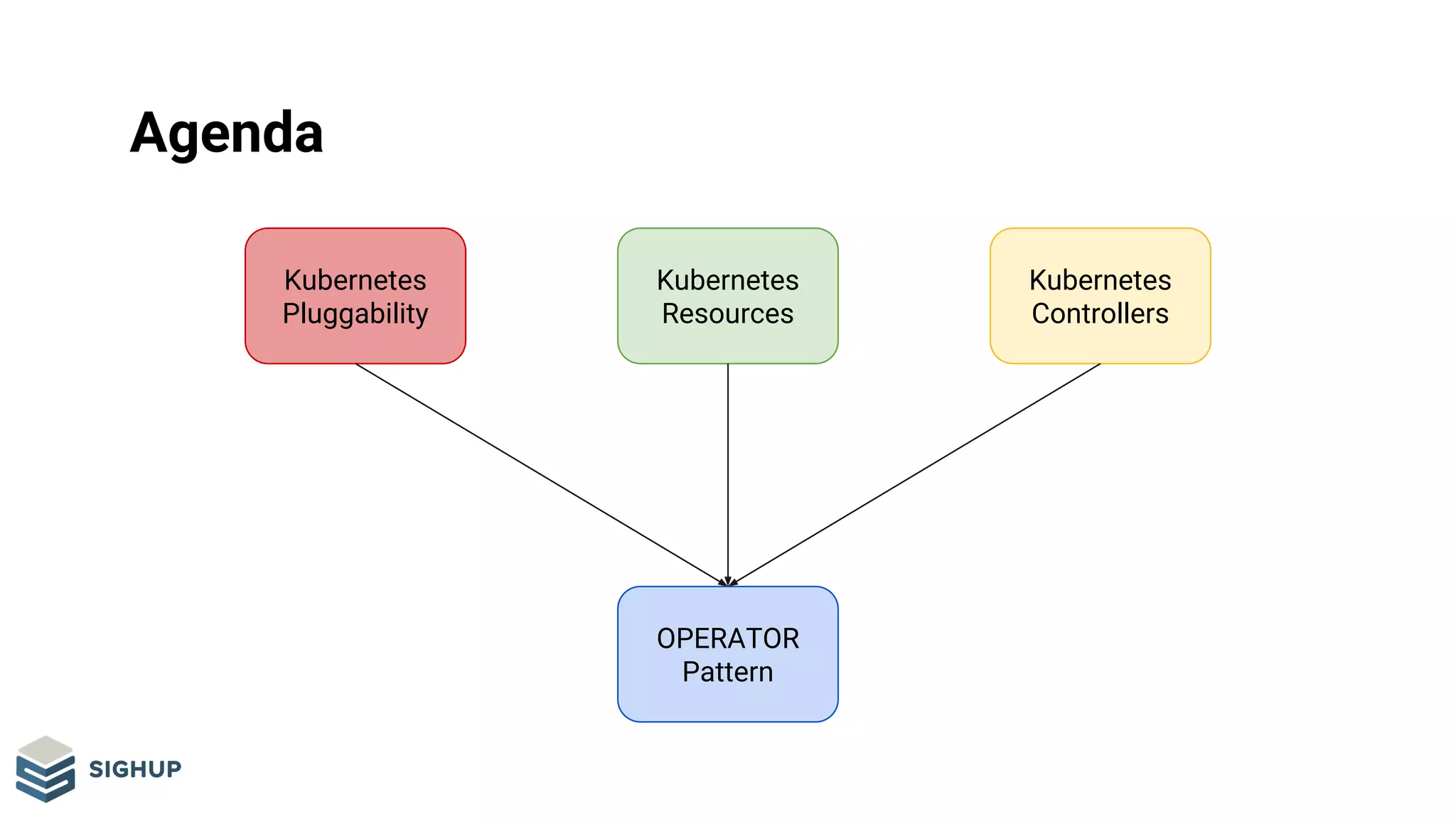

6. Agenda
OPERATOR
Pattern
Kubernetes
Resources
Kubernetes
Controllers
Kubernetes
Pluggability

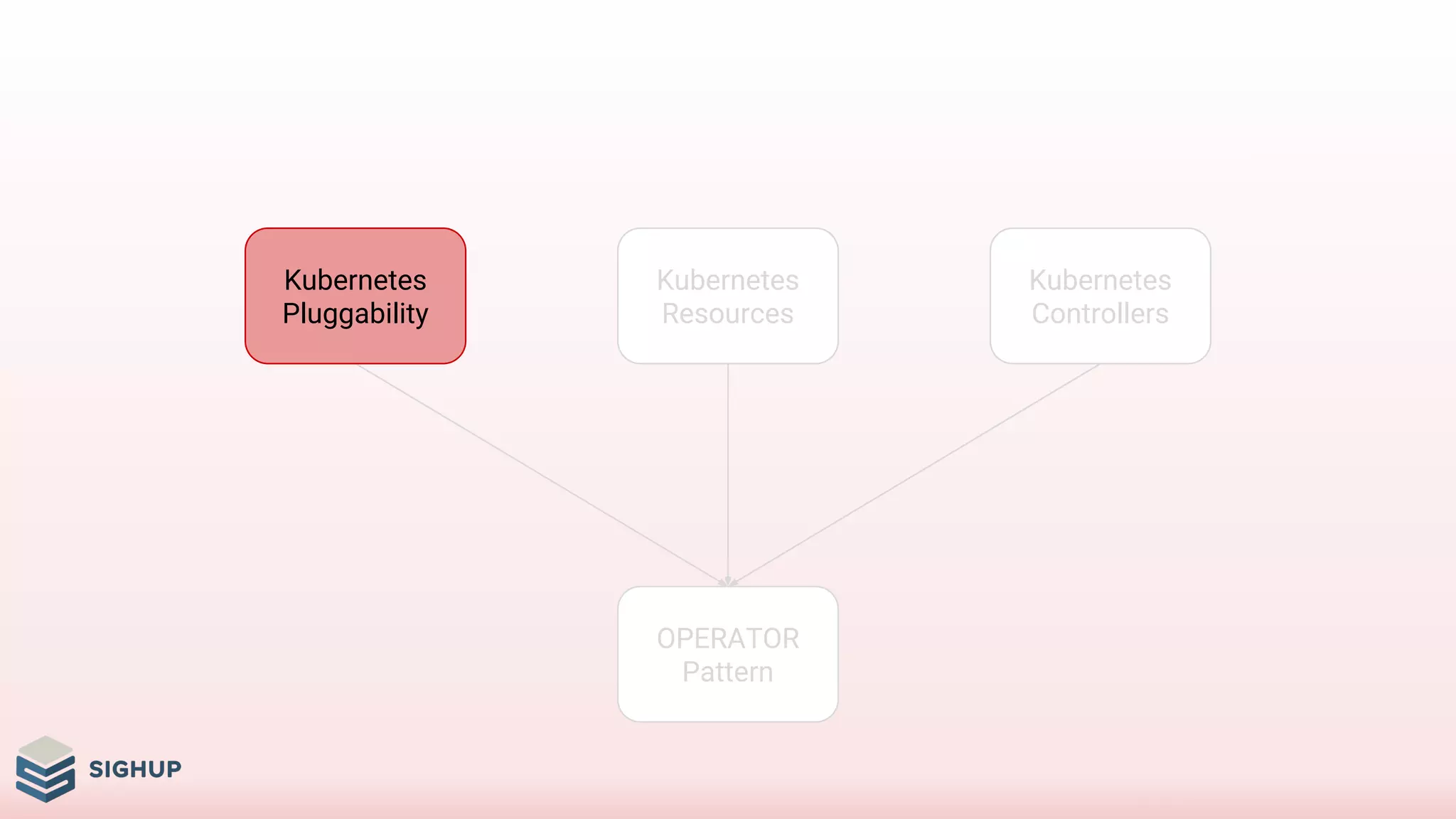

7. OPERATOR
Pattern
Kubernetes
Resources
Kubernetes
Controllers
Kubernetes
Pluggability

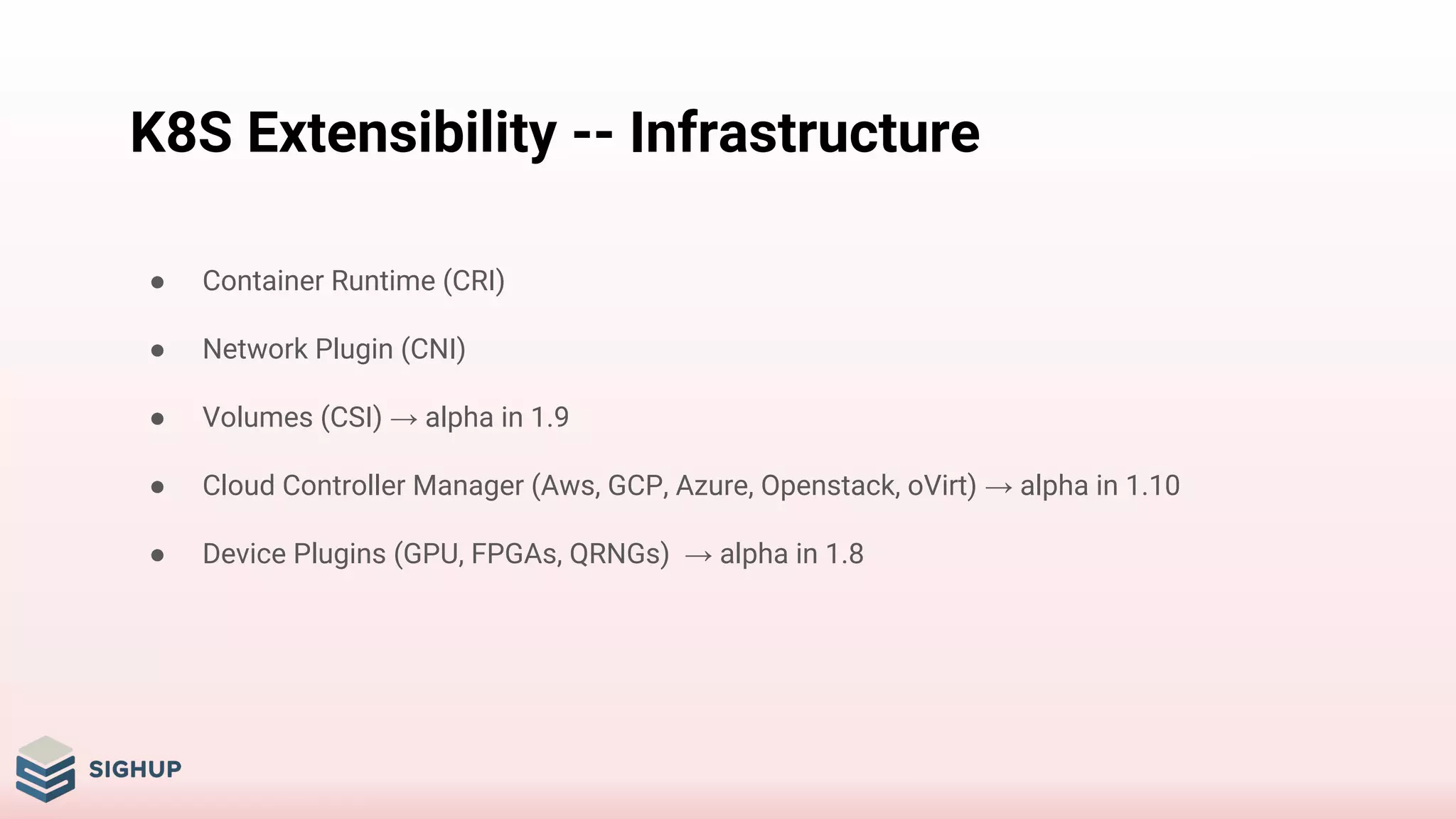

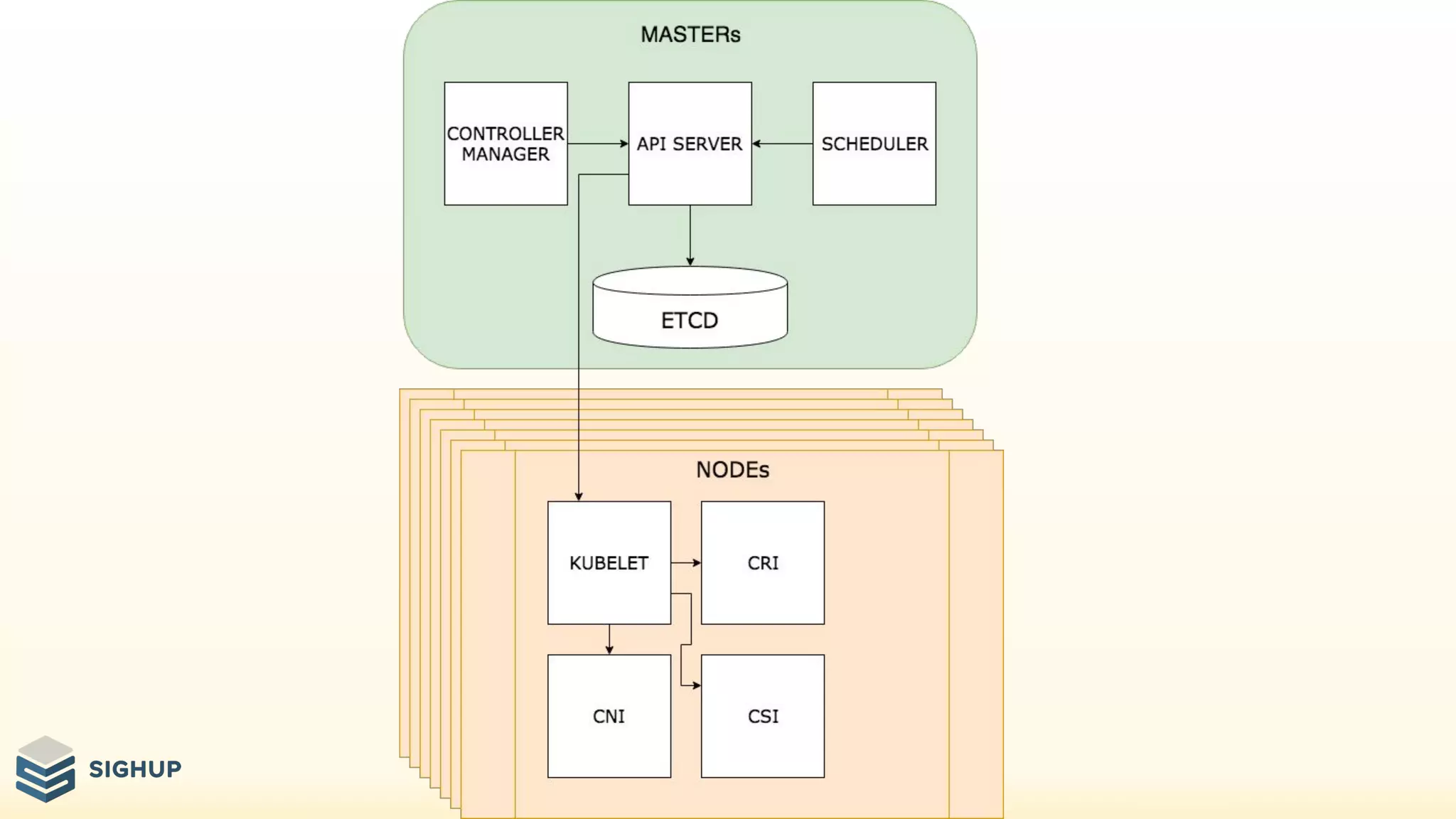

8. K8S Extensibility -- Infrastructure
● Container Runtime (CRI)
● Network Plugin (CNI)
● Volumes (CSI) → alpha in 1.9
● Cloud Controller Manager (Aws, GCP, Azure, Openstack, oVirt) → alpha in 1.10
● Device Plugins (GPU, FPGAs, QRNGs) → alpha in 1.8

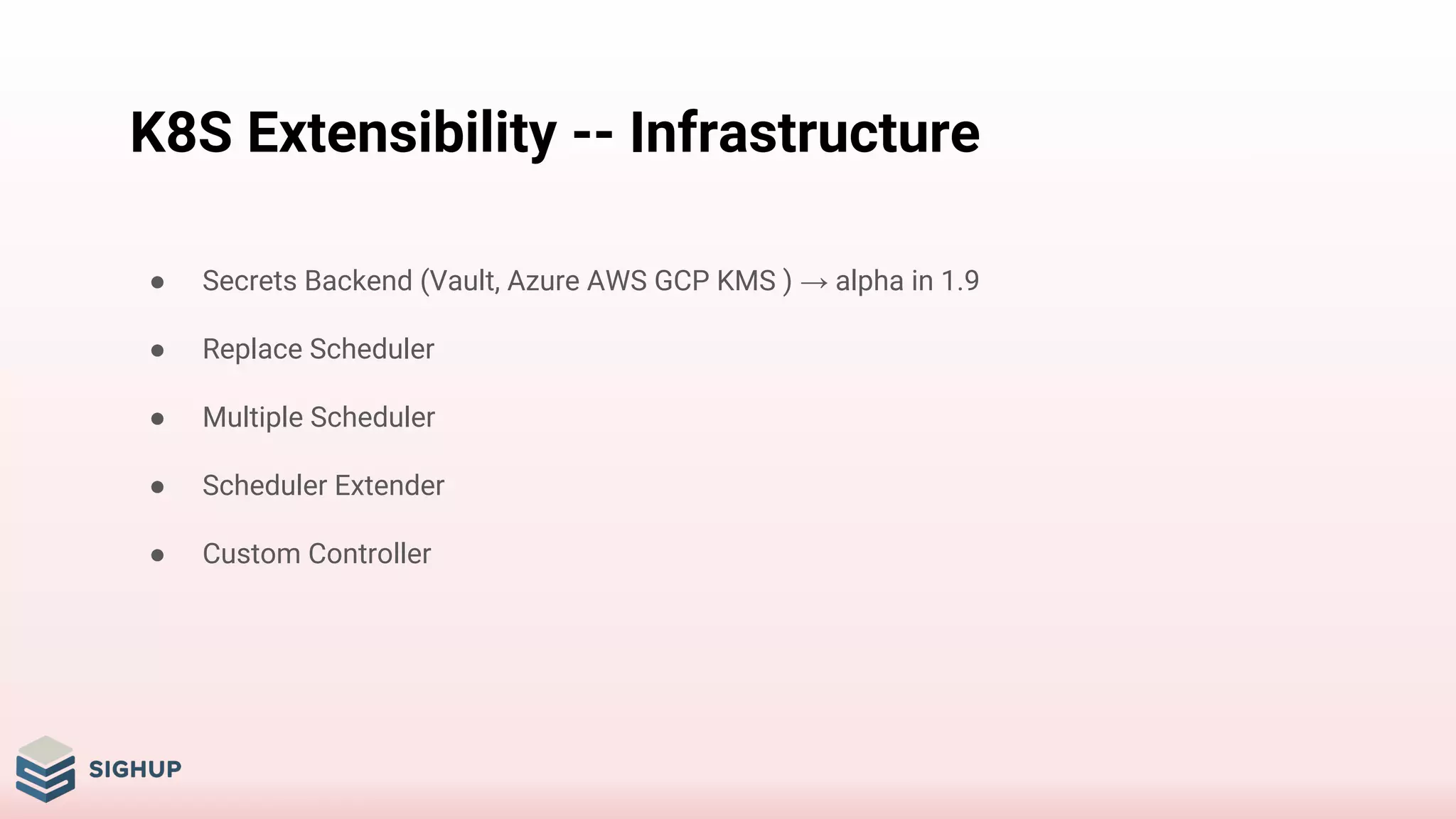

9. K8S Extensibility -- Infrastructure
● Secrets Backend (Vault, Azure AWS GCP KMS ) → alpha in 1.9
● Replace Scheduler
● Multiple Scheduler
● Scheduler Extender
● Custom Controller

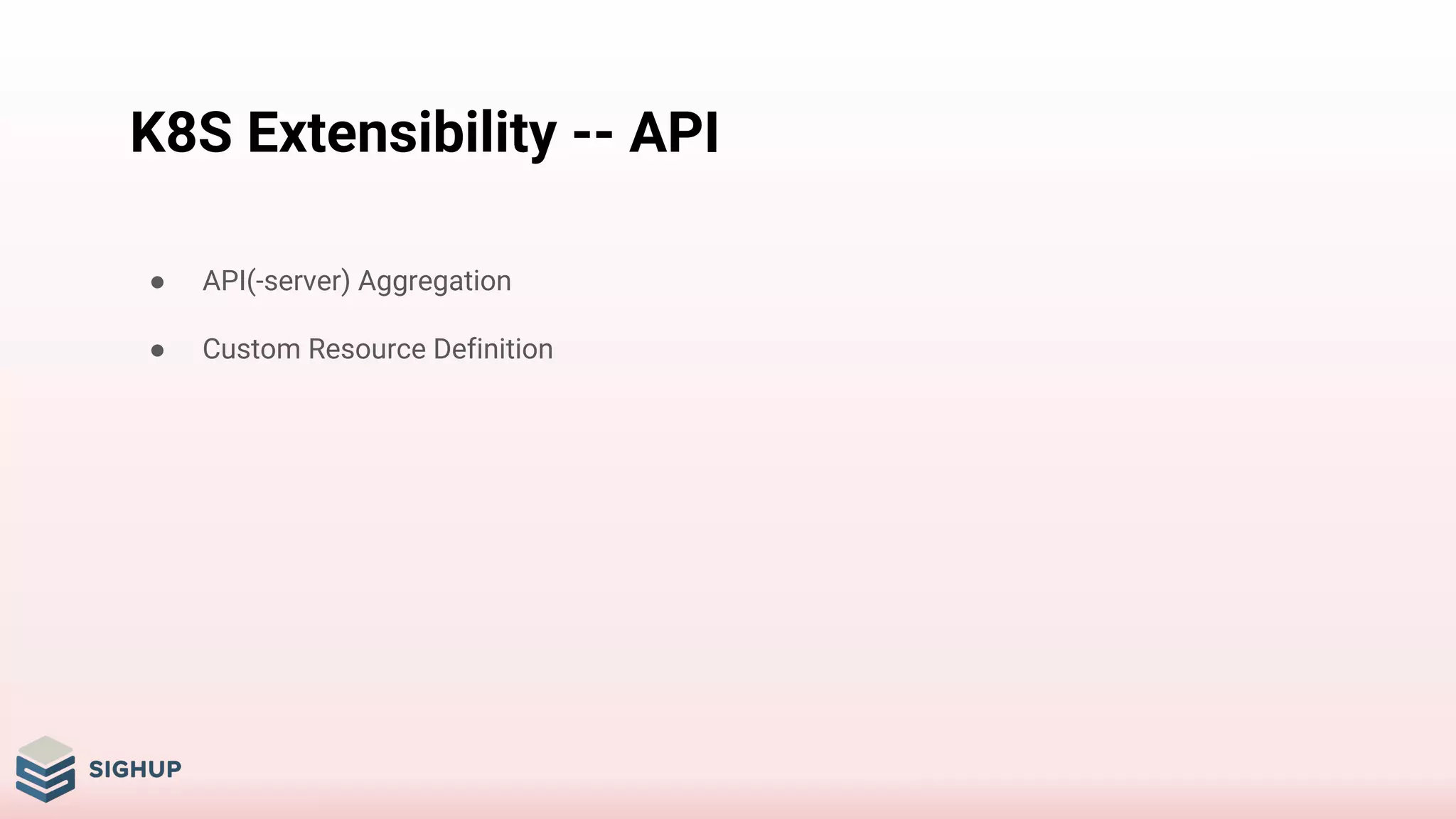

10. K8S Extensibility -- API
● API(-server) Aggregation
● Custom Resource Definition

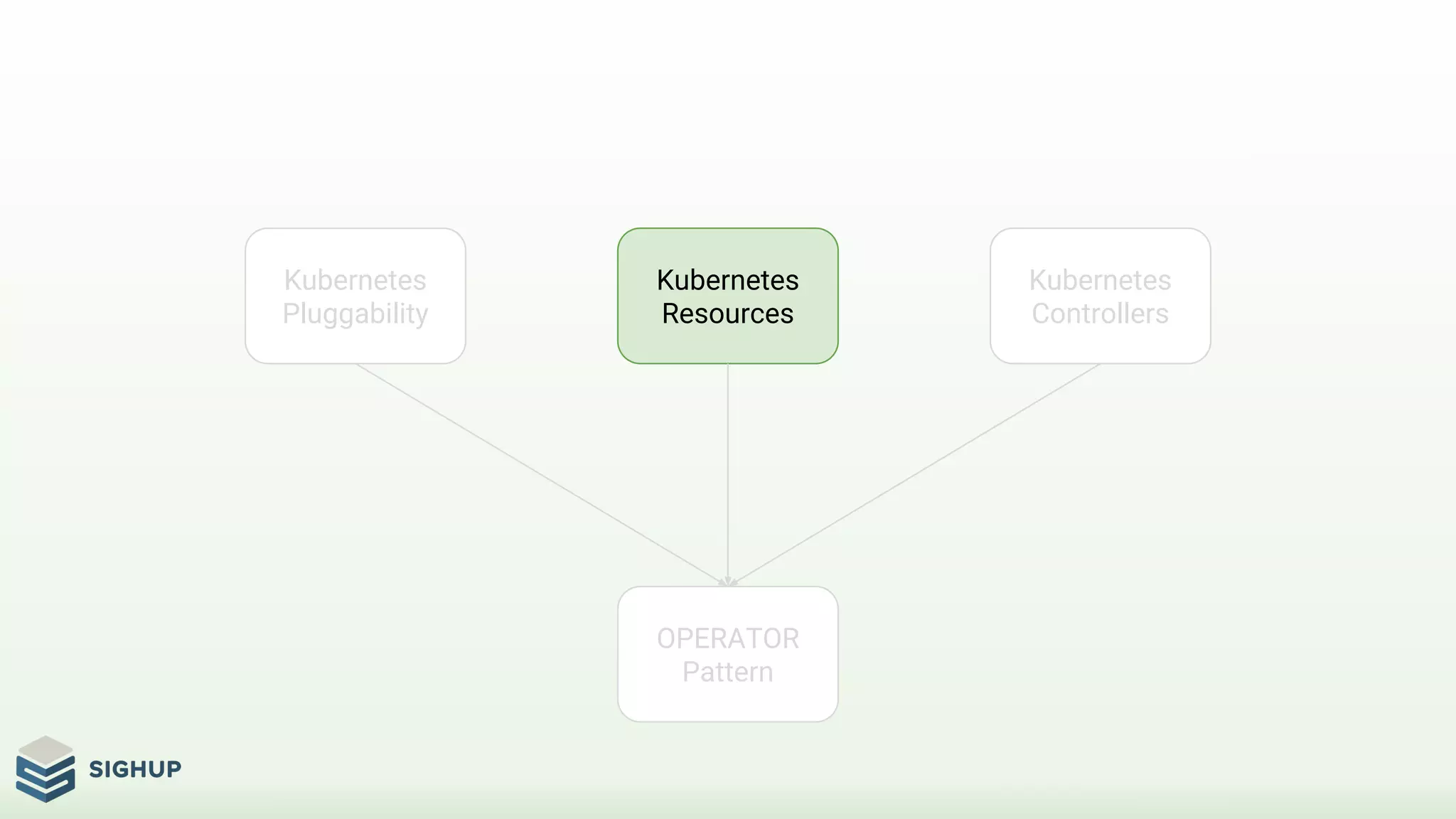

11. OPERATOR
Pattern
Kubernetes
Resources
Kubernetes
Controllers
Kubernetes
Pluggability

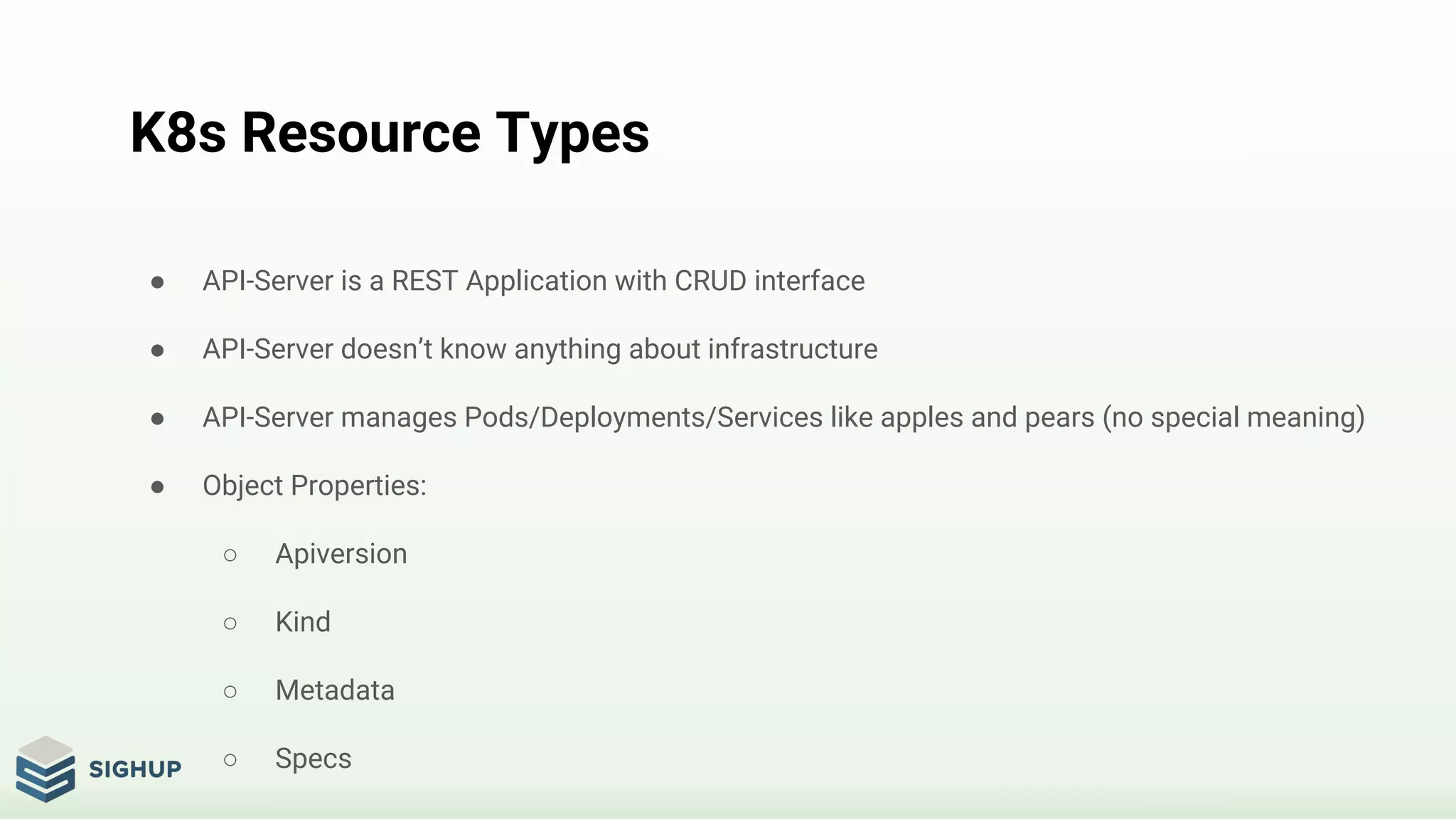

14. K8s Resource Types

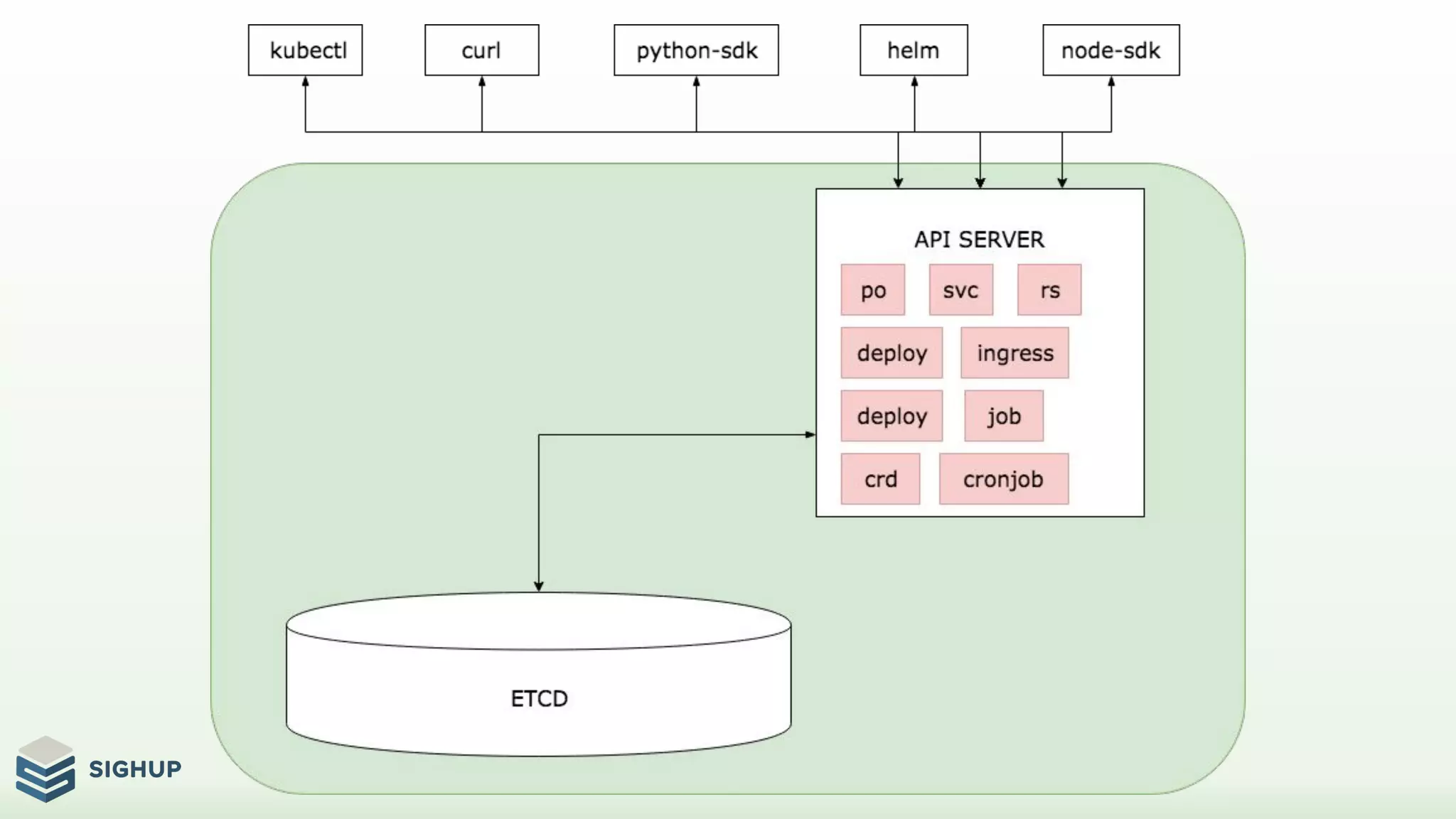

● API-Server is a REST Application with CRUD interface
● API-Server doesn’t know anything about infrastructure
● API-Server manages Pods/Deployments/Services like apples and pears (no special meaning)
● Object Properties:
○ Apiversion
○ Kind
○ Metadata
○ Specs

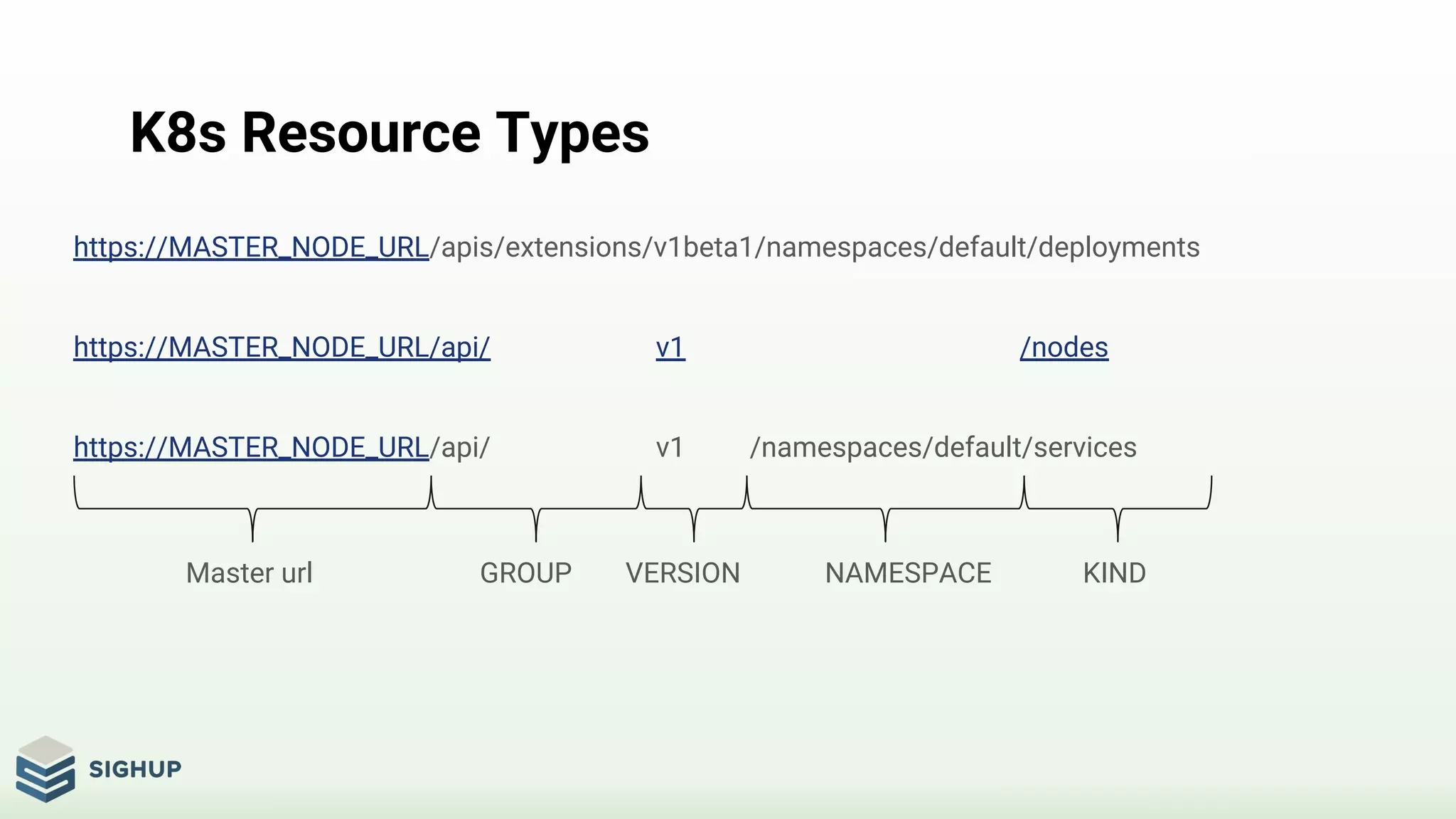

15. K8s Resource Types
https://MASTER_NODE_URL/apis/extensions/v1beta1/namespaces/default/deployments
https://MASTER_NODE_URL/api/ v1 /nodes
https://MASTER_NODE_URL/api/ v1 /namespaces/default/services
Master url GROUP VERSION NAMESPACE KIND

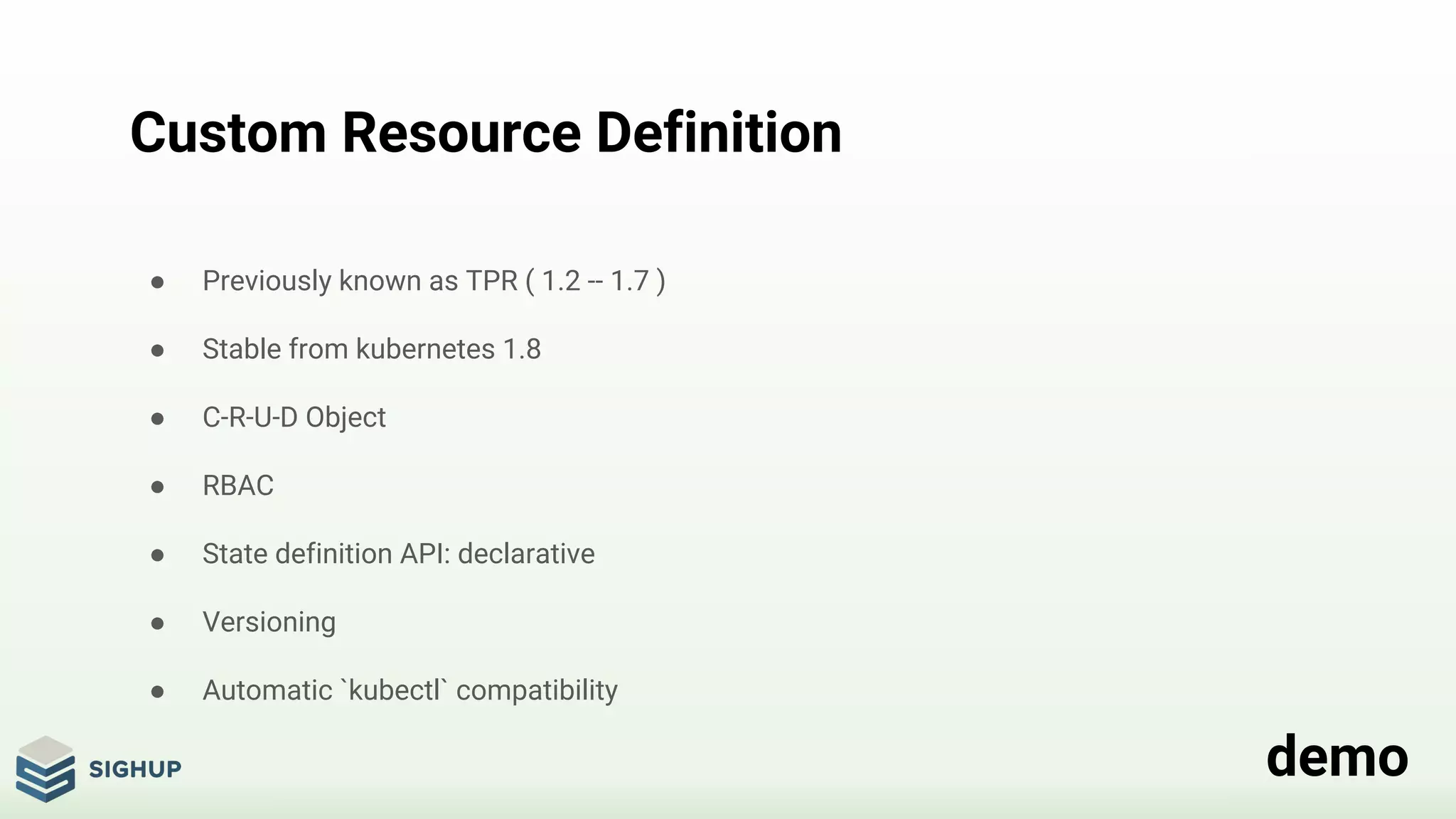

16. Custom Resource Definition
● Previously known as TPR ( 1.2 -- 1.7 )
● Stable from kubernetes 1.8
● C-R-U-D Object
● RBAC
● State definition API: declarative
● Versioning
● Automatic `kubectl` compatibility
demo

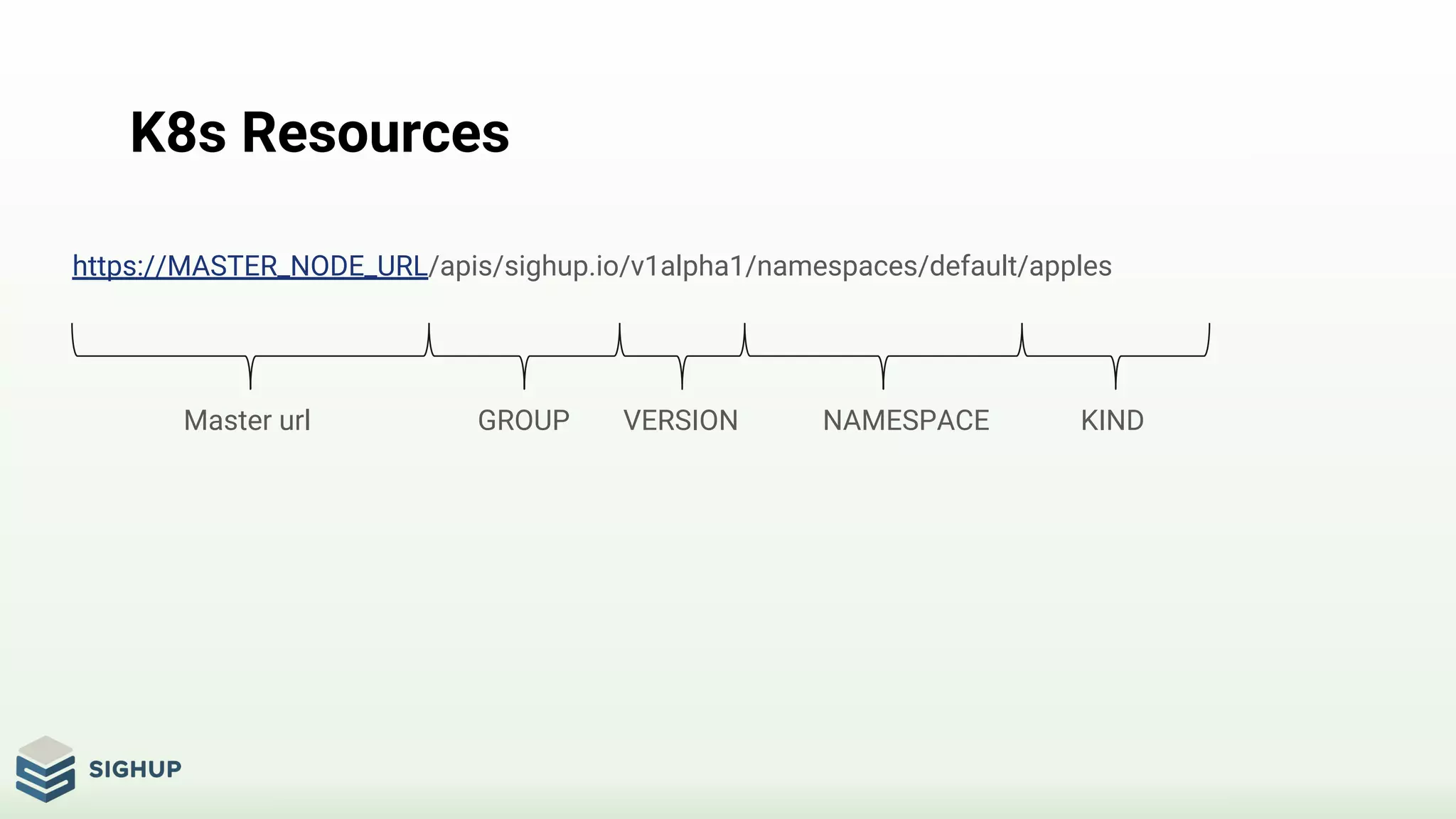

17. K8s Resources
https://MASTER_NODE_URL/apis/sighup.io/v1alpha1/namespaces/default/apples
Master url GROUP VERSION NAMESPACE KIND

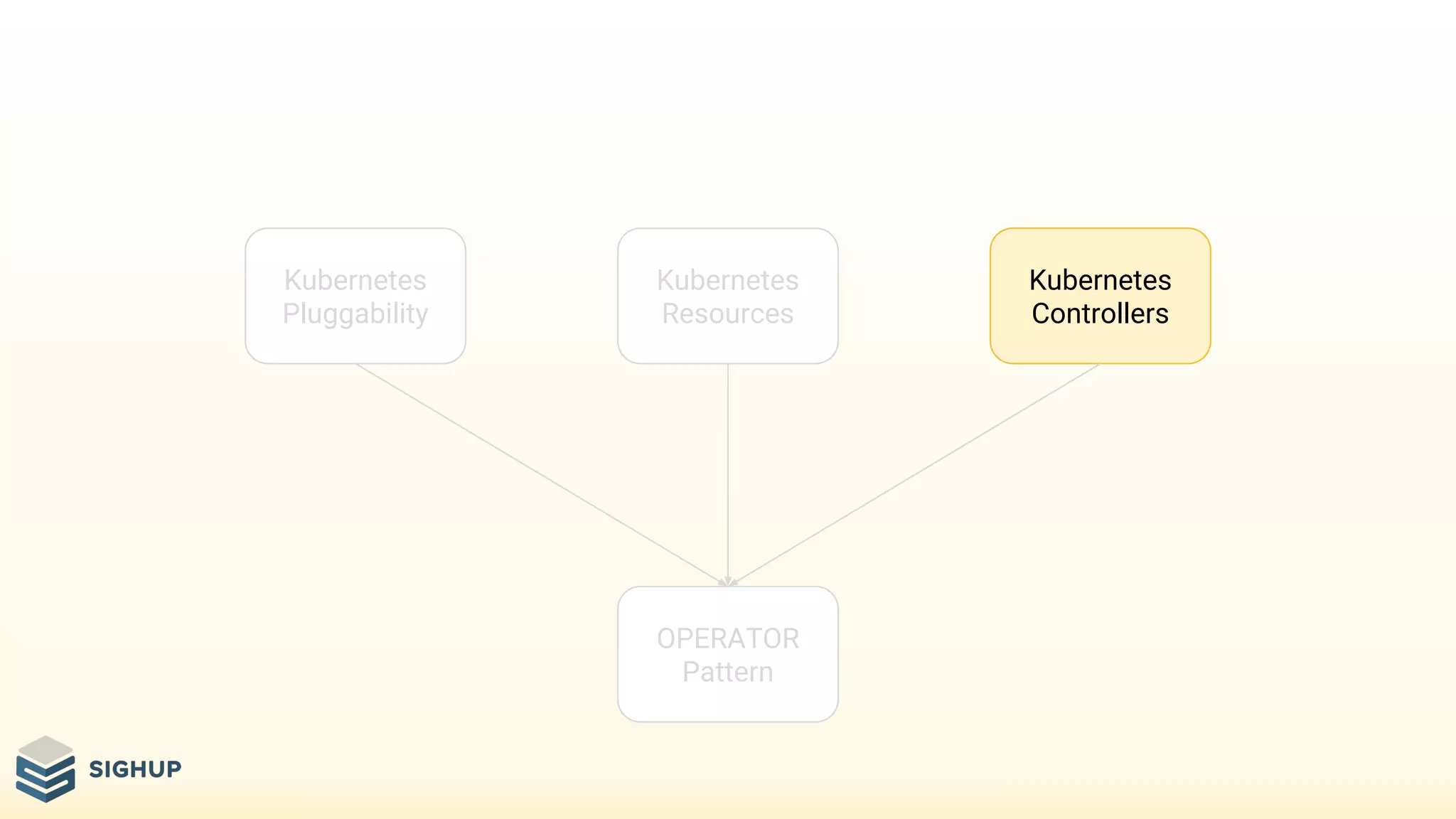

18. OPERATOR
Pattern
Kubernetes
Resources
Kubernetes
Controllers
Kubernetes
Pluggability

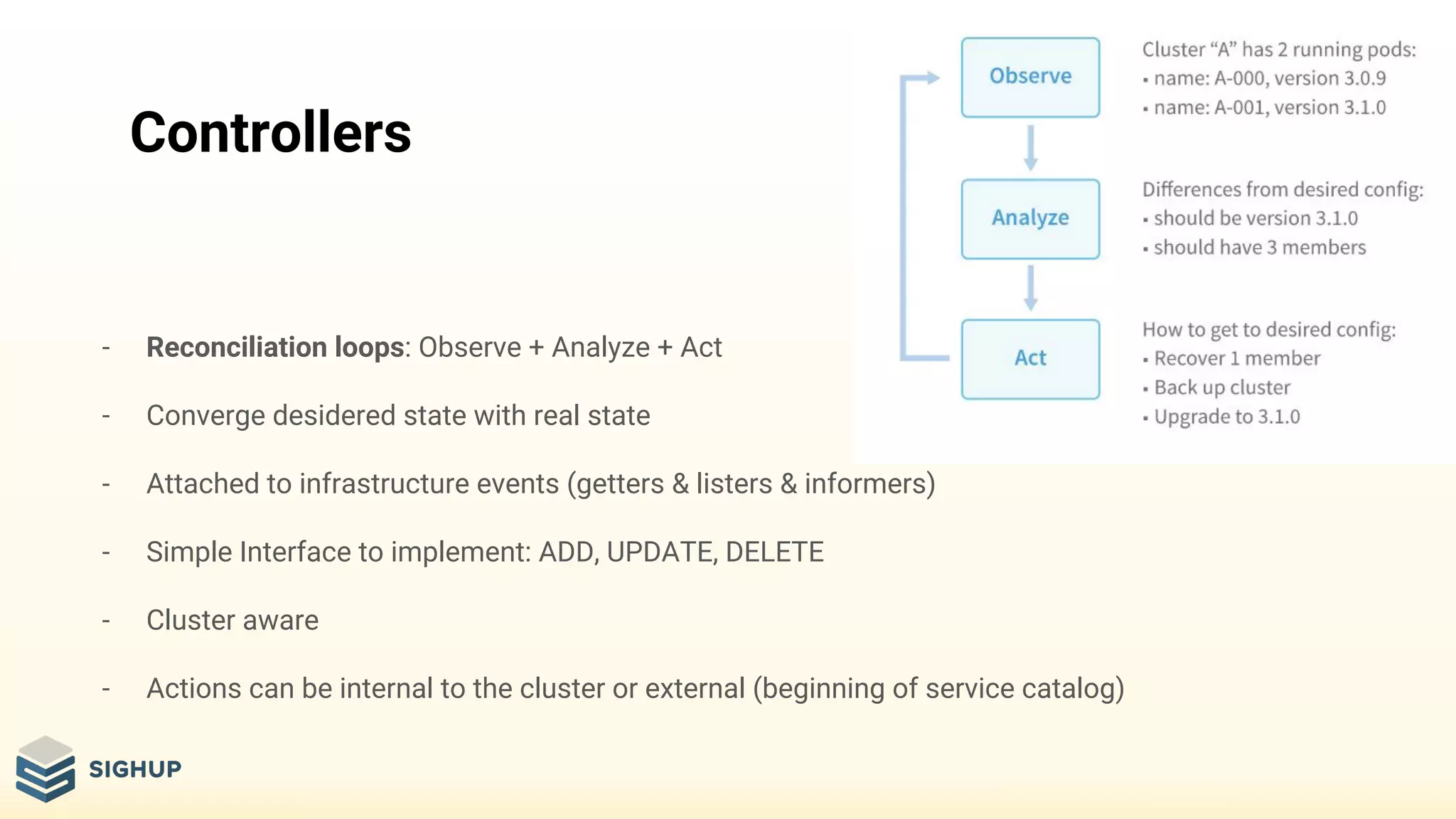

21. Controllers
- Reconciliation loops: Observe + Analyze + Act
- Converge desidered state with real state
- Attached to infrastructure events (getters & listers & informers)
- Simple Interface to implement: ADD, UPDATE, DELETE
- Cluster aware
- Actions can be internal to the cluster or external (beginning of service catalog)

22. Controllers Properties
- Fully typed
- Cache
- Workqueues
- Chaos
- Leader election
- Code generation
- Clientsets

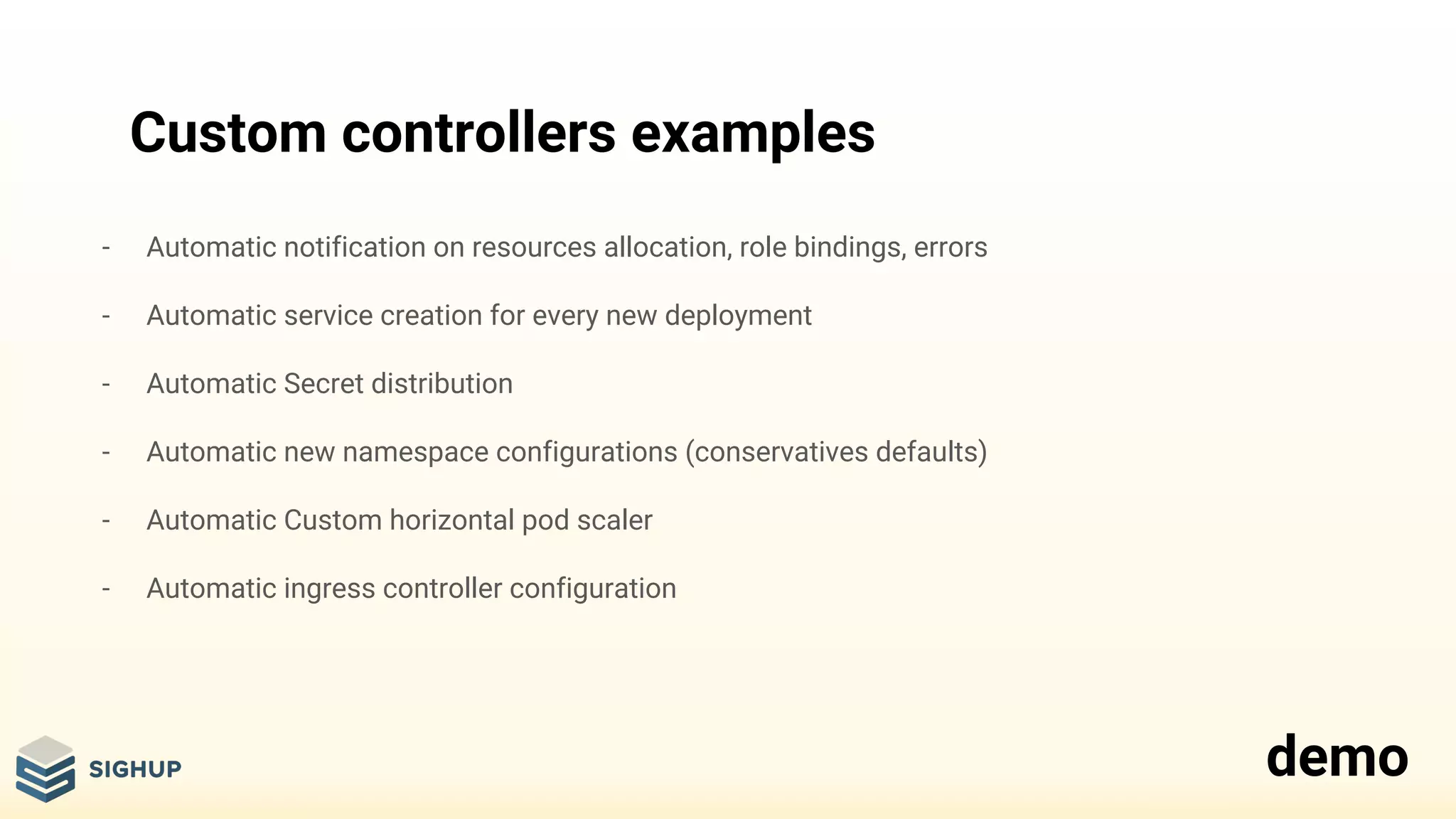

23. Custom controllers examples
- Automatic notification on resources allocation, role bindings, errors
- Automatic service creation for every new deployment
- Automatic Secret distribution
- Automatic new namespace configurations (conservatives defaults)
- Automatic Custom horizontal pod scaler
- Automatic ingress controller configuration
demo

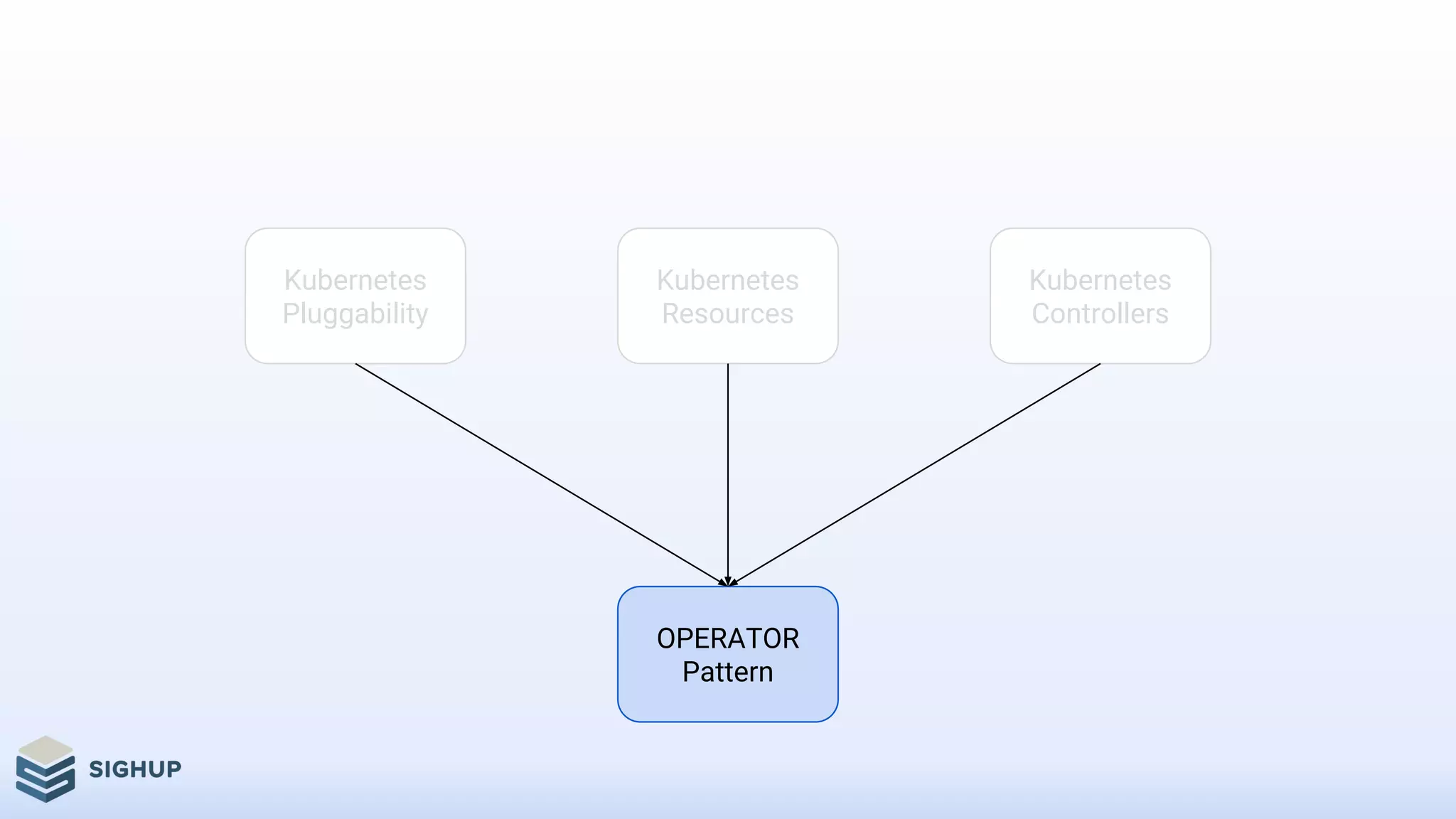

24. OPERATOR
Pattern
Kubernetes
Resources
Kubernetes
Controllers
Kubernetes
Pluggability

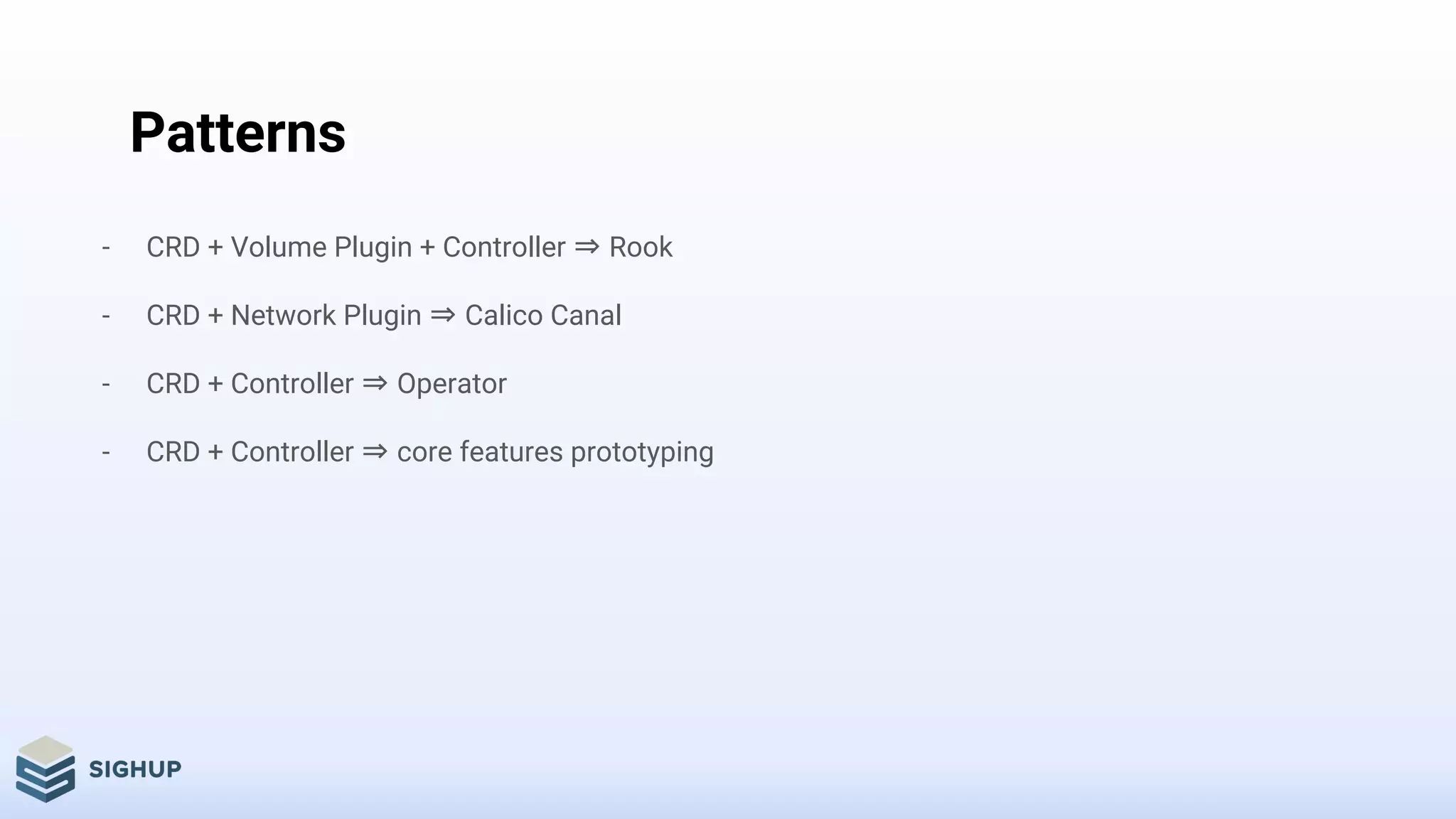

25. Patterns
- CRD + Volume Plugin + Controller ⇒ Rook
- CRD + Network Plugin ⇒ Calico Canal
- CRD + Controller ⇒ Operator
- CRD + Controller ⇒ core features prototyping

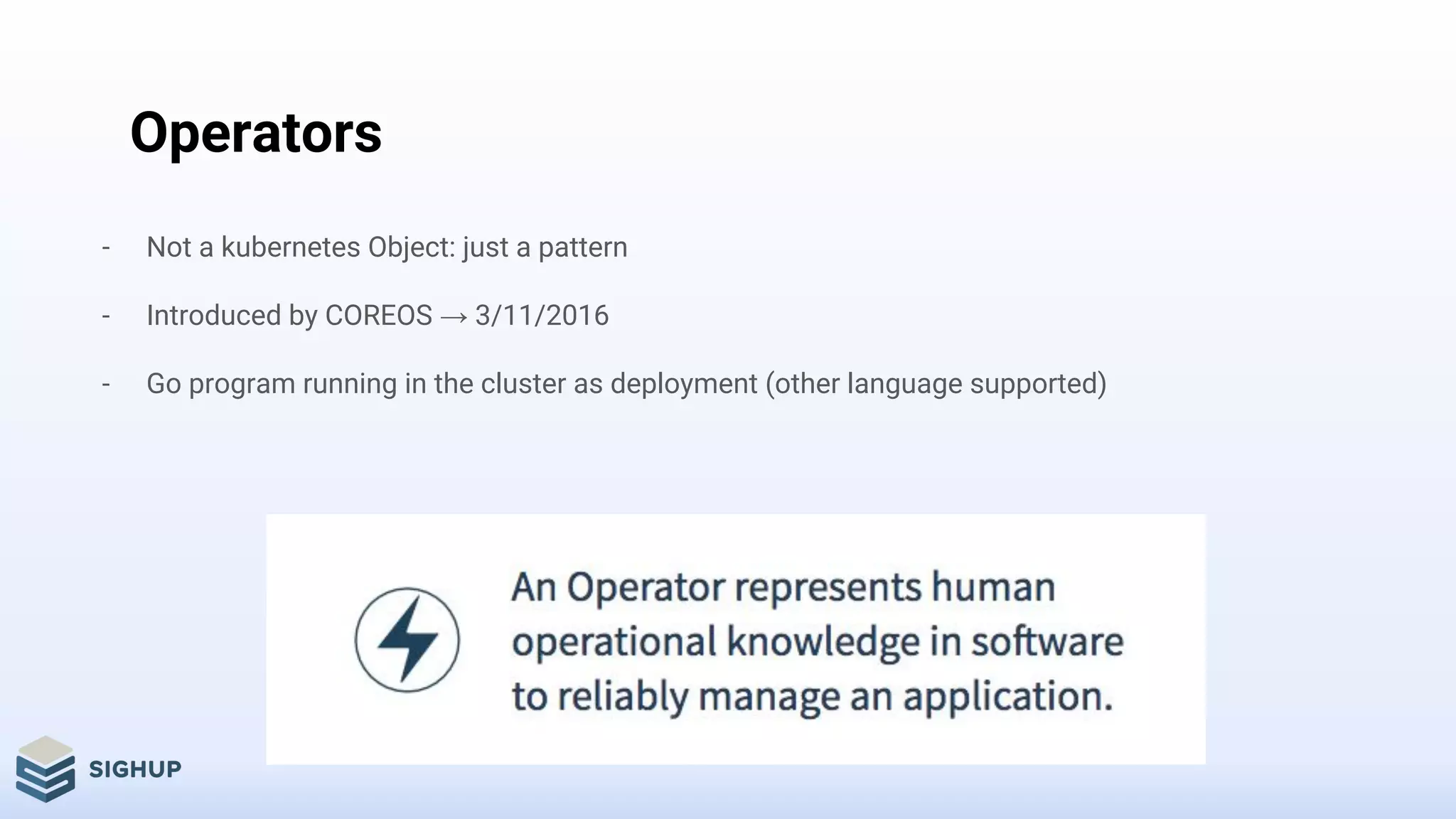

26. Operators
- Not a kubernetes Object: just a pattern
- Introduced by COREOS → 3/11/2016
- Go program running in the cluster as deployment (other language supported)

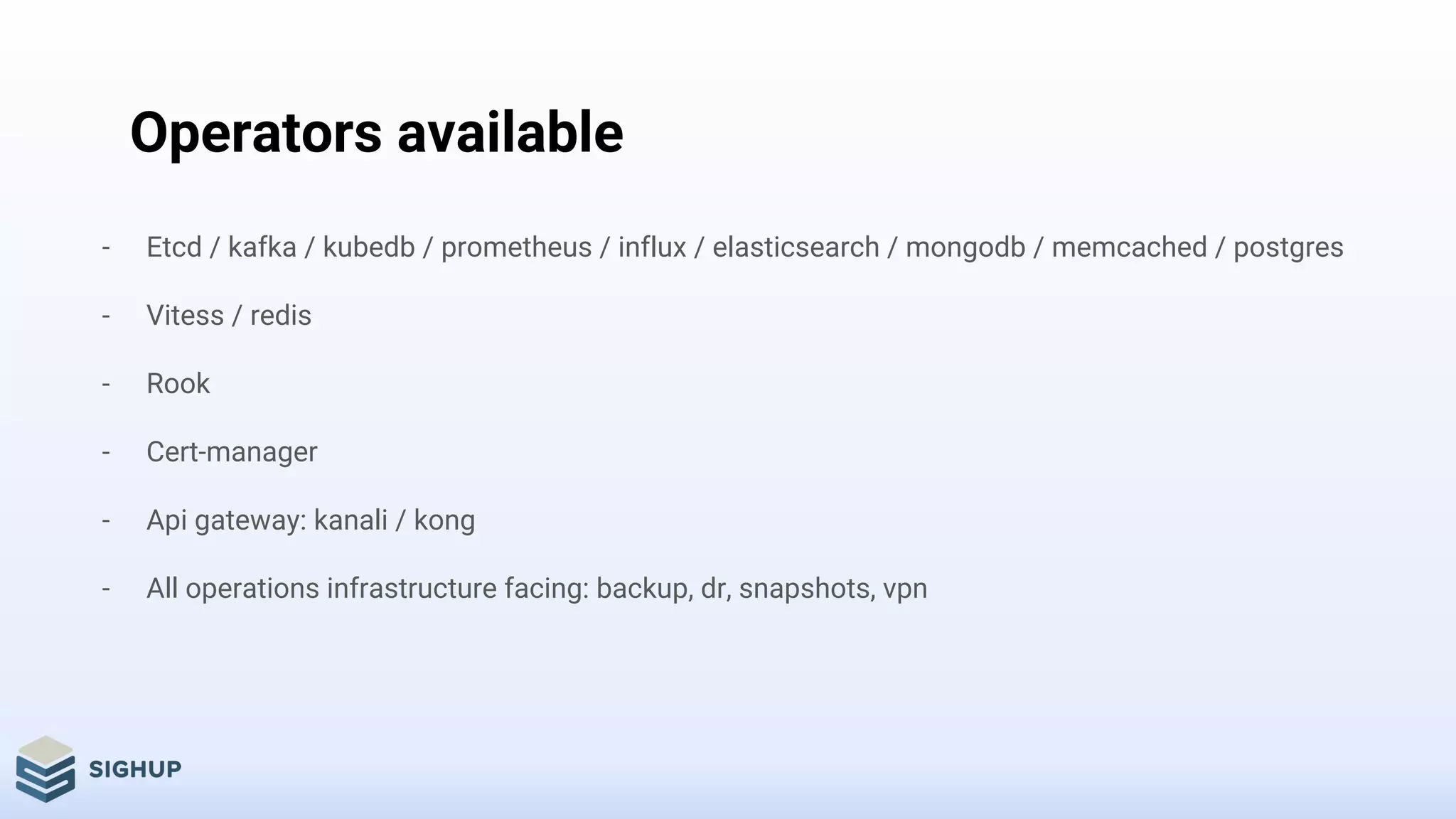

27. Operators available
- Etcd / kafka / kubedb / prometheus / influx / elasticsearch / mongodb / memcached / postgres
- Vitess / redis
- Rook
- Cert-manager
- Api gateway: kanali / kong
- All operations infrastructure facing: backup, dr, snapshots, vpn

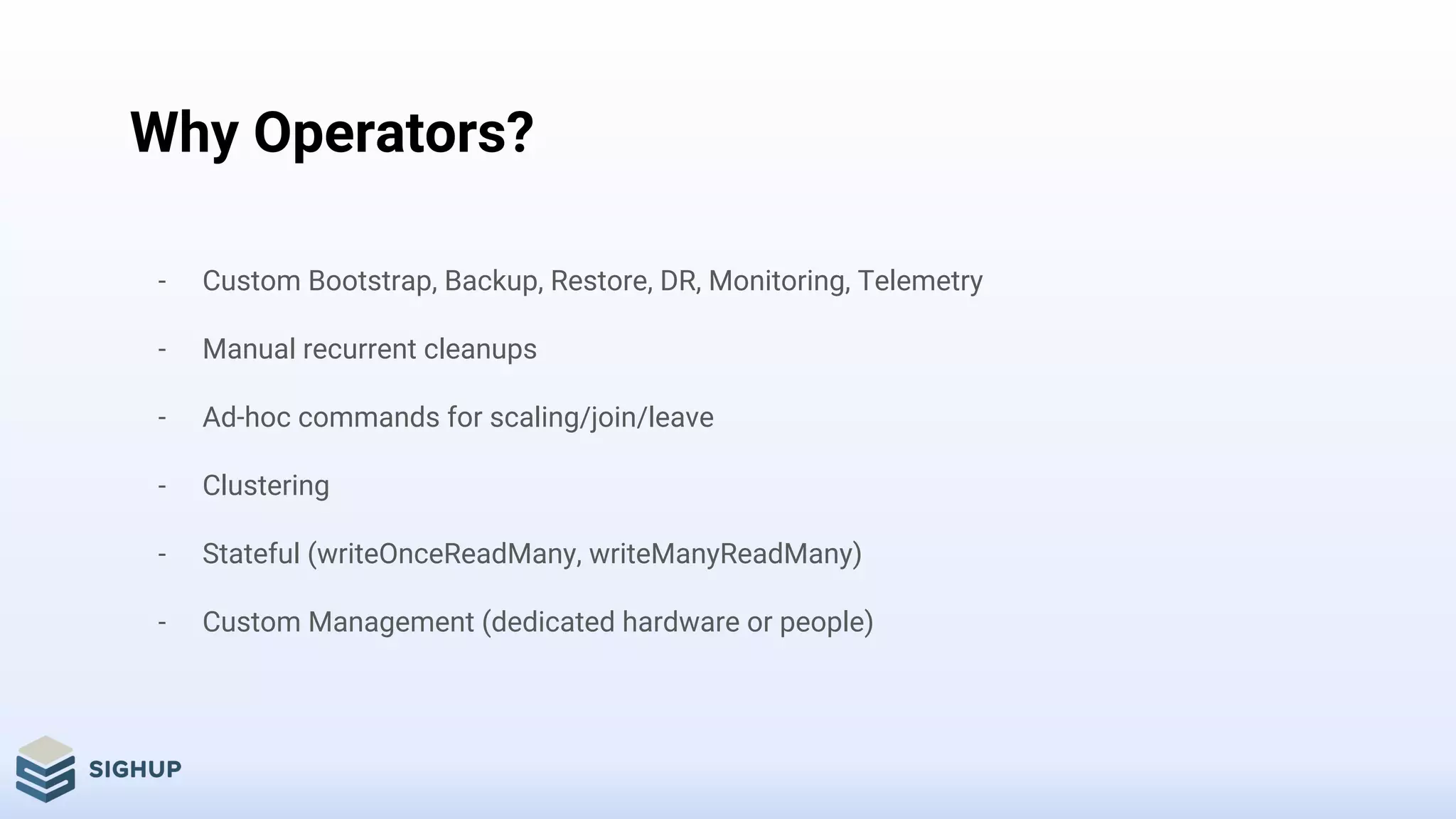

28. Why Operators?
- Custom Bootstrap, Backup, Restore, DR, Monitoring, Telemetry
- Manual recurrent cleanups
- Ad-hoc commands for scaling/join/leave
- Clustering
- Stateful (writeOnceReadMany, writeManyReadMany)
- Custom Management (dedicated hardware or people)

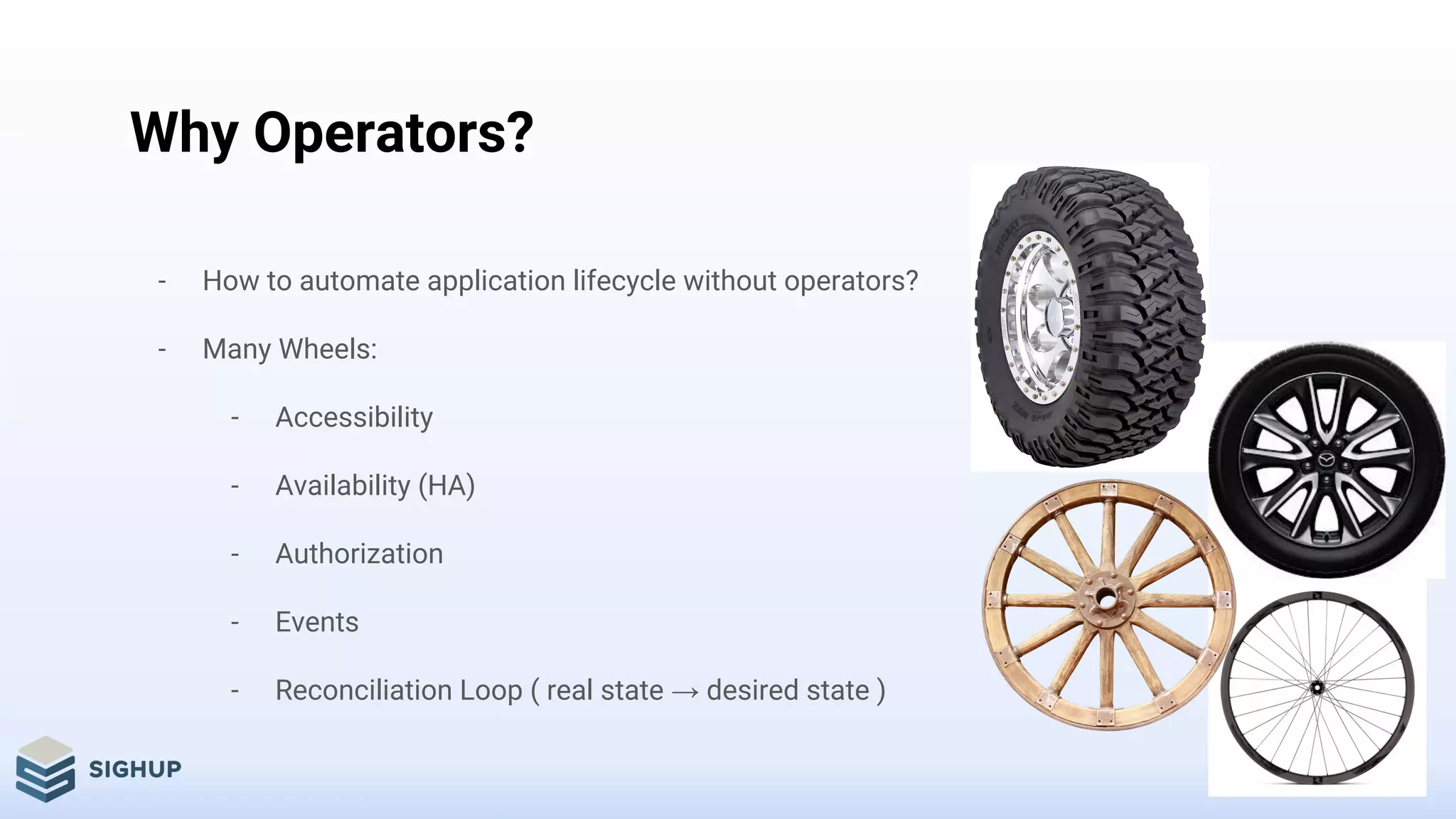

29. Why Operators?
- How to automate application lifecycle without operators?
- Many Wheels:
- Accessibility
- Availability (HA)
- Authorization
- Events
- Reconciliation Loop ( real state → desired state )

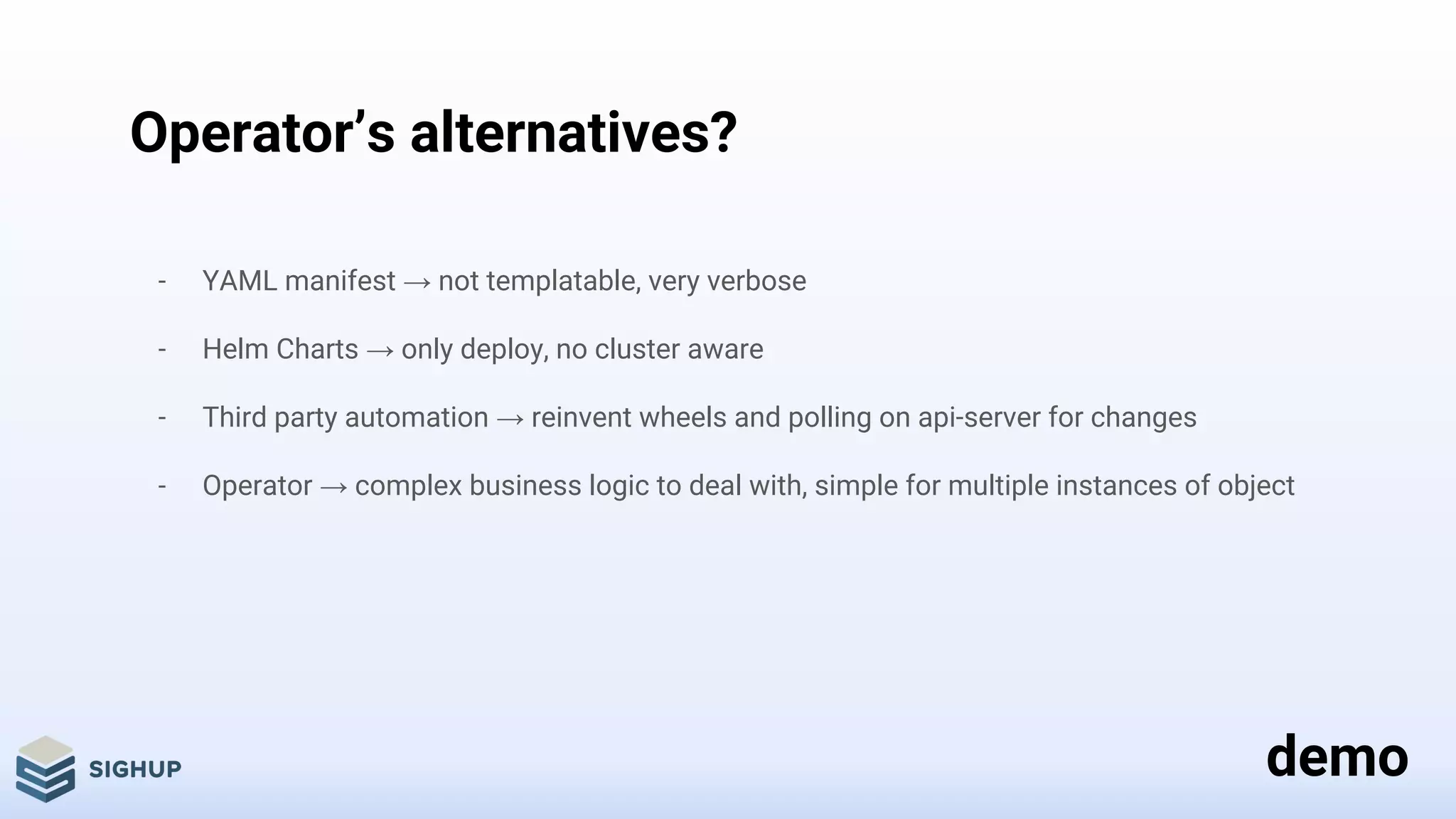

30. Operator’s alternatives?
- YAML manifest → not templatable, very verbose
- Helm Charts → only deploy, no cluster aware
- Third party automation → reinvent wheels and polling on api-server for changes
- Operator → complex business logic to deal with, simple for multiple instances of object
demo

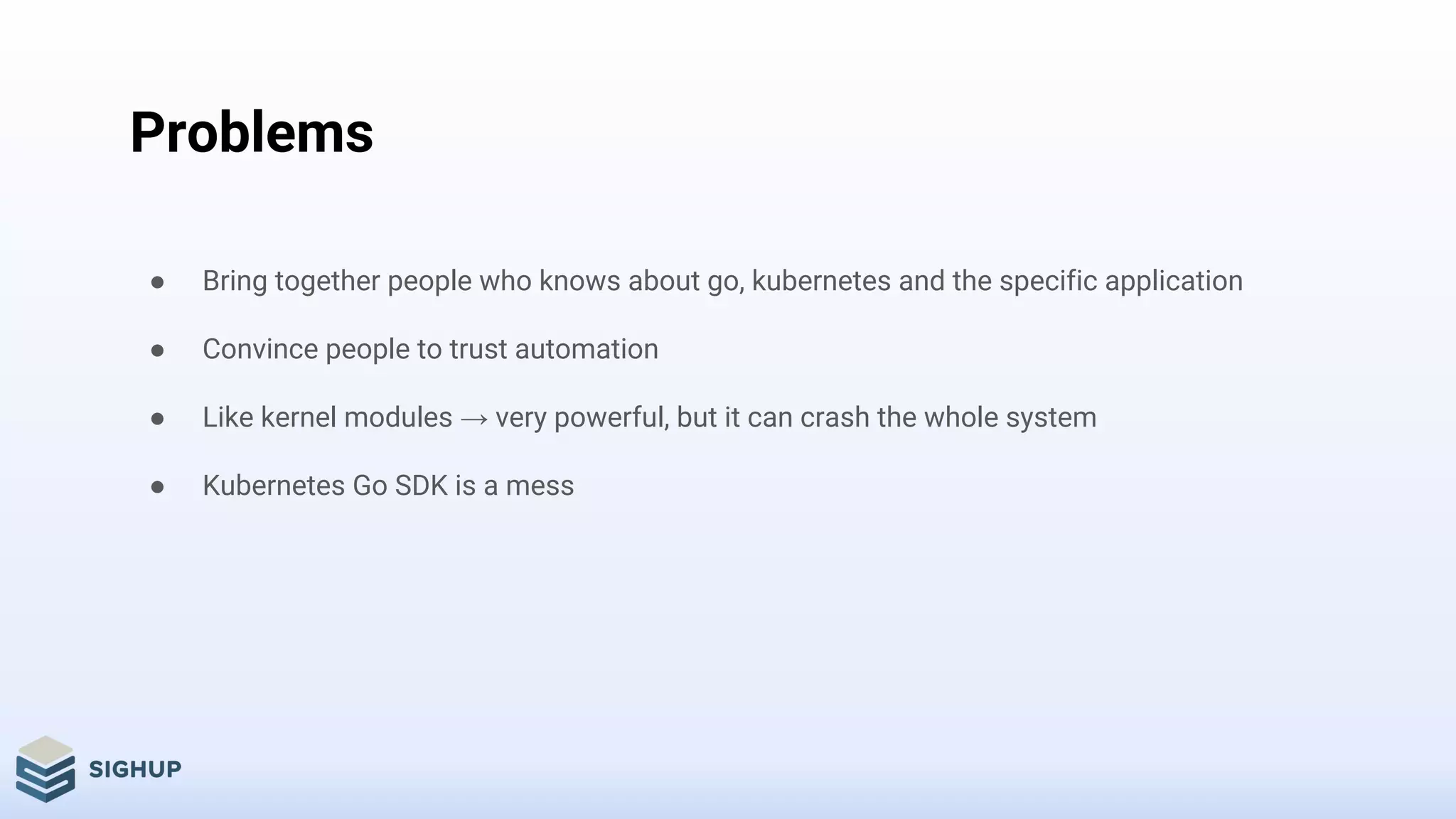

31. Problems
● Bring together people who knows about go, kubernetes and the specific application
● Convince people to trust automation
● Like kernel modules → very powerful, but it can crash the whole system
● Kubernetes Go SDK is a mess

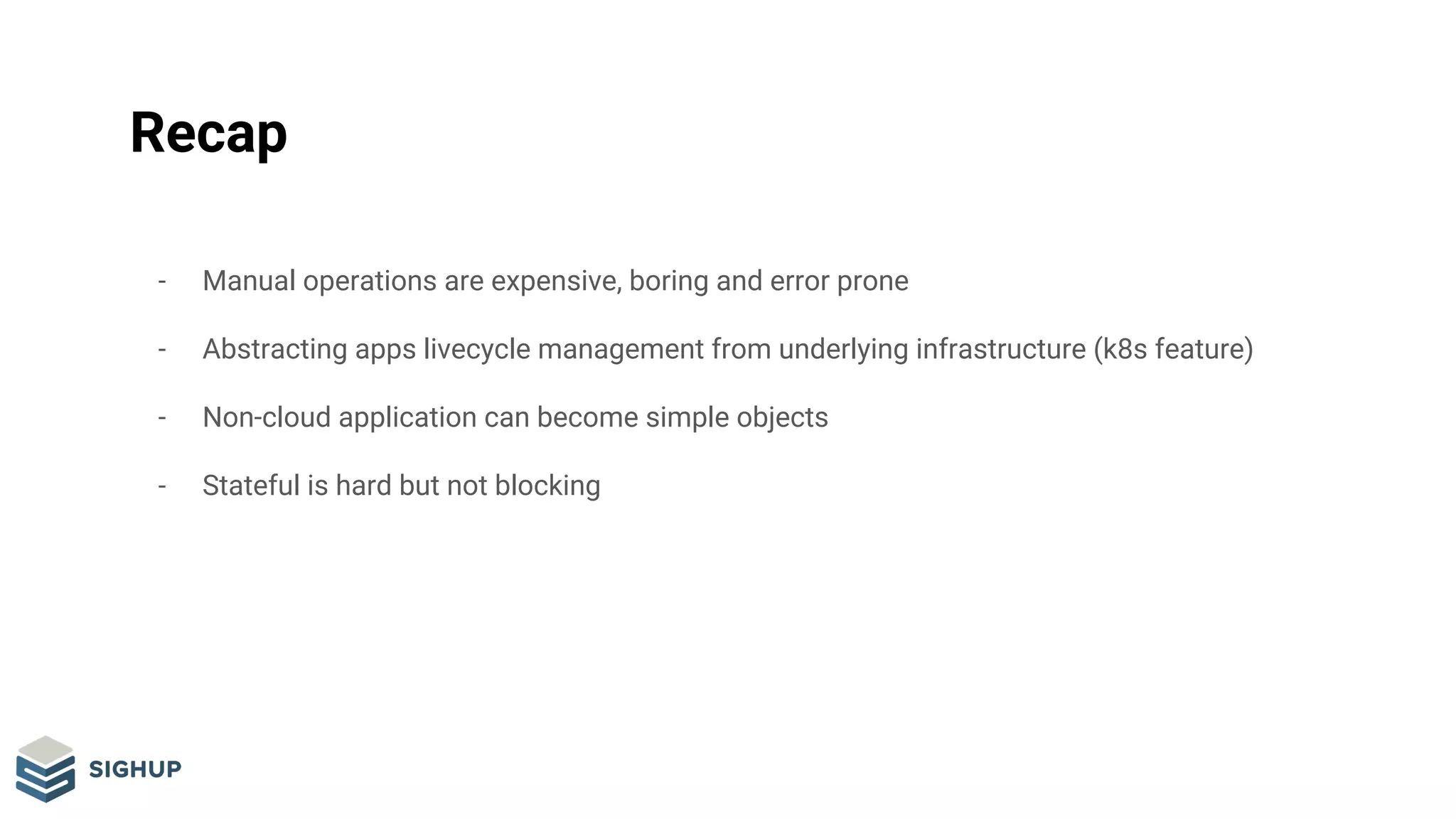

32. Recap
- Manual operations are expensive, boring and error prone
- Abstracting apps livecycle management from underlying infrastructure (k8s feature)
- Non-cloud application can become simple objects
- Stateful is hard but not blocking

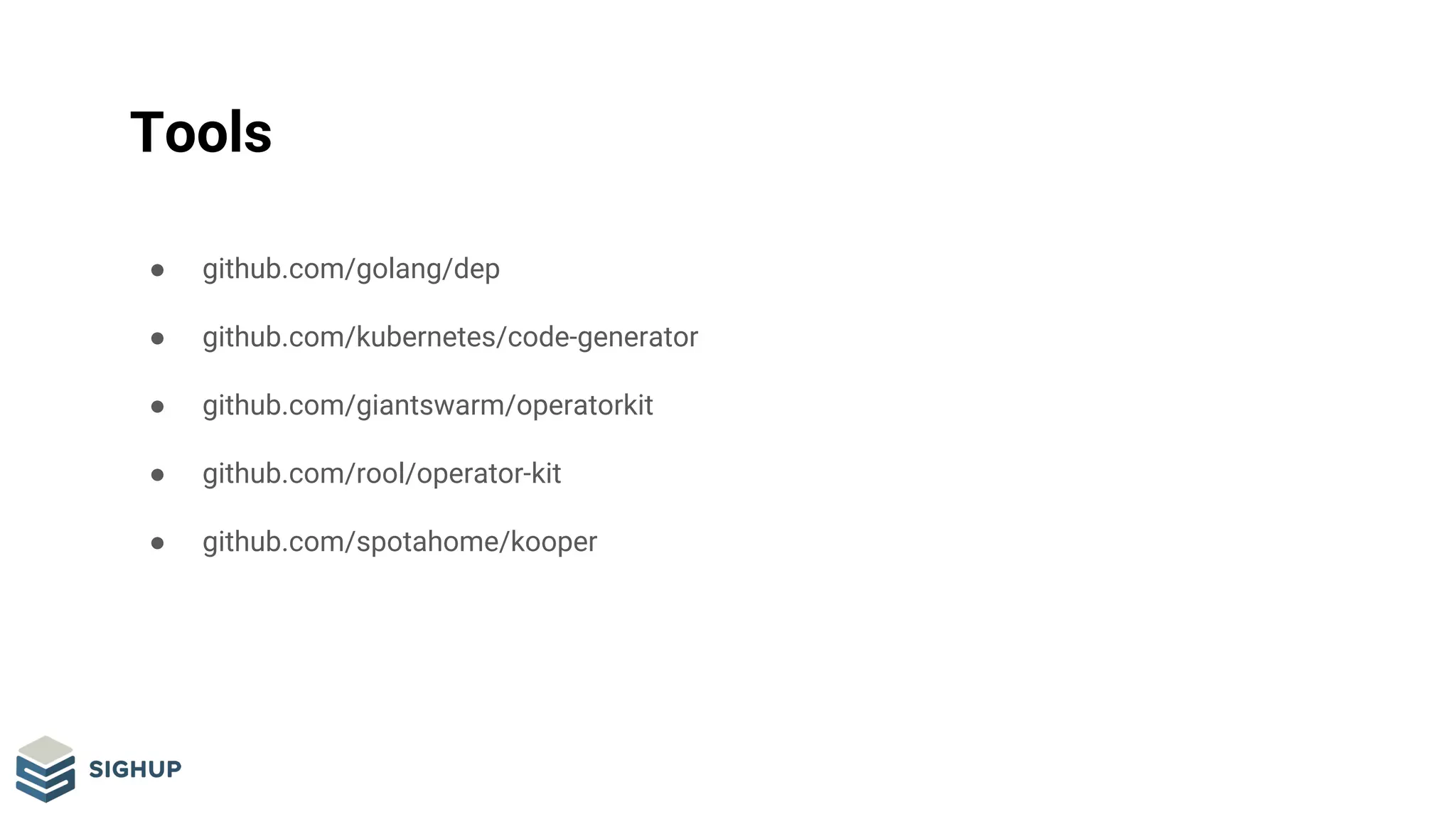

33. Tools
● github.com/golang/dep
● github.com/kubernetes/code-generator
● github.com/giantswarm/operatorkit
● github.com/rool/operator-kit
● github.com/spotahome/kooper
