1. Simplifying Migration to
Drupal 8
Sugandh Khanna | Drupal Developer, Srijan Technologies |
@sugandhkhanna92
#SrijanWW | @srijan

2. Simplifying Migrations to Drupal 8

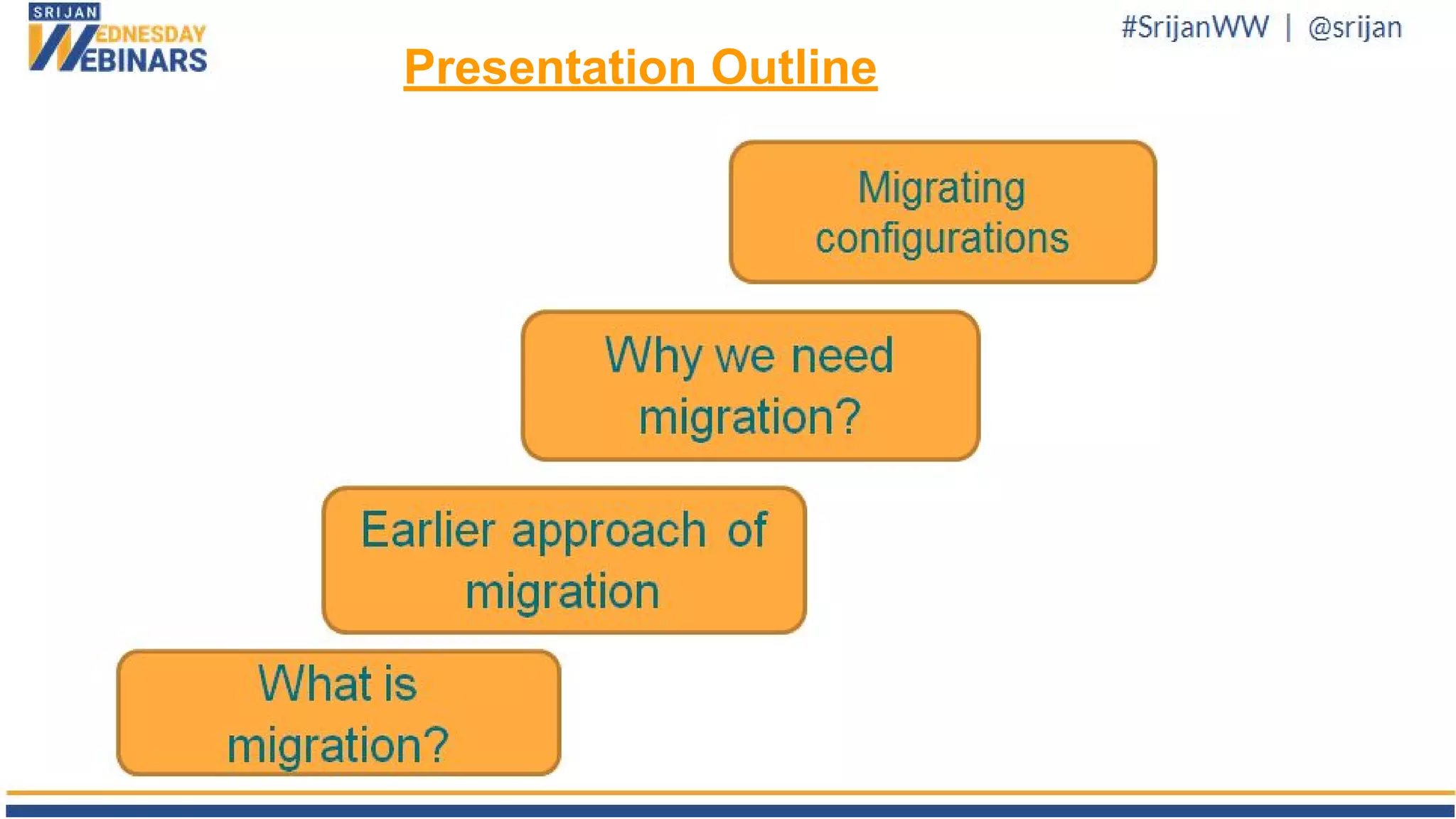

3. Presentation Outline

4. #SrijanWW | @srijan

5. #SrijanWW | @srijan

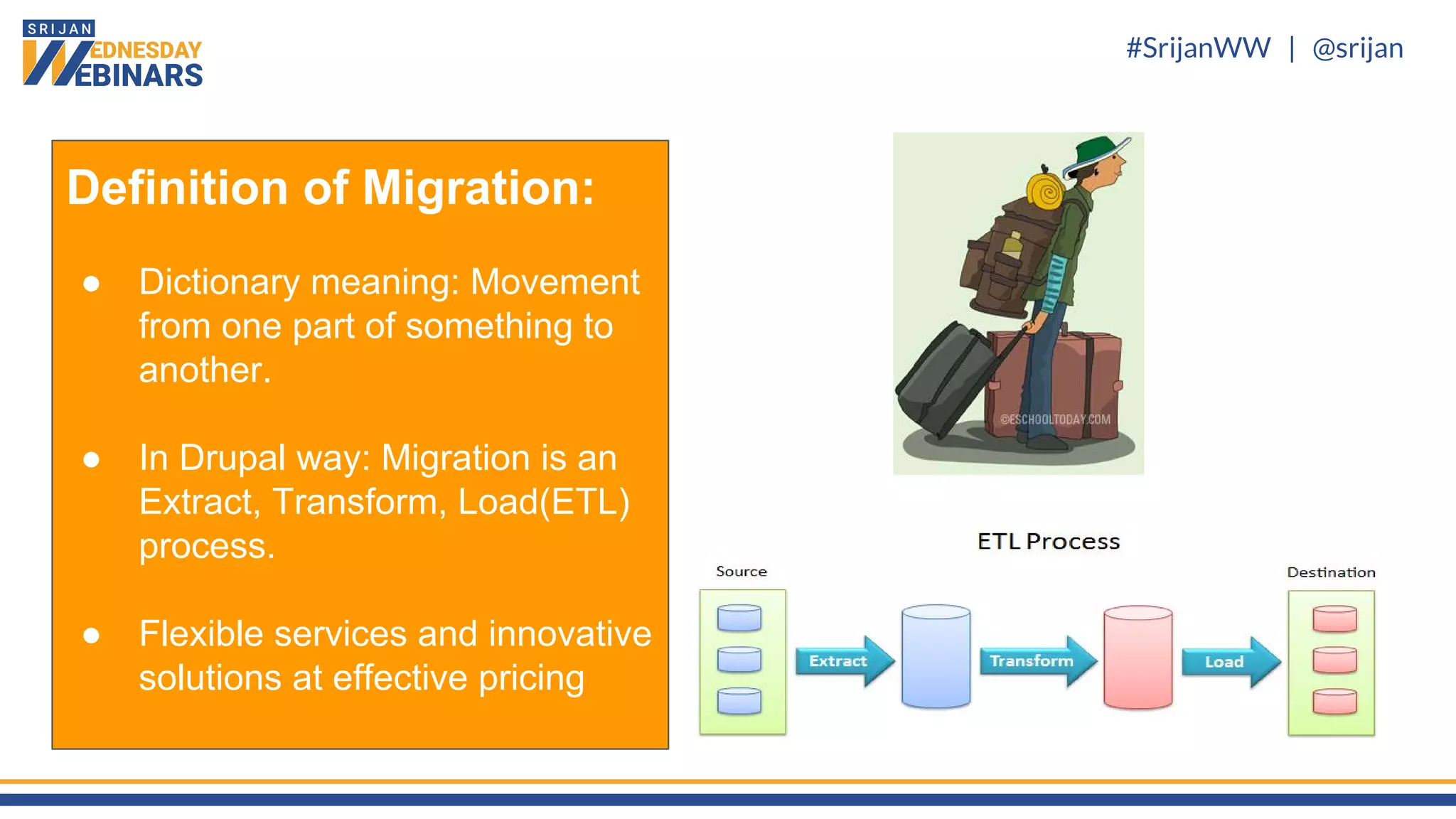

Definition of Migration:
● Dictionary meaning: Movement
from one part of something to
another.
● In Drupal way: Migration is an
Extract, Transform, Load(ETL)
process.
● Flexible services and innovative
solutions at effective pricing

6. #SrijanWW | @srijan
Earlier approach of Migrations:
● Huge Sites
● Time consuming
● More than 100 content types and 2000
fields.

7. #SrijanWW | @srijan

8. #SrijanWW | @srijan
Can we suggest Drupal 8 right
away:
● for an existing SIMPLE project? -YES-
● for an existing COMPLEX project? -NO-
● for an NEW project? -YES-

9. #SrijanWW | @srijan

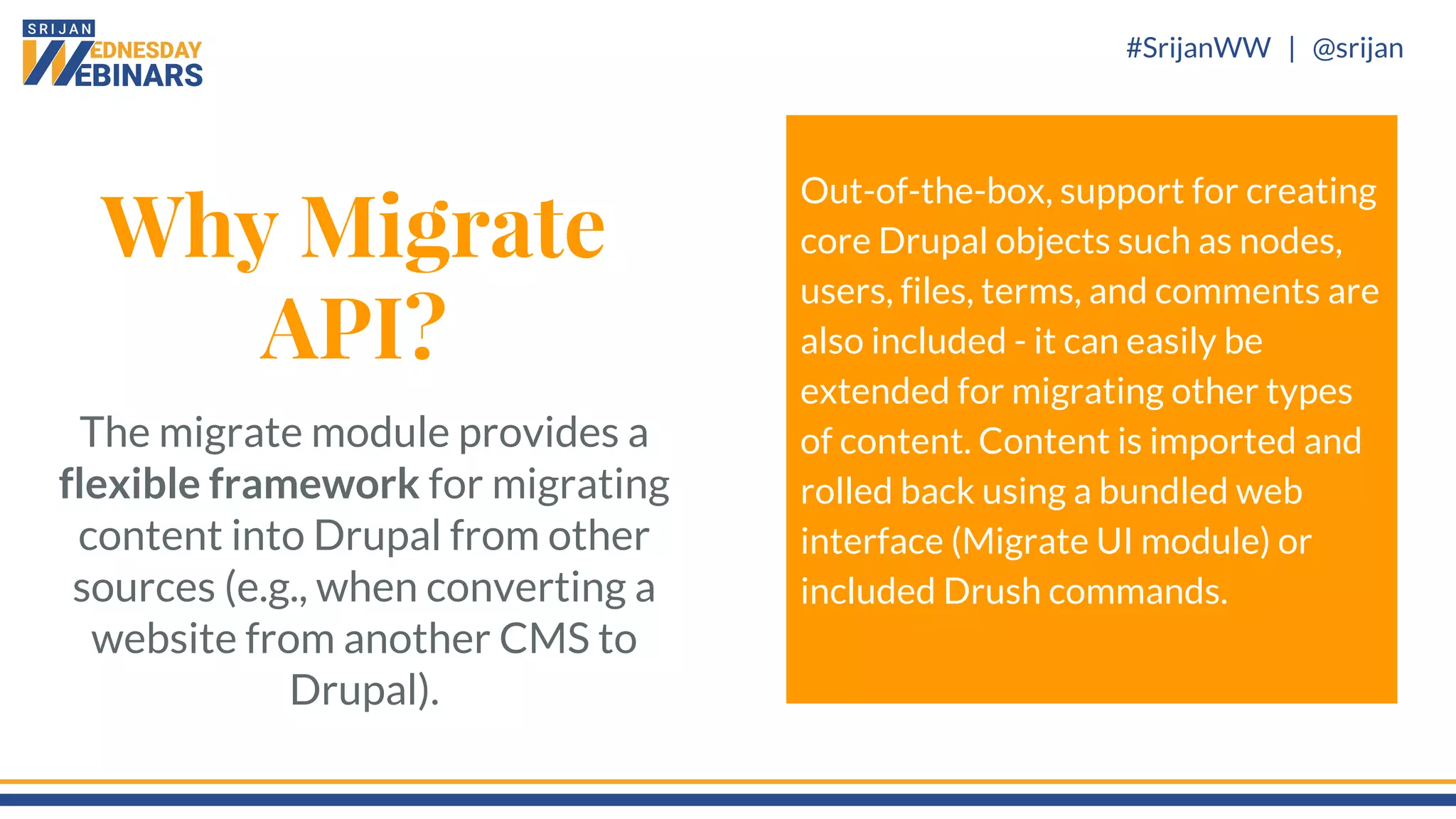

Why Migrate
API?
The migrate module provides a
flexible framework for migrating
content into Drupal from other
sources (e.g., when converting a
website from another CMS to
Drupal).
Out-of-the-box, support for creating
core Drupal objects such as nodes,
users, files, terms, and comments are
also included - it can easily be
extended for migrating other types
of content. Content is imported and
rolled back using a bundled web
interface (Migrate UI module) or
included Drush commands.

10. #SrijanWW | @srijan

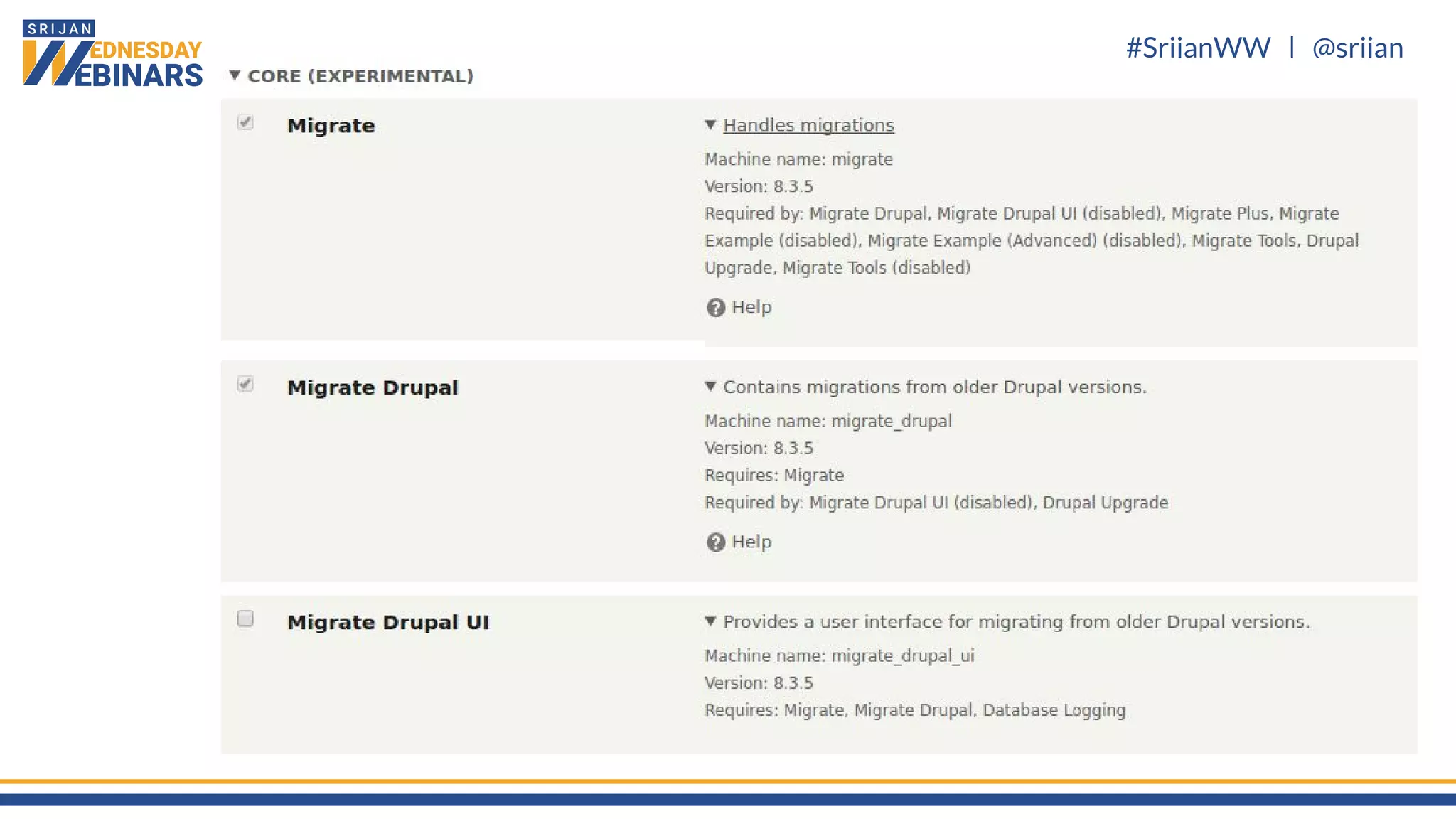

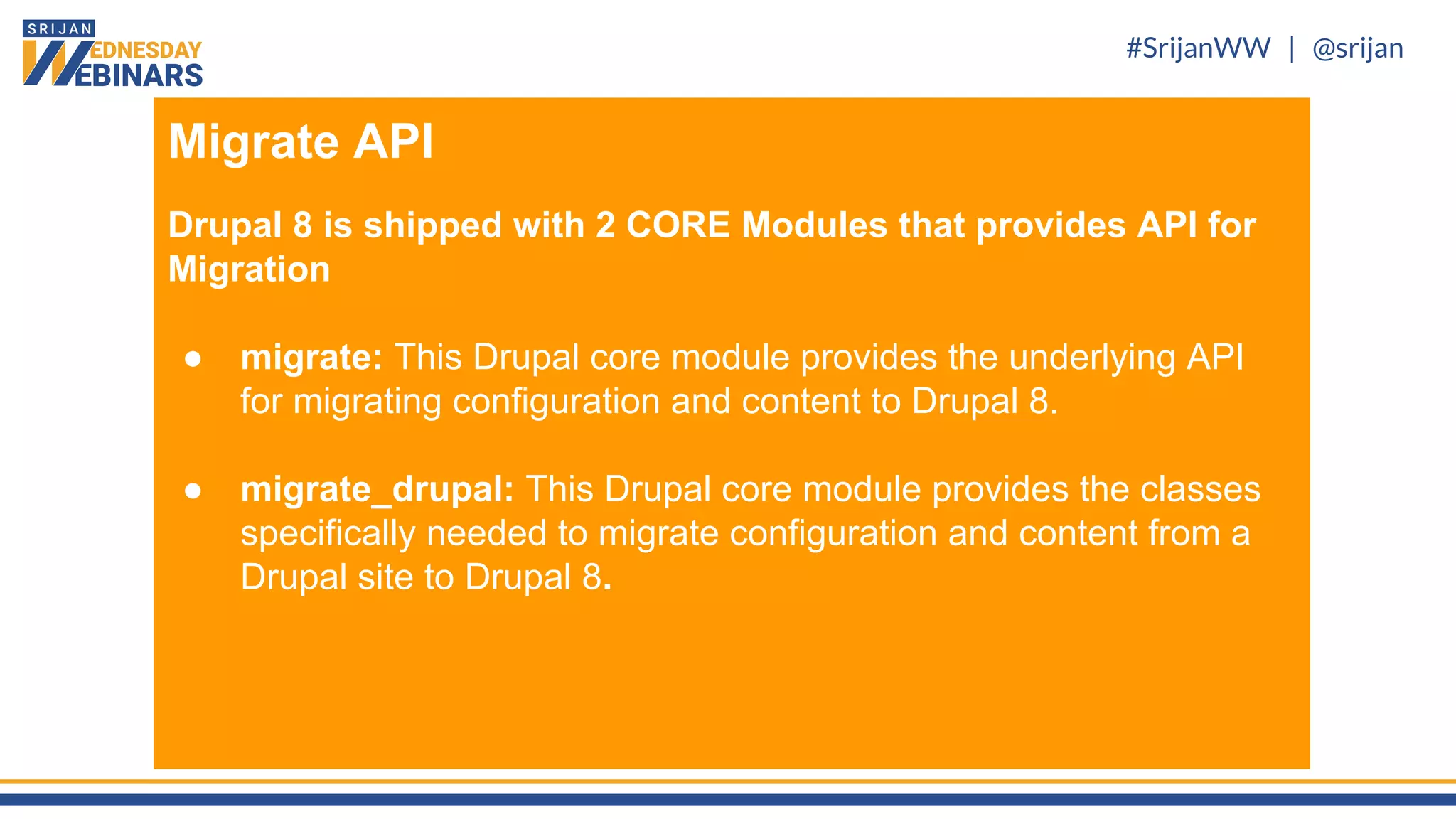

Migrate API
Drupal 8 is shipped with 2 CORE Modules that provides API for
Migration
● migrate: This Drupal core module provides the underlying API
for migrating configuration and content to Drupal 8.
● migrate_drupal: This Drupal core module provides the classes
specifically needed to migrate configuration and content from a
Drupal site to Drupal 8.

11. #SrijanWW | @srijan

12. #SrijanWW | @srijan

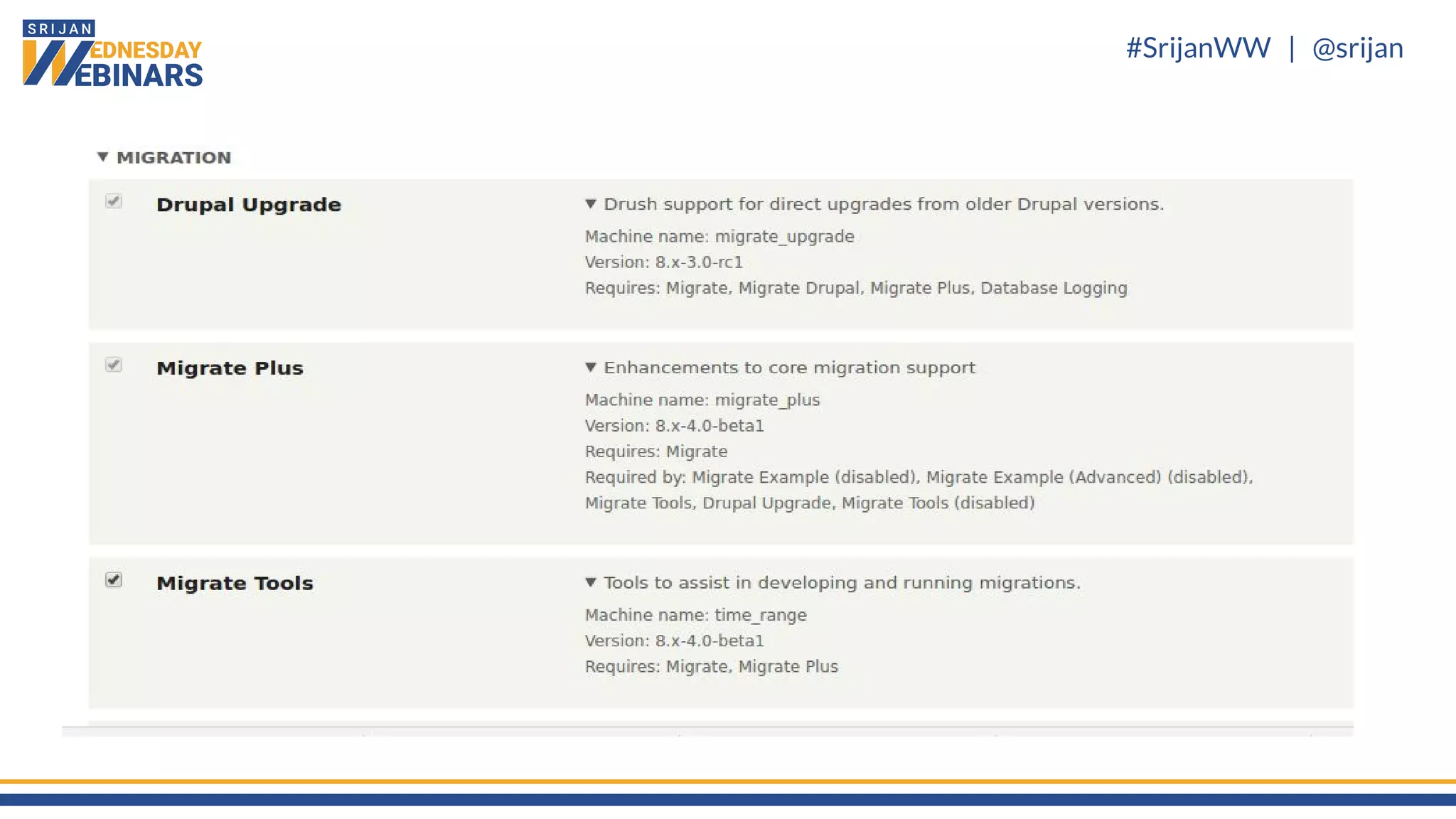

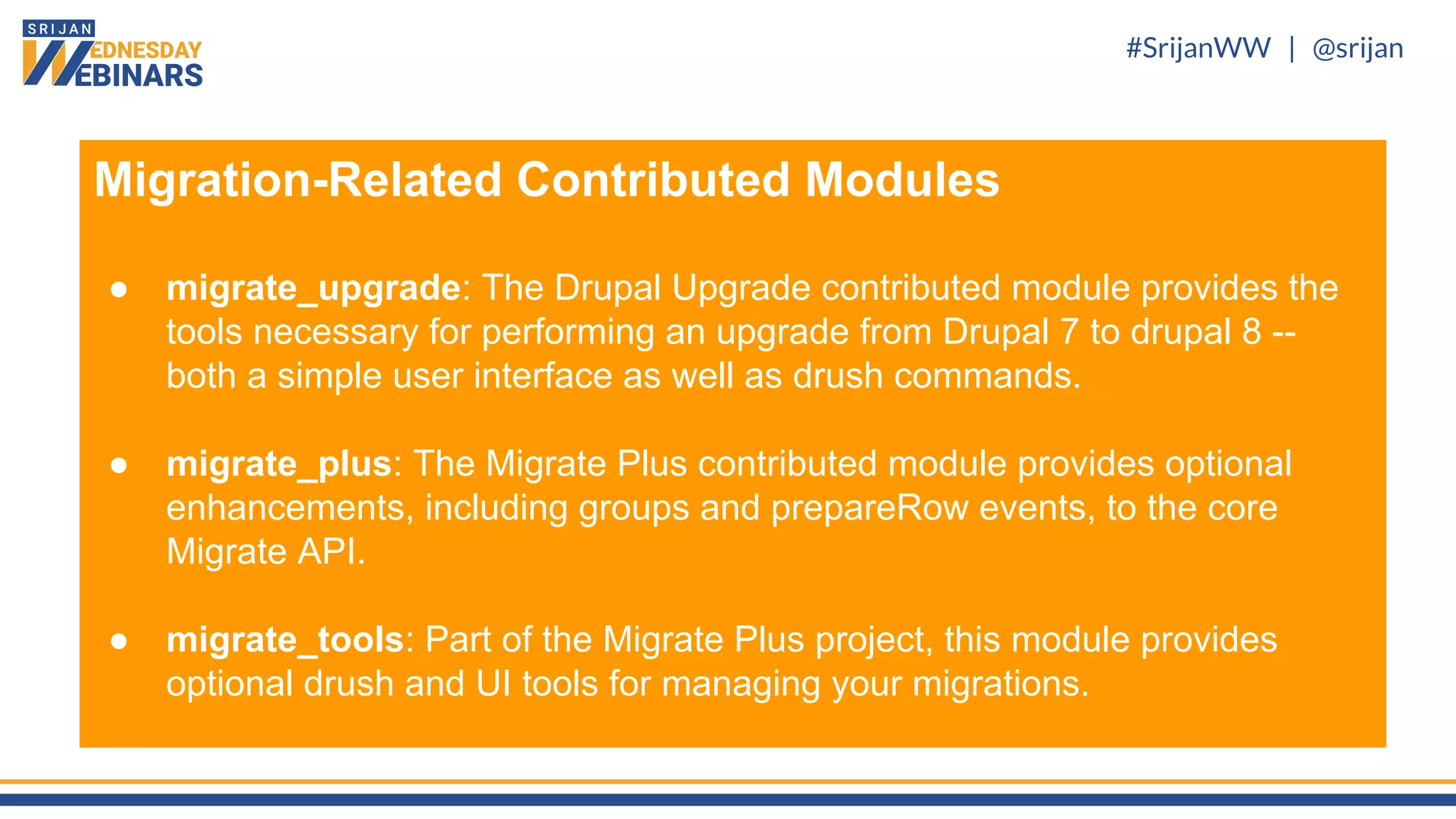

Migration-Related Contributed Modules
● migrate_upgrade: The Drupal Upgrade contributed module provides the
tools necessary for performing an upgrade from Drupal 7 to drupal 8 --
both a simple user interface as well as drush commands.
● migrate_plus: The Migrate Plus contributed module provides optional
enhancements, including groups and prepareRow events, to the core
Migrate API.
● migrate_tools: Part of the Migrate Plus project, this module provides
optional drush and UI tools for managing your migrations.

13. #SrijanWW | @srijan

14. #SrijanWW | @srijan

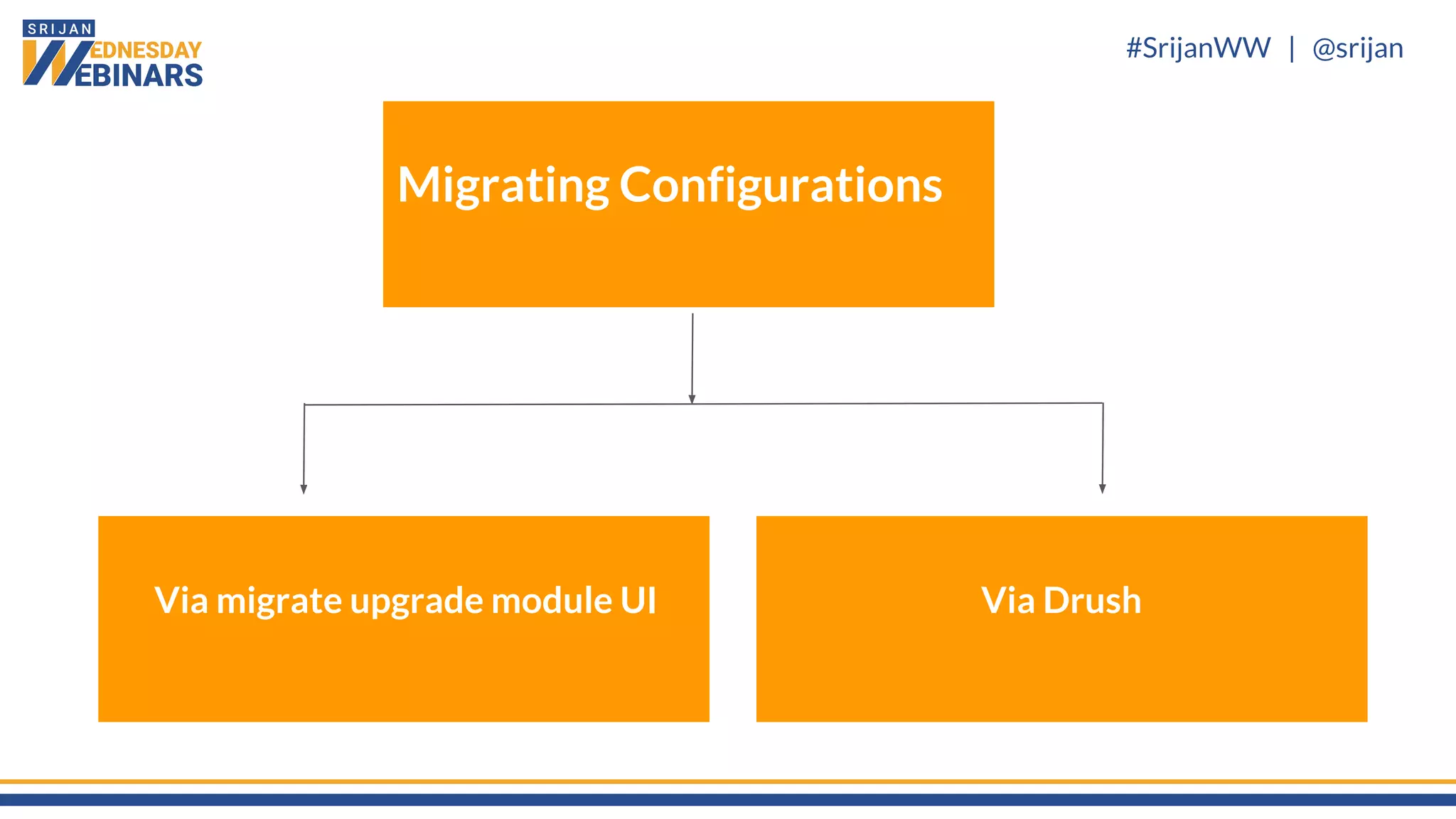

Migrating Configurations
Via DrushVia migrate upgrade module UI

15. #SrijanWW | @srijan
Executing a Migration

16. #SrijanWW | @srijan

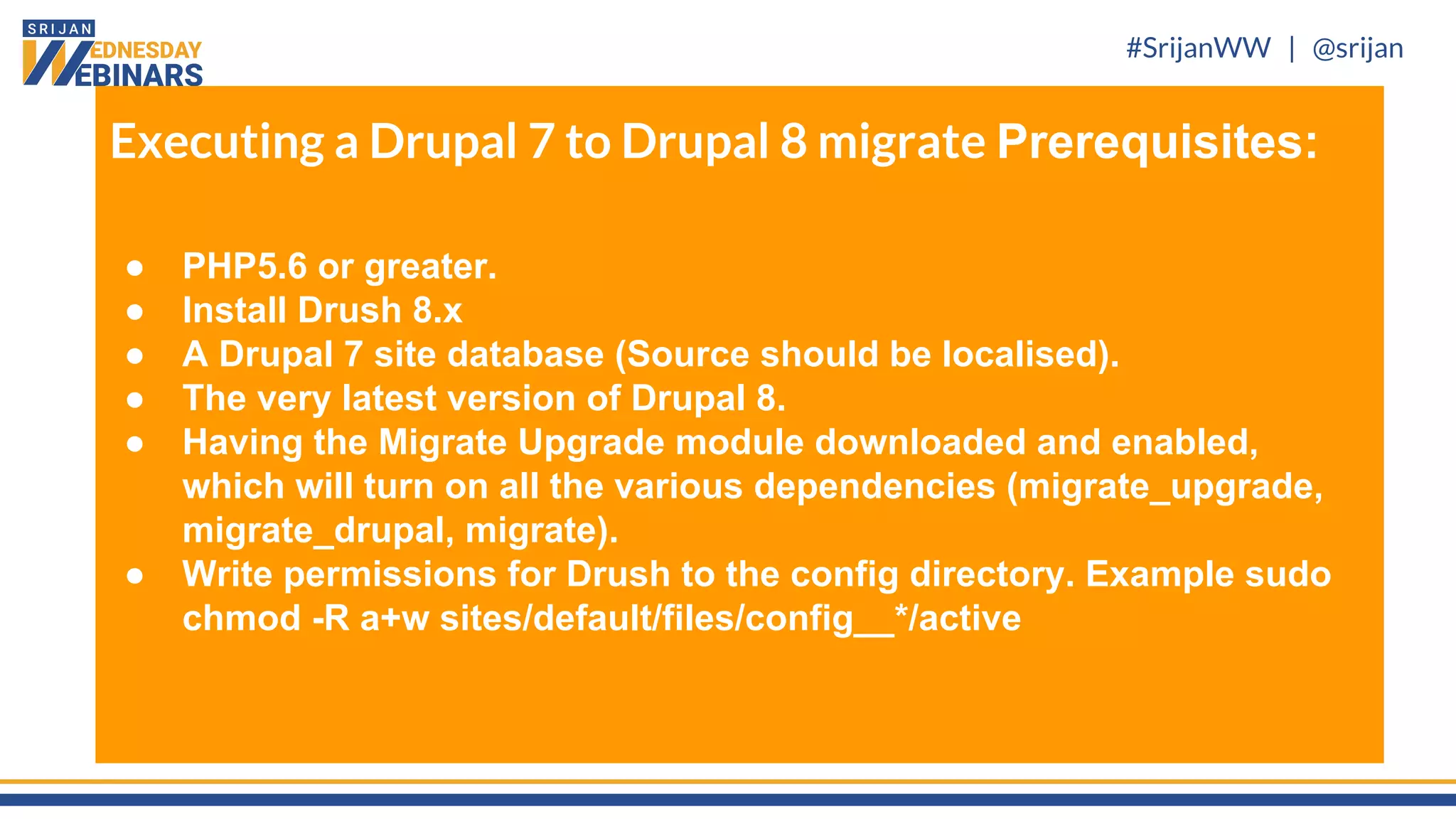

Executing a Drupal 7 to Drupal 8 migrate Prerequisites:
● PHP5.6 or greater.
● Install Drush 8.x
● A Drupal 7 site database (Source should be localised).
● The very latest version of Drupal 8.
● Having the Migrate Upgrade module downloaded and enabled,
which will turn on all the various dependencies (migrate_upgrade,
migrate_drupal, migrate).
● Write permissions for Drush to the config directory. Example sudo
chmod -R a+w sites/default/files/config__*/active

17. #SrijanWW | @srijan

18. #SrijanWW | @srijan

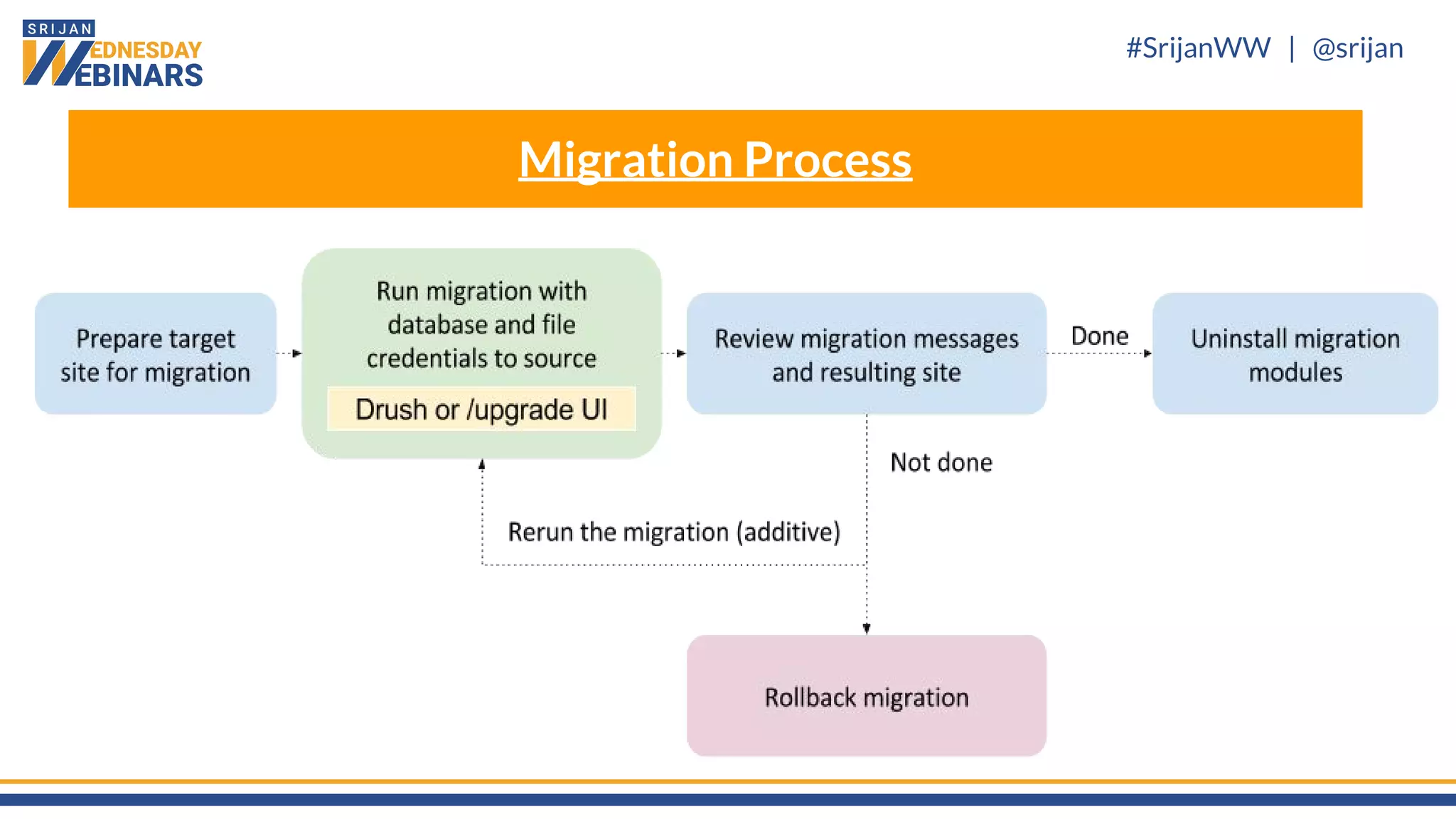

Migration Process

19. #SrijanWW | @srijan

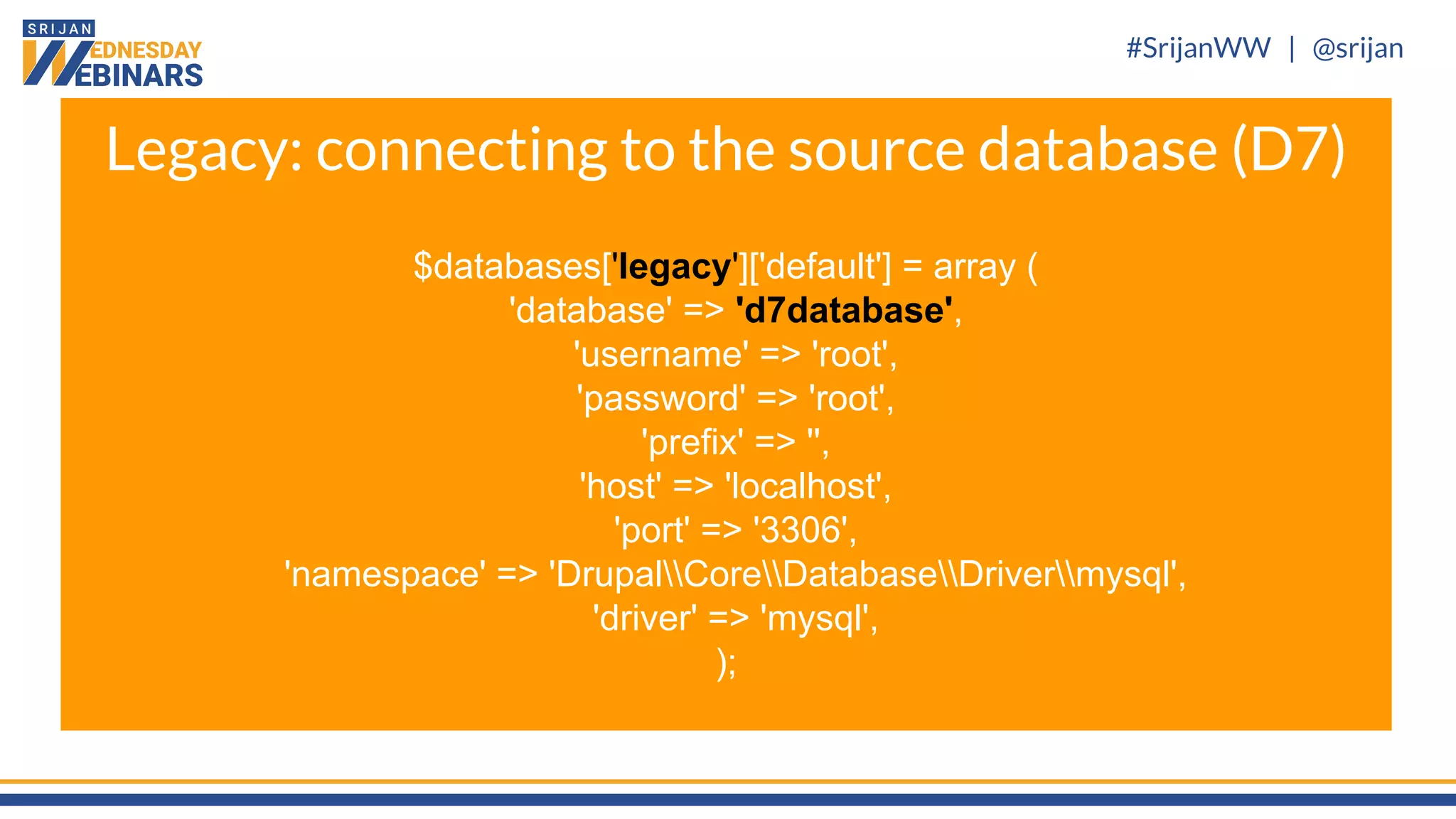

$databases['legacy']['default'] = array (
'database' => 'd7database',
'username' => 'root',
'password' => 'root',
'prefix' => '',
'host' => 'localhost',
'port' => '3306',
'namespace' => 'DrupalCoreDatabaseDrivermysql',
'driver' => 'mysql',
);
Legacy: connecting to the source database (D7)

20. #SrijanWW | @srijan

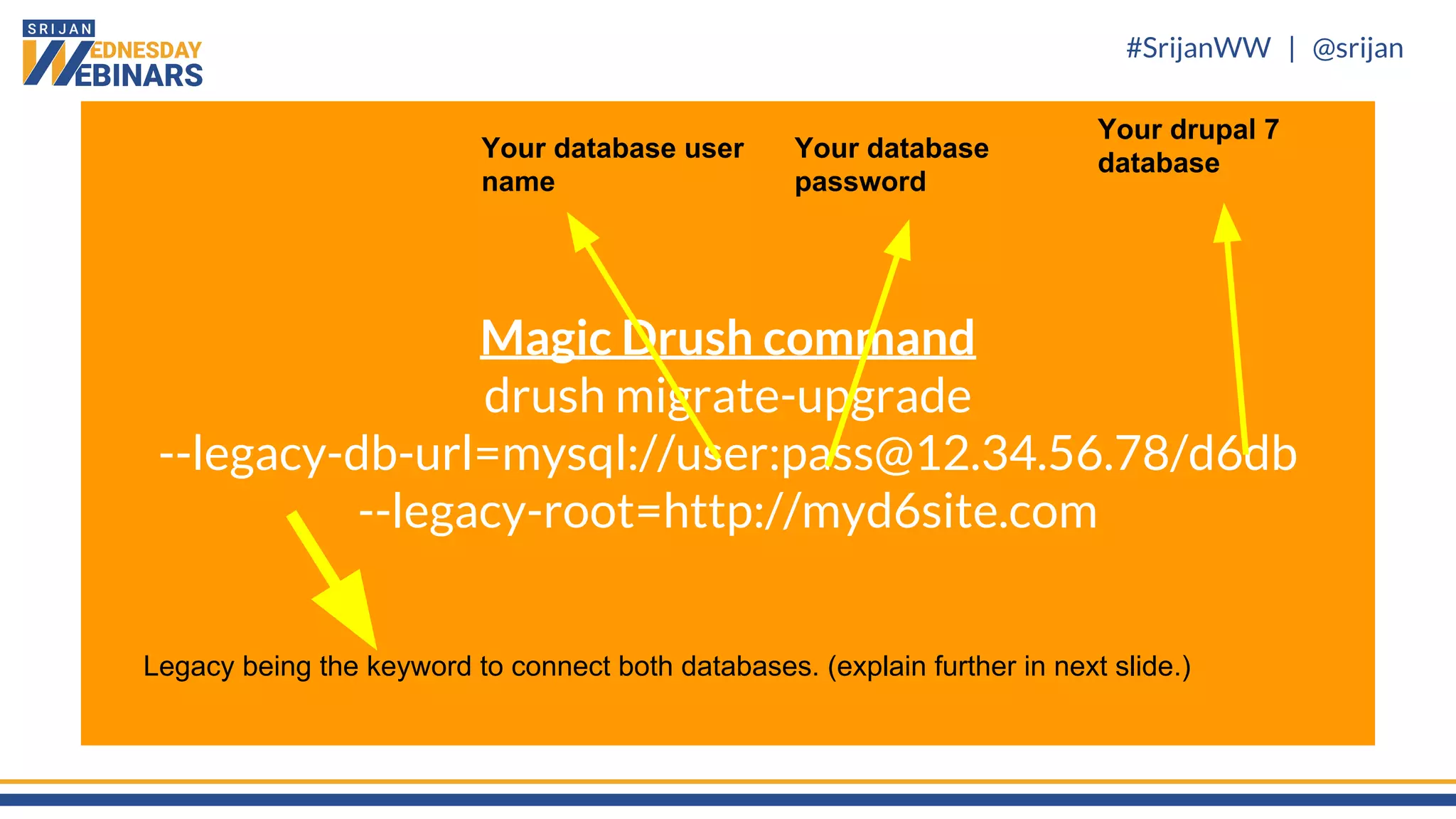

Magic Drush command
drush migrate-upgrade
--legacy-db-url=mysql://user:pass@12.34.56.78/d6db
--legacy-root=http://myd6site.com
Legacy being the keyword to connect both databases. (explain further in next slide.)
Your database user
name
Your database
password
Your drupal 7
database

21. #SrijanWW | @srijan
.

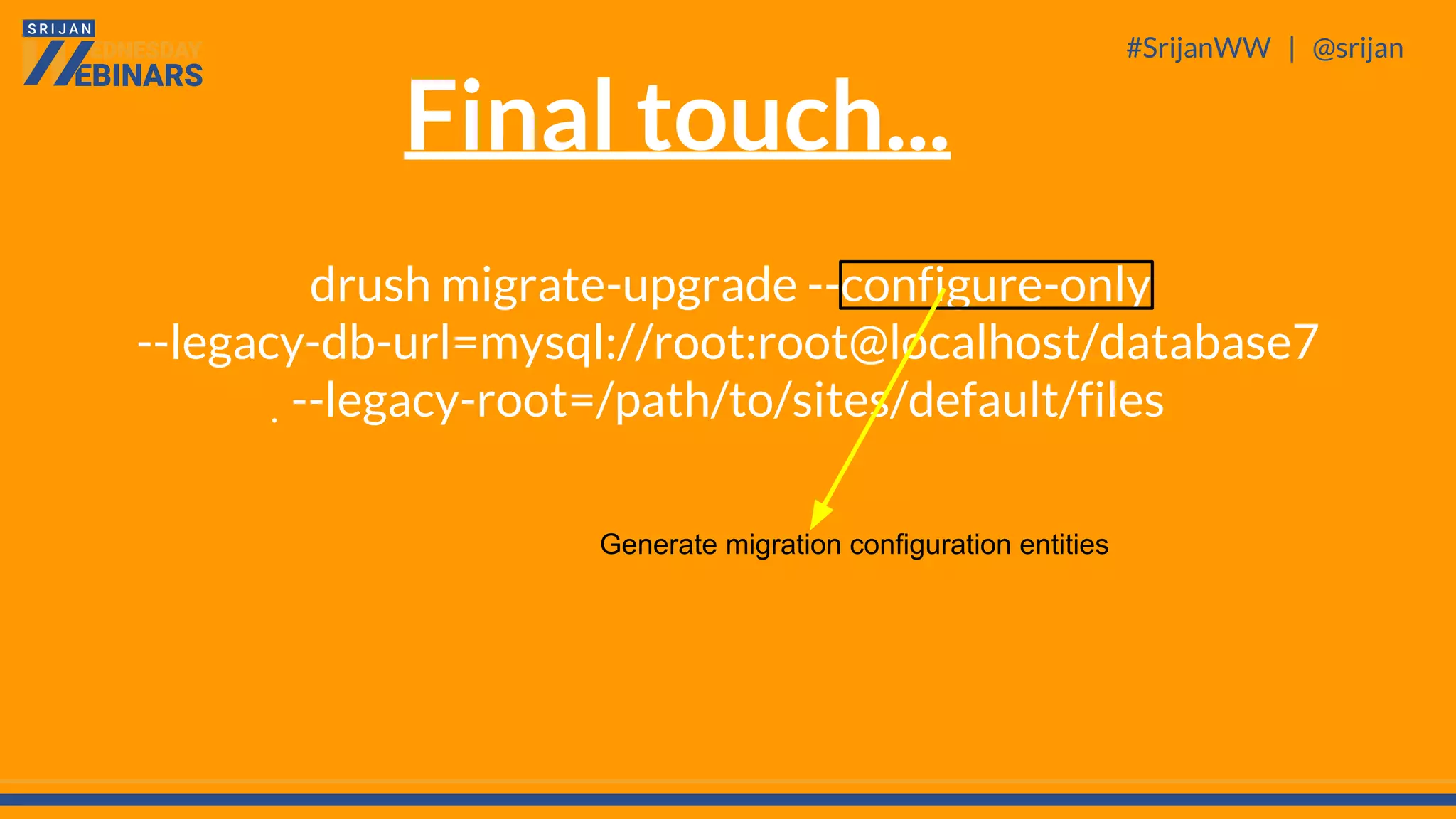

drush migrate-upgrade --configure-only
--legacy-db-url=mysql://root:root@localhost/database7
--legacy-root=/path/to/sites/default/files
Generate migration configuration entities
Final touch...

22. #SrijanWW | @srijan

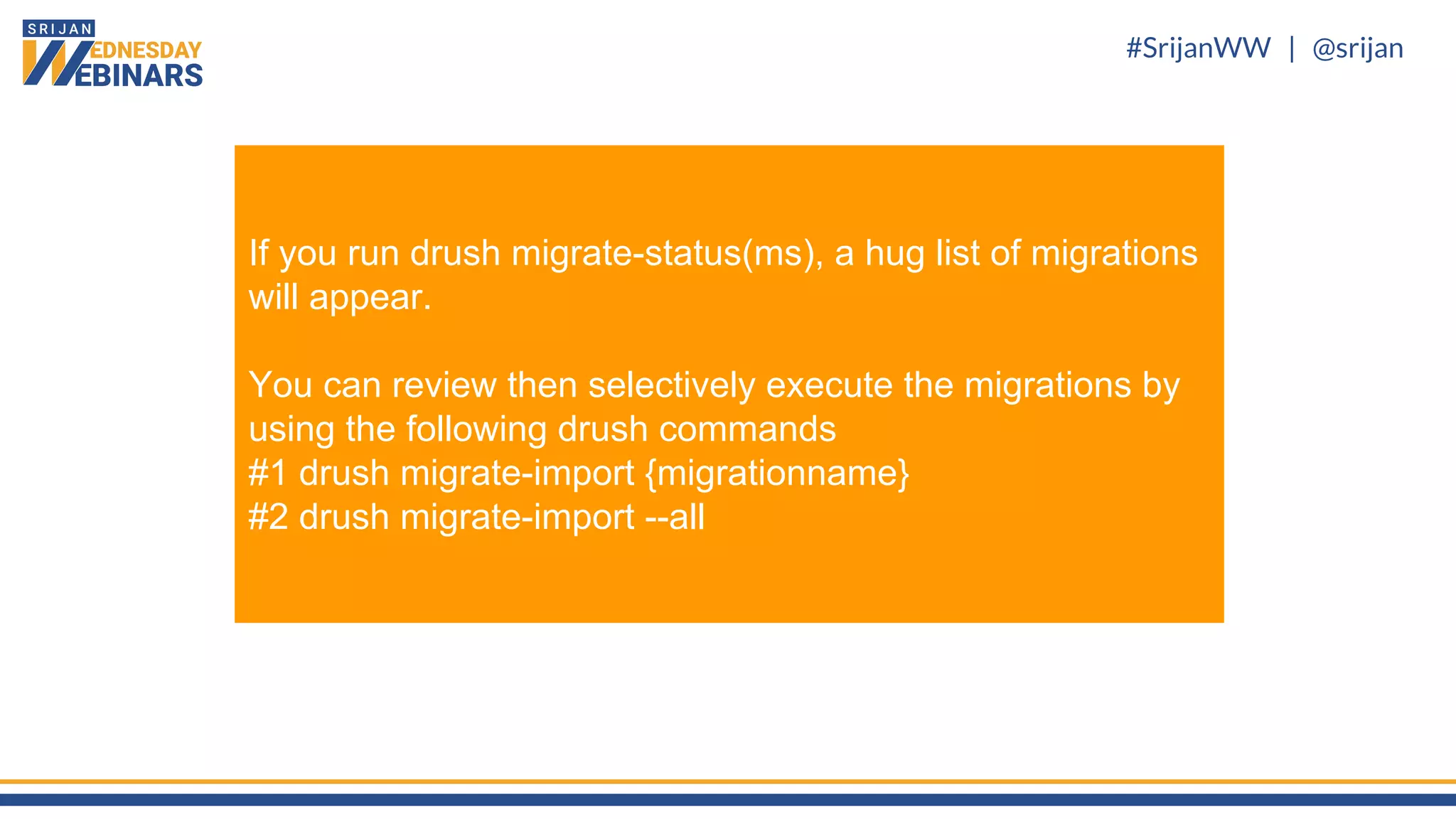

If you run drush migrate-status(ms), a hug list of migrations
will appear.
You can review then selectively execute the migrations by
using the following drush commands
#1 drush migrate-import {migrationname}
#2 drush migrate-import --all

23. #SrijanWW | @srijan

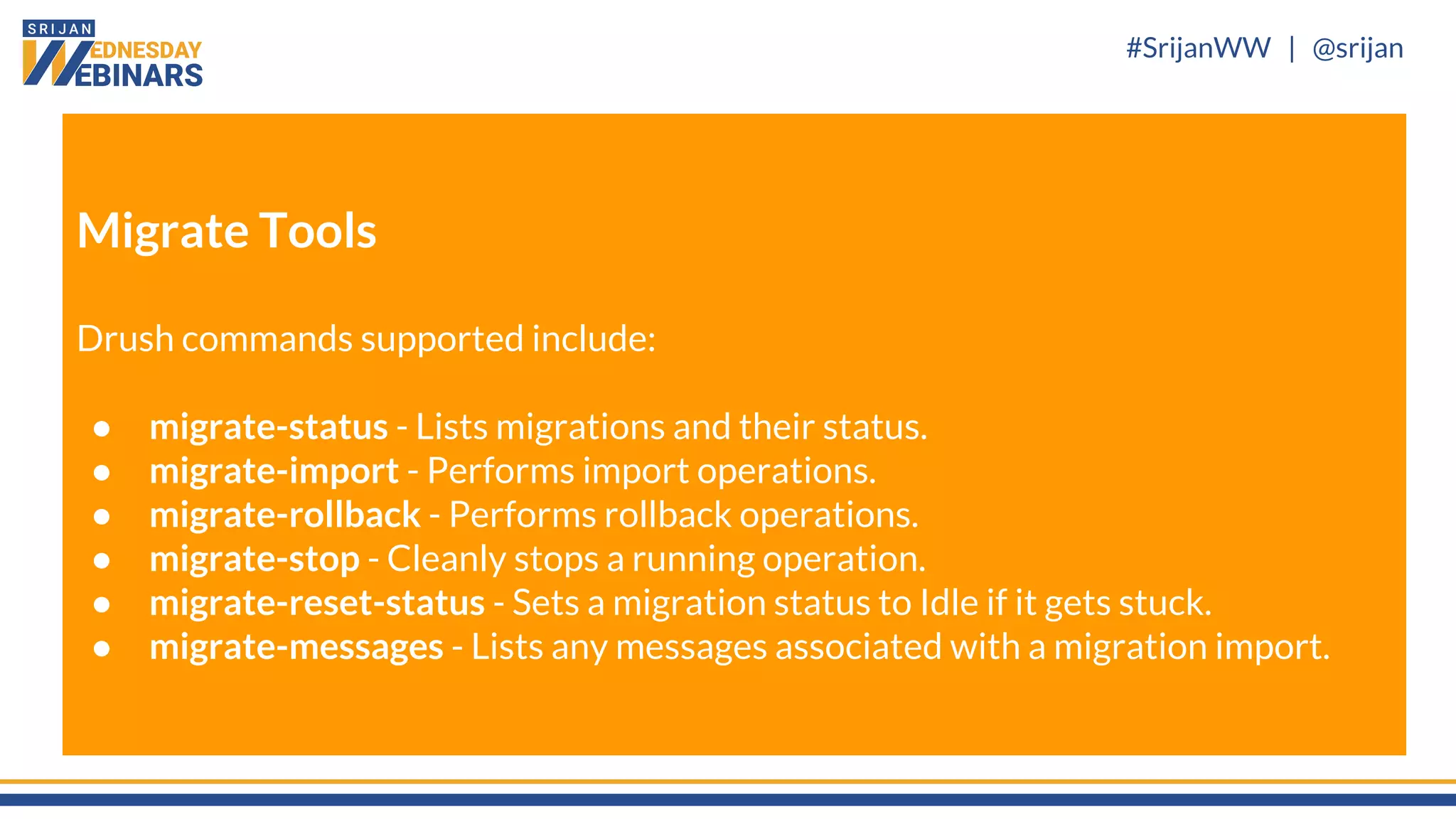

Migrate Tools
Drush commands supported include:
● migrate-status - Lists migrations and their status.
● migrate-import - Performs import operations.
● migrate-rollback - Performs rollback operations.
● migrate-stop - Cleanly stops a running operation.
● migrate-reset-status - Sets a migration status to Idle if it gets stuck.
● migrate-messages - Lists any messages associated with a migration import.

24. #SrijanWW | @srijan
Migrations that are not yet
supported:
● Views
● Multilingual content
● custom fields and content types
Migrations that supported:
● Only content, users, taxonomy, blocks,
menus, filter formats.

25. #SrijanWW | @srijan

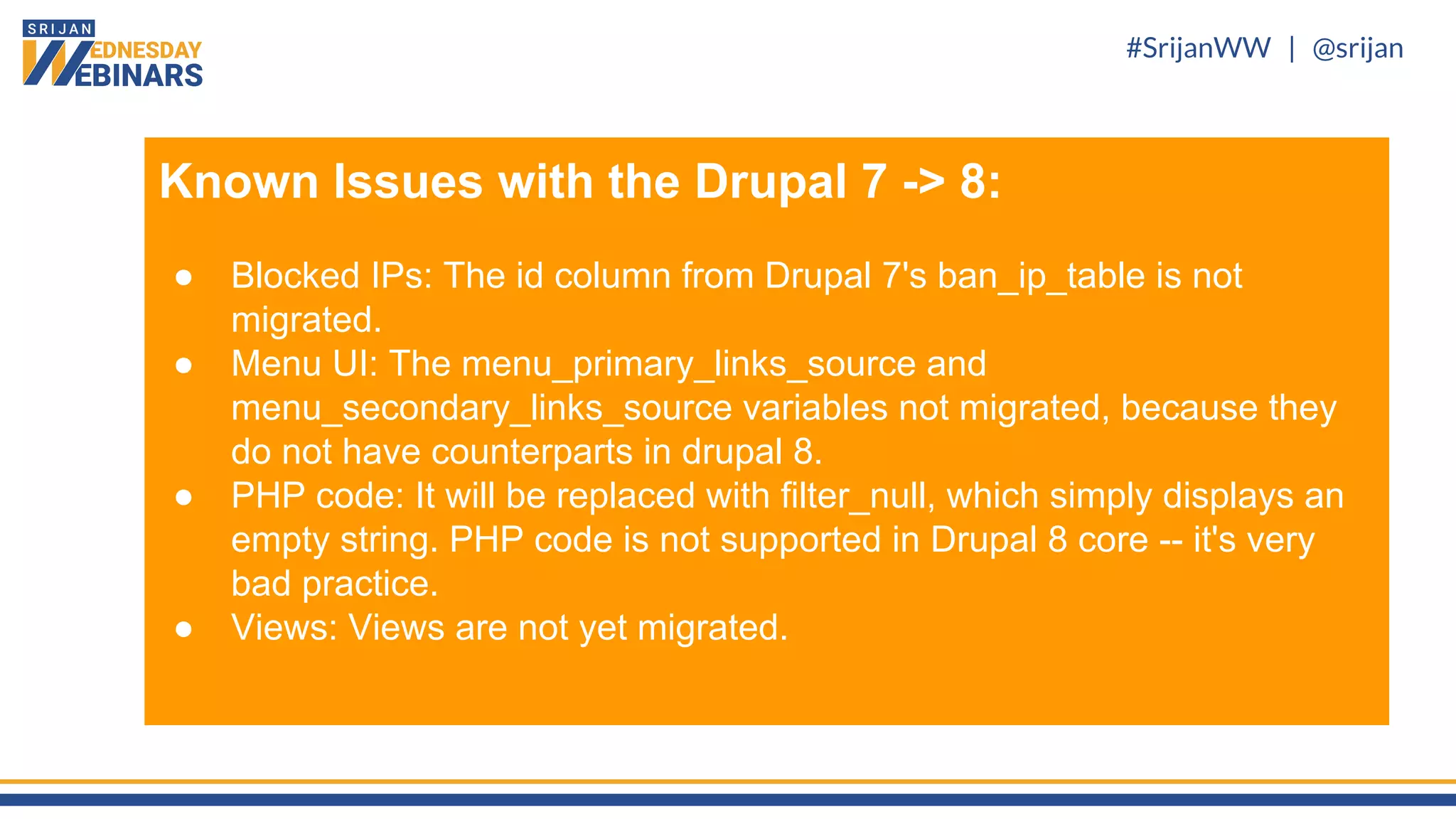

Known Issues with the Drupal 7 -> 8:
● Blocked IPs: The id column from Drupal 7's ban_ip_table is not
migrated.
● Menu UI: The menu_primary_links_source and
menu_secondary_links_source variables not migrated, because they
do not have counterparts in drupal 8.
● PHP code: It will be replaced with filter_null, which simply displays an
empty string. PHP code is not supported in Drupal 8 core -- it's very
bad practice.
● Views: Views are not yet migrated.

26. #SrijanWW | @srijan
Any Questions?
