This document describes a coin-operated electric vehicle charger for public use. The charger allows electric vehicles to charge for a set period of time upon insertion of a coin. It is intended to provide charging access for electric vehicle users at locations like parking lots, bus stations, and shopping malls. The charger uses coin detection sensors to recognize valid coins and a microcontroller to power the charging circuit and monitor charging time. It is designed to benefit electric vehicle users who may find themselves with a low battery away from home by allowing convenient on-the-go charging for a low cost.

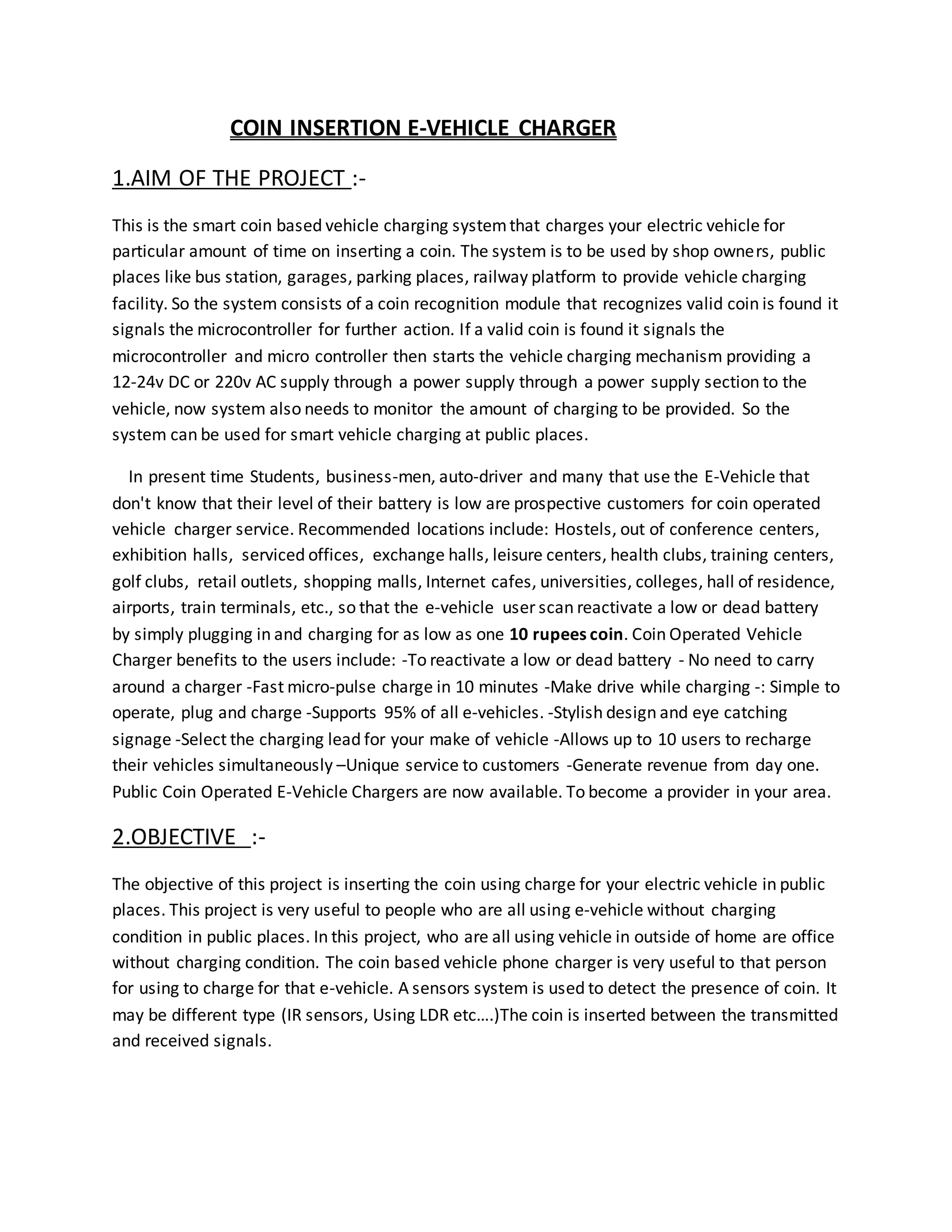

1. COIN INSERTION E-VEHICLE CHARGER
1.AIM OF THE PROJECT :-
This is the smart coin based vehicle charging systemthat charges your electric vehicle for
particular amount of time on inserting a coin. The system is to be used by shop owners, public
places like bus station, garages, parking places, railway platform to provide vehicle charging
facility. So the system consists of a coin recognition module that recognizes valid coin is found it
signals the microcontroller for further action. If a valid coin is found it signals the
microcontroller and micro controller then starts the vehicle charging mechanism providing a
12-24v DC or 220v AC supply through a power supply through a power supply section to the
vehicle, now system also needs to monitor the amount of charging to be provided. So the
system can be used for smart vehicle charging at public places.
In present time Students, business-men, auto-driver and many that use the E-Vehicle that
don't know that their level of their battery is low are prospective customers for coin operated
vehicle charger service. Recommended locations include: Hostels, out of conference centers,
exhibition halls, serviced offices, exchange halls, leisure centers, health clubs, training centers,
golf clubs, retail outlets, shopping malls, Internet cafes, universities, colleges, hall of residence,
airports, train terminals, etc., so that the e-vehicle user scan reactivate a low or dead battery
by simply plugging in and charging for as low as one 10 rupees coin. Coin Operated Vehicle
Charger benefits to the users include: -To reactivate a low or dead battery - No need to carry
around a charger -Fast micro-pulse charge in 10 minutes -Make drive while charging -: Simple to
operate, plug and charge -Supports 95% of all e-vehicles. -Stylish design and eye catching
signage -Select the charging lead for your make of vehicle -Allows up to 10 users to recharge
their vehicles simultaneously –Unique service to customers -Generate revenue from day one.
Public Coin Operated E-Vehicle Chargers are now available. To become a provider in your area.
2.OBJECTIVE :-
The objective of this project is inserting the coin using charge for your electric vehicle in public
places. This project is very useful to people who are all using e-vehicle without charging
condition in public places. In this project, who are all using vehicle in outside of home are office
without charging condition. The coin based vehicle phone charger is very useful to that person
for using to charge for that e-vehicle. A sensors system is used to detect the presence of coin. It
may be different type (IR sensors, Using LDR etc….)The coin is inserted between the transmitted
and received signals.

2. 3.METHODOLOGY:-
Methodology of this project does not only include the way of data collection and processing but
in first step also the actual limitation of the selection of demand. Many ranking select cities
within this broad scope a further selection is necessary.The need to provide a public charging
service is essential. Many critics argued that a public e-vehicle charging service is not a lucrative
business because most userscan charge their vehicle at home, in their office or in their cars.
STAYTALKING Coin Operated e-vehicle Charger is a new business milestone because many are
attending business conventions and forgetting their charger at home or in hotel rooms.

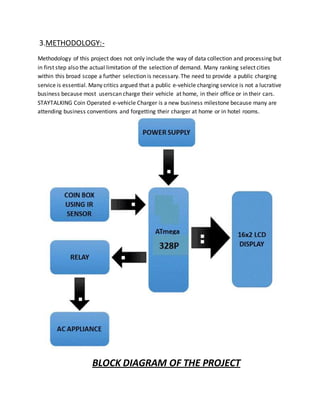

BLOCK DIAGRAM OF THE PROJECT

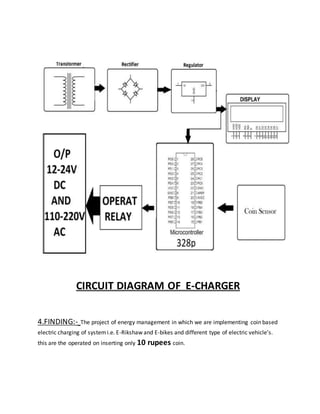

3. CIRCUIT DIAGRAM OF E-CHARGER
4.FINDING:- The project of energy management in which we are implementing coin based
electric charging of systemi.e. E-Rikshaw and E-bikes and different type of electric vehicle’s.
this are the operated on inserting only 10 rupees coin.
