[Spring Camp 2018] 11번가 Spring Cloud 기반 MSA로의 전환 : 지난 1년간의 이야기
The document discusses strategies for implementing microservices architecture (MSA) using various components such as Hystrix for circuit breaking, Eureka for service discovery, and Zuul as an API gateway. It emphasizes the importance of resilience in inter-service communication and outlines configurations for these technologies. The document also reflects on past experiences and challenges faced during its implementation.
More Related Content
![[2019] PAYCO 쇼핑 마이크로서비스 아키텍처(MSA) 전환기](https://cdn.slidesharecdn.com/ss_thumbnails/nhnforward201926-200122093003-thumbnail.jpg?width=640&height=640&fit=bounds)
![[NDC17] Kubernetes로 개발서버 간단히 찍어내기](https://cdn.slidesharecdn.com/ss_thumbnails/ndc-170529041601-thumbnail.jpg?width=640&height=640&fit=bounds)
![[오픈테크넷서밋2022] 국내 PaaS(Kubernetes) Best Practice 및 DevOps 환경 구축 사례.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/2022paaskubernetesbestpracticedevops-220927105318-84776c9a-thumbnail.jpg?width=640&height=640&fit=bounds)
![대용량 데이터레이크 마이그레이션 사례 공유 [카카오게임즈 - 레벨 200] - 조은희, 팀장, 카카오게임즈 ::: Games on AWS ...](https://cdn.slidesharecdn.com/ss_thumbnails/t4s2-221108115925-5b63bf11-thumbnail.jpg?width=640&height=640&fit=bounds)
![[수정본] 우아한 객체지향](https://cdn.slidesharecdn.com/ss_thumbnails/woowahan-oo-190624161343-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to [Spring Camp 2018] 11번가 Spring Cloud 기반 MSA로의 전환 : 지난 1년간의 이야기
![[오픈소스컨설팅] 서비스 메쉬(Service mesh)](https://cdn.slidesharecdn.com/ss_thumbnails/opensourceconsultingservicemesh-210531074807-thumbnail.jpg?width=640&height=640&fit=bounds)
![[발표자료] 오픈소스 Pacemaker 활용한 zabbix 이중화 방안(w/ Zabbix Korea Community)](https://cdn.slidesharecdn.com/ss_thumbnails/high-availabilityzabbixforopensourcepaceamker-191204120827-thumbnail.jpg?width=640&height=640&fit=bounds)
![[개인 프로젝트] 쿠버네티스를 이용한 개발환경 자동화 구축시스템 - 프로토타입](https://cdn.slidesharecdn.com/ss_thumbnails/srmproject-210620120212-thumbnail.jpg?width=640&height=640&fit=bounds)
[Spring Camp 2018] 11번가 Spring Cloud 기반 MSA로의 전환 : 지난 1년간의 이야기

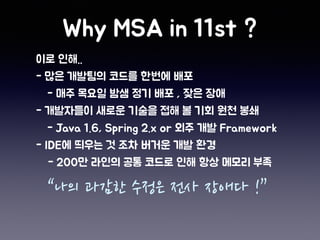

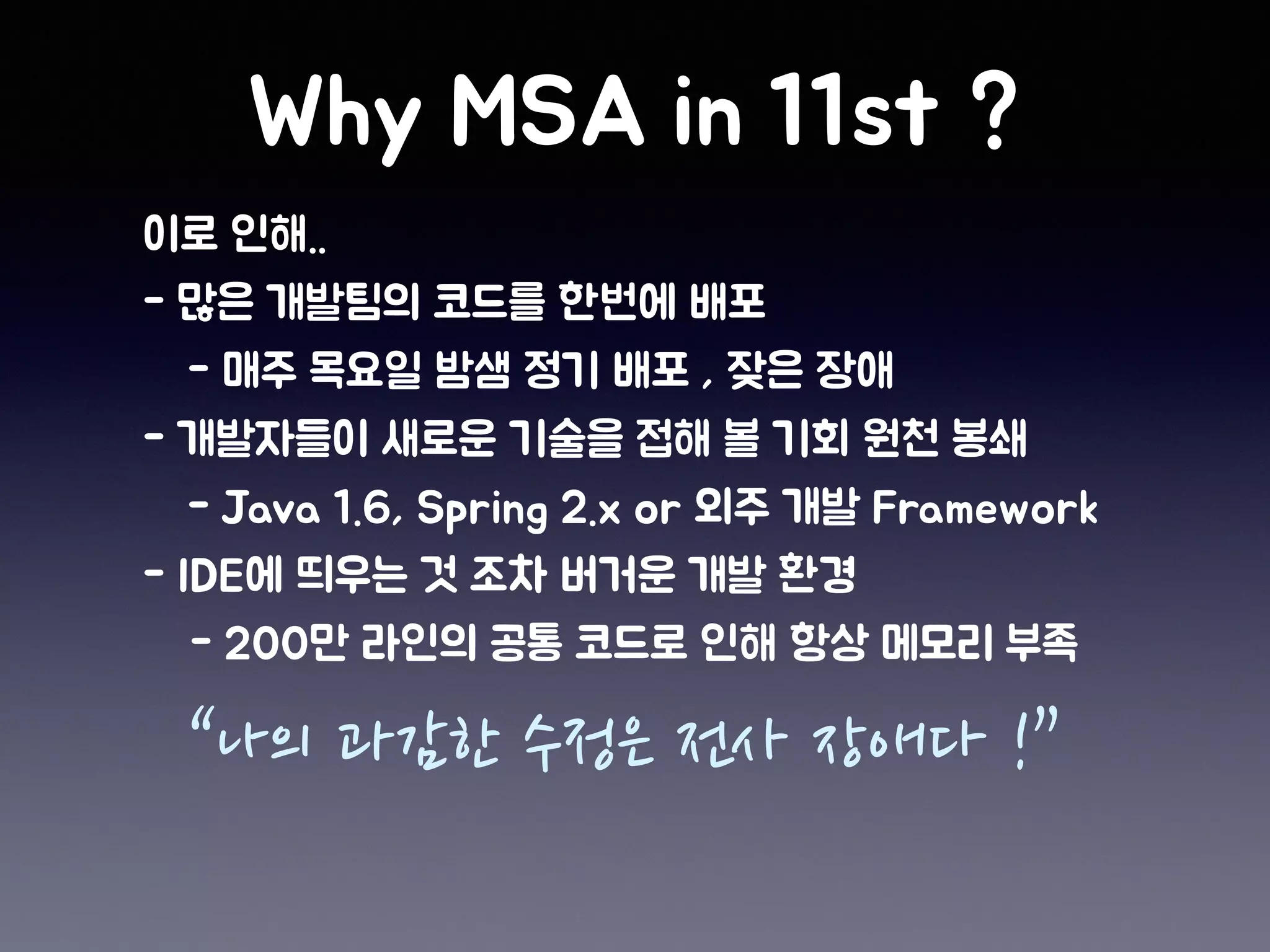

- 4. “나의 과감한 수정은전사 장애다 !”
- 5. “어떻게 서버 분리를진행할 것인가 ?”

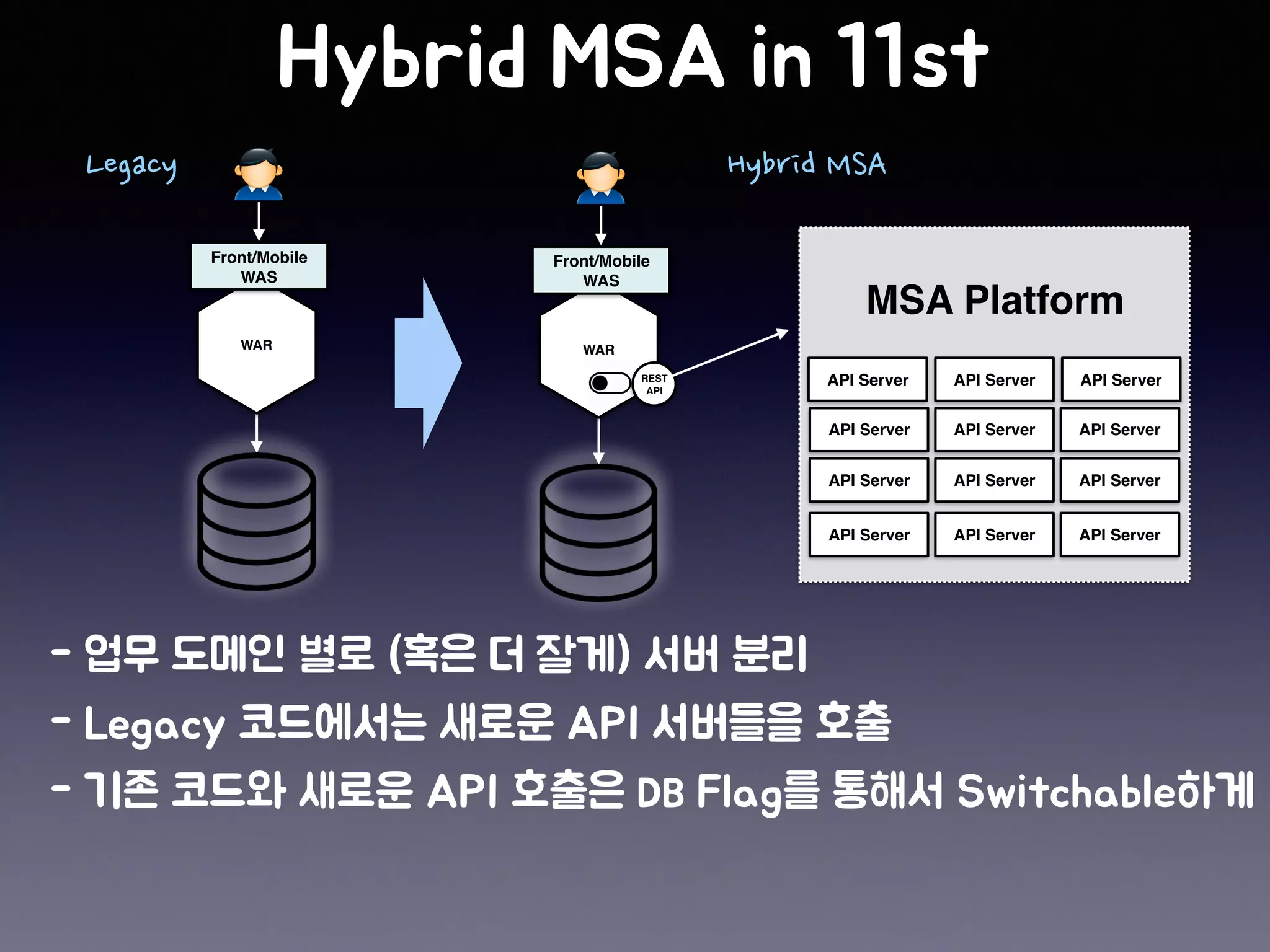

- 7. WAR Front/Mobile WAS Legacy WAR Front/Mobile WAS Hybrid MSA REST API MSA Platform APIServer API Server API Server API Server API Server API Server API Server API Server API Server API Server API Server API Server
- 8.

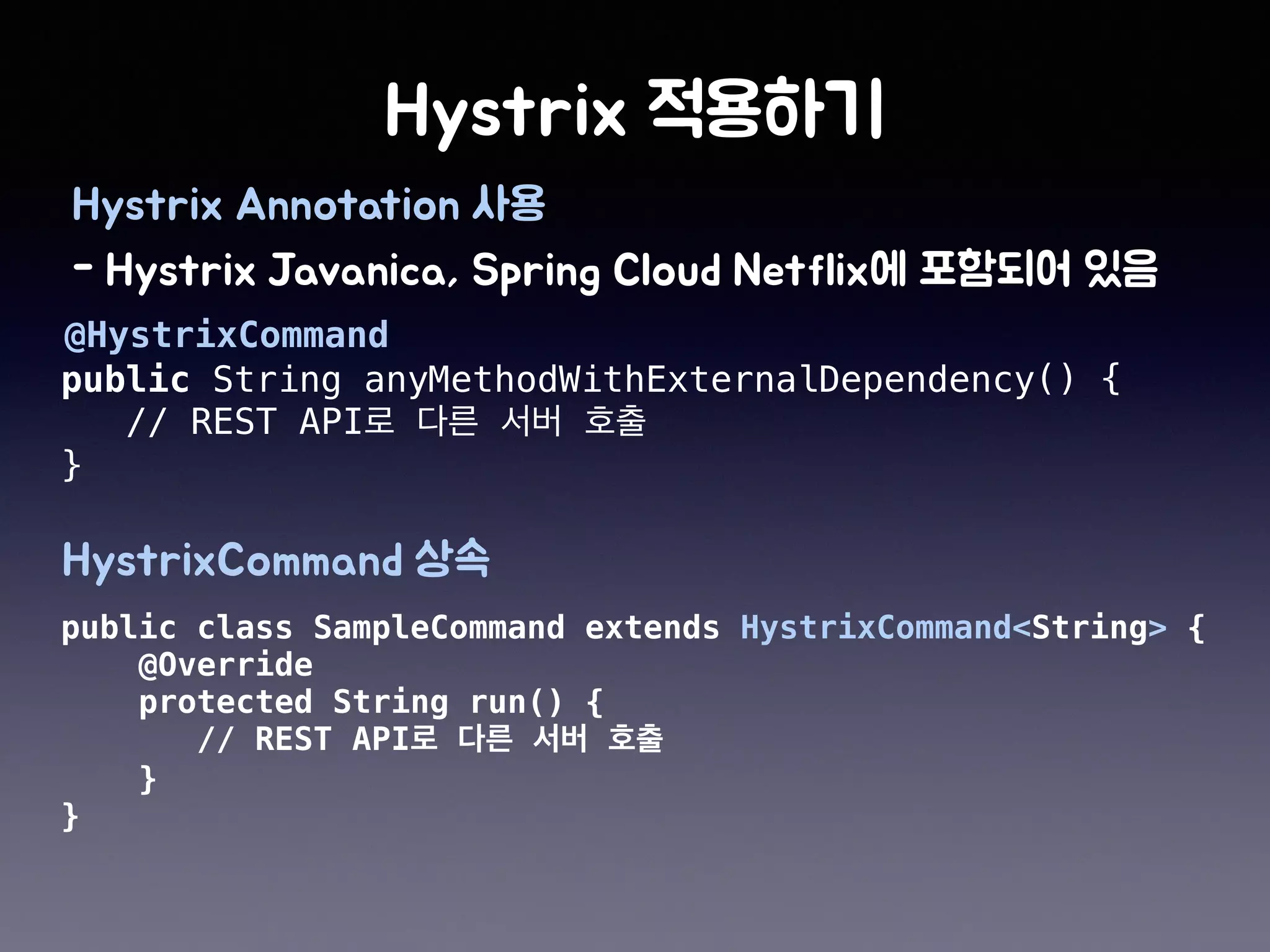

- 11. public String anyMethodWithExternalDependency(){ // REST API } @HystrixCommand public class SampleCommand extends HystrixCommand<String> { @Override protected String run() { // REST API } }

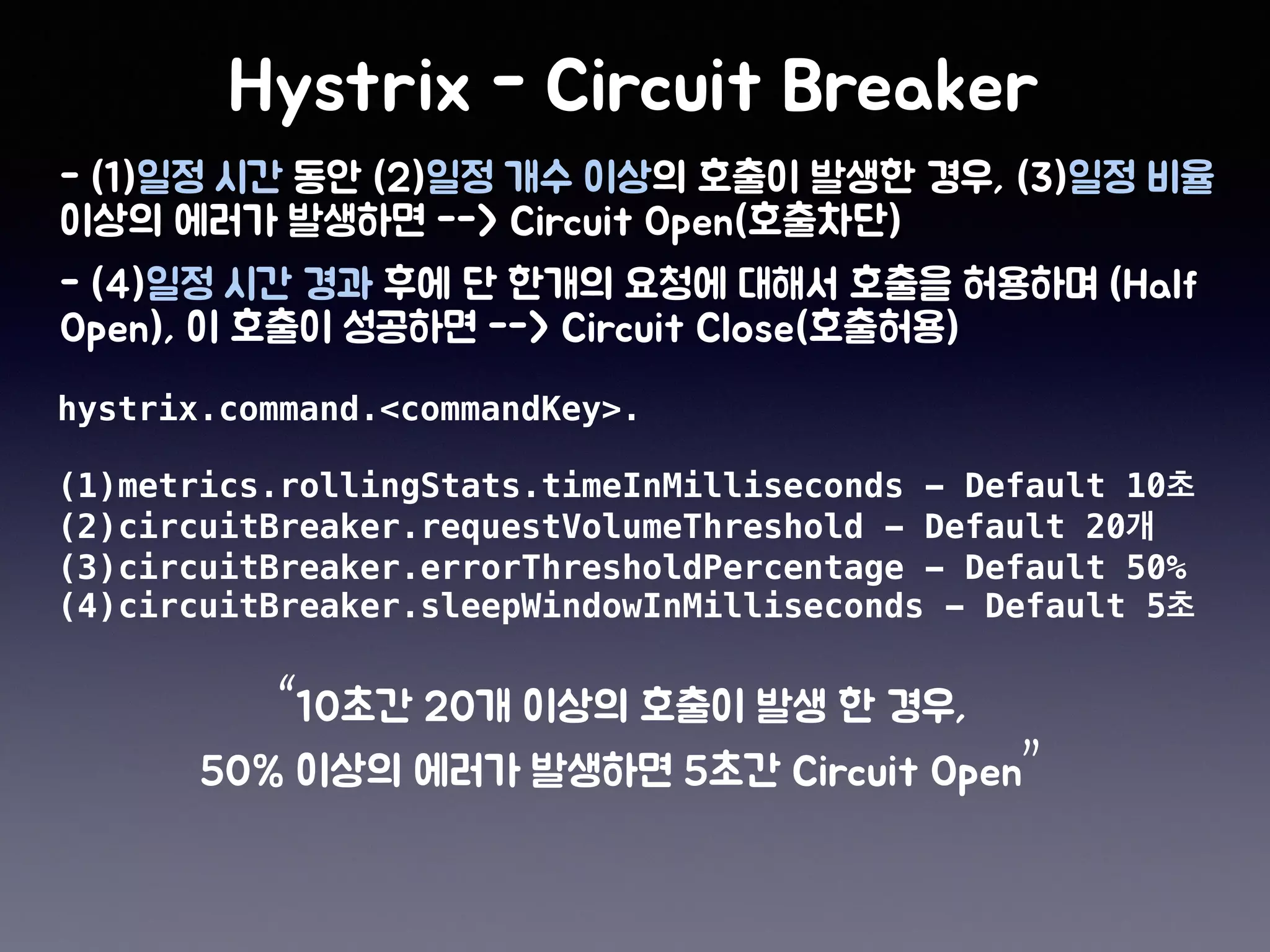

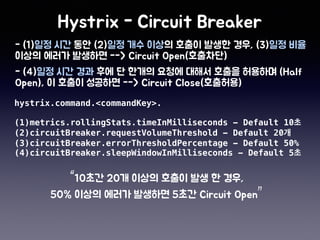

- 13. hystrix.command.<commandKey>. (1)metrics.rollingStats.timeInMilliseconds - Default10 (2)circuitBreaker.requestVolumeThreshold - Default 20 (3)circuitBreaker.errorThresholdPercentage - Default 50% (4)circuitBreaker.sleepWindowInMilliseconds - Default 5 “ ”

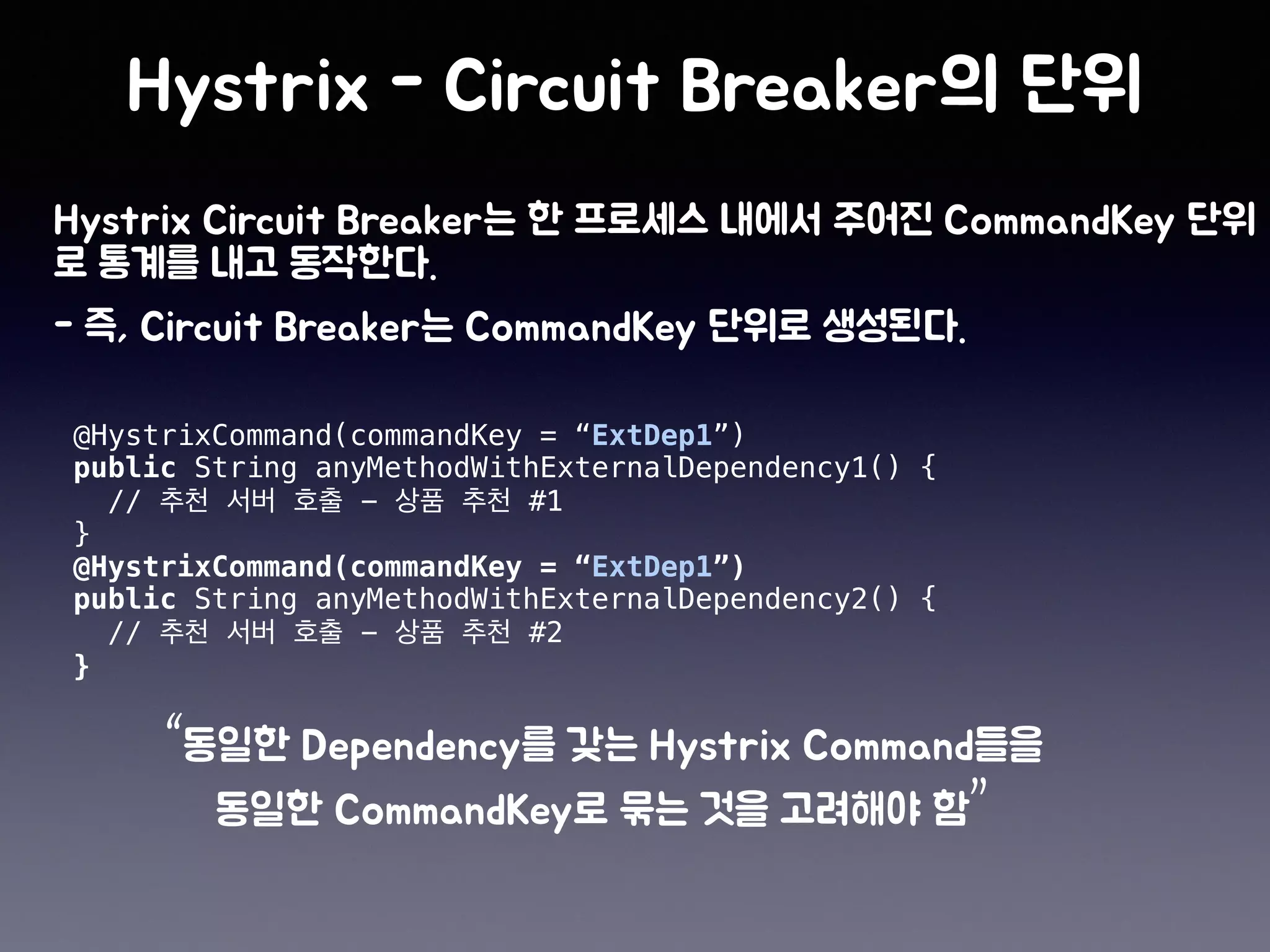

- 14. @HystrixCommand(commandKey = “ExtDep1”) publicString anyMethodWithExternalDependency1() { // - #1 } @HystrixCommand(commandKey = “ExtDep1”) public String anyMethodWithExternalDependency2() { // - #2 } “ ”

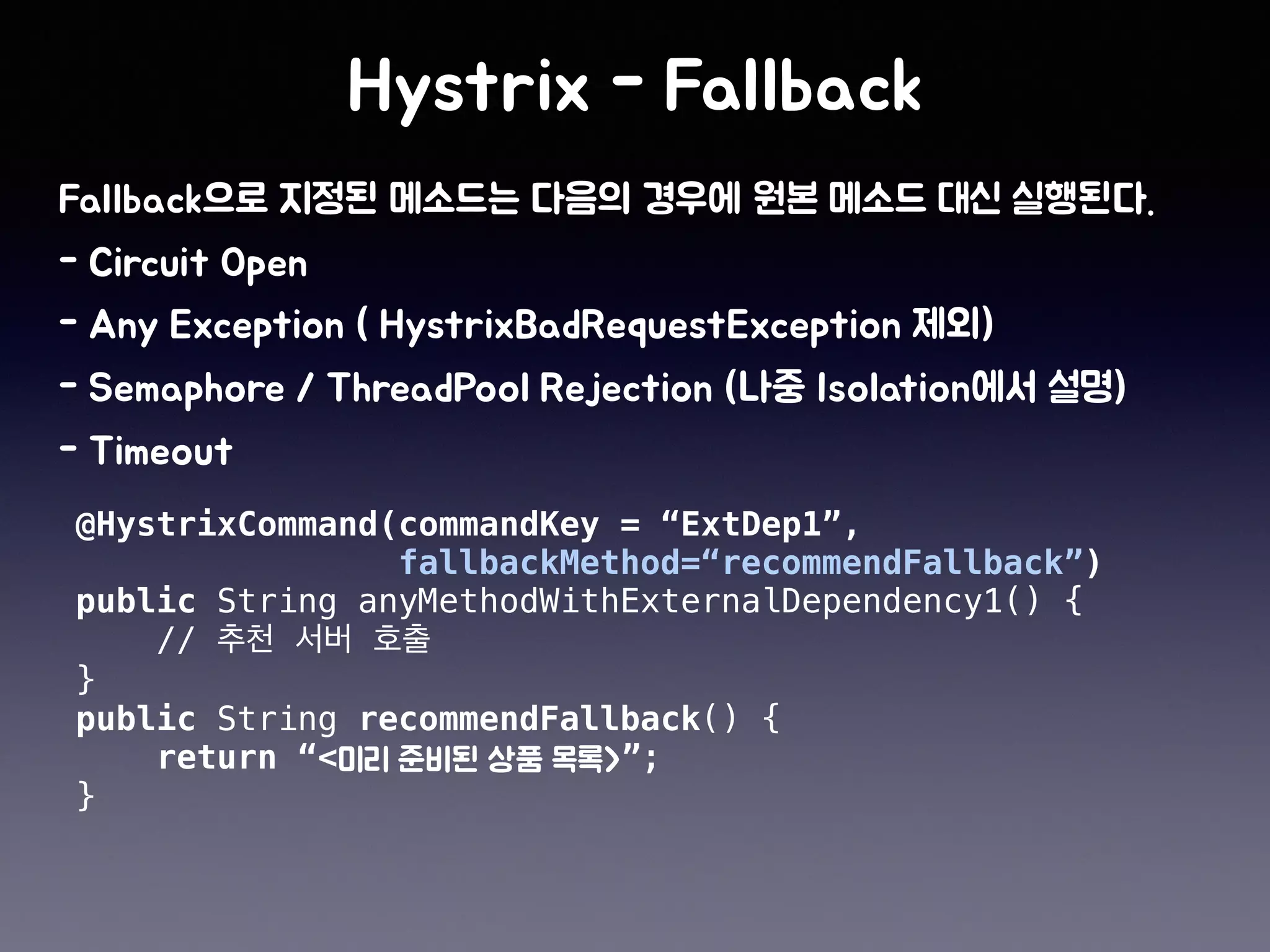

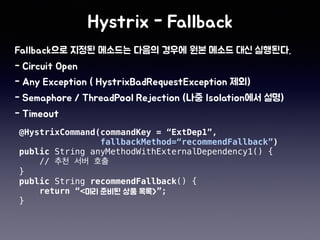

- 15. @HystrixCommand(commandKey = “ExtDep1”, fallbackMethod=“recommendFallback”) publicString anyMethodWithExternalDependency1() { // } public String recommendFallback() { return “< ”; }
- 16.
- 17.

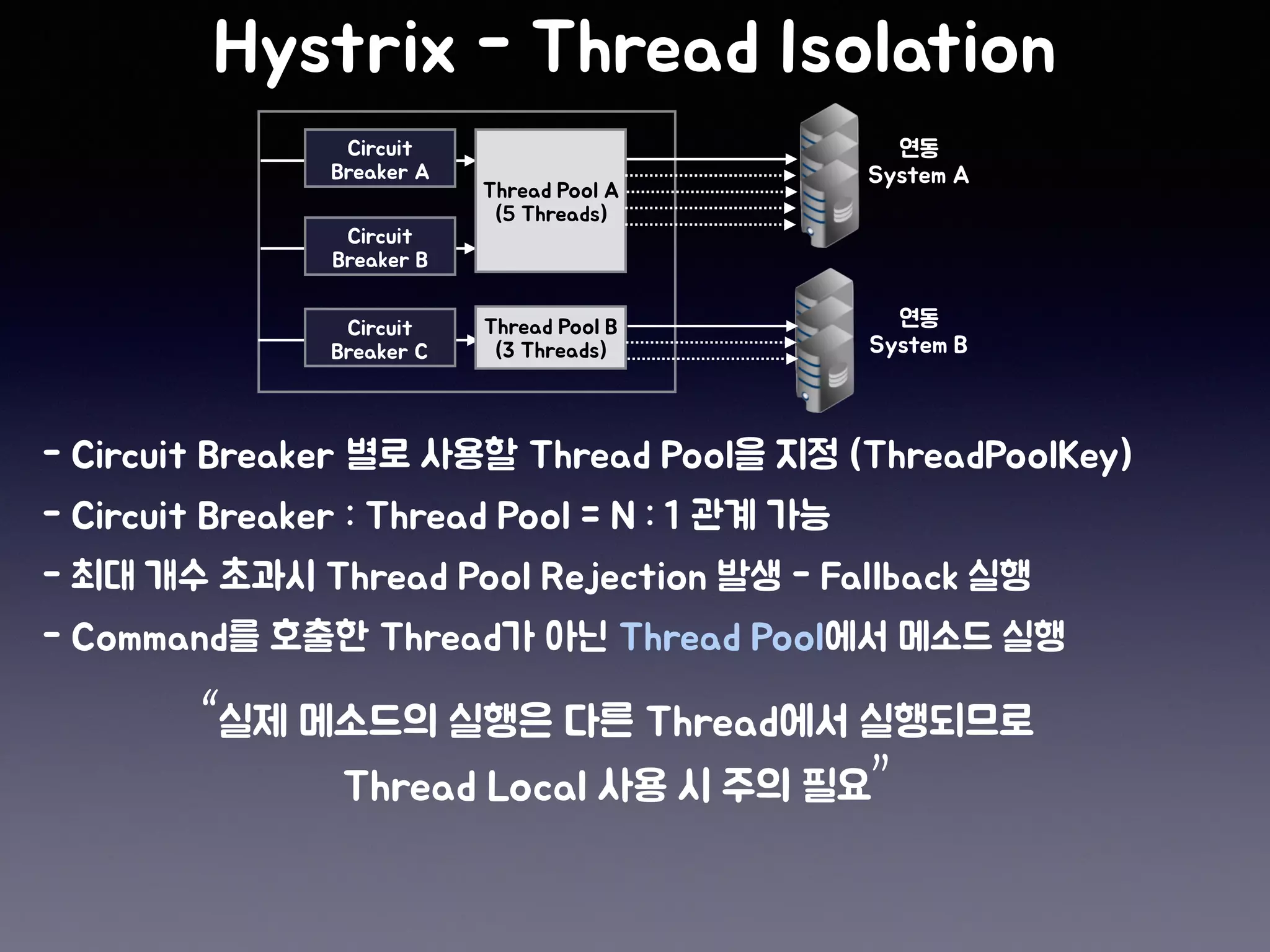

- 20.
- 27. “이 세가지를 작적용하면 MSA 환경에서 Server 들간의 통신을 큰 문제없이 잘 될 것 같다는 생각...”

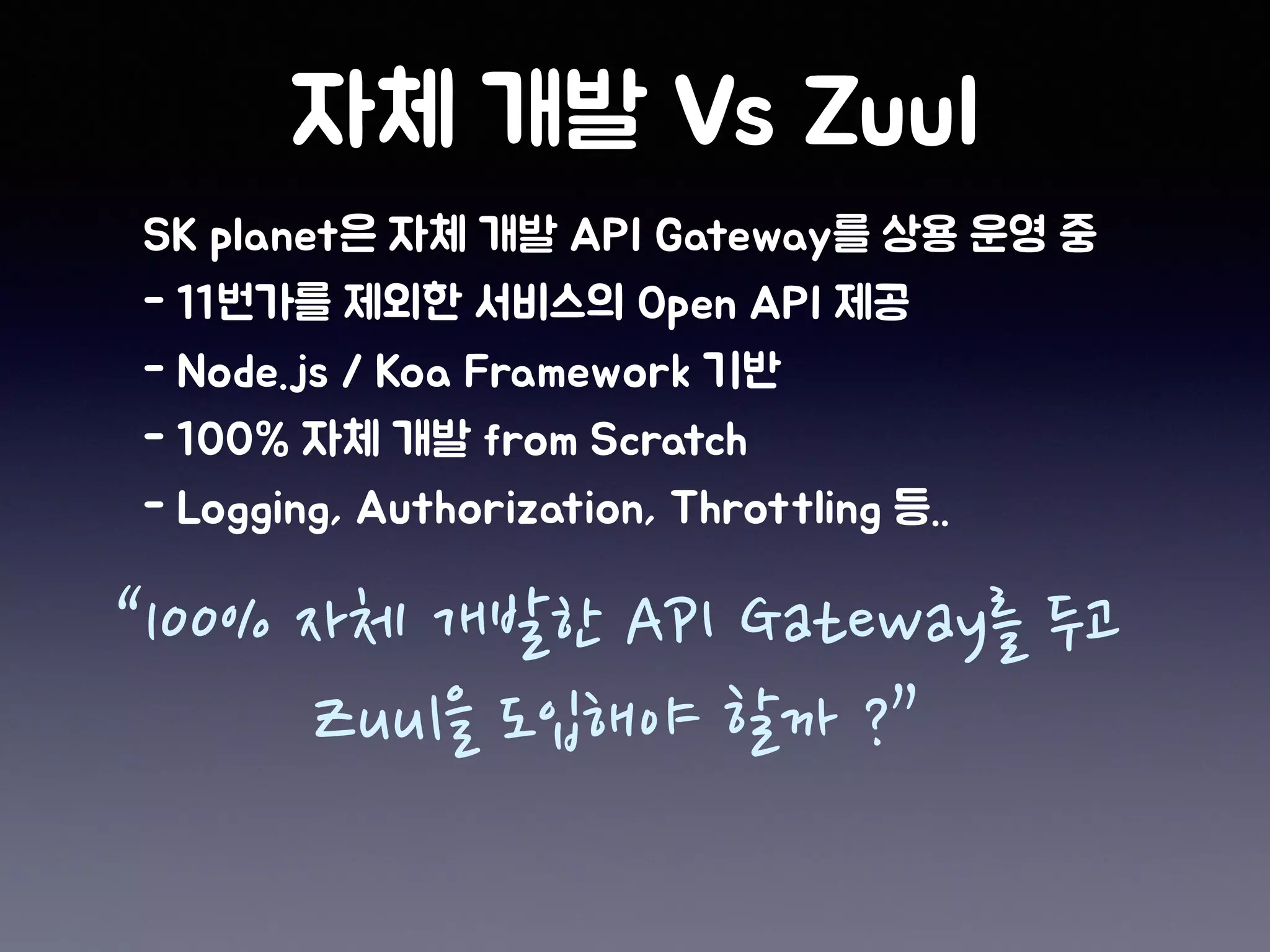

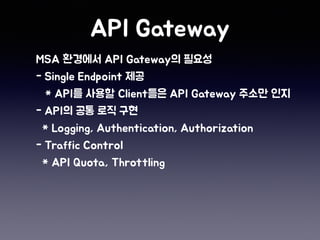

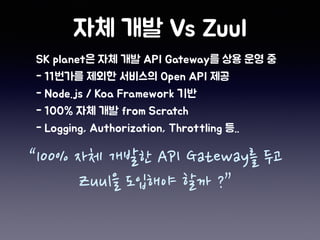

- 30. “100% 자체 개발한API Gateway를 두고 Zuul을 도입해야 할까 ?”

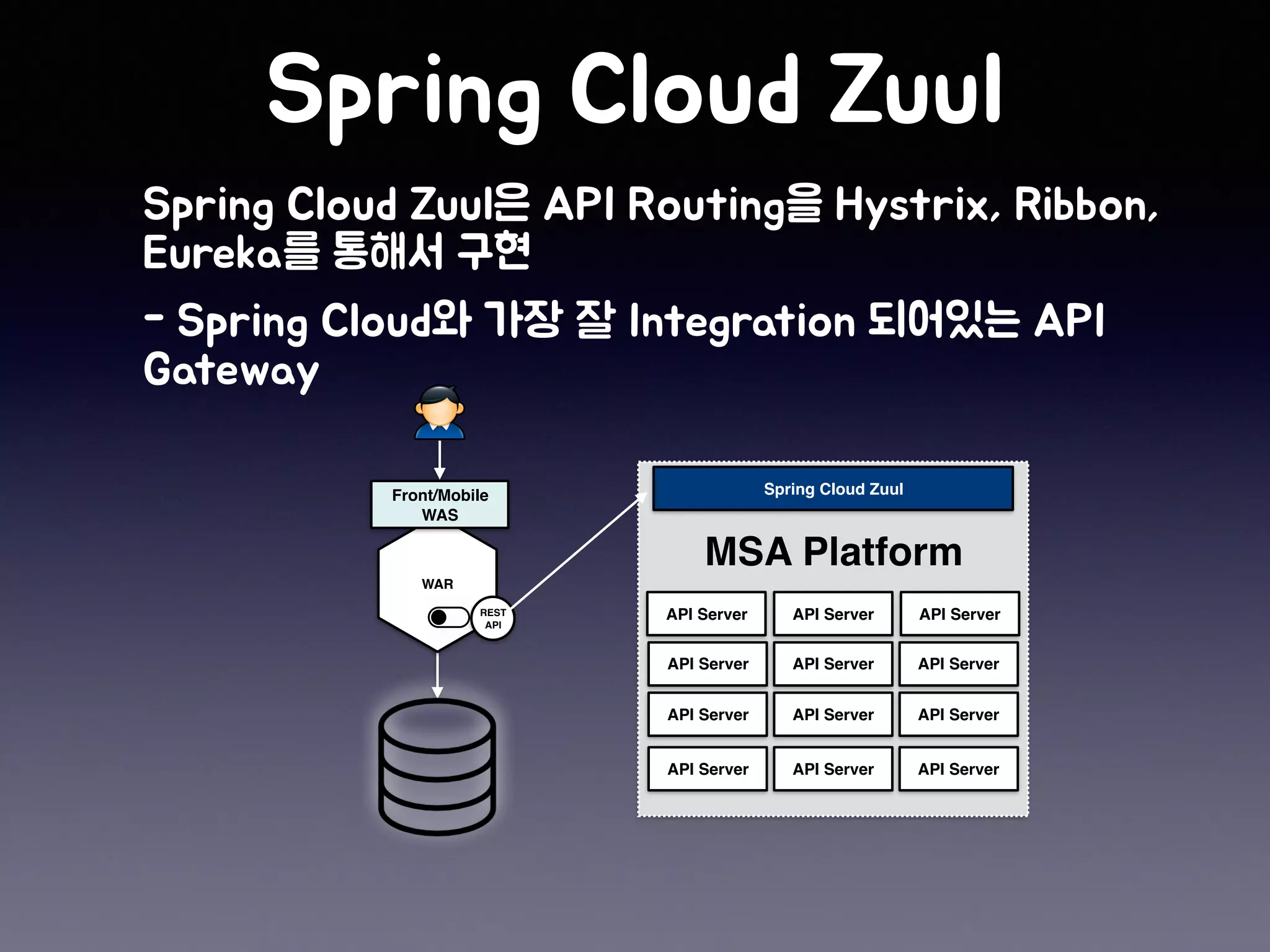

- 31. WAR Front/Mobile WAS REST API MSA Platform API ServerAPI Server API Server API Server API Server API Server API Server API Server API Server API Server API Server API Server Spring Cloud Zuul

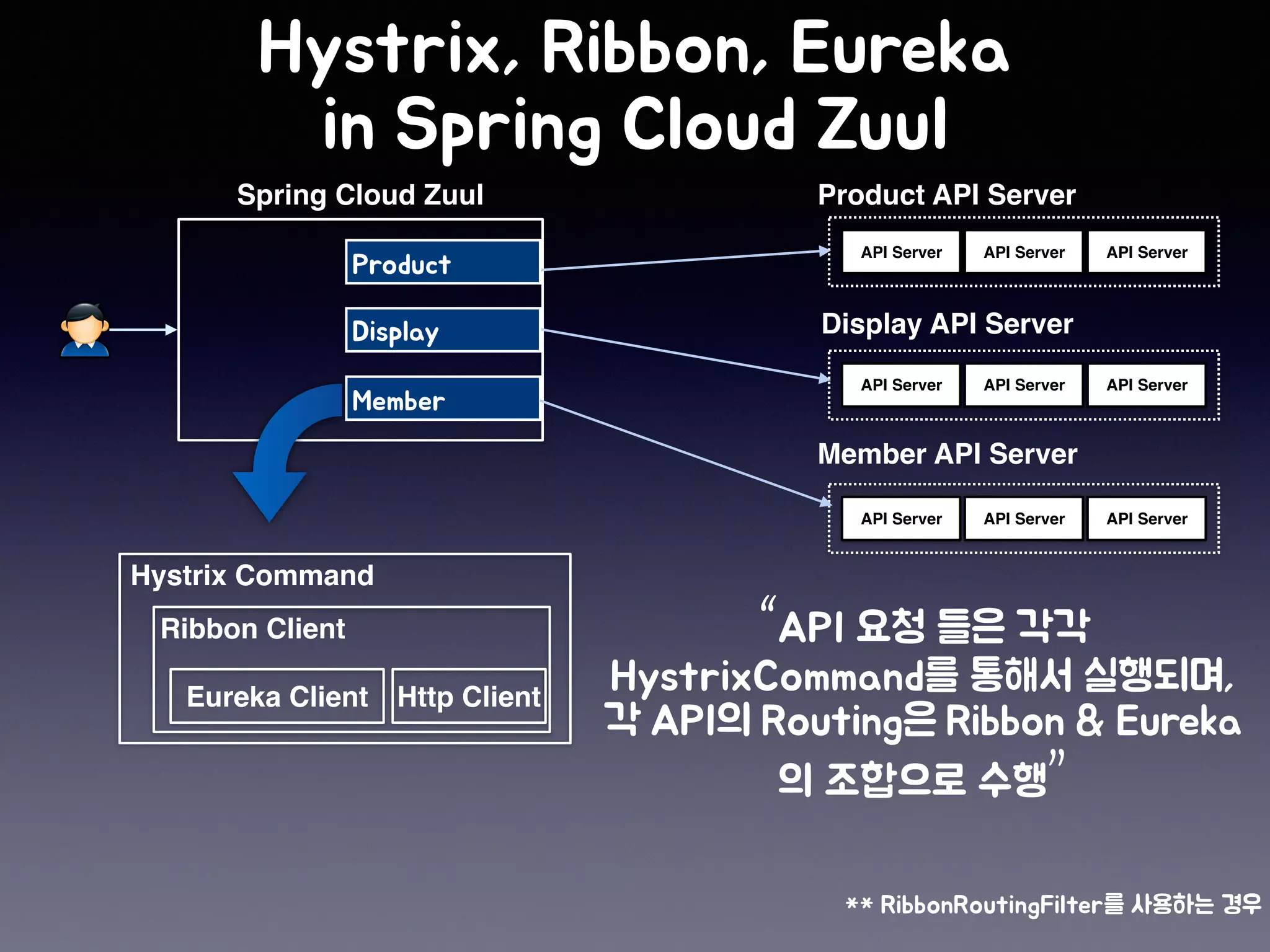

- 32. API Server APIServer API Server API Server API Server API Server Spring Cloud Zuul API Server API Server API Server Product API Server Display API Server Member API Server Hystrix Command Ribbon Client Eureka Client Http Client “ ”

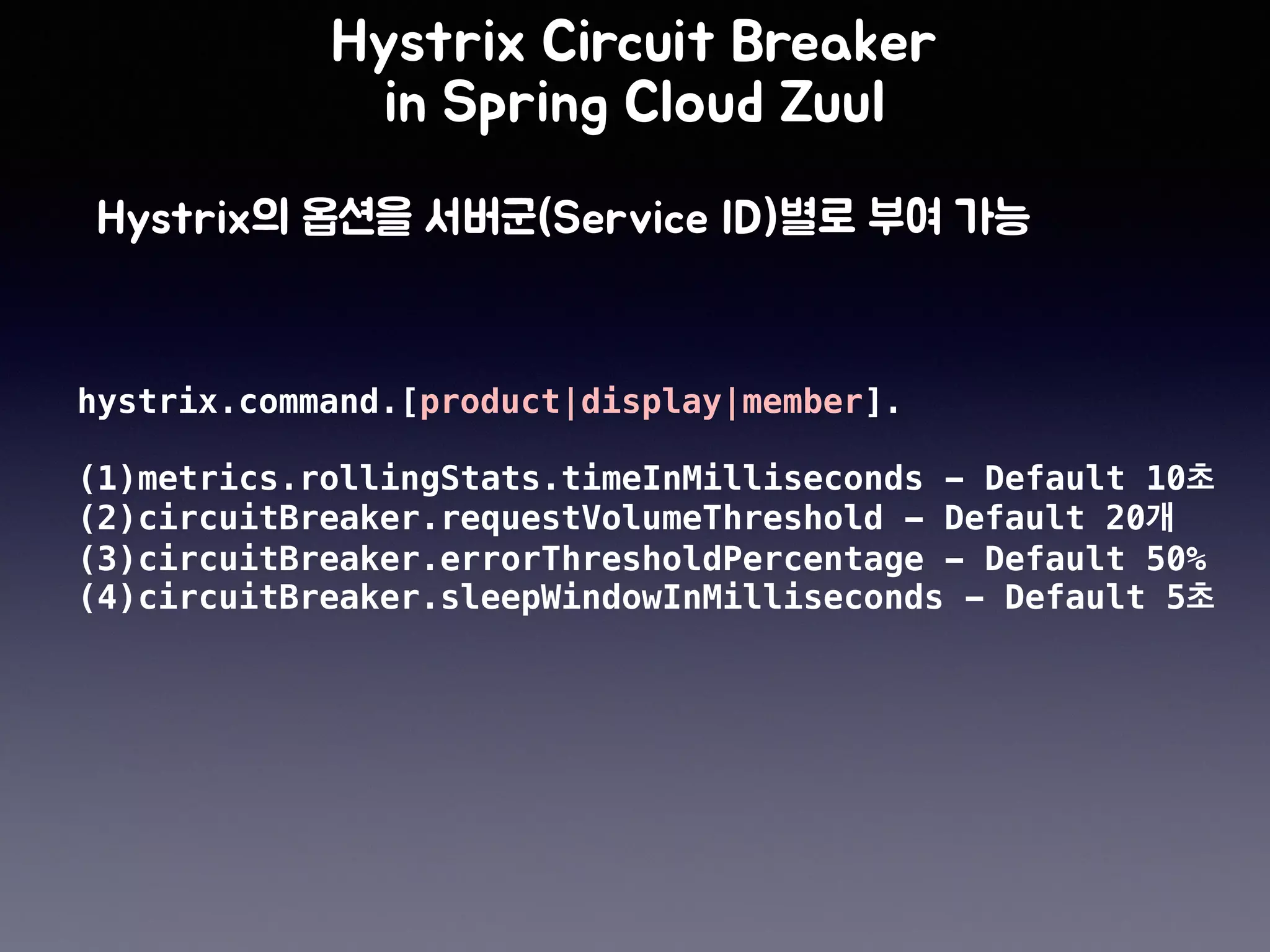

- 34. hystrix.command.[product|display|member]. (1)metrics.rollingStats.timeInMilliseconds - Default10 (2)circuitBreaker.requestVolumeThreshold - Default 20 (3)circuitBreaker.errorThresholdPercentage - Default 50% (4)circuitBreaker.sleepWindowInMilliseconds - Default 5

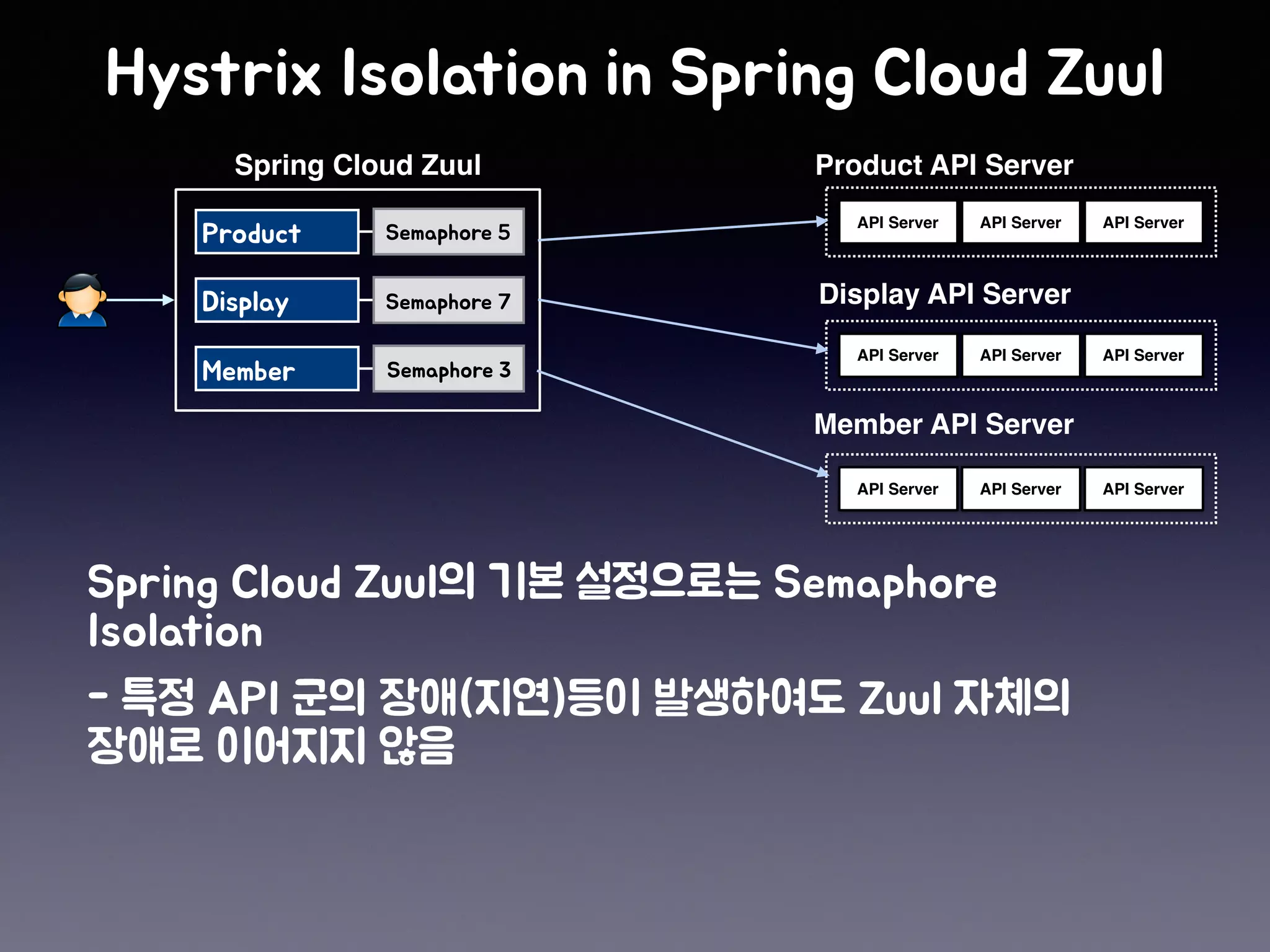

- 36. API Server APIServer API Server API Server API Server API Server Spring Cloud Zuul API Server API Server API Server Product API Server Display API Server Member API Server
- 37.

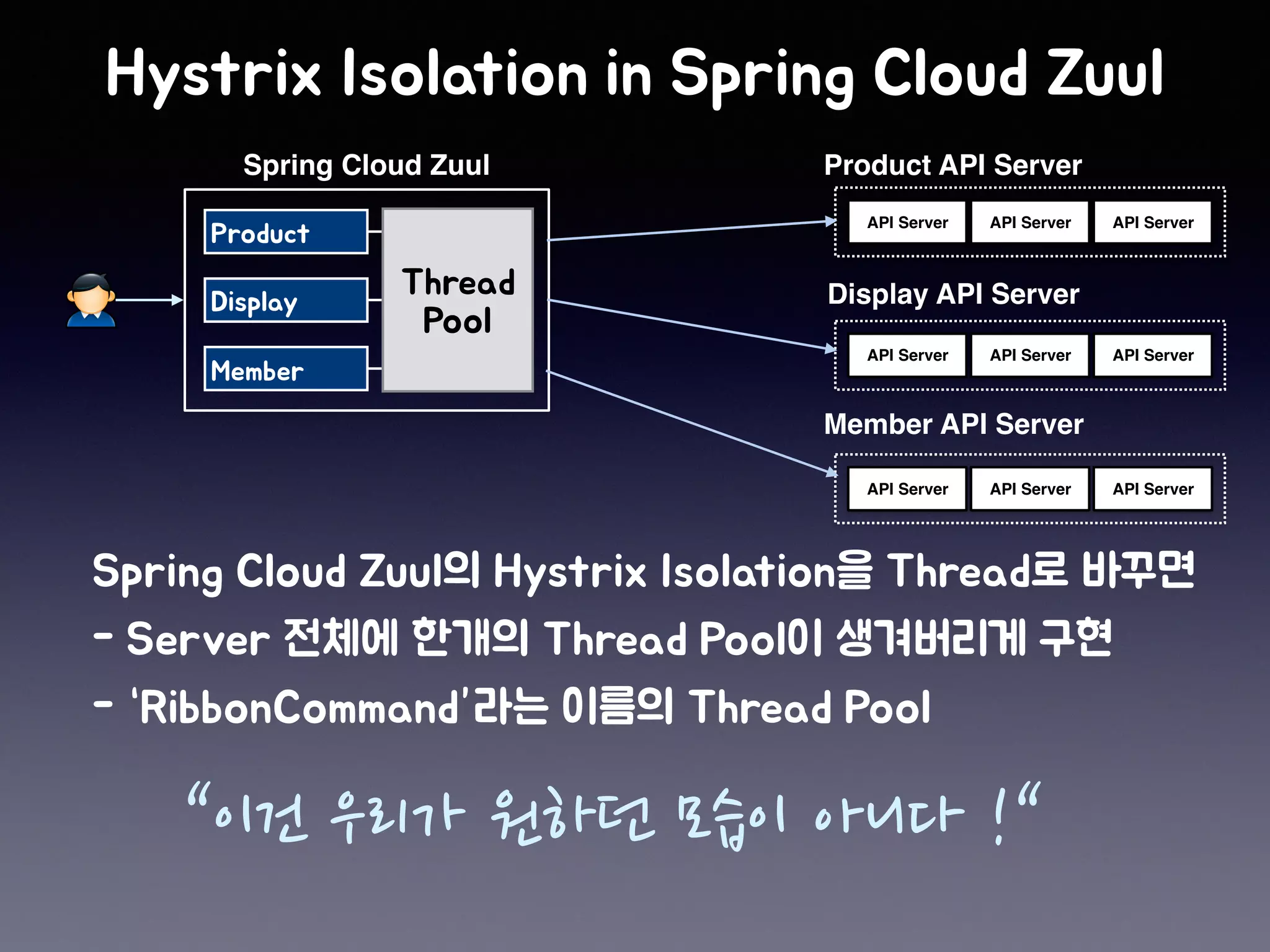

- 38. API Server APIServer API Server API Server API Server API Server Spring Cloud Zuul API Server API Server API Server Product API Server Display API Server Member API Server “이건 우리가 원하던 모습이 아니다 !“

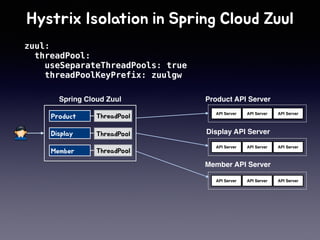

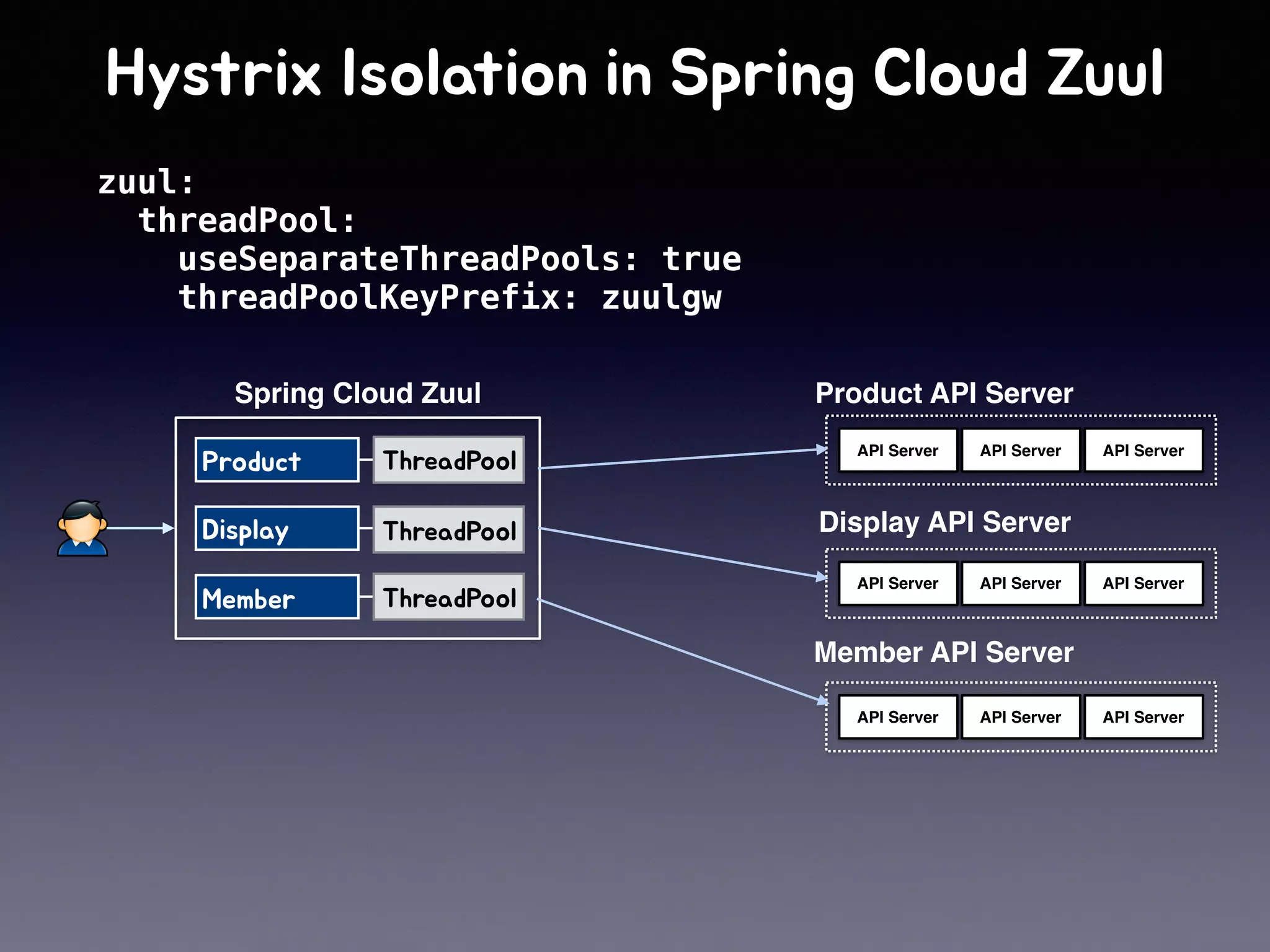

- 40. API Server APIServer API Server API Server API Server API Server Spring Cloud Zuul API Server API Server API Server Product API Server Display API Server Member API Server zuul: threadPool: useSeparateThreadPools: true threadPoolKeyPrefix: zuulgw

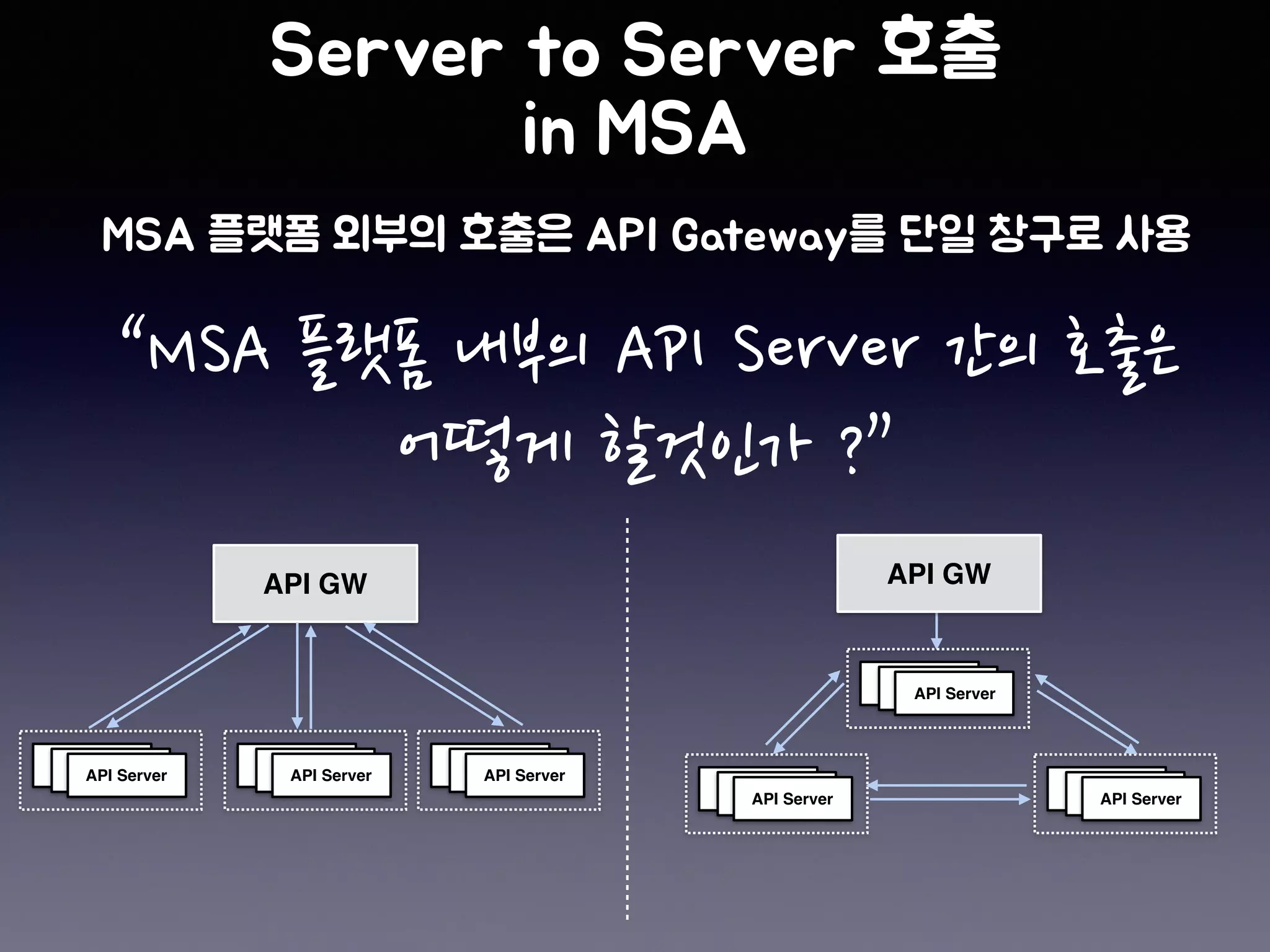

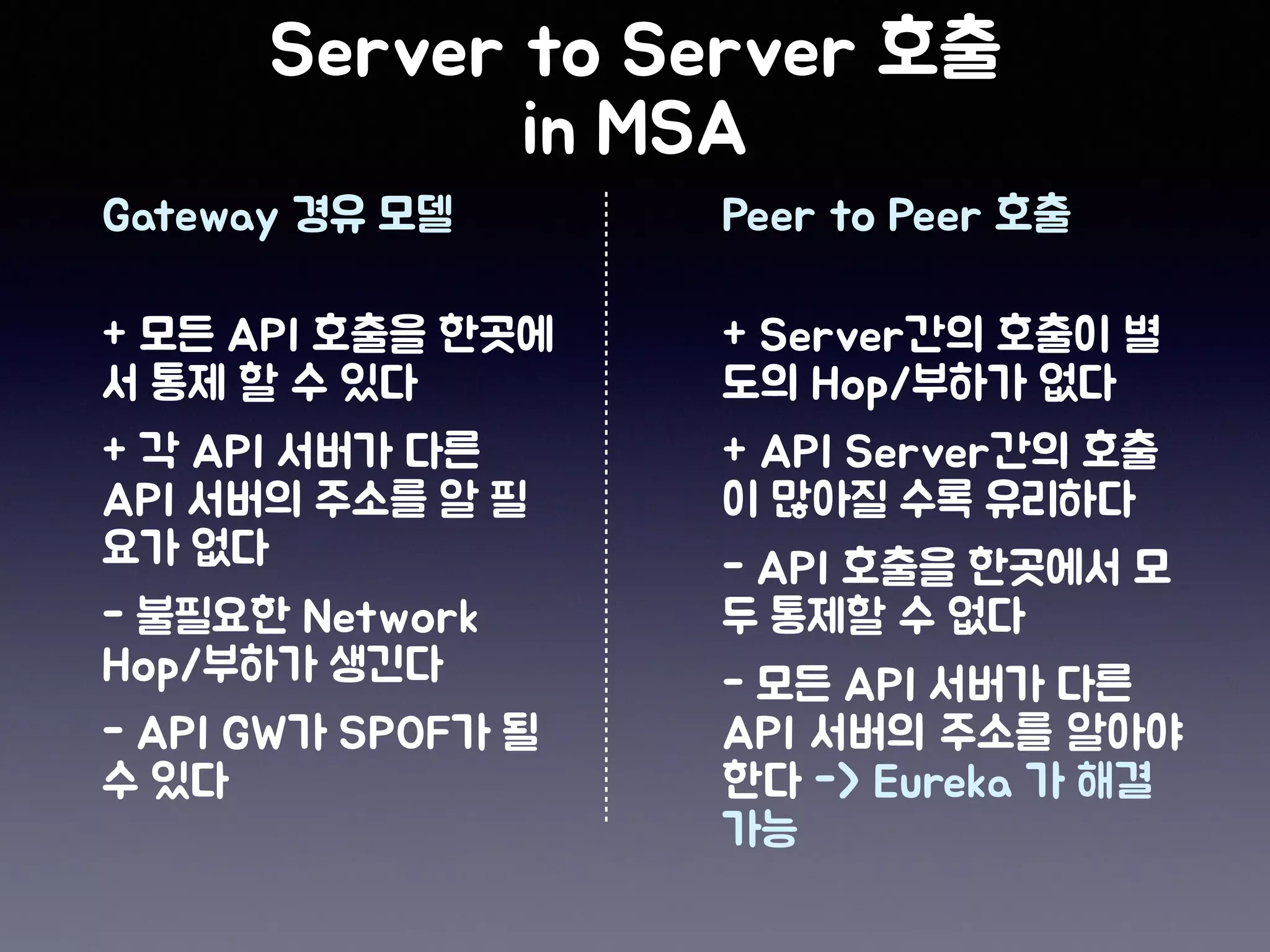

- 41. “MSA 플랫폼 내부의API Server 간의 호출은 어떻게 할것인가 ?” API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API GW API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API GW
- 43.

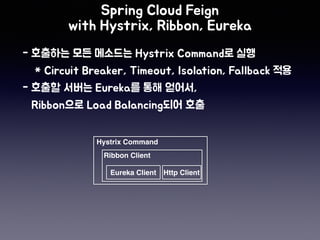

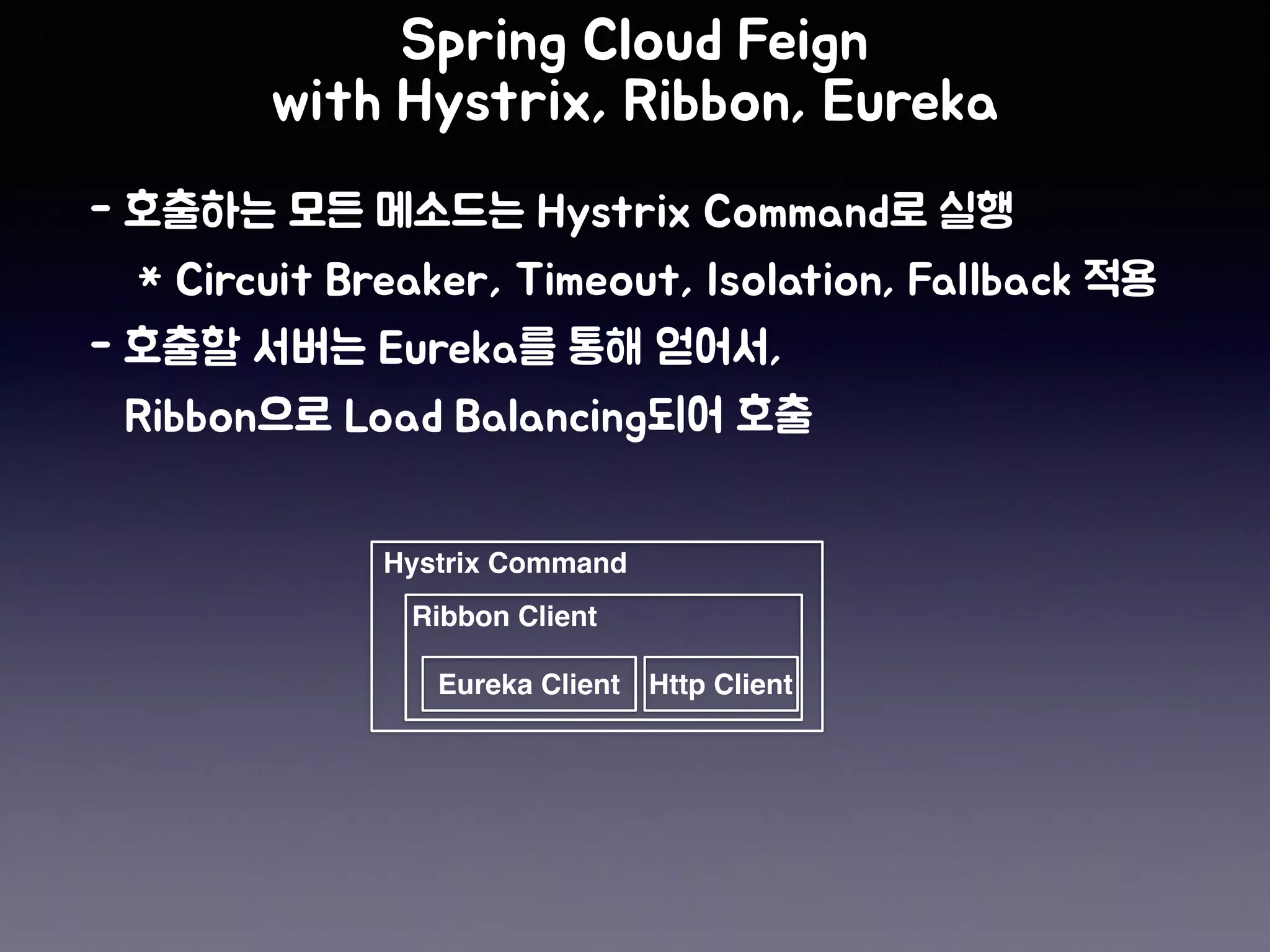

- 48. Hystrix Command Ribbon Client EurekaClient Http Client
- 49. “Hystrix, Eureka, Ribbon을사용한 우리 System은 어느정도 Resilient 한거야 ? ”
- 50. API Server API Server APIServer Spring Cloud Zuul Product API Server Display API Server Hystrix Eureka Ribbon Hystrix Eureka Ribbon
- 51.
- 52.

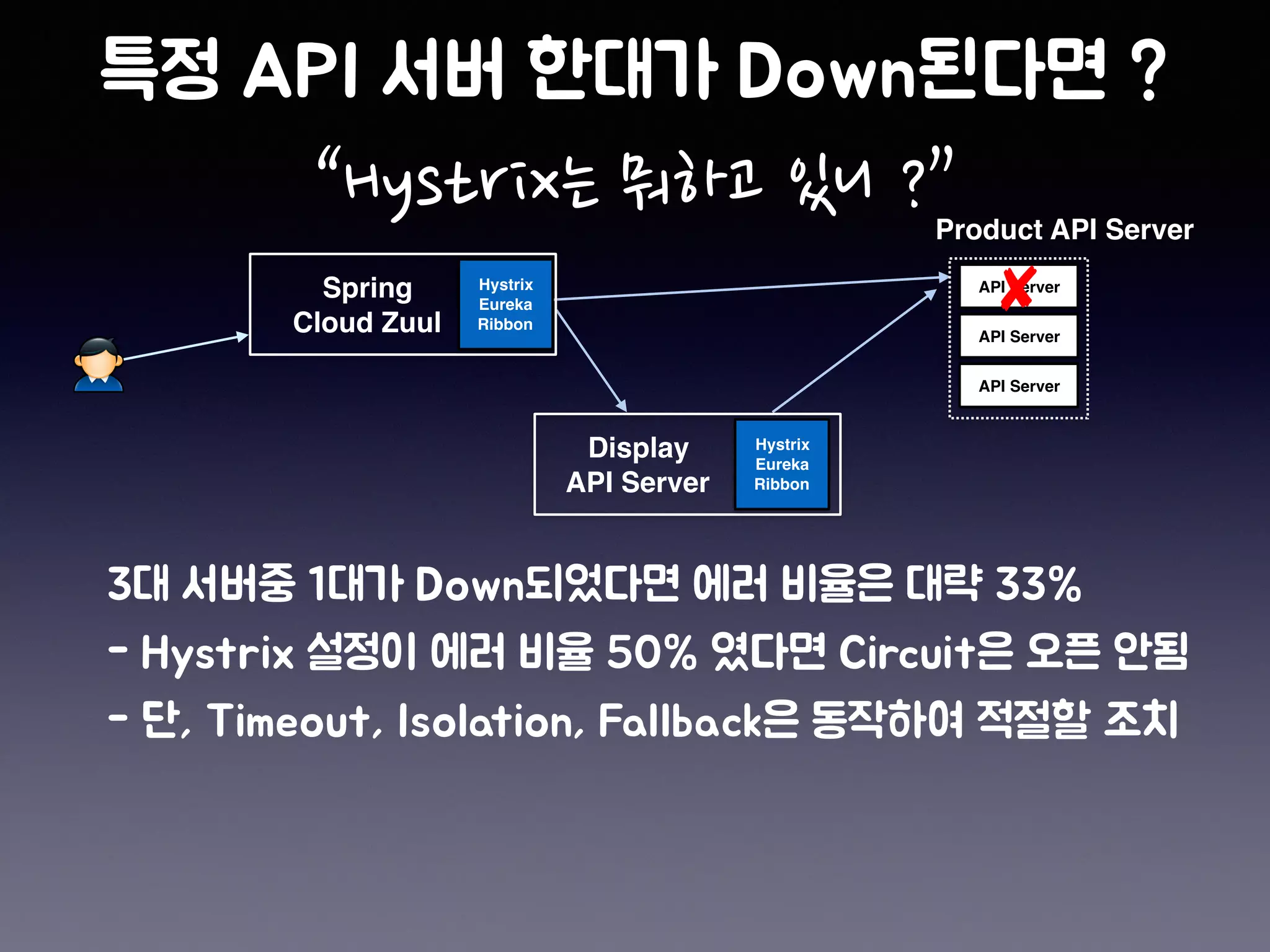

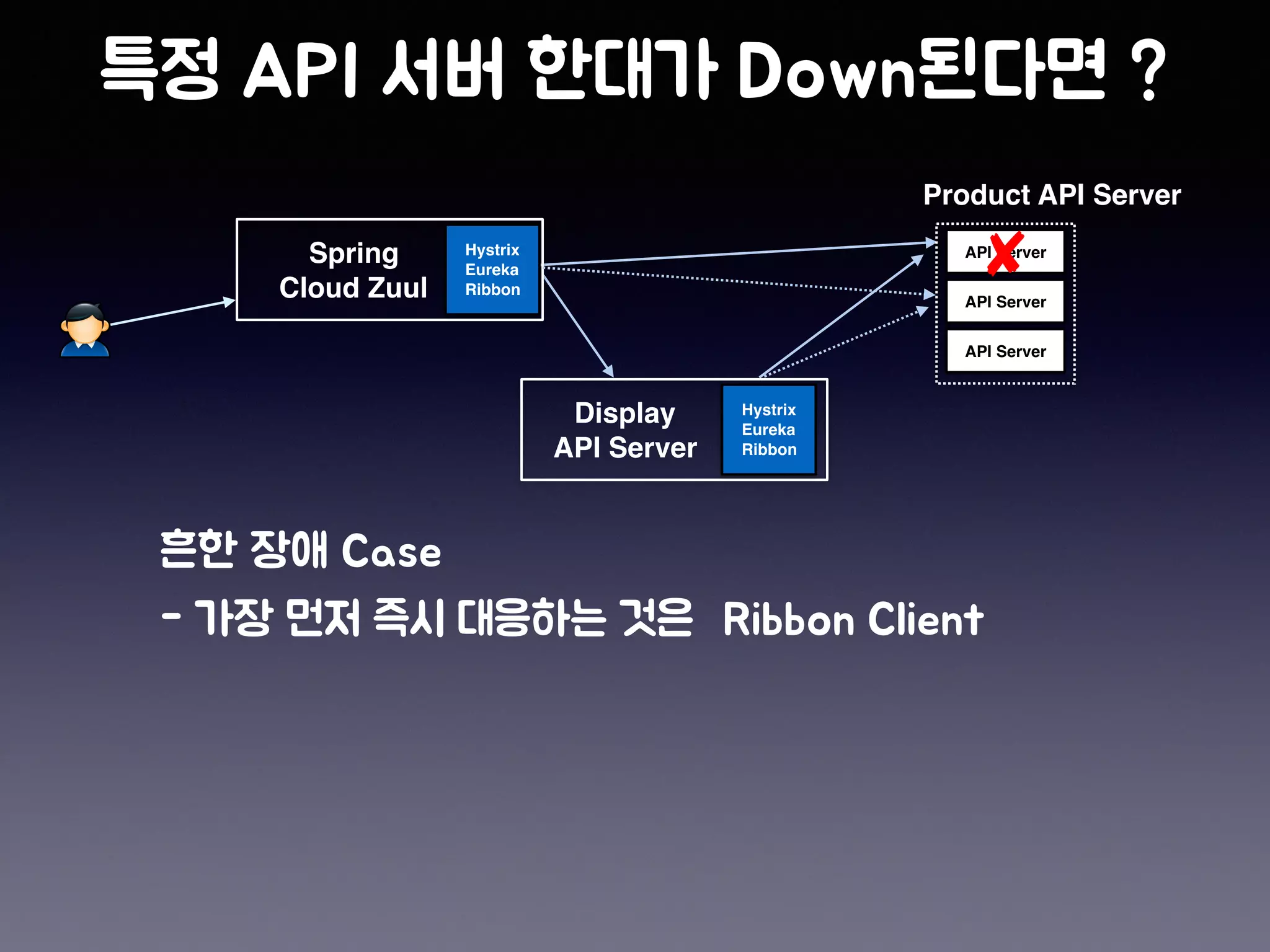

- 53. “Hystrix는 뭐하고 있니?” API Server API Server API Server Spring Cloud Zuul Product API Server Display API Server Hystrix Eureka Ribbon Hystrix Eureka Ribbon

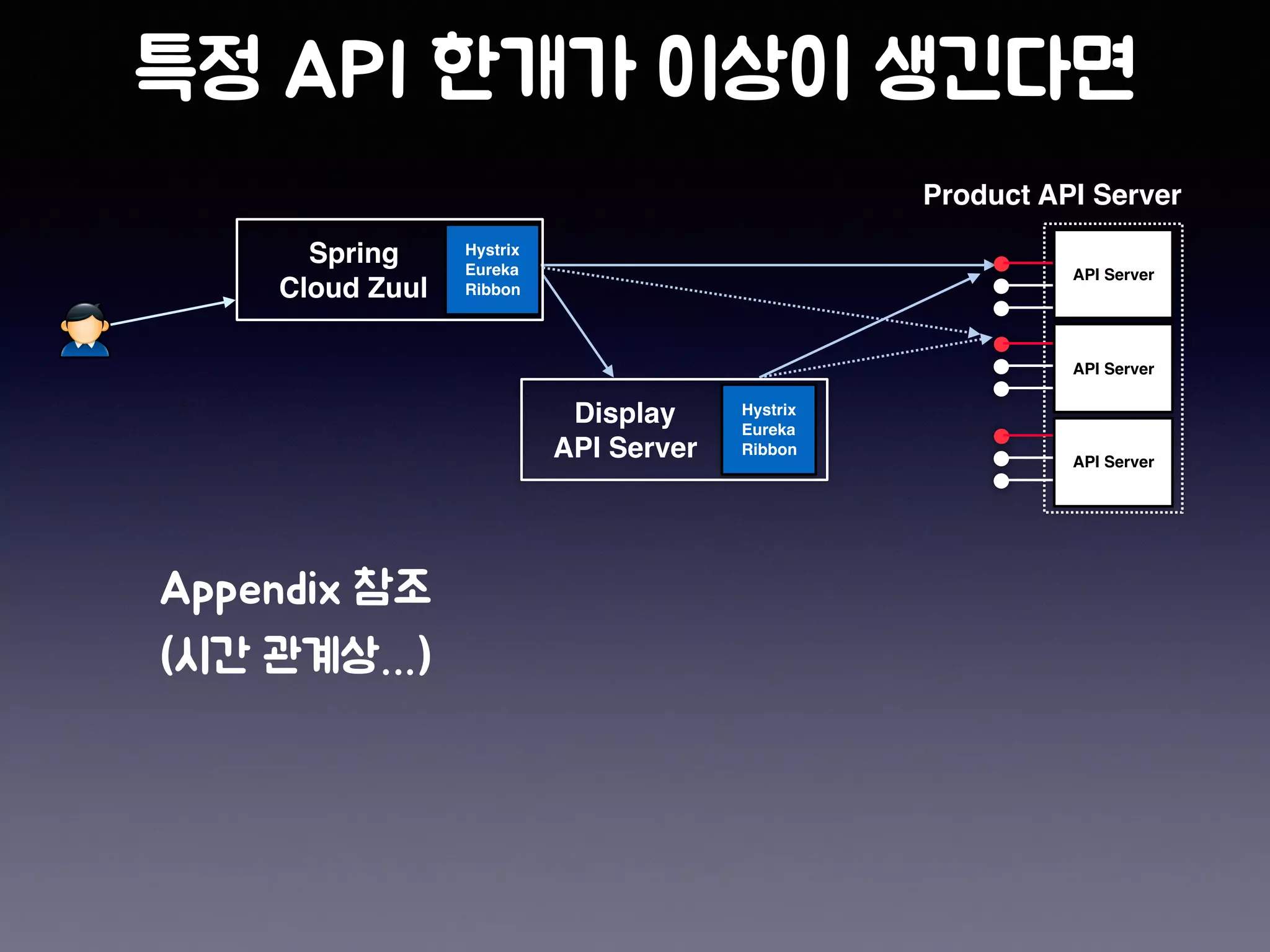

- 54. Spring Cloud Zuul Product APIServer Display API Server Hystrix Eureka Ribbon Hystrix Eureka Ribbon API Server API Server API Server

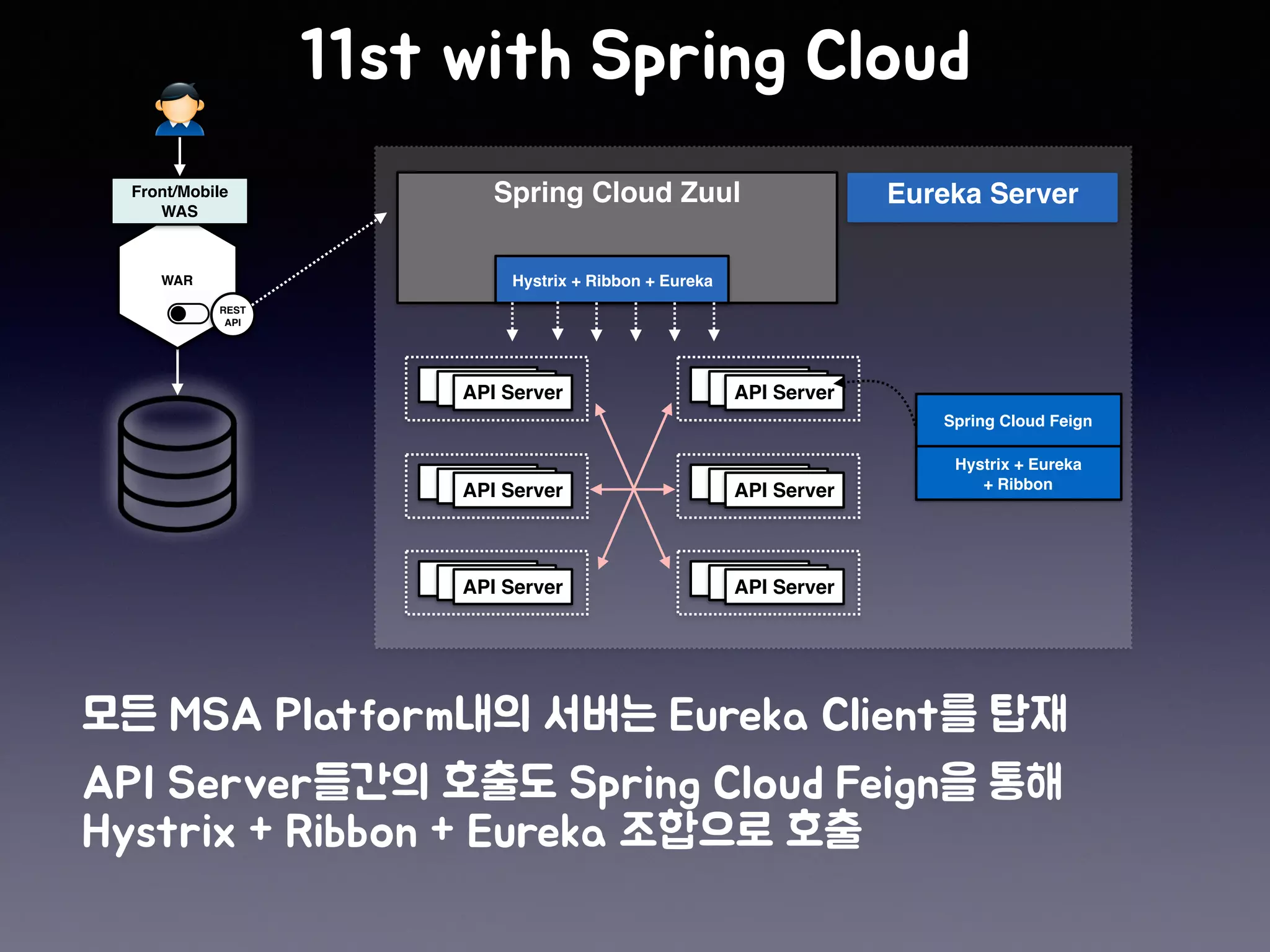

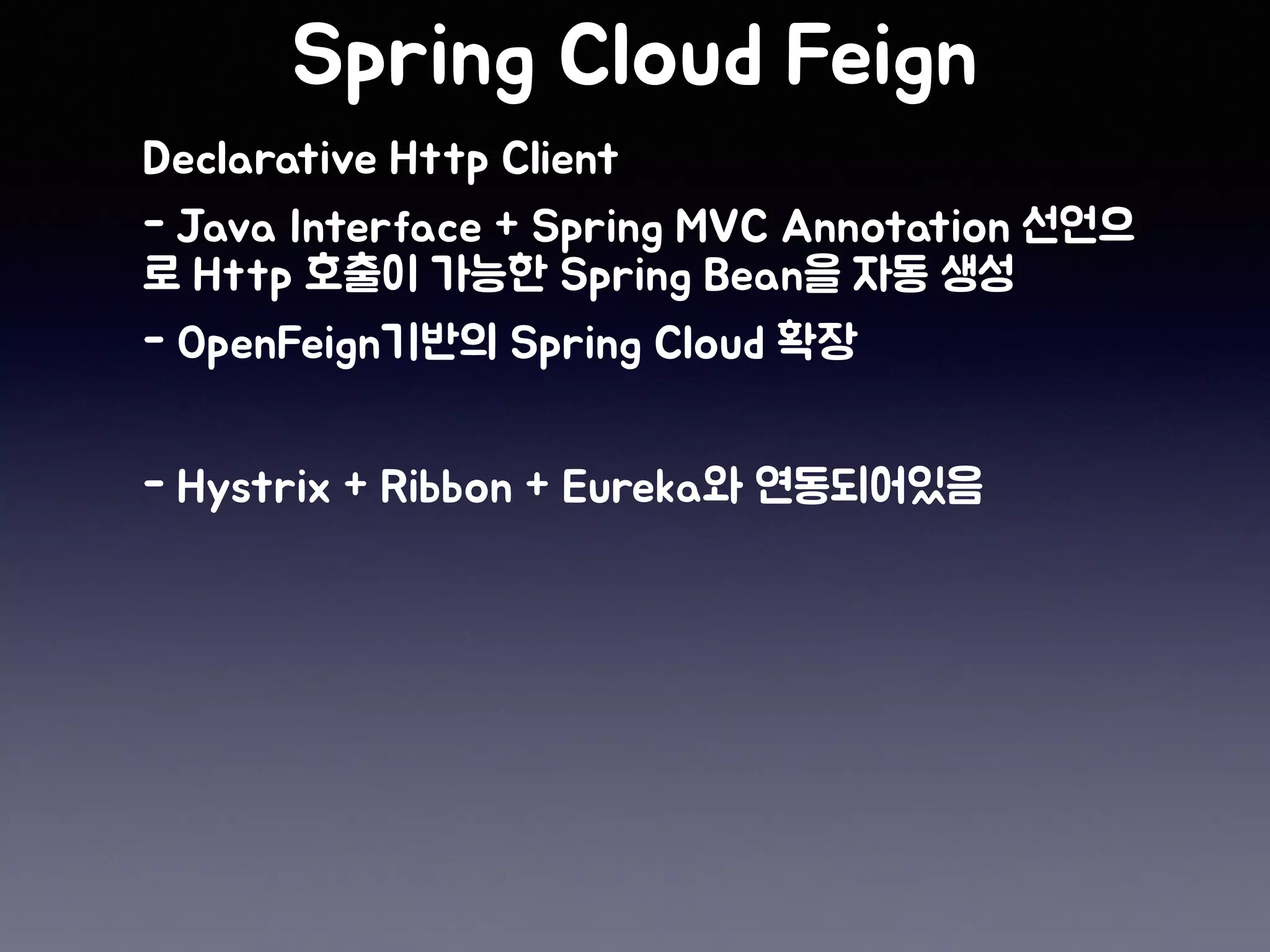

- 56. API ServerAPI ServerAPIServer WAR Front/Mobile WAS REST API Spring Cloud Zuul API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API ServerAPI ServerAPI ServerAPI ServerAPI ServerAPI Server Eureka Server API ServerAPI ServerAPI Server Hystrix + Ribbon + Eureka Spring Cloud Feign Hystrix + Eureka + Ribbon

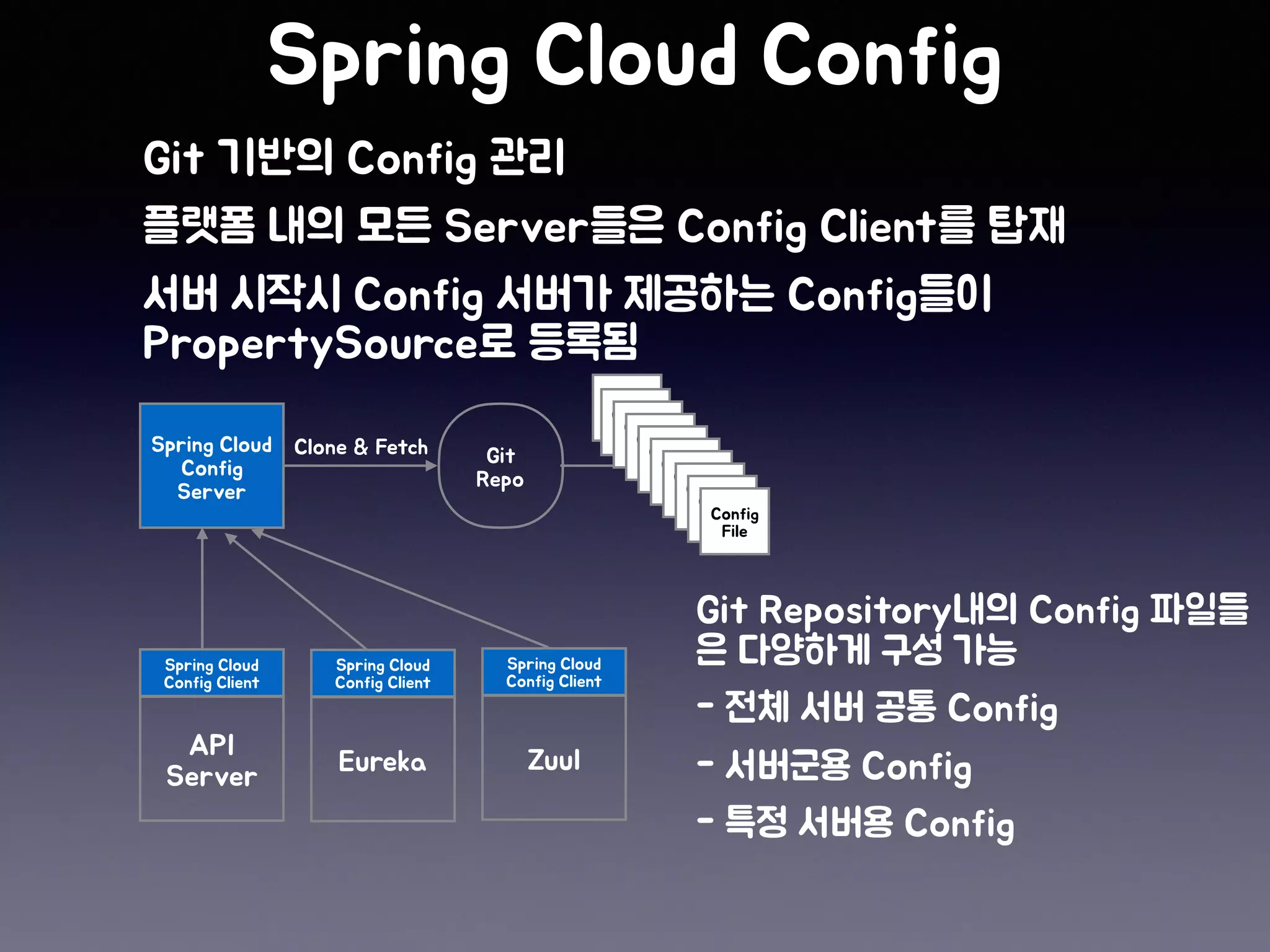

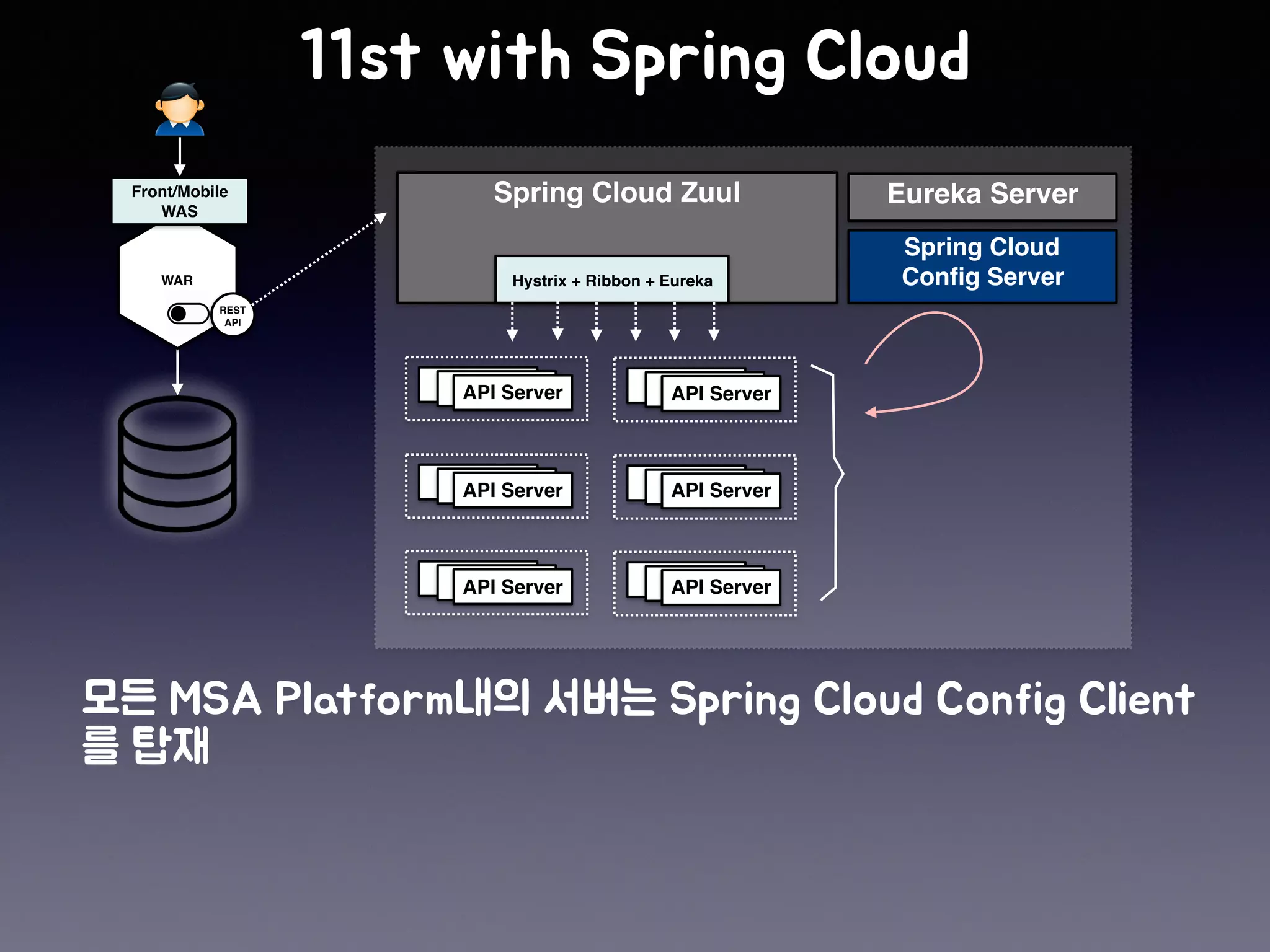

- 57. API ServerAPI ServerAPIServer WAR Front/Mobile WAS REST API Spring Cloud Zuul API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API ServerAPI ServerAPI ServerAPI ServerAPI ServerAPI Server Eureka Server API ServerAPI ServerAPI Server Hystrix + Ribbon + Eureka Spring Cloud Config Server
- 58.

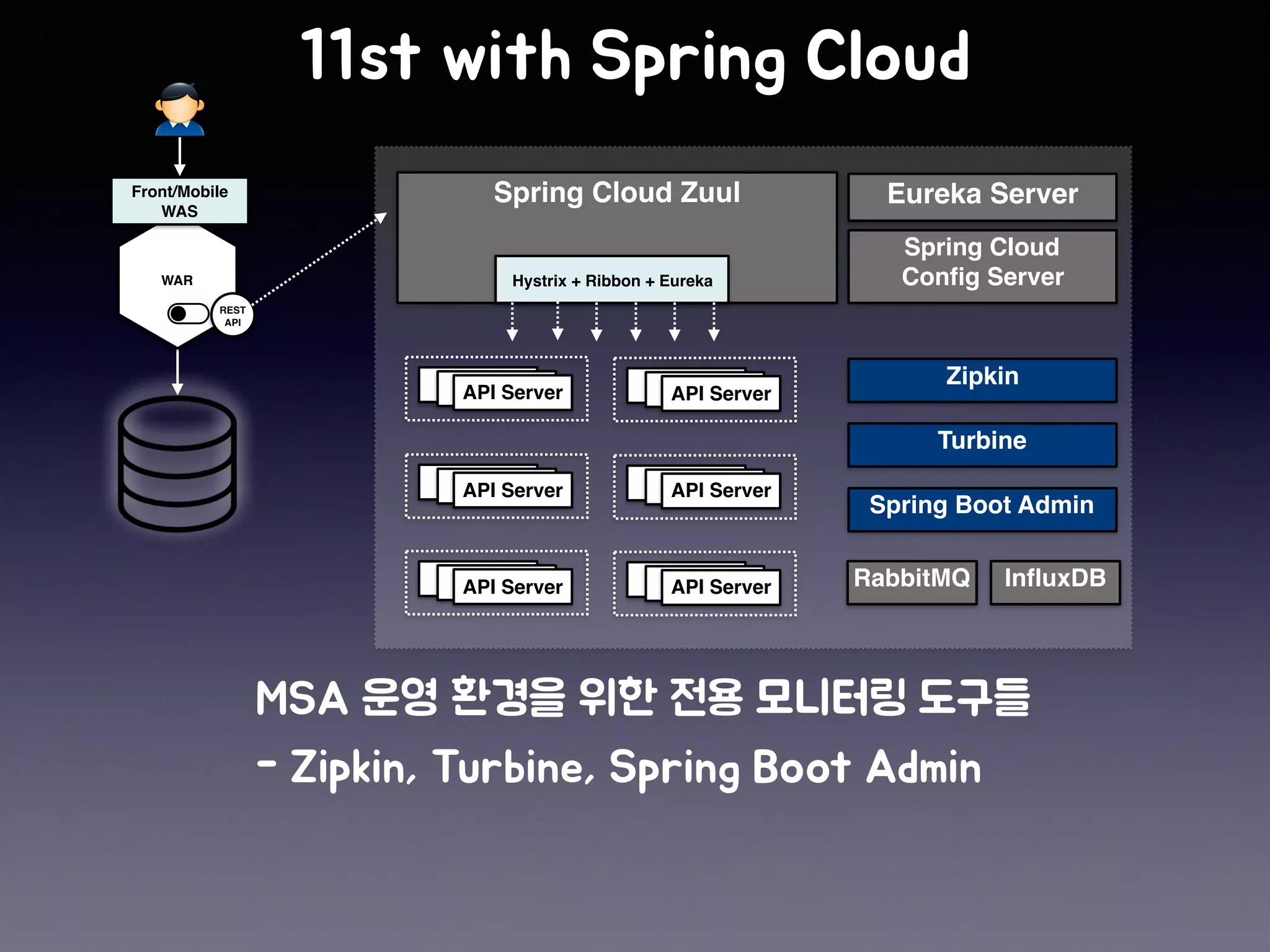

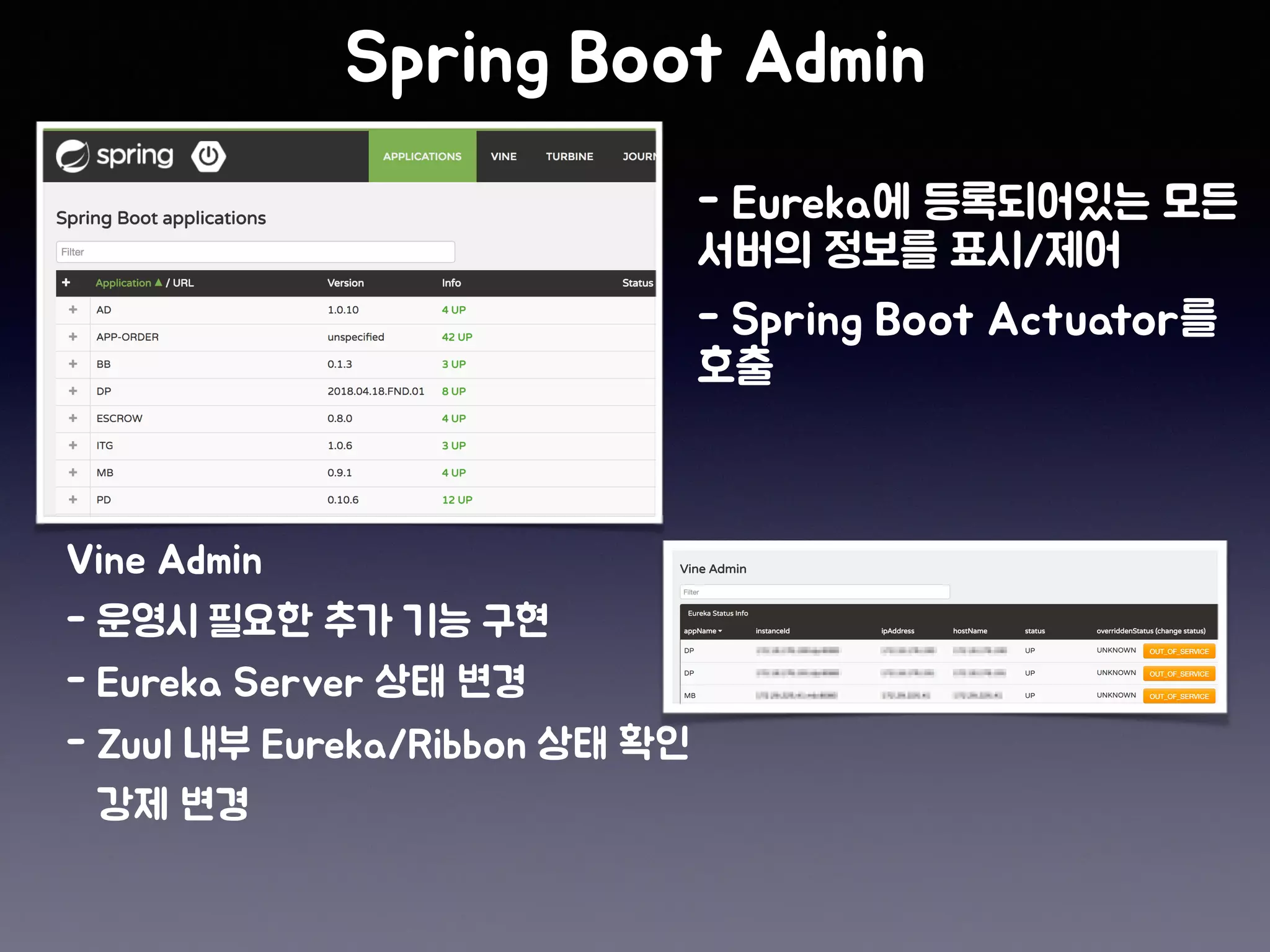

- 59. API ServerAPI ServerAPIServer WAR Front/Mobile WAS REST API Spring Cloud Zuul API ServerAPI ServerAPI Server API ServerAPI ServerAPI Server API ServerAPI ServerAPI ServerAPI ServerAPI ServerAPI Server Eureka Server API ServerAPI ServerAPI Server Hystrix + Ribbon + Eureka Spring Cloud Config Server Zipkin Turbine Spring Boot Admin RabbitMQ InfluxDB
- 60. “기존 모니터링 시스템으로는5%가 부족해 !”

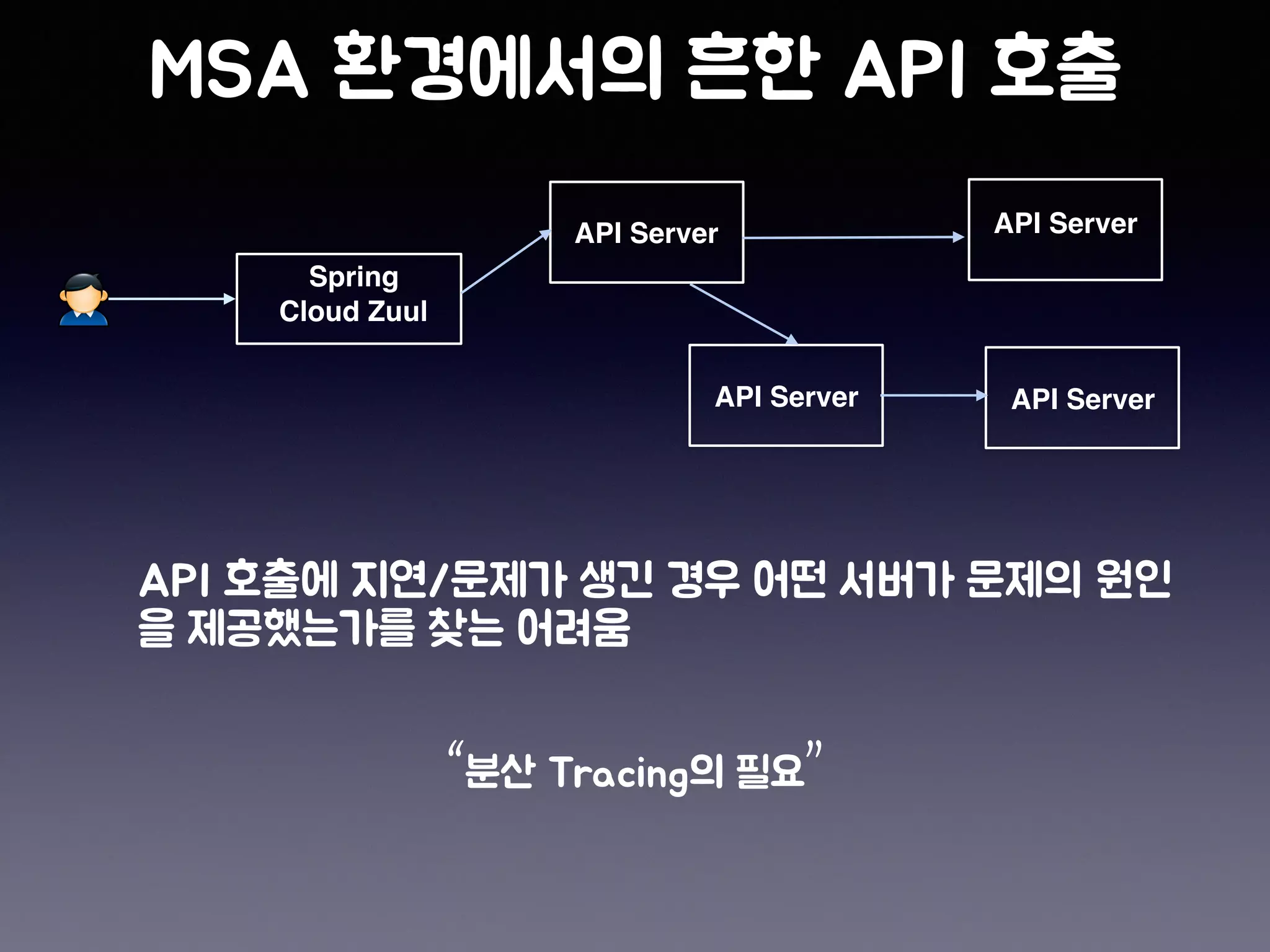

- 61. Spring Cloud Zuul API Server APIServer API Server API Server “ ”

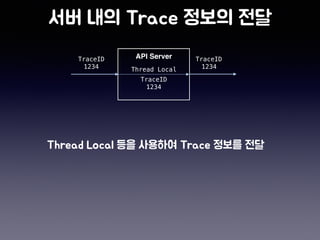

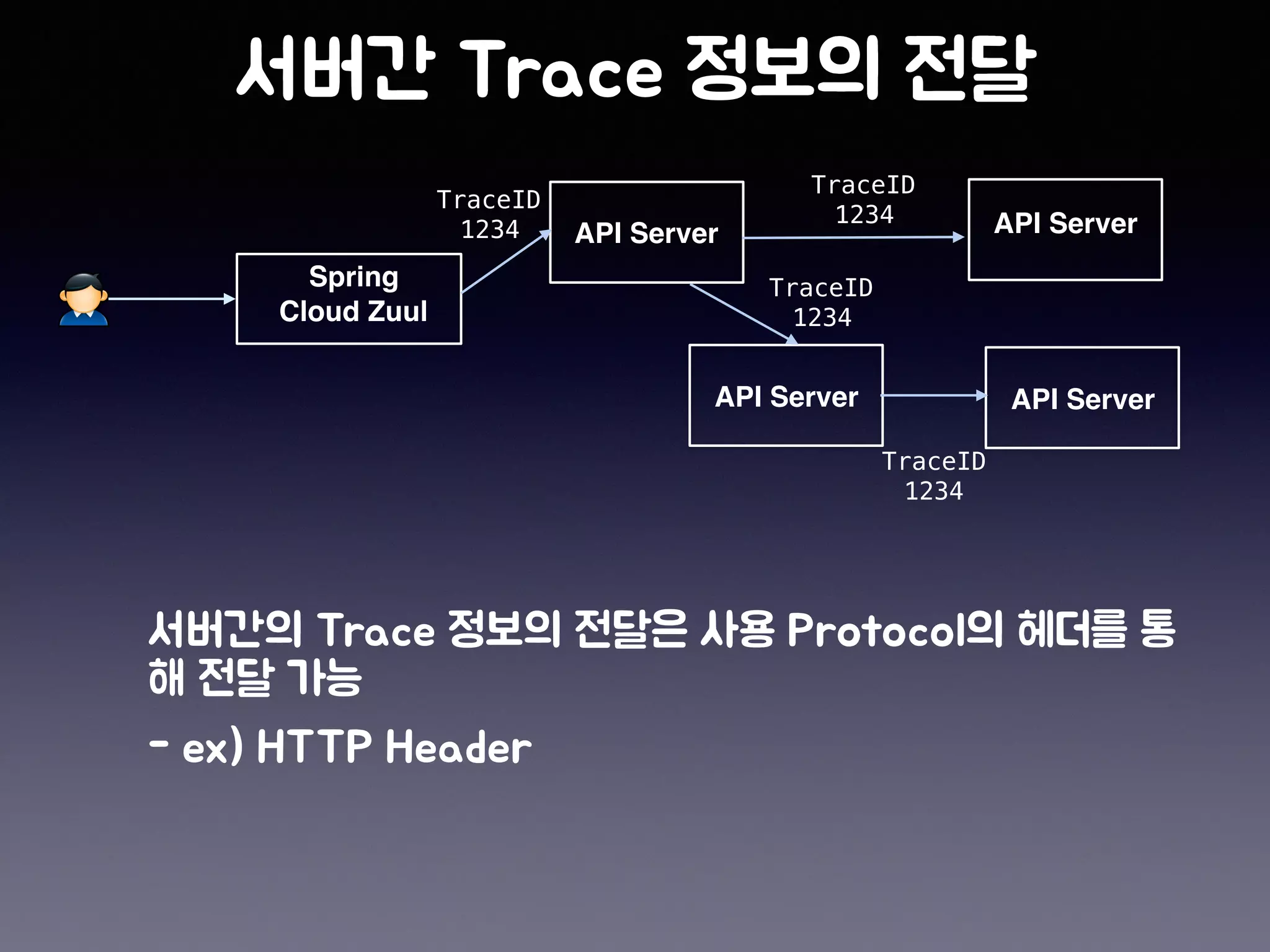

- 62. Spring Cloud Zuul API Server APIServer API Server API Server TraceID 1234 TraceID 1234 TraceID 1234 TraceID 1234
- 63.
- 64.
- 66.

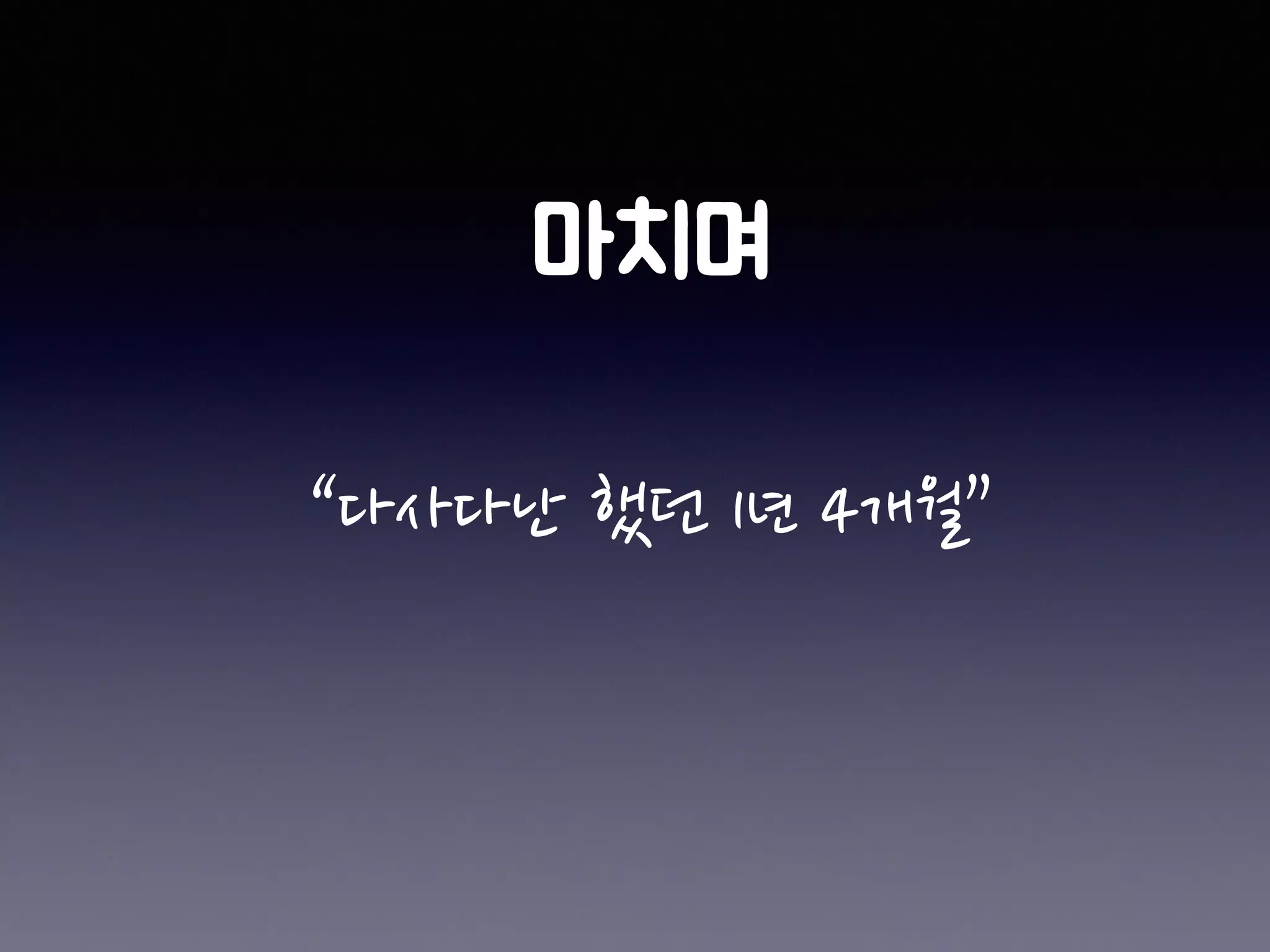

- 73. “다사다난 했던 1년4개월”
- 75.

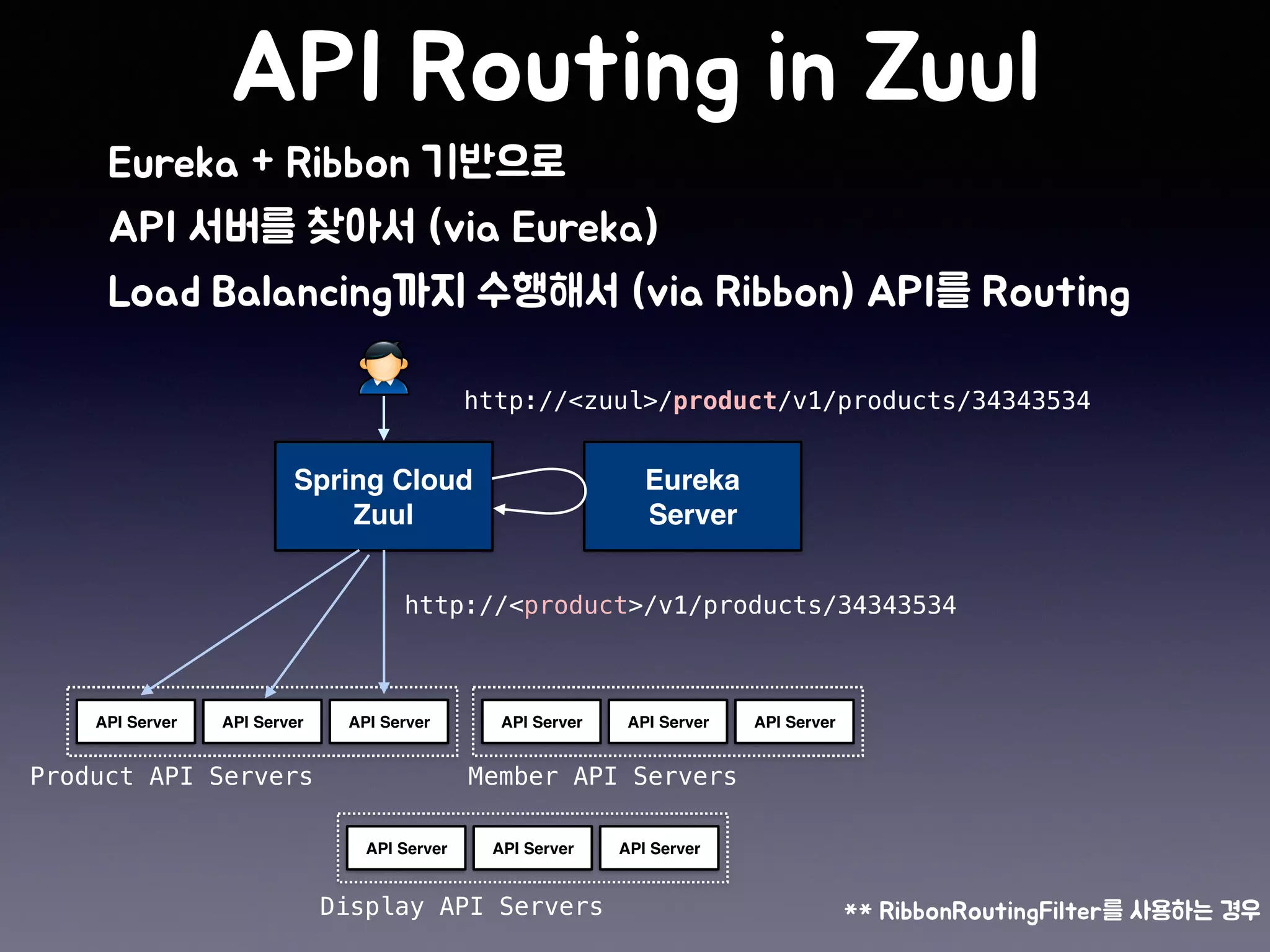

- 78. Spring Cloud Zuul http://<zuul>/product/v1/products/34343534 API ServerAPI Server API Server API Server API Server API Server API Server API Server API Server http://<product>/v1/products/34343534 Product API Servers Member API Servers Display API Servers Eureka Server

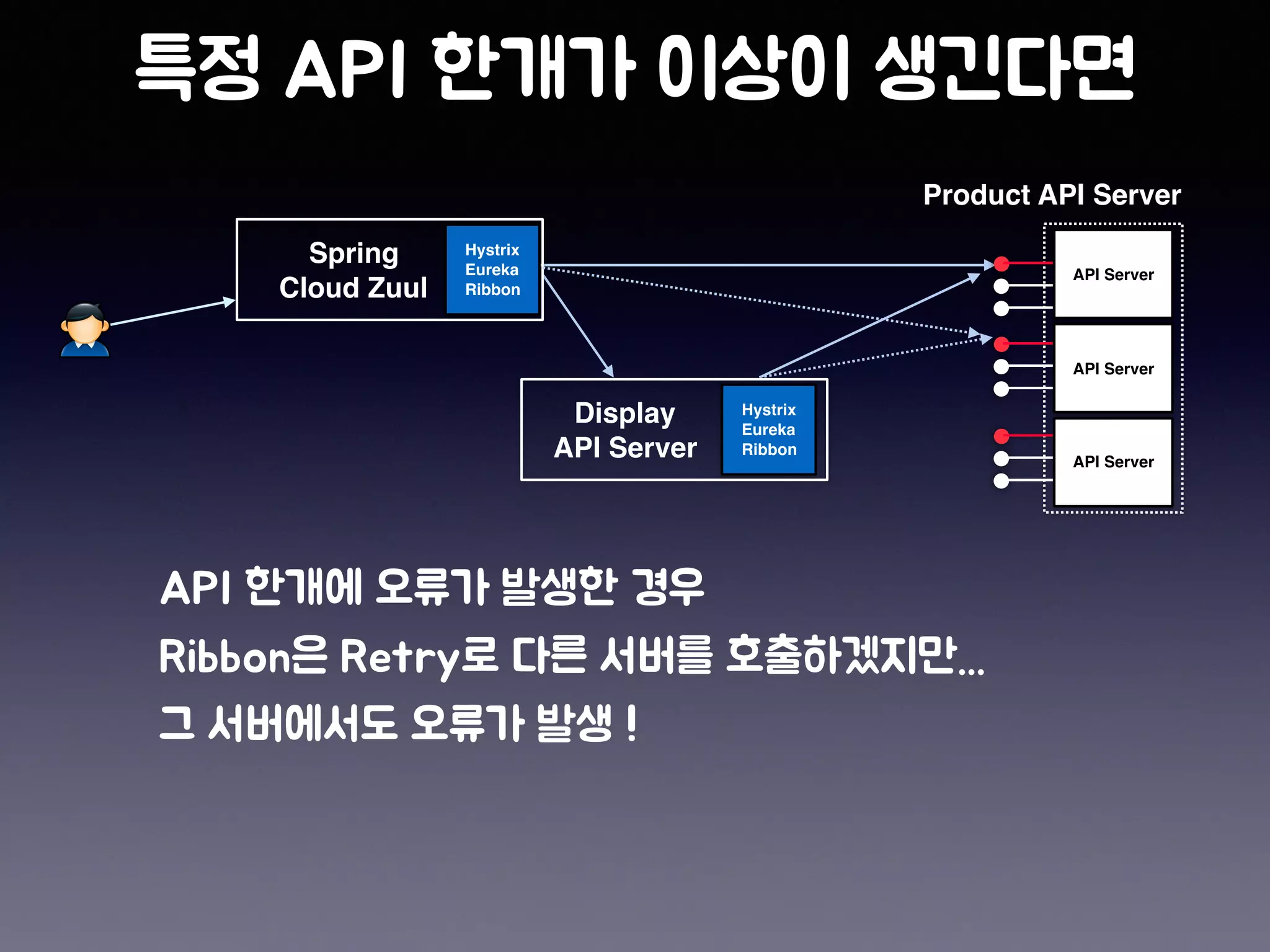

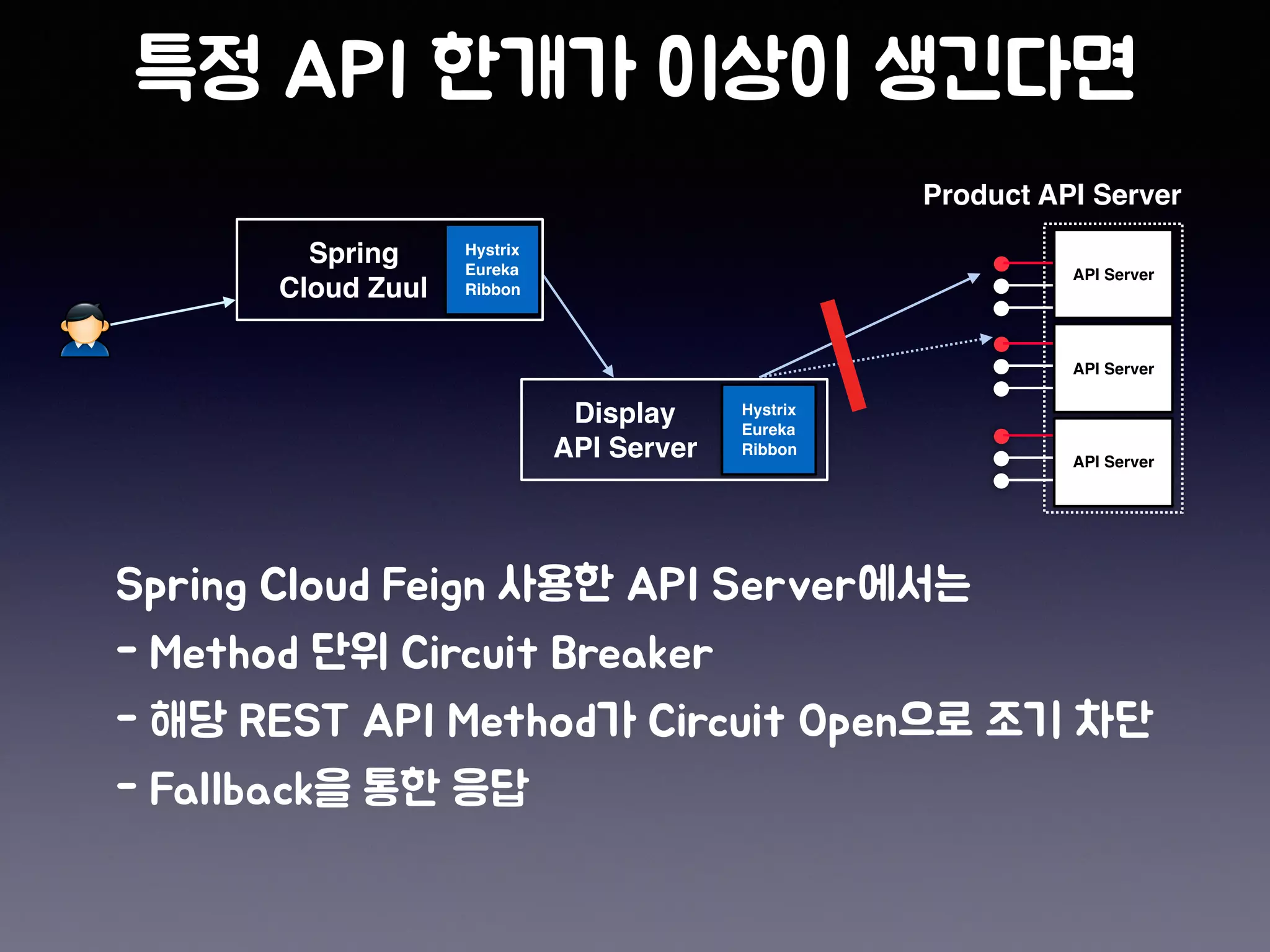

- 79. Spring Cloud Zuul Product APIServer Display API Server Hystrix Eureka Ribbon Hystrix Eureka Ribbon API Server API Server API Server
- 80. Spring Cloud Zuul Product APIServer Display API Server Hystrix Eureka Ribbon Hystrix Eureka Ribbon API Server API Server API Server

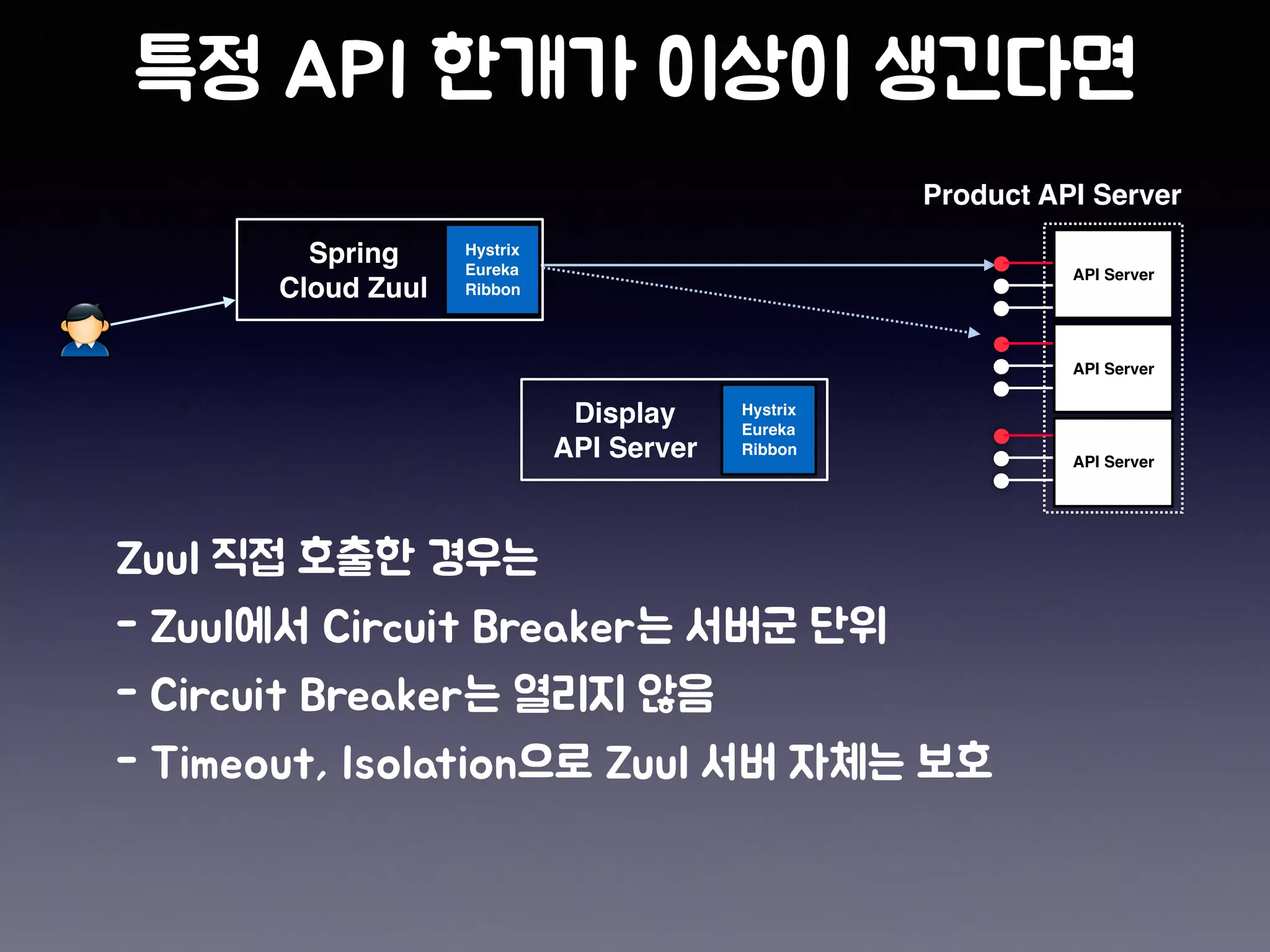

- 81. Spring Cloud Zuul Product APIServer Display API Server Hystrix Eureka Ribbon Hystrix Eureka Ribbon API Server API Server API Server
