Downloaded 110 times
![Running Spring Boot Application
93
$ mvn spring-boot:run # 혹은 ./mvnw spring-boot:run
[INFO] Scanning for projects...
[INFO] ------------------------------------------------------------------------
[INFO] Reactor Build Order:
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building ….
[INFO] ------------------------------------------------------------------------
[INFO] Downloading: https://repo.maven.apache.org/maven2/org/springframework/security/spring-security-core/maven-
metadata.xml
[INFO] Downloading: https://oss.sonatype.org/content/repositories/snapshots/org/springframework/security/spring-security-
core/maven-metadata.xml
[INFO] Downloading: https://repo.spring.io/libs-release
:
Started Application in 11.691 seconds (JVM running for 14.505)
Source code:
$ git clone https://github.com/uengine-oss/software-modeling-class-management-monolith.git](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-93-320.jpg)
![[Tip] SOAP API(WSDL)과 비교](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-97-320.jpg)
![[Tip] RestRepository와 JAX-
RS+Spring MVC 비교](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-98-320.jpg)

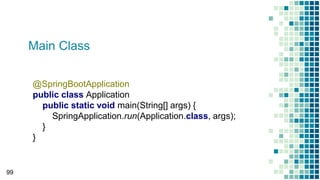

![Main Class
99
@SpringBootApplication
public class Application
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-99-320.jpg)
![Create a class of the course
102
$ http POST localhost:8080/clazzes date=“2018-12-5” course="http://localhost:8080/courses/1"
$ http "http://localhost:8080/courses/1/clazzes"
URI of the SOA course
{
"_embedded": {
"clazzes": [
{
"_links": {
"self": {
"href": "http://localhost:8080/clazzes/2"
}
},
"evaluationRate": 0,
"states": null
}
]
},
Course is aggregation root](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-102-320.jpg)

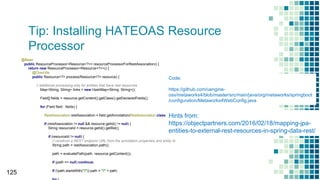

![Tip: Installing HATEOAS Resource
Processor
125
@Bean
public ResourceProcessor<Resource<?>> resourceProcessorForRestAssociation() {
return new ResourceProcessor<Resource<?>>() {
@Override
public Resource<?> process(Resource<?> resource) {
// additional processing only for entities that have rest resources
Map<String, String> links = new HashMap<String, String>();
Field[] fields = resource.getContent().getClass().getDeclaredFields();
for (Field field : fields) {
RestAssociation restAssociation = field.getAnnotation(RestAssociation.class);
if (restAssociation != null && resource.getId() != null) {
String resourceId = resource.getId().getRel();
if (resourceId != null) {
// construct a REST endpoint URL from the annotation properties and entity id
String path = restAssociation.path();
path = evaluatePath(path, resource.getContent());
if (path == null) continue;
if (!path.startsWith("/")) path = "/" + path;
Code:
https://github.com/uengine-
oss/metaworks4/blob/master/src/main/java/org/metaworks/springboot
/configuration/Metaworks4WebConfig.java
Hints from:
https://objectpartners.com/2016/02/18/mapping-jpa-
entities-to-external-rest-resources-in-spring-data-rest/](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-125-320.jpg)
![Marking Self-registration
130
@SpringCloudApplication
@EnableEurekaClient
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-130-320.jpg)
![Running an Eureka server
131
@SpringBootApplication
@EnableEurekaServer
public class RegistryServiceApplication {
public static void main(String[] args) {
….
}
}
#application.yml
server:
port: 8761
eureka:
instance:
hostname: localhost
client:
registerWithEureka: false
fetchRegistry: false
serviceUrl:
defaultZone:
http://${eureka.instance.hostname}:${server.port}/eureka/](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-131-320.jpg)

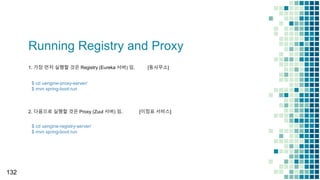

![Running Registry and Proxy
132
1. 가장 먼저 실행할 것은 Registry (Eureka 서버) 임. [동사무소]
2. 다음으로 실행할 것은 Proxy (Zuul 서버) 임. [이정표 서비스]
$ cd uengine-proxy-server/
$ mvn spring-boot:run
$ cd uengine-registry-server/
$ mvn spring-boot:run](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-132-320.jpg)

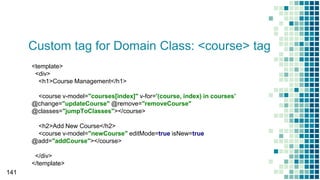

![Custom tag for Domain Class: <course> tag
141
<template>
<div>
<h1>Course Management</h1>
<course v-model="courses[index]" v-for='(course, index) in courses'
@change="updateCourse" @remove="removeCourse"
@classes="jumpToClasses"></course>
<h2>Add New Course</h2>
<course v-model="newCourse" editMode=true isNew=true
@add="addCourse"></course>
</div>
</template>](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-141-320.jpg)

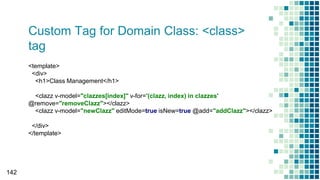

![Custom Tag for Domain Class: <class>
tag
142
<template>
<div>
<h1>Class Management</h1>
<clazz v-model="clazzes[index]" v-for='(clazz, index) in clazzes'
@remove="removeClazz"></clazz>
<clazz v-model="newClazz" editMode=true isNew=true @add="addClazz"></clazz>
</div>
</template>](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-142-320.jpg)

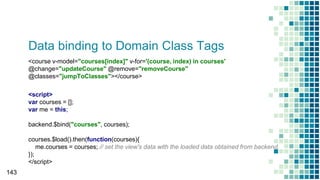

![Data binding to Domain Class Tags
143
<script>
var courses = [];
var me = this;
backend.$bind("courses", courses);
courses.$load().then(function(courses){
me.courses = courses; // set the view's data with the loaded data obtained from backend.
});
</script>
<course v-model="courses[index]" v-for='(course, index) in courses'
@change="updateCourse" @remove="removeCourse"
@classes="jumpToClasses"></course>](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-143-320.jpg)

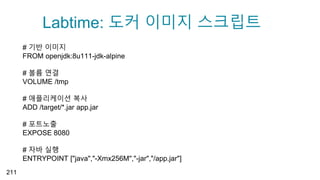

![Labtime: 도커 이미지 스크립트
# 기반 이미지
FROM openjdk:8u111-jdk-alpine
# 볼륨 연결
VOLUME /tmp
# 애플리케이션 복사
ADD /target/*.jar app.jar
# 포트노출
EXPOSE 8080
# 자바 실행
ENTRYPOINT ["java","-Xmx256M","-jar","/app.jar"]
211](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-211-320.jpg)

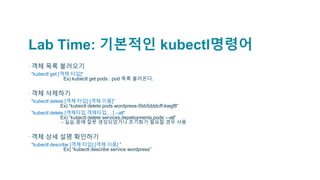

![Lab Time: 기본적인 kubectl명령어
▪객체 목록 불러오기
▫ “kubectl get [객체 타입]“
Ex) kubectl get pods : pod 목록 불러온다.
▪객체 삭제하기
▫ “kubectl delete [객체 타입] [객체 이름]”
Ex) “kubectl delete pods wordpress-5bb5dddcff-kwgf8”
▫ “kubectl delete [객체타입,객체타입,…] --all“
Ex) “kubectl delete services,depeloyments,pods –-all”
- 실습 중에 잘못 생성되었거나 초기화가 필요할 경우 사용
▪객체 상세 설명 확인하기
▫ “kubectl describe [객체 타입] [객체 이름] ”
Ex) “kubectl describe service wordpress”](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-223-320.jpg)

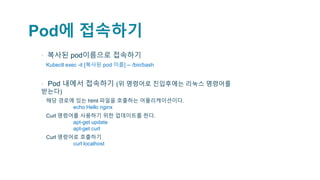

![Pod에 접속하기
▪ 복사된 pod이름으로 접속하기
▫ Kubectl exec -it [복사된 pod 이름] -- /bin/bash
▪ Pod 내에서 접속하기 (위 명령어로 진입후에는 리눅스 명령어를
받는다)
▫ 해당 경로에 있는 html 파일을 호출하는 어플리케이션이다.
echo Hello nginx
▫ Curl 명령어를 사용하기 위한 업데이트를 한다.
apt-get update
apt-get curl
▫ Curl 명령어로 호출하기
curl localhost](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-225-320.jpg)

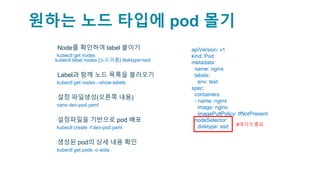

![원하는 노드 타입에 pod 몰기
▪Node를 확인하여 label 붙이기
▫kubectl get nodes
kubectl label nodes [노드이름] disktype=ssd
▪Label과 함께 노드 목록을 불러오기
▫kubectl get nodes --show-labels
▪설정 파일생성(오른쪽 내용)
▫nano dev-pod.yaml
▪설정파일을 기반으로 pod 배포
▫kubectl create -f dev-pod.yaml
▪생성된 pod의 상세 내용 확인
▫kubectl get pods -o wide
apiVersion: v1
kind: Pod
metadata:
name: nginx
labels:
env: test
spec:
containers:
- name: nginx
image: nginx
imagePullPolicy: IfNotPresent
nodeSelector:
disktype: ssd #여기가 중요](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-229-320.jpg)

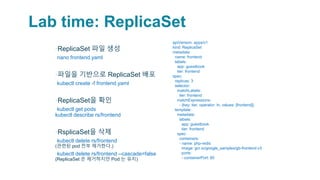

![Lab time: ReplicaSet
▪ReplicaSet 파일 생성
▫nano frontend.yaml
▪파일을 기반으로 ReplicaSet 배포
▫kubectl create -f frontend.yaml
▪ReplicaSet을 확인
▫kubectl get pods
kubectl describe rs/frontend
▪RsplicaSet을 삭제
▫kubectl delete rs/frontend
(관련된 pod 전부 제거한다.)
▫kubectl delete rs/frontend --cascade=false
(ReplicaSet 은 제거하지만 Pod 는 유지)
apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: frontend
labels:
app: guestbook
tier: frontend
spec:
replicas: 3
selector:
matchLabels:
tier: frontend
matchExpressions:
- {key: tier, operator: In, values: [frontend]}
template:
metadata:
labels:
app: guestbook
tier: frontend
spec:
containers:
- name: php-redis
image: gcr.io/google_samples/gb-frontend:v3
ports:
- containerPort: 80](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-235-320.jpg)
![Scaling
▪Deployment의 replica의 개수를 확인한다.
▫kubectl get pods
▪Deplyment의 이름을 복사한다.
▫kubectl get deployments
▪해당 Deployment의 scale 조정
▫kubectl scale deployments [deployment 이름] --replicas=3
▪변경을 확인
▫kubectl get pods](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-237-320.jpg)
![Scaling
▪Deployment의 replica의 개수를 확인한다.
▫kubectl get pods
▪Deplyment의 이름을 복사한다.
▫kubectl get deployments
▪해당 Deployment의 scale 조정
▫kubectl scale deployments [deployment 이름] --replicas=3
▪변경을 확인
▫kubectl get pods](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-257-320.jpg)
![Rolling update
▪작동중인 pod와 deployments 확인
▫kubectl get pods
kubectl get deployments
▪새로운 버전의 deployments 배포 및 배포 상태 확인
▫kubectl set image deployment/course course=gcr.io/<projectId>/course:v2
kubectl rollout status deployment/course
▪변경을 확인
▫kubectl get deployments
kubectl get pods
kubectl describe pods [pod 이름]](https://image.slidesharecdn.com/uenginemicroservicearchitecturepubliceducationv2-181219000725/85/microservice-architecture-public-education-v2-258-320.jpg)
Uploaded byuEngine Solutions
microservice architecture public education v2
This document provides an overview of cloud native application development and microservices. It includes an agenda that covers microservices and SOA, programming with microservices, domain-driven design, API design, service implementation with Spring Boot and Netflix OSS, monolith to microservices migration, service composition, and implementing a DevOps environment with Kubernetes, Istio and Gitlab. Examples are provided of Netflix's use of hundreds of microservices connected via REST APIs and Amazon's continuous delivery of over 23,000 deployments per day.
More Related Content
Similar to microservice architecture public education v2
![[OpenStack Day in Korea 2015] Track 2-2 - OpenStack for PaaS: Why it's Hot](https://cdn.slidesharecdn.com/ss_thumbnails/22-150213052039-conversion-gate02-thumbnail.jpg?width=640&height=640&fit=bounds)
![[AWSKRUG 아키텍처 모임] 세일즈부스트 인프라스트럭처 사례 공유](https://cdn.slidesharecdn.com/ss_thumbnails/awskrug20180227-180228005405-thumbnail.jpg?width=640&height=640&fit=bounds)
More from uEngine Solutions
microservice architecture public education v2
- 1. Cloud Native Application Development Copyright© 2018. Jinyoung Jang & uEngine-solutions All rights reserved.

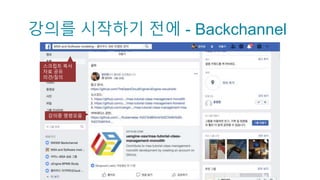

- 2. 강의를 시작하기 전에- Backchannel 스크립트 복사 자료 공유 의견/질의 강의중 명령모음

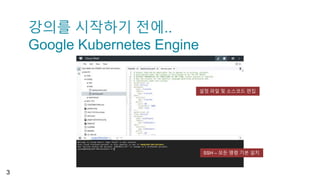

- 3. 강의를 시작하기 전에.. GoogleKubernetes Engine 3 SSH 접속 설정 파일 및 소스코드 편집 SSH – 모든 명령 기본 설치
- 4. 강의를 시작하기 전에.. GoogleKubernetes Engine 4 SSH 접속 설정 파일 및 소스코드 편집 SSH – 모든 명령 기본 설치

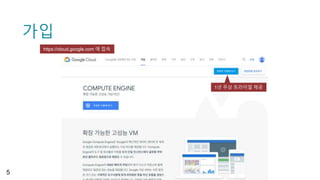

- 5. 가입 5 https://cloud.google.com 에 접속 1년무상 트라이얼 제공

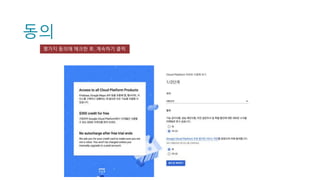

- 6. 동의 몇가지 동의에 체크한후, 계속하기 클릭
- 7. 카드입력 카드 번호 입력(유저 밸리데이션 목적)

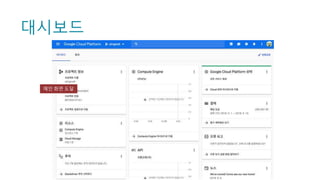

- 8.
- 9.

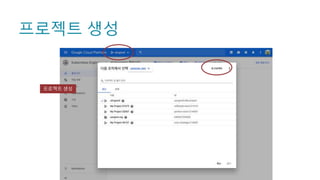

- 10. 프로젝트 생성 자동생성된 프로젝트ID 를 사용 X (“수정” 클릭) 프로젝트 ID 입력 (글로벌리 유일한 ID)

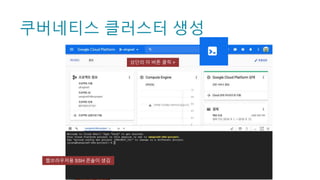

- 11. 쿠버네티스 클러스터 생성 상단의이 버튼 클릭 > 웹브라우저용 SSH 콘솔이 생김

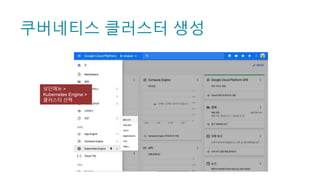

- 12. 쿠버네티스 클러스터 생성 상단메뉴> Kubernetes Engine > 클러스터 선택
- 13. 쿠버네티스 클러스터 생성 클러스터명을 적절히 주고, Zone = us-central1-a Region = us-central1 Node = 3 로 설정

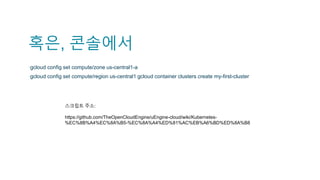

- 14. 혹은, 콘솔에서 ▪gcloud configset compute/zone us-central1-a ▪gcloud config set compute/region us-central1 gcloud container clusters create my-first-cluster 스크립트 주소: https://github.com/TheOpenCloudEngine/uEngine-cloud/wiki/Kubernetes- %EC%8B%A4%EC%8A%B5-%EC%8A%A4%ED%81%AC%EB%A6%BD%ED%8A%B8
- 15. URL for sampleproject 15 https://github.com/uengine-oss/msa-tutorial-class-management-monolith https://github.com/uengine-oss/msa-tutorial-class-management-msa https://github.com/uengine-oss/msa-tutorial-class-management-frontend

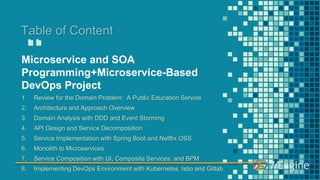

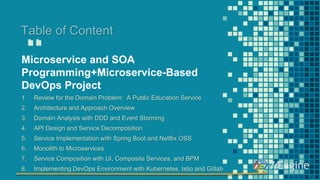

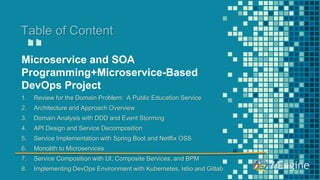

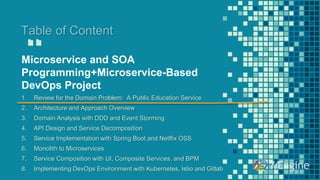

- 16. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab

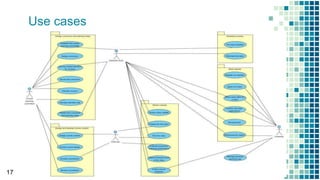

- 17.

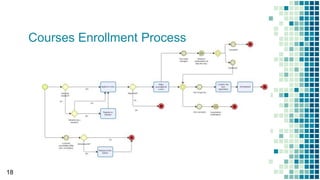

- 18.

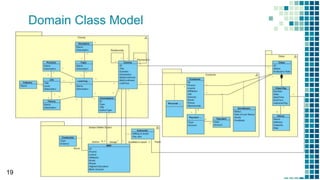

- 19.
- 20. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab

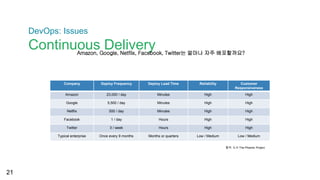

- 21. DevOps: Issues Continuous Delivery 21 CompanyDeploy Frequency Deploy Lead Time Reliability Customer Responsiveness Amazon 23,000 / day Minutes High High Google 5,500 / day Minutes High High Netflix 500 / day Minutes High High Facebook 1 / day Hours High High Twitter 3 / week Hours High High Typical enterprise Once every 9 months Months or quarters Low / Medium Low / Medium 출처: 도서 The Phoenix Project Amazon, Google, Netflix, Facebook, Twitter는 얼마나 자주 배포할까요?
- 22.

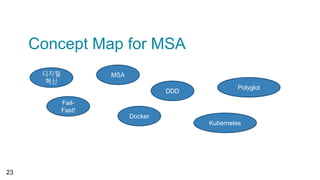

- 23. Concept Map forMSA 23 디지털 혁신 MSA Docker DDD Kubernetes Polyglot Fail- Fast!
- 24. 서비스가 죽지 않으면어떨까? 24
- 25. 항상성 (Self-Healing) 이자동으로 유지되면 어떨까? 25
- 26. 자원을 최대한 공유할수 있을까? 26
- 27. Continuous Delivery & ZeroDowntime Deployment 가 되면 어떨까? 27
- 28. 28 2. 배포 주기 •매일 마이너 업데이트 • 메이저 업데이트 (매주 화요일 오후) 3. Deployment Pipeline 출처: http://ieeexplore.ieee.org/xpl/articleDetails.jsp?arnumber=6449236 Supporting Continuous Delivery Facebook

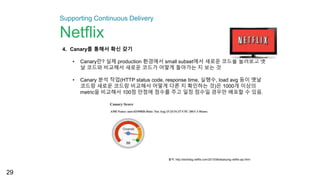

- 29. 29 4. Canary를 통해서확신 갖기 • Canary란? 실제 production 환경에서 small subset에서 새로운 코드를 돌려보고 옛 날 코드와 비교해서 새로운 코드가 어떻게 돌아가는 지 보는 것 • Canary 분석 작업(HTTP status code, response time, 실행수, load avg 등이 옛날 코드랑 새로운 코드랑 비교해서 어떻게 다른 지 확인하는 것)은 1000개 이상의 metric을 비교해서 100점 만점에 점수를 주고 일정 점수일 경우만 배포할 수 있음. 출처: http://techblog.netflix.com/2013/08/deploying-netflix-api.html Supporting Continuous Delivery Netflix
- 30. 출처 : 2010architecting for the cloud (http://www.slideshare.net/simone.brunozzi/2010-architecting-for-the-cloud-4719195) DevOps: Issues Managing Scalability
- 31.

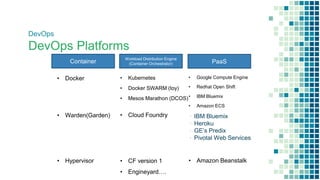

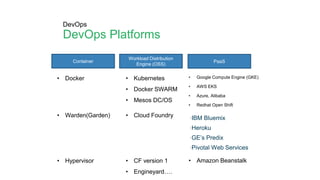

- 32. ▪IBM Bluemix ▪Heroku ▪GE’s Predix ▪PivotalWeb Services • Cloud Foundry Container Workload Distribution Engine (OSS) PaaS • Warden(Garden) • Docker • Kubernetes • Docker SWARM • Mesos DC/OS • Google Compute Engine (GKE) • AWS EKS • Azure, Alibaba • Redhat Open Shift • Hypervisor • CF version 1 • Engineyard…. • Amazon Beanstalk DevOps DevOps Platforms
- 33. Top 9 Rulesfor Cloud Applications (IBM) 33 1 1. Don't code your application directly to a specific topology 2. Don't assume the local file system is permanent 3. Don't keep session state in your application 4. Don't log to the file system 5. Don't assume any specific infrastructure dependency 6. Don't use infrastructure APIs from within your application 7. Don't use obscure protocols 8. Don't rely on OS-specific features 9. Don't manually install your application
- 34.

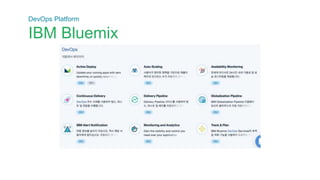

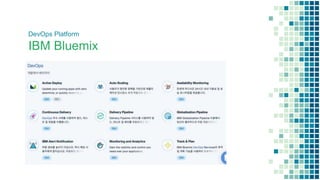

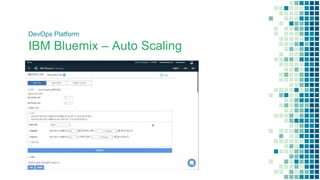

- 35. DevOps Platform IBM Bluemix– Auto Scaling
- 36. DevOps Platform IBM Bluemix– Zero Downtime Deploy

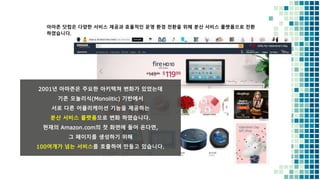

- 37. 사례: Amazon.com ▪수 천개의팀 그리고 Autonomy ▪마이크로 서비스 ▪지속적 배포 ▪다양한 플랫폼 (폴리글롯) ▪==> 연간 5천만회 배포 ▪시간당 5078회 또는 0.63초당 1회 ▪자동화된 DevOps 환경 없이는 운영불가
- 38. Monolithic Architecture 모든서비스가 한번에 재배포 한팀의 반영을 위하여 모든 팀이 대기 지속적 딜리버리가 어려워

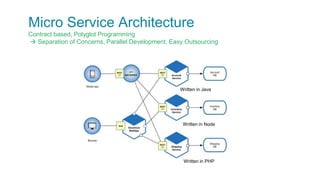

- 39. Micro Service Architecture Contractbased, Polyglot Programming Separation of Concerns, Parallel Development, Easy Outsourcing Written in Java Written in Node Written in PHP
- 40. Jeff Bezos Mandate 1.All teams will henceforth expose their data and functionality through service interfaces. 2. Teams must communicate with each other through these interfaces. 3. There will be no other form of interprocess communication allowed: no direct linking, no direct reads of another team's data store, no shared-memory model, no back-doors whatsoever. The only communication allowed is via service interface calls over the network. … 4. The team must plan and design to be able to expose the interface to developers in the outside world. No exceptions. 5. Anyone who doesn't do this will be fired. 40
- 41.

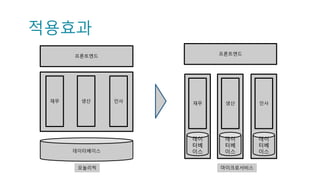

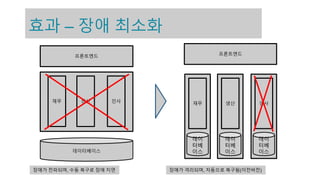

- 42. 효과 – 장애최소화 프론트엔드 데이터베이스 재무 생산 인사 프론트엔드 데이 터베 이스 재무 데이 터베 이스 생산 데이 터베 이스 인사 장애가 전파되며, 수동 복구로 장애 지연 장애가 격리되며, 자동으로 복구됨(이전버전)
- 43. Java/J2EE 프론트엔드 데이터베이스 재무 생산 인사 프론트엔드 RDB 재무 (Java/ Tomc at) RDB 생산 (Java/ Spring) RDB 인사 (.NET) 효과– 기능 확장 수익 성 분석 스키 마 체인 지 No SQL 수익 성 분석 (pytho n) 기존 코드의 수정 Big Impact 신규 마이크로서비스의 추가 Minimal Impact 자율적 기술선택(플랫폼 & 데이터레이아웃)

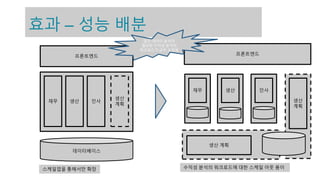

- 44. 프론트엔드 데이터베이스 재무 생산 인사 프론트엔드 재무생산 인사 효과 – 성능 배분 생산 계획 생산 계획 스케일업을 통해서만 확장 수익성 분석의 워크로드에 대한 스케일 아웃 용이 생산 계획 많은 데이터 분석이 필요한 수익성 분석의 워크로드가 급히 요청됨

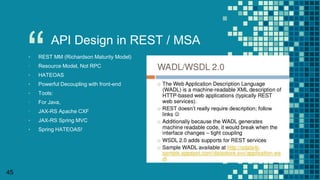

- 45. “ 45 API Design inREST / MSA ▪ REST MM (Richardson Maturity Model) ▫ Resource Model, Not RPC ▪ HATEOAS ▪ Powerful Decoupling with front-end ▪ Tools: ▫ For Java, ▫ JAX-RS Apache CXF ▪ JAX-RS Spring MVC ▪ Spring HATEOAS!
- 46.

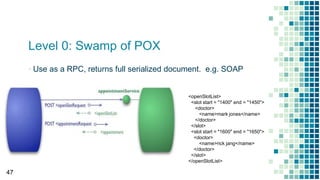

- 47. Level 0: Swampof POX ▪ Use as a RPC, returns full serialized document. e.g. SOAP 47 <openSlotList> <slot start = "1400" end = "1450"> <doctor> <name>mark jones</name> </doctor> </slot> <slot start = "1600" end = "1650"> <doctor> <name>rick jang</name> </doctor> </slot> </openSlotList>

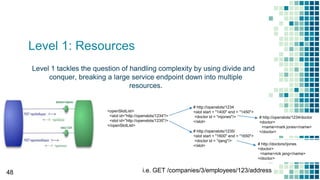

- 48. Level 1: Resources Level1 tackles the question of handling complexity by using divide and conquer, breaking a large service endpoint down into multiple resources. 48 <openSlotList> <slot id=”http://openslots/1234"/> <slot id=”http://openslots/1235"/> </openSlotList> # http://openslots/1234 <slot start = "1400" end = "1450"> <doctor id = "mjones"/> </slot> # http://openslots/1235/ <slot start = "1600" end = "1650"> <doctor id = ”rjang"/> </slot> i.e. GET /companies/3/employees/123/address # http://openslots/1234/doctor <doctor> <name>mark jones</name> </doctor> # http://doctors/rjones <doctor> <name>rick jang</name> </doctor>
- 49. Level 2: HTTPVerbs Level 2 introduces a standard set of verbs so that we handle similar situations in the same way, removing unnecessary variation. 49 Operation HTTP / REST Create PUT / POST Read (Retrieve) GET Update (Modify) PUT / PATCH Delete (Destroy) DELETE # POST http://openslots/1234 start=1400 end=1450 # PUT http://openslots/1234 start=1430 end=1450 # PATCH http://openslots/1234 end=1520 # PATCH http://openslots/1234 doctor=http://doctors/rjang # DELETE http://openslots/1234
- 50. Level 3: HypermediaControls 50 <appointment> <slot id = "1234" doctor = "mjones" start = "1400" end = "1450"/> <patient id = "jsmith"/> <link rel = "/linkrels/appointment/cancel" uri = "/slots/1234/appointment"/> <link rel = "/linkrels/appointment/addTest" uri = "/slots/1234/appointment/tests"/> <link rel = "self" uri = "/slots/1234/appointment"/> <link rel = "/linkrels/appointment/changeTime" uri = "/doctors/mjones/slots?date=20100104@status=open"/> <link rel = "/linkrels/appointment/updateContactInfo" uri = "/patients/jsmith/contactInfo"/> <link rel = "/linkrels/help" uri = "/help/appointment"/> </appointment> Level 3 introduces discoverability, providing a way of making a protocol more self- documenting. 진료예약정보 오흐 2시 오후 2시 50분 취소 검사 연락처 변경

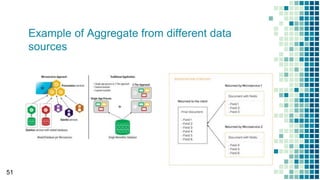

- 51. Example of Aggregatefrom different data sources 51

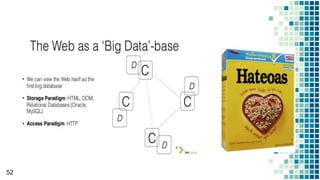

- 52. The Rest ofglory - Hateoas 52
- 53. REST API DesignGuidelines ▪ https://hackernoon.com/restful-api-designing-guidelines-the- best-practices-60e1d954e7c9 ▪ REST in Practice, Jim Webber 외 53

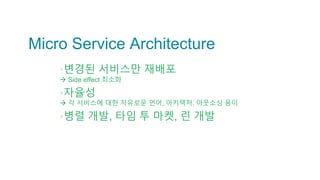

- 54. Micro Service Architecture ▪변경된서비스만 재배포 Side effect 최소화 ▪자율성 각 서비스에 대한 자유로운 언어, 아키텍처, 아웃소싱 용이 ▪병렬 개발, 타임 투 마켓, 린 개발
- 56. Netflix 넷플릭스는 수백개의 마이크로서비스를운영하고 있는 것으로 유명하다. 각 마이크로서비스간에는 REST 방식의 호출을 통하여 연동되며 이들간의 자동화된 식별과 동적 연동을 위하여 자체적인 플랫폼을 구축했고 이를 Netflix OSS 라는 이름으로 오픈소스화 하였다.
- 57. AWS 기반 마이크로서비스 전환 사례 Gaming Platform Mobile Apps and Serverless Microservices IoT Service Serverless Microservices From Monolithic to Microservices Pure Play Video OTT- A Video & Broadcasting

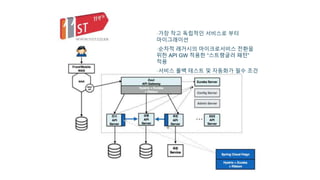

- 58. ▪가장 작고 독립적인서비스로 부터 마이그래이션 ▪순차적 레거시의 마이크로서비스 전환을 위한 API GW 적용한 “스트랭글러 패턴” 적용 ▪서비스 폴백 테스트 및 자동화가 필수 조건
- 59. ▪새로 추가/변경 필요한기능부터 분리 ▫안정된 레거시는 가능한 손대지 않음 ▫적은 리스크 업무 영역부터 ▫기술보다 노하우와 팀의 문화 정립 우선시 ▪Business Domain 단위 서비스구성 ▫팀단위 분리 X, 기술적 단위 분리 X ▫비즈니스 서브 도메인 단위로의 구성 Separation of Concerns ▫응집도 ▪서비스 존재 목적은 재사용되어지는 것 ▫표준화된 API I/F ▫자동화된 문서화
- 60. Success story &Fail story ▪ 카카오의 Digital Transformation 전략 ▫ 레퍼런스 은행의 레거시를 수정하지 않고 REST API 화 (스트랭글러) ▫ 모바일 앱 개발에만 집중 ▫ 프로젝트 기간 총 2년 내에 완성 vs. ▪ 실패사례 (찾는중, 안알려줌) ▫ 기존의 레거시를 너무 큰 단위로 그대로 도커에 올림 ▫ 장애 복구 등 Resilence 를 위한 상황에 전혀 대응하지 못함 ▫60

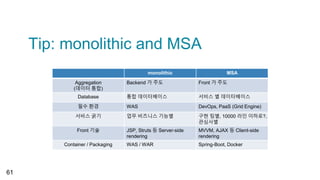

- 61. Tip: monolithic andMSA 61 monolithic MSA Aggregation (데이터 통합) Backend 가 주도 Front 가 주도 Database 통합 데이터베이스 서비스 별 데이터베이스 필수 환경 WAS DevOps, PaaS (Grid Engine) 서비스 굵기 업무 비즈니스 기능별 구현 팀별, 10000 라인 이하로?, 관심사별 Front 기술 JSP, Struts 등 Server-side rendering MVVM, AJAX 등 Client-side rendering Container / Packaging WAS / WAR Spring-Boot, Docker

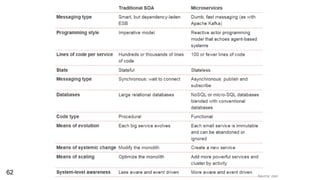

- 62.
- 63. MSA Trade-offs (fromMartin Fowler) 63
- 64.
- 65. Conclusion ▪MSA 는 성공적인SaaS 의 디자인 패턴: ▪Back-end API 설계가 중요 ▫ REST MM Level 3 – HATEOAS ▫ Aggregation of data from multi micro-services ▪MSA 를 적용하려면 작은 단위의 배포를 위한 운영 자동화 환경이 제공되어야 함 ▫ Container Orchestrator ▫ DevOps Platform 65
- 66.
- 67. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM67

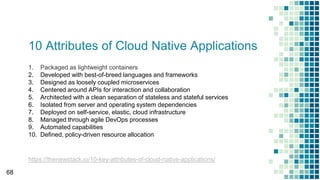

- 68. 10 Attributes ofCloud Native Applications 68 1. Packaged as lightweight containers 2. Developed with best-of-breed languages and frameworks 3. Designed as loosely coupled microservices 4. Centered around APIs for interaction and collaboration 5. Architected with a clean separation of stateless and stateful services 6. Isolated from server and operating system dependencies 7. Deployed on self-service, elastic, cloud infrastructure 8. Managed through agile DevOps processes 9. Automated capabilities 10. Defined, policy-driven resource allocation https://thenewstack.io/10-key-attributes-of-cloud-native-applications/

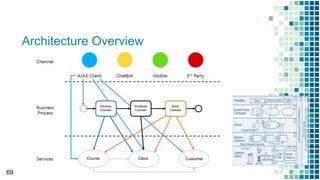

- 69.

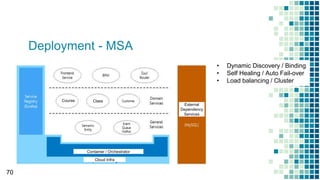

- 70. Deployment - MSA 70 •Dynamic Discovery / Binding • Self Healing / Auto Fail-over • Load balancing / Cluster Course Class Cloud Infra Container / Orchestrator External Dependency Services

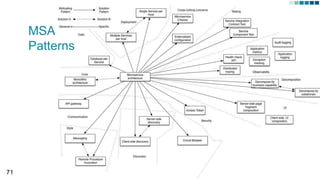

- 71.

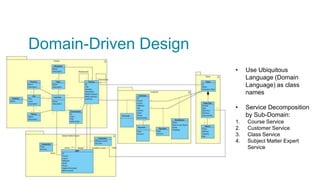

- 72. Domain-Driven Design 72 • UseUbiquitous Language (Domain Language) as class names • Service Decomposition by Sub-Domain: 1. Course Service 2. Customer Service 3. Class Service 4. Subject Matter Expert Service

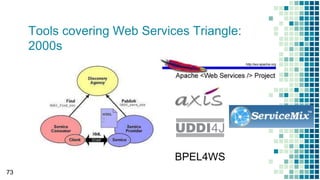

- 73. Tools covering WebServices Triangle: 2000s 73 BPEL4WS

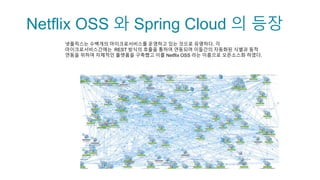

- 74. Netflix OSS 와Spring Cloud 의 등장 넷플릭스는 수백개의 마이크로서비스를 운영하고 있는 것으로 유명하다. 각 마이크로서비스간에는 REST 방식의 호출을 통하여 연동되며 이들간의 자동화된 식별과 동적 연동을 위하여 자체적인 플랫폼을 구축했고 이를 Netflix OSS 라는 이름으로 오픈소스화 하였다.

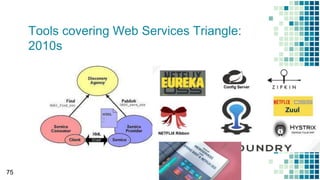

- 75. Tools covering WebServices Triangle: 2010s 75

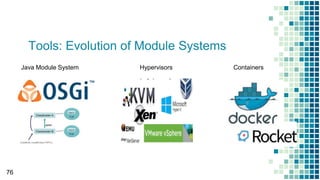

- 76. Tools: Evolution ofModule Systems 76 Java Module System Hypervisors Containers

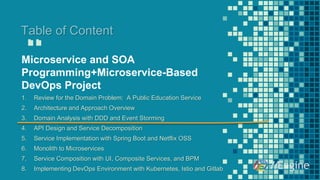

- 77. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab

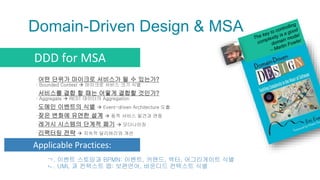

- 78. Domain-Driven Design &MSA ▫어떤 단위가 마이크로 서비스가 될 수 있는가? : Bounded Context 마이크로 서비스 크기 식별 ▫서비스를 결합 할 때는 어떻게 결합할 것인가? : Aggregate REST 데이터의 Aggregation ▫도메인 이벤트의 식별 Event-driven Architecture 도출 ▫잦은 변화에 유연한 설계 동적 서비스 발견과 연동 ▫레거시 시스템의 단계적 폐기 모더나이징 ▫리팩터링 전략 지속적 딜리버리와 개선 DDD for MSA Applicable Practices: ㄱ. 이벤트 스토밍과 BPMN: 이벤트, 커맨드, 액터, 어그리게이트 식별 ㄴ. UML 과 컨텍스트 맵: 보편언어, 바운디드 컨텍스트 식별

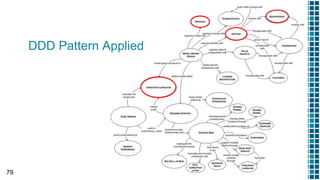

- 79.

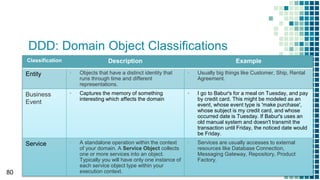

- 80. DDD: Domain ObjectClassifications 80 Classification Description Example Entity ▪ Objects that have a distinct identity that runs through time and different representations. ▪ Usually big things like Customer, Ship, Rental Agreement. Business Event ▪ Captures the memory of something interesting which affects the domain ▪ I go to Babur's for a meal on Tuesday, and pay by credit card. This might be modeled as an event, whose event type is 'make purchase', whose subject is my credit card, and whose occurred date is Tuesday. If Babur's uses an old manual system and doesn't transmit the transaction until Friday, the noticed date would be Friday. Service ▪ A standalone operation within the context of your domain. A Service Object collects one or more services into an object. Typically you will have only one instance of each service object type within your execution context. ▪ Services are usually accesses to external resources like Database Connection, Messaging Gateway, Repository, Product Factory.

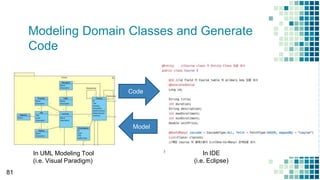

- 81. Modeling Domain Classesand Generate Code 81 Code Model In UML Modeling Tool (i.e. Visual Paradigm) In IDE (i.e. Eclipse)

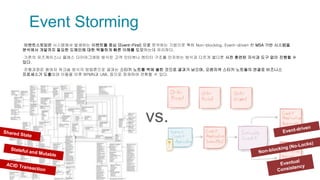

- 82. Event Storming ▪이벤트스토밍은 시스템에서발생하는 이벤트를 중심 (Event-First) 으로 분석하는 기법으로 특히 Non-blocking, Event-driven 한 MSA 기반 시스템을 분석에서 개발까지 필요한 도메인에 대한 탁월하게 빠른 이해를 도모하는데 유리하다. ▪기존의 유즈케이스나 클래스 다이어그래밍 방식은 고객 인터뷰나 엔티티 구조를 인지하는 방식과 다르게 별다른 사전 훈련된 지식과 도구 없이 진행할 수 있다. ▪진행과정은 참여자 워크숍 방식의 방법론으로 결과는 스티키 노트를 벽에 붙힌 것으로 결과가 남으며, 오랜지색 스티키 노트들의 연결로 비즈니스 프로세스가 도출되며 이들을 이후 BPMN과 UML 등으로 정재하여 전환할 수 있다. vs.

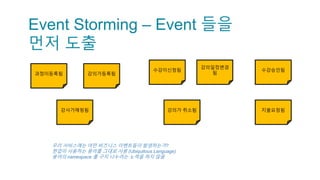

- 83. Event Storming –Event 들을 먼저 도출 과정이등록됨 강의가등록됨 강사가매핑됨 수강이신청됨 강의일정변경 됨 강의가 취소됨 수강승인됨 지불요청됨 우리 서비스에는 어떤 비즈니스 이벤트들이 발생하는가? 현업이 사용하는 용어를 그대로 사용 (Ubiquitous Language) 용어의 namespace 를 구지 나누려는 노력을 하지 않음

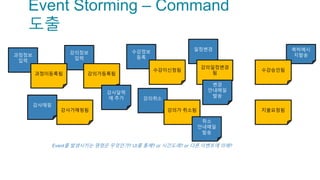

- 84. Event Storming –Command 도출 과정정보 입력 강의정보 입력 강사매핑 수강정보 등록 일정변경 Event를 발생시키는 명령은 무엇인가? UI를 통해? or 시간도래? or 다른 이벤트에 의해? 강의취소 축하메시 지발송 과정이등록됨 강의가등록됨 강사가매핑됨 수강이신청됨 강의일정변경 됨 강의가 취소됨 수강승인됨 지불요청됨 강사달력 에 추가 취소 안내메일 발송 변경 안내메일 발송

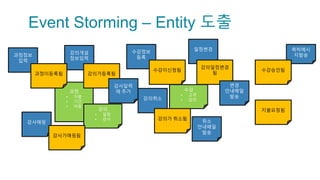

- 85. Event Storming –Entity 도출 과정 • 이름 • 기간 • 비용 강의 • 일정 • 강사 수강 • 고객 • 강의 과정정보 입력 강의개설 정보입력 강사매핑 수강정보 등록 일정변경 강의취소 축하메시 지발송 과정이등록됨 강의가등록됨 강사가매핑됨 수강이신청됨 강의일정변경 됨 강의가 취소됨 수강승인됨 지불요청됨 강사달력 에 추가 취소 안내메일 발송 변경 안내메일 발송

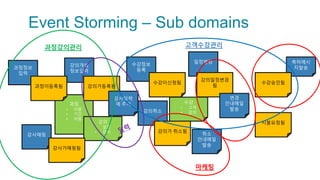

- 86. Event Storming –Sub domains 과정 • 이름 • 기간 • 비용 강의 • 일정 • 강사 수강 • 고객 • 강의 과정정보 입력 강의개설 정보입력 강사매핑 수강정보 등록 일정변경 강의취소 축하메시 지발송 과정이등록됨 강의가등록됨 강사가매핑됨 수강이신청됨 강의일정변경 됨 강의가 취소됨 수강승인됨 지불요청됨 강사달력 에 추가 취소 안내메일 발송 변경 안내메일 발송 과정강의관리 고객수강관리 마케팅
- 87. 변화관리, 우선순위 도출 매트릭스 ▪스트랭글러 ▪ 우선순위 매트릭스 ▪ 기존 로그 / 문제 수집 기존 이슈트래커부터 확인필요 ▪ 87
- 88. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab
- 89. Service Implementation ▪ Youhave Powerful Tool: Domain-Driven Design and Spring Boot / Spring Data REST ▪ Domain Classes : Entity or Value Object ▪ Resources can be bound to Repositories Full HATEOAS service can be generated! ▪ Services can be implemented with Resource model firstly ▪ Low-level JAX-RS can be used if not applicable above 89
- 90. Domain-Driven Design andSpring 90 Well-designed MSADDD
- 91. Spring Boot: AMSA Chassis 91 • Simple Java (POJO) • Minimal Understanding Of Frameworks and Platforms (Using Annotations) • No Server-side GUI rendering (Only Exposes REST Service) • No WAS deployment required (Code is server; Tomcat embedded) • No XML-based Configuration Main Application Domain Classes Services and Repositories Settings

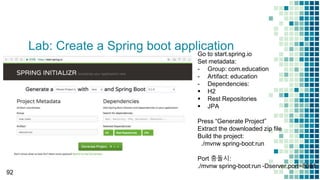

- 92. Lab: Create aSpring boot application 92 Go to start.spring.io Set metadata: - Group: com.education - Artifact: education - Dependencies: H2 Rest Repositories JPA Press “Generate Project” Extract the downloaded zip file Build the project: ./mvnw spring-boot:run Port 충돌시: ./mvnw spring-boot:run -Dserver.port=8081
- 93. Running Spring BootApplication 93 $ mvn spring-boot:run # 혹은 ./mvnw spring-boot:run [INFO] Scanning for projects... [INFO] ------------------------------------------------------------------------ [INFO] Reactor Build Order: [INFO] [INFO] ------------------------------------------------------------------------ [INFO] Building …. [INFO] ------------------------------------------------------------------------ [INFO] Downloading: https://repo.maven.apache.org/maven2/org/springframework/security/spring-security-core/maven- metadata.xml [INFO] Downloading: https://oss.sonatype.org/content/repositories/snapshots/org/springframework/security/spring-security- core/maven-metadata.xml [INFO] Downloading: https://repo.spring.io/libs-release : Started Application in 11.691 seconds (JVM running for 14.505) Source code: $ git clone https://github.com/uengine-oss/software-modeling-class-management-monolith.git

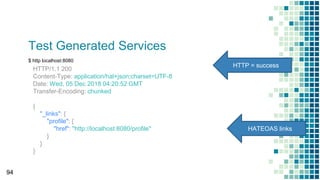

- 94. Test Generated Services 94 $http localhost:8080 HATEOAS links HTTP/1.1 200 Content-Type: application/hal+json;charset=UTF-8 Date: Wed, 05 Dec 2018 04:20:52 GMT Transfer-Encoding: chunked { "_links": { "profile": { "href": "http://localhost:8080/profile" } } } HTTP = success

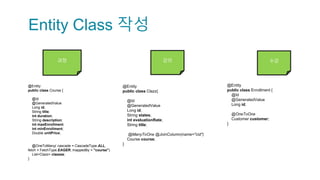

- 95. Entity Class 작성 과정강의 수강 @Entity public class Clazz{ @Id @GeneratedValue Long id; String states; int evaluationRate; String title; @ManyToOne @JoinColumn(name="cid") Course course; } @Entity public class Course { @Id @GeneratedValue Long id; String title; int duration; String description; int maxEnrollment; int minEnrollment; Double unitPrice; @OneToMany( cascade = CascadeType.ALL, fetch = FetchType.EAGER, mappedBy = "course") List<Clazz> clazzes; } @Entity public class Enrollment { @Id @GeneratedValue Long id; @OneToOne Customer customer; }

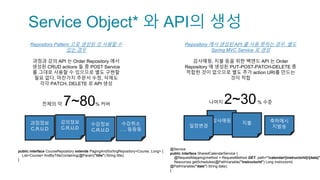

- 96. Service Object* 와API의 생성 Repository Pattern 으로 생성된 것 사용할 수 있는 경우 과정과 강의 API 는 Order Repository 에서 생성된 CRUD actions 들 중 POST Service 를 그대로 사용할 수 있으므로 별도 구현할 필요 없다. 마찬가지 주문서 수정, 삭제도 각각 PATCH, DELETE 로 API 생성 전체의 약 7~80% 커버 Repository 에서 생성된 API 를 사용 못하는 경우, 별도 Spring MVC Service 로 생성 강사매핑, 지불 등을 위한 백엔드 API 는 Order Repository 에 생성된 PUT-POST-PATCH-DELETE 중 적합한 것이 없으므로 별도 추가 action URI를 만드는 것이 적합 나머지 2~30% 수준 @Service public interface SharedCalendarService { @RequestMapping(method = RequestMethod.GET, path="/calendar/{instructorId}/{date}" Resources getSchedules(@PathVariable("instructorId") Long instructorId, @PathVariable("date") String date); } public interface CourseRepository extends PagingAndSortingRepository<Course, Long> { List<Course> findByTitleContaining(@Param("title") String title); } 과정정보 C.R.U.D 강의정보 C.R.U.D 강사매핑 수강정보 C.R.U.D 일정변경수강취소 …. 등등등 지불 축하메시 지발송
- 97.
- 98.
- 99. Main Class 99 @SpringBootApplication public classApplication public static void main(String[] args) { SpringApplication.run(Application.class, args); } }

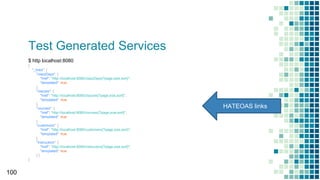

- 100. Test Generated Services 100 $http localhost:8080 { "_links": { "clazzDays": { "href": "http://localhost:8080/clazzDays{?page,size,sort}", "templated": true }, "clazzes": { "href": "http://localhost:8080/clazzes{?page,size,sort}", "templated": true }, "courses": { "href": "http://localhost:8080/courses{?page,size,sort}", "templated": true }, "customers": { "href": "http://localhost:8080/customers{?page,size,sort}", "templated": true }, "instructors": { "href": "http://localhost:8080/instructors{?page,size,sort}", "templated": true } } } HATEOAS links

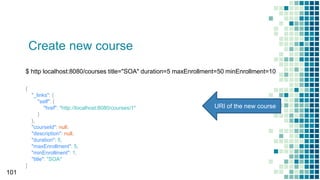

- 101. Create new course 101 $http localhost:8080/courses title="SOA" duration=5 maxEnrollment=50 minEnrollment=10 { "_links": { "self": { "href": "http://localhost:8080/courses/1" } }, "courseId": null, "description": null, "duration": 5, "maxEnrollment": 5, "minEnrollment": 1, "title": "SOA" } URI of the new course

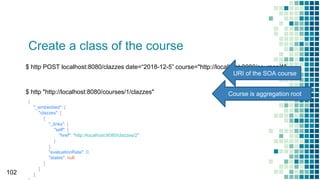

- 102. Create a classof the course 102 $ http POST localhost:8080/clazzes date=“2018-12-5” course="http://localhost:8080/courses/1" $ http "http://localhost:8080/courses/1/clazzes" URI of the SOA course { "_embedded": { "clazzes": [ { "_links": { "self": { "href": "http://localhost:8080/clazzes/2" } }, "evaluationRate": 0, "states": null } ] }, Course is aggregation root

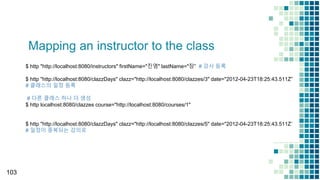

- 103. Mapping an instructorto the class 103 $ http "http://localhost:8080/instructors" firstName="진영" lastName="장” # 강사 등록 $ http "http://localhost:8080/clazzDays" clazz="http://localhost:8080/clazzes/3" date="2012-04-23T18:25:43.511Z” # 클래스의 일정 등록 # 다른 클래스 하나 더 생성 $ http localhost:8080/clazzes course="http://localhost:8080/courses/1" $ http "http://localhost:8080/clazzDays" clazz="http://localhost:8080/clazzes/5" date="2012-04-23T18:25:43.511Z” # 일정이 중복되는 강의로

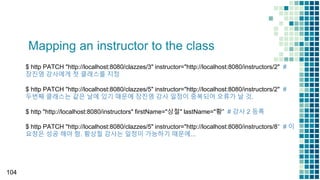

- 104. Mapping an instructorto the class 104 $ http PATCH "http://localhost:8080/clazzes/3" instructor="http://localhost:8080/instructors/2" # 장진영 강사에게 첫 클래스를 지정 $ http PATCH "http://localhost:8080/clazzes/5" instructor="http://localhost:8080/instructors/2" # 두번째 클래스는 같은 날에 있기 때문에 장진영 강사 일정이 중복되어 오류가 날 것. $ http "http://localhost:8080/instructors" firstName="상철" lastName="황” # 강사 2 등록 $ http PATCH "http://localhost:8080/clazzes/5" instructor="http://localhost:8080/instructors/8" # 이 요청은 성공 해야 함. 황상철 강사는 일정이 가능하기 때문에...
- 105. Enroll in theclass and approve the enrollment 105 $ http localhost:8080/customers firstName="진영" lastName="장" #수강생 회원 등록 $ http localhost:8080/enrollments clazz="http://localhost:8080/clazzes/2" customer="http://localhost:8080/customers/3" #수강 예약 $ http "http://localhost:8080/customers/3/enrollments" #수강 목록 조회 $ http PATCH "http://localhost:8080/enrollments/4" status="approved" #수강 승인

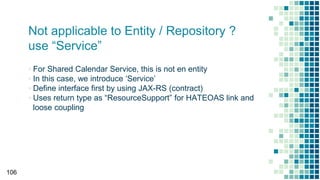

- 106. Not applicable toEntity / Repository ? use “Service” ▪ For Shared Calendar Service, this is not en entity ▪ In this case, we introduce ‘Service’ ▪ Define interface first by using JAX-RS (contract) ▪ Uses return type as “ResourceSupport” for HATEOAS link and loose coupling 106

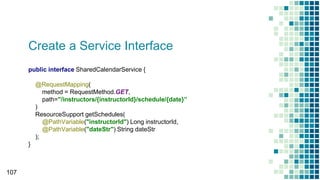

- 107. Create a ServiceInterface 107 public interface SharedCalendarService { @RequestMapping( method = RequestMethod.GET, path="/instructors/{instructorId}/schedule/{date}” ) ResourceSupport getSchedules( @PathVariable("instructorId") Long instructorId, @PathVariable("dateStr") String dateStr ); }

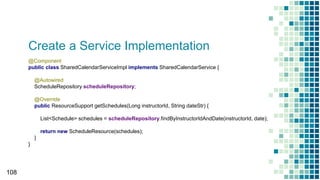

- 108. Create a ServiceImplementation 108 @Component public class SharedCalendarServiceImpl implements SharedCalendarService { @Autowired ScheduleRepository scheduleRepository; @Override public ResourceSupport getSchedules(Long instructorId, String dateStr) { List<Schedule> schedules = scheduleRepository.findByInstructorIdAndDate(instructorId, date); return new ScheduleResource(schedules); } }

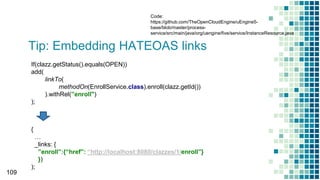

- 109. Tip: Embedding HATEOASlinks 109 If(clazz.getStatus().equals(OPEN)) add( linkTo( methodOn(EnrollService.class).enroll(clazz.getId()) ).withRel(”enroll") ); { … _links: { ”enroll”:{“href”: “http://localhost:8080/clazzes/1/enroll”} }) ); Code: https://github.com/TheOpenCloudEngine/uEngine5- base/blob/master/process- service/src/main/java/org/uengine/five/service/InstanceResource.java

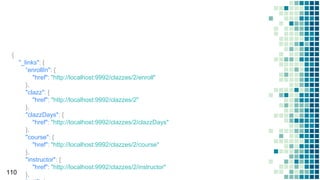

- 110. 110 { "_links": { “enrollIn": { "href":"http://localhost:9992/clazzes/2/enroll" }, "clazz": { "href": "http://localhost:9992/clazzes/2" }, "clazzDays": { "href": "http://localhost:9992/clazzes/2/clazzDays" }, "course": { "href": "http://localhost:9992/clazzes/2/course" }, "instructor": { "href": "http://localhost:9992/clazzes/2/instructor" },

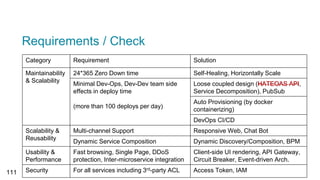

- 111. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM111 HATEOAS API
- 112. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab

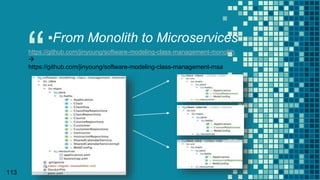

- 113. “ ▪From Monolith toMicroservices 113 https://github.com/jinyoung/software-modeling-class-management-monolith https://github.com/jinyoung/software-modeling-class-management-msa

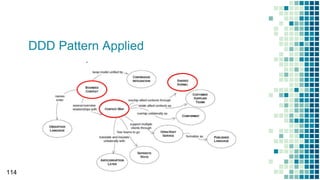

- 114.
- 115. A Sub-domain =A Microservice = A Spring Boot App 115 Source: Alpha Code: https://www.youtube.com/channel/UCmbnw2hZFf6JzWICZIPe9cg
- 116. Example of ContextMap ▪ U: Up-stream ▪ D: Down-stream ▪ AR: Aggregation Root 116

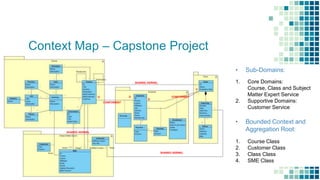

- 117. Context Map –Capstone Project 117 • Sub-Domains: 1. Core Domains: Course, Class and Subject Matter Expert Service 2. Supportive Domains: Customer Service • Bounded Context and Aggregation Root: 1. Course Class 2. Customer Class 3. Class Class 4. SME Class SHARED KERNEL CONFORMIST SHARED KERNEL SHARED KERNEL U D U D CONFORMIST

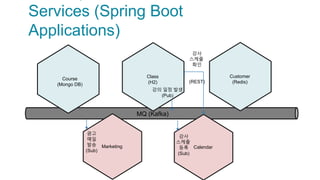

- 118. Services (Spring Boot Applications) Course (MongoDB) Marketing Class (H2) Customer (Redis) Calendar 강사 스케쥴 확인 (REST) 강사 스케쥴 등록 (Sub) 강의 일정 발생 (Pub) MQ (Kafka) 광고 메일 발송 (Sub)

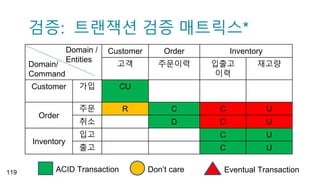

- 119. 검증: 트랜잭션 검증매트릭스* Customer Order Inventory 고객 주문이력 입출고 이력 재고량 Customer 가입 CU Order 주문 R C C U 취소 D C U Inventory 입고 C U 출고 C U 119 ACID Transaction Don’t care Eventual Transaction Domain / Entities Domain/ Command

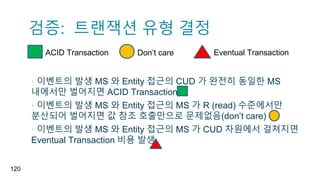

- 120. 검증: 트랜잭션 유형결정 120 ACID Transaction Don’t care Eventual Transaction ▪ 이벤트의 발생 MS 와 Entity 접근의 CUD 가 완전히 동일한 MS 내에서만 벌어지면 ACID Transaction ▪ 이벤트의 발생 MS 와 Entity 접근의 MS 가 R (read) 수준에서만 분산되어 벌어지면 값 참조 호출만으로 문제없음(don’t care) ▪ 이벤트의 발생 MS 와 Entity 접근의 MS 가 CUD 차원에서 걸쳐지면 Eventual Transaction 비용 발생

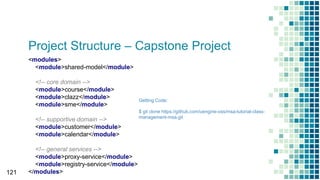

- 121. Project Structure –Capstone Project 121 <modules> <module>shared-model</module> <!-- core domain --> <module>course</module> <module>clazz</module> <module>sme</module> <!-- supportive domain --> <module>customer</module> <module>calendar</module> <!-- general services --> <module>proxy-service</module> <module>registry-service</module> </modules> Getting Code: $ git clone https://github.com/uengine-oss/msa-tutorial-class- management-msa.git

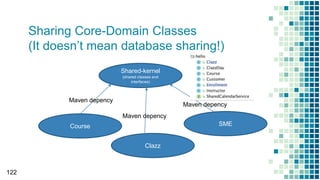

- 122. Sharing Core-Domain Classes (Itdoesn’t mean database sharing!) 122 Shared-kernel (shared classes and interfaces) Course Clazz SME Maven depency Maven depency Maven depency
- 123. Problems in separatingservices in Spring-data-rest: ▪ JPA Association (i.e. ManyToOne) annotations are not available for generating HATEOAS links anymore if the associated class doesn’t have it’s Repository in the same application. ▪ We need to create HATEOAS link by our-selves for every associations, that is so cumbersome and error-prone. ▪ Let’s Develop a new annotation for RestAssocation! 123

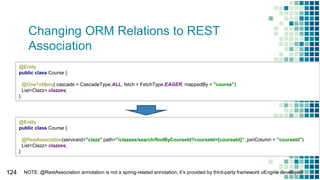

- 124. Changing ORM Relationsto REST Association 124 @Entity public class Course { @OneToMany( cascade = CascadeType.ALL, fetch = FetchType.EAGER, mappedBy = "course") List<Clazz> clazzes; } @Entity public class Course { @RestAssociation(serviceId="clazz" path="/clazzes/search/findByCourseId?courseId={courseId}", joinColumn = "courseId") List<Clazz> clazzes; } NOTE: @RestAssociation annotation is not a spring-related annotation, it’s provided by third-party framework uEngine developed
- 125. Tip: Installing HATEOASResource Processor 125 @Bean public ResourceProcessor<Resource<?>> resourceProcessorForRestAssociation() { return new ResourceProcessor<Resource<?>>() { @Override public Resource<?> process(Resource<?> resource) { // additional processing only for entities that have rest resources Map<String, String> links = new HashMap<String, String>(); Field[] fields = resource.getContent().getClass().getDeclaredFields(); for (Field field : fields) { RestAssociation restAssociation = field.getAnnotation(RestAssociation.class); if (restAssociation != null && resource.getId() != null) { String resourceId = resource.getId().getRel(); if (resourceId != null) { // construct a REST endpoint URL from the annotation properties and entity id String path = restAssociation.path(); path = evaluatePath(path, resource.getContent()); if (path == null) continue; if (!path.startsWith("/")) path = "/" + path; Code: https://github.com/uengine- oss/metaworks4/blob/master/src/main/java/org/metaworks/springboot /configuration/Metaworks4WebConfig.java Hints from: https://objectpartners.com/2016/02/18/mapping-jpa- entities-to-external-rest-resources-in-spring-data-rest/
- 126. Loose coupling: HATEOASlinks are changed but same usage in API! ▪ Changing URI patterns doesn’t matter! ▪ From consumer’s point of view (i.e. UIs, 3rd-party apps), following the links, results are always same 126 $ http localhost:8088/courses/1 { "_links": { ”clazzes": { "href": "http://localhost:8088/courses/1/clazzes" “http://localhost:8089/clazzes/findByCourseId?courseId=1” } }, "maxEnrollment": 5, "minEnrollment": 1, "title": "SOA" }

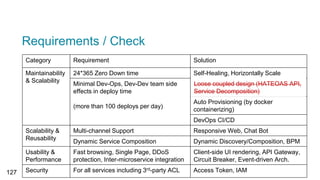

- 127. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM127 Loose coupled design (HATEOAS API, Service Decomposition)

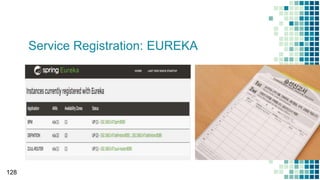

- 128.
- 129. Microservice registration configuration 129 #application.yml spring: application: name:clazz eureka: client: serviceUrl: defaultZone: http://localhost:8761/eureka/ healthcheck: enabled: true Who Am I 부트업 되면서 출생신고할 동사무소(유레카) 주소

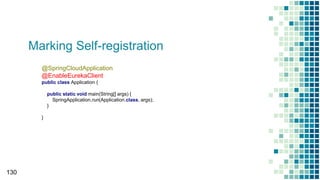

- 130. Marking Self-registration 130 @SpringCloudApplication @EnableEurekaClient public classApplication { public static void main(String[] args) { SpringApplication.run(Application.class, args); } }
- 131. Running an Eurekaserver 131 @SpringBootApplication @EnableEurekaServer public class RegistryServiceApplication { public static void main(String[] args) { …. } } #application.yml server: port: 8761 eureka: instance: hostname: localhost client: registerWithEureka: false fetchRegistry: false serviceUrl: defaultZone: http://${eureka.instance.hostname}:${server.port}/eureka/
- 132. Running Registry andProxy 132 1. 가장 먼저 실행할 것은 Registry (Eureka 서버) 임. [동사무소] 2. 다음으로 실행할 것은 Proxy (Zuul 서버) 임. [이정표 서비스] $ cd uengine-proxy-server/ $ mvn spring-boot:run $ cd uengine-registry-server/ $ mvn spring-boot:run

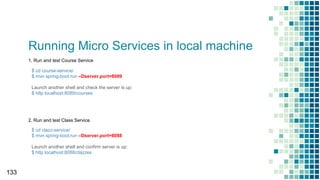

- 133. Running Micro Servicesin local machine 133 2. Run and test Class Service 1. Run and test Course Service $ cd clazz-service/ $ mvn spring-boot:run –Dserver.port=8088 Launch another shell and confirm server is up: $ http localhost:8088/clazzes $ cd course-service/ $ mvn spring-boot:run –Dserver.port=8089 Launch another shell and check the server is up: $ http localhost:8089/courses
- 134. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab

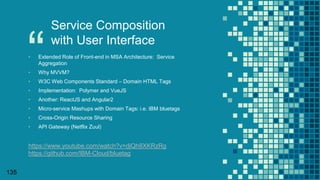

- 135. “ 135 Service Composition with UserInterface ▪ Extended Role of Front-end in MSA Architecture: Service Aggregation ▪ Why MVVM? ▪ W3C Web Components Standard – Domain HTML Tags ▪ Implementation: Polymer and VueJS ▪ Another: ReactJS and Angular2 ▪ Micro-service Mashups with Domain Tags: i.e. IBM bluetags ▪ Cross-Origin Resource Sharing ▪ API Gateway (Netflix Zuul) https://www.youtube.com/watch?v=djQh8XKRzRg https://github.com/IBM-Cloud/bluetag
- 136. 아마존 닷컴은 다양한서비스 제공과 효율적인 운영 환경 전환을 위해 분산 서비스 플랫폼으로 전환 하였습니다. 2001년 아마존은 주요한 아키텍쳐 변화가 있었는데 기존 모놀리식(Monolitic) 기반에서 서로 다른 어플리케이션 기능을 제공하는 분산 서비스 플랫폼으로 변화 하였습니다. 현재의 Amazon.com의 첫 화면에 들어 온다면, 그 페이지를 생성하기 위해 100여개가 넘는 서비스를 호출하여 만들고 있습니다.

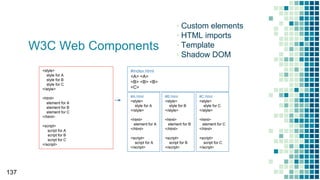

- 137. W3C Web Components 137 <style> stylefor A style for B style for C </style> <html> element for A element for B element for C </html> <script> script for A script for B script for C </script> #A.html <style> style for A </style> <html> element for A </html> <script> script for A </script> #B.html <style> style for B </style> <html> element for B </html> <script> script for B </script> #C.html <style> style for C </style> <html> element for C </html> <script> script for C </script> #index.html <A> <A> <B> <B> <B> <C> ▪ Custom elements ▪ HTML imports ▪ Template ▪ Shadow DOM

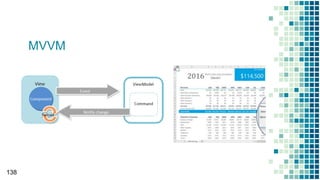

- 138.

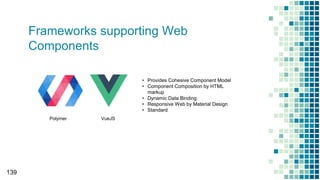

- 139. Frameworks supporting Web Components 139 •Provides Cohesive Component Model • Component Composition by HTML markup • Dynamic Data Binding • Responsive Web by Material Design • Standard Polymer VueJS

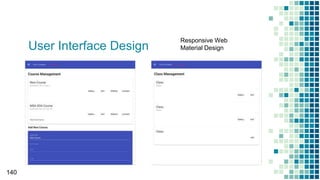

- 140. User Interface Design 140 ResponsiveWeb Material Design
- 141. Custom tag forDomain Class: <course> tag 141 <template> <div> <h1>Course Management</h1> <course v-model="courses[index]" v-for='(course, index) in courses' @change="updateCourse" @remove="removeCourse" @classes="jumpToClasses"></course> <h2>Add New Course</h2> <course v-model="newCourse" editMode=true isNew=true @add="addCourse"></course> </div> </template>
- 142. Custom Tag forDomain Class: <class> tag 142 <template> <div> <h1>Class Management</h1> <clazz v-model="clazzes[index]" v-for='(clazz, index) in clazzes' @remove="removeClazz"></clazz> <clazz v-model="newClazz" editMode=true isNew=true @add="addClazz"></clazz> </div> </template>
- 143. Data binding toDomain Class Tags 143 <script> var courses = []; var me = this; backend.$bind("courses", courses); courses.$load().then(function(courses){ me.courses = courses; // set the view's data with the loaded data obtained from backend. }); </script> <course v-model="courses[index]" v-for='(course, index) in courses' @change="updateCourse" @remove="removeCourse" @classes="jumpToClasses"></course>

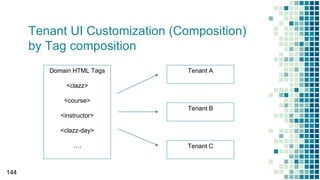

- 144. Tenant UI Customization(Composition) by Tag composition 144 Domain HTML Tags <clazz> <course> <instructor> <clazz-day> …. Tenant A Tenant B Tenant C
- 145. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM145

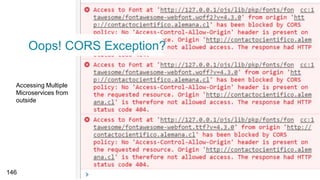

- 146. 146 Oops! CORS Exception? AccessingMultiple Microservices from outside
- 147. 147 API Gateway: EdgeService Acting like “Skin” to access our services : • Re-Routes to multiple services • Allows CORS • Checks ACLs • Prevent DDOS etc.
- 148. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM148

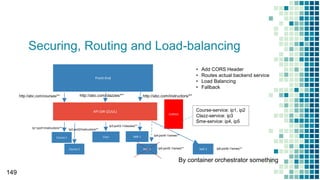

- 149. Securing, Routing andLoad-balancing 149 Front-End API GW (ZUUL) Clazz SME 1Course 1 EUREKA http://abc.com/courses/** http://abc.com/clazzes/** http://abc.com/instructors/** Course-service: ip1, ip2 Clazz-service: ip3 Sme-service: ip4, ip5 Course 2 SME 2 Ip1:port1/instructors/** Ip2:port2/instructors/** Ip3:port3-1/clazzes/** Ip4:port4-1/smes/** Ip5:port5-1/smes/** • Add CORS Header • Routes actual backend service • Load Balancing • Fallback SME 3 Ip6:port6-1/smes/** By container orchestrator something
- 150. 150 Configuring Netflix Zuul #application.yml(Spring Cloud) zuul: routes: courses: path: /courses/** serviceId: course stripPrefix: false clazzes: path: /clazzes/** serviceId: clazz stripPrefix: false #application.yml (kube-DNS) zuul: routes: courses: path: /courses/** url: http://class-course:8080 stripPrefix: false clazzes: path: /clazzes/** url: http://class-course:8080 stripPrefix: false

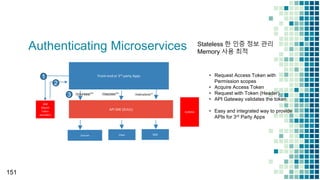

- 151. Authenticating Microservices 151 Front-end or3rd-party Apps API GW (ZUUL) Clazz SMECourse EUREKA /courses/** /clazzes/** /instructors/** IAM (Oauth token provider) 1 2 3 • Request Access Token with Permission scopes • Acquire Access Token • Request with Token (Header) • API Gateway validates the token • Easy and integrated way to provide APIs for 3rd Party Apps Stateless 한 인증 정보 관리 Memory 사용 최적

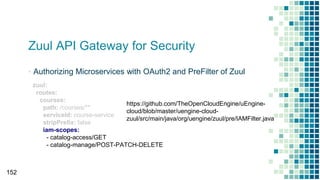

- 152. 152 Zuul API Gatewayfor Security ▪ Authorizing Microservices with OAuth2 and PreFilter of Zuul zuul: routes: courses: path: /courses/** serviceId: course-service stripPrefix: false iam-scopes: - catalog-access/GET - catalog-manage/POST-PATCH-DELETE https://github.com/TheOpenCloudEngine/uEngine- cloud/blob/master/uengine-cloud- zuul/src/main/java/org/uengine/zuul/pre/IAMFilter.java

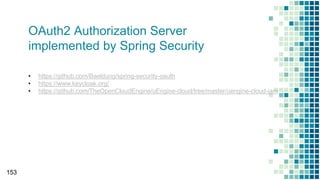

- 153. 153 OAuth2 Authorization Server implementedby Spring Security • https://github.com/Baeldung/spring-security-oauth • https://www.keycloak.org/ • https://github.com/TheOpenCloudEngine/uEngine-cloud/tree/master/uengine-cloud-iam
- 154. 154 Exposing New APIs ▪Exposing New API from existing microservices ▪ For more complicated services, BPM can be another option zuul: routes: courses: path: /courses/** serviceId: course-service stripPrefix: false iam-scopes: - catalog-access/GET - catalog-manage/POST-PATCH-DELETE

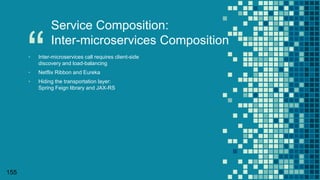

- 155. “ 155 Service Composition: Inter-microservices Composition ▪Inter-microservices call requires client-side discovery and load-balancing ▪ Netflix Ribbon and Eureka ▪ Hiding the transportation layer: Spring Feign library and JAX-RS

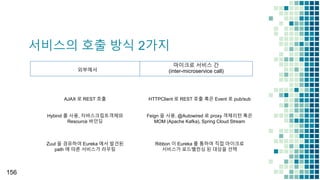

- 156. 서비스의 호출 방식2가지 ▪ 외부에서 156 마이크로 서비스 간 (inter-microservice call) HTTPClient 로 REST 호출 혹은 Event 로 pub/sub Feign 을 사용, @Autowired 로 proxy 객체리턴 혹은 MOM (Apache Kafka), Spring Cloud Stream Ribbon 이 Eureka 를 통하여 직접 마이크로 서비스가 로드밸런싱 된 대상을 선택 AJAX 로 REST 호출 Hybind 를 사용, 자바스크립트객체와 Resource 바인딩 Zuul 을 경유하여 Eureka 에서 발견된 path 에 따른 서비스가 라우팅
- 157. Inter-microservices Call 157 Front-end API GW(ZUUL) ScheduleCalendar Clazz Course EUREKA Course: ip1, ip2 Clazz: ip3 ScheduleCalendar: ip4, ip5 Ribbon Zuul 을 경유하지 않고 직접 내부 IP 로 접근

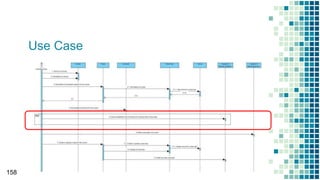

- 158.

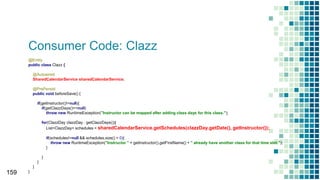

- 159. Consumer Code: Clazz 159 @Entity publicclass Clazz { @Autowired SharedCalendarService sharedCalendarService; @PrePersist public void beforeSave() { if(getInstructor()!=null){ if(getClazzDays()==null) throw new RuntimeException("Instructor can be mapped after adding class days for this class."); for(ClazzDay clazzDay : getClazzDays()){ List<ClazzDay> schedules = sharedCalendarService.getSchedules(clazzDay.getDate(), getInstructor()); if(schedules!=null && schedules.size() > 0){ throw new RuntimeException("Instructor " + getInstructor().getFirstName() + " already have another class for that time slot."); } } } } }

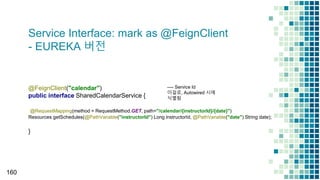

- 160. Service Interface: markas @FeignClient - EUREKA 버전 160 ---- Service Id 이걸로, Autowired 시에 식별됨 @FeignClient("calendar") public interface SharedCalendarService { @RequestMapping(method = RequestMethod.GET, path="/calendar/{instructorId}/{date}") Resources getSchedules(@PathVariable("instructorId") Long instructorId, @PathVariable("date") String date); }
- 161. Service Interface: markas @FeignClient - Kube-DNS 버전 161 ---- url 이 부여되면 우선으로 url 을 직접호출함 @FeignClient(name = "calendar-service”, url=“http://calendar-service:8080”) public interface SharedCalendarService { @RequestMapping(method = RequestMethod.GET, path="/calendar/{instructorId}/{date}") Resources getSchedules(@PathVariable("instructorId") Long instructorId, @PathVariable("date") String date); }
- 162. Event Publish /Subscribe (PubSub) 162 Course Clazz Shared Calendar pub (과정기획일정, 2018-3-5) pub (강의일정, 2018-3-6) Event Queue (i.e. Apache Kafka) sub 2018-3-6 OOO OOO 2018-3-5 XXX XXXXX ….

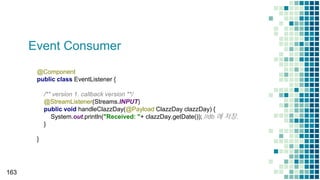

- 163. Event Consumer 163 @Component public classEventListener { /** version 1. callback version **/ @StreamListener(Streams.INPUT) public void handleClazzDay(@Payload ClazzDay clazzDay) { System.out.println("Received: "+ clazzDay.getDate()); //db 에 저장. } }

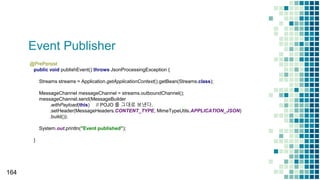

- 164. Event Publisher 164 @PrePersist public voidpublishEvent() throws JsonProcessingException { Streams streams = Application.getApplicationContext().getBean(Streams.class); MessageChannel messageChannel = streams.outboundChannel(); messageChannel.send(MessageBuilder .withPayload(this) // POJO 를 그대로 보낸다. .setHeader(MessageHeaders.CONTENT_TYPE, MimeTypeUtils.APPLICATION_JSON) .build()); System.out.println("Event published"); }

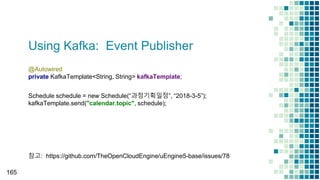

- 165. Using Kafka: EventPublisher 165 @Autowired private KafkaTemplate<String, String> kafkaTemplate; Schedule schedule = new Schedule(“과정기획일정”, “2018-3-5”); kafkaTemplate.send("calendar.topic", schedule); 참고: https://github.com/TheOpenCloudEngine/uEngine5-base/issues/78
- 166. Using Kafka: EventSubscriber 166 @KafkaListener(topics = "${kafka.topic.calendar}") public void receive(String payload) throws IOException { ObjectMapper objectMapper = new ObjectMapper(); Schedule schedule = objectMapper.readValue(payload, Schedule.class); scheduleRepository.save(schedule); }
- 167. Spring Boot 2.0 :Event Driven 167

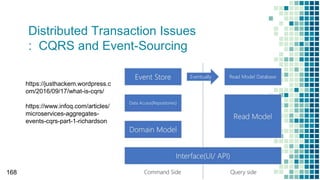

- 168. Distributed Transaction Issues :CQRS and Event-Sourcing 168 https://justhackem.wordpress.c om/2016/09/17/what-is-cqrs/ https://www.infoq.com/articles/ microservices-aggregates- events-cqrs-part-1-richardson
- 169. 분산 트랜잭션 처리– Monolothic 총구매액: 500 총마일리지: 5 총구매액: 600 총마일리지: 6 Consistent In-consistent 조회화면서비스구성 (모놀로씩) Mileage (MongoDB) Order (MySQL) Client (Web/Mobile) POST Order Mileage 총구매액: 700 총마일리지: 7
- 170. 분산 트랜잭션 처리– MS 화, 순차 호출 총구매액: 500 총마일리지: 5 총구매액: 600 총마일리지: 5 총구매액: 600 총마일리지: 6 총구매액: 700 총마일리지: 6 Consistent In-consistent 조회화면서비스구성 (클라이언트가 순차 호출) Mileage (MongoDB) Order (MySQL) Client (Web/Mobile) POST (성공시) - POST

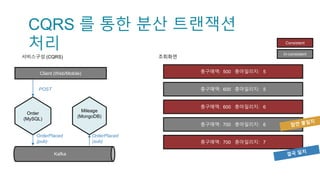

- 171. CQRS 를 통한분산 트랜잭션 처리 총구매액: 500 총마일리지: 5 총구매액: 600 총마일리지: 5 총구매액: 600 총마일리지: 6 총구매액: 700 총마일리지: 6 총구매액: 700 총마일리지: 7 Consistent In-consistent 조회화면서비스구성 (CQRS) Mileage (MongoDB) Order (MySQL) Kafka OrderPlaced (pub) OrderPlaced (sub) Client (Web/Mobile) POST

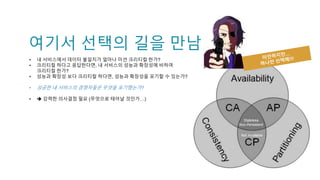

- 172. 여기서 선택의 길을만남 • 내 서비스에서 데이터 불일치가 얼마나 미션 크리티컬 한가? • 크리티컬 하다고 응답한다면, 내 서비스의 성능과 확장성에 비하여 크리티컬 한가? • 성능과 확장성 보다 크리티컬 하다면, 성능과 확장성을 포기할 수 있는가? • 성공한 내 서비스의 경쟁자들은 무엇을 포기했는가? • 강력한 의사결정 필요 (무엇으로 태어날 것인가…)

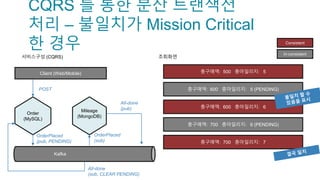

- 173. CQRS 를 통한분산 트랜잭션 처리 – 불일치가 Mission Critical 한 경우 총구매액: 500 총마일리지: 5 총구매액: 600 총마일리지: 5 (PENDING) 총구매액: 600 총마일리지: 6 총구매액: 700 총마일리지: 6 (PENDING) 총구매액: 700 총마일리지: 7 Consistent In-consistent 조회화면서비스구성 (CQRS) Mileage (MongoDB) Order (MySQL) Kafka OrderPlaced (pub, PENDING) OrderPlaced (sub) Client (Web/Mobile) POST All-done (pub) All-done (sub, CLEAR PENDING)

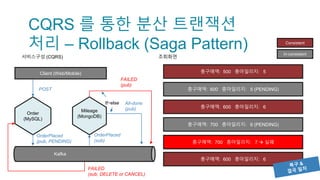

- 174. CQRS 를 통한분산 트랜잭션 처리 – Rollback (Saga Pattern) 총구매액: 500 총마일리지: 5 총구매액: 600 총마일리지: 5 (PENDING) 총구매액: 600 총마일리지: 6 총구매액: 700 총마일리지: 6 (PENDING) 총구매액: 700 총마일리지: 7 실패 Consistent In-consistent 조회화면서비스구성 (CQRS) Mileage (MongoDB) Order (MySQL) Kafka OrderPlaced (pub, PENDING) OrderPlaced (sub) Client (Web/Mobile) POST All-done (pub) FAILED (sub, DELETE or CANCEL) FAILED (pub) If~else 총구매액: 600 총마일리지: 6

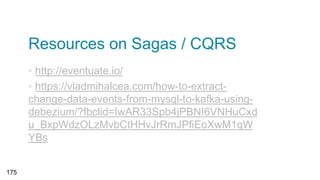

- 175. Resources on Sagas/ CQRS ▪ http://eventuate.io/ ▪ https://vladmihalcea.com/how-to-extract- change-data-events-from-mysql-to-kafka-using- debezium/?fbclid=IwAR33Spb4jPBNI6VNHuCxd u_BxpWdzOLzMvbCtHHvJrRmJPfiEoXwM1qW YBs 175

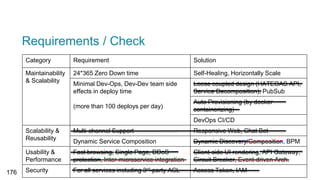

- 176. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM176

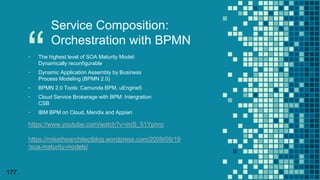

- 177. “ 177 Service Composition: Orchestration withBPMN ▪ The highest level of SOA Maturity Model: Dynamically reconfigurable ▪ Dynamic Application Assembly by Business Process Modeling (BPMN 2.0) ▪ BPMN 2.0 Tools: Camunda BPM, uEngine5 ▪ Cloud Service Brokerage with BPM: Intergration CSB ▪ IBM BPM on Cloud, Mendix and Appian https://www.youtube.com/watch?v=imS_51Ypnro https://mikethearchitectblog.wordpress.com/2009/09/19 /soa-maturity-models/

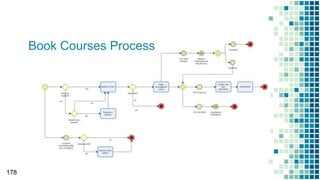

- 178.

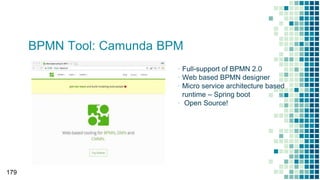

- 179. BPMN Tool: CamundaBPM ▪ Full-support of BPMN 2.0 ▪ Web based BPMN designer ▪ Micro service architecture based runtime – Spring boot ▪ Open Source! 179

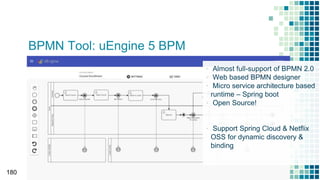

- 180. BPMN Tool: uEngine5 BPM ▪ Almost full-support of BPMN 2.0 ▪ Web based BPMN designer ▪ Micro service architecture based runtime – Spring boot ▪ Open Source! ▪ Support Spring Cloud & Netflix OSS for dynamic discovery & binding 180

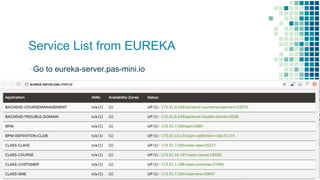

- 181. Service List fromEUREKA ▪ Go to eureka-server.pas-mini.io 181
- 182. Process Modeling ▪ Goto http://front-end-dev.pas-mini.io/#/definition/Course Enrollment 182
- 183. Process Modeling: Poolsfrom EUREKA ▪ Double-click the title of pool ”Class-Course” or “Class-Class” ▪ Pools can be selected from the service list from EUREKA server 183
- 184. Process Modeling: RESTInvocation ▪ Double-click the "Search Courses” task and see the detail settings how to make a REST invocation: 184 CLASS-COURSE

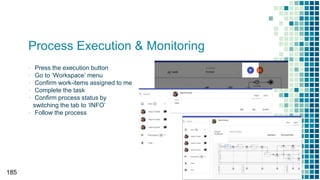

- 185. Process Execution &Monitoring ▪ Press the execution button ▪ Go to ‘Workspace’ menu ▪ Confirm work-items assigned to me ▪ Complete the task ▪ Confirm process status by switching the tab to ‘INFO’ ▪ Follow the process 185

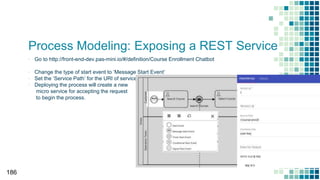

- 186. Process Modeling: Exposinga REST Service ▪ Go to http://front-end-dev.pas-mini.io/#/definition/Course Enrollment Chatbot ▪ Change the type of start event to ‘Message Start Event’ ▪ Set the ‘Service Path’ for the URI of service ▪ Deploying the process will create a new micro service for accepting the request to begin the process. 186

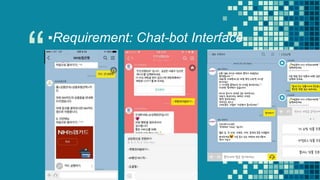

- 187. “ 수강신청 수강예약강의평가 ▪Requirement: Chat-bot Interface

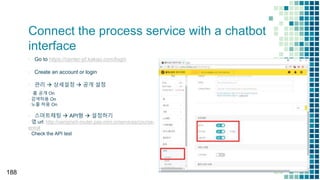

- 188. Connect the processservice with a chatbot interface ▪ Go to https://center-pf.kakao.com/login ▪ Create an account or login ▪ 관리 상세설정 공개 설정 ▫ 홈 공개 On ▫ 검색허용 On ▫ 노출 허용 On ▪ 스마트채팅 API형 설정하기 ▫ 앱 url: http://uengine5-router.pas-mini.io/services/course- enroll ▫ Check the API test 188
- 189. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM189
- 190. “ Table of Content Microserviceand SOA Programming+Microservice-Based DevOps Project 1. Review for the Domain Problem: A Public Education Service 2. Architecture and Approach Overview 3. Domain Analysis with DDD and Event Storming 4. API Design and Service Decomposition 5. Service Implementation with Spring Boot and Netflix OSS 6. Monolith to Microservices 7. Service Composition with UI, Composite Services, and BPM 8. Implementing DevOps Environment with Kubernetes, Istio and Gitlab

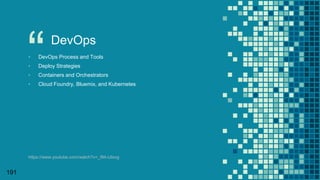

- 191. “ 191 DevOps ▪ DevOps Processand Tools ▪ Deploy Strategies ▪ Containers and Orchestrators ▪ Cloud Foundry, Bluemix, and Kubernetes https://www.youtube.com/watch?v=_I94-tJlovg

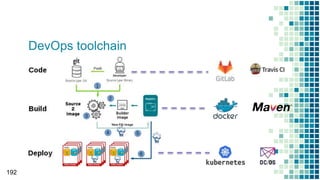

- 192.
- 193. Devops Deploy Strategies ▪https://thenewstack.io/deployment-strategies/ ▪ Recreate: Version A is terminated then version B is rolled out. ▪ Ramped (also known as rolling-update or incremental): Version B is slowly rolled out and replacing version A. ▪ Blue/Green: Version B is released alongside version A, then the traffic is switched to version B. ▪ Canary: Version B is released to a subset of users, then proceed to a full rollout. ▪ A/B testing: Version B is released to a subset of users under specific condition.193

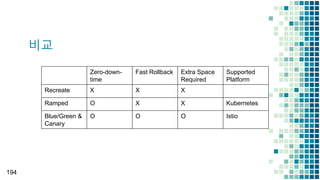

- 194. 비교 194 Zero-down- time Fast Rollback ExtraSpace Required Supported Platform Recreate X X X Ramped O X X Kubernetes Blue/Green & Canary O O O Istio

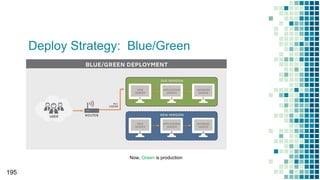

- 195. Deploy Strategy: Blue/Green 195 Now,Green is production
- 196. Strategy: Blue/Green 196 Now, Blueis production
- 197. Strategy: Blue/Green 197 앗, 롤백요청! Now, Green is production again

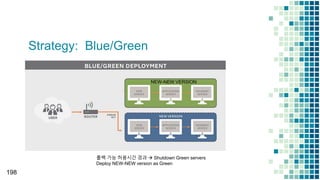

- 198. Strategy: Blue/Green 198 롤백 가능허용시간 경과 Shutdown Green servers Deploy NEW-NEW version as Green NEW-NEW VERSION
- 199. Strategy: Blue/Green 199 Now, Green(NEW-NEW)is production NEW-NEW VERSION
- 200. DevOps DevOps Platforms ▪ IBMBluemix ▪ Heroku ▪ GE’s Predix ▪ Pivotal Web Services • Cloud Foundry Container Workload Distribution Engine (Container Orchestrator) PaaS • Warden(Garden) • Docker • Kubernetes • Docker SWARM (toy) • Mesos Marathon (DCOS) • Google Compute Engine • Redhat Open Shift • IBM Bluemix • Amazon ECS • Hypervisor • CF version 1 • Engineyard…. • Amazon Beanstalk

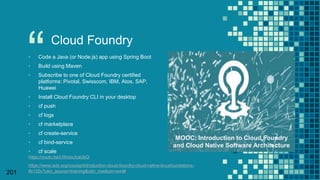

- 201. “ 201 Cloud Foundry ▪ Codea Java (or Node.js) app using Spring Boot ▪ Build using Maven ▪ Subscribe to one of Cloud Foundry certified platforms: Pivotal, Swisscom, IBM, Atos, SAP, Huawei ▪ Install Cloud Foundry CLI in your desktop ▪ cf push ▪ cf logs ▪ cf marketplace ▪ cf create-service ▪ cf bind-service ▪ cf scale https://youtu.be/UWeIxJcaUbQ https://www.edx.org/course/introduction-cloud-foundry-cloud-native-linuxfoundationx- lfs132x?utm_source=training&utm_medium=eml# MOOC: Introduction to Cloud Foundry and Cloud Native Software Architecture
- 202.
- 203. DevOps Platform IBM Bluemix– Auto Scaling

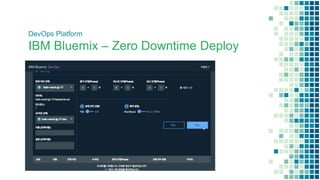

- 204. DevOps Platform IBM Bluemix– Zero Downtime Deploy

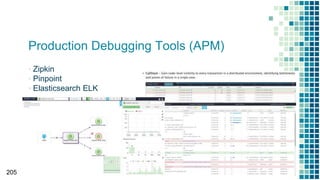

- 205. Production Debugging Tools(APM) ▪ Zipkin ▪ Pinpoint ▪ Elasticsearch ELK 205

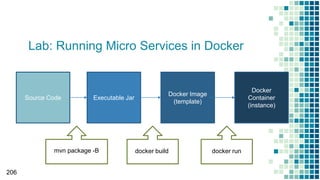

- 206. Lab: Running MicroServices in Docker 206 Executable Jar Docker Image (template) Docker Container (instance) Source Code mvn package -B docker rundocker build

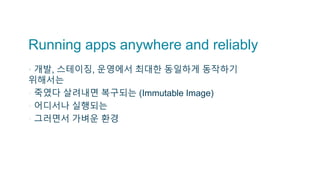

- 207. Running apps anywhereand reliably ▪ 개발, 스테이징, 운영에서 최대한 동일하게 동작하기 위해서는 ▫ 죽였다 살려내면 복구되는 (Immutable Image) ▫ 어디서나 실행되는 ▫ 그러면서 가벼운 환경

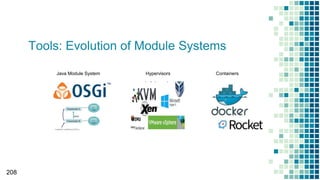

- 208. Tools: Evolution ofModule Systems 208 Java Module System Hypervisors Containers

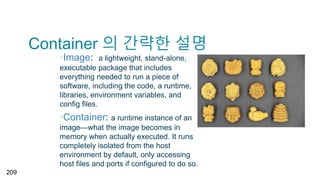

- 209. Container 의 간략한설명 ▪Image: a lightweight, stand-alone, executable package that includes everything needed to run a piece of software, including the code, a runtime, libraries, environment variables, and config files. ▪Container: a runtime instance of an image—what the image becomes in memory when actually executed. It runs completely isolated from the host environment by default, only accessing host files and ports if configured to do so. 209
- 210. VM 과 다른점 ▪HigherShare Level but Isolated. 210
- 211. Labtime: 도커 이미지스크립트 # 기반 이미지 FROM openjdk:8u111-jdk-alpine # 볼륨 연결 VOLUME /tmp # 애플리케이션 복사 ADD /target/*.jar app.jar # 포트노출 EXPOSE 8080 # 자바 실행 ENTRYPOINT ["java","-Xmx256M","-jar","/app.jar"] 211

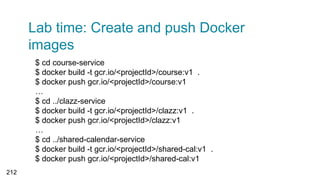

- 212. Lab time: Createand push Docker images $ cd course-service $ docker build -t gcr.io/<projectId>/course:v1 . $ docker push gcr.io/<projectId>/course:v1 … $ cd ../clazz-service $ docker build -t gcr.io/<projectId>/clazz:v1 . $ docker push gcr.io/<projectId>/clazz:v1 … $ cd ../shared-calendar-service $ docker build -t gcr.io/<projectId>/shared-cal:v1 . $ docker push gcr.io/<projectId>/shared-cal:v1 212

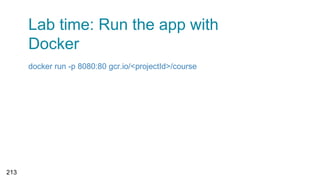

- 213. Lab time: Runthe app with Docker docker run -p 8080:80 gcr.io/<projectId>/course 213
- 214. Lab time: BasicCommands https://docs.docker.com/get-started/part2/#recap-and-cheat-sheet-optional 214
- 215. “ 215 Container Orchestration with Kubernetes ▪Kubernetes Object Model ▪ Users to Pods: Services, Kube-proxy, Service Discovery, ServiceType ▪ Deploying Stand-Alone Application ▪ Liveness and Readiness ▪ Kubernetes Volume Management ▪ Multi-Tier Application https://www.youtube.com/watch?v=gauOI0O9fRM&fbcli d=IwAR2y8nBOfi0ehHysOx- MtxSzDXzpv77sWnBg_pUEyIprE2fpMYuxBl3spq8
- 216.

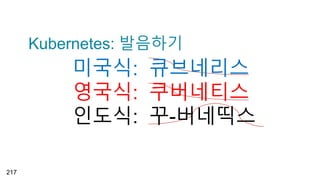

- 217. Kubernetes: 발음하기 217 미국식: 큐브네리스 영국식:쿠버네티스 인도식: 꾸-버네띡스
- 218.

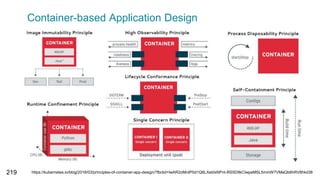

- 219. Container-based Application Design 219https://kubernetes.io/blog/2018/03/principles-of-container-app-design/?fbclid=IwAR2oMrdP0d1Q6LXebtxNPnt-RS5DIlkCIwpaMSL5mmW7VMaQb6hRV8hkd38

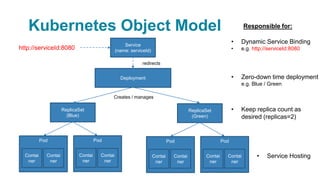

- 220. Kubernetes Object Model Service (name:serviceId) Deployment ReplicaSet (Blue) redirects Creates / manages Pod Contai ner Contai ner Pod Contai ner Contai ner ReplicaSet (Green) Pod Contai ner Contai ner Pod Contai ner Contai ner • Keep replica count as desired (replicas=2) • Dynamic Service Binding • e.g. http://serviceId:8080 • Zero-down time deployment e.g. Blue / Green • Service Hosting Responsible for: http://serviceId:8080

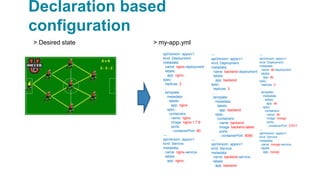

- 221. Declaration based configuration apiVersion: apps/v1 kind:Deployment metadata: name: nginx-deployment labels: app: nginx spec: replicas: 2 … template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 --- apiVersion: apps/v1 kind: Service metadata: name: nginx-service labels: app: nginx --- apiVersion: apps/v1 kind: Deployment metadata: name: backend-deployment labels: app: backend spec: replicas: 3 … template: metadata: labels: app: backend spec: containers: - name: backend image: backend:latest ports: - containerPort: 8080 --- apiVersion: apps/v1 kind: Service metadata: name: backend-service labels: app: backend --- apiVersion: apps/v1 kind: Deployment metadata: name: db-deployment labels: app: db spec: replicas: 2 … template: metadata: labels: app: db spec: containers: - name: db image: mongo ports: - containerPort: 27017 --- apiVersion: apps/v1 kind: Service metadata: name: mongo-service labels: app: mongo > my-app.yml> Desired state
- 222. Kubernetes Object Model ▪apiVersion : mentions the API endpoint on the API server which we want to connect to. ▪ kind : mentions the object type – example has Deployment. ▪ metadata : has the basic information to objects, like the name. ▪ spec (spec and spec.template.spec) : defines the desired state of the deployment. In our example, we want to make sure that, at any point in time, at least 3 Pods are running, which are created using the Pods Template defined in spec.template. ▪ spec.template.spec : defines the desired state of the Pod. The example Pod would be created using nginx:1.7.9. Once the object is created, the Kubernetes system attaches the status field to the object apiVersion: apps/v1 kind: Deployment metadata: name: nginx-deployment labels: app: nginx spec: replicas: 3 selector: matchLabels: app: nginx template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80 Deployment object Example
- 223. Lab Time: 기본적인kubectl명령어 ▪객체 목록 불러오기 ▫ “kubectl get [객체 타입]“ Ex) kubectl get pods : pod 목록 불러온다. ▪객체 삭제하기 ▫ “kubectl delete [객체 타입] [객체 이름]” Ex) “kubectl delete pods wordpress-5bb5dddcff-kwgf8” ▫ “kubectl delete [객체타입,객체타입,…] --all“ Ex) “kubectl delete services,depeloyments,pods –-all” - 실습 중에 잘못 생성되었거나 초기화가 필요할 경우 사용 ▪객체 상세 설명 확인하기 ▫ “kubectl describe [객체 타입] [객체 이름] ” Ex) “kubectl describe service wordpress”

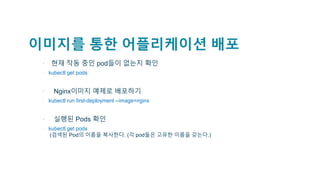

- 224. 이미지를 통한 어플리케이션배포 • 현재 작동 중인 pod들이 없는지 확인 ▫ kubectl get pods ▪ Nginx이미지 예제로 배포하기 ▫ kubectl run first-deployment --image=nginx ▪ 실행된 Pods 확인 ▫ kubectl get pods (검색된 Pod의 이름을 복사한다. (각 pod들은 고유한 이름을 갖는다.)
- 225. Pod에 접속하기 ▪ 복사된pod이름으로 접속하기 ▫ Kubectl exec -it [복사된 pod 이름] -- /bin/bash ▪ Pod 내에서 접속하기 (위 명령어로 진입후에는 리눅스 명령어를 받는다) ▫ 해당 경로에 있는 html 파일을 호출하는 어플리케이션이다. echo Hello nginx ▫ Curl 명령어를 사용하기 위한 업데이트를 한다. apt-get update apt-get curl ▫ Curl 명령어로 호출하기 curl localhost
- 226. 설정 파일을 통한pod 배포 ▪ 아래 내용으로 nano editor 를 이용하여 declarative-pod.yaml 파일을 만든다. ▫ Nginx 이미지를 기반으로 pod를 배포하는 설정파일이다 apiVersion: v1 kind: Pod metadata: name: declarative-pod spec: containers: - name: memory-demo-ctr image: nginx

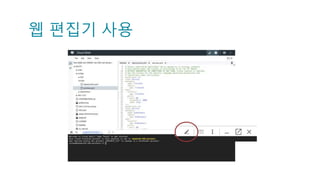

- 227.

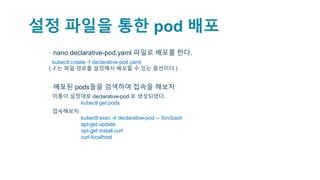

- 228. 설정 파일을 통한pod 배포 ▪ nano declarative-pod.yaml 파일로 배포를 한다. ▫ kubectl create -f declarative-pod.yaml ( -f 는 파일 경로를 설정해서 배포할 수 있는 옵션이다.) ▪ 배포된 pods들을 검색하여 접속을 해보자 ▫ 이름이 설정대로 declarative-pod 로 생성되었다. kubectl get pods ▫ 접속해보자 kubectl exec -it declarative-pod -- /bin/bash apt-get update apt-get install curl curl localhost
- 229. 원하는 노드 타입에pod 몰기 ▪Node를 확인하여 label 붙이기 ▫kubectl get nodes kubectl label nodes [노드이름] disktype=ssd ▪Label과 함께 노드 목록을 불러오기 ▫kubectl get nodes --show-labels ▪설정 파일생성(오른쪽 내용) ▫nano dev-pod.yaml ▪설정파일을 기반으로 pod 배포 ▫kubectl create -f dev-pod.yaml ▪생성된 pod의 상세 내용 확인 ▫kubectl get pods -o wide apiVersion: v1 kind: Pod metadata: name: nginx labels: env: test spec: containers: - name: nginx image: nginx imagePullPolicy: IfNotPresent nodeSelector: disktype: ssd #여기가 중요

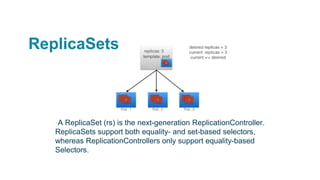

- 230. ReplicaSets ▪A ReplicaSet (rs)is the next-generation ReplicationController. ReplicaSets support both equality- and set-based selectors, whereas ReplicationControllers only support equality-based Selectors.
- 231. ReplicaSets ▪The ReplicaSet willdetect that the current state is no longer matching the desired state. ▫(In the given scenario, the ReplicaSet will create one more Pod) ▪ReplicaSets can be used independently, but they are mostly used by Deployments to orchestrate the Pod creation, deletion, and updates. ▪A Deployment automatically creates the ReplicaSets, and we do not have to worry about managing them.

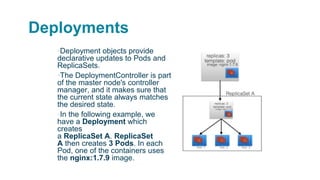

- 232. Deployments ▪Deployment objects provide declarativeupdates to Pods and ReplicaSets. ▪The DeploymentController is part of the master node's controller manager, and it makes sure that the current state always matches the desired state. ▪In the following example, we have a Deployment which creates a ReplicaSet A. ReplicaSet A then creates 3 Pods. In each Pod, one of the containers uses the nginx:1.7.9 image.

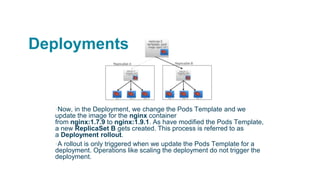

- 233. Deployments ▪Now, in theDeployment, we change the Pods Template and we update the image for the nginx container from nginx:1.7.9 to nginx:1.9.1. As have modified the Pods Template, a new ReplicaSet B gets created. This process is referred to as a Deployment rollout. ▪A rollout is only triggered when we update the Pods Template for a deployment. Operations like scaling the deployment do not trigger the deployment.
- 234. Deployments ▪Once ReplicaSet Bis ready, the Deployment starts pointing to it. ▪On top of ReplicaSets, Deployments provide features like Deployment recording, with which, if something goes wrong, we can rollback to a previously known state.
- 235. Lab time: ReplicaSet ▪ReplicaSet파일 생성 ▫nano frontend.yaml ▪파일을 기반으로 ReplicaSet 배포 ▫kubectl create -f frontend.yaml ▪ReplicaSet을 확인 ▫kubectl get pods kubectl describe rs/frontend ▪RsplicaSet을 삭제 ▫kubectl delete rs/frontend (관련된 pod 전부 제거한다.) ▫kubectl delete rs/frontend --cascade=false (ReplicaSet 은 제거하지만 Pod 는 유지) apiVersion: apps/v1 kind: ReplicaSet metadata: name: frontend labels: app: guestbook tier: frontend spec: replicas: 3 selector: matchLabels: tier: frontend matchExpressions: - {key: tier, operator: In, values: [frontend]} template: metadata: labels: app: guestbook tier: frontend spec: containers: - name: php-redis image: gcr.io/google_samples/gb-frontend:v3 ports: - containerPort: 80

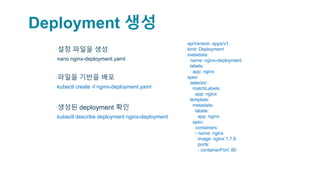

- 236. Deployment 생성 ▪설정 파일을생성 ▫nano nginx-deployment.yaml ▪파일을 기반을 배포 ▫kubectl create -f nginx-deployment.yaml ▪생성된 deployment 확인 ▫kubectl describe deployment nginx-deployment apiVersion: apps/v1 kind: Deployment metadata: name: nginx-deployment labels: app: nginx spec: selector: matchLabels: app: nginx template: metadata: labels: app: nginx spec: containers: - name: nginx image: nginx:1.7.9 ports: - containerPort: 80
- 237. Scaling ▪Deployment의 replica의 개수를확인한다. ▫kubectl get pods ▪Deplyment의 이름을 복사한다. ▫kubectl get deployments ▪해당 Deployment의 scale 조정 ▫kubectl scale deployments [deployment 이름] --replicas=3 ▪변경을 확인 ▫kubectl get pods

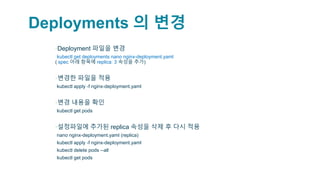

- 238. Deployments 의 변경 ▪Deployment파일을 변경 ▫kubectl get deployments nano nginx-deployment.yaml ( spec 아래 항목에 replica: 3 속성을 추가) ▪변경한 파일을 적용 ▫kubectl apply -f nginx-deployment.yaml ▪변경 내용을 확인 ▫kubectl get pods ▪설정파일에 추가된 replica 속성을 삭제 후 다시 적용 ▫nano nginx-deployment.yaml (replica) ▫kubectl apply -f nginx-deployment.yaml ▫kubectl delete pods --all ▫kubectl get pods

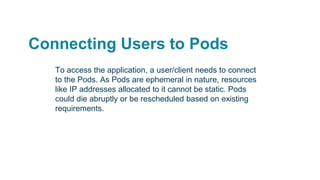

- 239. Connecting Users toPods To access the application, a user/client needs to connect to the Pods. As Pods are ephemeral in nature, resources like IP addresses allocated to it cannot be static. Pods could die abruptly or be rescheduled based on existing requirements.

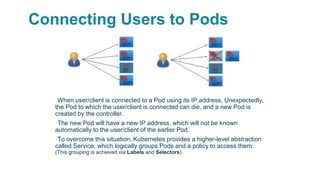

- 240. Connecting Users toPods ▪When user/client is connected to a Pod using its IP address. Unexpectedly, the Pod to which the user/client is connected can die, and a new Pod is created by the controller. ▪The new Pod will have a new IP address, which will not be known automatically to the user/client of the earlier Pod. ▪To overcome this situation, Kubernetes provides a higher-level abstraction called Service, which logically groups Pods and a policy to access them. (This grouping is achieved via Labels and Selectors)

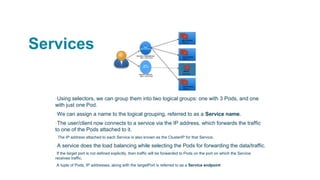

- 241. Services ▪Using selectors, wecan group them into two logical groups: one with 3 Pods, and one with just one Pod. ▪We can assign a name to the logical grouping, referred to as a Service name. ▪The user/client now connects to a service via the IP address, which forwards the traffic to one of the Pods attached to it. ▫ The IP address attached to each Service is also known as the ClusterIP for that Service. ▪A service does the load balancing while selecting the Pods for forwarding the data/traffic. ▫If the target port is not defined explicitly, then traffic will be forwarded to Pods on the port on which the Service receives traffic. ▫A tuple of Pods, IP addresses, along with the targetPort is referred to as a Service endpoint
- 242. Service Discovery As Servicesare the primary mode of communication in Kubernetes, we need a way to discover them at runtime. Kubernetes supports two methods of discovering a Service: ▪Environment Variables As soon as the Pod starts on any worker node, the kubelet daemon running on that node adds a set of environment variables in the Pod for all active Services. ▪DNS Kubernetes has an add-on for DNS, which creates a DNS record for each Service and its format is like my-svc.my-namespace.svc.cluster.local. Services within the same Namespace can reach to other Services with just their name. Pods from other Namespaces can reach the Service by adding the respective Namespace as a suffix. EX) namespace2.pod1. This is the most common and highly recommended solution.

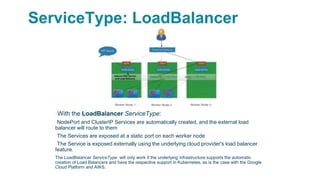

- 243. ServiceType: LoadBalancer ▪With theLoadBalancer ServiceType: ▫NodePort and ClusterIP Services are automatically created, and the external load balancer will route to them ▫The Services are exposed at a static port on each worker node ▫The Service is exposed externally using the underlying cloud provider's load balancer feature. The LoadBalancer ServiceType will only work if the underlying infrastructure supports the automatic creation of Load Balancers and have the respective support in Kubernetes, as is the case with the Google Cloud Platform and AWS.

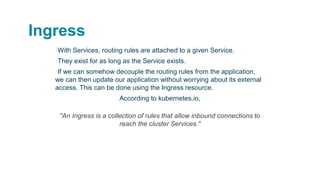

- 244. Ingress ▪With Services, routingrules are attached to a given Service. ▪They exist for as long as the Service exists. ▪If we can somehow decouple the routing rules from the application, we can then update our application without worrying about its external access. This can be done using the Ingress resource. According to kubernetes.io, "An Ingress is a collection of rules that allow inbound connections to reach the cluster Services."

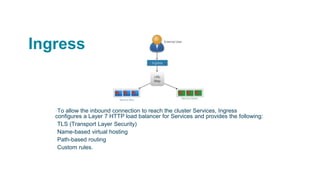

- 245. Ingress ▪To allow theinbound connection to reach the cluster Services, Ingress configures a Layer 7 HTTP load balancer for Services and provides the following: ▫TLS (Transport Layer Security) ▫Name-based virtual hosting ▫Path-based routing ▫Custom rules.

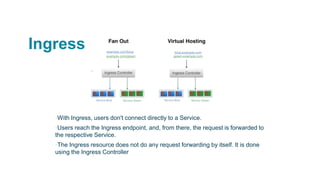

- 246. Ingress ▪With Ingress, usersdon't connect directly to a Service. ▪Users reach the Ingress endpoint, and, from there, the request is forwarded to the respective Service. ▪The Ingress resource does not do any request forwarding by itself. It is done using the Ingress Controller
- 247. Ingress ▪In the example,users requests to both blue.example.com and green.example.com would go to the same Ingress endpoint, and, from there, they would be forwarded to webserver-blue-svc, and webserver-green-svc, respectively. (Name-Based Virtual Hosting Ingress rule.) ▪We can also have Fan Out Ingress rules, in which we send requests like example.com/blue and example.com/green, which would be forwarded to webserver-blue-svc and webserver-green-svc, respectively. apiVersion: extensions/v1beta1 kind: Ingress metadata: name: web-ingress namespace: default spec: rules: - host: blue.example.com http: paths: - backend: serviceName: webserver-blue-svc servicePort: 80 - host: green.example.com http: paths: - backend: serviceName: webserver-green-svc servicePort: 80 Ingress definition example

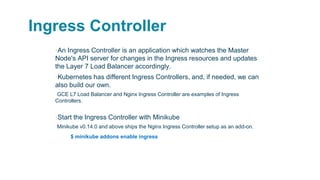

- 248. Ingress Controller ▪An IngressController is an application which watches the Master Node's API server for changes in the Ingress resources and updates the Layer 7 Load Balancer accordingly. ▪Kubernetes has different Ingress Controllers, and, if needed, we can also build our own. ▫GCE L7 Load Balancer and Nginx Ingress Controller are examples of Ingress Controllers. ▪Start the Ingress Controller with Minikube ▫Minikube v0.14.0 and above ships the Nginx Ingress Controller setup as an add-on. $ minikube addons enable ingress
- 249. Deploy an IngressResource ▪Once the Ingress Controller is deployed, we can create an Ingress resource using the kubectl create command. ▪If we create a webserver-ingress.yaml file with the content that we saw on the Ingress II page, then, we will use the following command to create an Ingress resource: $ kubectl create -f webserver-ingress.yaml

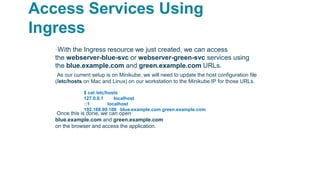

- 250. Access Services Using Ingress ▪Withthe Ingress resource we just created, we can access the webserver-blue-svc or webserver-green-svc services using the blue.example.com and green.example.com URLs. ▫As our current setup is on Minikube, we will need to update the host configuration file (/etc/hosts on Mac and Linux) on our workstation to the Minikube IP for those URLs. Once this is done, we can open blue.example.com and green.example.com on the browser and access the application. $ cat /etc/hosts 127.0.0.1 localhost ::1 localhost 192.168.99.100 blue.example.com green.example.com

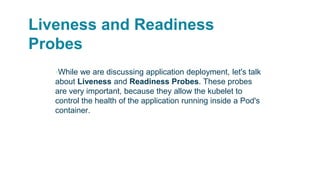

- 251. Liveness and Readiness Probes ▪Whilewe are discussing application deployment, let's talk about Liveness and Readiness Probes. These probes are very important, because they allow the kubelet to control the health of the application running inside a Pod's container.

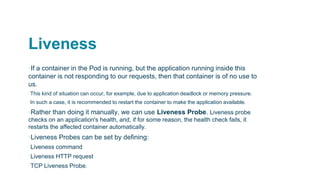

- 252. Liveness ▪If a containerin the Pod is running, but the application running inside this container is not responding to our requests, then that container is of no use to us. ▫This kind of situation can occur, for example, due to application deadlock or memory pressure. ▫In such a case, it is recommended to restart the container to make the application available. ▪Rather than doing it manually, we can use Liveness Probe. Liveness probe checks on an application's health, and, if for some reason, the health check fails, it restarts the affected container automatically. ▪Liveness Probes can be set by defining: ▫Liveness command ▫Liveness HTTP request ▫TCP Liveness Probe.

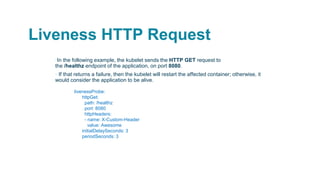

- 253. Liveness HTTP Request ▪Inthe following example, the kubelet sends the HTTP GET request to the /healthz endpoint of the application, on port 8080. ▪ If that returns a failure, then the kubelet will restart the affected container; otherwise, it would consider the application to be alive. livenessProbe: httpGet: path: /healthz port: 8080 httpHeaders: - name: X-Custom-Header value: Awesome initialDelaySeconds: 3 periodSeconds: 3

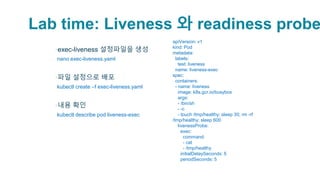

- 254. Lab time: Liveness와 readiness probe ▪exec-liveness 설정파일을 생성 ▫nano exec-liveness.yaml ▪파일 설정으로 배포 ▫kubectl create –f exec-liveness.yaml ▪내용 확인 ▫kubectl describe pod liveness-exec apiVersion: v1 kind: Pod metadata: labels: test: liveness name: liveness-exec spec: containers: - name: liveness image: k8s.gcr.io/busybox args: - /bin/sh - -c - touch /tmp/healthy; sleep 30; rm -rf /tmp/healthy; sleep 600 livenessProbe: exec: command: - cat - /tmp/healthy initialDelaySeconds: 5 periodSeconds: 5
- 255. Deploying a PublicEducation Example for Kubernetes
- 256. Running mi-services inthe kubernetes cluster • 현재 작동 중인 pod들이 없는지 확인 ▫kubectl get pods ▪이미지로 배포하기 ▪kubectl run course --image=gcr.io/<projectId>/course ▪실행된 Pods 확인 ▫kubectl get pods (검색된 Pod의 이름을 복사한다. (각 pod들은 고유한 이름을 갖는다.)

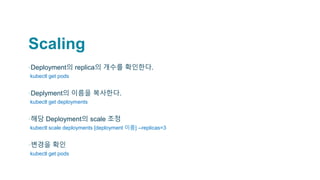

- 257. Scaling ▪Deployment의 replica의 개수를확인한다. ▫kubectl get pods ▪Deplyment의 이름을 복사한다. ▫kubectl get deployments ▪해당 Deployment의 scale 조정 ▫kubectl scale deployments [deployment 이름] --replicas=3 ▪변경을 확인 ▫kubectl get pods
- 258. Rolling update ▪작동중인 pod와deployments 확인 ▫kubectl get pods kubectl get deployments ▪새로운 버전의 deployments 배포 및 배포 상태 확인 ▫kubectl set image deployment/course course=gcr.io/<projectId>/course:v2 kubectl rollout status deployment/course ▪변경을 확인 ▫kubectl get deployments kubectl get pods kubectl describe pods [pod 이름]
- 259. Rollback ▪현재 실행중인 객체들을확인 ▫kubectl get pods kubectl get deployments -o wide ▪객체를 롤백 처리 ▫kubectl rollout undo deployment/course ▪진행을 확인 ▫kubectl get deployments -o wide
- 260. “ 260 Service Mesh: Istio ▪Advanced Service Resilience ▪ Advanced Smart Deployment ▪ Advanced Observability ▪ Advanced Security https://vimeo.com/254681396?fbclid=IwAR3FFFyxVZw GfYpeAAU1Vdut4Q6XB0EHFv40EL7D3xkOoP22JCav 7QmnZSE

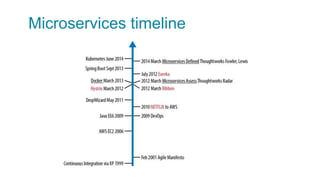

- 261.

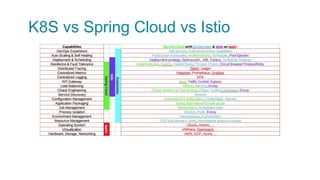

- 262. K8S vs SpringCloud vs Istio

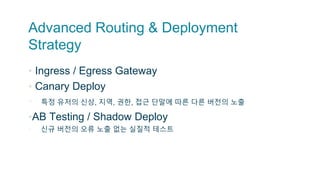

- 263. Advanced Routing &Deployment Strategy ▪ Ingress / Egress Gateway ▪ Canary Deploy ▫ 특정 유저의 신상, 지역, 권한, 접근 단말에 따른 다른 버전의 노출 ▪AB Testing / Shadow Deploy ▫ 신규 버전의 오류 노출 없는 실질적 테스트

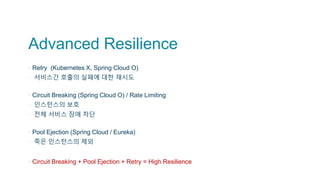

- 264. Advanced Resilience ▪ Retry(Kubernetes X, Spring Cloud O) ▫ 서비스간 호출의 실패에 대한 재시도 ▪ Circuit Breaking (Spring Cloud O) / Rate Limiting ▫ 인스턴스의 보호 ▫ 전체 서비스 장애 차단 ▪ Pool Ejection (Spring Cloud / Eureka) ▫ 죽은 인스턴스의 제외 ▪ Circuit Breaking + Pool Ejection + Retry = High Resilience
- 265. Advanced Security ▪ TLSbased Inter-Mi-services Communication ▫ By Auth (신규모듈) ▪ Whitelist and Blacklist

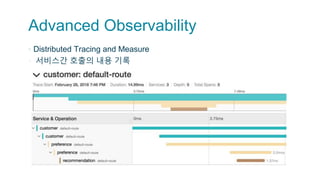

- 266. Advanced Observability ▪ DistributedTracing and Measure ▫ 서비스간 호출의 내용 기록

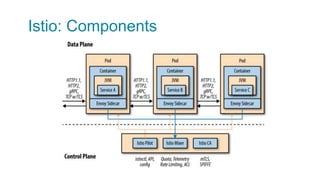

- 267.

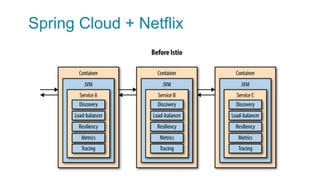

- 268. Spring Cloud +Netflix

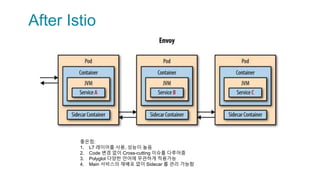

- 269. After Istio 좋은점: 1. L7레이어를 사용, 성능이 높음 2. Code 변경 없이 Cross-cutting 이슈를 다루어줌 3. Polyglot 다양한 언어에 무관하게 적용가능 4. Main 서비스의 재배포 없이 Sidecar 를 관리 가능함
- 270. Recommended Book • Java(Spring Boot) based example • Source code available • Concise • Free
- 271. Lab time: ▪ Customer(고객정보서비스) Preference (고객선호서비스) Recommendation (추천서비스) ▪ 무정지 배포 & 다양한 배포 시나리오 (e.g. 단말, 브라우저별 별도 버전의 배포) ▪ 전체 서비스의 Up-time 유지 방법

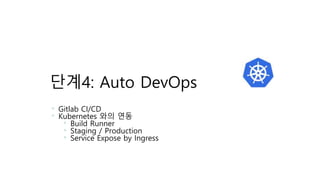

- 272. 단계4: Auto DevOps Gitlab CI/CD Kubernetes 와의 연동 Build Runner Staging / Production Service Expose by Ingress
- 273. Deploy Pipeline forMicro Services 273 Executable Jar Docker Image (template) Docker Container (instance) Source Code mvn package -B docker rundocker build

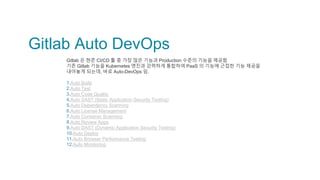

- 274. Gitlab Auto DevOps Gitlab은 현존 CI/CD 툴 중 가장 많은 기능과 Production 수준의 기능을 제공함 기존 Gitlab 기능을 Kubernetes 엔진과 강력하게 통합하여 PaaS 의 기능에 근접한 기능 제공을 내어놓게 되는데, 바로 Auto-DevOps 임. 1.Auto Build 2.Auto Test 3.Auto Code Quality 4.Auto SAST (Static Application Security Testing) 5.Auto Dependency Scanning 6.Auto License Management 7.Auto Container Scanning 8.Auto Review Apps 9.Auto DAST (Dynamic Application Security Testing) 10.Auto Deploy 11.Auto Browser Performance Testing 12.Auto Monitoring
- 275. 플랫폼 별 Boilerplate& Pipeline Auto generated Docker build script and pipelines (gitlab-ci.yml) for each platform

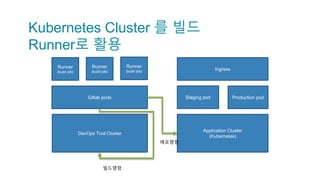

- 276. Kubernetes Cluster 를빌드 Runner로 활용 Gitlab pods DevOps Tool Cluster Application Cluster (Kubernetes) Runner (build job) Runner (build job) Runner (build job) Staging pod Production pod Ingress 빌드명령 배포명령

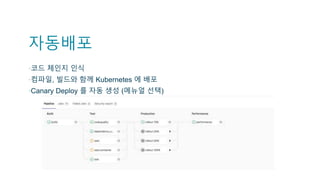

- 277. 자동배포 ▪코드 체인지 인식 ▪컴파일,빌드와 함께 Kubernetes 에 배포 ▪Canary Deploy 를 자동 생성 (메뉴얼 선택)

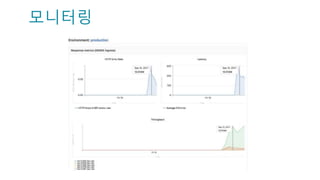

- 278.

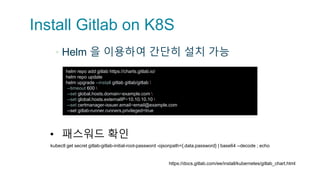

- 279. Install Gitlab onK8S ▪ Helm 을 이용하여 간단히 설치 가능 helm repo add gitlab https://charts.gitlab.io/ helm repo update helm upgrade --install gitlab gitlab/gitlab --timeout 600 --set global.hosts.domain=example.com --set global.hosts.externalIP=10.10.10.10 --set certmanager-issuer.email=email@example.com --set gitlab-runner.runners.privileged=true • 패스워드 확인 https://docs.gitlab.com/ee/install/kubernetes/gitlab_chart.html kubectl get secret gitlab-gitlab-initial-root-password -ojsonpath={.data.password} | base64 --decode ; echo

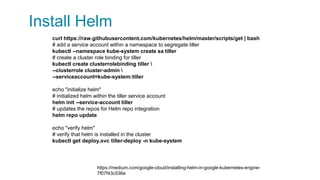

- 280. Install Helm curl https://raw.githubusercontent.com/kubernetes/helm/master/scripts/get| bash # add a service account within a namespace to segregate tiller kubectl --namespace kube-system create sa tiller # create a cluster role binding for tiller kubectl create clusterrolebinding tiller --clusterrole cluster-admin --serviceaccount=kube-system:tiller echo "initialize helm" # initialized helm within the tiller service account helm init --service-account tiller # updates the repos for Helm repo integration helm repo update echo "verify helm" # verify that helm is installed in the cluster kubectl get deploy,svc tiller-deploy -n kube-system https://medium.com/google-cloud/installing-helm-in-google-kubernetes-engine- 7f07f43c536e

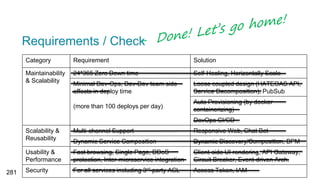

- 281. Requirements / Check CategoryRequirement Solution Maintainability & Scalability 24*365 Zero Down time Self-Healing, Horizontally Scale Minimal Dev-Ops, Dev-Dev team side effects in deploy time (more than 100 deploys per day) Loose coupled design (HATEOAS API, Service Decomposition), PubSub Auto Provisioning (by docker containerizing) DevOps CI/CD Scalability & Reusability Multi-channel Support Responsive Web, Chat Bot Dynamic Service Composition Dynamic Discovery/Composition, BPM Usability & Performance Fast browsing, Single Page, DDoS protection, Inter-microservice integration Client-side UI rendering, API Gateway, Circuit Breaker, Event-driven Arch. Security For all services including 3rd-party ACL Access Token, IAM281

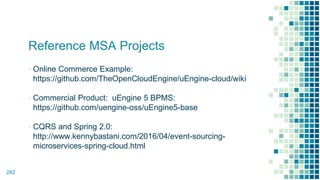

- 282. Reference MSA Projects ▪Online Commerce Example: https://github.com/TheOpenCloudEngine/uEngine-cloud/wiki ▪ Commercial Product: uEngine 5 BPMS: https://github.com/uengine-oss/uEngine5-base ▪ CQRS and Spring 2.0: http://www.kennybastani.com/2016/04/event-sourcing- microservices-spring-cloud.html 282
- 283. THANKS! Any Question? You canfind me at: jyjang@uengine.org https://github.com/jinyoung https://github.com/TheOpenCloudEngine 283
