Modern enterprises increasingly face the challenge of keeping pace with regulatory compliances. Semantic disparity between regulation texts, their interpretations, and operational specifics of enterprise often leads enterprises to situations where it becomes difficult for them to establish what compliance means, how they are supposed to affect it in the operational practices, and how to prove that they comply when asked for explanations of (non-)compliance. We take a step toward reducing the semantic disparity by using semantic vocabularies to map regulations with available operational details of enterprise and utilize them in enacting compliance. We also propose to provide explanations of proofs of (non-)compliance. We report our ongoing work in this regard using the design science research (DSR) paradigm. Initial iterations of design cycle from DSR have been useful to us in identifying and matching stakeholder-specific goals in solving these problems.
Solving Semantic Disparity and Explanation Problems in Regulatory Compliance

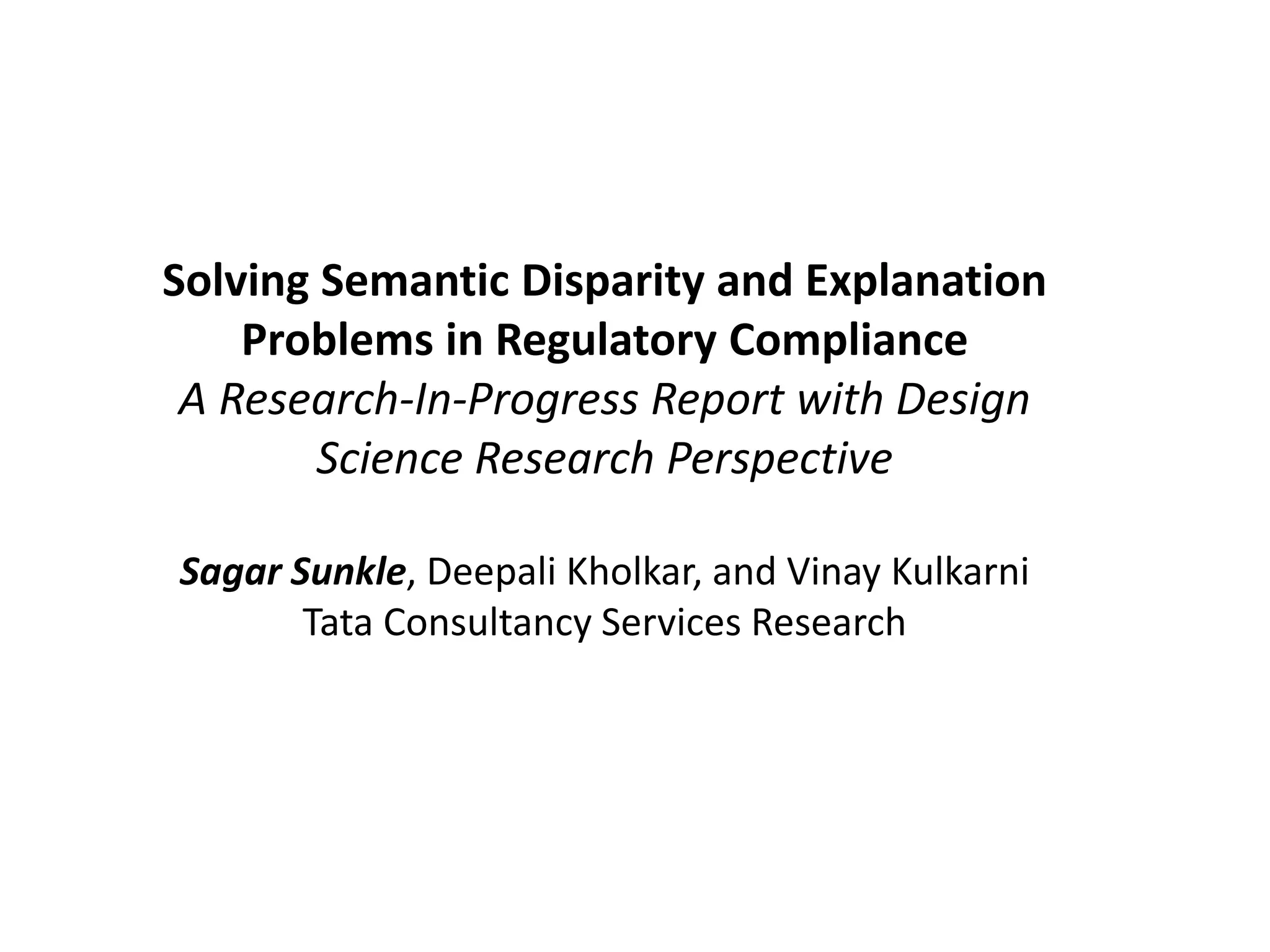

1. Solving Semantic Disparity and Explanation
Problems in Regulatory Compliance
A Research-In-Progress Report with Design
Science Research Perspective
Sagar Sunkle, Deepali Kholkar, and Vinay Kulkarni
Tata Consultancy Services Research

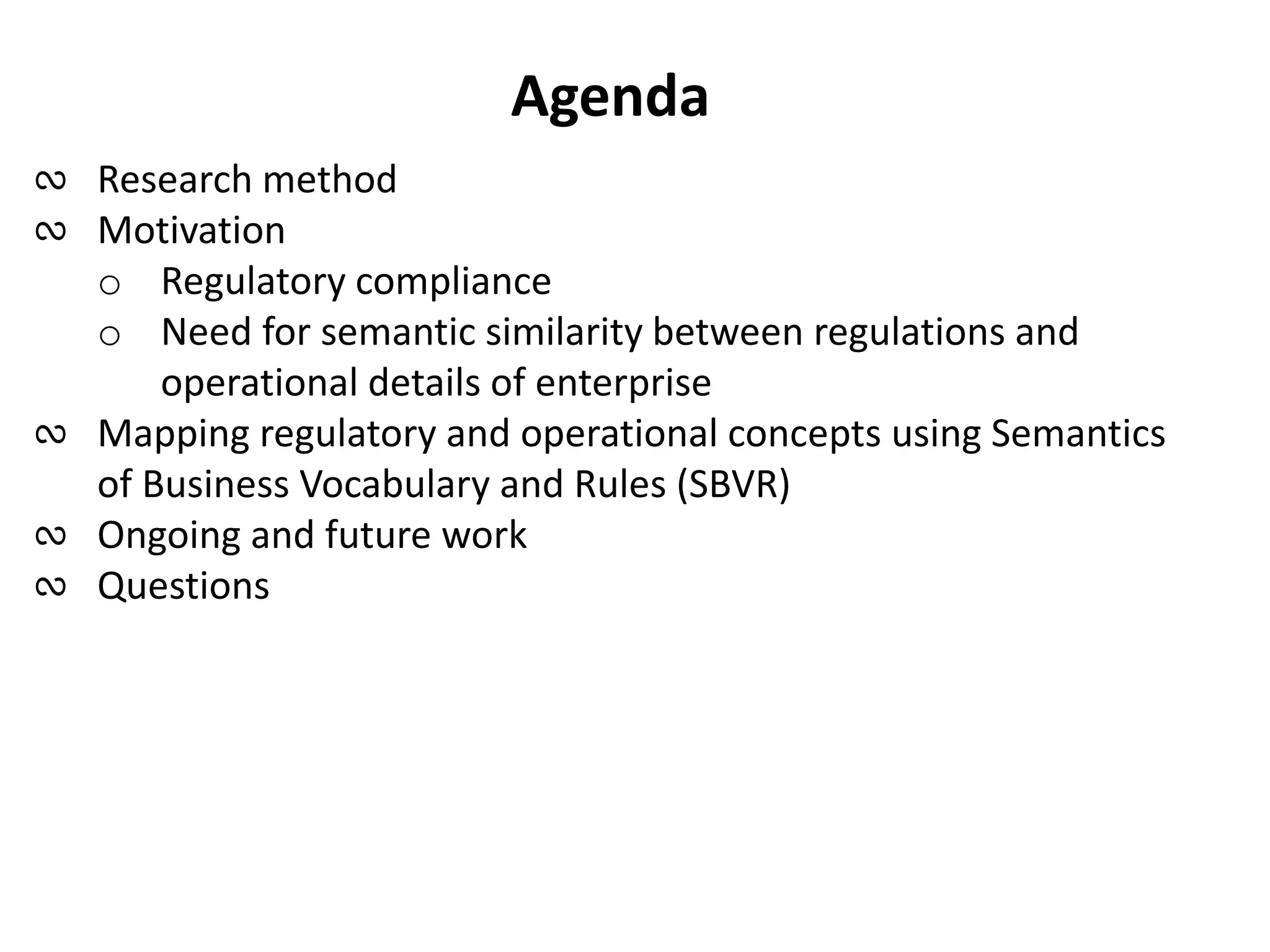

2. Agenda
∾ Research method
∾ Motivation
o Regulatory compliance
o Need for semantic similarity between regulations and
operational details of enterprise
∾ Mapping regulatory and operational concepts using Semantics
of Business Vocabulary and Rules (SBVR)
∾ Ongoing and future work
∾ Questions
3. Research Method- Design Science Research
∾ Focus on artifacts
o Bestow tangible form to stakeholders’ expectations (not yet
requirements)
o Utility in the operating context as the criteria
o Can be constructs, models, methods, and instantiations
(proof of concept)
∾ Iterative process
o Investigate whether problem is solved, design and validate
artifacts, implement and evaluate artifacts
o Continue till expectations are met
∾ Meaningful for practical problems- taken to mean problems
observed in practice.
4. Motivation- Regulatory Compliance
∾ Increasing spend on compliance (estimated in billions of $, in
US alone at $15 Billion, slated to increase 5 times more by
2018)
∾ Demand for governance, risk management, and compliance
(GRC) in US is most high but Canada, Japan, India, Australia,
South Africa, and members of EU have started enforcing
various regulations for some time now
∾ Non-compliance is penalized severely
∾ Main challenges
o Non-compliance identification + remediation + proof
explanation
o Regulatory change management with risk adjusted decision
making
5. Regula on
Text
(Semi-) Formal
Representa on
Interpreta ons
Business
Process Models
Enterprise DataStakeholders
Formal
Approaches
GRC
Solu ons
Missing
Conceptual
Mapping
Taxonomies
1 2
Problem Investigation (with Current State
of the Art and Practice)
• Expectations:
1. To make the process of interpretations of regulation text easier for such
stakeholders as enterprise legal advisors, compliance experts, CxO level business
stakeholders, and operational managers
2. To enable enterprises to leverage formalisms offered by academic research
• But,
• Missing conceptual/terminological mapping to tell where in the business process a
rule from the regulation becomes applicable
• In contrast, GRC solutions are document/artefact-oriented and rely on enterprise
data to prove compliance to regulations
6. Regula on Text
Formal
Representa on
Business
Process Models
Enterprise Data
VocabularyReg Terminological_Dic onaryProcess
Facet Dependencies
Conceptual Data Model
Conceptual
Mapping
1
2 3a
4
5
3b
Artifact Design
Existing artifacts
• Merely taxonomies are not sufficient if features of GRC and formal techniques are
to be integrated
7. Regula on Text
Formal
Representa on
Business
Process Models
Enterprise Data
VocabularyReg Terminological_Dic onaryProcess
Facet Dependencies
Conceptual Data Model
Conceptual
Mapping
1
2 3a
4
5
3b
Artifact Validation
Existing artifacts
• Merely taxonomies are not sufficient if features of GRC and formal techniques are
to be integrated
• Need to express meaning of concepts- SBVR provides a semantic model of formal
terminology + helps in disambiguation by the use of semantic communities
• From legal text; [step <1>] focusing on aspects of interest called facets, [step <2>]
model the vocabulary of regulations. From operational details [step <3a/3b>]
represent them in terminological dictionary to [step <4>] conceptually map them
to regulations and [step <5>] check compliance.
Method steps
9. Business
Domain
[Banking]
Regulatory
Domain
[Know Your
Customer]
Facets of regulations
Business Vocabulary
Semantic communities- Banking industry, Reserve Bank of India’s Know
Your Customer, Bank_A- each containing smaller bodies of meanings
Meaning and Representation Vocabulary
Noun and verb concepts- customer noun concept, has characteristic
CustomerType, conditions as verb concepts in terms of characteristic =
value
Business Rules Vocabulary
Each rule is defined as an element of guidance embedding a logical
formulation. Obligations are denoted by obligationFormulation elements
Terminological dictionary
Map terms used in the enterprise business process as
representations of concepts in the regulations
body of concepts
Enterprise
Business
Processes/D
ata
12. ∾ Implementation
o Using SBVR consumable Metamodel from OMG
o Business process modeled using Assurance Work Bench TCS
o Compliance demonstrated using DR-Prolog compliance engine in
tuProlog.
∾ Evaluation With partner stakeholders
o Approach sounds better than taxonomies, but maps regulation
text directly to operational details without interpretation
o Mappings in Terminological Dictionary by consultation with
domain experts; should use semantic similarity measures instead
o Model transformation for going from facet dependencies to DR-
Prolog to ensure consistency of specification
Artifact Implementation and Evaluation
13. Nested DSR and Further Investigations
Relevance
Design
Rigor
Cost of Compliance Industry GRC and Academic
Process Compliance Checking
SBVR based Mapping
1
Relevance
Design
Rigor
Natural Language Explanation of Proofs of
Compliance- at RuleML’15
Relevance
Design
Rigor
2
3
Change Sensitive Compliance- at BMSD’15
14. Please feel free to reach out to me at
sagar.sunkle@tcs.com
Questions?
Editor's Notes
A controlled vocabulary is a list of terms that have been enumerated explicitly. This list is controlled by and is available from a controlled vocabulary registration authority. All terms in a controlled vocabulary should have an unambiguous, non-redundant definition. This is a design goal that may not be true in practice. It depends on how strict the controlled vocabulary registration authority is regarding registration of terms into a controlled vocabulary. At a minimum, the following two rules should be enforced:
If the same term is commonly used to mean different concepts in different contexts, then its name is explicitly qualified to resolve this ambiguity.
If multiple terms are used to mean the same thing, one of the terms is identified as the preferred term in the controlled vocabulary and the other terms are listed as synonyms or aliases.
A taxonomy is a collection of controlled vocabulary terms organized into a hierarchical structure. Each term in a taxonomy is in one or more parent-child relationships to other terms in the taxonomy. There may be different types of parent-child relationships in a taxonomy (e.g., whole-part, genus-species, type-instance), but good practice limits all parent-child relationships to a single parent to be of the same type. Some taxonomies allow poly-hierarchy, which means that a term can have multiple parents. This means that if a term appears in multiple places in a taxonomy, then it is the same term. Specifically, if a term has children in one place in a taxonomy, then it has the same children in every other place where it appears.
A thesaurus is a networked collection of controlled vocabulary terms. This means that a thesaurus uses associative relationships in addition to parent-child relationships. The expressiveness of the associative relationships in a thesaurus vary.
People use the word ontology to mean different things, e.g. glossaries & data dictionaries, thesauri & taxonomies, schemas & data models, and formal ontologies & inference.
