- 1. It’s a SolidState World How Exadata X3 leverages flash memory Gwen Shapira Marc Fielding
- 2. About Gwen – SolutionsArchitect, Cloudera – Oracle ACE Director – Presents, Blogs, Tweets – @gwenshap 2 © 2013 Pythian
- 3. About Marc • SeniorConsultant with Pythian’s Advanced Technology Group • 12+ years Oracle production systems experience starting with Oracle 7 • Blogger and conference presenter pythian.com/news/author/fielding • Occasionally on twitter: @mfild 3 © 2013 Pythian
- 4. Remember your firstSSD? … you’ll never forget it 4 © 2013 Pythian

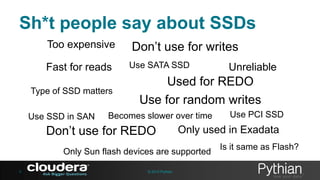

- 5. Sh*t people sayabout SSDs Too expensive Fast for reads Type of SSD matters Use SSD in SAN Don’t use for writes Use SATA SSD Used for REDO Use for random writes Becomes slower over time Don’t use for REDO © 2013 Pythian Use PCI SSD Only used in Exadata Only Sun flash devices are supported 5 Unreliable Is it same as Flash?

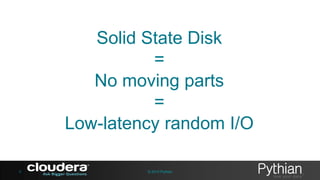

- 6. Solid State Disk = Nomoving parts = Low-latency random I/O 6 © 2013 Pythian

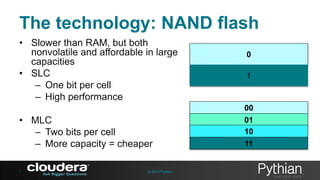

- 7. The technology: NANDflash • Slower than RAM, but both nonvolatile and affordable in large capacities • SLC – One bit per cell – High performance 0 1 00 • MLC – Two bits per cell – More capacity = cheaper 7 © 2013 Pythian 01 10 11
- 8. We will talkabout • • • • • 8 I/O Performance Using SSDs for Oracle How Exadata uses SSDs SSD devices Practice: Reading SSD Vendor Specs © 2013 Pythian

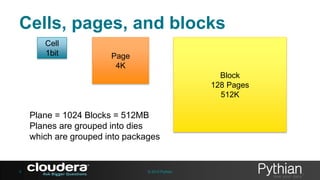

- 9. Cells, pages, andblocks Cell 1bit Page 4K Block 128 Pages 512K Plane = 1024 Blocks = 512MB Planes are grouped into dies which are grouped into packages 9 © 2013 Pythian

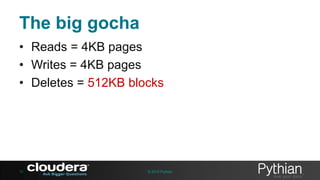

- 10. The big gocha •Reads = 4KB pages • Writes = 4KB pages • Deletes = 512KB blocks 10 © 2013 Pythian

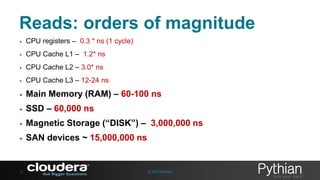

- 11. Reads: orders ofmagnitude • CPU registers – 0.3 * ns (1 cycle) • CPU Cache L1 – 1.2* ns • CPU Cache L2 – 3.0* ns • CPU Cache L3 – 12-24 ns • Main Memory (RAM) – 60-100 ns • SSD – 60,000 ns • Magnetic Storage (“DISK”) – 3,000,000 ns • SAN devices ~ 15,000,000 ns 12 © 2013 Pythian

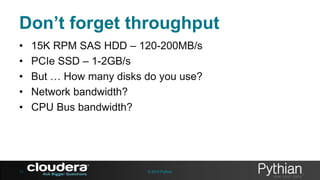

- 12. Don’t forget throughput • • • • • 13 15KRPM SAS HDD – 120-200MB/s PCIe SSD – 1-2GB/s But … How many disks do you use? Network bandwidth? CPU Bus bandwidth? © 2013 Pythian

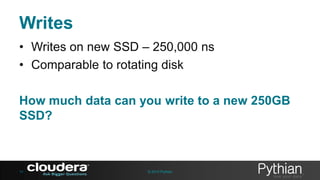

- 13. Writes • Writes onnew SSD – 250,000 ns • Comparable to rotating disk How much data can you write to a new 250GB SSD? 14 © 2013 Pythian

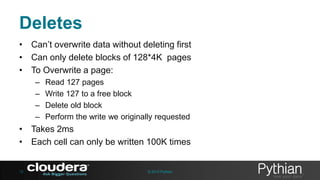

- 14. Deletes • Can’t overwritedata without deleting first • Can only delete blocks of 128*4K pages • To Overwrite a page: – – – – Read 127 pages Write 127 to a free block Delete old block Perform the write we originally requested • Takes 2ms • Each cell can only be written 100K times 15 © 2013 Pythian
- 15. The SSD controller • • • • Doesthe “magic” behind the scenes Deletes in the background (“garbage collection”) Tracks free space Balances I/O over cells (“wear leveling”) • Manages spare capacity (“overprovisioning”) • Manages RAM cache 16 © 2013 Pythian

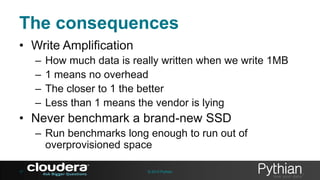

- 16. The consequences • WriteAmplification – – – – How much data is really written when we write 1MB 1 means no overhead The closer to 1 the better Less than 1 means the vendor is lying • Never benchmark a brand-new SSD – Run benchmarks long enough to run out of overprovisioned space 17 © 2013 Pythian
- 17. We will talkabout • • • • • 18 I/O Performance Using SSDs for Oracle How Exadata uses SSDs SSD devices Practice: Reading SSD Vendor Specs © 2013 Pythian
- 18.

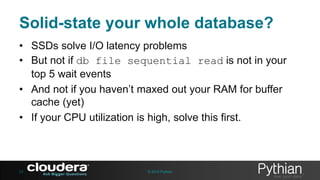

- 19. Solid-state your wholedatabase? • SSDs solve I/O latency problems • But not if db file sequential read is not in your top 5 wait events • And not if you haven’t maxed out your RAM for buffer cache (yet) • If your CPU utilization is high, solve this first. 23 © 2013 Pythian
- 20. SSD mistakes • SSDin primary but not DR site – I/O capacity to apply real-time updates – What if you need a switchover • Over-managing active segments – If DBAs didn’t have enough to do already… • Database smart flash cache 25 © 2013 Pythian

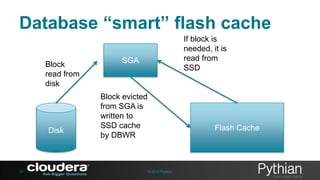

- 21. Database “smart” flashcache Block read from disk Disk 26 If block is needed, it is read from SSD SGA Block evicted from SGA is written to SSD cache by DBWR Flash Cache © 2013 Pythian

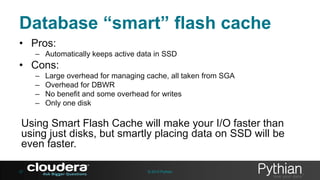

- 22. Database “smart” flashcache • Pros: – Automatically keeps active data in SSD • Cons: – – – – Large overhead for managing cache, all taken from SGA Overhead for DBWR No benefit and some overhead for writes Only one disk Using Smart Flash Cache will make your I/O faster than using just disks, but smartly placing data on SSD will be even faster. 27 © 2013 Pythian
- 23. We will talkabout • • • • • 28 I/O Performance Using SSDs for Oracle How Exadata uses SSDs SSD devices Practice: Reading SSD Vendor Specs © 2013 Pythian

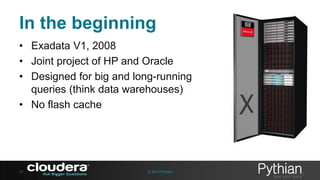

- 24. In the beginning •Exadata V1, 2008 • Joint project of HP and Oracle • Designed for big and long-running queries (think data warehouses) • No flash cache 29 © 2013 Pythian
- 25. And then • • • • Exadata V2,2009 Brand-new PCI-based flash cache Integrated with storage servers A full high-performance rack has: – – – – 4 * 14 Sun F20 flash accelerator cards 96GB * 4 * 14 = 5.4TB SLC flash 75 GB/sec flash throughput 1.5m IOPS • Note that InfiniBand will limit you to 4GB/sec per DB node 30 © 2013 Pythian

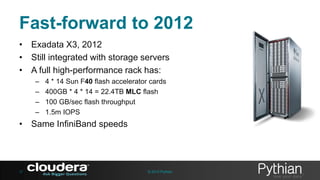

- 26. Fast-forward to 2012 •Exadata X3, 2012 • Still integrated with storage servers • A full high-performance rack has: – – – – 4 * 14 Sun F40 flash accelerator cards 400GB * 4 * 14 = 22.4TB MLC flash 100 GB/sec flash throughput 1.5m IOPS • Same InfiniBand speeds 31 © 2013 Pythian

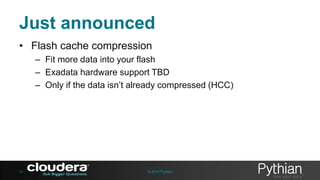

- 27. Just announced • Flashcache compression – Fit more data into your flash – Exadata hardware support TBD – Only if the data isn’t already compressed (HCC) 32 © 2013 Pythian
- 28. Exadata smart flashcache • • • • 33 Not the database smart flash cache No victim caching here Flash memory on storage servers Can be used for traditional storage too (but you lose capacity to redundancy) © 2013 Pythian

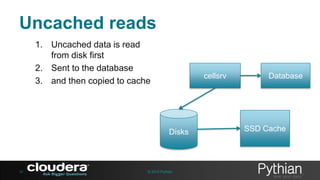

- 29. Uncached reads 1. Uncacheddata is read from disk first 2. Sent to the database 3. and then copied to cache cellsrv Disks 34 © 2013 Pythian Database SSD Cache

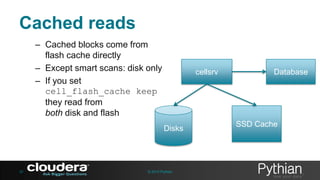

- 30. Cached reads – Cachedblocks come from flash cache directly – Except smart scans: disk only – If you set cell_flash_cache keep they read from both disk and flash cellsrv Disks 35 © 2013 Pythian Database SSD Cache
- 31. Writes (1) – Writesgo to disk first – Then copied to cache, sometimes cellsrv Database • Indexes and tables with random read I/O are prioritized • Or use cell_flash_cache keep 36 Disks © 2013 Pythian SSD Cache

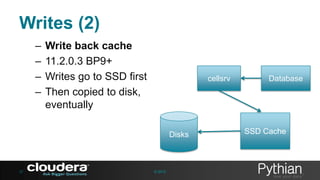

- 32. Writes (2) – – – – Write backcache 11.2.0.3 BP9+ Writes go to SSD first Then copied to disk, eventually cellsrv Disks 37 © 2013 Database SSD Cache

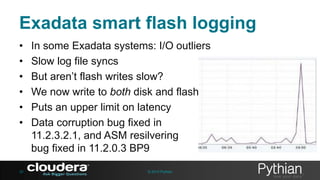

- 33. Exadata smart flashlogging • • • • • • 38 In some Exadata systems: I/O outliers Slow log file syncs But aren’t flash writes slow? We now write to both disk and flash Puts an upper limit on latency Data corruption bug fixed in 11.2.3.2.1, and ASM resilvering bug fixed in 11.2.0.3 BP9 © 2013 Pythian

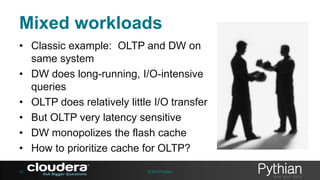

- 34. Mixed workloads • Classicexample: OLTP and DW on same system • DW does long-running, I/O-intensive queries • OLTP does relatively little I/O transfer • But OLTP very latency sensitive • DW monopolizes the flash cache • How to prioritize cache for OLTP? 39 © 2013 Pythian

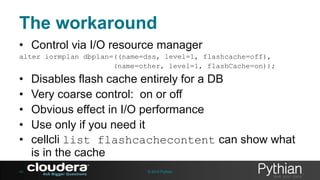

- 35. The workaround • Controlvia I/O resource manager alter iormplan dbplan=((name=dss, level=1, flashcache=off), (name=other, level=1, flashCache=on)); • • • • • 40 Disables flash cache entirely for a DB Very coarse control: on or off Obvious effect in I/O performance Use only if you need it cellcli list flashcachecontent can show what is in the cache © 2013 Pythian
- 36. We will talkabout • • • • • 41 I/O Performance Using SSDs for Oracle How Exadata uses SSDs SSD devices Practice: Reading SSD Vendor Specs © 2013 Pythian

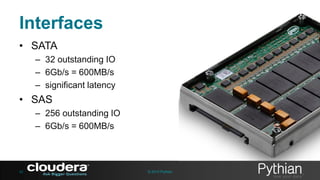

- 37. Interfaces • SATA – 32outstanding IO – 6Gb/s = 600MB/s – significant latency • SAS – 256 outstanding IO – 6Gb/s = 600MB/s 42 © 2013 Pythian

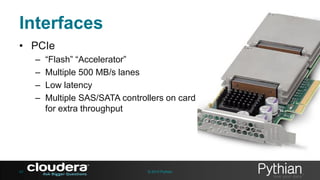

- 38. Interfaces • PCIe – – – – 43 “Flash” “Accelerator” Multiple500 MB/s lanes Low latency Multiple SAS/SATA controllers on card for extra throughput © 2013 Pythian

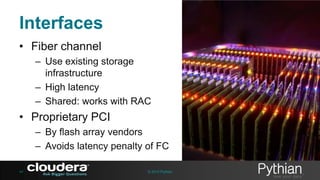

- 39. Interfaces • Fiber channel –Use existing storage infrastructure – High latency – Shared: works with RAC • Proprietary PCI – By flash array vendors – Avoids latency penalty of FC 44 © 2013 Pythian
- 40. We will talkabout • • • • • 45 I/O Performance Using SSDs for Oracle How Exadata uses SSDs SSD devices Practice: Reading SSD Vendor Specs © 2013 Pythian

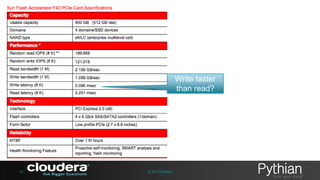

- 41. Write faster than read? 46 ©2013 Pythian

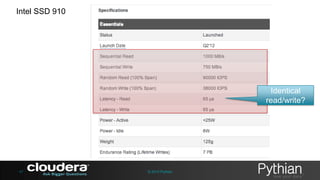

- 42. Intel SSD 910 Identical read/write? 47 ©2013 Pythian
- 43.
- 44.

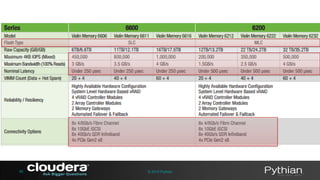

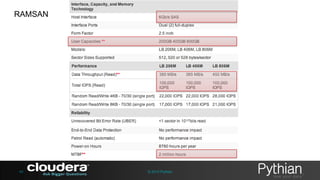

- 45.

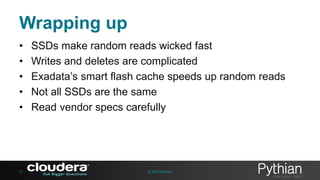

- 46. Wrapping up • • • • • 51 SSDs makerandom reads wicked fast Writes and deletes are complicated Exadata’s smart flash cache speeds up random reads Not all SSDs are the same Read vendor specs carefully © 2013 Pythian
