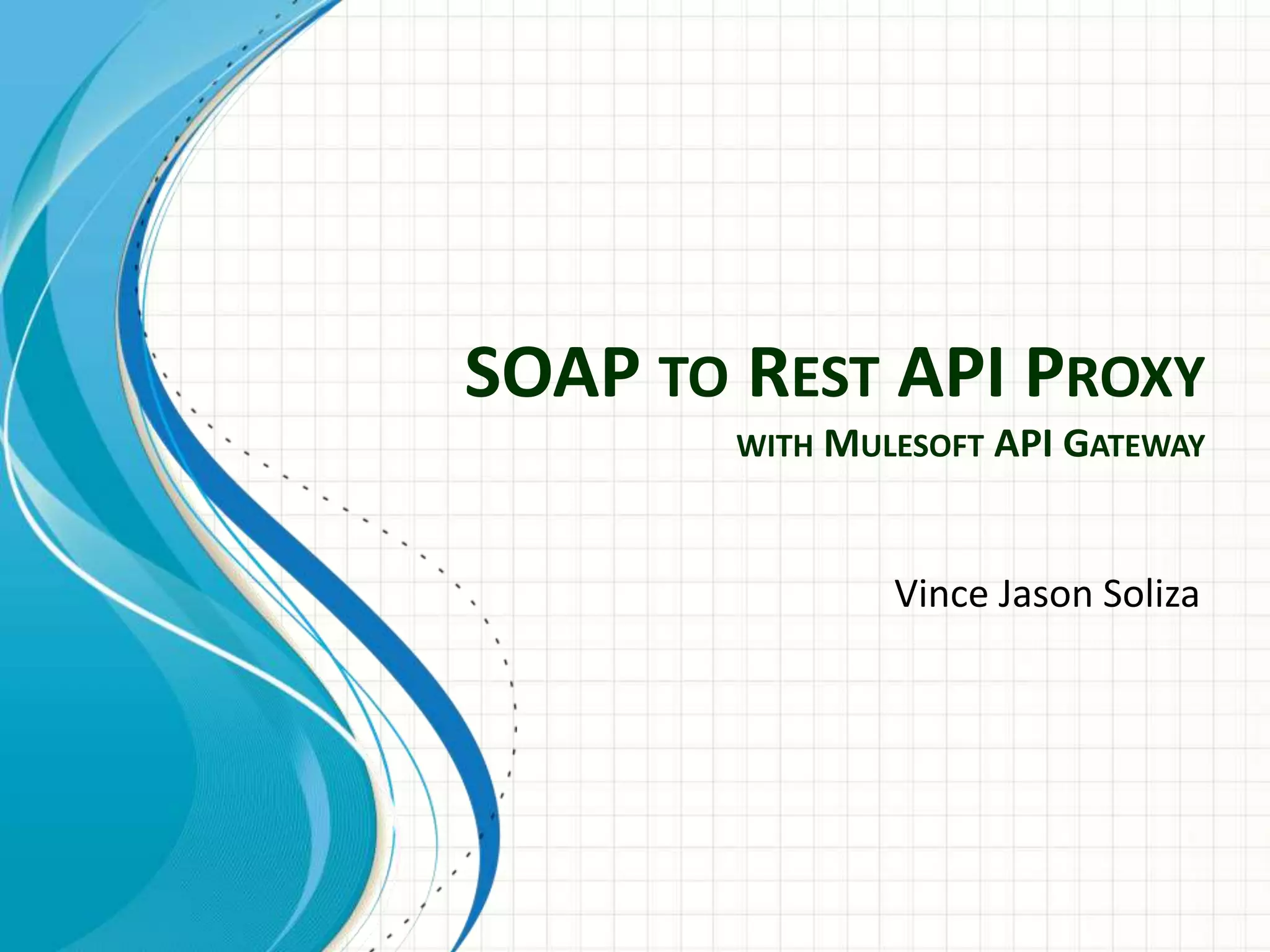

1. SOAP TO REST API PROXY
WITH MULESOFT API GATEWAY
Vince Jason Soliza

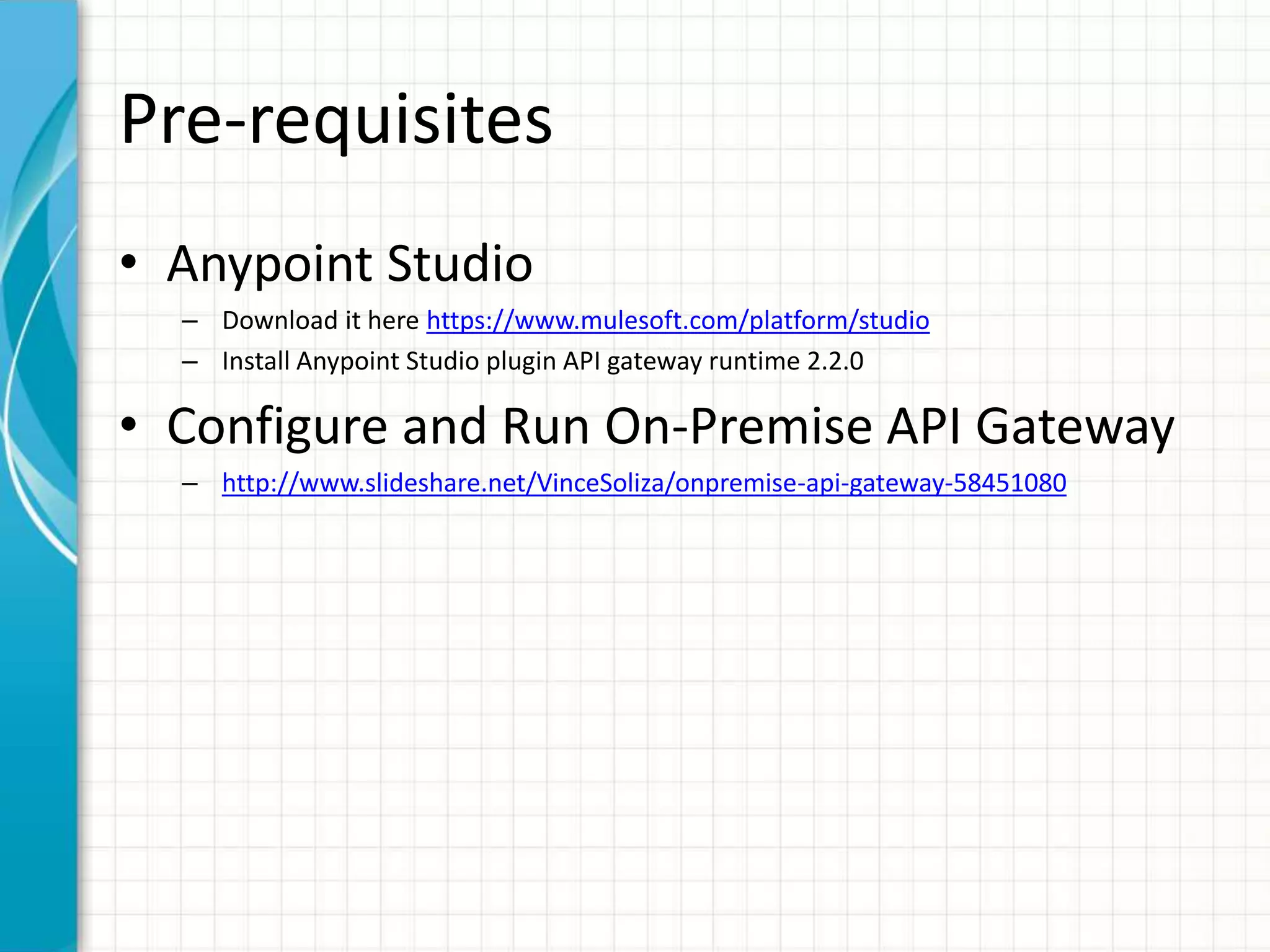

2. Pre-requisites
• Anypoint Studio
– Download it here https://www.mulesoft.com/platform/studio
– Install Anypoint Studio plugin API gateway runtime 2.2.0
• Configure and Run On-Premise API Gateway
– http://www.slideshare.net/VinceSoliza/onpremise-api-gateway-58451080
3. From SOAP to REST
This presentation will show how to proxy an
existing SOAP web service and expose it as a
RESTful web service.
4. WSDL
• Check if WSDL of the existing SOAP web service is accessible. If not then
get a copy of the WSDL file.
5. Add New Proxy API
• Login to anypoint platform.
• Click on APIs menu
• Click Add New API
• Fill up the API Details and click Add.
7. Configure Proxy API
• While in API Administration,
click configure endpoint.
• Select Endpoint with a proxy
• Change the Type to HTTP
• Write any url because we will be
replacing that later
• Un-check Configure proxy for Cloudhub?
since we’re deploying in on-premises
• Use HTTP scheme
• Enter desired port and path
• Click Save.
8. Configure Proxy API
• Download the proxy project
with the latest api gateway version
• Open Anypoint Studio and import
the downloaded project with mule deployable
archive (.zip).
• Browse the project in the package explorer
and open mule-project.xml then set the runtime
To api-gateway.
9. Configure Proxy API
• Associate the project to API Gateway
• Open proxy.xml configuration
10. Configure Proxy API
• Delete HTTP component and replace it with Web Service Consumer
• Create json file for the metadata definition that we’ll do later
11. Configure Proxy API
• Configure the web service consumer using the WSDL of the
SOAP service we want to proxy.
• Add Transform Message before
web service consumer.
12. Configure Proxy API
• Click define metadata to use dataweave graphical gui mapping.
• Map JSON request to web service request
13. Configure Proxy API
• Add Transform Message after the web service consumer
• Add the property Content-Type with value application/json
14. Run in Anypoint Studio
Note: Make sure the default api gateway port of 8081 is available.
16. Test the REST Proxy API
• Invoked the service thru REST POST method
with application/json media-type
17. Summary
• API Gateway converts SOAP to REST web service
without too much complications.
• API Gateway able to consume SOAP web
services using Web Service Consumer
component.
• DataWeave (Transform Message) is Mule’s most
powerful and versatile tool for transforming
data.
• API Gateway app is deployed in Anypoint Studio
(without using API Manager)
