1. SOA Solution Patterns
Asanka Abeysinghe,
Architect, WSO2, Inc.
asankaa@wso2.com

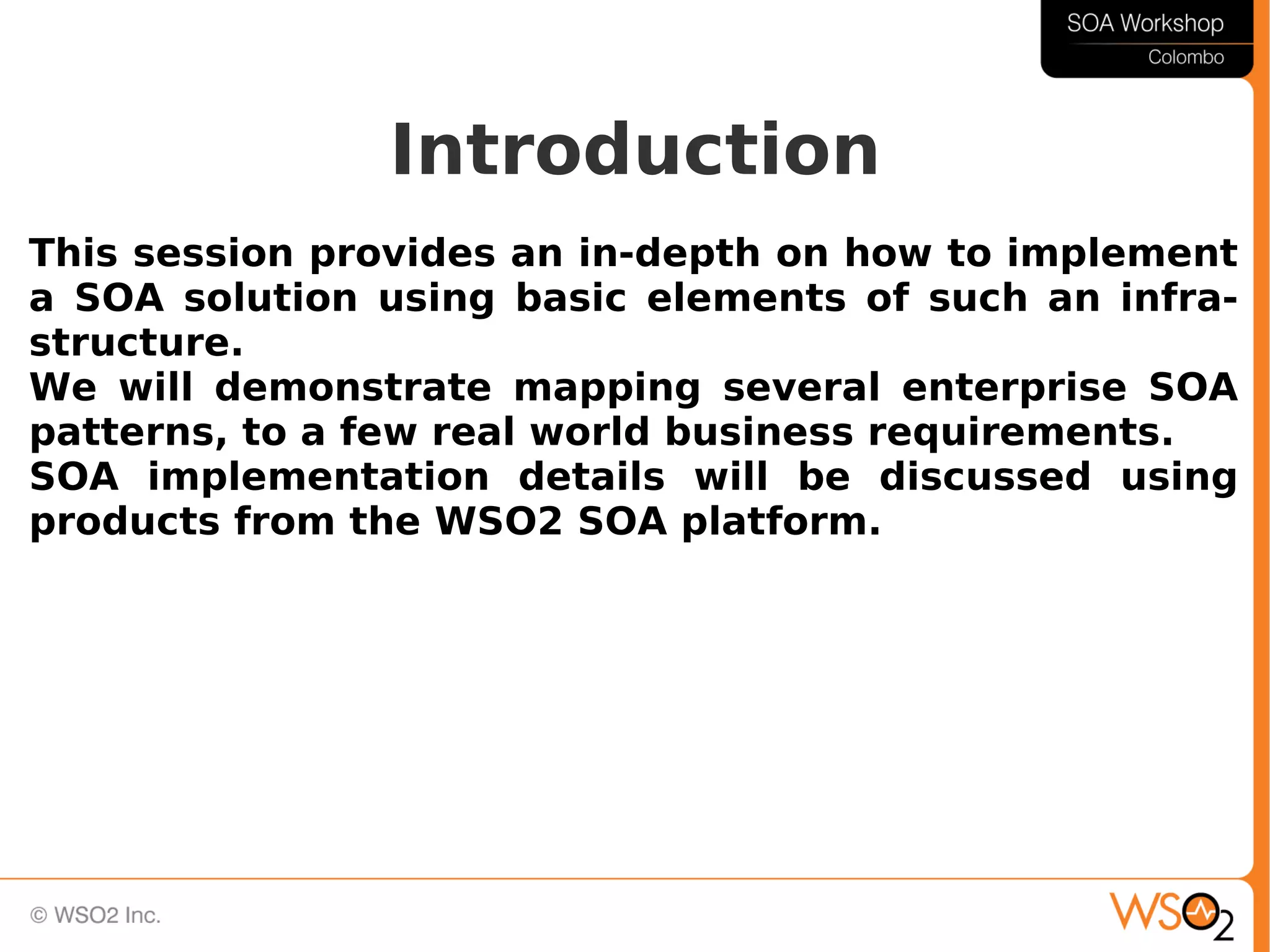

2. Introduction
This session provides an in-depth on how to implement
a SOA solution using basic elements of such an infra-
structure.
We will demonstrate mapping several enterprise SOA
patterns, to a few real world business requirements.
SOA implementation details will be discussed using
products from the WSO2 SOA platform.

3. Topics
 Introduction
 Patterns
 SOA Infrastructure
 Solution building roadmap
 Use-Case 1
 Use-Case 2
 Use-Case 3
 Enhancements
 Summary
 Q&A

4. Patterns
A generic solution for a common recurring
problem.
 Used it before
 Error proof
 Catalog to pick one
 Feel comfortable
Real world - Technical
Documented – Practical

5. SOA Patterns
SA Patterns
OO Patterns
EAA Patterns
EAI Patterns Other
OO - Object-Oriented
SA – Software Architecture
EAI – Ent. Application Integration
EAA – Ent. Application Architecture

6. SOA Infrastructure

7. Solution Building Roadmap
Requirements Business Patterns Integration Patterns
Application Patterns
Runtime Patterns
Product Mappings

8. USE-Case-1 (Business Scenario)
A system has connected a service client and a service in P2P.
System is running on production.
Backend Service development team decided to bring bunch of
changes to the backend service(s).
 Secure the backend service.
 Change the service contract.
 Bring multiple services instead of the single service.
Change
Again ?
Service Client/Frontend developers
PMs, Financial dept, HR Dept

9. USE-Case-1 (Pattern Mapping)
 Service Broker Pattern with ESB
 Pipes and Filters
 Transform
 Route
 Trusted Subsystems
 Functional Decomposition
 Service Encapsulation

10. USE-Case-1 (Implementation)
Pipes and filters
Route
Trusted subsystems

11. USE-Case-1 (Implementation) cont..
Pipes and filters Mediation
Route DBLookup
Transform

12. USE-Case-1 (Implementation) cont..
Pipes and filters
Route

13. USE-Case-1 (Implementation) cont..
Pipes and filters
Route
Functional decomposition
Service encapsulation

14. USE-Case-2 (Business Scenario)
A service that hosted in a local network required to accept
requests from outside and need to validate the content outside
LAN before accepting.
Validations , virus scan and validate the content
Expose the service to
outside
NO you can't

15. USE-Case-2 (Pattern Mapping)
 Service Firewall Pattern
 Protocol Bridging

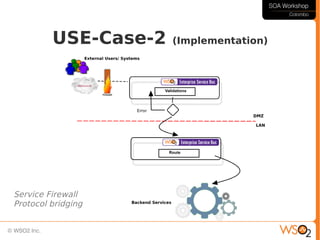

16. USE-Case-2 (Implementation)
Service Firewall
Protocol bridging

17. USE-Case-3 (Business Scenario)
SOA infrastructure going to implement in an environment that
contains legacy systems and legacy databases that running for
a long time. Existing systems are error proof and the data is
valuable to make decisions.
Throw the old
systems away......
Data ?
NO need of
SOA $$$$

18. USE-Case-3 (Pattern Mapping)
 MDM (Master Data Management)
Pattern
 EDA (Event Driven Architecture)

19. USE-Case-3 (Implementation)
MDM

20. USE-Case-3 (Implementation) cont..
MDM

21. USE-Case-3 (Implementation) cont..
MDM
EDA

22. Enhancements
 Security
 Shared repository/ registry
 Governance
 Metadata
 Control
 Monitoring / Management
 Deployment
 Clustering – HA / LB
 Create your own patterns for your
needs
 Business requirements
 Technical requirements

23. Lab Session

24. Summary
 Identify the business requirements.
 Map them to patterns.
 Pick the correct Middleware.
 Keep all stakeholders happy.
 Think about the ROI.
 Optimize the usage of the application(s).
 Apply SOA correctly.
 (>Business) (<Technical) requirements
 Architecture
 Programming Model
 Deployment

25. Thank You....
