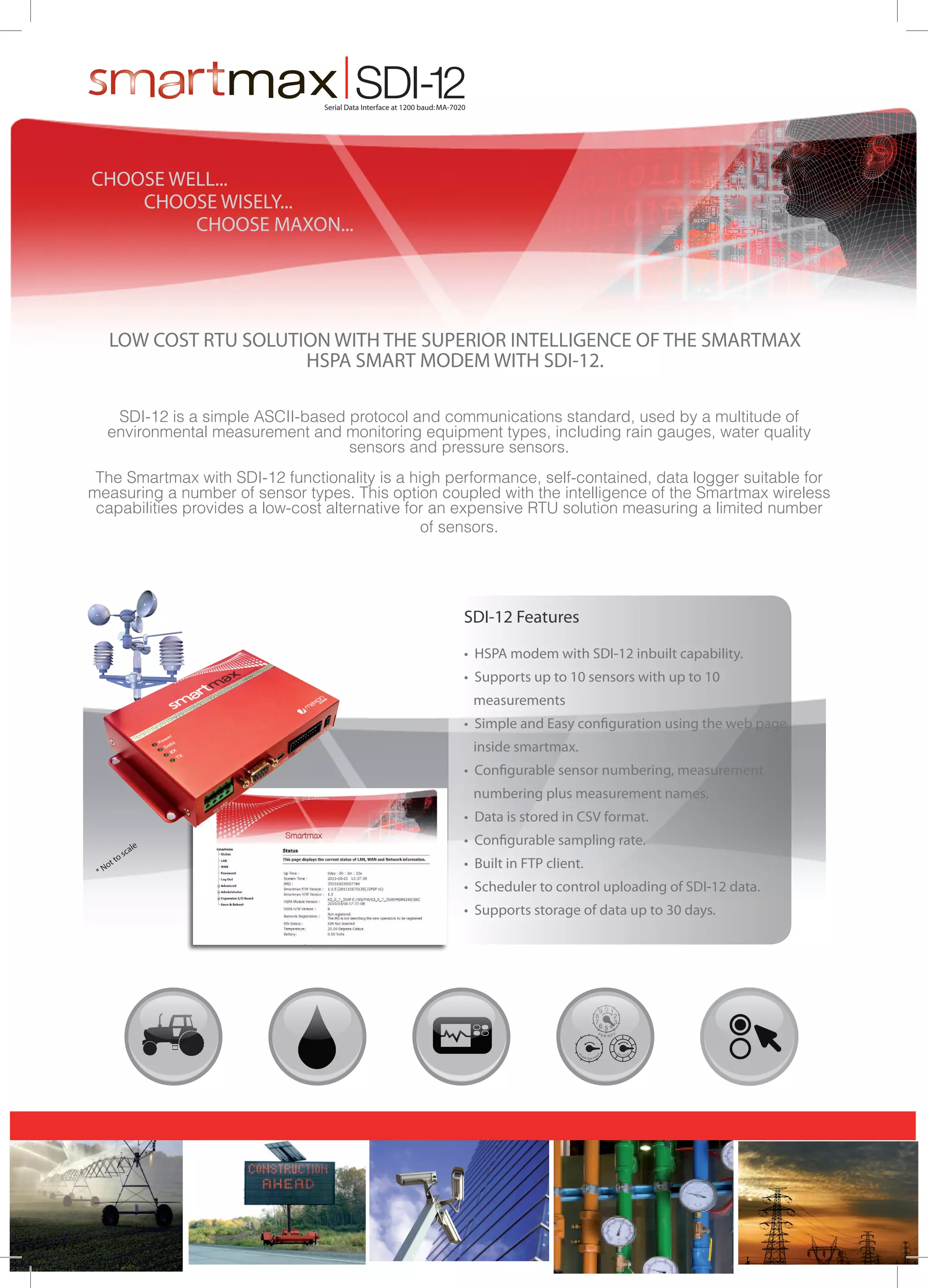

1. SDI-1
2
Serial Data Interface at 1200 baud: MA-7020
CHOOSE WELL...
CHOOSE WISELY...
CHOOSE MAXON...
LOW COST RTU SOLUTION WITH THE SUPERIOR INTELLIGENCE OF THE SMARTMAX
HSPA SMART MODEM WITH SDI-12.
SDI-12 is a simple ASCII-based protocol and communications standard, used by a multitude of
environmental measurement and monitoring equipment types, including rain gauges, water quality
sensors and pressure sensors.
The Smartmax with SDI-12 functionality is a high performance, self-contained, data logger suitable for
measuring a number of sensor types. This option coupled with the intelligence of the Smartmax wireless
capabilities provides a low-cost alternative for an expensive RTU solution measuring a limited number
of sensors.
SDI-12 Features
• HSPA modem with SDI-12 inbuilt capability.
• Supports up to 10 sensors with up to 10
measurements
• Simple and Easy configuration using the web page
inside smartmax.
• Configurable sensor numbering, measurement
numbering plus measurement names.
• Data is stored in CSV format.
le
ca
*N
o
os
tt
• Configurable sampling rate.
• Built in FTP client.
• Scheduler to control uploading of SDI-12 data.
• Supports storage of data up to 30 days.

2. SDI-12
Serial Data Interface at 1200 baud: MA-7020
Frequency Bands
• WCDMA/HSPA 850MHz, 900MHz, 1900MHz, 2100MHz
• GSM/GPRS/EDGE 850MHz, 900MHz, 1800MHz and 1900MHz
General Features
• USB, RS232 and RS485 connection
• RS232 Connection
• Packet Data
• RS485 Connection
• 2 Way SMS
• USB Connection
• Remote SMS diagnostics & reset
• SIM Card Holder
• Embedded TCP/IP, UDP/IP STACK
• I/O Port
• In-built periodic reset
Power
Connections
• External Power Connection (Molex)
• External DC Powered
• Diagnostics
• Support VPN Server and Client Mode
• Antenna connector: FME male
• Dynamic DNS
• Supports DNP3 (Outstation) using extension I/O board
•
Rugged Metal Casing for industrial use
LED
•
In-Built Web Interface
• Power
• Data
•
Programmable scheduler to control WAN connection
• RX
• TX
•
Telnet support
•
Data Logging
Save and restore modem configuration from a file
• FOTA - Firmware upgrade over the air
Water
•
External antenna connectivity to maximise HSPA
coverage
• External LED to show Network and Connection status
Module Approvals
• GCF
• PTCRB
• CE
• FCC
• Carrier Approvals*
• ACA
* Contact Maxon Australia for further information about Carrier Approvals.
Data
• HSPA: 5.76 Mbps UL, DL 7.2 Mbps (USB only)
Power
• DC Input Voltage Range: 7 to 34 VDC
• WCDMA CS:
UL 64 Kbps / DL 64 Kbps
• Active Data Connection @ 12VDC: 150mA
UL 236 Kbps / DL 236 Kbps
• Maximum Current @ 12VDC: 450mA
• GSM CS:
Metering
UL 384 Kbps / DL 384 Kbps
• GPRS/EDGE:
Monitor
• WCDMA PS:
UL 9.6 Kbps / DL 9.6 Kbps
• Idle Current @ 12VDC: 45mA
SDI-12 Kit Includes
• SDI-12 Key, Installation Instructions & Certificate
• SDI-12 Cable Interface (MA-4230)
www.maxon.com.au
A mini usb cable is required for first time purchasers of the Smartmax, as most of the programming can only be done via the web interface. This is available in the
Smartmax Complete Package (MA-2010C), the Smartmax SDK (MA-7000), and separately. Speak to your Maxon Account Manager for more information.
T | +612 8707 3000 ● F | +612 8707 3001 ● E | sales@maxon.com.au ● 36A Gibson Avenue, Padstow NSW Australia 2211 ● www.maxon.com.au
