The SMB3315 satellite modem board supports multiple platforms and is designed for diverse markets including mobility and government applications. It offers flexible waveform technologies, high data rates, and wideband operations, making it suitable for compact terminals and various network configurations. The modem features advanced modulation and security options, and it is operational in a wide range of environmental conditions.

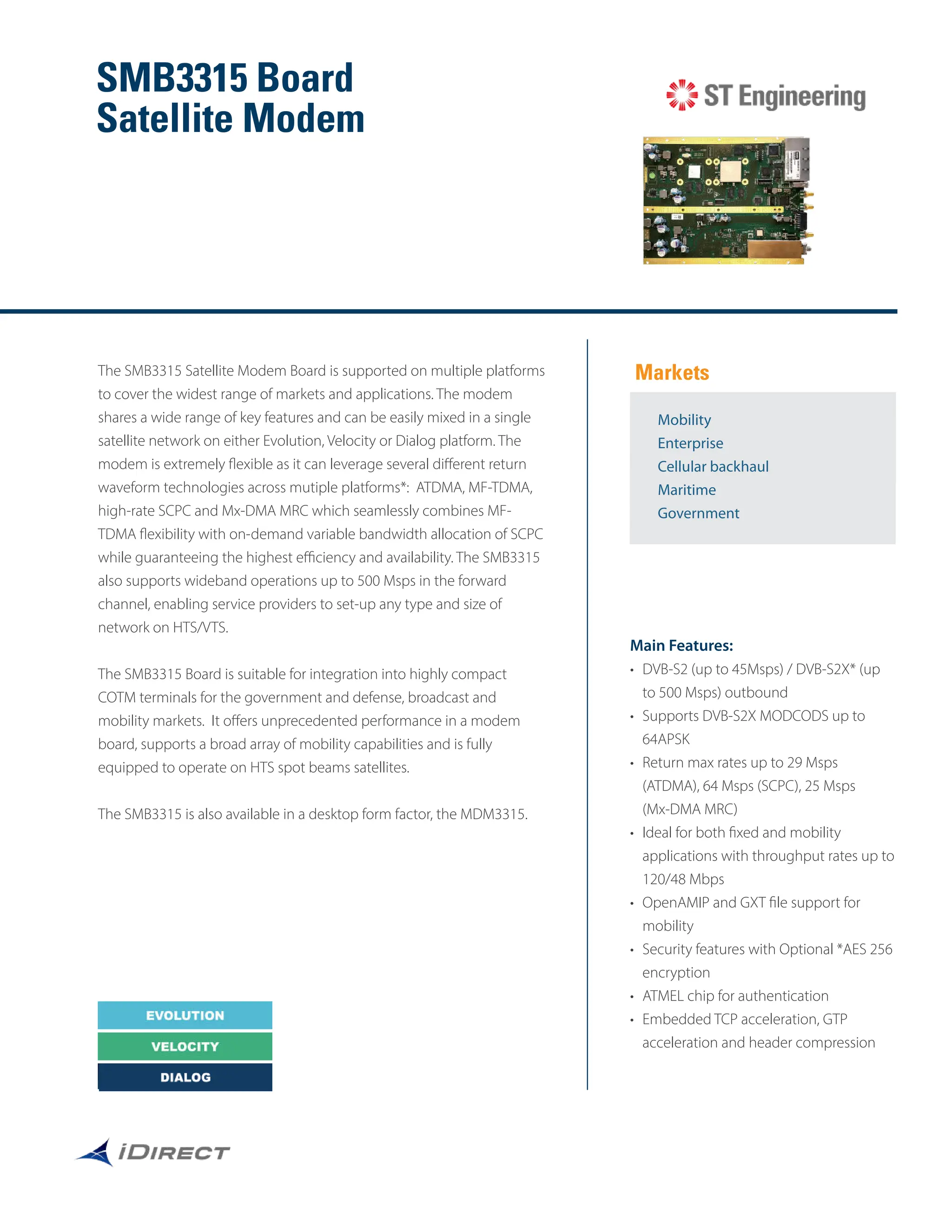

1. SMB3315 Board
Satellite Modem
Markets
Mobility
Enterprise
Cellular backhaul
Maritime
Government
The SMB3315 Satellite Modem Board is supported on multiple platforms
to cover the widest range of markets and applications. The modem
shares a wide range of key features and can be easily mixed in a single
satellite network on either Evolution, Velocity or Dialog platform. The
modem is extremely flexible as it can leverage several different return
waveform technologies across mutiple platforms*: ATDMA, MF-TDMA,
high-rate SCPC and Mx-DMA MRC which seamlessly combines MF-
TDMA flexibility with on-demand variable bandwidth allocation of SCPC
while guaranteeing the highest efficiency and availability. The SMB3315
also supports wideband operations up to 500 Msps in the forward
channel, enabling service providers to set-up any type and size of
network on HTS/VTS.
The SMB3315 Board is suitable for integration into highly compact
COTM terminals for the government and defense, broadcast and
mobility markets. It offers unprecedented performance in a modem
board, supports a broad array of mobility capabilities and is fully
equipped to operate on HTS spot beams satellites.
The SMB3315 is also available in a desktop form factor, the MDM3315.
Main Features:
• DVB-S2 (up to 45Msps) / DVB-S2X* (up
to 500 Msps) outbound
• Supports DVB-S2X MODCODS up to
64APSK
• Return max rates up to 29 Msps
(ATDMA), 64 Msps (SCPC), 25 Msps
(Mx-DMA MRC)
• Ideal for both fixed and mobility
applications with throughput rates up to
120/48 Mbps
• OpenAMIP and GXT file support for
mobility
• Security features with Optional *AES 256
encryption
• ATMEL chip for authentication
• Embedded TCP acceleration, GTP
acceleration and header compression
DIALOG

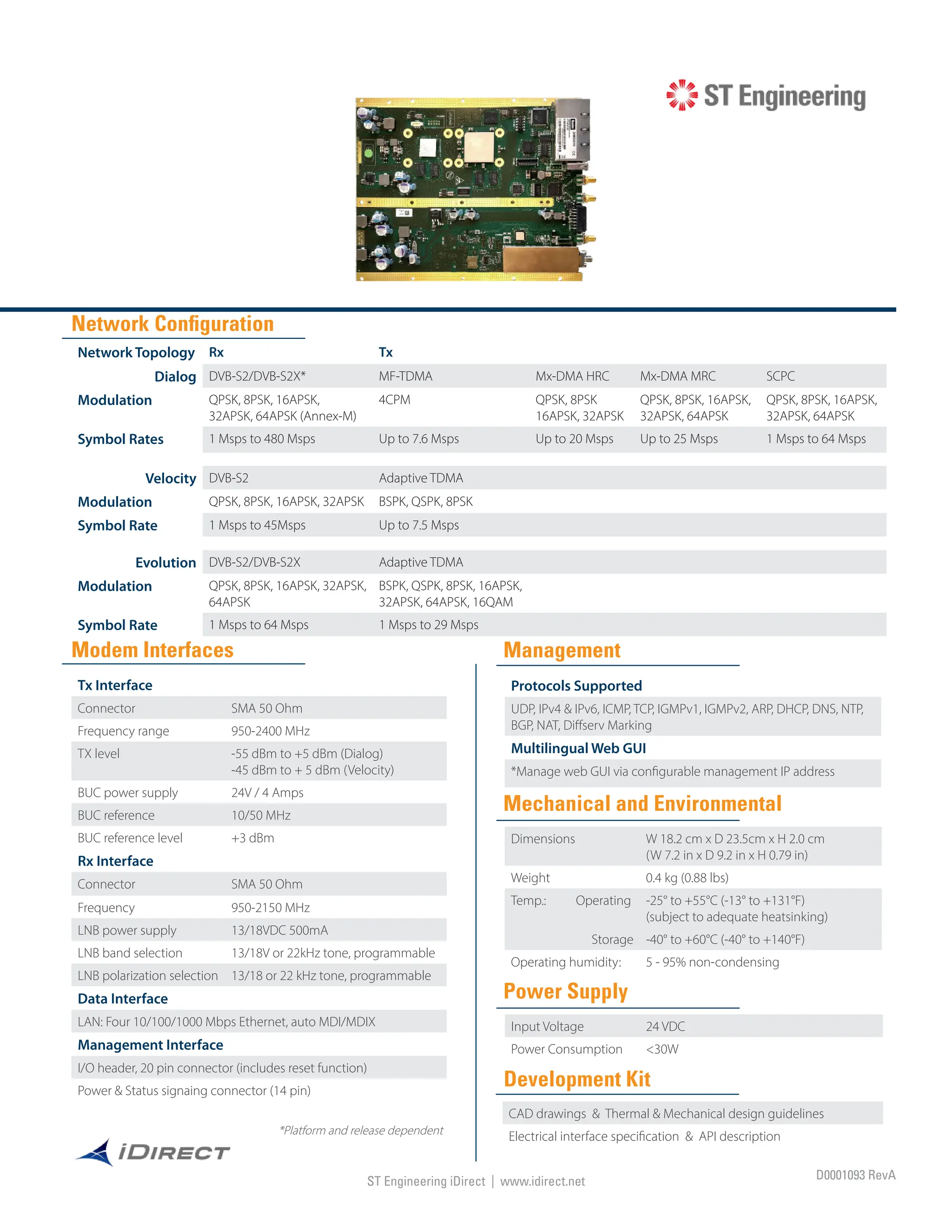

2. ST Engineering iDirect | www.idirect.net
Network Configuration
Modem Interfaces Management
Mechanical and Environmental
Power Supply
Tx Interface
Connector SMA 50 Ohm
Frequency range 950-2400 MHz
TX level -55 dBm to +5 dBm (Dialog)
-45 dBm to + 5 dBm (Velocity)
BUC power supply 24V / 4 Amps
BUC reference 10/50 MHz
BUC reference level +3 dBm
Rx Interface
Connector SMA 50 Ohm
Frequency 950-2150 MHz
LNB power supply 13/18VDC 500mA
LNB band selection 13/18V or 22kHz tone, programmable
LNB polarization selection 13/18 or 22 kHz tone, programmable
Data Interface
LAN: Four 10/100/1000 Mbps Ethernet, auto MDI/MDIX
Management Interface
I/O header, 20 pin connector (includes reset function)
Power & Status signaing connector (14 pin)
Network Topology Rx Tx
Dialog DVB-S2/DVB-S2X* MF-TDMA Mx-DMA HRC Mx-DMA MRC SCPC
Modulation QPSK, 8PSK, 16APSK,
32APSK, 64APSK (Annex-M)
4CPM QPSK, 8PSK
16APSK, 32APSK
QPSK, 8PSK, 16APSK,
32APSK, 64APSK
QPSK, 8PSK, 16APSK,
32APSK, 64APSK
Symbol Rates 1 Msps to 480 Msps Up to 7.6 Msps Up to 20 Msps Up to 25 Msps 1 Msps to 64 Msps
Velocity DVB-S2 Adaptive TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK BSPK, QSPK, 8PSK
Symbol Rate 1 Msps to 45Msps Up to 7.5 Msps
Evolution DVB-S2/DVB-S2X Adaptive TDMA
Modulation QPSK, 8PSK, 16APSK, 32APSK,
64APSK
BSPK, QSPK, 8PSK, 16APSK,
32APSK, 64APSK, 16QAM
Symbol Rate 1 Msps to 64 Msps 1 Msps to 29 Msps
Protocols Supported
UDP, IPv4 & IPv6, ICMP, TCP, IGMPv1, IGMPv2, ARP, DHCP, DNS, NTP,
BGP, NAT, Diffserv Marking
Multilingual Web GUI
*Manage web GUI via configurable management IP address
Dimensions W 18.2 cm x D 23.5cm x H 2.0 cm
(W 7.2 in x D 9.2 in x H 0.79 in)
Weight 0.4 kg (0.88 lbs)
Temp.: Operating -25° to +55°C (-13° to +131°F)
(subject to adequate heatsinking)
Storage -40° to +60°C (-40° to +140°F)
Operating humidity: 5 - 95% non-condensing
Input Voltage 24 VDC
Power Consumption <30W
D0001093 RevA
Development Kit
CAD drawings & Thermal & Mechanical design guidelines
Electrical interface specification & API description
*Platform and release dependent
