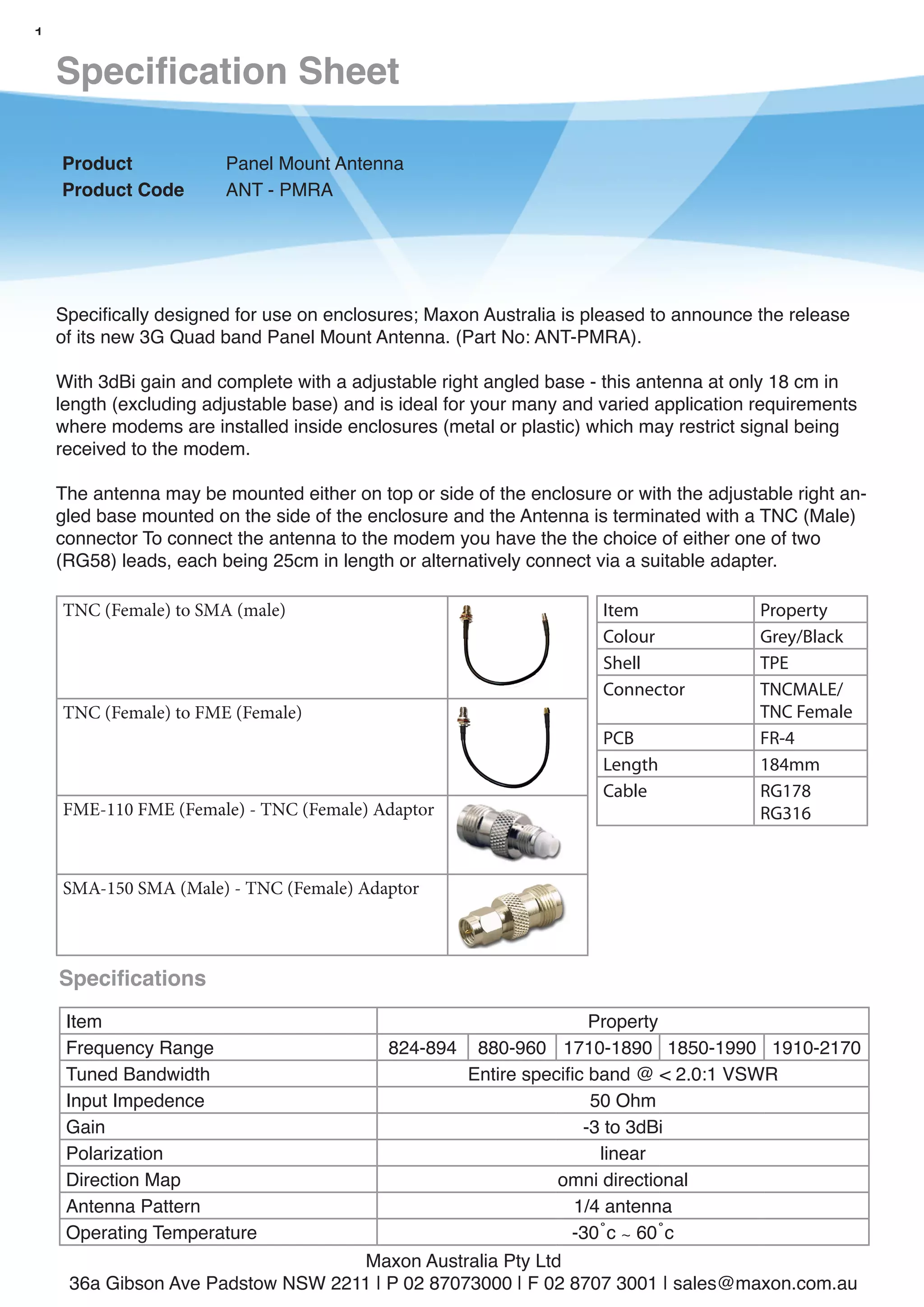

Specification Sheet
Product
Product Code
Panel Mount Antenna
ANT - PMRA
Specifically designed for use on enclosures; Maxon Australia is pleased to announce the release
of its new 3G Quad band Panel Mount Antenna. (Part No: ANT-PMRA).
With 3dBi gain and complete with a adjustable right angled base - this antenna at only 18 cm in
length (excluding adjustable base) and is ideal for your many and varied application requirements
where modems are installed inside enclosures (metal or plastic) which may restrict signal being
received to the modem.
The antenna may be mounted either on top or side of the enclosure or with the adjustable right angled base mounted on the side of the enclosure and the Antenna is terminated with a TNC (Male)
connector To connect the antenna to the modem you have the the choice of either one of two
(RG58) leads, each being 25cm in length or alternatively connect via a suitable adapter.
TNC (Female) to SMA (male)
Item
Colour
Shell
Connector
TNC (Female) to FME (Female)
FME-110 FME (Female) - TNC (Female) Adaptor
PCB
Length
Cable
Property
Grey/Black
TPE
TNCMALE/
TNC Female
FR-4
184mm
RG178
RG316
SMA-150 SMA (Male) - TNC (Female) Adaptor
Specifications
Item
Frequency Range
Tuned Bandwidth
Input Impedence
Gain
Polarization
Direction Map
Antenna Pattern
Operating Temperature
Property
824-894 880-960 1710-1890 1850-1990 1910-2170
Entire specific band @ < 2.0:1 VSWR
50 Ohm
-3 to 3dBi
linear
omni directional
1/4 antenna
-30˚c ∼ 60˚c
