1. The Direct Wi-Fi Smart Touch Switch allows controlling lights and appliances through Wi-Fi, a remote, or a smart mobile device without needing a gateway or central control unit. 2. It features a high-resolution glass display, capacitive touch technology, three dimming channels, four mood lighting programs, and Wi-Fi connectivity for remote access and control via an app. 3. The switch is designed for safety, simplicity, and accessibility for children and elderly users, with a backlit touch interface for easy operation even in dark rooms.

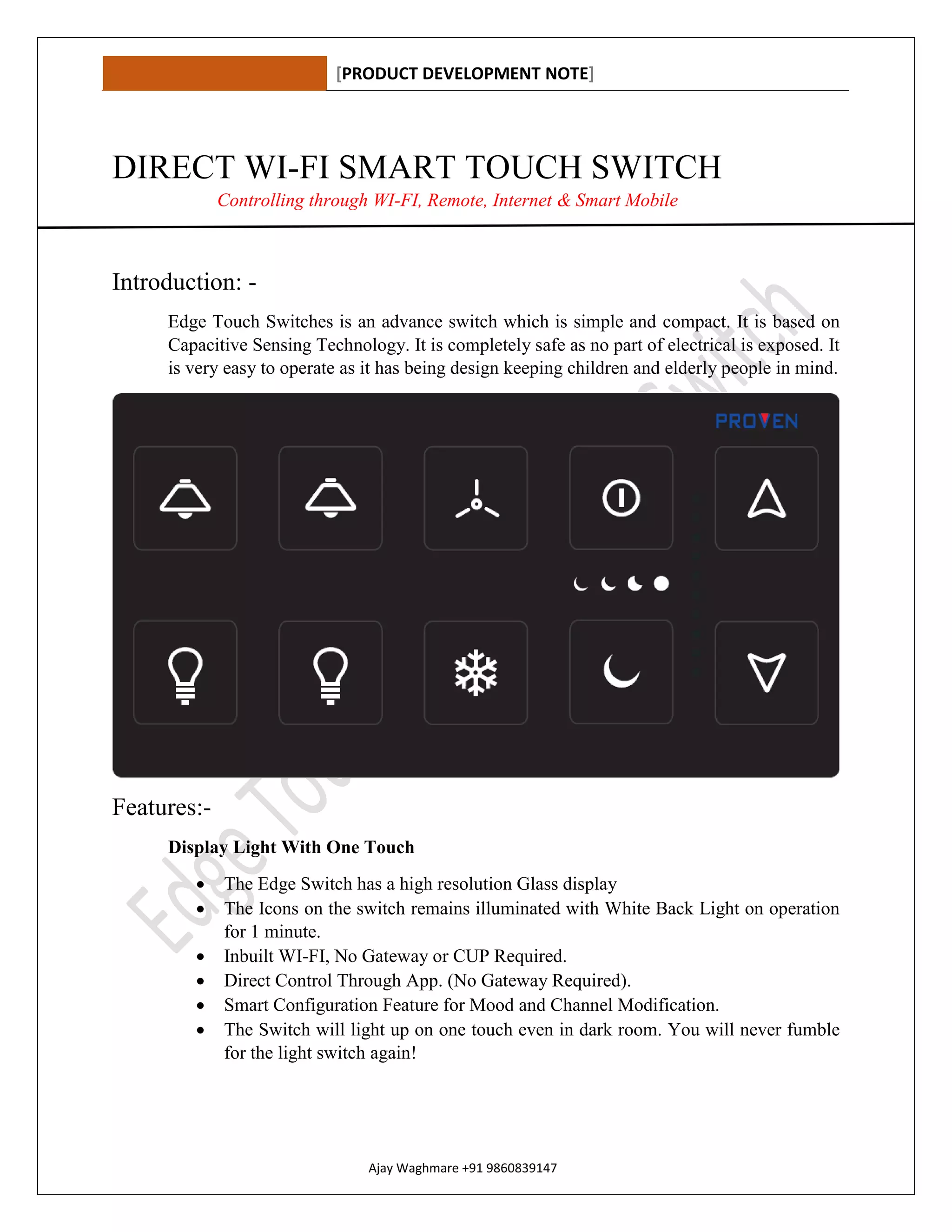

1. [PRODUCT DEVELOPMENT NOTE]
Ajay Waghmare +91 9860839147
DIRECT WI-FI SMART TOUCH SWITCH
Controlling through WI-FI, Remote, Internet & Smart Mobile
Introduction: -
Edge Touch Switches is an advance switch which is simple and compact. It is based on
Capacitive Sensing Technology. It is completely safe as no part of electrical is exposed. It
is very easy to operate as it has being design keeping children and elderly people in mind.
Features:-
Display Light With One Touch
 The Edge Switch has a high resolution Glass display
 The Icons on the switch remains illuminated with White Back Light on operation
for 1 minute.
 Inbuilt WI-FI, No Gateway or CUP Required.
 Direct Control Through App. (No Gateway Required).
 Smart Configuration Feature for Mood and Channel Modification.
 The Switch will light up on one touch even in dark room. You will never fumble
for the light switch again!

2. [PRODUCT DEVELOPMENT NOTE]
Ajay Waghmare +91 9860839147
Capacitive Touch
 We have incorporated the revolutionary capacitive touch technology of the iPod
on the Edge Switch that makes it precise and responsive.
Performance
 Intelligent Switch works on highly efficient unique. With the Microchip inside the
Edge Switch is custom designed offering unparalleled performance.
Luxury
 The Edge Switch offers you simple touch technology to switch on and off your
applications. Facilitate user to control switching from geographically remote place
through mobile & internet.
Mood Lighting
 You can dim the lights in your room or select one of the four pre-set mood
lighting programs to create your own light scenarios.
Edge Switch Specifications:-
Model i-TWD
Inbuilt Wi-FI YES
Processor 16 Bit Processor
Operating Frequency 32 MHz
Sensor element Capacitive Touch Technology
Communication Protocol i-BUS Communication
RF NO
Dimming Control Three Dimming Chanel (Halogen type)
On/Off Control Three on/off control
Mood Control Four Different Moods
Backlight Yes
Response Time 6 ms approx
Input voltage 5A/230V AC Single Phase
Relay Input Voltage 25V DC
Relay Output Voltage 5A/230V AC Single Phase on Each
Channel
Dimmer Out 5A/230 AC Single Phase on Each Channel
IR Remote Yes
Control Front Panel, IR Remote & Internet
Remote Access Yes
Base Wall mount
Housing Material Metal Standard Four Module Conceal Box
Wall Mount Size (cm) 4 Module Conceal box
Optional Accessory Remote
Unit Dimensions (mm) 173(W) x 94(H) x 66(D)mm
Unit Weight 450g
Operating Temperature -2*C~+50*C
