This document provides information on various lift strategies and products offered by MONITOR including: 1. Compact mechanical lifts with dimensions from 250mm and duty loads up to 480kg. 2. Hydraulic lifts with duty loads up to 1000kg and minimum pit and headroom dimensions. 3. Traction lifts with machine rooms above the shaft, duty loads up to 750kg and speeds up to 1m/s. 4. Homelifts for travel up to 15m with duty loads from 250-500kg and automatic or semiautomatic doors.
Smart ppt
- 2. 2 KNOW US STRATEGIES ANDPRODUCTS

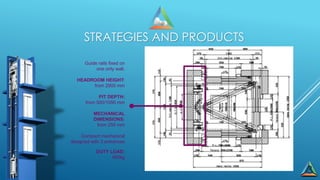

- 3. 3 Guide rails fixedon one only wall. HEADROOM HEIGHT: from 2900 mm PIT DEPTH: from 500/1050 mm MECHANICAL DIMENSIONS: from 250 mm Compact mechanical designed with 3 entrances DUTY LOAD: 480kg STRATEGIES AND PRODUCTS

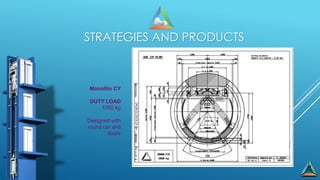

- 4. 4 Monolito CY DUTY LOAD 1050kg Designed with round car and doors STRATEGIES AND PRODUCTS

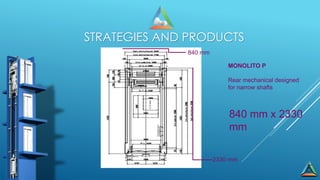

- 5. 5 MONOLITO P Rear mechanicaldesigned for narrow shafts 840 mm x 2330 mm 2330 mm 840 mm STRATEGIES AND PRODUCTS

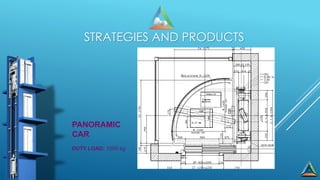

- 6. 6 PANORAMIC CAR DUTY LOAD: 1000kg STRATEGIES AND PRODUCTS
- 7. 7 Outdoor installation MUSHROOM SHAPEDCAR – GLASS DOORS “MOC” lift CAR WITH ROUND REAR WALL STRATEGIES AND PRODUCTS
- 8. 8 STRATEGIES AND PRODUCTS FREIGHTLIFT DUTY LOAD 2900 kg SPEED 0,50 m/s HEADROOM 4400 mm PIT 1400 mm YOKE 4:1 TRM 3

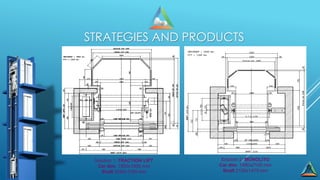

- 9. 9 Solution 1: TRACTIONLIFT Car dim. 1500x1900 mm Shaft 2050x1100 mm Solution 2: MONOLITO Car dim. 1480x2100 mm Shaft 2150x1470 mm STRATEGIES AND PRODUCTS
- 10. 10 Traction lifts Machine above Throughentrances DUTY LOAD 500 kg 8 persons SPEED 1 m/s * Guide rails already existing C/WEIGHT GUIDES RT 45 CAR GUIDES RF75 TRACTION LIFTS STRATEGIES AND PRODUCTS

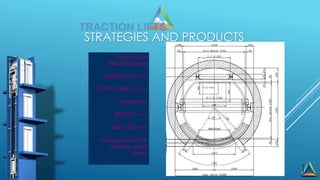

- 11. 11 STRATEGIES AND PRODUCTS Tractionlifts Machine above SHAFT 2000 mm DUTY LOAD 750 kg 10 persons SPEED 1 m/s CAR 1560 mm Two panels centre opening round doors TRACTION LIFTS

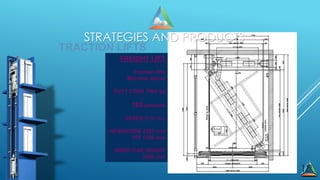

- 12. 12 FREIGHT LIFT Traction lifts Machineabove DUTY LOAD 7900 kg 105 persons SPEED 0,58 m/s HEADROOM 4300 mm PIT 1700 mm INNER CAR HEIGHT 2500 mm TRACTION LIFTS STRATEGIES AND PRODUCTS
- 13.

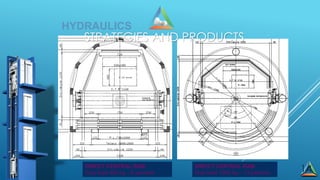

- 14. 14DIRECT CENTRAL RAM Dutyload 1000 kg – 13 persons DIRECT CENTRAL RAM Duty load 450 kg – 6 persons HYDRAULICS STRATEGIES AND PRODUCTS

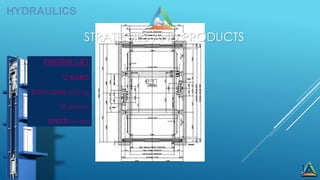

- 15. 15 FREIGHT LIFT *2 RAMS DUTYLOAD 2700 kg 36 persons SPEED 0,4 m/s HYDRAULICS STRATEGIES AND PRODUCTS
- 16.

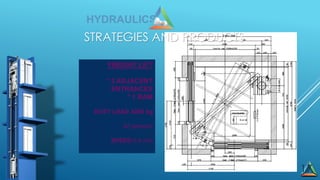

- 17. 17 FREIGHT LIFT * 2ADJACENT ENTRANCES * 1 RAM DUTY LOAD 3200 kg 42 persons SPEED 0,4 m/s HYDRAULICS STRATEGIES AND PRODUCTS

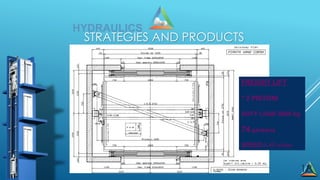

- 18. 18 FREIGHT LIFT * 2PISTONI DUTY LOAD 5600 kg 74 persons SPEED 0,40 m/sec HYDRAULICS STRATEGIES AND PRODUCTS

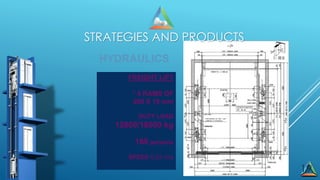

- 19. 19 FREIGHT LIFT * 4RAMS OF 200 X 10 mm DUTY LOAD 12000/18000 kg 160 persons SPEED 0,25 m/s HYDRAULICS STRATEGIES AND PRODUCTS

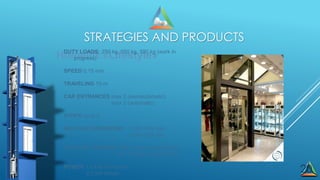

- 20. 20 Homelift:«Lifestyle»DUTY LOADS: 250kg, 350 kg, 500 kg (work in progress) SPEED 0,15 m/s TRAVELING 15 m CAR ENTRANCES max 3 (semiautomatic) max 2 (automatic) STOPS up to 5 MAX CAR DIMENSIONS 1100x1400 mm 1300x1300 mm ELECTRIC FEEDING 230 V single phase/50 Hz 400 V three phase/50 Hz POWER 1,8 kW monofase 2,2 kW trifase STRATEGIES AND PRODUCTS

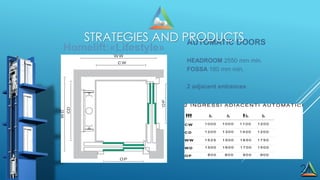

- 21. 21 AUTOMATIC DOORS HEADROOM 2550mm min. FOSSA 180 mm min. 2 adjacent entrances Homelift:«Lifestyle» STRATEGIES AND PRODUCTS
- 22.
- 23. 23Steel and aluminumshafts and automatic platforms fully integrated in the building structures. Homelift:«Lifestyle» STRATEGIES AND PRODUCTS

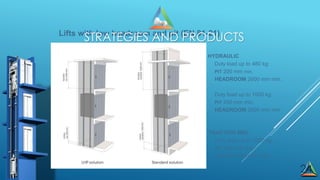

- 24. 24 Lifts with lowheadroom and pit (EN 81-21) HYDRAULIC Duty load up to 480 kg: PIT 200 mm min. HEADROOM 2600 mm min. Duty load up to 1000 kg: PIT 450 mm min. HEADROOM 2800 mm min. TRACTION MRL Duty load up to 1000 kg: PIT 500 mm min TESTATA 2800 mm min. STRATEGIES AND PRODUCTS

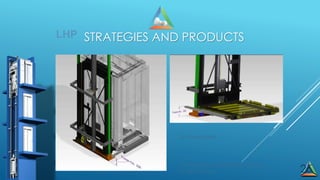

- 25. 25 Car frame forhydraulic lifts with pit of 200 mm min. Car frame detail LHP STRATEGIES AND PRODUCTS

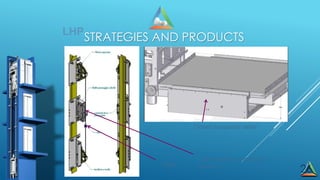

- 26. 26 Closed toeguarde detail Olive Lowheadroom and or pit devices LHP STRATEGIES AND PRODUCTS

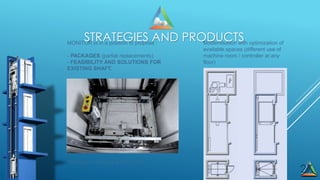

- 27. 27 Compact mechanical (250mm) Modernisation with optimization of available spaces (different use of machine room / controller at any floor) MONITOR is in a position to propose : - PACKAGES (partial replacements) - FEASIBILITY AND SOLUTIONS FOR EXISTING SHAFT. STRATEGIES AND PRODUCTS
