The document describes a smart dustbin system presented by Dr. K.L. Mokariya, which includes features such as automatic lid opening, weight and IR sensors for monitoring bin status, and GSM communication for notifying authorities when bins are full. The system aims to improve waste management efficiency, promote cleanliness in institutes and villages, and encourages student innovation through technology. Additionally, it highlights the potential environmental benefits and economic effectiveness of implementing such technology.

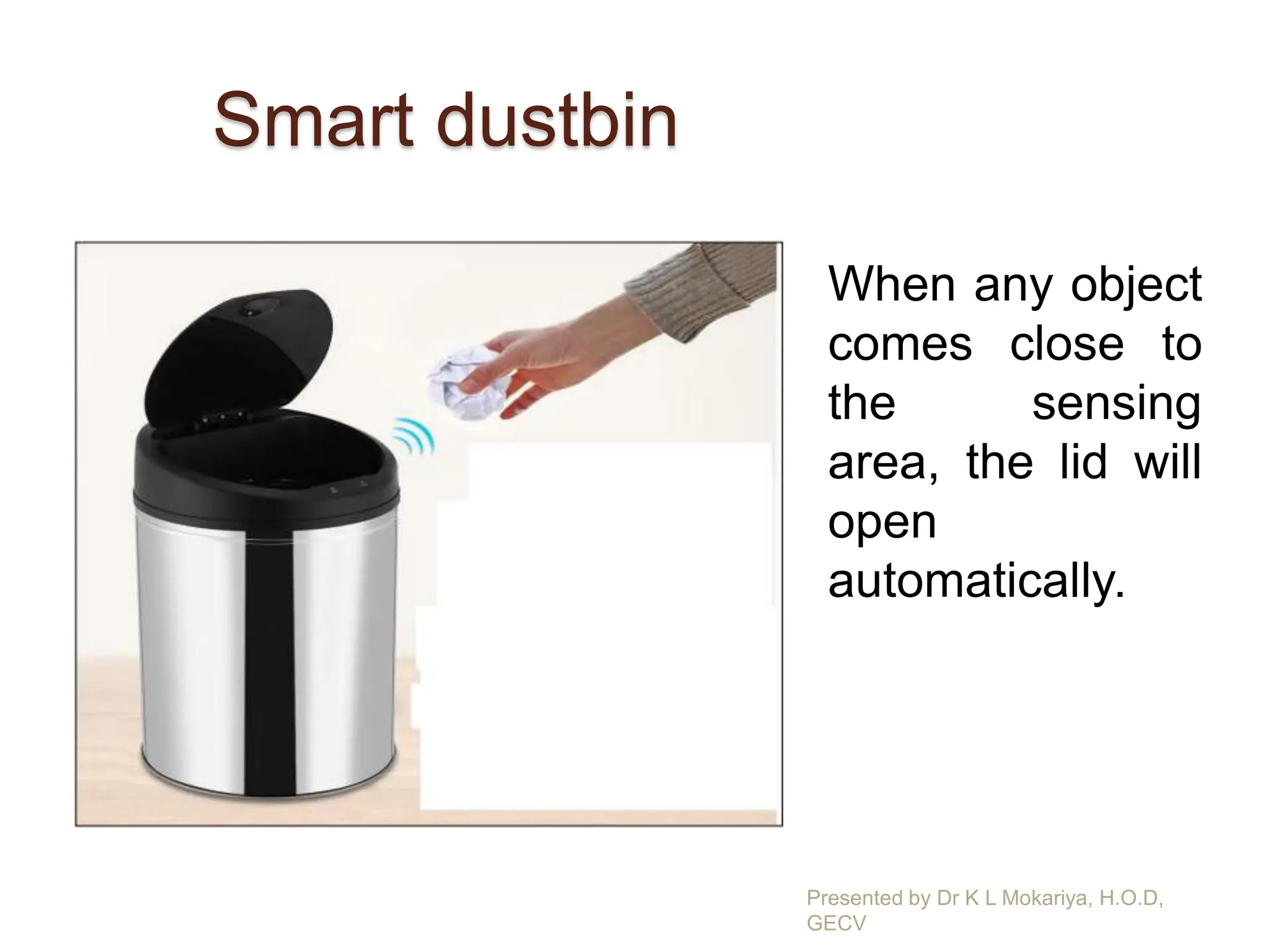

1. Smart dustbin
Presented by Dr K L Mokariya, H.O.D,
GECV
When any object
comes close to
the sensing
area, the lid will
open
automatically.

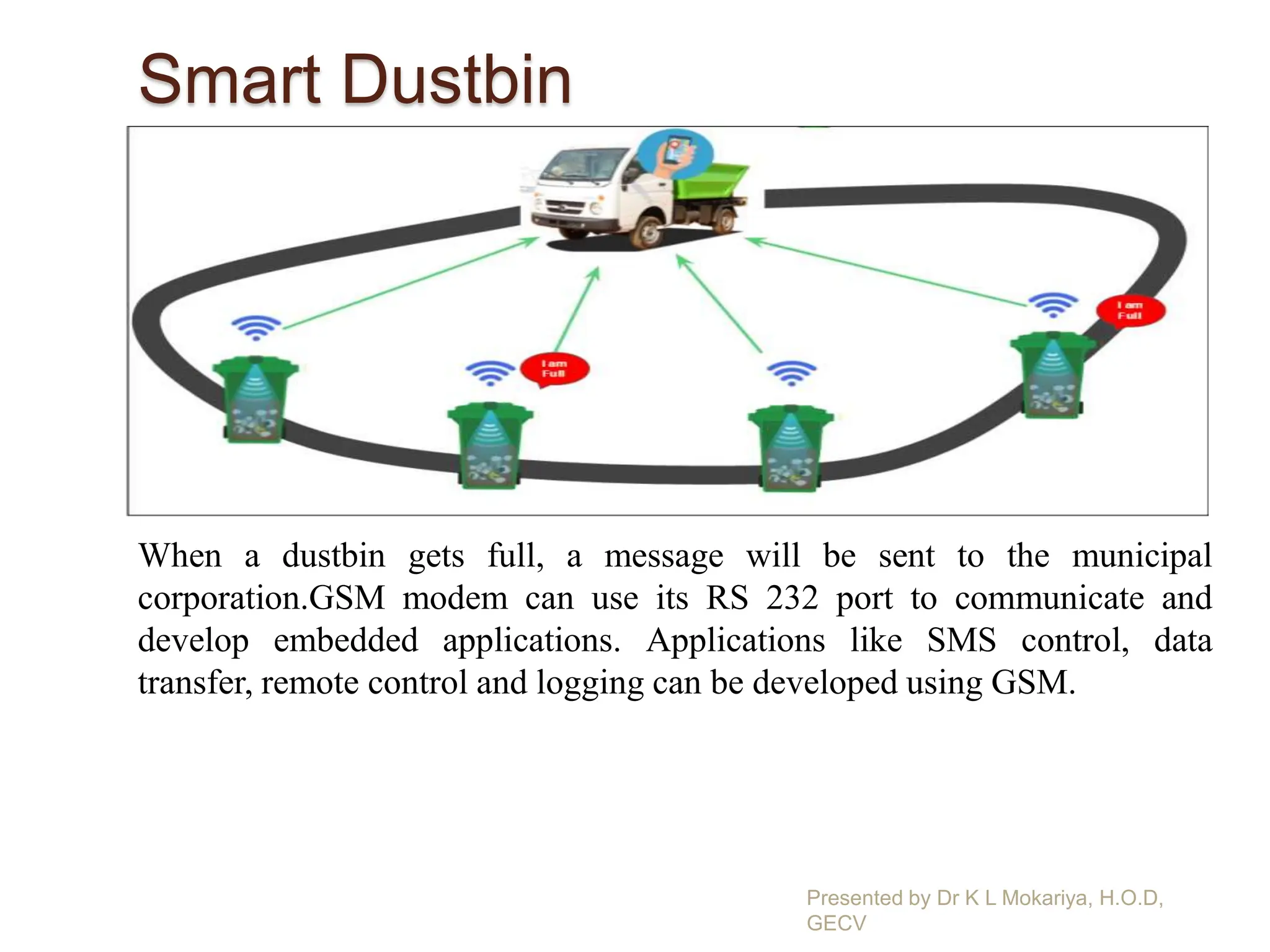

2. Smart Dustbin
Presented by Dr K L Mokariya, H.O.D,
GECV
When a dustbin gets full, a message will be sent to the municipal
corporation.GSM modem can use its RS 232 port to communicate and
develop embedded applications. Applications like SMS control, data
transfer, remote control and logging can be developed using GSM.

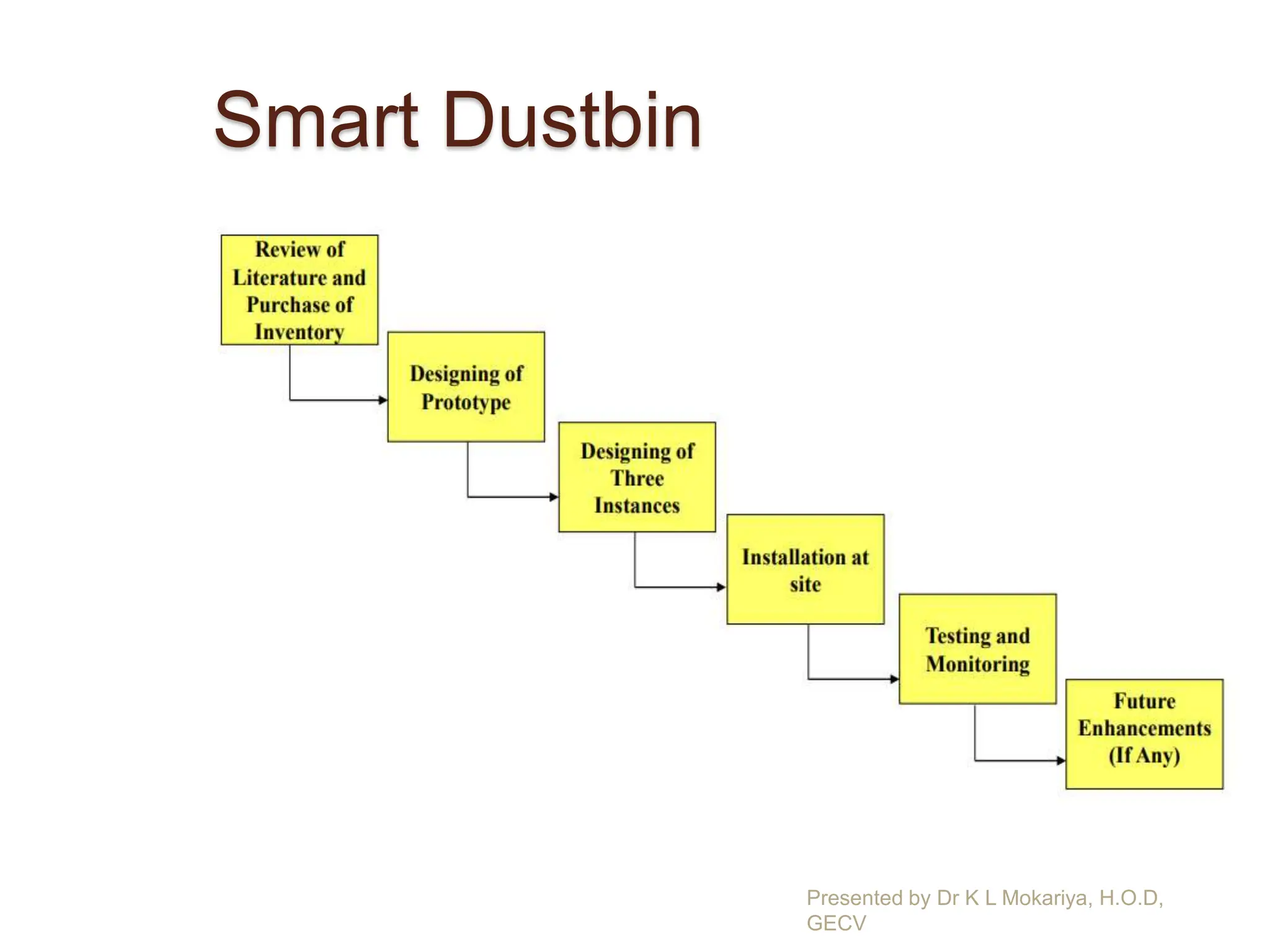

3. Smart Dustbin
Presented by Dr K L Mokariya, H.O.D,
GECV

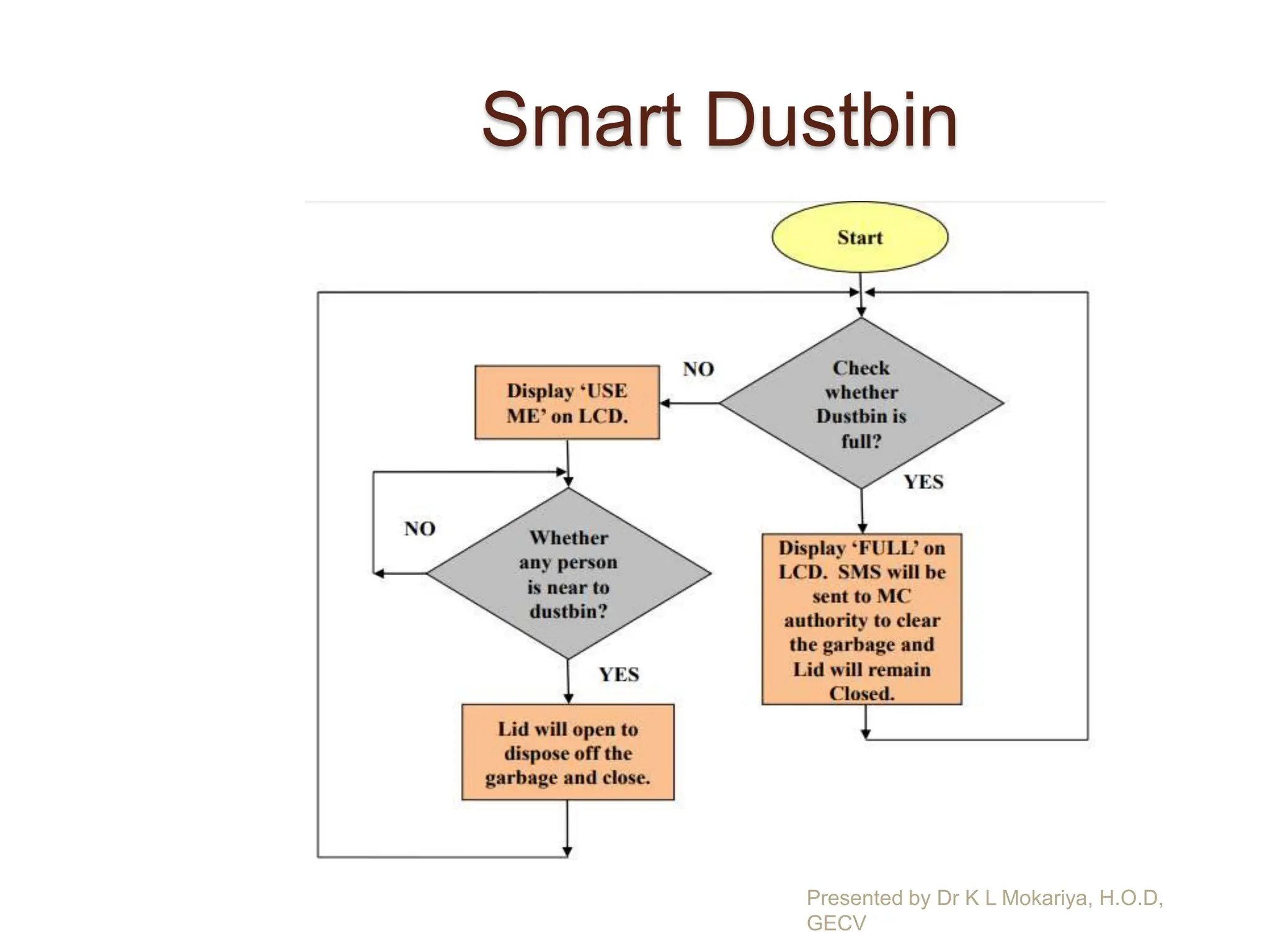

4. Smart Dustbin
Presented by Dr K L Mokariya, H.O.D,
GECV

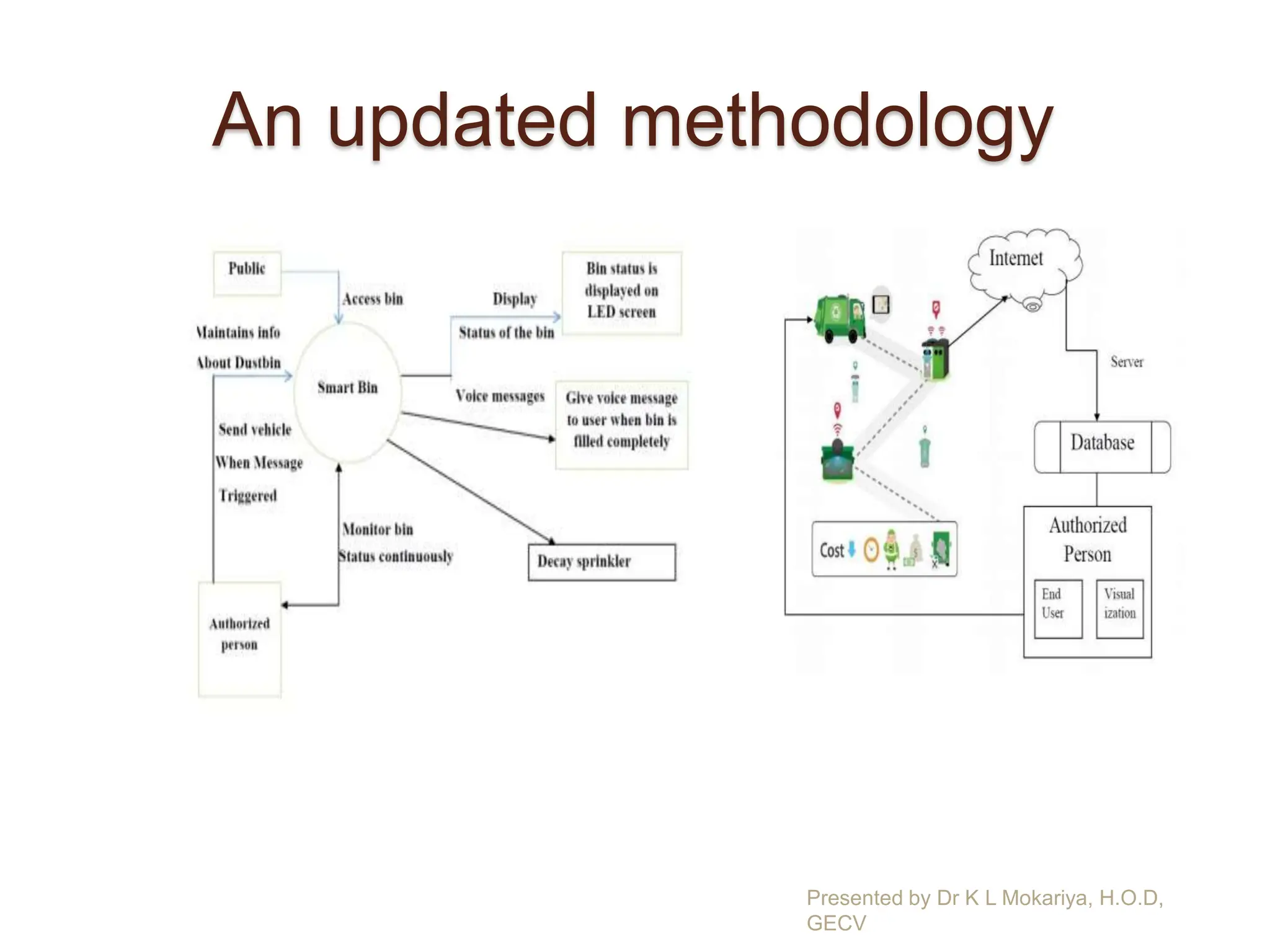

5. An updated methodology
Presented by Dr K L Mokariya, H.O.D,
GECV

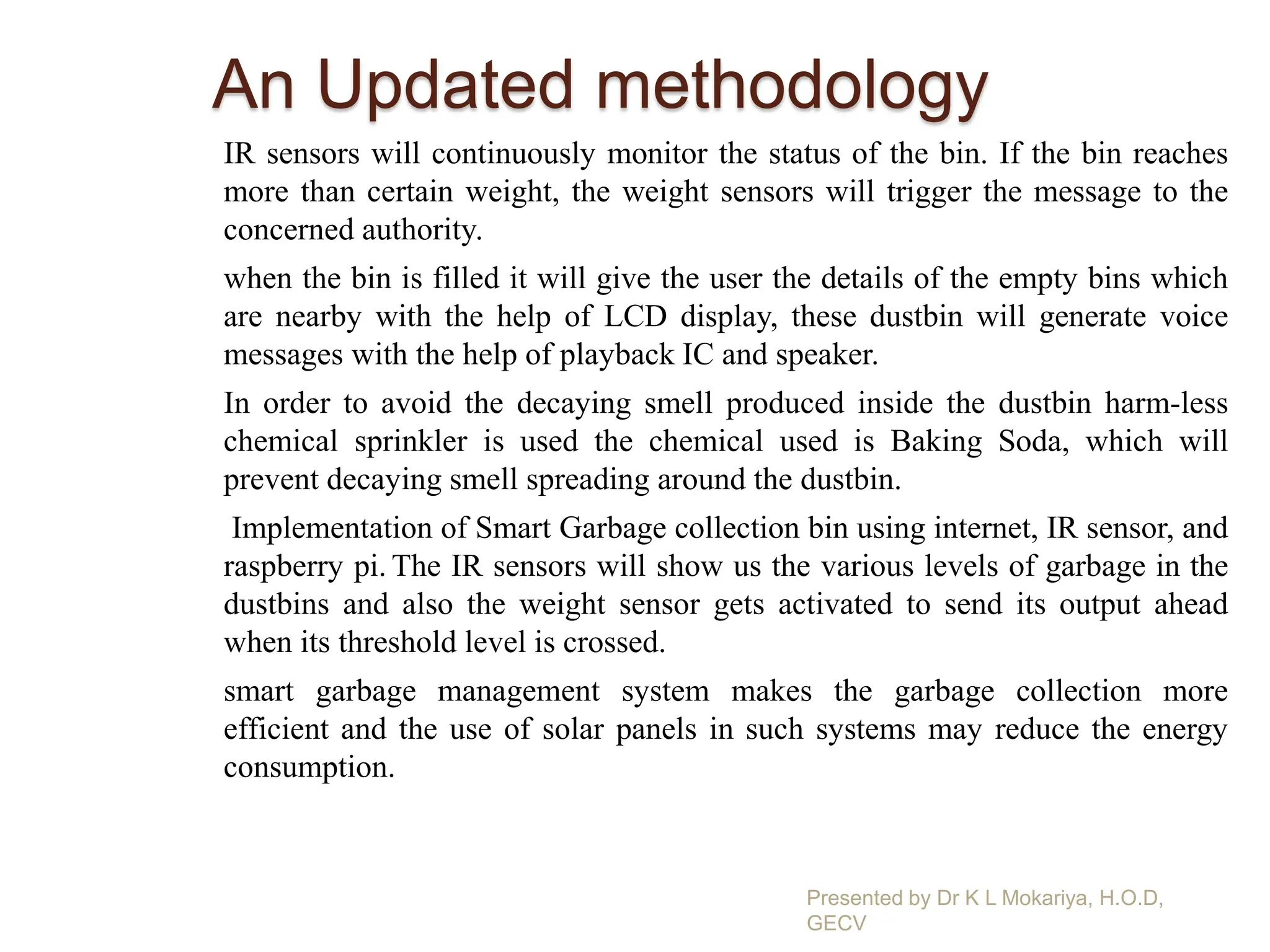

6. An Updated methodology
IR sensors will continuously monitor the status of the bin. If the bin reaches
more than certain weight, the weight sensors will trigger the message to the
concerned authority.
when the bin is filled it will give the user the details of the empty bins which
are nearby with the help of LCD display, these dustbin will generate voice
messages with the help of playback IC and speaker.
In order to avoid the decaying smell produced inside the dustbin harm-less
chemical sprinkler is used the chemical used is Baking Soda, which will
prevent decaying smell spreading around the dustbin.
Implementation of Smart Garbage collection bin using internet, IR sensor, and
raspberry pi. The IR sensors will show us the various levels of garbage in the
dustbins and also the weight sensor gets activated to send its output ahead
when its threshold level is crossed.
smart garbage management system makes the garbage collection more
efficient and the use of solar panels in such systems may reduce the energy
consumption.
Presented by Dr K L Mokariya, H.O.D,
GECV

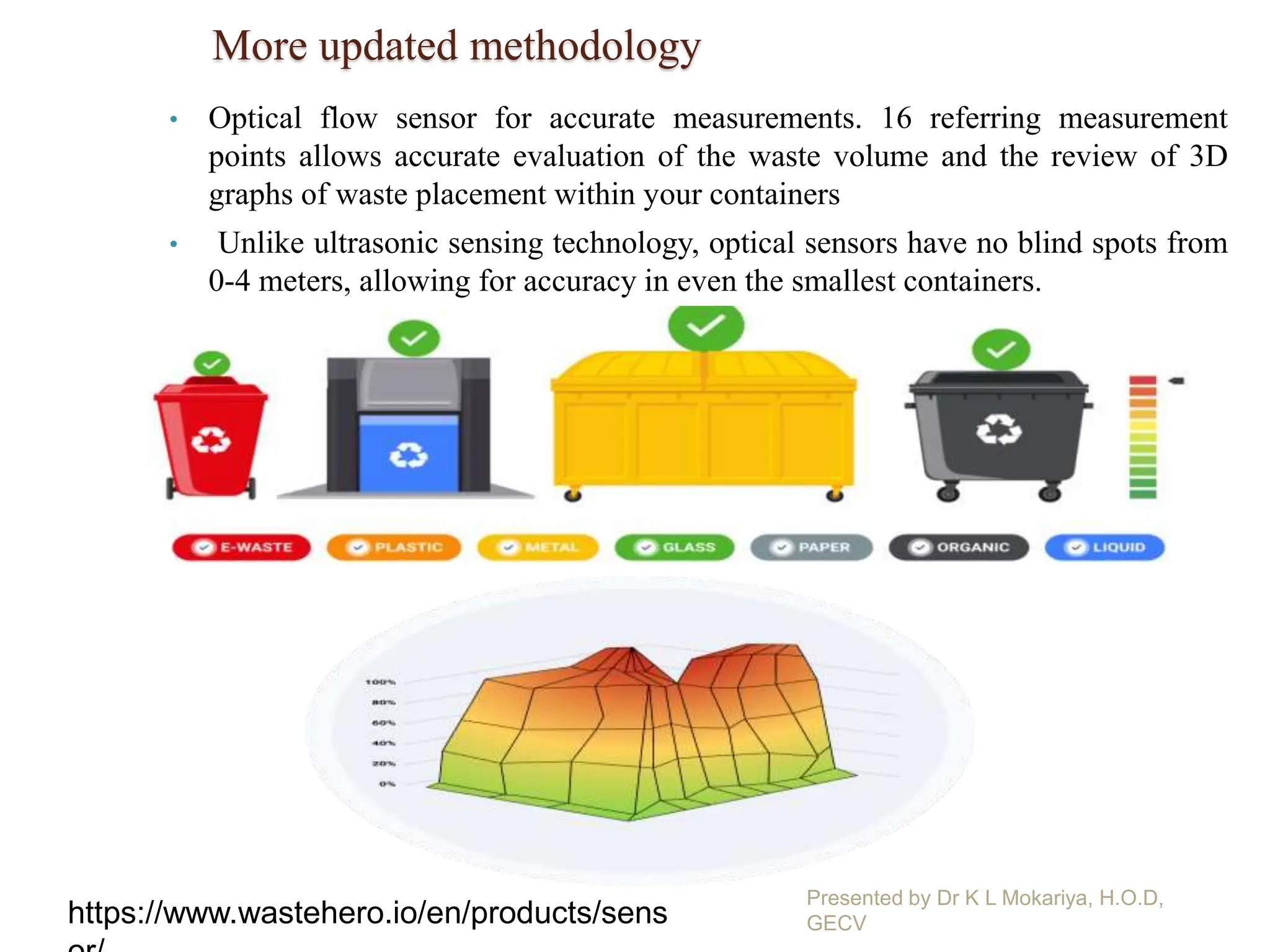

7. More updated methodology
• Optical flow sensor for accurate measurements. 16 referring measurement
points allows accurate evaluation of the waste volume and the review of 3D
graphs of waste placement within your containers
• Unlike ultrasonic sensing technology, optical sensors have no blind spots from
0-4 meters, allowing for accuracy in even the smallest containers.
Presented by Dr K L Mokariya, H.O.D,
GECV
https://www.wastehero.io/en/products/sens

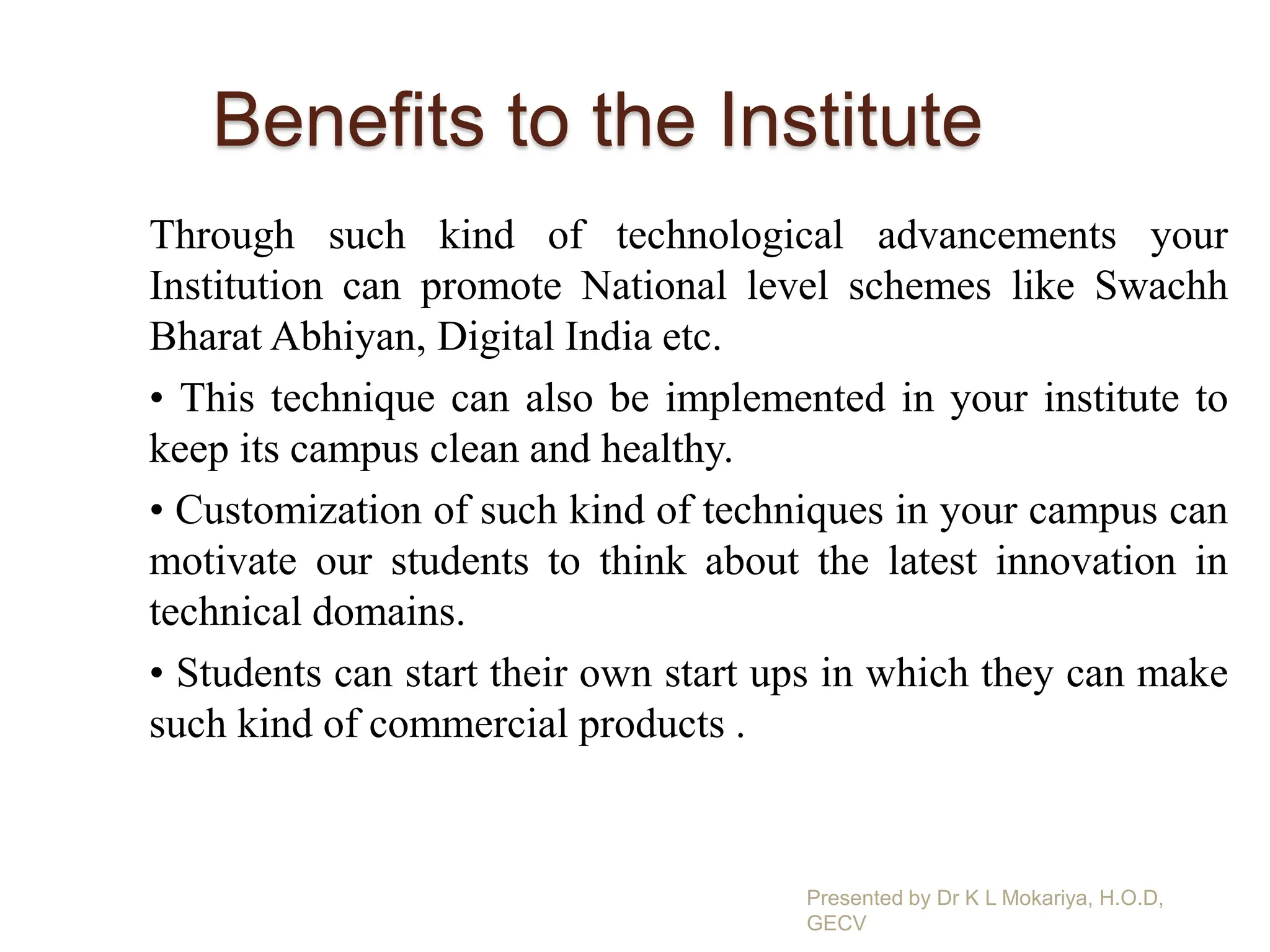

8. Benefits to the Institute
Through such kind of technological advancements your
Institution can promote National level schemes like Swachh
Bharat Abhiyan, Digital India etc.
• This technique can also be implemented in your institute to
keep its campus clean and healthy.
• Customization of such kind of techniques in your campus can
motivate our students to think about the latest innovation in
technical domains.
• Students can start their own start ups in which they can make
such kind of commercial products .
Presented by Dr K L Mokariya, H.O.D,
GECV

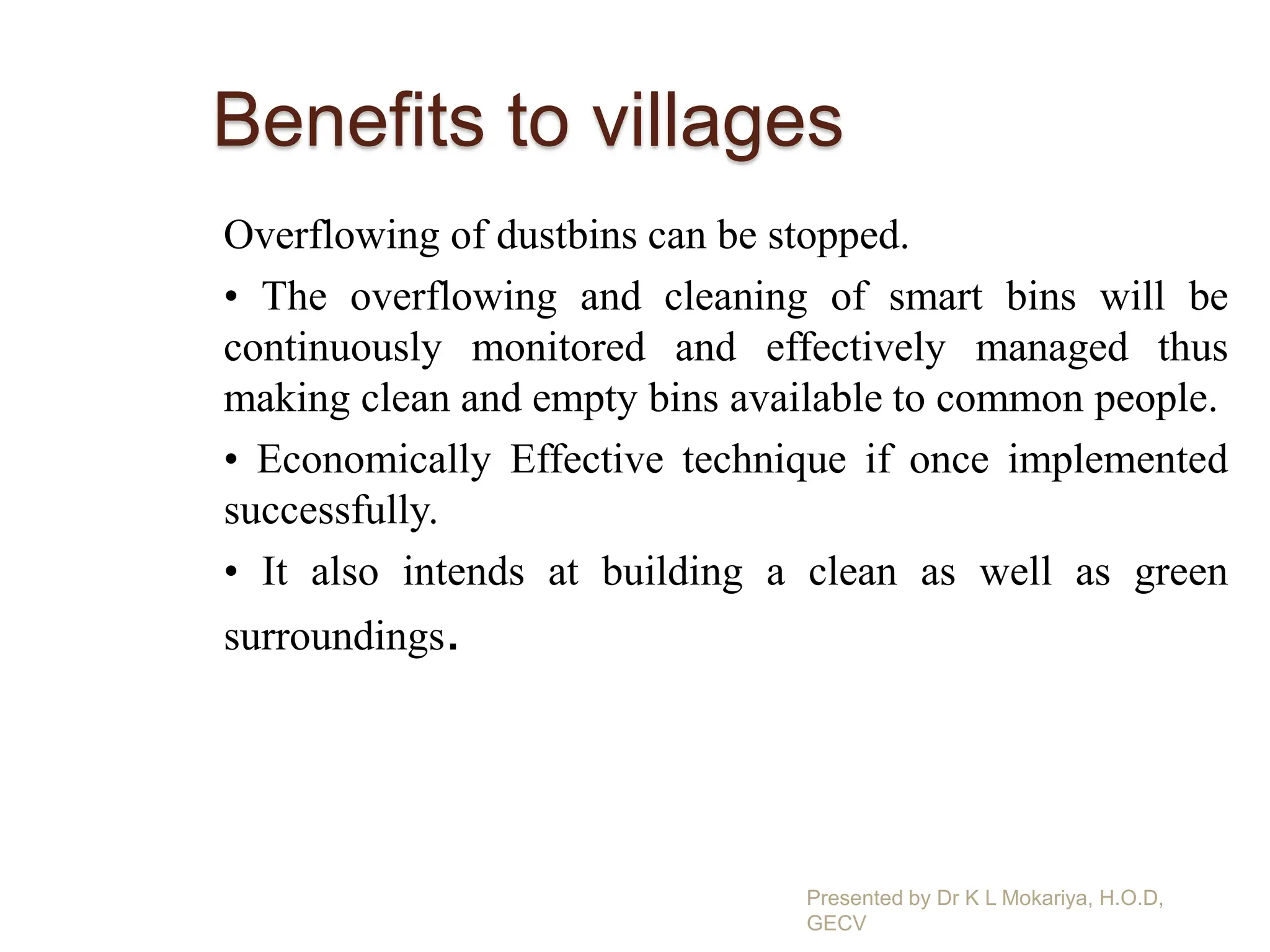

9. Benefits to villages
Overflowing of dustbins can be stopped.
• The overflowing and cleaning of smart bins will be
continuously monitored and effectively managed thus
making clean and empty bins available to common people.
• Economically Effective technique if once implemented
successfully.
• It also intends at building a clean as well as green
surroundings.
Presented by Dr K L Mokariya, H.O.D,
GECV

10. Smart dustbin
Presented by Dr K L Mokariya, H.O.D,
GECV

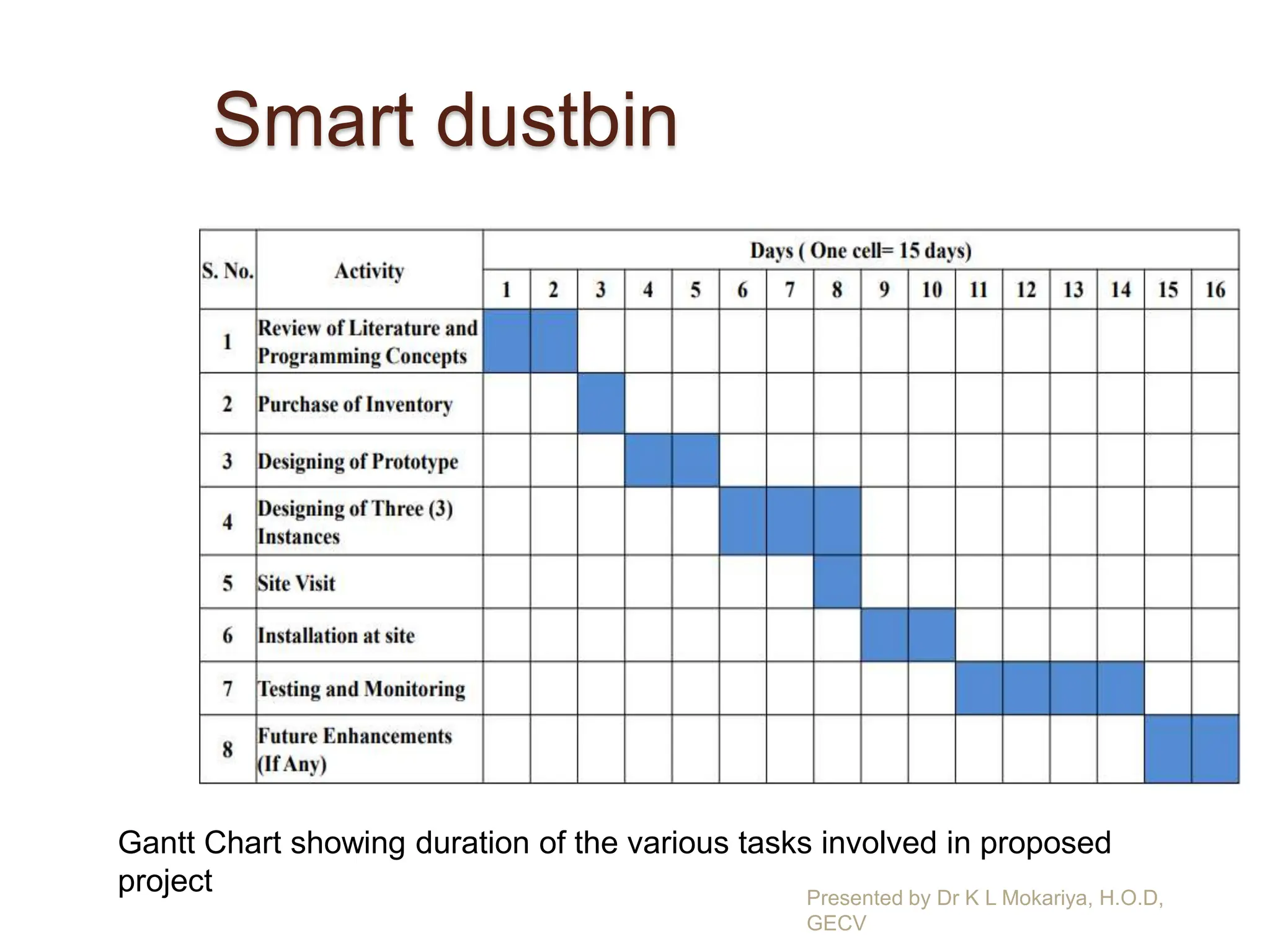

Gantt Chart showing duration of the various tasks involved in proposed
project

11. Thank You
for
your Attention….
