- 1. UST USB Security Token

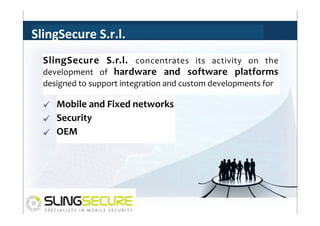

- 2. SlingSecure S.r.l. SlingSecure S.r.l. concentrates its activity on the development of hardware and software platforms designed to support integration and custom developments for Mobile and Fixed networks Security OEM

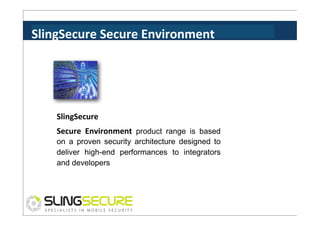

- 3. SlingSecure Secure Environment SlingSecure Secure Environment product range is based on a proven security architecture designed to deliver high-end performances to integrators and developers

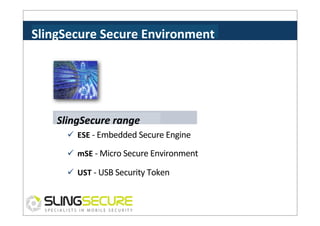

- 4. SlingSecure Secure Environment SlingSecure range ü ESE -‐ Embedded Secure Engine ü mSE -‐ Micro Secure Environment ü UST -‐ USB Security Token

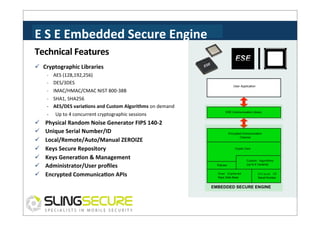

- 5. E S E Embedded Secure Engine Technical Features ü Cryptographic Libraries -‐ AES (128,192,256) -‐ DES/3DES User Application -‐ IMAC/HMAC/CMAC NIST 800-‐38B -‐ SHA1, SHA256 -‐ AES/DES variaCons and Custom Algorithms on demand -‐ ü ü ü ü ü ü ü Up to 4 concurrent cryptographic sessions Physical Random Noise Generator FIPS 140-‐2 Unique Serial Number/ID Local/Remote/Auto/Manual ZEROIZE Keys Secure Repository Keys GeneraCon & Management Administrator/User profiles Encrypted CommunicaCon APIs ESE Communication Library Encrypted Communication Channel Crypto Core Policies Over Ciphered Keys Data Base Custom Algorithms (up to 6 Variants) Unique ID Serial Number EMBEDDED SECURE ENGINE

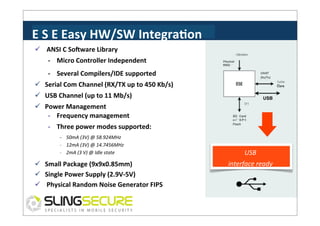

- 6. E S E Easy HW/SW IntegraCon ü ANSI C SoVware Library -‐ Micro Controller Independent Oscillator PCysicaJ RNG -‐ Several Compilers/IDE supported UAAT (Rx/Tx) Syste m ü Serial Com Channel (RX/TX up to 450 Kb/s) ü USB Channel (up to 11 Mb/s) ü Power Management -‐ Frequency management -‐ Three power modes supported: -‐ 50mA (3V) @ 58.924MHz -‐ 12mA (3V) @ 14.7456MHz -‐ 2mA (3 V) @ Idle state ü Small Package (9x9x0.85mm) ü Single Power Supply (2.9V-‐5V) ü Physical Random Noise Generator FIPS 140-‐2 SP1 SO Card or SP1 Ftash USB interface ready

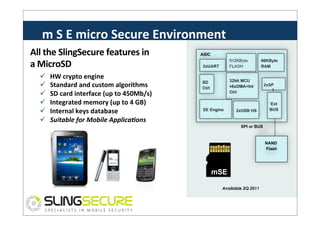

- 7. m S E micro Secure Environment All the SlingSecure features in a MicroSD ü ü ü ü ü ü HW crypto engine Standard and custom algorithms SD card interface (up to 450Mb/s) Integrated memory (up to 4 GB) Internal keys database Suitable for Mobile Applica3ons ASIC 512KByte FLASH 2xUART 96KByte RAM 32bit MCU ♦6xDMA+lnt Ctrl SD Ctrl SE Engine 2xUSB HS 2xSP I Ext BUS SPI or BUS NAND Flash Available 2Q 2011

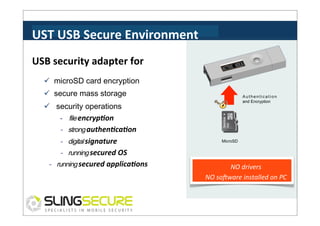

- 8. UST USB Secure Environment USB security adapter for ü microSD card encryption ü secure mass storage Authentication and Encryption ü security operations -‐ file encryp3on - strong authen3ca3on - digital signature MicroSD - running secured OS - running secured applica3ons vs**?' NO drivers NO soKware installed on PC
- 9. UST Typical USE ü MicroSD EncrypCon • Secure and hide enPre parPPons on microSD cards ü Host • EncrypCon data (files, documents, etc.) stored on PCs or Servers Secure any using one or more access passwords ü Secure Data Sharing (or sending) • Encrypt data and share (e-‐mail, file sharing, Vp, etc.) • Based on symmetric access keys, PKI can be supported ü Physical Data Shipment • Encrypt the enPre microSD using a shared access key and ship the card (the microSD will only show the clear parPPon to unauthenPcated accesses) ü Running secured applicaCons and • OS oot and run complete OS or specific applicaPons from the UST B memory • Run Secure Virtual Machines

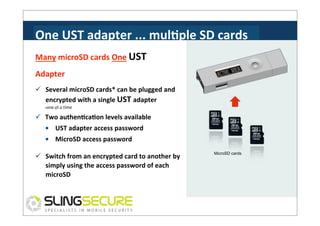

- 10. One UST adapter ... mulCple SD cards Many microSD cards One UST Adapter ü Several microSD cards* can be plugged and encrypted with a single UST adapter one at a time * ü Two authenCcaCon levels available • UST adapter access password • MicroSD access password ü Switch from an encrypted card to another by simply using the access password of each microSD MicroSD cards

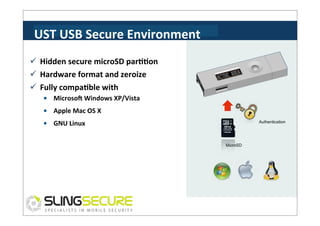

- 11. UST USB Secure Environment ü Hidden secure microSD parCCon ü Hardware format and zeroize ü Fully compaCble with • MicrosoV Windows XP/Vista • Apple Mac OS X • GNU Linux Authentication MicroSD
- 12. UST OperaCng Modes The UST adapter shows different partitions according to the operating mode ü Clear ParCCon (default) • AutomaCcally shown aVer USB inserCon • Contains User applicaCon and Admin (if required) ü Secure ParCCon • AcCve only aVer successful authenCcaCon ü Only one ac3ve par33on at a 3me

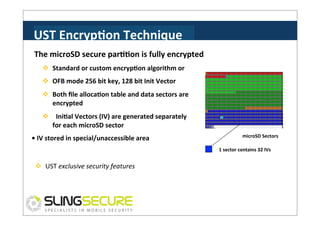

- 13. UST EncrypCon Technique The microSD secure parCCon is fully encrypted v Standard or custom encrypCon algorithm or v OFB mode 256 bit key, 128 bit Init Vector v Both file allocaCon table and data sectors are encrypted v IniCal Vectors (IV) are generated separately for each microSD sector • IV stored in special/unaccessible area microSD Sectors 1 sector contains 32 IVs v UST exclusive security features

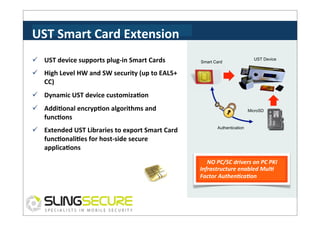

- 14. UST Smart Card Extension ü UST device supports plug-‐in Smart Cards Smart Card UST Device ü High Level HW and SW security (up to EAL5+ CC) ü Dynamic UST device customizaCon ü AddiConal encrypCon algorithms and funcCons ü Extended UST Libraries to export Smart Card funcConaliCes for host-‐side secure applicaCons MicroSD Authentication NO PC/SC drivers on PC PKI Infrastructure enabled Mul3 Factor Authen3ca3on

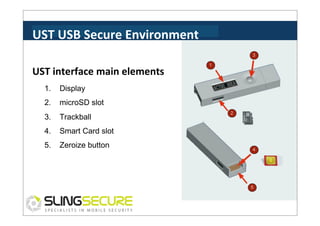

- 15. UST USB Secure Environment UST interface main elements 1. Display 2. microSD slot 3. Trackball 4. Smart Card slot 5. Zeroize button

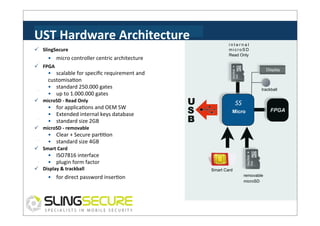

- 16. UST Hardware Architecture ü SlingSecure • micro controller centric architecture internal microSD Read Only ü FPGA Display • scalable for specific requirement and customisaPon • standard 250.000 gates • up to 1.000.000 gates trackball ü microSD -‐ Read Only • for applicaPons and OEM SW • Extended internal keys database • standard size 2GB SS Micro ü microSD -‐ removable • Clear + Secure parPPon • standard size 4GB ü Smart Card • ISO7816 interface • plugin form factor ü Display & trackball • for direct password inserPon Smart Card removable microSD

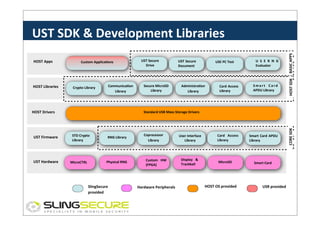

- 17. HOST Libraries Custom ApplicaCons Crypto Library CommunicaCon Library HOST Drivers UST Firmware UST Hardware UST Secure Drive Secure MicroSD Library UST Secure Document USE PC Test U S E R N G Evaluator Card Access Library S m a r t C a r d APDU Library Card Access Library AdministraCon Library Smart Card APDU Library Standard USB Mass Storage Drivers STD Crypto Library MicroCTRL RNG Library Physical RNG SlingSecure provided Coprocessor Library Custom HW (FPGA) Hardware Peripherals User Interface Library Display & Trackball MicroSD HOST OS provided Smart Card USR provided CORE SDK HOST Apps HOST SDK BASIC APPS UST SDK & Development Libraries

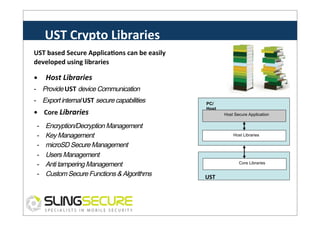

- 18. UST Crypto Libraries UST based Secure ApplicaCons can be easily developed using libraries • Host Libraries - Provide UST device Communication - Export internal UST secure capabilities • Core Libraries - - - - - - Encryption/Decryption Management Key Management microSD Secure Management Users Management Anti tampering Management Custom Secure Functions & Algorithms PC/ Host Host Secure Application Host Libraries Core Libraries UST

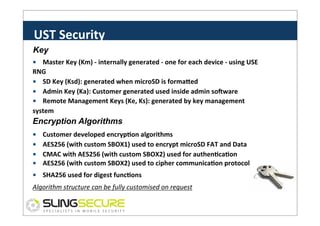

- 19. UST Security Key s • Master Key (Km) -‐ internally generated -‐ one for each device -‐ using USE RNG • SD Key (Ksd): generated when microSD is formaled • Admin Key (Ka): Customer generated used inside admin soVware • Remote Management Keys (Ke, Ks): generated by key management system Encryption Algorithms • Customer developed encrypCon algorithms • AES256 (with custom SBOX1) used to encrypt microSD FAT and Data • CMAC with AES256 (with custom SBOX2) used for authenCcaCon • AES256 (with custom SBOX2) used to cipher communicaCon protocol • SHA256 used for digest funcCons Algorithm structure can be fully customised on request

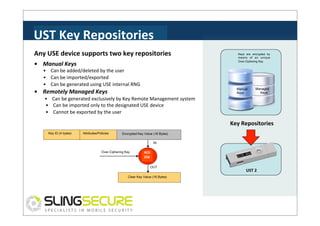

- 20. UST Key Repositories Any USE device supports two key repositories • Manual Keys • Can be added/deleted by the user • Can be imported/exported • Can be generated using USE internal RNG Keys are encrypted by means of an unique Over-Ciphering Key Manual Keys • Remotely Managed Keys Managed Keys • Can be generated exclusively by Key Remote Management system • Can be imported only to the designated USE device • Cannot be exported by the user Key Repositories Key ID (4 bytes) Attributes/Policies Encrypted Key Value (16 Bytes) IN Over-Ciphering Key AES 256 OUT Clear Key Value (16 Bytes) UST 2

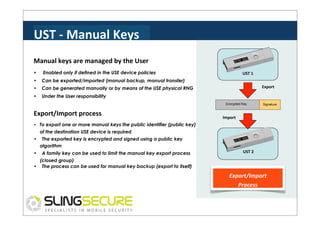

- 21. UST -‐ Manual Keys Manual keys are managed by the User • Enabled only if defined in the USE device policies • Can be exported/imported (manual backup, manual transfer) • Can be generated manually or by means of the USE physical RNG • Under the User responsibility UST 1 Export Encrypted Key Export/Import process Signature Import • To export one or more manual keys the public identifier (public key) of the destination USE device is required • • The exported key is encrypted and signed using a public key algorithm A family key can be used to limit the manual key export process UST 2 (closed group) • The process can be used for manual key backup (export to itself) Export/Import Process

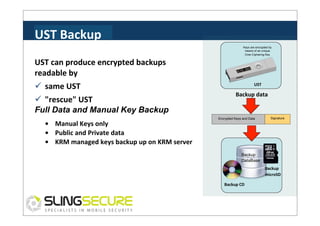

- 22. UST Backup Keysare encrypted by means of an unique Over-Ciphering Key UST can produce encrypted backups readable by ü same UST ü "rescue" UST Full Data and Manual Key Backup • Manual Keys only • Public and Private data • KRM managed keys backup up on KRM server UST Backup data Encrypted Keys and Data Signature Backup DataBase Backup microSD Backup CD

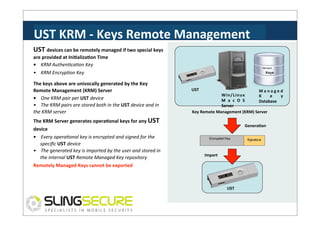

- 23. UST KRM -‐ Keys Remote Management UST devices can be remotely managed if two special keys are provided at IniCalizaCon Time • KRM AuthenWcaWon Key Managed • KRM EncrypWon Key The keys above are univocally generated by the Key Remote Management (KRM) Server • One KRM pair per UST device • The KRM pairs are stored both in the UST device and in the KRM server UST M a n a g e d Win/Linux K e y M a c O S Database Server Key Remote Management (KRM) Server The KRM Server generates operaConal keys for any UST device • Every operaWonal key is encrypted and signed for the specific UST device • The generated key is imported by the user and stored in the internal UST Remote Managed Key repository GeneraCon Encrypted Key Import Remotely Managed Keys cannot be exported UST Signature

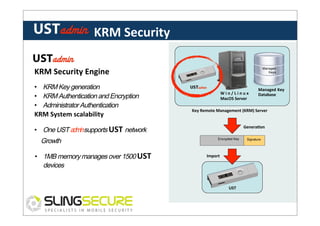

- 24. KRM Security KRM Security Engine • KRM Key generation • KRM Authentication and Encryption • Administrator Authentication KRM System scalability Managed Keys W i n / L i n u x MacOS Server Key Remote Management (KRM) Server • One UST adminsupports UST network Growth • 1MB memory manages over 1500 UST devices Managed Key Database GeneraCon Encrypted Key Import UST Signature

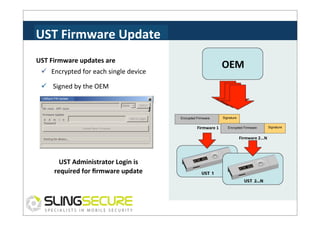

- 25. UST Firmware Update UST Firmware updates are OEM ü Encrypted for each single device ü Signed by the OEM * J ^ USEpro FW Update SN: none -‐ APP: none -‐ Firmware Update A d m i Password Admin Login n Upload New Firmware WaiPng for device.., UST Administrator Login is required for firmware update Encrypted Firmware Firmware 1 Signature Encrypted Firmware Signature Firmware 2...N

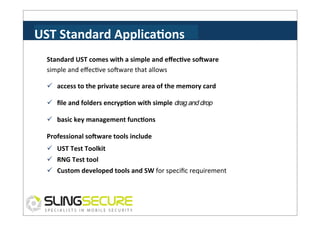

- 26. UST Standard ApplicaCons Standard UST comes with a simple and effecCve soVware simple and effecPve soVware that allows ü access to the private secure area of the memory card ü file and folders encrypCon with simple drag and drop ü basic key management funcCons Professional soVware tools include ü UST Test Toolkit ü RNG Test tool ü Custom developed tools and SW for specific requirement

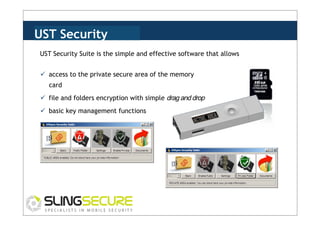

- 27. UST Security Suite Suiteis the simple and effective software that allows UST Security ü access to the private secure area of the memory card ü file and folders encryption with simple drag and drop ü basic key management functions

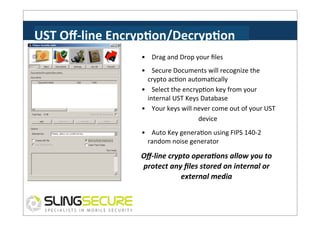

- 28. UST Off-‐line EncrypCon/DecrypCon • Drag and Drop your files • Secure Documents will recognize the crypto acPon automaPcally • Select the encrypPon key from your internal UST Keys Database • Your keys will never come out of your UST device • Auto Key generaPon using FIPS 140-‐2 random noise generator Off-‐line crypto opera3ons allow you to protect any files stored on internal or external media
- 29. UST Test Toolkit UST Test Tool kit allows professional users and developers to test and verify internal HW funcPons.

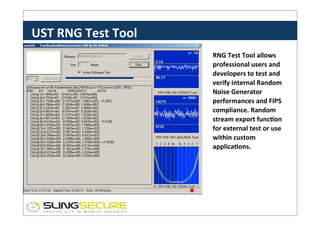

- 30. UST RNG Test Tool RNG Test Tool allows professional users and developers to test and verify internal Random Noise Generator performances and FIPS compliance. Random stream export funcCon for external test or use within custom applicaCons.
- 31. SlingSecure Custom tools and SW SlingSecure cryptographic functions can be exported to the Host Custom Algorithms and FuncCons ü Tool Suite for custom algorithms and funcCons design Off-‐line EncrypCon/DecrypCon ü SlingSecure devices can be used as a secure engine to encrypt/decrypt files and documents on the Host System Crypto Libraries ü Internal security funcCons can be exported and used on the Host System by means of specific crypto libraries
- 32. SlingSecure Service & Support SlingSecure products are backed up by the support of the engineering and design team for ü Cost effecCveness ü Smooth system integraCon ü Timely soluCon delivery The high level service & support for all SlingSecure View products allows the Customer to reach the desired result with the best cost to performance raPo

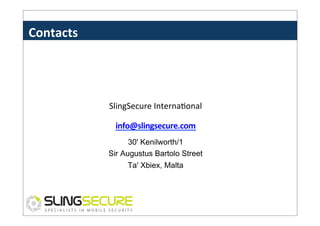

- 33. Contacts SlingSecure InternaPonal info@slingsecure.com 30' Kenilworth/1 Sir Augustus Bartolo Street Ta' Xbiex, Malta
