1. SSSLLLIIIDDDIIINNNGGG DDDOOOOOORRR
IIINNNSSSTTTAAALLLLLLAAATTTIIIOOONNN
HHHAAARRRBBBOOOUUURRR
SSSLLLIIIDDDIIINNNGGG DDDOOOOOORRRSSS

2. TTTaaabbbllleee ooofff CCCooonnnttteeennntttsss
Instruction Description Page Number
KD Packaged Items B-1
Supplied Hardware/Assembly Fasteners C-1
Tools Required to Assemble and Install Door D-1
Frame Assembly 1-1 - 1-2
Frame Installation Prep 2-1
Frame Installation 3-1 - 3-2
Stationary Panel Installation 4-1 - 4-2
Operator Panel Prep 5-1
Operator Panel Installation 6-1 - 6-4
Operator Panel Hardware Installation 7-1 - 7-2

3. KKKDDD PPPaaaccckkkaaagggeeeddd IIIttteeemmmsss

4. SSSuuuppppppllliiieeeddd HHHaaarrrdddwwwaaarrreee FFFaaasssttteeennneeerrrsss
Fastener Quantity Description Location Hardware
4 #8x1-1/4 PH PN HD Stationary Panel/
Head Jamb Bracket
3 #8x2-1/4 PN HD MS Handle
4 #10x3/4 FL HD SMS Roller
SSSuuuppppppllliiieeeddd AAAsssssseeemmmbbblllyyy FFFaaasssttteeennneeerrrsss
Fastener Quantity Description Location Assembly Detail
12 #7x2 PFH TWIN Frame Assembly at:
FAST 3/4 THRD a. Head and Sill to Jamb
b. Side Jamb to Sill Track
4 #6x1-1/4 PFH Frame Assembly at Sill
at Base Bracket (08)
Varies #9x2-1/2 PFH Sill Track to RO/MO
Varies #6x3/4 PFH Head Track to Frame
Supplied Hardware and Assembly Fasteners C - 1 | P a g e

5. RRReeeqqquuuiiirrreeeddd TTToooooolllsss
4'-0" Level Square Tape Measure
Hammer Screw Gun Rubber Mallet
Caulk Gun with High Quality Sealant
Tools Required to Assemble and Install Door D - 1 | P a g e

6. FFFrrraaammmeee AAAsssssseeemmmbbblllyyy
STEP 1. Locate the labeled jamb assemblies and sill assembly. Lay the Head Assembly (#01),
Operator Side Assembly (#02), Stationary Side Assembly (#03), and Sill Assembly
(#04), on the floor as detailed. Be sure that the interior of the assemblies are on the
floor, and casing is suspended.
STEP 2. Using your hand, insert two Bracing Brackets (#17) in the pre-notched locations on
casing SIDE assembly. Apply Step 2 procedure to Operator Side Assembly (#2) AND
Stationary Side Assembly (#3).
STEP 3. Apply high quality silicone at Side Jamb Assembly (#2) and (#3). Apply silicone at
three locations on the jamb:
1. Apply a continuous bead of silicone at exterior casing miter as detailed
2. Apply a continuous bead of silicone at frame end-work as detailed
3. Apply a dab of silicone at the top of vinyl weatherstrip as detailed. Be sure
that entire top face of weatherstip is covered.
Note: Silicone bead must be continuous along jamb and casing to ensure
water leakage will not occur.
STEP 2
Casing
STEP 3 STEP 4
Vinyl Weather-strip
STEP 1
Side Jamb Assembly (#2 or #3)
Frame Assembly 1 - 1 | P a g e
Bracing Bracket (#17)
Silicone Sealant

7. STEP 4. Locate the pre-notched locations on the head casing, and fit the head casing on the
Bracing Brackets (#17) located on the side casing from Step #7. Use a rubber mallet to
pound the casing from the Head Jamb Assembly (#1) onto the side casing on the Side
Jamb Assembly (#2) or Side Jamb Assembly (#3). Repeat procedure for opposite side.
STEP 5. Fasten the Head Jamb Assembly (#1) to the Side Jamb Assemblies (#2) and (#3),
using a screw gun. Locate the pre-drilled holes on the head jamb; use the #7x2 PFH
TWIN FAST 3/4 THRD fasteners supplied to join the assemblies.
STEP 6. Apply a 1/4" continuous bead of high-quality silicone at the base of Side Jamb
Assemblies (#2) and (#3) as detailed.
Note: Silicone bead must be continuous along jamb and casing, to ensure water
leakage will not occur.
STEP 7. Fasten the Sill Assembly (#4) to the Side Jamb Assemblies (#2) and (#3). Locate the
pre-drilled holes on the sill.
1. Fasten the Base Bracket (#8) to the sill, at the two center holes, using
the#6x1-1/4 PFH fastener supplied.
2. Exterior and interior pre-drilled holes on the sill, use the #7x2 PFH TWIN
FAST 3/4 THRD fasteners supplied, to join the sill assembly to the side jamb
assemblies.
DO NOT install the panels into the frame until the frame has been installed into the
RO/MO.
Frame Assembly END
STEP 5
#7x2 PFH TWIN FAST 3/4
THRD fastener
Head Jamb Assembly (#1)
Side Jamb Assembly
(#2) or (#3)
Silicone Sealant
Sill Assembly (#4)
STEP 6 STEP 7
Base Bracket (#8)
Frame Assembly 1 - 2 | P a g e
#6x1-1/4 PFH fastener
(Center Bracket Only)
#7x2 PFH TWIN FAST
3/4 THRD fasteners

8. RO/MO
FFFrrraaammmeee IIInnnssstttaaallllllaaatttiiiooonnn PPPrrreeeppp
STEP 1. Clean the RO/MO, and clear area of any obstructions.
STEP 2. Check all sides of RO/MO with a 4' level. Make necessary changes to RO/MO, to
ensure sides are accurate.
STEP 3. Check all 4 corners with a carpenter's square to ensure corners are even.
STEP 4. Using a tape measure, check that the overall height and width is consistent across
entire RO/MO. Check at least three locations for each, the width and height for
consistency. If width or height make changes make consistent RO/MO.
STEP 5. Using a tape measure, measure diagonally from corner to corner, to verify that all
sides are level and corners are square. The diagonal measurements must be equal, for
the opening to be square.
NOTE. If the opening is not square, the RO/MO clearance must be increased to
allow room for shims. The RO/MO must be shimmed to allow the sides to
be level, and allow the corners to be square.
Frame Installation Prep END
STEP 2
STEP 5
Frame Installation Prep 2 - 1 | P a g e
STEP 3
STEP 4

9. Sealant
(at RO/MO)
Assembled Frame
2 1/2" Corrugated Nail
FFFrrraaammmeee IIInnnssstttaaallllllaaatttiiiooonnn
STEP 1. Make sure that the RO/MO is straight and level, prior to frame installation. Clean the
sill RO/MO surface, and clear of any obstructions.
STEP 2. Apply a continuous bead of high quality sealant around the exterior perimeter of the
RO/MO, at the head and side locations. Sealant should be applied on the exterior
sheathing about 1" out from RO/MO.
STEP 3. Set the frame in the RO/MO. The frame should be tilted outward about 15 ⁰- 30⁰ as
detailed, then tilt forward to set in place. Make sure the frame sill is centered on the
RO/MO base.
STEP 4. Once the frame is set. Tack the bottom corners of the casing, using the supplied 2
1/2" Corrugated Nail. Tack one nail at each end of Casing. Place nail about 2" up
from sill.
IMPORTANT: DO NOT nail the entire frame to the RO/MO, as the frame will
not stay square when the panels are installed.
STEP 2 STEP 3
STEP 4
Frame Installation 3 - 1 | P a g e

10. STEP 5. Apply two separate continuous beads of high quality sealant along the provided Sill
Nosing (#6). Apply one bead along the top of the sill nosing; the face that butts
against the sill. Place a second continuous bead along the back of the sill nosing; the
face that butts against RO/MO. Adhere the Sill Nosing to the RO/MO and Sill.
STEP 6. Nail the provided Sill Nosing (#6) to the RO/MO with the provided 2 1/2" Corrugated
Nails. Place the first nail about 2" in from the nosing end, and continue the nail
placement at about 6" - 8" O.C.
Frame Installation END
STEP 6
STEP 5
2 1/2" Corrugated Nail
Sill Nosing (#6)
Silicone Sealant
Frame Installation 3 - 2 | P a g e
Sliding Door Sill

11. SSStttaaatttiiiooonnnaaarrryyy PPPaaannneeelll IIInnnssstttaaallllllaaatttiiiooonnn
STEP 1. Install the Stationary Panel (#14) into the frame. Install the panel from the exterior,
and install the stationary panel on the operator side. Holding the panel at about a 15 ⁰
angle, fit the notch located on top of the panel on the 3" reinforcing bracket. The
reinforcing bracket is located on the Head Assembly (#1) .
STEP 2. Rotate the bottom end of the panel into the frame until vertical, and the panel is
resting on the setting block, located on the sill.
STEP 1 and STEP 2
3" Reinforcing Bracket
Setting Block
STEP 1 and STEP 2
STEP 1
Stationary Panel Installation 4 - 1 | P a g e
Stationary Panel (#14)

12. STEP 3. Slide the Stationary Panel to the opposite side of the frame, so it is resting fully on the
setting block. The edge of the panel should be flush with the edge of the setting
block at the center of the frame.
STEP 4. Locate the pre-drilled hole locations on the bottom front face of the stationary
panel, and align the Wide "L" Angle Bracket (#16) with the holes. Fasten the Wide
"L" Angle Bracket (#16) to the Stationary Panel (#14) with the supplied #8x1-1/4 PH
PN HD screw as detailed.
STEP 5. Locate the pre-drilled hole locations on the top, end face of the stationary panel,
and align the Narrow "L" Angle Bracket (#15) with the holes.
5.1. Fasten the Narrow "L" Angle Bracket (#15) to the Stationary Panel (#14)
with the supplied #8x1-1/4 PH PN HD screw, as detailed.
5.2. Rotate the stationary panel with the attached "L" Angle Bracket (#15)
until the angle bracket is aligned with pre-drilled hole on the Head Jamb
Assembly (#1). Fasten the Narrow "L" Angle Bracket to the head jamb
assembly with the supplied #8x1-1/4 PH PN HD screw as detailed.
Stationary Panel Installation END
Stationary Panel (Interior)
Setting Block
STEP 4 STEP 5
STEP 3
Stationary Panel Installation 4 - 2 | P a g e
#8x1-1/4 PH PN HD screw
Wide "L" Angle Bracket (#16)
#8x1-1/4 PH PN HD screw
Narrow "L" Angle Bracket (#16)

13. OOOpppeeerrraaatttooorrr PPPaaannneeelll PPPrrreeeppp
STEP 1. Flip the Operator Panel (#13) over as detailed; make sure the inside is facing upright,
and plug the holes from Step 2 are visible.
STEP 2. Fasten the Roller (#14) to the Operator Panel (#13), using the #10x3/4 PH FL HD SMS
supplied. Fasten the roller at both locations on the operator panel.
IMPORTANT: Make sure the fastener is aligned with the pre-drilled hole allocated.
STEP 3. Cover the plug hole with supplied Vinyl Plug (#17). Tap the plug into place with a
rubber mallet. Cover the plug holes at both roller locations on the operator panel.
Operator Panel Prep END
STEP 1
STEP 2 STEP 3
Vinyl Plug hole
#10x3/4 PH FL HD SMS
Operator Panel Prep 5 - 1 | P a g e
Sliding Door Roller
Vinyl Plug

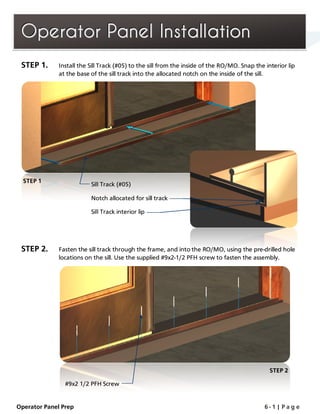

14. OOOpppeeerrraaatttooorrr PPPaaannneeelll IIInnnssstttaaallllllaaatttiiiooonnn
STEP 1. Install the Sill Track (#05) to the sill from the inside of the RO/MO. Snap the interior lip
at the base of the sill track into the allocated notch on the inside of the sill.
STEP 2. Fasten the sill track through the frame, and into the RO/MO, using the pre-drilled hole
locations on the sill. Use the supplied #9x2-1/2 PFH screw to fasten the assembly.
STEP 2
Sill Track (#05)
Notch allocated for sill track
Sill Track interior lip
STEP 1
#9x2 1/2 PFH Screw
Operator Panel Prep 6 - 1 | P a g e

15. STEP 3. Positioned from the interior of the structure, place the Operator Panel (#13) on the Sill
Track (#05). Hold the top of the panel about 15⁰ out from the Head Jamb Assembly
(#01) Place the Rollers (#14), on the sill track roller bar. Rotate the panel into position,
and allow the operator panel to rest on the Sill Track (#05).
STEP 3
STEP 3
Roller (#14)
Sill Track (#05)
Operator Panel Installation 6 - 2 | P a g e
Operator Panel (13)
Sill Track Roller Bar
Operator Panel

16. Feed Track
through Channel
STEP 4. Install the Head Track (#07) to the Head Jamb Assembly (#01).
4.1 Feed the vinyl head track through the Operator Panel (#13) channel on the
top face of the panel.
4.2 Make sure the head track is set in the notch allocated on the Head Jamb
Assembly (#01)
4.3 Fasten the exposed portion of the head track to the Head Jamb Assembly
(#01), using the supplied #6X3/4 PFH Screws. Fasten the screws through the
pre-drilled holes located on the Head Track.
Vinyl Head Track (#07)
Vinyl Head Track (#07)
Head Jamb Assembly
#6X3/4 PFH Screws
STEP 4.1
Operator Panel Channel
STEP 4.2
STEP 4.3
Operator Panel Installation 6 - 3 | P a g e

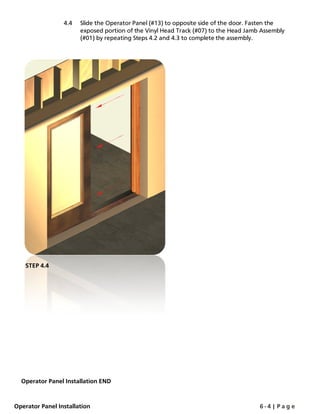

17. 4.4 Slide the Operator Panel (#13) to opposite side of the door. Fasten the
exposed portion of the Vinyl Head Track (#07) to the Head Jamb Assembly
(#01) by repeating Steps 4.2 and 4.3 to complete the assembly.
Operator Panel Installation END
STEP 4.4
Operator Panel Installation 6 - 4 | P a g e

18. OOOpppeeerrraaatttooorrr PPPaaannneeelll HHHaaarrrdddwwwaaarrreee IIInnnssstttaaallllll
STEP 1. Place a 1/8" bead of high quality silicone around each pre-drilled hole at handle
location on the Operator Panel (#13). Silicone is to be applied at BOTH, Exterior and
Interior of the panel.
STEP 2. Place the Operator Handle Package Gasket (#15) on the back-side of each handle.
Fit the gasket over each screw boss. Repeat the step for the interior and the exterior
handle portion of the handle set.
STEP 3. Fit the interior and exterior handle portions into the pre-drilled locations on the
Operator Panel (#13). Fasten the interior handle to the exterior handle using the
#8x2-1/4 PN HD MS supplied.
STEP 3
Silicone Sealant
Handle Gasket
STEP 1 STEP 2
Operator Panel Hardware Installation 7 - 1 | P a g e
Handle Set Interior
#8x2-1/4 PN HD MS

19. STEP 4. Shut the Operator Panel and lock the multi-point locking system, using the thumb
turn cylinder. Make sure the bolts at all 3 lock locations on the Operator Jamb
Assembly (#03) properly catch the latch plates. If the bolts do not latch, remove the
Vinyl Plugs (#17) at the Operator Panel (#13) base. Use a phillips head screw driver
to adjust the rollers to allow the panel to raise and lower.
Operator Hardware Installation END
CONGRATULATIONS!! YOU HAVE COMPLETED INSTALLING THE SLIDING DOOR!!
STEP 4
Pre-drilled hole at Operator
Panel Interior
Roller
Adjustable Set-screw
Operator Panel Hardware Installation 7 - 2 | P a g e
