This document provides information from a site analysis of Lembah Bujang, including: - Site contours, vegetation types and species, effects of vegetation, sun path, rainfall, and wind. - Pedestrian circulation strengths and weaknesses, and neighboring context strengths and weaknesses. - Adjacent street and vehicular traffic patterns strengths and weaknesses. - Various views and vistas of the site. - Background on Lembah Bujang being known as "the forgotten city".

1. LEMBAH BUJANG
CHAN PIN QI
CELENE SOO XIAO WEN
HOOI WEI XIN
KOAY HUI MAY
LEE JO YEE
MICRO SITE ANALYSIS

2. Site Survey

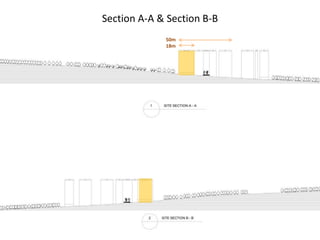

6. Section A-A & Section B-B
18m
50m

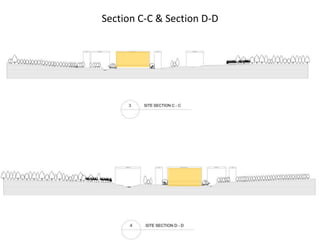

7. Section C-C & Section D-D

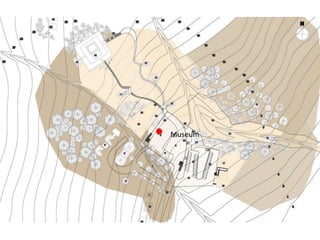

8. Site Contour

9. Steep
Moderate steep
Flat

10. Museum

11. Effect of Steep Contour

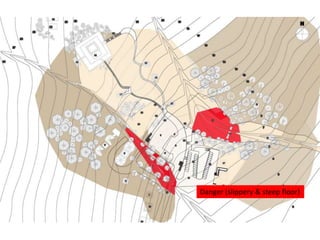

12. Danger (slippery & steep floor)

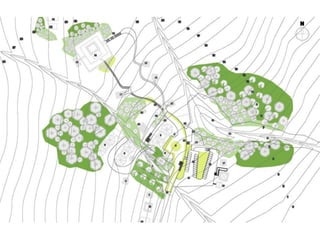

13. Vegetation

14. Large size (10-40 meter)
Medium size (2-10 meter)
Small size (0.05-2.00 meter)

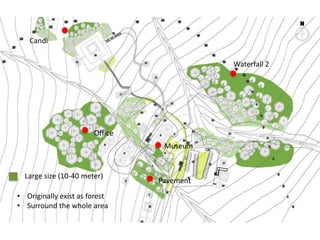

16. Large size (10-40 meter)
• Originally exist as forest
• Surround the whole area
Candi
Waterfall 2
Office
Museum
Pavement

17. Species of plant found
Meranti Tree
(20-40meter)
Keruing Tree
(25-45meter)

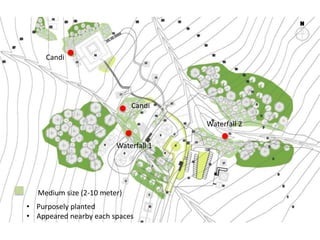

18. Medium size (2-10 meter)
• Purposely planted
• Appeared nearby each spaces
Candi
Waterfall 2
Waterfall 1
Candi

19. Species of plant found
Areca gurita
(2-10 meter)
Cyrtostachys renda
(2-16 meter)

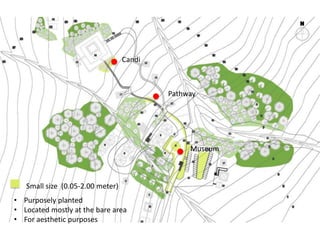

20. Small size (0.05-2.00 meter)
• Purposely planted
• Located mostly at the bare area
• For aesthetic purposes
Candi
Pathway
Museum

21. Species of plant found
Bengal bamboo
(1.2-2.4 meter)
Bonsai tree
(1.2-2 meter)
Bougainvillea
(1.2-2 meter)

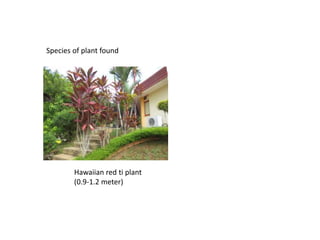

22. Species of plant found
Hawaiian red ti plant
(0.9-1.2 meter)

23. Effect of Vegetation

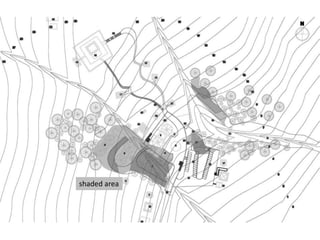

24. shaded area

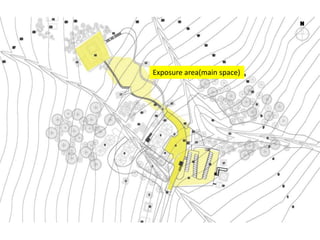

25. Exposure area(main space)

26. Intrusion of wild boar Red Ant

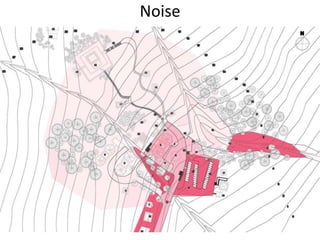

27. Noise

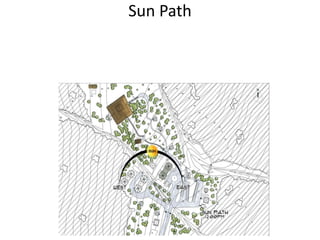

28. Sun Path

29. 7AM
8AM
12PM 7PM
6PM
5PM

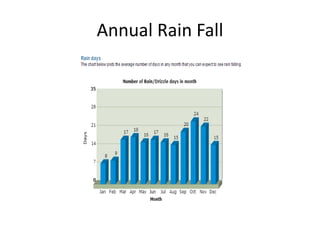

30. Annual Rain Fall

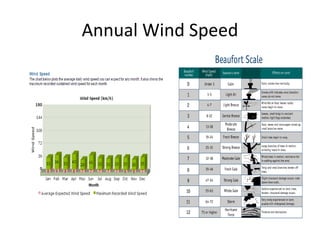

31. Annual Wind Speed

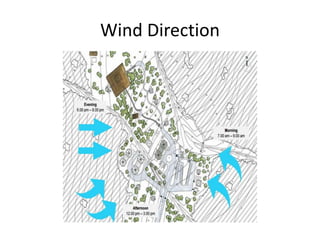

32. Wind Direction

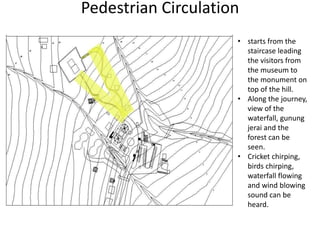

35. Pedestrian Circulation
• starts from the
staircase leading
the visitors from
the museum to
the monument on
top of the hill.
• Along the journey,
view of the
waterfall, gunung
jerai and the
forest can be
seen.
• Cricket chirping,
birds chirping,
waterfall flowing
and wind blowing
sound can be
heard.

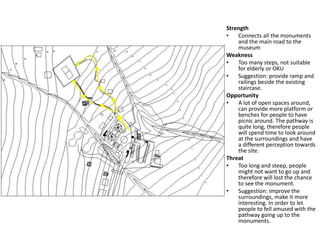

36. Strength
• Connects all the monuments
and the main road to the
museum
Weakness
• Too many steps, not suitable
for elderly or OKU
• Suggestion: provide ramp and
railings beside the existing
staircase.
Opportunity
• A lot of open spaces around,
can provide more platform or
benches for people to have
picnic around. The pathway is
quite long, therefore people
will spend time to look around
at the surroundings and have
a different perception towards
the site.
Threat
• Too long and steep, people
might not want to go up and
therefore will lost the chance
to see the monument.
• Suggestion: Improve the
surroundings, make it more
interesting. In order to let
people to fell amused with the
pathway going up to the
monuments.

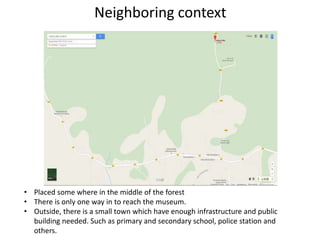

37. Neighboring context
• Placed some where in the middle of the forest
• There is only one way in to reach the museum.
• Outside, there is a small town which have enough infrastructure and public
building needed. Such as primary and secondary school, police station and
others.

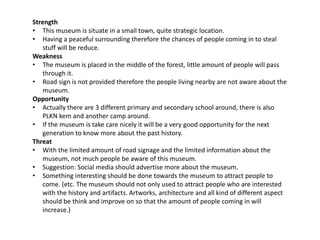

38. Strength
• This museum is situate in a small town, quite strategic location.
• Having a peaceful surrounding therefore the chances of people coming in to steal
stuff will be reduce.
Weakness
• The museum is placed in the middle of the forest, little amount of people will pass
through it.
• Road sign is not provided therefore the people living nearby are not aware about the
museum.
Opportunity
• Actually there are 3 different primary and secondary school around, there is also
PLKN kem and another camp around.
• If the museum is take care nicely it will be a very good opportunity for the next
generation to know more about the past history.
Threat
• With the limited amount of road signage and the limited information about the
museum, not much people be aware of this museum.
• Suggestion: Social media should advertise more about the museum.
• Something interesting should be done towards the museum to attract people to
come. (etc. The museum should not only used to attract people who are interested
with the history and artifacts. Artworks, architecture and all kind of different aspect
should be think and improve on so that the amount of people coming in will
increase.)

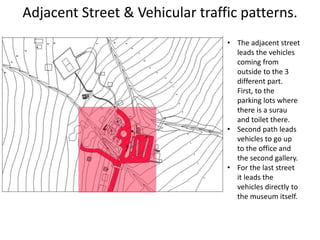

39. Adjacent Street & Vehicular traffic patterns.
• The adjacent street
leads the vehicles
coming from
outside to the 3
different part.
First, to the
parking lots where
there is a surau
and toilet there.
• Second path leads
vehicles to go up
to the office and
the second gallery.
• For the last street
it leads the
vehicles directly to
the museum itself.

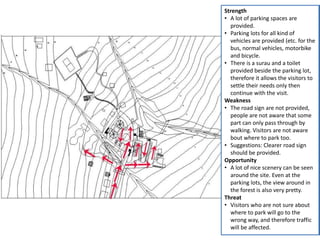

40. Strength
• A lot of parking spaces are
provided.
• Parking lots for all kind of
vehicles are provided (etc. for the
bus, normal vehicles, motorbike
and bicycle.
• There is a surau and a toilet
provided beside the parking lot,
therefore it allows the visitors to
settle their needs only then
continue with the visit.
Weakness
• The road sign are not provided,
people are not aware that some
part can only pass through by
walking. Visitors are not aware
bout where to park too.
• Suggestions: Clearer road sign
should be provided.
Opportunity
• A lot of nice scenery can be seen
around the site. Even at the
parking lots, the view around in
the forest is also very pretty.
Threat
• Visitors who are not sure about
where to park will go to the
wrong way, and therefore traffic
will be affected.

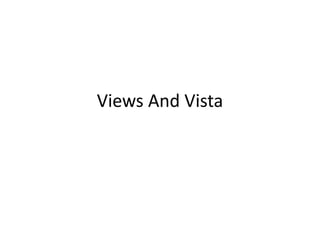

41. Views And Vista

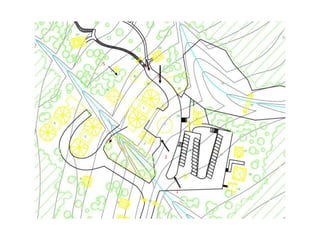

42. 1
2
3
45
6

43. 1 2
3 4
6

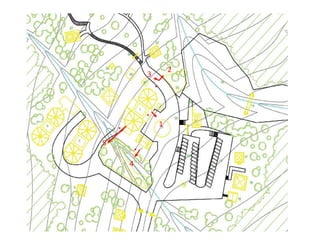

44. 1
2
3
5
4

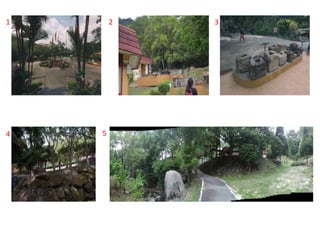

45. 1 2 3
4 5

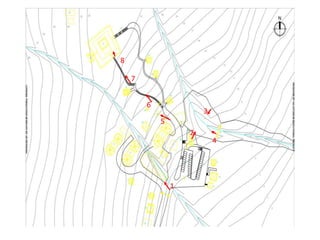

46. 1
2
3
4
5
6
7
8

47. 1 2
3

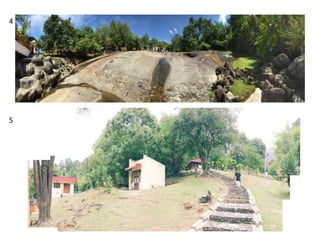

48. 4
5

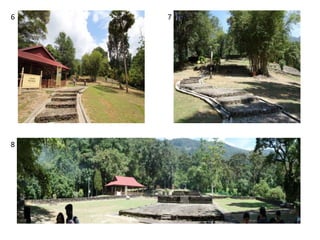

49. 6 7
8

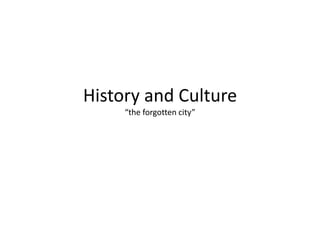

50. History and Culture
“the forgotten city”

52. An artist's impression of trade activities in Lembah Bujang during
ancient times. Picture from the Bujang Valley Archaeological
Museum
