The sicam ak 3 is a highly flexible and powerful device from Siemens' sicam RTUs product family, designed for automation, telecontrol, and communication, compliant with IEC 61850. It features improved mechanical design, a new power supply, and enhanced network capabilities, with up to 68 communication interfaces and broad compatibility with third-party protocols. The device's engineering is facilitated by the sicam toolbox II, allowing for efficient configuration and maintenance of various applications, including power generation and industrial networks.

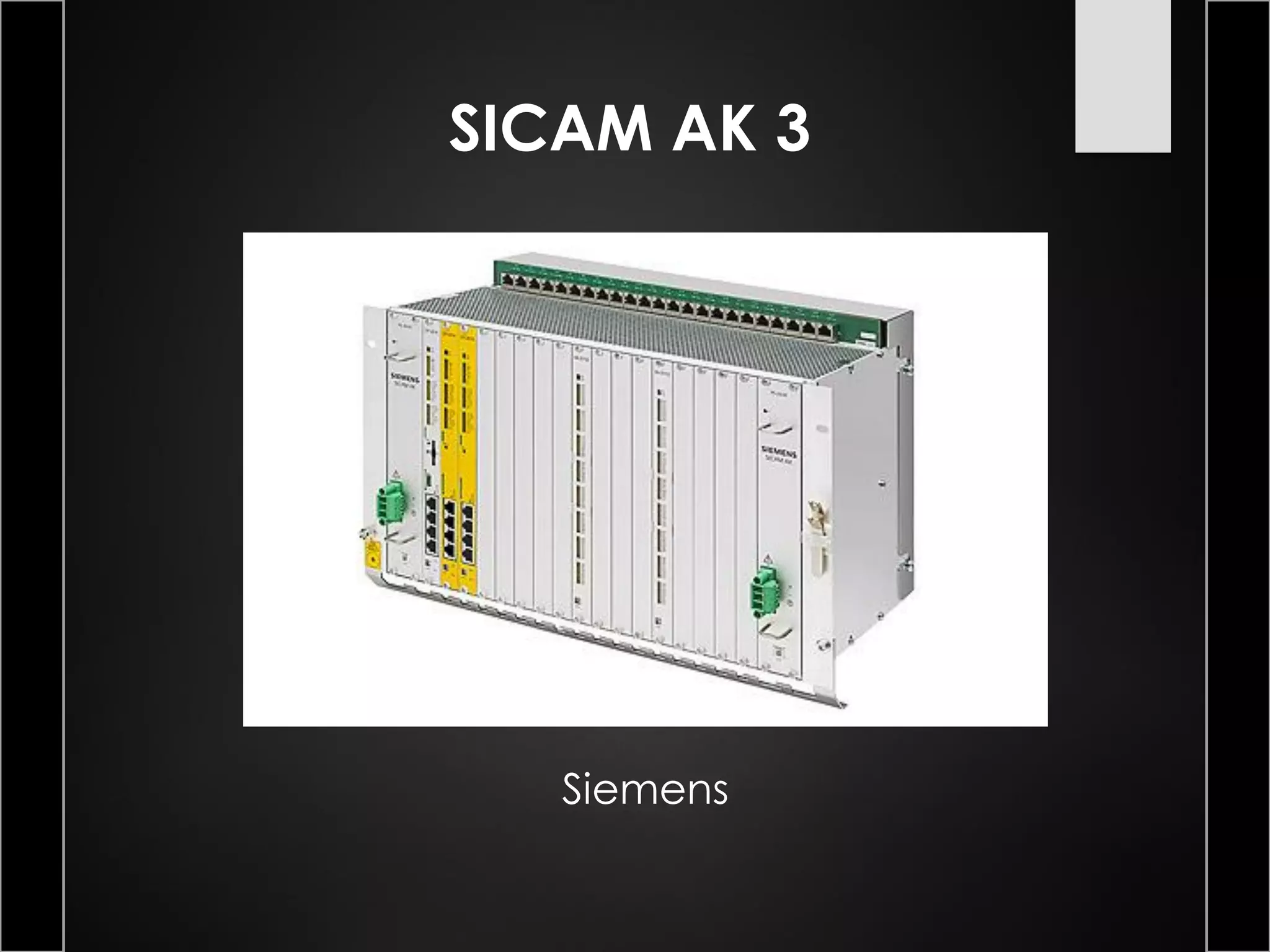

1. SICAM AK 3
Siemens

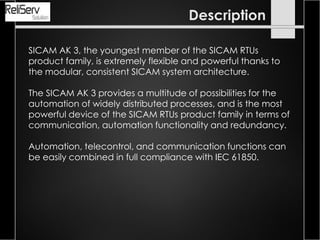

2. SICAM AK 3, the youngest member of the SICAM RTUs
product family, is extremely flexible and powerful thanks to
the modular, consistent SICAM system architecture.
The SICAM AK 3 provides a multitude of possibilities for the
automation of widely distributed processes, and is the most
powerful device of the SICAM RTUs product family in terms of
communication, automation functionality and redundancy.
Automation, telecontrol, and communication functions can
be easily combined in full compliance with IEC 61850.
Description

3. The SICAM AK 3 scores points not only with its improved
mechanical design but also with significantly simplified hardware
components combined with higher performance:
• A more powerful power supply (optionally in redundant
configuration) is as much part of the systematic enhance-ment
as the integration of two network interfaces on the CPU boards
(can be extended to up to four interfaces). Additional
connection cards and patch plugs are no longer needed.
• All existing and proven SICAM AK system concepts and
functions, from redundancy to automatic data flow to SICAM
Safety, and many more, are still available in the SICAM AK 3 - the
third AK generation.
• Like all products of the SICAM RTUs system family, the SICAM AK 3
can be also parameterized with the SICAM TOOLBOX II object-
oriented engineering software.
Description

4. Configuration
Based on the proven SICAM AK system, the new SICAM AK 3 has
been equipped with the following additional features:
• Improved mechanical design
• New power supply (120W), optionally redundant
• New, more powerful master CPU (CP-2016) and C-CPU (CP-2019)
• Integrated Ethernet interfaces on the CP-2016 and CP 2019
• Higher availability combined with greater performance
• Reuse of peripheral modules
• Remote maintenance via encrypted end-to-end security
• BDEW and NERC CIP compliant
Features

5. SICAM AK 3 – the forward-looking product
Versatile communication:
• Up to 68 interfaces according to serial communication acc. IEC
60870-5-101/103
• LAN/WAN communication according to IEC 60870-5-104
• LAN communication according to IEC 61850
• Various third-party protocols possible
Easy engineering with SICAM TOOLBOX II:
• Object-oriented data model
• Creation of open-loop and closed-loop control application
programs according to IEC 61131-3
• All engineering tasks can also be carried out remotely
Plug and play for spare parts:
• Storage of parameters and firmware on a flash card
• Spare part exchange does not require additional loading with
SICAM TOOLBOX II
Details

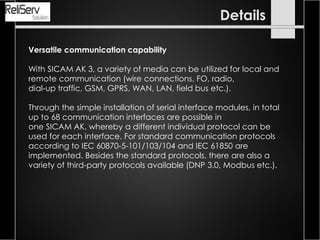

6. Versatile communication capability
With SICAM AK 3, a variety of media can be utilized for local and
remote communication (wire connections, FO, radio,
dial-up traffic, GSM, GPRS, WAN, LAN, field bus etc.).
Through the simple installation of serial interface modules, in total
up to 68 communication interfaces are possible in
one SICAM AK, whereby a different individual protocol can be
used for each interface. For standard communication protocols
according to IEC 60870-5-101/103/104 and IEC 61850 are
implemented. Besides the standard protocols, there are also a
variety of third-party protocols available (DNP 3.0, Modbus etc.).
Details

7. Easy engineering
An essential aspect in the overall economical consideration are the
costs that occur for the creation, maintenance and
service. For this, the reliable SICAM TOOLBOX II is used.
• Object orientation:
The object orientation makes it possible to also utilize the same
characteristics of same-type primary-technology units and
operational equipment (e.g. disconnectors, circuit breakers,
feeders etc.) for the configuration. The close coupling with the
design tool ensures the consistent, uniform documentation of the
entire plant through to the circuit diagram. Through this,
considerable rationalization results with engineering.
• Open-loop and closed-loop control according to IEC 61131-3:
Open-loop and closed-loop control application programs are
created by means of CAEx plus according to IEC 61131-3, a
standard that is generally accepted and recognized in the
market. As a result, the training periods are reduced
considerably.
Function

8. • Power generation, transmission and distribution
• Industrial networks
• Microgrids
• Traction power supply
• Automation of tunnels, oil & gas pipelines
Application Areas

9. The SICAM AK 3 is a practical all-rounder with many
advantages for you to profit from:
• Flexible use as an automation, telecontrol and substation
control unit, and as a data node for widely distributed
processes
• Wide range of communication interfaces allows
integration into any system
• Simple engineering and easy maintenance save time
and costs
• Unchanged engineering using the proven SICAM
TOOLBOX II
• Storage of parameters and firmware on SD card
• Plug and play for spare parts without engineering tool
• New optimized rack
Benefits
