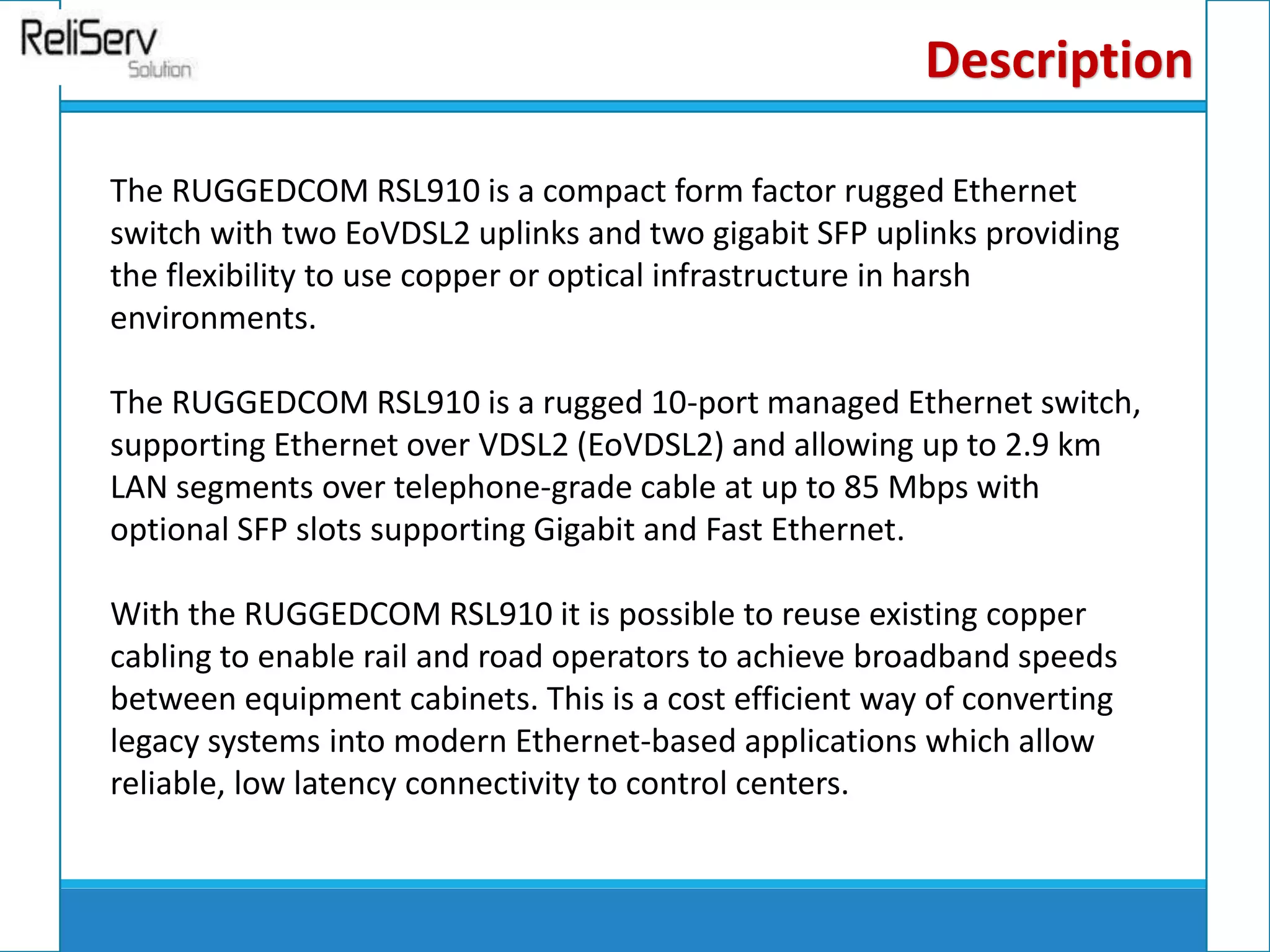

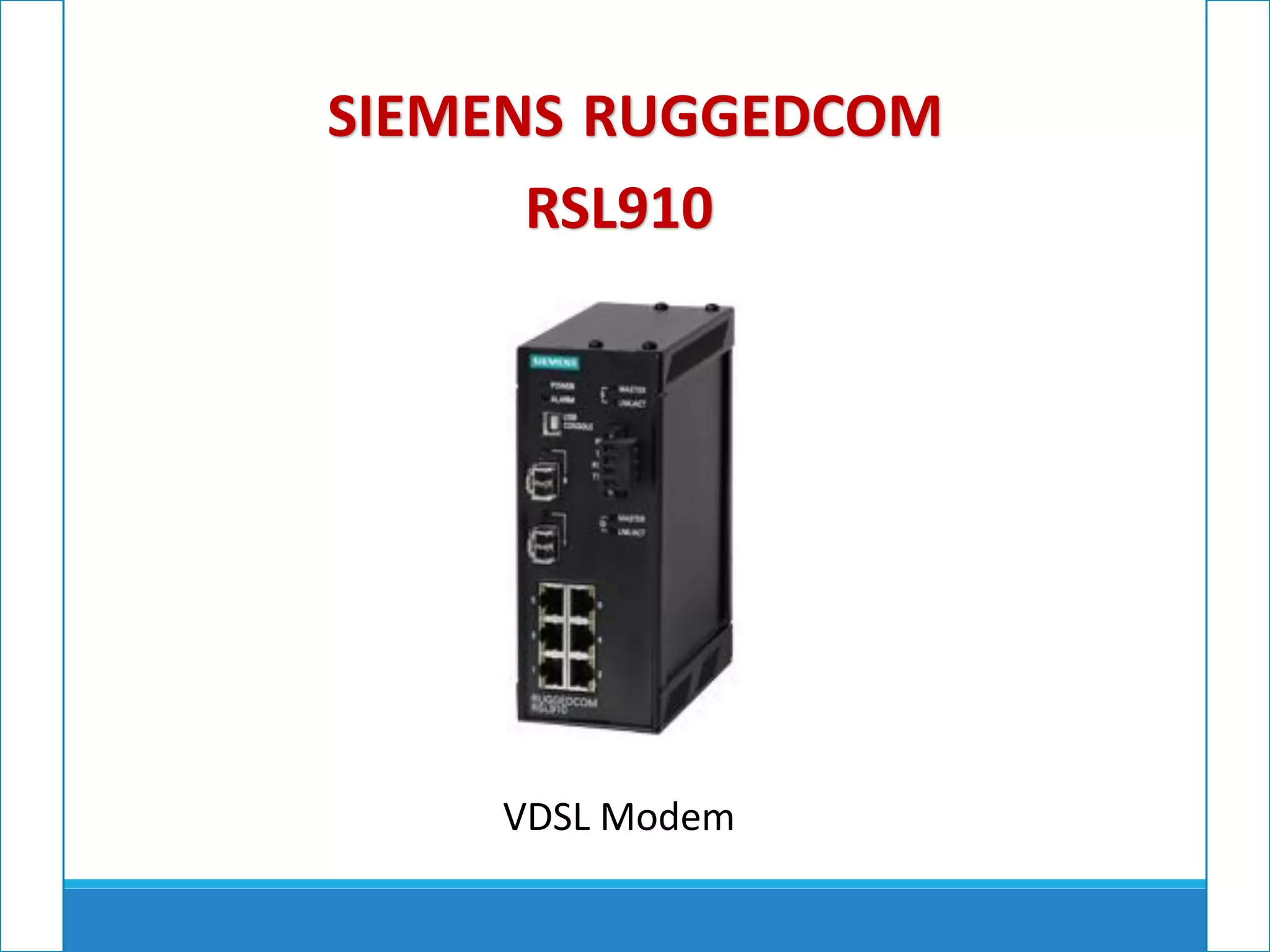

2. The RUGGEDCOM RSL910 is a compact form factor rugged Ethernet
switch with two EoVDSL2 uplinks and two gigabit SFP uplinks providing
the flexibility to use copper or optical infrastructure in harsh
environments.
The RUGGEDCOM RSL910 is a rugged 10-port managed Ethernet switch,
supporting Ethernet over VDSL2 (EoVDSL2) and allowing up to 2.9 km
LAN segments over telephone-grade cable at up to 85 Mbps with
optional SFP slots supporting Gigabit and Fast Ethernet.
With the RUGGEDCOM RSL910 it is possible to reuse existing copper
cabling to enable rail and road operators to achieve broadband speeds
between equipment cabinets. This is a cost efficient way of converting
legacy systems into modern Ethernet-based applications which allow
reliable, low latency connectivity to control centers.
Description
3. The RUGGEDCOM RSL910 combines EoVDSL2 and SFP-slots in the same
device for a migration path from legacy 2-wire copper cabling to high
speed fiber optic or other advanced
network topologies.
Description
The RUGGEDCOM RSL910 performs well
under harsh conditions and is therefore
suitable for use in outdoor environments
where support for low and/or high
temperatures is mandatory. Besides
support for harsh environments the device
is also approved and certified for use in
transportation applications (EN50121-4,
EN50121-3, EN 45545-2 and NEMA TS2).
4. Communication interfaces
• 2 Ethernet over VDSL2 (EoVDSL2) interfaces
• 2 SFP slots supporting Gigabit and Fast Ethernet Optics
• 6 Fast Ethernet ports (10/100BASE-TX)
Ethernet over VDSL Port Characteristics
• Up to 3.0 km LAN segments
• Data rates up to 85 Mbps
• Automatically selects fastest data rate based on distance and quality
of cable
• Software selectable as master or slave
General Features
5. Other interfaces
• Failsafe Relay
Universal Power Supply Options
• Fully integrated power supply (no external adapters)
• Universal high-voltage range: 88–300 VDC or 85–264 VAC
• Dual low-voltage DC inputs: 24 VDC (10–36 VDC) or 48 VDC (36–72
VDC)
• Terminal blocks for reliable, maintenance-free connections
Environmental
• -40° C to 85° C operating temperature (no fans)
General Features
6. RUGGEDCOM Operating System (ROS®) Features
• Simple plug and play operation – automatic learning, negotiation,
and crossover detection
• MSTP (802.1Q-2005, formerly 802.1s)
• RSTP (802.1D-2004) and Enhanced Rapid Spanning Tree (eRSTP™)
network fault recovery (<5 ms)
• Quality of service (802.1p) for real-time traffic
• VLAN (802.1Q) with double tagging and GVRP support
• Link aggregation
• IGMP snooping for multicast filtering
• Port rate limiting and broadcast storm limiting
• Loss-of-link management on fiber ports
General Features
7. Cyber security features
• Multilevel user passwords
• SSH/SSL (128-bit encryption)
• Enable/disable ports, MAC-based port security
• Port-based network access control (802.1x)
• VLAN (802.1Q) to segregate and secure network traffic
• RADIUS centralized password management
• SNMPv3 authenticati
General Features
