Shutter door slats roll forming machine

LARGE SPAN GROUP
ADD: No.11, Friendship Street, North Industrial Zone, Zhengding City, Hebei Province, China
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637
E-MAIL: info@large-span.com, largespangroup@gmail.com
Our machine highlights
 SIEMENS brand motors from Germany
 RISEN brand Hydraulic control system from Japan
 YUKEN brand Solenoid valve from Japan
 Omron brand Encoder from Japan
 Siemens PLC from Germany
 Mitsubishi brand Frequency converter from Japan
 Delta brand Servo Drive from Germany
 All steel and burnished aluminum construction, precision
forming rollers with hard chrome plating
 3 years warranty, all the damaged parts can be changed into
new ones if they are sent back to our factory (manmade
damage is not inclueded).

LARGE SPAN GROUP
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637

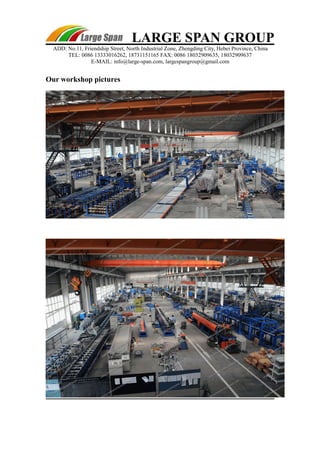

Our workshop pictures

LARGE SPAN GROUP
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637

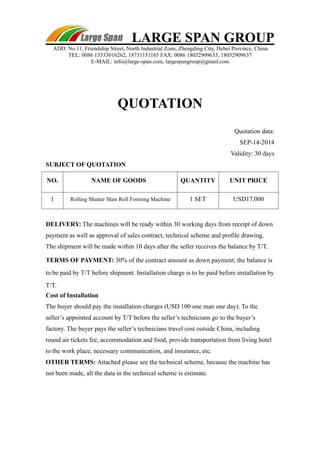

QUOTATION
Quotation data:
SEP-14-2014
Validity: 30 days
SUBJECT OF QUOTATION
NO. NAME OF GOODS QUANTITY UNIT PRICE
1 Rolling Shutter Slats Roll Forming Machine 1 SET USD17,000
DELIVERY: The machines will be ready within 30 working days from receipt of down
payment as well as approval of sales contract, technical scheme and profile drawing.
The shipment will be made within 10 days after the seller receives the balance by T/T.
TERMS OF PAYMENT: 30% of the contract amount as down payment; the balance is
to be paid by T/T before shipment. Installation charge is to be paid before installation by
T/T.
Cost of Installation
The buyer should pay the installation charges (USD 100 one man one day). To the
seller’s appointed account by T/T before the seller’s technicians go to the buyer’s
factory. The buyer pays the seller’s technicians travel cost outside China, including
round air tickets fee, accommodation and food, provide transportation from living hotel
to the work place, necessary communication, and insurance, etc.
OTHER TERMS: Attached please see the technical scheme, because the machine has
not been made, all the data in the technical scheme is estimate.

LARGE SPAN GROUP
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637

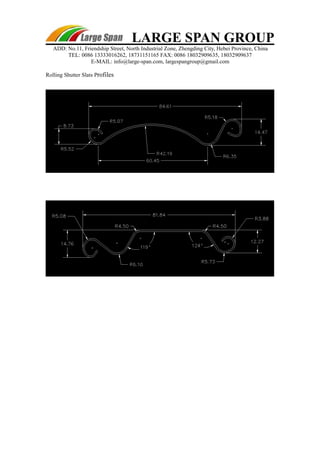

Rolling Shutter Slats Profiles

LARGE SPAN GROUP
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637

LARGE SPAN GROUP
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637

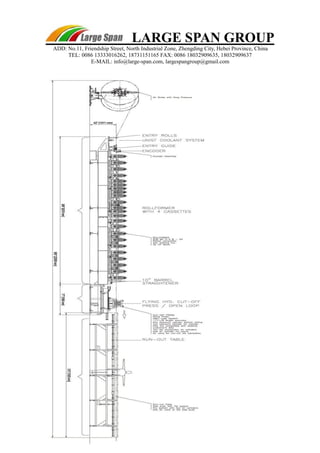

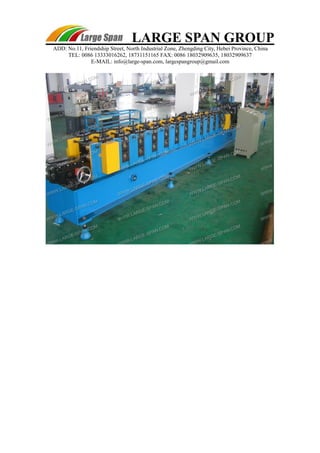

Components of Rolling Shutter Slats Roll Forming Machine:
The whole line is consisted of a decoiler, main roll-forming machine (fast replacing
style), straightening part, cut-to-length part, run-out table, etc.
Forming Technology of Rolling Shutter Slats Roll Forming Machine:
Decoiler - flatting part - main roll forming machine - tracing cutter---run-out table

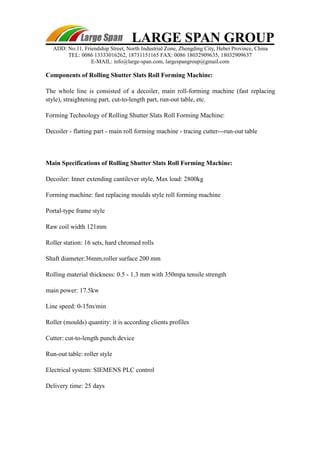

Main Specifications of Rolling Shutter Slats Roll Forming Machine:
Decoiler: Inner extending cantilever style, Max load: 2800kg
Forming machine: fast replacing moulds style roll forming machine
Portal-type frame style
Raw coil width 121mm

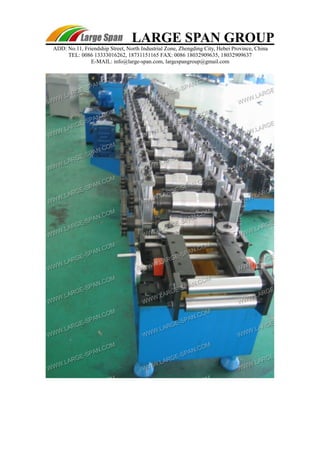

Roller station: 16 sets, hard chromed rolls
Shaft diameter:36mm,roller surface 200 mm
Rolling material thickness: 0.5 - 1.3 mm with 350mpa tensile strength
main power: 17.5kw
Line speed: 0-15m/min
Roller (moulds) quantity: it is according clients profiles

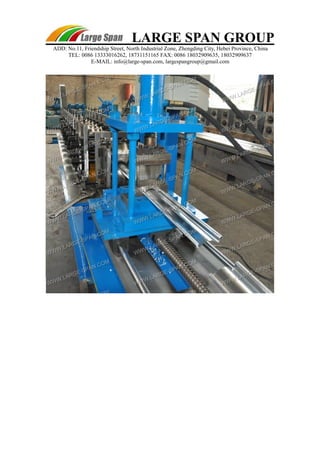

Cutter: cut-to-length punch device
Run-out table: roller style
Electrical system: SIEMENS PLC control
Delivery time: 25 days

LARGE SPAN GROUP
TEL: 0086 13333016262, 18731151165 FAX: 0086 18032909635, 18032909637

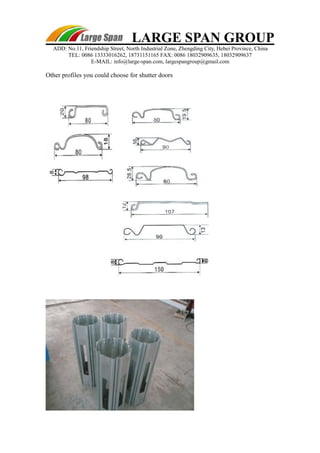

Other profiles you could choose for shutter doors
