- 1. Attention all Attendees…Welcome! To listen to the audio portion: 1.) Make sure your speakers or headset are on and turned up. OR 2.) Dial the phone number listed in your confirmation e-mail: Thank you for attending. We will be starting shortly. 2:00 pm Time Slot U.S. #: (1) 516-453-0014 Access Code: 169-566-602 10:00 am Time Slot U.S. #: (1) 323-417-4600 Access Code: 156-744-270 * If you are located outside the U.S., please refer to your confirmation e-mail for a list of phone numbers to call for your area. Jerry Godina (Presenter)
- 2. Shock Control, Restraintand Support Devices Piping Technology & Products, Inc. November 5, 2009 Webinar Presentation hosted by… For Audio: 1.) Select Speakers/Headphones & Turn Speakers Up or 2.) 10:00 am Session: Dial (1) 323-417-4600 Access Code: 156-744-270 2:00 pm Session: Dial (1) 516-453-0014 Access Code: 169-566-602 (for countries outside the U.S. please refer to the list of numbers in your confirmation email)

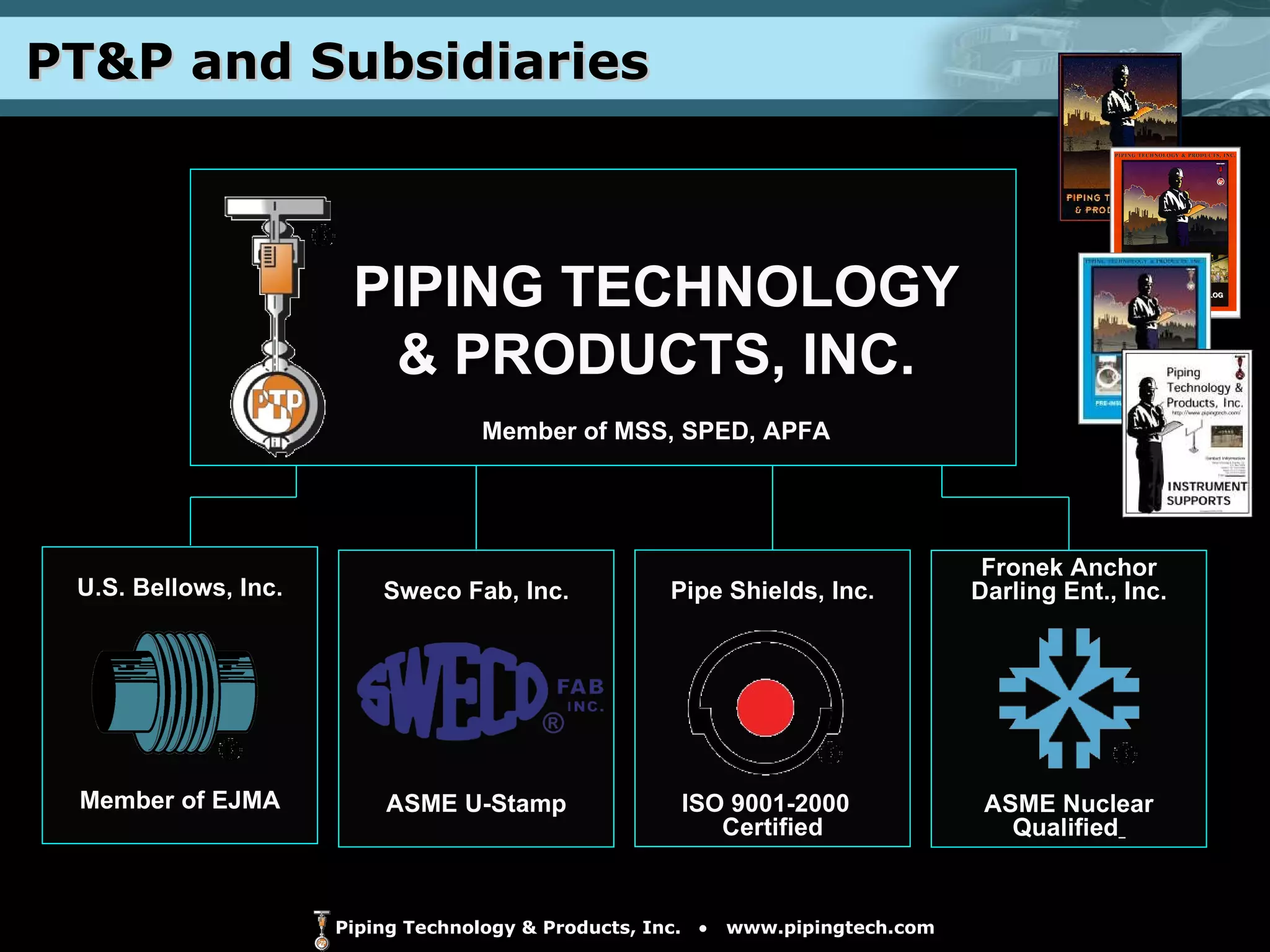

- 3. PT&P and SubsidiariesFronek Anchor Darling Ent., Inc. ASME Nuclear Qualified Pipe Shields, Inc. ISO 9001-2000 Certified Sweco Fab, Inc. ASME U-Stamp PIPING TECHNOLOGY & PRODUCTS, INC. Member of MSS, SPED, APFA U.S. Bellows, Inc. Member of EJMA
- 4. Certifications & ManufacturingFacility EJMA Member ASME U-Stamp ASME R-Stamp ASME NS Certified ISO 9001:2000 Certified Minority Business Enterprise (MBE) by City of Houston Houston Minority Business Council (HMBC) Houston, Texas USA 450,000 Square Feet of Covered Shop Space on a 35 Acre Property Located Near the Port of Houston Certifications Manufacturing Facility

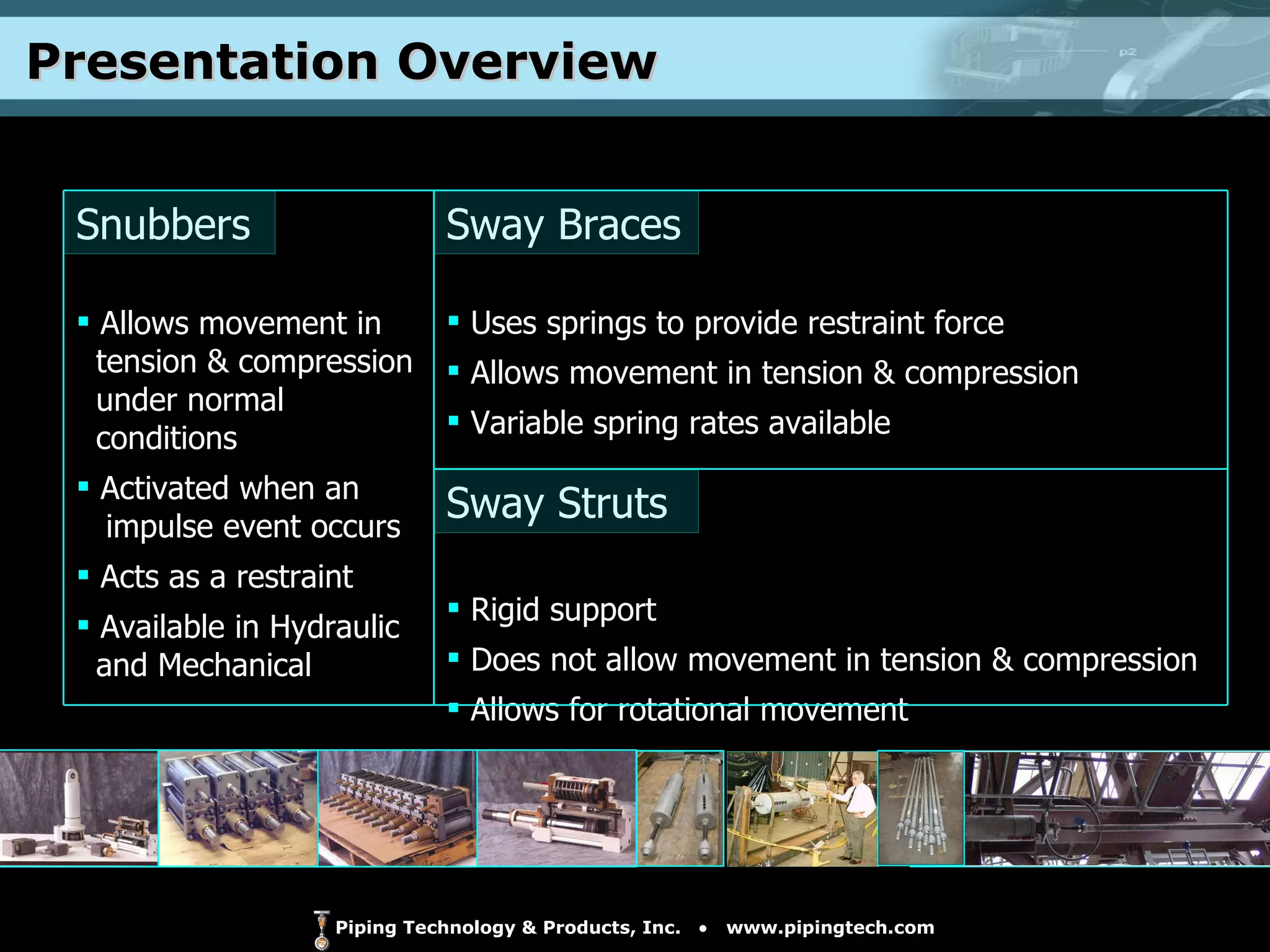

- 5. Presentation Overview SwayStruts Rigid support Does not allow movement in tension & compression Allows for rotational movement Sway Braces Uses springs to provide restraint force Allows movement in tension & compression Variable spring rates available Snubbers Allows movement in tension & compression under normal conditions Activated when an impulse event occurs Acts as a restraint Available in Hydraulic and Mechanical

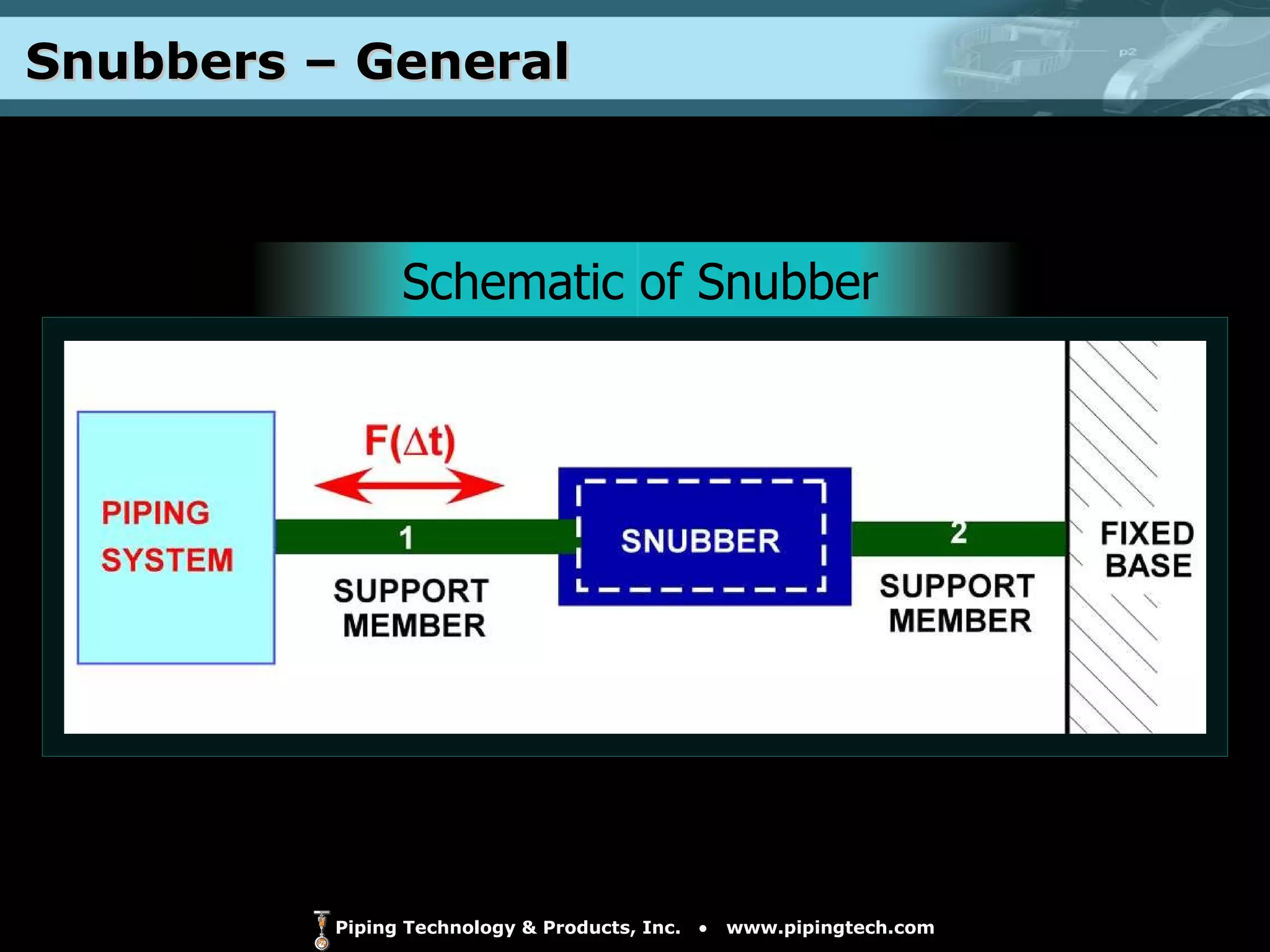

- 6. Snubbers – General Schematic of Snubber

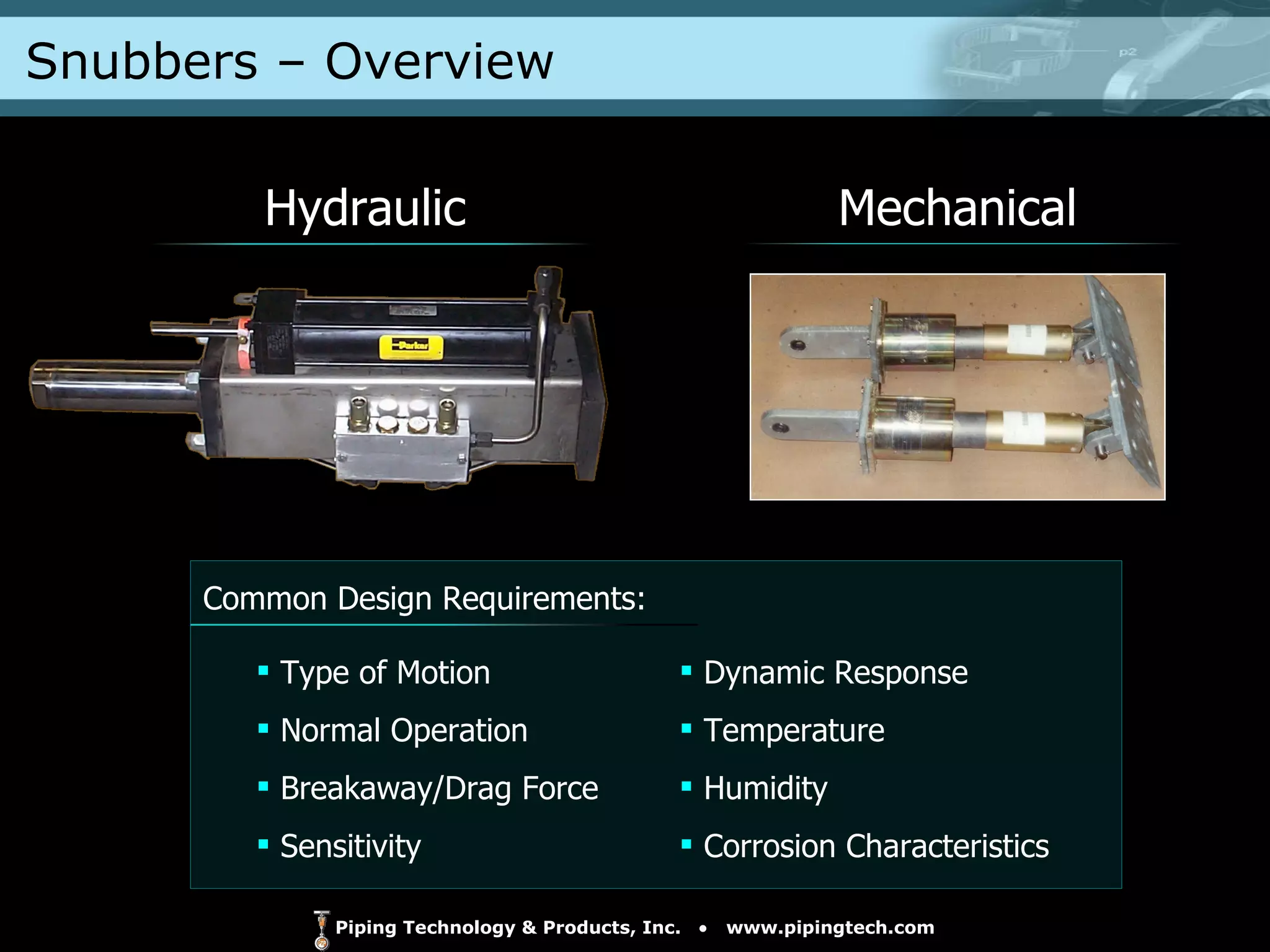

- 7. Snubbers – Overview Hydraulic Mechanical Type of Motion Normal Operation Breakaway/Drag Force Sensitivity Dynamic Response Temperature Humidity Corrosion Characteristics Common Design Requirements:

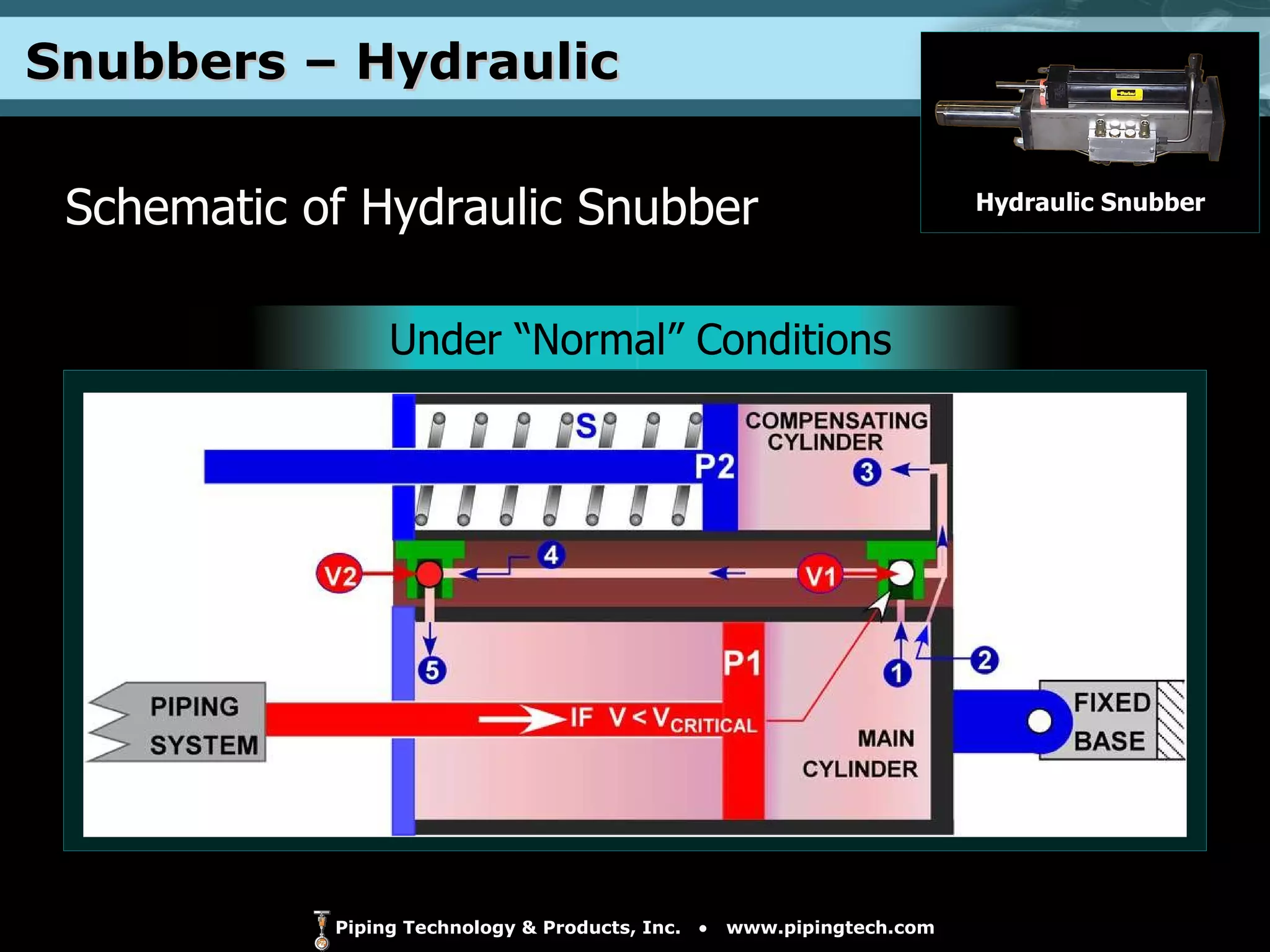

- 8. Snubbers – Hydraulic Schematic of Hydraulic Snubber Hydraulic Snubber Under “Normal” Conditions

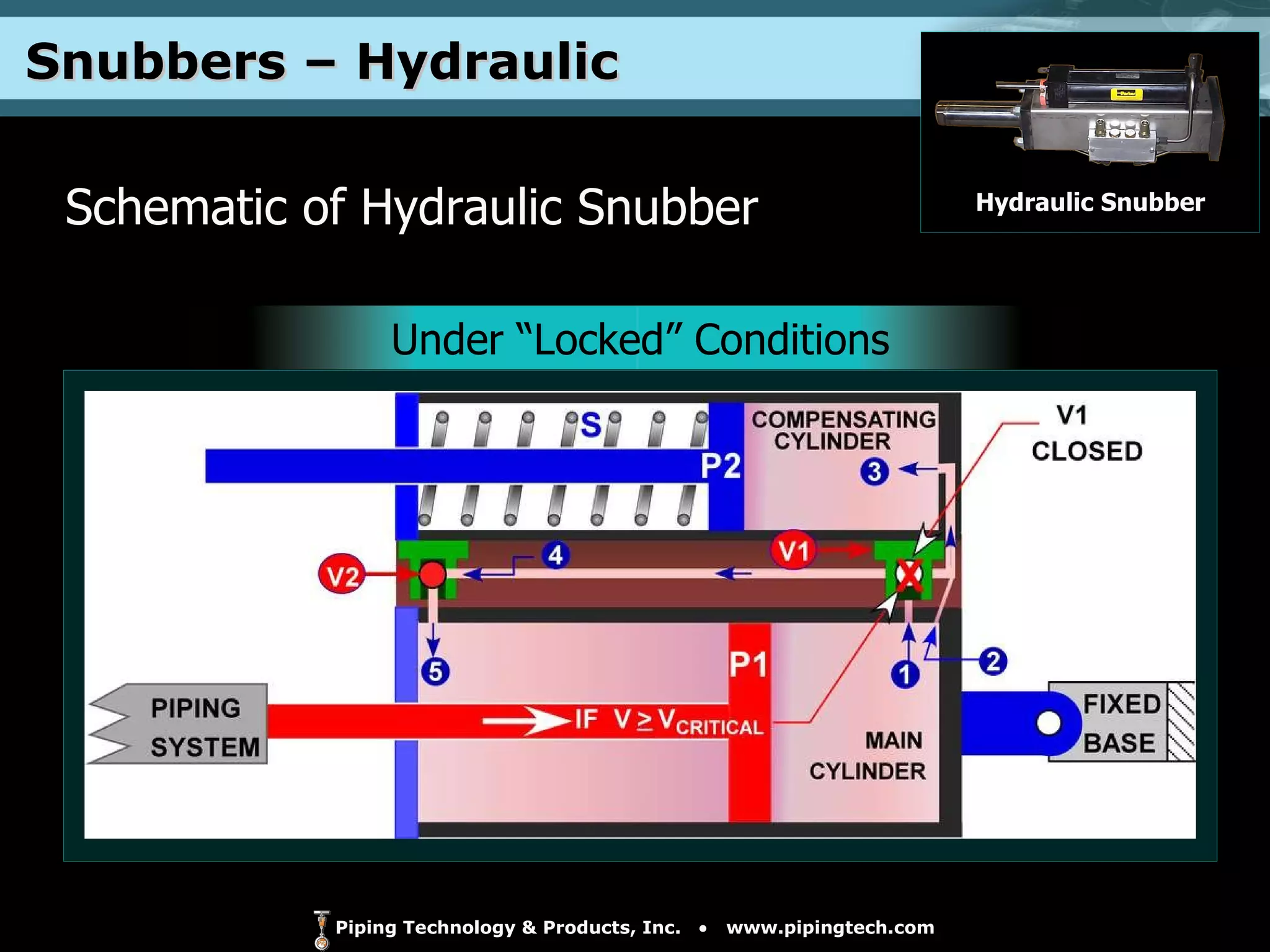

- 9. Snubbers – Hydraulic Schematic of Hydraulic Snubber Hydraulic Snubber Under “Locked” Conditions

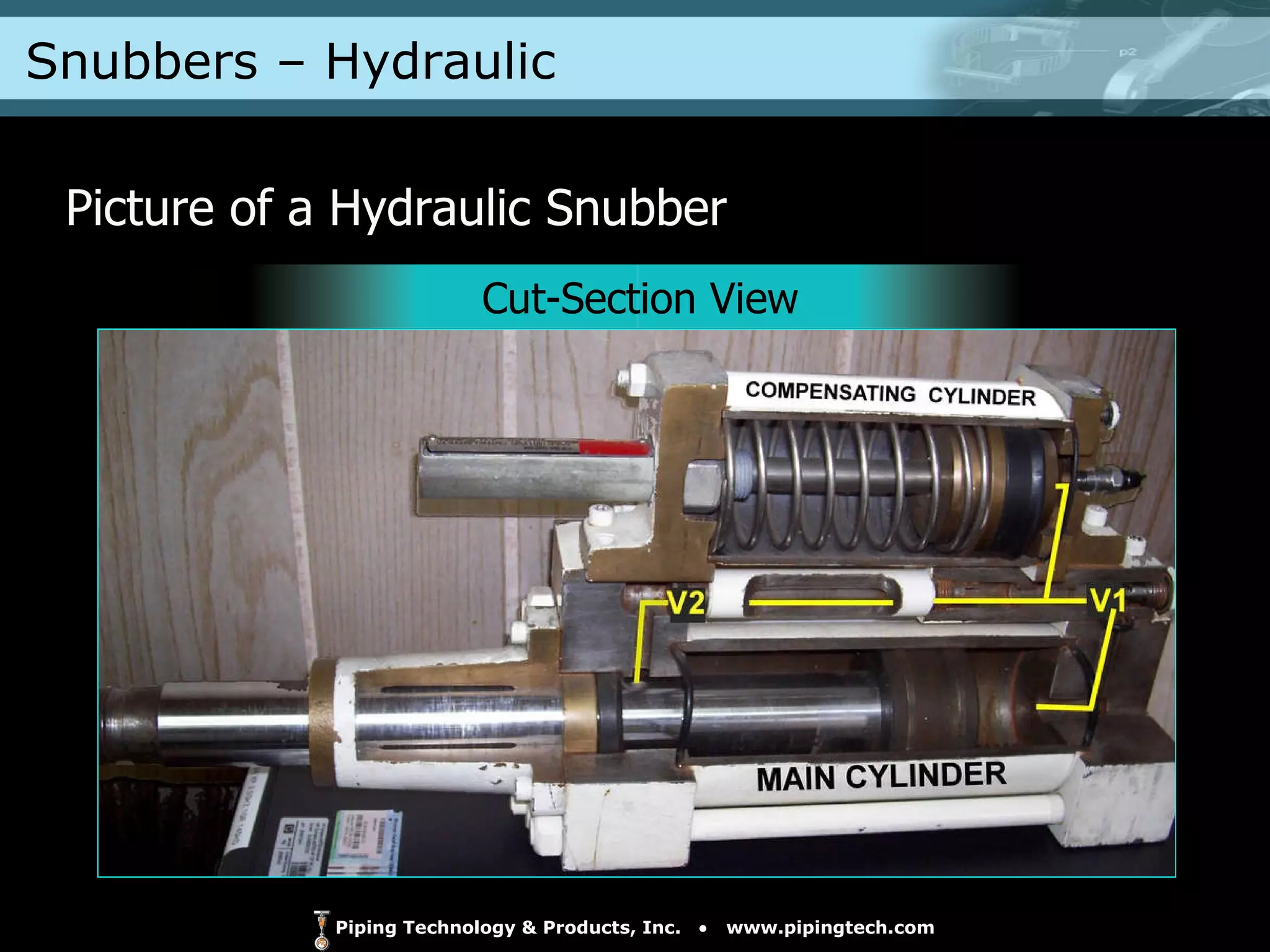

- 10. Picture of aHydraulic Snubber Snubbers – Hydraulic Cut-Section View

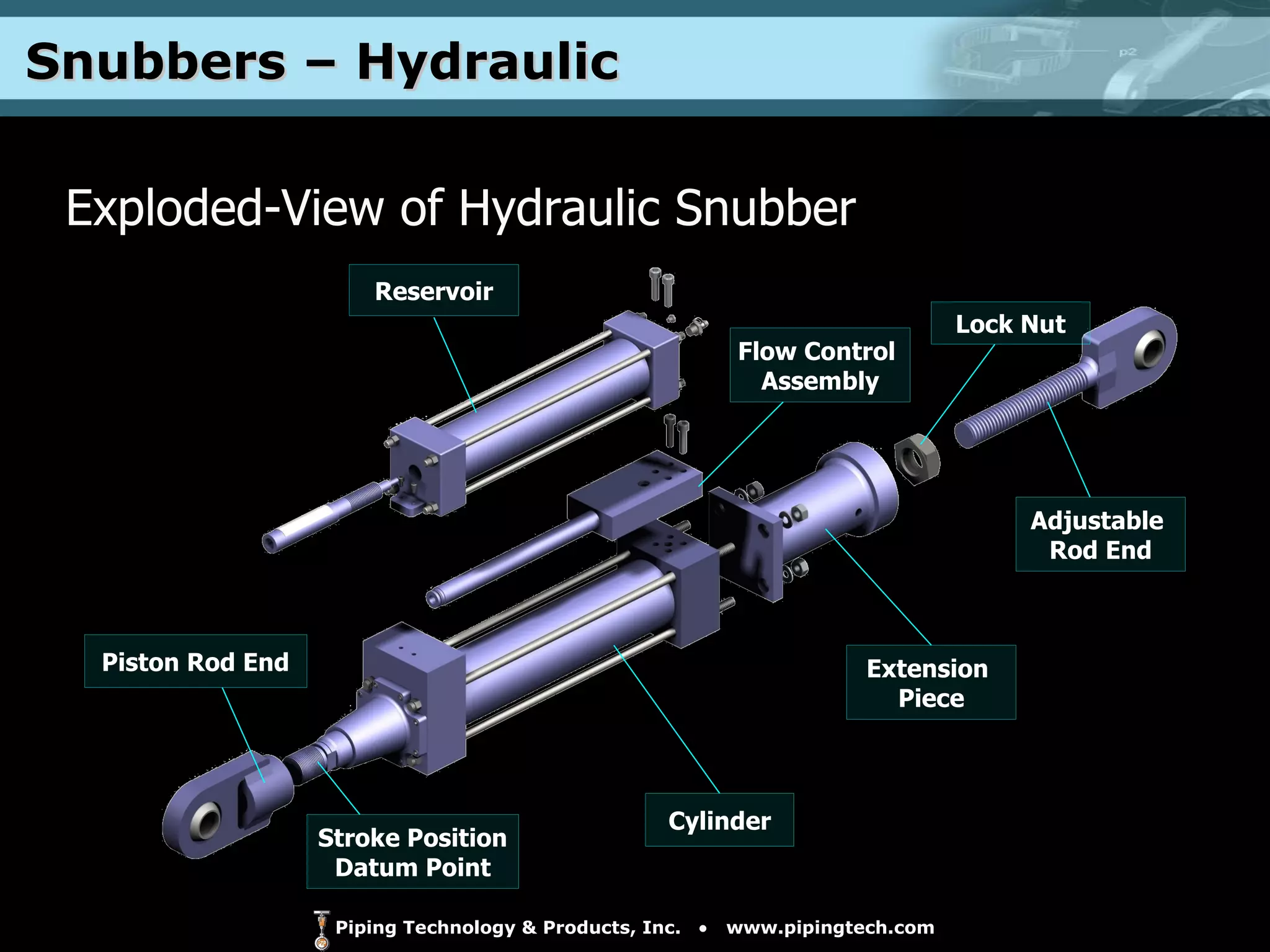

- 11. Snubbers – Hydraulic Exploded-View of Hydraulic Snubber Reservoir Adjustable Rod End Lock Nut Extension Piece Cylinder Flow Control Assembly Stroke Position Datum Point Piston Rod End

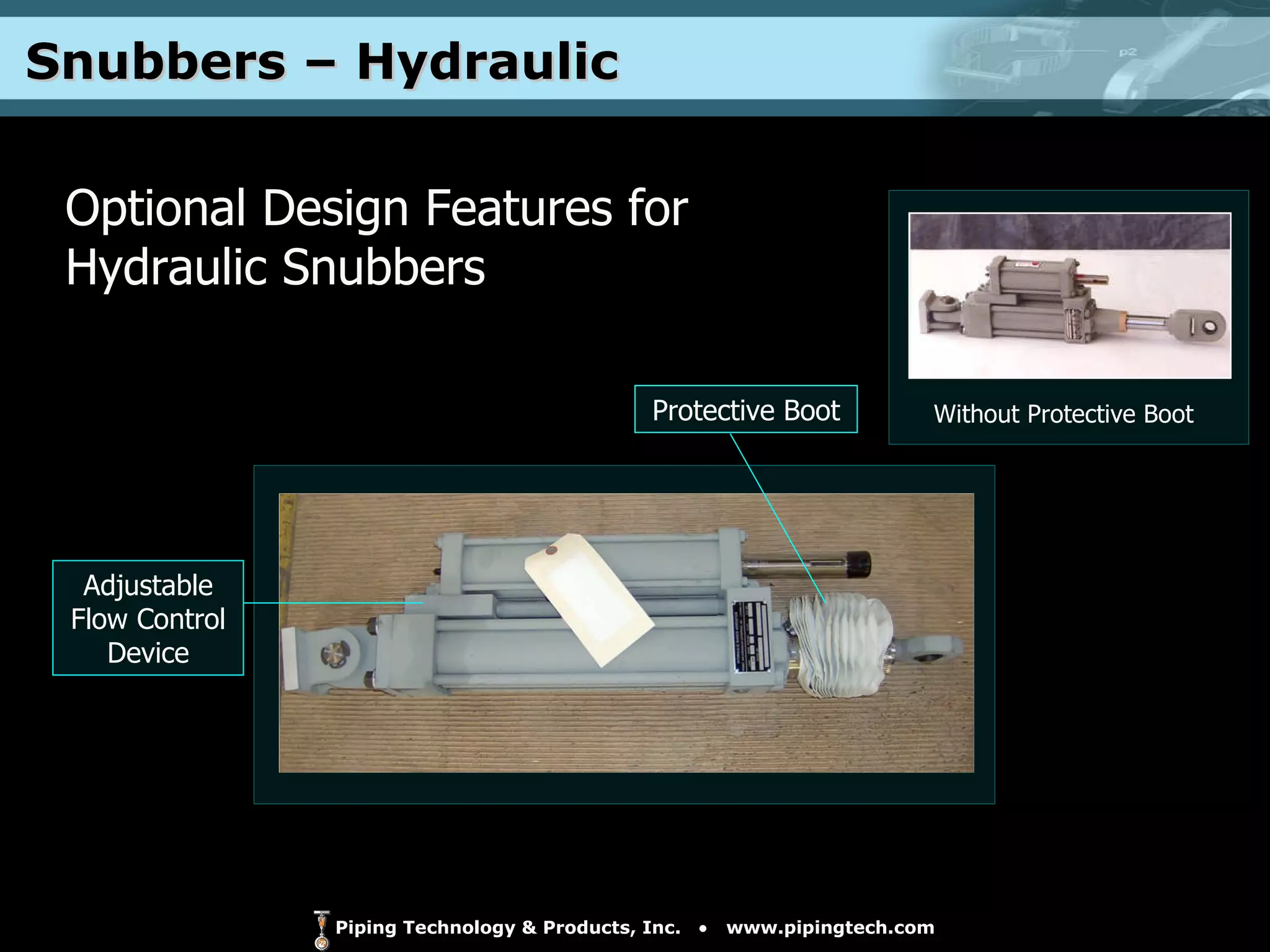

- 12. Snubbers – Hydraulic Optional Design Features for Hydraulic Snubbers Protective Boot Adjustable Flow Control Device Without Protective Boot

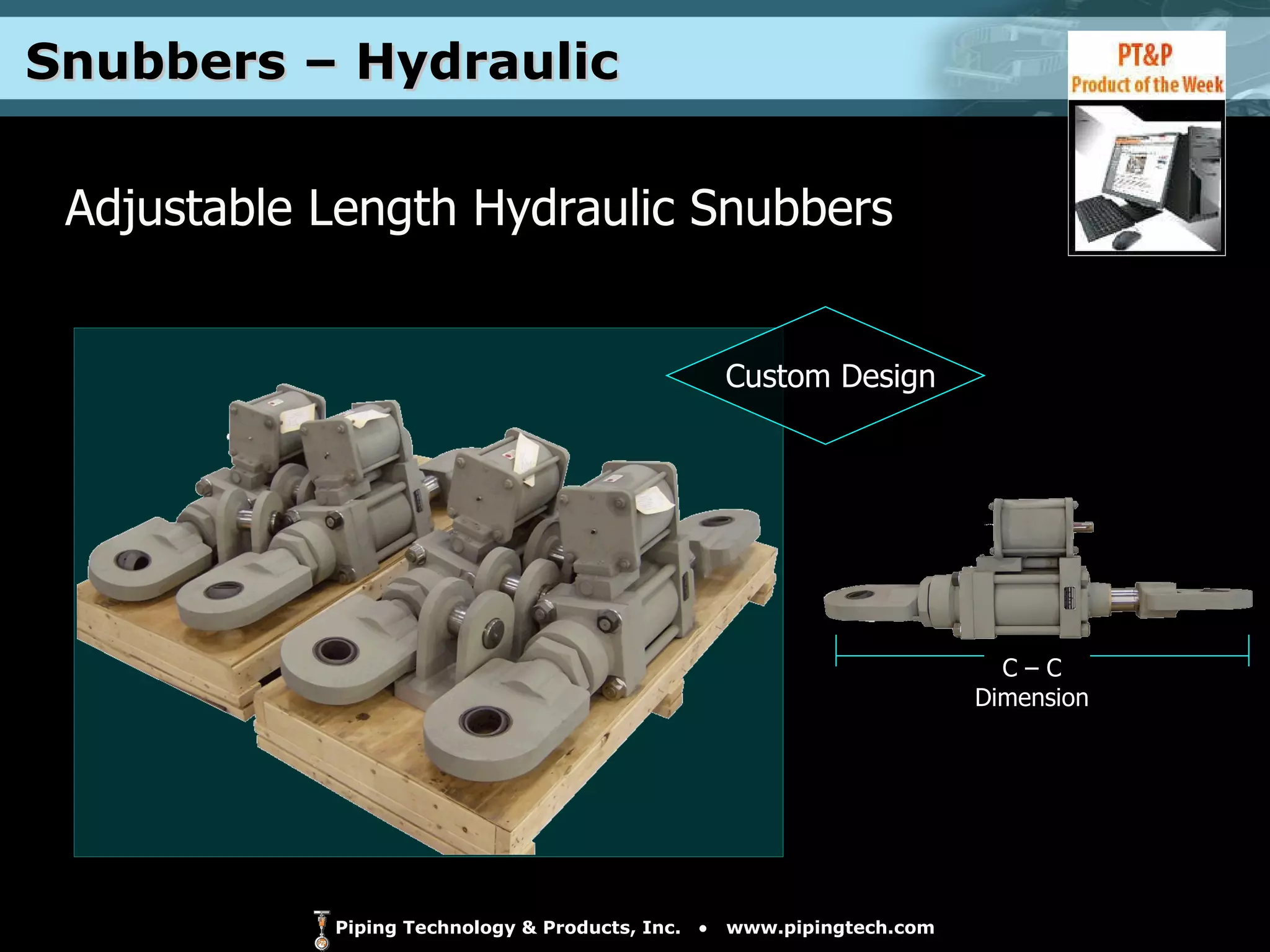

- 13. Snubbers – Hydraulic C – C Dimension Adjustable Length Hydraulic Snubbers Custom Design

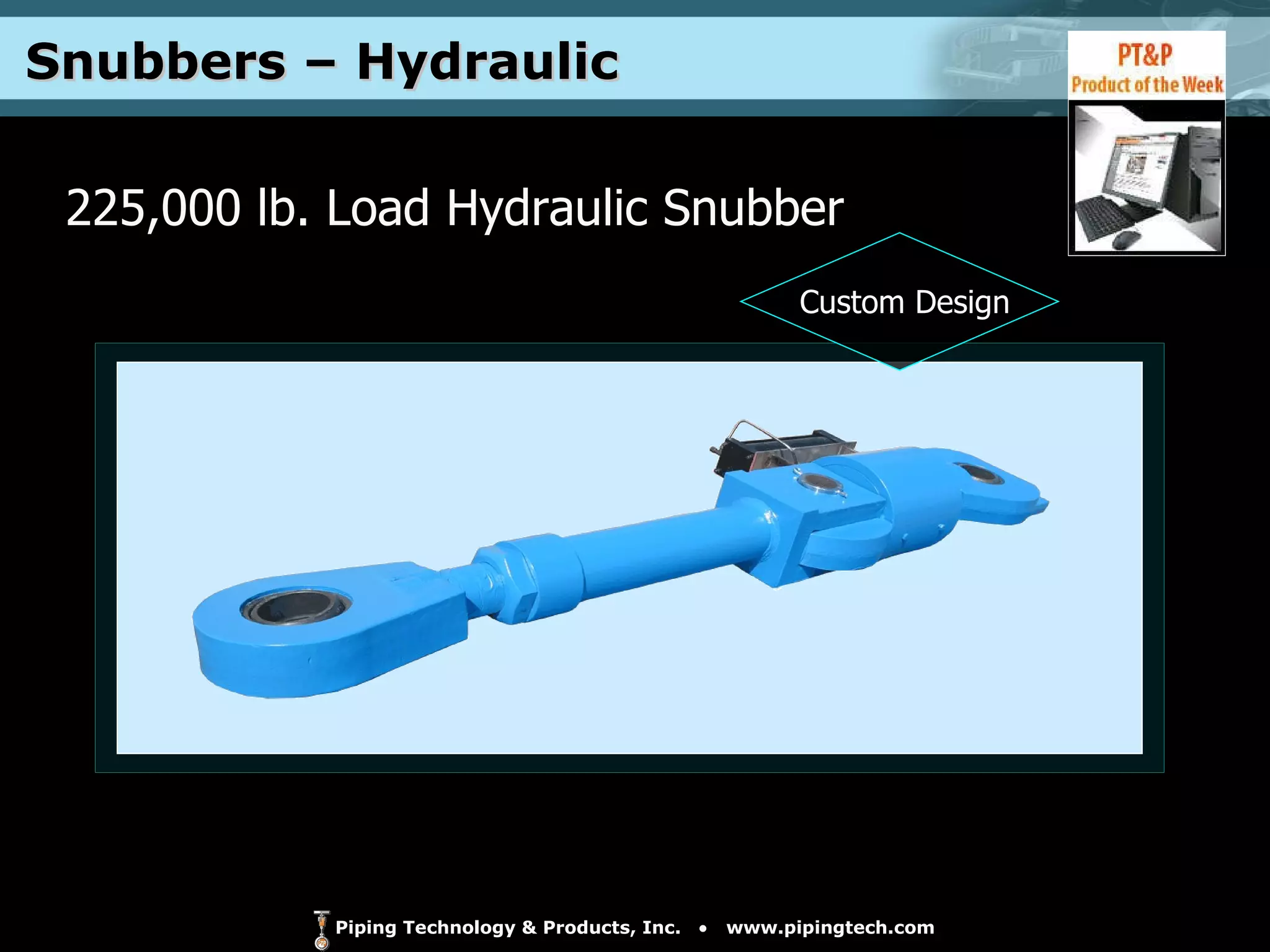

- 14. Snubbers – Hydraulic 225,000 lb. Load Hydraulic Snubber Custom Design

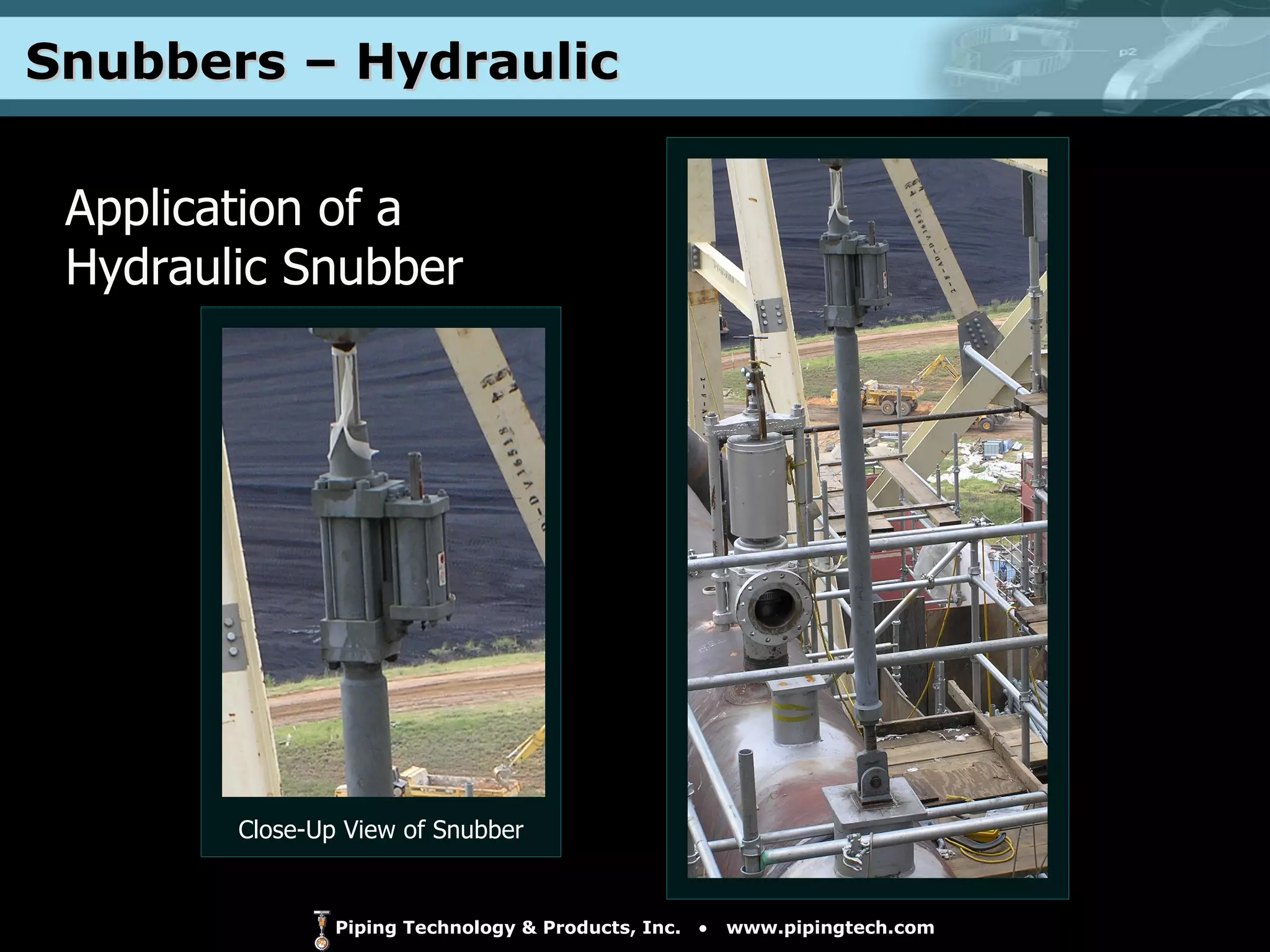

- 15. Snubbers – Hydraulic Application of a Hydraulic Snubber Close-Up View of Snubber

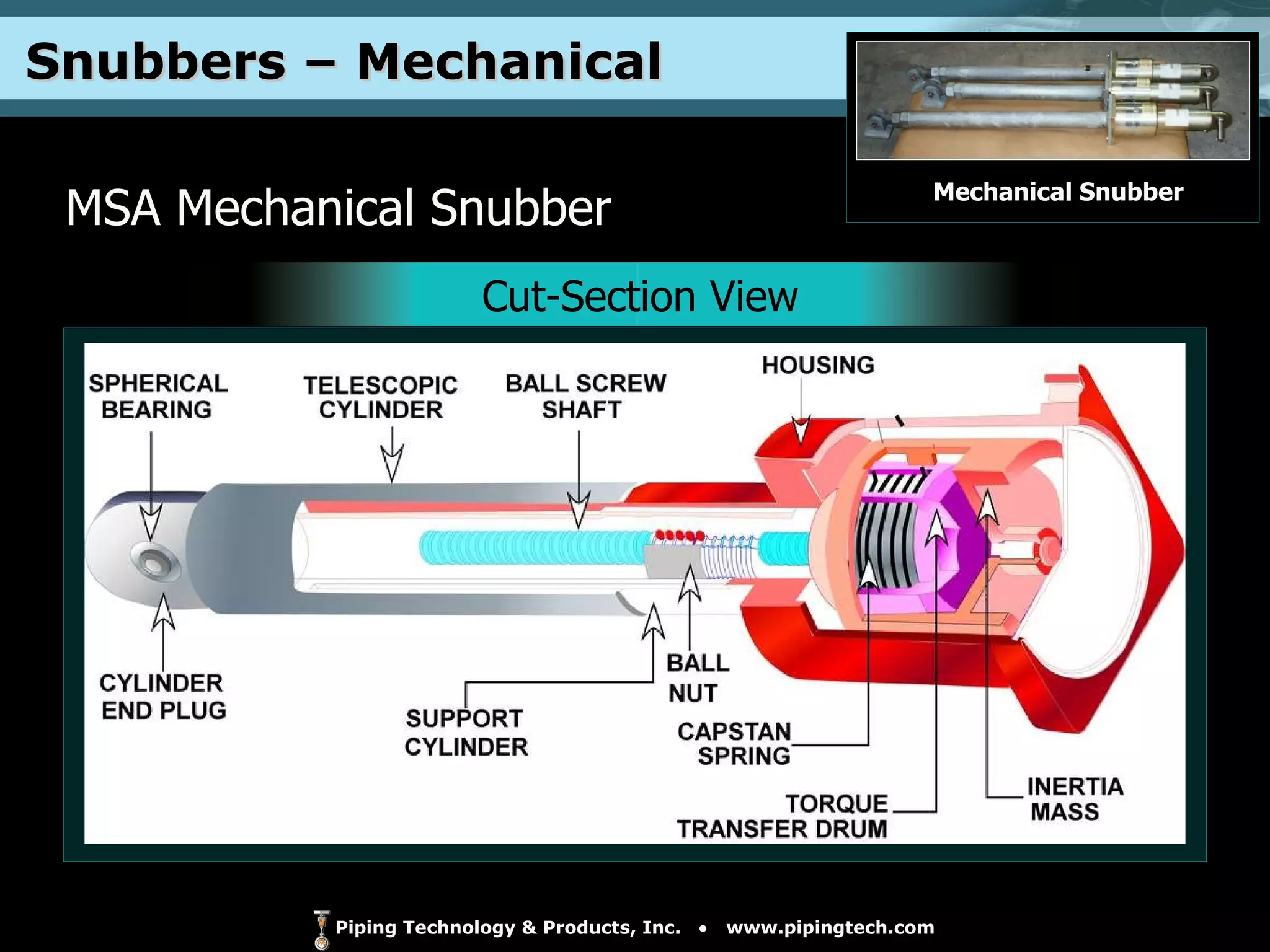

- 16. Snubbers – Mechanical Mechanical Snubber MSA Mechanical Snubber Cut-Section View

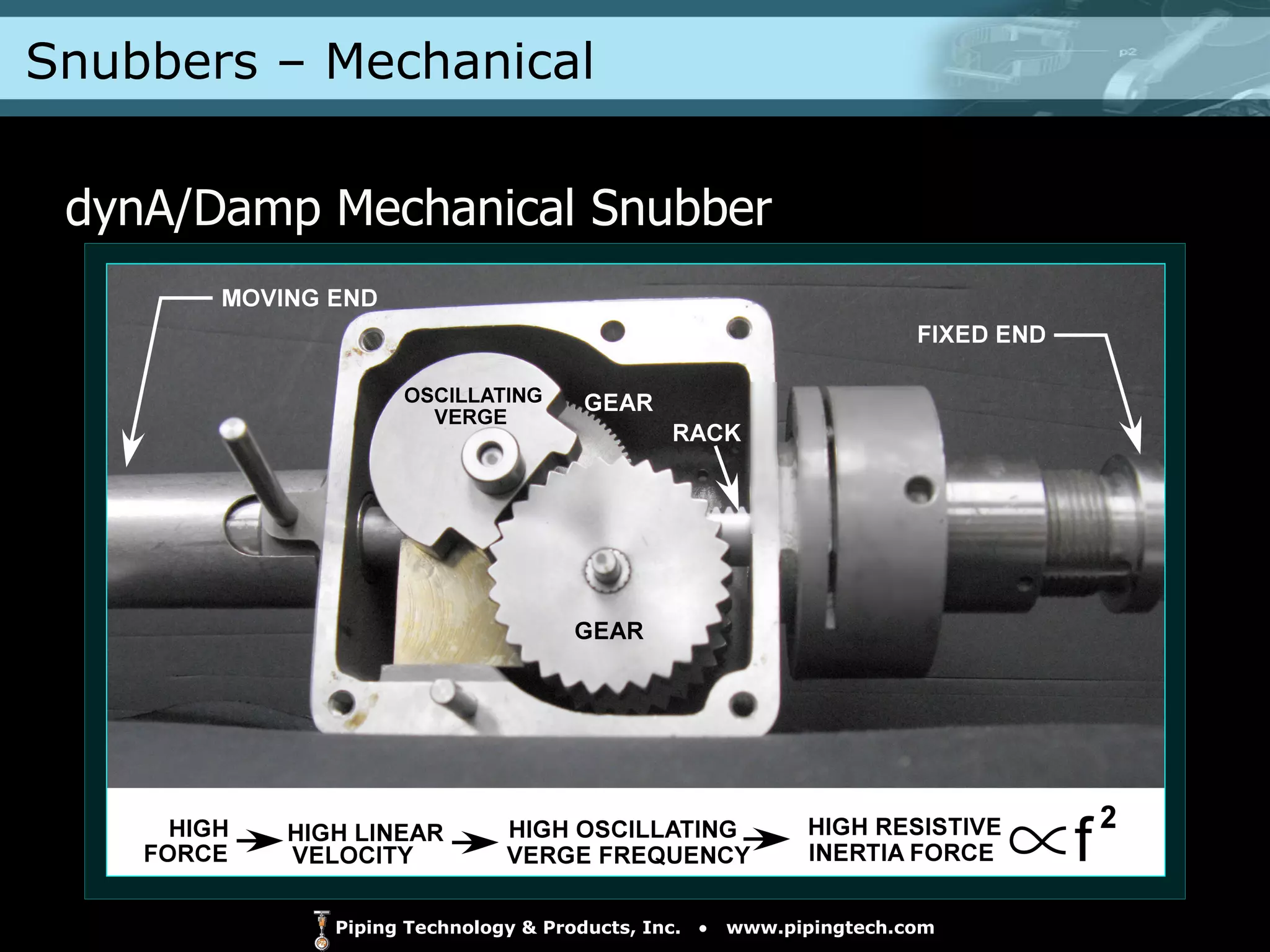

- 17. Snubbers – Mechanical dynA/Damp Mechanical Snubber

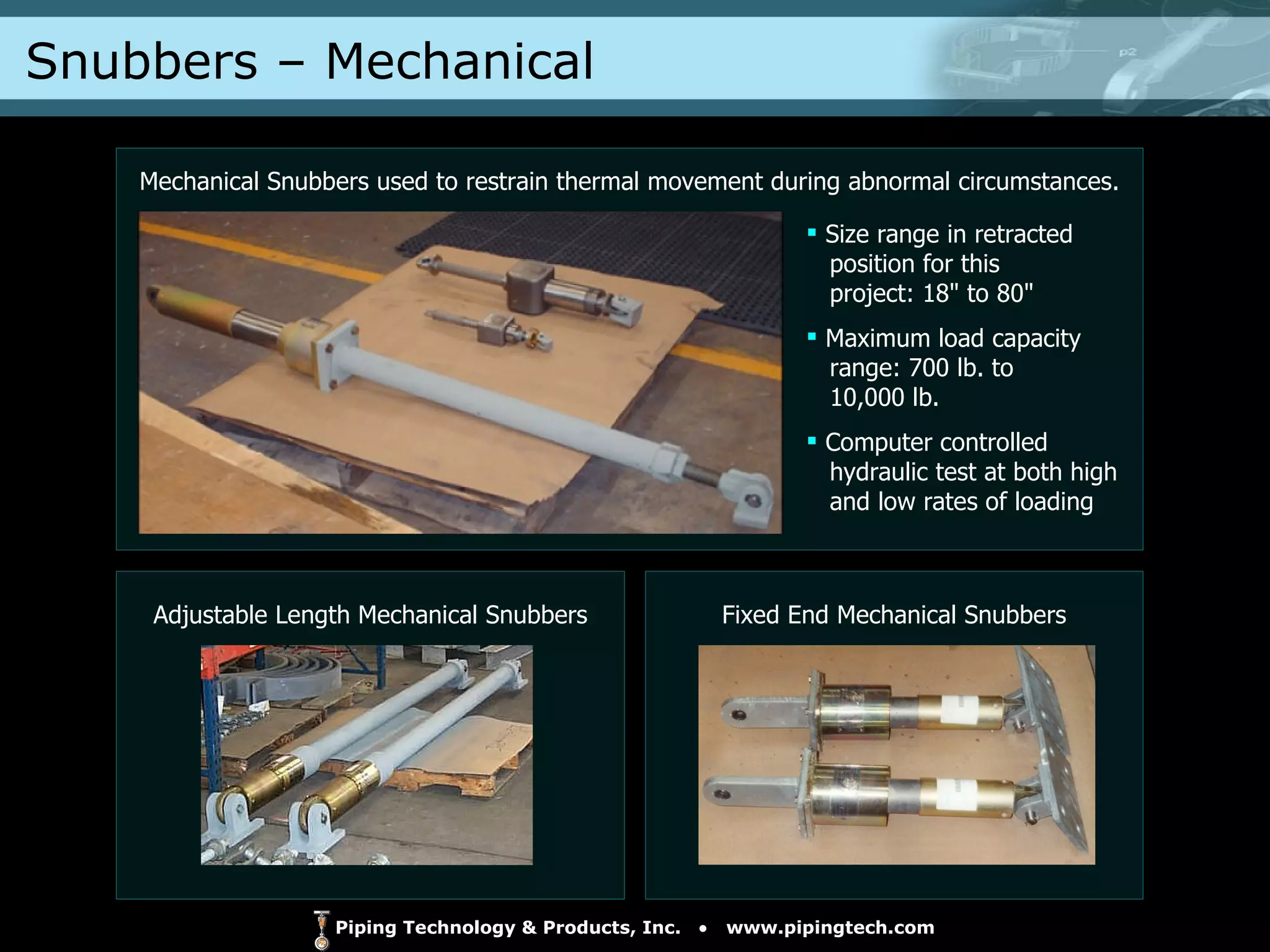

- 18. Snubbers – Mechanical Adjustable Length Mechanical Snubbers Fixed End Mechanical Snubbers Mechanical Snubbers used to restrain thermal movement during abnormal circumstances. Size range in retracted position for this project: 18" to 80" Maximum load capacity range: 700 lb. to 10,000 lb. Computer controlled hydraulic test at both high and low rates of loading
- 19. Tandem Snubber ConfigurationSnubbers – Mechanical

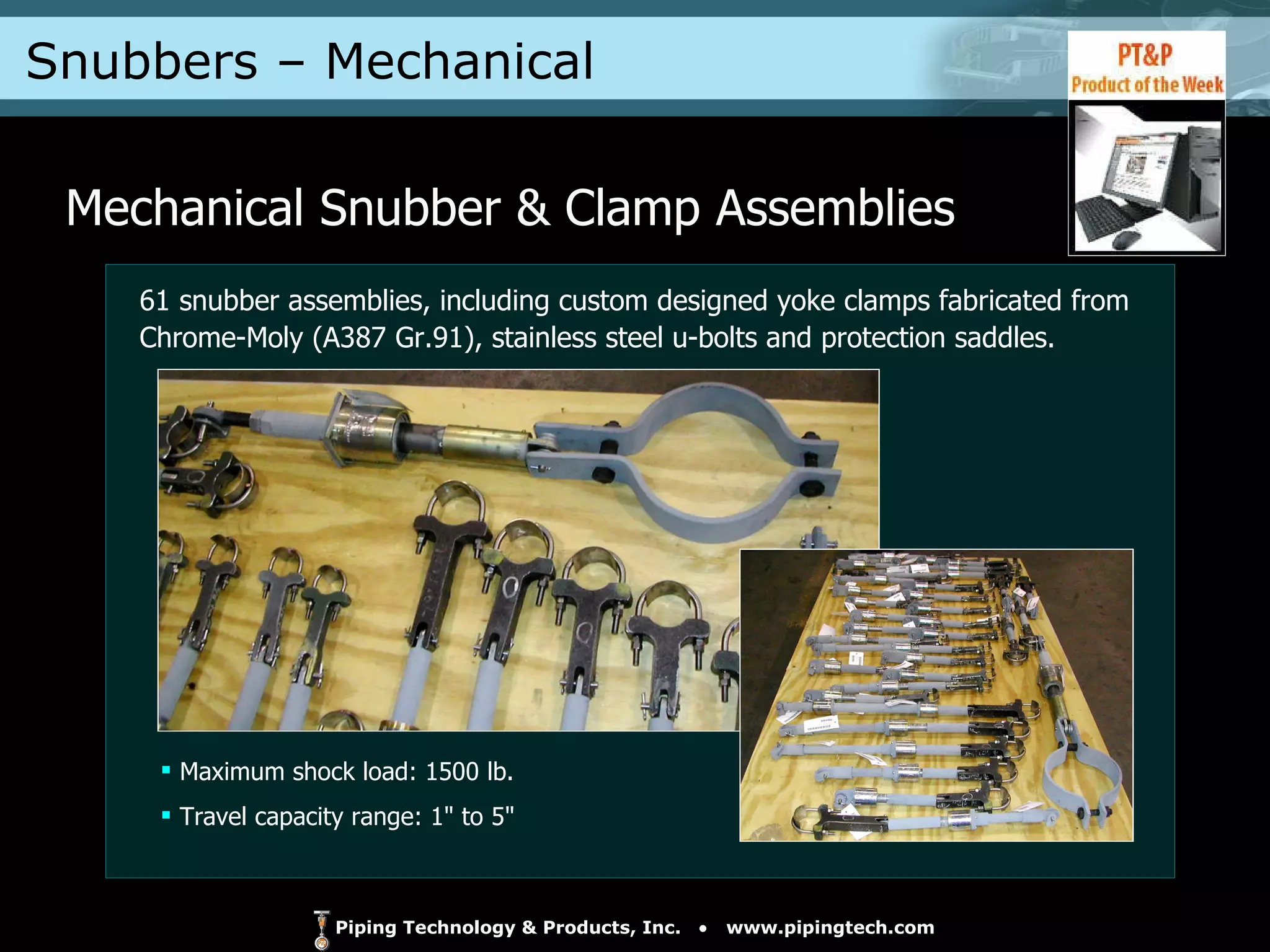

- 20. Snubbers – Mechanical Mechanical Snubber & Clamp Assemblies Maximum shock load: 1500 lb. Travel capacity range: 1" to 5" 61 snubber assemblies, including custom designed yoke clamps fabricated from Chrome-Moly (A387 Gr.91), stainless steel u-bolts and protection saddles.
- 21. Snubbers – Mechanical Mechanical Snubber Application

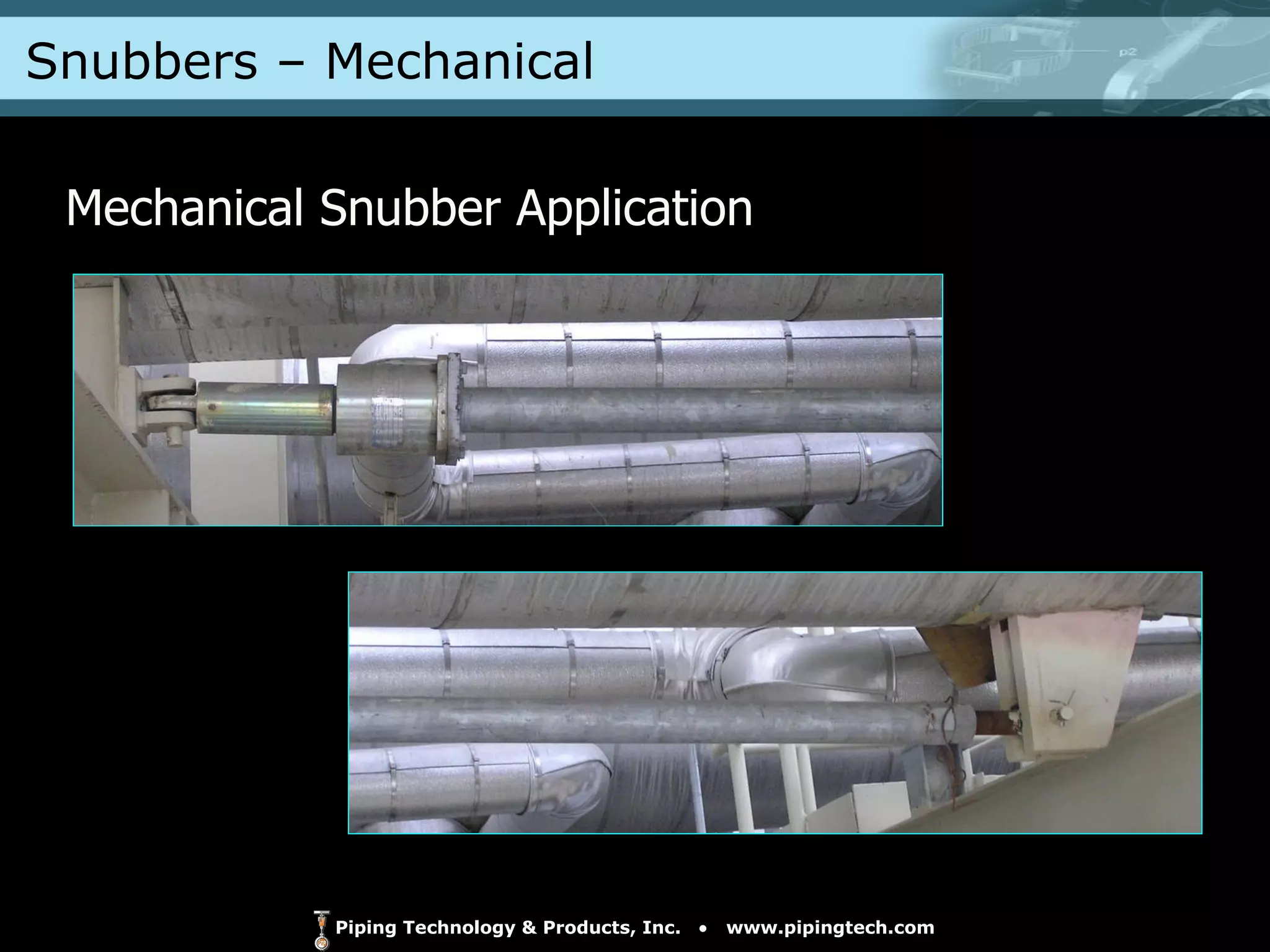

- 22. Snubbers – Mechanical Mechanical Snubber Application

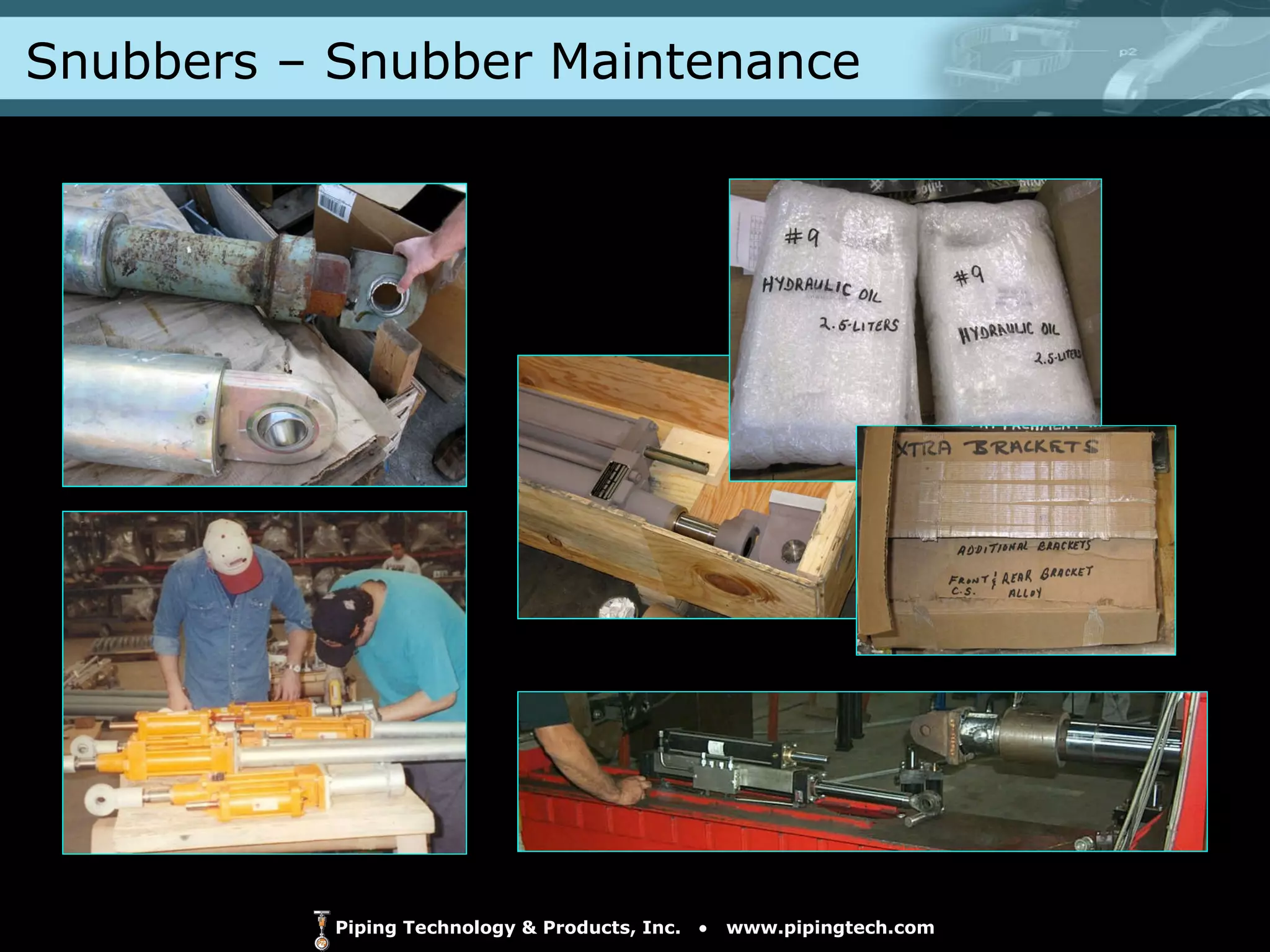

- 23. Snubbers – SnubberMaintenance

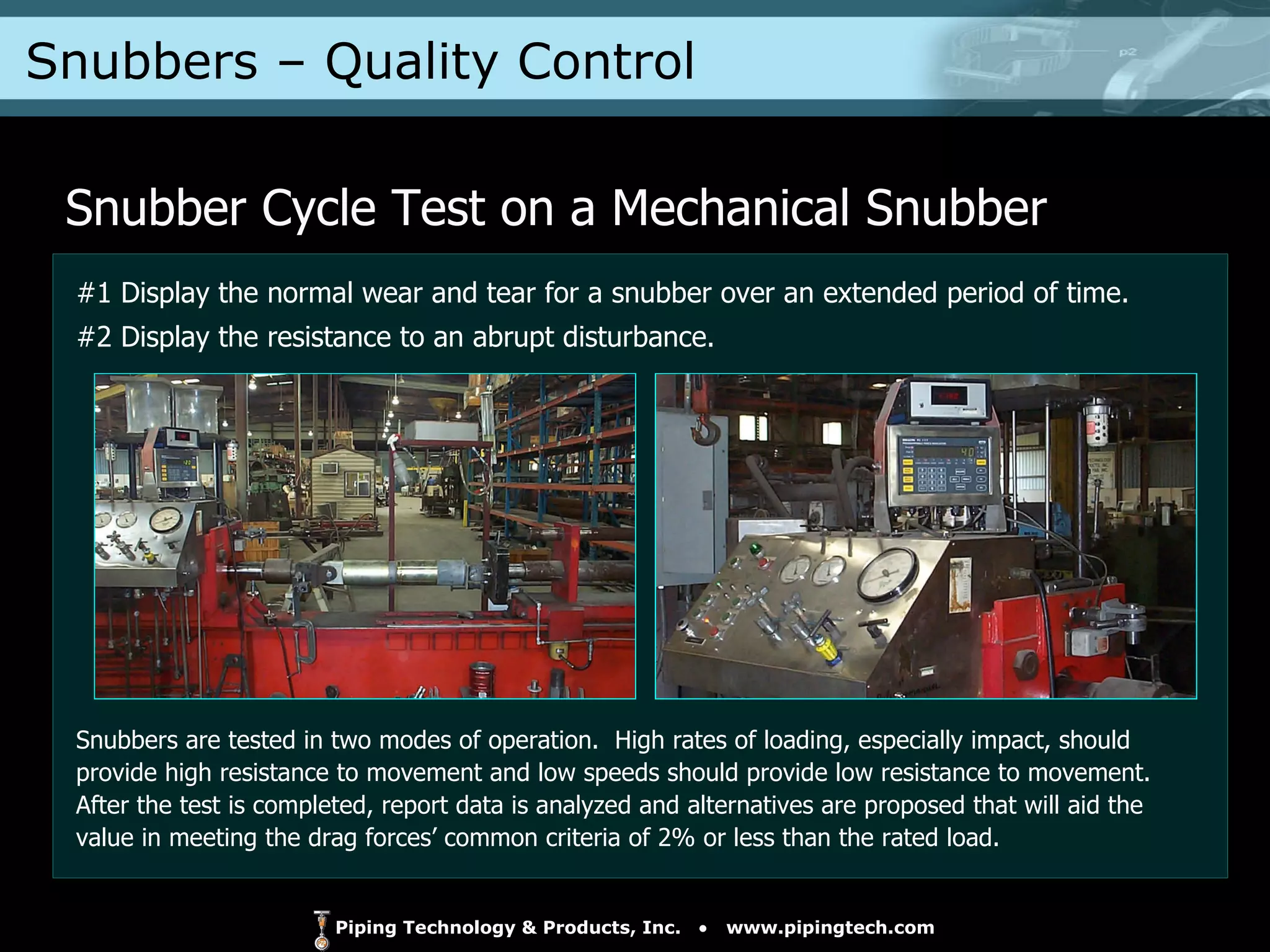

- 24. Snubbers – QualityControl Snubber Cycle Test on a Mechanical Snubber #1 Display the normal wear and tear for a snubber over an extended period of time. #2 Display the resistance to an abrupt disturbance. Snubbers are tested in two modes of operation. High rates of loading, especially impact, should provide high resistance to movement and low speeds should provide low resistance to movement. After the test is completed, report data is analyzed and alternatives are proposed that will aid the value in meeting the drag forces’ common criteria of 2% or less than the rated load.

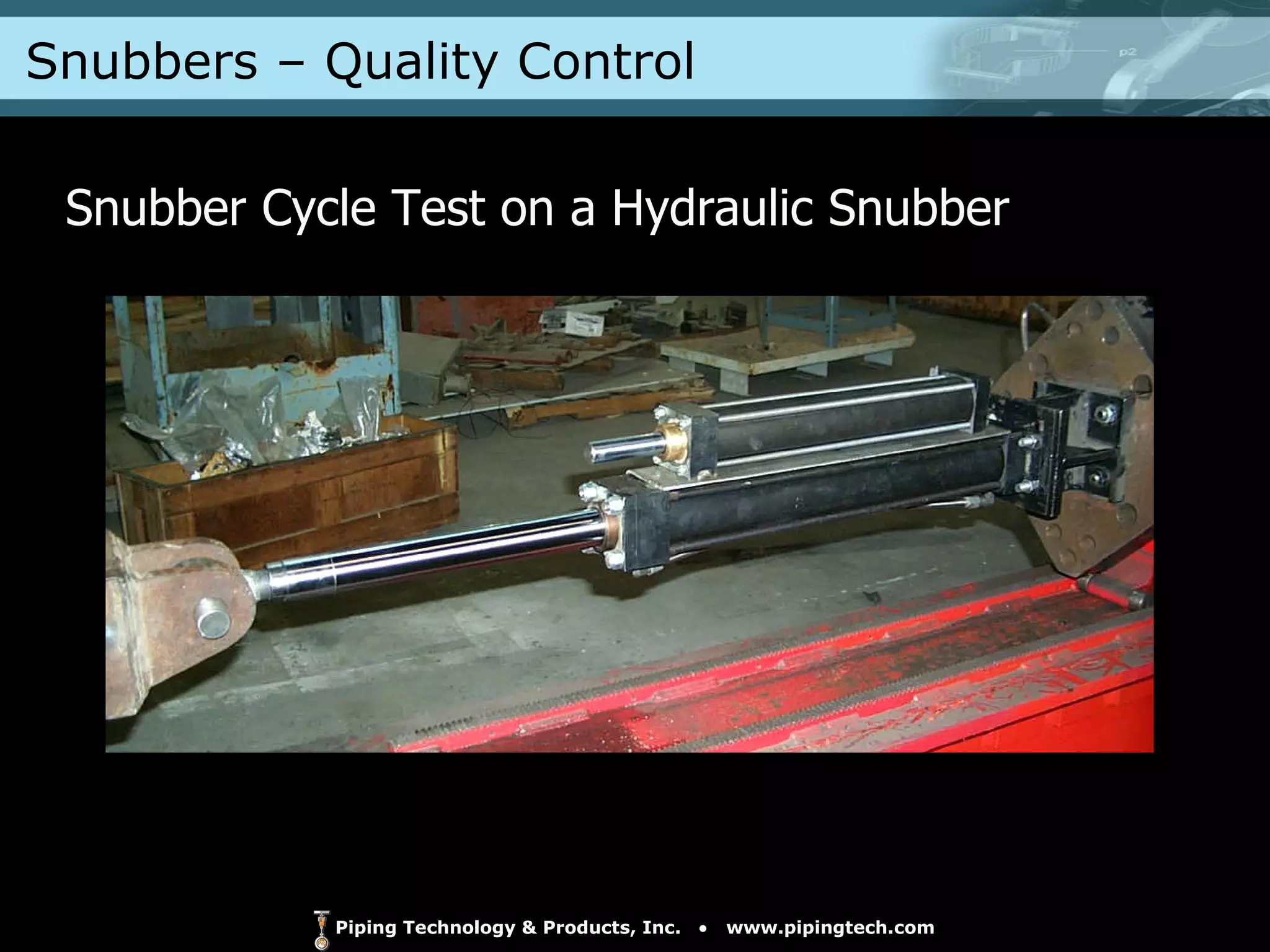

- 25. Snubbers – QualityControl Snubber Cycle Test on a Hydraulic Snubber

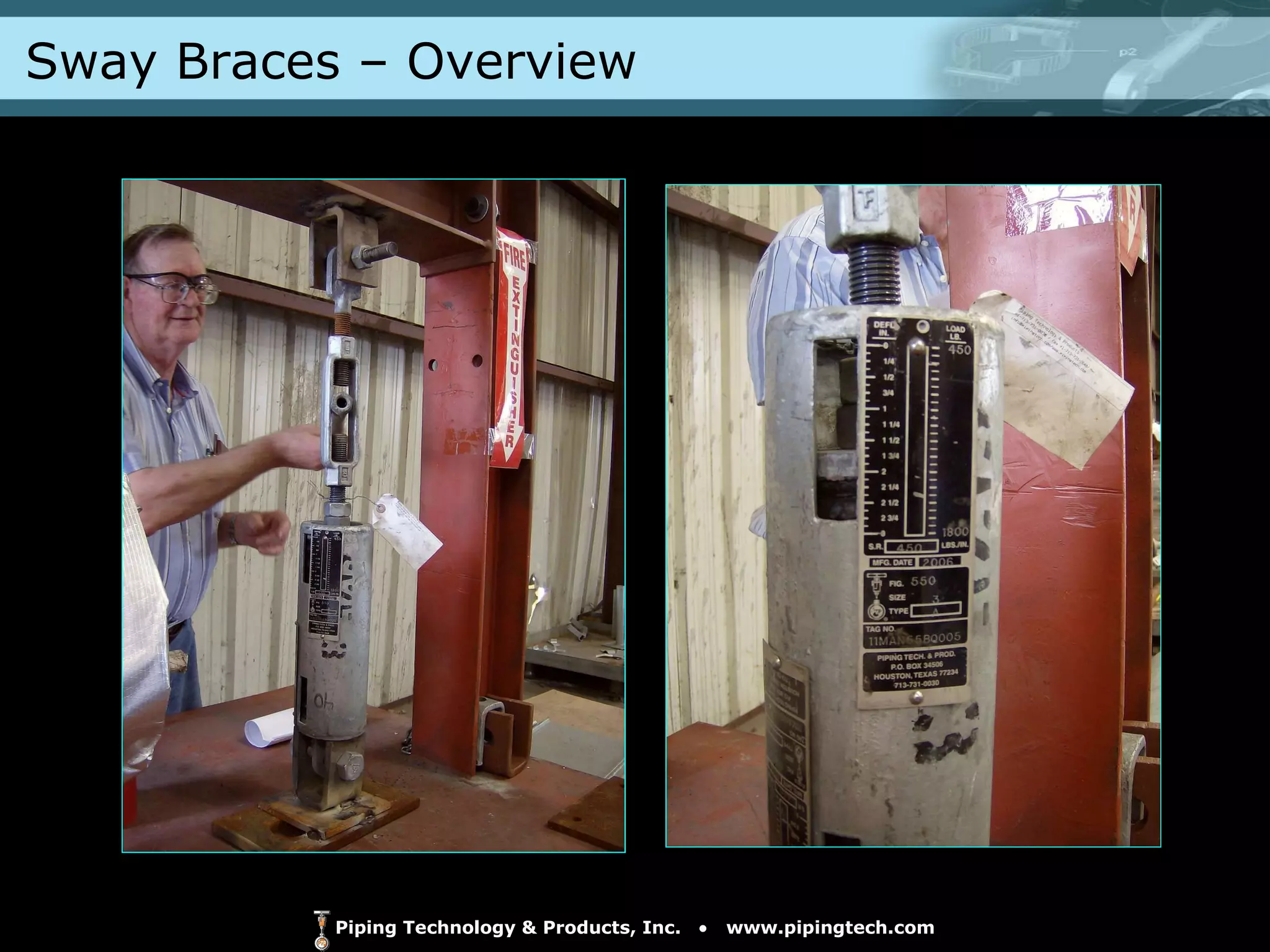

- 26. Sway Braces –Overview

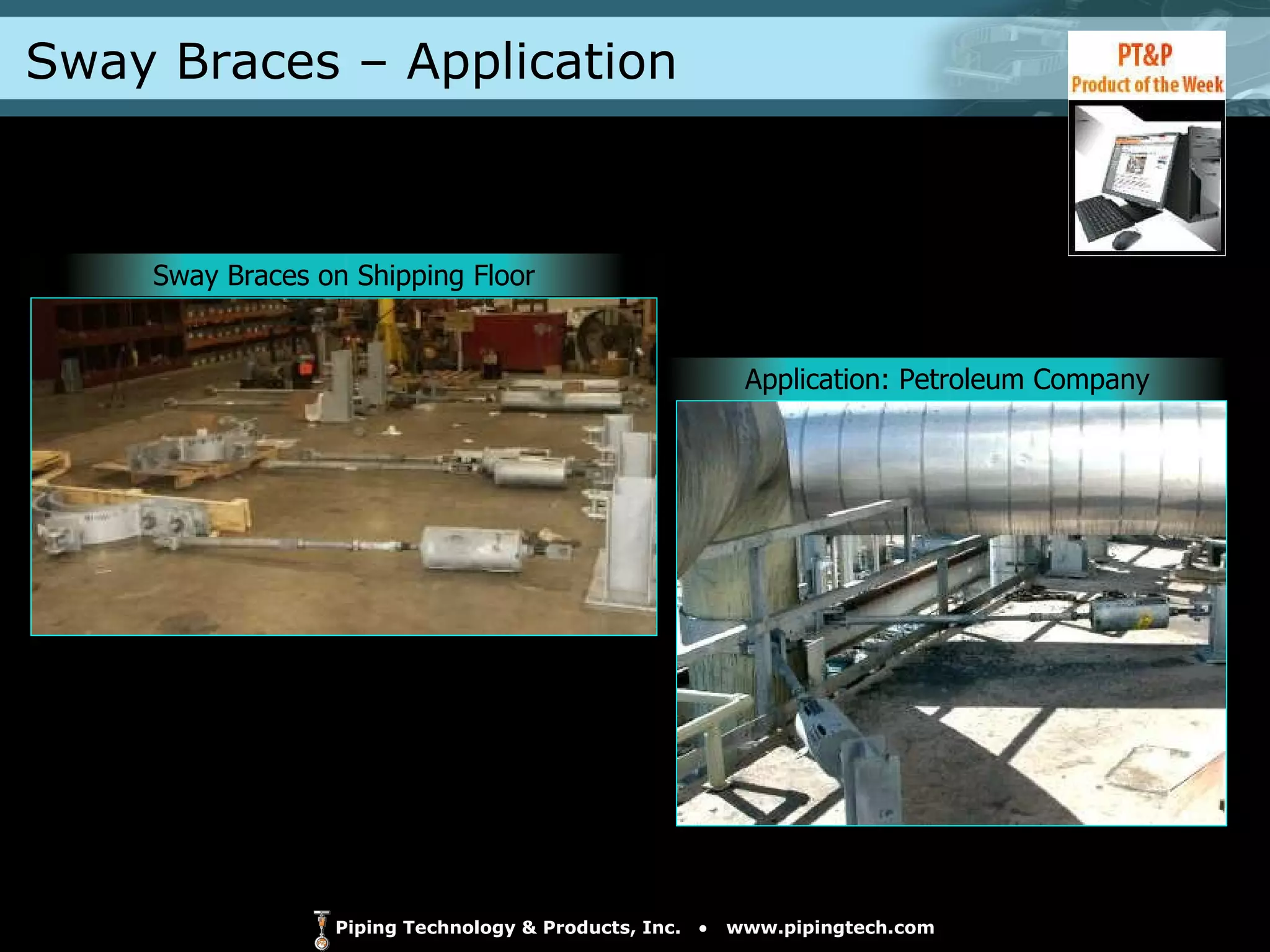

- 27. Sway Braces –Application Sway Braces on Shipping Floor Application: Petroleum Company

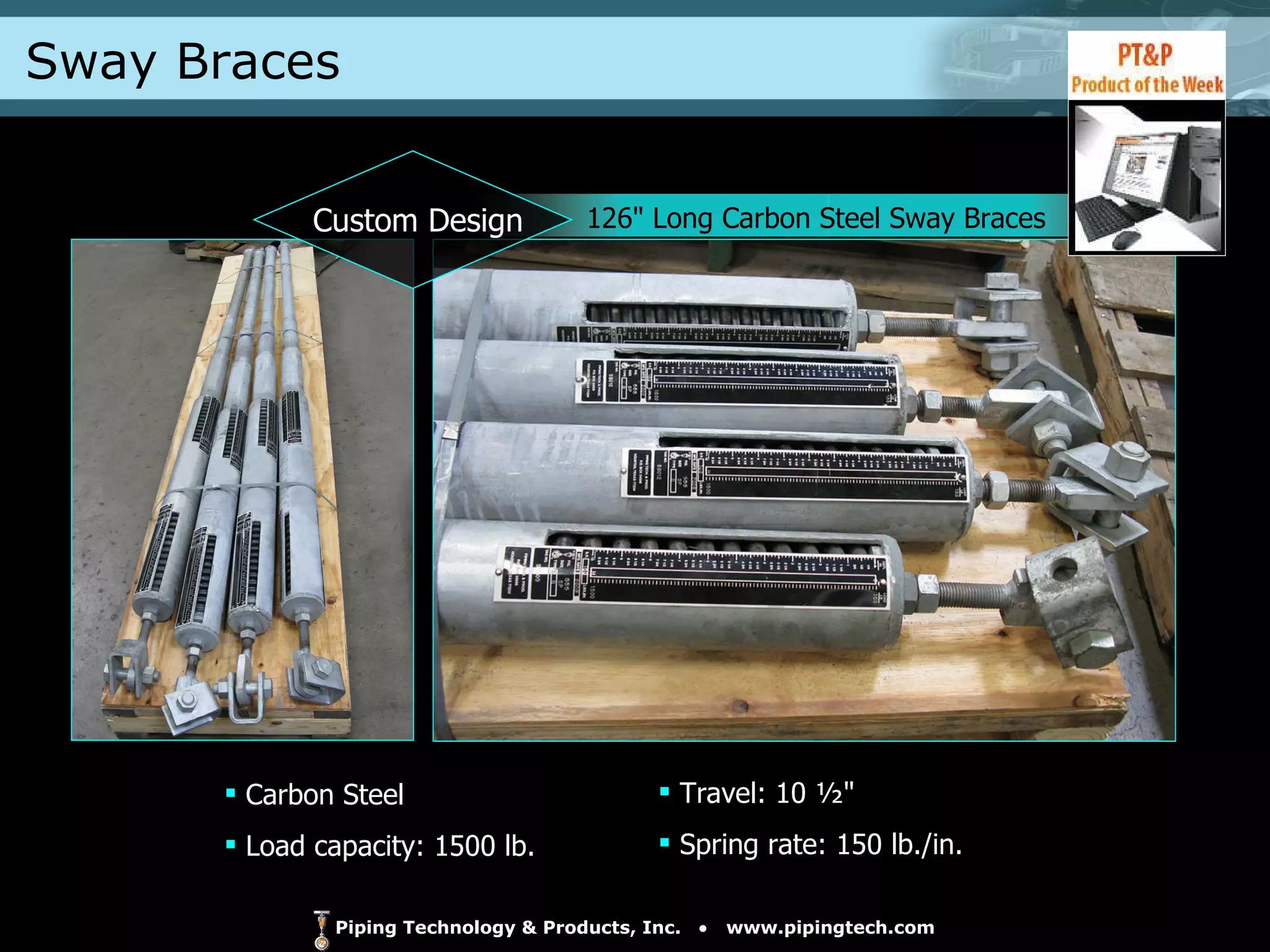

- 28. Sway Braces 126"Long Carbon Steel Sway Braces Carbon Steel Load capacity: 1500 lb. Travel: 10 ½" Spring rate: 150 lb./in. Custom Design

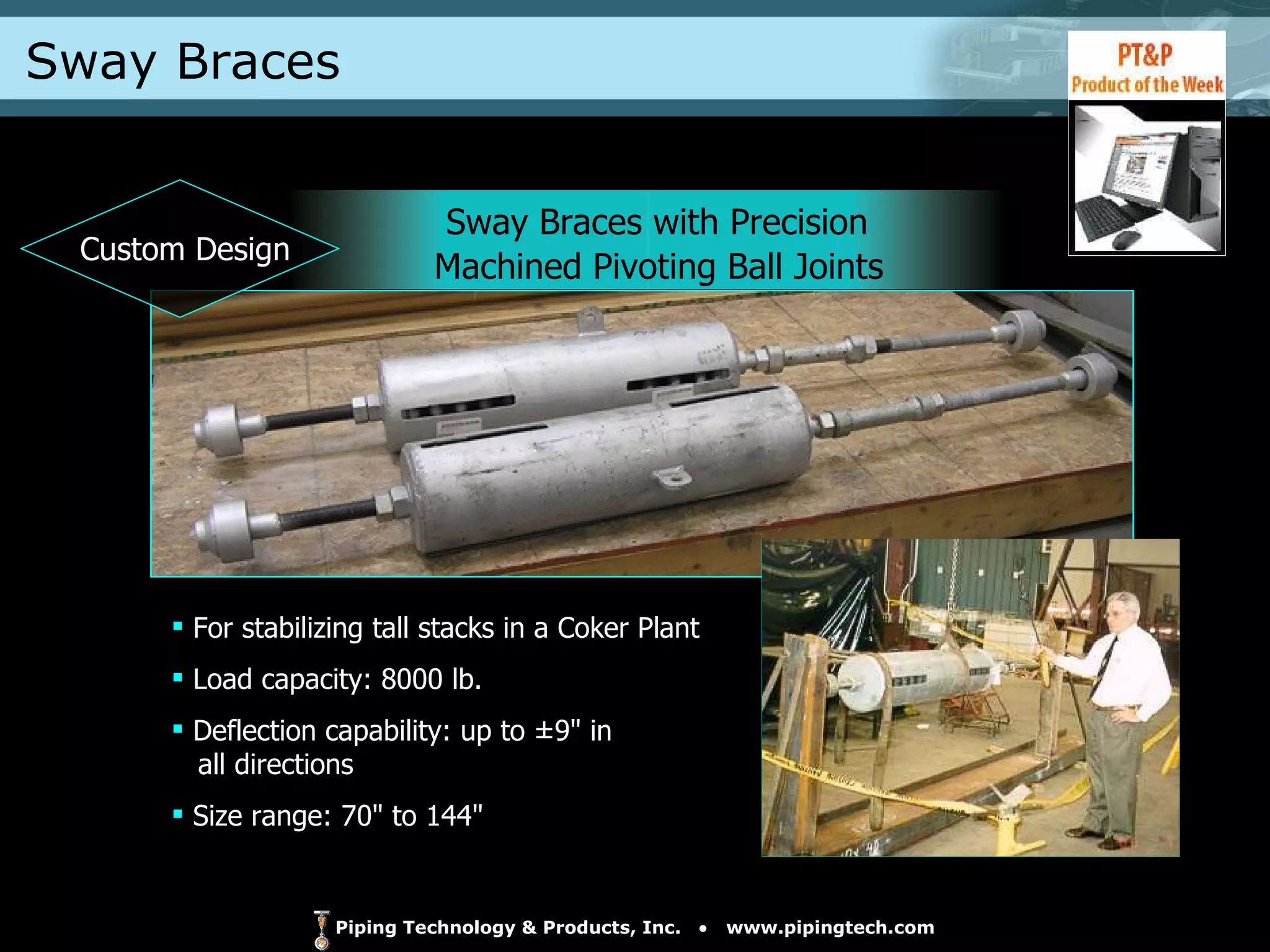

- 29. Sway Braces SwayBraces with Precision Machined Pivoting Ball Joints For stabilizing tall stacks in a Coker Plant Load capacity: 8000 lb. Deflection capability: up to ±9" in all directions Size range: 70" to 144" Custom Design

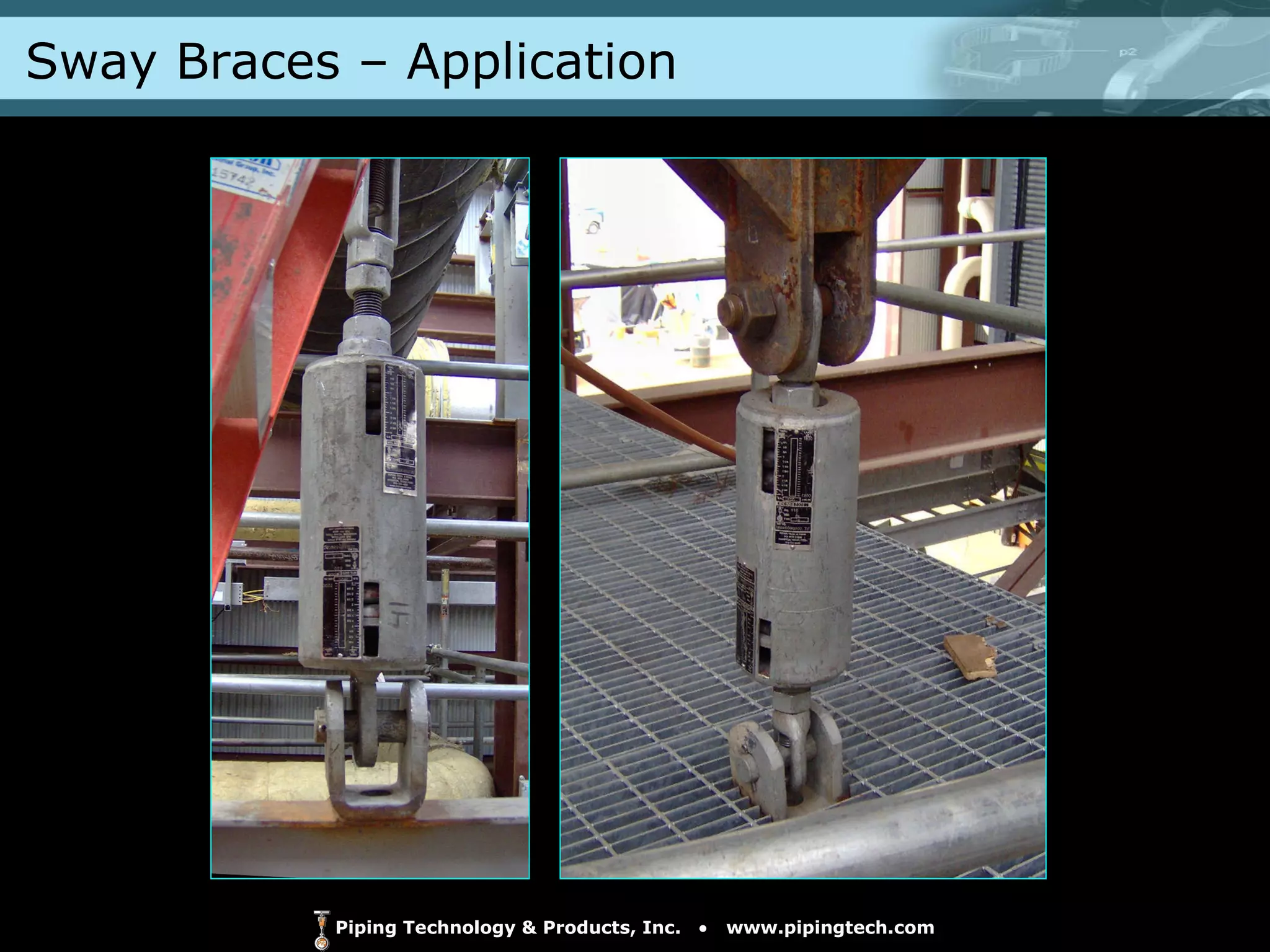

- 30. Sway Braces –Application

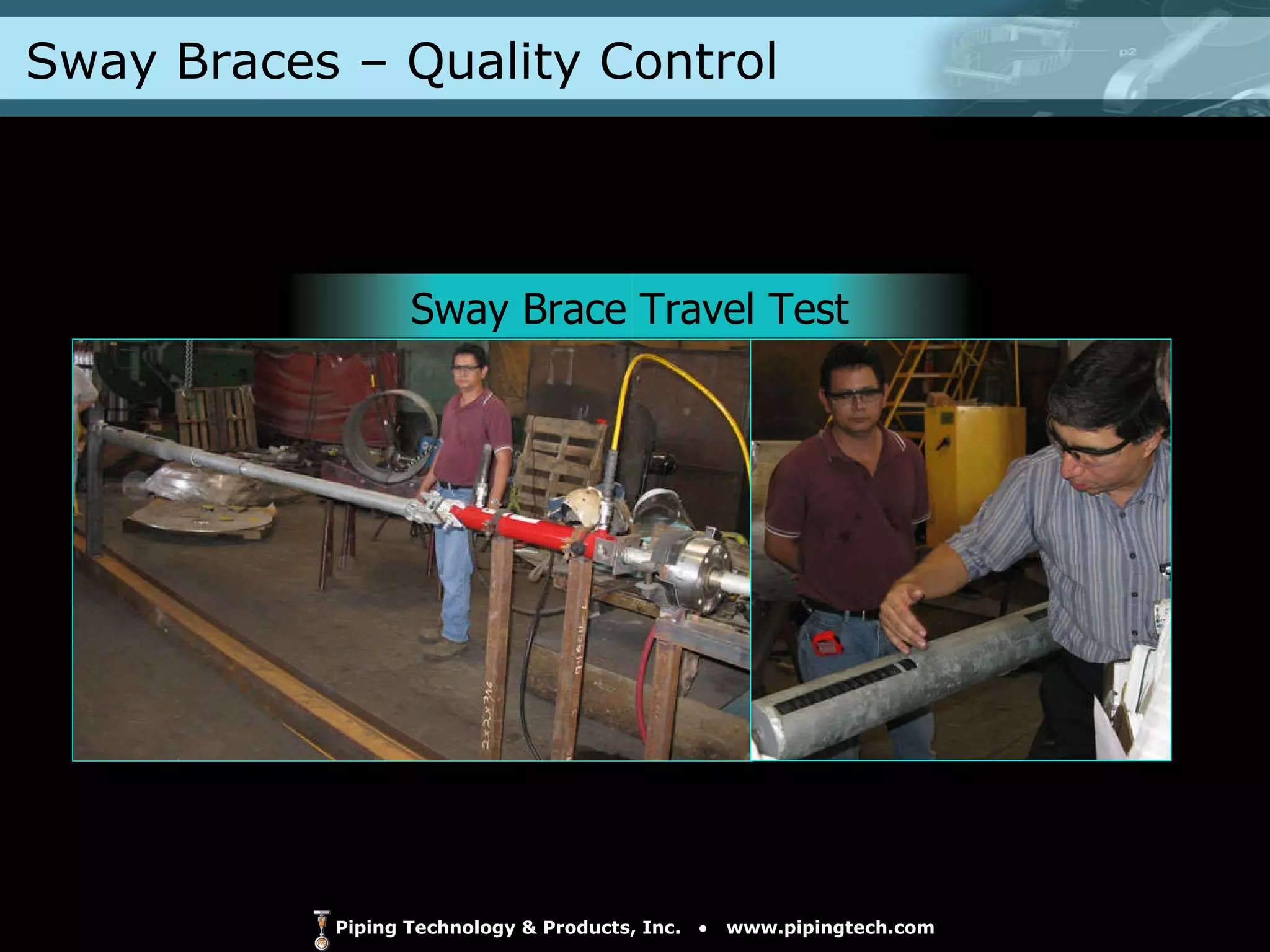

- 31. Sway Braces –Quality Control Sway Brace Travel Test

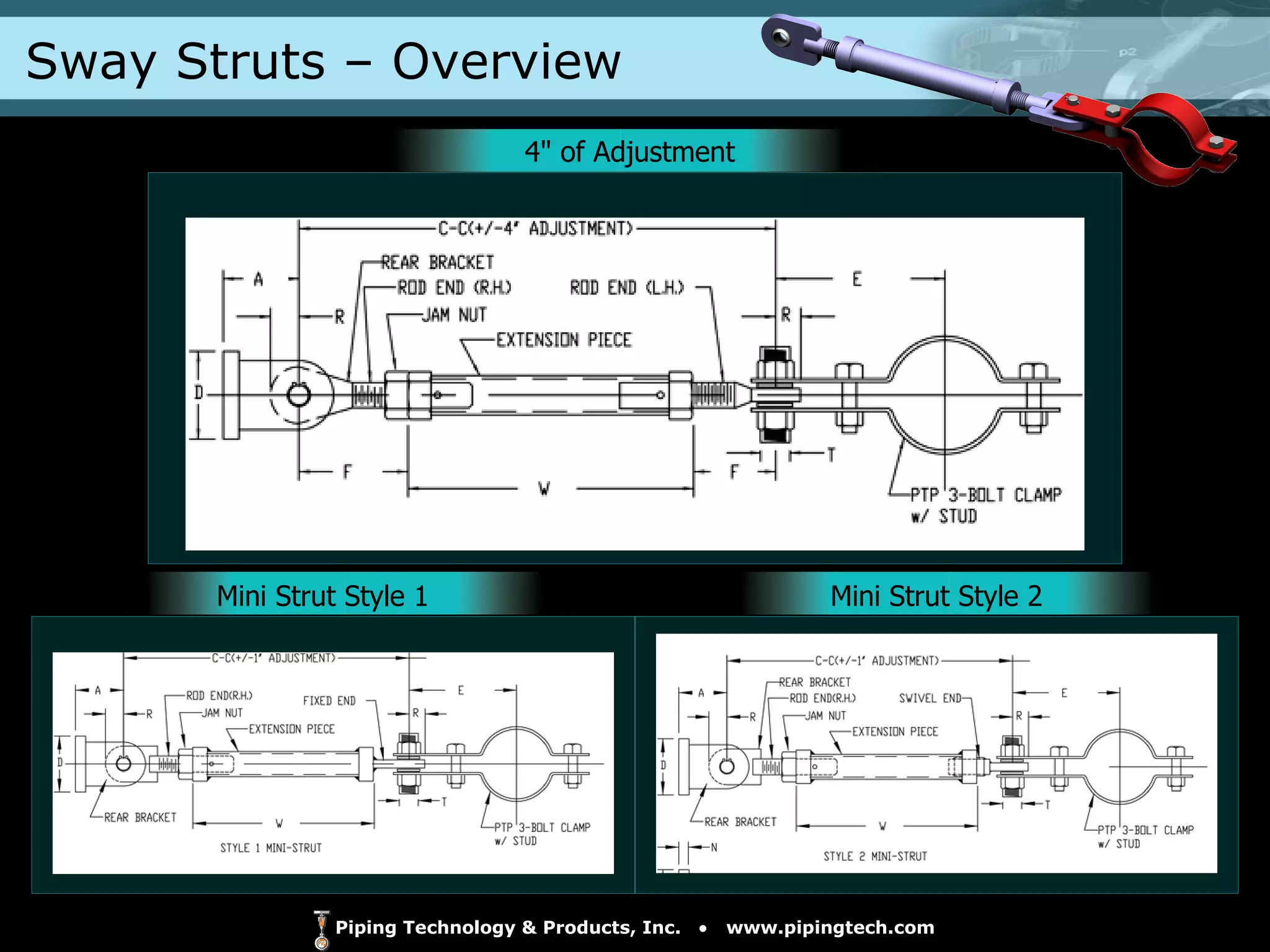

- 32. Sway Struts –Overview 4" of Adjustment Mini Strut Style 1 Mini Strut Style 2
- 33. Sway Struts VariousSizes of Sway Struts

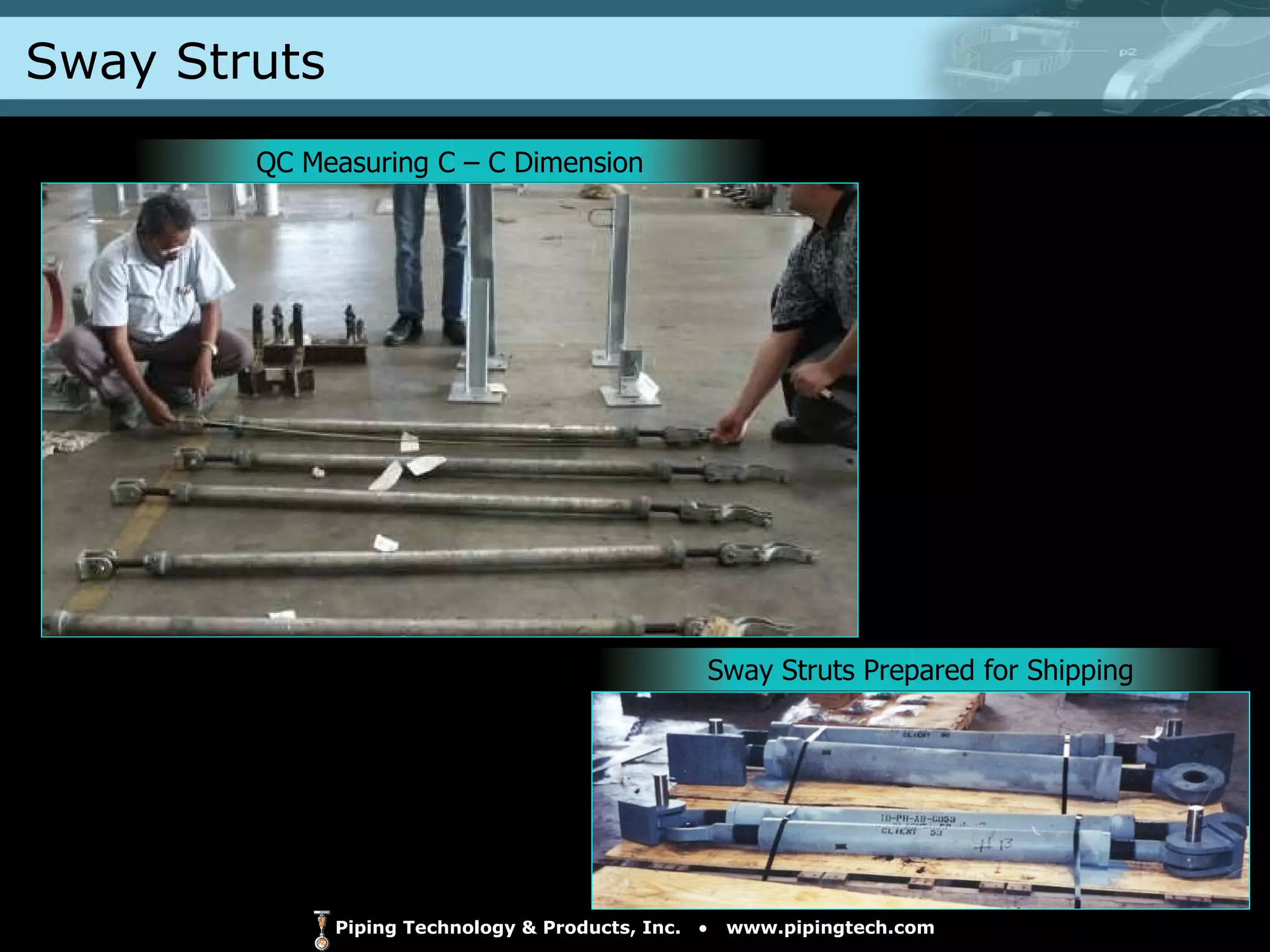

- 34. Sway Struts QCMeasuring C – C Dimension Sway Struts Prepared for Shipping

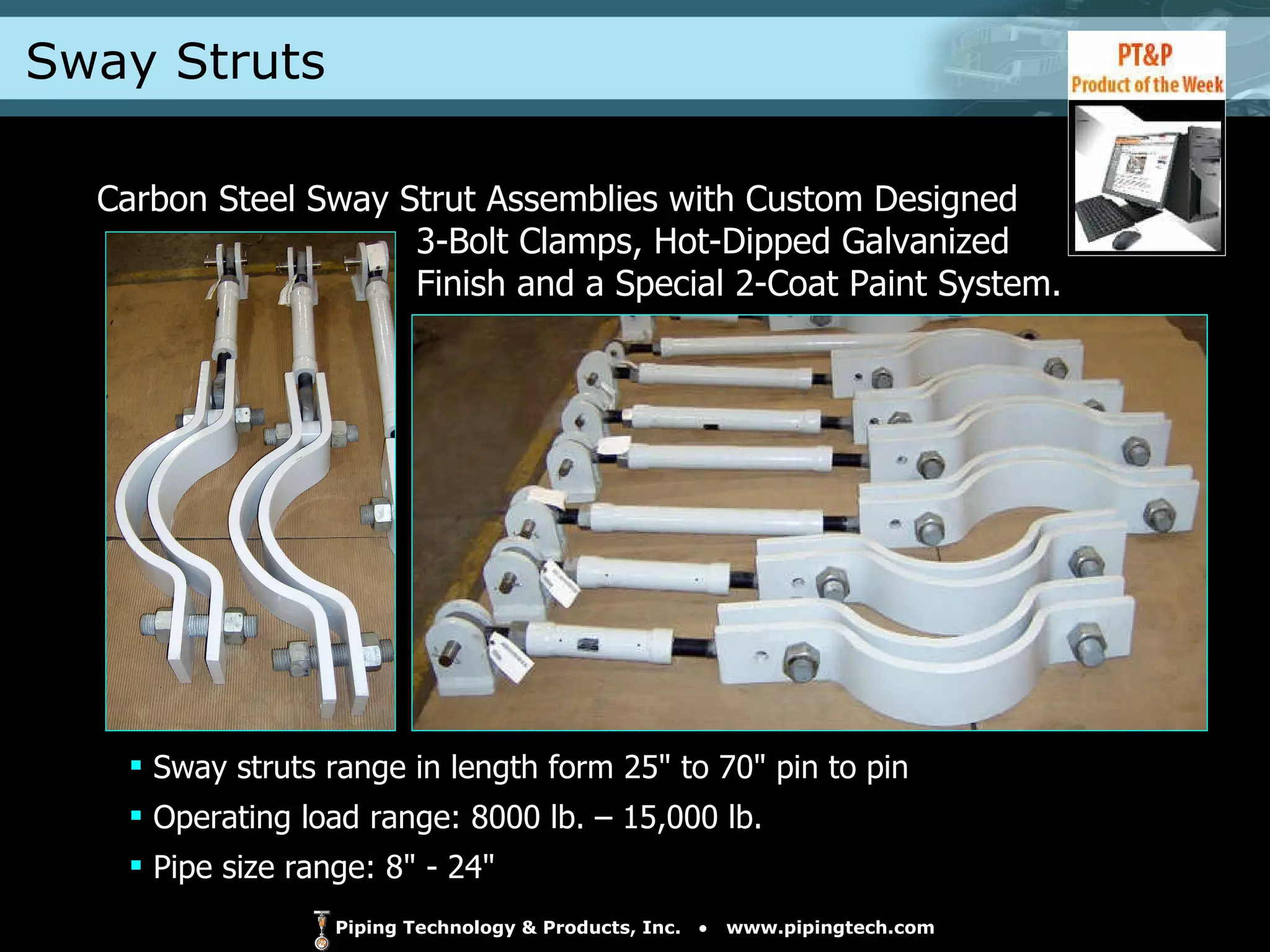

- 35. Sway Struts CarbonSteel Sway Strut Assemblies with Custom Designed 3-Bolt Clamps, Hot-Dipped Galvanized Finish and a Special 2-Coat Paint System. Sway struts range in length form 25" to 70" pin to pin Operating load range: 8000 lb. – 15,000 lb. Pipe size range: 8" - 24"

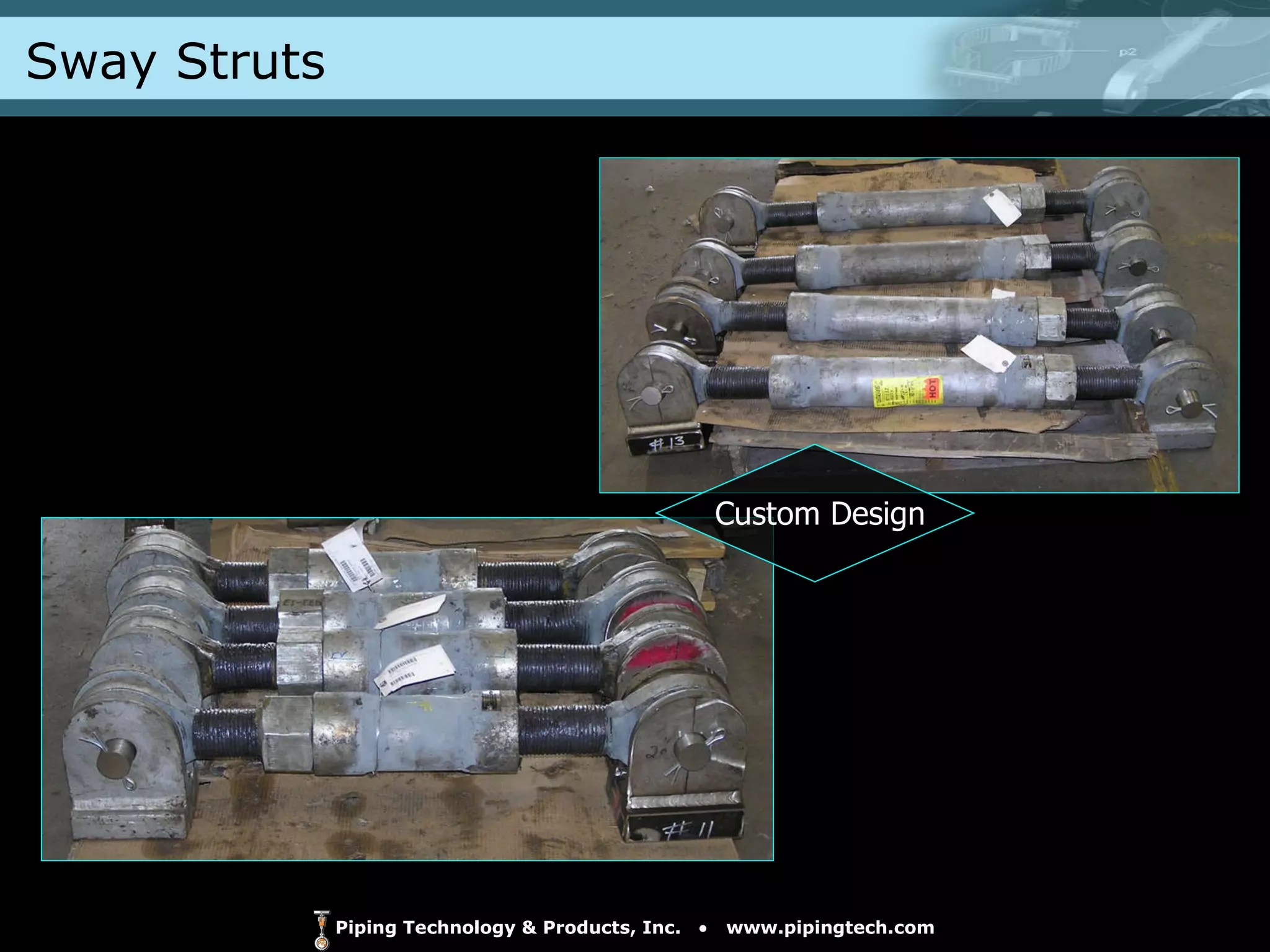

- 36. Sway Struts CustomDesign

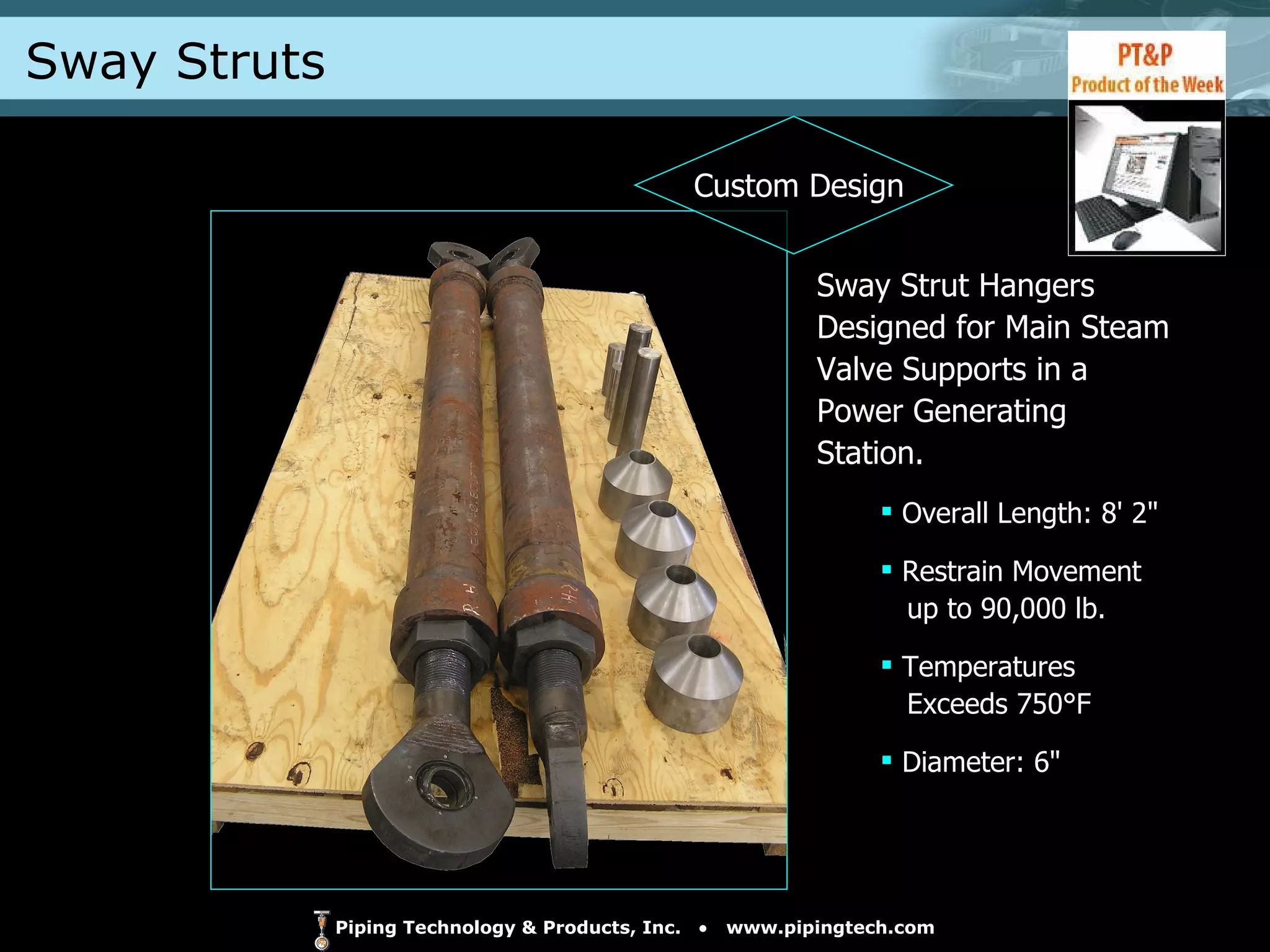

- 37. Sway Strut HangersDesigned for Main Steam Valve Supports in a Power Generating Station. Overall Length: 8' 2" Restrain Movement up to 90,000 lb. Temperatures Exceeds 750°F Diameter: 6" Sway Struts Custom Design
- 38. Sway Struts Ball-JointSway Strut Assemblies Designed for an Ammonia Plant. Overall Length: 96" Load: 20,000 lb. Custom Design

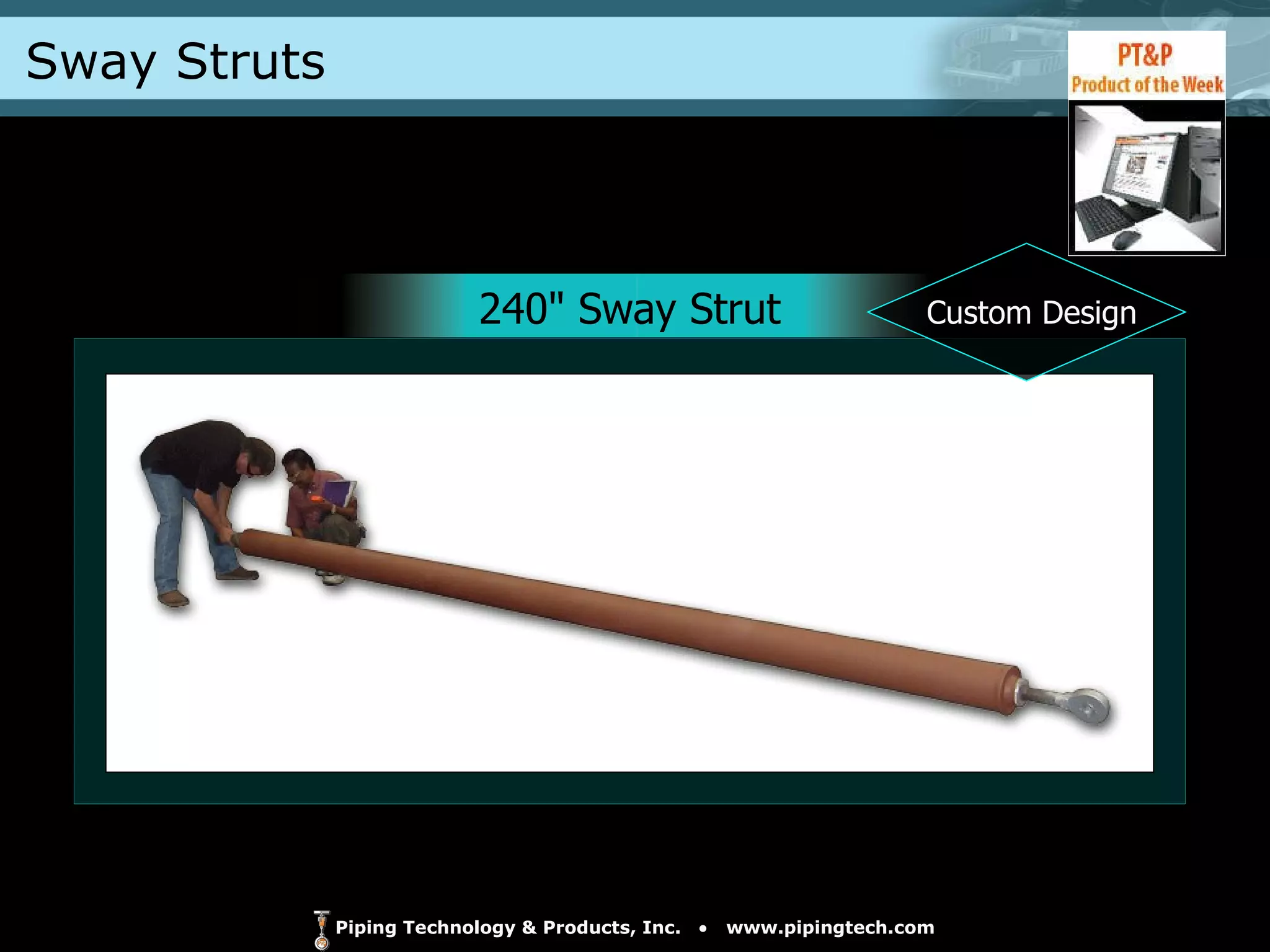

- 39. Sway Struts 240"Sway Strut Custom Design

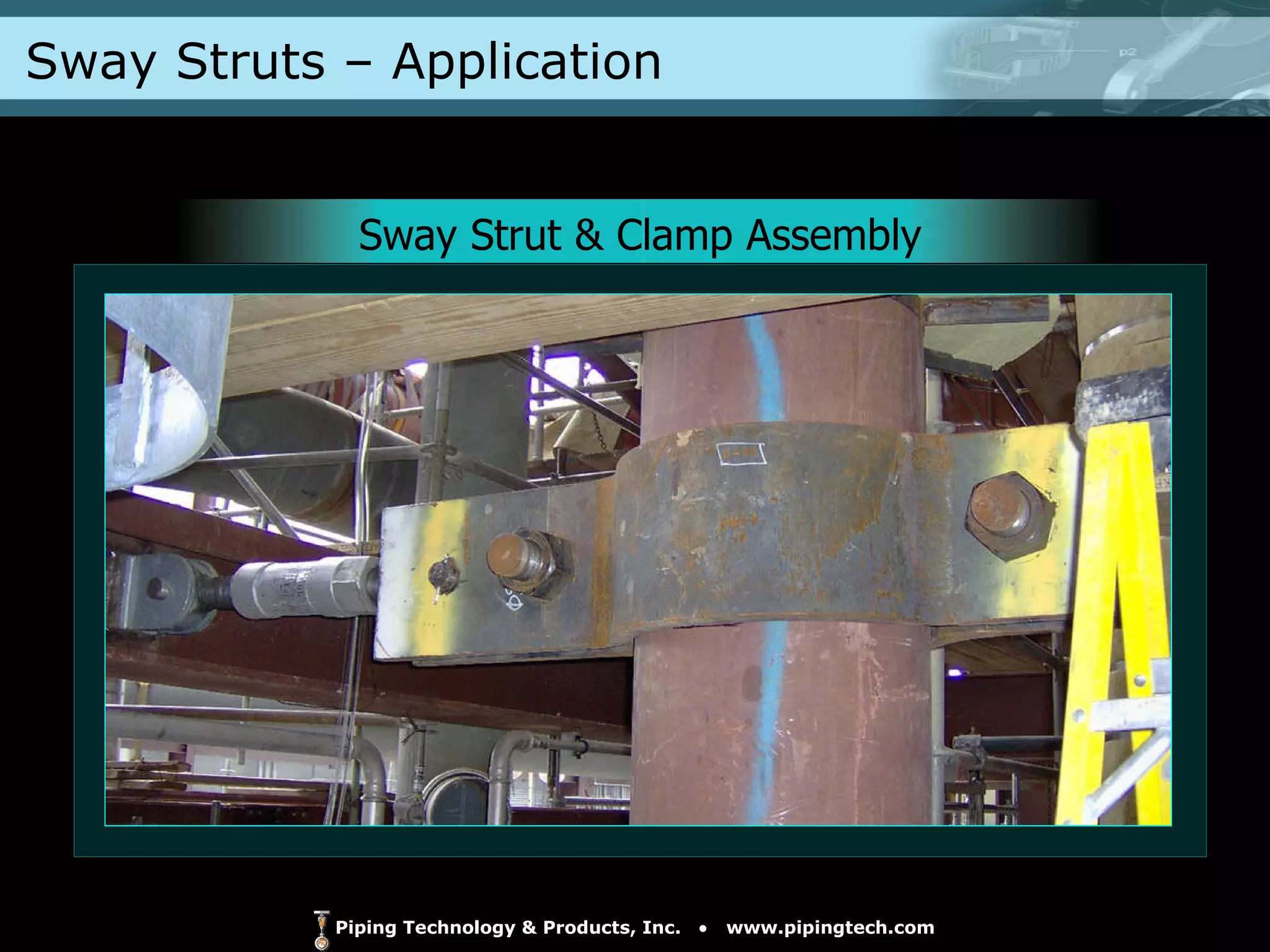

- 40. Sway Struts –Application Sway Strut & Clamp Assembly

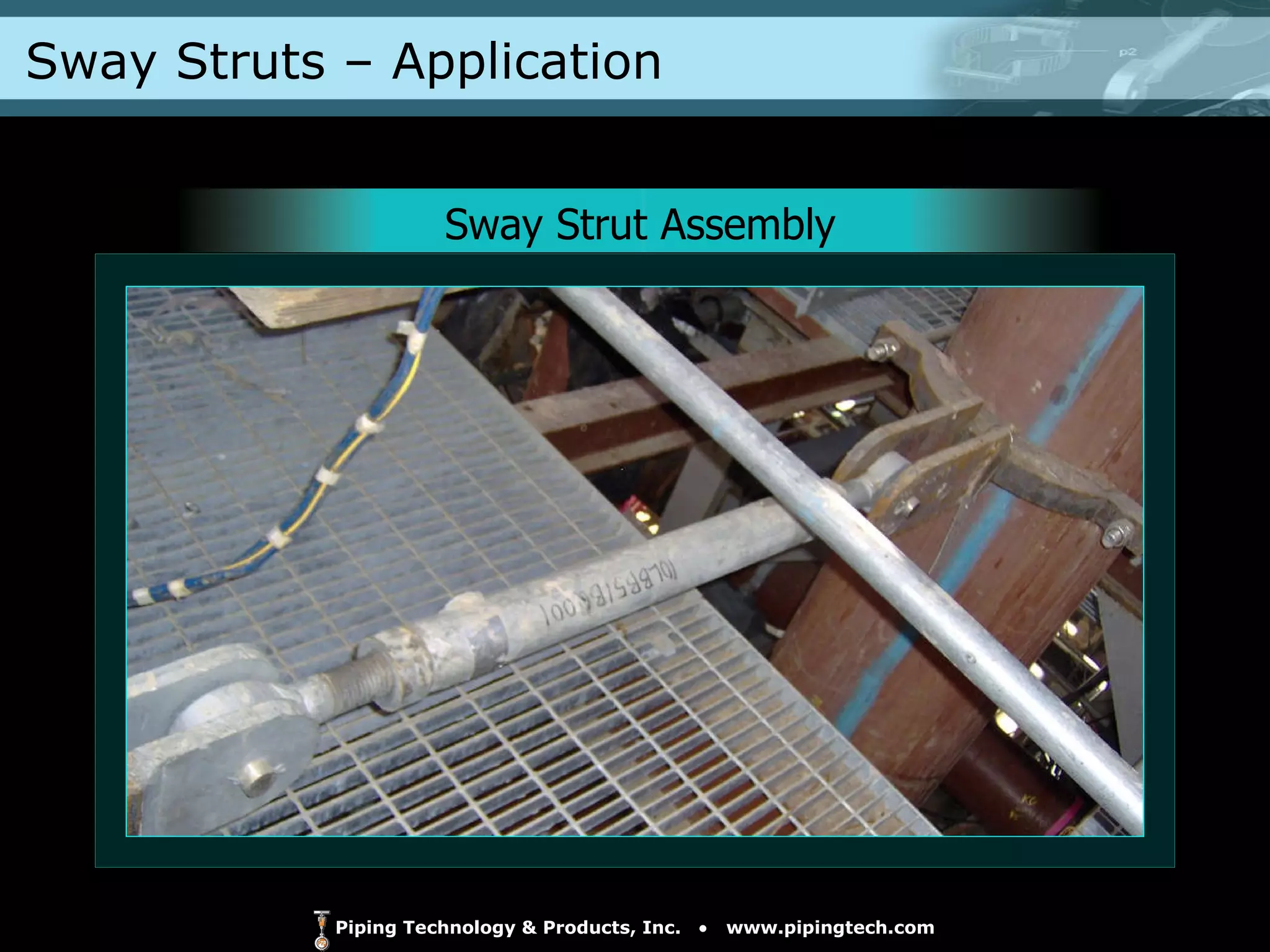

- 41. Sway Struts –Application Sway Strut Assembly
- 42. Cold Shoe TestingConstant Testing Marinite Slide Plate Testing Spring Load Testing Anchor Shoe Testing Services – Product Testing

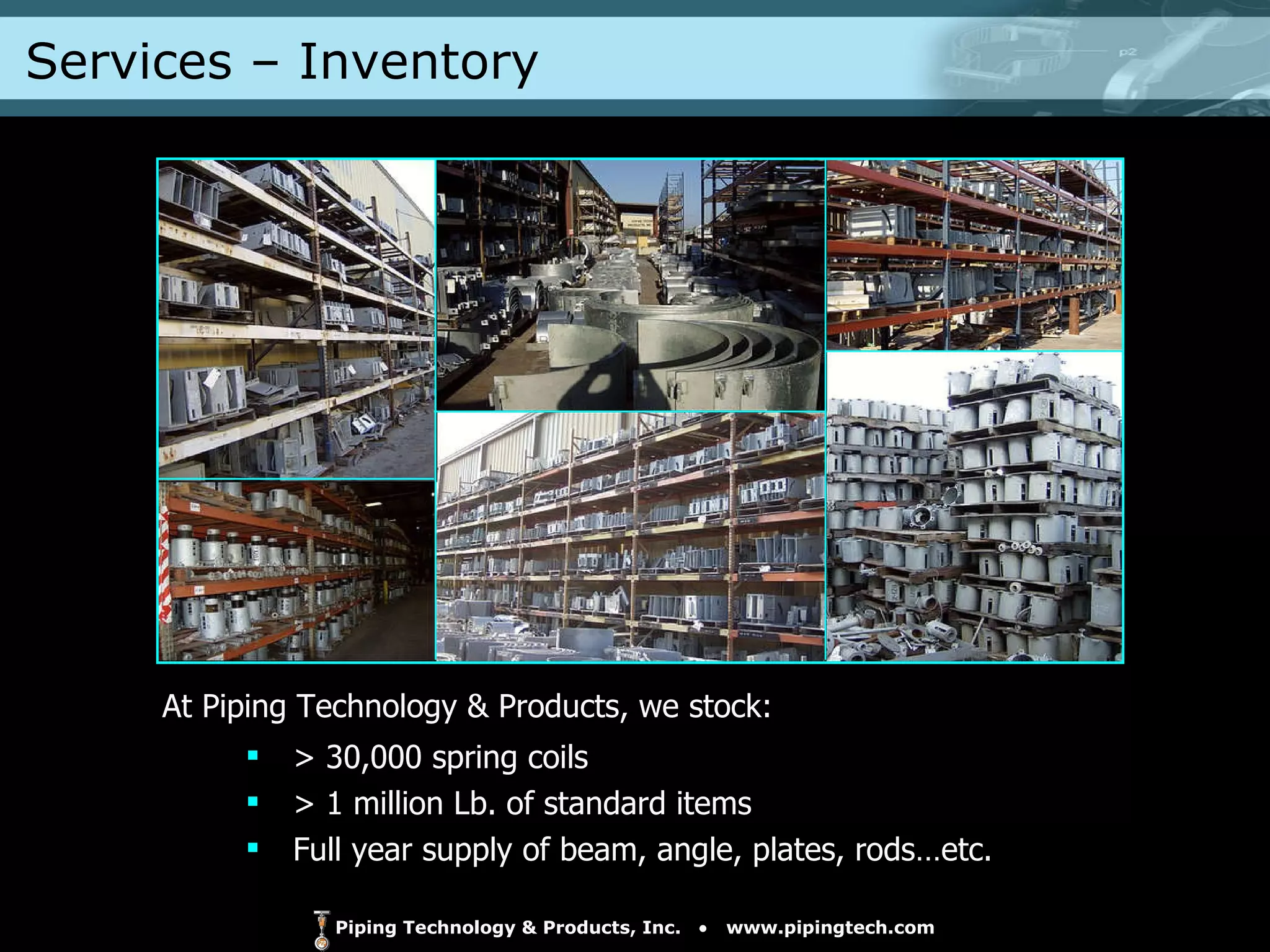

- 43. > 30,000 springcoils > 1 million Lb. of standard items Full year supply of beam, angle, plates, rods…etc. At Piping Technology & Products, we stock: Services – Inventory

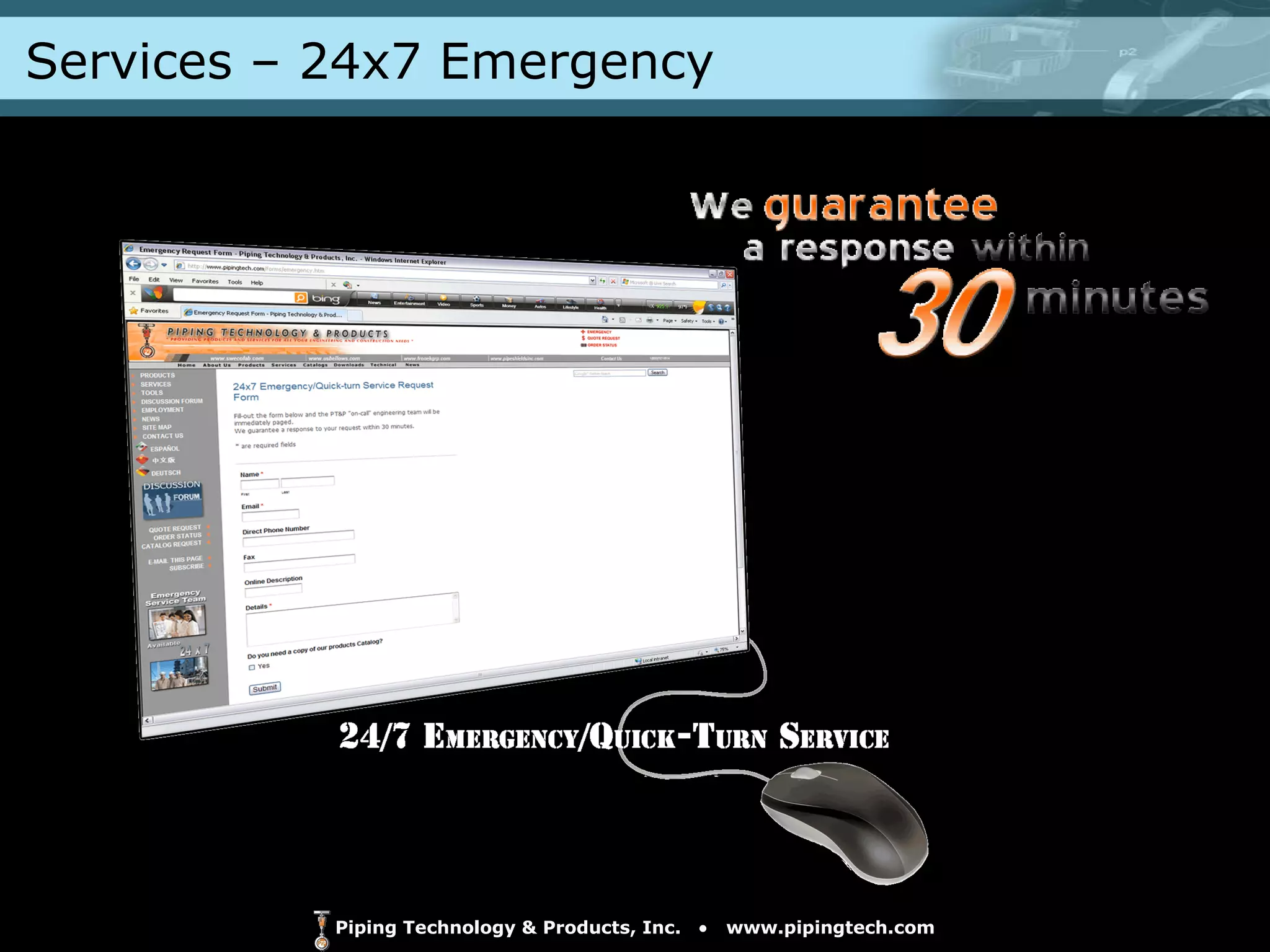

- 44. Services – 24x7Emergency
- 45. Shock Control, Restraintand Support Devices Webinar Please send any additional questions or inquiries to [email_address] We invite you to visit our Discussion Forum at www.pipingtech.com Thank You For Attending
